Article

New Antimalarial and Antimicrobial Tryptamine Derivatives from the Marine Sponge Fascaplysinopsis reticulata

1
Laboratoire de Chimie des Substances Naturelles et des Sciences des Aliments, Faculté des Sciences et Technologies, Université de La Réunion, 15 Avenue René Cassin, CS 92003, 97744 Saint-Denis CEDEX 9, La Réunion, France
2
Institut de Chimie des Substances Naturelles, CNRS UPR 2301, Univ. Paris-Sud, Université Paris-Saclay, 1, av. de la Terrasse, 91198 Gif-sur-Yvette, France
3
Laboratoire des Sciences de l’Environnement MARin (LEMAR), Université de Brest, CNRS, IRD, Ifremer, LEMAR, F-29280 Plouzane, France
4
Laboratory of Pharmacognosy, Center for Interdisciplinary Research on Medicines, CIRM, University of Liège B36, 4000 Liège, Belgium
5
Naturalis Biodiversity Center, Darwinweg 2, 2333 CR Leiden, The Netherlands
*
Author to whom correspondence should be addressed.
Mar. Drugs 2019, 17(3), 167; https://doi.org/10.3390/md17030167
Submission received: 22 February 2019 / Revised: 6 March 2019 / Accepted: 12 March 2019 / Published: 15 March 2019
(This article belongs to the Collection TASCMAR)

Abstract

:
Chemical study of the CH2Cl2-MeOH (1:1) extract of the sponge Fascaplysinopsis reticulata collected in Mayotte highlighted three new tryptophan derived alkaloids, 6,6′-bis-(debromo)-gelliusine F (1), 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3), along with the synthetically known 8-oxo-tryptamine (4) and the three known molecules from the same family, tryptamine (5), (E)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (7). Their structures were elucidated by 1D and 2D NMR spectra and HRESIMS data. All compounds were evaluated for their antimicrobial and their antiplasmodial activities. Regarding antimicrobial activities, the best compounds are (2) and (3), with minimum inhibitory concentration (MIC) of 0.01 and 1 µg/mL, respectively, towards Vibrio natrigens, and (5), with MIC values of 1 µg/mL towards Vibrio carchariae. In addition the known 8-oxo-tryptamine (4) and the mixture of the (E)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (7) showed moderate antiplasmodial activity against Plasmodium falciparum with IC50 values of 8.8 and 8.0 µg/mL, respectively.

Graphical Abstract

1. Introduction

Tryptophan-derived alkaloids are well-established bioactive metabolites and have been isolated from various marine organisms: sponges, scleratinian corals, one sea anemone and one nudibranch [1]. Species of the sponge genus Fascaplysinopsis have yielded several bioactive tryptophan alkaloids reported to exhibit cytotoxic activity against several cancer cell lines [2,3], antimicrobial [2], antiviral [4] and antimalarial [5] activities.
In our continuing search for bioactive metabolites from marine invertebrates, the sponge Fascaplysinopsis reticulata (Hentschel, 1912) from the Dictyoceratida order was investigated. Previous studies on Fascaplysinopsis reticulata collected from the Benga Lagoon of the Fiji Islands by Jiménez et al. [6], and then from Indonesia (Molucca Sea) and from the Fiji Islands by Segraves et al. [7], led to the isolation of 23 alkaloids from the fascaplysin family. More recent study on Fascaplysinopsis reticulata collected from Xisha Island (China) by Wang et al. led to the isolation of a pair of bisheterocyclic quinolineimidazole alkaloids, (+)- and (−)-spiroreticulatine [8]. All of the isolated 25 molecules are tryptophane-derived alkaloids.
Our chemical investigation of the extract of Fascaplysinopsis reticulata collected in Mayotte (Indian Ocean), led to the isolation of three new members of the tryptophan family, 6,6′-bis-(débromo)-gelliusine F (1), 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3), along with the known derivatives 8-oxo-tryptamine (4), tryptamine (5), (E)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (7). The 8-oxo-tryptamine (4) was known as synthetic compound [9], but was isolated here from a natural source. We report herein the purification and structure elucidation by spectral data including HRESIMS, 2D NMR and comparison with published data. The biological evaluations of the latter new compounds are described as well.

2. Results and Discussion

2.1. Chemistry

The CH2Cl2-MeOH extract of the lyophilized sponge Fascaplysinopsis reticulata was first subjected to a reverse-phase silica gel column chromatography to yield fractions. The fractions were subjected to repetitive reverse-phase semi-preparative and analytical HPLC to yield eight compounds (17) (Figure 1). Three were new: one 6,6′-bis-(debromo)-gelliusine F (1) and two aplysinopsin derivatives 2 and 3, described below. In addition to the new compounds, four other known members were identified as 8-oxo-tryptamine (4), tryptamine (5) and a mixture of (E)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (7) by comparison with published spectroscopic data.
6,6′-bis-(debromo)-gelliusine F (1) was obtained as a brown oil. The molecular formula, C20H23N4, was established from HRESIMS molecular ion peak at m/z 319.2013 [M + H]+. Analysis of the 1D and 2D 1H, and 13C NMR data for 1 (CD3OD, Table 1) revealed resonances and correlations (Figure 2) consistent with those of a bis-tryptamine structure linked by the carbons C-2 and C-8′, like gelliusine F [10,11]. Analysis of the HSQC correlations and the comparison with latter compounds pointed the fragment C-8, C-9, C-9′ (δH 3.23, 3.00, 3.83–3.69; δC 23.7, 41.4, 44.3), one aliphatic methine C-8′ (δH 5.10; δC 34.3), nine aromatic methines C-4, C-5, C-6, C-7, C-2′, C-4′, C-5′, C-6′, C-7′ (δH 7.54, 7.38, 7.12, 7.06, 7.27, 7.58, 7.41, 7.14, 7.06; δC 118.9, 112.6, 123.1, 120.7, 124.0, 119.3, 112.9, 123.3, 120.6) and seven nonprotonated aromatic carbons C-2, C-3, C-3a, C-7a, C-3′, C-3a’, C-7a’ (δC 124.0, 113.8, 127.5, 135.3, 113.7, 129.2, 138.0). Compound 1 was different from gelliusine F by the presence of the two aromatic methines C-6 and C-6′ instead of two nonprotonated aromatic carbons substituted by bromine. Analysis of the COSY correlations revealed the presence of the spin systems C-4−C-5−C-6−C-7 and C-4′−C-5′−C-6′−C-7′ and confirmed this difference. These COSY correlations, in addition to the HMBC correlations between H-4 and C-7a, between H-5 and C-3a, between H-6 and C-7a, between H-2′, C-3′, C-3a’ and C-7a’, between H-4′ and C-7a’, between H-5′ and C-3a’, between H-6′ and C-7a’ and between H-7′ and C-3a’, confirmed the presence of two indole cores, the first one substituted in C-2 and C-3 and the second one substituted in C-3′. The COSY correlation between H-8 and H-9 and the HMBC correlation between H-9 and C-3 and between H-8, C-2, C-3 and C-3a indicated the substitution of the first indole core by an ethylamine chain in C-3. The COSY correlation between H-8′ and H-9′ and the HMBC correlations between H-9′ and C-3′ and between H-8′, C-2′, C-3′ and C-3a’ indicated the substitution of the second indole core by an ethylamine chain in C-3′. The two tryptamine patterns were linked between C-2 and C-8′ like gelliusine F. Compound 1 was named 6,6′-bis-(debromo)-gelliusine F according to gelliusine F, reported in 1995 [11].
6-bromo-8,1′-dihydro-isoplysin A (2) was obtained as a yellow oil. Its molecular formula, C14H16BrN4O (9 degree of unsaturation), was established from HRESIMS pseudo-molecular ion peak at m/z 337.0483 (see Supplementary Materials) indicating the presence of one bromine atom in the molecule. Analysis of the 1D and 2D 1H, and 13C NMR data for 2 (CD3OD, Table 2) revealed resonances and correlations (Figure 2) consistent with those of a 1′,8-dihydroaplysinopsin structure: the HSQC correlations revealed the presence of one methylene C-8 (δH 3.35; δC 28.1), one aliphatic methine C-1′ (δH 4.62; δC 61.8), four aromatic methines C-2, C-4, C-5, C-7 (δH 7.11, 7.51, 7.14, 7.50; δC 126.4, 121.1, 123.3, 115.5), four nonprotonated aromatic carbons C-3, C-3a, C-6, C-7a (δC 109.0, 127.6, 116.6, 138.1), one guanidine-like carbon C-3′ (δC 159.2) and one amide carbonyl C-5′ (δC 174.9). The structure of the indole core was determined by the analysis of COSY correlations between H-4 and H-5, the 4J coupling constant between H-5 and H-7 (J = 1.8 Hz) and HMBC correlations between H-2, C-3, C-3a, and C-7a, between H-4, C-6 and C-7a and between H-5, C-3a and C-7. The HMBC correlation between H-2 and C-8 indicated the substitution of the non-protonated carbon C-3 by the methylene C-8. The COSY correlation between H-8 and H-1′ indicated link between the heterocycle core and C-8. The structure of the heterocycle core was determined by the HMBC correlations between H-1′ and C-5′, between CH3-6′ and C-3′ and between CH3-7′, C-3′ and C-5′.
5,6-dibromo-8,1′-dihydro-isoplysin A (3) was obtained as a yellow oil. Its molecular formula C14H15Br2N4O (9 degrees of unsaturation), was established from HRESIMS pseudo-molecular ion peak at m/z 414.9630 (see Supplementary Materials) indicating the presence of two bromine atom in the molecule. Analysis of the 1H and 13C NMR data for 3 and comparison with the 1H and 13C NMR data for 2 (CD3OD, Table 3) revealed a 1′,8-dihydroaplysinopsin structure close to the above-described 6-bromo-8,1′-dihydro-isoplysin A (2), where one hydrogen was replaced by a bromine atom. The spectra showed two N-methyles C-6′, C-7′ (δH 2.86, 2.94; δC 25.4, 28.9), one methylene C-8 (δH 3.73; δC 28.2), one aliphatic methine C-1′ (δH 4.60; δC 61.4), three aromatic methines C-2, C-4, C-7 (δH 7.16, 7.96, 7.69; δC 126.6, 123.6, 117.4), five nonprotonated aromatic carbons C-3, C-3a, C-5, C-6, C-7a (δC 109.0, 129.8, 116.9, 115.9, 137.5), one guanidine-like carbon C-3′ (δC 157.9) and one amide carbonyl C-5′ (δC 175.8). 5,6-dibromo-8,1′-dihydro-isoplysin A (3) differed from 6-bromo-8,1′-dihydro-isoplysin A (2) by the presence of one more aromatic nonprotonated aromatic carbon and one less aromatic methine. The chemical shifts and the multiplicity of C-4 and C-7 also differed between compound 3 (two singlets) and compound 2 (two doublets). For compound 3, the multiplicity of C-4 and C-7 indicated that H-4 was para to H-7. These spectroscopic features, as well as the molecular formula, supported that the position of the proton H-5 of 2 was substituted by a bromine in compound 3.

2.2. Microfouling Activity

The capacity of compounds to interfere with microfouling was assessed by screening the pure compounds against five bacterial strains that are involved in the initial formation of the fouling biofilm: Shewanella putrefaciens, Roseobacter litoralis, Vibrio carchariae, Vibrio natrigens and Vibrio proteolyticus. The effects on both adhesion and growth (A and G) were studied, and the results expressed as the minimal inhibitory concentration (MIC) are summarized in Table 4. The two new 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3) showed promising antifouling activity against Vibrio natrigens, with MIC values of 0.01 and 1.00 µg/mL, respectively, towards growth inhibition. Vibrio natrigens is a major component of biofilms due to its fast generation doubling time, its biofilm producing ability and steel corrosion behavior. Thus, it has considerable negative economic impacts on man-made immersed surfaces [12,13].
The activity of these compounds was lower towards inhibition of adhesion (respectively 100 and >100 µg/mL for (2) and (3)). Based on MICs values and mode of action, 6-bromo-8,1′-dihydro-isoplysin A (2) is the most potent compound as it has the ability to reduce growth when used at very low concentration and can also affect adhesion at higher doses. Regarding the known compound, tryptamine (5) showed promising antimicrobial activity against Vibrio carchariae with MIC value of 1 µg/mL. This result is of high interest, as Vibrio carchariae is responsible for mass mortalities of fish [14] and invertebrates [15]. Thus, Vibrio carchariae is considered to be a major nuisance for the aquaculture sector [16], and new ways to stop its development are sought after.

2.3. Antiplasmodial Activity

All the isolated compounds were also tested against the protozoan parasite Plasmodium falciparum (3D7 strain). The 8-oxo-tryptamine (4) and the mixture of the known (E) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6, 7) exhibited antiplasmodial activity against Plasmodium falciparum with IC50 values of 8.8 and 8.0 µg/mL respectively while 6,6′-bis-(debromo)-gelliusine F (1), 6-bromo-8,1′-dihydro-isoplysin A (2), 5,6-dibromo-8,1′-dihydro-isoplysin A (3) and tryptamine (5) did not show significant antimalarial activity. Hu et al. [17] have already reported the antiplasmodial activity of (E) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6, 7) together with the activity of two other aplysinopsins, isoplysin A and 6-bromoaplysinopsin isolated from the sponge Smenospongia aurea. Bialonska et Zjawiony [1] also reported, for 27 aplysinopsins, their biological activities, among which the antiplasmodial activity seems to be dependent on the skeleton: all the aplysinopsins that presented antiplasmodial activity had a double bond between C-8 and C-1′. The lack of antiplasmodial activity for compounds (2) and (3) confirms this study. These activities are moderate compared to control drugs, but these simple molecular scaffolds could be investigated for further pharmacomodulations in order to improve final bioactivity.

3. Materials and Methods

3.1. General Experiment Procedures

Optical rotations were measured on a MCP 300 polarimeter (Anton Paar, Les Ulis, France) at 25 °C (MeOH, c in g/100 mL). 1H and 13C NMR data were acquired with a Brucker UltraShield Avance-300 and 600 MHz spectrometers (CNRS-ICSN, Brucker, Wissembourg, France). Chemical shifts were referenced using the corresponding solvent signals (δH 3.31 and δC 49.00 for CD3OD). The spectra were processed using TopSpin software (TopSpin 3.5, Brucker, Wissembourg, France). HRESIMS spectra were recorded using a Waters Acquity BEH C18, 1.7 μm, 50 × 2.1 mm column on a Waters Micromass LCT-Premier TOF mass spectrometer (Waters, Guyancourt, France) with a Waters Acquity UPLC system.
The sponge was lyophilized with Cosmos −80 °C CRYOTEC and extracted with Dionex ASE 300. Reversed phase column chromatography separations were carried out on glass column (150 × 10 mm i.d.) packed with Acros Organics C18-RP, 23%C, silica gel (40−63 μm). Precoated TLC sheets of silica gel 60, Alugram SIL G/UV254 were used, and spots were visualized on the basis of the UV absorbance at 254 nm and by heating silica gel plates sprayed with formaldehyde−sulfuric acid or Dragendorff reagents. Analytical HPLC was carried out using a Waters Sunfire C18 (150 × 4.6 mm i.d., 5 μm) column and was performed on an Agilent 1100 series system controller equipped with a photodiode array detector (Serie Agilent 1100 G1315B, Agilent Technologies, Wilmington, Germany) and a mass spectrometer detector (Serie Agilent 1100 G1956A, Agilent Technologies, Wilmington, Germany) with Chemstation software (Version B.04.03. Agilent Technologies, Wilmington, Germany). Preparative HPLC was carried out using a Waters Sunfire Prep RP18 (150 × 19 mm i.d., 5 μm) column and was performed on a Waters 600 system controller equipped with a photodiode array detector (Waters 2996, Waters, Guyancourt, France). Semi-preparative HPLC was carried out using Waters Sunfire Prep RP18 (250 × 10 mm i.d., 5 μm) column and was performed on a Waters 600 system controller (Waters, Guyancourt, France) equipped with photodiode array detectors (Waters 2996 and Waters 486). All solvents were analytical or HPLC grade and were used without further purification.

3.2. Animal Material

The sponge Fascaplysinopsis reticulata (phylum Porifera, class Demospongiae, order Dictyoceratida, family Thorectidae) was collected in May 2013 in Passe Bateau, Mayotte (12°58,653′ S, 44°58,949′ E at 15–17 m depth). One voucher specimen (RMNH POR 8466) was deposited in Naturalis, the Netherlands Centre for Biodiversity. Sponge samples were frozen immediately and kept at −20 °C until processed.

3.3. Extraction and Isolation

The frozen sponge (28 g, dry weight) was chopped into small pieces and extracted by ASE first with Water (×1) and then with MeOH/CH2Cl2 (1:1, v:v) (×2). After evaporating the solvents under reduced pressure, a brown, oily residue (2.91 g) was obtained. The extract (2.90 g) was then subjected to fractionation by C-18 SPE, eluted with a combination of Water, MeOH and CH2Cl2 of decreasing polarity and twelve fractions were obtained (F1–F12).
Fraction F3 (543 mg). Separation of only 100 mg of this fraction was performed by preparative HPLC (Waters Sunfire Prep C18 Column, 5 µm, 150 × 19 mm i.d., 18 mL min−1 gradient elution with 2% ACN-H2O (+0.1% formic acid) over 5 min, then 10% ACN-H2O (+0.1% formic acid) to 100% ACN over 30 min; UV 280 nm) to furnish pure compound 1 (6,6′-bis-(debromo)-gelliusine F, 0.6 mg).
Fraction F4 (355.4 mg). Only 200 mg was subjected to preparative HPLC (Waters Sunfire Prep C18 Column, 5 µm, 150 × 19 mm i.d., 18 mL min−1 gradient elution with 2% ACN-H2O (+0.1% formic acid) over 5 min, then 2% ACN-H2O (+0.1% formic acid) to 100% ACN (+0.1% formic acid) over 35 min; UV 280 nm) to give pure compounds 2 (6-bromo-8,1′-dihydro-isoplysin A, 4 mg), 3 (5,6-dibromo-8,1′-dihydro-isoplysin A, 4 mg) and 5 (tryptamine, 4.0 mg).
Fraction F5 (99.1 mg) was subjected to preparative HPLC (Waters Sunfire Prep C18 Column, 5 µm, 150 × 19 mm i.d., 18 mL min−1 gradient elution with 2% ACN-H2O (+0.1% formic acid) over 5 min, then 2% ACN-H2O (+0.1% formic acid) to 100% ACN (+0.1% formic acid) over 45 min; UV 280 nm) to give pure compound 1 (6,6′-bis-(debromo)-gelliusine F, 1.5 mg), 4 (8-oxo-tryptamine, 0.7 mg) and 5 (tryptamine, 3.0 mg).
Fraction F6 (51.1 mg) was subjected to semi-preparative HPLC (Waters Sunfire Prep RP18 Column, 5 μm, 250 × 10 mm i.d., 4.5 mL min−1 gradient elution with 2% ACN-H2O (+0.1% formic acid) over 5 min, then 2% ACN-H2O (+0.1% formic acid) to 100% ACN (+0.1% formic acid) over 35 min; UV 280 nm) to give pure compounds 2 (6-bromo-8,1′-dihydro-isoplysin A, 1.2 mg), 4 (8-oxo-tryptamine, 0.4 mg) and 5 (tryptamine, 0.6 mg).
Fraction F7 (266.8 mg) was subjected to semi-preparative HPLC (Waters Sunfire Prep RP18 Column, 5 μm, 250 × 10 mm i.d., 4.5 mL min−1 gradient elution with 2% ACN-H2O (+0.1% formic acid) over 5 min, then 2% ACN-H2O (+0.1% formic acid) to 100% ACN (+0.1% formic acid) over 35 min; UV 280 nm) to give pure compounds 5 (tryptamine, 0.4 mg) and the mixture of 6 and 7 ((E) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin, 10 mg).
6,6′-bis-(debromo)-gelliusine F (1): brown oil, 1H and 13C NMR, see Table 2; HRESIMS m/z 319.2015 [M + H]+ (calcd for C20H23N4, 319.1923).
6-bromo-8,1′-dihydro-isoplysin A (2): yellow oil, α D 20 0.0 (c 0.5, MeOH); 1H and 13C NMR, see Table 2; HRESIMS m/z 337.0483 [M + H]+ (calcd for C14H16N4O81Br, 337.0487).
5,6-dibromo-8,1′-dihydro-isoplysin A (3): yellow oil, α D 20 0.0 (c 0.5, MeOH); 1H and 13C NMR, see Table 3; HRESIMS m/z 414.9630 [M + H]+ (calcd for C14H15N4O79Br81Br, 414.9592).

3.4. In Vitro Antiplasmodial Assays

Activity against Plasmodium falciparum chloroquine-sensitive 3D7 strains was assessed following the procedure already described in Frédérich et al. [18]. The parasites were obtained from MR4-BEI Resources (Manassas, VA, US). Each compound, fraction and extract was applied in a series of eight 2-fold dilutions (final concentrations ranging from 0.8 to 100 μg/mL for an extract and from 0.08 to 10 μg/mL for a pure substance) on two rows of a 96-well microplate and were tested in triplicate (n = 3). Parasite growth was estimated by determination of lactate dehydrogenase activity as described previously [19]. Artemisinin (98%, Sigma-Aldrich, Saint-Louis, MO, USA) was used as positive control with IC50 of 0.006 ± 0.002 µg/mL.

3.5. In Vitro Antimicrobial Assays

All compounds were tested against five marine bacterial strains commonly found on biofilms, Roseobacter litoralis (ATCC 495666), Shewanella putrefaciens (ATCC 8071), Vibrio carchariae (ATCC 35084), Vibrio natrigens (ATCC 14048) and Vibrio proteolyticus (ATCC 15338). Bacterial adhesion and growth rates were determined according to the methods of Thabard et al. [20], Messina et al. [21] and Trepos et al. [22]. Bacterial suspensions (100 μ aliquots, 2 × 108 colony forming units/mL) were aseptically added to the microplate wells containing compound (0.01–10 μg/mL), and the plates were incubated for 48 h at 26 °C prior to assessment of bioactivity. Media only (Marine Broth 2216, Difco) was used as a blank. Bacterial growth was monitored spectroscopically at 630 nm. The minimal inhibitory concentration (MIC) for bacterial growth was defined as the lowest concentration which results in a decrease in OD, compared to the blank. The microplates were then emptied, and the bacterial adhesion assay was performed using aqueous crystal staining method [22]. The MIC for bacterial adhesion was defined as the lowest concentration of compound that, after 48-h incubation, produced a decrease of the OD at 595 nm compared to the blank.

4. Conclusions

In conclusion, three new tryptophan derived alkaloids, 6,6′-bis-(debromo)-gelliusine F (1), 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3), were isolated from Fascaplysinopsis reticulata together with four known alkaloids from the same family, 8-oxo-tryptamine (4), tryptamine (5), (E)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (7). 6,6′-bis-(debromo)-gelliusine F (1) was a new alkaloid with a bis-tryptamine structure and 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3) were two new alkaloids with 1′,8-dihydroaplysinopsin structure. The 8-oxo-tryptamine (4) and the mixture of the known (E) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsin (6, 7) exhibited antiplasmodial activity against Plasmodium falciparum with IC50 values of 8.8 and 8.0 µg/mL respectively while 6,6′-bis-(debromo)-gelliusine F (1), 6-bromo-8,1′-dihydro-isoplysin A (2), 5,6-dibromo-8,1′-dihydro-isoplysin A (3) and tryptamine (5) did not show significant antimalarial activity. The two new 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3) showed promising antifouling activity against V. natrigens and trpyptamine (5) showed promising antifouling activity against V. carchariae. Further isolation, structure elucidation, and structure-activity relationship studies of this type of alkaloids are required for the development of new drugs.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/17/3/167/s1, Figure S1: HRMS spectrum for 6,6′-bis-(debromo)-gelliusine F (1), Figure S2: 1H NMR (300 MHz, MeOD) spectrum for 6,6′-bis-(debromo)-gelliusine F (1), Figure S3: 13C NMR (300 MHz, MeOD) spectrum for 6,6′-bis-(debromo)-gelliusine F (1), Figure S4: 1H-1H COSY NMR (300 MHz, MeOD) spectrum for 6,6′-bis-(debromo)-gelliusine F (1), Figure S5: HSQC NMR (300 MHz, MeOD) spectrum for 6,6′-bis-(debromo)-gelliusine F (1), Figure S6: 1H-13C HMBC NMR (300 MHz, MeOD) spectrum for 6,6′-bis-(debromo)-gelliusine F (1), Figure S7: HRMS spectrum for 6-bromo-8,1′-dihydro-isoplysin A (2), Figure S8: 1H NMR (300 MHz, MeOD) spectrum for 6-bromo-8,1′-dihydro-isoplysin A (2), Figure S9: 13C NMR (300 MHz, MeOD) spectrum for 6-bromo-8,1′-dihydro-isoplysin A (2), Figure S10: 1H-1H COSY NMR (300 MHz, MeOD) spectrum for 6-bromo-8,1′-dihydro-isoplysin A (2), Figure S11: HSQC NMR (300 MHz, MeOD) spectrum for 6-bromo-8,1′-dihydro-isoplysin A (2), Figure S12: 1H-13C HMBC NMR (300 MHz, MeOD) spectrum for 6-bromo-8,1′-dihydro-isoplysin A (2), Figure S13: HRMS spectrum for 5,6-dibromo-8,1′-dihydro-isoplysin A (3), Figure S14: 1H NMR (600 MHz, MeOD) spectrum for 5,6-dibromo-8,1′-dihydro-isoplysin A (3), Figure S15: 13C NMR (600 MHz, MeOD) spectrum for 5,6-dibromo-8,1′-dihydro-isoplysin A (3), Figure S16: 1H NMR (600 MHz, MeOD) spectrum for 8-oxo-tryptamine (4), Figure S17: 13C NMR (600 MHz, MeOD) spectrum for 8-oxo-tryptamine (4), Figure S18: 1H NMR (300 MHz, MeOD) spectrum for tryptamine (5), Figure S19: 13C NMR (300 MHz, MeOD) spectrum for tryptamine (5), Figure S20: 1H NMR (500 MHz, DMSO) spectrum for (E)-6-bromo-2′-demethyl-3′-N-methylaplysinopsine (6) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsine (7), Figure S21: 13C NMR (500 MHz, MeOD) spectrum for (E)-6-bromo-2′-demethyl-3′-N-methylaplysinopsine (6) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsine (7).

Author Contributions

A.G.-B. and A.A.-M. designed the project, supervised the whole experiment and prepared the manuscript. E.P., C.M., P.C. and P.-E.C. did the chemical experimental part (extraction, isolation and structural identification of the compounds). P.-E.C. wrote the first draft of the manuscript. The biological assays were designed and performed by R.T. and C.H. for antimicrobial activities, by M.F. for antiplasmodial activity. A.G.-B. organized the sponge collection and the sponge was identified by N.D.V.

Funding

This project was supported by the Regional Council of Reunion Island and the ANR 2011-EBIM-006-01 (ERA-NET Netbiome project POMARE). This publication was also made possible by TASCMAR project which is funded by the European Union under grant agreement number 634674.

Acknowledgments

The authors express their gratitude to Prof. M. E. Remanevy for his assistance in sponge collection and C. Debitus, director of research, the coordinator of the project POMARE, for her excellent project management.

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Bialonska, D.; Zjawiony, J.K. Aplysinopsins—Marine Indole Alkaloids: Chemistry, Bioactivity and Ecological Significance. Mar. Drugs 2009, 7, 166–183. [Google Scholar] [CrossRef] [PubMed]
  2. Roll, D.M.; Ireland, C.M.; Lu, H.S.M.; Clardy, J. Fascaplysin, an unusual antimicrobial pigment from the marine sponge Fascaplysinopsis sp. J. Org. Chem. 1988, 53, 3276–3278. [Google Scholar] [CrossRef]
  3. Segraves, N.L.; Robinson, S.J.; Garcia, D.; Said, S.A.; Fu, X.; Schmitz, F.J.; Pietraszkiewicz, H.; Valeriote, F.A.; Crews, P. Comparison of Fascaplysin and Related Alkaloids: A Study of Structures, Cytotoxicities, and Sources. J. Nat. Prod. 2004, 67, 783–792. [Google Scholar] [CrossRef]
  4. Jimenez, C.; Quinoa, E.; Adamczeski, M.; Hunter, L.M.; Crews, P. Novel sponge-derived amino acids. 12. Tryptophan-derived pigments and accompanying sesterterpenes from Fascaplysinopsis reticulata. J. Org. Chem. 1991, 56, 3403–3410. [Google Scholar] [CrossRef]
  5. Kirsch, G.; König, G.M.; Wright, A.D.; Kaminsky, R. A New Bioactive Sesterterpene and Antiplasmodial Alkaloids from the Marine Sponge Hyrtios cf. erecta. J. Nat. Prod. 2000, 63, 825–829. [Google Scholar] [CrossRef] [PubMed]
  6. Jiménez, C.; Quiñoá, E.; Crews, P. Novel marine sponge alkaloids 3. β-carbolinium salts from Fascaplysinopsis reticulata. Tetrahedron Lett. 1991, 32, 1843–1846. [Google Scholar] [CrossRef]
  7. Segraves, N.L.; Lopez, S.; Johnson, T.A.; Said, S.A.; Fu, X.; Schmitz, F.J.; Pietraszkiewicz, H.; Valeriote, F.A.; Crews, P. Structures and cytotoxicities of fascaplysin and related alkaloids from two marine phyla—Fascaplysinopsis sponges and Didemnum tunicates. Tetrahedron Lett. 2003, 44, 3471–3475. [Google Scholar] [CrossRef]
  8. Wang, Q.; Tang, X.; Luo, X.; de Voogd, N.J.; Li, P.; Li, G. (+)- and (−)-Spiroreticulatine, A Pair of Unusual Spiro Bisheterocyclic Quinoline-imidazole Alkaloids from the South China Sea Sponge Fascaplysinopsis reticulata. Org. Lett. 2015, 17, 3458–3461. [Google Scholar] [CrossRef]
  9. Bodendorf, K.; Walk, A. Darstellung und Reduktion von Indolyl-(3)-aminomethyl-ketonen. Arch. Pharm. 1961, 294, 484–487. [Google Scholar] [CrossRef]
  10. Seetham Naidu, P.; Bhuyan, P.J. Synthesis of some analogues of (±)gelliusine F, (±)gelliusine E, and total synthesis of 2,2-di(6′-bromo-3′-indolyl)ethylamine. Tetrahedron Lett. 2012, 53, 426–428. [Google Scholar] [CrossRef]
  11. Bifulco, G.; Bruno, I.; Riccio, R.; Lavayre, J.; Bourdy, G. Further Brominated Bis- and Tris-Indole Alkaloids from the Deep-Water New Caledonian Marine Sponge Orina sp. J. Nat. Prod. 1995, 58, 1254–1260. [Google Scholar] [CrossRef]
  12. Benbouzid-Rollet, N.D.; Conte, M.; Guezennec, J.; Prieur, D. Monitoring of a Vibrio natriegens and Desulfovibrio vulgaris marine aerobic biofilm on a stainless steel surface in a laboratory tubular flow system. J. Appl. Bacteriol. 1991, 71, 244–251. [Google Scholar] [CrossRef]
  13. Cheng, G.; Li, G.; Xue, H.; Chen, S.; Bryers, J.D.; Jiang, S. Zwitterionic carboxybetaine polymer surfaces and their resistance to long-term biofilm formation. Biomaterials 2009, 30, 5234–5240. [Google Scholar] [CrossRef] [Green Version]
  14. Lee, K.K.; Liu, P.C.; Chuang, W.H. Pathogenesis of gastroenteritis caused by Vibrio carchariae in cultured marine fish. Mar. Biotechnol. 2002, 4, 267–277. [Google Scholar] [CrossRef]
  15. Nicolas, J.L.; Basuyaux, O.; Mazurie, J.; Thebault, A. Vibrio carchariae, a pathogen of the abalone Haliotis tuberculata. Dis. Aquat. Org. 2002, 50, 35–43. [Google Scholar] [CrossRef]
  16. Vandenberghe, J.; Thompson, F.L.; Gomez-Gil, B.; Swings, J. Phenotypic diversity amongst Vibrio isolates from marine aquaculture systems. Aquaculture 2003, 219, 9–20. [Google Scholar] [CrossRef]
  17. Hu, J.-F.; Schetz, J.A.; Kelly, M.; Peng, J.-N.; Ang, K.K.H.; Flotow, H.; Leong, C.Y.; Ng, S.B.; Buss, A.D.; Wilkins, S.P.; et al. New Antiinfective and Human 5-HT2 Receptor Binding Natural and Semisynthetic Compounds from the Jamaican Sponge Smenospongia aurea. J. Nat. Prod. 2002, 65, 476–480. [Google Scholar] [CrossRef]
  18. Frédérich, M.; Jacquier, M.J.; Thepenier, P.; De Mol, P.; Tits, M.; Philippe, G.; Delaude, C.; Angenot, L.; Zeches-Hanrot, M.J. Antiplasmodial activity of alkaloids from various Strychnos species. J. Nat. Prod. 2002, 65, 1381–1386. [Google Scholar] [CrossRef]
  19. Jonville, M.C.; Dive, G.; Angenot, L.; Bero, J.; Tits, M.; Ollivier, E.; Frédérich, M. Dimeric bisindole alkaloids from the stem bark of Strychnos nux-vomica L. Phytochemistry 2013, 87, 156–163. [Google Scholar] [CrossRef]
  20. Thabard, M.; Gros, O.; Hellio, C.; Maréchal, J.P. Sargassum polyceratium (Phaeophyceae, Fucaceae) surface molecule activity towards fouling organisms and embryonic development of benthic species. Bot. Mar. 2011, 54, 147–157. [Google Scholar] [CrossRef]
  21. Messina, C.M.; Renda, G.; Laudicella, V.A.; Trepos, R.; Fauchon, M.; Hellio, C.; Santulli, A. From Ecology to Biotechnology, Study of the Defense Strategies of Algae and Halophytes (from Trapani Saltworks, NW Sicily) with a Focus on Antioxidants and Antimicrobial Properties. Int. J. Mol. Sci. 2019, 20, 881. [Google Scholar] [CrossRef] [PubMed]
  22. Trepos, R.; Cervin, G.; Pile, C.; Pavia, H.; Hellio, C.; Svenson, J. Evaluation of cationic micropeptides derived from the innate immune system as inhibitors of marine biofouling. Biofouling 2015, 31, 393–403. [Google Scholar] [CrossRef] [PubMed]

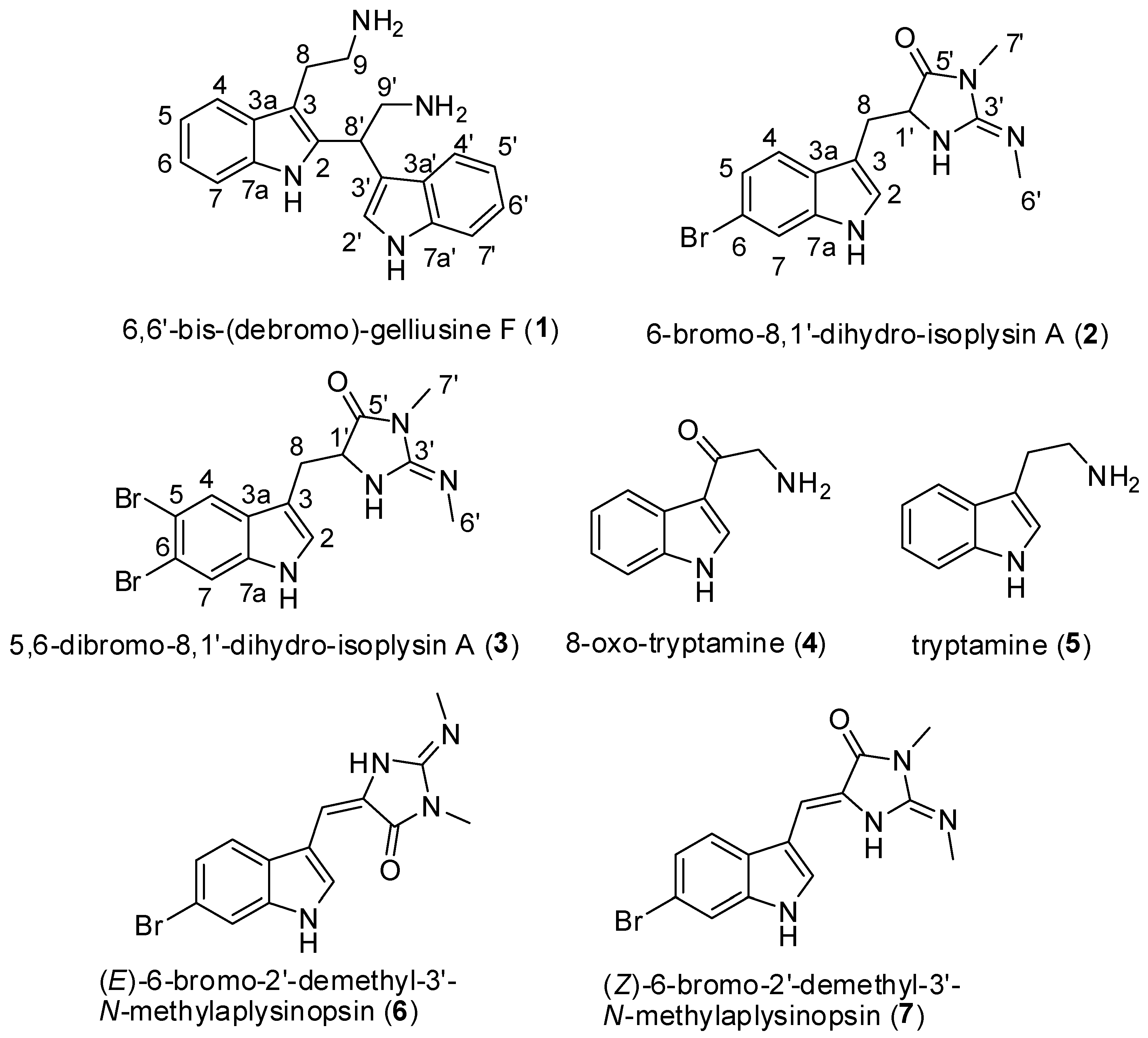

Figure 1. Chemical structures of compounds 17.
Figure 1. Chemical structures of compounds 17.
Marinedrugs 17 00167 g001

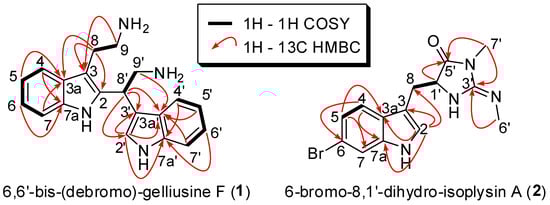

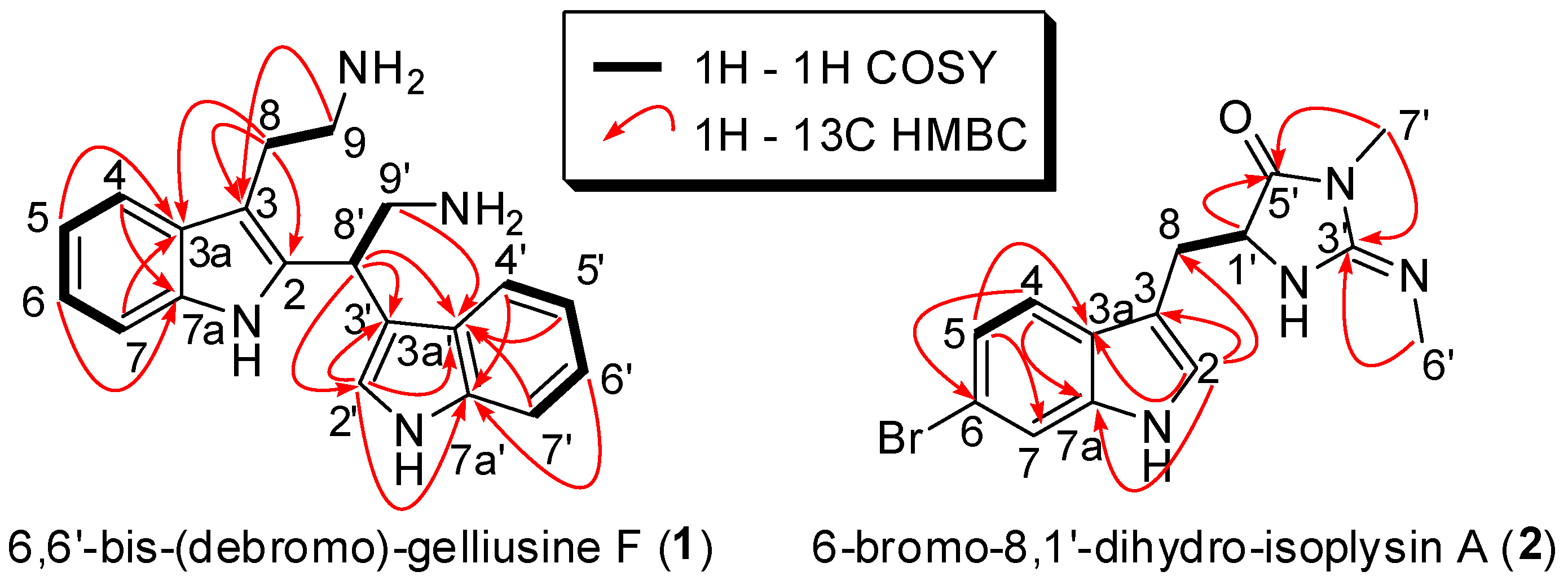

Figure 2. Key COSY and HMBC correlations for compounds 1 and 2.
Figure 2. Key COSY and HMBC correlations for compounds 1 and 2.
Marinedrugs 17 00167 g002
Table 1. 1D and 2D NMR spectroscopic data (1H, 13C 300 MHz, CD3OD) for 6,6′-bis-(debromo)-gelliusine F (1).
Table 1. 1D and 2D NMR spectroscopic data (1H, 13C 300 MHz, CD3OD) for 6,6′-bis-(debromo)-gelliusine F (1).
PositionδC, TypeδH (J in Hz)COSY (1H-1H)HMBC (1H-13C)
2124.0, C---
3113.8, C---
3a127.5, C---
4118.9, CH7.54, d (7.8)56, 7a
5112.6, CH7.38, m4, 63a, 7
6123.1, CH7.12, m5, 74, 7a
7120.7, CH7.06, m63a, 5
7a135.3, C---
823.7, CH23.23, m92, 3, 3a, 9
941.4, CH23.00, m83, 8
2′124.0, CH7.27, s-3′, 3a’, 7a’
3′113.7, C---
3a’129.2, C---
4′119.3, CH7.58, d (7.8)5′6′, 7a’
5′112.9, CH7.41, m4′, 6′3a’, 7′
6′123.3, CH7.14, m5′, 7′4′, 7a’
7′120.6, CH7.06, m6′3a’, 5′
7a’138.0, C---
8′34.3, CH5.10, t (8.6)9′2′, 3′, 3a’, 9′
9′44.3, CH23.83–3.69 (m)8′3′, 8′
Table 2. 1D and 2D NMR spectroscopic data (1H, 13C 300 MHz, CD3OD) for 6-bromo-8,1′-dihydro-isoplysin A (2).
Table 2. 1D and 2D NMR spectroscopic data (1H, 13C 300 MHz, CD3OD) for 6-bromo-8,1′-dihydro-isoplysin A (2).
PositionδC, TypeδH (J in Hz)COSY (1H-1H)HMBC (1H-13C)
2126.4, CH7.11, s-3, 3a, 7a, 8
3109.0, C---
3a127.6, C---
4121.1, CH7.51, d (8.6)56, 7a
5123.3, CH7.14, dd (8.6, 1.8)43a, 7
6116.6, C---
7115.5, CH7.50, d (1.8)-3a, 5
7a138.1, C---
828.1, CH23.35, m1′-
1′61.8, CH4.62, t (4.9)85′, 8
3′159.2, C---
5′174.9, C---
6′25.9, CH32.90, s-3′
7′29.3, CH32.86, s-’3′, 5′
Table 3. Comparison of 1D NMR Spectroscopic Data (1H, 13C 300 MHz, CD3OD for (2) and 1H 500 MHz, 13C 600 MHz, CD3OD for (3)) between 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3).
Table 3. Comparison of 1D NMR Spectroscopic Data (1H, 13C 300 MHz, CD3OD for (2) and 1H 500 MHz, 13C 600 MHz, CD3OD for (3)) between 6-bromo-8,1′-dihydro-isoplysin A (2) and 5,6-dibromo-8,1′-dihydro-isoplysin A (3).
PositionδH (J in Hz)δC, Type
6-Bromo-8,1′-dihydro-isoplysin A (2)5,6-Dibromo-8,1′-dihydro-isoplysin A (3)6-Bromo-8,1′-dihydro-isoplysin A (2)5,6-Dibromo-8,1′-dihydro-isoplysin A (3)
27.11, s7.16, s126.4, CH126.6, CH
3--109.0, C109.0, C
3a--127.6, C129.8, C
47.51, d (8.6)7.96, s121.1, CH123.6, CH
57.14, dd (8.6, 1.8)-123.3, CH116.9, C
6--116.6, C115.9, C
77.50, d (1.8)7.69, s115.5, CH117.4, CH
7a--138.1, C137.5, C
83.35, m3.73, m28.1, CH228.2, CH2
1′4.62, t (4.9)4.60, t (5.3)61.8, CH61.4, CH
3′--159.2, C157.9, C
5′--174.9, C175.8, C
6′2.90, s2.86, s25.9, CH325.4, CH3
7′2.86, s2.94, s29.3, CH328.9, CH3
Table 4. Antimicrobial activities in vitro for pure isolated natural products.
Table 4. Antimicrobial activities in vitro for pure isolated natural products.
CompoundsShewanellia putrefaciens
MIC, µg/mL
Roseobacter littoralis
MIC, µg/mL
Vibrio carchariae
MIC, µg/mL
Vibrio natrigens
MIC, µg/mL
Vibrio proteolyticus
MIC, µg/mL
AGAGAGAGAG
6,6′-bis-(debromo)-gelliusine F (1)----------
6-bromo-8,1′-dihydro-isoplysin A (2)-100--100-1000.01--
5,6-dibromo-8,1′-dihydro-isoplysin A (3)-------1--
8-oxo-tryptamine (4)----------
tryptamine (5)-----1----
(E) and (Z)-6-bromo-2′-demethyl-3′-N-methylaplysinopsine (6 + 7)----------
A: Adhesion inhibition; G: Growth inhibition.
