Abstract

:

While investigating the cytotoxic activity of the methanol extract of an Australian marine sponge Stelletta sp. (Demospongiae), a new diketopiperazine, cyclo-(4-S-hydroxy-R-proline-R-isoleucine) (1), was isolated together with the known bengamides; A (2), F (3), N (4), Y (5), and bengazoles; Z (6), C₄ (7) and C₆ (8). The isolation and structure elucidation of the diketopiperazine (1), together with the activity of 1–8 against a panel of human and mammalian cell lines are discussed.

Keywords:

Stelletta; diketopiperazine (DKP); cyclo-(4-S-hydroxy-R-proline-R-isoleucine); bengamide; bengazole; anti-cancer activity

1. Introduction

Since the first reported isolation of a diketopiperazine (DKP) from the sponge Dysidea herbacea [1], there have been several reports describing the isolation of this class of compound from other marine sponges [2–4]. DKPs are also reported from marine microbial sources [5–8], including the proteobacteria Alcaligenes faecalis, isolated from the sponge Stelletta tenuis [9]. The metabolites reported in these investigations are mostly the products of 4-hydroxy-proline [2,5,6,8] or proline [7] reacting with phenylalanine [2,5], arginine [4], leucine [5–7], isoleucine [7], norvaline [3] or alanine [8].

Sponges from the genus Stelletta are known to produce a number of other bioactive classes of compounds, including but not limited to steroids [10], alkaloids [11,12], isomalabaricane triterpenes [13], acetylenic acids [14] and lysophosphatidylcholines [15]. Initial interest in the methanol (MeOH) extract of the sponge Stelletta sp. was motivated by to its potent activity in the NCI 60 cell line screen and a unique COMPARE analysis profile (average GI₅₀ 0.5 μg/mL) [16]. This profile was different to that of the standard chemotherapeutic agents paclitaxel, cisplatin, gemcitadine, bryostatin 1, didemnin B, tamoxifen and vinblastine (data provided by NCI). Subsequent bioassay-guided investigations of this extract led to the isolation of a new DKP cyclo-(4-S-hydroxy-R-proline- R-isoleucine) (1), the previously reported bengamides; A (2) [17], F (3) [18], N (4) [19], Y (5) [20], and the previously reported bengazoles; Z (6) [20], C₄ (7) [21] and C₆ (8) [21]. Described in this publication is the isolation and structure elucidation of 1, together with the activity of compounds 1–8.

2. Results and Discussion

The DKP cyclo-(4-S-hydroxy-R-proline-R-isoleucine) 1 was isolated and the molecular formula C₁₁H₁₈N₂O₃, corresponding to four double-bond equivalents, was determined by (+)-ESI-FTMS accurate mass measurement. The ¹³C NMR data of 1 contained resonances consistent with the presence of two amide carbonyl groups (δ_C 170.5 (C-7), 165.4 (C-1)) as the only multiple bonds within the molecule, and a hydroxy methine (δ_C 66.8 (C-4); δ_H 4.28, 1H, dd, J = 4.6, 4.6 Hz) (Table 1). These functionalities accounted for all of the oxygen and nitrogen atoms and all of the multiple bonds in 1, indicating the molecule to be bicyclic. Analysis of the COSY NMR data of 1 showed an extended ¹H–¹H spin system from H-9 to H₃-12 via H-10 and H-11, as well as a vicinal COSY NMR correlation from H-10 to H₃-13. Observed gHMBC NMR correlations from δ_H 7.97 to the ¹³C NMR resonances at δ_C 59.1 (C-9), δ_C 56.7 (C-6), δ_C 34.8 (C-10) and C-1 positioned this hydrogen at N-8. Further gHMBC NMR correlations from δ_H 4.00 (H-9) to δ_C 23.9 (C-11) and δ_C 14.9 (C-13), as well as to C-1 and C-10, clearly positioned H-9 adjacent to the C-1 carbonyl and N-8, giving rise to an isoleucine moiety (1A). Additional gHMBC NMR correlations from 8-NH and H-9 to C-7 revealed it was attached to N-8. A further contiguous ¹H–¹H spin system from H-6 to H₂-3, in addition to gHMBC NMR correlations from the 8-NH and H_b-3 to C-6, and from H_b-3 to C-1 established the remaining nitrogen (N-2) to be attached to C-1, C-6 and C-3, giving rise to the two rings within 1. The planar structure of 1 is as shown (Scheme 1).

The configuration at C-4, C-6 and C-9 of 1 was established through analysis of ¹H–¹H coupling constants, optical rotation measurement, molecular minimisations and comparison with literature compounds [3,6,7]. The magnitude of the coupling constants associated with H-6 (dd, J = 11.0, 6.1 Hz) and the observed COSY NMR correlations between H-6 and H_a/b-5 established it to have a pseudo-axial orientation, similar to that of cyclo[l-(4-hydroxyprolinyl)-l-leucine)] (H-6, dd, J = 11.1, 6.1 Hz) [6]. An apparent zero coupling between H-4 (J = 4.6, 4.6 Hz) and H_b-3 or H_a-5 as evident by lack of observed COSY NMR correlations, and observed couplings to H_a-3 (J = 12.5, 4.6 Hz) and H_b-5 (J = 12.9, 11.0, 4.6 Hz), was indicative of H-4 being orientated at approximately 90° to both H_b-3 and H_a-5. The observed weak COSY NMR correlation between 8-NH and H-9, and the broad singlet for H-9 (similar to that observed in cyclo-[S-proline-S-isoleucine)] [3]), revealed H-9 to be axial. Molecular modelling studies showed that the observed coupling constants were in agreement with either R,R (Figure 1) or S,S configuration at C-6/C-9 but definitely not R,S or S,R (Supplementary Data S6-S13 and Table S1). Based on optical rotation trends of DKPs from the literature [3,7], the overall positive [α]²¹_D = +12° indicated the absolute configuration at C-6 should be R, therefore supporting the R,R configuration. The magnitude of the optical rotation is also in agreement with other C-4 hydroxylated DKPs [5,7]. The molecular model shown in Figure 1, with calculated dihedral angles for H_a-5–C-5–C-6–H-6 (Φ = 41°), H_b-5–C-5–C-6–H-6 (Φ = 163°), H-4–C-4–C-5–H_a-5 (Φ = 79°), H-4–C-4–C-5–H_b-5 (Φ = −42°), H_a-3–C-3–C-4–H-4 (Φ = 29°), H_b-3–C-3–C-4–H-4 (Φ = −93°) and 8-NH–N-8–C-9–H-9 (Φ = 91°), best explained the observed COSY NMR correlations, ¹H–¹H coupling constants and the positive sign of [α]²¹_D confirmed the absolute configuration at C-3, C-6 and C-8 to be as shown. It is likely that this DKP was produced by an enzymatically controlled condensation reaction between d-isoleucine and 4-S-hydroxy-d-proline (Scheme 1) [22].

The cytotoxicity of 1–8 was investigated against the human tumour cell lines H460, SF-268, MCF-7, HT-29 and a normal mammalian cell line CHO-K1. The DKP 1 exhibited minimal activity towards MCF-7, H460 and HT-29 cells and no activity towards SF-268 or CHO-K1 cells at the highest dose (Table 2). In contrast, the GI₅₀ values (μM) for bengamides A (2), F (3), N (4), Y(5), and bengazoles Z (6), C₄ (7) and C₆ (8) were comparable to those reported in previous studies [19,20], and accounted for the activity observed in the original MeOH extract.

3. Experimental

3.1. General Experimental Procedures

General experimental details have been described previously [29].

3.2. Animal Material

This specimen of the sponge Stelletta sp., (Family Ancorinidae) was collected from the west side of Jamieson Reef, Bonaparte Archipelago, North West Western Australia, at depths ranging from 16 m to 20 m, in August 1991. A voucher specimen (Accession number QMG312281) has been lodged with the Queensland Museum.

3.3. Bioassay

Cellular bioassays were undertaken as previously described [19].

3.4. Extraction and Isolation

Freeze dried sponge material (125 g dry weight) was extracted sequentially with dichloromethane (CH₂Cl₂), MeOH and H₂O; activity was confined to the CH₂Cl₂ and MeOH fractions. The MeOH fraction was subjected to reversed phase C18 flash vacuum chromatography (RP-C18, 40%, 60%, 80%, 100% MeOH in H₂O, and 100% CH₂Cl₂) with activity located in the 40% and 100% MeOH fractions. The 100% MeOH fraction was further separated using RP HPLC (4 mL/min, gradient elution from 60% acetonitrile (CH₃CN):H₂O (+0.1% formic acid [HCO₂H]) to 100% CH₃CN (+0.1% HCO₂H) over 10 min, then isocratic 100% CH₃CN (+0.1% HCO₂H) for 15 min through a 150 mm × 10 mm 5 μ Phenomenex Luna C18 column), to give thirteen fractions. The first active fraction, fraction 1, was subjected to RP HPLC (4 mL/min, gradient elution from 20% CH₃CN:H₂O (+0.1% HCO₂H) to 100% CH₃CN (+0.1% HCO₂H) over 20 min through a 150 × 10 mm 5 μ Phenomenex Luna Phenyl-Hexyl column) to yield bengamide Y (5) (0.8 mg, 0.0006%). The additional active fractions 3 and 4 were both partitioned with n-hexane and MeOH (1:1) to yield bengamides N (4) (1.4 mg, 0.001%) and A (2) (3.3 mg 0.003%), respectively.

The 40% MeOH fraction was subjected to further RP-C18 (10%, 20%, 30%, 40%, 50% and 100% MeOH in H₂O) and the active fractions (30% and 40% MeOH) fractionated on RP HPLC (4 mL/min, gradient elution from 10% CH₃CN:H₂O (+0.1% HCO₂H) to 64% CH₃CN:H₂O (+0.1% HCO₂H) over 12 min, then isocratic 100% CH₃CN (+0.1% formic acid) for an additional 5 min through a 150 mm × 10 mm 5 μ Phenomenex Luna C18 column) to yield bengamide F (3, 2.1 mg, 0.002%), bengazoles Z (6, 5.0 mg, 0.004%), C₄ (7) (13.8 mg, 0.011%) and C₆ (8) (23.6 mg, 0.012%) and the new DKP cyclo-(4-S-hydroxy-R-proline-R-isoleucine) 1 (1.5 mg, 0.001%).

3.4.1. Cyclo-(4-S-hydroxy-R-proline-R-isoleucine) (1)

Isolated as a colourless oil. [α]²¹_D +12° (c 0.025, CHCl₃); IR (film) ν_max 3391, 1649 cm⁻¹; UV (PDA, CH₃CN/H₂O) λ_max 220 nm; ¹H (600 MHz, d₆-DMSO) and ¹³C (150 MHz, d₆-DMSO) NMR data see Table 1; ESI-FTMS [M + Na]⁺ 249.1203 (calcd. for C₁₁H₁₈N₂O₃Na 249.1215).

3.4.2. Bengamide A (2)

Isolated as a colourless oil. ¹H NMR and ¹³C NMR spectral data were consistent with published values [17].

3.4.3. Bengamide F (3)

Isolated as a colourless oil. ¹H NMR and ¹³C NMR spectral data were consistent with published values [18].

3.4.4. Bengamide N (4)

Isolated as a colourless oil. ¹H NMR and ¹³C NMR spectral data were consistent with published values [19].

3.4.5. Bengamide Y (5)

Isolated as a colourless oil. ¹H NMR and ¹³C NMR spectral data were consistent with published values [20].

3.4.6. Bengazole Z (6)

Isolated as a colourless oil. ¹H NMR and ¹³C NMR spectral data were consistent with published values [20].

3.4.7. Bengazole C₄ (7)

Isolated as a colourless oil. ¹H NMR and ¹³C NMR spectral data were consistent with published values [21].

3.4.8. Bengazole C₆ (8)

Isolated as a colourless oil. ¹H NMR and ¹³C NMR spectral data were consistent with published values [21].

4. Conclusion

The DKP cyclo-(4-S-hydroxy-R-proline-R-isoleucine) (1), together with the known bengamides; A (2), F (3), N (4), Y (5), and bengazoles; Z (6), C₄ (7) and C₆ (8), was isolated from the Australian marine sponge Stelletta sp. Interestingly, this is the first report of bengamides or bengazoles from the genus Stelletta, however, it should be noted that they have previously been reported from species of Dorypleres splendens [24], which has since been reclassified as Jaspis splendens, and from Jaspis sp. [24], both of which belong to the Ancorinidae family of sponges. The cyclo-(4-S-hydroxy-R-proline-R-isoleucine) (1) was not cytotoxic against the cell lines MCF-7, H460, HT-29, SF-268 or CHO-K1. The DKP class of compounds has recently gained interest in drug discovery [25] due to their chiral, rigid and functionalised structures. These features enable them to bind to a large variety of receptors with high affinity giving rise to a broad range of biological activities, including cytotoxicity, quorum sensing, antibacterial, antifungal, antiviral, antiprion, antitumor, and immunosuppressive functions, even plant-growth regulators [7,26–28]. Our report adds to the vast knowledge of these potentially therapeutic molecules.

Supplementary Material

marinedrugs-09-02469-s001.pdf

Acknowledgements

Collection of this sponge was made possible by the access and benefit sharing arrangements between AIMS and the Australian Commonwealth Government. The authors are grateful to those AIMS staff, both past and present, involved in the collection of the sponge. We thank A. Carroll, Eskitis Institute, Griffith University for facilitating measurement of optical rotations, and B. Bowden, Department of Pharmacy and Molecular Sciences, James Cook University for use of the Departments’ FTIR instrument. We also thank A-M. Babey, School of Veterinary and Biomedical Sciences, James Cook University for initial cytotoxicity screening data and for the SF268 cell line, and C. Hooi, R. Anderson and C. Cullinane, of the Peter MacCallum Cancer Centre, Melbourne, Australia, for the HT-29, H460, MCF-7 and CHO-K1 cell lines.

^†Dedication: We dedicate this paper to the memory of Dr. Peter Murphy (Townsville, Australia), a former AIMS colleague and dear friend, for his passionate contributions to the field of natural products chemistry and marine biodiversity, in particular recognising the need for access and benefit sharing arrangements between scientific organisations and local communities.
Samples Availability: Available from the authors.

References

Kazlauskas, R.; Murphy, P.T.; Wells, P.J. A diketopiperazine derived from trichloroleucine from the sponge Dysidea herbacea. Tetrahedron Lett 1978, 49, 4945–4948. [Google Scholar]
Adamczeski, M.; Quiñoà, E.; Crews, P. Novel sponge-derived amino acids. 5. Structures, stereochemistry, and synthesis of several new heterocycles. J. Am. Chem. Soc 1989, 111, 647–654. [Google Scholar]
Adamczeski, M.; Reed, A.R.; Crews, P. New and known diketopiperazines from the Caribbean sponge, Calyx cf. podatypa. J. Nat. Prod 1995, 58, 201–208. [Google Scholar]
Vergne, C.; Boury-Esnault, N.; Perez, T.; Martin, M.T.; Adeline, M.T.; Dau, E.T.H.; Al-Mourabit, A. Verpacamides A–D, a sequence of C11N5 diketopiperazines relating cyclo(Pro-Pro) to cyclo(Pro-Arg), from the marine sponge Axinella vaceleti: Possible biogenetic precursors of pyrrole-2-aminoimadazoles. Org. Lett 2006, 8, 2421–2424. [Google Scholar]
Shigemori, H.; Tenma, M.; Shimazaki, K.; Kobayashi, J. Three new metabolites from the marine yeast Aureobasidium pullulans. J. Nat. Prod 1998, 61, 696–698. [Google Scholar]
Cronan, J.M.; Davidson, T.R.; Singleton, F.L.; Colwell, R.R.; Cardellina, J.H. Plant growth promoters isolated from a marine bacterium associated with Palythoa sp. Nat. Prod. Lett 1998, 11, 271–278. [Google Scholar]
Fdhila, F.; Vazquez, V.; Sanchez, J.L.; Riguera, R. DD-diketopiperazines: Antibiotics active against Vibrio anguilarum isolated from marine bacteria associated with cultures of Pecten maximus. J. Nat. Prod 2003, 66, 1299–1301. [Google Scholar]
Mitova, M.; Popov, S.; de Rosa, S. Cyclic peptides from a Ruegeria strain of bacteria associated with the sponge Suberites domuncula. J. Nat. Prod 2004, 67, 1178–1181. [Google Scholar]
Li, Z.; Peng, C.; Shen, Y.; Miao, X.; Zhang, H.; Lin, H. l,l-Diketopiperazines from Alcaligenes faecalis A72 associated with South China Sea sponge Stelletta tenuis. Biochem. Syst. Ecol 2008, 36, 230–234. [Google Scholar]
Sheikh, Y.M.; Djerassi, C. Steroids from sponges. Tetrahedron 1974, 30, 4095–4103. [Google Scholar]
Hirota, H.; Matsunaga, S.; Fusetani, N. Stellettamide A, an antifungal alkaloid from a marine sponge of the genus Stelletta. Tetrahedron Lett 1990, 31, 4163–4164. [Google Scholar]
Fusetani, N.; Asai, N.; Matsunaga, S.; Honda, K.; Yasumuro, K. Cyclostelletamines A–F pyridine alkaloids inhibit binding of methyl quinuclidinyl benzilate (QNB) muscarinic acetylcholine receptors from sponge Stelletta maxima. Tetrahedron Lett 1994, 35, 3967–3970. [Google Scholar]
Oku, N.; Matsunaga, S.; Wada, S.; Watabe, S.; Fusetani, N. New isomalabaricane triterpenes from the marine sponge Stelletta globostellata that induce morphological changes in rat fibroblasts. J. Nat. Prod 2000, 63, 205–209. [Google Scholar]
Zhao, Q.; Lee, S.; Hong, J.; Lee, C.; Im, K.S.; Sim, C.J.; Lee, D.S.; Jung, J.H. New acetylenic acids from the marine sponge Stelletta species. J. Nat. Prod 2003, 66, 408–411. [Google Scholar]
Zhao, Q.; Mansoor, T.A.; Hong, J.; Lee, C.; Im, K.S.; Lee, D.S.; Jung, J.H. New lysophosphatidylcholines and monoglycerides from the marine sponge Stelletta sp. J. Nat. Prod 2003, 66, 725–728. [Google Scholar]
Boyd, M.R. The NCIin Vitro Anticancer Drug Discovery Screen: Concept, Implementation and Operation, 1985–1995. In Anticancer Drug Development Guide: Preclinical Screening, Clinical Trials, and Approval; Teicher, B.A., Ed.; Humana Press: Totowa, NJ, USA, 1997; pp. 23–42. [Google Scholar]
Quiñoà, E.; Adamczeski, M.; Crews, P.; Bakus, G.J. Bengamides; heterocyclic anthelminthics from a jaspidae marine sponge. J. Org. Chem 1986, 51, 4494–4497. [Google Scholar]
Adamczeski, M.; Quiñoà, E.; Crews, P. Novel sponge derived amino acids. 11. The entire absolute stereochemistry of the bengamides. J. Org. Chem 1990, 55, 240–242. [Google Scholar]
Thale, Z.; Kinder, F.R.; Bair, K.W.; Bontempo, J.; Czuchta, A.M.; Versace, R.W.; Phillips, P.E.; Sanders, M.L.; Wattanasin, S.; Crews, P. Bengamides revisited: New structures and antitumor studies. J. Org. Chem 2001, 66, 1733–1741. [Google Scholar]
Groweiss, A.; Newcomer, J.J.; O’Keefe, B.R.; Blackman, A.; Boyd, M.R. Cytotoxic metabolites from an Australian collection of the sponge Jaspis species. J. Nat. Prod 1999, 62, 1691–1693. [Google Scholar]
Rodriguez, J.; Nieto, R.M.; Crews, P. Novel sponge-derived amino acids. 14. New structures and bioactivity patterns of bengazole alkaloids from a choristid marine sponge. J. Nat. Prod 1993, 56, 2034–2040. [Google Scholar]
Balibar, C.J.; Walsh, C.T. GliP, a multimodular nonribosomal peptide synthetase in Aspergillus fumigatus, makes the diketopiperazine scaffold of gliotoxin. Biochemistry 2006, 45, 15029–15038. [Google Scholar]
ChemBio3D Ultra, version 11.0.1; CambridgeSoft: Cambridge, MA, USA, 2008.
Pettit, G.R.; Hogan, F.; Xu, J.-P.; Tan, R.; Nogawa, T.; Cichacz, Z.; Pettit, R.K.; Du, J.; Ye, Q.-H.; Cragg, G.M.; et al. Antineoplastic Agents. 536. New Sources of Naturally Occurring Cancer Cell Growth Inhibitors from Marine Organisms, Terrestrial Plants, and Microorganisms. J. Nat. Prod 2008, 71, 438–444. [Google Scholar]
Bonnefonda, L.; Araib, T.; Sakaguchib, Y.; Suzukib, T.; Ishitania, R.; Nurekia, O. Structural basis for nonribosomal peptide synthesis by an aminoacyl-tRNA synthetase paralog. Proc. Natl. Acad. Sci. USA 2011, 108, 3912–3917. [Google Scholar]
Martins, M.B.; Carvalho, I. Diketopiperazines: Biological activity and synthesis. Tetrahedron 2007, 63, 9923–9932. [Google Scholar]
Bolognesi, M.L.; Ai Tran, H.N.; Staderini, M.; Monaco, A.; López-Cobeñas, A.; Bongarzone, S.; Biarnés, X.; López-Alvarado, P.; Cabezas, N.; Caramelli, M.; et al. Discovery of a class of diketopiperazines as antiprion compounds. ChemMedChem 2010, 5, 1324–1334. [Google Scholar]
Huang, R.; Zhou, X.; Xu, T.; Yang, X. Diketopiperazines from Marine Organisms. Chem. Biodivs 2007, 7, 2809–2829. [Google Scholar]
Ovenden, S.P.B.; Nielson, J.L.; Liptrot, C.H.; Willis, R.H.; Wright, A.D.; Motti, C.A.; Tapiolas, D.M.; Wright, A.D. Comosusols A–D and Comosone A: Cytotoxic compounds from the brown alga Sporochnus comosus. J. Nat. Prod 2011, 74, 739–743. [Google Scholar]

Figure 1. Minimum energy conformation of 1 obtained from MM2 calculations without applying any dihedral angle constraints [23]. The calculated dihedral angles for H_b-3–C-3– C-4–H-4 (−93°), H-4–C-4–C-4–H_a-5 (79°) and for 8-NH–N-8–C-9–H-9 (91°), all which approximate 90° as observed experimentally from the ¹H–¹H coupling constants, are indicative of the absolute configurations at C-4 as being S and at both C-6 and C-9 being R.

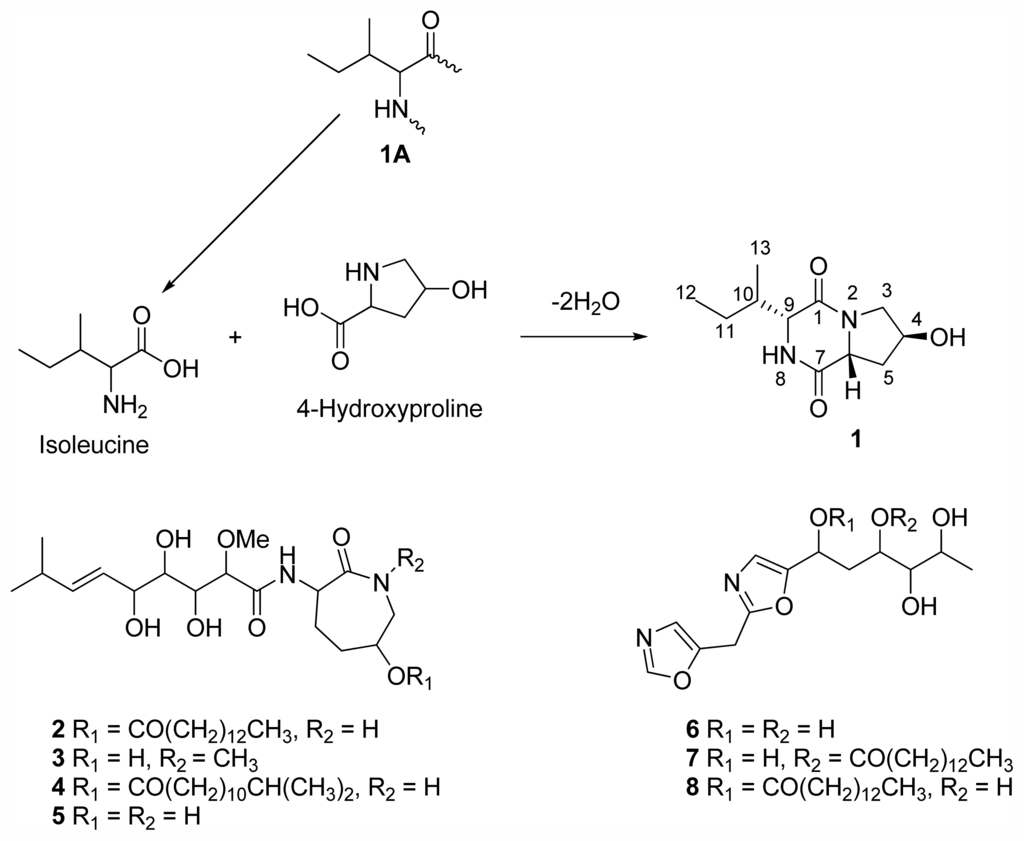

Scheme 1. Structures of the bengazoles, bengamides and 1 isolated from Stelletta sp. and the proposed enzymatically controlled condensation reaction between D-isoleucine and 4-S-hydroxy-d-proline to yield 1.

Table 1. NMR data for 1 (600 MHz, d₆-DMSO), cyclo-[S-proline-S-isoleucine)] (300 MHz, CDCl₃) and ¹H NMR data for cyclo[l-(4-hydroxyprolinyl)-l-leucine)] (300 MHz, CD₃OD).

**Table 1.** NMR data for 1 (600 MHz, d₆-DMSO), cyclo-[S-proline-S-isoleucine)] (300 MHz, CDCl₃) and ¹H NMR data for cyclo[l-(4-hydroxyprolinyl)-l-leucine)] (300 MHz, CD₃OD).
No.	¹³C δ (m)	¹H δ (m, J Hz)	COSY	gHMBC	¹H δ (m, J Hz) of cyclo-[S-proline-S-isoleucine)] [3]	¹H δ (m, J Hz) of cyclo[l-(4-hydroxyprolinyl)-l-leucine)] [6]
1	165.4 (s)
2
3	53.8 (t)	3.51 (1H, dd, 12.5, 4.6) 3.20 (1H, d, 12.5)	H_b-3, H-4 H_a-3	C-1, C-4, C-5, C-6 C-1, C-4, C-5, C-6	3.6–3.5 (2H, m)	3.65 (1H, dd, 12.5, 4.3) 3.42 (1H, d, 12.5)
4	66.8 (d)	4.28 (1H, br dd, 4.6, 4.6)	H_a-3, 4-OH, H_b-5	C-3, C-6	2.0–1.9 (1H, m) 1.9–1.8 (1H, m)	4.28 (1H, t, 4.3)
4-OH		5.10 (OH, br s,)	H-4		-	-
5	37.2 (t)	2.03 (1H, dd, 12.9, 6.1) 1.88 (1H, ddd, 12.9, 11.0, 4.6)	H_b-5, H-6 H-4, H_a-5, H-6	C-3, C-4 C-4, C-6, C-7	2.3–2.2 (1H, m) 2.1–2.0 (1H, m)	2.27 (1H, dd, 13.3, 6.5) 2.08 (1H, ddd, 13.3, 11.1, 4.3)
6	56.7 (d)	4.31 (1H, dd, 11.0, 6.1)	H₂-5	C-5, C-7	4.07 (1H, t, 7.5)	4.51 (1H, dd, 11.1, 6.5)
7	170.5 (s)
8-NH		7.97 (1H, s)	H-9	C-1, C-6, C-7, C-9, C-10	5.99 (1H, br s)	exchangeable
9	59.1 (d)	4.00 (1H, br s)	8-NH (w), H-10	C-1, C-7, C-10, C-11, C-13	3.96 (1H, br s)	4.15 (1H, m)
10	34.8 (d)	2.01 (1H, m)	H-9, H_b-11, H₃-13	C-1, C-13, C-11	2.4–2.3 (1H, m)	1.90 (1H, m) 1.50 (1H, dd, 8.0)
11	23.9 (t)	1.32 (1H, qdd, 11.8, 7.4, 4.5) 1.26 (1H, qdd, 11.8, 9.2, 7.2)	H_b-11, H₃-12 H-10, H_a-11, H₃-12	C-9, C-10, C-12, C-13 C-9, C-10, C-12, C-13	1.5–1.4 (1H, m) 1.3–1.1 (1H, m)	1.88 (1H, m)
12	12.3 (q)	0.82 (3H, t, 7.4)	H₂-11	C-10, C-11	0.92 (3H, t, 7.4)	0.95 (3H, d, 6.4)
13	14.9 (q)	0.97 (3H, d, 7.0)	H-10	C-9, C-10, C-11	1.05 (3H, d, 7.2)	0.96 (3H, d, 6.4)

Table 2. GI₅₀ (μM) data for compounds 1–8 against SF-268, MCF-7, H460, HT-29 and CHO-K1.

**Table 2.** GI₅₀ (μM) data for compounds 1–8 against SF-268, MCF-7, H460, HT-29 and CHO-K1.
No.	SF-268 a	MCF-7 b	H460 c	HT-29 d	CHO-K1 e
1	>295	204	234	270	>295
2	<0.02	<0.02	<0.02	<0.02	0.1
3	1.8	0.7	0.6	1.5	32
4	<0.02	<0.02	<0.02	<0.02	0.2
5	72	52	25	48	>184
6	22	18	8	13	94
7	0.3	0.8	0.1	0.6	1.2
8	0.02	0.06	<0.02	0.1	0.8

^aSF-268 Central nervous system-glioblastoma cells;

^bMCF-7 Breast-pleural effusion adenocarcinoma cells;

^cH460 Lung-large cell carcinoma cells;

^dHT-29 Colon-recto-sigmoid colon adenocarcinoma cells;

^eCHO-K1 Sub-clone of Chinese hamster ovary cells.
