Article

Cembranoids from the Dongsha Atoll Soft Coral Lobophytum crassum

by
Shih-Tseng Lin
1,
Shang-Kwei Wang
2,* and
Chang-Yih Duh
1,3,*
1
Department of Marine Biotechnology and Resources, National Sun Yat-sen University, Kaohsiung 804, Taiwan
2
Department of Microbiology, Kaohsiung Medical University, Kaohsiung 807, Taiwan
3
Asia-Pacific Ocean Research Center, National Sun Yat-sen University, Kaohsiung 804, Taiwan
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2011, 9(12), 2705-2716; https://doi.org/10.3390/md9122705
Submission received: 3 November 2011 / Revised: 5 December 2011 / Accepted: 9 December 2011 / Published: 15 December 2011
Browse Figures
Versions Notes

Abstract

:
Chemical investigation of the Dongsha Atoll soft coral Lobophytum crassum has afforded four new cembranoids, crassumols A–C (1–3) and 13-acetoxysarcophytoxide (4). The structures of these isolated compounds were elucidated by extensive NMR and HRESIMS experiments. The cytotoxicity and anti-HCMV (Human cytomegalovirus) activities of 1–4 were evaluated in vitro. Compound 4 exhibited cytotoxicity against A-549 (human lung carcinoma) cell line with an ED50 of 3.6 μg/mL.

1. Introduction

Soft corals belonging to the genus Lobophytum (Alcyoniidae) have been well recognized as a rich source of secondary metabolites endowed with a range of structural diversity and various biological activities [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21]. Previous bioassay results of some cembraniods and their analogues have demonstrated remarkable pharmacological potential such as in vitro cytotoxicity against various cancer cell lines [2,3,4,5,6,7,8,9], anti-inflammatory properties [10,11,12], antimicrobial activities [10], and HIV-inhibitory activity [13]. In view of their scientific significance and potential usage, we have investigated the Dongsha Atoll soft coral Lobophytum crassum (Von Marenzeller, 1886) (Figure 1) for the bioactive substances. Four new cembranoids, crassumols A–C (1–3) and 13-acetoxysarcophytoxide (4) were isolated from the acetone-soluble of Dongsha Atoll collection of L. crassum.
Marinedrugs 09 02705 g001 1024
Figure 1. Soft coral Lobophytum crassum.
Figure 1. Soft coral Lobophytum crassum.
Marinedrugs 09 02705 g001

2. Results and Discussion

Specimens of L. crassum were frozen immediately after collection. Conventional extraction procedures were used, and the acetone extract was exhaustively partitioned between EtOAc and H2O to afford the EtOAc-soluble fraction, which was evaporated under vacuum to yield a dark brown gum (20 g). The resultant concentrated residue was subsequently subjected to fractionation with column chromatography and high-performance liquid chromatography, leading to the isolation of four new cembranoids, crassumols A–C (1–3) and 13-acetoxysarcophytoxide (4) (Figure 2).
Marinedrugs 09 02705 g002 1024

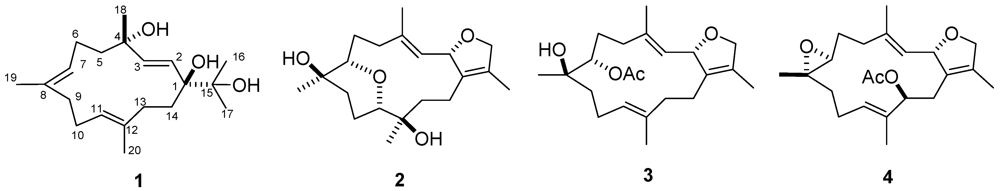

Figure 2. The structures of compounds 1–4.
Figure 2. The structures of compounds 1–4.
Marinedrugs 09 02705 g002
Crassumol A (1) appeared as colorless oil. Its HRESIMS (m/z 345.2408, [M + Na]+) and NMR spectroscopic data (Table 1 and Table 2) established the molecular formula C20H34O3, implying the existence of four degrees of unsaturation. Three tertiary hydroxyls were recognized as being present in 1 from its 13C NMR signals at δC 81.5 (qC, C-1), 73.7 (qC, C-4), and 75.1 (qC, C-15) and 1H NMR signals at δH 2.52 (1H, s, OH-1), 3.58 (1H, s, OH-4), and 3.03 (1H, s, OH-15) as well as from a broad IR absorption at 3421 cm−1. Moreover, the 13C NMR signals at δC 128.3 (CH, C-2), 139.1 (CH, C-3), 129.0 (CH, C-7), 133.2 (qC, C-8), 126.3 (CH, C-11), and 137.0 (qC, C-12), assigned one disubstituted double bond and two trisubstituted double bonds in 1. The above functionalities also account for three of the four degrees of unsaturation, suggesting a monocyclic structure in 1. By interpretation of 1H–1H COSY correlations, it was possible to establish four partial structures from H-2 to H-3, from H2-5 to H-7, from H-9 to H-11, and from H-13 to H-14 (Figure 3). Moreover, the connectivities of these partial structures through the quaternary carbons were further established by the HMBC correlations (Figure 3). Thus, the gross structure of crassumol A was assigned as 1. The relative configurations of 1 were assigned by NOESY correlations (Figure 4) between H-3/Me-18, H-3/OH-1, H-3/H-7, H-2/OH-4, H-2/H-13a, H-11/H-13a, and Me-19/H-11. On the basis of the aforementioned observations, the structure of crassumol A (1) was unambiguously established as (1S*,4S*,2E,7E,11E)-1,4,15-trihydroxycembra-2,7,11-trien.
Table
Table 1. 1H NMR data a for compounds 1–4.
Table 1. 1H NMR data a for compounds 1–4.
1234
25.79 d (15.6) b5.51 d (9.6)5.53 d (10.4)5.60 d (11.8)
35.92 d (15.6)5.59 d (9.6)5.03 d (10.4)5.23 d (11.8)
5a1.94 ddd (13.2, 8.0, 2.0)2.48 m 2.15 m2.34 m
5b1.67 m2.30 m1.93 m 2.36 m
6a1.67 m2.42 m1.92 m2.96 m
6b2.27 m1.84 m 1.82 m1.63 m
75.32 t (8.0)3.53 dd (10.8, 2.8)5.04 d (10.0)2.59 t (4.0)
9a2.13 m2.16 m 1.87 m2.15 ddd (13.2, 4.8, 2.8)
9b1.97 m 2.00 m1.60 m 0.92 td (13.2, 3.2)
10a2.06 m2.20 m 2.23 m2.27 m
10b2.08 m1.78 m2.06 m 1.92 m
115.22 dd (9.4, 4.8)3.74 d (12.0)4.89 br d (8.0)5.41 d (10.8, 5.2)
13a2.22 m 2.22 m1.97 m 5.16 d (9.2)
13b2.07 m1.78 m 1.87 m
14a2.12 m 2.64 dt (13.2, 9.8)2.57 ddd (14.0, 11.6, 8.0)2.75 dd (14.8, 10.4)
14b1.71 m2.07 m2.14 m 1.87 m
161.07 s4.57 dq (15.2, 4.8)4.48 m4.49 br s
171.12 s1.59 s1.65 s1.66 s
181.25 s1.82 s1.87 s1.91 s
191.59 s1.45 s1.09 s1.28 s
201.64 s1.48 s1.65 s1.61 s
OH-12.52 s
OH-43.58 s
OH-153.03 s
OAc 2.11 s2.00 s
a Spectra were measured in CDCl3 (400 MHz); b J values (in Hz) in parentheses.
Table
Table 2. 13C NMR data a of compounds 1–4.
Table 2. 13C NMR data a of compounds 1–4.
1234
181.5 (qC) b126.8 (qC)134.1 (qC)130.8 (qC)
2128.3 (CH)85.1 (CH)83.8 (CH)83.3 (CH)
3139.1 (CH)126.7 (CH)127.6 (CH)126.1 (CH)
473.7 (qC)137.6 (qC)137.9 (qC)140.2 (qC)
545.3 (CH2)35.8 (CH2)35.6 (CH2)37.7 (CH2)
624.1 (CH2)24.2 (CH2)24.8 (CH2)25.1 (CH2)
7129.0 (CH)83.7 (CH)77.3 (CH)61.7 (CH)
8133.2 (qC)68.3 (qC)75.3 (qC)59.5 (qC)
939.9 (CH2)40.9 (CH2)37.4 (CH2)39.7 (CH2)
1024.4 (CH2)23.2 (CH2)23.7 (CH2)23.2 (CH2)
11126.3 (CH)80.5 (CH)123.2 (CH)127.4 (CH)
12137.0 (qC)71.4 (qC)137.1 (qC)134.9 (qC)
1336.4 (CH2)38.9 (CH2)36.6 (CH2)76.9 (CH)
1430.4 (CH2)17.8 (CH2)24.1 (CH2)31.4 (CH2)
1575.1 (qC)134.6 (qC)127.3 (qC)129.9 (qC)
1625.1 (CH3)77.5 (CH2)78.5 (CH3)78.3 (CH2)
1725.2 (CH3)9.1 (CH3)10.3 (CH3)10.1 (CH3)
1828.8 (CH3)15.1 (CH3)15.9 (CH3)15.7 (CH3)
1914.9 (CH3)20.1 (CH3)24.9 (CH3)16.7 (CH3)
2015.0 (CH3)23.3 (CH3)15.1 (CH3)9.9 (CH3)
OAc 170.4 (qC)170.3 (qC)
20.9 (CH3)21.1 (CH3)
a Spectra were measured in CDCl3 (100 MHz); b Multiplicity are deduced by HSQC and DEPT experiments.
Marinedrugs 09 02705 g003 1024

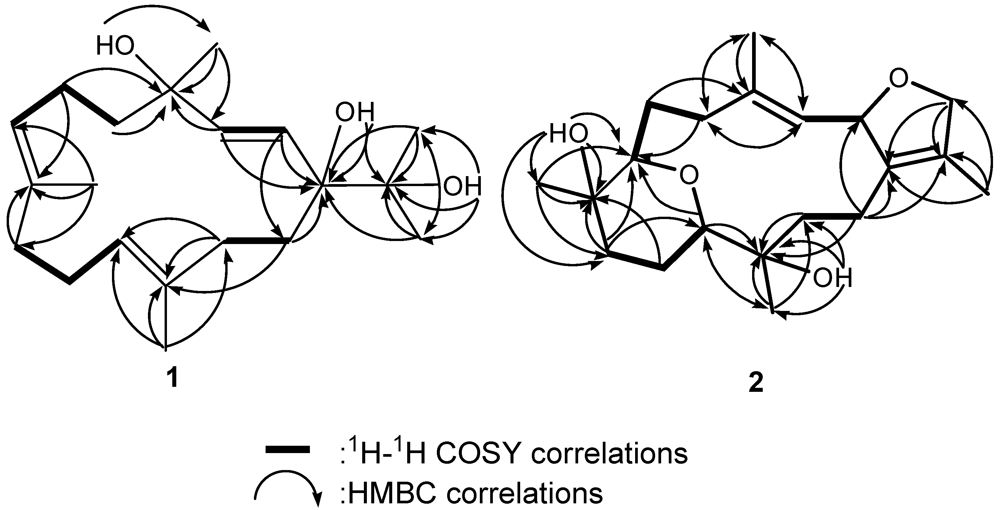

Figure 3. Selected 1H–1H COSY (▬) and HMBC (→) correlations of 1 and 2.
Figure 3. Selected 1H–1H COSY (▬) and HMBC (→) correlations of 1 and 2.
Marinedrugs 09 02705 g003
Marinedrugs 09 02705 g004 1024

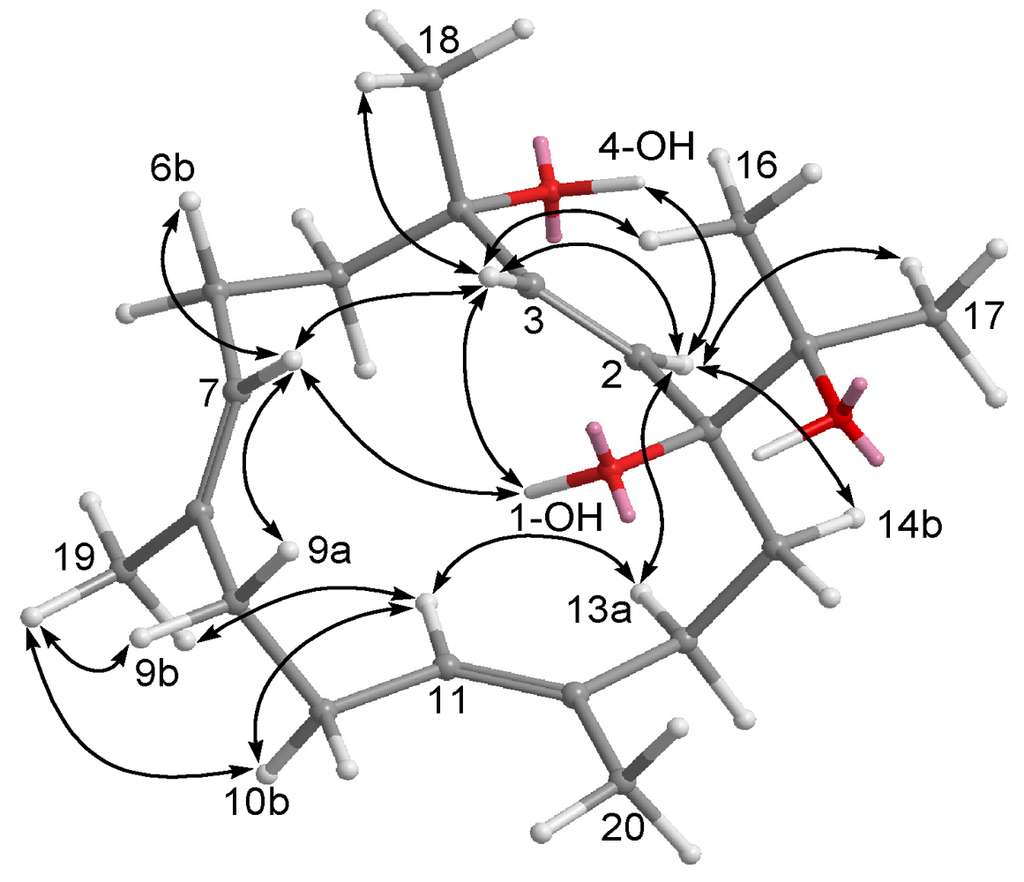

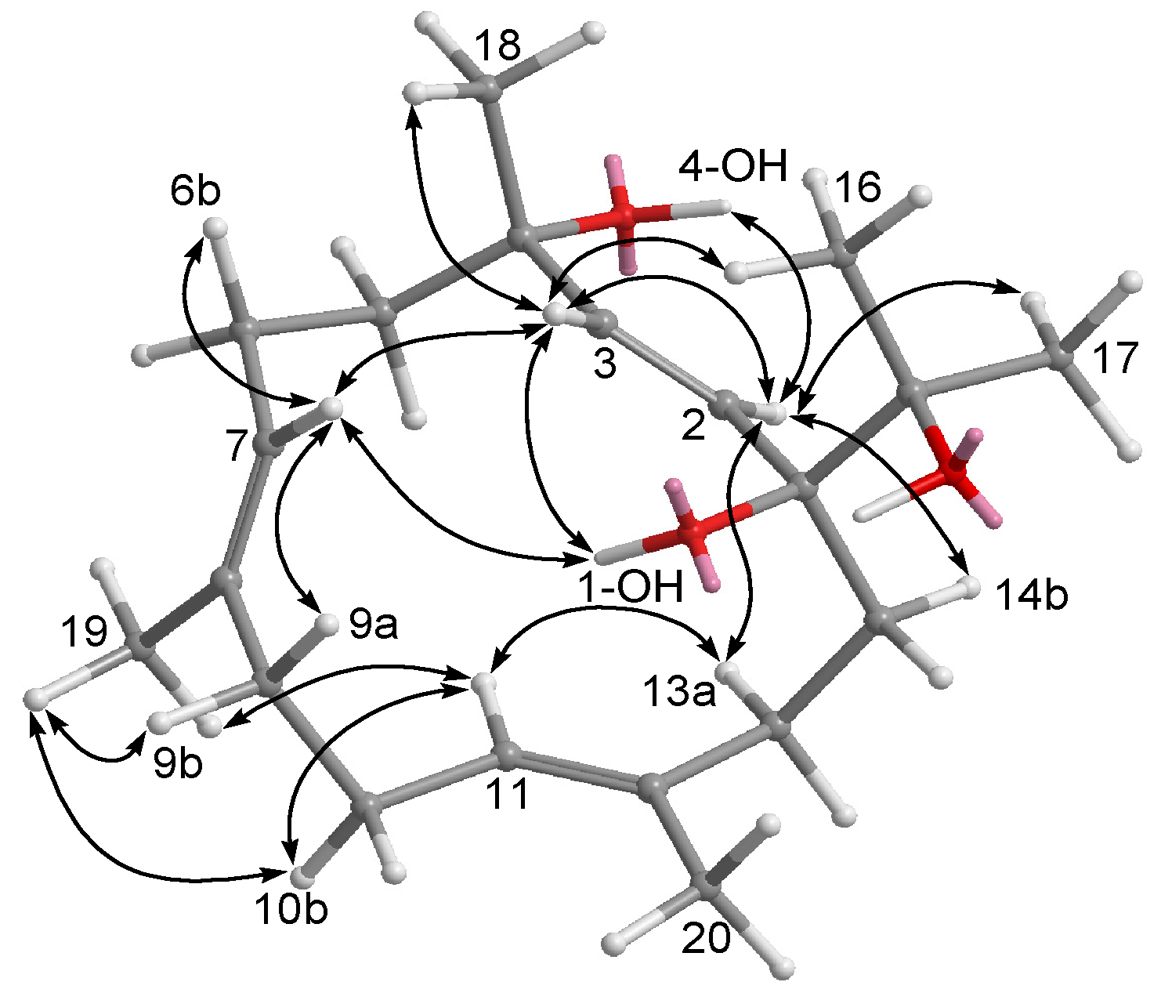

Figure 4. Selected NOESY correlations of 1.
Figure 4. Selected NOESY correlations of 1.
Marinedrugs 09 02705 g004
The HRESIMS of crassumol B (2) exhibited a pseudo molecular ion peak at m/z, 359.1878 ([M + Na]+), consistent with the molecular formula of C20H32O4, requiring five degrees of unsaturation. Its spectrum showed a broad absorption band at 3412 cm−1 (OH stretching). The 13C NMR signals at δC 126.8 (qC, C-1), 134.6 (qC, C-15), 126.7 (CH, C-3), and 137.6 (qC, C-4) assigned a trisubstituted double bond and a tetrasubstituted double bond in 2, respectively. The above functionalities account for two of the five degrees of unsaturation, suggesting a tricyclic structure in 2. Two tertiary hydroxyls were present in 2 from its 13C NMR signals at δC 68.3 (qC, C-8) and 71.4 (qC, C-12). The presence of two oxygenated methine [δH 3.53 (dd, 1H, J = 10.8, 2.8 Hz) and δC 83.7 (C-7); δH 3.74 (d, 1H, J = 12.0 Hz) and δC 80.5 (C-11)] implied that an ether linkage is probably present between C-7 and C-11, which was confirmed by the HMBC correlations from H-7 to C-11, and from H-11 to C-7. Correlations deduced from extensive analyses of the 1H–1H COSY correlations (Figure 3) of 2 enabled initially the establishment of four partial structures. The connectivity of the above structural fragments was subsequently interconnected by the HMBC correlations (Figure 3). The locations of the two double bonds at C-3/C-4 and C-1/C-15 were clarified by analysis of the HMBC correlations from Me-18 to C-3, C-4, and C-5, and from Me-17 to C-1, C-15, and C-16. Furthermore, the crucial NOE correlations (Figure 5) between H-2/Me-18, H-2/H-14b, H-11/H-7, H-11/H-9b, H-11/H-14b, H-11/H-10a, Me-19/H-9a, Me-19/H-10b, and Me-20/H-10b demonstrated the 2S*, 7S*, 8R*, 11S*, and 12R* configurations as depicted in Figure 5. Accordingly, the structure of crassumol B (2) was fully determined as (2S*,7S*,8R*,11S*,12R*,3E)-8,12-dihydroxy-7,11:2,16-bisepoxycembra-1(15),3-diene.
Marinedrugs 09 02705 g005 1024

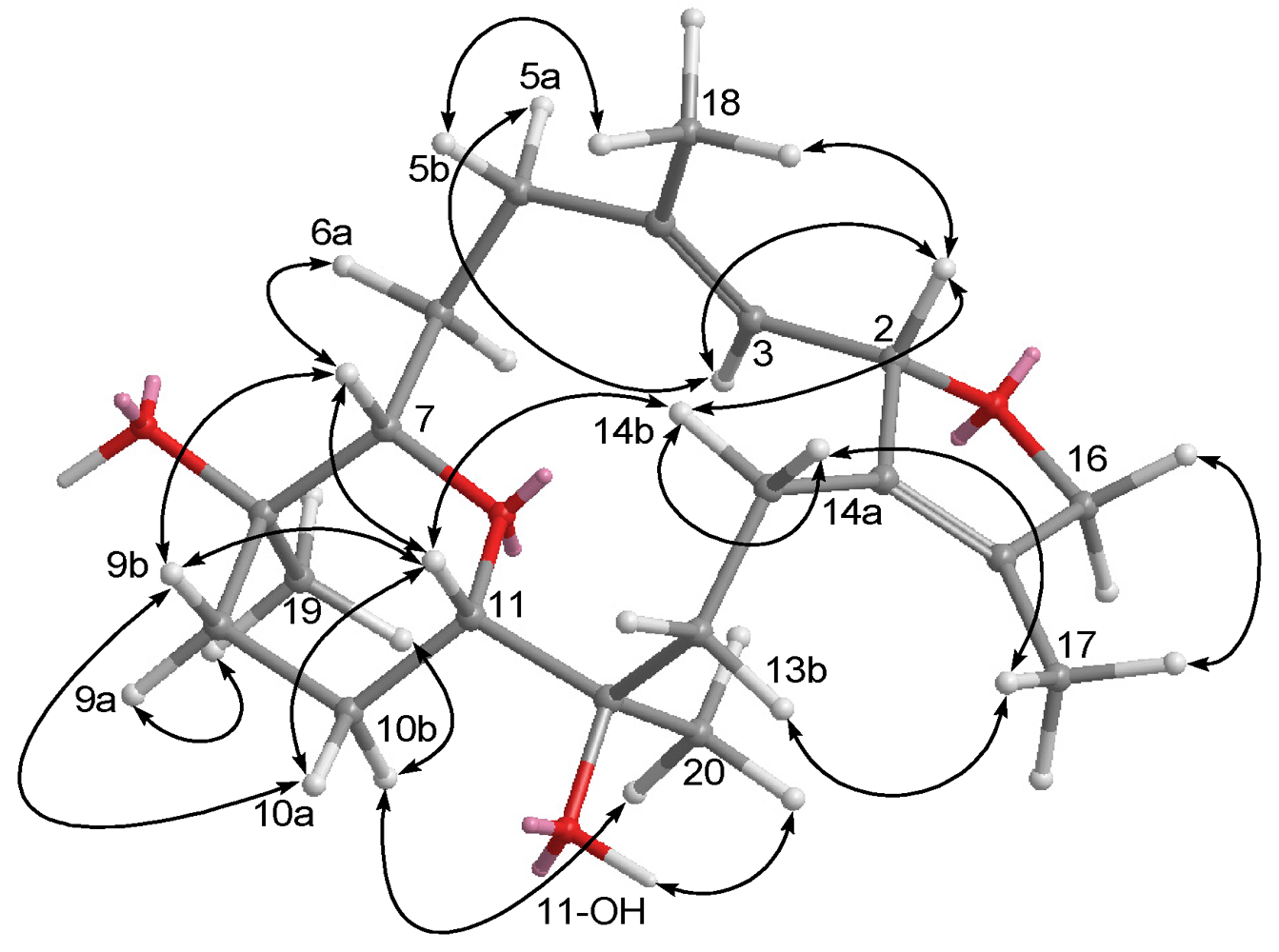

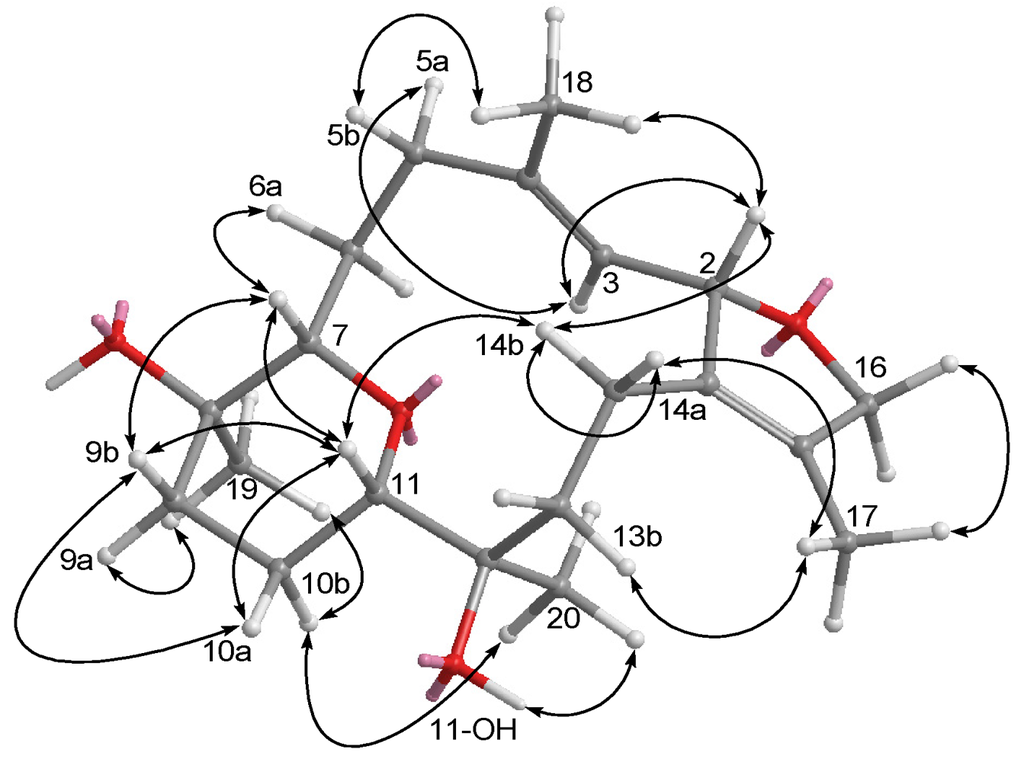

Figure 5. Selected NOESY correlations of 2.
Figure 5. Selected NOESY correlations of 2.
Marinedrugs 09 02705 g005
Crassumol C (3) was isolated as colorless oil. The HRESIMS of 3 exhibited a pseudo molecular ion peak at m/z 385.2854 [M + Na]+, consistent with the molecular formula of C22H34O4, implying the existence of six degrees of unsaturation. 13C NMR signals at δC 134.1 (qC, C-1), 127.3 (qC, C-15), 127.6 (CH, C-3), 137.9 (qC, C-4), 123.2 (CH, C-11), and 137.1 (qC, C-12) assigned a tetrasubstituted double bond and two trisubstituted double bonds in 3, respectively. An acetoxymethine was present in 3 from its 1H NMR signals at δH 5.04 (1H, d, J = 10.0 Hz), 2.11 (3H, s) and 13C NMR signals at δC 77.3 (CH, C-7), 20.9 (CH3) and 170.4 (qC). The above functionalities account for four of the six degrees of unsaturation, suggesting a bicyclic structure in 3. By interpretation of 1H–1H COSY correlations (Figure 6), it was possible to establish four partial structures of consecutive proton systems extending from H-2 to H-3, from H2-5 to H2-7 through H2-6, from H2-9 to H-11 through H2-10, and from H-13 to H2-14, as well as long-range COSY correlations between H-2/H2-14, H-2/H2-16, Me-18/H-3, and Me-17/H2-16. The long-range COSY correlations between H-2/H2-16 and Me-17/H2-16 also exhibited the presence of a 2,5-dihydrofuran ring in 3. Subsequently, the connectivities of these partial structures were further established by the HMBC correlations (Figure 3). Thus, the gross structure of crassumol C was assigned as 3. The relative stereochemistry of 3 was assigned by NOESY correlations (Figure 7). NOE correlations between H-2/Me-18, Me-18/H-11, Me-18/H-5b, H-5a/H-3, H-11/H-7, H-14a/Me-17, H-14a/H-13a, H-13b/H-11, H-10a/Me-20, H-10a/Me-19 demonstrated the 2S*, 7S*, and 8S* configurations of 3. On the basis of the aforementioned observations, the structure of crassumol C (3) was unambiguously established as (2S*,7S*,8S*,3E,11E)-7-acetoxy-8-hydroxycembra-3,11-dien.
Marinedrugs 09 02705 g006 1024

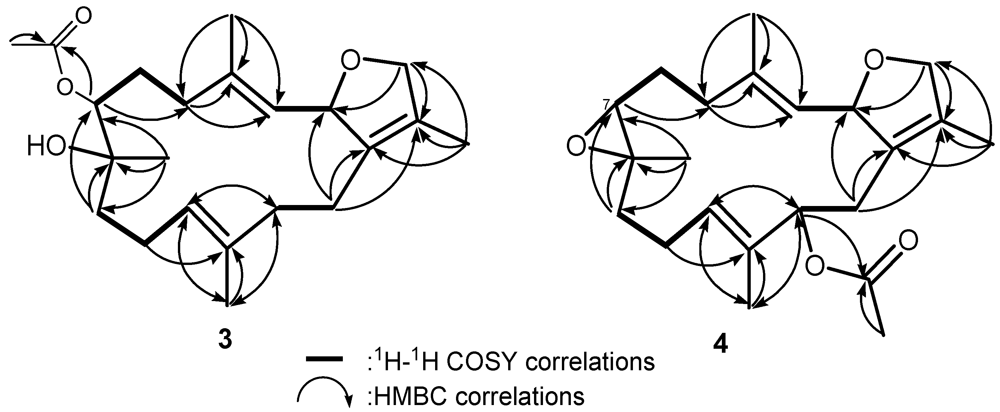

Figure 6. Selected 1H–1H COSY (▬) and HMBC (→) correlations of 3 and 4.
Figure 6. Selected 1H–1H COSY (▬) and HMBC (→) correlations of 3 and 4.
Marinedrugs 09 02705 g006
Marinedrugs 09 02705 g007 1024

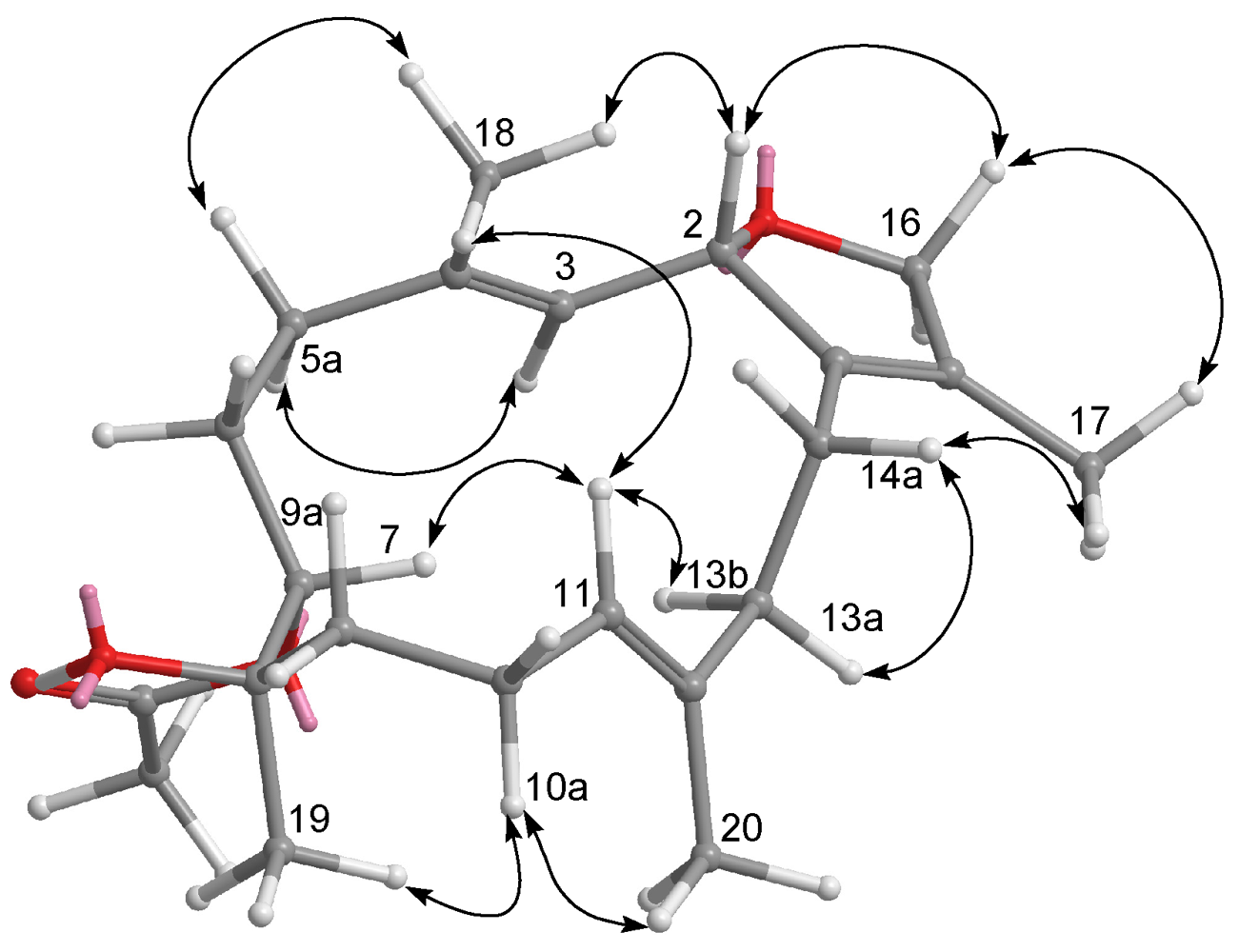

Figure 7. Selected NOESY correlations of 3.
Figure 7. Selected NOESY correlations of 3.
Marinedrugs 09 02705 g007
The HRESIMS of 13-acetoxysarcophytoxide (4) exhibited a pseudo molecular ion peak at m/z 383.2196 [M + Na]+, consistent with the molecular formula of C22H32O4, requiring seven degrees of unsaturation. A trisubstituted epoxide was recognized as being present in 4 from its 1H NMR signals at δH 2.59 (1H, t, J = 4.0 Hz) and 13C NMR signals at δC 59.5 (qC, C-8) and 61.7 (CH, C-7). Moreover, the 13C NMR signals at δC 130.8 (qC, C-1), 129.9 (qC, C-15), 126.1 (CH, C-3), 140.2 (qC, C-4), 127.4 (CH, C-11), and 134.9 (qC, C-12) assigned a tetrasubstituted double bond and two trisubstituted double bonds in 3, respectively. An acetoxymethine was present in 4 from its 1H NMR signals at δH 5.16 (1H, d, J = 9.2 Hz), 2.00 (3H, s) and 13C NMR signals at δC 76.9 (CH, C-13), 21.1(CH3) and 170.3 (qC). The above functionalities account for five of the seven degrees of unsaturation, suggesting a tricyclic structure in 4. By interpretation of 1H–1H COSY correlations (Figure 6), it was possible to establish four partial structures of consecutive proton systems extending from H-2 to H-3, from H2-5 to H2-7 through H2-6, from H2-9 to H-11 through H2-10, and from H-13 to H2-14, as well as long-range COSY correlations between H-2/H2-14, H-2/H2-16, Me-18/H-3, and Me-17/H2-16. The long-range COSY correlations between H-2/H2-16 and Me-17/H2-16 also exhibited the presence of a 2,5-dihydrofuran ring in 4. Subsequently, the connectivities of these partial structures were further established by the HMBC correlations (Figure 6). The relative configurations of 4 were determined by NOE correlations (Figure 8) between H-2/Me-18, H-13/H-2, H-13/H-11, H-11/H-7, H-14a/Me-17, H-14a/Me-20, H-10a/Me-20, H-10a/H-9a, Me-18/Me-19, H-11/Me-18. On the basis of the aforementioned observations, the structure of 4 was unambiguously established as (2S*,7S*,8S*,13S*,3E,11E)-13-acetoxy-7,8-epoxycembra-3,11-dien.
Marinedrugs 09 02705 g008 1024

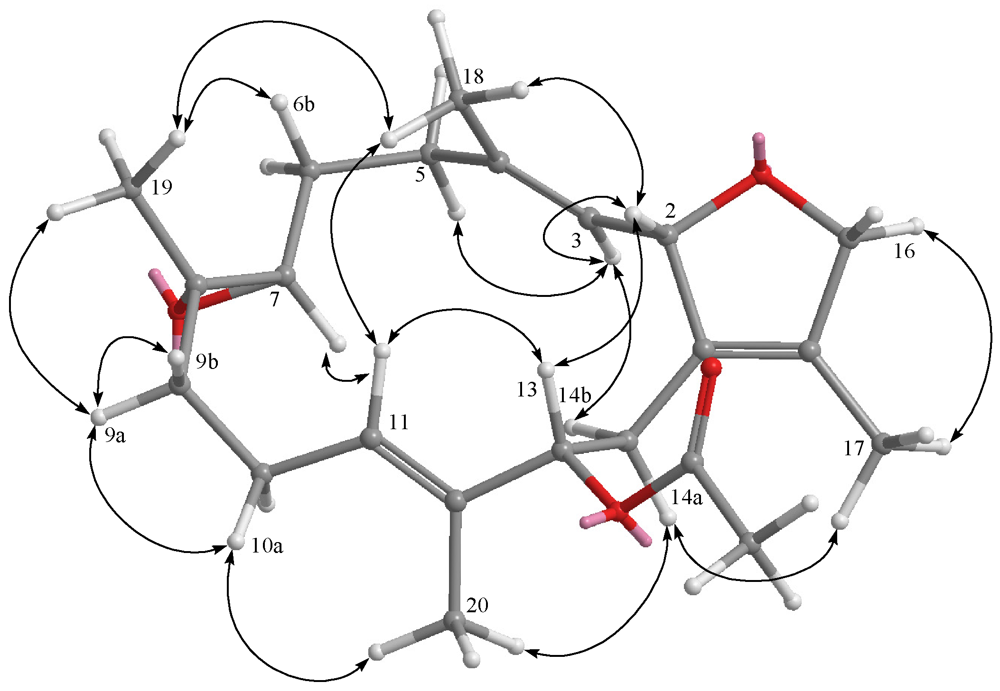

Figure 8. Selected NOESY correlations of 4.
Figure 8. Selected NOESY correlations of 4.
Marinedrugs 09 02705 g008
The cytotoxicity against P-388 (mouse lymphocytic leukemia), HT-29 (human colon adenocarcinoma), and A-549 (human lung epithelial carcinoma) tumor cells of 1–4 are shown in Table 3. Compounds 1–4 did not show anti-HCMV activity.
It is possible that compound 2 arise from the precursor with a 7,8-epoxide. Transannular opening of the 7,8-epoxide by an 11-hydroxyl would give rise to an oxepane ring in compounds 2 as shown in Figure 9. The major metabolite, (+)-sarcophytoxide (5), should be the precursor for compounds 2–4. Therefore, the absolute configuration at C-2 for compounds 2–4 should be S.
Table
Table 3. Cytotoxicity a of 1–4.
Table 3. Cytotoxicity a of 1–4.
CompoundsCell lines ED50 (µg/mL)
A549HT-29P-388
1>50>50>50
2>50>50>50
3>50>50>50
43.61028
mithramycin b0.180.210.15
a For significant activity of pure compounds, an ED50 of ≤4.0 µg/mL is required; b Positive control.
Marinedrugs 09 02705 g009 1024

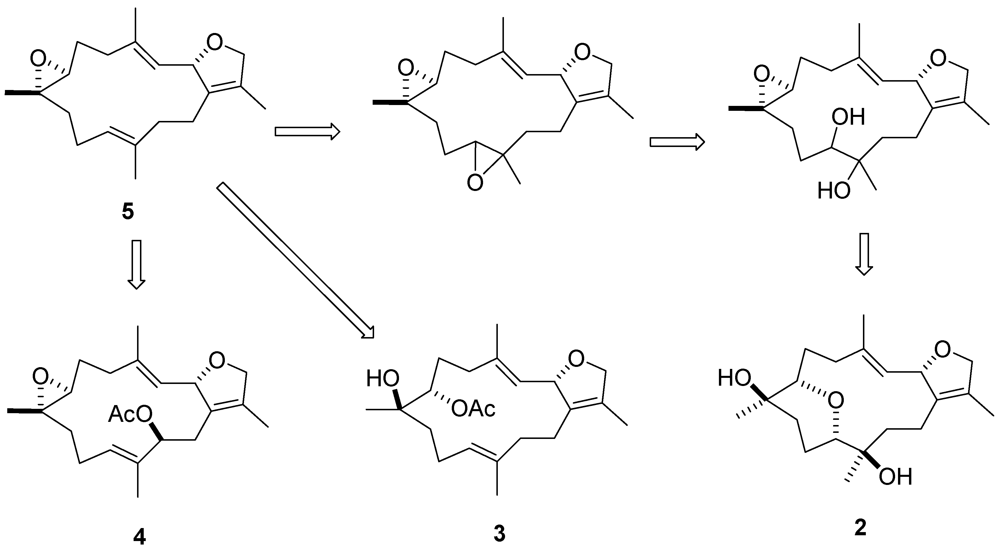

Figure 9. Plausible biosynthetic pathway to compounds 2–4.
Figure 9. Plausible biosynthetic pathway to compounds 2–4.
Marinedrugs 09 02705 g009

3. Experimental Section

3.1. General Experimental Procedures

Optical rotations were determined with a JASCO P1020 digital polarimeter. Ultraviolet (UV) and infrared (IR) spectra were obtained on a JASCO V-650 and JASCO FT/IR-4100 spectrophotometers, respectively. The NMR spectra were recorded on a Varian MR 400 NMR spectrometer at 400 MHz for 1H and 100 MHz for 13C or on a Varian Unity INOVA 500 FT-NMR spectrometer at 500 MHz for 1H and 125 MHz for 13C, respectively. Chemical shifts are expressed in δ (ppm) referring to the solvent peaks δH 7.27 and δC 77.0 for CDCl3, respectively, and coupling constants are expressed in Hz. ESI-MS were recorded by ESI FT-MS on a Bruker APEX II mass spectrometer. Silica gel 60 (Merck, Germany, 230–400 mesh) and LiChroprep RP-18 (Merck, 40–63 μm) were used for column chromatography. Precoated silica gel plates (Merck, Kieselgel 60 F254, 0.25 mm) and precoated RP-18 F254s plates (Merck) were used for thin-layer chromatography (TLC) analysis. High-performance liquid chromatography (HPLC) was carried out using a Hitachi L-7100 pump equipped with a Hitachi L-7400 UV detector at 220 nm together with a semi-preparative reversed-phase column (Merck, Hibar LiChrospher RP-18e, 5 μm, 250 × 25 mm).

3.2. Biological Material

The soft coral L. crassum was collected by hand using SCUBA along the coast reefs offshore from the Dongsha Atoll in April 2007, at a depth of 6 m, and was stored in a freezer for 14 months until extraction. Identification was kindly verified by Prof. Chang-Feng Dai, Institute of Oceanography, National Taiwan University, Taiwan. A voucher specimen (TS-11) was deposited in the Department of Marine Biotechnology and Resources, National Sun Yat-sen University, Taiwan.

3.3. Extraction and Isolation

The frozen soft coral (2.2 kg) was chopped into small pieces and extracted exhaustively by maceration with fresh acetone for 24 h at room temperature. The quantity of solvent used for each extraction (2 L) was at least three times the amount of the soft coral material used. The acetone extracts were filtered and concentrated under vacuum to yield a brownish oily residue, which was subsequently partitioned between EtOAc and H2O. The resulting EtOAc-soluble residue (20.1 g) was subjected to silica gel 60 column chromatography (Si 60 CC) using hexane–EtOAc and EtOAc–MeOH of increasing polarity for elution to give roughly 40 fractions on the basis of the 1H NMR spectroscopic data and TLC analyses. Fraction 16 (2.0 g) eluted with n-hexane–EtOAc (1:2) was subjected to Si 60 CC (n-hexane–EtOAc, 60:1 to 1:3) to furnish 9 subfractions. A subfraction 16-4 (0.57 g) eluted with n-hexane–EtOAc (1:2) was subjected to a RP-18 flash column (MeOH–H2O, 52:48 to 100:0) to give six subfractions. In turn, a subfraction 16-4-1 (38 mg) eluted with MeOH–H2O (70:30) was further purified by RP-18 HPLC using MeOH–H2O (68:32) to give 4 (4.2 mg). Fraction 18 (2.2 g) eluted with n-hexane–EtOAc (1:6) was subjected to Si 60 CC (n-hexane–EtOAc, 20:1 to 1:3) to furnish 4 subfractions. A subfraction 18-4 (0.28 g) eluted with n-hexane–EtOAc (1:3) was fractionated by a RP-18 flash column (MeOH–H2O, 53:47 to 100:0) to give six subfractions. In turn, a subfraction 18-4-4 (35 mg) eluted with MeOH–H2O (80:20) was further purified by RP-18 HPLC using MeOH–H2O (80:20) to give 1 (3.0 mg). Subfraction 18-2 (0.11 g) eluted with n-hexane–EtOAc (1:1) was fractionated by a RP-18 flash column (MeOH–H2O, 53:47 to 100:0) to give six subfractions. In turn, a subfraction 18-2-1 (35 mg) eluted with MeOH–H2O (70:30) was further purified by RP-18 HPLC using MeOH–H2O (65:35) to give 3 (3.0 mg). Fraction 20 (0.23 g) eluted with n-hexane–EtOAc (1:10) was subjected to Si 60 CC (n-hexane–EtOAc, 1:1 to 1:10) to furnish 10 subfractions. A subfraction 20-2 (40 mg) eluted with n-hexane–EtOAc (1:8) was further purified by RP-18 HPLC using MeOH–H2O (65:35) to give 2 (2.1 mg).
Crassumol A (1): Colorless oil; [α]25D −20 (c 0.1, CHCl3); IR (neat) νmax 3421, 2972, 2928, 2851, 1576, 1446, 1396, 1119, 1075 cm−1; 1H NMR (CDCl3, 400 MHz) and 13C NMR (CDCl3, 100 MHz) data in Table 1 and Table 2; HRESIMS m/z 345.2408, [M + Na]+ (Calcd for C20H34O3Na, 345.2406).
Crassumol B (2): Colorless oil; [α]25D −40 (c 0.1, CHCl3); IR (neat) νmax 3412, 2933, 2857, 1546, 1444, 1379, 1128, 1007, 1032, 941 cm−1; 1H NMR (CDCl3, 400 MHz) and 13C NMR (CDCl3, 100 MHz) data in Table 1 and Table 2; HRESIMS m/z 359.1878 [M + Na]+ (Calcd for C20H32O4Na, 359.1876).
Crassumol C (3): Colorless oil; [α]25D −72 (c 0.1, CHCl3); IR (neat) νmax 3447, 2932, 2858, 1732, 1447, 1373, 1242, 1034 cm−1; 1H NMR (CDCl3, 400 MHz) and 13C NMR (CDCl3, 100 MHz) data in Table 1 and Table 2; HRESIMS m/z 385.2854 [M + Na]+ (Calcd for C22H34O4Na, 385.2855).
13-Acetoxysarcophytoxide (4): Colorless oil; [α]25D +14 (c 0.1, CHCl3); IR (neat) νmax 2939, 2858, 1733, 1663, 1446, 1373, 1237, 1042 cm−1; 1H NMR (CDCl3, 400 MHz) and 13C NMR (CDCl3, 100 MHz) data in Table 1 and Table 2; HRESIMS m/z 383.2196 [M + Na]+ (Calcd for C22H32O4Na, 383.2198).

3.4. Cytotoxicity Assay

Cytotoxicity was determined on P-388 (mouse lymphocytic leukemia), HT-29 (human colon adenocarcinoma), and A-549 (human lung epithelial carcinoma) tumor cells using a modification of the MTT colorimetric method according to a previously described procedure [11,22,23]. P-388 cell line was kindly supplied by J. M. Pezzuto, formerly of the Department of Medicinal Chemistry and Pharmacognosy, University of Illinois at Chicago. HT-29 and A-549 cell lines were purchased from the American Type Culture Collection.

3.5. Anti-HCMV Assay

To determine the effects of natural products upon HCMV cytopathic effect (CPE), confluent human embryonic lung (HEL) cells grown in 24-well plates were incubated for 1 h in the presence or absence of various concentrations of tested natural products. Then, cells were infected with HCMV at an input of 1000 pfu (plaque forming units) per well of 24-well dish. Antiviral activity was expressed as IC50 (50% inhibitory concentration), or compound concentration required to reduce virus induced CPE by 50% after 7 days as compared with the untreated control. To monitor the cell growth upon treating with natural products, an MTT-colorimetric assay was employed [24].

Acknowledgments

This research was financially supported by grants from the National Science Council (NSC99-2628-B-110-002-MY3) of Taiwan awarded to C.-Y.D.
  • Samples Availability: Not Available.

References

  1. Blunt, J.W.; Copp, B.R.; Munro, M.H.G.; Northcote, P.T.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2010, 27, 165–237. [Google Scholar]
  2. Wang, S.-K.; Duh, C.-Y.; Wu, Y.-C.; Wang, Y.; Cheng, M.-C.; Soong, K.; Fang, L.-S. Cytotoxic cembranolides from the soft coral Lobophytum michaelae. J. Nat. Prod. 1992, 55, 1430–1435. [Google Scholar]
  3. Coval, S.J.; Patton, R.W.; Petrin, J.M.; James, L.; Rothofsky, M.L.; Lin, S.L.; Patel, M.; Reed, J.K.; McPhil, A.T.; Bishop, W.R. A cembranolide diterpene farnesyl protein transferase inhibitor from the marine soft coral Lobophytum cristagalli. Bioorg. Med. Chem. Lett. 1996, 6, 909–912. [Google Scholar]
  4. Higuchi, R.; Miyamoto, T.; Yamada, K.; Komori, T. Cytotoxic and ichthyotoxic compounds from marine opisthobranchia and soft coral. Toxicon 1998, 36, 1703–1705. [Google Scholar]
  5. Matthee, G.F.; Konig, G.M.; Wright, A.D. Three new diterpenes from the marine soft coral Lobophytum crassum. J. Nat. Prod. 1998, 61, 237–240. [Google Scholar]
  6. Duh, C.-Y.; Wang, S.-K.; Huang, B.-T.; Dai, C.-F. Cytotoxic cembrenolide diterpenes from the Formosan soft coral Lobophytum crassum. J. Nat. Prod. 2000, 63, 884–885. [Google Scholar]
  7. Chao, C.-H.; Hang, H.-C.; Wu, Y.-C.; Lu, C.-K.; Dai, C.-F.; Sheu, J.-H. Glycolipids from the formosan soft coral Lobophytum crassum. Chem. Pharm. Bull. 2007, 55, 1720–1723. [Google Scholar]
  8. Zhang, W.; Krohn, K.; Ding, J.; Miao, Z.-H.; Zhou, X.-H.; Chen, S.-H.; Pescitelli, G.; Salvadori, P.; Kurtan, T.; Guo, Y.-W. Structural and stereochemical studies of α-methylene-γ-lactone-bearing cembrane diterpenoids from a south China sea soft coral Lobophytum crassum. J. Nat. Prod. 2008, 71, 961–966. [Google Scholar]
  9. Lin, S.-T.; Wang, S.-K.; Cheng, S.-Y.; Duh, C.-Y. Lobocrasol, a new diterpenoid from the soft coral Lobophytum crassum. Org. Lett. 2009, 14, 3012–3014. [Google Scholar]
  10. Cheng, S.-Y.; Wen, Z.-H.; Chiou, S.-F.; Wang, S.-K.; Hsu, C.-H.; Dai, C.-F.; Chiang, M.Y.; Duh, C.-Y. Durumolides A–E, Anti-inflammatory and antibacterial cembranolides from the soft coral Lobophytum durum. Tetrahedron 2008, 64, 9698–9704. [Google Scholar]
  11. Cheng, S.-Y.; Wen, Z.-H.; Wang, S.-K.; Chiou, S.-F.; Hsu, C.-H.; Dai, C.-F.; Duh, C.-Y. Anti-inflammatory cembranolides from the soft coral Lobophytum durum. Bioorg. Med. Chem. 2009, 17, 3763–3769. [Google Scholar]
  12. Cheng, S.-Y.; Wen, Z.-H.; Chiou, S.-F.; Wang, S.-K.; Hsu, C.-H.; Dai, C.-F.; Chiang, M.Y.; Duh, C.-Y. Unprecedented hemiketal cembranolides with anti-inflammatory activity from the soft coral Lobophytum durum. J. Nat. Prod. 2009, 72, 152–155. [Google Scholar]
  13. Rashid, M.A.; Gustafson, K.R.; Boyd, M.R. HIV-inhibitory cembrane derivatives from a Philippines collection of the soft coral Lobophytum species. J. Nat. Prod. 2000, 63, 531–533. [Google Scholar]
  14. Kashman, Y.; Groweiss, A. Lobolide: A new epoxy cembranolide from marine origin. Tetrahedron Lett. 1977, 13, 1159–1160. [Google Scholar]
  15. Kashman, Y.; Carmely, S.; Groweiss, A. Further cembranoid derivatives from the Red Sea soft corals Alcyonium flaccidum and Lobophytum crassum. J. Org. Chem. 1981, 46, 3592–3596. [Google Scholar]
  16. Kinamoni, Z.; Groweiss, A.; Carmely, S.; Kashman, Y. Several new cembranoid diterpenes from three soft corals of the Red Sea. Tetrahedron 1983, 39, 1643–1648. [Google Scholar]
  17. Bowden, B.F.; Coll, J.C.; Tapiolas, D.M. Studies of Australian soft corals. ХХХШ. New cembranoid diterpenes from a Lobophytum species. Aust. J. Chem. 1983, 36, 2289–2295. [Google Scholar]
  18. Bowden, B.F.; Coll, J.C.; Decosta, M.S.L.; Desilva, E.D.; Mackay, M.F.; Mahendran, M.; Willis, R.H. The structure determination of a new cembranolide diterpene from the soft coral Lobophytum cristigalli (Coelenterata, Octocorallia, Alcyonacea). Aust. J. Chem. 1984, 34, 545–552. [Google Scholar]
  19. Bowdon, B.F.; Coll, J.C.; Heaton, A.; Konig, G.; Bruck, M.A.; Cramer, R.E.; Klein, D.M.; Scheuer, P.J. The structures of four isomeric dihydrofuran-containing cembranoid diterpenes from several species of soft coral. J. Nat. Prod. 1987, 50, 650–659. [Google Scholar]
  20. Subrahmanyam, C.; Rao, C.V.; Anjaneyulu, V.; Satyanarayana, P.; Rao, P.V.S. New diterpenes from a new species of Lobophytum soft coral of the South Andaman coast. Tetrahedron 1992, 48, 3111–3120. [Google Scholar]
  21. Yamada, K.; Ryu, K.; Miyamoto, T.; Higuchi, R. Bioactive terpenoids from octocorallia. 4. Three new cembrane-type diterpenoids from the soft coral Lobophytum schoedei. J. Nat. Prod. 1997, 60, 798–801. [Google Scholar]
  22. Geran, R.I.; Greenberg, N.H.; MacDonald, M.M.; Schumacher, A.M.; Abbott, B.J. Protocols for screening chemical agents and natural products against animal tumors and other biological syatems. Cancer Chemother. Rep. 1972, 3, 1–91. [Google Scholar]
  23. Hou, R.-S.; Duh, C.-Y.; Chiang, M.Y.; Lin, C.-N. Sinugibberol, a new cytotoxic cembranoid diterpene from the soft coral Sinularia gibberosa. J. Nat. Prod. 1995, 58, 1126–1130. [Google Scholar]
  24. Stevens, M.; Balzarini, J.; Tabarrini, O.; Andrei, G.; Snoeck, R.; Cecchetti, V.; Fravolini, A.; de Clercq, E.; Pannecouque, C. Cell-dependent interference of a series of new 6-aminoquinolone derivatives with viral (HIV/CMV) transactivation. J. Antimicrob. Chemother. 2005, 56, 847–855. [Google Scholar]
