Int. J. Environ. Res. Public Health 2014, 11(11), 11081-11109; doi:10.3390/ijerph111111081

Article
A Two-Stage Approach for Medical Supplies Intermodal Transportation in Large-Scale Disaster Responses
Junhu Ruan 1,2, Xuping Wang 1,3,* and Yan Shi 4
1
Institute of Systems Engineering, Dalian University of Technology, Dalian 116024, China
2
School of Electrical and Electronic Engineering, University of Adelaide, Adelaide 5005, Australia
3
School of Business, Dalian University of Technology, Panjin 124221, China
4
General Education Center, Tokai University, Kumamoto 862-8652, Japan
*
Author to whom correspondence should be addressed; Tel.: +86-411-8470-6593; Fax: +86-411-8470-8340.
External Editor: Emmanuel Rudatsikira
Received: 30 June 2014; in revised form: 15 October 2014 / Accepted: 17 October 2014 / Published: 27 October 2014

Abstract

: We present a two-stage approach for the “helicopters and vehicles” intermodal transportation of medical supplies in large-scale disaster responses. In the first stage, a fuzzy-based method and its heuristic algorithm are developed to select the locations of temporary distribution centers (TDCs) and assign medial aid points (MAPs) to each TDC. In the second stage, an integer-programming model is developed to determine the delivery routes. Numerical experiments verified the effectiveness of the approach, and observed several findings: (i) More TDCs often increase the efficiency and utility of medical supplies; (ii) It is not definitely true that vehicles should load more and more medical supplies in emergency responses; (iii) The more contrasting the traveling speeds of helicopters and vehicles are, the more advantageous the intermodal transportation is.
Keywords:
large-scale disasters; medical supplies; intermodal transportation

1. Introduction

Timely relief supplies transportation takes an important role in emergency responses, directly affecting the efficiency and effectiveness of disaster relief [1,2,3]. Facing different disaster responses, decision-makers often integrate different transportation modes to deliver relief supplies as soon as possible.

In this work, we focus on a kind of disaster response situation: Due to the long distance among supply nodes and demand nodes or the cut off of key roads to affected areas, helicopters are used to transport medical supplies to temporary distribution centers (TDCs) and then vehicles at TDCs are used to transit the received medical supplies to medical aid points (MAPs).

The above intermodal transportation of helicopters and vehicles has been gradually used in emergency practices due to its specific advantages in challenging disaster situations:

  • Helicopters are not subject to existing transportation networks and can fly straight to affected areas, which could sharply shorten the delivery time of medical supplies.

  • Helicopters can take off and land vertically at relatively small places. Thus, it is flexible and quick to select and clear up places as TDCs for receiving medical supplies from helicopters.

  • In destructive disasters such as earthquakes and floods, the cut off of key roads often makes helicopters the most effective transportation mode to isolated affected areas.

However, due to the limited number of helicopters, it is difficult or impossible to transport medical supplies to every MAP by helicopters in large-scale disaster responses. In general, TDCs are set up for receiving badly needed medical supplies from helicopters and then transiting the supplies to each MAP by vehicles. Since helicopters could take off and land vertically at relatively small places, in the work we assume that any place in affected areas could be located as TDCs.

Figure 1 illustrates a simplified diagram of our focused problem. In response to a large-scale disaster, all inbound medical supplies are first collected at a large collecting and distributing hub (LCDH), then transported to TDCs by helicopters and finally delivered to corresponding MAPs by vehicles. The locations of LCDH and MAPs are given. The locations of TDCs are unknown and need to be determined.

There are two subproblems that need to be solved: one is where TDCs should be located, and the other is how to arrange the delivery routes. In this work, we develop a two-stage approach for the above intermodal transportation problem. Stage I: A fuzzy-based method is presented to determine the locations of TDCs and assign MAPs to each TDC. In this stage, the intermodal transportation network is constructed. Stage II: Based on the constructed intermodal transportation network, an integer-programming model is built to produce the delivery routes. Our proposed approach has potential applications in some challenging emergency situations such as vaccine delivery in large-scale infectious diseases, blood transportation after earthquakes, and antidote delivery in chemical and biological attacks.

The remainder of this paper is organized as follows. In Section 2, we give a brief review on related works. In Section 3, we present our approach, including the two-stage problem formulation, a fuzzy-based method for selecting TDCs and assigning MAPs in Stage I, and an integer-programming model for determining the delivery routes in Stage II. In Section 4, we conduct numerical experiments to verify the effectiveness of the two-stage approach. Conclusions are drawn in Section 5, with some recommendations on future studies.

Figure 1. A simplified diagram of the intermodal transportation.
Figure 1. A simplified diagram of the intermodal transportation.
Ijerph 11 11081 g001 1024

2. Literature Review

Many studies have been reported to achieve solutions for emergency logistics problems [4,5,6]. In the work, our decision-making problem involves: how to locate TDCs, how to assign MAPs and how to arrange delivery routes. Thus, we briefly review part of related works on the location problem and multi-modal transportation problem in emergency logistics.

Jia et al. built a facility location model of medical supplies and developed three heuristic algorithms to solve the model [7]. Mete and Zabinsky considered possible disaster types and magnitudes to develop a stochastic programming model, which could be used to select the storage locations of medical supplies [8]. An et al. considered service disruptions to propose an emergency facility location model that could determine the pre-emergency facility location planning [9]. Yarmand et al. focused on the vaccine allocation in infectious diseases and proposed a two-phase vaccination policy [10]. These studies have developed effective approaches for determining the location of emergency facilities and supplies, which are mainly regarding the disaster preparedness stage. In our work, the locating of TDCs depends on the distribution of MAPs in disaster responses, and the integrated decision making of locating TDCs and assigning MAPs needs to be considered. Meanwhile, most extant studies formulated crisp location models using 0–1 variables, which cannot fully reflect the closeness degrees of the MAPs assigned to the same TDC. If two MAPs are assigned to the same TDC, both their variable values in extant crisp models would be one. In fact, the distances of the two MAPs to the TDC may be different. Motivated by these observations, we will present a fuzzy-based method for locating TDCs and assigning MAPs, where the membership degree in fuzzy set theory is used to represent the closeness degree.

A few researchers have studied the multi-modal transportation of relief supplies in disaster responses. Haghani and Oh formulated the logistical problem in disaster relief management as a multi-commodity, multi-modal network flow model with time windows, and presented two heuristic algorithms to solve the model [11]. Barbarosolu and Arda formulated another multi-commodity and multi-modal network flow model for relief supplies transportation in disaster responses [12], and Özdamar modeled the emergency logistics as a multi-period multi-commodity network flow problem with different transportation modes [13]. Hu built an integer-linear-programming model for the container multimodal path selection in the context of emergency relief [14]. Najafi et al. proposed a multi-mode stochastic model to manage the logistics of both commodities and injured people in the earthquake response [15], and then developed a dynamic model for the same problem [16]. In these studies, multiple transportation modes including air, railway and road were simultaneously considered, aiming at selecting suitable modes with different transportation efficiencies for kinds of relief supplies in different urgency degrees. Different from the extant multi-mode emergency transportation model, we focus on a kind of intermodal transportation in disaster response situations where helicopters and vehicles are used collaboratively.

3. The Proposed Approach

3.1. A Two-Stage Problem Formulation

As Figure 1 shows, our focused problem can be described as follows. In response to a large-scale disaster, there are medical aid points (MAPs) providing medical service to their covered affected areas. These MAPs need medical supplies in different amounts due to different disaster levels and social situations in their covered affected areas. A large collecting and distributing hub (LCDH) is set up for collecting and transporting medical supplies to temporary distribution centers (TDCs) by helicopters. TDCs need to be located for receiving medical supplies from helicopters and transiting the received supplies to their covered MAPs by medical vehicles.

In disaster responses, medical supplies should be transported to MAPs as soon as possible [17,18,19]. Thus, the decision-making objective is to minimize the total duration time of all the intermodal routes. The decision subproblems include: how to locate TDCs and assign MAPs, and how to arrange delivery routes, so in this work we present a two-stage approach:

Stage I: In this stage, we select the locations of TDCs and determine which MAPs should be assigned to each TDC, aiming at minimizing the total distance among TDCs and their covered MAPs. This stage could determine the intermodal transportation network.

Stage II: Based on the located TDCs and assigned MAPs in Stage I, we develop an integer-programming model to arrange the delivery routes in the intermodal transportation network, aiming at minimizing the total duration time of all intermodal routes.

For simplicity, our developed approach is subject to the following assumptions:

(1) All inbound medical supplies are first collected at the LCDH, where the supplies are transported to TDCs by helicopters and then from TDCs to MAPs by vehicles. In emergency practices, external relief supplies are often collected at large and safe hubs [20,21].

(2) The capacities of helicopters and selected TDCs are large enough, compared to the small volume of limited medical supplies in disaster responses. In pressing times, helicopters are often unable to deliver scarce medical supplies with full capacity [22].

(3) Any place in affected areas could be located as TDCs, and the selected TDCs should cover all the MAPs. This assumption is consistent with the fact helicopters could take off and land vertically at relatively small places, and the fairness criterion widely considered in practical disaster responses.

(4) There are limited medical vehicles at TDCs for transferring medical supplies to MAPs, and the vehicles are with the same maximum capacity. Unlike conventional supplies such as food and water, medical supplies transportation need special vehicles, which can keep the supplies unspoiled and uninfected, so the number of these special vehicles is often limited in large-scale disaster responses [8].

(5) In a given delivery interval, each MAP is visited only once, and every vehicle leaves from and returns to its TDC. Emergency response is often a lasting process [13,20], so vehicles should be arranged with no repeated delivery for one MAP in a given interval. After finishing a delivery task, vehicles should return to their TDCs for the next delivery task.

(6) The distances from the LCDH to TDCs and helicopter traveling speed are known. Each helicopter serves one TDC. The distances among TDCs and MAPs, and the vehicle traveling speed are also known.

Notations used in the work are defined as follows:

m: The number of TDCs needed to be selected;

Ci: The coordinate vector of the ith TDC, that is, Ijerph 11 11081 i001;

n: The number of MAPs in the disaster response;

Aj: The coordinate vector of the jth MAP, that is, Ijerph 11 11081 i002;

Rj: The allocated quantity of medical supplies for the jth MAP;

H: The number of available helicopters at the LCDH;

NCi: The set of covered MAPs of the ith TDC;

nCi: The number of the elements in NCi;

Ijerph 11 11081 i003: The union of NCi and the ith TDC, whose index in the set is 0;

Ijerph 11 11081 i004: The number of the elements in Ijerph 11 11081 i003, which is equal to nCi + 1;

KCi: The set of available vehicles at the ith TDC;

kCi: The number of the elements in KCi;

Qv: The maximum capacity of each delivery vehicle at TDCs;

Ijerph 11 11081 i005: The available load of vehicle k when the vehicle travels from the jth MAP (or the ith TDC) to the lth MAP (or the ith TDC), Ijerph 11 11081 i006;

dLCi: The distance between the LCDH and the ith TDC, i = 1,2,…,m;

Ijerph 11 11081 i007: The distance among the ith TDC and its covered MAPs, Ijerph 11 11081 i006;

Vh: The average helicopter travel speed;

Vv: The average vehicle travel speed;

Ijerph 11 11081 i008: A binary variable: Ijerph 11 11081 i008 = 1 means vehicle k travels from the jth MAP (or the ith TDC) to the lth MAP (or the ith TDC), Ijerph 11 11081 i009; otherwise Ijerph 11 11081 i008 = 0;

Ijerph 11 11081 i010: A binary variable: Ijerph 11 11081 i010 = 1 means that the jth MAP (or the ith TDC) is visited by vehicle k, Ijerph 11 11081 i009; otherwise, Ijerph 11 11081 i010 = 0.

3.2. Stage I: Selecting TDCs and Assigning MAPs

In this section, we propose a fuzzy-based method for selecting TDCs and assigning MAPs according to the distribution of MAPs.

In response to a large-scale disaster, the locations of n MAPs are denoted by A1, A2, …, An, and m TDCs whose locations are denoted by C1, C2, …, Cm need to be selected. In order to minimize the total distance among TDCs and their covered MAPs, the decision criterion is to assign each MAP to its closest TDCs.

As discussed in Section 2, the binary variable in crisp location models cannot fully reflect the closeness degrees of the MAPs assigned to the same TDC. Motivated by the fuzzy theory, we use the membership degree to represent the closeness degree. Let uij denote the membership degree of the jth MAP belonging to the ith TDC, 0 ≤ uij ≤ 1. In order to keep the consistency with crisp binary variable, we assume that the sum of one MAP’s membership degrees to all TDCs is equal to 1, that is, uij satisfies:

Ijerph 11 11081 i011

As stated above, the objective of Stage I is to minimize the total distance among TDCs and their covered MAPs. Since the membership degree, rather than a binary variable, is used to represent the closeness degree, we use the quadratic sum of the weighted distances among MAPs and TDCs to formulate the objective function of Stage I:

Ijerph 11 11081 i012
where Ijerph 11 11081 i013 represents the distance between Ci and Aj, that is, Ijerph 11 11081 i014, and ω ∊ (1,∞) is a weighted coefficient. As we can see, if Ijerph 11 11081 i013 is smaller, a bigger weight Ijerph 11 11081 i015 will be assigned to it, so the solutions of Equation (2) (that is, Ci s) could produce the shortest total distance among TDCs and their covered MAPs.

Since the constraint of the objective Equation (2) is Ijerph 11 11081 i011, according to the Lagrange algorithm [23,24], the constrained objective Equation (2) could be transformed into the following unconstrained objective Equation:

Ijerph 11 11081 i016
where λj represents the Lagrange multiplier of the constraint condition (1), j = 1,2,…,n.

Taking the derivative of Equation (3), we can get the necessary conditions of minimizing the unconstrained objective function:

Ijerph 11 11081 i017
Ijerph 11 11081 i018
Ijerph 11 11081 i019

By Equations (4)–(6), we can get:

Ijerph 11 11081 i020
Ijerph 11 11081 i021

The detailed derivations of Equations (7) and (8) are respectively given in Appendix I and Appendix II. As seen from Equations (7) and (8), the location of the ith TDC could be determined if the locations of MAPs and corresponding membership degrees are known, and we can use iteration algorithms to get the solutions of the unconstrained objective Equation (3), that is, Ci and uij.

The termination criterion of iteration algorithms could be set as Ijerph 11 11081 i022, where ε is a given threshold between 0 and 1, and t represents the iteration step. After getting the uij, we could assign the jth MAP to the TDC with the maximal uij = 1,2,…,m.

In the following, we develop a heuristic algorithm to get Ci and uij:

Inputs: m: the number of TDCs needed to be selected; n: the number of MAPs; Aj, j =1,2,…,n: the location of MAPs; ω: the fuzzy weighted coefficient of (2); ε: the termination threshold of the iteration.

Outputs: Ijerph 11 11081 i023: the location of selected TDCs; U(t) = [uij]m×n: the final membership degree matrix; J(t): the value of the objective function (2); NCi(t): The set of covered MAPs of TDC Ijerph 11 11081 i023.

Then, the detailed steps of the heuristic algorithm are as follows:

Step 1: Initialize m, n, Aj, ω, ε;

Step 2: Randomly generate an initial matrix of membership degrees U(0) = [uij]m×n such that 0 ≤ uij ≤ 1 and Ijerph 11 11081 i011 (In details, we randomly generate the initial locations of m TDCs, and then use the normalized reciprocals of the distances among MAPs and the initial TDCs to determine the initial membership degrees);

Step 3: Use Ijerph 11 11081 i024 where t represents the iteration step to calculate thelocations of TDCs (i.e., Ijerph 11 11081 i023, i = 1,2,…,m);

Step 4: Use Ijerph 11 11081 i026 to get the value of the objective function; if Ijerph 11 11081 i022, then stop the iteration and turn to Step 6 with the values of Ijerph 11 11081 i023, U(t) and J(t);

Step 5: Calculate the new U (t+1) using Ijerph 11 11081 i027, then t = t + 1 and go to Step 3;

Step 6: Based on U(t), calculate the maximal membership of each Aj belonging to Ijerph 11 11081 i023, and judge the covered Aj s of each Ijerph 11 11081 i023 (i.e., NCi(t)); output Ijerph 11 11081 i023, U(t), J(t) and NCi(t).

3.3. Stage II: Arranging Delivery Routes

After selecting the locations of TDCs and assigning MAPs to each TDC in Stage I, the intermodal transportation network could be determined. Then, we need to plan the delivery routes in Stage II. In the work, we assume that each TDC is served by one helicopter in one delivery interval, so the helicopter routes are determined after we select the locations of TDCs. In this section, we develop an integer-programming model to arrange the vehicle delivery routes from TDCs to their covered MAPs.

As mentioned in Section 3.1, the objective is to minimize the total duration time of all intermodal routes. Because the volumes of medical supplies are often small and the allocated medical supplies to each TDC are often limited, the loading and uploading time at TDCs is often so short that it could be ignored. Thus, in this work we mainly consider helicopter travel time and vehicle travel time. Then, the helicopter arrival time at one TDC is the starting time of all the used vehicles at the TDC, so the duration time of each intermodal route should be equal to the sum of helicopter travel time and vehicle travel time. Thus, both helicopter travel time and the number of used vehicles at TDCs have impact on the total duration time of all intermodal routes.

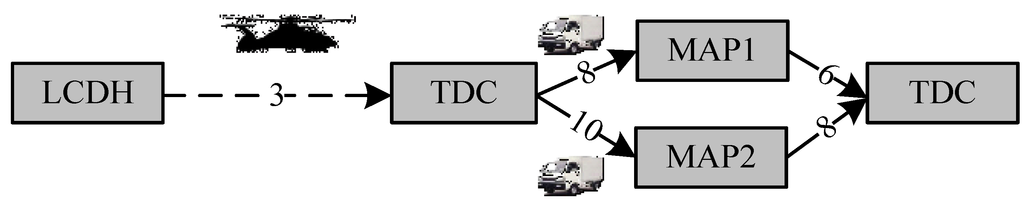

Figure 2 gives a simple example where the numbers represent helicopter and vehicle travel time. Let us set helicopter starting time as 0. The helicopter travel time is 3, so the two vehicles have to leave from the TDC at 3. The duration times of the two intermodal routes are respectively equal to 17 (3 + 8 + 6) and 21 (3 + 10 + 8). The total duration time considered in the work is equal to 38 (17 + 21), which could be divided into two parts: helicopter travel time multiplied by the number of used vehicles (3 × 2) and vehicle travel time (8 + 6 + 10 + 8).

Figure 2. The duration time of intermodal routes.
Figure 2. The duration time of intermodal routes.
Ijerph 11 11081 g002 1024

Thus, the optimization objective of arranging delivery routes, that is, to minimize the total duration time of all intermodal routes, is formulated as:

Ijerph 11 11081 i028

In the above formulation, Ijerph 11 11081 i029 denotes the number of used vehicles starting from the ith TDC, which is also equal to the number of vehicle routes from the ith TDC, so Ijerph 11 11081 i030 denotes helicopter travel time considered in the intermodal duration time for MAPs covered by the ith TDC; Ijerph 11 11081 i031 denotes vehicle travel time considered in the intermodal duration time for MAPs covered by the ith TDC.

The constraints of the optimization objective Equation (9) are as follows:

Ijerph 11 11081 i032
Ijerph 11 11081 i033
Ijerph 11 11081 i034
Ijerph 11 11081 i035
Ijerph 11 11081 i036
Ijerph 11 11081 i037
Ijerph 11 11081 i038
Ijerph 11 11081 i039

Constraint Equation (10) ensures each MAP is served only once by one of the vehicles in the delivery interval, where Ijerph 11 11081 i040 represents the number of vehicles visiting the jth MAP.

Constraint Equation (11) ensures the number of vehicles leaving from the ith TDC (that is, Ijerph 11 11081 i041) is equal to the number of vehicles returning to the ith TDC (that is, Ijerph 11 11081 i042).

Constraint Equation (12) guarantees the number of used vehicles does not exceed the number of available vehicles at each TDC.

Constraint Equations (13) and (14) ensure the vehicle which arrives at one MAP should leave from the MAP, where Ijerph 11 11081 i043 represents the number of vehicles arriving at the jth MAP and Ijerph 11 11081 i044 represents the number of vehicles leaving from the jth MAP.

Constraint Equation (15) guarantees any vehicle loads the equivalent quantity of medical supplies allocated to MAPs served by the vehicle, where Ijerph 11 11081 i045 represents the total quantity of medical supplies allocated to MAPs served by vehicle k and Ijerph 11 11081 i046 represents the total load of vehicle k when leaving from the ith TDC.

Constraint Equation (16) guarantees that the available load of vehicle k between the jth MAP (or the ith TDC) and the lth MAP (or the ith TDC) does not exceed the maximum capacity of vehicle k if traveling from the former to the later. Constraint Equations (15) and (16) together guarantee that the overall available capacity of a given vehicle does not exceed its maximum capacity.

Constraint Equation (17) defines the ranges of variables.

Meanwhile, we also formulate two performance metrics for the intermodal transportation.

(1) Average arrival time (AAT)

The optimization objective (9) mainly reflects the total duration time, but it does not specifically consider the utility of medical supplies. The utility of received relief supplies is different for each MAP if the arrival time is different [18,19,25]. The earlier the arrival time at one MAP is, the higher the utility for the MAP is. Then, in order to increase the utility of all medical supplies, the average arrival time (AAT) for all the MAPs should be shortened as much as possible, which is formulated as follows:

Ijerph 11 11081 i047
where Ijerph 11 11081 i048 represents the elapsed time from the ith TDC to the jth MAP. Note that the vehicle return time at TDCs is not included.

(2) Biggest traveling time (BTT)

In emergency practices, the deadline policy is usually adopted, that is, the needed supplies must be transported to affected areas in some regulated period (e.g., 24 h) after the occurrence of disasters. Motivated by this observation, we formulate the biggest traveling time as one performance metric of the intermodal transportation:

Ijerph 11 11081 i049

As we can see, if only in terms of BTT, the shorter it is, the better the transportation performance is.

4. Numerical Experiments

In this section, we conduct numerical experiments to verify the effectiveness of the developed approach, and observe several insights for real-world emergency responses.

4.1. Data Generation

Assume that some area is infected by an infectious disease, and sixty hospitals are set as medical aid points (MAPs) for providing medical service to victims. Considering the generality, we randomly generate the coordinates of the sixty MAPs from 0 to 200, as Figure 3 and Table 1 show. A batch of vaccines is received at the large collecting and distributing hub (LCDH) whose coordinate is set as (100, 100) and should be transported to the sixty MAPs as soon as possible. The allocated vaccines for these MAPs are as the Rj columns in Table 1 show.

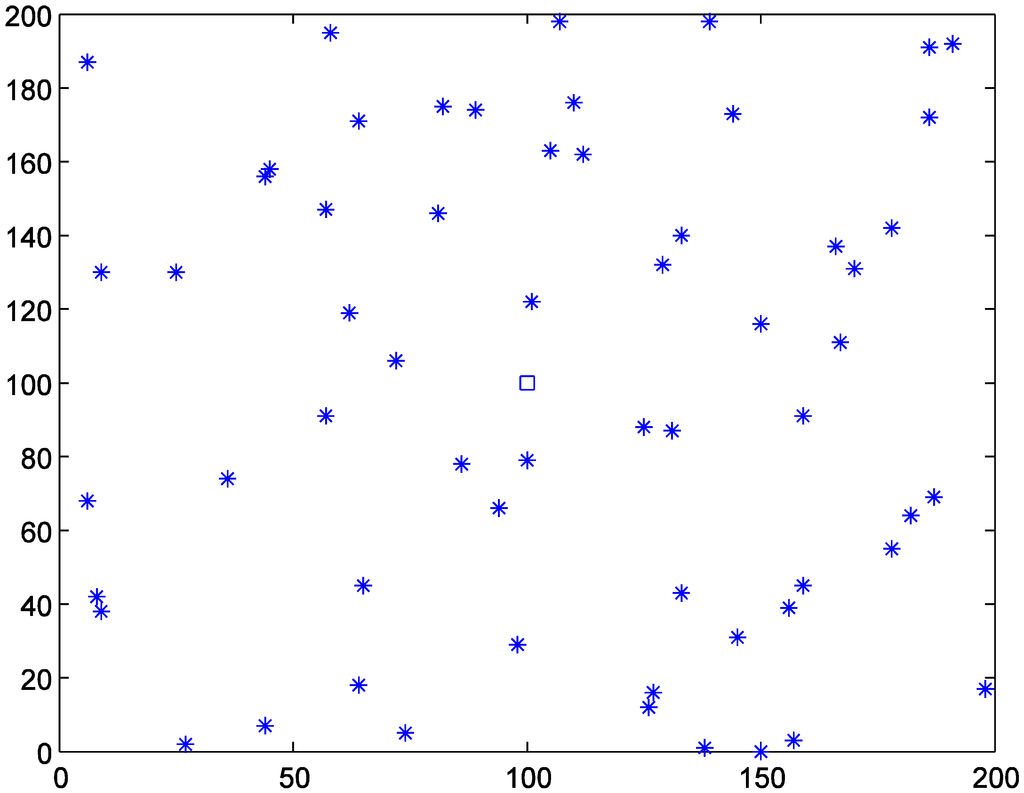

Figure 3. Locations of MAPs (labeled by asterisks) and the LCDH (labeled by the square).
Figure 3. Locations of MAPs (labeled by asterisks) and the LCDH (labeled by the square).
Ijerph 11 11081 g003 1024
Table 1. The original data.
Table 1. The original data.
MAPs Ijerph 11 11081 i050 Ijerph 11 11081 i051RjMAPs Ijerph 11 11081 i050 Ijerph 11 11081 i051Rj
113919811363144156880
2579110113215639722
3913071933129132632
412612102634170131737
51441737213594661013
6101122105536167111880
7157310143712588765
8251308283818264786
91861911039396187495
107210697440110176753
111121626544110079832
1215945831424471148
1336746164315991766
1419817672441381776
151911928704558195941
16621196674617855854
176545798478678583
18105163794487451129
1913187886498421021
20150082250668907
218917458351133140723
2215011684152178142850
235714778753186172803
241661376765418769775
25821758075545158817
261071981119569829926
279388085713343824
28641888258145311107
29127165995981146816
302727906064171712

4.2. Results of Selected TDCs

Using the proposed method for selecting TDCs and assigning MAPs in Section 3.2, we implemented the heuristic algorithm in Matlab R2012a. The related parameters of the algorithm are as follows: ω = 2, ε = 1 × 10-5, and the maximum number of iterations is set as 100.

To show the details, we present the results when the number of TDCs is set as four. After 43 iterations, the algorithm reached its termination criterion, with the objective value (2) being 62,411.0128. The detailed results are as shown in Figure 4 where the four circles represent the locations of selected TDCs. The assigned MAPs for each TDC are grouped in different shapes and colors.

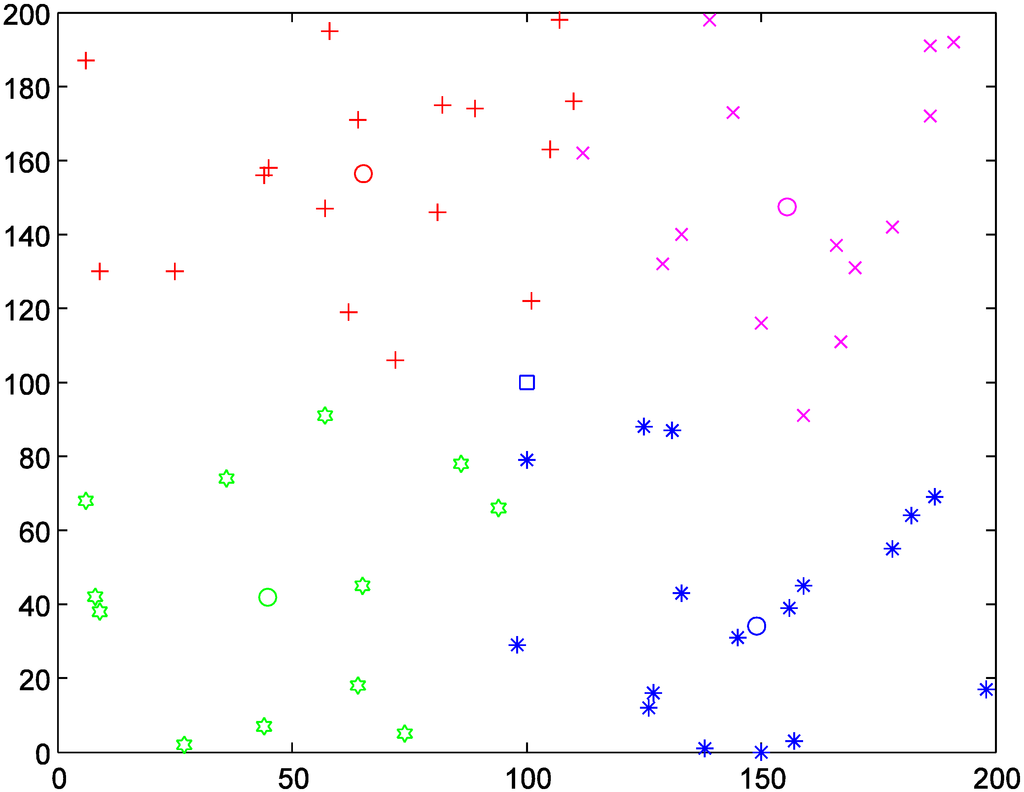

Figure 4. The selected TDCs and assigned MAPs with four TDCs.
Figure 4. The selected TDCs and assigned MAPs with four TDCs.
Ijerph 11 11081 g004 1024

Similarly, we obtained the detailed results with the number of TDCs ranging from two to 15, as Table 2 shows (For the limitation of space, the results of assigned MAPs are not given). From the results in Table 2, we can get the following observations:

(1) As the number of TDCs increases from two to 15, the value of objective function (2) definitely decreases. This means the sum of distances among TDCs and MAPs will be shortened with the increase in the number of TDCs.

(2) The decrease of the value of objective function (2) is diminishing as more TDCs are selected. In particularly, when the number of TDCs increases to 60 (the number of MAPs), the sum of distances among TDCs and MAPs will decrease to 0, as Figure 5 shows.

(3) The number of termination iterations is not in obvious relevance to the number of TDCs. All the termination iterations are within 100 (that is, the maximum number of iterations), and the longest running time of all the iterations is 5.61 Sec.

Table 2. Results with different numbers of the selected TDCs.
Table 2. Results with different numbers of the selected TDCs.
The Number of TDCsThe Selected Locations of TDCsIterationsThe Value of Objective Equation (2)
2(115.1215, 44.9284) (99.7824, 150.9591)41172,532.3624
3(116.3484, 161.1088) (47.9796, 73.6059) (147.7658, 41.5159)91100,417.3994
4(155.5038, 147.4673) (65.1837, 156.4479) (149.0295, 34.1258) (44.7962, 41.9201)4362,411.0128
5(44.0622, 34.2492) (147.8524, 29.6506) (48.0010, 144.1700) (161.7073, 130.1246) (108.2454, 169.5621)8047,221.8533
6(96.5021, 78.7748) (45.4646, 151.4802) (167.2060, 139.0513) (150.3087, 27.2637) (107.2651, 170.9193) (34.6524, 28.9273)6236,831.0511
7(169.8822, 150.8263) (173.5107, 60.7168) (90.2298, 79.5935) (103.9641, 170.3261) (137.6201, 14.8587) (44.7909, 152.3732) (27.7608, 31.9316)7829,522.1085
8(181.6705, 181.8142) (62.4966, 15.5558) (101.0444, 170.4035) (149.7739, 24.8483) (159.1980, 116.1517) (13.5109, 51.6327) (95.1028, 79.5795) (45.3501, 153.3287)5724,550.5521
9(99.8256, 171.1113) (59.2840, 14.6074) (91.8373, 80.4970) (12.5390, 51.5439) (139.9251, 12.9395) (182.7777, 184.1032) (158.5230, 126.3868) (44.9873, 153.6155) (175.5131, 57.1305)5319,631.8894
10(119.6735, 85.2224) (65.3041, 106.4243) (45.7608, 157.6658) (139.8517, 11.9312) (60.4220, 14.8274) (101.9682, 171.8361) (183.9530, 185.0312) (162.9210, 129.8682) (176.7298, 56.7747) (11.2449, 47.9950)10016,907.0872
11(180.6445, 62.8425) (139.6802, 6.7262) (184.9137, 185.0973) (58.2463, 13.7295) (11.4684, 49.2855) (162.2845, 128.1690) (149.7515, 39.3025) (91.3246, 78.8456) (110.2706, 167.3838) (74.2499, 172.9312) (41.1820, 149.2225)7314,917.4491
12(98.5393, 173.5782) (10.3469, 47.0838) (185.3382, 186.1472) (181.1156, 62.5890) (140.3170, 6.1505) (94.2870, 74.8852) (150.4305, 38.7289) (167.5805, 131.8681) (58.1328, 12.9601) (62.8250, 111.7601) (45.0970, 157.4632) (129.7547, 135.5699)7912,977.8993
13(110.8082, 168.4445) (10.0571, 46.2019) (63.9118, 110.4021) (151.0760, 37.9474) (78.9164, 174.7529) (57.8343, 12.5276) (42.5859, 154.6934) (181.7441, 62.2657) (185.7684, 186.0645) (166.5562, 132.7123) (91.5287, 73.6481) (129.3355, 89.5669) (140.8238, 5.6172)5811,382.4811
14(63.7141, 110.9293) (186.1755, 186.7686) (178.7301, 57.9741) (149.8187, 116.4298) (98.2565, 28.2879) (9.6585, 46.8682) (42.7754, 154.8233) (109.9915, 169.2300) (128.6312, 87.3772) (144.2500, 7.5919) (168.9176, 136.0067) (45.7029, 8.7246) (78.1378, 174.8745) (91.8098, 74.1798)7310,761.5505
15(9.2761, 45.3432) (130.2494, 86.9024) (66.8312, 107.4951) (131.2589, 135.4988) (46.9954, 157.3454) (169.0423, 133.2947) (36.6269, 5.7054) (93.1979, 72.9595) (110.1389, 170.3292) (70.9212, 15.7676) (141.7105, 9.3871) (82.2789, 175.1017) (186.5786, 186.7270) (17.4716, 131.1668) (178.4745, 57.7653)579216.5779

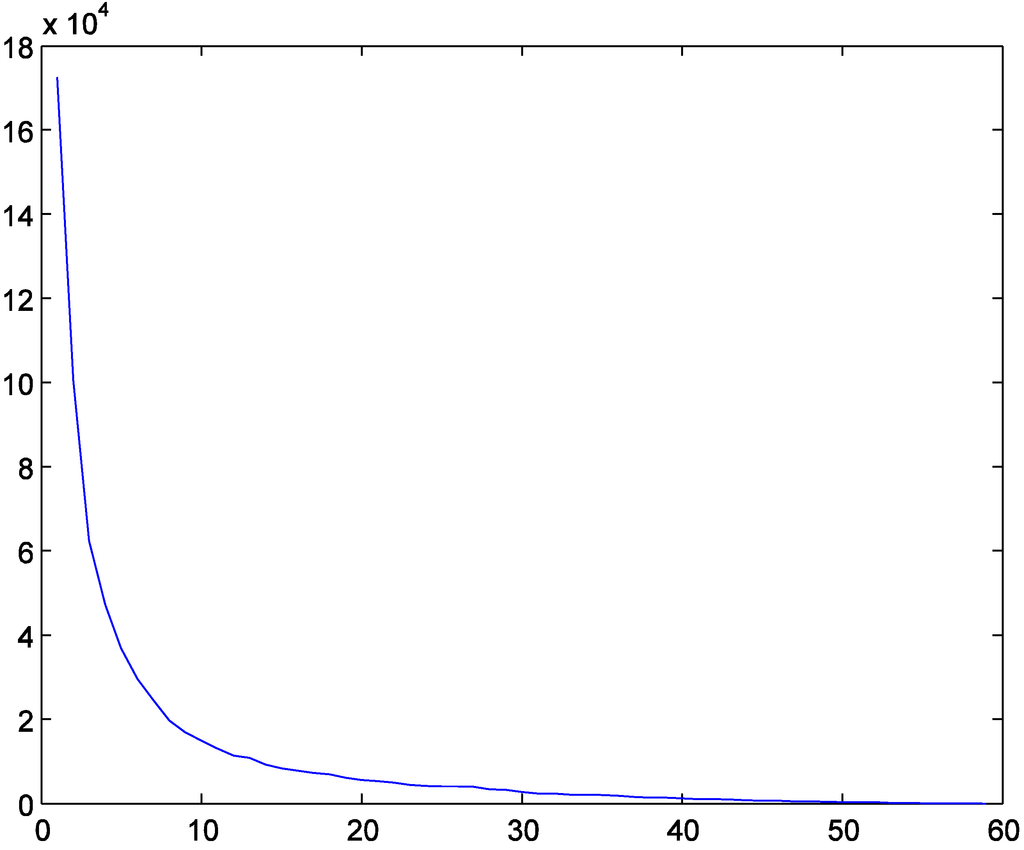

Figure 5. The value of objective Equation (2) with different numbers of TDCs.
Figure 5. The value of objective Equation (2) with different numbers of TDCs.
Ijerph 11 11081 g005 1024

In the following section, we will generate different transportation routes with different numbers of TDCs, and analyze the performance of the intermodal transportation with these selected TDCs.

4.3. Results of Delivery Routes

After selecting TDCs and assigning MAPs in Section 4.2, we use CPLEX 9.0 (with default parameters and maximal running time being 3600s) to solve the optimization model in Section 3.3, which could produce the delivery routes among TDCs and MAPs. Without loss of generality, we set the average vehicle travel speed Vv as 1.

4.3.1. Results with Different Numbers of TDCs

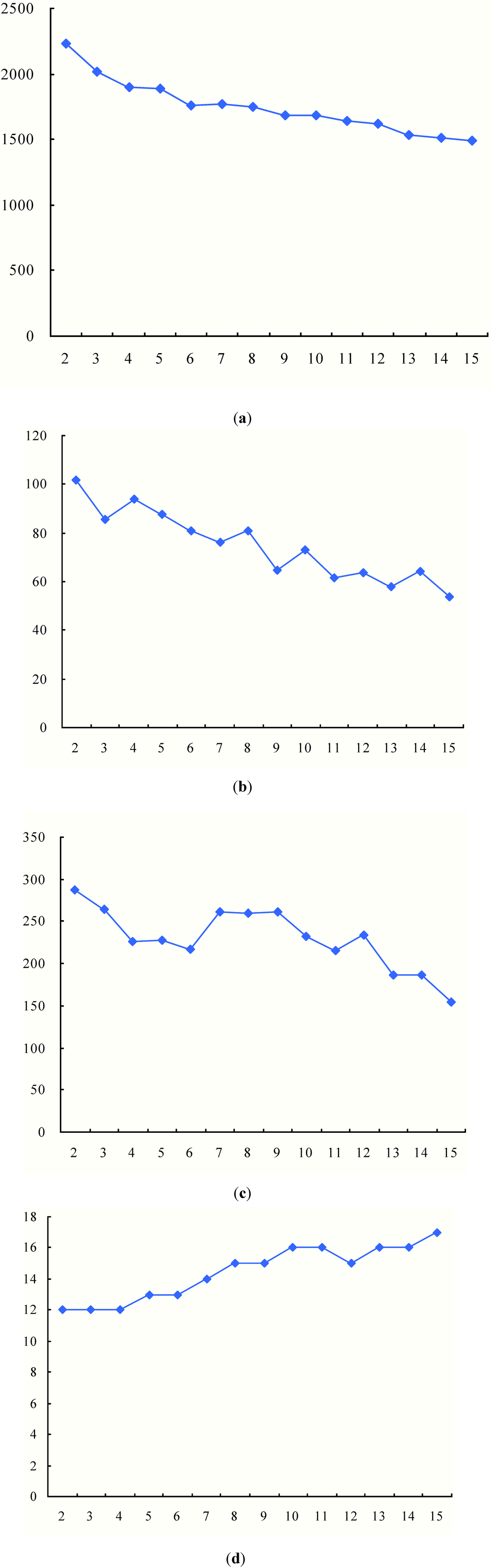

In order to observe the impact of the number of TDCs on the performance of the intermodal transportation, in this subsection we set the maximum capacity of each delivery vehicle Qv as 5000 and helicopter travel speed Vh as 10.

In order to show the detailed effects of the number of selected TDCs on the intermodal transportation routes, we compare the results with two and four TDCs. Figure 6a shows the produced delivery routes with two TDCs, and Figure 6b shows the delivery routes with four TDCs (The dotted routes are delivered by helicopters and the solid routes are by vehicles). Table 3 and Figure 7 show the detailed results with different numbers of TDCs.

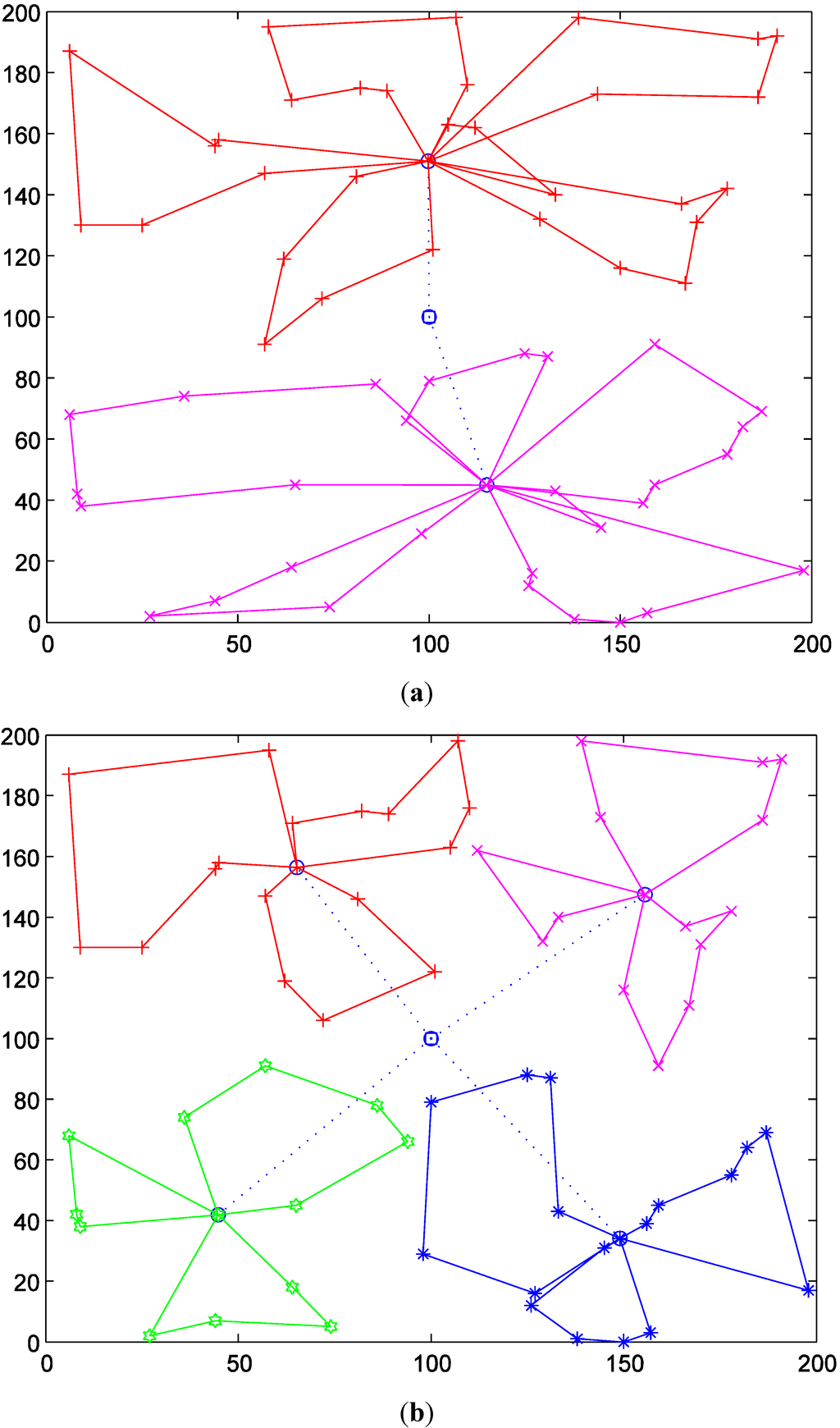

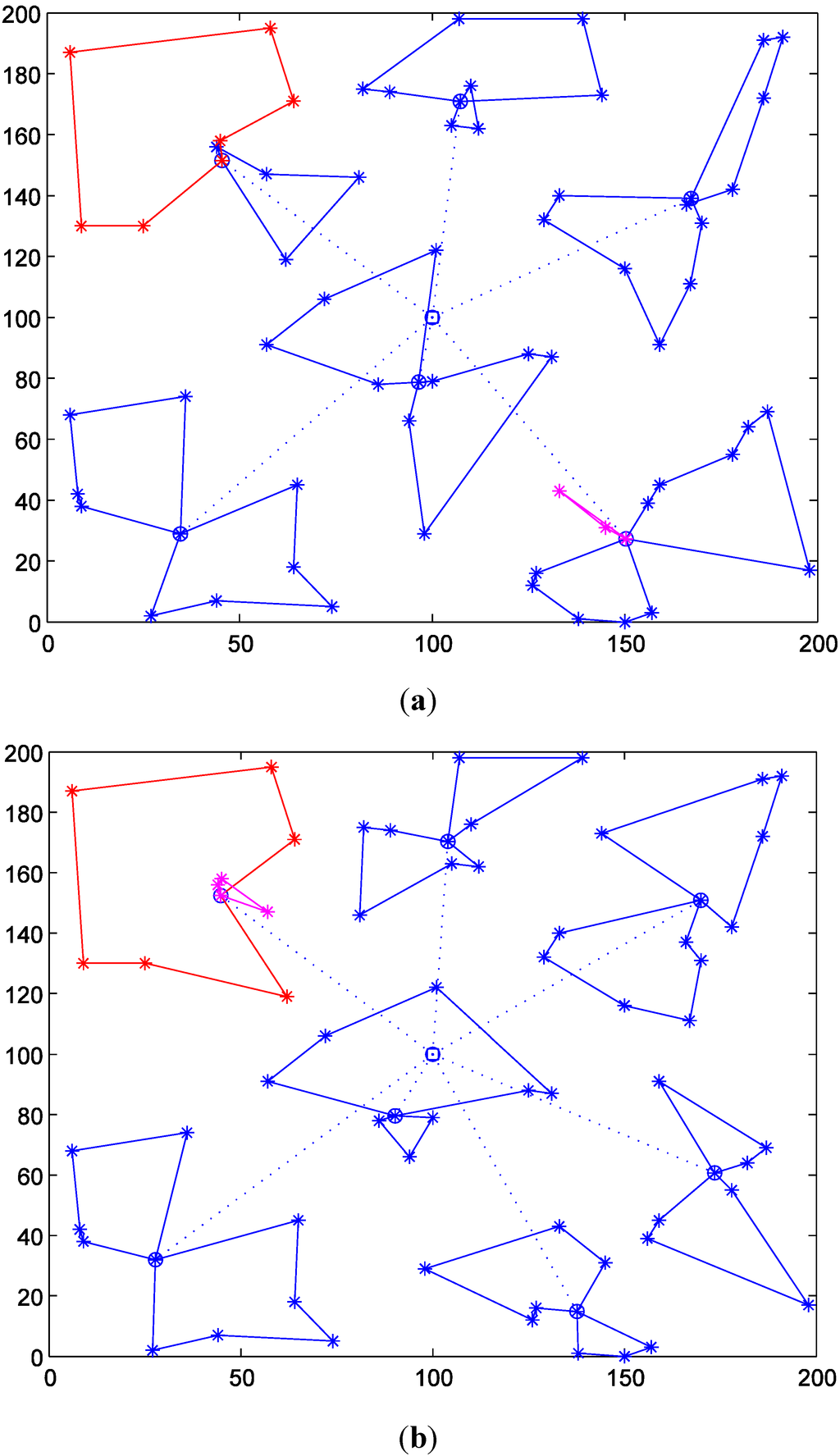

Figure 6. Intermodal transportation routes with two and four TDCs. (a) m = 2; (b) m = 4.
Figure 6. Intermodal transportation routes with two and four TDCs. (a) m = 2; (b) m = 4.
Ijerph 11 11081 g006 1024
Table 3. Results with different numbers of TDCs (= 5000).
Table 3. Results with different numbers of TDCs (= 5000).
The Number of TDCsTotal Duration TimeAverage Arrival TimeBiggest Traveling TimeNumber of Used HelicoptersNumber of Used Vehicles
22236.33101.69286.75212
32020.9285.71264.60312
41896.1993.79226.22412
51884.8087.89228.44513
61759.4580.78217.16613
71772.8275.94260.95714
81746.3580.62260.51815
91687.8464.63261.04915
101681.9773.04232.671016
111643.2761.73215.381116
121615.4463.80233.261215
131536.9257.86186.361316
141512.5564.16186.011416
151489.2254.00154.691517
Figure 7. Results with different numbers of TDCs (Q = 5000). (a) Total duration time; (b) Average arrival time; (c) Biggest traveling time; (d) The number of used vehicles.
Figure 7. Results with different numbers of TDCs (Q = 5000). (a) Total duration time; (b) Average arrival time; (c) Biggest traveling time; (d) The number of used vehicles.
Ijerph 11 11081 g007 1024

From the results in Table 3 and Figure 7, we can observe the following findings:

(1) With the increase of the number of TDCs, the total duration time would be shortened with a decreasing extent. This is because more TDCs could divide MAPs into smaller groups, which will shorten the vehicle traveling distances, as Figure 6 shows. However, the partitioning effects would be weaker as the groups of MAPs become smaller.

(2) The average arrival time has an approximately fluctuating decrease as the MAPs are assigned to more TDCs. As the number of MAPs covered by TDCs decreases, the arrival time at each MAP tends to be shortened. The fluctuation is due to the uncertainty of the number of MAPs in the partitioning. As analyzed in Section 3.3, the shortened average arrival time will increase the utility of the vaccines.

(3) As shown in Figure 7c, the biggest traveling time is also not absolutely decreased with the increase of the number of TDCs. For example, when the number of TDCs changes from 5 to 12, the biggest traveling time is fluctuating. In order to show the cause of the fluctuation, we compare the delivery routes when the numbers of TDCs are 6 and 7, as Figure 8 shows. The red routes generate the biggest vehicle travel times among all the vehicle delivery routes, which basically determines the biggest travel times of the intermodal transportation due to the contrasting speeds of helicopters and vehicles.

Figure 8. Intermodal transportation routes with six and seven TDCs (Q = 5000). (a) m = 6; (b) m = 7.
Figure 8. Intermodal transportation routes with six and seven TDCs (Q = 5000). (a) m = 6; (b) m = 7.
Ijerph 11 11081 g008 1024

(4) Although the number of total MAPs is not changed, the intermodal transportation with increased TDCs will use more medical vehicles, as Figure 7d shows. Compared with the transportation routes in Figure 6 and Figure 8, we can find that medical vehicles tend to deliver to fewer MAPs because of the decreased number of MAPs covered by more TDCs. Thus, the vehicle capacity may be not used to the largest extent (as the pink routes in Figure 8 show), which certainly increases the total number of used medical vehicles.

4.3.2. Results with Different Vehicle Maximum Capacities

In above subsection, we set the maximum capacity of medical vehicles as 5000, but the setting may affect the maximum delivery number of MAPs by each medical vehicle. In this subsection, we will investigate the impact of different vehicle maximum capacities on the performance of the intermodal transportation. In order to keep the comparability, we set the number of selected TDCs as 4, and then increase the vehicle maximum capacity from 2000 to 15,000 by 1000. Results are Table 4 and Figure 9 show.

Table 4. Results with four TDCs and different vehicle maximum capacities.
Table 4. Results with four TDCs and different vehicle maximum capacities.
Vehicle Maximum CapacityTotal Duration TimeAverage Arrival TimeBiggest Traveling TimeNumber of HelicoptersNumber of Vehicles
20003191.1062.00175.09431
30002406.5164.96220.32420
40001893.3193.58226.89413
50001900.7089.71226.89412
60001798.7496.05233.14410
70001728.03103.63266.0349
80001683.76104.21261.2148
90001684.3499.59261.2148
10,0001679.68113.86331.2048
11,0001636.28141.39408.0647
12,0001584.49156.00422.8246
13,0001565.34160.76416.0646
14,0001529.67165.57455.0345
15,0001515.92166.57455.0344

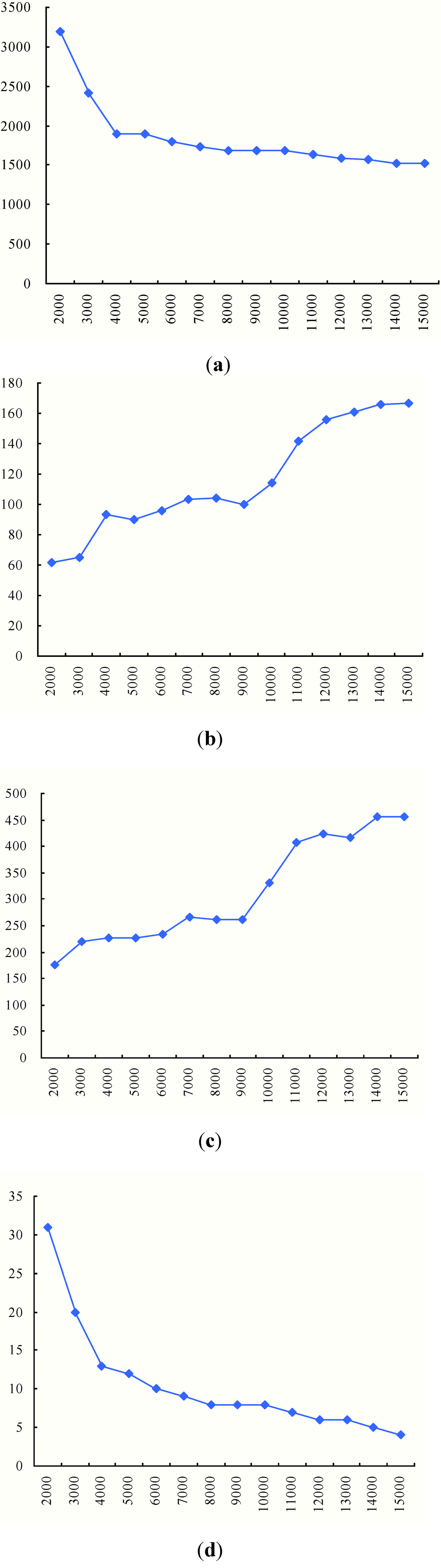

Figure 9. Results with four TDCs and different vehicle maximum capacities. (a) Total duration time; (b) Average arrival time; (c) Biggest traveling time; (d) The number of used vehicles.
Figure 9. Results with four TDCs and different vehicle maximum capacities. (a) Total duration time; (b) Average arrival time; (c) Biggest traveling time; (d) The number of used vehicles.
Ijerph 11 11081 g009 1024

From the results in Table 4 and Figure 9, we can observe the following findings:

(1) As vehicle maximum capacity is enlarged from 2000 to 15,000, the total duration time would decrease. Vehicles with bigger capacities can serve more MAPs, which will decrease the total number of used vehicles. For the given number of MAPs, the decreased in-service vehicles could reduce the total travel distance. However, the decreased extent would become small after the vehicle maximum capacity exceeds 4000, as Figure 9a shows. Especially, the total duration time will not change after the vehicle maximum capacity exceeds 15000, because the medical vehicle with 15,000 doses of vaccines can serve all the MAPs covered by each TDC.

(2) Both average arrival time and biggest traveling time have an increasing trend with the enlargement of vehicle maximum capacity, respectively changing from 62.00 to 166.57 and from 175.09 to 455.03. As analyzed above, the increased traveling distances will also lengthen the average arrival time and biggest traveling time. In details, the two curves increase relatively gently before the vehicle maximum capacity exceeds 9000, but then with sharp increases.

Average arrival time has a direct impact on the availability and utility of medical supplies at MAPs, and biggest traveling time to some extent represents the completion time of the delivery task. Thus, in emergency responses, it is not definitely true that vehicles should load more and more medical supplies. In order to enhance the utility and efficiency of medical supplies, decision makers should make use of medical vehicles with small capacities or not load big vehicles to full capacity if there are available medical vehicles, especially when TDCs cover less MAPs.

4.3.3. Results with Different Helicopter Travel Speeds

We further compare the performance of the intermodal transportation with different helicopter traveling speeds. For comparability, we also analyze the results with four TDCs and the vehicle maximum capacity is still set at 5000. Changing the helicopter travel speed from one to 10, the results are as Table 5 and Figure 10 show.

Table 5. Results with four TDCs and different helicopter travel speeds.
Table 5. Results with four TDCs and different helicopter travel speeds.
Helicopter Traveling SpeedsTotal Duration TimeAverage Arrival TimeBiggest Traveling TimeNumber of HelicoptersNumber of Vehicles
12710.51161.40287.49412
22258.11123.84252.75412
32107.31111.32241.70412
42031.91105.06236.17412
51986.67101.30232.85412
61956.5198.79230.64412
71934.9797.01229.06412
81918.8195.66227.88412
91906.2494.62226.96412
101896.1993.79226.22412

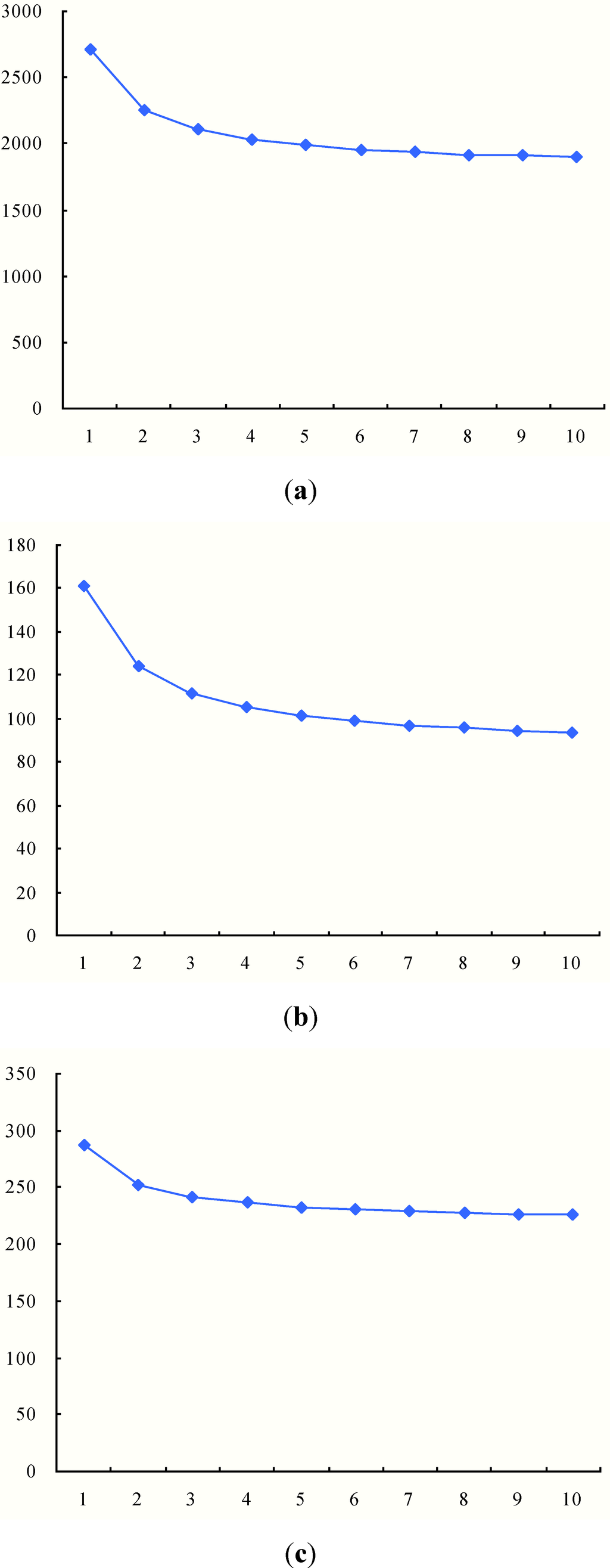

Figure 10. Results with four TDCs and different helicopter travel speeds. (a) Total duration time; (b) Average arrival time; (c) Biggest traveling time.
Figure 10. Results with four TDCs and different helicopter travel speeds. (a) Total duration time; (b) Average arrival time; (c) Biggest traveling time.
Ijerph 11 11081 g010 1024

The results in Table 5 and Figure 10 indicate that the helicopter traveling speed has an impact on the performance of the intermodal transportation. As the helicopter traveling speed increases from 1 to 10, total duration time, average arrival time and biggest traveling time of the intermodal transportation will decrease, that is, higher helicopter traveling speeds can make full use of the advantage of the intermodal transportation. More accurately, the more contrasting the traveling speeds of helicopters and vehicles are, the more advantageous the intermodal transportation is. However, after the helicopter traveling speed exceeds five times bigger than the vehicle traveling speed, the advantage of the intermodal transportation will decrease to a small extent.

5. Conclusions

In developing a solution to a kind of intermodal transportation problem in emergency responses, e have proposed a fuzzy-based method to select the locations of TDCs and assign MAPs to each TDC, and an integer-programming model to determine the optimal delivery routes in the intermodal transportation network. Experimental results verified the effectiveness of the proposed approach, and observed the impacts of the number of selected TDCs, the vehicle maximum capacity and helicopter travel speed on the performance of the intermodal transportation.

There are still further works we will perform. Considerations will be given to reasonably consider the loading and unloading time of medical supplies and reduce the uncertainty of the number of assigned MAPs. Meanwhile, we will improve and apply the approach into real-world disaster responses with more practical considerations such as the geographic situations.

Acknowledgments

We gratefully acknowledge the referees for their constructive comments, which greatly improved the quality of the manuscript. This work is partially supported by National Natural Science Foundation of China (No. 71171029, 71471025, 71301020), and the China Scholarship Council.

Author Contributions

Junhu Ruan and Xuping Wang proposed the original idea for the study, and formulated the two-stage problem. Junhu Ruan and Yan Shi proposed the method of selecting TDCs and assigning MAPs in Section 3.2. Junhu Ruan and Xuping Wang built the model in Section 3.3. Junhu Ruan implemented the experiments with the guidance of Xuping Wang and Yan Shi. Junhu Ruan wrote the paper with the revisions of Xuping Wang and Yan Shi.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sheu, J.B. An emergency logistics distribution approach for quick response to urgent relief demand in disasters. Trans. Res. Pt. E Logist. Trans. Rev. 2007, 43, 687–709. [Google Scholar]
  2. Ruan, J.; Wang, X.; Shi, Y.; Sun, Z. Scenario-based path selection in uncertain emergency transportation networks. Int. J. Innov. Comput. I. 2013, 9, 3293–3305. [Google Scholar]
  3. Wang, D.; Qi, C.; Wang, H.W. Improving emergency response collaboration and resource allocation by task network mapping and analysis. Saf. Sci. 2014, 70, 9–18. [Google Scholar]
  4. Simpson, N.C.; Hancock, P.G. Fifty years of operational research and emergency response. J. Oper. Res. Soc. 2009, 60, S126–S139. [Google Scholar]
  5. Caunhye, A.M.; Nie, X.; Pokharel, S. Optimization models in emergency logistics: A literature review. Socio-Econ. Plan. Sci. 2012, 46, 4–13. [Google Scholar]
  6. Galindo, G.; Batta, R. Review of recent developments in OR/MS research in disaster operations management. Eur. J. Oper. Res. 2013, 230, 201–211. [Google Scholar]
  7. Jia, H.Z.; Ordóñez, F.; Dessouky, M.M. Solution approaches for facility location of medical supplies for large-scale emergencies. Comput. Ind. Eng. 2007, 52, 257–276. [Google Scholar]
  8. Mete, H.O.; Zabinsky, Z.B. Stochastic optimization of medical supply location and distribution in disaster management. Int. J. Prod. Econ. 2010, 126, 76–84. [Google Scholar]
  9. An, S.; Cui, N.; Li, X.; Ouyang, Y. Location planning for transit-based evacuation under the risk of service disruptions. Trans. Res. Part B Methodol. 2013, 54, 1–16. [Google Scholar]
  10. Yarmand, H.; Ivy, J.S.; Denton, B.; Lloyd, A.L. Optimal two-phase vaccine allocation to geographically different regions under uncertainty. Eur. J. Oper. Res. 2014, 233, 208–219. [Google Scholar]
  11. Haghani, A.; Oh, S.C. Formulation and solution of a multi-commodity, multi-modal network flow model for disaster relief operations. Trans. Res. Pt. A Policy Pract. 1996, 30, 231–250. [Google Scholar]
  12. Barbarosolu, G.; Arda, Y. A two-stage stochastic programming framework for transportation planning in disaster response. J. Oper. Res. Soc. 2004, 55, 43–53. [Google Scholar]
  13. Özdamar, L. Emergency logistics planning in natural disasters. Ann. Oper. Res. 2004, 129, 218–219. [Google Scholar]
  14. Hu, Z.H. A container multimodal transportation scheduling approach based on immune affinity model for emergency relief. Expert Syst. Appl. 2011, 38, 2632–2639. [Google Scholar]
  15. Najafi, M.; Eshghi, K.; Dullaert, W. A multi-objective robust optimization model for logistics planning in the earthquake response phase. Trans. Res. Pt. E Logist. Trans. Rev. 2013, 49, 217–249. [Google Scholar]
  16. Najafi, M.; Eshghi, K.; de Leeuw, S. A dynamic dispatching and routing model to plan/re-plan logistics activities in response to an earthquake. OR Spectr. 2014, 36, 323–356. [Google Scholar]
  17. Kovács, G.; Spens, K.M. Humanitarian logistics in disaster relief operations. Int. J. Phys. Distrib. Logist. Manage. 2007, 37, 99–114. [Google Scholar]
