Article

Developing a New Spectral Index for Detecting Cadmium-Induced Stress in Rice on a Regional Scale

by
Chuanyu Wu
1,
Meiling Liu
1,*,
Xiangnan Liu
1,
Tiejun Wang
2 and
Lingyue Wang
1
1
School of Information Engineering, China University of Geosciences, Beijing 100083, China
2
Faculty of Geo-Information Science and Earth Observation (ITC), University of Twente, 7500 Enschede, The Netherlands
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2019, 16(23), 4811; https://doi.org/10.3390/ijerph16234811
Submission received: 11 October 2019 / Revised: 25 November 2019 / Accepted: 27 November 2019 / Published: 29 November 2019
(This article belongs to the Special Issue Heavy Metal Pollution and Health Risk Assessment)
Browse Figures
Versions Notes

Abstract

:
In natural farmland ecosystems, cadmium (Cd) pollution in rice has attracted increasing attention because of its high toxicity, relative mobility, and high water solubility. This study aims to develop a spectral index for detecting Cd stress in rice on a regional scale. Three experimental sites are selected in Zhuzhou City, Hunan Province. The hyperspectral data, chlorophyll (Chl) content, leaf area index, average leaf angle, Cd concentration in soil, and Sentinel-2A images from 2017 and 2018 are collected. A new spectral index sensitive to Cd stress in rice is established based on the global sensitivity analysis of the radiative transfer model PROSPECT + SAIL (commonly called PROSAIL) model with the auxiliary of the field-measured data. The heavy metal Cd stress-sensitive spectral index (HCSI) is devised as an indicator of the degree of Cd stress in rice. Results indicate that (1) the HCSI developed based on Chl is a good indicator of rice damage caused by Cd stress, that is, low values of HCSI occur in rice subject to relatively high pollution; (2) compared with common spectral indices, such as red-edge position and red-edge Chl index, HCSI is more sensitive to Chl content with higher Pearson correlation coefficients with respect to Chl content, ranging from 0.85 to 0.95; (3) HCSI is successfully applied in Sentinel-2A images from the two different years of monitoring rice Cd stress on a regional scale. Cd stress levels in rice stabilized, and the largest area percentage of each pollution levels of Cd decreased in the following order: No pollution (i.e., 40%), low pollution (i.e., 35%), and high pollution (i.e., 25%). This study indicates that a combination of simulation data from the PROSAIL model and measured data appears to be a promising method for establishing a sensitivity spectral index to heavy metal stress, which can accurately detect regional Cd stress in crops.

1. Introduction

Heavy metal stress is defined as any heavy metal pollutant that is potentially unfavorable to crops’ metabolism, growth, or development [1]. With the development of industry, some heavy metal pollutants have caused farmland disturbance in developing countries, typically cadmium (Cd), copper (Cu), zinc (Zn), lead (Pb), and others [2]. Cd stress is potentially unfavorable to rice metabolism, growth, or development, which is one of the critical food pollution problems in China [3]. The adsorption of Cd in rice is higher than that of other pollutants; thus, Cd pollution in rice is relatively obvious [4]. High concentrations of Cd pollution can have a negative effect on vegetation [5]. Cd is absorbed by rice, causing rice pollution, which in turn harms the environment and the health of animals and plants [6]. Therefore, detecting Cd pollution plays a crucial role in assessing crop quality, environmental quality, and human health.
Heavy metal pollution can lead to a change in vegetation color and morphogenesis, leaf yellowing, vegetation branching, defoliation, and even death [7,8,9,10,11]. Studies have shown that Cd stress has a similar effect. Cd stress causes a reduction in rice growth; excessive Cd in the growth reduces rice seed germination, causea leaf chlorosis and necrosis; and photosynthesis decreases in rice, which further results in decreasing chlorophyll (Chl), leaf area index (LAI), and changes in average leaf angle (ALA) [12,13,14]. Such pollution can also destroy the internal structure of vegetation leaves. Zhu et al. [15] found that with an increase in copper content, the mesophyll cells shrink, the internal structure of leaves appears disordered, and the leaf structure parameter (N) increases. The spectral reflectance of vegetation changes considerably because of the remarkable changes in the various biochemical and biophysical parameters of vegetation.
Traditionally, assessment of Cd stress has often been conducted through soil testing, crop tissue analysis, and long-term field trials in sequential steps with increasing high cost. Remote sensing technology provides an efficient and economical means for assessing crop Cd stress over large areas [16]. Many studies have shown that remote sensing has been used for monitoring crops in controlled laboratory conditions or specific field environments under heavy metal stress [9,17,18]. Vegetation spectral indices are among the common methods that can characterize the variation in vegetation in response to heavy metal stress [19]. For example, spectral indices, such as normalized difference vegetation index, modified chlorophyll absorption ratio index, structure insensitive pigment index, enhanced vegetation index, red-edge chlorophyll index (Clre), red-edge position (REP), and normalized red-edge differences (NDRE), are commonly used to detect crops under heavy metal stress [20,21,22,23,24]. Kooistra et al. [25] used REP and Cd in soil for regression analysis, and found that REP had a good correlation with Cd content. Likewise, many spectral signal enhancement methods, such as principal component regression, independent component analysis, wavelet transform, and spectral absorption depth, have been used to extract the spectral characteristics of stressed vegetation [26,27,28]. Many studies have also applied partial least square regression, multiple linear regression, and artificial neural network methods to establish an empirical relationship between spectral reflectance data and vegetation biochemical and biophysical parameters; this relationship is used to identify heavy metal stress in vegetation [19,29,30,31,32]. Liu et al. [33] used a back propagation neural-network model to estimate chlorophyll concentration in rice under Cd stress.
Heavy metal stress under laboratory conditions or specific field-scale environments (e.g., nearby abandoned mines) can cause considerable changes in vegetation, such as obvious leaf yellowing and leaf curls [12,13,34]. Thus, different stress levels in vegetation are easy to detect. Spectral indices that are sensitive to vegetation biochemical and biophysical parameters have been established on the basis of substantial field measurement data in experiments under heavy metal pollution in laborious or field scale. These field-scale approaches lack universality and cannot be used for large-scale information monitoring [27,32]. Detecting the level of pollutants in “real-world” ecosystems is relatively difficult, and how to use biochemical parameters, biophysical parameters, or spectral wavelengths in vegetation in response to heavy metal remains less explored. Li et al. [35] constructed the hyperspectral index based on subtle changes in canopy chlorophyll, and used Hyperion images to monitor canopy chlorophyll under As stress on a large scale. Liu et al. [36] integrated physiological function variability with spatio-temporal stability using multi-temporal thermal remote sensing for regional monitoring of heavy metal stress. To further assess large-area heavy metal concentrations in crops, the establishment of new vegetation spectral indices is needed based on the selection of sensitive wavelengths by integrating measurement data with simulation data.
Vegetation radiative transfer models (RTMs) have recently been widely used for vegetation parameter detection [37,38,39,40], and many people have used vegetation RTMs to develop spectral indices. Zhou et al. [41] used the PROSPECT-5 model to establish a new spectral index for estimating the ratio of carotenoids to Chl content to monitor the physiological and phenological conditions of crops. Pasqualotto et al. [42] utilized the PROSAIL model constructs with two spectral indices that accurately estimate the water content of the canopy. Among many available vegetation radiative transfer models, this study selected the PROSAIL model, which is coupled by leaf and canopy radiative transfer model. The model was chosen because of its availability, accuracy, and simplicity [39]. The PROSAIL model is a physical model that provides a thorough understanding of biological and biochemical processes, analyzes signals from remote sensing data, allows input, and generates rich simulation datasets [40]. The PROSAIL can not only simulate the spectral characteristics of different crop types under different physiological conditions, but can also compensate for the deficiency of measured data in field experiments (e.g., insufficient data, lack of key data, uncontrollable environmental parameters, and unrepeatable experiments) [39,43,44]. In addition, spectral wavelengths that are sensitive to specific biochemical and biophysical parameters are determined, and spectral indices that are sensitive to different pollution types in farmland can be explored. The spectral indices developed by PROSAIL model have good universality and can be used on a large scale in similar crop type research [39].
Satellite remote sensing images provide an efficient, economical, and large-scale monitoring method to verify the application of a spectral index developed by vegetation RTMs and monitor Cd stress in farmland on a large scale. Xiao et al. [45] developed NDII as the land surface water index based on the SPOT-4 satellite image and used it to estimate water stress coefficient. Muramatsu et al. [46] constructed a new index and applied it to Landsat satellite images for land-cover classification. Sentinel-2 satellite remote sensing images have a wide application in distinguishing different crop types, monitoring plant stress, and retrieving biophysical parameters, such as LAI, leaf Chl content, and leaf water content (Cw) [47,48,49,50,51,52]. They contain three red-edge bands that provide key information for monitoring the vegetation state. Several studies have confirmed that when plants are subjected to heavy metal stress, the red-edge parameters of plant spectra change [25,53,54]. Therefore, Sentinel-2 can obtain more information about plant stress changes than SPOT and Landsat satellite images.
This study focuses on the development of a spectral index that can accurately monitor different Cd stress levels in rice on a large scale. The contributions of this study are as follows: (1) A new Cd stress-sensitive spectral index is established using the PROSAIL model, which can explore the sensitive wavelength bands and biochemical components of rice in response to Cd stress; (2) the common spectral indices and the newly developed spectral index are compared using field-measured and simulated data; (3) the newly developed spectral index is upscaled to Sentinel-2 remote sensing images to detect Cd stress levels in rice on a large scale.

2. Study Area and Data

2.1. Study Area

The study area is located in Zhuzhou, Hunan Province, China (Figure 1), which is a famous commodity grain production region with 230,000 tons of rice per year and an important industry in China. It is located in northeastern Hunan Province and the lower reaches of the Xiangjiang River (112°57′30″–114°07′15″ E, 26°03′05″–28°01′07″ N). The climate of the region is subtropical monsoon, with an average annual temperature of 16–18 °C. The predominant soil type is red soil with sufficient nutrient content. Mountain areas are mainly concentrated in the southeast of the study area, the plain along with the Xiangjiang river distribution on both sides. However, the resulting waste gas and waste due to the influence of human activities make the soil and water under the serious influence of heavy metal pollution. The irrigation of polluted water makes crops under heavy metal stress, which further affects human health. Previous studies have shown that Cd is the predominant pollutant in paddy soils that are watered from the Xiangjiang River, which contains industrial wastewater discharges [55,56]. The classification results in Figure 1d show that about 35% of the land is used for agricultural farming, 47% of the land is occupied by forests, and the rest is occupied by residential settlements, factories, rivers, and roads. The urban area is mainly distributed along rivers, mainly located in the northwest and central regions of the study area. Classification results were downloaded from the Geographical Information Monitoring Cloud Platform (http://www.dsac.cn).
Rice is the dominant crop in this region; for the single rice cropping region in Hunan Province, the rice is often transplanted in early June and harvested in late September. Consideration of the difference in heavy metal content in different regions, on the basis of field measurement and laboratory analysis, three experiment sites were selected based on the National Secondary Standard in the Environment Quality Standard for Soils (Figure 1c). The concentrations of heavy metals and nutrient substance in the soil samples were measured using an atomic absorption spectrophotometer at the Chinese Academy of Agricultural Sciences. The concentration of nutrient substances showed that the content of rice nutrient in the three experimental sites was inconsiderably different; hence, the growth of rice in the experimental areas was unaffected by nutrient stress. The average concentrations of the heavy metals Pb, Hg, and As in the samples were within acceptable environmental quality standards. However, the concentration of Cd in Site C was significantly greater than the upper limit value of the quality standards; the concentration of Cd in Site B was within the quality standards, and in Site A almost with no pollution. According to the concentration of Cd in soil, which was considered the main pollutant in the study area, Site A was categorized as “No pollution”, Site B was categorized as “Low pollution”, and Site C as “High pollution” (Table 1).

2.2. Field Measurements

Field measurements were designed to represent the rice variability within the study area. On the basis of the information provided by farmers about rice growth, rice of the same growing season was selected and reliable sampling was achieved to cover the difference in the study sites as much as possible. A series of measurements were taken in each sampling to characterize the accurate measurements, and these measurements were then averaged for each sampling. The measurements mainly included ASD data, Chl content, LAI, and geographic location. An ASD FieldSpec Pro spectrometer (Analytical Spectral Devices, Boulder, CO, USA), which can acquire a continuous spectral range of 350–2500 nm with sampling intervals of 2 nm, was used in canopy reflectance measurements. All spectra were collected under cloudless days between 10:00 and 14:00 at Beijing local time. The reflectance of a white BaSO4 panel calibration measured before every reflectance was taken. Then, the reflectance was calculated as the ratio between energy reflected by the canopy and energy incident on the canopy. Each canopy reflectance was the average of multiple scans automatically acquired by the FieldSpec. Chl was estimated using a SPAD-502 chlorophyll meter (Minolta Corporation, Ramsey, NJ, USA). LAI was estimated using a LICOR LAI-2000 Plant Canopy Analyzer (CID Bio-Science Inc., Camas, WA, USA), from which ALA could also be obtained. GPS was used to collect the geographic location of each sampling. Table 2 shows the variables measured in the field.

2.3. Sentinel-2 Satellite Imagery

The Sentinel-2 satellite imagery provides 13 spectral bands, ranging from visible and near-infrared to short-wave infrared, with four bands (B2–B4, B8) at 10 m spatial resolution, six bands (B5–B7, B8a, B11, B12) at 20 m spatial resolution, and three bands (B1, B9, B10) at 60 m spatial resolution [57]. Sentinel-2 satellite imagery has high quality of radiation and geometry. The processing level 1C product is geo-coded with subpixel accuracy and includes the top of atmosphere reflectance. The images collected in 2017 and 2018 were downloaded from the European Space Agency Sentinels Scientific Data Hub (https://scihub.copernicus.eu). SEN2COR tools (http://step.esa.int/main/third-party-plu-gins-2/sen2cor/) were used for atmosphere correction of the Sentinel-2 images. The spatial resolution was aggregated to 20 m resampling from B2 to B8A. All images were collected with minimal cloud cover in the study area, and the time was basically the same as that measured in the field [58]. An overview of the Sentinel-2 bands is presented in Table 3.

3. Methods

To develop a sensitive spectral index to detect the rice under Cd stress, the following methods were implemented (Figure 2): (1) Sensitivity analysis was conducted in the PROSAIL model to determine the most sensitive parameter to Cd stress. (2) The sensitive spectral index was developed based on sensitivity analysis and correlation analysis. (3) The sensitive spectral index was used to detect rice under Cd stress on the regional scale.

3.1. Rice Canopy Reflectance Simulations and Sensitivity Analysis

Spectral analysis was performed by using the radiative transfer model PROSAIL to analyze the effects of various biochemical and biophysical parameters of rice on the spectral reflectance of canopy under Cd stress and to obtain the parameters of subtle changes. The PROSAIL model is a canopy RTM radiative transfer model coupled by leaf (PROSPECT) and canopy radiative transfer model (SAIL) [39,59]. The PROSPECT model requires the following parameters: Chl, Cw, leaf dry matter content (Cm), carotenoid content (Car), and N. The simulated leaf spectrum can be used directly as an input to the SAIL model. The SAIL model requires LAI, ALA, hot spot parameter (SL), and solar and view geometries as parameters [39].
On the basis of the field measurement results of rice biochemical and biophysical parameters, the study parameters were set as follows: The Chl content was set in the range of 30–80 μg·cm−2, with a step of 0.3 μg·cm−2; the LAI value was set in the range of 1.5–6, with a step of 0.1; and the ALA value was set from 30 to 60°, with a step size of 1°. The values of these parameters were all over their plausible range according to the field measurements, and all measurements of each parameter were included [60].
Prior information as the model input parameter is critical for model simulation. Healthy leaves have values of N ranging from 1.5 to 2.5; the larger the values of N are, the more disordered the internal structure of the leaves will be [37]. Cd stress will disorder the internal structure of leaves, further increasing the value of N. When the value of N is greater than 2.5, the internal structure of leaves changes, and the vegetation is considered under Cd stress [15]. N inversion using the PROSAIL model, and combined with the inversion results and prior information, the values of N were set in the range of 1.5 to 3, considering the different levels of Cd stress [61,62]. Other input variables were set as a fixed reasonable value on the basis of field measurements and prior information [63,64]. Table 4 shows all the parameters.
A sensitivity analysis evaluates the relative importance of each input variable in a model and can be used to identify the most influential variables affecting model outputs [65,66]. Liang et al. [67] used sensitivity analysis to select the optimal vegetation index for LAI. Zhou et al. [43] selected the wavelengths which are sensitive to equivalent water thickness but insensitive to N and dry matter content by using sensitivity analysis. In this study, using global sensitivity analysis can not only reflect the sensitivity of each input parameter to the model simulation results, but can also comprehensively consider the influence of the interaction among the parameters on the model results. Hence, a global sensitivity analysis was conducted to identify wavelengths that parameters have a large influence on the spectral change under Cd stress. This approach was performed by analyzing the relative contribution of each input parameter to the variability of the output reflectance of the PROSAIL model. Sobol’s sensitivity analysis is a global sensitivity analysis method and was used in this study, which was performed using MATLAB software tool (GSAT) (MathWorks, Natick, MA, USA) [66,68,69]. For each input parameter, a list of wavelengths was derived based on their sensitivity.

3.2. Sensitive Biochemical and Biophysical Parameter Selection for Cd Stress in Rice

In natural farmland ecosystems, the Cd content is relatively low, and the leaf morphology of rice and the internal cell structure of leaves are inconsiderably changed compared with leaves under high Cd content in laboratory environment [32,34]. In accordance with the field measurement results of the study area under different stress levels and the prior knowledge as the input parameters of the PROSAIL model, the sensitivity analysis results were obtained (Figure 3). The contribution of different parameters to canopy reflectance had its unique spectral contribution domain. In comparison with rice under no pollution, the sensitivity of Chl was remarkably decreased under Cd pollution; N, LAI, and ALA were changed but slightly. The change in Chl was about the sum of the changes in other parameters. Therefore, rice Chl was considered more sensitive to Cd stress than other parameters in environments with low Cd concentrations in farmland ecosystem.

3.3. Statistical Model

In order to understand the sensitive parameter and the applicability of the spectral indices under different stress levels, the Person correlation coefficient (r) was calculated to explore their correlation. The simple linear model was used to examine the relationships between spectral indices and biophysical and biochemical contents. The Pearson correlation coefficient (r) is calculated as:
r = ∑ i = 1 n ( X i − X ¯ ) ( Y i − Y ¯ ) ∑ i = 1 n ( X i − X ¯ ) 2 ∑ i = 1 n ( Y i − Y ¯ ) 2
where X i is the spectral indices value for samples, X ¯ is the mean of X i , Y i is the biophysical and biochemical content, Y ¯ is the mean of Y i , and n is the number of samples. The higher the absolute value of the correlation is, the stronger the linear relationships between the spectral indices and biophysical and biochemical contents are.

4. Result

4.1. New Spectral Index Development for Cd Stress in Rice

From Figure 3, Chl is the most sensitive parameter for the spectral response of rice under Cd stress in the farmland ecosystem. This study explored Cd stress by developing a spectral index sensitive to Chl. The overall parameter range of each parameter was used as input, and the resulting sensitivity analysis is shown in Figure 4a. From the sensitivity analysis results, the main sensitive regions of chlorophyll were distributed in the spectral range of 480–720 nm, the sensitivity was 70–75%, and the sensitivity in the near-infrared wavelengths approached zero value. The sensitivity of LAI increased at 720 nm and was highly sensitive in the near-infrared region.
The correlation R2 between the two wavelengths in the wavelength range of 400–800 nm was calculated to obtain a combination of wavelengths with minimal redundant information. The two adjacent wavelengths were highly correlated, and the wavelength after 710 nm had a lower correlation with other wavelengths, except for adjacent wavelengths (Figure 4b). Chl had high sensitivity between 500 and 730 nm; depending on the correlation among wavelengths, 678 nm and 712 nm were finally selected as the optimal wavelengths. The 678 nm matched the absorption peak, and another sensitive wavelength of 712 nm was located in the “red-edge” region. Moreover, 550 nm was selected as the N-sensitive wavelength, and the sensitivity of LAI was high at 780 nm.
Further analysis of the simulated spectral reflectance of the PROSAIL model with parameter changes was performed to understand the influence of LAI and N on the sensitive wavelength of Chl. For the two Chl-sensitive wavelengths, the reflectance decreased with the increase in Chl content, and the relative change in reflectance at the red-edge position of 712 nm was significantly higher than 678 nm (Figure 4c). On the basis of this phenomenon and the sensitivity analysis result, the spectral index was considered the ratio of the reflectance in the red-edge to the reflectance in the absorption peak. This ratio result could effectively enhance the difference among different Chl levels. The higher the Chl levels are, the greater the value of the spectral index will be. Further, for the increase in LAI, the change in reflectance at 712 nm was more than that at 678 nm, and the difference between near-infrared and red edge reduced the effect of LAI on Chl. As N increased, the reflectance of the two wavelengths increased, and the Chl content was considerably affected at 678 nm. The ratio of reflectance at 678 nm and 550 nm was introduced to the spectral index to reduce the effect of N.
On the basis of the preceding results, the Chl-sensitive spectral index of rice was developed to reduce the interference of LAI and N on Chl and detect Cd stress accurately. The sensitivity spectral index heavy metal Cd stress-sensitive spectral index (HCSI) is defined as follows:
HCSI = (R780 − R712)/R678 × (R678/R550)

4.2. Comparison Between HCSI and Common Spectral Index

The common spectral index was used to compare with HCSI to evaluate the reliability of HCSI in detecting rice Cd stress. A red-edge wavelength was used in HCSI. Four spectral indices based on red-edge wavelength were selected, namely, Clre, REP, the Moderate-resolution imaging spectrometer terrestrial chlorophyll index (MTCI), and NDRE. In previous studies, these indices have been indicated to be used to identify rice stress [70]. Table 5 presents the formulas for these spectral indices.
Table 6 shows the Pearson correlation coefficient (r) between spectral indices and Chl content simulated by the PROSAIL model, and between spectral indices and Chl content from field-measured data. A positive correlation was observed between the five spectral indices and Chl content. Comparison of the application effect of spectral indices in simulated and measured data showed that the correlation coefficient of HCSI was generally higher than other spectral indices under Cd stress. Comprehensive comparison of the changes in each spectral index under different pollution levels indicated that HCSI had an advantage when characterizing Cd stress over other indices.

4.3. Validation of HCSI for Detecting Rice Under Cd Stress

The ASD field measurement data were used for validation to determine the capability of HCSI to identify stress for on-site measurement data. Five spectral indices were calculated for the rice ground points in the three experimental sites of 2017 and 2018. To describe the differences between the five spectral indices at three different stress levels, their data distribution under different Cd pollution levels is shown in Figure 4. The square symbol and horizontal line in the box represent the mean and median, respectively. The upper and lower horizontal lines denote the maximum and minimum values, respectively. The average ± standard deviation is the range of the box. The circles on the box are spectral indices data. From Figure 5, Clre, REP, MTCI, and NDRE all showed a larger overlapping range than HCSI in distinguishing different stress levels. In particular, HCSI performed better under the high level of stress. In 2017, the average HCSI value of Site A was 6.9, with a range of 5–9, which was two values higher than the average value of HCSI in Site B of low rice pollution and four values higher than the average value of HCSI in Site C of high rice pollution. The HCSI of low pollution ranged from 3 to 7, and the HCSI of high pollution was between 0 and 4. A similar difference was found in 2018 (Figure 6). The results indicate that the HCSI could be an effective indicator for detecting the stress level of Cd in rice in field measurements.

4.4. Regional Application of HCSI for Detecting Rice Under Cd Stress

The wavelength of the simulated canopy spectra generated by PROSAIL was 1 nm step. The simulated spectra previously mentioned were resampled into simulated Sentinel-2A spectra using the spectral response function of the Sentinel-2A bands to match the Sentinel-2A remote sensing image to the simulated data. With the Sentinel-2A spectra, the index was quantified using the following equation, in which the reflectance at the central wavelength of Sentinel-2A was used:
HCSI = (B07 − B05)/B04 × (B04/B03)
The resampled Sentinel-2A band was adopted to construct HCSI and establish a correlation with Chl. The comprehensive analysis in Table 6 and Figure 7 shows that the spectral index established using the Sentinel-2A band was basically consistent with those established from the PROSAIL-simulated wavelength. Accordingly, the Sentinel-2A band could replace the spectral wavelengths simulated by PROSAIL to detect rice under Cd stress.

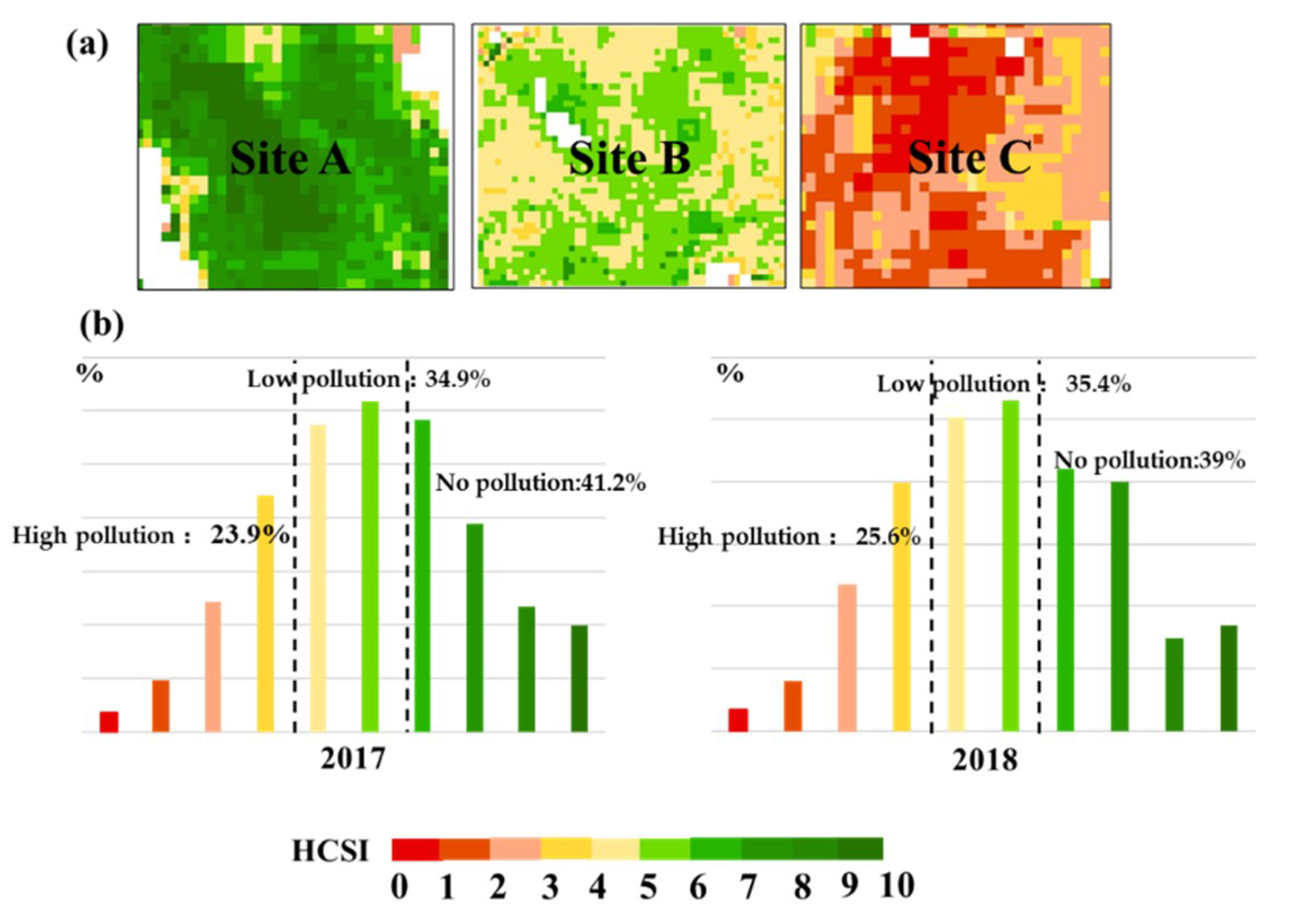

The study extracted rice to avoid interference from other land types. Figure 8 shows the mapping results based on the 2017 and 2018 Sentinel-2A images established by HCSI. The mapping results were divided into 10 levels of color density. On the basis of the relationship between the HCSI values in Figure 9a and the pollution levels in the three experimental areas, the pollution levels in rice in Zhuzhou were categorized into three (Figure 9b). When HCSI ≤ 4, rice was under high pollution; when 4 < HCSI ≤ 6, rice was under mid pollution; and when HCSI > 6, rice was under no pollution. Figure 10 shows the regional spatial distribution of rice Cd stress levels in 2017 and 2018, with a similar spatial distribution of pollution levels over two years. The comparison of the classification result of the study area exhibited that the value of HCSI near the urban area was lower than that far away from the urban area, and the value of HCSI along the river was lower than that far away from the river. The areas where rice was under Cd stress were mainly distributed near the urban area in the northwest and central regions of the study area, which was near the river. Away from the urban area, the rice area near the forest was less or not affected by Cd stress. Figure 9b lists the detailed area statistical results of different stress levels in rice. Approximately 40% of rice was without Cd pollution, 35% was only polluted by low levels, and 25% of rice areas was polluted with high levels. The statistical results between the two years did not show considerable difference; the difference was only approximately 1%, which indicates that Cd stress did not obviously change in a short time.

5. Discussion

The main purpose of this study was to develop a new spectral index that can accurately detect different Cd stress levels in rice on a large scale. For that purpose, the radiative transfer model PROSAIL combined with measured data was used. The analysis found that chlorophyll was the most sensitive biochemical parameter to Cd stress in the farmland ecosystem. The new spectral index HCSI was developed based on chlorophyll. In comparison with the common spectral index, the HCSI can discriminate different stress levels more clearly. In addition, two years of Sentinel-2A remote sensing image data were used to predict the distribution of Cd stress, and the application of the new index has strong regional adaptability.
The satisfactory results obtained, on the one hand, differ from empirical approaches requiring several field measurement datasets for modeling to detect heavy metal stress [24,35,75], as using the vegetation radiative transfer model requires only a few field measurement biophysical and biochemical data to the range settings of the model parameters. In addition, because the vegetation radiative transfer model is generally applicable in different situations with good universality, the results can be easily applied to remote sensing data and, compared with research that generally uses the field-measured data or ASD spectral data for detecting heavy metal stress [27,32,76,77], it can be applied on a larger scale. On the other hand, the spectral characteristics and mechanism of rice under Cd stress in the natural farmland ecosystem were studied and analyzed, and the typical biophysical and biochemical characteristics of rice leaf and canopy scale were selected for discussion. The development of the index was to improve the ability to detect Cd stress by reducing the interference of other parameters for the sensitive parameter [78,79]. However, because of the complicated factors, a further investigation of the biophysical and biochemical parameter changes of rice under Cd stress needs more controlled strict experiments.
This study was carried out under the condition of known stress factor beforehand, and field collection was conducted on the nutritional status and heavy metal content status of rice, excluding the interference of some factors. Under a condition of known environmental Cd pollution, the Cd stress can be well detected by using HCSI. However, the impact on crops in the natural farmland ecosystem is complicated, and how to differentiate Cd stress from environmental stress, such as pest stress and temperature stress, is still a problem that needs further discussion. Two years of remote sensing data were used to predict the distribution of Cd stress; the spatial distribution of the pollution levels are similar in the two years’ image, and the area percentages of rice with the same degree of pollution in two years are similar, which indicates that rice under Cd stress is spatio-temporally stable. However, environmental factors are usually abrupt and do not last continuously [26,80]. Therefore, a study that combines spectral and temporal information and uses long time-series remote sensing data will help to distinguish the Cd stress from these environmental factors.

6. Conclusions

The PROSAIL radiative transfer model was used to develop a spectral index that can detect the subtle changes in rice under Cd stress in the natural farmland environment. The principal results and conclusions obtained can be summarized as follows: First, the analysis showed that chlorophyll is the most sensitive biochemical parameter to Cd stress in the farmland ecosystem, and the new spectral index HCSI developed based chlorophyll showed excellent performance compared with the common indices. Therefore, the proposed index can be considered a potential indicator for detecting Cd stress. Second, the application of HCSI to Sentinel-2A remote sensing images has strong applicability to detect Cd stress in rice at a regional scale. Furthermore, two years of Sentinel-2A remote sensing image data were used to predict the distribution of Cd stress, which confirmed that Cd stress in crops is characterized by stability in space and time. There is great potential to analyze and evaluate Cd stress on crops by using a radiative transfer model. In this study, the spectral index developed by the PROSAIL model was used to improve the universality and accuracy of detecting Cd stress in crops.

Supplementary Files

Supplementary File 1

Author Contributions

Conceptualization, M.L.; data curation, C.W. and L.W.; formal analysis, C.W.; funding acquisition, M.L.; methodology, C.W.; supervision, M.L. and X.L.; writing—original draft preparation, C.W.; writing—review and editing, M.L., X.L., and T.W.

Funding

This research was financially supported by the National Natural Science Foundation of China (No.41601473) and the Fundamental Research Funds for the Central Universities (No. 292018080).

Acknowledgments

The authors would like to thank the anonymous reviewers and the editor for their constructive comments and suggestions for this paper.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lichtenthaler, H.K. The stress concept in plants: An introduction. Ann. N. Y. Acad. Sci. 1998, 851, 187–198. [Google Scholar] [CrossRef] [PubMed]
  2. Rizwan, M.; Ali, S.; Adrees, M.; Rizvi, H.; Zia-Ur-Rehman, M.; Hannan, F.; Qayyum, M.F.; Hafeez, F.; Yong, S.O. Cadmium stress in rice: Toxic effects, tolerance mechanisms, and management: A critical review. Environ. Sci. Pollut. R. 2016, 23, 17859–17879. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, X.; Tian, G.; Jiang, D.; Zhang, C.; Kong, L. Cadmium (Cd) distribution and contamination in Chinese paddy soils on national scale. Environ. Sci. Pollut. R. 2016, 23, 17941–17952. [Google Scholar] [CrossRef] [PubMed]
  4. Chang, Y.H.; Zhao, Y.Y.; Cao, C.; Shan, Y.; Cao, Q. Characteristics of heavy metals content and assessment of health risk in different environment media in the dexing copper mining area. Acta Geol. Sin. 2015, 5, 889–908. [Google Scholar]
  5. Wang, Y.; Jiang, X.; Li, K.; Wu, M.; Zhang, R.; Zhang, L.; Chen, G. Photosynthetic responses of Oryza sativa L. seedlings to cadmium stress: Physiological, biochemical and ultrastructural analyses. Biometals 2014, 27, 389–401. [Google Scholar] [CrossRef]
  6. Srivastava, V.; Sarkar, A.; Singh, S.; Singh, P.; de Araujo, A.S.F.; Singh, R.P. Agroecological responses of heavy metal pollution with special emphasis on soil health and plant performances. Front. Environ. Sci. Eng. 2017, 5, 64. [Google Scholar] [CrossRef]
  7. Macinnis-Ng, C.M.O.; Ralph, P.J. Towards a more ecologically relevant assessment of the impact of heavy metals on the photosynthesis of the seagrass, Zostera capricorni. Mar. Pollut. Bull. 2002, 45, 100–106. [Google Scholar] [CrossRef]
  8. Slaton, M.R.; Raymond Hunt, E., Jr.; Smith, W.K. Estimating near-infrared leaf reflectance from leaf structural characteristics. Am. J. Bot. 2001, 88, 278–284. [Google Scholar] [CrossRef]
  9. Zengin, F.K.; Munzuroglu, O. Effects of some heavy metals on content of chlorophyll, proline and some antioxidant chemicals in bean (Phaseolus vulgaris L.) seedlings. Acta Biol. Crac. Bot. 2005, 47, 157–164. [Google Scholar]
  10. Nagajyoti, P.C.; Lee, K.D.; Sreekanth, T.V.M. Heavy metals, occurrence and toxicity for plants: A review. Environ. Chem. Lett. 2010, 8, 199–216. [Google Scholar] [CrossRef]
  11. Jin, M.; Liu, X.; Zhang, B. Evaluating heavy-metal stress levels in rice using a theoretical model of canopy-air temperature and leaf area index based on remote sensing. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2017, 10, 3232–3242. [Google Scholar] [CrossRef]
  12. Yu, H.; Wang, J.; Fang, W.; Yuan, J.; Yang, Z. Cadmium accumulation in different rice cultivars and screening for pollution-safe cultivars of rice. Sci. Total Environ. 2006, 370, 302–309. [Google Scholar] [CrossRef] [PubMed]
  13. Song, W.E.; Chen, S.B.; Liu, J.F.; Li, C.H.; Song, N.N.; Ning, L.I.; Bin, L.I. Variation of Cd concentration in various rice cultivars and derivation of cadmium toxicity thresholds for paddy soil by species-sensitivity distribution. J. Integr. Agric. 2015, 14, 1845–1854. [Google Scholar] [CrossRef]
  14. Rascio, N.; Vecchia, F.D.; Rocca, N.L.; Barbato, R.; Pagliano, C.; Raviolo, M.; Gonnelli, C.; Gabbrielli, R. Metal accumulation and damage in rice (cv. Vialone nano) seedlings exposed to cadmium. Environ. Exp. Bot. 2008, 62, 267–278. [Google Scholar] [CrossRef]
  15. Zhu, Y.; Qu, Y.; Liu, S.; Chen, S. A reflectance spectra model for copper-stressed leaves: Advances in the PROSPECT model through addition of the specific absorption coefficients of the copper ion. Int. J. Remote Sens. 2014, 35, 1356–1373. [Google Scholar] [CrossRef]
  16. Zhou, H.; Zeng, M.; Zhou, X.; Liao, B.-H.; Liu, J.; Lei, M.; Zhong, Q.-Y.; Zeng, H. Assessment of heavy metal contamination and bioaccumulation in soybean plants from mining and smelting areas of southern Hunan Province, China. Environ. Toxicol. Chem. 2013, 32, 2719–2727. [Google Scholar] [CrossRef] [PubMed]
  17. Kemper, T.; Sommer, S. Estimate of heavy metal contamination in soils after a mining accident using reflectance spectroscopy. Environ. Sci. Technol. 2002, 36, 2742–2747. [Google Scholar] [CrossRef] [PubMed]
  18. Font, R.; Del Río, M.; Vélez, D.; Montoro, R.; De Haro, A. Use of near-infrared spectroscopy for determining the total arsenic content in prostrate amaranth. Sci. Total Environ. 2004, 327, 93–104. [Google Scholar] [CrossRef]
  19. Hede, A.N.H.; Kashiwaya, K.; Koike, K.; Sakurai, S. A new vegetation index for detecting vegetation anomalies due to mineral deposits with application to a tropical forest area. Remote Sens. Environ. 2015, 171, 83–97. [Google Scholar] [CrossRef]
  20. Banerjee, B.P.; Raval, S.; Zhai, H.; Cullen, P.J. Health condition assessment for vegetation exposed to heavy metal pollution through airborne hyperspectral data. Environ. Monit. Assess. 2017, 189, 604. [Google Scholar] [CrossRef]
  21. Kopačková, V.; Mišurec, J.; Lhotáková, Z.; Oulehle, F.; Albrechtová, J. Using multi-date high spectral resolution data to assess the physiological status of macroscopically undamaged foliage on a regional scale. Int. J. Appl. Earth Obs. Geoinf. 2014, 27, 169–186. [Google Scholar] [CrossRef]
  22. Asmaryan, S.; Warner, T.A.; Muradyan, V.; Nersisyan, G. Mapping tree stress associated with urban pollution using the WorldView-2 Red Edge band. Remote Sens. Lett. 2013, 4, 200–209. [Google Scholar] [CrossRef]
  23. Götze, C.; Jung, A.; Merbach, I.; Wennrich, R.; Gläßer, C. Spectrometric analyses in comparison to the physiological condition of heavy metal stressed floodplain vegetation in a standardised experiment. J. Geosci. 2010, 2, 132–137. [Google Scholar] [CrossRef]
  24. Martinez, N.E.; Sharp, J.L.; Kuhne, W.W.; Johnson, T.E.; Stafford, C.T.; Duff, M.C. Assessing the use of reflectance spectroscopy in determining CsCl stress in the model species Arabidopsis thaliana. Int. J. Remote Sens. 2015, 36, 5887–5915. [Google Scholar] [CrossRef]
  25. Kooistra, L.; Salas, E.A.L.; Clevers, J.G.P.W.; Wehrens, R.; Leuven, R.S.E.W.; Nienhuis, P.H.; Buydens, L.M.C. Exploring field vegetation reflectance as an indicator of soil contamination in river floodplains. Environ. Pollut. 2004, 127, 281–290. [Google Scholar] [CrossRef]
  26. Liu, Z.; Cheng, J.-A.; Huang, W.; Li, C.; Xu, X.; Ding, X.; Shi, J.; Zhou, B. Hyperspectral Discrimination and Response Characteristics of Stressed Rice Leaves Caused by Rice Leaf Folder; Springer: Berlin/Heidelberg, Germany, 2012; pp. 528–537. [Google Scholar]
  27. Rathod, P.H.; Brackhage, C.; Van der Meer, F.D.; Müller, I.; Noomen, M.F.; Rossiter, D.G.; Dudel, G.E. Spectral changes in the leaves of barley plant due to phytoremediation of metals—Results from a pot study. Eur. J. Remote Sens. 2015, 48, 283–302. [Google Scholar] [CrossRef]
  28. Sridhar, B.B.M.; Han, F.X.; Diehl, S.V.; Monts, D.L.; Su, Y. Spectral reflectance and leaf internal structure changes of barley plants due to phytoextraction of zinc and cadmium. Int. J. Remote Sens. 2007, 28, 1041–1054. [Google Scholar] [CrossRef]
  29. Feilhauer, H.; Asner, G.P.; Martin, R.E. Multi-method ensemble selection of spectral bands related to leaf biochemistry. Remote Sens. Environ. 2015, 164, 57–65. [Google Scholar] [CrossRef]
  30. Song, S.; Gong, W.; Zhu, B.; Huang, X. Wavelength selection and spectral discrimination for paddy rice, with laboratory measurements of hyperspectral leaf reflectance. ISPRS J. Photogramm. Remote Sens. 2011, 66, 672–682. [Google Scholar] [CrossRef]
  31. Verrelst, J.; Camps-Valls, G.; Muñoz-Marí, J.; Rivera, J.P.; Veroustraete, F.; Clevers, J.G.P.W.; Moreno, J. Optical remote sensing and the retrieval of terrestrial vegetation bio-geophysical properties—A review. ISPRS J. Photogramm. Remote Sens. 2015, 108, 273–290. [Google Scholar] [CrossRef]
  32. Zhang, C.; Ren, H.; Qin, Q.; Ersoy, O.K. A new narrow band vegetation index for characterizing the degree of vegetation stress due to copper: The copper stress vegetation index (CSVI). Remote Sens. Lett. 2017, 8, 576–585. [Google Scholar] [CrossRef]
  33. Liu, M.; Liu, X.; Li, M.; Fang, M.; Chi, W. Neural-network model for estimating leaf chlorophyll concentration in rice under stress from heavy metals using four spectral indices. Biosyst. Eng. 2010, 106, 223–233. [Google Scholar] [CrossRef]
  34. Liu, J.; Li, K.; Xu, J.; Liang, J.; Lu, X.; Yang, J.; Zhu, Q. Interaction of Cd and five mineral nutrients for uptake and accumulation in different rice cultivars and genotypes. Field Crop. Res. 2003, 83, 271–281. [Google Scholar] [CrossRef]
  35. Li, X.; Liu, X.; Liu, M.; Wang, C.; Xia, X. A hyperspectral index sensitive to subtle changes in the canopy chlorophyll content under arsenic stress. Int. J. Appl. Earth Obs. Geoinf. 2015, 36, 41–53. [Google Scholar] [CrossRef]
  36. Liu, M.; Liu, X.; Zhang, B.; Ding, C. Regional heavy metal pollution in crops by integrating physiological function variability with spatio-temporal stability using multi-temporal thermal remote sensing. Int. J. Appl. Earth Obs. Geoinf. 2016, 51, 91–102. [Google Scholar] [CrossRef]
  37. Jacquemoud, S.; Baret, F. PROSPECT: A model of leaf optical properties spectra. Remote Sens. Environ. 1990, 34, 75–91. [Google Scholar] [CrossRef]
  38. Blackburn, G.A.; Ferwerda, J.G. Retrieval of chlorophyll concentration from leaf reflectance spectra using wavelet analysis. Remote Sens. Environ. 2008, 112, 1614–1632. [Google Scholar] [CrossRef]
  39. Jacquemoud, S.; Verhoef, W.; Baret, F.; Bacour, C.; Zarco-Tejada, P.J.; Asner, G.P.; François, C.; Ustin, S.L. PROSPECT + SAIL models: A review of use for vegetation characterization. Remote Sens. Environ. 2009, 113, 56–66. [Google Scholar] [CrossRef]
  40. Feret, J.-B.; François, C.; Asner, G.P.; Gitelson, A.A.; Martin, R.E.; Bidel, L.P.R.; Ustin, S.L.; le Maire, G.; Jacquemoud, S. PROSPECT-4 and 5: Advances in the leaf optical properties model separating photosynthetic pigments. Remote Sens. Environ. 2008, 112, 3030–3043. [Google Scholar] [CrossRef]
  41. Zhou, X.; Huang, W.; Zhang, J.; Kong, W.; Casa, R.; Huang, Y. A novel combined spectral index for estimating the ratio of carotenoid to chlorophyll content to monitor crop physiological and phenological status. Int. J. Appl. Earth Obs. Geoinf. 2019, 76, 128–142. [Google Scholar] [CrossRef]
  42. Pasqualotto, N.; Delegido, J.; Van Wittenberghe, S.; Verrelst, J.; Pablo Rivera, J.; Moreno, J. Retrieval of canopy water content of different crop types with two new hyperspectral indices: Water Absorption Area Index and Depth Water Index. Int. J. Appl. Earth Obs. Geoinf. 2018, 67, 69–78. [Google Scholar] [CrossRef]
  43. Berger, K.; Atzberger, C.; Danner, M.; D’Urso, G.; Mauser, W.; Vuolo, F.; Hank, T. Evaluation of the PROSAIL model capabilities for future hyperspectral model environments: A review study. Remote Sens. 2018, 10, 85. [Google Scholar] [CrossRef] [Green Version]
  44. Yi, Q.; Wang, F.; Bao, A.; Jiapaer, G. Leaf and canopy water content estimation in cotton using hyperspectral indices and radiative transfer models. Int. J. Appl. Earth Obs. Geoinf. 2014, 33, 67–75. [Google Scholar] [CrossRef]
  45. Xiao, X.; Hollinger, D.; Aber, J.; Goltz, M.; Davidson, E.A.; Zhang, Q. Satellite-based modeling of gross primary production in an evergreen needleleaf forest. Remote Sens. Environ. 2004, 89, 519–534. [Google Scholar] [CrossRef]
  46. Muramatsu, K.; Xiong, Y.; Nakayama, S.; Ochiai, F.; Daigo, M.; Hirata, M.; Oishi, K.; Bolortsetseg, B.; Oyunbaatar, D.; Kaihotsu, I. A new vegetation index derived from the pattern decomposition method applied to Landsat-7/ETM + images in Mongolia. Int. J. Remote Sens. 2007, 28, 19. [Google Scholar] [CrossRef]
  47. Clevers, J.G.P.W.; Gitelson, A.A. Remote estimation of crop and grass chlorophyll and nitrogen content using red-edge bands on Sentinel-2 and -3. Int. J. Appl. Earth Obs. Geoinf. 2013, 23, 344–351. [Google Scholar] [CrossRef]
  48. Schlemmer, M.; Gitelson, A.; Schepers, J.; Ferguson, R.; Peng, Y.; Shanahan, J.; Rundquist, D. Remote estimation of nitrogen and chlorophyll contents in maize at leaf and canopy levels. Int. J. Appl. Earth Obs. Geoinf. 2013, 25, 47–54. [Google Scholar] [CrossRef] [Green Version]
  49. Hill, M.J. Vegetation index suites as indicators of vegetation state in grassland and savanna: An analysis with simulated SENTINEL 2 data for a North American transect. Remote Sens. Environ. 2013, 137, 94–111. [Google Scholar] [CrossRef]
  50. Frampton, W.J.; Dash, J.; Watmough, G.; Milton, E.J. Evaluating the capabilities of Sentinel-2 for quantitative estimation of biophysical variables in vegetation. ISPRS J. Photogramm. Remote Sens. 2013, 82, 83–92. [Google Scholar] [CrossRef] [Green Version]
  51. Korhonen, L.; Hadi; Packalen, P.; Rautiainen, M. Comparison of Sentinel-2 and Landsat 8 in the estimation of boreal forest canopy cover and leaf area index. Remote Sens. Environ. 2017, 195, 259–274. [Google Scholar] [CrossRef]
  52. Shoko, C.; Mutanga, O. Examining the strength of the newly-launched Sentinel 2 MSI sensor in detecting and discriminating subtle differences between C3 and C4 grass species. ISPRS J. Photogramm. Remote Sens. 2017, 129, 32–40. [Google Scholar] [CrossRef]
  53. Clevers, J.G.P.W.; Kooistra, L.; Salas, E.A.L. Study of heavy metal contamination in river floodplains using the red-edge position in spectroscopic data. Int. J. Remote Sense. 2004, 25, 3883–3895. [Google Scholar] [CrossRef]
  54. Chi, G.Y.; Liu, X.H.; Liu, S.H.; Yang, Z.F. Studies of relationships between Cu pollution and spectral characteristics of TritiZnm aestivum L. Spectrosc. Spect. Anal. 2006, 26, 1272–1276. [Google Scholar]
  55. Lei, M.; Tie, B.Q.; Song, Z.G.; Liao, B.H.; Lepo, J.E.; Huang, Y.Z. Heavy metal pollution and potential health risk assessment of white rice around mine areas in Hunan Province, China. Food Secur. 2015, 7, 45–54. [Google Scholar] [CrossRef]
  56. Chen, D.; Guo, H.; Li, R.; Li, L.; Pan, G.; Chang, A.; Joseph, S. Low uptake affinity cultivars with biochar to tackle Cd-tainted rice—A field study over four rice seasons in Hunan, China. Sci. Total Environ. 2016, 541, 1489–1498. [Google Scholar] [CrossRef] [PubMed]
  57. Drusch, M.; Del Bello, U.; Carlier, S.; Colin, O.; Fernandez, V.; Gascon, F.; Hoersch, B.; Isola, C.; Laberinti, P.; Martimort, P.; et al. Sentinel-2: ESA’s optical high-resolution mission for GMES operational services. Remote Sens. Environ. 2012, 120, 25–36. [Google Scholar] [CrossRef]
  58. Main-Knorn, M.; Pflug, B.; Louis, J.; Debaecker, V.; Müller-Wilm, U.; Gascon, U. Sen2Cor for Sentinel-2. In Image and Signal Processing for Remote Sensing XXIII; International Society for Optics and Photonics: Washington, DC, USA, 2017. [Google Scholar]
  59. Verhoef, W.; Jia, L.; Xiao, Q.; Su, Z. Unified optical-thermal four-stream radiative transfer theory for homogeneous vegetation canopies. Geosci. Remote Sens. 2007, 45, 1808–1822. [Google Scholar] [CrossRef]
  60. Xie, Q.; Dash, J.; Huang, W.; Peng, D.; Qin, Q.; Mortimer, H.; Casa, R.; Pignatti, S.; Laneve, G.; Pascucci, S. Vegetation indices combining the red and red-edge spectral information for leaf area index retrieval. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2018, 11, 1482–1493. [Google Scholar] [CrossRef]
  61. Haboudane, D.; Miller, J.R.; Pattey, E.; Zarco-Tejada, P.J.; Strachan, I.B. Hyperspectral vegetation indices and novel algorithms for predicting green LAI of crop canopies: Modeling and validation in the context of precision agriculture. Remote Sens. Environ. 2004, 90, 337–352. [Google Scholar] [CrossRef]
  62. Hosgood, B.; Jacquemoud, S.; Andreoli, G.; Verdebout, J.; Pedrini, G.; Schmuck, G. Leaf Optical Properties Experiment 93 (LOPEX93); Ispra Italy’European Commission, Joint Research Centre Institute of Remote Sensing Applications: Milan, Italy, 1995. [Google Scholar]
  63. Schlerf, M.; Atzberger, C. Inversion of a forest reflectance model to estimate structural canopy variables from hyperspectral remote sensing data. Remote Sens. Environ. 2006, 100, 281–294. [Google Scholar] [CrossRef]
  64. Verhoef, W. Earth observation modeling based on layer scattering matrices. Remote Sens. Environ. 1985, 17, 165–178. [Google Scholar] [CrossRef] [Green Version]
  65. van Griensven, A.; Meixner, T.; Grunwald, S.; Bishop, T.; Diluzio, M.; Srinivasan, R. A global sensitivity analysis tool for the parameters of multi-variable catchment models. J. Hydrol. 2006, 324, 10–23. [Google Scholar] [CrossRef]
  66. Sun, J.; Shi, S.; Yang, J.; Gong, W.; Qiu, F.; Wang, L.; Du, L.; Chen, B. Wavelength selection of the multispectral lidar system for estimating leaf chlorophyll and water contents through the prospect model. Agric. For. Meteorol. 2019, 266, 43–52. [Google Scholar] [CrossRef]
  67. Liang, L.; Di, L.; Zhang, L.; Deng, M.; Qin, Z.; Zhao, S.; Lin, H. Estimation of crop LAI using hyperspectral vegetation indices and a hybrid inversion method. Remote Sens. Environ. 2015, 165, 123–134. [Google Scholar] [CrossRef]
  68. Cannavó, F. Sensitivity analysis for volcanic source modeling quality assessment and model selection. Comput. Geosci. 2012, 44, 52–59. [Google Scholar] [CrossRef]
  69. Bowyer, P.; Danson, F.M. Sensitivity of spectral reflectance to variation in live fuel moisture content at leaf and canopy level. Remote Sens. Environ. 2004, 92, 297–308. [Google Scholar] [CrossRef]
  70. Liu, M.; Wang, T.; Skidmore, A.K.; Liu, X. Heavy metal-induced stress in rice crops detected using multi-temporal Sentinel-2 satellite images. Sci. Total Environ. 2018, 637, 18–29. [Google Scholar] [CrossRef]
  71. Gitelson, A.A.; Gritz, Y.; Merzlyak, M.N. Relationships between leaf chlorophyll content and spectral reflectance and algorithms for non-destructive chlorophyll assessment in higher plant leaves. J. Plant Physiol. 2003, 160, 271–282. [Google Scholar] [CrossRef]
  72. Guyot, G.; Baret, F. Utilisation de la haute resolution spectrale pour suivre L’etat des couverts vegetaux. Spectr. Signat. Objects Remote Sens. 1988, 287, 279. [Google Scholar]
  73. Dash, J.; Curran, P.J. The MERIS terrestrial chlorophyll index. Int. J. Remote Sens. 2004, 25, 5403–5413. [Google Scholar] [CrossRef]
  74. Barnes, E.M.; Clarke, T.R.; Richards, S.E.; Colaizzi, P.D.; Haberland, J.; Kostrzewski, M.; Waller, P.; Choi, C.; Riley, E.; Thompson, T.; et al. Coincident Detection of Crop Water Stress, Nitrogen Status and Canopy Density Using Ground-Based Multispectral Data. In Proceedings of the Fifth International Conference on Precision Agriculture, Bloomington, MN, USA, 16–19 July 2000. [Google Scholar]
  75. Wang, J.; Tiejun, W.; Tiezhu, S.; Guofeng, W.; Andrew, S. A Wavelet-Based Area Parameter for Indirectly Estimating Copper Concentration in Carex Leaves from Canopy Reflectance. Remote Sens. 2015, 7, 15340–15360. [Google Scholar] [CrossRef] [Green Version]
  76. Liu, M.; Liu, X.; Wu, L.; Duan, L.; Zhong, B. Wavelet-based detection of crop zinc stress assessment using hyperspectral reflectance. Comput. Geosci. 2011, 37, 1254–1263. [Google Scholar] [CrossRef]
  77. Shi, T.; Wang, J.; Chen, Y.; Wu, G. Improving the prediction of arsenic contents in agricultural soils by combining the reflectance spectroscopy of soils and rice plants. Int. J. Appl. Earth Obs. Geoinf. 2016, 52, 95–103. [Google Scholar] [CrossRef]
  78. Haboudane, D.; Miller, J.R.; Tremblay, N.; Zarco-Tejada, P.J.; Dextraze, L. Integrated narrow-band vegetation indices for prediction of crop chlorophyll content for application to precision agriculture. Remote Sens. Environ. 2002, 81, 416–426. [Google Scholar] [CrossRef]
  79. Verstraete, M.M.; Pinty, B. Designing optimal spectral indexes for remote sensing applications. Geosci. Remote Sens. 1996, 34, 1254–1265. [Google Scholar] [CrossRef]
  80. Scudiero, E.; Teatini, P.; Corwin, D.L.; Ferro, N.D.; Simonetti, G.; Morari, F. Spatiotemporal response of maize yield to edaphic and meteorological conditions in a saline farmland. Agron. J. 2014, 106, 2163–2174. [Google Scholar] [CrossRef] [Green Version]
Ijerph 16 04811 g001 550
Figure 1. Location of the study area: (a) General location in China; (b) location in the north of Zhuzhou, Hunan Province; (c) Sentinel-2 true-color image of the study area; (d) land use classification of study area.
Figure 1. Location of the study area: (a) General location in China; (b) location in the north of Zhuzhou, Hunan Province; (c) Sentinel-2 true-color image of the study area; (d) land use classification of study area.
Ijerph 16 04811 g001
Ijerph 16 04811 g002 550
Figure 2. Flow chart of developing spectral index for detecting Cd stress in rice on a regional scale.
Figure 2. Flow chart of developing spectral index for detecting Cd stress in rice on a regional scale.
Ijerph 16 04811 g002
Ijerph 16 04811 g003 550
Figure 3. Global sensitivity analysis of four input parameters of the PROSAIL model for nonpolluted and polluted rice. Chl, chlorophyll; LAI, leaf area index; N, leaf structure parameter; ALA, average leaf angle.
Figure 3. Global sensitivity analysis of four input parameters of the PROSAIL model for nonpolluted and polluted rice. Chl, chlorophyll; LAI, leaf area index; N, leaf structure parameter; ALA, average leaf angle.
Ijerph 16 04811 g003
Ijerph 16 04811 g004 550
Figure 4. (a) First-order global sensitivity analysis results of four parameters in the range of 400–800 nm for PROSAIL model to reflectance; (b) PROSAIL-simulated reflectance from 400 to 800 nm coefficient of determination (R2) for all combinations of every two wavelengths (n = 1000); (c) Reflectance simulations with PROSAIL to assess the effects of LAI and N on Chl sensitivity wavelength.
Figure 4. (a) First-order global sensitivity analysis results of four parameters in the range of 400–800 nm for PROSAIL model to reflectance; (b) PROSAIL-simulated reflectance from 400 to 800 nm coefficient of determination (R2) for all combinations of every two wavelengths (n = 1000); (c) Reflectance simulations with PROSAIL to assess the effects of LAI and N on Chl sensitivity wavelength.
Ijerph 16 04811 g004
Ijerph 16 04811 g005 550
Figure 5. Five spectral indices in no pollution and pollution rice in different sites of field measurements in 2017.
Figure 5. Five spectral indices in no pollution and pollution rice in different sites of field measurements in 2017.
Ijerph 16 04811 g005
Ijerph 16 04811 g006 550
Figure 6. Five spectral indices in no pollution and pollution rice in different sites of field measurements in 2018.
Figure 6. Five spectral indices in no pollution and pollution rice in different sites of field measurements in 2018.
Ijerph 16 04811 g006
Ijerph 16 04811 g007 550
Figure 7. Relationships between Chl and HCSI using Sentinel-2A-simulated data in different heavy metal pollution levels (n = 1000).
Figure 7. Relationships between Chl and HCSI using Sentinel-2A-simulated data in different heavy metal pollution levels (n = 1000).
Ijerph 16 04811 g007
Ijerph 16 04811 g008 550
Figure 8. Spatial distribution of rice HCSI estimated from the Sentinel-2A remote sensing images in (a) 2017; (b) 2018.
Figure 8. Spatial distribution of rice HCSI estimated from the Sentinel-2A remote sensing images in (a) 2017; (b) 2018.
Ijerph 16 04811 g008
Ijerph 16 04811 g009 550
Figure 9. (a) Spatial distribution of HCSI in three field areas with different Cd pollution levels. (b) Histogram of HCSI into three categories for all rice areas in 2017 and 2018.
Figure 9. (a) Spatial distribution of HCSI in three field areas with different Cd pollution levels. (b) Histogram of HCSI into three categories for all rice areas in 2017 and 2018.
Ijerph 16 04811 g009
Ijerph 16 04811 g010 550
Figure 10. Spatial distribution of Cd pollution levels in rice: (a) 2017; (b) 2018.
Figure 10. Spatial distribution of Cd pollution levels in rice: (a) 2017; (b) 2018.
Ijerph 16 04811 g010
Table
Table 1. Average heavy metal concentration and nutrient substance in soil of three experimental sites.
Table 1. Average heavy metal concentration and nutrient substance in soil of three experimental sites.
Experimental SitesAverage Heavy Metal Concentration (mg/kg)Nutrient Substance (g/kg)Pollution Levels
CdHgPbAsNPK
Site A (27°43′40″ N, 113°14′24″ E)0.090.1535.1511.642.790.7714.88No pollution
Site B (27°36′25″ N, 113°14′33″ E)0.450.2941.1418.452.751.0033.19Low pollution
Site C (27°43′42″ N, 113°06′03″ E)1.750.3265.1522.322.631.25.23High pollution
Quality standard value0.3–1.00.3–1.0250–35020–30
Note: The quality standard value is the National Secondary Standard in the Environment Quality Standard for Soils (GB15618–1995).
Table
Table 2. Field measurements of three biochemical and biophysical parameters used in PROSAIL model.
Table 2. Field measurements of three biochemical and biophysical parameters used in PROSAIL model.
ParametersMinimumMaximumMeanStandard Deviation
Chl (μg·cm−2)32.178.449.0510.03
LAI (m2·m−2)1.525.913.310.93
ALA (degrees)375743.55.68
Note: Chl = chlorophyll; LAI = leaf area index; ALA= average leaf angle.
Table
Table 3. The overview of characteristics for Sentinel-2 bands after resampling and data collection.
Table 3. The overview of characteristics for Sentinel-2 bands after resampling and data collection.
Sentienl-2 Satellite Imagery Data Acquisition
BandsSpatial Resolution (m)Central Wavelength (nm)Day/Month/YearPercentage of Cloud
Band 2: Blue1049012/07/201712%
Band 3: Green1056024/07/201734%
Band 4: Red1066537/07/20180
Band 5: Red-edge 120705
Band 6: Red-edge 220740
Band 7: Red-edge 320783
Band 8: Near Infrared (NIR)10842
Band 8A: NIR narrow20865
Table
Table 4. Parameters used in simulating reflectance with PROSAIL model.
Table 4. Parameters used in simulating reflectance with PROSAIL model.
ModelParametersSymbolUnitValue
PROSPECT-5 (Leaf parameters)Leaf parameter structureN-----1.5–3 step:0.1
Leaf chlorophyll contentChlμg·cm−230–80 step: 0.3
Leaf carotenoid contentCarμg·cm−20.0036
Leaf dry matter contentCmg·cm−20.0064
SAIL (Canopy parameters)Leaf water contentCwg·cm−20.005
Leaf area indexLAIm2·m−21.5–6 step:0.1
Average leaf angleALAdegrees30–60 step:1
hot spot parameterSL-----0.2
Diffuse incoming solar radiationSKYL-----25
Solar zenith angleθsdegrees30
View zenith angleθvdegrees0
Relative azimuth angleϕsvdegrees0
Table
Table 5. Selection of four spectral indices related to red-edge wavelength in this study.
Table 5. Selection of four spectral indices related to red-edge wavelength in this study.
Spectral IndexGeneral FormulaReference
Red-edge chlorophyll index (Clre)[R760 − R800]/[R690 − R720] − 1Gitelson et al. [71]
Red-edge position (REP)705 + 35(0.5(R665 + R783) − R705)/(R740 – R705)Guyot and Baret [72]
Moderate-resolution imaging spectrometer terrestrial chlorophyll index (MTCI)(R750 − R710)/(R710 − R680)Dash and Curran [73]
Normalized red-edge differences (NDRE)(R783 − R705)/(R783 + R705)Barnes et al. [74]
Heavy metal Cd stress-sensitive spectral index (HCSI)((R780 − R712)/R678)(R678/R550)This study
Table
Table 6. Pearson correlation coefficient (r) between spectral indices and Chl content (** p < 0.01).
Table 6. Pearson correlation coefficient (r) between spectral indices and Chl content (** p < 0.01).
ClreREPNDREMTCIHCSI
Simulated data (n = 1000)No pollution0.93 **0.89 **0.91 **0.93 **0.95 **
Low pollution0.89 **0.88 **0.88 **0.90 **0.91 **
High pollution0.85 **0.85 **0.84 **0.86 **0.89 **
Measured dataNo pollution0.89 **0.88 **0.89 **0.87 **0.92 **
Low pollution0.88 **0.84 **0.78 **0.85 **0.89 **
High pollution0.83 **0.55 **0.68 **0.83 **0.85 **

Share and Cite

MDPI and ACS Style

Wu, C.; Liu, M.; Liu, X.; Wang, T.; Wang, L. Developing a New Spectral Index for Detecting Cadmium-Induced Stress in Rice on a Regional Scale. Int. J. Environ. Res. Public Health 2019, 16, 4811. https://doi.org/10.3390/ijerph16234811

AMA Style

Wu C, Liu M, Liu X, Wang T, Wang L. Developing a New Spectral Index for Detecting Cadmium-Induced Stress in Rice on a Regional Scale. International Journal of Environmental Research and Public Health. 2019; 16(23):4811. https://doi.org/10.3390/ijerph16234811

Chicago/Turabian Style

Wu, Chuanyu, Meiling Liu, Xiangnan Liu, Tiejun Wang, and Lingyue Wang. 2019. "Developing a New Spectral Index for Detecting Cadmium-Induced Stress in Rice on a Regional Scale" International Journal of Environmental Research and Public Health 16, no. 23: 4811. https://doi.org/10.3390/ijerph16234811

APA Style

Wu, C., Liu, M., Liu, X., Wang, T., & Wang, L. (2019). Developing a New Spectral Index for Detecting Cadmium-Induced Stress in Rice on a Regional Scale. International Journal of Environmental Research and Public Health, 16(23), 4811. https://doi.org/10.3390/ijerph16234811

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
