Effect of Exposure Angulation on the Occupational Radiation Exposure during Cardiac Angiography: Simulation Study
by
, ,
Younghoon Roh
1,†
,
Jungsu Kim
2,†,
Hyemin Park
1,
Jungmin Kim
1,
Dongryeol Ryu
3,
Kwangjin Chun
3,
Jeonghun Seo
3,
Bongki Lee
3,
Byungryul Cho
3,* and
Yongsu Yoon
4,* 1
Department of Health and Safety Convergence Sciences, Korea University, 145 Anam-ro, Seongbuk-gu, Seoul 02841, Korea
2
Department of Radiologic-Technology, Daegu Health College, 15, Yeongsong-ro, Buk-gu, Daegu 41453, Korea
3
Division of Cardiology, Department of Internal Medicine, Kangwon National University Hospital, Kangwon National University School of Medicine, Kangwon National University, Baengnyeong-ro 156, Chuncheon-si 24289, Korea
4
Department of Radiological Science, Dongseo University, 47 Jurye-ro, Sasang-gu, Busan 47011, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Environ. Res. Public Health 2021, 18(15), 8097; https://doi.org/10.3390/ijerph18158097
Submission received: 2 June 2021
/
Revised: 22 July 2021
/
Accepted: 27 July 2021
/
Published: 30 July 2021
(This article belongs to the Special Issue In Multidisciplinary Perspectives: Healthcare Technology Research and Education Based on Artificial Intelligence and Simulation)
Abstract
:Cardiac angiography to visualize the cardiac coronary artery for lesions causes a lot of radiation exposure dose to the interventional cardiologist. We evaluated the occupational radiation exposure to the interventional cardiologist based on changes to the angle of the X-ray tube used in cardiac angiography and calculated the conversion factor for effective dose in this study. To evaluate the occupational radiation exposure resulting from scattered radiation to interventional cardiologists, organ doses for eyeball, thyroid, and heart were calculated using Monte Carlo simulation with korean typical man(KTMAN) phantom at the left anterior oblique (LAO)30/cranial (CRAN)30, CRAN40, right anterior oblique (RAO)30/CRAN30, RAO30/caudal(CAUD)20, CAUD39, LAO40/CAUD35, and LAO40 positions in the femoral and the radial artery puncture. In this study, analysis of the different angles showed the highest radiation exposure on LAO30/CRAN30 and CRAN40 position, which were 150.65% and 135.3%, respectively, compared to AP angles. Therefore, to reduce occupational dose for interventional cardiologists, it is recommended that radiation protection, such as using radiation shield and personal protective equipment (PPE), be used at LAO30/CRAN30 and CRAN40 angulation, and the conversion factor for calculating the organ dose received by the interventional cardiologists based on patient dose can be applied for improved occupational dose management.
1. Introduction
Since their discovery by Roentgen in 1895, X-rays have proven to be an essential diagnostic tool. A key component of radiology, X-rays are also employed in many other medical fields. For example, cardiac angiography and interventional procedures apply X-rays in the diagnosis and therapeutic procedures pertaining to cardiovascular diseases [1]. Coronary angiography is a technique used to visualize the coronary artery via radiation fluoroscopy and exposure techniques after contrast agents have been injected via a catheter through the femoral or radial arteries [2]. In coronary angiography, in which the patient lies supine on the examination table, the X-ray tube moves rotationally in two perpendicular planes, thereby enabling projection flexibility [3]. Such procedures inevitably subject patients and medical staff to radiation exposure. Although exposing patients to medical radiation does not impose restrictions, occupational radiation exposure for medical staff is not permitted to exceed an effective dose limit of 20 mSv per year, averaged over a 5 years period, and cannot exceed 50 mSv in a single year [4]. Therefore, occupational exposure to interventional cardiology staff is a critical issue in ensuring safe working conditions for medical professionals [5,6,7,8,9]. In order to observe the three large cardiac vessels of the heart, cardiac angiography acquires images via a combination of fluoroscopy and multi-angle X-ray exposure. In general, the shape of the cardiovascular system is checked according to the LAO/CRAN, CRAN, RAO/CRAN, RAO/CAUD, and CAUD views. Specifically, LAO/CAUD is the basis for judging cardiac lesions. Therefore, we evaluated the occupational radiation exposure for interventional cardiologists according to the angle of the X-ray tube used in cardiac angiography.
2. Materials and Methods
To evaluate the occupational radiation exposure resulting from scattered radiation for interventional cardiologists, we performed Monte Carlo simulations and a phantom study. Monte Carlo simulations were performed using the MCNPX V2.7 (Los Alamos National Laboratory, Los Alamos, NM, USA), which is an all particle, all energy Monte Carlo transport model. To determine representative values of the occupational radiation exposure, the occupational organ-absorbed dose for the eyes, thyroid, and heart were evaluated based on a single coronary angiography procedure at seven angulations. The organ-absorbed dose for the eyes, from the left and right entire eye, were averaged including cornea, lens glass, retinal, etc. Angiography was performed using an Allura Xper FD20 X-ray system (Philips, Amsterdam City, The Netherlands), with the relevant parameters incorporated into the Monte Carlo simulation. The X-ray simulation code SRS 78 (Institute of Physics and Engineering in Medicine, York, UK) was used to obtain a continuous X-ray spectrum. In this simulation, the absorbed organ dose was considered for an operator both wearing and not wearing personal protective equipment (PPE) by using the *F6 tally (i.e., the average energy-deposition over a cell [MeV/g]). The energy cutoff was 50 eV and the number of histories was checked to ensure a statistical error below 5%. In addition, an experimental measurement using a phantom was conducted to obtain the patient dose under equivalent conditions to the simulation. The patient dose was extracted using dose report data issued in angiography [10].
- A.
- Simulation geometry
The geometric structure was modeled in accordance with the Allura Xper FD 20 X-ray system. Specifically, the dimensions of the patient table were set to 319 × 50 cm2 and the iso-center-to-floor distance was 113.5 cm. The fluoroscopy and X-ray exposure cine modes of the angiography device were both set at 15 fps. X-rays were generated at 64 kV with 0.7- and 0.4-mm Al-equivalent filtration, and the source-to-detector distance (SDD) was 119 cm. The rotation and angulation of the X-ray tube were set according to the conditions listed (shown) in Table 1 (Figure 1). The simulations were performed based on clinical research, while the study protocol was approved by the institutional ethics review committees of the respective study centers.
- B.
- Anthropomorphic phantom for simulation study
Several anthropomorphic phantoms have been developed using Monte Carlo simulations. For example, KTMAN-2 is an anthropomorphic phantom based on computed tomography (CT) projections and was constructed using CT images of adult male volunteers corresponding to the reference data for Korean males (height: 172 cm, weight: 68 kg). KTMAN-2 consists of 300 × 150 × 344 voxels (each with a size of 2 × 2 × 5 mm3) and is divided into 48 anatomical regions [11]. Figure 2a shows the outline of the KTMAN-2 phantom. The phantom was used to evaluate the occupational organ doses for each procedure and was set in the position of the operator.
- C.
- Personal protective equipment
The geometric and material properties of lead glasses, thyroid protectors, and lead aprons were included in the simulation: 0.75 mm-thick Pb, 0.5 mm-thick Pb, and 0.25 mm-thick Pb, respectively. The arrangement of the PPE for the phantom is shown in Figure 2b. The occupational dose was evaluated with and without PPE.
- D.
- Measurements using the phantom
The whole-body phantom PBU-50 (Kyoto Kagaku, Japan) was constructed from human-equivalent materials and was placed in the standard position of a patient undergoing an angiography procedure. To verify the dose area product and air kerma for the procedure, the radiographic conditions were set as follows: fluoroscopy, 64 kV with 0.7-mm Al filtration, 4.58 mA, 8 shots lasting 30 s each; X-ray exposure, 64 kV with 0.4-mm Al filtration, 72.38 mA, 8 shots lasting 4 s each, 16 × 16 cm2 field of view. The nominal focal spot sizes of the fluoroscopy and X-ray exposure cine modes were 0.7 and 0.4 mm, respectively. The rotation and angulation of the X-ray tube were set using the same conditions as the simulation.
3. Results
The anthropomorphic phantom was positioned at the operator and patient positions according to the catheter insertion positions (radial and femoral artery) used for angiography, and the absorbed organ doses of the eye, thyroid gland, and heart were simulated for the operator according to the X-ray tube angle. The results are listed in Table 2. With PPE, the organ-absorbed doses of the eye, thyroid, and heart in the femoral artery puncture position (at 15 fps) were 90.32%, 86.96%, and 91.67%, respectively, of the corresponding radial artery puncture position doses. Without PPE, the organ-absorbed doses of the eye, thyroid gland, and heart in the femoral artery puncture position (at 15 fps) were 90.11%, 94.00%, and 91.18%, respectively, of the corresponding radial artery puncture position. The occupational organ absorbed doses exposed during angiography were not significantly different according to puncture location.
The organ-absorbed doses according to the exposure angle for the eye, thyroid gland, and myocardium of the heart are listed in Table 3. All results were calculated with and without PPE. The organ-absorbed doses according to puncture location (femoral and radial artery) were averaged. When the organ-absorbed doses acquired at different irradiation angles were normalized to the reference measurement at zero degrees, the occupational exposure dose increased for the RAO/CAUD position. The doses absorbed by the heart at the LAO30/CRAN30, CRAN40, RAO30/CRAN30, RAO30/CAUD20, CAUD 39, LAO40/CAUD35, and LAO40 positions for fluoroscopy at non-wearing PPE conditions were 150.65%, 135.30%, 90.23%, 79.22%, 84.38%, 86.30%, and 108.85% of the absorbed dose at the zero-degree reference position, respectively. For wearing PPE, the corresponding doses were 150.64%, 135.54%, 90.24%, 79.19%, 85.27%, 85.82%, and 108.84% of the absorbed dose at the zero degrees reference position. The normalized angle-resolved organ-absorbed doses for the eye, thyroid gland, and myocardium of the heart are presented in Table 4.
When replicating the X-ray exposure conditions used for the simulation, the dose area product and air kerma of the angiography device increased in proportion to the X-ray exposure conditions (i.e., tube voltage, current, and exposure time). The results of the dose area product and air kerma are listed in Table 5.
4. Discussion
Factors affecting the occupational dose in cardiology include frame rate, image amplification, beam collimation, procedure time, and diagnostic and working projection [12]. Analyzing the simulated occupational organ-absorbed dose reveals that, in comparison with the radial artery puncture procedure, the average doses received during the femoral artery puncture procedure were reduced by 8.85% and 9.75% with and without PPE, respectively. Depending on the intubation location, the distances between the operator and the patient in the femoral and radial artery puncture procedures were 120 cm and 100 cm, respectively, with the reduction in radiation exposure by distance calculated as 30.5%. The difference in the occupational dose according to the puncture position calculated by the simulation study was less than that calculated by simply considering the difference in distance, indicating that the location of the intubation does not have a significant impact on the occupational dose. Moreover, these results indicate that treatment time, which can vary according to the proficiency of the operator, is a major factor in determining the occupational dose assuming equivalent equipment and clinical environment [13].
The simulated absorbed organ dose was highest for the thyroid gland, followed by the eye, then the heart, indicating that the head of the operator is more vulnerable to scattered radiation than other body parts. Previous studies have reported increased instances of brain and neck cancer in operators performing intervention surgery relative to surgeons performing other procedures. These studies show that instances of brain cancer in operators performing interventional procedures are concentrated in the left side of the brain, with this imbalance suggesting a causal relationship to occupational radiation exposure, as the left side of the head receives greater exposure to scattered radiation than the right side during interventional procedures [14,15,16].
In terms of irradiation angle, both puncture procedures showed an identical trend, with the organ-absorbed dose highest for the LAO30/CRAN30 position and decreasing successively for the CRAN40, LAO40, RAO30/CRAN30, LAO40/CAUD35, CAUD39, and RAO30/CAUD20 positions. The major gantry angles that increased the occupational dose were the LAO and CRAN positions; in studies using dose-area products, such as that by Kuon et al., the increase of scattered radiation according to the irradiation angle was the same trend, tending to be highest at the LAO angle, with no significant difference reported between the cranial and caudal angles [17]. These results indicate that the occupational dose could be affected by reducing treatment times at critical angles, such as the LAO, which could achieve a significant dose reduction effect relative to other angles. The dose reduction for the thyroid gland, eye, and heart at the LAO30/CRAN30 angle can be higher by factors of 1.87, 15.7, and 1.80, respectively, relative to the CAUD39 angle when comparing femoral and radial artery puncture procedures.
We simulated the specific angiography device, Philips Allura Xper FD20, and the copper filtration was not implanted in the device. The low-energy scattered X-ray is a major factor for increasing patient dose [18]. When filtration for low-energy X-ray is added, the occupational dose can be reduced by reducing scattered radiation [19].
In this study, the occupational dose was calculated with the angles and the exposure condition used the coronary angiography (CAG) procedures. The CAG procedures using radiation have found widespread application in the diagnosis of cardiovascular disease with increased incidence of chronic disease. The coronary lesions found by CAG procedures are treated with percutaneous coronary intervention (PCI) procedures by inserting balloon and stent and the radiation exposure time is depending on the location or severity of the lesion [20]. The PCI procedures are an extension of the CAG procedures, and the angular occupational dose is applicable to the PCI procedures.
The latest angiography systems provide the dose area product and air kerma, allowing the operator to estimate the patient dose indirectly, with the patient information saved using DICOM. The relationship between air kerma and the dose absorbed by the patient has already been proven by calculating the conversion factor through phantom studies [21,22]. We derived a conversion factor for the angular dependency of the occupational dose using the air kerma value provided by the dose report (see Table 6). Consequently, we can check the occupational dose by calculating the patient dose and conversion factor and develop an occupational radiation management system with patient doses stored in DICOM.
5. Conclusions
Occupational radiation exposure is equally important as the patient dose in cardiac intervention. In cardiac interventional procedures, the occupational dose stems from scattered radiation, and it can be restricted via a combination of wearing PPE, minimizing the operating time, and careful irradiation angle selection [23,24]. In this study, the sensitivity of the occupational dose to the intubation location and irradiation angle were investigated, with limiting the procedure time at critical irradiation angles, such as LAO, shown to be the most effective method for reducing the exposure to scattered radiation. Significantly, we derived a conversion factor for calculating the dose received by the operator according to the dose delivered to the patient, which can be applied for improved occupational dose management.
Author Contributions
Conceptualization, Y.R., J.K. (Jungsu Kim) and J.K. (Jungmin Kim); methodology, H.P. and J.K. (Jungsu Kim); validation, D.R., K.C., J.S., and B.L.; formal analysis, J.K. (Jungsu Kim); investigation, Y.R.; resources, Y.R.; data curation, Y.R. and J.K. (Jungsu Kim); writing—original draft preparation, Y.R. and Y.Y.; writing—review and editing, Y.R., Y.Y., J.K. (Jungsu Kim), and B.C.; visualization, Y.R.; supervision, J.K. (Jungsu Kim) and B.C.; project administration, J.K. (Jungsu Kim) and B.C.; funding acquisition, Y.Y. All authors have read and agreed to the published version of the manuscript.
Funding
This work was supported by Dongseo University, “Dongseo Cluster Project” Research Fund of 2021 (DSU-20210004).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Data can be requested from the corresponding author.
Acknowledgments
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Kim, J.S.; Lee, B.K.; Ryu, D.R.; Chun, K.J.; Choi, H.-H.; Roh, Y.; Kwon, S.-M.; Cho, B.-R. A multicentre survey of local diagnostic reference levels and achievable dose for coronary angiography and percutaneous transluminal coronary intervention procedures in Korea. Radiat. Prot. Dosim. 2020, 187, 178–182. [Google Scholar] [CrossRef] [PubMed]
- Fardid, R.; Mirzadeh, F.; Rezaei, H. Occupational doses of cardiologists in cath labs and simulation method. J. Cancer Res. Ther. 2017, 13, 901–907. [Google Scholar] [PubMed]
- Staniszewska, M.A. Coronary Angiography-Physical and Technical Aspects; Medical University of Lodz, Department of Medical Imaging Techniques Poland, INTECH Open Access Publisher: London, UK, 2011; pp. 81–94. [Google Scholar]
- Khong, P.L.; Ringertz, H.; Donoghue, V.; Frush, D.; Rehani, M.; Appelgate, K.; Sanchez, R. ICRP Publication 121: Radiological protection in paediatric diagnostic and interventional radiology. Ann. ICRP 2013, 42, 1–63. [Google Scholar] [CrossRef]
- Clairand, I.; Ginjaume, M.; Vanhavere, F.; Carinou, E.; Daures, J.; Denozière, M.; Silva, E.H.; Roig, M.; Principi, S.; Van Rycheghem, L. First EURADOS intercomparison exercise of eye lens dosemeters for medical applications. Radiat. Prot. Dosim. 2015, 170, 21–26. [Google Scholar] [CrossRef]
- Valentin, J. Avoidance of radiation injuries from medical interventional procedures, ICRP Publication 85. Ann. ICRP 2000, 30, 7. [Google Scholar] [CrossRef]
- Haga, Y.; Chida, K.; Kaga, Y.; Sota, M.; Meguro, T.; Zuguchi, M. Occupational eye dose in interventional cardiology procedures. Sci. Rep. 2017, 7, 569. [Google Scholar] [CrossRef] [Green Version]
- Andreassi, M.G.; Piccaluga, E.; Guagliumi, G.; Del Greco, M.; Gaita, F.; Picano, E. Occupational Health Risks in Cardiac Catheterization Laboratory Workers. Circ. Cardiovasc. Interv. 2016, 9, e003273. [Google Scholar] [CrossRef] [Green Version]
- Della Vecchia, E.; Modenese, A.; Loney, T.; Muscatello, M.; Silva Paulo, M.; Rossi, G.; Gobba, F. Risk of cataract in health care workers exposed to ionizing radiation: A systematic review. Med. Lav. 2020, 111, 269–284. [Google Scholar]
- Morota, K.; Moritake, T.; Nagamoto, K.; Matsuzaki, S.; Nakagami, K.; Sun, L.; Kunugita, N. Optimization of the maximum skin dose measurement technique using digital imaging and communication in medicine—Radiation dose structured report data for patients undergoing cerebral angiography. Diagnostics 2021, 11, 14. [Google Scholar] [CrossRef]
- Park, S.H.; Lee, J.K.; Lee, C. Dose conversion coefficients calculated using tomographic phantom, KTMAN-2, for X-ray examination of cardiac catheterisation. Radiat. Prot. Dosim. 2007, 128, 351–358. [Google Scholar] [CrossRef]
- Saunamaki, K.I. Radiation protection in the cardiac catheterization laboratory: Special focus on the role of the operator. Interv. Cardiol. 2010, 2, 667–672. [Google Scholar] [CrossRef]
- Durán, A.; Hian, S.K.; Miller, D.; Le Heron, J.; Padovani, R.; Vano, E. Recommendations for occupational radiation protection in interventional cardiology. Catheter. Cardiovasc. Interv. 2013, 82, 29–42. [Google Scholar] [CrossRef] [PubMed]
- Reeves, R.R.; Ang, L.; Bahadorani, J.; Naghi, J.; Dominguez, A.; Palakodeti, V.; Tsimikas, S.; Patel, M.P.; Mahmud, E. Invasive cardiologists are exposed to greater left sided cranial radiation: The BRAIN study (brain radiation exposure and attenuation during invasive cardiology procedures). JACC Cardiovasc. Interv. 2015, 8, 1197–1206. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Roguin, A.; Goldstein, J.; Bar, O.; Goldstein, J.A. Brain and neck tumors among physicians performing interventional procedures. Am. J. Cardiol. 2013, 111, 1368–1372. [Google Scholar] [CrossRef]
- Picano, E.; Vano, E.; Domenici, L.; Bottai, M.; Thierry-Chef, I. Cancer and non-cancer brain and eye effects of chronic low-dose ionizing radiation exposure. BMC Cancer 2012, 12, 157. [Google Scholar] [CrossRef] [Green Version]
- Kuon, E.; Dahm, J.B.; Empen, K.; Robinson, D.M.; Reuter, G.; Wucherer, M. Identification of less-irradiating tube angulations in invasive cardiology. J. Am. Coll. Cardiol. 2004, 44, 1420–1428. [Google Scholar] [CrossRef] [Green Version]
- Brosi, P.; Stuessi, A.; Verdun, F.R.; Vock, P.; Wolf, R. Copper filtration in pediatric digital X-ray imaging: Its impact on image quality and dose. Radiol. Phys. Technol. 2011, 4, 148–155. [Google Scholar] [CrossRef] [PubMed]
- Smans, K.; Struelens, L.; Smet, M.; Bosmans, H.; Vanhavere, F. Cu filtration for dose reduction in neonatal chest imaging. Radiat. Prot. Dosim. 2010, 139, 281–286. [Google Scholar] [CrossRef]
- Kim, K.P.; Miller, D.L.; Balter, S.; Kleinerman, R.; Linet, M.S.; Kwon, D.; Simon, S.L. Occupational radiation doses to operators performing cardiac catheterization procedures. Health Phys. 2008, 94, 211–227. [Google Scholar] [CrossRef]
- Schmidt, P.W.E.; Dance, D.R.; Skinner, C.L.; Smith, I.A.C.; McNeill, J.G. Conversion factors for the estimation of effective dose in paediatric cardiac angiography. Phys. Med. Biol. 2000, 45, 3095. [Google Scholar] [CrossRef]
- Servomaa, A.; Karppinen, J. The dose-area product and assessment of the occupational dose in interventional radiology. Radiat. Prot. Dosim. 2001, 96, 235–236. [Google Scholar] [CrossRef] [PubMed]
- Efstathopoulos, E.P.; Pantos, I.; Andreou, M.; Gkatzis, A.; Carinou, E.; Koukorava, C.; Kelekis, N.L.; Brountzos, E. Occupational radiation doses to the extremities and the eyes in interventional radiology and cardiology procedures. Br. J. Radiol. 2011, 84, 70–77. [Google Scholar] [CrossRef] [PubMed]
- Karambatsakidou, A.; Sahlgren, B.; Hansson, B.; Lidegran, M.; Fransson, A. Effective dose conversion factors in paediatric interventional cardiology. Br. J. Radiol. 2009, 82, 748–755. [Google Scholar] [CrossRef] [PubMed]

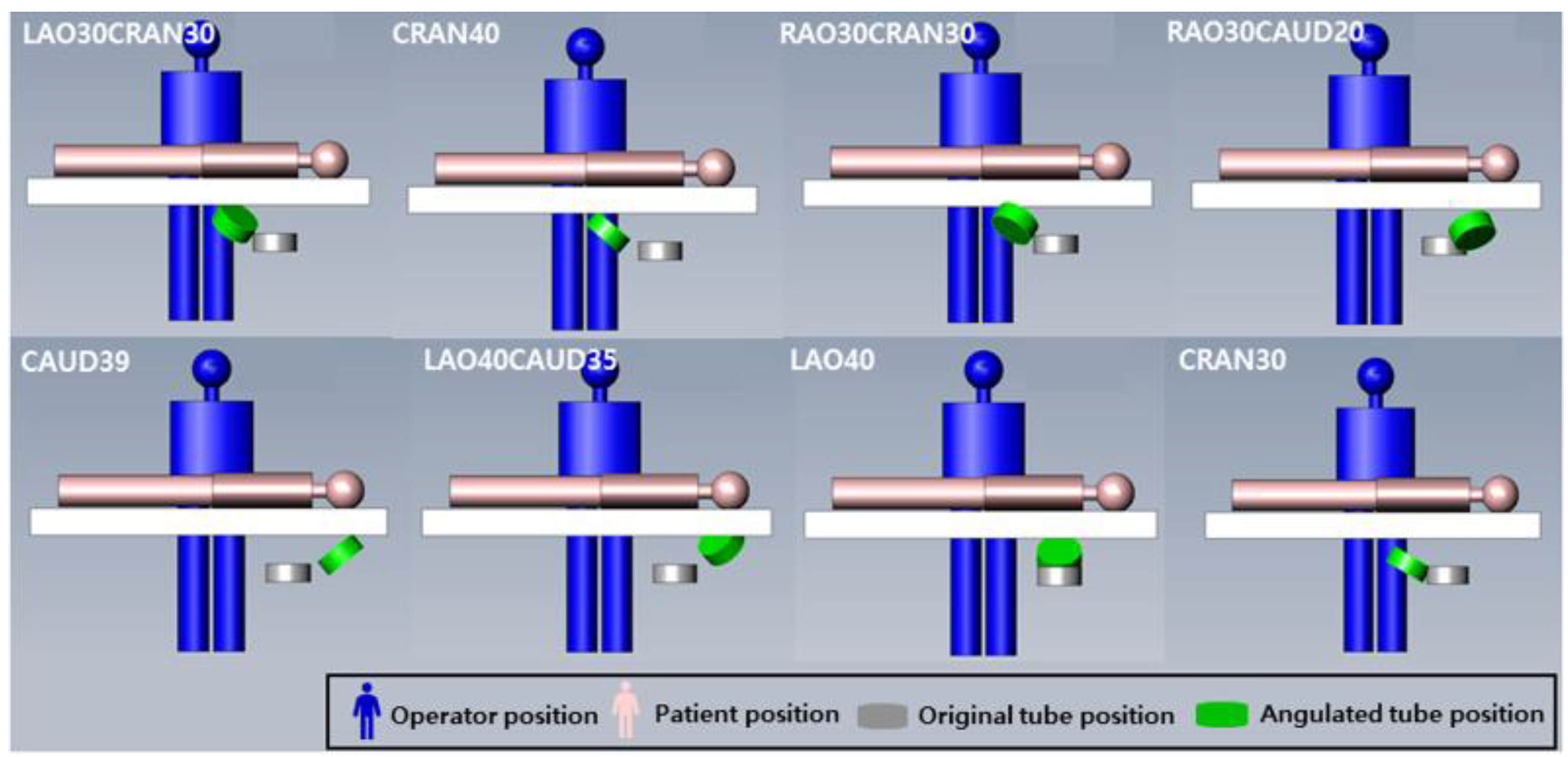

Figure 1.
The simulated arrangement of interventional cardiologists and patients for cardiac angiography to X-ray angulation. The position of cardiologist, patient, and X-ray tube angulation showed in each procedure.
Figure 1.
The simulated arrangement of interventional cardiologists and patients for cardiac angiography to X-ray angulation. The position of cardiologist, patient, and X-ray tube angulation showed in each procedure.

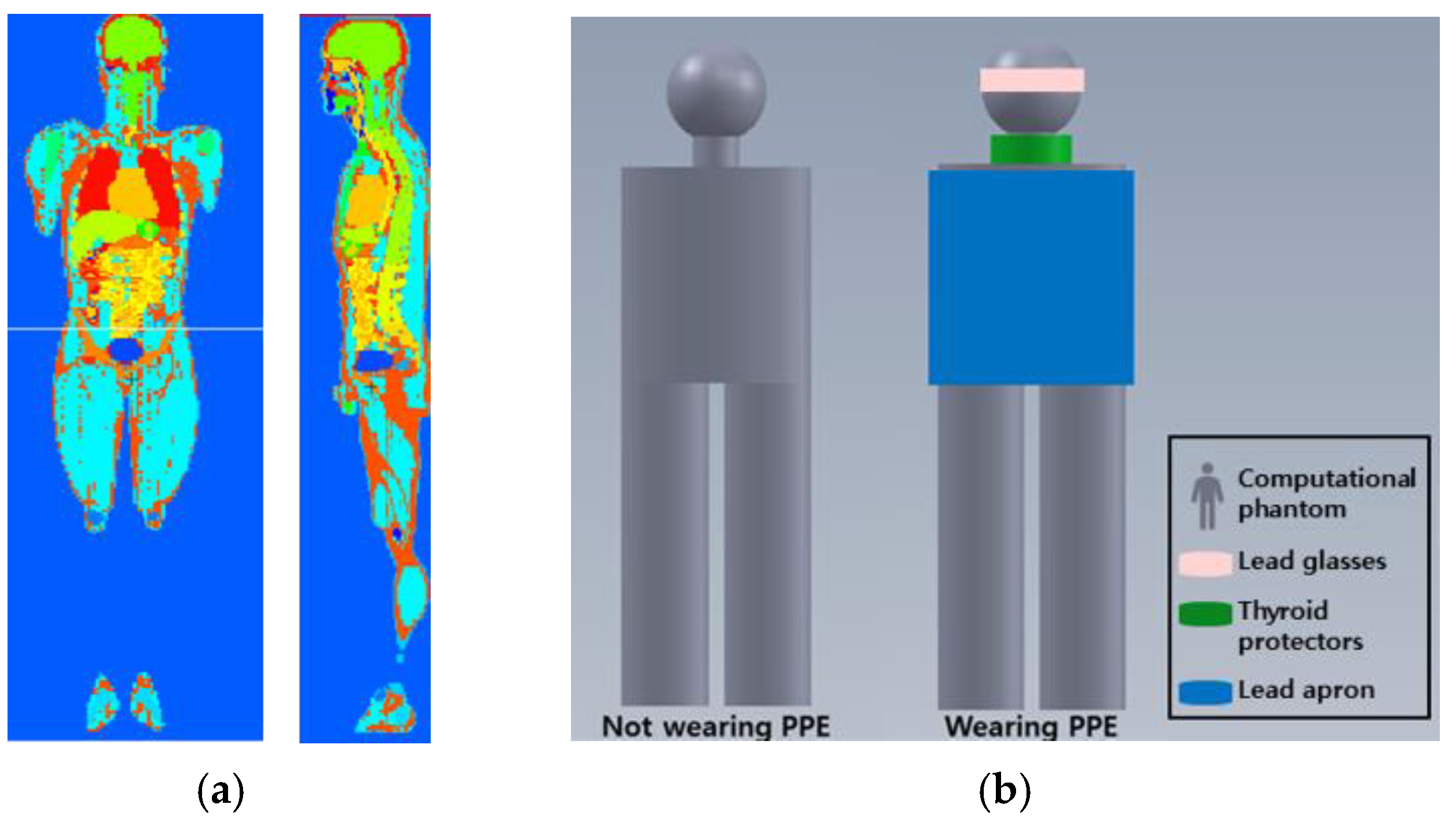

Figure 2.
Computational phantom for Monte Carlo simulation. (a) Screenshot of Korean typical man-2 (KTMAN, sagittal and coronal plane); (b) the arrangement of the personal protective equipment (PPE) in the phantom. Lead glasses, thyroid protectors, and lead apron are located at eye, thyroid, and upper body.
Figure 2.
Computational phantom for Monte Carlo simulation. (a) Screenshot of Korean typical man-2 (KTMAN, sagittal and coronal plane); (b) the arrangement of the personal protective equipment (PPE) in the phantom. Lead glasses, thyroid protectors, and lead apron are located at eye, thyroid, and upper body.
Table 1.
The cardiac angiography exposure condition for Monte Carlo simulation and phantom study. X-ray tube rotation and angulation, distance from X-ray source to image detector, and exposure time showed in each procedure.
Table 1.
The cardiac angiography exposure condition for Monte Carlo simulation and phantom study. X-ray tube rotation and angulation, distance from X-ray source to image detector, and exposure time showed in each procedure.
| Mode | Rotation (Degree) | Angulation (Degree) | Source to Image Distance (cm) | Time (s) |
|---|---|---|---|---|
| FS (1) | 0 | 0 | 119 | 30 |
| CA (2) | LAO 30 | CRAN 30 | 119 | 4 |
| FS | LAO 30 | CRAN 30 | 119 | 30 |
| CA | 0 | CRAN 40 | 119 | 4 |
| FS | 0 | CRAN 40 | 119 | 30 |
| CA | RAO 30 | CRAN 30 | 119 | 4 |
| FS | RAO 30 | CRAN 30 | 119 | 30 |
| CA | RAO 30 | CAUD 20 | 119 | 4 |
| FS | RAO 30 | CAUD 20 | 119 | 30 |
| CA | 0 | CAUD 39 | 119 | 4 |
| FS | 0 | CAUD 39 | 119 | 30 |
| CA | LAO 40 | CAUD 35 | 119 | 4 |
| FS | LAO 40 | CAUD 35 | 119 | 30 |
| CA | LAO 40 | 0 | 119 | 4 |
| FS | LAO 40 | 0 | 119 | 30 |
| CA | 0 | CRAN 30 | 119 | 4 |
(1) Fluoroscopy, (2) Cine angiography.
Table 2.
Monte Carlo N-particle code-simulation results of each exposure condition for the organ doses of the eyeball, thyroid, and heart of cardiac operator.
Table 2.
Monte Carlo N-particle code-simulation results of each exposure condition for the organ doses of the eyeball, thyroid, and heart of cardiac operator.
| Mode | Puncture Position | Protection Device | Eyeball (mGy) | Thyroid (mGy) | Heart (mGy) |
|---|---|---|---|---|---|
| (Frames/s) | (cm) | Uncertainty (%) | Uncertainty (%) | Uncertainty (%) | |
| 15 | Radial artery 100 | Used | 3.10E-04 0.40 | 4.60E-04 0.40 | 1.20E-04 0.40 |
| Non used | 9.10E-03 0.7 | 5.00E-03 0.7 | 3.40E-03 0.7 | ||
| Femoral artery 120 | Used | 2.80E-04 0.7 | 4.00E-04 0.7 | 1.10E-04 0.7 | |
| Non used | 8.20E-03 0.6 | 4.70E-03 0.6 | 3.10E-03 0.6 |
Table 3.
The simulated occupational organ dose for cardiac angiography with and without PPE.
| Mode | Rotation (Degree) | Angulation (Degree) | Average Radiation Dose Non-Wearing PPE (mSv) | Average Radiation Dose Wearing PPE (mSv) | ||||
|---|---|---|---|---|---|---|---|---|
| Thyroid | Eye | Heart | Thyroid | Eye | Heart | |||
| FS | 0 | 0 | 8.16E-04 | 4.95E-04 | 2.72E-04 | 4.11E-05 | 3.08E-05 | 9.52E-06 |
| CA | LAO 30 | CRAN 30 | 4.63E-04 | 3.38E-04 | 1.84E-04 | 2.39E-05 | 1.93E-05 | 6.68E-06 |
| FS | LAO 30 | CRAN 30 | 1.03E-03 | 7.41E-04 | 4.09E-04 | 5.21E-05 | 4.62E-05 | 1.44E-05 |
| CA | 0 | CRAN 40 | 2.38E-04 | 1.55E-04 | 9.42E-05 | 1.33E-05 | 1.05E-05 | 3.60E-06 |
| FS | 0 | CRAN 40 | 1.02E-03 | 6.84E-04 | 3.68E-04 | 4.78E-05 | 3.94E-05 | 1.22E-05 |
| CA | RAO 30 | CRAN 30 | 3.16E-04 | 1.81E-04 | 1.11E-04 | 1.59E-05 | 1.09E-05 | 3.85E-06 |
| FS | RAO 30 | CRAN 30 | 7.03E-04 | 3.97E-04 | 2.45E-04 | 3.55E-05 | 2.49E-05 | 8.56E-06 |
| CA | RAO 30 | CAUD 20 | 2.56E-04 | 3.28E-05 | 9.68E-05 | 1.44E-05 | 1.33E-06 | 3.74E-06 |
| FS | RAO 30 | CAUD 20 | 5.75E-04 | 7.33E-05 | 2.15E-04 | 2.90E-05 | 2.68E-06 | 7.63E-06 |
| CA | 0 | CAUD 39 | 2.60E-04 | 2.21E-05 | 1.04E-04 | 1.21E-05 | 1.17E-06 | 3.37E-06 |
| FS | 0 | CAUD 39 | 5.76E-04 | 4.83E-05 | 2.32E-04 | 1.98E-05 | 2.06E-06 | 5.63E-06 |
| CA | LAO 40 | CAUD 35 | 2.56E-04 | 1.82E-04 | 1.05E-04 | 1.29E-05 | 1.09E-05 | 3.64E-06 |
| FS | LAO 40 | CAUD 35 | 5.74E-04 | 3.99E-04 | 2.33E-04 | 3.43E-05 | 2.94E-05 | 9.52E-06 |
| CA | LAO 40 | 0 | 3.35E-04 | 2.47E-04 | 1.33E-04 | 2.02E-05 | 1.55E-05 | 5.05E-06 |
| FS | LAO 40 | 0 | 7.44E-04 | 5.42E-04 | 2.96E-04 | 3.75E-05 | 3.39E-05 | 1.04E-05 |
| CA | 0 | CRAN 30 | 4.58E-04 | 3.10E-04 | 1.65E-04 | 2.14E-05 | 1.79E-05 | 5.96E-06 |
| Simulated organ dose | 8.62E-03 | 4.85E-03 | 3.26E-03 | 4.31E-04 | 2.97E-04 | 1.14E-04 | ||
Table 4.
The simulated occupational organ dose ratio according to rotation and angulation degree of the X-ray tube (zero-degree angle reference) with and without PPE condition.
Table 4.
The simulated occupational organ dose ratio according to rotation and angulation degree of the X-ray tube (zero-degree angle reference) with and without PPE condition.
| Mode | Rotation (Degree) | Angulation (Degree) | Average Radiation Dose Non-Wearing PPE (mSv) | Average Radiation Dose Wearing PPE (mSv) | ||||
|---|---|---|---|---|---|---|---|---|
| Thyroid | Eye | Heart | Thyroid | Eye | Heart | |||
| FS | 0 | 0 | 100.00% | 100.00% | 100.00% | 100.00% | 100.00% | 100.00% |
| LAO 30 | CRAN 30 | 126.24% | 149.70% | 150.64% | 126.92% | 149.84% | 150.81% | |
| 0 | CRAN 40 | 125.14% | 138.18% | 135.54% | 116.32% | 127.76% | 128.22% | |
| RAO 30 | CRAN 30 | 86.14% | 80.10% | 90.24% | 86.36% | 80.68% | 89.91% | |
| RAO 30 | CAUD 20 | 70.45% | 14.80% | 79.19% | 70.52% | 8.69% | 80.19% | |
| 0 | CAUD 39 | 70.57% | 9.76% | 85.27% | 48.11% | 6.69% | 59.12% | |
| LAO 40 | CAUD 35 | 70.39% | 80.61% | 85.82% | 83.43% | 95.45% | 100.00% | |
| LAO 40 | 0 | 91.23% | 109.39% | 108.84% | 91.35% | 110.06% | 109.25% | |
Table 5.
The dose-report for cardiac angiography.
| Mode | Rotation (Degree) | Angulation (Degree) | Dose Area Product (Gy∙cm2) | Air Kerma (mGy) |
|---|---|---|---|---|
| FS | 0 | 0 | 0.48 | 2.01 |
| CA | LAO 30 | CRAN 30 | 0.12 | 0.50 |
| FS | LAO 30 | CRAN 30 | 0.47 | 1.91 |
| CA | 0 | CRAN 40 | 0.13 | 0.52 |
| FS | 0 | CRAN 40 | 0.76 | 3.15 |
| CA | RAO 30 | CRAN 30 | 0.24 | 1.01 |
| FS | RAO 30 | CRAN 30 | 0.55 | 2.27 |
| CA | RAO 30 | CAUD 20 | 0.10 | 0.42 |
| FS | RAO 30 | CAUD 20 | 0.49 | 1.97 |
| CA | 0 | CAUD 39 | 0.15 | 0.59 |
| FS | 0 | CAUD 39 | 0.54 | 2.25 |
| CA | LAO 40 | CAUD 35 | 0.24 | 1.01 |
| FS | LAO 40 | CAUD 35 | 0.43 | 1.82 |
| CA | LAO 40 | 0 | 0.09 | 0.39 |
| FS | LAO 40 | 0 | 0.39 | 1.59 |
| CA | 0 | CRAN30 | 0.10 | 0.42 |
Table 6.
The conversion factor for patient air kerma to occupational organ dose in cardiac angiography.
Table 6.
The conversion factor for patient air kerma to occupational organ dose in cardiac angiography.
| Mode | Rotation (Degree) | Angulation (Degree) | Average Radiation Dose Non-Wearing PPE (mSv) | Average Radiation Dose Wearing PPE (mSv) | ||||
|---|---|---|---|---|---|---|---|---|
| Thyroid | Eye | Heart | Thyroid | Eye | Heart | |||
| FS | 0 | 0 | 4.06E-04 | 2.46E-04 | 1.35E-04 | 2.04E-05 | 1.53E-05 | 4.74E-06 |
| CA | LAO 30 | CRAN 30 | 9.26E-04 | 6.76E-04 | 3.68E-04 | 4.78E-05 | 3.86E-05 | 1.34E-05 |
| FS | LAO 30 | CRAN 30 | 5.39E-04 | 3.88E-04 | 2.14E-04 | 2.73E-05 | 2.42E-05 | 7.54E-06 |
| CA | 0 | CRAN 40 | 4.58E-04 | 2.98E-04 | 1.81E-04 | 2.56E-05 | 2.02E-05 | 6.92E-06 |
| FS | 0 | CRAN 40 | 3.24E-04 | 2.17E-04 | 1.17E-04 | 1.52E-05 | 1.25E-05 | 3.87E-06 |
| CA | RAO 30 | CRAN 30 | 3.13E-04 | 1.79E-04 | 1.10E-04 | 1.57E-05 | 1.08E-05 | 3.81E-06 |
| FS | RAO 30 | CRAN 30 | 3.10E-04 | 1.75E-04 | 1.08E-04 | 1.56E-05 | 1.10E-05 | 3.77E-06 |
| CA | RAO 30 | CAUD 20 | 6.10E-04 | 7.81E-05 | 2.30E-04 | 3.43E-05 | 3.17E-06 | 8.90E-06 |
| FS | RAO 30 | CAUD 20 | 2.92E-04 | 3.72E-05 | 1.09E-04 | 1.47E-05 | 1.36E-06 | 3.87E-06 |
| CA | 0 | CAUD 39 | 4.41E-04 | 3.75E-05 | 1.76E-04 | 2.05E-05 | 1.98E-06 | 5.71E-06 |
| FS | 0 | CAUD 39 | 2.56E-04 | 2.15E-05 | 1.03E-04 | 8.80E-06 | 9.16E-07 | 2.50E-06 |
| CA | LAO 40 | CAUD 35 | 2.53E-04 | 1.80E-04 | 1.04E-04 | 1.28E-05 | 1.08E-05 | 3.60E-06 |
| FS | LAO 40 | CAUD 35 | 3.15E-04 | 2.19E-04 | 1.28E-04 | 1.88E-05 | 1.62E-05 | 5.23E-06 |
| CA | LAO 40 | 0 | 8.59E-04 | 6.33E-04 | 3.41E-04 | 5.18E-05 | 3.97E-05 | 1.29E-05 |
| FS | LAO 40 | 0 | 4.68E-04 | 3.41E-04 | 1.86E-04 | 2.36E-05 | 2.13E-05 | 6.54E-06 |
| CA | 0 | CRAN 30 | 1.09E-03 | 7.38E-04 | 3.93E-04 | 5.10E-05 | 4.26E-05 | 1.42E-05 |
