1. Introduction
A sharp rise in global energy demand and ambitions to curtain global greenhouse gas emissions have led to various innovative alternatives in energy sector. Utilisation of low quality heat source, for example, is one of the key ingredient of the solution to improve efficiencies of current energy conversion and electricity generation processes. Among these ideas and technologies, the Organic Rankine Cycle (ORC) has gained much attention over almost a century. Unlike the conventional Steam Rankine Cycle, ORC uses unconventional fluids, low boiling and stable hydrocarbons mostly, to extract work from the medium to low grade sources with a broad power sizes interval.
Rankine cycles with organic fluids can also be used, in principle, to convert high temperature heat from any source in useful work, but applications in this context comes up against the thermochemical stability of the working fluid and the very high volumetric expansion ratios of the thermodynamic cycles, which involve many turbine stages, technologic difficulties and high costs, in particular for small-size engines. On the other hand, the low electric efficiency of the small-scale power generation systems, justifies and makes convenient to recover heat from the engine, to realise the so called CHP (Combined Heat and Power) systems. Nevertheless, choosing appropriate working fluid for the operation of ORC is essential for its thermo-economic viability, [
1,
2,
3].
CHP-based generation systems have ramped up over the last decade especially in Europe. For instance, in UK only the share of CHP-based systems is around
by 2015, and about 10% of CHP systems used renewable fuel sources, [
4]. However, the size of CHP plants and their connectivity to non-connected zones or off-grid areas is an issue.
With increasing global pressure for the reduction of the carbon footprint, mechanical utilisation of natural resources such as biomass, for small CHP engines, in an efficient and environment friendly manner is highly recommended. Indeed, for lesser grade biomass and derived fuels, several plants using organic fluids are already operational for low to medium power rating range (1–10 ). Unfortunately, small scale ORC supplied by the external combustion of wood are affected by intrinsic rather low electrical efficiencies.
As it is well known among the main operational modes to convert solid and dry biomass in electrical energy there are the direct combustion and the gasification, [
5]. Usually, the syn-gas from small scale gasifiers is utilised as fuel in internal combustion engines (ICE) or micro-gas turbines, [
5,
6,
7].
With regard to the ICE, small CHP engines (nearly
) fuelled with natural gas, have electrical efficiencies approximately of 25%, [
8]. Micro-gas turbines have turbo-machines rotating at very high speeds (50,000–250,000 rpm), with efficiencies of about 25% (in the power range about ten
), decreasing to 10% when the power is some
, [
9]. External combustion micro-gas turbines, working with lower maximum temperatures, have also lower electric efficiencies. Potentially, the syn-gas can be used in fuel cells, also, [
10].
Among the external combustion engines, Stirling engines, [
11,
12,
13], and the small steam engines and steam turbines must also be mentioned.
Nevertheless, in this paper, we concentrate only on small size ORC (Organic Rankine Cycle) engines, without to have pretensions to compare each other all the available and usable different heat engines. The aim is, considering the limits of design and utilisation of single stage axial turbines, to discuss and to identify some technically possible configurations of the thermodynamic cycles. Exploring so the potential of small ORC engines at high temperatures.
As the specific application here considered is the heat recovery from a high temperature source, one has to expect very large volumetric expansion ratios (of the order of many tens). As a consequence, the natural expander to choose is a turbine. Volumetric expander combined with organic Rankine cycles are considered in literature, and, in accordance with their peculiar characteristics, the expansion ratios are limited to 2–10, [
14,
15]. Furthermore, (for some
) the isentropic efficiency of the commercially available volumetric expanders, basically, decreases to fifty per cent for pressure ratios greater than about 10, [
15].
As the engines working according to the Rankine cycles convert external heat into mechanical work, we assumed, as a reference example, the availability of a mass flow rate of syn-gas of about (as available from some marketable small gasifiers), with a lower heating value of about (a value roughly equal to the lower heating values of wood chips with high moisture content −40 to 60%). The combustion of the syn-gas produces gases at high temperatures (900–950 ), making it particularly difficult to achieve a full exploitation of the heat source by a simple organic Rankine cycle. These severe conditions, associated with the small size power, worsen the design problems, and to carry that thermodynamic engines out proves to be really demanding.
The topic is not entirely new. For example, in [
16,
17] some small engines from
to
(with solar, geothermal or exhaust gases as heat sources) are cited and described. In [
18] the design of a small solar engine of
using scroll expanders is discussed. A supersonic turbine (at a design rotational speed of 100,000 rpm, with a measured efficiency of about fifty per cent) for a unit of
is presented in [
19]. In [
20] a
modular, hermetically sealed turbine-generator unit is discussed. The working fluid, a refrigerant, has an inlet design temperature of 200–220
and the expansion ratio is about 10–30. The turbine rotor and the high-speed generator are hermetically sealed and the shafts are magnetically levitated. The design turbine rotational speed is 20,000 rpm.
A
biomass Rankine engine is described in [
21]. The considered working fluid is toluene, with turbine, electrical generator and pump running at 25,000 rpm.
Technical and economic rewiews about small scale Rankine cycles with organic fluids are in [
22,
23].
Usually, the selected working fluids are common refrigerants, the maximum temperatures are rather low (though the maximum temperature of the gaseous heat source is high) or, on the contrary, the considered Rankine cycles have a substantial superheating, often with volumetric expanders, [
24]. In this work we assume as calculation hypotheses the use of only one stage (axial) turbine, to minimise the mechanical complexity of the expander, and to resort only to saturated thermodynamic cycles that, fixed the maximum operative temperature, have potentially the better thermodynamic efficiency. The superheating could be useful but, it adds a further design variable and increases the thermal power of the recuperator. For simplicity it was here neglected.
These assumptions, together with the small power levels and the high temperature of the heat source, to a large degree influence the working fluids selection and the choice of the evaporation and condensation temperatures. Given the specific application, not many are the working fluids available on the market and the choice is reduced. A discussion of the properties of some available organic working fluid for high temperature applications is in
Section 2.
A great current disadvantage of small power Rankine cycles is the considerable specific cost of the engine in comparison with the reciprocating internal combustion engines and, basically, in the small power sizes range, the lower efficiencies. Nevertheless, economic considerations (discussed, for example, in references [
18,
22,
23]) are not here considered. In the following analysis, the efficiency of a hypothetical gasifier (or wood combustor) is not taken into account because we focused on the ORC engine.
2. The Working Fluids
In our case, the selection of the right working fluid was primarily conditioned by the low level of the useful mechanical power. In the cases here discussed the turbine power will result in about 10–15
; so, strictly from the thermodynamic point of view, the ideal working fluid should have (i) a large molecular mass, (ii) an high critical temperature and an high boiling point and (iii) a low molecular complexity, [
25,
26,
27,
28], and ([
29], Chapter 3, p. 125). In addition, the fluid has to be thermally stable at the operating temperatures and, if possible, non corrosive and with a good environmental acceptability.
Unfortunately, frequently, high boiler temperatures and high molecular mass involve a great number of atoms and, as a consequence, a great molecular complexity and the need of recuperators after the expansion in turbine. The molecular complexity of a working fluid is a function of the number of atoms in the molecule. As the molar specific heat at constant pressure
of the vapour augments essentially with the number of atoms in the molecule, when this latter increases the vapour slope
in the Temperature-Entropy thermodynamic plane increases too. Fixed at such a temperature, when the (positive) local contribution of the heat capacity
to the slope, exceeds the (negative) contribution of the vapour pressure, the saturation dome inclines to the right. In this cases, the expansion ends in the superheating phase. In addition, fixed a pressure expansion ratio, the temperature drop during the expansion decreases and a recuperator after the expansion results really necessary. In
Table 1 there are some properties of working fluids considered in this work. In

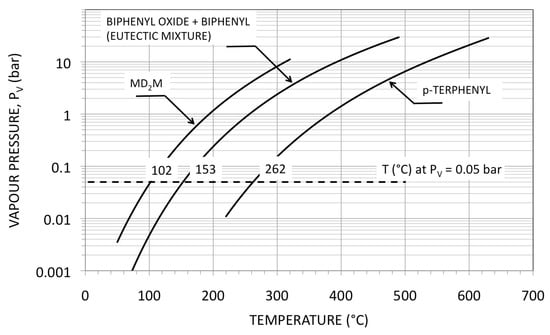

Figure 1 are reported the vapour pressures of the considered fluids; in

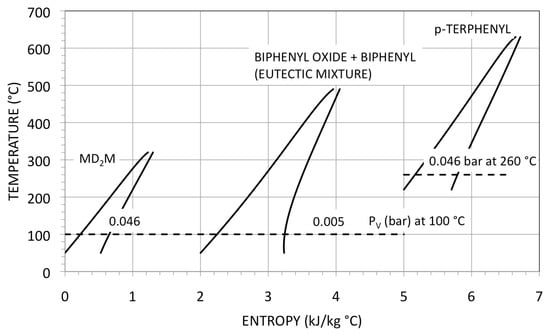

Figure 2 there are the dew and the bubble lines in the Temperature-Entropy plane. The three considered working fluids are all suitable for high temperature applications.
Decamethyl-tetra-siloxane (
) is a member of the siloxane family. Poly-dimethyl-siloxanes are largely used and are characterised by a relatively high thermal stability (used up to 250–300
). They are physiological inert and they have good lubricating properties. Siloxanes are used as working fluids in commercial biomass Rankine cycles, [
30]. In [
31] the design of a small radial turbine (of about
) with a siloxane is discussed. The evaluated turbine efficiency is said to be about 0.76, at a rotational speed of 31,000
The eutectic mixture of diphenyl (
, 26.5% in mass) and diphenyl oxide (
, 73.5% in mass), is a well-known synthetic heat transfer fluid. The mixture, according to the manufacturers, is utilizable up to
, [
32] The p-terphenyl, the most common isomer among the terphenyls, has an high critical temperature (about
) and it is probably as thermally stable as the eutectic mixture of diphenyl and diphenyl oxide. Terphenyls, for their high boiling point and thermal stability, were considered and thoroughly studied as cooling and moderating fluids in some particular nuclear reactors, ([
33], Chapter 17, p. 411). Among the organic fluids, the eutectic mixture of biphenyl oxide and biphenyl and the p-terphenyl are considered the most thermally stable. The eutectic mixture is proposed as heat transfer fluid up to
.
Given their boiling point (see
Table 1 and
Figure 1), the eutectic mixture of biphenyl oxide and biphenyl and the p-terphenyl can be used only at high condensation temperature and, in our case, they will be considered as working fluids in topping high-temperature cycles in binary systems.
3. The Cycle Performances
The assumed parameters for the calculations are in
Table 2. The product
, or the product between the mechanical efficiency
and the generator efficiency
, is assumed unitary in the following calculations. An exception are the results in
Table 3 and
Table 4, where the product
was assumed equal to 0.9.
To assign an exact value to the product
is not really simple. Usually, the friction power loss is proportional to the rotational speed and, for an alternator, in addition to electrical losses, the windage power loss increases with the cube of the rotational speed. Furthermore, the magnetic losses are also connected with the rotational speed. In reference [
34], for example, for the design of a turbo-alternator of
, the assumed alternator and mechanical efficiencies were about eighty per cent and ninety seven per cent respectively. Where necessary and just as a reference, here, optimistically, we assumed for their product a value of ninety per cent.
In

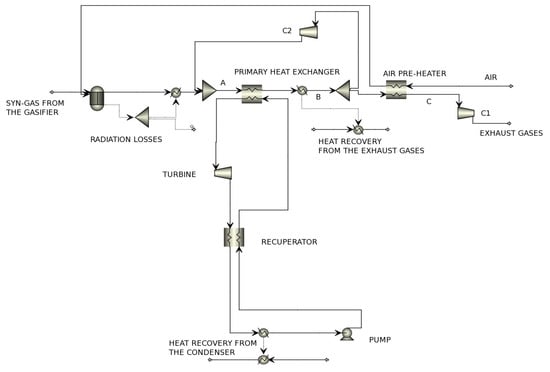

Figure 3 there is the considered plant scheme for the syn-gas boiler whit a recovery Organic Rankine cycle. For the boiler section, for simplicity and just as a reference, we assumed a simplifying configuration of the biomass boiler described in [
35]. The combustion chamber was simulated (using AspenPlus V7.3
®, by a Gibbs Reactor, with a radiation loss equals to one per cent of the thermal chemical reaction power. A circulation of an appropriate mass flow rate of gases assures a temperature in the stream A of
. A direct primary heat exchanger provides the heat recovery from the hot combustion gases to the working fluid of the Rankine cycle. The temperature in the stream B was assumed equal to
and an air pre-heater cools the gases to
, the temperature in stream C, before their discharge in the atmosphere. The fans
and
provide the circulation and the discharge of the exhausted gases, respectively. Radiation losses in the chimney stack were neglected. After the primary heat exchanger, before the point B, we supposed a possible heat recovery with water (heated from
to
); a second heat recovery is on the condenser of the ORC.
For the analysis of the performances of the different single Rankine cycle we supposed the following design constraints:
a single stage axial turbine, to minimise the mechanical complexity of the expander;
only saturated cycles. Firstly for simplicity, avoiding so a further design variable, and then to avoid to increase the thermal power of the recuperator. In addition, saturated cycles have, fixed the maximum and minimum temperatures, the better thermodynamic efficiency.
In the following, firstly, we will discuss the results with regard to the scheme configuration in
Figure 3.
Case (a)—single heat recovery cycle
As the turbine efficiency depends on the size parameter
and on the isentropic volumetric expansion ratio
, [
36],

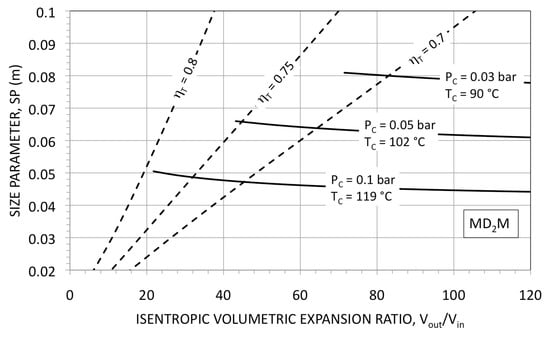

Figure 4 gives the parameter
and the ratio
for cycles with
as working fluid. In
Figure 4 the condensation pressure
was assumed equal to
,
and
. The ratio
, fixed a condensation pressure
, results a function of the evaporation pressure and increases with it.
In the case of a condensation pressure equal to
, for example, (see
Figure 4) it seems very difficult to design an efficient single-stage turbine; if
, the size parameter
almost halves, but, as also the isentropic volumetric expansion ratio decreases substantially, it is possible to realise single stage turbines with a very good efficiency (≈80%). At least for isentropic expansion ratios between 20 and 30.
Assuming, as a reference, a condensation pressure
of
, in

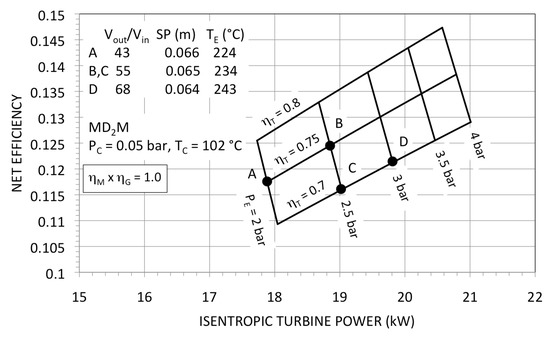

Figure 5 are the net cycle efficiency and the isentropic turbine power for different evaporation pressures
and for three values of turbine efficiency
(0.7, 0.75 and 0.8).
Points
,
,
and
represent different cycle configurations. For example, fixing
(evaporation temperature
), cycles
and
have the same isentropic expansion ratio (
55) and the same size parameter (
0.065). Then, in principle, according to
Figure 4, the turbine efficiency could take an intermediate value between 0.7 and 0.75. If
0.7 (cycle
) the cycle efficiency results about 0.116; if
0.75 (cycle
) the cycle efficiency increases to about 0.125.
As the condensation is at about
(
) it is possible to recover heat from the condenser of the thermodynamic cycle and, consistently with the plant scheme assumed (see
Figure 3), it is possible to recover heat also from the pre-cooling of the exhaust gases. Considering the recovered thermal power as a further useful effects, the a “First Law” efficiency (the CHP efficiency) for cycle
, for example, increases to about 0.9.
As you can derive from
Figure 5, the evaporation temperature
, in the allowable cases A, B, C and D, is rather low in comparison with the maximum temperature of the available hot gases (
), so it is worth considering binary cycles too: a topping cycle at 350–400
and a bottoming cycle at 200–250
. As a matter of fact (with the considered constraints), it is impossible, using a single fluid, to realise the full expansion in a one stage turbine.
Case (b)—binary heat recovery cycle
Assuming as a basic constrain a one stage axial turbine, the need to limit the volumetric expansion ratio has as a result (fixed a condensation pressure
of
) an evaporation temperature
rather low: see
Figure 4 and
Figure 5.
As the heat source is, according to the assumed model of the boiler, at a temperature of
, a possible option to attempt a better exploitation of its thermodynamic potential could be to resort to a binary system, see the scheme in

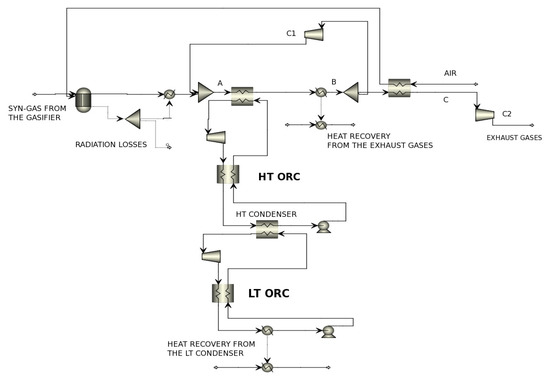

Figure 6. The condenser of the “High Temperature” module provides the heat for the evaporation of the “Low Temperature” thermodynamic cycle.
Assuming
as working fluid in the “Low Temperature” module,

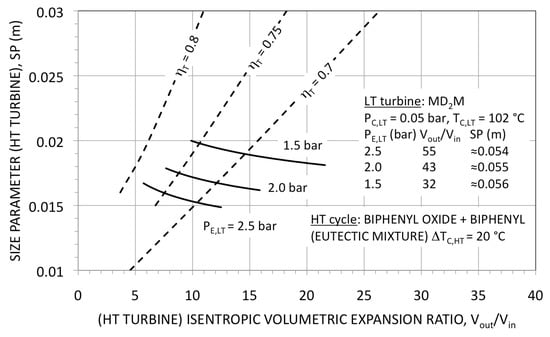

Figure 7 and
Figure 8 give the size parameter
and the isentropic volumetric expansion ratio
for the HT turbine. In
Figure 7 and

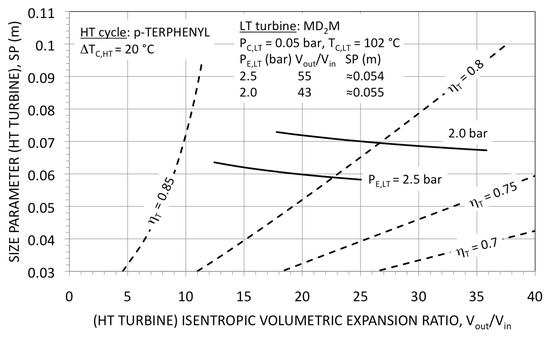

Figure 8 an eutectic mixture of biphenyl oxide and biphenyl and pure p-terphenyl as working fluids in the HT cycle are considered, respectively.
Against ratios of the same magnitude, the turbine with p-terphenyl has size parameters four times greater than the corresponding values for the eutectic mixtures, allowing so the design of better turbines.

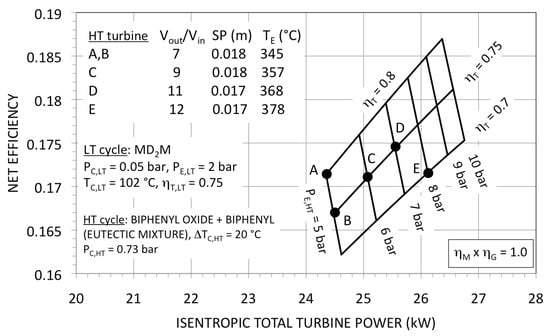

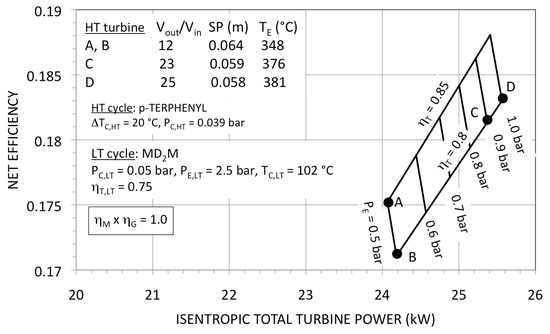

The results of net cycle efficiency and of isentropic power for binary cycles with the eutectic mixture and with p-terphenyl as working fluids in the HT cycles are in
Figure 9 and
Figure 10, respectively. Resorting to binary systems, the net efficiency increases from about 12–13% to about 18–19% (whit
). In all considered cases the CHP efficiencies result about 90%.
In
Table 3 there are some results for the cycle corresponding to the point
in
Figure 5. Assuming
, the cycle efficiency results 12.5%, while the net efficiency is 11%. The recovered thermal power, supposed to be available in hot water at
, is about 6 times the electrical turbine power.
In
Table 4 there are the results for two binary configurations. In the first case, the working fluid for the HT section is terphenyl (case C of
Figure 10), in the second one the working fluid is the eutectic mixture of biphenyl oxide and biphenyl (case D of
Figure 9). The gain in electric efficiency is of 0.051 points in the first case and 0.041 in the second case with respect to the single cycle, respectively. The electrical power, in the case of the binary cycles, increases of about
.
Although with the assumed calculation hypotheses, the global performances of the two considered binary cycles are quite similar, the turbines of the two HT modules results are very different. For its limited Size Parameter
(see
Figure 7) the turbine with the eutectic mixture requires a partial admission and a very small admission degree (see
Table 5). Then its efficiency result could be considerably lower than the values here assumed.
4. Conclusions
From the analysis and from the results presented and discussed in the previous sections, it follows that the design of truly efficient small high temperature Rankine engines is really very difficult, as one has to reconcile high efficiencies with low cost and demanding technological constraints.
In conclusion:
Rankine cycles at high temperatures and small useful power require in general very high volumetric expansion ratios that, combined with small Sizes Parameters, usually demands: (i) axial multi-stages turbines with (ii) a high rotating speed, that is, very expensive turbomachines with rather low internal efficiencies. Assuming one-stage turbines the worked out expansion ratios are limited and the resulting thermodynamic cycle efficiencies are modest. A possible way to solve the problem is to resort to “standard” HT and LT Rankine modules and to combine them properly, achieving binary cycles.
A significant contribution to the final cost of the engine is certainly due to the heat exchangers. The surface of all the necessary heat exchangers can be considered proportional to the sum
: the sum of the total heat transfer coefficients times the heat transfer area, in which the index
i represents the i-th heat exchanger. For the single cycle in
Table 3,
results
, while for the binary cycle with terphenyl (in
Table 4),
is
: 55% more, but against an efficiency and an electrical power 46% and 39% higher, respectively. In the case of the binary
(LT)/Terphenyl (HT) cycle, the
of the HT condenser represents the 35 per cent of the
and it could results so a demanding component to design.
Here we investigated the potential gains in efficiency and power resorting to binary modules each one with single axial turbines, in comparison with simple cycles, for high temperature and small size power Rankine cycles. An in-depth economic analysis - being very difficult without detailed calculations and design and off-design evaluation - is outside the aims of this work. However, the complexity and (probably) an higher maintenance needs for the binary systems must be cited and should be taken in account.
In principle, the design of axial turbines could be easily adapted to any expansion ratio and to any power size. The machine does not require lubrication (and this is an advantage: the oil mixed with the working fluid can produce thermal degradation at high temperature) and even single stages, as discussed in the previous Sections, for the power sizes here considered, can have good efficiencies. Therefore, in the opinion of the authors, small dynamic expanders are generally preferable to volumetric expanders.
The considered reference syn-gas flow rate, from a small commercial gasifier, was selected with the intent of exploring the lower power limits. Increasing the available thermal power, the “scale effects” offer advantage to costs and to efficiencies. The coupling of ORC modules and small biomass stoves could be, strictly from the thermodynamic point of view, certainly less problematic, but the efficiencies will result lower.
Lastly, the problem of the choice of the right working fluids should be mentioned. Steam for small power sizes cannot be used. However, if one wants to make the most of the high temperature sources, the thermal stability limits the choice of the available organic fluids.
In the case of external combustion of syn-gas, the obtainable CHP efficiencies (of about 80–90%) are in agreement with those of the conventional ICE of similar mechanical power. However the electrical efficiencies result lower (about 10–15% against 15–25%).
On the credit side, the small Rankine engines with organic fluids can convert heat from any source and the development of small HT and LT modules could be interesting in many different applications. From this point of view, the choice of single-stage turbines could favour the design of small ORC modules as simple as possible, efficient and best used in well-defined temperature ranges. Small modules are potentially combinable with each other or used separately, according to the requirements.
