Review of Reactors with Potential Use in Thermochemical Energy Storage in Concentrated Solar Power Plants

Abstract

The aim of this study is to perform a review of the state-of-the-art of the reactors available in the literature, which are used for solid–gas reactions or thermal decomposition processes around 1000 °C that could be further implemented for thermochemical energy storage in CSP (concentrated solar power) plants, specifically for SPT (solar power tower) technology. Both direct and indirect systems can be implemented, with direct and closed systems being the most studied ones. Among direct and closed systems, the most used configuration is the stacked bed reactor, with the fixed bed reactor being the most frequent option. Out of all of the reactors studied, almost 70% are used for solid–gas chemical reactions. Few data are available regarding solar efficiency in most of the processes, and the available information indicates relatively low values. Chemical reaction efficiencies show better values, especially in the case of a fluidized bed reactor for solid–gas chemical reactions, and fixed bed and rotary reactors for thermal decompositions.

1. Introduction

The production of electricity from concentrated solar power plants, which are known as CSP plants, is still a maturing technology, although it has been in operation commercially at the utility scale since 1985 [1]. Nevertheless, it has experienced a worldwide large increase in deployment in recent years [2], and there are plans to expand its application in industrial processes and the generation of solar fuels. According to the Renewable Energy Policy Network for the 21st Century (REN21) [3], total installed capacity in CSP in 2016 was 4.81 GW, growing from 600 MW in 2009. The deployment was mostly in Spain (with 2300 MW) and the United States (USA) (with 1738 MW). Other countries with plants are India, Morocco, South Africa, the United Arab Emirates, Algeria, Egypt, Australia, China, and Thailand. Today, parabolic trough technology dominates the CSP market, both in number of projects and total installed capacity (around 85% of capacity) [4].

Moreover, according to different sources, the future deployment of CSP around the world is bright. The International Renewable Energy Agency (IRENA) [5] stated that CSP will grow between 52 GW (44 GW according to its REmap [6]) and 83 GW with the reference and Remap 2030 scenario, respectively. On the other hand, the International Energy Agency (IEA) [7] reported a CSP capacity installed of 110 GW in its 450 scenarios. According to IEA [8], under a high renewable energy scenario, 11% of electricity generation will come from CSP in 2050, with 954 GW of installed capacity. In the IEA CSP technology roadmap [9], the IEA updated the installed capacity to 982 GW in 2050. Finally, the European Solar Thermal Electricity Association (ESTELA), the CSP European industry association, reported a worldwide implementation of 1080 GW in 2050 [10].

Del Río et al. [2] analyzed the drivers and barriers of the deployment of CSP in Europe. Those authors concluded that these drivers and barriers include techno-economic, administrative, policy, and social acceptance factors. According to them, the most relevant barriers are the high costs of the technology and uncertain and retroactive policies.

The biggest technological drawback of solar energy is its temporal intermittency. To overcome this problem, backup systems can be used in the so-called hybrid plants, where fossil fuel or biomass is burned; another solution is the use of thermal energy storage (TES) [11,12,13,14]. Prieto et al. [15] stated that there is a need to extend the operation of a CSP plant up to 15 h, in order to achieve a plant that is more versatile to comply with unexpected peak demand during nighttime, where no power is being produced. Moreover, the reliance during operating hours would increase.

There are three technologies for TES: sensible energy storage, latent energy storage, and thermochemical energy storage (which include sorption and chemical reactions) [16,17]. Ming et al. [18] reviewed the literature on TES for CSP. These authors concluded that current research efforts in the area of sensible TES focus on the development of new molten salts with lower freezing temperatures and higher decomposition temperatures, the development of ionic liquids for next generation heat transfer fluids (HTFs), the utilization of nanotechnology to improve the specific heat capacity and thermal conductivity, and the development of low-cost solid storage media and their evaluation through compatibility tests with molten salts. On the other hand, the research on latent TES for CSP plants has aimed at increasing the thermal conductivity of phase change materials (PCM) through encapsulation, utilizing heat pipes, and making PCMs mobile—the so-called dynamic PCM—in order to increase the discharge phase.

In CSP, sensible energy storage is the most mature technology, as well as the only that is commercially available today [19]. Sensible storage can be found in commercial plants such as the PS10 and PS20 projects (2007 and 2009), and the Andasol 1 and Andasol 2 plants (2008) in Spain, and the Solar One plant (1982) in the USA [15]. Today, two TES technologies are currently implemented in commercial CSP plants: the so-called Ruth’s storage for direct steam generation plants, and the two-tank molten salts technology [16].

A cost comparison between these two commercial TES systems for CSP was carried out by González-Roubaud et al. [19] using a levelized cost of electricity (LCOE) calculation. This metric is used in power generation in order to compare the cost of electricity between sources. The results show that the Ruth accumulator has the lowest thermal cost for storage capacities lower than 3 h, followed by the direct and indirect molten salt TES. The trend reverses when storage capacities increase.

A parallel study was done by Dowling et al. [20], where an economic assessment of complete CSP plants with two different methods, LCOE and revenue, was presented. They demonstrated that the value of TES is not correctly captured when the LCOE is used, since this does not include the economic opportunities coming from the time-varying value of electricity (which are increasing as more non-dispatchable renewable power is included in the grid). These authors state that storage capacity increases the flexibility of CSP generators, as well as the revenues that are available to them.

The second storage technology, latent heat storage, allows large amounts of energy to be stored in relatively small volumes (high energy density) [21]. Although there are several studies [22,23,24,25] related to the use of phase change materials (PCM, the materials used in latent heat storage) in CSP plants, this technology is still not installed in commercial plants.

Finally, thermochemical energy storage is receiving increasing attention among researchers. Prieto et al. [15] presented a review of chemical reaction processes for CSP from the technological point of view. The authors presented the different cycles that have been studied by other researchers, such as sulfur base cycles and metal oxide redox cycles (calcium carbonate cycle, calcium hydroxide cycle, and manganese oxide cycle), and perovskite-form structures. Previously, reaction candidates for medium or high-temperature applications (250–800 °C) were listed by Felderhoff et al. [26]. The listed candidates included metal hydrides, metal hydroxides, and metal carbonates. In 2014, Pardo et al. [27] published a state-of-the-art of the thermochemical heat storage solutions, focusing on temperatures comprised between 573–1273 K, and not focused only on CSP applications, but more generally on high temperature. The materials listed are metal hydrides, carbonate systems, hydroxide systems, redox systems, ammonia systems, and organic systems. In their conclusions, these authors claimed that thermochemical energy storage appears to be the most promising TES system for solar plants during long periods, because both the storage period and transport distance are theoretically unlimited, since there is no loss of heat during storage (storage happens at ambient temperature).

Although some of these reviews present and comment on the different configurations and prototypes used for each material or reaction, none of them has provided a detailed assessment of the reactor itself. Therefore, the aim of this new review is to fill this gap found in the literature, evaluating the reactor concepts, and highlighting their advantages and disadvantages.

2. Materials Used in Thermochemical Reactions

Currently, there are different processes using solar energy, from CSP plant technology to performing a chemical reaction [28,29,30,31,32]. All of them have in common the objective of reducing fossil fuel consumption, and therefore reducing CO₂ emissions. The different processes that require solar reactors and also working temperatures above 1000 °C are two-step thermochemical H₂O/CO₂ splitting, the gasification/cracking of carbonaceous feedstock, thermochemical heat storage, and the recycling/procurement of raw materials.

The two-step thermochemical H₂O/CO₂ splitting [33,34] is based on a two-redox reaction cycle for CO and H₂ production, which is considered as solar fuel. This gas is used as fuel for fuel cells or feedstock for in Fischer–Tropsch reactions. In this case, in order to split CO₂ and H₂O molecules, a metal oxide is used to perform a thermal reduction of metal oxide, obtaining a metal (or metal oxide) (Equation (1)) that is capable of reducing (split) CO₂ or H₂O (Equation (2)). Depending on the metal oxide, the working temperature or the system pressure must be adjusted [35]. In addition, in Equation (1), the key is the solid product of the reaction, while in Equation (2), the important step is the gas product. These key issues will be the points affecting the reactor design.

$${\mathrm{MO}}_{\mathrm{x}}+\mathrm{Q}\to {\mathrm{MO}}_{\mathrm{x}-\mathrm{y}}+\frac{\mathrm{y}}{2}{\mathrm{O}}_2$$

(1)

$${\mathrm{MO}}_{\mathrm{x}-\mathrm{y}}+{\mathrm{yCO}}_2/{\mathrm{H}}_2\mathrm{O}\to {\mathrm{MO}}_{\mathrm{x}}+\mathrm{yCO}/{\mathrm{H}}_2$$

(2)

The processes gasification/cracking of carbonaceous feedstock [29,36] are based on biogas cracking (Equation (3)) or carbonaceous feedstock gasification (Equation (4)) to obtain solar fuel, for fuel cell or for a Fischer–Tropsch reaction. When necessary, these reactions can be performed under catalytic reaction to accelerate kinetics. A system for collecting the gases will be significant for the reactor design in this type of process:

$${\mathrm{C}}_{\mathrm{x}}{\mathrm{H}}_{\mathrm{y}}+\mathrm{Q}\to \mathrm{xC}+\frac{\mathrm{y}}{2}{\mathrm{H}}_2$$

(3)

$${\mathrm{CH}}_{\mathrm{x}}{\mathrm{O}}_{\mathrm{y}}+\left(1-\mathrm{y}\right){\mathrm{H}}_2\mathrm{O}+\mathrm{Q}\to \left(\frac{\mathrm{x}}{2}+1-\mathrm{y}\right){\mathrm{H}}_2+\mathrm{CO}$$

(4)

Thermochemical energy storage [26,27] is designed to store heat through a reversible reaction (Equation (5)). A heat exchanger is required for this process in order to revert the solar heat that has been stored. However, although this technology/process has still not been neither extensively studied nor implemented, its definition can be found in the literature [37].

$${\mathrm{MO}}_{\mathrm{x}}+\mathrm{Q}\leftrightarrow {\mathrm{MO}}_{\mathrm{x}-\mathrm{y}}+\frac{\mathrm{y}}{2}{\mathrm{O}}_2$$

(5)

Finally, there is the recycling/procurement of raw materials. As it is well known, many processes for obtaining raw materials, such as Zn or CaO, require high-energy inputs to perform a carbothermal reduction. In this case, several materials can sustain thermal reductions by using concentrated solar power.

As mentioned above, all of the processes prioritize some design aspects (heat exchanger, product collection, versatility, etc.). However, all of them can be classified according the reaction type, heating system, or limiting step of process (reaction, diffusion, etc.).

3. Classification of Reactors

There are several ways to classify the solar reactors depending on the focus. Classifications based on the reactor or on the system can be found in the literature [28,38]. Therefore, a new classification is suggested based on the process by itself, which is at the end what will give us the limiting step. The limiting step is essential to properly designing the reactor and the system containing the future TCM (thermochemical material) selected reaction, which will be implemented in solar power tower (SPT) technology.

3.1. Classification Based in the Reactor

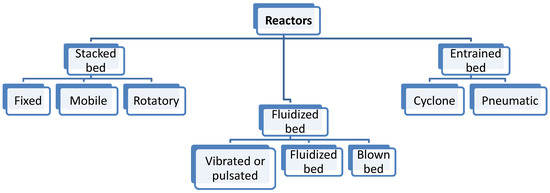

Figure 1 shows the classification of the reactors that has been taken into account in

Table 1. Comparison between fixed, moving, and fluidized bed reactors for solar applications [41].

Reactor	Advantages	Disadvantages
Fixed/packed bed	Low cost Non-parasitic Easier for modeling	Low heat and mass transfer High-pressure drop Difficulties to be implemented in solar receiver cavities at continuous commercial process Stacked bed needed, with higher complexity in solar-focused strategies Non-uniform irradiance distributions on the particle volume
Mobile/moving bed	Direct heat transfer between solids and the gas Increase of the heat transfer coefficient	Difficulties to be implemented in solar reactors Non-uniform irradiance distributions on the particle flow Need to control the residence time to increase the heat transference in particle receiver Complex hydrodynamics
Rotary	High chemical conversion due to high heat and mass transfer Versatility Long life components	Difficulties of scalability to lager commercial solar systems Increase of parasitic energy consumption due to the movement of the reactor Higher risk of mechanical maintenance cost due to the use of a rotatory element at high temperature
Fluidized bed	Minimization of the risk of hotspots and thermal instability Heat transfer coefficients are high	Difficulties to be implemented in solar reactors Need of gas for fluidization Increase of parasitic energy consumption due to the need of fluidized gas Erosion of internal components Complex reactor hydrodynamics and modeling

. Within stacked beds (modular ones), fixed beds are recommended for solar catalytic reactions. For those reactions that require good thermal transfer properties, Villermaux [38] suggested the employment of fluidized beds. Cyclones are interesting if the further separation between solid and gas is desired, but their use is similar in terms of the ad/disadvantages of fluidized bed reactors (Table 1).

Following a flow pattern classification, three main gas–solid technologies can be found, including fixed, moving and fluidized bed [39]. Their main advantages and disadvantages are shown in Table 1. In fixed bed reactors (also called packed bed reactors), the solid particles are located inside a vessel with the flux of reactants flowing through the stationary bed. When the diameter of the packed bed increases, heat transfer rates are poor; therefore, high heat transfer rates should be considered when fluidized beds are required [40]. In mobile/moving bed reactors, the bed can be moved continuously or periodically with a fluid circulation similar to the prior one. In addition, in fluidized bed reactors, the solid has a very small diameter and is maintained in suspension.

3.2. Classification Based in the System

As mentioned in Table 1, the implementation of the reactors in the solar plant is the main problem for the system configuration. A possible classification based on the irradiation and the solar receiver can be established according to the heat integration mode into the reaction chamber. This is related with the maximum system efficiency (solar-to-chemical). Furthermore, solar reactors are indirect or direct, as shown in Figure 2.

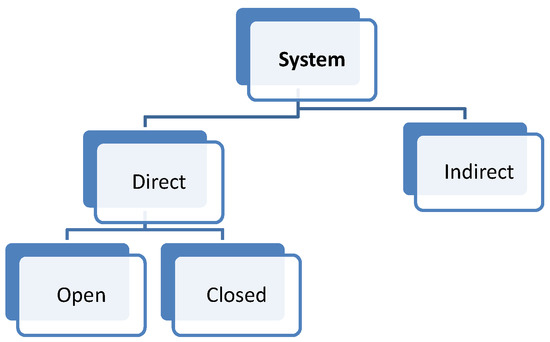

Indirect reactors are those where a container material is directly irradiated to heat the solid or the heat transfer fluid. This configuration is mostly used for fluidized beds, where the solid can be forced upward through irradiated tubes by an airflow, which fluidizes the particles and increases the heat transfer from the tube walls to the flowing particles [28,42].

On the other hand, in direct reactors, reactants are directly irradiated and heated by a solar radiation input. Some of them have a receiver aperture that can be opened (open reactor) or closed by a transparent window (mainly quartz-closed reactors). The quartz window is mandatory in a direct system at high temperature in order to reduce the heat and mass losses. The design of a suitable window for high-temperature processes (T > 900 °C) is still a bottleneck in the design of solar receivers.

Therefore, for direct reactors (both configurations: open and closed), it is important to consider the absorptivity/emissivity of the material, since the more radiation that is absorbed, the higher the reactor efficiency and conversion, because the materials are basically heated by radiation, although they are also heated by convection and conduction. Higher temperatures are expected within direct reactors when compared to indirect reactors, but it is difficult to get homogeneous temperatures inside the reaction chamber.

On the other hand, an indirect system is defined as a system that uses concentrated solar power to heat a black body, and then transfers the heat to the reaction cavity by conduction and convection. Therefore, an indirect reactor requires a thermal conductor between the receiver and reactor to heat the reaction cavity [43]. However, such systems minimize the thermal shock (the temperature gradients are lower than in direct reactors) by maintaining a uniform temperature inside the reaction chamber.

Energy efficiency is directly affected by this choice, since when transferring sun energy to a material, there is always some losses, which at the end is translated to less system efficiency. The indirect system implies one more resistance than the direct system.

3.3. Classification Based in the Process Limiting Step

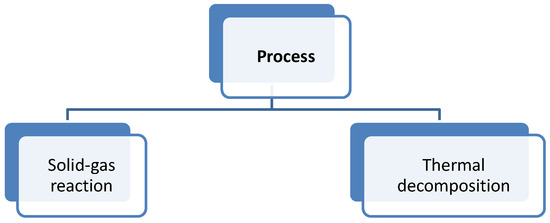

The classification shown in Figure 3 is suggested by the authors. From the point of view of our knowledge, it is very important to distinguish between a reaction with two phases and a decomposition of a solid due to the effect of heat. This classification enables us to make a relation with the limiting step of the process inside the reactor. Moreover, the limiting step (chemical or diffusive controlled) must be identified in order to start the reactor design.

The diffusion control step can be separated in two diffusion processes, which occur in solid–gas reactions: one from the gas to the solid surface (external diffusion), and a second from the outer surface of the solid particle to the inner part of the particle (internal diffusion) [37,38].

Another limiting step could be the chemical reaction, and thus kinetics itself. There are several criteria to identify the influence of diffusion and temperature difference within the particle on the reaction rate. This should be studied for each specific reaction in order to differentiate the processes controlled by chemical reaction (thermal decomposition) and processes to be studied as its limiting step (solid–gas reaction).

4. Reactors Used in Solar Plants

Table 2. Summary of reactor configurations.

Process	Heated System		Reactor Type	Thermochemical Process	Tested in	Power [kW]	Tmax [K]	Solar Efficiency [%]	Chemical Efficiency [%]	Reference
Thermal decomposition	Direct	Open	Entrained cyclone	Calcite decomposition	PSI furnace (Switzerland)	18–28	1273	43	90	[28,45,46]
			Stacked bed-Rotary kiln	Decomposition of limestone (CaCO3)	PSI furnace (Switzerland)	10	1423	20	95	[47]
		Closed	Entrained cyclone	Thermal splitting methane	Weizmann Institute (Israel)	n.a.	1320	n.a.	28.1	[48,49,50]
			Fluidized bed	Calcite decomposition	CNRS-PROMES solar furnace (France)	2	1573	14	n.a.	[28]
				Mn2O3 reduction	IMDEA (Spain)	10−3	1020	n.a.	n.a.	[51]
			Stacked bed-Fixed bed	MnO2 reduction	IMDEA (Spain)	n.a.	2100	n.a.	25	[28,52]
				Mn3O4 reduction	IMDEA (Spain)	1	1673	n.a.	60	[28]
				Mn2O3, Mn3O4, CeO reduction	IMDEA (Spain)	2	1723	47	100	[28]
				ZnO thermal decomposition	PSI furnace (Switzerland)	45	2400	n.a.	n.a.	[30,53,54]
				CeO2/Ce2O3 thermal reduction for H2 production	n.a.	2	2273	n.a.	95	[54]
				CeO2/H2	Dish/Starling	10 kWe	1773	n.a.	40	[55]
				ZnO, SnO2 thermal reduction cycle for H2 production	CNRS-PROMES solar furnace (France)	1	1900	n.a.	48/72	[28,31,56]
				Fe3O4/FeO/CO2 splitting	CNRS-PROMES solar furnace (France)	1.5	1873	n.a.	97	[36,39]
				Biomass gasification	CEA-LITHEN (France)	1	1673	n.a.	28	[57]
			Stacked bed-Mobile bed	ZnO, thermal reduction cycle for H2 production	PSI furnace (Switzerland)	10	1900	n.a.	n.a.	[28,58]
			Stacked bed-Rotary kiln	ZnO thermal decomposition	PSI furnace (Switzerland)	10	2000	n.a.	35	[59,60]
				ZnO thermal decomposition	PSI furnace (Switzerland)	10	1900	12	95	[60,61]
				ZnO thermal decomposition	PSI furnace (Switzerland)	10	2136	n.a.	90	[30,62]
				ZnO thermal decomposition	PSI furnace (Switzerland)	15	2023	n.a.	30	[63]
				ZnO thermal decomposition	PSI furnace (Switzerland)	115	2000	0.88	3	[64]
	Indirect		Stacked bed-Fixed bed	CaCO3 lime decomposition	PSI furnace (Switzerland)	10	1873	35	95	[65]
				Wood	CNRS-PROMES solar furnace (France)	1	1673	28	82	[66]
Chemical reaction	Direct	Closed	Entrained bed cyclone	ZnO reduction with CH4 and syngas production	PSI furnace (Switzerland)	5	1600	n.a.	90	[67]
				Steam gasification of petcoke	PSI furnace (Switzerland)	5	1818	9	87	[67,68]
			Fluidized bed	ZnO reduction with CH4 and syngas production	PSI furnace (Switzerland)	2.9	1373	n.a.	43	[69]
				CaO/CaCO3, atmospheric CO2 capture	PSI furnace (Switzerland)	n.a.	1150	n.a.	71	[70]
				NiFe2O4/m-ZnO thermochemical cycle/H2 production	Niigata University solar simulator (Japan)	2	1473	n.a.	45	[71,72,73]
				Steam gasification of charcoal	CNRS-PROMES solar furnace (France)	2	1773	10	100	[29,74,75]
				Steam gasification of charcoal	University of Minnesota solar furnace (USA)	6	1600	n.a.	100	[29,76]
				CeO2 water splitting	Center for Transdisciplinary research	7	1173	n.a.	n.a.	[77]
				CeO2 water splitting	ETH Zurich (Switzerland)	2.8–3.8	1873	n.a.	n.a.	[78]
				CO + H2O	Center for Transdisciplinary research (Japan)	5	2073	15	<10	[79]
				Sr-doped + CaMnO3	Colorado School of Mines (USA)	n.a.	1273	n.a.	n.a.	[80]
				Fe2O3 water splitting	Niigata University solar simulator (Japan)	30	1473	n.a.	n.a.	[81]
				CaO/CaCO3	University of Sevilla (Spain)	n.a.	1100	n.a.	15	[82]
				Metal oxide reduction	DLR solar furnace (Germany)	n.a.	1073	n.a.	n.a.	[83]
				Calcium looping	IRC (Italy)	3	1023	n.a.	n.a.	[84]
			Stacked bed-Fixed bed	Fe2O3, Fe3O4, Mn3O4 reduction	PSI furnace (Switzerland)	n.a.	2100	n.a.	85	[28,50]
				CeO2 CO2–H2O splitting (foam)	PSI furnace (Switzerland)	2	1913	0.7–0.8	2	[28,30,31,85,86,87]
				Ferrite for H2 production (honeycombs)	Plataforma Solar de Almeria (Spain)	100	1473	n.a.	30	[31,86,87,88,89]
				Syngas production via CH4–CO2 (foam)	SANDIA (USA)	97	1473	n.a.	54	[31,90]
				NiFe2O4/m-ZrO2-coated for H2 production (foam)	Niigata University solar simulator (Japan)	0.7 (2)	1773	n.a.	60	[31,72,91]
				CeO–CO2 splitting	University of Minnesota solar furnace (USA)	4.4	1847	n.a.	72	[92]
				CO2 splitting redox	ETH Zurich (Switzerland)	3.8	1873	n.a.	< 15	[93]
				Co3O4/CoO	DLR solar furnace (Germany)	n.a.	1273	65	n.a.	[94]
				CaO/Ca(OH)2	DLR solar furnace (Germany)	n.a.	773	94	n.a.	[95]
				CaO/Ca(OH)2	CEA-LITHEN (France)	5.5	773	n.a.	n.a.	[96]
				NH3/N2	IT Power (Australia)	5	948	n.a.	n.a.	[97]
				CH4	Guangdong Yudean Xinhui Generation (China)	n.a.	800	50	47.2	[98]
				CH4	Sun Yat-Sen University (China)	n.a.	563	n.a.	n.a.	[99]
				CH4	n.a.	n.a.	948	55	25	[100]
				CeO2 water splitting	CIEMAT (Spain)	57.5	1473	n.a.	n.a.	[101]
				CeO2–CO2 splitting	CNRS-PROMES solar furnace (France)	n.a.	1273	n.a.	n.a.	[102]
				n.a.	n.a.	n.a.	1073	99	n.a.	[103]
			Rotary kiln	CoO/Co3O4 thermochemical heat storage	DLR solar furnace (Germany)	10	1173	n.a.	70	[37,104]
				CuO/CuO2 thermochemical reaction	IER-UNAM (Mexico)	28.5	n.a.	n.a.	80	[105]
				CuO/CuO2 thermochemical reaction	University of Antofagasta (Chile)	n.a.	1153	n.a.	80	[106]
				Mn2O3/Mn3O4	IMDEA (Spain)	10	1700	15	85	[106]
				SrBr2·H2O/SrBr6·6H2O	CNRS-PROMES solar furnace (France)	300–600	353	n.a.	n.a.	[107]
			Stacked bed-Mobile bed	ZnO	ETH Zurich (Switzerland)	10	1446	14	<12.4	[108]
	Direct/Indirect		CONTISOL configuration	CH4	DLR solar furnace (Germany)	6	1223	n.a.	n.a.	[109]
	Indirect		Entrained bed cyclone	Steam gasification of charcoal	PSI solar furnace (Switzerland)	3	1425	1.53	26	[110,111]
			Stacked bed-Fixed bed	Steam gasification of charcoal	PSI solar furnace (Switzerland)	5	1440	29	n.a.	[29,112,113]
				Steam gasification of charcoal	PSI solar furnace (Switzerland)	8	1490	28	n.a.	[29,114]
				CaO/Ca(OH)2	DLR solar furnace (Germany)	10	823	90	n.a.	[115]
				Mn2O3 and Al2O3	IMDEA solar furnace (Spain)	2.1	1673	25.4	41.6	[116]
				CaO/Ca(OH)2	DLR solar furnace (Germany)	2	873	95	n.a.	[117]
				CaO/Ca(OH)2	IET (China)	2	613	n.a.	n.a.	[118]
			Stacked bed-Mobile bed	ZnO reduction with carbon	PSI solar furnace (Switzerland)	5	1500	15	25	[119,120]

is a summary of all of the available experimental reactors that have been published until September 2017, of which most work at temperatures above 1000 °C (1273 K).

Sixty-eight experimental reactors have been found in the literature working at high temperatures, including 48 of them working above 1000 °C. Both thermal decomposition and solid–gas chemical reaction processes are carried out in these reactors, with the chemical reaction type the being the dominant one. Most of the reactors (81%) are part of a direct and closed system, followed by indirect systems (15%); direct and open systems only make up 3%. Then, when looking at the highest-level group of system configurations (direct and closed), the main observations are:

• All of the available and described reactor types are presented: entrained, stacked, and fluidized.
• The main available reactors that have been tested at the lab scale are stacked/fixed bed, 50%.
• Fluidized beds are the second most reported option, with around 21%.
• Stacked/rotary reactors are in third position, with 15% of the implementation within this group.
• Cyclone reactors have been implemented in all of the possible system configurations: direct/open, direct/closed, and indirect. The most available ones are in active/direct/closed system configuration.

In general, and as a summary of all of the reactor configurations listed in Table 2, the statistics of different combinations of system, reactors, and processes are presented in

Table 3. Statistics of systems, reactors, and processes undergone.

Type of Reactor				Number of Reactors	Thermal Decomposition		Chemical Reaction
Direct	Open	Entrained	Cyclone	1	1	[28]	0	---
Direct	Open	Stacked	Rotary	1	1	[46]	0	---
Direct	Closed	Entrained	Cyclone	3	1	[49]	2	[68]
Direct	Closed	Fluidized	Fluidized	15	1	[28]	14	[69]
Direct	Closed	Stacked	Rotary	10	5	[30,62]	5	[106]
Direct	Closed	Stacked	Fixed	26	9	[28]	17	[31,73,91]
Direct	Closed	Stacked	Mobile	2	1	[28,58]	1	[108]
Indirect		Stacked	Fixed	8	2	[65]	6	[29,112,113]
Indirect		Stacked	Mobile	1	0	---	1	[119,120]
Indirect		Entrained	Cyclone	1	0	---	1	[110,111]
Direct/Indirect		CONTISOL configuration		1	0	---	1	[111]
TOTAL				68	21	---	47	---

.

The rotary reactors, which are within the stacked bed reactors, are mainly found in the direct and closed system group, with half of them using decomposition processes, and the other half using chemical reactions. Those reactors account for around 24% of the total decomposition processes. The solar efficiencies of these decomposition processes are between 12–88%, and chemical conversion varies between 30–95% in these reactors. Rotary reactors reduce radiation losses with constant temperature in the internal wall. Moreover, the movement of the particles increases the heat transfer [44].

Fluidized beds are used in reactors in direct/closed systems, with most of them using solid–gas reactions (13 out of 14). They represent 28% of the total number of reactors used for solid–gas reactions. Chemical conversions vary from less than 10% to 100%. Data regarding solar efficiency is only available for three of the reactors, with values ranging between 10–15%.

Fixed bed reactors, which are the most frequent type of reactors, have been used for both processes; almost 32% for thermal decomposition and 68% for solid–gas reactions. They represent 49% of the reactors used for solid–gas reactions. Chemical conversions vary from 25% to 100% for thermal decomposition and from less than 15% to 85% for solid–gas reactions (note that there is a reactor presenting a 2% chemical conversion, which uses a foam matrix, and has been discarded in this comparison [28]). Furthermore, very little data is available concerning solar efficiency, especially for direct, closed fixed bed reactors, due to the difficulties of scaling up this technology in commercial solar applications.

5. Conclusions

The analysis of the available literature shows that there will not be a single reactor configuration to be applied for solar thermochemical process. The diversity of the detailed problems shows that the technology is still in low technology readiness level (TRL)—less than five—and significant research and development are still demanded. The design and optimization of the reactor to be used must be defined by the chemistry of the reaction, the dominant transfer mechanisms, and the compatibility of the materials. Moreover, all of this must be designed with ambitious solar efficiency objectives in order to minimize the cost of the solar field, which continues to be one of the limitations in the cost savings of CSP.

Reactors implemented in direct systems are by far the most studied ones. A very high percentage of both solid–gas reactions and thermal decompositions, around 81% of the total systems analyzed, consists of a direct and closed system configuration. Within this configuration, the majority of all of the processes—around 69%—take place in stacked reactors, and within this reactor type, fixed bed reactors are preferred (68%). The direct configuration has a significant lower cost than an indirect system. Additionally, the closed configuration is mandatory at high temperature to increase the solar efficiency in the reactor receiver.

Fixed beds are being used to undergo both processes; they are more used for chemical reactions and show better chemical conversion in thermal decomposition processes. However, their use in solar applications is at a very preliminary stage of application. The control of the temperature in the irradiated solid, the uniformity of the flux map, the effect of the diffusion mechanism, and the scalability of the processes makes their applicability difficult.

Fluidized beds are preferred for solid–gas reactions, and are known to increase two phases (gas and solid) contact and thus heat and mass transfer. Therefore, they are recommended for solid–gas reactions, whose limiting step is diffusion, which is either external or internal. Nevertheless, complexity in design, increase in the self-consumption, and the erosion/wear of internal components are big drawbacks to overcome.

Solar efficiencies up to now have been very low. Those values cannot be compared, since very little data is found in the published papers. The state-of-the-art showed 50% as the maximum solid receiver efficiency achieved so far; however, a value higher than 80% is required to make this solar system economically feasible.

Chemical conversions are acceptable in some specific cases; these are mainly fluidized bed reactors for solid–gas chemical reactions, and fixed bed reactors and rotary reactors for thermal decompositions.

Most of the problems found when working experimentally with these reactors are due to material resistance and low chemical conversions due to an insufficient radiation power or bad use of it. Important operational and design parameters when working with a CSP reactor are the geometry of the reactor, which needs to be optimized, the preheating of the inlet gas, the reactor configuration (continuous or batch), and re-radiation losses.
