A Kinetic Study on Combustible Coastal Debris Pyrolysis via Thermogravimetric Analysis

Abstract

Coastal debris has recently emerged as a serious environmental pollution problem. Coastal debris can be treated using pyrolysis because it consists mainly of combustible materials like plastics (e.g., polyethylene (PE), polypropylene (PP), nylon) and wood. In this study, the pyrolysis characteristics of coastal debris were fully utilized by applying their basic data to fuel production. The initial temperature increased from 330 °C to 380 °C for the nylon fishing net coastal debris sample, from 405.01 °C to 430.08 °C for the PE fishing net coastal debris sample, from 395.01 °C to 419.96 °C for the PP rope coastal debris sample, and from 114.95 °C to 115.02 °C for the wood (bamboo) coastal debris sample. The activation rate of the global activation energy and the pre-exponential factors rose with the increasing heating rate, complementing the reduction rate constant due to the larger growth of the exponential term due to the kinetic models used.

1. Introduction

Marine debris consisting of manufactured or synthesized solid waste materials has given rise to a serious global issue regarding the marine environment. In particular, the ecology of marine animals and economic activities in marine areas have become cause for concern [1,2,3]. Marine debris refers to all types of waste floating in the sea or approaching the coast due to natural or artificial factors [3,4,5]. Coastal, sink, and floating marine debris types consist of coastal, sea-based waste generated from human activities, and foreign wastes introduced to the domestic marine areas and coasts from overseas sources [3,4,5,6,7].

According to a survey conducted by the Ministry of Oceans and Fisheries of South Korea, more than 176,000 tons of marine debris were generated in South Korea in 2012, but only 58,000 tons were collected, gradually worsening the problem of marine debris in the country [8]. Statistical data from the Marine Litter Integrated Information System showed that approximately 78,000 tons of marine debris were collected in 2016. Among these, 53% were coastal debris, 34.1% were underwater deposited waste, 6.6% were floating wastes, and 6.3% were disaster wastes [8]. Due to the geographic conditions of South Korea, the Kuroshio Current flowing from the East China Sea to Japan’s east coast induces the marine debris of neighboring countries to pass through South Korea [9,10]. All the coastal debris are potentially pushed toward the coast by winds and typhoons, among others. Of these coastal debris, 54% are plastics (e.g., wire ropes, waste nets), 7.9% are timber, 19% are incombustible materials (including metal and glass), and 18% are other types of material [10,11,12]. Marine debris contains long-term decay-resistant materials such as waste fishing nets, waste ropes, Styrofoam buoys, and various types of plastics depending on the sources (e.g., municipal solid waste, industrial wastes, and marine wastes), which threaten the marine environment and ecosystem as well as cause marine resource damage and marine accidents [5,11,13]. According to its composition, however, coastal debris also have a high calorific value of approximately 6000 kcal/kg, which can be applied to the high-efficiency energy industry [14,15].

For coastal debris consisting of combustible materials like plastics and wood, pyrolysis and combustion may be considered attractive treatment alternatives [11,13,16]. The recycling of waste plastic of coastal debris via pyrolysis involves thermal degradation of the polymeric material in the absence of oxygen to produce useful fuels [12,13,14]. These treatment techniques can reduce coastal debris volume and can boost energy and/or chemical production. The thermal characteristics of coastal debris can provide effective usage and controlled conditions for incinerators and cement kilns. In addition, pyrolysis can solve the problem of coastal debris treatment because coastal debris consists mainly of plastics (e.g., polyethylene (PE), polypropylene (PP), nylon) as well as some types of wood.

In this study, the pyrolysis characteristics of coastal debris were fully utilized by applying their basic data to the fuel production system. The changes in the pyrolysis characteristics and kinetics of several plastics and wood making up coastal debris were studied through thermogravimetric (TG) analysis.

2. Materials and Methods

2.1. Materials

For this study, three plastic coastal debris samples (two fishing nets made of nylon and PE, respectively, and one rope made of PP) and wood coastal debris samples (bamboo) were collected from the south-west coastal area of South Korea and were investigated. In 2016, 32% of the marine wastes were collected in this area. Marine wastes particularly abound in Sinan-gun, which consists of more than 1000 islands and produce a large amount of waste fishing gear since fishery and aquaculture activities abound there. In addition, since it is located farther toward the south-west coastal area of South Korea, marine wastes, including foreign wastes, are pushed toward the coast.

The characteristics of the study samples were subjected to ultimate, proximate, and calorific value analyses. The results of such analyses are shown in

Table 1. Characteristics of the plastic and wood coastal debris samples.

Category		Nylon (Fishing Net)	PE (Fishing Net)	PP (Rope)	Waste Wood (Bamboo)
Moisture content (wt.%) a		2.3	1.4	1.3	7.3
Proximate analysis (wt.%) b	Volatile matter	95.3	96.4	93.8	75.2
	Fixed carbon	0.3	0.1	0.2	21.3
	Ash	0.4	3.5	6	3.5
Ultimate analysis (wt.%) b	Carbon	63.1	82.4	80.1	48.3
	Hydrogen	8.4	13.2	12.9	5.9
	Oxygen	17.9	0.7	0.8	39.4
	Nitrogen	10.2	0.2	0.2	0.4
	Cl−	0.1	0.3	0.3	2.8
Calorific value (kcal/kg) b		9884	10,406	10,876	4201

^a as collected from a coastal area; ^b on a dry basis.

.

2.2. TG Run for Pyrolysis Analysis

The TG analysis of the pyrolysis behavior was carried out using a thermogravimetric analyzer (Seiko, Exstar 6000, TG/DTA6100, Tokyo, Japan). For each run, 1±0.2 mg of each study sample was prepared. The TG results provided the function of temperature for the plastic and wood coastal debris samples with non-isothermal conditions, and a controlled heating program (5, 10, and 20 °C·min⁻¹) was used from room temperature up to 800 °C. The decomposition temperatures were measured under dynamic conditions in a nitrogen atmosphere with a total flow rate of 100 mL·min⁻¹. A sample of about 10 mg was placed in a platinum crucible prior to analysis. Moreover, differential thermography (DTG) results showed the characteristics of the pyrolysis behavior of coastal debris.

2.3. Non-Isothermal Kinetics

There are two main approaches to kinetic modeling pyrolysis. The first approach consists of the use of network models like the chemical percolation devolatilization (CPD), FLASHCHAIN, and FG-DVC models, which have been developed to accurately describe the complex process behavior of coal and biomass pyrolysis [17,18]. They consist of complicated mathematical models. However, carrying out the complex computation takes time. The second approach, on the other hand, consists of the use of global models and is easy to utilize due to its computational simplicity. These simple global kinetic models have been widely used in many studies (e.g., Andrew P. [19], Fei et al. [20], and Piyarat et al. [21]) to study the behavior of the pyrolysis process. Accordingly, the global pyrolysis kinetic models were adopted in this study. They are classified into three categories: the one-, two-, and multi-step models. The number of steps in each model indicates the number of reaction kinetic pathways occurring during the whole process. For the plastic coastal debris study samples, the one-step model was employed to estimate the kinetic parameters for the overall pyrolysis process. For the wood coastal debris sample, the nth-order reaction model function was utilized to describe the complex pyrolysis process by computing the order of the process. The multi-step kinetics model was used to estimate the pyrolysis process behavior of the sample with three main components: cellulose, hemicellulose, and lignin. The conversion (α) of the plastic coastal debris in the overall pyrolysis process can be calculated using the formula below.

$${\alpha }_i=\frac{W_{i,0}-W_i}{W_{i,0}-W_{i,\infty }}$$

(1)

where W₀, W, and W represent the instantaneous, initial, and final weights of the sample in the pyrolysis process, respectively. The subscript i indicates each step of the multi-step model, and unity in the single-step model.

The global kinetics model form can be described by the Arrhenius equation [22] shown below.

$$\frac{d{\alpha }_i}{dt}={\mathrm{A}}_i\exp \left(-\frac{E_i}{RT}\right){\left(1-{\alpha }_i\right)}^{n_i}$$

(2)

where t is the given time (s), A is the pre-exponential factor (min⁻¹), E_a is the apparent activation energy (kJ·mol⁻¹), R is the universal gas constant (8.314 J·mol⁻¹·K⁻¹), T is the absolute temperature (K), and n is the order of the reaction function. In this study, the nth-order reaction model function indicates complexity of different marine debris pyrolysis processes. The pyrolysis process of marine debris proceeds in a non-isothermal condition considering a constant heating value ($\beta =dT/dt$) in this study. Accordingly, Equation (2) was converted to Equation (3).

$$\frac{d{\alpha }_i}{dT}=\frac{{\mathrm{A}}_i}{\beta }\exp \left(-\frac{E_i}{RT}\right){\left(1-{\alpha }_i\right)}^{n_i}$$

(3)

The conversion and kinetic equations of the multi-step model were calculated by the sum of the individual steps shown below.

$$\alpha ={\displaystyle \sum }_i{y}_i{\alpha }_i$$

(4)

$$\frac{d\alpha }{dT}={\displaystyle \sum }_i{y}_i\frac{d{\alpha }_i}{dT}$$

(5)

$${\displaystyle \sum }_i{y}_i=1$$

(6)

where the subscript i indicates each step of the multi-step model and y_i represents the contribution of the individual process to the overall weight loss. The uncharted kinetic parameters and contribution factors were computed by estimating the experimental data through non-linear least-squares analysis. The optimization was performed in MATLAB (R2015a, The MathWorks, Inc, Natick, MA, USA) to minimize the sum of squared residuals (S), and the deviations between the experiment data and the predicted values were calculated using the equations below.

$$S={\displaystyle \sum }_{j=1}^{N_d}{\left({\left(\frac{d\alpha }{dt}\right)}_j^e-{\left(\frac{d\alpha }{dt}\right)}_j^c\right)}^2$$

(7)

$$Devi.(\%)=100\times \sqrt{\frac{S}{N_d-N_p}}$$

(8)

3. Results and Discussion

3.1. Thermogravimetric Analysis of Coastal Debris

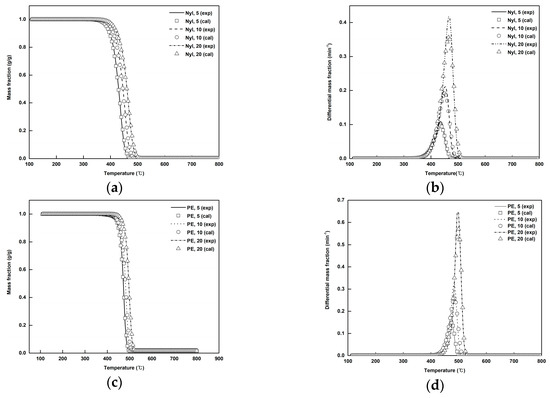

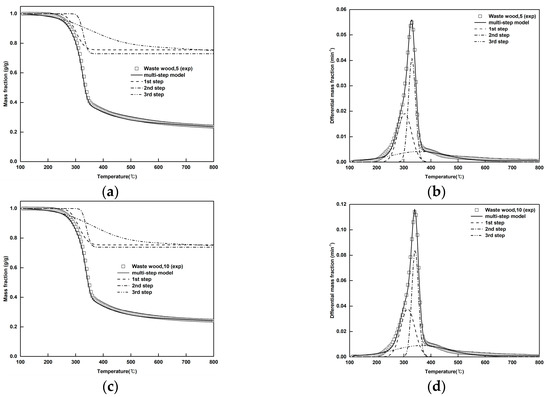

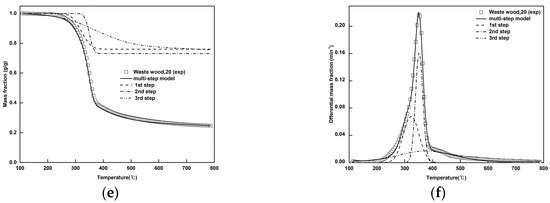

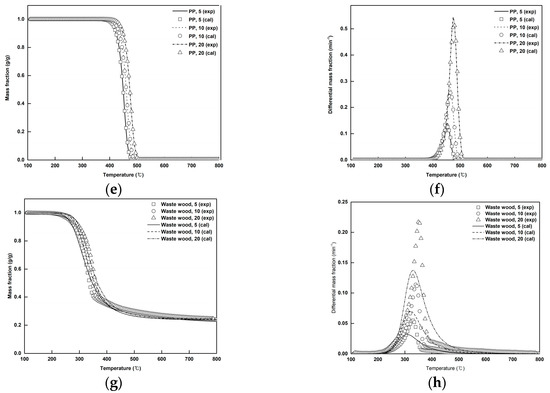

The TG and DTG curves as a function of temperature for the plastic and wood coastal debris samples under non-isothermal conditions (as 5, 10, and 20 °C·min⁻¹) are presented in Figure 1 and Figure 2.

When the study samples were heated from room temperature to 100 °C, the weight of the wood coastal debris sample decreased mainly because of the evaporation of the surface and some inherent moisture while the weight loss of the plastic coastal debris samples was negligible. With the continuously increasing temperature, major degradations were observed after the drying stage. In this study, the drying stage was not considered to exclude the effects of the water contents. Therefore, the variations in weight and kinetic parameter were analyzed based on the completely dried samples.

The TG and DTG curves of all the three plastic coastal debris samples were similar, while those of the wood coastal debris sample showed discrepancy since the DTG curves of the former were perceived to be symmetric. However, the latter was perceived to have had an asymmetrical shape. This was attributed to the thermally decomposed main constituent. Plastic is a polymer consisting of a certain monomer, such as nylon (C₆H₁₁NO)_n, PE (C₂H₄)_n, PP (C₃H₆). On the other hand [15,23], wood mainly consists of a high molecular compound of cellulose, hemicellulose, and lignin [24,25,26]. In addition, the main thermal decomposition of the plastic coastal debris samples occurred within a narrow temperature range of 330 to 535 °C whereas the main weight loss of the wood coastal debris sample proceeded within a broad temperature range of 115 to 779 °C. This was due to the main component of pyrolysis [25,27].

3.2. Effect of the Heating Rate on the Pyrolysis Process of Coastal Debris

As shown in

Table 2. Characteristics of the plastic coastal debris samples in the pyrolysis process.

Sample	β (°C·min−1)	Ti (°C)	Tm (°C)	Tf (°C)	Rm (min−1)	Mf (g/g)
Nylon fishing net	5	330.00	434.98	475.01	0.1088	0.4803
	10	370.00	454.94	494.98	0.2116	0.2012
	20	380.06	464.98	520.05	0.4169	0.3108
PE fishing net	5	405.01	474.97	505.02	0.1785	1.4043
	10	410.07	484.92	515.07	0.3310	2.1120
	20	430.08	499.96	535.16	0.6475	1.6969
PP rope	5	395.01	455.02	490.01	0.1387	0.4935
	10	405.01	465.01	505.02	0.2760	0.2638
	20	419.96	474.97	520.03	0.5450	0.4641

and

Table 3. Characteristics of the wood coastal debris sample in the pyrolysis process.

Sample	β (°C·min−1)	Regime	Ti (°C)	Tm (°C)	Tf (°C)	Rm (min−1)	Mf (g/g)
Wood (bamboo) coastal debris	5	1st	224.96	305.01	390.01	0.0191	0.3540
		2nd	285.00	330.02	380.03	0.0410	0.3634
		3rd	114.95	360.00	745.01	0.0042	0.2414
	10	1st	230.00	314.98	404.95	0.0379	0.8073
		2nd	299.98	340.01	390.01	0.0839	0.3621
		3rd	114.98	365.00	765.03	0.0091	0.2431
	20	1st	234.99	324.90	419.98	0.0680	0.3470
		2nd	304.95	350.06	404.97	0.1613	0.3609
		3rd	115.02	374.90	779.94	0.0169	0.2467

, the pyrolysis characteristics of coastal debris were examined based on each TG analysis condition.

The maximum weight loss temperature (T_m), maximum weight loss rate (R_m), gaseous species release rate, and initial (T_i) and final (T_f) temperatures were influenced by the different heating rates and clearly shifted toward the high-temperature range [18,28]. The tendencies were described based on the heat and mass transfer resistance. In addition, the particle size limited the mass and heat transfer. Accordingly, to reduce the resistance, samples with a small particle size were selected for all the experiments. The effluences of the heating rate were a significant factor in the pyrolysis due to the variations of the heat and mass transfer inside or among the sample particles [27,29].

As the heating rate rose from 5 to 20 °C min⁻¹, T_i increased from 330 °C to 380 °C for the nylon fishing net coastal debris sample, from 405.01 °C to 430.08 °C for the PE fishing net coastal debris sample, from 395.01 °C to 419.96 °C for the PP and the rope coastal debris sample, and from 114.95 °C to 115.02 °C for the wood coastal debris sample. The T_i values of the PP and PE coastal debris showed lower initial pyrolysis temperatures than in other studies [30,31,32,33]. The initiation of thermal decomposition for PP occurred at a lower temperature than for PE because the polymer chain of the PP coastal debris sample consists of a tertiary carbon, which corresponds to branching [13,29]. Furthermore, T_m increased from 434.98 °C to 464.98 °C for the nylon, from 474.97 °C to 499.96 °C for the PE, from 455.02 °C to 475.97 °C for the PP, and from 360.00 °C to 374.90 °C for the wood (bamboo) coastal debris sample. The polymers with branching are weak and more breakable than linear polymers like PE. T_i of PP and PE of coastal debris showed lower initial pyrolysis temperature than in the other study [30]. The DTG peak temperature of PP of marine debris were observed to be lower than those of Gunasee et al. [31]. Meanwhile, the profile of thermal composition on waste wood is in good agreement with results from earlier studies [32].

3.3. Decomposition Curves in the Kinetic Models

The apparent kinetic parameters were estimated using two kinds of global kinetic models (one- and multi-step models) for the plastic and wood coastal debris samples, respectively. The conversion of the coastal debris as a function of temperature is shown in Figure 1 and Figure 2, and the optimized kinetic parameters are listed in

Table 4. Kinetic parameters of the plastic coastal debris samples in the pyrolysis process at different heating rates.

Sample	β (°C/min)	Ea (kJ·mol−1)	A (min−1)	r2 (-)	S (%)
Nylon fishing net	5	212.95	1.22 × 1015	0.9892	0.2411
	10	217.98	2.50 × 1015	0.9889	0.4783
	20	218.17	7.30 × 1015	0.9827	1.1865
PE fishing net	5	336.20	9.77 × 1022	0.9737	0.4838
	10	380.28	1.37 × 1026	0.9587	1.1520
	20	389.78	3.24 × 1026	0.9798	1.6053
PP rope	5	297.03	7.28 × 1020	0.9925	0.2214
	10	309.67	5.33 × 1021	0.9913	0.4837
	20	326.14	6.22 × 1022	0.9936	0.7913

and

Table 5. Kinetic parameters of the wood coastal debris sample in the pyrolysis process at different heating rates.

Sample	β (°C/min)	Regime	N (-)	E (kJ/mol)	A (min−1)	r2 (-)	S (%)	yi (-)
Wood (bamboo) coastal debris sample	5	Global	3.2	119.01	8.16 × 109	0.7727	0.5529	-
		1st	1.2	112.97	5.52 × 109	0.9976	0.3932	0.3195
		2nd	1.2	259.97	2.02 × 1022	0.9884	0.6884	0.3544
		3rd	1.4	24.11	4.55	0.9843	0.2185	0.0055
	10	Global	3.2	138.85	6.30 × 1011	0.7896	1.0581	-
		1st	1.4	141.38	1.57 × 1012	0.9980	0.7095	0.3246
		2nd	1.2	274.29	4.86 × 1022	0.9878	1.3794	0.3447
		3rd	1.6	31.21	2.59 × 10	0.9850	0.3987	0.0120
	20	Global	3.2	141.82	1.46 × 1012	0.7876	2.0686	-
		1st	1.6	144.70	2.20 × 1012	0.9994	1.4814	0.3181
		2nd	1.2	300.07	1.79 × 1025	0.9904	2.7466	0.3575
		3rd	2	44.30	3.96 × 102	1.0000	0.8037	0.0224

.

For the plastic coastal debris samples, single-step degradation took place due to the compound constituted as stated previously. The global activation energies (E_a) were estimated to be 212.95–218.17, 336.20–389.78, and 297.03–326.14 kg·mol⁻¹ for the nylon, PE, and PP coastal debris samples, respectively, as shown in Table 4. The E_a of the PE and PP are in good agreement with the experimental data reported by various authors [33,34,35,36,37]. The activation energy of the PE was higher than that of PP due to the residue yields in three major products: plastic derived oil, gas, and residue wax [14,15]. The pyrolysis of the PE coastal debris sample produced a higher yield of wax residue compared to that of the PP coastal debris sample and it needed more activation energy due to the inorganic/char content and incomplete conversion of PE [15,38]. The activation rate of the global activation energies (E_a) and the pre-exponential factors (A) rose with the increasing heating rates to complement the reduction rate constant due to the larger growth of the exponential term. The pyrolysis process of the wood coastal debris sample was analyzed using the multi-step reaction kinetic model, as shown in Figure 2. The global kinetic reaction order of the sample was found to be higher than unity and such a high value points to a measure of multiplicity and complexity of the reaction mechanism [17,18]. In addition, the regression coefficients (r²) were lower than 0.7896, which implies that the multi-step reaction kinetic model is inadequate for describing the pyrolysis behavior of the wood coastal debris sample. On the other hand, the three-step kinetic model could describe the behavior of the three independent one-step decomposition mechanisms for cellulose, hemicellulose, and lignin. The temperature ranges of the individual decomposition components were found to be in good agreement with the values obtained from previous studies [25,27].

4. Conclusions

In this study, the pyrolysis characteristics of coastal debris were fully utilized by applying their basic data to the fuel production system. For this, the pyrolysis behaviors and kinetics of the plastic and wood coastal debris study samples were examined using thermogravimetric analysis.

The coastal debris samples that were used in this study consisted of plastics (polyethylene (PE), polypropylene (PP), and nylon) and wood, which are both incombustible. The initial temperature increased from 330 °C to 380 °C for the nylon fishing net coastal debris sample, from 405.01 °C to 430.08 °C for the PE fishing net coastal debris sample, from 395.01 °C to 419.96 °C for the PP rope coastal debris sample, and from 114.95 °C to 115.02 °C for the wood (bamboo) coastal debris sample. The maximum weight loss temperature increased from 434.98 °C to 464.98 °C for nylon, from 474.97 °C to 499.96 °C for PE, from 455.02 °C to 475.97 °C for PP, and from 360.00 °C to 374.90 °C for waste wood. Furthermore, the activation rate of the global activation energy and the pre-exponential factors rose with the increasing heating rates, which complemented the reduction rate constant due to the larger growth of the exponential term because of the kinetic models used.
