An Adaptive Particle Swarm Optimization Algorithm Based on Guiding Strategy and Its Application in Reactive Power Optimization
Abstract
:1. Introduction
2. Original Particle Swarm Optimization (PSO)
3. Adaptive Particle Swarm Algorithm with Guiding Strategy(GSAPSO)
3.1. Strategy for Mixed Particles Update
- (1)
- The central particles were expressed as Equations (3) and (4).
- (2)
- The cooperative particles update formula was as follows
- (3)
- The chaotic particles were determined as follows
3.2. Strategy for Inertia Weight
4. Experiment
4.1. Experimental Setup
- (1)
- Sphere FunctionThe Sphere function is nonlinear and symmetric, it has a single-peak, which can be separated with different dimensions. It is used to test the optimization precision.
- (2)
- Rosenbrock FunctionThe Rosenbrock function is a typical ill-conditioned function that is difficult to minimize. Since this function provides little information for the search, it is difficult to identify the search direction, and the chance of finding the global optimal solution is low. Therefore, it is often used to evaluate the execution performance.
- (3)

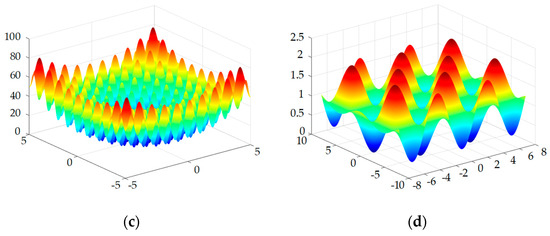

- Rastrigin FunctionThe Rastrigin function is a complex multi-peaks function, with large quantity of local optima. It is prone to making the algorithm put local optimum, which will prematurely converge and not get the global optimal solution.
- (4)
- Griewank FunctionThe Griewank function is also a complex multi-peaks function with a large quantity of local minimum.
4.2. Parameter Settings

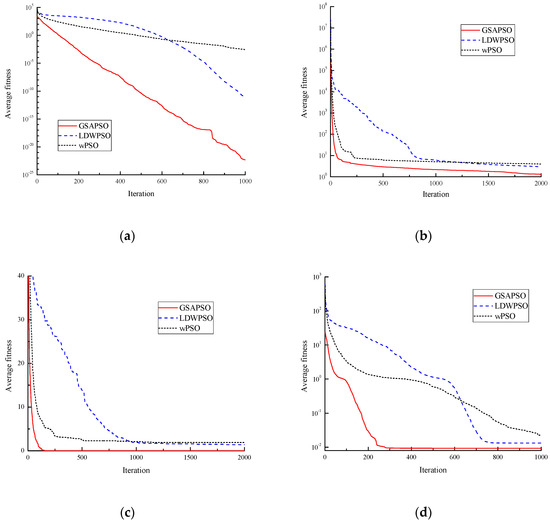

4.3. Analysis of Test Results
5. Problem Formulations
5.1. Objective Functions
5.2. Constraints
6. GSAPSO Algorithm for RPO
6.1. Treatment of Control Variables
6.2. Treatment of Discrete Variables
6.3. GSAPSO Algorithm for RPO

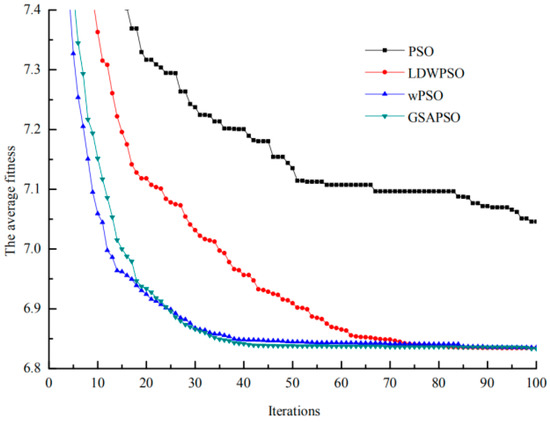

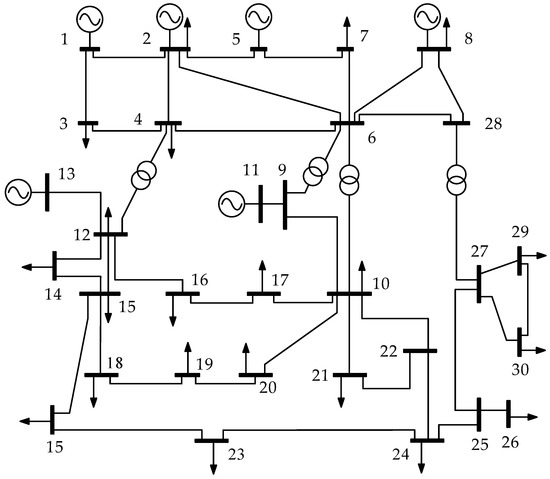

7. Simulation
8. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Antunes, C.H.; Pires, D.F.; Barrico, C.; Gomes, Á.; Martins, A.G. A Multi-Objective Evolutionary Algorithm for Reactive Power Compensation in Distribution Networks. Appl. Energy 2011, 86, 977–984. [Google Scholar] [CrossRef]
- Ara, A.L.; Kazemi, A.; Gahramani, S.; Behshad, M. Optimal Reactive Power Flow Using Multi-Objective Mathematical Programming. Sci. Iran. 2012, 19, 1829–1836. [Google Scholar]
- Zhang, Y.J.; Ren, Z. Real-Time Optimal Reactive Power Dispatch Using Multi-Agent Technique. Electr. Power Syst. Res. 2004, 69, 259–265. [Google Scholar] [CrossRef]
- Jeyadevi, S.; Baskar, S.; Babulal, C.K.; Iruthayarajan, M.W. Solving Multiobjective Optimal Reactive Power Dispatch Using Modified Nsga-Ii. Int. J. Electr. Power Energy Syst. 2011, 33, 219–228. [Google Scholar] [CrossRef]
- Moghadam, A.; Seifi, A.R. Fuzzy-Tlbo Optimal Reactive Power Control Variables Planning for Energy Loss Minimization. Energy Convers. Manag. 2014, 77, 208–215. [Google Scholar] [CrossRef]
- Borghetti, A. Using Mixed Integer Programming for the Volt/Var Optimization in Distribution Feeders. Electr. Power Syst. Res. 2013, 98, 39–50. [Google Scholar] [CrossRef]
- Mandal, B.; Roy, P.K. Optimal Reactive Power Dispatch Using Quasi-Oppositional Teaching Learning Based Optimization. Int. J. Electr. Power Energy Syst. 2013, 53, 123–134. [Google Scholar] [CrossRef]
- Subbaraj, P.; Rajnarayanan, P.N. Optimal Reactive Power Dispatch Using Self-Adaptive Real Coded Genetic Algorithm. Electr. Power Syst. Res. 2009, 79, 374–381. [Google Scholar] [CrossRef]
- Opoku, G. Optimal Power System Var Planning. IEEE Trans. Power Syst. 1990, 5, 53–60. [Google Scholar] [CrossRef]
- Sun, D.I.; Ashley, B.; Brewer, B.; Hughes, A.; Tinney, W.F. Optimal Power Flow by Newton Approach. IEEE Trans. Power Appar. Syst. 1984, 103, 2864–2880. [Google Scholar] [CrossRef]
- Lo, K.L.; Zhu, S.P. A Decoupled Quadratic Programming Approach for Optimal Power Dispatch. Electr. Power Syst. Res. 1991, 22, 47–60. [Google Scholar] [CrossRef]
- Granville, S. Optimal Reactive Dispatch through Interior Point Methods. IEEE Trans. Power Syst. 1994, 9, 136–146. [Google Scholar] [CrossRef]
- Iba, K. Reactive Power Optimization by Genetic Algorithm. IEEE Trans. Power Syst. 2002, 9, 685–692. [Google Scholar] [CrossRef]
- Mao, Y.; Li, M. Optimal Reactive Power Planning Based on Simulated Annealing Particle Swarm Algorithm Considering Static Voltage Stability. In Proceedings of the 2008 International Conference on Intelligent Computation Technology and Automation (ICICTA), Hunan, China, 20–22 October 2008. [Google Scholar]
- Varadarajan, M.; Swarup, K.S. Differential Evolutionary Algorithm for Optimal Reactive Power Dispatch. Int. J. Electr. Power Energy Syst. 2008, 30, 435–441. [Google Scholar] [CrossRef]
- Varadarajan, M.; Swarup, K.S. Differential Evolution Approach for Optimal Reactive Power Dispatch. Appl. Soft Comput. 2008, 8, 1549–1561. [Google Scholar] [CrossRef]
- Malekpour, A.R.; Tabatabaei, S.; Niknam, T. Probabilistic Approach to Multi-Objective Volt/Var Control of Distribution System Considering Hybrid Fuel Cell and Wind Energy Sources Using Improved Shuffled Frog Leaping Algorithm. Renew. Energy 2012, 39, 228–240. [Google Scholar] [CrossRef]
- Sulaiman, M.H.; Mustaffa, Z.; Mohamed, M.R.; Aliman, O. Using the Gray Wolf Optimizer for Solving Optimal Reactive Power Dispatch Problem. Appl. Soft Comput. 2015, 32, 286–292. [Google Scholar] [CrossRef]
- Singh, R.P.; Mukherjee, V.; Ghoshal, S.P. Optimal Reactive Power Dispatch by Particle Swarm Optimization with an Aging Leader and Challengers. Appl. Soft Comput. 2015, 29, 298–309. [Google Scholar] [CrossRef]
- Niknam, T.; Firouzi, B.B.; Ostadi, A. A New Fuzzy Adaptive Particle Swarm Optimization for Daily Volt/Var Control in Distribution Networks Considering Distributed Generators. Appl. Energy 2010, 87, 1919–1928. [Google Scholar] [CrossRef]
- El-Dib, A.A.; Youssef, H.K.M.; El-Metwally, M.M.; Osman, Z. Optimum Var Sizing and Allocation Using Particle Swarm Optimization. Electr. Power Syst. Res. 2007, 77, 965–972. [Google Scholar] [CrossRef]
- Esmin, A.A.A.; Lambert-Torres, G.; Souza, A.C.Z.D. A Hybrid Particle Swarm Optimization Applied to Loss Power Minimization. IEEE Trans. Power Syst. 2005, 20, 859–866. [Google Scholar] [CrossRef]
- Kennedy, J.; Eberhart, R. Particle swarm optimization. In Proceedings of the IEEE International Conference on Neural Networks, Piscataway, NJ, USA, 27 November–1 December 1995; pp. 1942–1948. [Google Scholar]
- Kannan, S.M.; Renuga, P.; Kalyani, S.; Muthukumaran, E. Optimal Capacitor Placement and Sizing Using Fuzzy-De and Fuzzy-Mapso Methods. Appl. Soft Comput. 2011, 11, 4997–5005. [Google Scholar] [CrossRef]
- Zad, B.B.; Hasanvand, H.; Lobry, J.; Vallée, F. Optimal Reactive Power Control of DGs for Voltage Regulation of MV Distribution Systems Using Sensitivity Analysis Method and PSO Algorithm. Int. J. Electr. Power Energy Syst. 2015, 68, 52–60. [Google Scholar]
- Achayuthakan, C.; Ongsakul, W. TVAC-PSO based optimal reactive power dispatch for reactive power cost allocation under deregulated environment. In Proceedings of the IEEE Conference on Power Energy and Industry Applications, Calgary, AB, Canada, 26–30 July 2009; pp. 1–9. [Google Scholar]
- Vaisakh, K.; Rao, P.K. Optimal reactive power allocation using PSO-DV hybrid algorithm. In Proceedings of the India Conference, Kanpur, India, 11–13 December 2008. [Google Scholar]
- Tang, K.Z.; Liu, B.X. Double Center Particle Swarm Optimization Algorithm. J. Comput. Res. Dev. 2012, 49, 1086–1094. [Google Scholar]
- Arasomwan, M.A.; Adewumi, A.O. On the Performance of Linear Decreasing Inertia Weight Particle Swarm Optimization for Global Optimization. Sci. World J. 2013, 2013, 1–12. [Google Scholar] [CrossRef] [PubMed]
- Ren, Z.H.; Wang, J. New Adaptive Particle Swarm Optimization Algorithm with Dynamically Changing Inertia Weight. Comput. Sci. 2009, 36, 227–229. [Google Scholar]
- Lee, K.Y.; Park, Y.M.; Ortiz, J.L. A United Approach to Optimal Real and Reactive Power Dispatch. IEEE Power Eng. Rev. 2010, PER–5, 42–43. [Google Scholar]
Function | Function Expression | Dimension | Range |
---|---|---|---|
Sphere | 30 | ||
Rosenbrock | 10 | ||
Rastrigin | 10 | ||
Griewank | 30 |
Functions | GSAPSO | LDWPSO | WPSO | ||||||
---|---|---|---|---|---|---|---|---|---|
BEST | WORST | MEAN | BEST | WORST | MEAN | BEST | WORST | MEAN | |
Sphere | 9.38 × 10−27 | 2.81 × 10−22 | 4.86 × 10−23 | 7.27 × 10−13 | 1.85 × 10−11 | 9.53 × 10−12 | 1.01 × 10−4 | 1.36 × 10−2 | 2.73 × 10−3 |
Rosenbrock | 1.25 × 10−4 | 2.29 | 1.31 | 0.0837 | 5.795 | 2.975 | 1.81 | 10.187 | 4 |
Rastrigin | 0 | 0 | 0 | 0 | 2.985 | 1.393 | 0 | 3.98 | 1.89 |
Griewank | 0 | 0.0465 | 9.33 × 10−3 | 7.7 × 10−13 | 0.032 | 0.0133 | 6.49 × 10−4 | 0.0623 | 0.0222 |
Functions | GSAPSO | LDWPSO | WPSO | ||||||
---|---|---|---|---|---|---|---|---|---|
AT | BT | SR | AT | BT | SR | AT | BT | SR | |
Sphere | 148 | 119 | 100% | 644 | 623 | 100% | 685 | 571 | 90% |
Rosenbrock | 1626 | 118 | 20% | 2000 | 1090 | - | 2000 | 1944 | - |
Rastrigin | 126 | 84 | 100% | 1762 | 1081 | 20% | 1704 | 513 | 20% |
Griewank | 321 | 125 | 80% | 790 | 622 | 60% | 871 | 620 | 40% |
Variables | Minimum (p.u.) | Maximum (p.u.) | Step |
---|---|---|---|
UG | 0.9 | 1.1 | - |
UPQ | 0.95 | 1.05 | - |
T | 0.9 | 1.1 | 0.025 |
C10 | 0 | 0.05 | 0.2 |
C24 | 0 | 0.02 | 0.2 |
Optimization Results | PSO | LDWPSO | WPSO | GSAPSO |
---|---|---|---|---|
The optimal value/MW | 6.9516 | 6.824 | 6.8242 | 6.8239 |
The worst value/MW | 7.2262 | 6.8667 | 6.8614 | 6.8699 |
The average value/MW | 7.046 | 6.8342 | 6.8354 | 6.8336 |
The variance | 7.034 × 10−3 | 1.31 × 10−4 | 1.21 × 10−4 | 1.17 × 10−4 |
Iterations of the optimal solution | 99 | 92 | 77 | 45 |
Average iterations | 67.3 | 86.8 | 67.2 | 64.6 |
Parameters | PSO | LDWPSO | WPSO | GSAPSO |
---|---|---|---|---|
U1 | 1.0678 | 1.0686 | 1.0686 | 1.0687 |
U2 | 1.0453 | 1.0506 | 1.0506 | 1.0506 |
U5 | 1.0227 | 1.0267 | 1.0267 | 1.0267 |
U8 | 1.0409 | 1.0381 | 1.0381 | 1.0381 |
U11 | 1.0026 | 1.0337 | 1.0099 | 1.0363 |
U13 | 1.0656 | 1.0749 | 1.075 | 1.0749 |
C1 | 40 | 30 | 40 | 30 |
C2 | 10 | 10 | 10 | 10 |
T1 | 1.025 | 1.1 | 1.025 | 1.05 |
T2 | 1.05 | 0.9 | 1 | 0.95 |
T3 | 0.975 | 1 | 1 | 1 |
T4 | 0.975 | 0.975 | 0.975 | 0.975 |
Ploss/MW | 6.9516 | 6.824 | 6.8242 | 6.8239 |
Psave/% | 17.449 | 18.964 | 18.962 | 18.966 |
