Optical Diagnostic Characterization of the Local Arc on Contaminated Insulation Surface at Low Pressure ^†

Abstract

Flashover of contaminated insulators is a major problem for power systems at high altitude. Laboratory experiments have shown that the optical diagnostic method can provide extensive information on the physical process of contamination flashover. In this paper, a study of the local arc on a wet polluted surface under low pressure by using the optical diagnostic method is presented. The thickness of the continuous spectrum, spectral line intensity and the spectral composition varies significantly in different stages of the local arc development. Thermodynamic parameters of the local arc (including electron temperature, electron density and conductivity) are obtained by analyzing the spectra. Both the electron temperature and the conductivity increase with the increase in leakage current and air pressure. Although the electron density does not change significantly with an increase in leakage current, it increases significantly with an increase in air pressure. The findings of this work could be used as supplementary information for the investigation of local arc parameters, thus providing a reliable reference for the calculation of contamination flashover at high altitude.

1. Introduction

Line insulators are some of the most widely used components in transmission lines, and their performance directly affects the safe operation of power systems. When contamination that has accumulated on the surface of the insulators contains a conductive medium, it might cause a contamination flashover accident in the fog and drizzle [1,2,3]. The contamination status of insulators and the climate circumstance are very close in the same area [4,5]. When contamination flashover occurs on a single insulator string, other insulators in this area are also on the edge of flashover [6]. It is known that contamination flashover of insulators often causes massive blackouts, resulting in huge economic losses [7,8,9].

Contamination flashover of outdoor insulators remains a major problem for transmission lines [10,11]. Especially in high-altitude areas, the contamination flashover voltage of the line insulators is greatly reduced due to the lower air pressure [12,13]. Additionally, transmission lines inevitably have to pass through high-altitude areas [14,15]. Therefore, the study on the flashover process on the insulator surface under low pressure is of great significance for predicting the flashover voltage and preventing contamination flashover accidents.

Contamination flashover is the process in which the local arc develops on the surface of the insulator, until the high-voltage electrode and ground electrode are connected [16,17]. Hence, it is helpful to understand the physical process by obtaining the thermodynamic parameters of the local arc. Until now, former researchers mainly focused on the electrical parameters of the local arc. However, as a special kind of plasma, the local arc is mainly composed of free electrons and charged ions and has special properties quite different from resistance.

The thermodynamic parameters that characterize plasma mainly include electron temperature, excitation temperature, rotation temperature, electron density, thermal conductivity and electrical conductivity. It has been found that these parameters of the local arc play a very important role in the calculation of contamination flashover. M. Slama, from the Ampère Laboratory of the Central University of Technology, proposed a dynamic mathematical equation describing the relationship between the resistivity of the local arc channel and the arc temperature [18,19]. Based on the law of conservation of energy, W. Sima, from Chongqing University, obtained the mathematical expressions of the contamination flashover voltage and arc temperature [20]. It can be concluded that thermodynamic parameters of the local arc play a very important role in calculating the arc characteristics and predicting the flashover voltage.

However, there are relatively less experimental studies on the measurement of thermodynamic parameters of the local arc. A. Nekahi, from the University of Quebec, used fiber optic spectrometers to obtain the emission spectra of AC and DC of the local arcs on iced surfaces. By fitting the three molecular spectra of OH (A-X), NH (A-X) and N²⁺ (B-X), the relationship between the rotation temperature of the local arc and the leakage current was obtained, and the results show that the local arc rotation temperature increases with the increase in the leakage current amplitude [21,22]. S. Li of Tsinghua University also designed a spectral temperature measurement system to obtain the emission spectrum of the local arc in the critical flashover stage [23]. However, there is a lack of research on the thermodynamic parameters of the local arc on the wet contaminated insulation surface under low pressure.

In this paper, an optical diagnostic system is designed for investigating the characteristics of the local arc on the polluted surface under low pressure. A special tracing element is employed to obtain the spectrum of the local arc. Typical parameters including electron temperature, electron density and conductivity are obtained by analyzing the spectra of the local arc. This work can enrich the investigation of the local arc under low pressure and may provide useful parameters for the calculation of flashover voltage.

2. Experimental Arrangements and Methods

2.1. Test Facilities

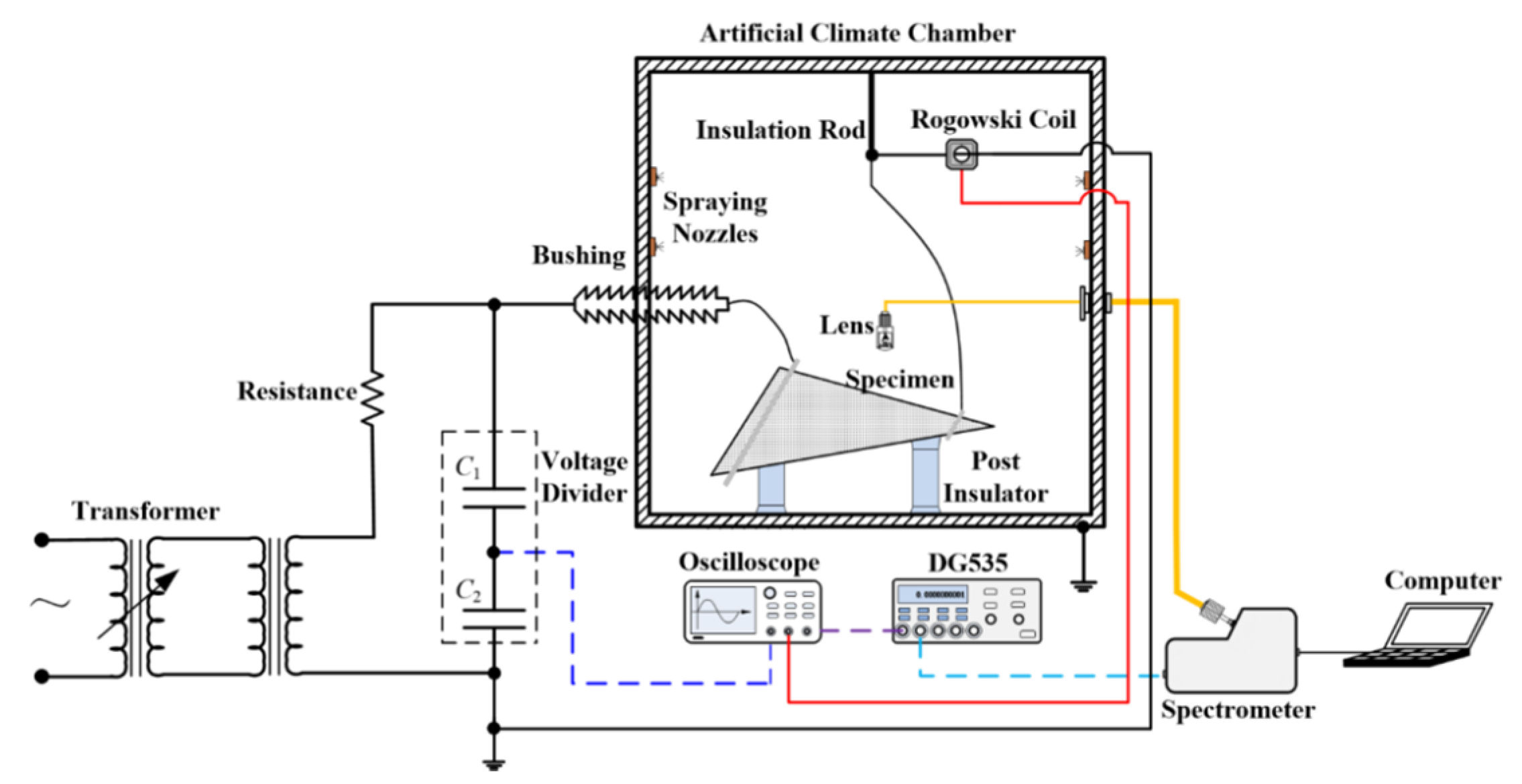

In this paper, an optical diagnostic platform of the local arc under low pressure was established, as shown in Figure 1. The experiments were carried out in the QD660 artificial climate room of Xi’an Jiaotong University. The climate chamber had a cylindrical structure with a diameter of 4 m and a height of 5.2 m. Its size met the requirements of the artificial contamination flashover test for insulator strings of AC 110 kV and below. The artificial climate chamber could be used to achieve any environmental parameter between −50 °C + 60 °C and 0.05 MPa~0.1 MPa. The power was provided by a 160 kV/4 A, 600 kVA transformer with a short-circuit impedance less than 5%. The leakage current was measured by a power-frequency Rogowski coil.

The spraying system consisted of high-pressure water pumps, pipes and atomizing nozzles. The deionized water was pressurized by a high-pressure water pump, and sent through a pipeline to atomization nozzles, installed at multiple locations around the wall of the artificial climate chamber. By changing the size of the nozzle, the diameter of the droplets ranging from 15 to 2000 μm could be obtained. The polluted specimen was installed horizontally in the center of the chamber, and the spraying system was then used to wet the specimen before the test.

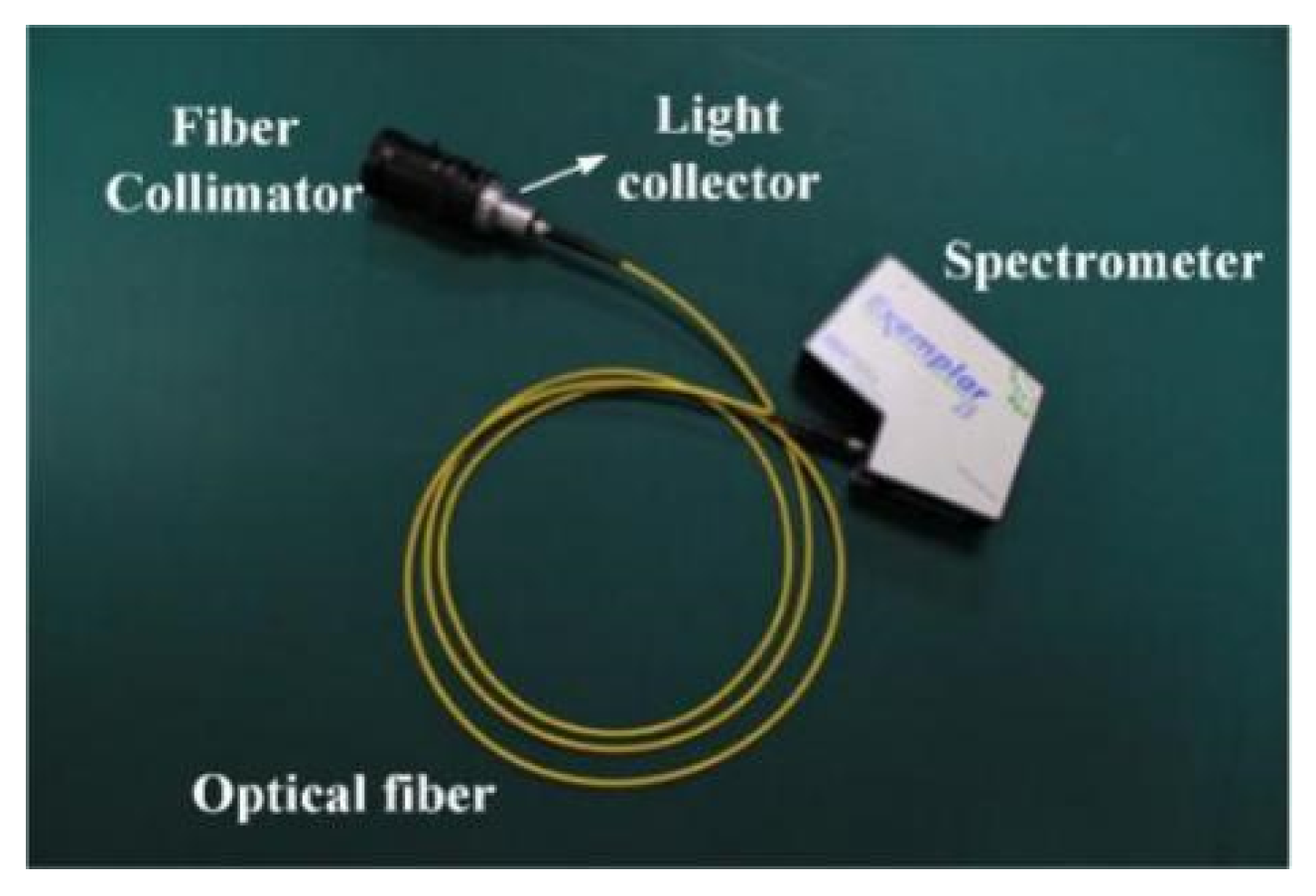

The spectrometer was used to record the spectra of the local arc. The wavelength range of the optical fiber spectrometer was 250–880 nm, which meets the spectral measurement requirements. In order to increase the light intensity coupled into the spectrometer, a fiber collimator with a diameter of 45 mm was used to convert the arc radiation light into parallel light, and then the parallel light was coupled into the fiber through a light collector, as shown in Figure 2. A four-channel digital delay pulse signal generator (DG535) was used to trigger the spectrometer to acquire waveform and spectra synchronously.

2.2. Specimen and Test Methods

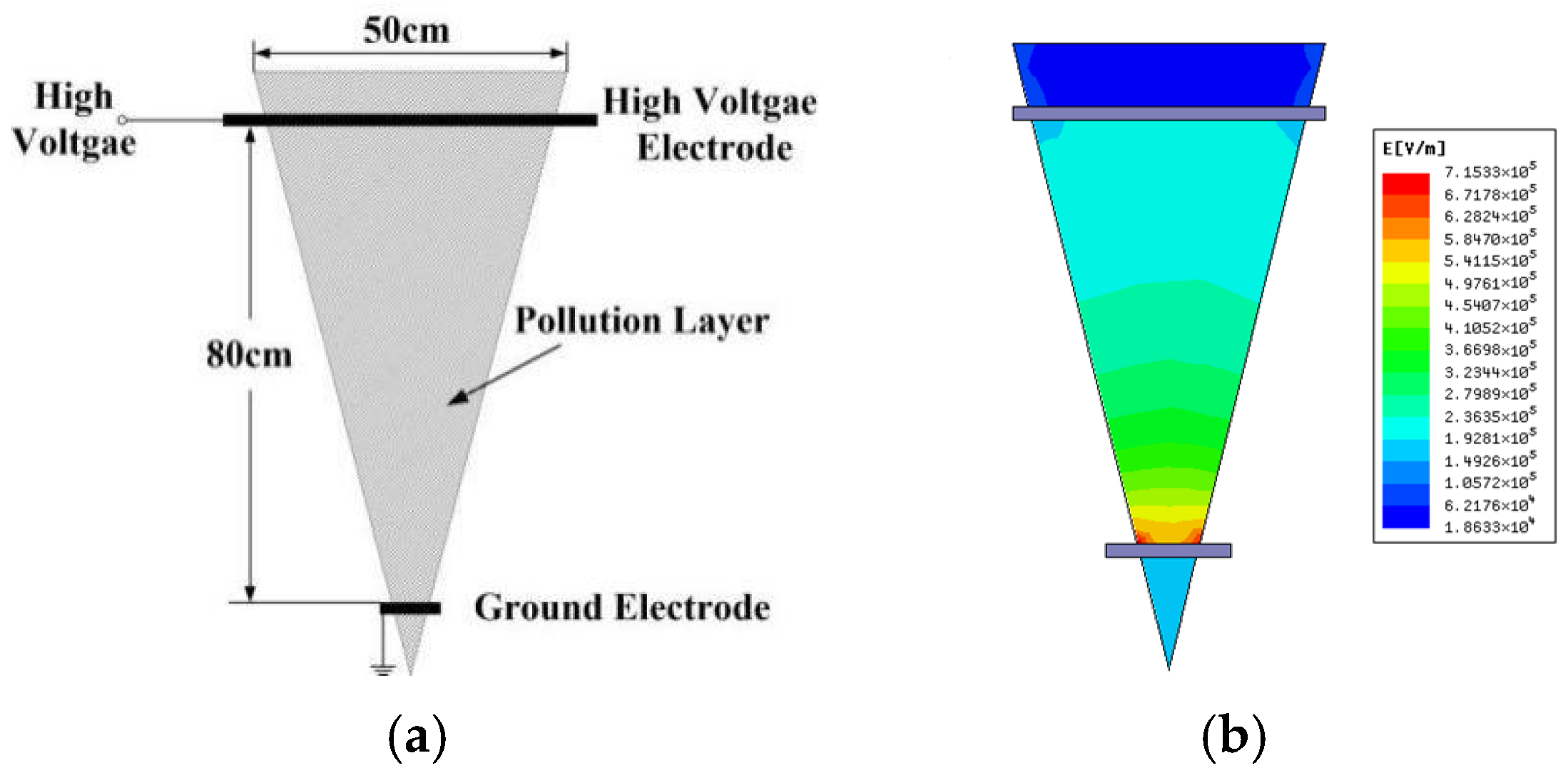

The development of the local arc over the insulator was random, resulting in low efficiency and poor repeatability of experimental measurement. Hence, a triangle glass plate was employed in our experiment, as shown in Figure 3a. The electric field intensity around the top corner of the triangular glass plate surface was higher than the rest of the region, as shown in Figure 3b, from our previous study. The local arc developed from the ground electrode and gradually developed to the high-voltage electrode. The glass triangular plate was polluted with a 2-cm narrow band for convenient measurement.

The solid layer method was used to pollute the specimens artificially, according to IEC 60,805 [24]. The artificial contamination was a mixture of sodium chloride, kaolin and de-ionized water. The equivalent salt deposit density (ESDD) was chosen as 0.1 mg/cm², and the non-soluble deposit density (NSDD) was chosen as 0.1 mg/cm². In the initial stage of the local arc, only a single spectral line could be found for the same element, i.e., Na I and K I, which did not meet the requirement of the spectral line relative intensity method, which requires “at least two atomic spectrum lines of the same element”. Therefore, under the premise of not affecting the characteristics of the arc discharge, a trace amount of lithium was added as a tracer element to the artificial pollution for the occurrence of the useful spectral lines.

2.3. Calculation of Plasma Parameters

(1)

Electron temperature

The electron temperature (T_e) of the local arc can not only characterize the state of the particles in the plasma, but also be used to calculate the conductivity of the local arc. In this paper, T_e of the local arc was calculated based on the spectral line relative intensity method. Using the two different excited state parameters of the same atom, s and t, the formula for T_e is obtained:

$$T_e=\frac{-5040\left(E_s-E_t\right)}{\log (\lambda I/gA{)}_s-\log (\lambda I/gA{)}_t}$$

(1)

In the formula, E_s and E_t are the energy of two different excited states of s and t. Taking the atomic excitation energy as the independent variable and the formula log(λI/gA) as the dependent variable, the Boltzmann diagram is obtained. The relationship between the slope k of the straight line in the Boltzmann diagram and T_e is:

$$T_e=-\frac{5040}{k}$$

(2)

In order to ensure high accuracy of the results, the energy level difference between the two spectral lines should be as large as possible, usually greater than 2 eV. The difference in excitation energy between the two spectral lines of Li I 610.4 nm and Li I 670.8 nm is 2.63 eV, which meets the requirements of the spectral line relative intensity method. Therefore, Li I 610.4 nm and Li I 670.8 nm were chosen as the characteristic spectral lines, and Boltzmann’s diagram was employed to calculate the T_e of the local arc.

(2)

Electron density

Electron density (n_e) measurement methods include the Stark broadening method, Saha equation method, continuous spectroscopy method, Inglis–Teller method, etc. This paper chose the Stark broadening method with its high accuracy and simple measurement method to measure n_e. The relationship between the broadening value of the spectral line ∆λ and n_e can be expressed as:

$$\Delta \lambda =w{n}_e+1.75\alpha n_e^{1/4}\left(1-1.2\rho \right)w$$

(3)

where w is the Stark stretching factor; ρ is the Debye shielding factor; and α is the broadening factor. According to reference [25], the equation above can be changed into:

$$n_e=\frac{\Delta {\lambda }_{NaStarkFWHM}}{4.854}{T}^{0.126}$$

(4)

where ∆λ_NaStarkFWHM is the width at half maximum (FWHM) of the Na I 568.8 nm spectral line, broadened by the Stark effect in nanometres.

(3)

Electric conductivity

Because there are a large number of electrons and ions in the arc plasma, it has a certain electrical conductivity (σ_s). The Spitzer formula is not suitable to calculate the conductivity of low-temperature plasma. R. Mohanti and J. Gilligan, from North Carolina State University, conducted theoretical research on the conductivity of low-temperature plasma and modified the Spitzer formula [26]. The conductivity σ_s can be calculated with T_e and n_e, as shown in our former research [27]:

$${\sigma }_s=\frac{3.1\times {10}^{-2}{T}_e{}^{3/2}}{\ln \left(1+2.2\times {10}^{14}{T}_e^3/n_e\right)}$$

(5)

3. Typical Emission Spectrograms of the Local Arc

The flashover development process can be divided into four stages: initiation, development, critical flashover and flashover. Assuming that the creepage distance is L, in the initial stage, the local arc length is shorter than 1/10 L and the leakage current amplitude (i_m) is less than 50 mA. In the development stage, the local arc length is between 1/10 and 1/2 L and i_m is between 50–150 mA. During the critical flashover stage, the local arc length is between 1/2 and 2/3 L and i_m is between 200 and 300 mA. The optical fiber spectrometer was set to continuous acquisition mode to acquire the emission spectrum of the local arc from the initial stage to the flashover occurrence. The time-resolved emission spectrum of the local arc was obtained, as shown in Figure 4.

(1)

The initial stage

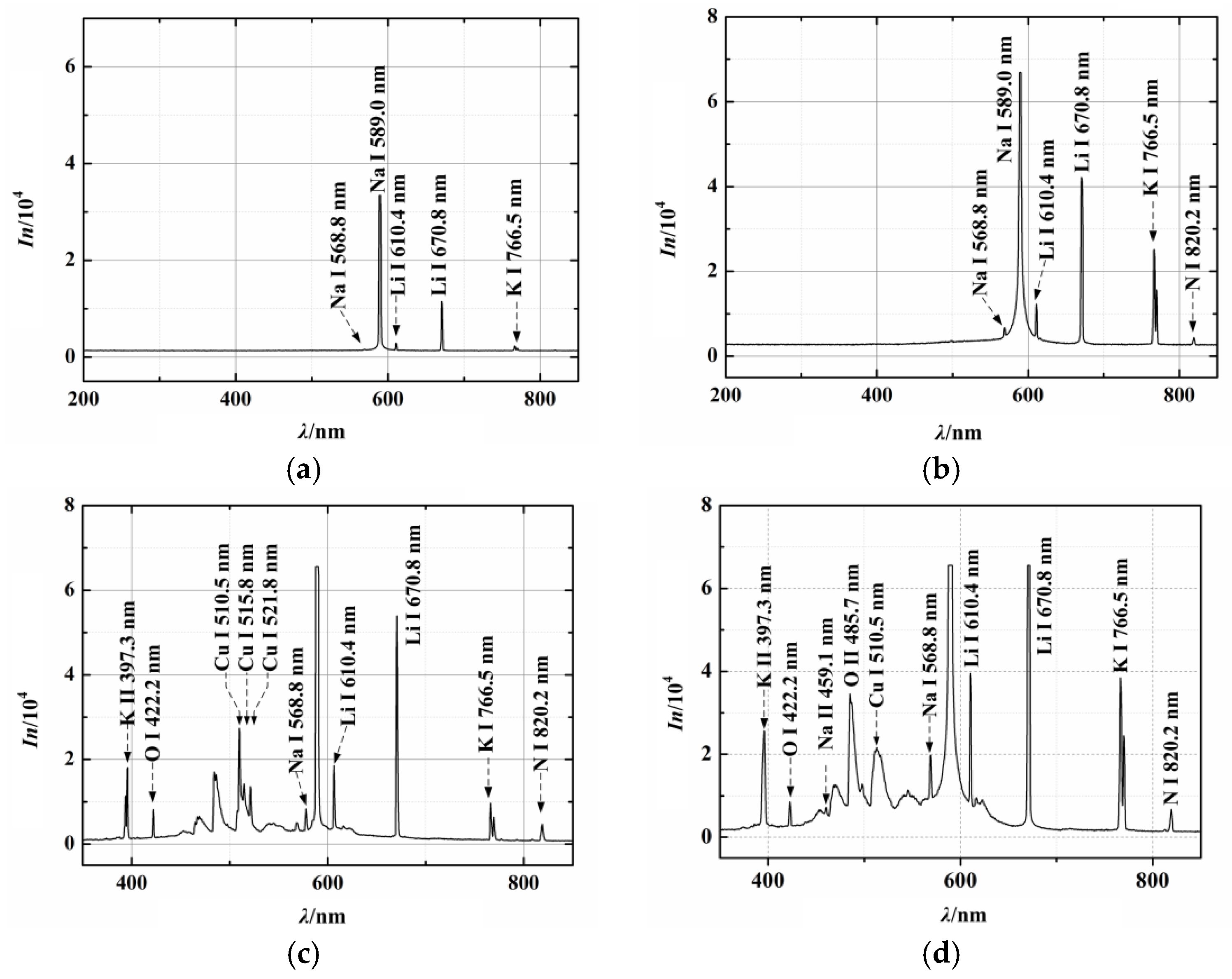

In the initial stage of the local arc, i_m is less than 50 mA. In the spectrum shown in Figure 4a, no continuous spectral components can be observed; only the linear spectral lines of lithium, sodium and potassium atoms with a low relative intensity value can be found.

(2)

Development stage

As i_m continues to increase, the magnitude of the radiation spectrum line increases significantly. The energy injected into the arc channel continues to increase, and the collision between electrons and atoms becomes more intense, leading to the appearance of the atomic line of nitrogen in the spectrum, as shown in Figure 4b.

(3)

Critical flashover stage

In the critical flashover stage, the copper atoms participate in the arc discharge, and three copper atomic lines Cu 510.5 nm, 515.8 nm and 521.8 nm appear in the spectrum. The dramatic increment in injection energy in the arc channel broadens the continuous spectrum thickness in the radiation spectrum, which leads to the increase in the ionization degree of particles in the channel, especially the alkali metal particles. Therefore, the K II 397.3 nm line spectrum was detected in the line, as shown in Figure 4c.

(4)

Flashover stage

After the occurrence of flashover, the arc channel penetrates between the high-voltage electrode and the ground electrode, resulting in the energy of the power supply injecting into the arc channel almost instantaneously. The enhancement of the collisions between electrons and atoms/ions in this channel accelerate the ionization process of oxygen and nitrogen molecules. Therefore, oxygen ion line O II 485.7 nm and nitrogen ion line N II began to appear in the spectrum, as shown in Figure 4d.

4. Parameters of the Local Arc under Low Pressures

Spectral diagnosis of the local arc on a wet contaminated insulation surface under low pressure was carried out in this section. Several vital parameters, such as electron temperature, electron density and conductivity were obtained.

4.1. Electron Temperature of the Local Arc

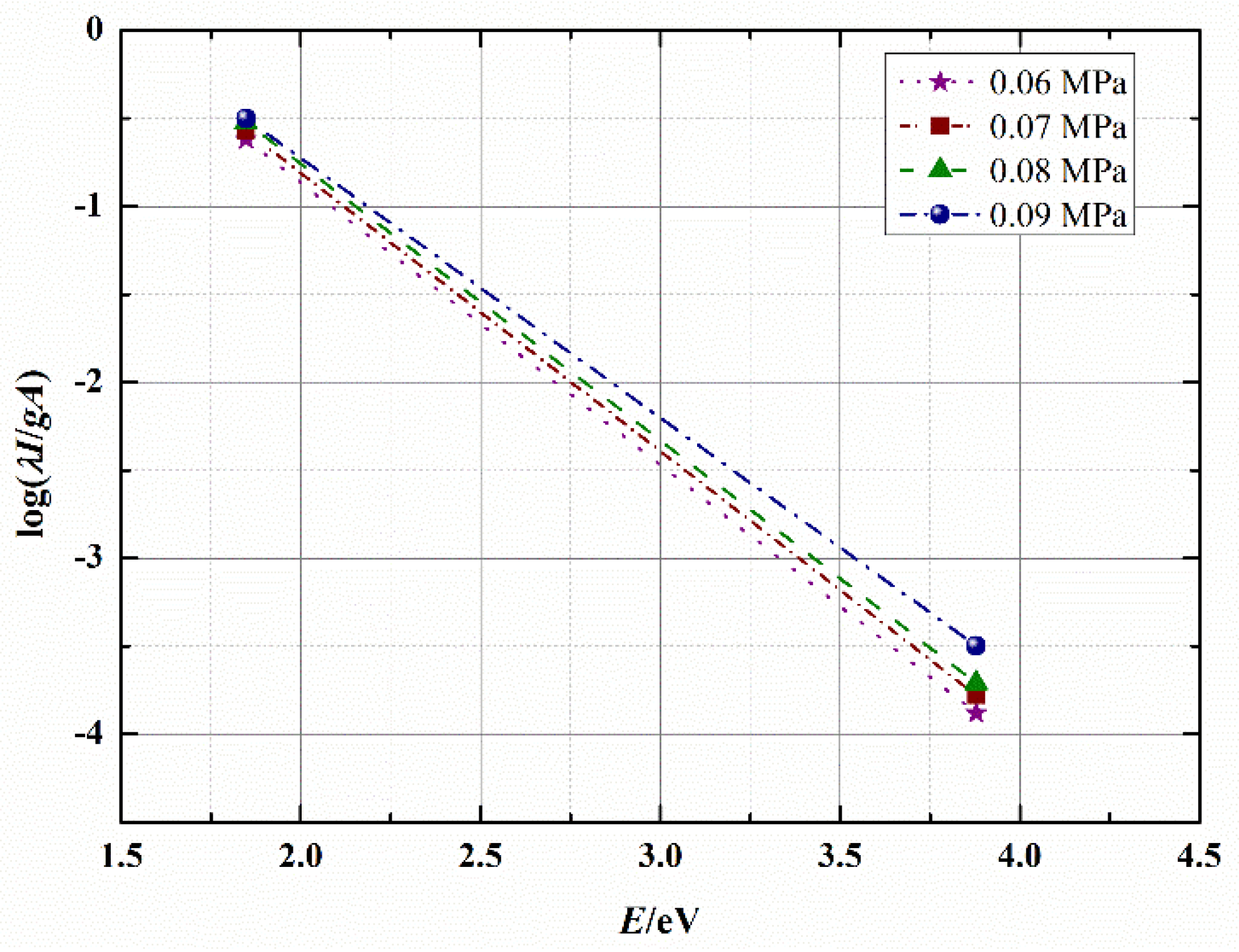

According to the actual altitude of the transmission line, four typical low-pressure values of 0.06, 0.07, 0.08 and 0.09 MPa were selected for the experiment in this paper. The experimental results show that the emission spectra of the local arc under different pressures are almost the same, similar to Figure 4. However, there is a significant difference in the ratio of the relative intensity of the discrete spectral lines. Li I 610.4 nm and Li I 670.8 nm were chosen as the characteristic spectral lines. The Boltzmann diagram method, mentioned in Section 2.3, was used to calculate the local arc electron temperature. The Boltzmann plots of the local arc emission spectra under different air pressures at 0.1 A are shown in Figure 5. The slope k of the straight lines can be obtained for Equation (2) to calculate T_e.

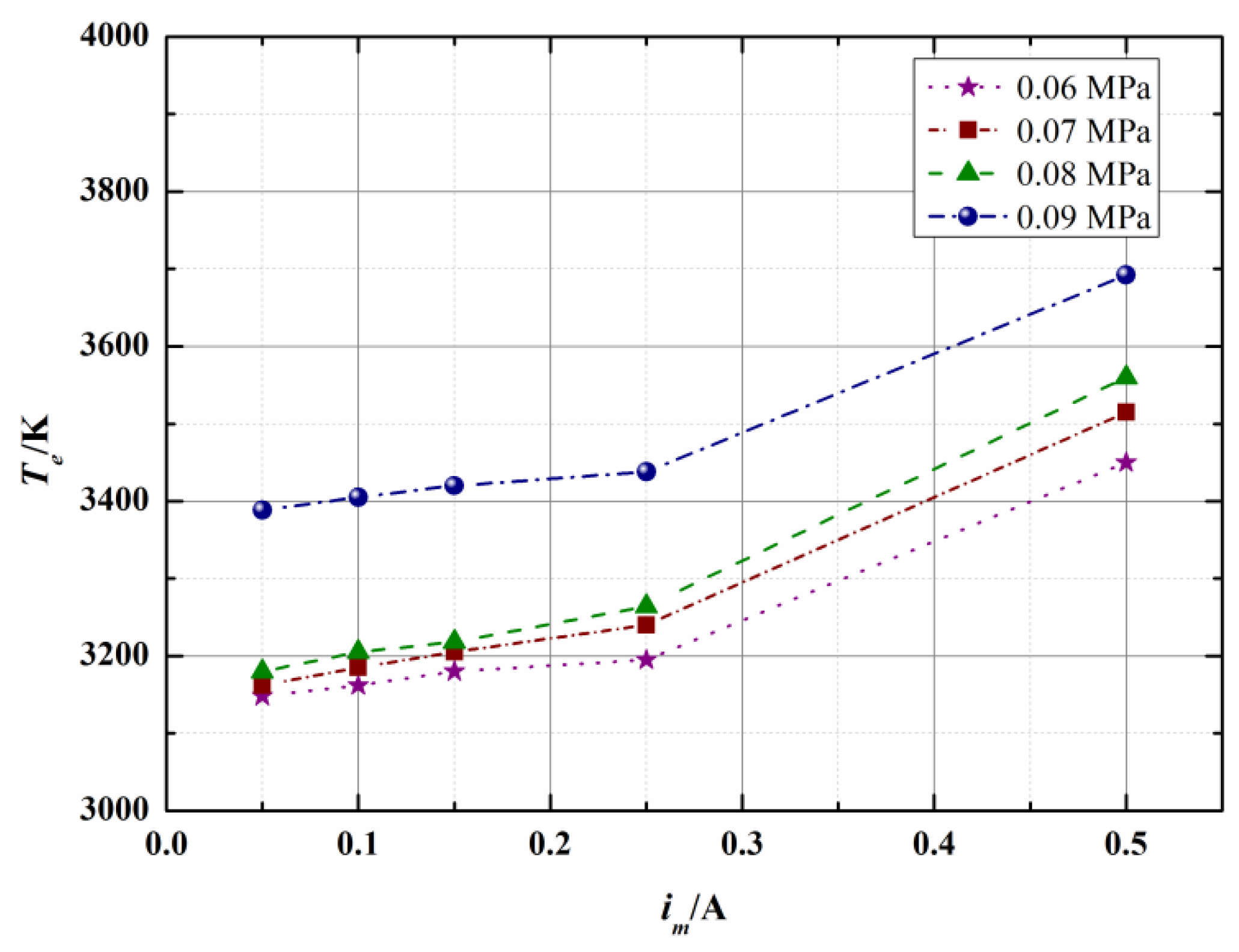

Because the statics of T_e show a large dispersion, the mathematical expectation value of the data was used to represent T_e at a specific leakage current peak. T_e of the local arc under different pressure is shown in Figure 6.

It can be seen from the figure that when the air pressure is 0.06 MPa, T_e is between 3150 K and 3450 K, and when the air pressure is 0.09 MPa, T_e rises to the range between 3400 K and 3700 K. It can be concluded that T_e increases with the increase in i_m at a certain pressure. When i_m increases, the injection energy of the arc channel also increases, resulting in the enhancement of collisions between electrons and atoms/ions. Hence, T_e increases rapidly with the increase in i_m.

Moreover, it can be concluded that T_e increases with the increase in air pressure. Our previous research results show that the voltage gradient of local arc (E) in a high-pressure environment is higher than that in a low-pressure environment when i_m is the same [28]. The injection energy per unit length of the local arc in a high-pressure environment is relatively higher. In such cases, the movement of electrons in the arc channel intensifies due to higher energy. In other words, the migration speed of electrons increases. With the increase in air pressure, the number density of air molecules increases, resulting in the enhancement of inelastic collisions of electrons. Therefore, excitation and ionization collision frequencies are higher at a higher pressure, resulting in an increase in T_e.

4.2. Electron Density of the Local Arc

As mentioned above, the Stark broadening method was adopted to calculate n_e. In the critical flashover and flashover stages, the local arc radiation spectrum contains strong continuum components. In order to obtain the broadening value, the Lorentz linear function was used to perform the Na I 568.8 nm fitting. The value of n_e under different air pressure is shown in Figure 7.

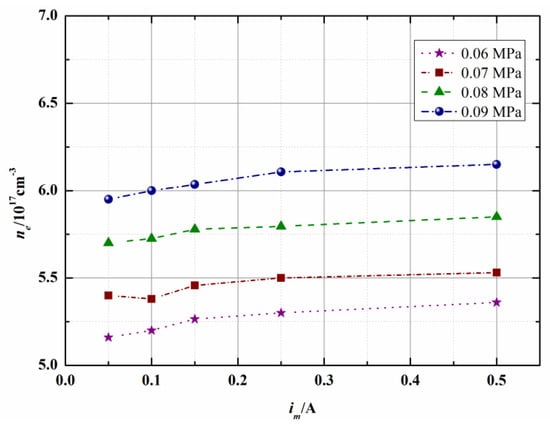

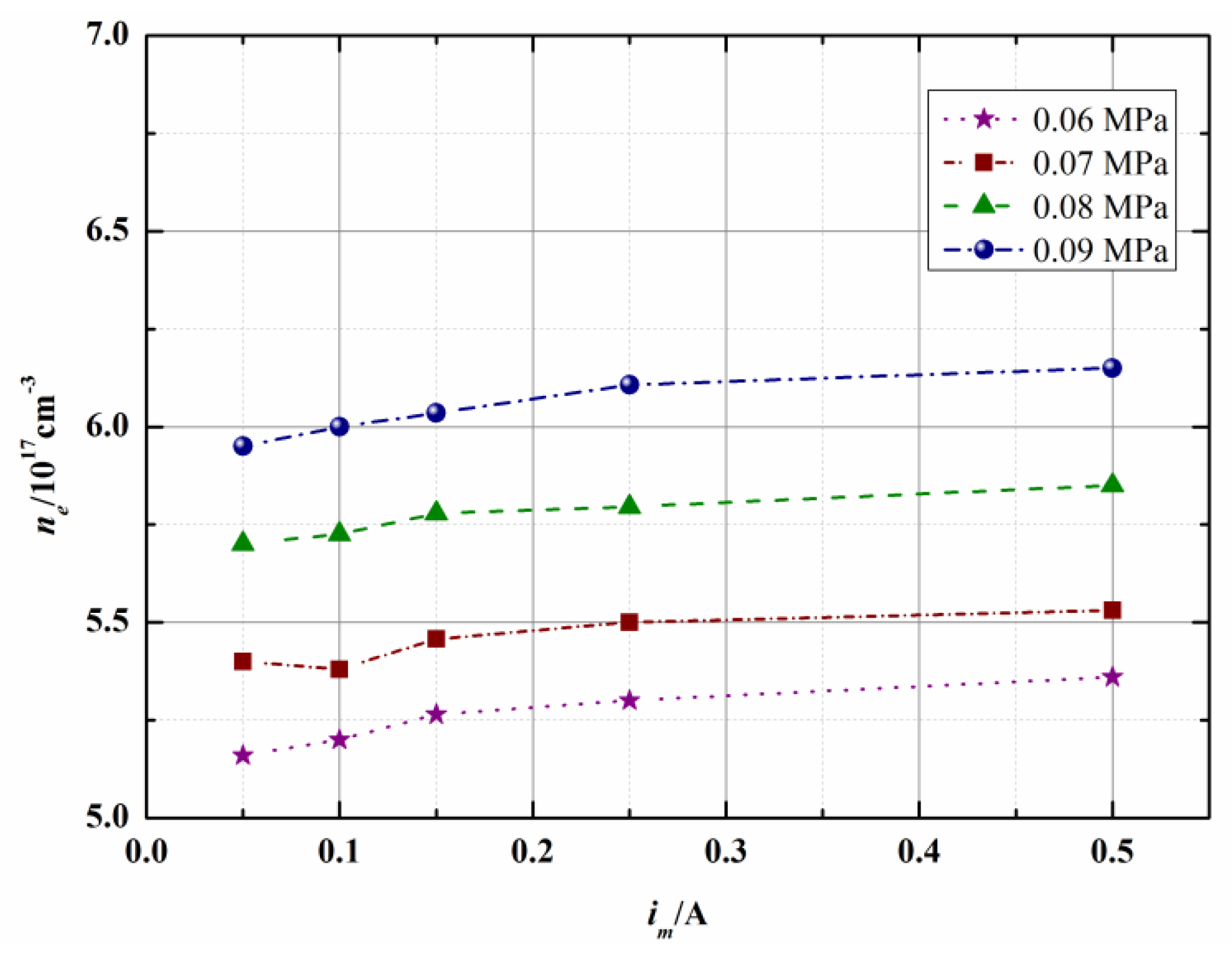

When i_m is between 50 mA and 500 mA, and the air pressure is between 0.06 MPa and 0.09 MPa, the n_e of the arc channel is between 5.2 × 10¹⁷ cm⁻³ and 6.3 × 10¹⁷ cm⁻³. With the increase in i_m, the ionization degree of gas particles increases, resulting in the increase in free electrons. In addition, the radius and volume of the local arc increase correspondingly. Therefore, n_e does not change much during the development stage of the local arc. It can also be deduced that n_e increases with the increase in the air pressure. When the outside air pressure increases, the energy of the arc channel increases and the local arc channel shrinks, leading to the increase in n_e.

4.3. Conductivity of the Local Arc

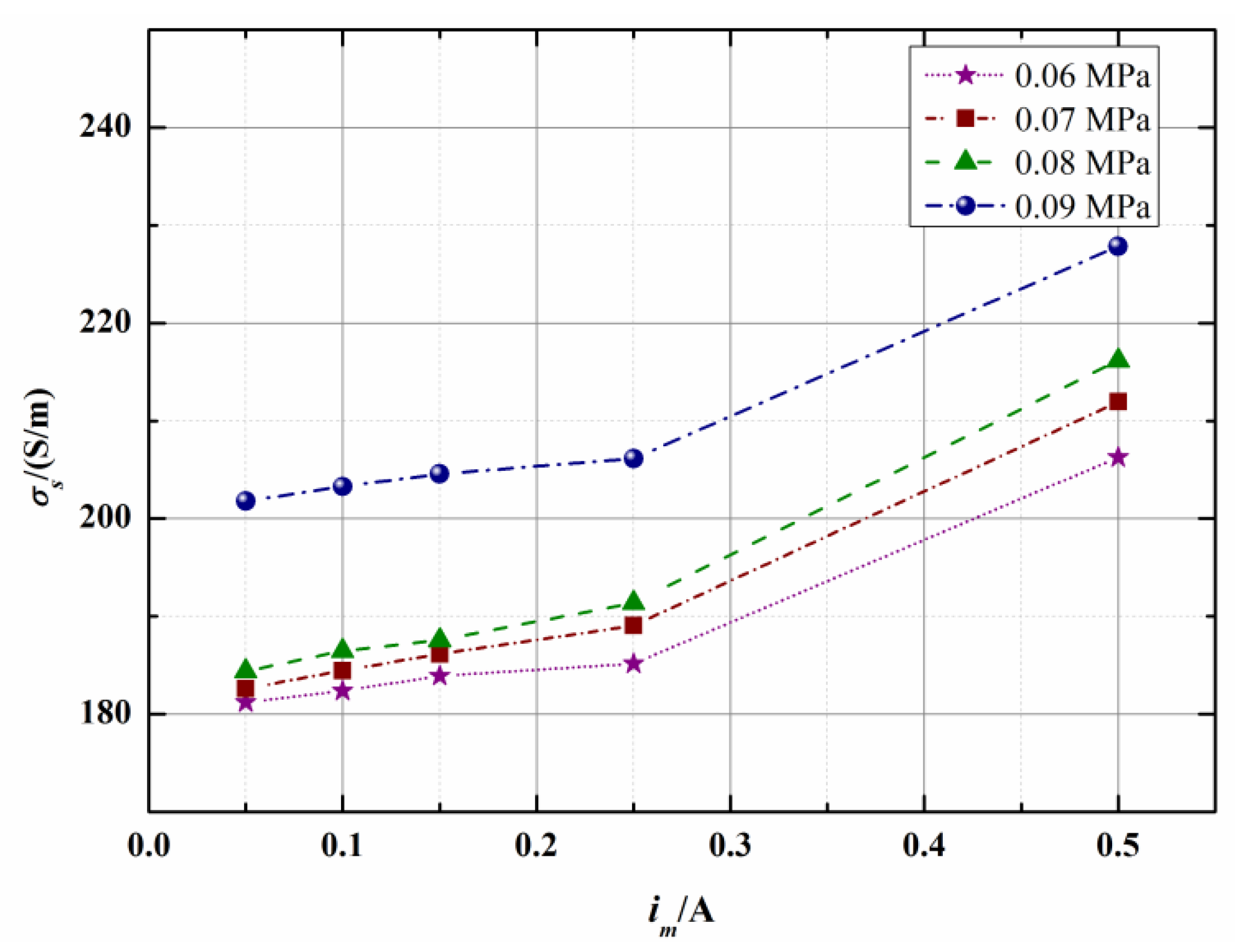

Conductivity is one of the basic electrical parameters of the local arc, and it is also one of the critical parameters for calculating the voltage of the local arc. Compared with the “three-electrode” method [28], the non-contact spectroscopy method makes it much easier to obtain σ_s of the local arc propagating over the polluted surface. The σ_s of the arc channel can be calculated from Equation (5) by substituting T_e and n_e with the values in Figure 6 and Figure 7. Figure 8 shows the relationship between σ_s and i_m under different pressure. Since the index value of T_e is larger than n_e in Equation (5), σ_s and T_e have the same changing trend.

Additionally, σ_s can also be obtained by the calculation of electrical parameters of the local arc. The calculated results are compared with the spectral diagnosis results in the following part. In Rizk’s former study, the relationship between E and i_m under low pressure was obtained, as shown in the following equation [29]:

$$E=716{\left(p/p_0\right)}^{0.77}{i}_m^{-0.56}$$

(6)

where p is the actual pressure, p₀ is the ambient pressure. The relationship between σ_s and E can be expressed as follows:

$${\sigma }_s=\frac{i_m}{\pi E{r}^2}$$

(7)

where r is the arc boundary radius, and the relationship between r and p has been revealed by Rizk in Reference [29]:

$$r\propto p^{-0.465}$$

(8)

and the radius r_d of the arc channel in ambient pressure is also a function of i_m [30].

$$r_d=\sqrt{\frac{i_m}{1.45\pi }}$$

(9)

Thus, we obtain:

$${\sigma }_s=\frac{i_m^{0.56}}{494{\left(p/p_0\right)}^{-0.16}}$$

(10)

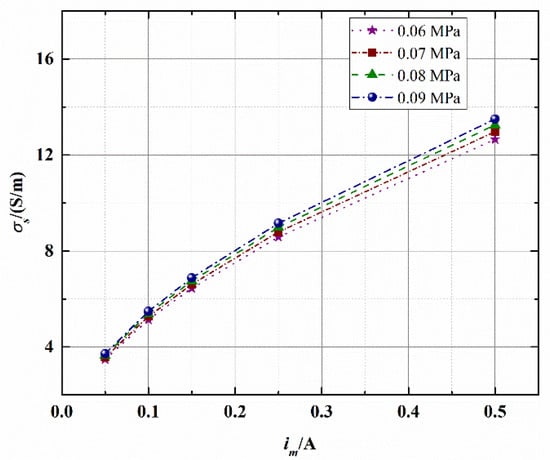

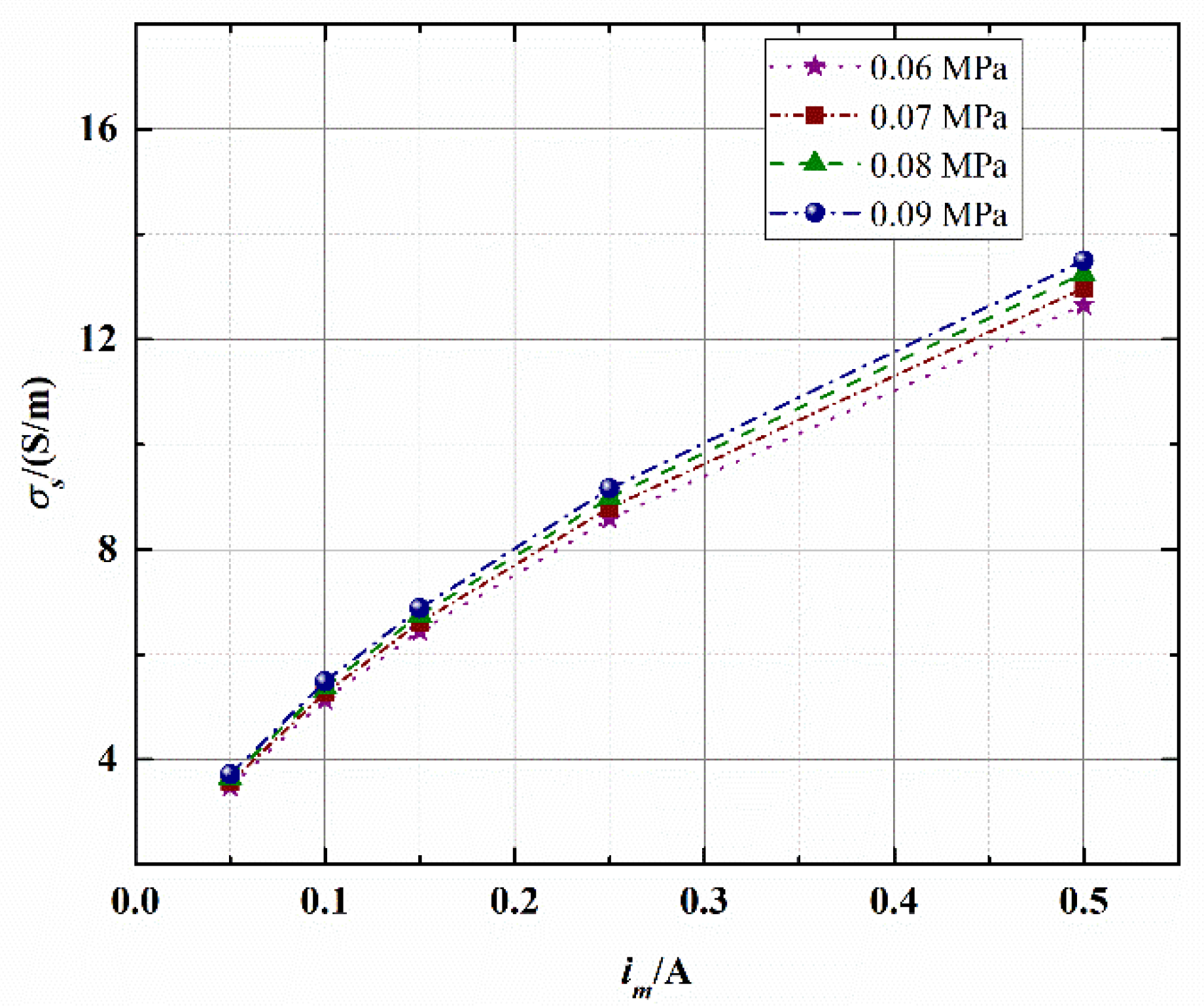

By solving Equation (10), σ_s at a different pressure could be obtained, as shown in Figure 9. Compared with Figure 7, the calculated value of σ_s is smaller. Since the plasma inside the local arc is not completely uniformly distributed, the true value of r is not the arc boundary radius measured by actual experiments. The local arc channel is populated with high-density charged particles and the outer area of the channel is a heated and luminous area consisting of neutral atoms. It is generally believed that the maximum radial light intensity gradient of the channel is at the intersection of the ionization zone and the neutral atomic zone. That is, the radius corresponding to the maximum value is taken as the true radius value of the conductive area of the arc channel. Hence, the value of r in Equation (7) is larger than the true value, resulting in a smaller value of σ_s. However, the deviations of σ_s between the true value and the calculated value is trivial, within an order of magnitude. We can still consider our proposed approach of the spectral diagnostic method, which is relatively effective in measuring the local arc conductivity under low air pressure.

5. Conclusions

In this paper, we carried out the spectral diagnosis of the local arc on the wet contaminated insulation surface under low pressure. Key parameters of the local arc, including electron temperature, electron density and conductivity were calculated by spectroscopic measurements. The following conclusions were deduced:

(1)

The spectra of the local arc are quite similar, even though the air pressure is different. The spectral characteristics of the different development stages of the local arc can be easily distinguished.

(2)

Thermodynamic parameters of the local arc (including electron temperature and electron density) are obtained by analyzing the spectra. Electron temperature increases significantly with the increase in leakage current and air pressure, while, the electron density does not change much with the increase in leakage current, but it increases significantly with the increase in air pressure.

(3)

The conductivity of the local arc is also calculated by employing the value of electron temperature and electron density in this paper. The conductivity increases with the increase in leakage current and air pressure. The deviation of conductivity between the true value and the calculated value is trivial.

Former researchers have used thermodynamic parameters of the local arc to predict the contamination flashover. In our further study, the obtained parameters of the local arc under low pressure will be used for the calculation of contamination flashover voltage of on-line insulators. This will be explored in our following paper.
