Lithiated Manganese-Based Materials for Lithium-Ion Capacitor: A Review

by
Ntuthuko W. Hlongwa
1,* and
Naledi Raleie
2
1
Institute for Nanotechnology and Water Sustainability, College of Science, Engineering and Technology, Florida Campus, University of South Africa, Johannesburg 1710, South Africa
2
Department of Chemistry, School of Mathematical & Physical Sciences, North-West University (Mafikeng Campus), Private Bag X2046, Mmabatho 2735, South Africa
*
Author to whom correspondence should be addressed.
Energies 2022, 15(19), 7276; https://doi.org/10.3390/en15197276
Submission received: 17 May 2022 / Revised: 19 September 2022 / Accepted: 27 September 2022 / Published: 4 October 2022
(This article belongs to the Topic Batteries, Supercapacitors, Fuel Cells and Combined Energy/Power Supply Systems)
Browse Figures
Versions Notes

Abstract

:
Lithium-ion capacitors (LICs) are a novel and promising form of energy storage device that combines the electrode materials of lithium-ion batteries with supercapacitors. They have the potential to deliver high energy density, power density, and long cycle life concurrently. Due to the good electrochemical performance of lithiated manganese-based materials in LICs, they have received extensive attention in recent years. The latest advancements in lithiated manganese-based materials as electrode materials in lithium-ion capacitors are presented here, including LiMnPO4, LiMn2O4, and Li2MnSiO4. These electrode materials have a lot of potential as high-performance energy storage materials. Apart from capacitive-type electrodes, lithiated manganese-based materials are also used in the creation of LIC battery-type electrodes. The LICs based on lithiated manganese-based electrode materials demonstrated energy density, power density, and cycle life, which are relatively comparable with various electrode material values reviewed in this paper. The electrochemical performance of lithiated manganese-based materials is attributed to the synergistic effect of the doping and the conductive carbon coating which provided new pathways for the movement of Li+ ions and electrons, thus facilitating charge transfer reactions. Although much effort has gone into synthesizing lithium-ion battery electrode materials and contracting LICs based on them because of their higher energy density, there is still work to be carried out. Additionally, the potential barriers and opportunities for LIC-based future research in energy applications are explored.

1. Introduction

Electrochemical energy storage devices with high energy and power densities are essential for meeting the need and rapidly increasing global demand for sustainable energy supply. The performance of energy storage devices is primarily influenced by the active components and cell architecture. The main test in the development of energy storage devices is the balanced relationship between power and energy density. Energy storage systems such as lithium-ion capacitors are chosen based on two performance characteristics: the amount of energy they can store (energy density) and the speed with which they can be charged and discharged (power density). The Ragone plot is a plot used for comparing the energy and power densities of various energy storing devices, as shown in Figure 1. On such a chart, the values of specific energy (in W h kg−1) are plotted versus specific power (in W kg−1). The energy density of lithium-ion batteries (LIBs) is high (>10 W h kg−1) with lower power density (1 kW kg−1) and cycle life of about 300 to 500 charge cycles, while supercapacitors (SCs) have a high power density (>10 kW kg−1) and lower energy density (5–10 W h kg−1) [1,2,3,4]. Both lithium-ion batteries and supercapacitors have drawbacks that limit their use in some industries. Lithium-ion capacitors (LICs), or hybrid capacitors, were designed to bridge the gap between LIBs and SCs. They incorporate the benefits of both LIBs and SCs. A LIC device usually consists of a high-capacity battery-type electrode and a high-rate capacitor-type electrode, both of which are connected by an electrolyte.
Hybrid capacitor devices are gaining popularity because of their higher energy and power density combined with good cycle stability. In hybrid capacitors, the capacitor-type electrode might be the anode or cathode, while the battery-type electrode is the counter electrode. It is worth mentioning that the capacitor-type and battery-type electrodes operate in separate potential windows, allowing hybrid capacitors to operate over a wider voltage range and achieve higher energy densities. Hybrid capacitors’ energy and power densities are mostly determined by the electrode materials used in the devices. In recent years, much research has focused on developing the electrodes utilized in LICs. As a result, various kinds have been shown to perform differently in LIC architectures. A list of current studies on various materials is provided in Table 1.
Amatucci et al. were the first to develop hybrid capacitors in 2001 [16]. The research has grown in popularity since then. Although advancement in hybrid capacitor systems has been addressed in various energy storage evaluations, there has not been a thorough review focused on lithiated manganese-based materials for lithium-ion capacitors. The essential idea of LICs will be described in this paper, as will the lithiated manganese-based battery-type electrode materials and their resurrection throughout several decades. The major roles of lithiated manganese materials as active materials in the applications of LICs are then highlighted. After a brief overview, the potential and limitations of LICs are reviewed, providing a detailed understanding of lithiated manganese-based electrodes for future LIC research.

2. The Bases of Electrochemical Capacitors

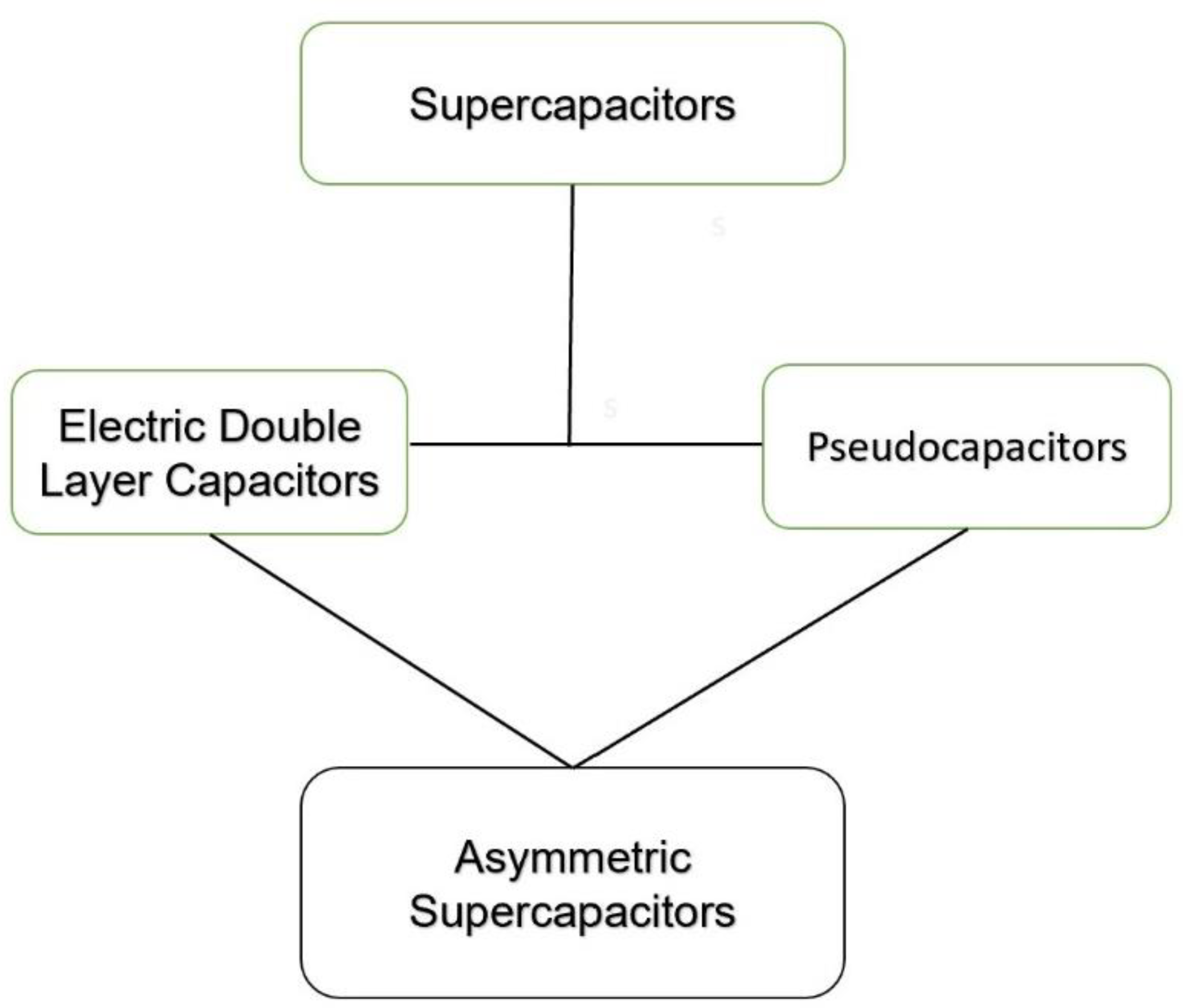

As seen in Figure 2, there are three main categories of supercapacitors: electric double-layer capacitors (EDLCs), pseudocapacitors, and asymmetric supercapacitors. Asymmetric supercapacitors can be divided into two categories: hybrid capacitors and systems with two capacitive electrodes. One electrode of hybrid capacitors is known to store charge via a battery-like Faradaic process, while the other electrode does it using a capacitive mechanism. The reversible adsorption of electrolyte ions on the surface of the active material stores energy in EDLCs, storing charge electrostatically rather than using a Faradaic (redox) process [17,18,19].
To avoid electrical contact, EDLC cells typically have two carbon-based electrodes separated by a separator immersed in an electrolyte. Nanoporous materials with a large specific surface area (1000 m2 g−1) are active materials for EDLCs [20]. In 1879, Helmholtz defined the energy storage mechanism for EDLCs, and Stern and Geary improved it later.
Activated carbon (AC) is a widely accessible EDLC electrode with a cell voltage in an organic electrolyte of up to 2.7 V, a high power density (up to 10 kW kg−1), and a long cycle life (1,000,000) [16,21]. The energy density, on the other hand, is still lower than 10 W h kg−1 [4,22,23,24]. The reduced energy density is owing to the AC electrode’s low capacitance and high ionic resistance [25,26]. Therefore, this limits their application and they cannot meet the various performance demands required by the markets.
The charge storage process of pseudocapacitors (PCs) is based on reversible reactions between the electrolyte and electrode surface. PCs rely on quick redox reactions [25,27,28]. Transition metal oxides, conducting polymers, nitrides, carbines, and hydroxides are examples of common materials [29,30,31]. Electroanalytical investigations can separate PC electrode materials from battery electrode materials because their kinetics are constrained by a surface-related mechanism rather than diffusion-controlled processes that regulate the electrochemical response of battery electrodes [20]. The capacitance of PCs with transition metal oxide (TMO) electrodes has been reported to be between 300 and 1000 F g−1 [28,32], however, due to very unpredictable cycling behavior over a few cycles, they suffer from capacity fading. The specific energy density of pseudocapacitors with an asymmetric configuration of two metal oxides is 5–10 W h kg 1. The behavior of the lithiated manganese-based electrodes (LMP, LMO, and LMSO) reviewed in this paper resembles that of PCs [33,34,35,36]. Since the energy density is a product of capacitance and voltage, increasing the voltage is necessary to enhance the energy density. Increasing the voltage is more effective because the energy density increases in proportion to squared voltage. Essentially, there have been three main approaches to achieving this goal: the first is to develop alternative carbonaceous or redox materials with higher capacitance; the second is to develop a novel electrochemically durable electrolyte or an ionic electrolyte with a large, stable voltage window; and the third and most promising approach under serious investigation is the development of non-aqueous Li-ion capacitors (LICs), also called hybrid Li-ion supercapacitors, which have the potential to essentially increase the voltage.
Lithium-ion capacitors (LICs) are hybrid capacitors made up of two electrode materials, one of which stores charge electrostatically and the other of which store’s charge Faradaically. LICs are intended to bridge the gap between high-energy Li-ion batteries and high-power supercapacitors by combining their major benefits into a single device [31]. It is necessary to first define the components of LICs before comprehending their fundamental energy storage mechanism. A LIC is a hybrid supercapacitor that has a battery-type electrode for lithium-ion insertion/extraction and a capacitor-type electrode for pseudocapacitance or ion adsorption/desorption, while an asymmetric supercapacitor is assembled using two dissimilar electrode materials (pseudocapacitors and EDLCs) and offers a distinct advantage of a wide operational voltage window, thereby significantly enhancing the energy density.

3. Lithium-Ion Capacitor Materials

3.1. The Mechanism of the Lithium-Ion Capacitor

Lithium-ion capacitors combine the energy storage mechanisms of batteries and supercapacitor-type electrode materials in an electrolyte containing lithium ions. The charge storage mechanism in lithium-ion capacitors is the development of an EDL at the supercapacitor electrode and ion intercalation/de-intercalation at the Li-ion battery-type electrode [28,30,37]

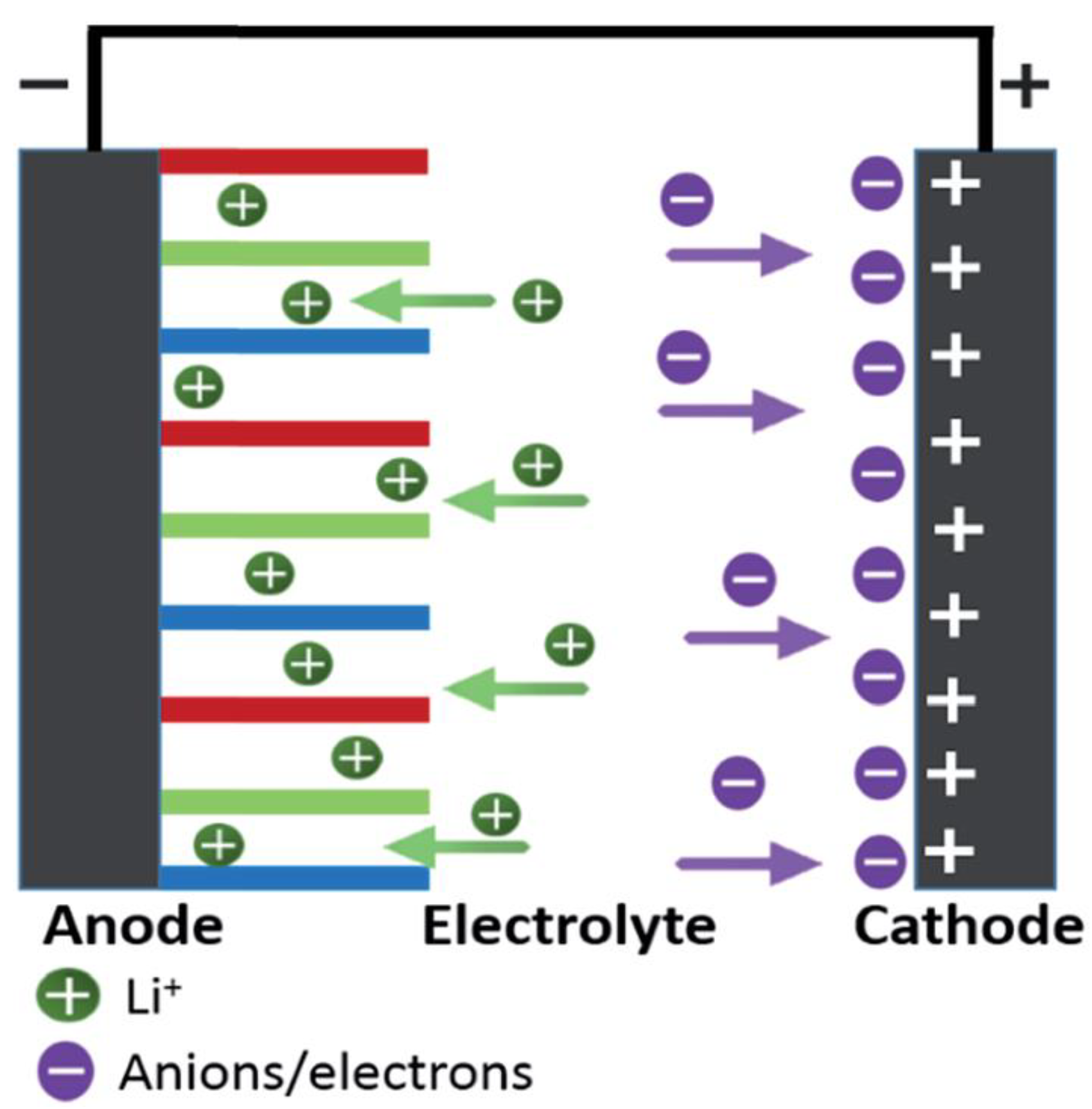

The charge/discharge process, as depicted in Figure 3, involves the transfer of a lithium ion between two electrodes, with the electrolyte serving primarily as an ionic conductor. Amatucci et al. were the first to suggest or propose LIC principles when they created a 2.8 V hybrid capacitor using Li4Ti5O12 (LTO) [38]. Due to its zero-strain qualities, Ohzuku et al. identified LTO to be an ideal Li intercalating spinel anode material for Li-ion battery applications. It has a high-rate capability and a specific capacity of 150 mA h g−1 [39]. The battery-type electrode can function as both an anode and a cathode, and the LICs are split into two types: (a) in an LTO/AC system, the anode is a battery-type electrode, while the cathode is a capacitor-type electrode, which was demonstrated by Amatucci and co-workers; (b) when the anode is the capacitor-type electrode, and the cathode is the battery-type electrode. Here, similar to a battery, charges are stored by a Faradaic reaction that occurs by solid-state diffusion of the ions into the electrode. This process leads to phase changes during the charging–discharging process which leads to less stability. These two mechanisms are shown in Figure 3.
As previously stated, the purpose of the battery type (Faradaic) electrode is to insert/de-insert Li-ions with a relatively constant voltage, resulting in a large specific capacity. The purpose of the non-Faradaic capacitor electrode is to adsorb and de-adsorb ions. These processes are reversible in varied ranges. The charge at each contact and the voltage difference between two plates determine the amount of energy stored in a capacitor (anode and cathode). The following equation is used to calculate the energy densities of the LIC.
E = ∫ V d C
The operating voltage is V, and the capacitance is C. Operating voltage has a direct relationship with both energy and power, and it plays a significant role in both. Optimizing the voltage window improves the electrochemical performance of LICs significantly. To enhance the quantity of energy that can be stored, a high operating voltage is required. To achieve this, three-electrode experiments for each electrode are required to (i) estimate the specific capacitance of materials, (ii) understand the electrolyte stability under a working environment, (iii) calculate contributions of surface and diffusion-controlled currents in hybrid systems, (iv) during charge/discharge operations, determine the oxidation and reduction potentials of active materials.
The mass ratio between the battery-type and the capacitor-type electrodes, as well as the intrinsic behavior of the battery-type and capacitor-type electrodes, has a significant impact on the cycle life of LICs. The charges at both electrodes should be balanced in an asymmetric cell (qanode = qcathode). The voltage must be shared evenly between the two electrodes using the mass balancing equation: qcathode = qanode, where qcathode represents the charges stored at the positive electrode and qanode represents the charges stored at the negative electrode. The formulae for the charge stored are as follows:
q = C s p · m · Δ E
or
m c a t h o d e m a n o d e = C s p a n o d e × Δ E a n o d e C s p c a t h o d e × Δ E c a t h o d e ,
where m represents mass, ΔE denotes the potential window calculated from the charge/discharge patterns of the three-electrode arrangements of the negative and positive electrodes, respectively, and Csp refers to specific capacitance. The electrode material determines the capacitance and stored energy to a large extent. Specific capacitance (Csp) and equivalent series resistance, which are influenced by pore size distribution, specific surface area, and electrode material conductivity, are two more key components in increasing LIC performance [25,40,41].
The discrepancy in power capability and charge storage capacitance between the two electrodes used in producing high-performance LICs is one of the problems in developing them. Limiting cycling-induced electrode degradation, particularly at high rates, to match the high-power properties of anode carbon-based materials is the most difficult component of constructing a Li intercalation cathode. Due to its lower capacity (30–35 mA h g−1) compared to cathodes, the carbon-based anode has difficulties, further diminishing the energy density [42]. This paper summarizes the electrochemical activity of lithiated manganese-based materials and their relevance in LIC applications. Furthermore, the review evaluates the material modifications for fast ions and electron transport, such as thin-film design, porosity enhancement, nanostructuring, and composite design.

3.2. Design and Development of Lithiated Manganese-Based Materials for Li-Ion Capacitors

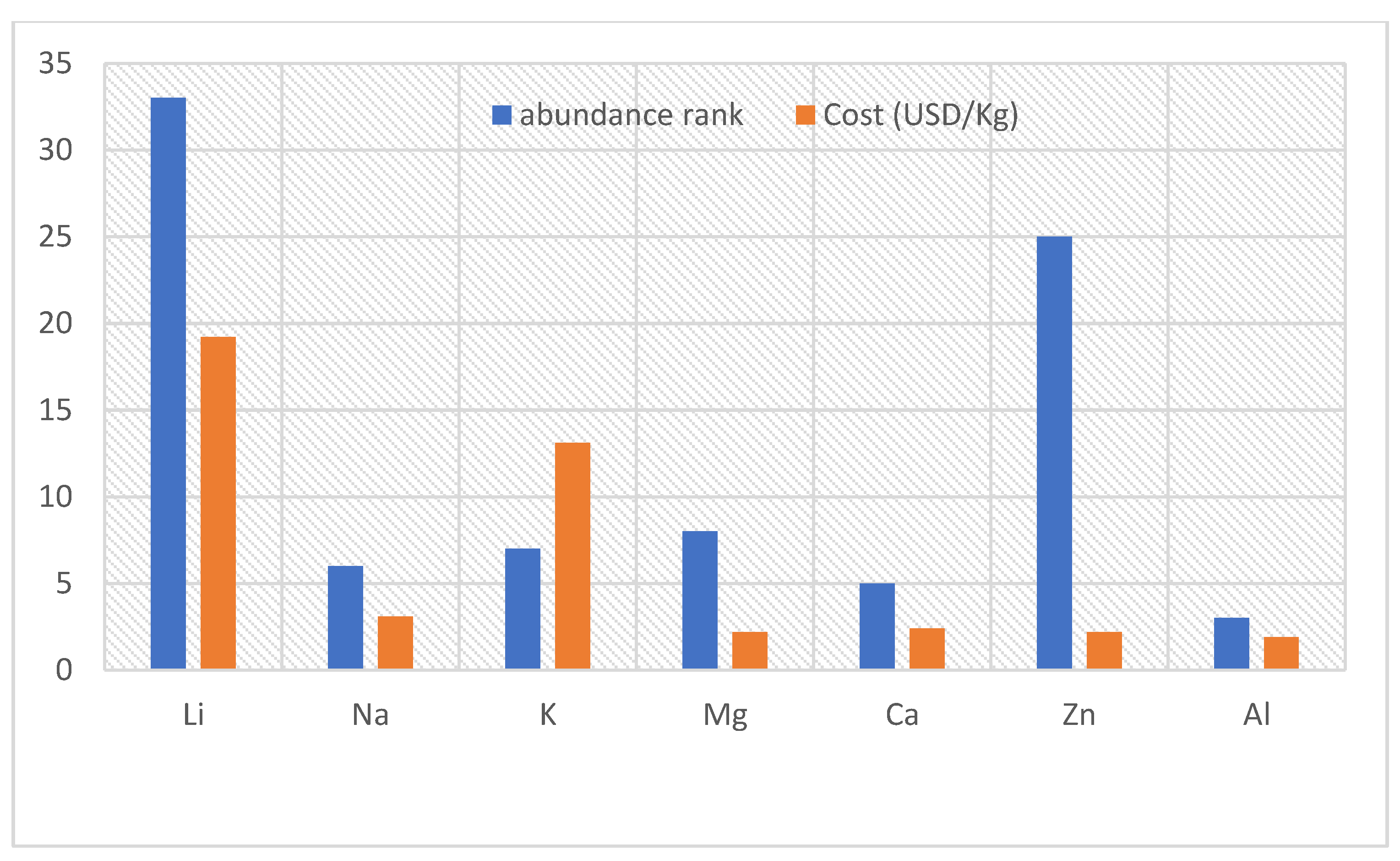

Lithium-ion batteries offer the highest energy and power densities of all commercially available batteries. As a result, lithium-ion chemistries may be used in hybrid supercapacitors to attain useful energy and power characteristics. Lithium-ion technologies in non-aqueous fluids have progressed considerably in the consumer electronics and grid energy storage industries [43,44,45]. Lithium-ion technologies have now surpassed all others in consumer electronics and electromobility when it comes to maximum energy density. However, in grid energy storage applications where cost is more essential than energy density, cost-effective analog technologies could be considered. The abundance rank and cost (USD kg−1) of lithium, as well as sodium, potassium, magnesium, zinc, calcium, and aluminum, are shown in Figure 4 [46].
Employing lithiated manganese-based electrode materials in lithium-ion capacitors is advantageous due to the high energy density, design flexibility, and long cycling capabilities of lithium-ion chemistries [47,48,49]. Manganese or its oxides are appealing for hybrid supercapacitors because it is a transition metal with five unpaired electrons and the most oxidation states in the periodic table, including the highest oxidation state (VII). Manganese’s unique electronic structure makes it redox-active and it exists in a variety of oxide forms (including MnO, MnO2, Mn2O3, Mn3O4 (MnO·Mn2O3), and Mn2O7) [49,50]. Second, among pseudocapacitive oxides, manganese is the most common transition metal. This review discusses progress in the development of better LICs using lithiated manganese-based electrodes (lithium manganese oxide (LiMn2O4), lithium manganese phosphate (LiMnPO4), lithium manganese silicate (Li2MnSiO4)), as well as nanocomposite. A few figures from the selected publications are briefly shown for better understanding.

3.2.1. Lithium Manganese Phosphate

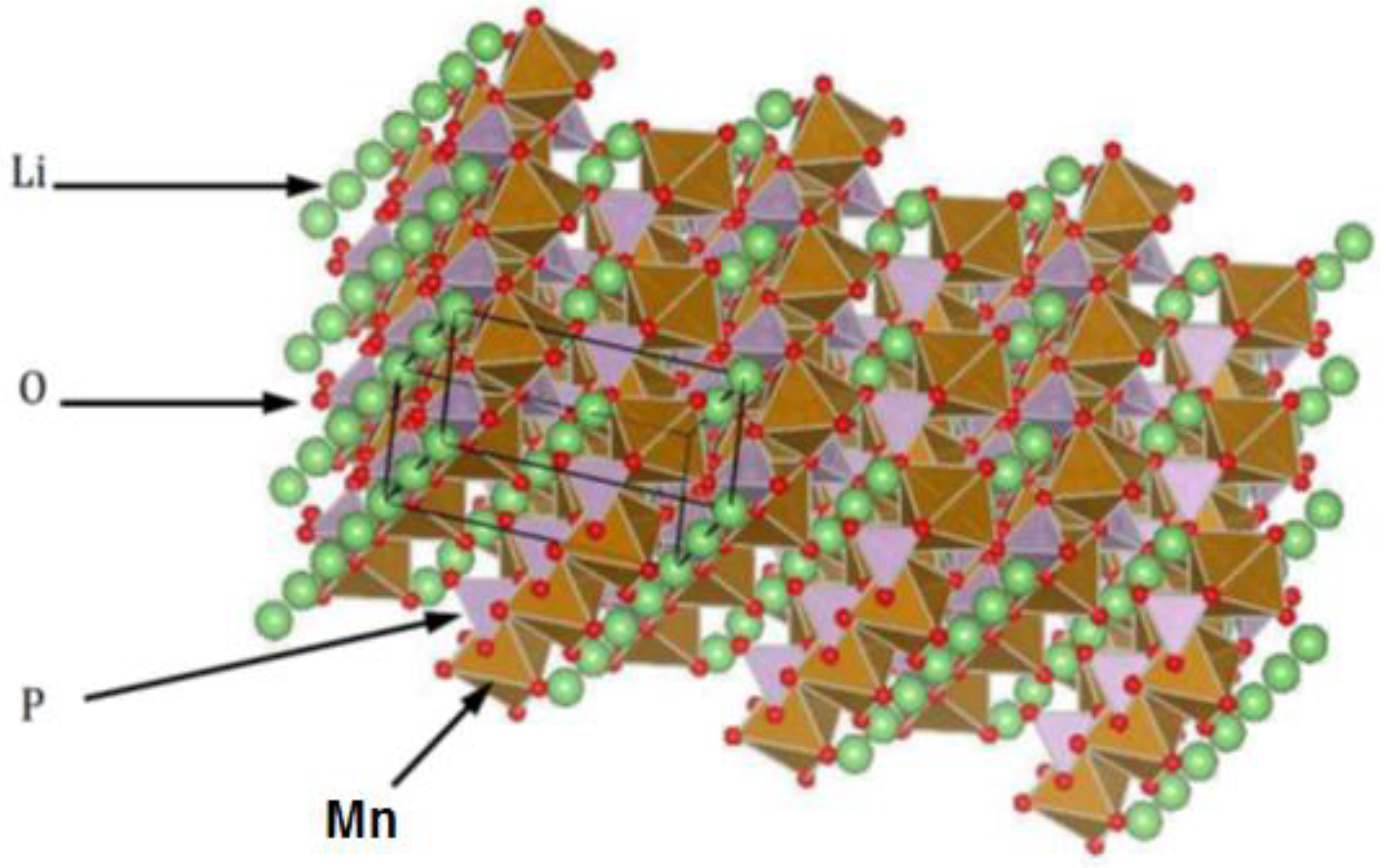

The lithium manganese phosphate (LiMnPO4) cathode has received a lot of interest because of its high operating voltage (4.1 V vs. Li) and ability to produce a maximum energy density of 700 W h kg−1, outperforming the commercially available cathodes of lithium cobalt oxide (518 W h kg−1), lithium manganese oxide (400 W h kg−1), and lithium iron phosphate (495 W h kg−1) [51,52,53]. Olivine compounds have been extensively studied as positive electrodes in lithium-ion batteries and they have demonstrated several advantages, including being economically valuable, environmentally friendly, and having excellent thermal stability [54,55,56]. In a LiMnPO4 olivine structure, the O atoms are arranged in a hexagonal close-packed configuration, while the MnO6 octahedron is separated by the PO4 polyanion. Mn and Li occupy the octahedral 4c and 4a positions, respectively, with the P atom in the 4c site [51]. All oxygen ions in LiMnPO4 form strong covalent bonds with P5+ in the tetrahedron to form PO43- polyanion which stabilizes the entire three-dimensional framework as shown in Figure 5 [57,58,59]. Due to their increased stability, olivine cathode materials have the benefit of being able to function in harsh environments while being safe. LiMnPO4 has a higher working voltage of 4.1 V, which is within the non-aqueous electrolyte’s stability window, and a theoretical capacity of 170 mA h g−1 [46,47,48].

3.2.2. Lithium Manganese Oxide

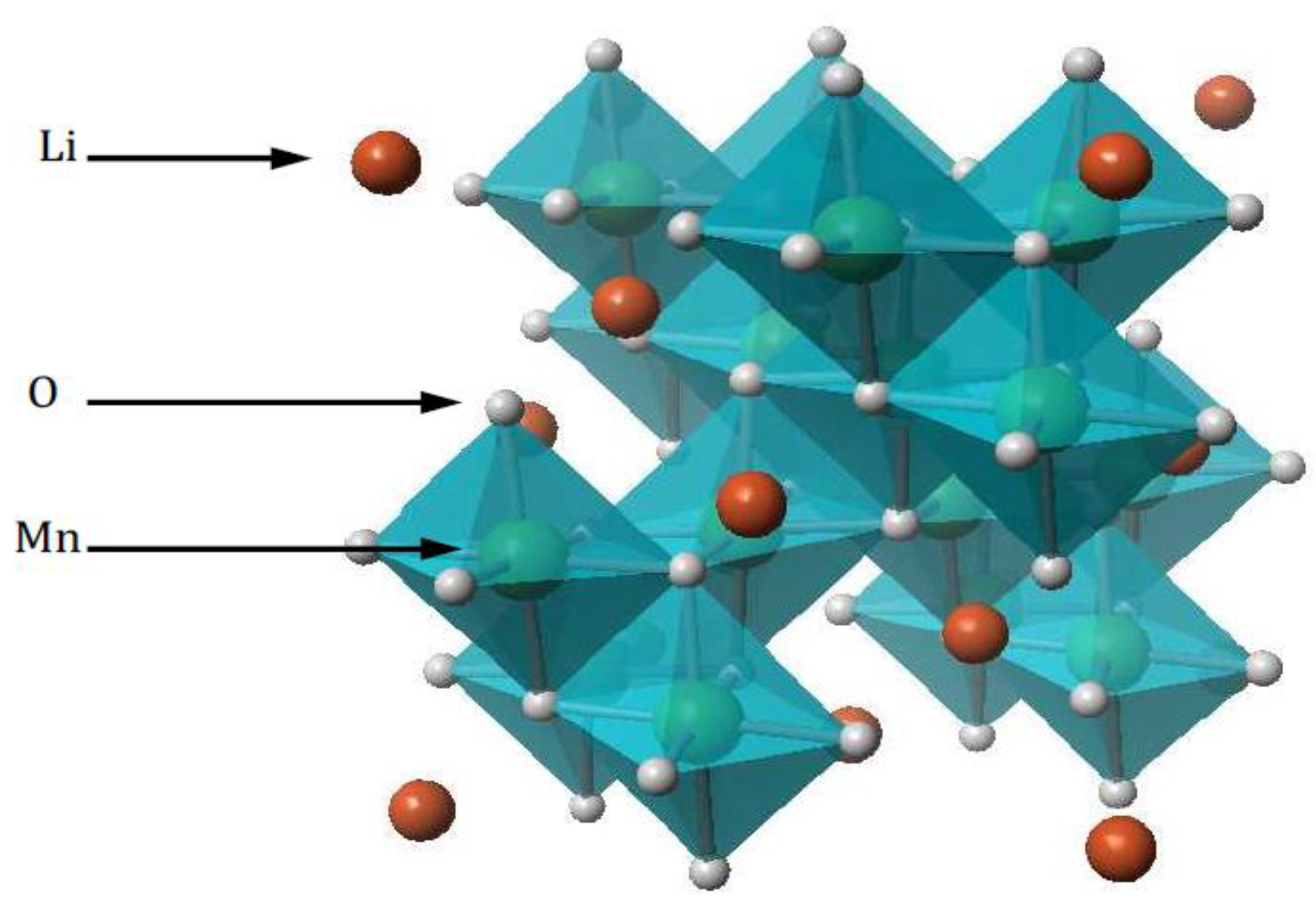

One of the most promising lithium-ion battery cathodes is lithium manganese oxide (LiMn2O4) with a spinel structure. They are low-cost, safe, and produce 400 W h kg−1 of theoretical energy. The lattice spinel LiMn2O4 contains cubic close-packed oxygen ions while the cations are distributed among the available octahedral and tetrahedral sites, providing structural stability [61,62,63,64]. Mn cations occupy half of the octahedral interstitial sites and one-eighth of the tetrahedral sites. The interstitial space in the [Mn2]O4 framework, as illustrated in Figure 6, consists of a diamond-like network of tetrahedral surrounding octahedral sites that share edges and faces to create 3D diffusion routes for Li+ ions diffusion [64,65,66]. The discharge occurs in two phases, one at 4 V and the other at 3 V with a capacity of ≤120 mA h g−1 [53,67,68,69,70]. Only the 4 V plateau is typically used, implying that the cell is built in a depleted condition and must be charged before use. The structure’s cubic symmetry does not change throughout cycling, and the unit cell compresses very slightly across a wide range of compositions, confirming the structure’s stability.

3.2.3. Lithium Manganese Silicate

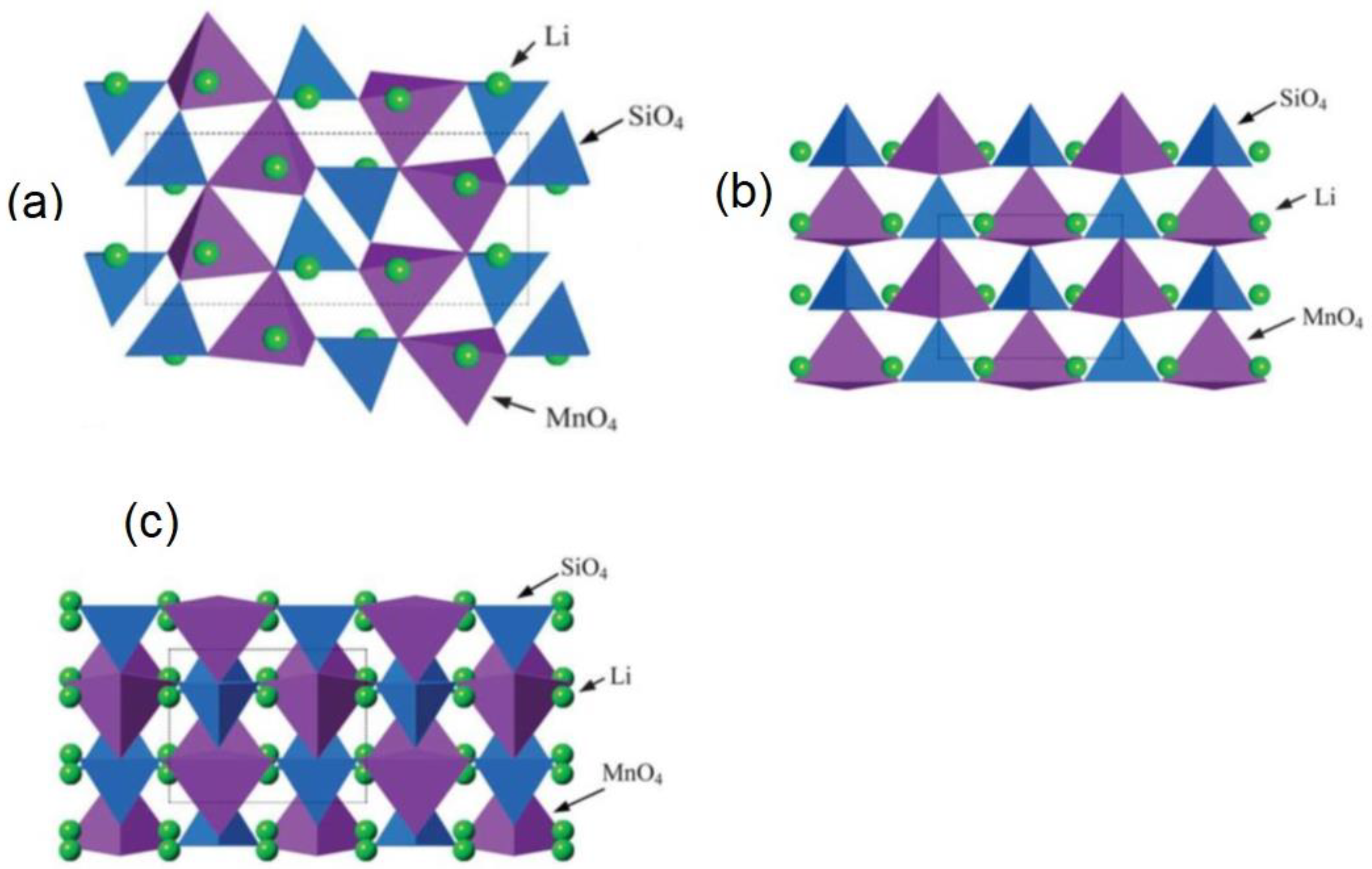

Lithium orthosilicates, Li2MSiO4 (M = Mn, Fe, Co), have caught the attention of several researchers as high-capacity electrode materials for Li-ion batteries and hybrid supercapacitors [61,62,63]. Due to their many enticing qualities, including their high theoretical capacity (330 mA h g−1) when more than one lithium ion is extracted per formula unit, they are becoming increasingly popular [72,73,74]. The extraction of more than one lithium ion per formula unit provides high thermal stability [35]; Li2MnSiO4 is a more promising orthosilicate electrode material because it allows for the reversible extraction of two moles of Li+ ions utilizing the Mn2+/Mn3+ and Mn3+/Mn4+ redox couples, and this results in a greater energy density [74,75]. Li2MnSiO4 has an orthogonal structure. The orthorhombic forms (Pmn21 and Pmnb) have two-dimensional channels for Li-ion diffusion, whereas the monoclinic forms (P21ln and Pn) have three-dimensional routes (see Figure 7). The 2D structures are destabilized when Li-ion is eliminated.

4. Application of Lithiated Manganese-Based Materials as Lithium-Ion Capacitors

Several investigations on lithiated manganese-based electrodes have been undertaken to determine their use in LICs. Other lithium-based positive electrodes were used in Wang and co-workers’ studies [77]. Several studies on lithium-ion capacitors have yielded promising results, with lithium metal phosphates, spinel oxides, and manganese silicate having been investigated as the promising electrode material.

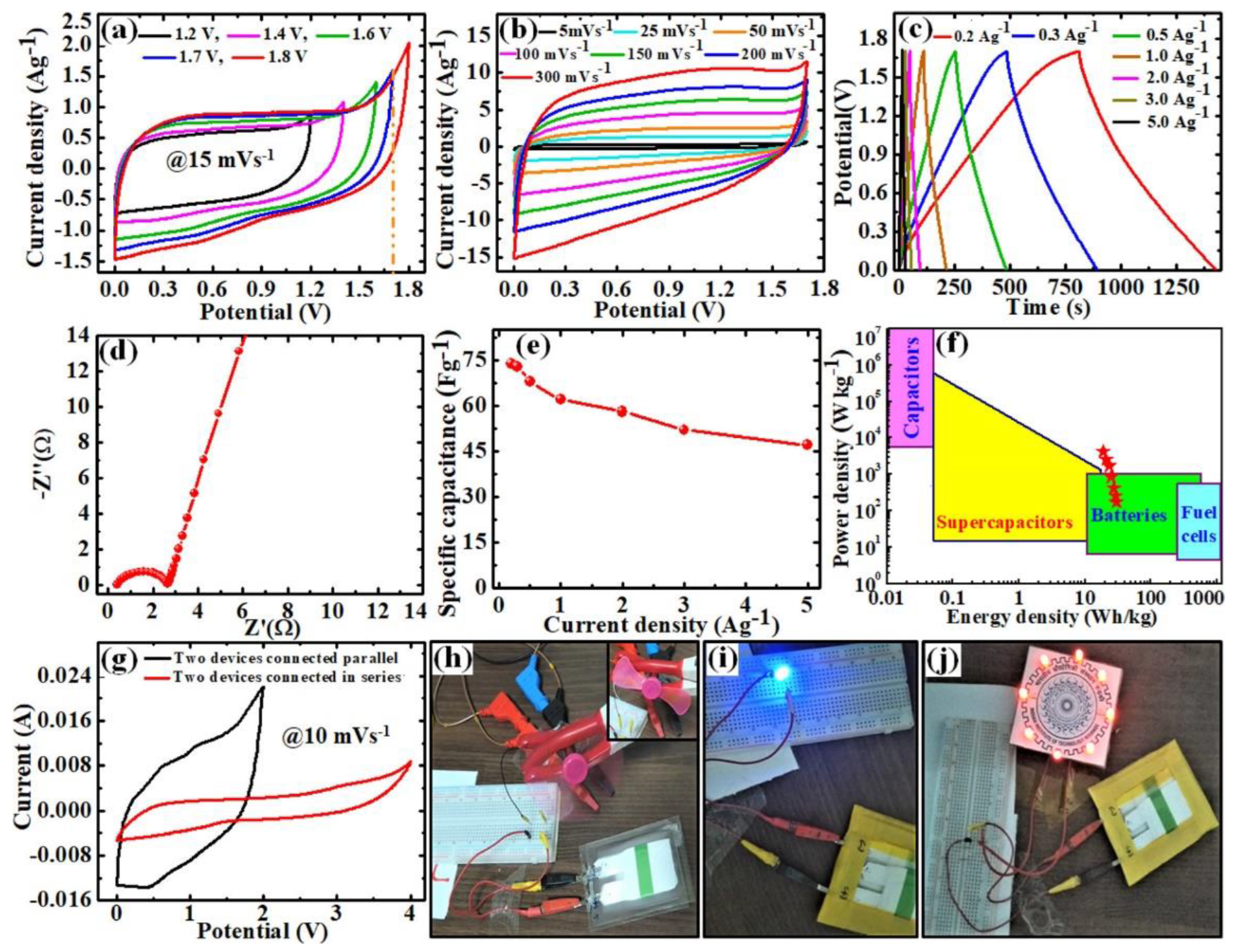

Yang et al. created a LiMn2O4//nitrogen-doped graphene/porous carbon composite in an aqueous 0.5 M Li2SO4 with a specific energy of up to 44.3 W h kg−1, a specific power of 595 W kg−1, and an output voltage of 1.8 V [78]. Using an aqueous LiNO3 electrolyte, Yen-Po Lin and Nae-Lih Wu produced LiMn2O4//MnFe2O4 cells with a specific energy of 5.5 W h kg−1 and a power density of 1.8 kW kg−1 under a maximum working voltage window of 1.3 V [79]. Pazhamalai and colleagues used an aqueous 1 M Li2SO4 electrolyte with an operating voltage of 2.2 V to create an asymmetric LiMn2O4//graphene LIC with high specific energy of 30.96 W h kg−1 and a power density of 440 W kg−1 [80]. Liu and co-workers assembled a LiMn2O4//WO3 all-inorganic electrochromic Li-ion hybrid supercapacitor which demonstrated a volumetric energy/power density of 16.2 W cm−3/0.21 W h cm−3 at a working voltage of 2.5 V and remarkable cycling stability with 95.4% capacitance retention after 5000 cycles [81]. However, high ionic and electrical resistance hinder further improvements for lithiated manganese-based materials in their electrochemical activity. In addition, Table 2 contains several other potential LICs.

4.1. Effect of Doping on the Pristine Material

Doping is the process of introducing small amounts of a semiconductor element to a material to change or regulate its electrical characteristics. Extrinsic semiconductors are those that have been lightly doped, whereas degenerates are those that have been doped to such great degrees that they behave more like a conductor than a semiconductor [86]. Doping refers to the process of activating a substance. Despite their potential, manganese-based electrode materials suffer from considerable capacity loss during cycling [87,88,89,90]. The presence of Jahn–Teller distortion, which is caused by Mn3+ and results in lower cyclability during the Li+ diffusion process, is the main reason for this.
Doping manganese cathode materials can reduce manganese dissolution and Jan–Teller distortion and raise power and energy density while improving conductivity and maintaining and improving the capacity of active materials [91]. Several studies have used various doping techniques to modify the surface of manganese-based cathode materials. However, the search for new electrode materials with lower costs and better properties is still important in the development of lithium-ion capacitors. Table 3 further highlights the energy and power densities of recently developed LIC-based manganese-based doped materials.

4.2. Effect of Carbon on the Pristine Material

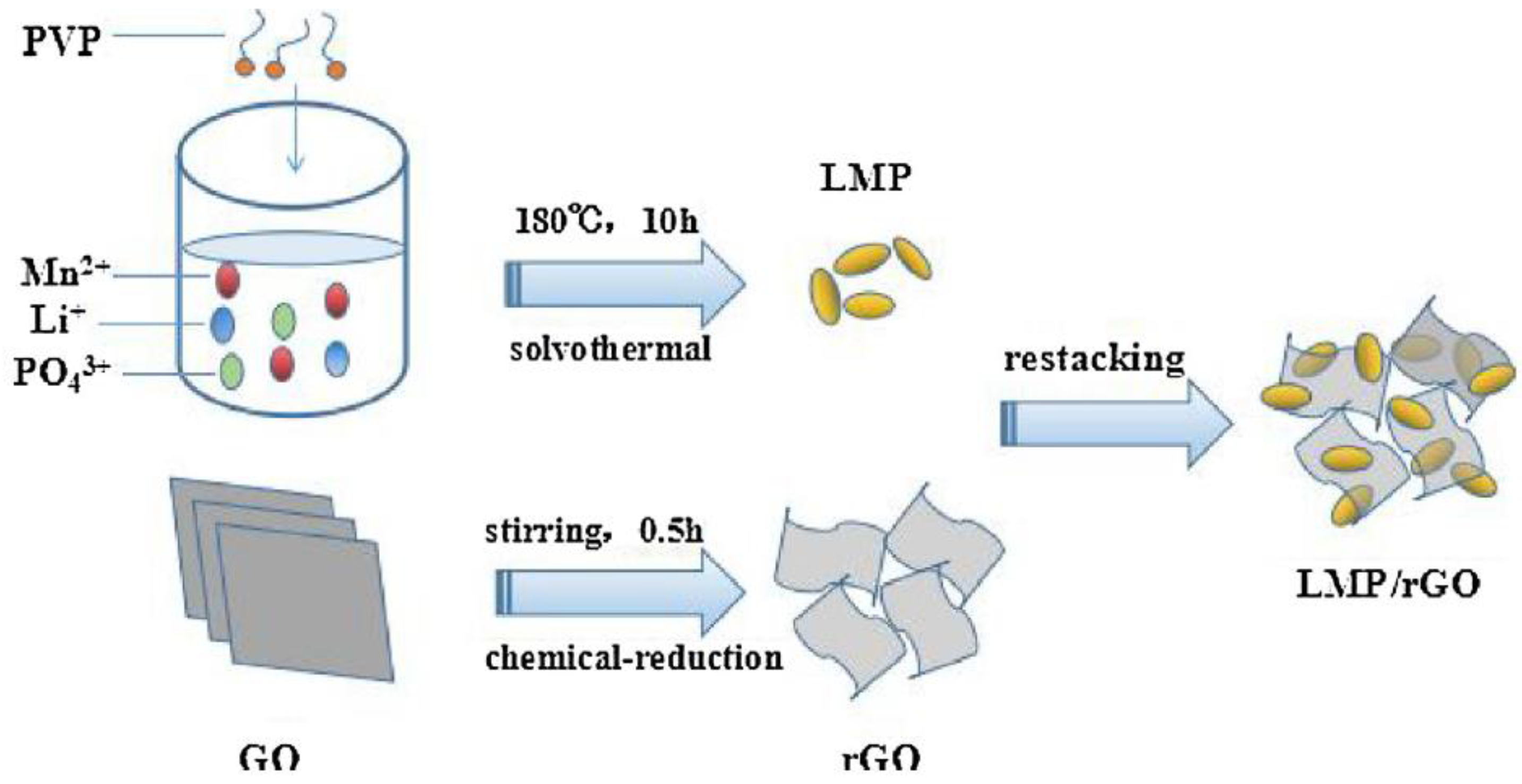

The electrochemical performance of manganese-based materials, for example, may be improved by the surface coating, in lithiated manganese-based materials lowering Mn2+ and enhancing lithium-ion transit [7,93]. For high-rate manganese-based cathode materials, carbon coating is required, and the quality of the carbon coating has a significant influence on the lithium-ion cathode material. Different research groups looked at manganese-based materials created with various carbon sources to see if carbon coating increases conductivity and rate performance.
Due to their remarkable properties, carbon-based materials have been employed in a variety of research sectors, particularly in the field of energy storage, due to their outstanding qualities. Graphene, for example, is a one-atom-thick sheet of sp2-connected carbon atoms with a polyaromatic honeycomb crystal structure [20]. With a large specific surface area of 1500 m2 g−1, high electrical conductivity of 106 S cm−1, good flexibility and tuneability, good chemical and thermal stability, and a wide potential window, its thin monolayer structure delivers a good platform for the growth of great capacitive hybrid energy storage devices [27,31,32]. Figure 8 depicts a schematic representation of the LiMnPO4/reduced graphene oxide aerogel produced by solvothermal treatment and subsequent restacking.
Carbon-based lithium-ion capacitors have been found to function better, with higher energy and power density, as well as faster charging and discharging over many cycles. Zhang et al. [94] developed an Fe3O4-graphene nanocomposite for LICs with a specific energy of 60.5 Wh kg−1 and a power density of 45.4 kW kg−1 in the 1–4 V potential window. At a voltage of 1–2.5 V, Lu and colleagues created a Li4Ti5O12/graphene nanosheet composite for LICs that possessed specific energy of 14 W h kg−1 and a power density of 2.7 kW kg−1 [95]. Figure 9a–j display the performance testing results of LICs based on Li2MnSiO4/CNTs. The authors employed cyclic voltammetry, impedance spectroscopy, and galvanostatic charge/discharge to demonstrate the device’s good performance in powering LED lights. Table 4 summarizes the performance of carbon-based coated manganese-based materials.

5. Conclusions and Perspectives

Increasing global demand for sustainable energy supply requires more efficient energy storage devices with high energy and power densities. The performance of energy storage devices depends mainly on the active materials and the design of the cell. Nowadays, the development of novel materials is helping in the improvement of the required characteristics of energy storage devices. Therefore, it is an important technological task related directly to the commercial applications of these devices. Recently developed LICs are making their way into different commercial applications. LIC electrode materials have yet to reach their full potential. In comparison to other energy storage devices such as lithium-ion batteries, supercapacitors, etc., LICs are the only energy storage technology that provides high energy, power density, and longer cycle life. Optimizing interfacial interactions and the manufacture of uniform structures to improve charge transfer in high-performance energy storage systems using LICs requires a thorough understanding of the surface chemistry of capacitors and battery components. The present state of lithiated manganese-based materials as electrode materials in lithium-ion capacitors is summarized in this paper. The materials of choice were LiMnPO4, LiMn2O4, and Li2MnSiO4. The energy density, power density, and cycle life values of the LICs based on lithiated manganese-based electrode materials were proven to be generally equivalent to those of various electrode materials. The electrochemical performance of lithiated manganese-based materials is attributed to the synergistic effect of the doping and the conductive carbon coating which provided new pathways for the movement of Li+ ions and electrons, thus facilitating charge transfer reactions. However, there is still more work to be carried out. For practical applications, electrodes with high power and energy, as well as better electrochemical and mechanical properties, should be investigated further. In the field of LICs, manganese-based materials will continue to push scientific and technical progress. LICs have achieved great progress in the last several years. Nonetheless, there are still many challenges to be tackled, both at fundamental levels as well as at practical application levels, to enable high-performance LICs in terms of materials and their properties.

Author Contributions

The manuscript was written and conceptualized by N.W.H. while N.R. conceptualized, reviewed, and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

Ntuthuko W. Hlongwa and Naledi Raleie acknowledge the support from the Institute for Nanotechnology and Water Sustainability at the University of South Africa and department of chemistry at the North-West University (Mafikeng Campus).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Du, H.; Yang, H.; Huang, C.; He, J.; Liu, H.; Li, Y. Graphdiyne applied for lithium-ion capacitors displaying high power and energy densities. Nano Energy 2016, 22, 615–622. [Google Scholar] [CrossRef]
  2. Zhang, S.S. Dual-Carbon Lithium-Ion Capacitors: Principle, Materials, and Technologies. Batter Supercaps 2020, 3, 1137–1146. [Google Scholar] [CrossRef]
  3. Lamb, J.J.; Burheim, O.S. Lithium-Ion Capacitors: A Review of Design and Active Materials. Energies 2021, 14, 979. [Google Scholar] [CrossRef]
  4. Jin, L.; Yuan, J.; Shellikeri, A.; Naderi, R.; Qin, N.; Lu, Y.; Fan, R.; Wu, Q.; Zheng, J.; Zhang, C.; et al. An Overview on Design Parameters of Practical Lithium-Ion Capacitors. Batter. Supercaps 2021, 4, 749–757. [Google Scholar] [CrossRef]
  5. Choudhary, N.; Li, C.; Moore, J.; Nagaiah, N.; Zhai, L.; Jung, Y.; Thomas, J. Asymmetric Supercapacitor Electrodes and Devices. Adv. Mater. 2017, 29, 1605336. [Google Scholar] [CrossRef]
  6. Dubal, D.P.; Gomez-Romero, P. All nanocarbon Li-Ion capacitor with high energy and high power density. Mater. Today Energy 2018, 8, 109–117. [Google Scholar] [CrossRef] [Green Version]
  7. Xia, Q.; Yang, H.; Wang, M.; Yang, M.; Guo, Q.; Wan, L.; Xia, H.; Yu, Y. High Energy and High Power Lithium-Ion Capacitors Based on Boron and Nitrogen Dual-Doped 3D Carbon Nanofibers as Both Cathode and Anode. Adv. Energy Mater. 2017, 7, 1701336. [Google Scholar] [CrossRef]
  8. Lee, J.H.; Shin, W.H.; Lim, S.Y.; Kim, B.G.; Choi, J.W. Modified graphite and graphene electrodes for high-performance lithium ion hybrid capacitors. Mater. Renew. Sustain. Energy 2014, 3, 22. [Google Scholar] [CrossRef] [Green Version]
  9. Nanaji, K.; Pappu, S.; Anandan, S.; Rao, T.N. A High-Energy Density Li-Ion Hybrid Capacitor Fabricated from Bio-Waste Derived Carbon Nanosheets Cathode and Graphite Anode. Glob. Chall. 2022, 2200082. [Google Scholar] [CrossRef]
  10. Wang, G.; Oswald, S.; Löffler, M.; Müllen, K.; Feng, X. Beyond Activated Carbon: Graphite-Cathode-Derived Li-Ion Pseudocapacitors with High Energy and High Power Densities. Adv. Mater. 2019, 31, e1807712. [Google Scholar] [CrossRef]
  11. Lu, R.; Ren, X.; Wang, C.; Zhan, C.; Nan, D.; Lv, R.; Shen, W.; Kang, F.; Huang, Z.-H. Na0.76V6O15/Activated Carbon Hybrid Cathode for High-Performance Lithium-Ion Capacitors. Materials 2021, 14, 122. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, H.; Guan, C.; Wang, X.; Fan, H.J. A High Energy and Power Li-Ion Capacitor Based on a TiO2 Nanobelt Array Anode and a Graphene Hydrogel Cathode. Small 2015, 11, 1470–1477. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, Q.; Lu, B.; Chen, M.; Wang, X.; Xing, T.; Liu, M.; Wang, X. Porous activated carbon derived from Chinese-chive for high energy hybrid lithium-ion capacitor. J. Power Sources 2018, 398, 128–136. [Google Scholar] [CrossRef]
  14. Liu, Y.; Wang, W.; Chen, J.; Li, X.; Cheng, Q.; Wang, G. Fabrication of porous lithium titanate self-supporting anode for high performance lithium-ion capacitor. J. Energy Chem. 2020, 50, 344–350. [Google Scholar] [CrossRef]
  15. Zhang, J.; Lin, J.; Zeng, Y.; Zhang, Y.; Guo, H. Morphological and Structural Evolution of MnO@C Anode and Its Application in Lithium-Ion Capacitors. ACS Appl. Energy Mater. 2019, 2, 8345–8358. [Google Scholar] [CrossRef]
  16. Amatucci, G.G.; Badway, F.; Du Pasquier, A.; Zheng, T. An Asymmetric Hybrid Nonaqueous Energy Storage Cell. J. Electrochem. Soc. 2001, 148, A930. [Google Scholar] [CrossRef]
  17. Horn, M.; MacLeod, J.; Liu, M.; Webb, J.; Motta, N. Supercapacitors: A new source of power for electric cars? Econ. Anal. Policy 2019, 61, 93–103. [Google Scholar] [CrossRef] [Green Version]
  18. Berrueta, A.; Ursua, A.; Martin, I.S.; Eftekhari, A.; Sanchis, P. Supercapacitors: Electrical Characteristics, Modeling, Applications, and Future Trends. IEEE Access 2019, 7, 50869–50896. [Google Scholar] [CrossRef]
  19. Burke, A.F.; Zhao, J. Past, present and future of electrochemical capacitors: Technologies, performance and applications. J. Energy Storage 2021, 35, 102310. [Google Scholar] [CrossRef]
  20. González, A.; Goikolea, E.; Barrena, J.A.; Mysyk, R. Review on supercapacitors: Technologies and materials. Renew. Sustain. Energy Rev. 2016, 58, 1189–1206. [Google Scholar] [CrossRef]
  21. Faraji, S.; Ani, F.N. The development supercapacitor from activated carbon by electroless plating—A review. Renew. Sustain. Energy Rev. 2015, 42, 823–834. [Google Scholar] [CrossRef]
  22. Xiao, X.; Han, B.; Chen, G.; Wang, L.; Wang, Y. Preparation and electrochemical performances of carbon sphere@ZnO core-shell nanocomposites for supercapacitor applications. Sci. Rep. 2017, 7, 40167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Wang, K.; Gao, S.; Du, Z.; Yuan, A.; Lu, W.; Chen, L. MnO2-Carbon nanotube composite for high-areal-density supercapacitors with high rate performance. J. Power Sources 2016, 305, 30–36. [Google Scholar] [CrossRef]
  24. Chen, C.; Yu, D.; Zhao, G.; Sun, L.; Sun, Y.; Leng, K.; Yu, M.; Sun, Y. Hierarchical porous graphitic carbon for high-performance supercapacitors at high temperature. RSC Adv. 2017, 7, 34488–34496. [Google Scholar] [CrossRef] [Green Version]
  25. Wang, X.; Shi, B.; Fang, Y.; Rong, F.; Huang, F.; Que, R.; Shao, M. High capacitance and rate capability of a Ni3S2@CdS core–shell nanostructure supercapacitor. J. Mater. Chem. A 2017, 5, 7165–7172. [Google Scholar] [CrossRef]
  26. Makgopa, K.; Ejikeme, P.M.; Jafta, C.J.; Raju, K.; Zeiger, M.; Presser, V.; Ozoemena, K.I. A high-rate aqueous symmetric pseudocapacitor based on highly graphitized onion-like carbon/birnessite-type manganese oxide nanohybrids. J. Mater. Chem. A 2014, 3, 3480–3490. [Google Scholar] [CrossRef] [Green Version]
  27. Sui, D.; Chang, M.; Peng, Z.; Li, C.; He, X.; Yang, Y.; Liu, Y.; Lu, Y. Graphene-Based Cathode Materials for Lithium-Ion Capacitors: A Review. Nanomaterials 2021, 11, 2771. [Google Scholar] [CrossRef]
  28. Suktha, P.; Phattharasupakun, N.; Dittanet, P.; Sawangphruk, M. Charge storage mechanisms of electrospun Mn3O4 nanofibres for high-performance supercapacitors. RSC Adv. 2017, 7, 9958–9963. [Google Scholar] [CrossRef] [Green Version]
  29. Xu, N.; Sun, X.; Zhang, X.; Wang, K.; Ma, Y. A two-step method for preparing Li4Ti5O12–graphene as an anode material for lithium-ion hybrid capacitors. RSC Adv. 2015, 5, 94361–94368. [Google Scholar] [CrossRef]
  30. Kim, M.; Kim, J. Development of high power and energy density microsphere silicon carbide-MnO2 nanoneedles and thermally oxidized activated carbon asymmetric electrochemical supercapacitors. Phys. Chem. Chem. Phys. 2014, 16, 11323–11336. [Google Scholar] [CrossRef]
  31. Lu, X.; Yu, M.; Wang, G.; Tong, Y.; Li, Y. Flexible solid-state supercapacitors: Design, fabrication and applications. Energy Environ. Sci. 2014, 7, 2160–2181. [Google Scholar] [CrossRef]
  32. Ma, Y.; Chang, H.; Zhang, M.; Chen, Y. Graphene-Based Materials for Lithium-Ion Hybrid Supercapacitors. Adv. Mater. 2015, 27, 5296–5308. [Google Scholar] [CrossRef] [PubMed]
  33. Ko, J.S.; Sassin, M.B.; Rolison, D.R.; Long, J.W. Deconvolving double-layer, pseudocapacitance, and battery-like charge-storage mechanisms in nanoscale LiMn2O4 at 3D carbon architectures. Electrochim. Acta 2018, 275, 225–235. [Google Scholar] [CrossRef]
  34. Hlongwa, N.W.; Ikpo, C.O.; Ndipingwi, M.M.; Nolly, C.; Raleie, N.; Dywili, N.; Iwuoha, E.I. Graphene-functionalised Olivine Lithium Manganese Phosphate Derivatives for High Performance Lithium-ion Capacitors. Electroanalysis 2020, 32, 2812–2826. [Google Scholar] [CrossRef]
  35. Ndipingwi, M.M.; Ikpo, C.O.; Hlongwa, N.W.; Myalo, Z.; Ross, N.; Masikini, M.; John, S.V.; Baker, P.G.; Roos, W.D.; Iwuoha, E.I. Orthorhombic Nanostructured Li2MnSiO4/Al2O3 Supercapattery Electrode with Efficient Lithium-Ion Migratory Pathway. Batter. Supercaps 2018, 1, 223–235. [Google Scholar] [CrossRef]
  36. Li, J.; Zhang, X.; Peng, R.; Huang, Y.; Guo, L.; Qi, Y. LiMn2O4/graphene composites as cathodes with enhanced electrochemical performance for lithium-ion capacitors. RSC Adv. 2016, 6, 54866–54873. [Google Scholar] [CrossRef]
  37. Simon, P.; Burke, A. Nanostructured Carbons: Double-Layer Capacitance and More. Electrochem. Soc. Interface 2008, 17, 38–43. [Google Scholar] [CrossRef]
  38. Amatucci, G.G.; Badway, F.; du Pasquier, A.; Amatucci, G.G.; Zheng, T.; Ohzuku, T.; Ueda, A.; Yamamoto, N. The Nonaqueous Asymmetric Hybrid Technology: Materials, Electrochemical Properties and Performance in Plastic Cells; Electrochemical Society: Pennington, NJ, USA, 2002; Volume MA. [Google Scholar]
  39. Ohzuku, T.; Ueda, A.; Yamamoto, N. Zero-Strain Insertion Material of Li[Li1/3Ti5/3]O4 for Rechargeable Lithium Cells. J. Electrochem. Soc. 1995, 142, 1431–1435. [Google Scholar] [CrossRef]
  40. Chen, P.-C.; Shen, G.; Shi, Y.; Chen, H.; Zhou, C. Preparation and Characterization of Flexible Asymmetric Supercapacitors Based on Transition-Metal-Oxide Nanowire/Single-Walled Carbon Nanotube Hybrid Thin-Film Electrodes. ACS Nano 2010, 4, 4403–4411. [Google Scholar] [CrossRef]
  41. Cottineau, T.; Toupin, M.; Delahaye, T.; Brousse, T.; Bélanger, D. Nanostructured transition metal oxides for aqueous hybrid electrochemical supercapacitors. Appl. Phys. A 2006, 82, 599–606. [Google Scholar] [CrossRef]
  42. Sun, F.; Gao, J.; Zhu, Y.; Pi, X.; Wang, L.; Liu, X.; Qin, Y. A high performance lithium ion capacitor achieved by the integration of a Sn-C anode and a biomass-derived microporous activated carbon cathode. Sci. Rep. 2017, 7, 40990. [Google Scholar] [CrossRef] [Green Version]
  43. Sui, Y.; Liu, C.; Zou, P.; Zhan, H.; Cui, Y.; Yang, C.; Cao, G. Polypyrrole Coated δ-MnO2 Nanosheet Arrays as Highly Stable Lithium-Ion-Storage Anode Polypyrrole Coated δ-MnO2 Nanosheet Arrays as Highly Stable Lithium-Ion-Storage Anode. Dalton Trans. 2020, 49, 7903–7913. [Google Scholar] [CrossRef]
  44. Wang, X.; Liu, L.; Niu, Z. Carbon-based materials for lithium-ion capacitors. Mater. Chem. Front. 2019, 3, 1265–1279. [Google Scholar] [CrossRef]
  45. Zhang, X.; Wang, L.; Liu, W.; Li, C.; Wang, K.; Ma, Y. Recent Advances in MXenes for Lithium-Ion Capacitors. ACS Omega 2020, 5, 75–82. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Naskar, P.; Kundu, D.; Maiti, A.; Chakraborty, P.; Biswas, B.; Banerjee, A. Frontiers in Hybrid Ion Capacitors: A Review on Advanced Materials and Emerging Devices. ChemElectroChem 2021, 8, 1393–1429. [Google Scholar] [CrossRef]
  47. Tušar, N.; Jank, S.; Gläser, R. Manganese-Containing Porous Silicates: Synthesis, Structural Properties and Catalytic Applications. ChemCatChem 2010, 3, 254–269. [Google Scholar] [CrossRef]
  48. Li, H.; Zhang, W.; Sun, K.; Guo, J.; Yuan, K.; Fu, J.; Zhang, T.; Zhang, X.; Long, H.; Zhang, Z.; et al. Manganese-Based Materials for Rechargeable Batteries beyond Lithium-Ion. Adv Energy Mater. 2021, 11, 2100867. [Google Scholar] [CrossRef]
  49. Zhang, W.; Zhai, X.; Zhang, Y.; Wei, H.; Ma, J.; Wang, J.; Liang, L.; Liu, Y.; Wang, G.; Ren, F.; et al. Application of Manganese-Based Materials in Aqueous Rechargeable Zinc-Ion Batteries. Front. Energy Res. 2020, 8, 195. [Google Scholar] [CrossRef]
  50. Ma, S.-B.; Nam, K.-W.; Yoon, W.-S.; Yang, X.-Q.; Ahn, K.-Y.; Oh, K.-H.; Kim, K.-B. A novel concept of hybrid capacitor based on manganese oxide materials. Electrochem. Commun. 2007, 9, 2807–2811. [Google Scholar] [CrossRef]
  51. Aravindan, V.; Gnanaraj, J.; Lee, Y.-S.; Madhavi, S. LiMnPO4—A next generation cathode material for lithium-ion batteries. J. Mater. Chem. A 2013, 1, 3518–3539. [Google Scholar] [CrossRef]
  52. Qin, Z.; Zhou, X.; Xia, Y.; Tang, C.; Liu, Z. Morphology controlled synthesis and modification of high-performance LiMnPO4 cathode materials for Li-ion batteries. J. Mater. Chem. 2012, 22, 21144–21153. [Google Scholar] [CrossRef]
  53. Yi, T.-F.; Mei, J.; Zhu, Y.-R. Key strategies for enhancing the cycling stability and rate capacity of LiNi0.5Mn1.5O4 as high-voltage cathode materials for high power lithium-ion batteries. J. Power Sources 2016, 316, 85–105. [Google Scholar] [CrossRef]
  54. Huang, Q.-Y.; Wu, Z.; Su, J.; Long, Y.-F.; Lv, X.-Y.; Wen, Y.-X. Synthesis and electrochemical performance of Ti–Fe co-doped LiMnPO4/C as cathode material for lithium-ion batteries. Ceram. Int. 2016, 42, 11348–11354. [Google Scholar] [CrossRef]
  55. Duan, J.; Hu, G.; Cao, Y.; Du, K.; Peng, Z. Synthesis of high-performance LiMnPO4/C/rGO composite via a mechanical-activation-assisted polyol process. Ionics 2016, 22, 1541–1549. [Google Scholar] [CrossRef]
  56. Dong, Y.; Zhao, Y.; Duan, H.; Liang, Z. Enhanced electrochemical performance of LiMnPO4 by Li+-conductive Li3VO4 surface coatings. Electrochim. Acta 2014, 132, 244–250. [Google Scholar] [CrossRef]
  57. Moskon, J.; Pivko, M.; Jerman, I.; Tchernychova, E.; Logar, N.Z.; Zorko, M.; Selih, V.; Dominko, R.; Gaberscek, M. Cycling stability and degradation mechanism of LiMnPO4 based electrodes. J. Power Sources 2016, 303, 97–108. [Google Scholar] [CrossRef]
  58. Pitchai, R.; Thavasi, V.; Mhaisalkar, S.G.; Ramakrishna, S. Nanostructured cathode materials: A key for better performance in Li-ion batteries. J. Mater. Chem. 2011, 21, 11040–11051. [Google Scholar] [CrossRef]
  59. Nolis, G.M.; Omenya, F.; Zhang, R.; Fang, B.; Upreti, S.; Chernova, N.A.; Wang, F.; Graetz, J.; Hu, Y.-Y.; Grey, C.P.; et al. Structure, defects and thermal stability of delithiated olivine phosphates. J. Mater. Chem. 2012, 22, 20482–20489. [Google Scholar] [CrossRef]
  60. Herrera, J.O.; Camacho-Montes, H.; Fuentes, L.E.; Álvarez-Contreras, L. LiMnPO4: Review on Synthesis and Electrochemical Properties. J. Mater. Sci. Chem. Eng. 2015, 3, 54–64. [Google Scholar] [CrossRef] [Green Version]
  61. Xia, H.; Luo, Z.; Xie, J. Nanostructured LiMn2O4 and their composites as high-performance cathodes for lithium-ion batteries. Prog. Nat. Sci. Mater. Int. 2012, 22, 572–584. [Google Scholar] [CrossRef]
  62. Chen, S.; Chen, Z.; Cao, C. Mesoporous Spinel LiMn2O4 Cathode Material by a Soft-templating Route. Electrochim. Acta 2016, 199, 51–58. [Google Scholar] [CrossRef]
  63. Put, B.; Vereecken, P.M.; Labyedh, N.; Sepulveda, A.; Huyghebaert, C.; Radu, I.P.; Stesmans, A. High Cycling Stability and Extreme Rate Performance in Nanoscaled LiMn2O4 Thin Films. ACS Appl. Mater. Interfaces 2015, 7, 22413–22420. [Google Scholar] [CrossRef] [PubMed]
  64. Hung, I.M.; Yang, Y.C.; Su, H.J.; Zhang, J. Influences of the Surfactant on the Performance of Nano-LiMn2O4 Cathode Material for Lithium-Ion Battery. Ceram. Int. 2015, 41, S779–S786. [Google Scholar] [CrossRef]
  65. Plitz, I.; DuPasquier, A.; Badway, F.; Gural, J.; Pereira, N.; Gmitter, A.; Amatucci, G. The design of alternative nonaqueous high power chemistries. Appl. Phys. A 2006, 82, 615–626. [Google Scholar] [CrossRef]
  66. Vijayan, S.; Kirubasankar, B.; Pazhamalai, P.; Solarajan, A.K.; Angaiah, S. Electrospun Nd3+-Doped LiMn2O4 Nanofibers as High-Performance Cathode Material for Li-Ion Capacitors. ChemElectroChem 2017, 4, 2059–2067. [Google Scholar] [CrossRef]
  67. Lu, J.; Chang, Y.-L.; Song, B.; Xia, H.; Yang, J.-R.; Lee, K.S.; Lu, L. High energy spinel-structured cathode stabilized by layered materials for advanced lithium-ion batteries. J. Power Sources 2014, 271, 604–613. [Google Scholar] [CrossRef]
  68. West, N.; Ozoemena, K.I.; Ikpo, C.O.; Baker, P.G.; Iwuoha, E.I. Transition metal alloy-modulated lithium manganese oxide nanosystem for energy storage in lithium-ion battery cathodes. Electrochim. Acta 2013, 101, 86–92. [Google Scholar] [CrossRef]
  69. Kim, D.K.; Muralidharan, P.; Lee, H.-W.; Ruffo, R.; Yang, Y.; Chan, C.K.; Peng, H.; Huggins, R.A.; Cui, Y. Spinel LiMn2O4 Nanorods as Lithium Ion Battery Cathodes. Nano Lett. 2008, 8, 3948–3952. [Google Scholar] [CrossRef]
  70. Wang, F.; Xiao, S.; Zhu, Y.; Chang, Z.; Hu, C.; Wu, Y.; Holze, R. Spinel LiMn2O4 nanohybrid as high capacitance positive electrode material for supercapacitors. J. Power Sources 2014, 246, 19–23. [Google Scholar] [CrossRef]
  71. Tianran, Z.; Daixin, L.; Tao, Z.; Jun, C. Understanding Electrode Materials of Rechargeable Lithium Batteries via DFT Calculations. Prog. Nat. Sci. Mater. Int. 2013, 23, 256–272. [Google Scholar]
  72. Chen, Q.; Xiao, P.; Pei, Y.; Song, Y.; Xu, C.-Y.; Zhen, L.; Henkelman, G. Structural transformations in Li2MnSiO4: Evidence that a Li intercalation material can reversibly cycle through a disordered phase. J. Mater. Chem. A 2017, 5, 16722–16731. [Google Scholar] [CrossRef]
  73. Wang, X.; Luo, S.; Li, P.; Zhan, Y.; Yan, S. Preparation and electrochemical performance of Li2 MnSiO4 cathode material doped with chromium on manganese site. Int. J. Energy Res. 2021, 45, 20483–20491. [Google Scholar] [CrossRef]
  74. Hou, P.; Feng, J.; Wang, Y.; Wang, L.; Li, S.; Yang, L.; Luo, S.-H. Study on the properties of Li2MnSiO4 as cathode material for lithium-ion batteries by sol-gel method. Ionics 2020, 26, 1611–1616. [Google Scholar] [CrossRef]
  75. Kumar, N.; Singh, M.; Kumar, A.; Tseng, T.-Y.; Sharma, Y. Facile and One-Step in Situ Synthesis of Pure Phase Mesoporous Li2MnSiO4/CNTs Nanocomposite for Hybrid Supercapacitors. ACS Appl. Energy Mater. 2020, 3, 2450–2464. [Google Scholar] [CrossRef]
  76. Fisher, C.A.J.; Kuganathan, N.; Islam, M.S. Defect chemistry and lithium-ion migration in polymorphs of the cathode material Li2MnSiO4. J. Mater. Chem. A 2013, 1, 4207–4214. [Google Scholar] [CrossRef] [Green Version]
  77. Wang, Y.; Wang, Y.; Jia, D.; Peng, Z.; Xia, Y.; Zheng, G. All-Nanowire Based Li-Ion Full Cells Using Homologous Mn2O3 and LiMn2O4. Nano Lett. 2014, 14, 1080–1084. [Google Scholar] [CrossRef]
  78. Yang, X.; Qu, F.; Niu, H.; Wang, Q.; Yan, J.; Fan, Z. High-performance aqueous asymmetric supercapacitor based on spinel LiMn2O4 and nitrogen-doped graphene/porous carbon composite. Electrochim. Acta 2015, 180, 287–294. [Google Scholar] [CrossRef]
  79. Lin, Y.-P.; Wu, N.-L. Characterization of MnFe2O4/LiMn2O4 aqueous asymmetric supercapacitor. J. Power Sources 2011, 196, 851–854. [Google Scholar] [CrossRef]
  80. Pazhamalai, P.; Krishnamoorthy, K.; Sudhakaran, M.S.P.; Kim, S.J. Fabrication of High-Performance Aqueous Li-Ion Hybrid Capacitor with LiMn2 O4 and Graphene. ChemElectroChem 2016, 4, 396–403. [Google Scholar] [CrossRef]
  81. Liu, L.; Diao, X.; He, Z.; Yi, Y.; Wang, T.; Wang, M.; Huang, J.; He, X.; Zhong, X.; Du, K. High-performance all-inorganic portable electrochromic Li-ion hybrid supercapacitors toward safe and smart energy storage. Energy Storage Mater. 2020, 33, 258–267. [Google Scholar] [CrossRef]
  82. Prabaharan, S.; Star, R.A.; Kulkarni, A.R.; Michael, M. Nano-composite LiMnPO4 as new insertion electrode for electrochemical supercapacitors. Curr. Appl. Phys. 2015, 15, 1624–1633. [Google Scholar] [CrossRef]
  83. Xiang, J.; Zhang, P.; Lv, S.; Ma, Y.; Zhao, Q.; Sui, Y.; Ye, Y.; Qin, C. Spinel LiMn2O4 nanoparticles fabricated by the flexible soft template/Pichini method as cathode materials for aqueous lithium-ion capacitors with high energy and power density. RSC Adv. 2021, 11, 14891–14898. [Google Scholar] [CrossRef]
  84. Chaturvedi, P.; Sil, A.; Sharma, Y. Energy storage performance of hybrid aqueous supercapacitor based on nano-Li2MnSiO4 and activated carbon. Ionics 2016, 22, 1719–1728. [Google Scholar] [CrossRef]
  85. Chaturvedi, P.; Kumar, A.; Sil, A.; Sharma, Y. Cost effective urea combustion derived mesoporous-Li2MnSiO4 as a novel material for supercapacitors. RSC Adv. 2015, 5, 25156–25163. [Google Scholar] [CrossRef]
  86. Zhang, Y.; Zhao, Y.; Deng, L. Enhanced electrochemical properties of LiMnPO4/C via doping with Cu. Ionics 2012, 18, 573–578. [Google Scholar] [CrossRef]
  87. Lee, E.-S.; Huq, A.; Chang, H.-Y.; Manthiram, A. High-Voltage, High-Energy Layered-Spinel Composite Cathodes with Superior Cycle Life for Lithium-Ion Batteries. Chem. Mater. 2012, 24, 600–612. [Google Scholar] [CrossRef]
  88. Kang, B.J.; Joo, J.-B.; Lee, J.K.; Choi, W. Surface modification of cathodes with nanosized amorphous MnO2 coating for high-power application in lithium-ion batteries. J. Electroanal. Chem. 2014, 728, 34–40. [Google Scholar] [CrossRef]
  89. Bhatt, M.D.; O’Dwyer, C. Recent progress in theoretical and computational investigations of Li-ion battery materials and electrolytes. Phys. Chem. Chem. Phys. 2015, 17, 4799–4844. [Google Scholar] [CrossRef] [Green Version]
  90. Julien, C.M.; Mauger, A.; Zaghib, K.; Groult, H. Comparative Issues of Cathode Materials for Li-Ion Batteries. Inorganics 2014, 2, 132–154. [Google Scholar] [CrossRef] [Green Version]
  91. Liu, J.; Liu, X.; Huang, T.; Yu, A. Synthesis of nano-sized LiMnPO4 and in situ carbon coating using a solvothermal method. J. Power Sources 2013, 229, 203–209. [Google Scholar] [CrossRef]
  92. Liu, L.; Wang, T.; He, Z.; Yi, Y.; Wang, M.; Luo, Z.; Liu, Q.; Huang, J.; Zhong, X.; Du, K.; et al. All-solid-state electrochromic Li-ion hybrid supercapacitors for intelligent and wide-temperature energy storage. Chem. Eng. J. 2021, 414, 128892. [Google Scholar] [CrossRef]
  93. Lu, J.; Zhan, C.; Wu, T.; Wen, J.; Lei, Y.; Kropf, A.J.; Wu, H.; Miller, D.J.; Elam, J.W.; Sun, Y.-K.; et al. Effectively suppressing dissolution of manganese from spinel lithium manganate via a nanoscale surface-doping approach. Nat. Commun. 2014, 5, 5693. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Zhang, S.; Li, C.; Zhang, X.; Sun, X.; Wang, K.; Ma, Y. High Performance Lithium-Ion Hybrid Capacitors Employing Fe3O4–Graphene Composite Anode and Activated Carbon Cathode. ACS Appl. Mater. Interfaces 2017, 9, 17136–17144. [Google Scholar] [CrossRef] [PubMed]
  95. Lu, C.; Wang, X.; Zhang, X.; Peng, H.; Zhang, Y.; Wang, G. Effect of graphene nanosheets on electrochemical performance of Li4Ti5O12 in lithium-ion capacitors. Ceram. Int. 2017, 43, 6554–6562. [Google Scholar] [CrossRef]
  96. Xu, L.; Wang, S.; Zhang, X.; He, T.; Lu, F.; Li, H.; Ye, J. A facile method of preparing LiMnPO4/reduced graphene oxide aerogel as cathodic material for aqueous lithium-ion hybrid supercapacitors. Appl. Surf. Sci. 2018, 428, 977–985. [Google Scholar] [CrossRef]
  97. Chen, L.; Li, D.; Zheng, X.; Chen, L.; Zhang, Y.; Liang, Z.; Feng, J.; Si, P.; Lou, J.; Ci, L. Integrated nanocomposite of LiMn2O4/graphene/carbon nanotubes with pseudocapacitive properties as superior cathode for aqueous hybrid capacitors. J. Electroanal. Chem. 2019, 842, 74–81. [Google Scholar] [CrossRef]
Energies 15 07276 g001 550

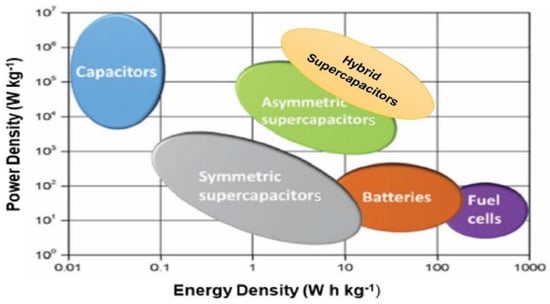

Figure 1. Ragone plot—comparison of the performance of different energy storage devices. Reproduced with permission [5]. Copyright 2017, Wiley-V.CH.
Figure 1. Ragone plot—comparison of the performance of different energy storage devices. Reproduced with permission [5]. Copyright 2017, Wiley-V.CH.
Energies 15 07276 g001
Energies 15 07276 g002 550
Figure 2. Schematic of types of supercapacitors.
Figure 2. Schematic of types of supercapacitors.
Energies 15 07276 g002
Energies 15 07276 g003 550
Figure 3. Mechanism of working lithium-ion capacitor.
Figure 3. Mechanism of working lithium-ion capacitor.
Energies 15 07276 g003
Energies 15 07276 g004 550
Figure 4. Different charge carriers’ relative abundance rank and cost (Li+, Na+, Mg2+, Ca2+, Zn2+, and Al3+) for rechargeable batteries.
Figure 4. Different charge carriers’ relative abundance rank and cost (Li+, Na+, Mg2+, Ca2+, Zn2+, and Al3+) for rechargeable batteries.
Energies 15 07276 g004
Energies 15 07276 g005 550
Figure 5. Structure of the LiMnPO4 [60].
Figure 5. Structure of the LiMnPO4 [60].
Energies 15 07276 g005
Energies 15 07276 g006 550
Figure 6. Structure of spinel LiMn2O4. Reproduced with permission [71]. Copyright 2013, Elsevier.
Figure 6. Structure of spinel LiMn2O4. Reproduced with permission [71]. Copyright 2013, Elsevier.
Energies 15 07276 g006
Energies 15 07276 g007 550
Figure 7. Crystal structures of Li2MnSiO4 polymorphs: (a) monoclinic P21/n phase, (b) orthorhombic Pmn21 phase orthorhombic Pmnb phase, (c) orthorhombic Pmnb phase, revealing the arrangement of MnO4 tetrahedra (purple), SiO4 tetrahedra (blue) with Li-ions (green). Reproduced from [76] with permission from the Royal Society of Chemistry.
Figure 7. Crystal structures of Li2MnSiO4 polymorphs: (a) monoclinic P21/n phase, (b) orthorhombic Pmn21 phase orthorhombic Pmnb phase, (c) orthorhombic Pmnb phase, revealing the arrangement of MnO4 tetrahedra (purple), SiO4 tetrahedra (blue) with Li-ions (green). Reproduced from [76] with permission from the Royal Society of Chemistry.
Energies 15 07276 g007
Energies 15 07276 g008 550
Figure 8. A schematic depiction of the LiMnPO4/rGO aerogel preparation method. Reproduced with permission from [80]. Copyright 2018, Elsevier.
Figure 8. A schematic depiction of the LiMnPO4/rGO aerogel preparation method. Reproduced with permission from [80]. Copyright 2018, Elsevier.
Energies 15 07276 g008
Energies 15 07276 g009 550
Figure 9. Lithium-ion capacitor performance of Li2MNSiO4/CNTs, (a) CV plots of nanocomposite @15 mV s−1, (b) CV curve cell at different scan rates, (c) GCD curves at various current density values, (d) Nyquist plot of the device, (e) specific capacitance as a function of current density, (f) Ragone plot showing power density as a function of energy density for an asymmetric cell, (g) CV curves of two supercapacitor devices @ 10 mV s−1 when connected in series and parallel, (h) two parallel-connected devices powering a DC motor fan with inset showing the non-rotating motor fan, (i) two series-connected cells lighting up a blue LED, and (j) 8 red LEDs. Reproduced with permission [75]. Copyright 2020, American Chemical Society.
Figure 9. Lithium-ion capacitor performance of Li2MNSiO4/CNTs, (a) CV plots of nanocomposite @15 mV s−1, (b) CV curve cell at different scan rates, (c) GCD curves at various current density values, (d) Nyquist plot of the device, (e) specific capacitance as a function of current density, (f) Ragone plot showing power density as a function of energy density for an asymmetric cell, (g) CV curves of two supercapacitor devices @ 10 mV s−1 when connected in series and parallel, (h) two parallel-connected devices powering a DC motor fan with inset showing the non-rotating motor fan, (i) two series-connected cells lighting up a blue LED, and (j) 8 red LEDs. Reproduced with permission [75]. Copyright 2020, American Chemical Society.
Energies 15 07276 g009
Table
Table 1. Summary of energy/power densities of LIC electrode.
Table 1. Summary of energy/power densities of LIC electrode.
Device Configuration (Anode//Cathode)Voltage Range (V)Cycling StabilityMaximum Energy Density (W h kg−1)Maximum Power Density (W kg−1)Ref.
N-doped carbon nanopipes//rGO0–491% over 4000 cycles2629000[6]
B&N-doped carbon nanofiber//B&N-doped nanofiber0–4.381% over 5000 cycles22022,500[7]
Graphite//graphene2–497% over 3500 cycles1351500[8]
Commercial graphite//activated carbon 2–4.569% over 2500 cycles12569[9]
Li4Ti5O12//graphite1.5–3.7 V88% over 10,00023320,960[10]
Artificial graphene//Na0.76V6O151–3.8 V70% over 5000 cycles11921,793[11]
TiO2 nanobelt arrays//graphene hydrogels 0–3.8 73% over 600 cycles8219,000[12]
Silicon/flake graphite/carbon nanocomposite//biomass-derived porous carbon2–4.5 V80% over 8000 cycles15931,235[13]
Li4Ti5O12-CNT//graphene foam1–3.684% over 5000 cycles101.812,300[14]
MnO on C//trisodium citrate-derived carbon 0–3.9 85.69% over 10,000 cycles 23525,000[15]
Table
Table 2. Lithiated manganese-based material LIC summary.
Table 2. Lithiated manganese-based material LIC summary.
Device Configuration (Anode//Cathode)Voltage Rage (V)Cycling StabilityMaximum Energy Density (W h kg−1)Maximum Power Density (W kg−1)Ref.
AC//LiMnPO40–283% over 1000 cycles 28.82500[82]
LiMn2O4//nitrogen doped graphene 0–1.885 % over 1000 cycles44.3595[78]
LiMn2O4//graphene0–2.290% over 1000 cycles 39.96440[80]
LiMn2O4//AC0–275.9% over 2000 cycles 32.6310,000[83]
Li2MnSiO4//AC0–1.395% over 5000 cycles 7.751650[84]
Porous nanosized Li2MnSiO40–0.690% over 500 cycles 7135[85]
Table
Table 3. Summary of energy/power densities of LICs on basis of doped manganese-based material.
Table 3. Summary of energy/power densities of LICs on basis of doped manganese-based material.
Device Configuration (Anode//Cathode)Voltage Range (V)Cycling StabilityMaximum Energy Density (W h kg−1)Maximum Power Density (W kg−1)Ref.
AC//LiMn0.95Ni0.05PO40–271% over 800 cycles9.41610[34]
LiNd0.01Mn1.99O4//black pearl carbon 0–1.686 % over 2500 cycles17397[66]
AC//Li2MnSiO4/Al2O30–2.293.6% over 100 cycles10.44020.8[35]
LiMn2O4@LiNbO3//WO30–2.383.5% over 3000 cycles106.1574.7[92]
Table
Table 4. Summary of the performance of carbon-based coated manganese-based materials.
Table 4. Summary of the performance of carbon-based coated manganese-based materials.
Device Configuration (Anode//Cathode)Voltage Range (V)Cycling StabilityMaximum Energy Density (W h kg−1)Maximum Power Density (W kg−1)Ref.
AC//LMNP/graphene0–283% over 750 cycles141900[34]
LiMnPO4/rGO//rGO 0–1.591.2% over 10,00016.464520[96]
LiMn2O4/graphene//AC0–2.390.6% over 500 cycles38.812.6[36]
LiMn2O4/graphene/CNs//N/S co-doped AC0–2.190.8% over 5000 cycles62.772967.96[97]
Li2MnSiO4/CNTs//AC0–1.683% over 2500 cycles31177[74]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hlongwa, N.W.; Raleie, N. Lithiated Manganese-Based Materials for Lithium-Ion Capacitor: A Review. Energies 2022, 15, 7276. https://doi.org/10.3390/en15197276

AMA Style

Hlongwa NW, Raleie N. Lithiated Manganese-Based Materials for Lithium-Ion Capacitor: A Review. Energies. 2022; 15(19):7276. https://doi.org/10.3390/en15197276

Chicago/Turabian Style

Hlongwa, Ntuthuko W., and Naledi Raleie. 2022. "Lithiated Manganese-Based Materials for Lithium-Ion Capacitor: A Review" Energies 15, no. 19: 7276. https://doi.org/10.3390/en15197276

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
