Experimental Optimization of the Compound Angled Asymmetric Laidback Fan Shaped Film Cooling Hole

Abstract

In this study, the effect of shape variables on the film cooling effectiveness of the compound angled asymmetric laidback fan shaped hole was experimentally investigated, and the optimum values of select design variables were presented. Among the shape variables of the compound angled asymmetric laidback fan shaped hole, the windward and leeward lateral expansion angles and the compound angle were selected as design variables. Test points were chosen using the central composite design method, and the selected design variables were optimized using the Kriging model. The film cooling effectiveness was measured using the PSP technique, and the experiment was conducted under the two density ratios of 1.5 and 2.0 and four blowing ratios of 1.0, 1.5, 2.0, and 2.5. Experimental results showed that the film cooling performance was improved for higher density ratios than lower density ratios. The main effects analysis indicated that larger windward and leeward lateral expansion angles induced higher film cooling effectiveness; however, the compound angle did not show consistent results. For the optimized hole at the density ratio 2.0, the results indicated that the overall averaged film cooling effectiveness of the optimized compound angled asymmetric laidback fan shaped hole was higher than that of the optimized fan shape holes of previous literature.

1. Introduction

Turbine inlet temperatures are continuously increasing to achieve the high efficiency of modern gas turbines, resulting in high thermal stress and thermal load on turbine components. Therefore, a sophisticated cooling mechanism must be applied to satisfy the required life of turbine high temperature components.

The film cooling technique is a typical external cooling method for turbine blades, and many researchers have been conducting various studies on the optimization film cooling hole to improve the film cooling effectiveness (FCE). The cylindrical hole, which appeared in the early stages, has the advantage of being simple in structure and easy to manufacture. Goldstein et al. [1], Sinha et al. [2], and Pedersen et al. [3] studied the behavior of coolant injected through cylindrical holes with various flow conditions. However, the cylindrical hole is characterized by the decrease in FCE at the high blowing ratio due to the lift-off of coolant. Fan shaped holes were suggested to alleviate the coolant lift-off and increase the FCE. Chen et al. [4] compared the FCE of four different holes (simple angled cylindrical hole, compound angled cylindrical hole, simple angled fan shaped hole, and compound angled fan shaped hole) at different density ratio, blowing ratio, and turbulence intensity conditions. Their results showed that the fan shaped hole diffused the coolant more uniformly than the cylindrical hole and induced a low coolant momentum at the hole exit, which results in higher and more uniform FCE. Yang et al. [5] proposed three new hole shapes: a bean shaped hole, clover shaped hole, and winter sweet-shaped hole to improve film cooling performance and compared them with the cylindrical hole. In addition, many researchers have suggested various hole shapes to increase FCE, such as anti-vortex holes for offsetting the kidney vortex [6,7], and the holes with trench [8,9] and vortex generator [10,11] and triangular tabs [12].

Due to the shape of gas turbine blades and the limitation in the hole manufacturing process, some film cooling holes inevitably have compound angles. Film cooling with compound angled round holes were considered by Schmidt et al. [13], and they showed that the compound angled round hole significantly improved the film cooling performance. Ekkad et al. [14] conducted experimental studies on the effects of compound angles on cylindrical holes using the transient liquid crystal technique, and Zamiri et al. [15] reported numerical studies using large eddy simulation (LES) on the effect of a compound angled fan shaped hole. They demonstrated that the compound angled holes improved the film cooling performance by providing a large coolant coverage region. Moreover, Huang et al. [16] investigated FCE and heat transfer performance of simple and compound cylindrical holes in transverse trenches, and Bashir et al. [17] studied FCE by changing the arrangement and compound angle, and their results showed that three rows of compound holes in a staggered arrangement resulted in higher film cooling performance due to the better film coverage. Natsui et al. [18]. investigated four arrays of film cooling holes and found that compound angle arrays of cylindrical holes could provide significant levels of FCE at the large spacing.

In general, a lateral expansion angle, one of the major shape variables of the laidback fan shaped hole, is designed symmetrically for uniform coolant diffusion. However, if a compound angle is applied to the fan shaped hole, the lateral expansion angle in the windward and leeward directions should be considered independently to derive optimal shape.

Many studies, including Lee et al. [19,20] and Seo et al. [21], have been conducted to optimize the shape of the film cooling holes, but most of them were conducted by numerical methods and had not considered asymmetrical lateral expansion angles. In this study, the optimization of the compound angled asymmetric laidback fan shaped hole shown in Figure 1 was conducted using an experimental approach. Windward (${\gamma }_{ww}$) and leeward (${\gamma }_{lw}$) lateral expansion angles, and the compound angle (θ) were selected as design parameters, and four blowing ratios and two density ratios were considered. The effects of those parameters on the FCE are discussed.

2. Measurement Theory and Test Apparatus

2.1. PSP (Pressure Sensitive Paint) Technique

The pressure sensitive paint (PSP) technique was applied to measure the FCE. The PSP technique is the mass transfer technique commonly used in previous studies because it has the advantage of measuring the distribution of FCE with little error due to thermal conduction. The PSP (Uni-FIB 400, ISSI) used in this study is a commercial product and was sprayed on the test plate. When the PSP coated surface is irradiated by light of 400 nm wavelength, the luminescent molecules in the PSP enter an excited state and then return to the ground state by emitting long wavelengths of 600 nm. Using these characteristics, the partial pressure of oxygen on the PSP coated surface can be calculated by measuring the emitting intensity of the PSP. The relationship between the emitted intensity and the oxygen partial pressure can be expressed as Equation (1).

$$\frac{P_{O_2}}{P_{O_2,ref}}=A\left(T\right)+B\left(T\right)\left(\frac{I_{ref}-I_{blk}}{I-I_{blk}}\right)+\dots$$

(1)

In Equation (1), $I$ and $P_{O_2}$ are respectively the emitted intensity and partial pressure of oxygen. Subscript ref means reference condition, where LED is irradiated and the wind tunnel is turned off, and blk means black condition, where the LED and wind tunnel are turned off. $I_{blk}$ is intended to consider the noise of the camera sensor and subtracted from all captured images. A(T) and B(T) are the coefficients obtained from the PSP calibration test, which are expressed as a function of the temperature.

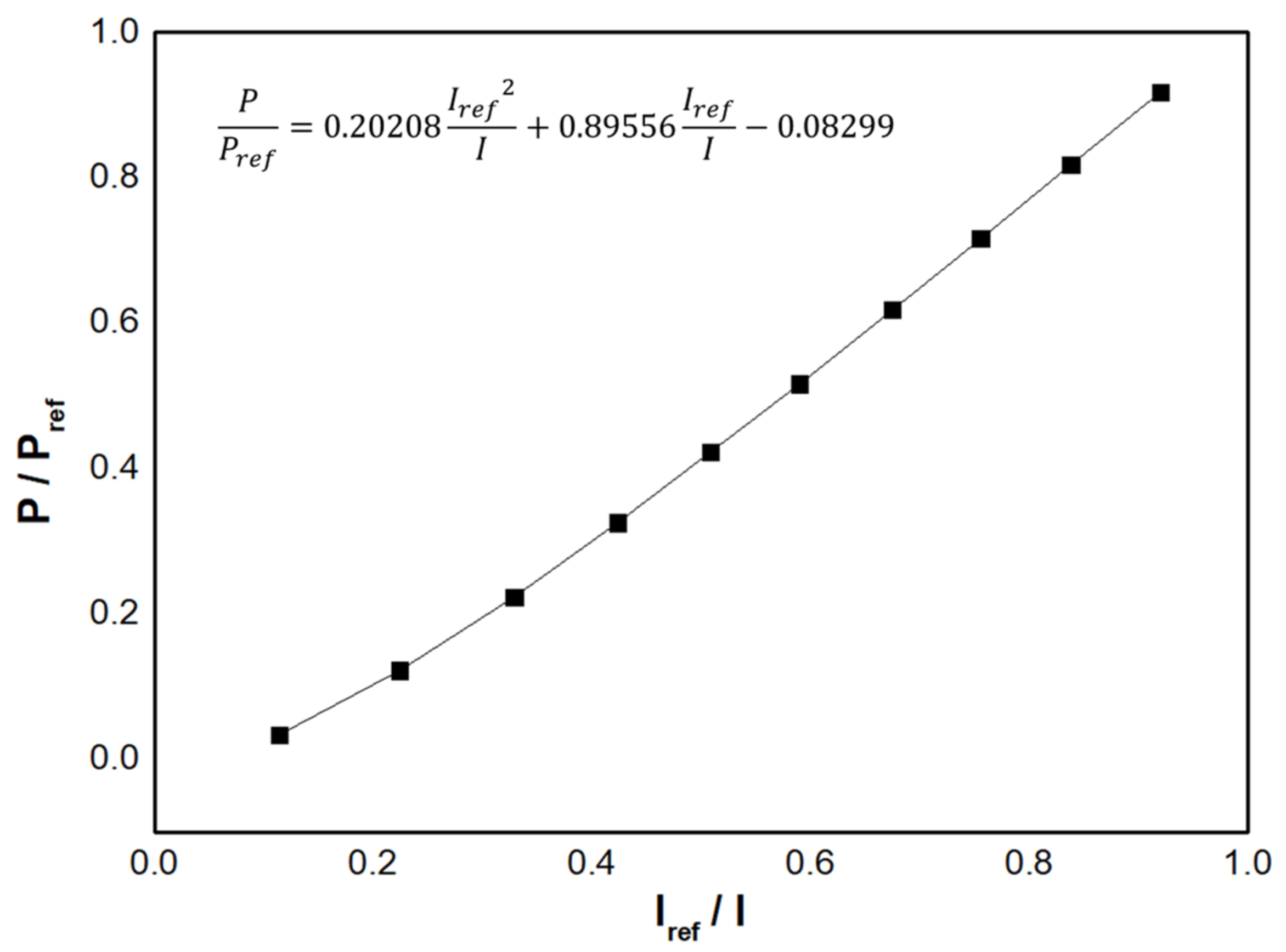

Figure 2 shows the relation between the PSP emitting intensity and the pressure. The calibration was performed by installing a PSP coated plate in the vacuum chamber at the same temperature condition with the film cooling measurement tests. Using the PSP calibration curve, the relation between PSP intensity and pressure ratio is obtained, and then, the FCE can be calculated using Equation (2) [4].

$$\eta =1-\frac{1}{(\frac{P_{O_2,air}/P_{O_2,ref}}{P_{O_2,fg}/P_{O_2,ref}}-1)\frac{{\omega }_{fg}}{{\omega }_{air}}+1}$$

(2)

Here, $\frac{{\omega }_{fg}}{{\omega }_{air}}$ is the density ratio between the foreign gas and air. Detailed descriptions of PSP are presented in Han et al. [4].

2.2. Geometry of the Compound Angled Asymmetric Laidback Fan Shaped Film Cooling Hole

The reference film cooling hole was selected based on the optimized laidback fan shaped hole by Seo et al. [21]. The hole diameter (D) and the hole length to diameter ratio (L/D) were 1.5 mm and 6, respectively, and the injection angle (α) and the forward expansion angle (β) were fixed at 30 degrees and 13.3 degrees, respectively. For optimization, the windward (${\gamma }_{ww}$) and leeward (${\gamma }_{lw}$) lateral expansion angles and compound angle (θ) were selected as design variables.

Table 1. Design variables of optimization.

Shape Variable	Lower Limit	Upper Limit
Windward lateral expansion angle $\left({\gamma }_{ww}\right)$	0°	15°
Leeward lateral expansion angle $\left({\gamma }_{lw}\right)$	0°	15°
Compound angle $\left(\theta \right)$	0°	30°

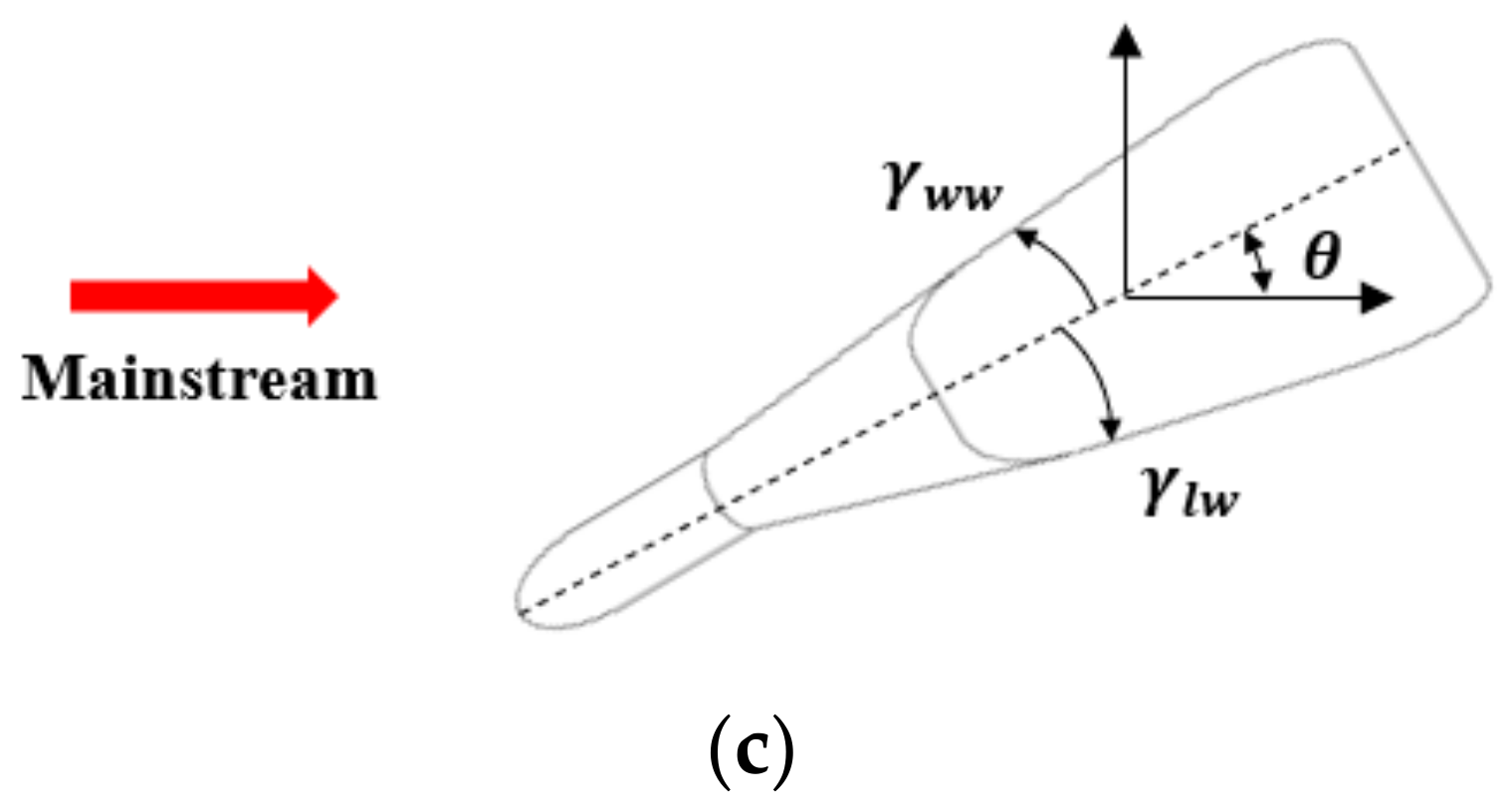

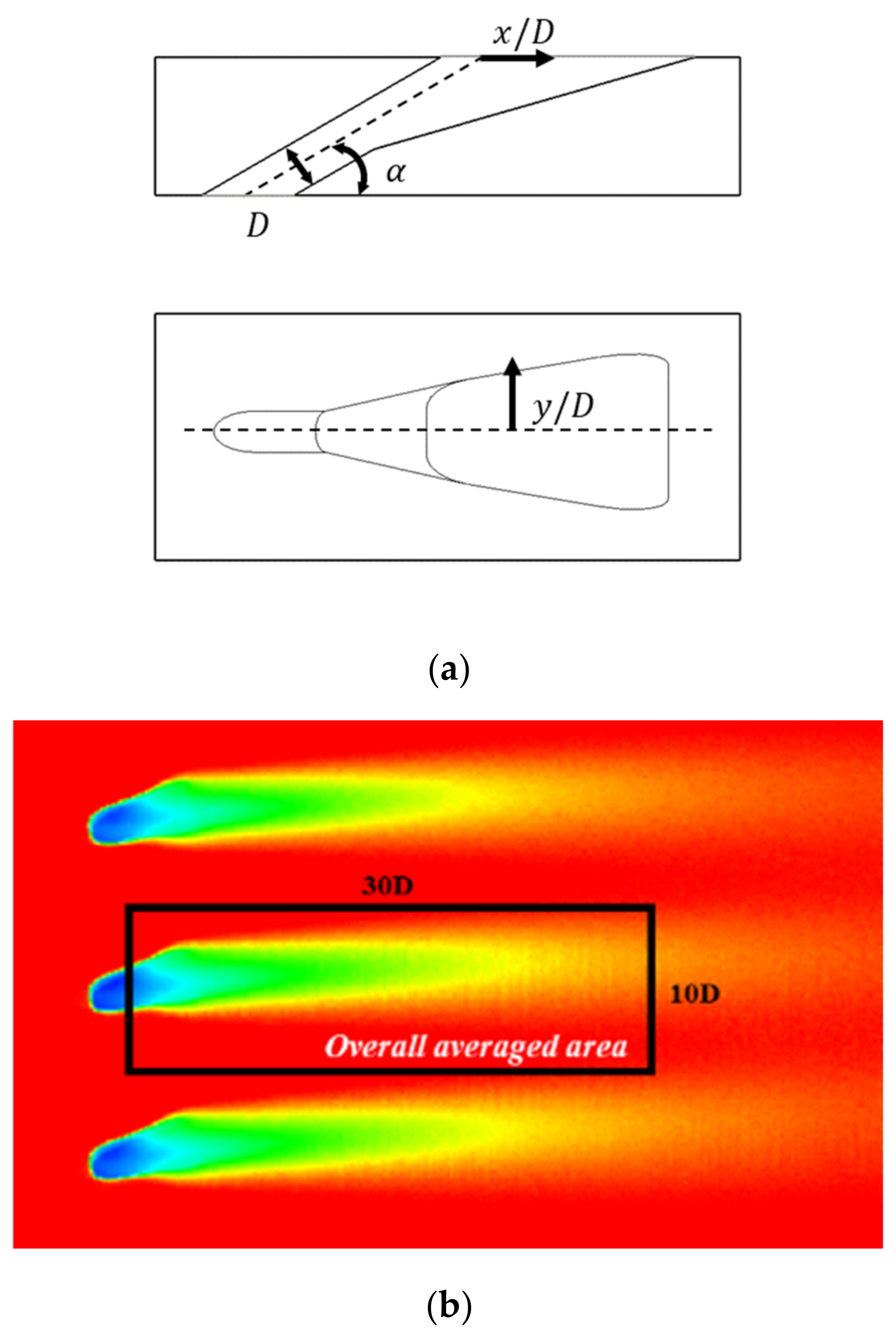

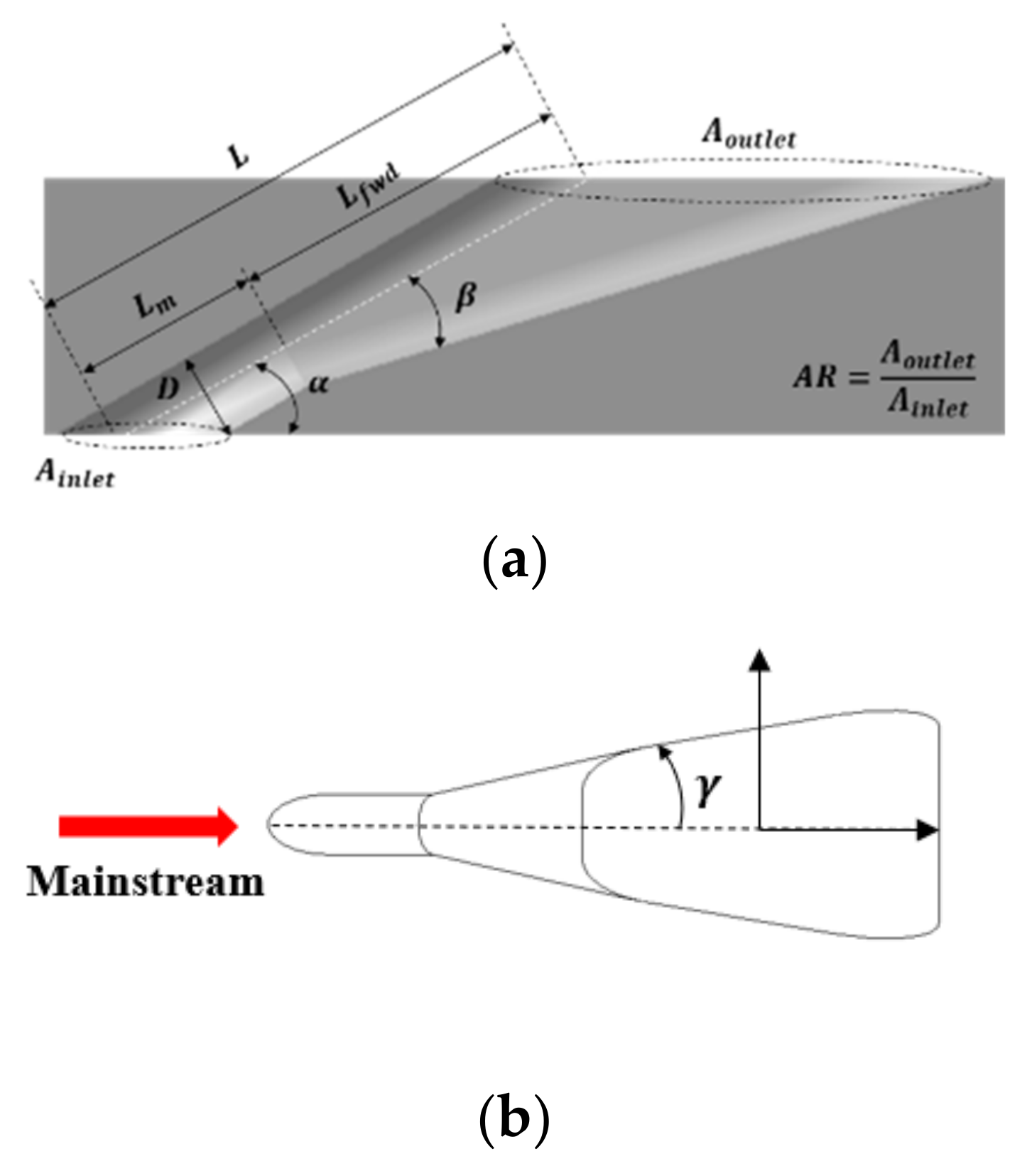

presents the lower and upper limits of the shape variables. A detailed description of the shape variables is given in Figure 1.

2.3. Test Facility

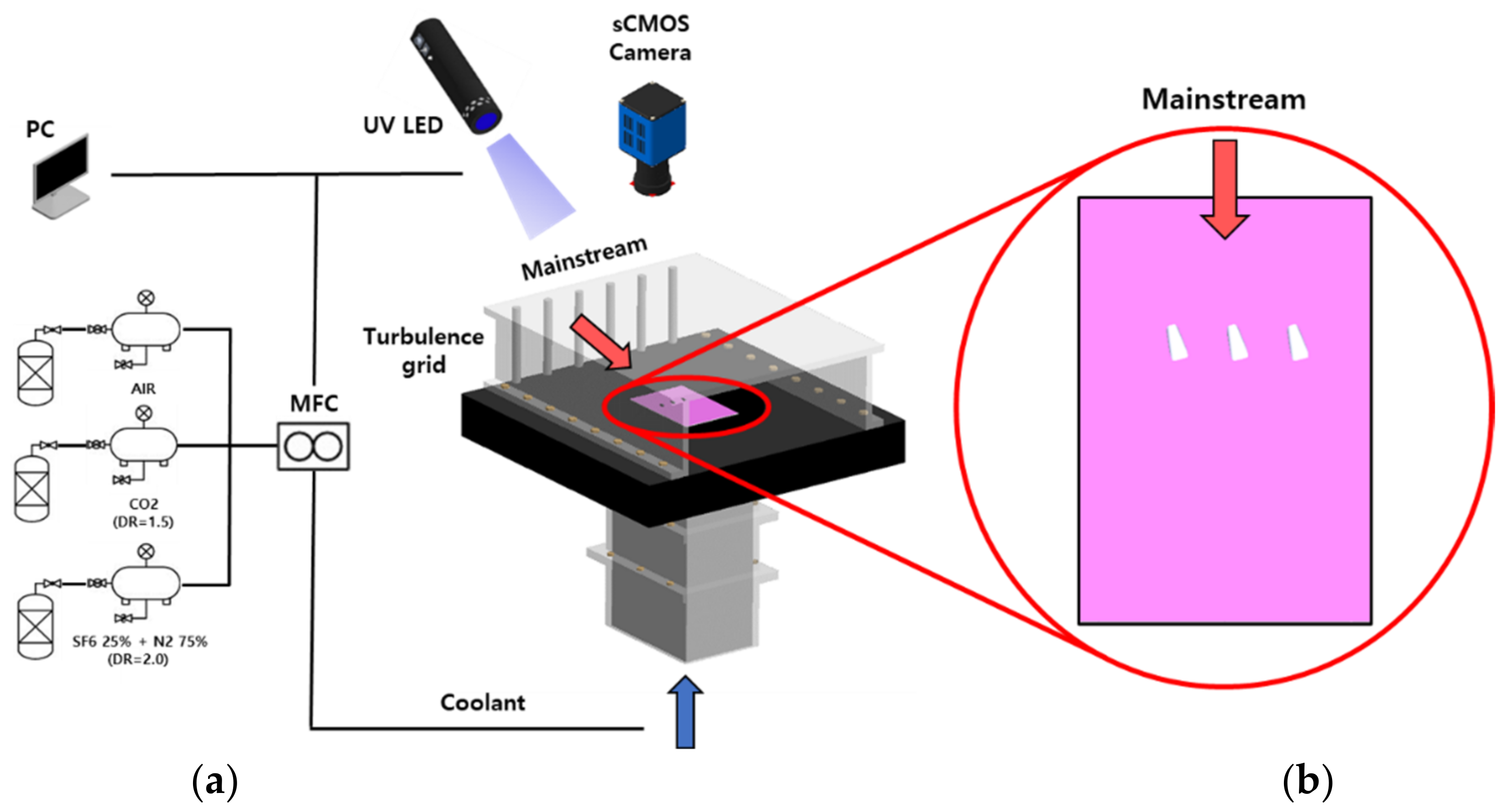

Figure 3 is the schematic of an experimental setup for measuring FCE and the test facility was the same as one used by Park et al. [22]. They compared their results with those of previous studies with similar hole configurations and demonstrated good agreement with the references. Test plates were manufactured using the SLA (Stereolithography Apparatus) 3D printing technique with a layer thickness of 0.05 mm, and the plate was installed on the plenum chamber with screen meshes and a honeycomb layer. All test plates had three identical holes, each with a hole pitch of 10D.

The mainstream velocity was 20 m/s; the turbulence grid with a diameter of 10 mm was installed 200 mm upstream from the hole exit, and the resulting mainstream turbulence intensity was 12%. The boundary layer thickness was 5mm at 30 mm upstream from the hole exit. Carbon dioxide (CO₂) and gas mixture of Nitrogen and Sulfur hexafluoride (75% N₂ + 25% SF₆) were used as coolant to simulate density ratios of 1.5 and 2.0. Flow rates were controlled using a mass flow controller (FMA-2600 series, Omega), and the blowing ratios were tested under conditions of 1.0, 1.5, 2.0, and 2.5.

To measure the FCE, a test plate coated with the PSP (Uni-FIB 400, ISSI) was installed on the test section. Air-cooled LED (LM2X-DM-400, ISSI) for irradiating light of 400 nm was installed on the test section, and the emission intensity of the PSP was measured using an sCMOS camera (PCO edge 3.1, PCO).

In this study, the uncertainty of measuring the film cooling efficiency using the PSP technique was estimated as ±8% for η = 0.3, and ±1.5% for η = 0.7 [23].

3. Shape Optimization

3.1. Design of Experiment

The central composite design method was applied to choose test points. Despite a relatively large number of test cases, the central composite design method has an advantage in analyzing the effect of the design variables [24]. The objective function for optimization was defined as the overall averaged FCE estimated over the area within 30D in the streamwise direction and ±5D in the pitchwise direction from the center of the cylinder part of the hole following the definition by Brauckmann et al. [25] as shown in Figure 4.

Table 2. Test matrix obtained by using the central composite design method.

Case No.	Windward Lateral Expansion Angle	Leeward Lateral Expansion Angle	Compound Angle
Case 1	11.96°	11.96°	6.08°
Case 2	3.04°	3.04°	6.08°
Case 3	3.04°	11.96°	6.08°
Case 4	11.96°	3.04°	6.08°
Case 5	11.96°	3.04°	23.92°
Case 6	11.96°	11.96°	23.92°
Case 7	3.04°	3.04°	23.92°
Case 8	3.04°	11.96°	23.92°
Case 9	0°	7.5°	15°
Case 10	15°	7.5°	15°
Case 11	7.5°	7.5°	0°
Case 12	7.5°	7.5°	30°
Case 13	7.5°	15°	15°
Case 14	7.5°	0°	15°
Case 15	7.5°	7.5°	15°

shows test points obtained by the central composite design method for three design variables.

For the convenience of designation, the compound angled asymmetric laidback fan shaped hole was named using three angles: ${\gamma }_{ww}-{\gamma }_{lw}-\theta$.

3.2. Kriging Model

In this study, the Kriging model was used to obtain optimal objective function. The Kriging model method is an approximate model technique that finds the distribution at unknown points using sample points already calculated using random variables to determine the correlation of the data. The Kriging model method is flexible in modeling nonlinear design problems and has a high degree of approximation accuracy even if the range of design variables is slightly larger. The unknown function to be approximated is defined as $\widehat{y}$, which is expressed mathematically as shown in Equation (3) using two element models.

$$\widehat{y}=f\left(x\right)+Z\left(x\right)$$

(3)

Here, $f\left(x\right)$ is a globalized model represented by a constant term, and $x$ is a vector composed of design variables. $Z\left(x\right)$ is a Gaussian random function with an average of zero and a covariance, which corrects the difference between the actual experimental value and the global model.

The covariance of $Z\left(x\right)$ to determine the correlation of random variables is expressed as Equation (4). Here, $\mathit{R}$ is a correlation matrix expressed by the correlation function $R\left(x_i, x_j\right)$ between two points $x_i, x_j$ given by some sample data.

$$Cov\left(x_i, x_j\right)={\sigma }^2\mathit{R}[R\left(x_i, x_j\right)$$

(4)

The predicted function by the kriging model, where the square error is minimized, is expressed as below in Equation (5) [26,27].

$$\widehat{y}\left(x\right)=f^T\left(x\right)\widehat{\beta }+r^T\left(x\right)R^{-1}\left(\mathit{Y}-\mathit{F}\widehat{\beta }\right)$$

(5)

4. Results and Discussion

4.1. Distributions of Film Cooling Effectivenes

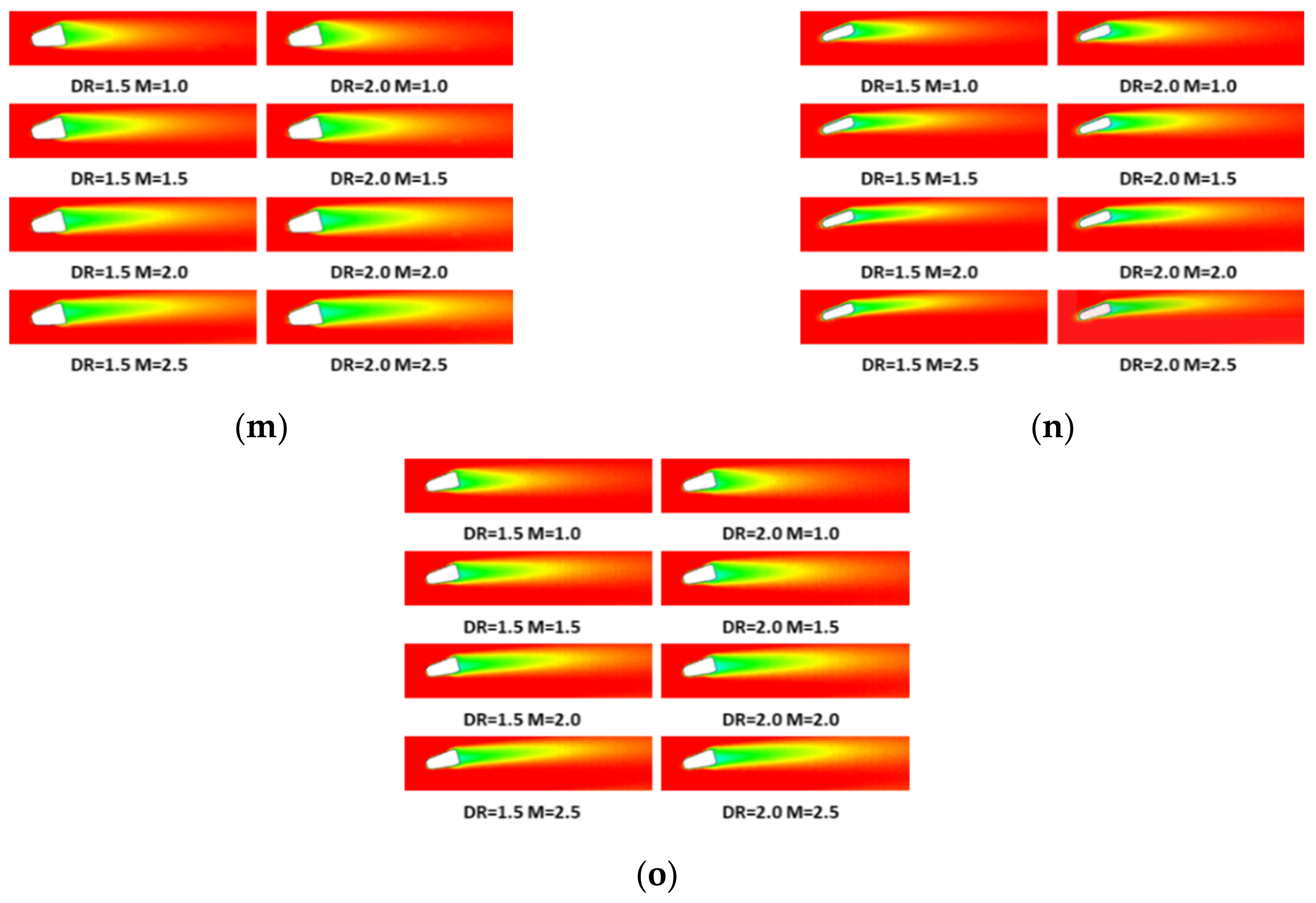

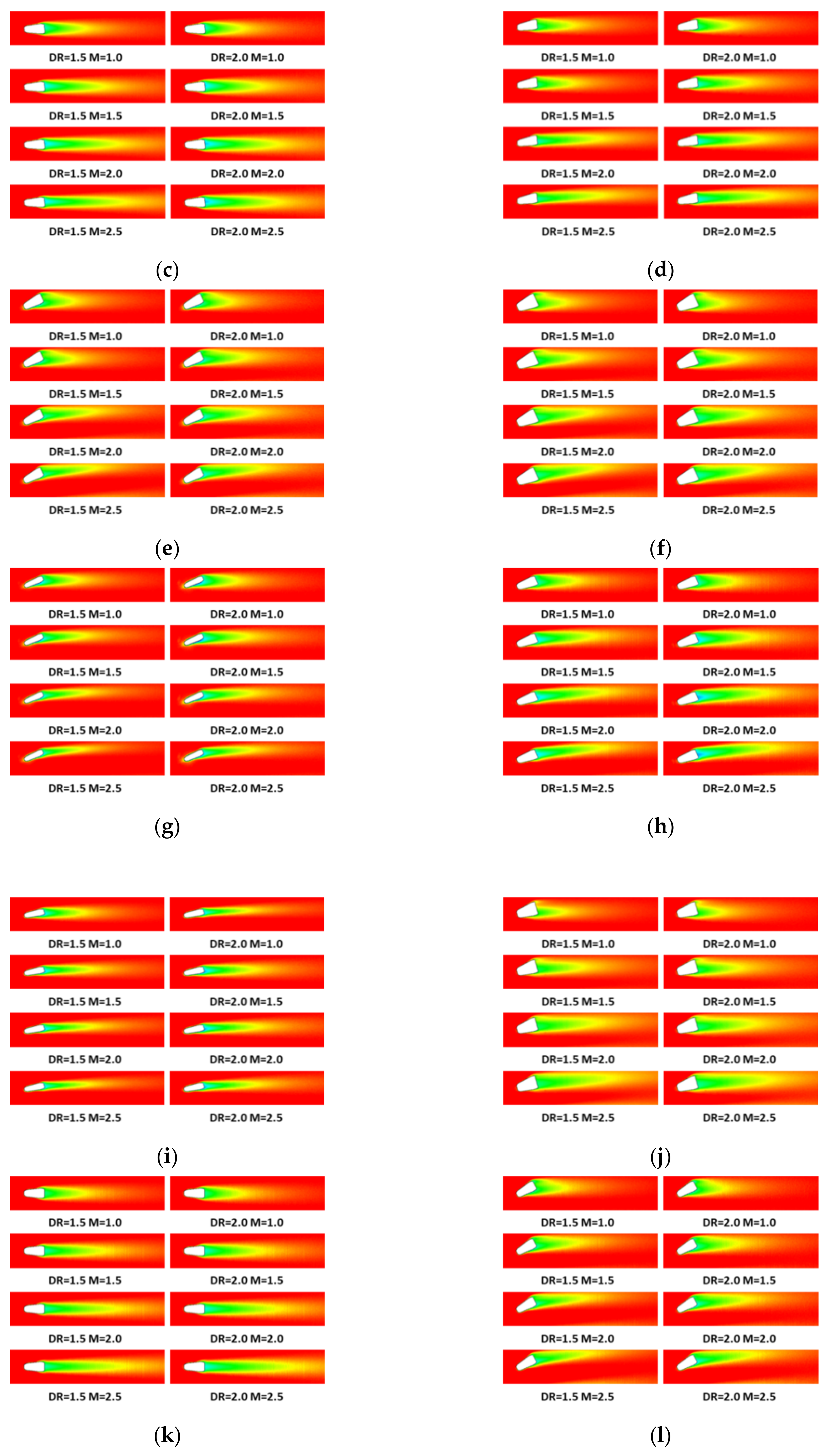

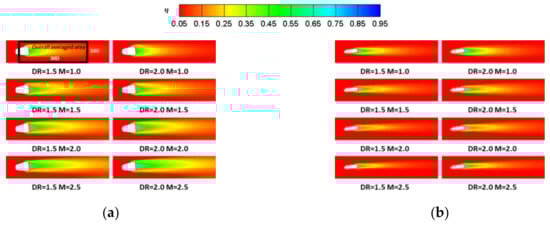

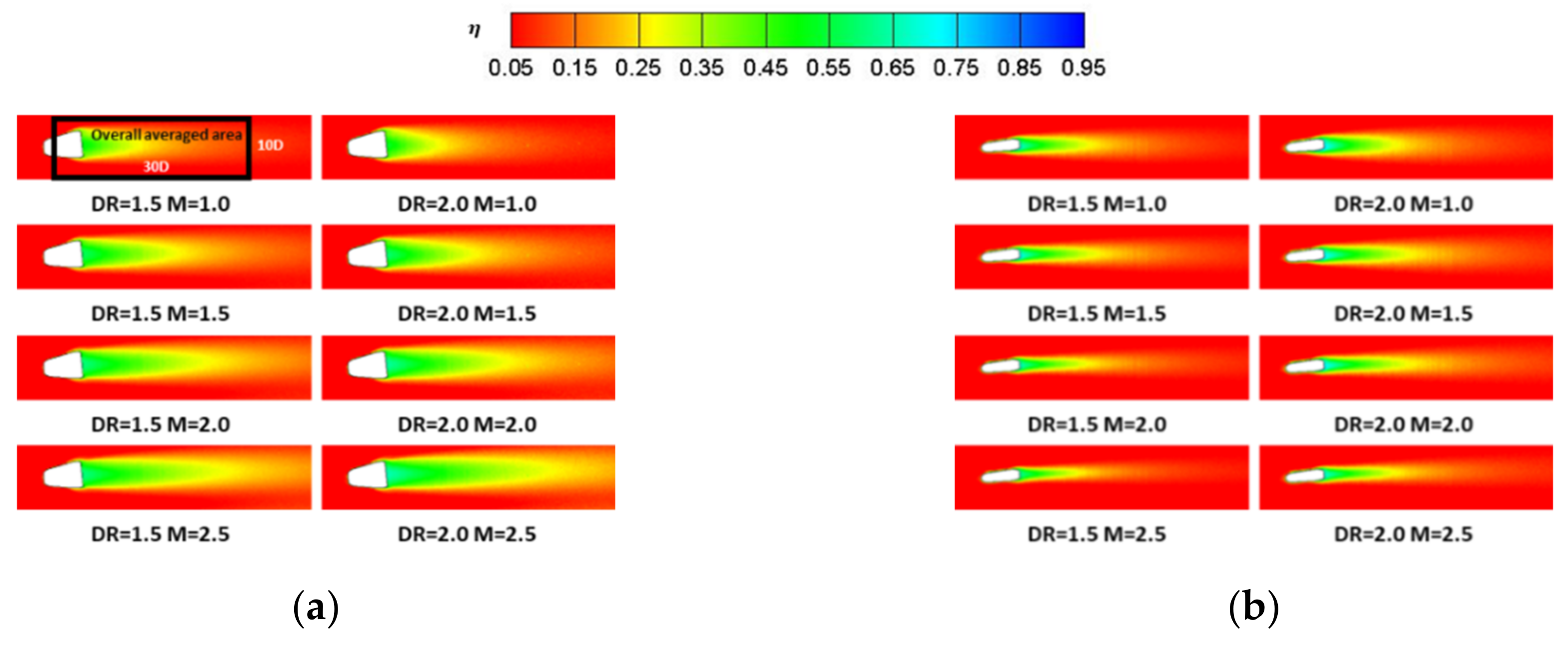

Figure 5 shows the distribution of FCE for all tested cases, and it is clearly seen that the FCE was significantly affected by the hole shape. In general, higher FCE was observed for higher density ratio cases (DR = 2.0), but the effect of blowing ratio on the FCE was not consistent. In addition, the holes with larger AR resulted in higher FCE. It seems that the coolant was diffused uniformly due to the large outlet area. However, the case with relatively large AR and compound angles (i.e., cases 5, 6, 10, and 12) showed coolant separation near the windward side of the hole exit due to a relatively large coolant flow angle with respect to the mainstream flow. The coolant separation at the hole windward side was more significant for lower blowing ratio cases.

4.2. Effects of Asymmetric Lateral Expansion Angle

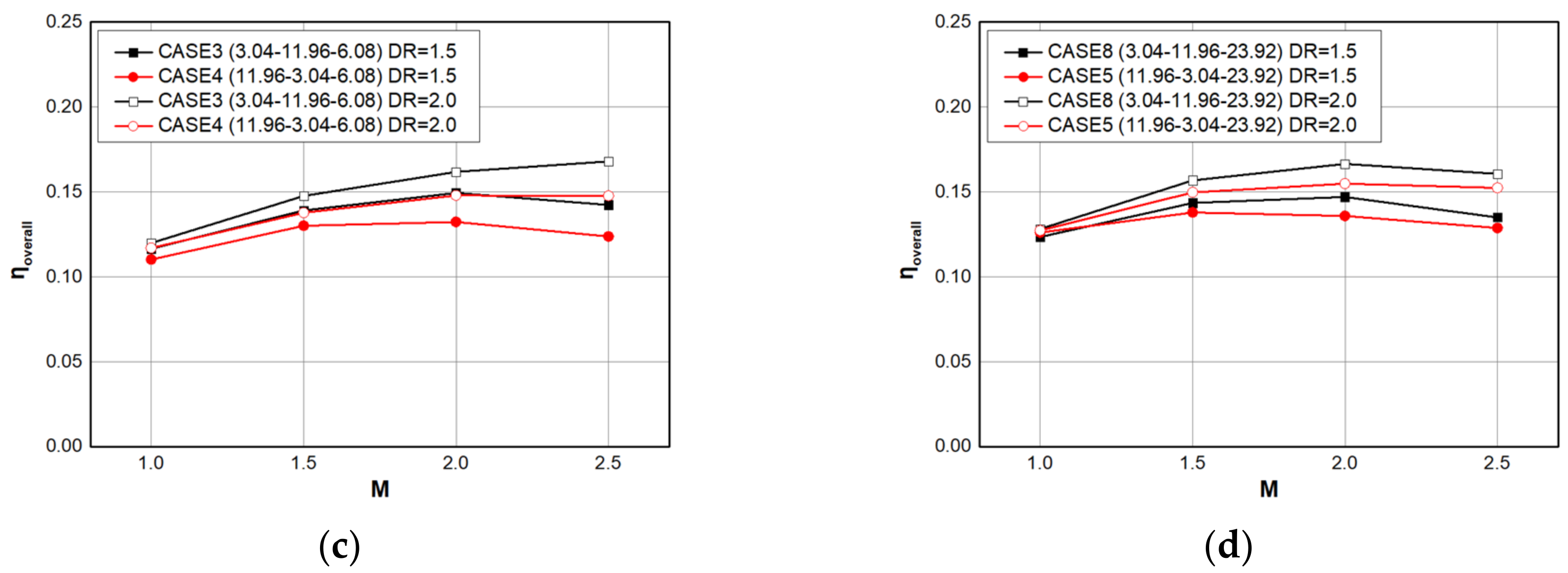

Figure 6 presents the overall averaged FCE for the cases with the same compound angle but mirror-image shape, where the windward lateral expansion angle (${\gamma }_{ww}$) of one hole is the same as the leeward lateral expansion angle (${\gamma }_{lw}$) of the other hole. As mentioned above, the higher density ratio cases provided better FCE than the lower density ratio cases, but the effect of the blowing ratio was not consistent.

Figure 6a,b indicate that the larger windward lateral expansion angle results in higher FCE; however, Figure 6c,d show a reverse trend.

Therefore, it can be said that the effects of asymmetric lateral expansion angle on the FCE did not have a consistent trend but were coupled with the compound angle.

4.3. Effects of the Windward Lateral Expansion Angle

The effects of the windward lateral expansion angle on the distribution of the FCE can be observed if we compare the cases with the same leeward lateral expansion angle and compound angle but different windward lateral expansion angles (i.e., Case 9 (0-7.5-15, Figure 5i), Case 15 (7.5-7.5-15, Figure 5o), and Case 10 (15-7.5-15, Figure 5j). Those cases have the same leeward lateral expansion angle (7.5°) and compound angle (15°), but the windward lateral expansion angle varies from 0° to 15°.

For Case 10 (15-7.5-15, Figure 5j) which has a larger windward lateral expansion angle and larger hole exit area, the coolant separated from the windward side of the hole at the lower blowing ratios. For higher blowing ratios, as the coolant momentum increased, the coolant separation at the location was not observed, and relatively uniform and high FCE was observed. In contrast, Case 9 (0-7.5-15, Figure 5i) which has a smaller windward lateral expansion angle and smaller hole exit area, coolant separation was not observed even for the lower blowing ratio cases; however, overall FCE was lower for Case 9. Higher coolant momentum for Case 9 prevented the coolant separation near the windward side of the hole exit but induced the coolant lift off and reduced coolant diffusion, resulting in relatively low FCE.

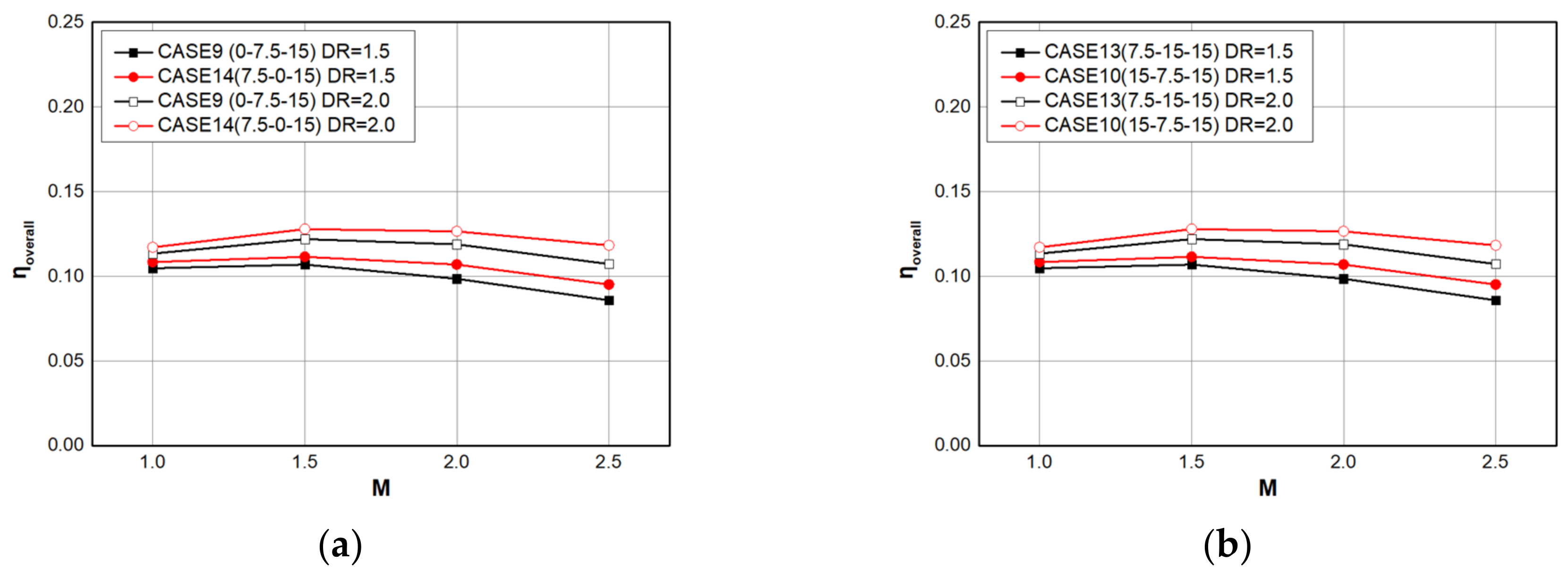

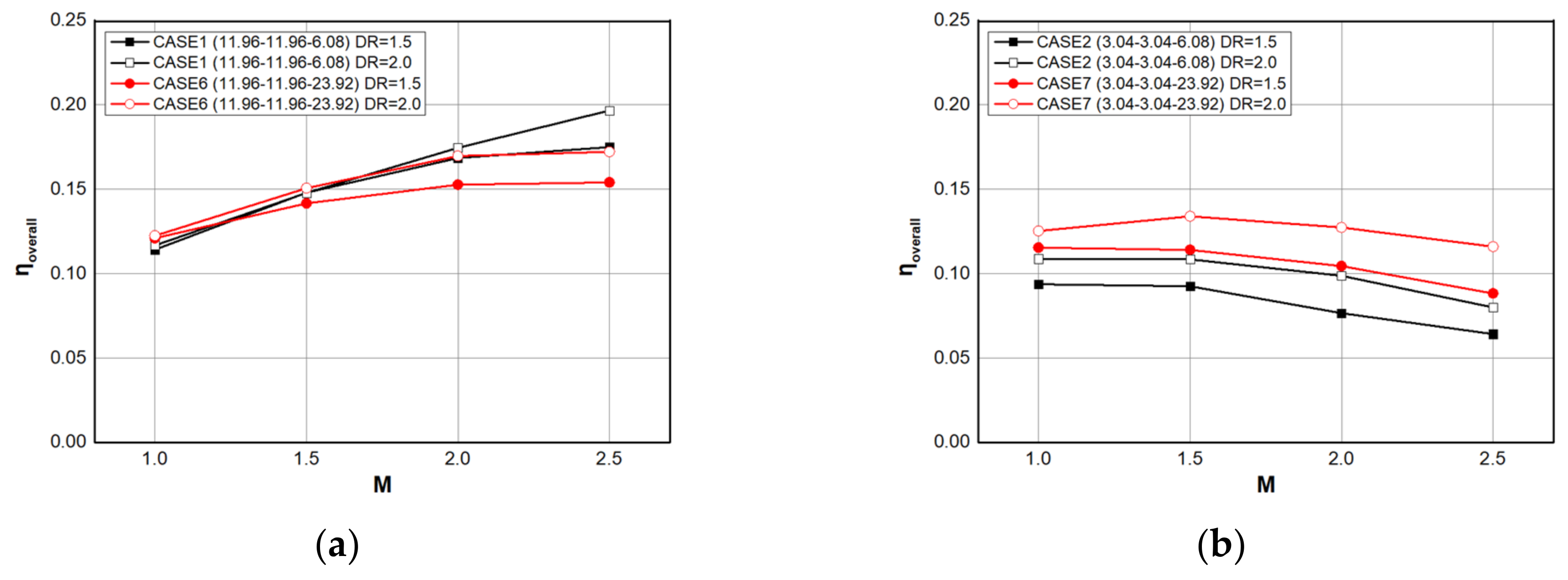

Figure 7 presents the overall averaged FCE for cases with the same leeward lateral expansion and the same compound angle, but different windward lateral expansion angles (${\gamma }_{ww}$-11.96-6.08, ${\gamma }_{ww}$-3.04-6.08, ${\gamma }_{ww}$-3.04-23.92, ${\gamma }_{ww}$-11.96-23.92, and ${\gamma }_{ww}$-7.5-15).

All selected combinations of holes showed better film cooling performance at higher density ratios, but the effects of the blowing ratio were not consistent. Generally, cases with larger windward lateral expansion angle showed higher FCE at the higher blowing ratios because of well diffused coolant in the lateral direction. However, in Figure 7d, the FCE of Case 6 (11.96-11.96-23.92) with the larger windward lateral expansion angle was smaller than that of Case 8 (3.04-11.96-23.92) at the low blowing ratios because of the coolant separation near the windward side of the hole exit, as discussed above.

4.4. Effects of the Leeward Lateral Expansion Angle

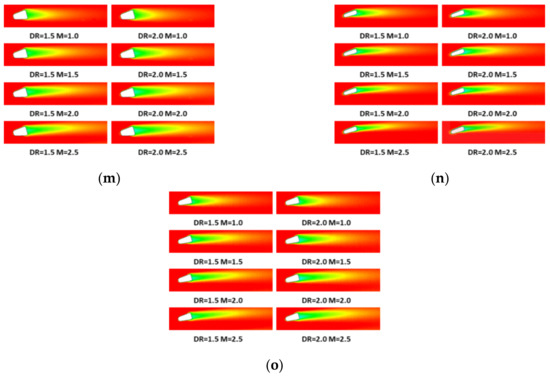

Case 14 (7.5-0-15, Figure 5n), Case 15 (7.5-7.5-15, Figure 5o), and Case 13 (7.5-15-15, Figure 5 m) were compared to observe the effects of leeward lateral expansion angle. In Case 14 (7.5-0-15, Figure 5n), the coolant was not diffused well due to the higher momentum generated by the relatively narrow hole exit area; however, for Case 13 (7.5-15-15, Figure 5m), FCE was higher due to the larger hole exit area.

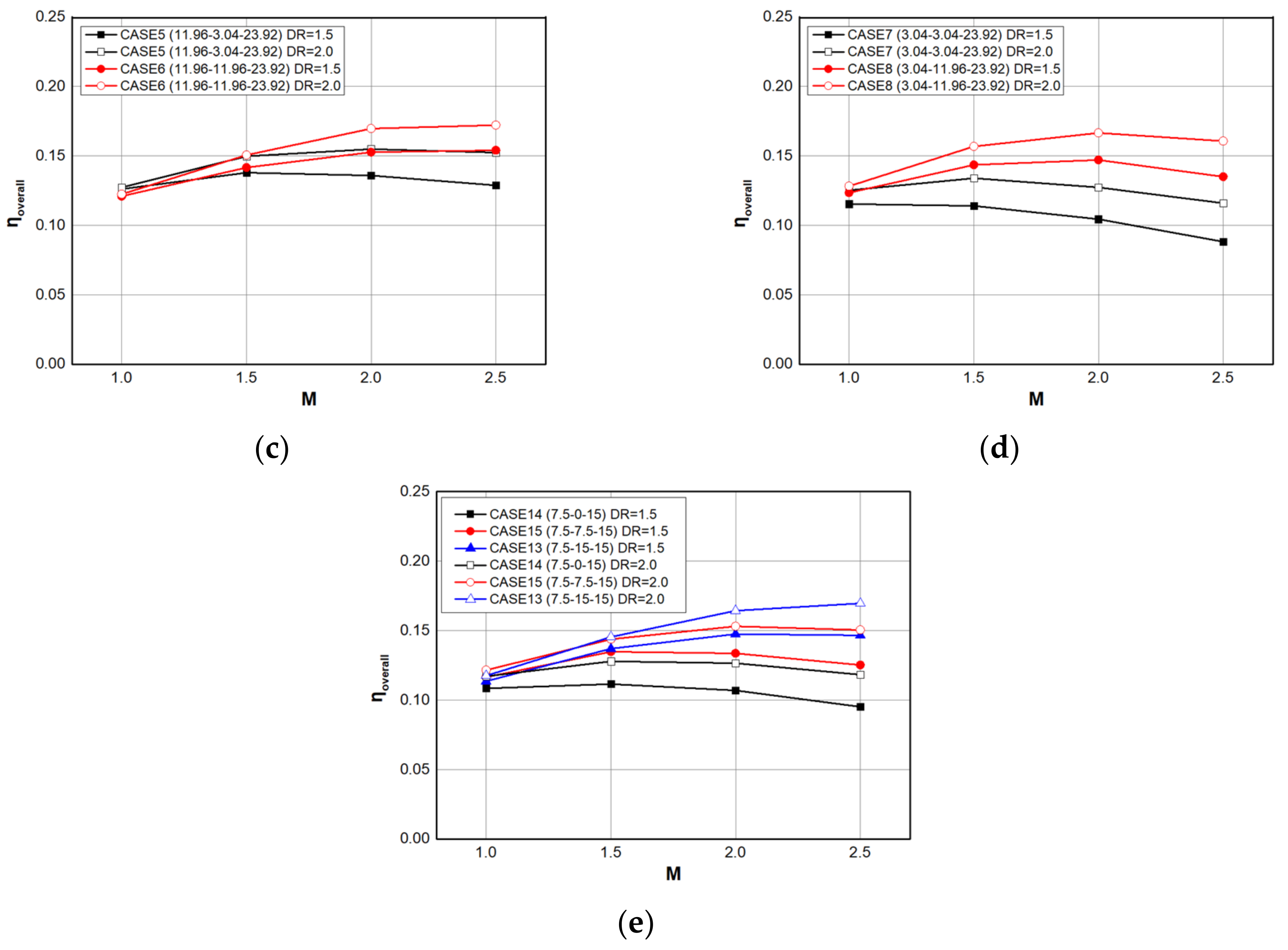

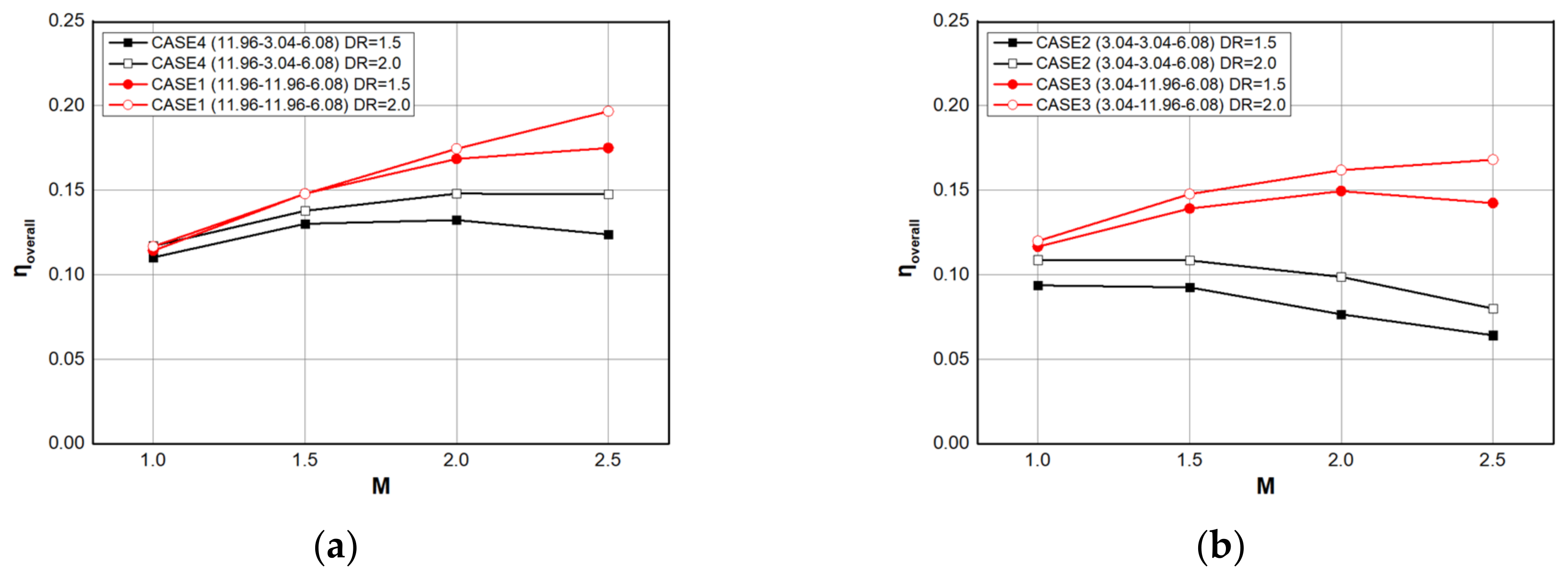

Figure 8 presents the overall averaged FCE for the combination of cases with the same windward lateral expansion angle (${\gamma }_{ww}$) and compound angle (θ), but different leeward lateral expansion angles (${\gamma }_{lw}$), i.e., (11.96-${\gamma }_{lw}$-6.08, 3.04-${\gamma }_{lw}$-6.08, 11.96-${\gamma }_{lw}$-23.92, 3.04-${\gamma }_{lw}$-23.92, and 7.5-${\gamma }_{lw}$-15). Again, all cases show higher FCE at the higher density ratio cases (DR = 2.0), and for each hole shape, the effects of blowing ratio were not consistent. Moreover, in general, FCE is higher for the higher leeward lateral expansion angle cases due to the relatively larger hole exit area and well diffused coolant as mentioned above.

4.5. Effects of the Compound Angle

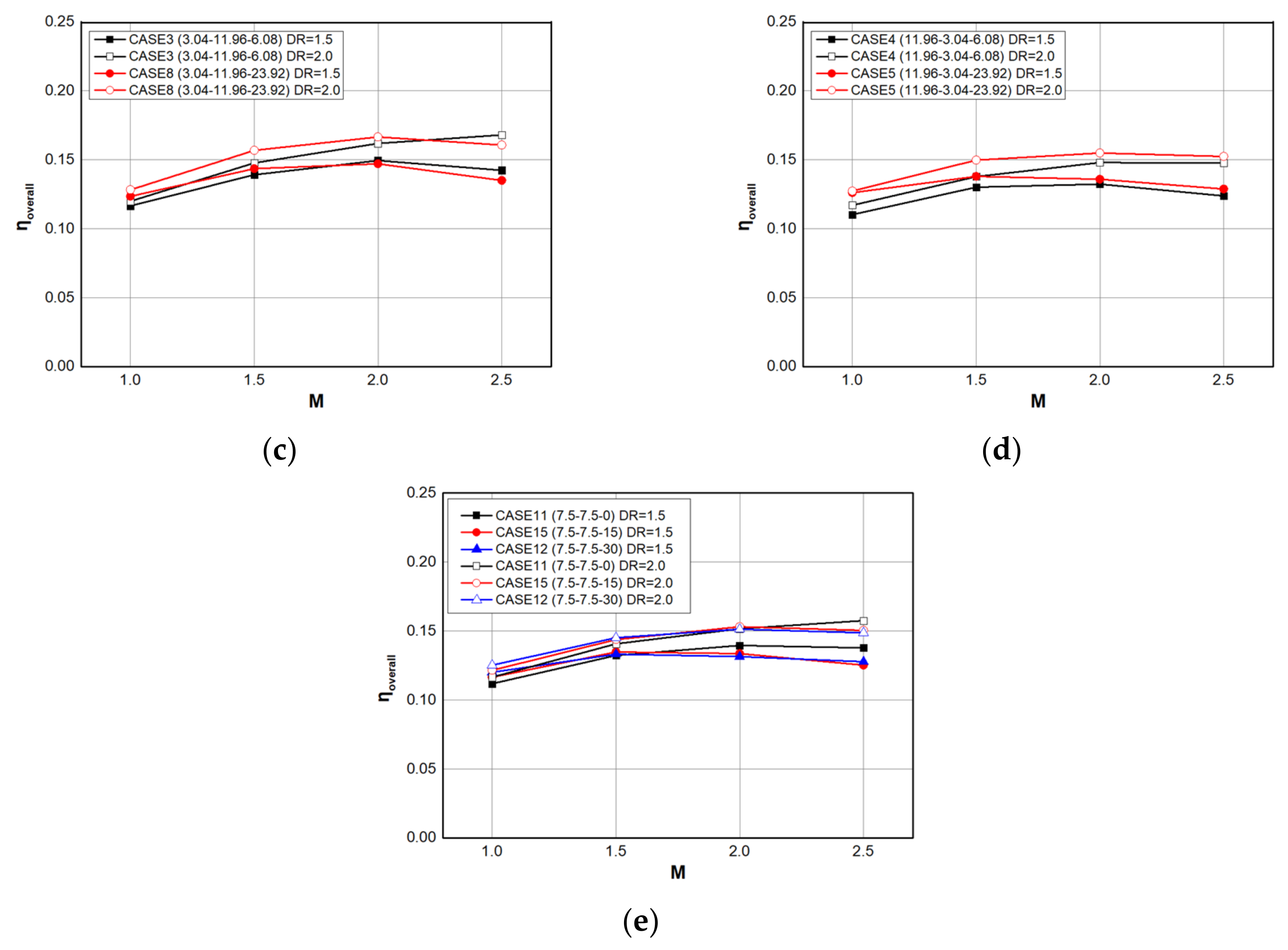

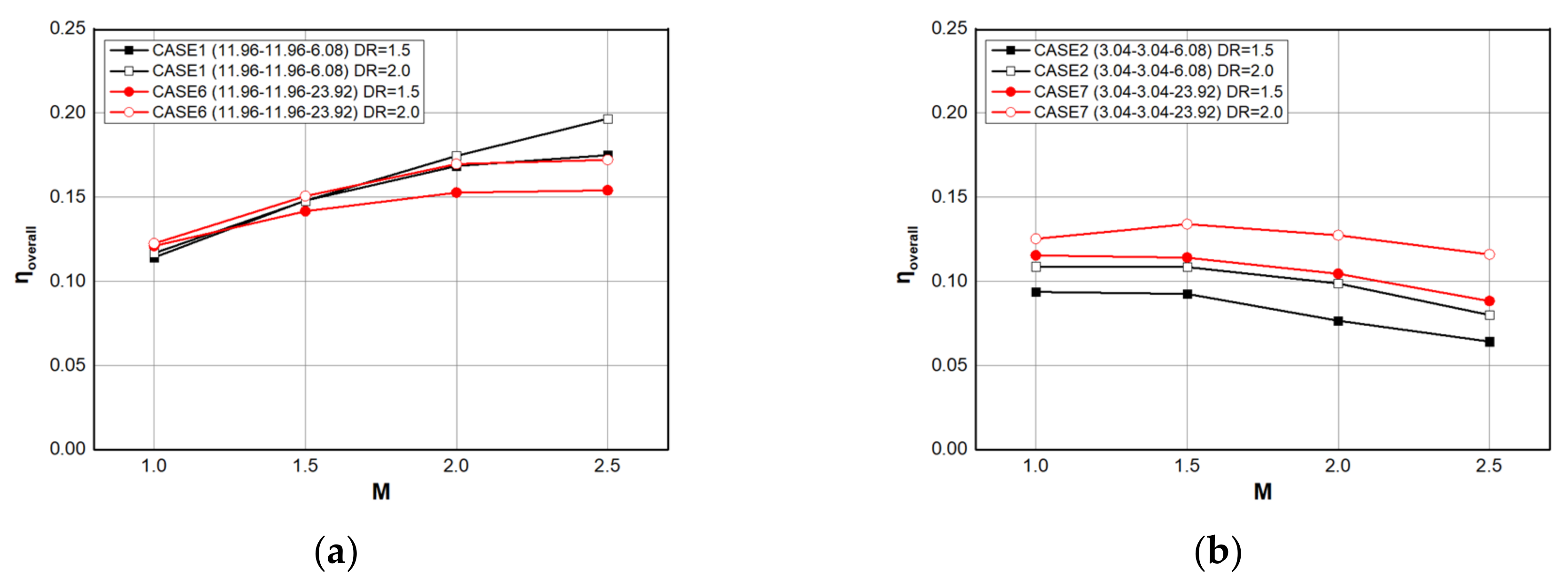

Figure 9 presents the overall averaged FCE of hole combinations (11.96-11.96-θ, 3.04-3.04-θ, 3.04-11.96-θ, 11.96-3.04-θ, and 7.5-7.5-θ) to investigate the effect of compound angle (θ). For all cases, higher density ratio resulted in better film cooling performance, but the effects of blowing ratio were not consistent. For each combination of cases, the effect of the compound angle was not consistent. In Figure 9b,d, larger compound angle cases (Case 5 and Case 7) showed higher FCE at all blowing ratios, while other combinations did not show a consistent trend.

4.6. Main Effects Analysis

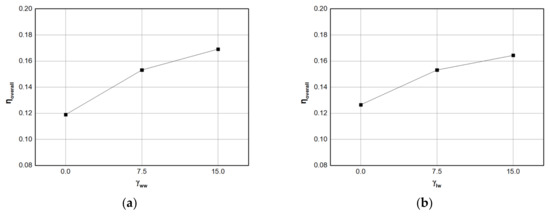

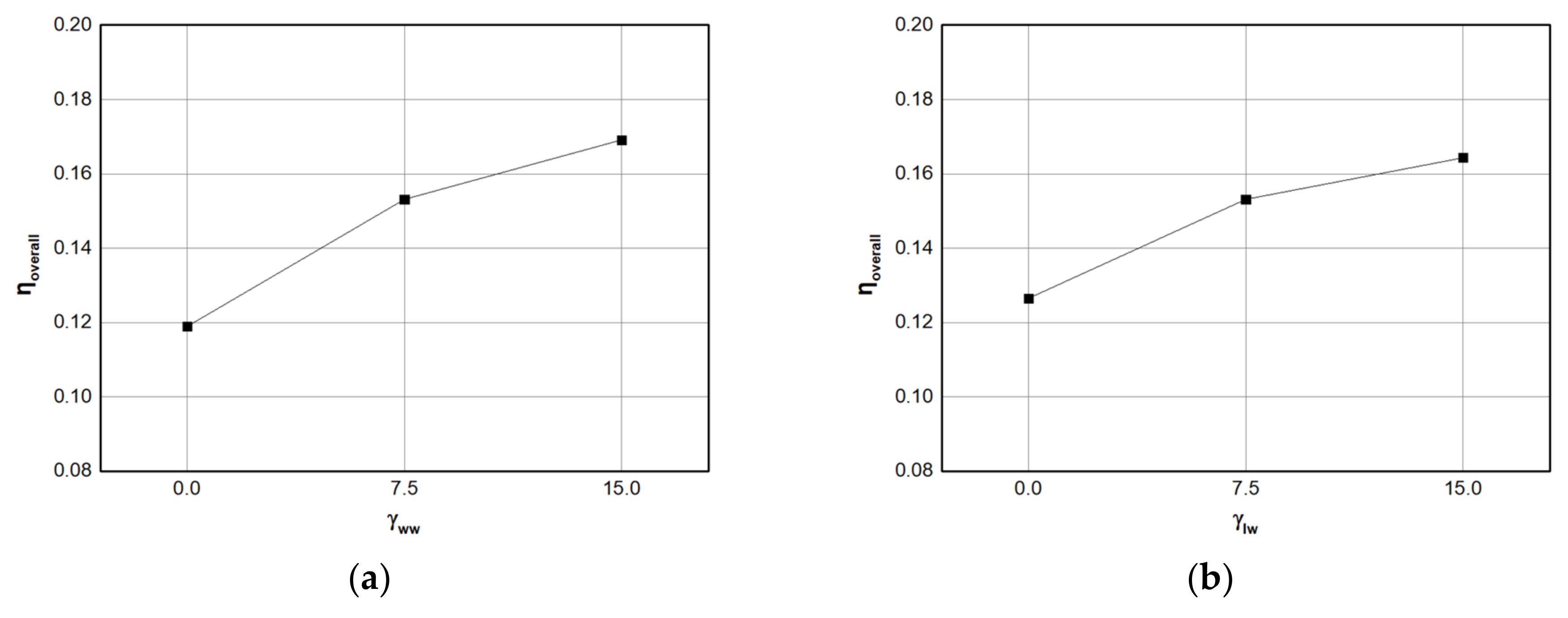

Figure 10 shows the main effect of the design variables at the blowing ratio 2.0 and density ratio 2.0 which are similar to the operating condition of an actual gas turbine. The main effect indicates the effects of change in the design variable on the objective function. Moreover, a larger gradient in the main effect graph means a larger effect upon the variable.

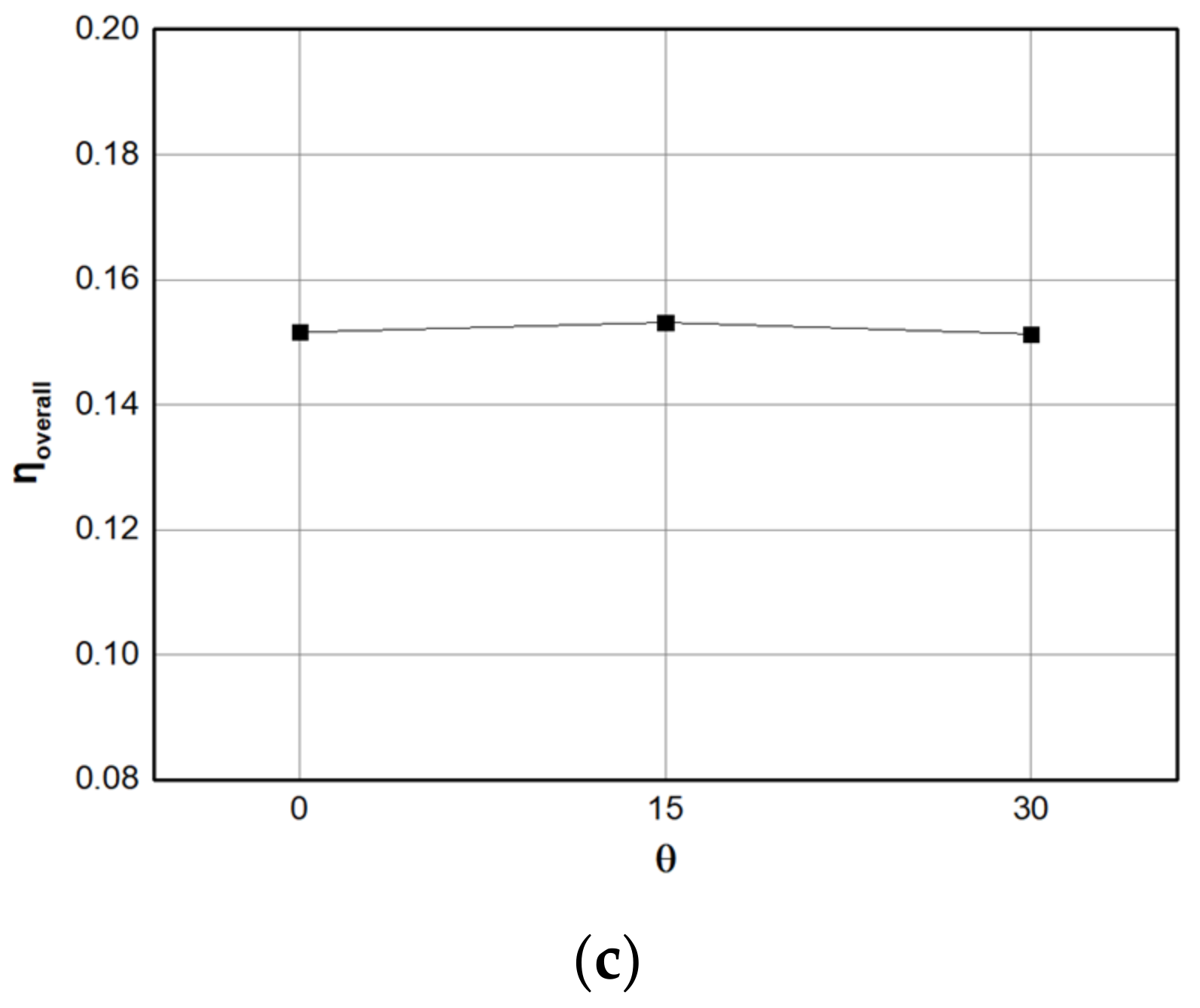

As shown in Figure 10a,b, the FCE was strongly affected by the windward and leeward lateral expansion angles, and the effect was more significant, with a steeper gradient, for smaller angles. In Figure 10c, the compound angle of 15° showed the highest FCE; however, the effect of the compound angle was relatively small (smaller gradient).

4.7. Overall Averaged FCE

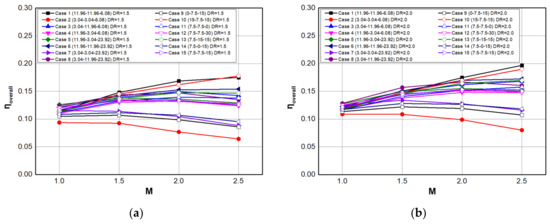

Figure 11 shows the overall averaged FCE for all cases. Higher FCE was observed for the high-density ratio (DR = 2.0) case at the given hole shape, and the effects of blowing ratio were not consistent for each hole. However, the effects of blowing ratio on the FCE for each hole were similar for both density ratios.

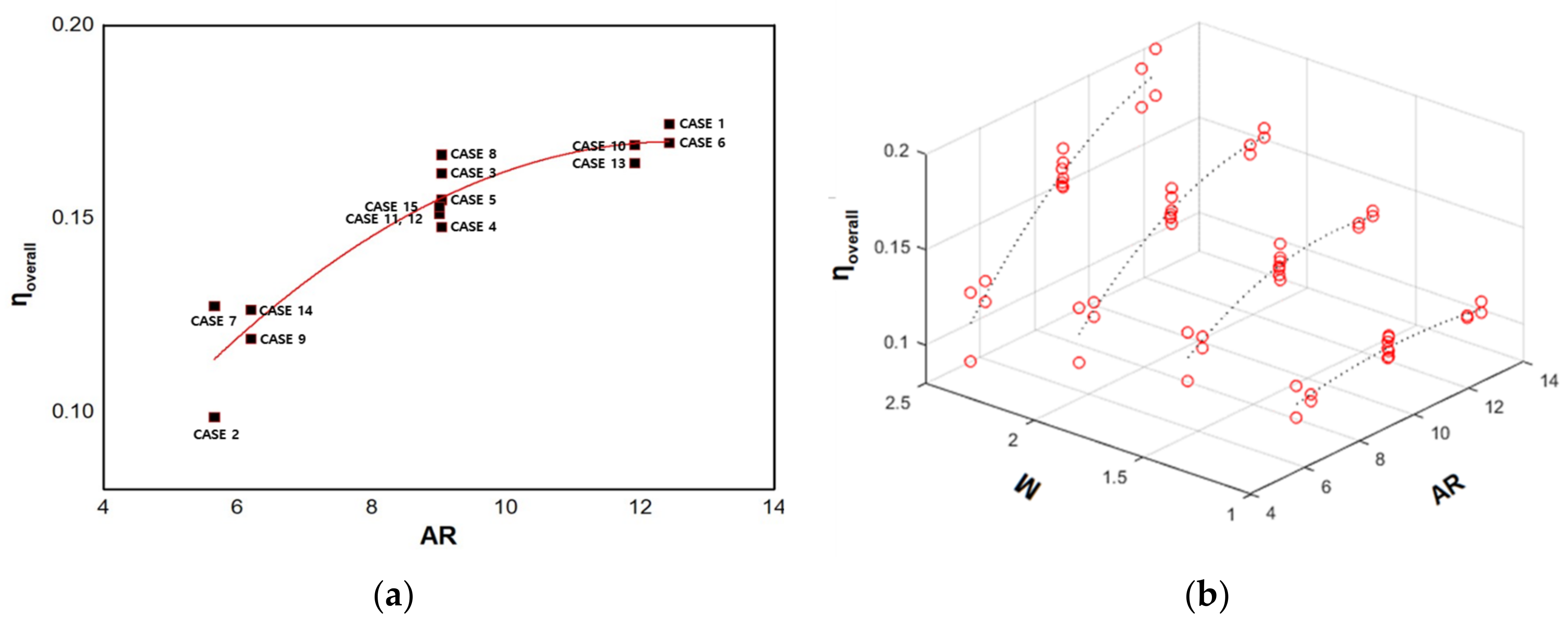

Figure 12a indicates the overall averaged FCE versus the AR. Case 1 (11.96-11.96-6.08), Case 10 (15-7.5-15), and Case 6 (11.96-11.96-23.92) with relatively larger hole exit areas showed high FCE at all density ratios; however, a relatively low FCE was obtained in Case 2 (3.04-3.04-6.08), Case 9 (0-7.5-15), and Case 14 (7.5-0-15) with relatively small hole exit areas. Next, Figure 12b shows overall averaged FCE versus the AR and blowing ratio. In a previous study by Park et al. [27], the overall averaged FCE of fan shaped holes tended to decrease if the AR exceeded the peak point; however, within the considered range of the current study for the compound angled asymmetric laidback fan shaped hole, a larger AR resulted in higher FCE.

The effect of the shape variables on the FCE varied depending on all operating environments. Therefore, in this study, the optimization holes with a different shape for each blowing ratio under the density ratio 2.0 which is similar to the operating condition of the actual gas turbine were designed and investigated.

4.8. Result of Optimization

In this study, an optimal hole shape at each blowing ratio was obtained for the density ratio 2.0 condition using the Kriging model.

Table 3. Results of the optimized design variables at DR = 2.0.

	Windward Lateral Expansion Angle	Leeward Lateral Expansion Angle	Compound Angle	Area Ratio	${\mathit{\eta }}_{\mathit{o}\mathit{v}\mathit{e}\mathit{r}\mathit{a}\mathit{l}\mathit{l},\mathit{o}\mathit{p}\mathit{t}}$
M = 1.0	5.46	8.33	24.56	8.55	0.129
M = 1.5	3.49	14.7	20.91	10.28	0.159
M = 2.0	3.94	15	11.82	10.57	0.177
M = 2.5	13.49	13.03	5.15	13.44	0.202

presents results of optimization and the predicted overall averaged FCE. As the blowing ratio increased, the optimum compound angle gradually decreased, while the optimum AR gradually increased, and the overall averaged FCE was higher for the higher blowing ratio.

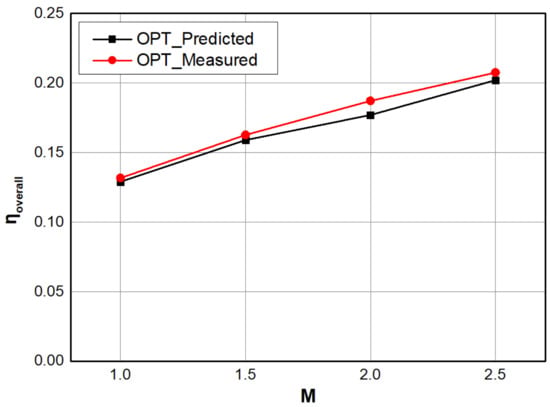

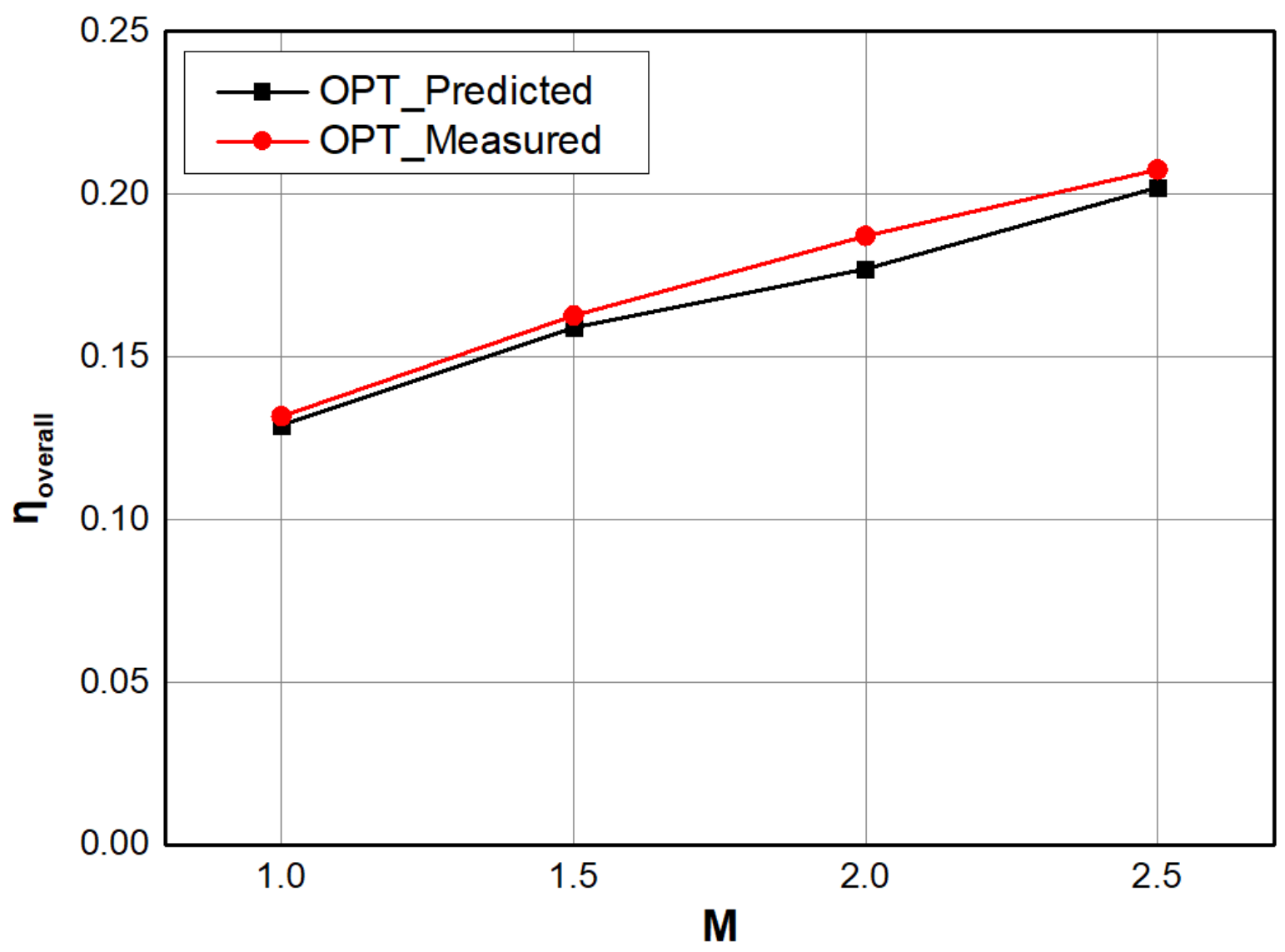

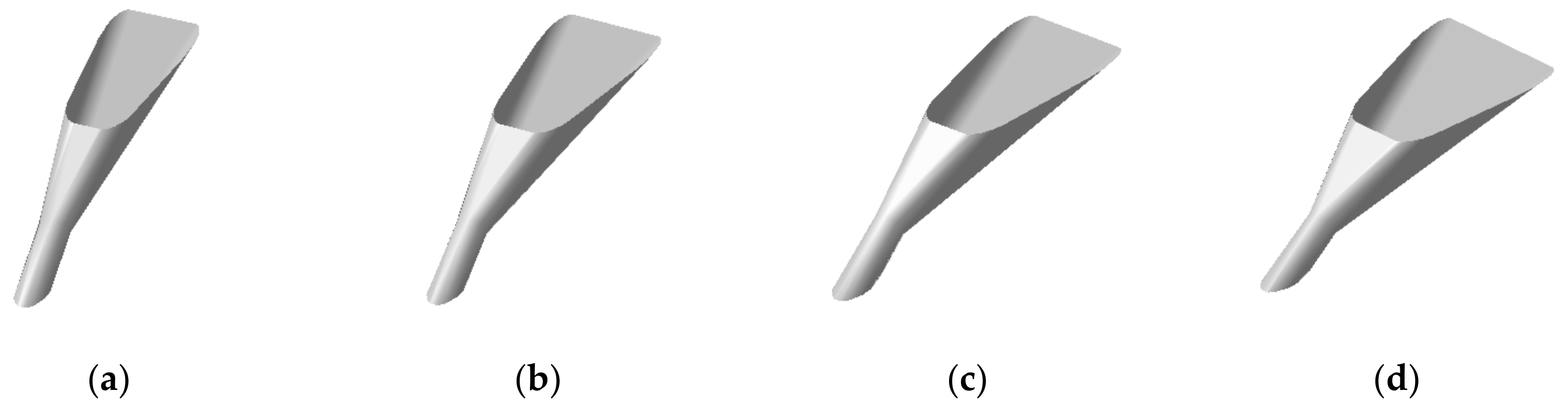

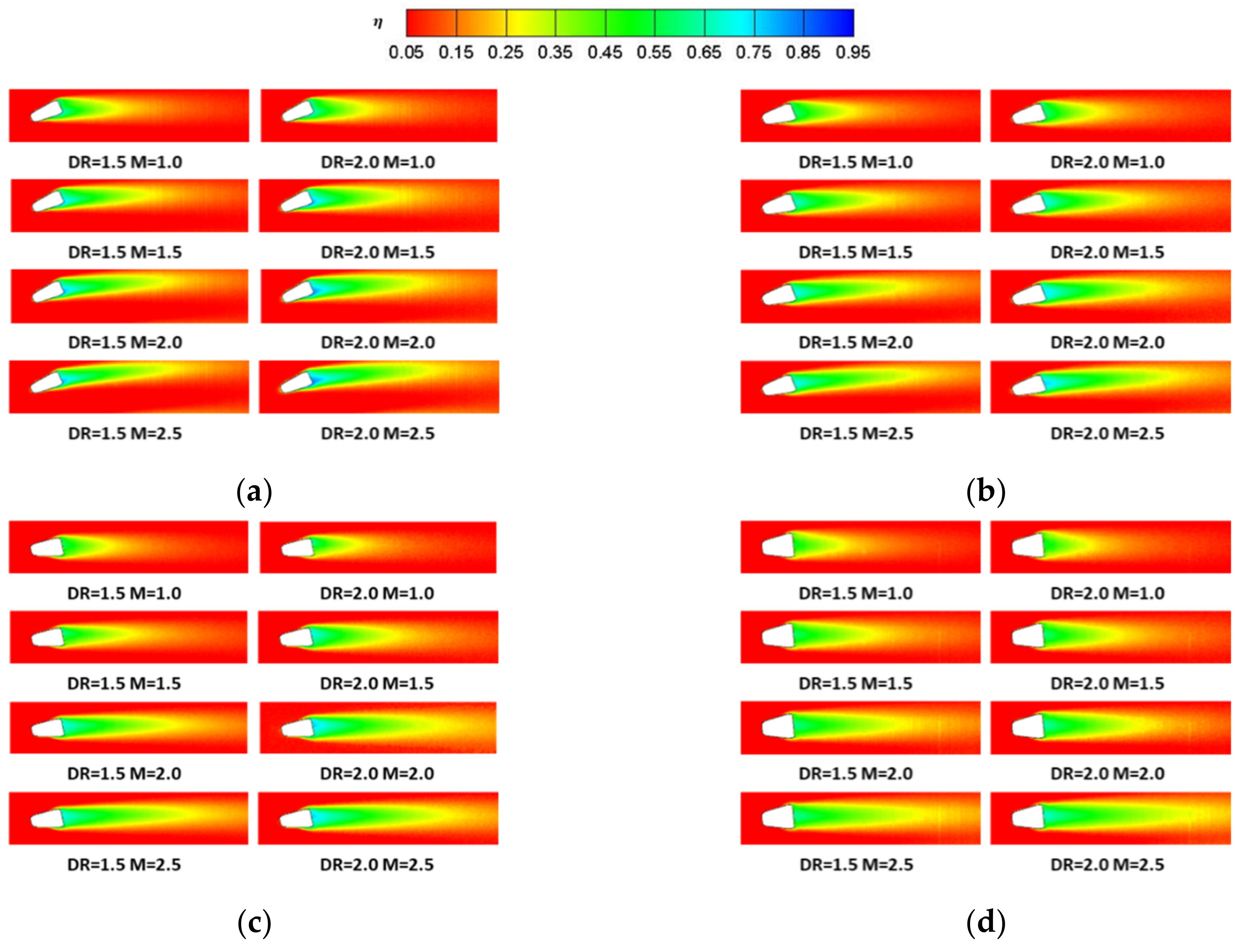

Figure 13 shows the optimal hole shapes at different blowing ratios, and the optimized holes were tested again to obtain the FCE. The distribution of FCE for optimized holes was presented in Figure 14, and the comparison between the predicted and the measured overall averaged FCE is shown in Figure 15. The maximum difference between the predicted and the measured FCE was about 5.7%, which signifies that the optimization results were predicted well.

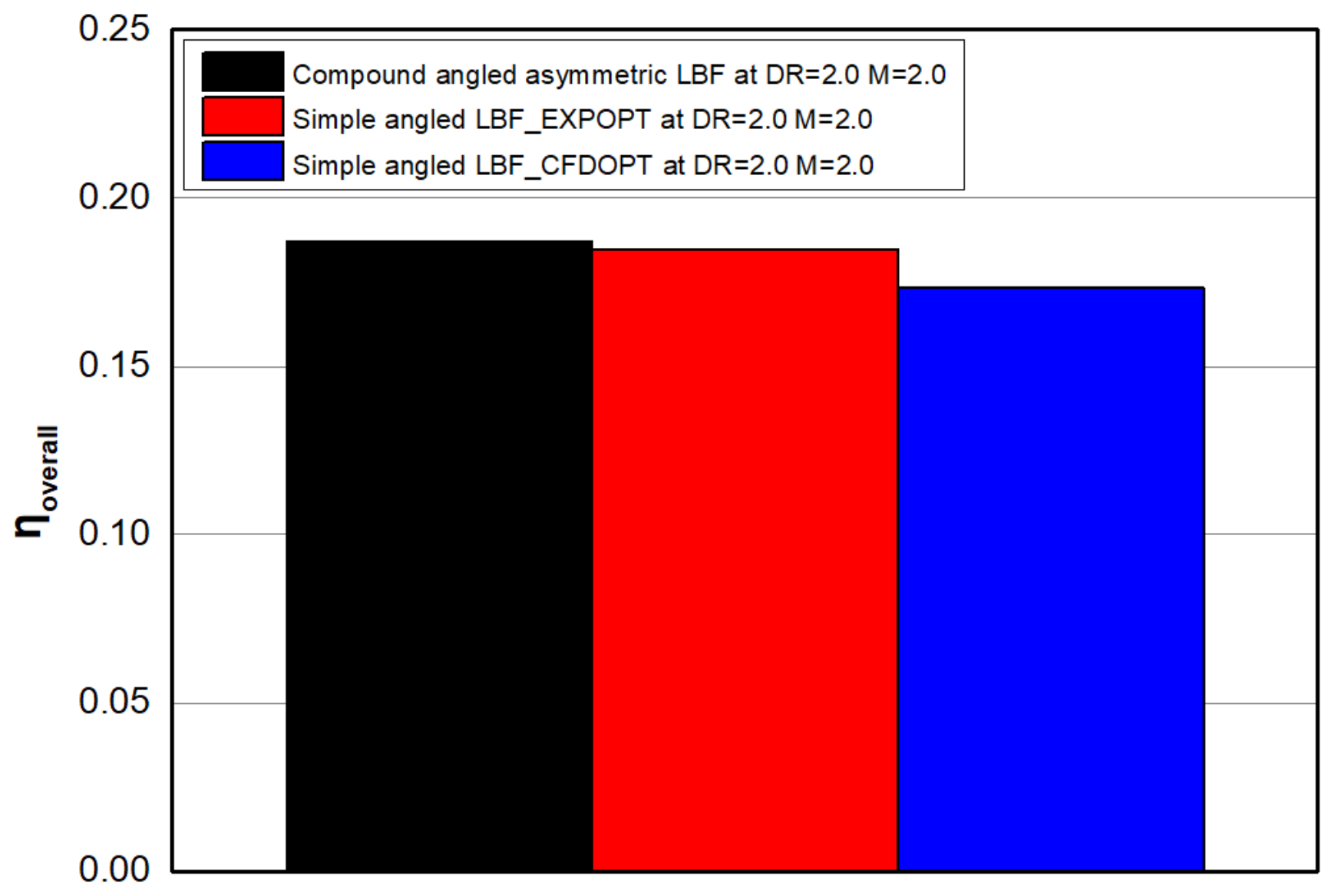

Figure 16 presents a comparison of the overall averaged FCE of the optimized holes by Park et al. [28], Seo et al. [21], and the current study at the conditions of the blowing ratio 2.0 and the density ratio 2.0. All three optimized holes had the same injection angle of 30° and the metering length of 2. Results showed that the FCE of the optimized compound angled asymmetric laidback fan shaped hole was higher than that of the experimentally optimized hole [28] and numerically optimized hole [21] by 1.3% and 8%, respectively.

5. Conclusions

In this study, the effect of the compound angled asymmetric fan shaped hole was experimentally investigated using the PSP technique. Among the shape variables of the compound angled asymmetric laidback fan shaped hole, windward lateral expansion angle, leeward expansion angle, and compound angle were selected as design variables. The optimized hole shape was derived using the Kriging model. In addition, the optimized laidback fan shaped hole from previous studies was compared with the optimized hole in this study under the same conditions. The main results of this study are as follows:

(1)

The overall FCE of mirror-image shape holes with the same compound angle showed different trends depending on hole shape.

(2)

The main effects indicated that the FCE increased as the windward and leeward lateral expansion angles increased, but the effects of the compound angles were not consistent.

(3)

The overall FCE was higher at the higher density ratio (DR = 2.0) and the larger AR improved film cooling performance.

(4)

The optimal hole shape at each blowing ratio indicated that the compound angle decreased, and the hole exit area widened as the blowing ratio increased.

(5)

Under the conditions of density ratio of 2.0 and blowing ratio of 2.0, the overall FCE of the optimized compound angled asymmetric fan shaped hole outperformed both the experimentally optimized laidback fan shaped hole and the CFD optimized laidback fan shaped hole in previous studies by 1.3% and 8%, respectively.

Current results showed that the compound angled asymmetric laidback fan shaped holes could increase the FCE. Therefore, these results will be extended to the FCE in turbine blade cascade experiments in future research.
