Energies 2012, 5(12), 5229-5242; doi:10.3390/en5125229

Behavior of the Blade Tip Vortices of a Wind Turbine Equipped with a Brimmed-Diffuser Shroud

Department of Aeronautics and Astronautics, Kyushu University, Kasuga, Fukuoka 816-8580, Japan
Research Institute for Applied Mechanics, Kyushu University, Kasuga, Fukuoka 816-8580, Japan
Author to whom correspondence should be addressed.
Received: 3 November 2012 / Revised: 30 November 2012 / Accepted: 10 December 2012 / Published: 13 December 2012
View Full-Text   |   Download PDF [1524 KB, uploaded 17 March 2015]   |

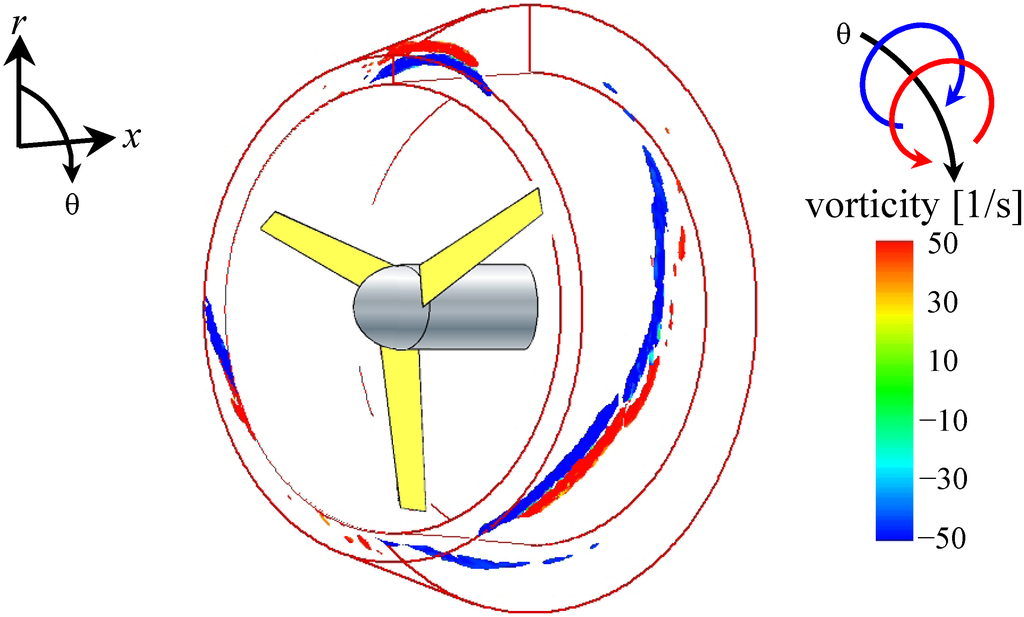

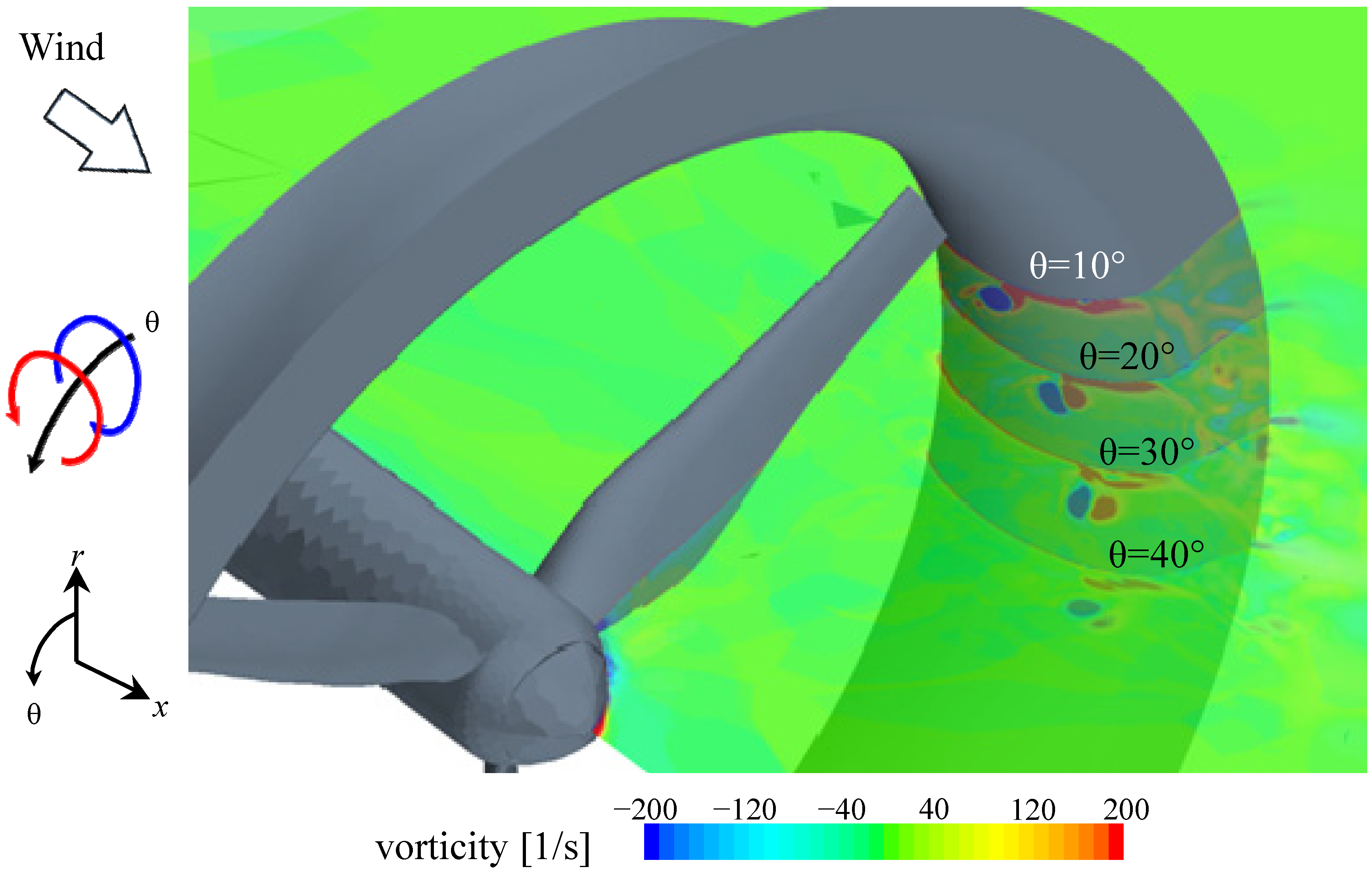

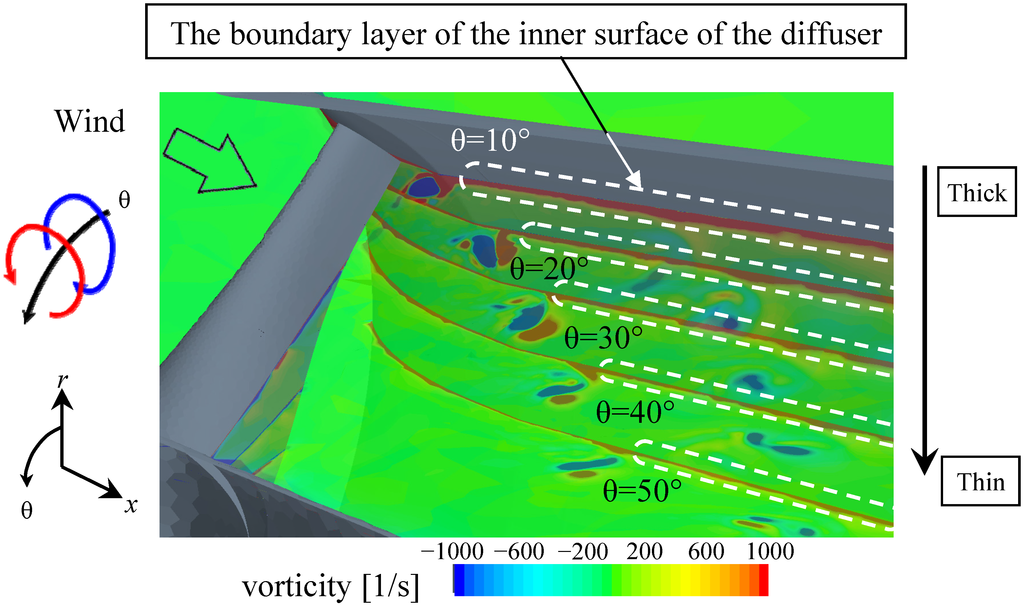

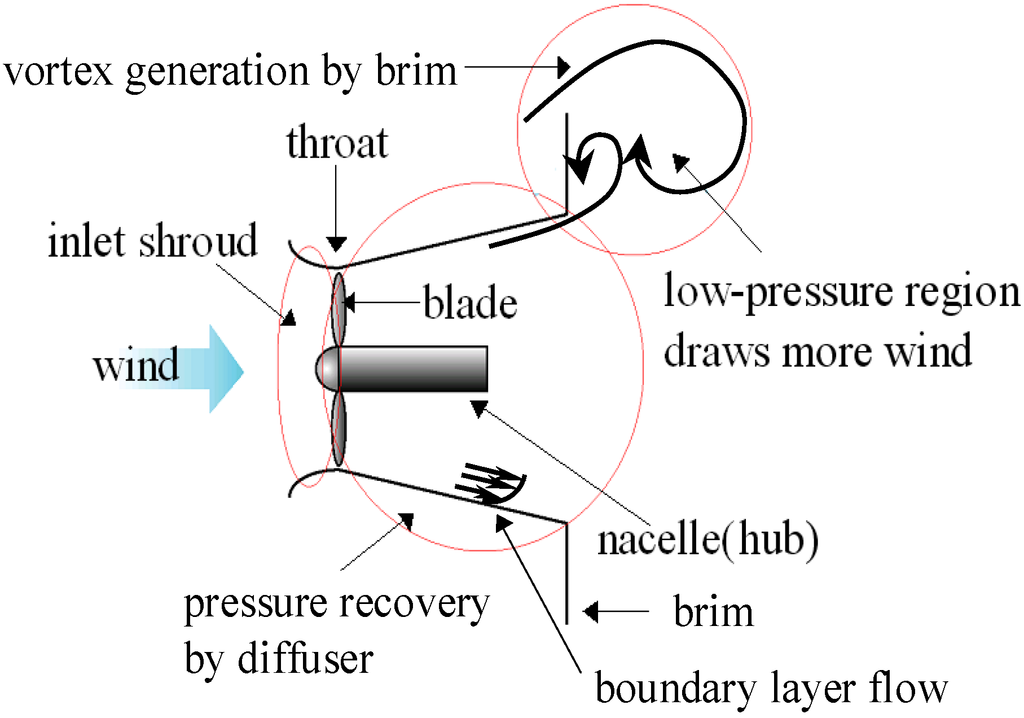

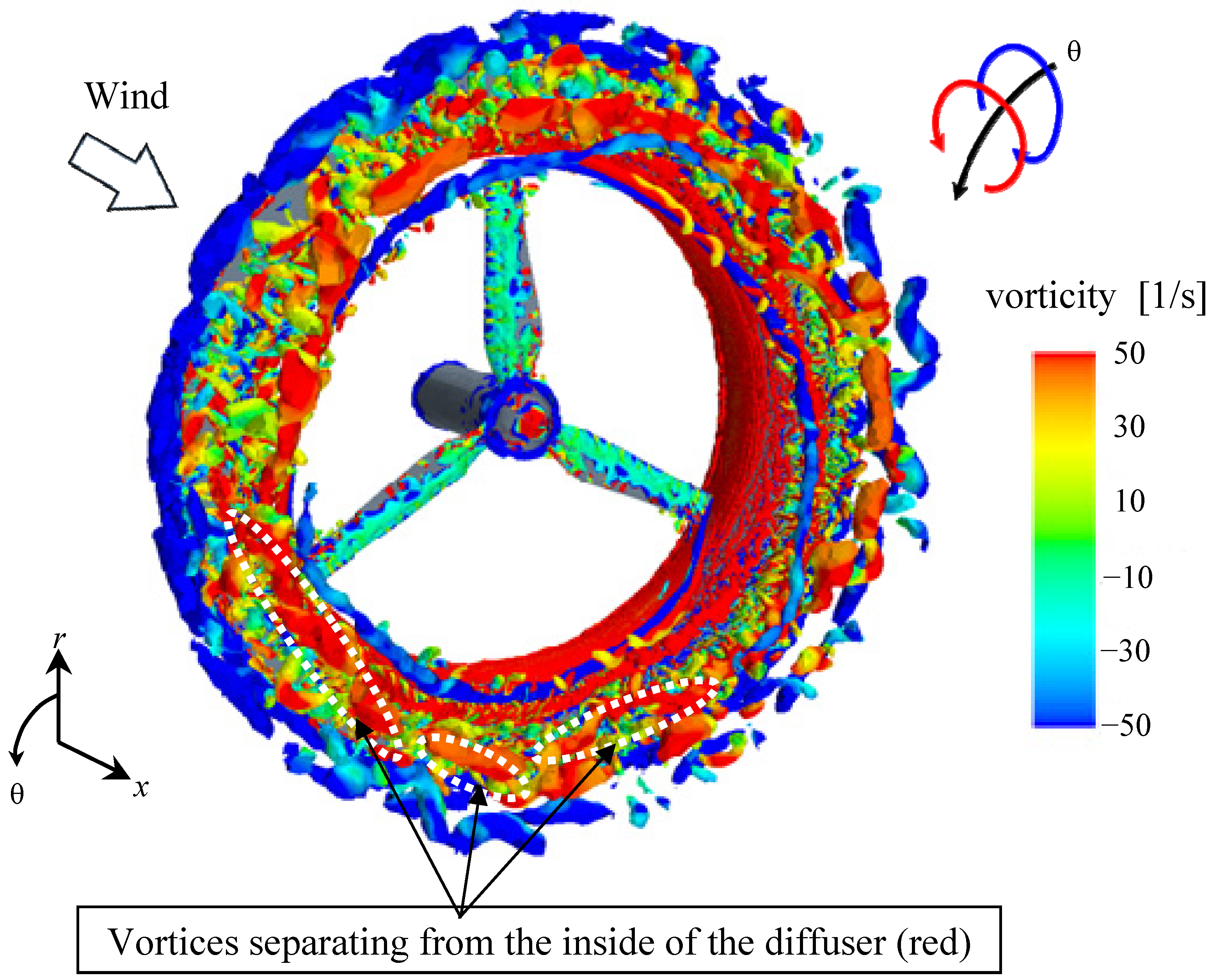

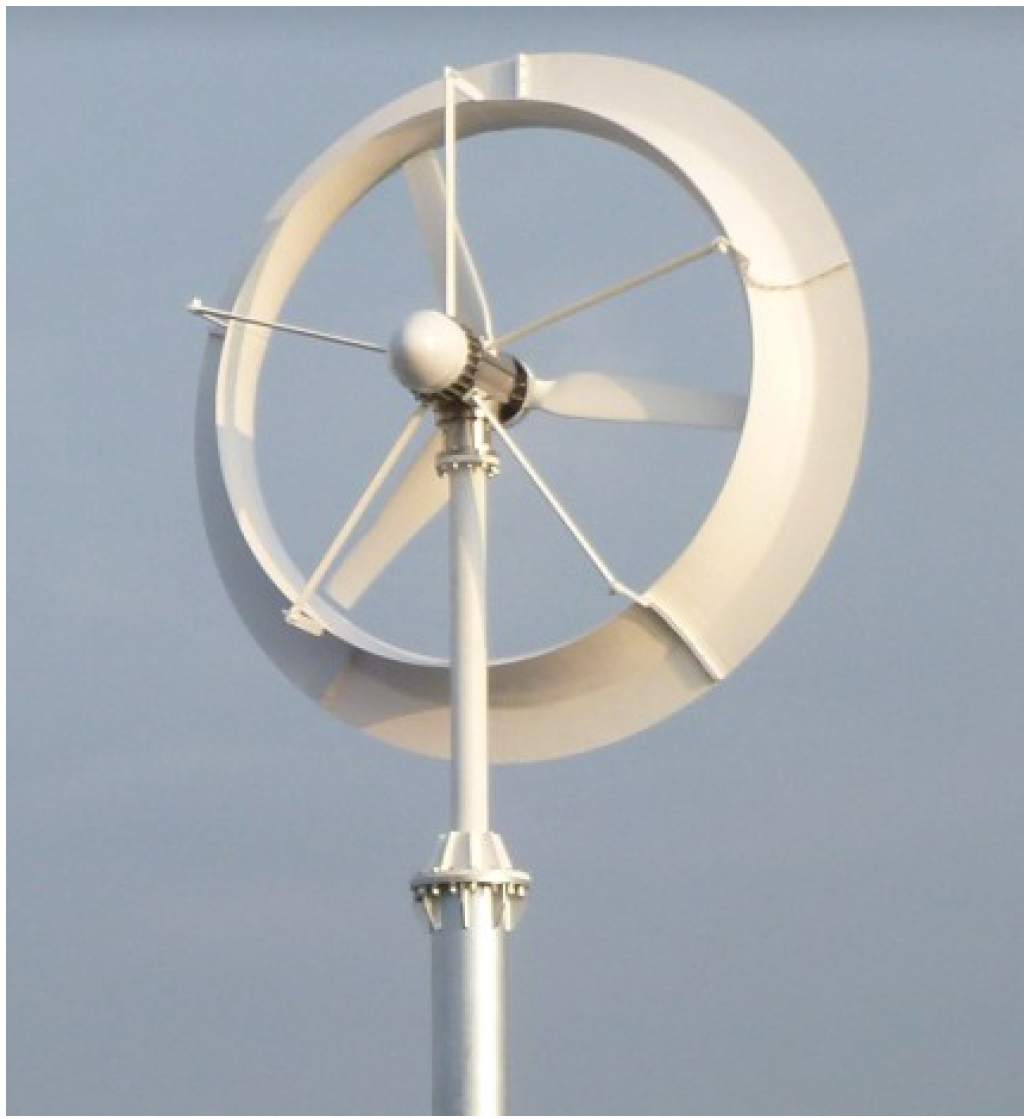

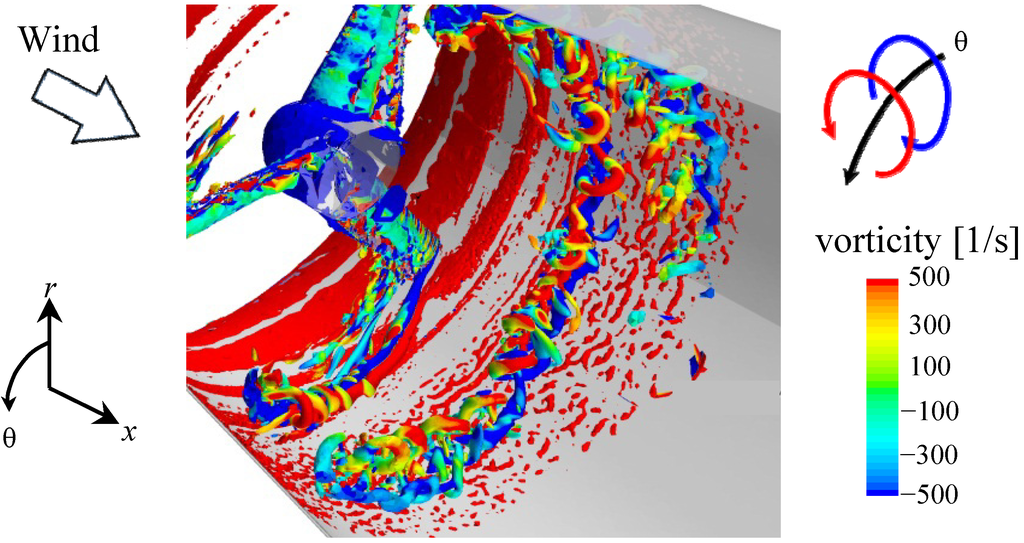

To clarify the behavior of the blade tip vortices of a wind turbine equipped with a brimmed-diffuser shroud, called a “Wind-Lens turbine”, we conducted a three-dimensional numerical simulation using a large eddy simulation (LES). Since this unique wind turbine consists of not only rotating blades but also a diffuser shroud with a broad-ring brim at the exit periphery, the flow field around the turbine is highly complex and unsteady. Previously, our research group conducted numerical simulations using an actuator-disc approximation, in which the rotating blades were simply modeled as an external force on the fluid. Therefore, the detailed flow patterns around the rotating blades and the shroud, including the blade tip vortices, could not be simulated. Instead of an actuator-disc approximation, we used a moving boundary technique in the present CFD simulation to simulate the flow around a rotating blade in order to focus especially on blade tip vortices. The simulation results showed a pair of vortices consisting of a blade tip vortex and a counter-rotating vortex which was generated between the blade tip and the inner surface of the diffuser. Since these vortices interacted with each other, the blade tip vortex was weakened by the counter-rotating vortex. The results showed good agreement with past wind tunnel experiments. View Full-Text
Keywords: wind turbine; diffuser; brim; vortex; noise; numerical simulation wind turbine; diffuser; brim; vortex; noise; numerical simulation

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
