Pellet as a Technological Nutrient within the Circular Economy Model: Comparative Analysis of Combustion Efficiency and CO and NOx Emissions for Pellets from Olive and Almond Trees

by
Valentín Molina-Moreno
1,*,
Juan Carlos Leyva-Díaz
2 and
Jorge Sánchez-Molina
3
1
Department of Management, University of Granada, 18071 Granada, Spain
2
Department of Civil Engineering, University of Granada, 18071 Granada, Spain
3
Department of Chemistry, University of Francisco de Paula Santander, 540003 San José de Cúcuta, Colombia
*
Author to whom correspondence should be addressed.
Energies 2016, 9(10), 777; https://doi.org/10.3390/en9100777
Submission received: 21 July 2016 / Revised: 14 September 2016 / Accepted: 21 September 2016 / Published: 27 September 2016

Abstract

:
This study analyzes the operation of Biomass System (BIO System) technology for the combustion of pellets from almond and olive trees within the circular economy model. Its aims are the reduction of greenhouse gas emissions as well as waste removal and its energy use by reintroducing that waste into the production process as technological nutrient. In order to do so, combustion efficiency under optimal conditions at nominal power was analyzed. In addition, a TESTO 350-XL analyzer was employed to measure CO and NOx emissions. High combustion efficiency values were obtained, 87.7% and 86.3%, for pellets from olive tree and almond tree, respectively. The results of CO and NOx emission levels were very satisfactory. Under conditions close to nominal power, CO emission levels were 225.3 ppm at 6% O2 for pellet from almond tree and 351.6 ppm at 6% O2 for pellet from olive tree. Regarding NOx emissions, the values were 365.8 ppm at 6% O2 and 333.2 ppm at 6% O2 for pellets from almond tree and olive tree, respectively. In general, these values were below those legally established by current legislation in European countries. Therefore, BIO System technology is a perfectly feasible option in terms of energy use and circular economy.

1. Introduction

The dependence on energy resulting from the use of fossil fuels and the growing environmental concern have been the main reasons for the increase in the use of biomass as a renewable energy source for electrical and thermal energy generation, particularly in the European Union countries [1,2,3].
With this aim in mind, both the 2015 Paris Climate Conference and the UN Framework Convention on Climate Change developed a roadmap in order to reduce carbon dioxide emissions from the year 2020. This has all led to a new paradigm where the European Union has suggested that different sectors of production must take action within the circular economy model. It is necessary to set deadlines in order for the production sector to reduce greenhouse gas emissions and wastes [4]. Thus, the biofuel sector acquires greater relevance [5,6], and biomass is becoming an attractive resource to progressively replace fossil fuels [7].
The exploitation of biomass for energy production has gained great popularity in recent years [8,9,10,11]. Currently, biomass holds fourth place after oil, natural gas, and coal, as it supplies approximately 14% of the world’s energy needs [12]. In industrialized countries, biomass accounts for 9% to 14% of the total energy supply [13]. However, this percentage increases to 35%–40% in developing countries [13,14].
The use of biomass as fuel produces substantial benefits with regard to the environment since the amount of CO2 absorbed from the atmosphere during biomass growth is the same as that emitted during combustion. Consequently, the CO2 net cycle does not contribute to the greenhouse effect [15]. Furthermore, biomass has a lower content of nitrogen and sulfur than fossil fuels, thereby generating lower NOx and SO2 emissions and reducing acid rain in areas close to combustion facilities. The ash content is also very low, with values of approximately 1% [16]. In this way, biomass can be considered as a technological nutrient within the circular economy model, as it significantly reduces the negative externalities arising from fossil fuels. Moreover, biomass is an autonomous energy source, which prevents dependence on energy supplies from other countries, enhancing in such a way the trade balance and the economic sustainability of a country. In social terms, the development of biomass as a fuel enhances job creation and avoids the depopulation of rural areas [16]. In addition, biomass is an economical energy source; one liter of diesel can be used to obtain the amount of thermal energy that corresponds to 2 kg of biomass, with a price of €1 for diesel and €0.15 to €0.25 for biomass in Spain [16].
A rapid growth in the production and consumption of wood pellet in order to obtain electrical and thermal energies has been registered in recent years [17]. According to the European Bioenergy Outlook 2013 [18], the world production of wood pellet in 2013 was approximately 24.5 Mt and 50% of that is produced in the European countries. In terms of wood pellet consumption, European countries are the largest consumers, with around 80% of the world consumption.
Pellets from olive and almond trees were used in this study. The olive oil industry is one of the agro-industrial activities producing a larger amount of by-products which can be used to produce pellets for energy applications. There are nearly 900 million olive trees occupying more than 10 million hectares worldwide, of which 98% are located in the Mediterranean countries [19]. Almond processing also produces large quantities of by-products with a potential value for energy application [20]. Chen et al. [21] carried out a detailed review of the use of waste from almond processing, including combustion, gasification, and pyrolysis. According to this review, little research has been done on energy applications for almond processing wastes. González et al. [22] used almond wastes for gasification.
There are three different ways of obtaining energy from biomass: thermochemical, chemical, and biochemical processes [23]. The thermochemical conversion is still the most frequently used [7]. Among the technologies used for thermochemical conversion of biomass, combustion accounts for 97% of global bioenergy production [15], combining a highly efficient and sustainable operation and minimal environmental impact [7].
Combustion includes a number of chemical reactions during which biomass is converted to CO2 and water [24]. Some minority components of biomass, such as sulfur or nitrogen, may react with air oxygen obtaining SO2 and NOx, which includes 90% NO, 10% NO2 and N2O in low quantities [25]. If the necessary conditions regarding temperature, oxygen transfer, and reaction time are not present, an incomplete combustion reaction may occur, obtaining CO as a consequence [26,27]. To establish the behavior of biomass wastes during the combustion process, it is extremely important to have the appropriate knowledge in relation to their physical and chemical properties [28,29,30]. Physical properties determine the thermal efficiency and chemical properties regulate the combustion process [1].
This paper analyzes the operation of BIO System technology for the combustion of pellets from almond and olive trees within the circular economy model. Its aims are the reduction of greenhouse gas emissions as well as waste removal and its energy use by reintroducing that waste into the production process as technological nutrient. In order to do so, a combustion efficiency assessment, as well as CO and NOx emissions measurements for pellets from almond and olive trees, was carried out.

2. Results and Discussion

2.1. Physicochemical Analysis

Table 1 shows the physical characteristics for the pellets from almond and olive trees.
Values for pellets from almond tree were similar to those for pellets from olive tree, although the length was slightly higher and bulk density was slightly lower (Table 1). Barbanera et al. [17] also worked with pellet from olive tree whose characteristics were similar to those used in this study. The diameter was 6.1 mm, the length was 23 mm, and the bulk density was within the range of 640–650 kg·m−3.
Table 2 shows the results of immediate and elemental analyses, as well as the heating values and other properties.
Regarding immediate analysis results, it is important to mention the high content of volatile matter obtained for both types of pellets, which is an essential characteristic for the proper combustion in the BIO System equipment. In the case of pellet from almond tree, volatile matter fluctuates between 75.73% by weight for the stabilized sample and 79.32% by weight for the dry sample. Regarding pellet from olive tree, volatile matter fluctuates between 77.26% by weight for the stabilized sample and 80.82% by weight for the dry sample (Table 2). García et al. [7] obtained a volatile matter percentage of 75.6% and 78.0% for pellets from almond and olive trees, respectively, which were similar to those values obtained in this research. Aktas et al. [20] obtained a volatile matter percentage of 75.03% for pellet from almond tree, which is similar to those values previously mentioned.
When comparing both types of pellets, moisture and ash contents for pellet from olive tree were lower than in the case of pellet from almond tree (Table 2). For pellet from olive tree, García et al. [7] obtained moisture and ash percentages of 8.7% and 13.0%, respectively, which were higher than the ones obtained in this study. Moisture and ash values for pellet from almond tree were 7.1% and 5.4%, respectively [7]. In the study on pellet from almond tree carried out by Aktas et al. [20], moisture and ash values were 9.06% and 4.56%, respectively. Barbanera et al. [17] obtained an ash percentage within the range of 2.5% and 3.0% for pellet from olive tree, similar to that obtained for pellet from olive tree in this study and shown in Table 2. In addition, volatile matter/fixed carbon ratio is higher for pellet from olive tree (4.9) than for pellet from almond tree (4.4) (Table 2). This ratio has some influence on ignition, combustion, and even NOx formation. Such a trend is also obtained by García et al. [7], in whose work the volatile matter/fixed carbon ratio was 8.7 for pellet from olive tree and 4.0 for pellet from almond tree.
Regarding the elemental analysis and heating value, both fuels have very similar properties (Table 2). Pellet from almond tree showed percentages by weight of carbon, hydrogen, nitrogen, and sulfur within these ranges: 45.27–47.42, 5.40–5.66, 0.49–0.51 and 0, respectively. For pellet from olive tree, percentages by weight of carbon, hydrogen, nitrogen, and sulfur were within these ranges: 45.20–47.28, 5.55–5.80, 0.48–0.50 and 0, respectively. García et al. [7] obtained similar values for pellets from almond and olive trees; more specifically, values for pellet from almond tree were 47.35%, 6.36%, 0.65%, and 0.16% of carbon, hydrogen, nitrogen, and sulfur, respectively. For pellet from olive tree, García et al. [7] obtained 45.36%, 5.47%, 1.47%, and 0.28% of carbon, hydrogen, nitrogen, and sulfur, respectively. The difference between the content of sulfur of this work and the research carried out by García et al. [7] could reside in the variations of quality of the pellets and the different origin of them as García et al. [7] used biomass coming from Austria and several zones of Spain, and this work was developed in Andalusia. Moreover, the presence of barks and the use of fertilizers and herbicides could increase the content of sulfur in the biomass. Aktas et al. [20] analyzed pellet from almond tree, obtaining 48.59% of carbon, 5.57% of hydrogen, 0.90% of nitrogen, and 0.22% of sulfur. Furthermore, it is remarkable that the heating value for pellet from olive tree is slightly higher than the one obtained by Barbanera et al. [17], which is close to 4200 kcal·kg−1.
Taking into account the rest of the characteristics studied, it can be deduced that for the same fuel volume, pellets from olive tree produce a higher total power as can be seen in the energy density values shown in Table 2, since the value for pellet from olive tree is 11,658 MJ·m−3 whereas for pellet from almond tree is 11,146 MJ·m−3.
Regarding air-fuel ratiostoichiometric, under equal fuel loads and fan operation parameters, combustion for pellets from almond tree has a higher excess of air, and consequently, combustion efficiency will be lower, although both fuels present very similar ratios (Table 2).
Table 2 shows the values of adiabatic temperature of the flame for pellets from almond and olive trees, obtaining very similar values: 2308 °C and 2293 °C, respectively. Such temperatures are the highest possible for the combustion of the pellets used in this study, as it is defined as the flame temperature during combustion taking place in a perfectly adiabatic area where enthalpy for reagents and for products are equivalent as there is no heat output.
From the results obtained in relation to the characterization of each fuel, it is possible to deduce that the transformation of these fuels in the BIO System equipment is not going to pose any problem regarding the compatibility of the technology with fuel characteristics.

2.2. CO and NOx Emissions

Figure 1 and Figure 2 show the results in relation to the complete development of tests with pellets from almond and olive trees.
Figure 1 and Figure 2 show the evolution of CO and O2 concentrations, exhaust gas temperature (Tg), and power during combustion tests with pellets from almond and olive trees. The stop by temperature (observed in Figure 1 and Figure 2) occurs in some systems due to the introduction of high amount of biomass, which causes an increase of temperature and the system to stop. The power outage did not influence the process as it occurred at the end of the cycle (7/20 s) and the following cycle started with similar values to those obtained for the first cycle, as shown in Figure 2. It should be noted that at nominal power, the oxygen content of the flue gases remained at around 9% (Figure 1 and Figure 2), which shows a positive operation and allows to see a fairly high combustion efficiency.
Figure 3 and Figure 4 show the evolution of CO and NOx average emissions corrected to 6% O2, corresponding to combustion tests with pellets from almond and olive trees.
As expected, CO content of the fumes decreased substantially with the partial load (Figure 3). CO content depends on the oxygen percentage in the system. In light of this, the BIO System operates with an excess of air, and CO concentration decreases since the combustion is completed with the increase of power (Figure 3). Regarding the NOx concentration, this will rise if the combustion temperature increases to high values, but these values are lowered with the increase of power, and a decreasing trend can be observed for the NOx concentration (Figure 4). Close to nominal power, CO content tends to reach a minimum value for pellets from almond tree (225.3 ppm CO at 6% O2) and from olive tree (351.6 ppm CO at 6% O2), according to Table 3, which shows a comparison of CO and NOx average emissions, measured during stable operation periods of tests with pellets from almond and olive trees at a similar nominal power.
These CO values indicate a high degree of oxidation of combustible matter as well as the suitability of BIO System burner technology for those fuels analyzed in relation to the behavior required in countries with boiler emission regulations for biomass fuels.
When comparing the behavior of NOx emissions, the results obtained are similar to those of CO emissions, as emission evolutions of these gases decrease with power, reaching values of 365.8 ppm NOx at 6% O2 for pellet from almond tree and 333.2 ppm NOx at 6% O2 for pellet from olive tree, corresponding to operation under conditions very close to nominal power.
Values in Table 3 can be compared to the emission levels of pollutants into the atmosphere allowed by European Union countries for low-power biomass boilers. Denmark, Germany, and Austria limit CO emissions to 725 ppm at 13% O2, 1000 ppm at 13% O2, and 1400 ppm at 13% O2, respectively [31]. In addition, NOx emissions in Austria are limited to 230 ppm at 13% O2 [31]. In both cases, CO emissions obtained during stable periods at nominal power are below those legally established in other European countries, such as Denmark, Germany, and Austria, which are pioneers in the use of automated and low-power biomass boilers. When comparing the behavior of NOx emissions, the results obtained for olive tree are similar to the reference value according to the legislative requirements in Austria although it is slightly to high for almond tree (Table 3).
A similar analysis was carried out by Fernández et al. [16], who studied CO and NOx emissions during combustion of different types of biomass, which included biomass from almond tree. Oxygen concentration and combustion temperature were also measured in this study. Such authors obtained levels of CO emissions below 600 ppm and NOx emissions below 10 ppm for pellet from almond tree.

2.3. Combustion Efficiency

Table 4 shows the results of combustion efficiency obtained during the tests using both fuels, pellets from almond and olive trees, and for different partial loads. Table 4 also shows combustion efficiency calculated based on a gas temperature of 120 °C. The temperature registered by the gas analysis equipment is not considered for this calculation. However, an exhaust temperature of 120 °C was estimated when working at nominal power, which is perfectly acceptable for a system designed with a larger heat exchanger.
Figure 5 shows the combustion efficiency values for the different loads and both fuels.
As can be seen in Table 4, the efficiency obtained for pellet from olive tree was higher than for pellet from almond tree, with values of 87.7% at nominal power for pellet from olive tree and 86.3% for pellet from almond tree.
González et al. [1] obtained a similar tendency for combustion efficiency with pellet from almond tree depending on the biofuel mass flow, with an efficiency of 88.3% when mass flow was 100%.
Figure 6 shows the excess of air for the combustion tests with pellets from almond and olive trees.
Regarding the excess of air, this parameter is highly linked to the efficiency of the system. The excess air during combustion can be defined as the percentage of additional air over the amount of stoichiometric air necessary to develop combustion under optimal conditions.
Consequently, the higher combustion efficiency for pellet from olive tree is due to the fact that the excess air was higher when carrying out the combustion test for almond tree, using equal conditions regarding fuel load and fan operation, as can be seen in Figure 6. It can be said that in order to achieve nominal power, the system requires 62.0% of excess air when using pellet from olive tree as fuel and 78.9% of excess air in the case of pellet from almond tree. These results validate those predictions specified in Section 2.1 obtained from the results regarding air-fuel ratiostoichiometric for both fuels, which are indicated in Table 2.
In any case, the efficiency results obtained from both tests at nominal power were very satisfactory. In addition, this efficiency can increase significantly with the decrease of the temperature of exhaust gases by means of the addition of one or more modules to the boiler.
In this regard, BIO System technology could be considered as a suitable technical and economic option for combustion of pellets from olive and almond trees as this system introduces technical modifications that favor the increase of power and the reduction of the excess air (Table 4). This could have positive economic implications since this system could work under higher values of power due to the existence of two separate zones for the burner and boiler, and this technology could increase the combustion efficiency due to the reduction of the excess air.

3. Materials and Methods

3.1. Physicochemical Characterization of Fuels

Previously to the physicochemical characterization, the pellet manufacturing is described. The product was received in the plant of pellet processing. Then, the material was weighed and a moisture control was carried out. A wood chipper reduced the size of the product to fragments of 10 cm. Subsequently, the product was dried by hot air and then underwent a settling process to collect the material. Next, a milling process was performed to reduce the size of the pellets. Finally, the material was compacted, cut, and cooled down to get the characteristics that are shown in Table 1. Chemical characteristics of pellets from almond and olive trees depend on the type of cultivation.
Figure 7 shows two images of both types of pellets.
Bulk density is an important parameter in the physical characterization of fuel, as it allows for the definition of the control parameters of pellet storage and transport systems. Another relevant parameter is pellet size, that is, its diameter and length. A random sampling of each fuel, pellets from almond and olive trees, was carried out in order to define these characteristics. The length and the diameter of the pellets were determined according to ISO 17829:2015 [32], and the bulk density was evaluated according to EN 15150:2011 [33].
For three samples of each fuel, immediate and elemental analyses and determination of heating value were carried out. More specifically, the sampling was carried out using the received, stabilized, and dry samples of each type of pellet analyzed. The received sample is the sample as it is received in the laboratory. The dry sample is the sample after undergoing a drying process in order to eliminate moisture. The stabilized sample is that sample which has been allowed to stand for some hours so that it returns to its natural state, as samples are collected in bags and may contain moisture.
Moisture, ash content, volatile matter, and fixed carbon percentages of pellets from almond and olive trees were identified during immediate analysis. Moisture was determined in accordance with the norm ISO 18134-2:2015 [34], ash content based on the norm ISO 18122:2015 [35], and volatile matter according to the norm ISO 18123:2015 [36].
The elemental analysis includes the determination of percentage by weight of carbon, hydrogen, nitrogen, and sulfur. The percentages of carbon, hydrogen, and nitrogen were determined in accordance with the norm ISO 16948:2015 [37], and the percentage of sulfur was assessed according to ISO 16994:2015 [38].
Upper and low heating values were evaluated according to EN 14918:2009 [39] scientific norm.
Moreover, other relevant parameters to predict the combustion process and efficiency, such as energy density, air-fuel ratiostoichiometric (AFR), and adiabatic temperature of the flame, can be calculated from the heating value, pile density, and elemental analysis of a fuel.

3.2. Description of BIO System Equipment

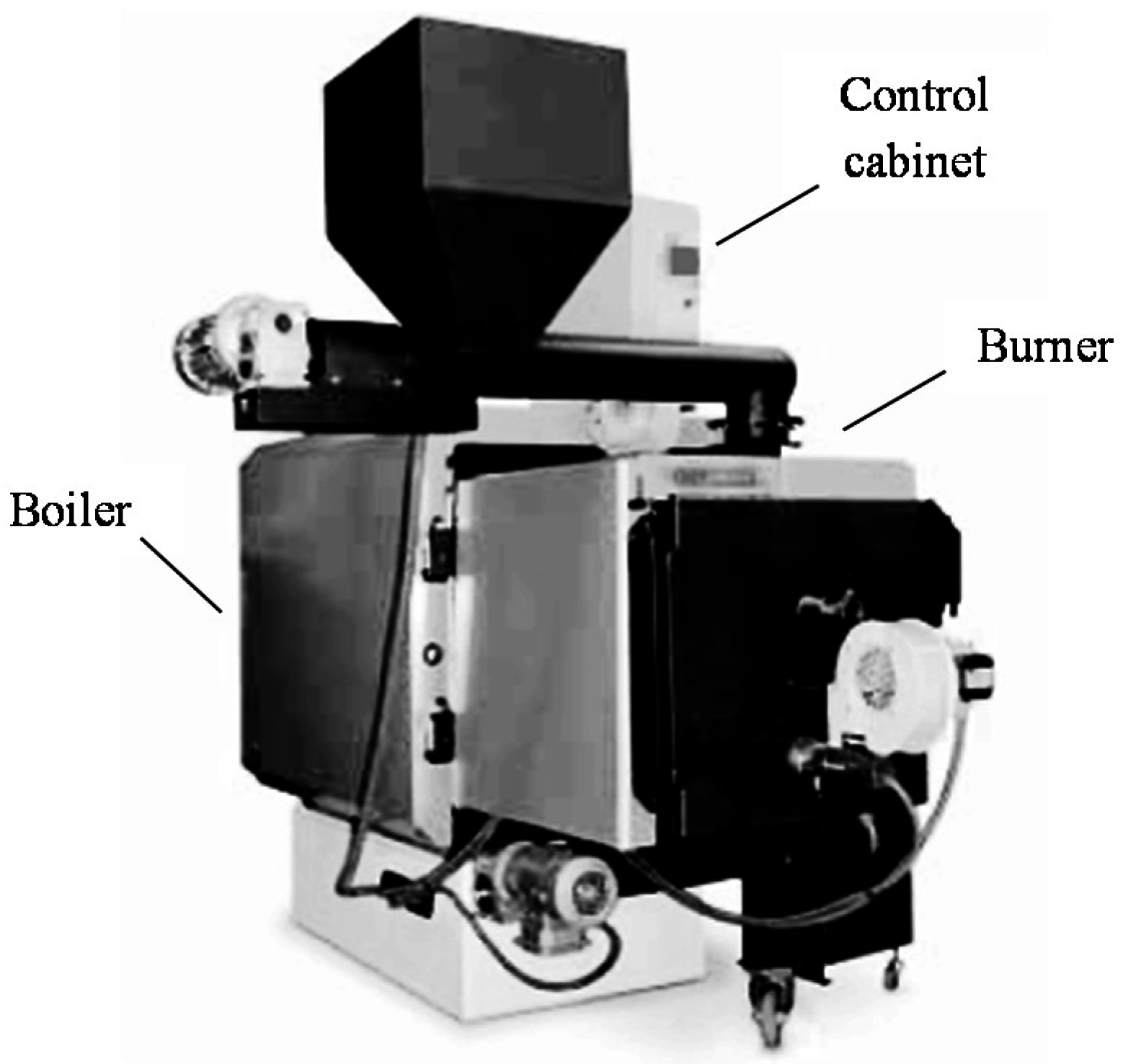

The BIO System equipment used for this study consists of a boiler, a complete burner and a control cabinet (Figure 8). The boiler is modular and composed of cast iron elements and three fume passages. The working pressure is 4 bar. The cascade biomass burner has automatic ignition, flame viewing, and easy access for cleaning and maintenance. The adjustment of that system enables the control of all the boiler functions and the fuel transportation in a cabinet with display.
Several authors have worked with other technologies for the combustion of different kinds of pellets from agriculture and wood waste. In this regard, Verma et al. [40] worked with a 40 kW boiler. Furthermore, Dias et al. [41] and González et al. [26] studied the behavior of domestic boilers and analyzed the emissions generated from the combustion process. In light of this, Verma et al. [42] and Verma et al. [43] carried out a comparative study of the efficiency of different equipment in the frame of technical specifications. Persson et al. [44] developed several mathematical models to describe the performance of different types of boilers.

3.3. Experimental Procedure

Combustion tests with pellets from almond and olive trees were carried out in the BIO System in order to determine the variables studied for a stable combustion process, such as CO and NOx emissions, combustion efficiency under optimal conditions, at nominal power, and at different partial loads, as well as the excess of air during combustion. In addition, an assessment of the behavior of the BIO System burner with these two fuels, pellets from almond and olive trees, was obtained during long periods of operation.
The combustion process developed in the BIO System burner comprises five stages:
  • Initial fuel filling and turning-on of the BIO System burner by means of a hot-air igniter oriented towards the fuel pile (Figure 9). During this first stage, primary and secondary air fans are switched on, so there is a high excess of air in the chamber.
  • The BIO System burner is fed with new particles of biomass. The operating times for the screw feeder are 3 s in ON position and 20 s in OFF position. During this stage, there is a gradual increase of CO in flue gases, which corresponds to a slow progressive rise in the flow of the biomass introduced into the chamber until the mass flow necessary to obtain the nominal power of the experimental system (165 kW) is reached. In the case of the BIO System burner, the mass flow is within the range of 35 kg·h−1 and 40 kg·h−1. There is a soft start-up of the system in this way.
  • Combustion stabilization with screw feeder times of 3/20 s. A stable situation is reached after several minutes when the combustion is maintained with only the heat contribution of the biomass (there is no need to use the hot-air igniter). In this regard, the total air flow needed is a key parameter to ensure the correct operation of the system and a stable combustion process. In this case, total air flow presents a value ranging between 290 m3·h−1 and 300 m3·h−1, with an excess of air fluctuating between 60% and 80%.
  • Rise in fuel load. When the combustion process and resulting power are in steady conditions, such conditions are kept for as long as data collection lasts in order to compare the emissions obtained for each of the partial loads until they reach nominal power.
  • Turning-off of the BIO System burner. The biomass feeding system is switched off whereas primary and secondary air fans are on, so that any remaining material that may remain in the burner is consumed.
After the system was switched on, an optimal steady combustion was achieved in the BIO System burner for both types of pellets, obtaining the data necessary to measure emissions and calculate efficiency.

3.4. Analysis of CO and NOx Emissions

During the tests with pellets from almond and olive trees, collection and saving of several measurements were carried out for CO and NOx emissions and their O2 percentage in the flue. For this purpose, the gas analyzer Testo 350-XL was used. This portable and versatile measuring system comprises a control unit, a combustion analyzer, and a sampling probe. The control unit can be removed and is provided with built-in printer and display. The analyzer includes built-in measuring sensors for O2, CO, and NOx, Peltier gas preparation with peristaltic pump for controlled condensate outlet, and a cleaning valve for long-lasting measurements. The analyzer also measures temperature and differential pressure. The sampling probe is 700 mm long, made of stainless steel 1.4841, and its diameter is 8 mm. As a consequence of dusty gases, it is possible to attach a filter with a pore size of 3 µm to the probe in order to protect it against dust. The hose length is 2.2 m. The maximum operating temperature is 1000 °C.

3.5. Combustion Efficiency

It is possible to calculate combustion efficiency on the basis of the data collected from the gas analysis equipment. The efficiency of combustion equipment can be calculated as the quotient between the energy generated by the system and the potential energy of the fuel by means of the upper heating value or lower heating value. However, due to inaccuracies inherent to the measurement of the solid matter flow (this depends on factors that are difficult to take into account such as fuel agglomeration before it is fed into the chamber or its homogeneity), a different method can be used in plants where solid fuels are used in order to calculate the efficiency. As it can be seen in Equations (1) and (2), this is obtained by subtracting system losses, expressed in parts per unit, from the highest notional efficiency, which is 1.
η comb = 1 Q T
where ηcomb is the combustion efficiency and QT is the total of system losses.
Q T = Q i = Q g + Q rad + Q conv + Q n b , g + Q n b , s + Q sa
where Qi is each of the system losses, Qg is gas loss, Qrad is radiation loss, Qconv is convection loss, Qn−b,g is the total of non-burnt gaseous losses, Qn−b,s is the total of non-burnt solid losses, and Qsa is the solid ash loss.
The following scenarios have been taken into account when using this calculation method:
  • Non-burnt solid losses, Qn−b,s, have not been quantified, as the operating time under stable conditions was not long enough to obtain a representative value for each power range studied. Consequently, no non-burnt solid losses have been assumed.
  • As the ash content of the fuel was lower than 3% (Table 2), the value of Qsa, which refers to sensitive heat losses in ash, has not been considered, since those losses are considered to be practically insignificant.
  • For this calculation, the following constants were used: 11.8421 m3·h−1 for water volumetric flow and 4.185 kJ·kg−1·°C−1 for water specific heat.
Taking these considerations into account, combustion efficiency can be obtained from Equation (3):
η comb = 1 Q T = 1 ( Q g + Q rad + Q conv + Q n b , g )

4. Conclusions

From the beginning of the study, physical and chemical fuel characterization shows the feasibility of the use of fuel in the BIO System burner. Both the medium size of pellets and high content of volatile matters favor a proper combustion by means of the use of this technology.
Once emissions of pollutant gases and efficiency calculations have been carried out, the results obtained are highly acceptable, with levels of CO emissions below those legally required by current legislation in European countries and high combustion efficiency, with values of 87.7% for pellet from olive tree and 86.3% for pellet from almond tree. As for NOx emissions, results are close to those required by European regulations, which is a very satisfactory condition.
In conclusion, the use of BIO System technology is seen as a perfectly feasible option from both a technical and an economic point of view for the combustion of pellets from olive and almond trees due to the fact that this system allows for an increase in power by placing the burner of pellets out of the boiler zone and it allows for an increase in the efficiency of the system by reducing the excess of air. Thus, these pellets from olive and almond trees can be considered as technological nutrients within the circular economy model.

Acknowledgments

This study has been supported and co-financed by projects from the Spanish Ministry of Economy and Competitiveness ECO2010-15885 and ECO2013-47027-P, Andalusian Government P11-SEJ-7294 and European Union (ERDF funds).

Author Contributions

V. Molina-Moreno and J. C. Leyva-Díaz conceived and designed the experiments; V. Molina-Moreno performed the experiments; J. C. Leyva-Díaz analyzed the data; J. Sánchez-Molina contributed reagents/materials/analysis tools; J. C. Leyva-Díaz wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. González, J.F.; González-García, C.M.; Ramiro, A.; Gañán, J.; Ayuso, A.; Turegano, J. Use of energy crops for domestic heating with a mural boiler. Fuel Process. Technol. 2006, 87, 717–726. [Google Scholar] [CrossRef]
  2. Luque, R.; Davila, H.H.; Campelo, J.M.; Clark, J.H.; Hidalgo, J.M.; Luna, D.; Marinas, J.M.; Romero, A.A. Biofuels: A technological perspective. Energy Environ. Sci. 2008, 1, 542–564. [Google Scholar] [CrossRef]
  3. Zuwała, J. Life cycle approach for energy and environmental analysis of biomass and coal co-firing in CHP plant with backpressure turbine. J. Clean. Prod. 2012, 35, 164–175. [Google Scholar] [CrossRef]
  4. Lieder, M.; Rashid, A. Towards circular economy implementation: A comprehensive review in context of manufacturing industry. J. Clean. Prod. 2016, 115, 36–51. [Google Scholar] [CrossRef]
  5. Jorquera, O.; Kiperstok, A.; Sales, E.A.; Embiruçu, M.; Ghirardi, M.L. Comparative energy life-cycle analyses of microalgal biomass production in open ponds and photobioreactors. Bioresour. Technol. 2010, 101, 1406–1413. [Google Scholar] [CrossRef] [PubMed]
  6. Muthuraman, M.; Namioka, T.; Yoshikawa, K. A comparison of co-combustion characteristics of coal with wood and hydrothermally treated municipal solid waste. Bioresour. Technol. 2010, 101, 2477–2482. [Google Scholar] [CrossRef] [PubMed]
  7. García, R.; Pizarro, C.; Lavín, A.G.; Bueno, J.L. Characterization of Spanish biomass wastes for energy use. Bioresour. Technol. 2012, 103, 249–258. [Google Scholar] [CrossRef] [PubMed]
  8. Dare, P.; Gifford, J.; Hooper, R.J.; Clemens, A.H.; Damiano, L.F.; Gong, D.; Matheson, T.W. Combustion performance of biomass residue and purpose grown species. Biomass Bioenergy 2001, 21, 277–287. [Google Scholar] [CrossRef]
  9. Friberg, R.; Blasiak, W. Measurements of mass flux and stoichiometry of conversion gas from three different wood fuels as function of volume flux of primary air in packed-bed combustion. Biomass Bioenergy 2002, 23, 189–208. [Google Scholar] [CrossRef]
  10. McKendry, P. Energy production from biomass (part 1): Overview of biomass. Bioresour. Technol. 2002, 83, 37–46. [Google Scholar] [CrossRef]
  11. Kylili, A.; Christoforou, E.; Fokaides, P.A. Environmental evaluation of biomass pelleting using life cycle assessment. Biomass Bioenergy 2016, 84, 107–117. [Google Scholar] [CrossRef]
  12. Shen, D.K.; Gu, S.; Luo, K.H.; Bridgewater, A.V.; Fang, M.X. Kinetic study on thermal decomposition of woods in oxidative environment. Fuel 2009, 88, 1024–1030. [Google Scholar] [CrossRef]
  13. Permchart, W.; Kouprianov, V.I. Emission performance and combustion efficiency of a conical fluidized-bed combustor firing various biomass fuels. Bioresour. Technol. 2004, 92, 83–91. [Google Scholar] [CrossRef] [PubMed]
  14. Hall, D.O.; Rosillo-Calle, F.; de Groot, P. Biomass energy lessons from case studies in developing countries. Energy Policy 1992, 20, 62–73. [Google Scholar] [CrossRef]
  15. Demirbas, A. Combustion characteristics of different biomass fuels. Prog. Energy Combust. Sci. 2004, 30, 219–230. [Google Scholar] [CrossRef]
  16. Fernández, R.G.; García, C.P.; Lavín, A.G.; de las Heras, J.L. Study of main combustion characteristics for biomass fuels used in boilers. Fuel Process. Technol. 2012, 103, 16–26. [Google Scholar] [CrossRef]
  17. Barbanera, M.; Lascaro, E.; Stanzione, V.; Esposito, A.; Altieri, R.; Bufacchi, M. Characterization of pellets from mixing olive pomace and olive tree pruning. Renew. Energy 2016, 88, 185–191. [Google Scholar] [CrossRef]
  18. Calderon, C.; Jossart, J.M. European Bioenergy Outlook 2013; European Biomass Association (AEBIOM): Brussels, Belgium, December 2013. [Google Scholar]
  19. Sesli, M.; Yegenoglu, E.D. RAPD-PCR analysis of cultured type olives in Turkey. Afr. J. Biotechnol. 2009, 8, 3418–3423. [Google Scholar]
  20. Aktas, T.; Thy, P.; Williams, R.B.; McCaffrey, Z.; Khatami, R.; Jenkins, B.M. Characterization of almond processing residues from the Central Valley of California for thermal conversion. Fuel Process. Technol. 2015, 140, 132–147. [Google Scholar] [CrossRef]
  21. Chen, P.; Cheng, Y.; Deng, S.; Lin, X.; Huang, G.; Ruan, R. Utilization of almond residues. Int. J. Agric. Biol. Eng. 2010, 3, 1–18. [Google Scholar]
  22. González, J.F.; González-García, C.M.; Ramiro, A.; Gañán, J.; González, J.; Sabio, E.; Román, S.; Turegano, J. Use of almond residues for domestic heating. Study of the combustion parameters in a mural boiler. Fuel Process. Technol. 2005, 86, 1351–1368. [Google Scholar] [CrossRef]
  23. Nogués, F.S.; García, D.; Rezeau, A. Energías Renovables-Energía de la Biomasa (Volumen I); Prensas Universitarias de Zaragoza: Zaragoza, Spain, 2010; pp. 1–557. [Google Scholar]
  24. Küçük, M.M.; Demirbas, A. Biomass conversion processes. Energy Convers. Manag. 1997, 38, 151–165. [Google Scholar] [CrossRef]
  25. Van Loo, S.; Koppejan, J. The Handbook of Biomass Combustion and Co-Firing; Earthscan: London, UK, 2010; pp. 1–442. [Google Scholar]
  26. González, J.F.; González-García, C.M.; Ramiro, A.; González, J.; Sabio, E.; Gañán, J.; Rodríguez, M.A. Combustion optimisation of biomass residue pellets for domestic heating with a mural boiler. Biomass Bioenergy 2004, 27, 145–154. [Google Scholar] [CrossRef]
  27. Tissari, J.; Hytonen, K.; Sippula, O.; Jokiniemi, J. The effects of operating conditions on emissions from masonry heaters and sauna stoves. Biomass Bioenergy 2009, 33, 513–520. [Google Scholar] [CrossRef]
  28. Lehtikangas, P. Quality properties of pelletised sawdust, logging residues and bark. Biomass Bioenergy 2001, 20, 351–360. [Google Scholar] [CrossRef]
  29. Gilbert, P.; Ryu, C.; Sharifi, V.; Swithenbank, J. Effect of process parameters on pelletisation of herbaceous crops. Fuel 2009, 88, 1491–1497. [Google Scholar] [CrossRef]
  30. Kaliyan, N.; Vance, R. Factors affecting strength and durability of densified biomass products: Review. Biomass Bioenergy 2009, 33, 337–359. [Google Scholar] [CrossRef]
  31. Oravainen, H. Testing Methods and Emission Requirements for Small Boilers (<300 kW) in Europe; VTT Energy: Helsinki, Finland, 2000; pp. 1–13. [Google Scholar]
  32. ISO 17829:2015. Solid Biofuels. Determination of Length and Diameter of Pellets; International Organization for Standardization (ISO): Geneva, Switzerland, 2015. [Google Scholar]
  33. EN 15150:2011. Solid Biofuels. Determination of Bulk Density; European Norm (EN): Brussels, Belgium, 2011. [Google Scholar]
  34. ISO 18134-2:2015. Solid Biofuels. Determination of Moisture Content. Oven Dry Method. Part 2: Total Moisture. Simplified Method; International Organization for Standardization (ISO): Geneva, Switzerland, 2015. [Google Scholar]
  35. ISO 18122:2015. Solid Biofuels. Determination of Ash Content; International Organization for Standardization (ISO): Geneva, Switzerland, 2015. [Google Scholar]
  36. ISO 18123:2015. Solid Biofuels. Determination of the Content of Volatile Matter; International Organization for Standardization (ISO): Geneva, Switzerland, 2015. [Google Scholar]
  37. ISO 16948:2015. Solid Biofuels. Determination of Total Content of Carbon, Hydrogen and Nitrogen; International Organization for Standardization (ISO): Geneva, Switzerland, 2015. [Google Scholar]
  38. ISO 16994:2015. Solid Biofuels. Determination of Total Content of Sulfur and Chlorine; International Organization for Standardization (ISO): Geneva, Switzerland, 2015. [Google Scholar]
  39. EN 14918:2009. Solid Biofuels. Determination of Calorific Value; European Norm (EN): Brussels, Belgium, 2009. [Google Scholar]
  40. Verma, V.K.; Bram, S.; Delattin, F.; Laha, P.; Vandendael, I.; Hubin, A.; de Ruyck, J. Agro-pellets for domestic heating boilers: Standard laboratory and real life performance. Appl. Energy 2012, 90, 17–23. [Google Scholar] [CrossRef]
  41. Dias, J.; Costa, M.; Azevedo, J.L.T. Test of a small domestic boiler using different pellets. Biomass Bioenergy 2004, 27, 531–539. [Google Scholar] [CrossRef]
  42. Verma, V.K.; Bram, S.; Gauthier, G.; de Ruyck, J. Evaluation of the performance of a multi-fuel domestic boiler with respect to the existing European standard and quality labels: Part-1. Biomass Bioenergy 2011, 35, 80–89. [Google Scholar] [CrossRef]
  43. Verma, V.K.; Bram, S.; Gauthier, G.; de Ruyck, J. Performance of a domestic pellet boiler as a function of operational loads: Part-2. Biomass Bioenergy 2011, 35, 272–279. [Google Scholar] [CrossRef]
  44. Persson, T.; Fiedler, F.; Nordlander, S.; Bales, C.; Paavilainen, J. Validation of a dynamic model for wood pellet boilers and stoves. Appl. Energy 2009, 86, 645–656. [Google Scholar] [CrossRef]

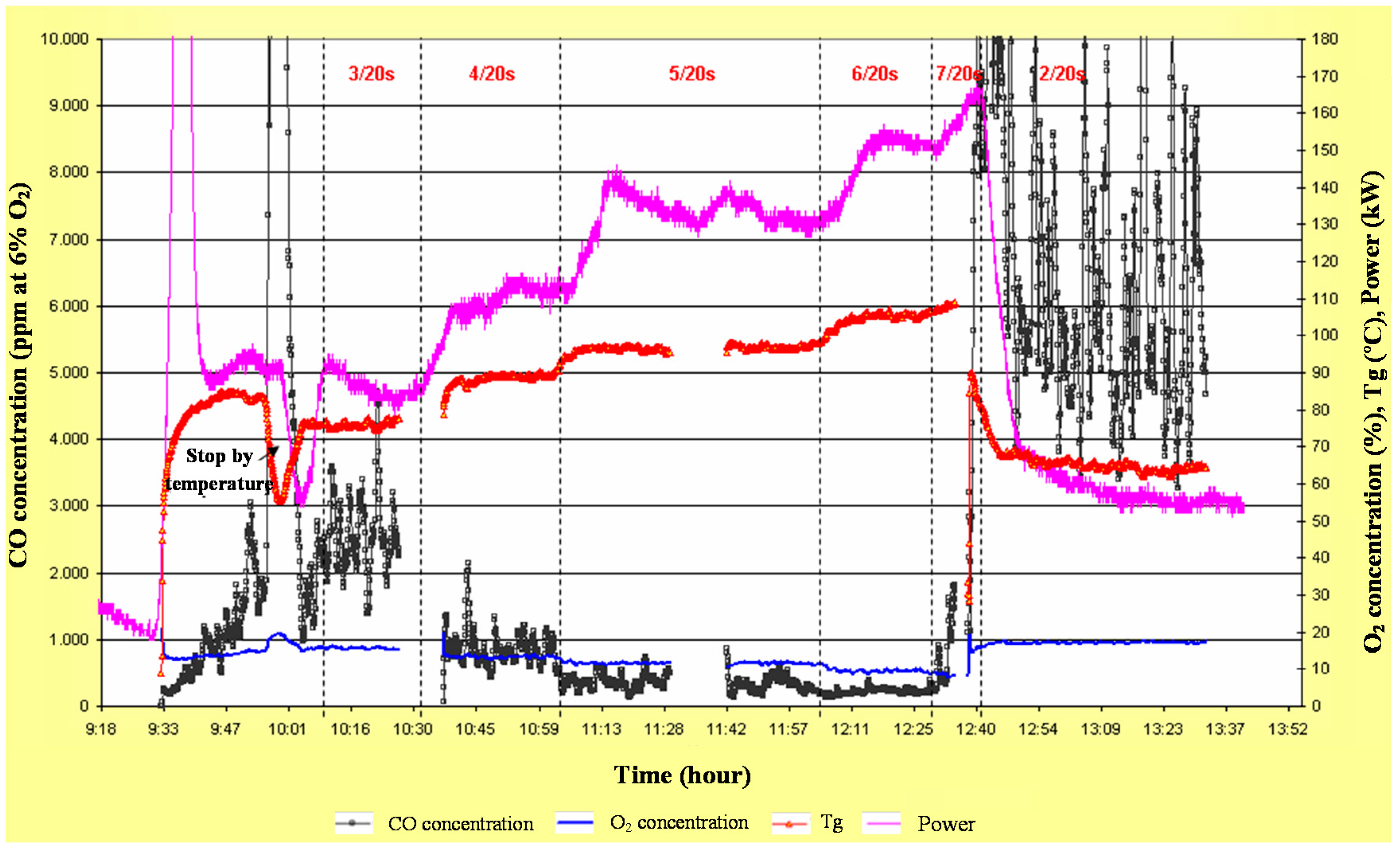

Figure 1. Evolution of CO emissions corrected to 6% O2, O2 concentration, exhaust gas temperature (Tg), and power during combustion tests with pellets from almond tree.
Figure 1. Evolution of CO emissions corrected to 6% O2, O2 concentration, exhaust gas temperature (Tg), and power during combustion tests with pellets from almond tree.
Energies 09 00777 g001

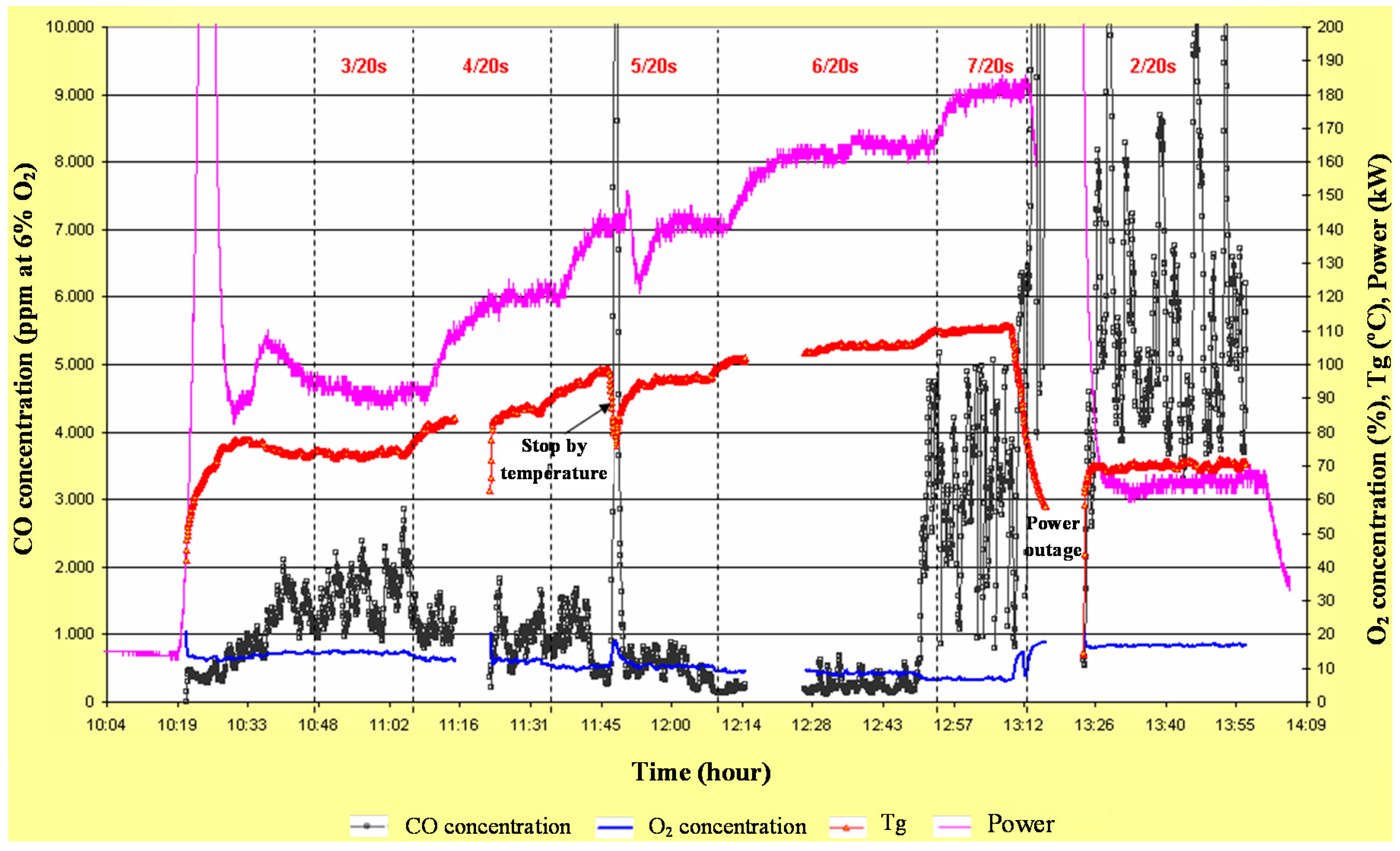

Figure 2. Evolution of CO emissions corrected to 6% O2, O2 concentration, exhaust gas temperature (Tg), and power during combustion tests with pellets from olive tree.
Figure 2. Evolution of CO emissions corrected to 6% O2, O2 concentration, exhaust gas temperature (Tg), and power during combustion tests with pellets from olive tree.
Energies 09 00777 g002

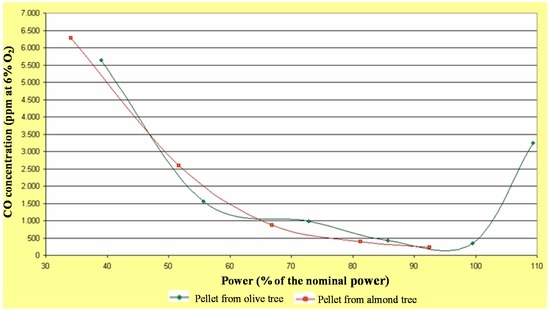

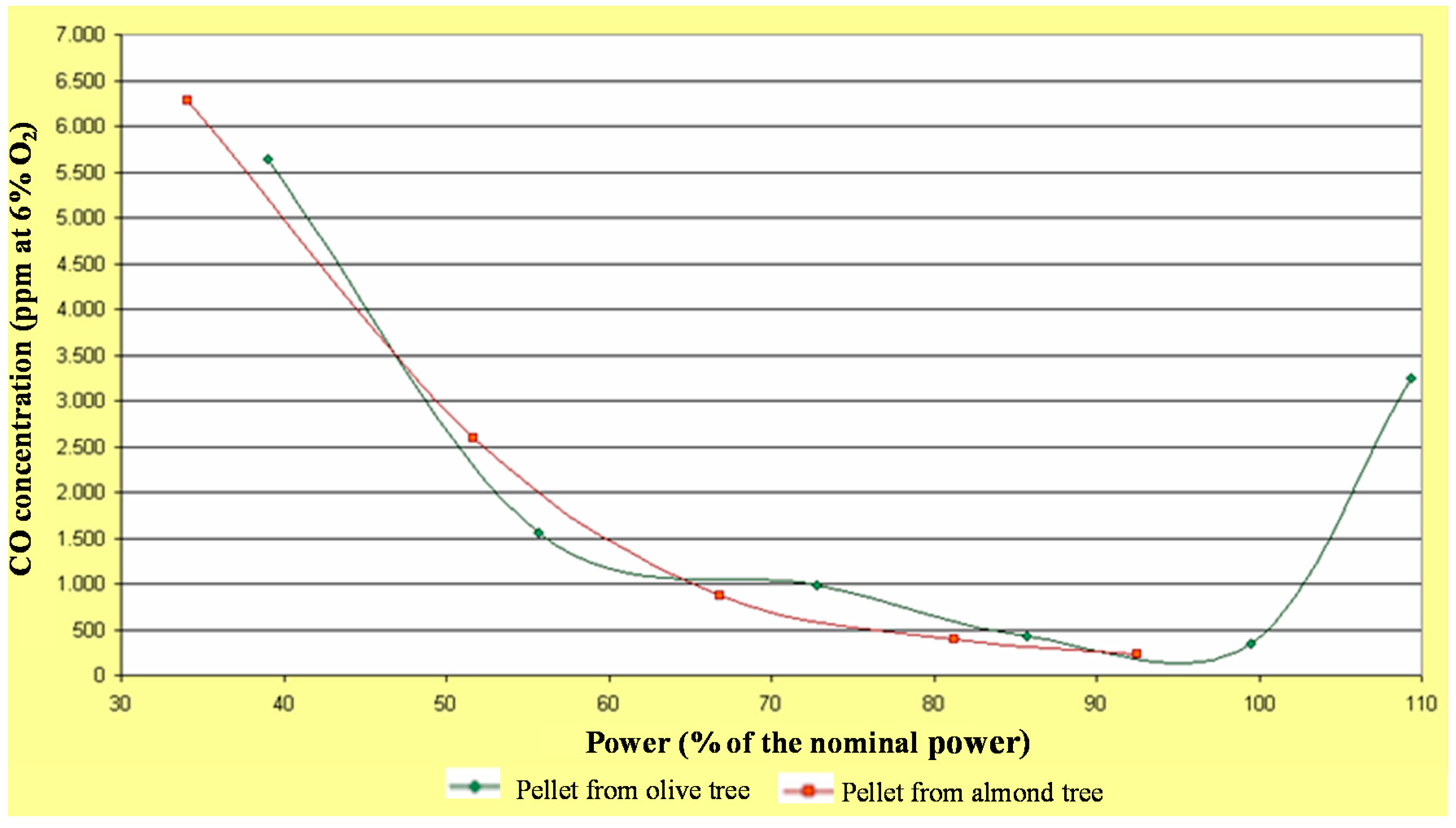

Figure 3. Evolution of CO emissions corrected to 6% O2 depending on the partial operating load during combustion tests with pellets from almond and olive trees.
Figure 3. Evolution of CO emissions corrected to 6% O2 depending on the partial operating load during combustion tests with pellets from almond and olive trees.
Energies 09 00777 g003

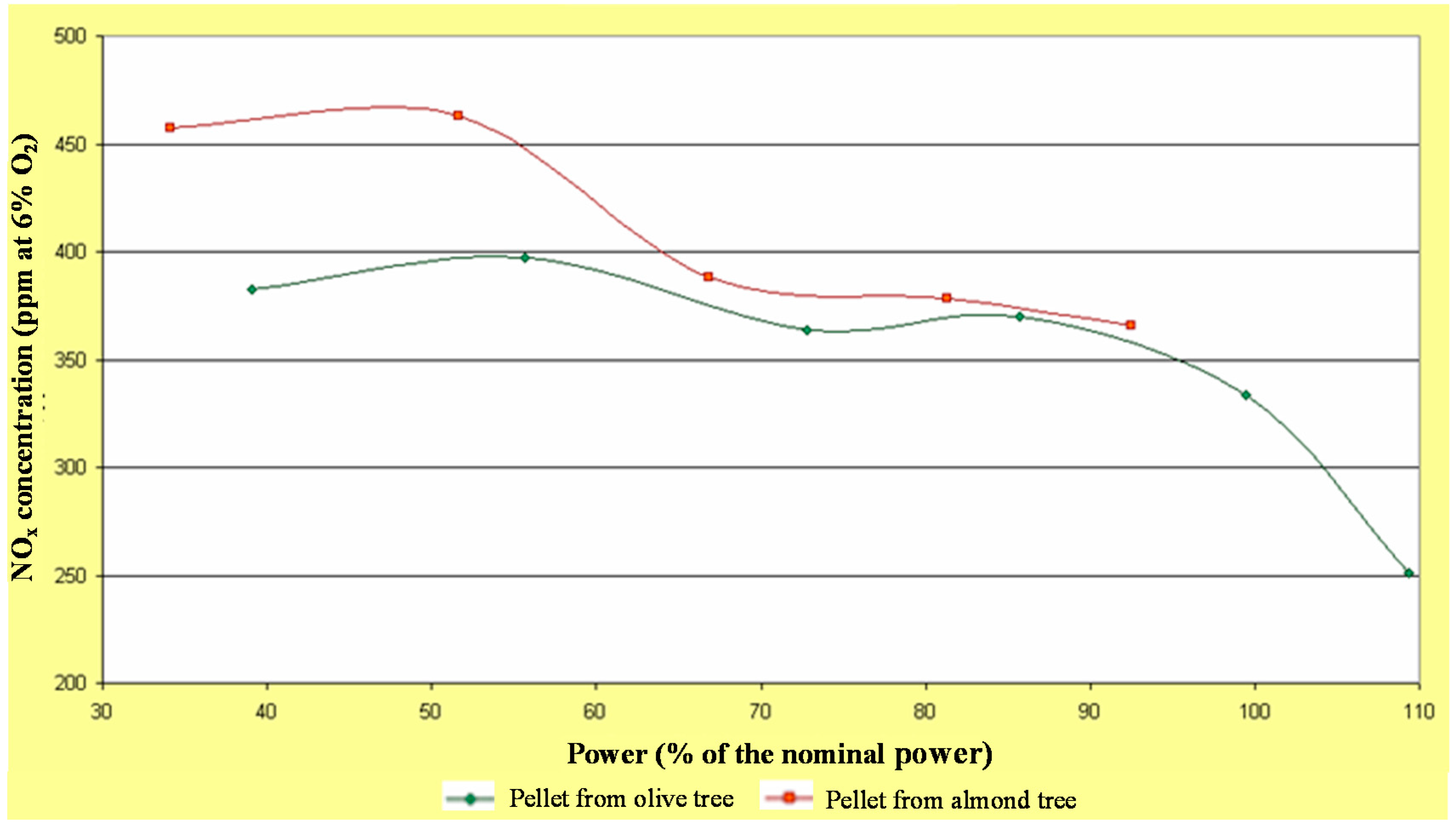

Figure 4. Evolution of NOx emissions depending on the partial operating load during combustion tests with pellets from almond and olive trees.
Figure 4. Evolution of NOx emissions depending on the partial operating load during combustion tests with pellets from almond and olive trees.
Energies 09 00777 g004

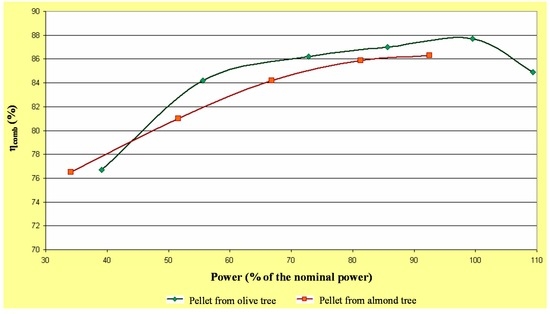

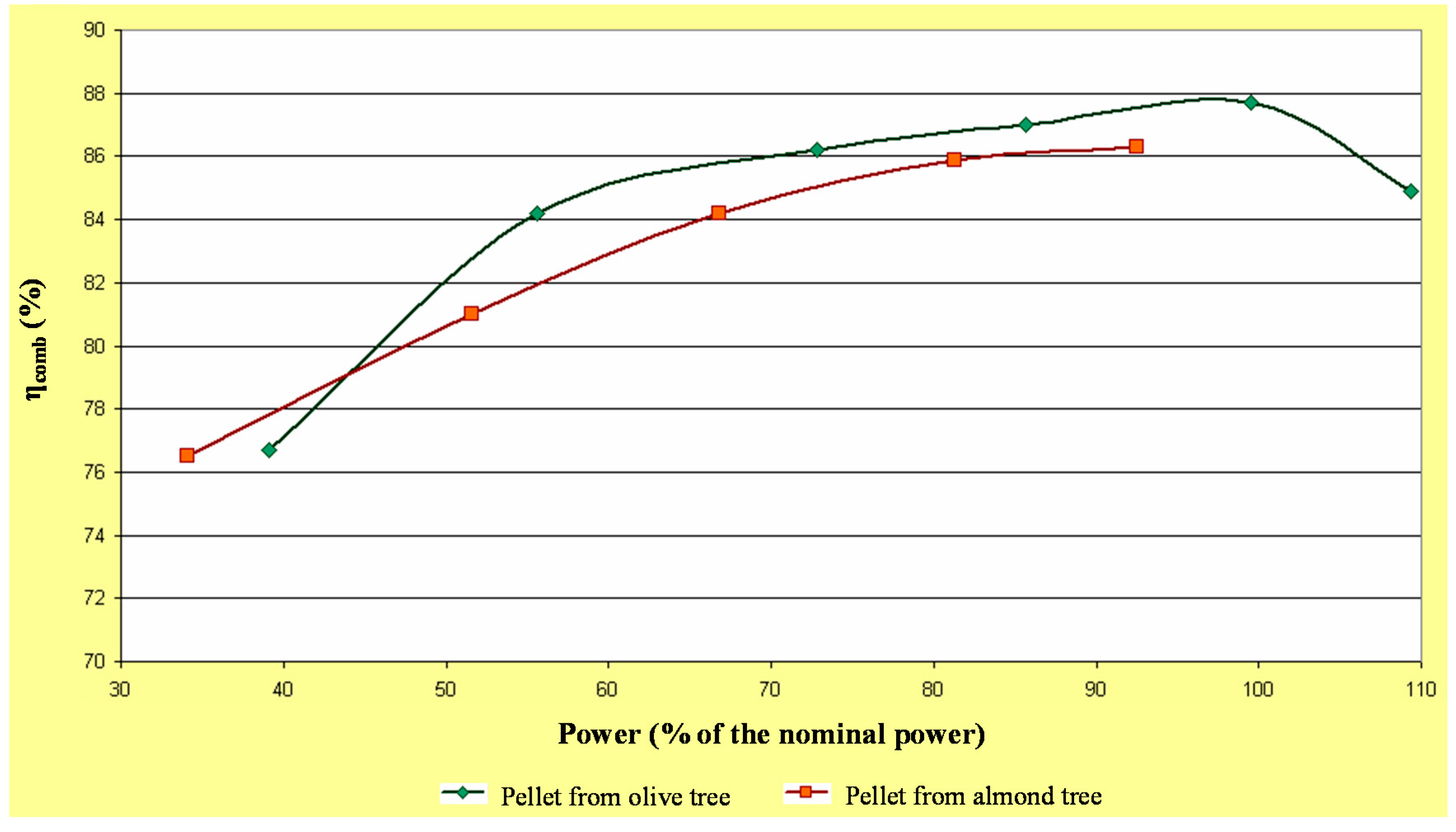

Figure 5. Evolution of combustion efficiency depending on the load for pellets from olive and almond trees.
Figure 5. Evolution of combustion efficiency depending on the load for pellets from olive and almond trees.
Energies 09 00777 g005

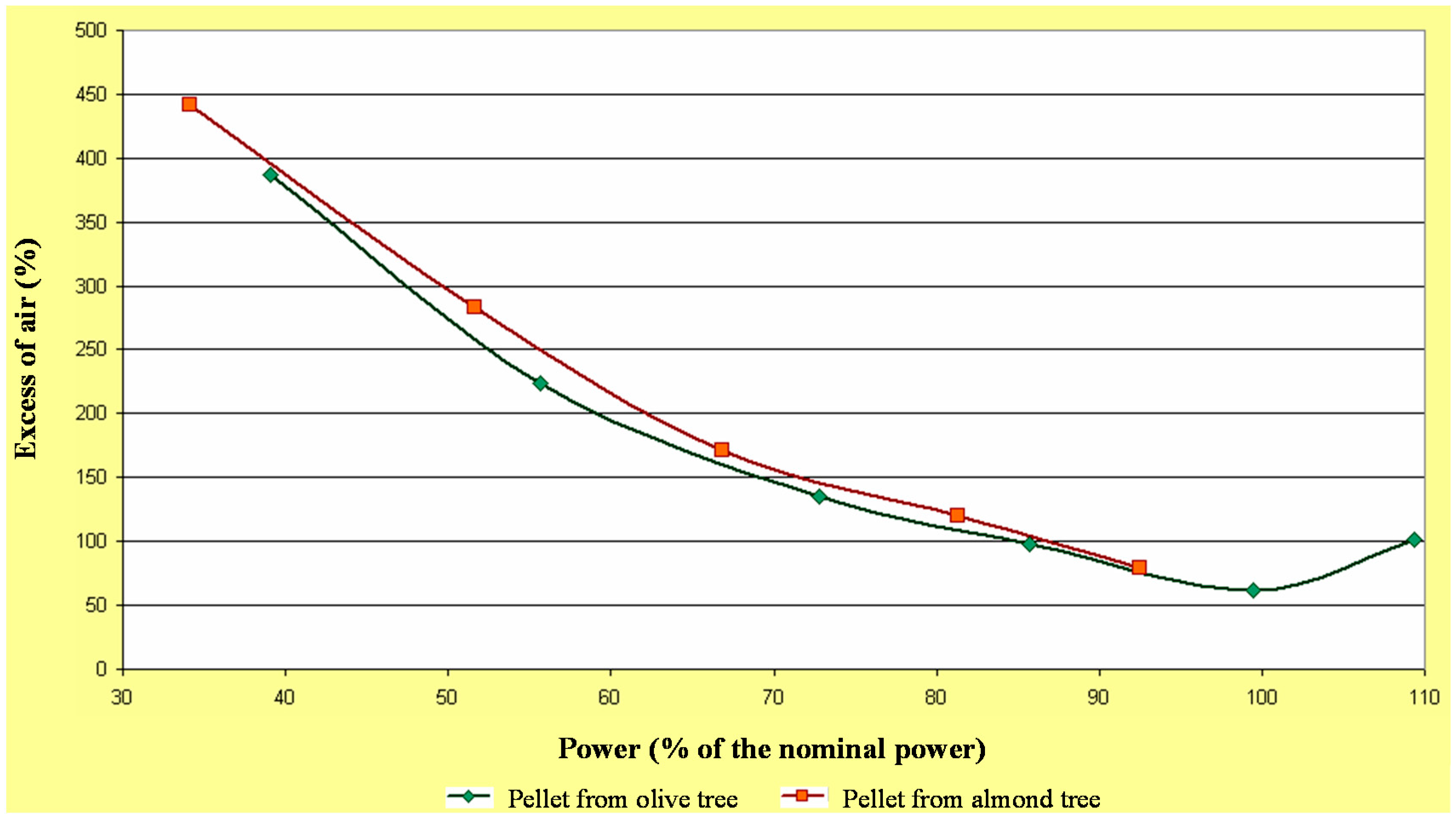

Figure 6. Evolution of excess of air depending on the load for pellets from olive and almond trees.
Figure 6. Evolution of excess of air depending on the load for pellets from olive and almond trees.
Energies 09 00777 g006

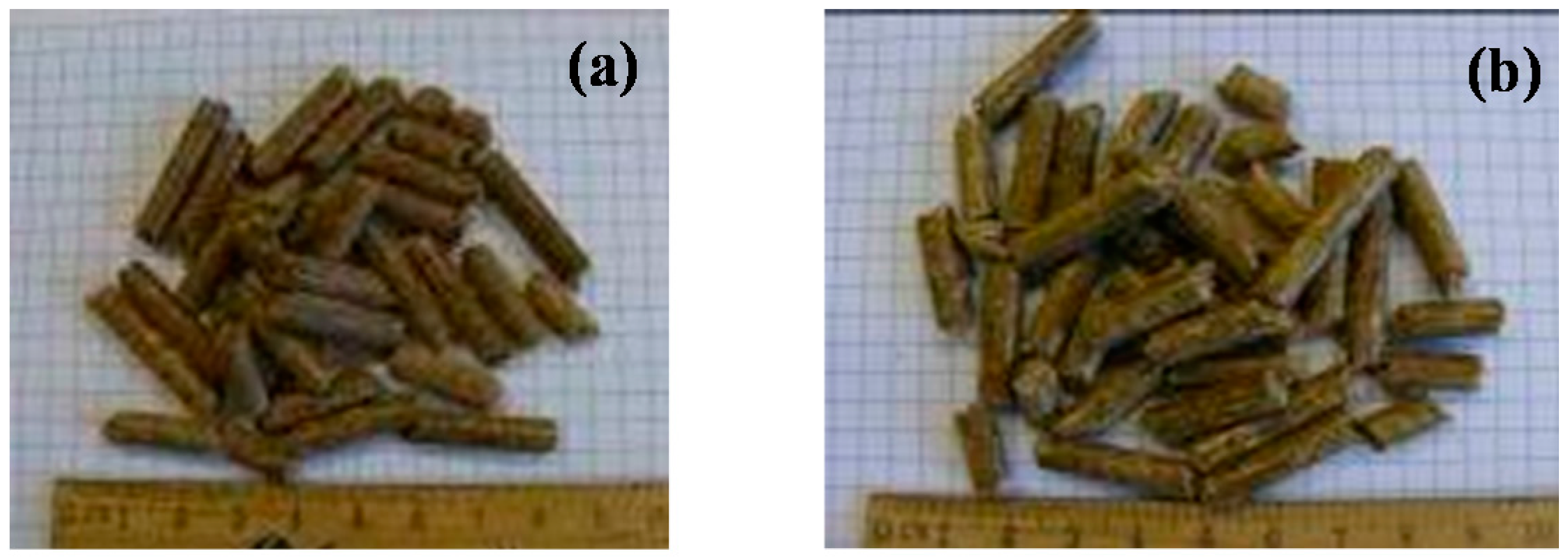

Figure 7. Visual comparison of both types of pellets. (a) Image of pellet from almond tree; (b) Image of pellet from olive tree.
Figure 7. Visual comparison of both types of pellets. (a) Image of pellet from almond tree; (b) Image of pellet from olive tree.
Energies 09 00777 g007

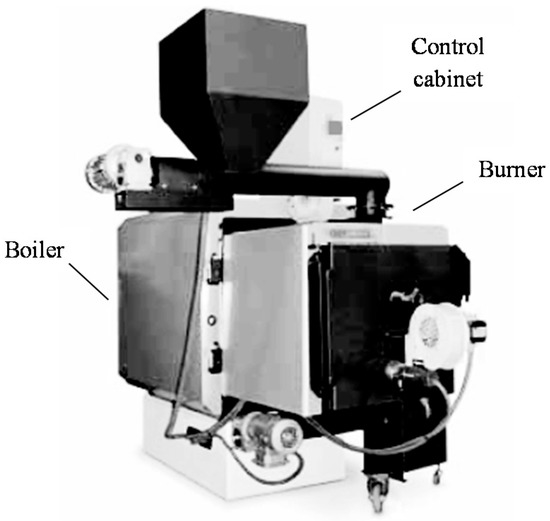

Figure 8. Flow chart of the BIO System equipment.
Figure 8. Flow chart of the BIO System equipment.
Energies 09 00777 g008

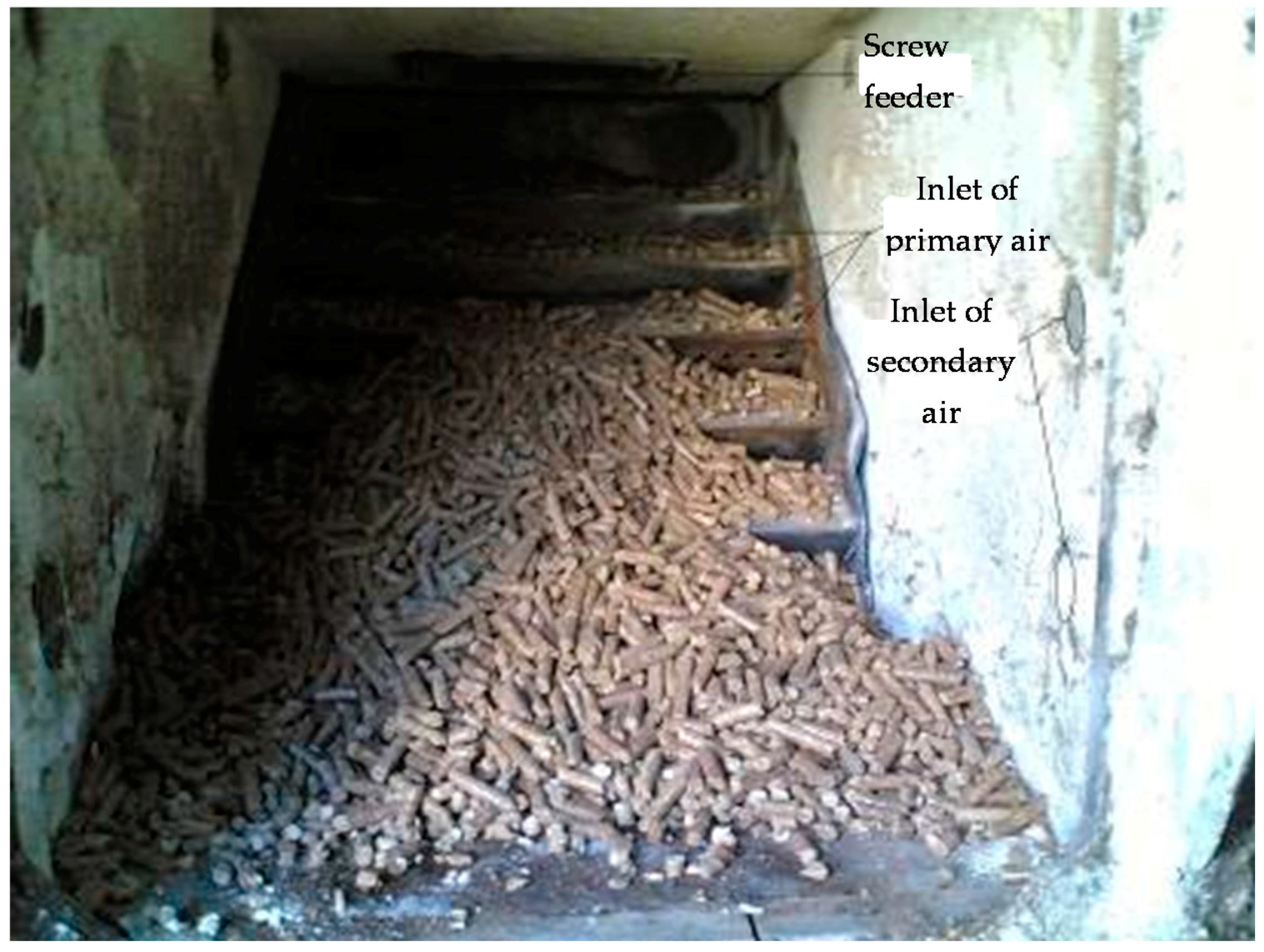

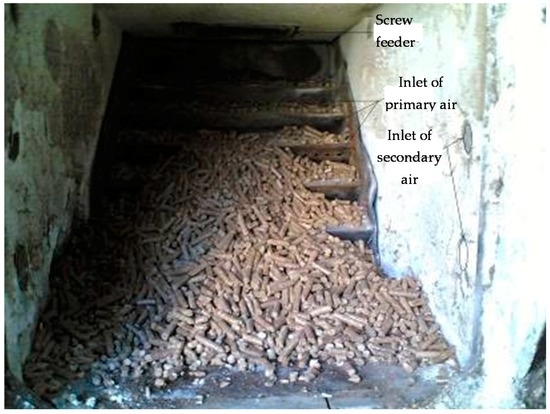

Figure 9. Filling of BIO System burner with pellets from almond tree.
Figure 9. Filling of BIO System burner with pellets from almond tree.
Energies 09 00777 g009
Table 1. Physical characteristics of pellets from almond and olive trees.
Table 1. Physical characteristics of pellets from almond and olive trees.
ParameterType of Pellet
Almond TreeOlive Tree
Diameter (mm)66
Length (mm)10–3110–24
Bulk density (kg·m−3)620650
Table 2. Chemical characteristics of pellets from almond and olive trees.
Table 2. Chemical characteristics of pellets from almond and olive trees.
ParameterType of Pellet
Almond TreeOlive Tree
Stabilized sampleDry sampleReceived sampleStabilized sampleDry sampleReceived sample
Immediate Analysis (% weight)
Moisture4.53 ± 0.040.00 ± 0.003.18 ± 0.034.40 ± 0.050.00 ± 0.002.93 ± 0.03
Ash2.62 ± 0.362.74 ± 0.372.66 ± 0.362.54 ± 0.392.66 ± 0.412.58 ± 0.40
Volatile matter75.73 ± 1.8579.32 ± 1.9376.80 ± 1.8777.26 ± 1.9880.82 ± 2.0778.45 ± 2.01
Fixed carbon17.12 ± 0.4217.94 ± 0.4417.36 ± 0.4215.80 ± 0.4016.52 ± 0.4216.04 ± 0.41
Elemental Analysis (% weight)
Carbon45.27 ± 1.1147.42 ± 1.1645.91 ± 1.1245.20 ± 1.1647.28 ± 1.2145.90 ± 1.18
Hydrogen 15.66 ± 0.055.40 ± 0.055.58 ± 0.055.80 ± 0.075.55 ± 0.065.72 ± 0.07
Nitrogen0.49 ± 0.070.51 ± 0.070.50 ± 0.070.48 ± 0.070.50 ± 0.080.49 ± 0.08
Sulfur0.00 ± 0.000.00 ± 0.000.00 ± 0.000.00 ± 0.000.00 ± 0.000.00 ± 0.00
Heating Value (kcal·kg−1)
Upper heating value436945764431437345744440
Lower heating value404842954122404642854126
Other Properties
Energy density (MJ·m−3)11,14611,658
Air-fuel ratiostoichiometric4.7514.711
Adiabatic temperature of the flame (°C)23082293
1 The hydrogen percentage includes the hydrogen coming from moisture.
Table 3. Comparison of CO and NOx concentrations of exhaust gases for pellets from almond and olive trees during combustion in the BIO System burner.
Table 3. Comparison of CO and NOx concentrations of exhaust gases for pellets from almond and olive trees during combustion in the BIO System burner.
Type of PelletNominal Power (kW)Emissions
CO (ppm at 6% O2)CO (ppm at 13% O2)NOx (ppm at 6% O2)NOx (ppm at 13% O2)
Almond tree150225.3119.5365.8259.4
Olive tree165351.6186.4333.2236.3
Table 4. Efficiency results obtained during combustion tests for pellets from olive and almond trees.
Table 4. Efficiency results obtained during combustion tests for pellets from olive and almond trees.
ParameterFuel
Pellet from Olive TreePellet from Almond Tree
Operation Parameters
Operation time (s)234567234567
Shutdown time (s)202020202020202020202020
Delta temperature (°C)4.76.78.710.311.913.14.16.28.09.711.112.1
Power (kW)64.591.8120.2141.4164.2180.556.385.2110.3134.1152.6166.1
Partial load (%)39567386991093452678192100
Gas Emission
Oxygen concentration (%)16.714.512.110.48.46.717.215.513.311.59.58.0
CO (ppm at 6% O2)5634.81558.8977.1429.5351.63248.66275.02589.0865.5387.9225.33542.6
CO (ppm at 13% O2)2987.6826.5518.1227.7186.41722.43327.01372.7458.9205.7119.51878.3
NOx (ppm at 6% O2)382.3397.2363.4369.8333.2251.0457.4463.1388.4378.0365.8356.9
NOx (ppm at 13% O2)271.1281.7257.7262.2236.3178.0324.4328.4275.4268.1259.4253.1
Combustion Efficiency
Gas temperature (°C)140.5148.4173.5192.6211.2221.2128.2152.6177.6192.9211.2224.5
Combustion efficiency (%)76.784.286.287.087.784.976.581.084.285.986.384.7
Combustion efficiency 1 (%)79.987.290.492.093.189.878.085.089.491.492.190.2
Air flow (m3·h−1)397.9340.4315.4309.6293.7417.4375.9383.8339.2327.6299.7371.4
Excess of air (%)386.7223.3135.197.962.0100.9441.6283.2171.6120.278.9101.5
Fuel flow (kg·h−1)17.622.028.132.837.842.815.021.026.031.035.037.9
Radiation and convection losses (%)2.61.81.41.21.01.02.91.91.51.21.11.0
1 Results of combustion efficiency based on a temperature of Tg = 120 °C for the gas emissions.

Share and Cite

MDPI and ACS Style

Molina-Moreno, V.; Leyva-Díaz, J.C.; Sánchez-Molina, J. Pellet as a Technological Nutrient within the Circular Economy Model: Comparative Analysis of Combustion Efficiency and CO and NOx Emissions for Pellets from Olive and Almond Trees. Energies 2016, 9, 777. https://doi.org/10.3390/en9100777

AMA Style

Molina-Moreno V, Leyva-Díaz JC, Sánchez-Molina J. Pellet as a Technological Nutrient within the Circular Economy Model: Comparative Analysis of Combustion Efficiency and CO and NOx Emissions for Pellets from Olive and Almond Trees. Energies. 2016; 9(10):777. https://doi.org/10.3390/en9100777

Chicago/Turabian Style

Molina-Moreno, Valentín, Juan Carlos Leyva-Díaz, and Jorge Sánchez-Molina. 2016. "Pellet as a Technological Nutrient within the Circular Economy Model: Comparative Analysis of Combustion Efficiency and CO and NOx Emissions for Pellets from Olive and Almond Trees" Energies 9, no. 10: 777. https://doi.org/10.3390/en9100777

APA Style

Molina-Moreno, V., Leyva-Díaz, J. C., & Sánchez-Molina, J. (2016). Pellet as a Technological Nutrient within the Circular Economy Model: Comparative Analysis of Combustion Efficiency and CO and NOx Emissions for Pellets from Olive and Almond Trees. Energies, 9(10), 777. https://doi.org/10.3390/en9100777

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
