A High-Gain Three-Port Power Converter with Fuel Cell, Battery Sources and Stacked Output for Hybrid Electric Vehicles and DC-Microgrids

Abstract

This paper proposes a novel high-gain three-port power converter with fuel cell (FC), battery sources and stacked output for a hybrid electric vehicle (HEV) connected to a dc-microgrid. In the proposed power converter, the load power can be flexibly distributed between the input sources. Moreover, the charging or discharging of the battery storage device can be controlled effectively using the FC source. The proposed converter has several outputs in series to achieve a high-voltage output, which makes it suitable for interfacing with the HEV and dc-microgrid. On the basis of the charging and discharging states of the battery storage device, two power operation modes are defined. The proposed power converter comprises only one boost inductor integrated with a flyback transformer; the boost and flyback circuit output terminals are stacked to increase the output voltage gain and reduce the voltage stress on the power devices. This paper presents the circuit configuration, operating principle, and steady-state analysis of the proposed converter, and experiments conducted on a laboratory prototype are presented to verify its effectiveness.

1. Introduction

Because of the rapid increase in the global population and energy consumption, electric vehicles (EVs) that use clean energy sources connected to dc-microgrids have been proposed as favorable and environmentally friendly alternatives to conventional vehicles [1,2,3,4,5]. A dc-microgrid comprises a grid-connected converter (GCC), the different types of distributed energy generation systems, a battery storage system, EVs, and local emergency loads. The function of the GCC is to maintain a constant dc-bus voltage. To ensure the operational reliability of the dc-microgrid, a mass of battery storage devices is usually added to the system. EVs provide ancillary services to the dc-microgrid, which facilitates clean and efficient electric-powered transportation by enabling the EVs to power or be powered by the grid.

In hybrid electric vehicles (HEVs), fuel cell (FC) stacks can be used as clean energy sources. FCs are energy sources that directly convert chemical energy to electrical energy. FCs generate electric energy and, rather than storing it, continue to deliver the energy as long as the fuel supply is maintained. However, FCs have the drawbacks of slow dynamic response and high cost per output power [2,6,7,8,9]. Thus, FCs alone are not used in HEVs to satisfy load demands, particularly during startup and transient events. Therefore, to solve these problems, FCs are generally used with the battery storage device. Furthermore, the combined use of FCs and the battery storage device reduces hydrogen consumption in the FCs [3,6,7,8,9].

In general, FCs and batteries have different voltage levels. Therefore, to provide a specific voltage level for the load and control power flow between the input sources, a power converter is required for each of the input sources; this increases the price, mass, and losses. To overcome these drawbacks, multiport converters have been used in hybrid power systems [10,11,12,13,14,15,16,17,18,19,20,21]. These converters are of two main types: isolated and nonisolated. In isolated converters, high-frequency transformers are used to provide galvanic isolation. Several types of isolated converters, such as half-bridge, full-bridge, dual-active bridge, boost half-bridge, and combinational multiport isolated converters, have been investigated [10,11,12,13,14,15,16,17].

According to the literature, usage of nonisolated converters in EV applications is more useful. A multi-input buck converter was introduced in [20]. The advantage of this converter is that it reduces the number of inductors and capacitors, leading to lower converter cost, volume, and weight. However, lack of an effective power flow control between the input sources is a disadvantage. A multiphase converter was introduced in [21]. In this converter, each of the energy sources can deliver or absorb energy from the load and other sources. Using a separate inductor for each input source is a drawback of this converter. A triple input converter for hybridization of the battery, photovoltaic cells, and the FC was introduced in [22]. Appropriately switching this converter enables the charging and discharging of the battery through other sources and load, respectively. A systematic approach for deriving nonisolated multi-input converter topologies through a combination of buck, boost, Ćuk, and SEPIC was presented in [23]. A multi-input converter with only one inductor was proposed in [24]; this converter distributes the load power between the input sources and enables power transfer between the sources. A nonisolated multi-input–multi-output (MIMO) converter comprising only one inductor was introduced in [25]. However, this converter uses a high number of switches, which causes low efficiency. Moreover, the converter cannot transfer energy between the input sources. To overcome these drawbacks, a new nonisolated MIMO boost converter was proposed [26]. This converter is used in hybridizing clean energy sources in EVs. The basic boost converter is modified and integrated; however, in practice, the voltage gain of the MIMO boost converter is limited owing to the losses associated with the inductor, filter capacitor, main power switch, and rectifier diode. Because of a very high duty ratio, the output rectifier conducts for an extremely short time during each switching cycle, thus resulting in major reverse-recovery problems and an increase in the rating of the rectification diode. The switch-off loss due to the rectifier diode affects the efficiency, resulting in the electromagnetic interference problem that is severe in this condition.

This paper proposes a high-gain three-port power converter with FC, battery sources and stacked output for an HEV connected to a dc-microgrid. In the proposed converter, the load power can be flexibly distributed between the input sources. Moreover, the charging or discharging of a battery storage device can be controlled effectively using the FC source. The proposed converter comprises only one boost inductor integrated with a flyback transformer; the boost and flyback circuit output terminals are stacked to increase the output voltage gain, making it suitable for interfacing with dc-microgrid. The stacked output structure of the proposed converter enables all the voltage stresses of power devices to be distributed and reduced. Therefore, the high performance and relatively lower drain-source voltage (i.e., V_DS) aids in further reducing both switching and conduction losses. This paper presents the circuit configuration, operating principle, and steady-state analysis of the proposed converter. The validity of the proposed power converter and its performance were verified by simulation and experimental results under different operating conditions. The highest conversion efficiency achieved by the prototype was 96.6% in the battery discharging mode with two input sources of V_in1 = 36 V and V_in2 = 48 V.

2. Topology and Operation Modes of the Proposed Power Converter

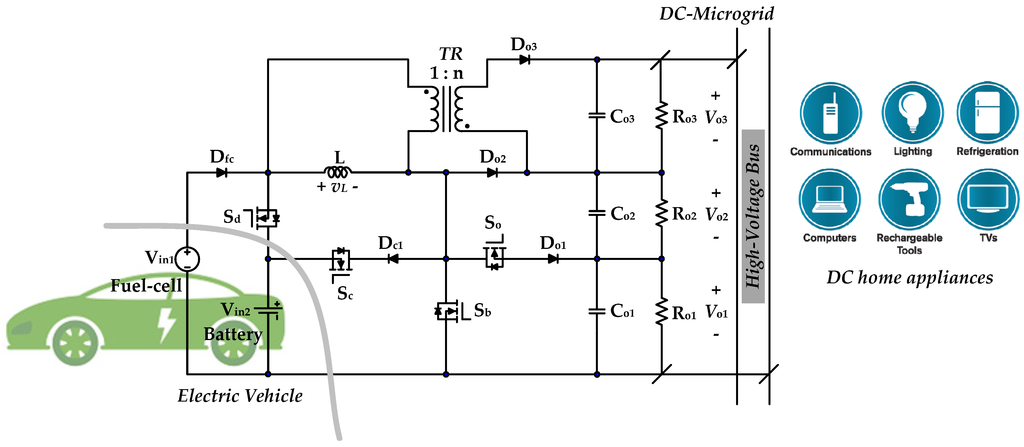

The proposed converter topology was derived on the basis of a nonisolated MIMO boost converter [26]; the system structure of the proposed converter is shown in Figure 1. The proposed power converter receives the HEV electrical power from the FC and battery sources and converts it to a suitable high voltage, which is applied to a dc-microgrid so that dc home appliances can use the electricity directly. In Figure 1, R_o1–R_o3 are the load resistances that represent the equivalent power feeding dc-microgrid. The four power switches S_c, S_d, S_b, and S_o in the converter structure are the main active switches that control the power flow and output voltages of the converter. In the proposed converter, source V_in1 can deliver power to source V_in2 but not vice versa. In this study, the FC was used as a generating power source (V_in1), and the battery was used as a storage device (V_in2). On the basis of the utilization state of the battery, two power operating modes were defined and investigated for the proposed converter as follows.

2.1. Battery Discharging Mode

In the battery discharging mode, two input power sources V_in1 (FC) and V_in2 (battery) supply energy to the loads. The switch S_c is turned off, and switches S_b, S_d, and S_o are actively switching. S_d is used to regulate the battery current to the desired value by controlling the inductor current. The total output voltage (V_o1 + V_o2 + V_o3 = V_T) is regulated to the desired value by the duty cycle of the switch S_b. Moreover, the output voltage V_o1 is controlled by S_o. Because of the regulation of V_T and V_o1, the output voltages V_o2 and V_o3 are regulated. Figure 2 shows the gate signals of switches and voltage and current waveforms of the inductor.

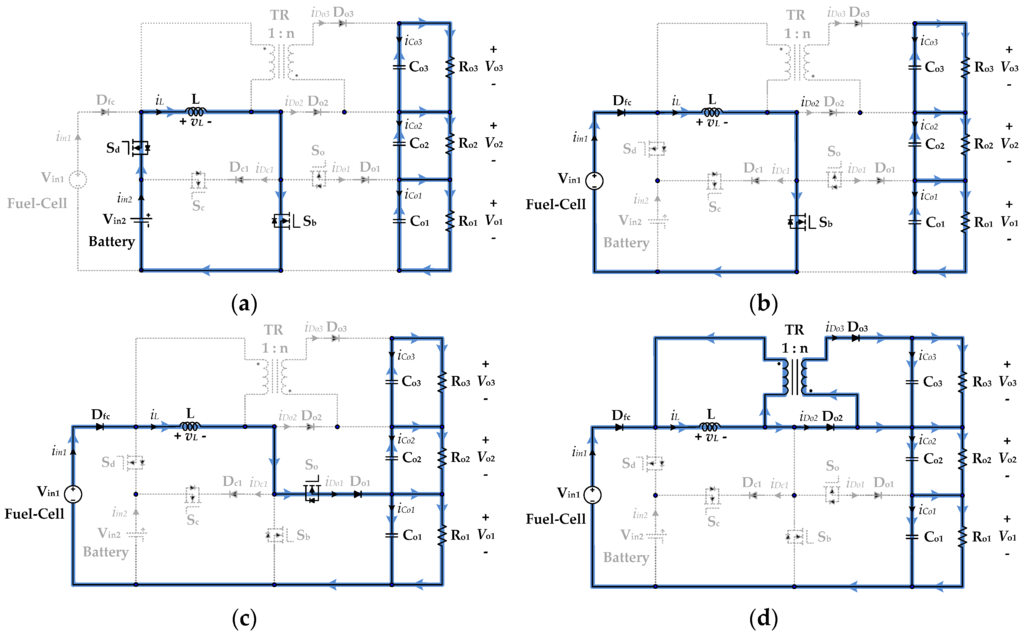

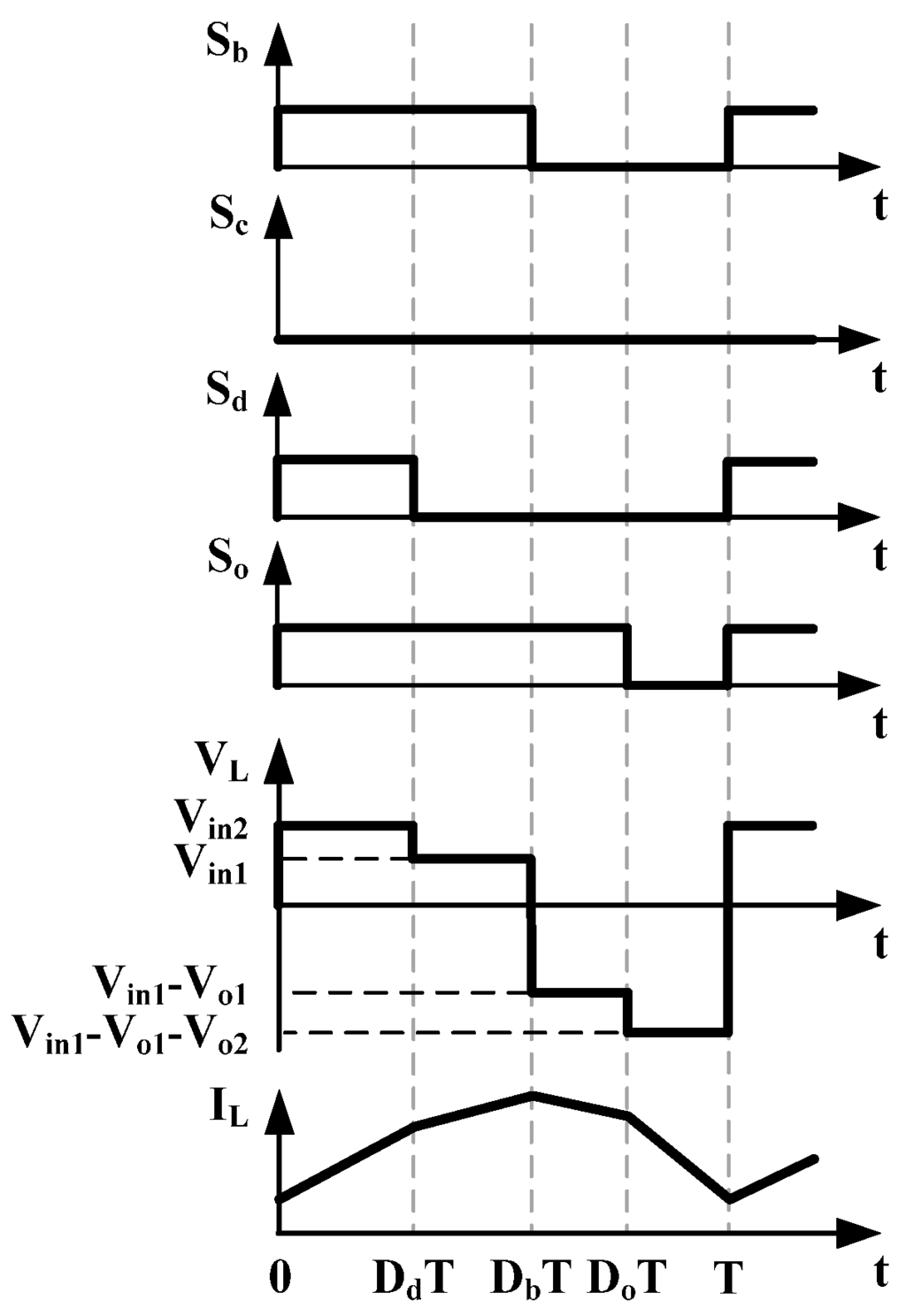

According to the switch states, four operating modes exist in one switching period, as shown in Figure 3.

State 1 (0 < t < D_dT): In this state, the switches S_b, S_d, and S_o are turned on. Because S_b is turned on, diodes D_o1, D_o2, and D_o3 are reverse-biased, and switch S_c is turned off. Moreover, because S_d is turned on and V_in1 < V_in2, the diode D_fc is reverse-biased. Figure 3a shows the equivalent circuit of the proposed converter in this state. V_in2 charges the inductor L, and the inductor current increases linearly. Moreover, the capacitors C_o1–C_o3 are discharged and deliver their stored energy to the load resistances R_o1–R_o3. The inductor and capacitor equations in this state are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\text{in}2}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(1)

State 2 (D_dT < t < D_bT): In this state, the switch S_b is turned on, switch S_d is turned off, and diodes D_o1, D_o2, and D_o3 are reverse-biased. V_in1 charges the inductor L, and the inductor current increases linearly. In addition, the capacitors C_o1–C_o3 are discharged and deliver their stored energy to the load resistances R_o1–R_o3. Figure 3b shows the equivalent circuit of the proposed converter in this state. The inductor and capacitor equations in this state are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\mathrm{in}1}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(2)

State 3 (D_bT < t < D_oT): In this state, the switches S_b and S_d are turned off, switch S_o is turned on, and diodes D_o2 and D_o3 are reverse-biased. The inductor L is discharged and delivers the energy to the capacitor C_o1 and load resistance R_o1; the inductor current decreases linearly. The capacitor C_o1 is charged, and the capacitors C_o2 and C_o3 are discharged and deliver the stored energy to load resistances R_o2 and R_o3. Figure 3c shows the equivalent circuit of the proposed converter in this state. The energy storage element L and C_o1–C_o3 equations in this state are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\text{in}1}-v_{\mathrm{o}1}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=i_{\mathrm{L}}-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(3)

State 4 (D_oT < t < T): In this state, all switches are turned off. The diode D_o1 is reverse-biased, and diodes D_o2 and D_o3 are forward-biased. The energy stored in the inductor L is now partly discharged through the ideal transformer and the inductor delivers the stored energy to the capacitors C_o1–C_o3 and load resistances R_o1–R_o3. Figure 3d shows the equivalent circuit of the proposed converter in this state. The inductor and capacitor equations in this state are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\text{in}1}-(v_{\mathrm{o}1}+v_{\mathrm{o}2})=-\frac{v_{\mathrm{o}3}}{n}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=\mathsf{\alpha }{i}_{\mathrm{L}}-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=\mathsf{\alpha }{i}_{\mathrm{L}}-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=\frac{\mathsf{\beta }{i}_{\mathrm{L}}}{n}-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(4)

where n represents the transformer turn ratio and α and β are the ratios of the inductor current that contributes the energy to load resistances R_o2 and R_o3, respectively; that is (α + β = 1).

2.2. Battery Charging Mode

In the battery charging mode, V_in1 (FC) not only supplies loads but also supplies power to V_in2 (battery). This condition occurs when the load power is low and the battery must be charged. In this operating mode, switches S_b, S_c, and S_o are actively switching and switch S_d is turned off. S_b is controlled to regulate total output voltage (V_o1 + V_o2 + V_o3 = V_T) to the desired value. The battery charging current is regulated to the desired value by the duty cycle of S_c. Moreover, the output voltage V_o1 is controlled by S_o. Because of the regulation of V_T and V_o1, the output voltages V_o2 and V_o3 are regulated.

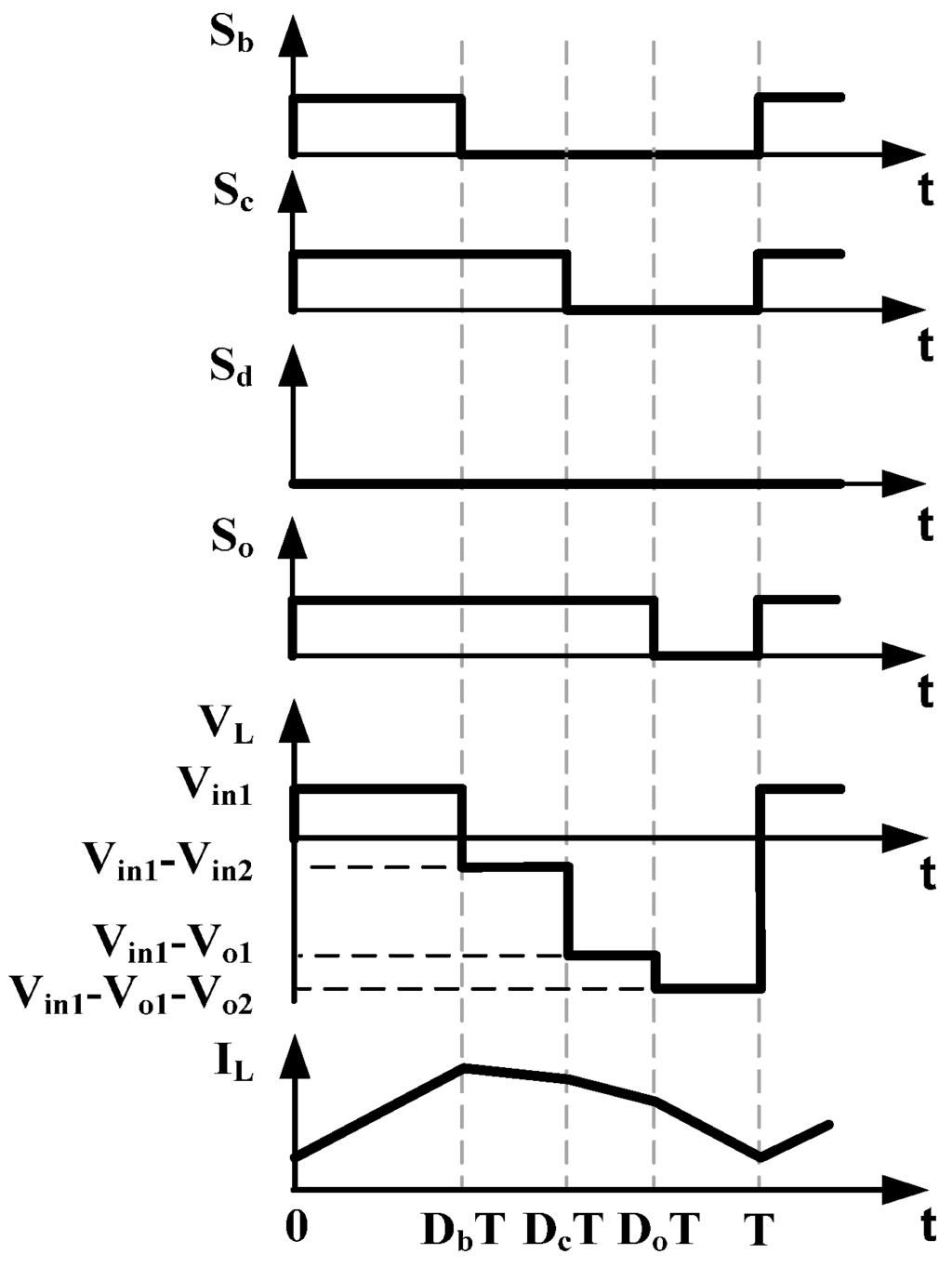

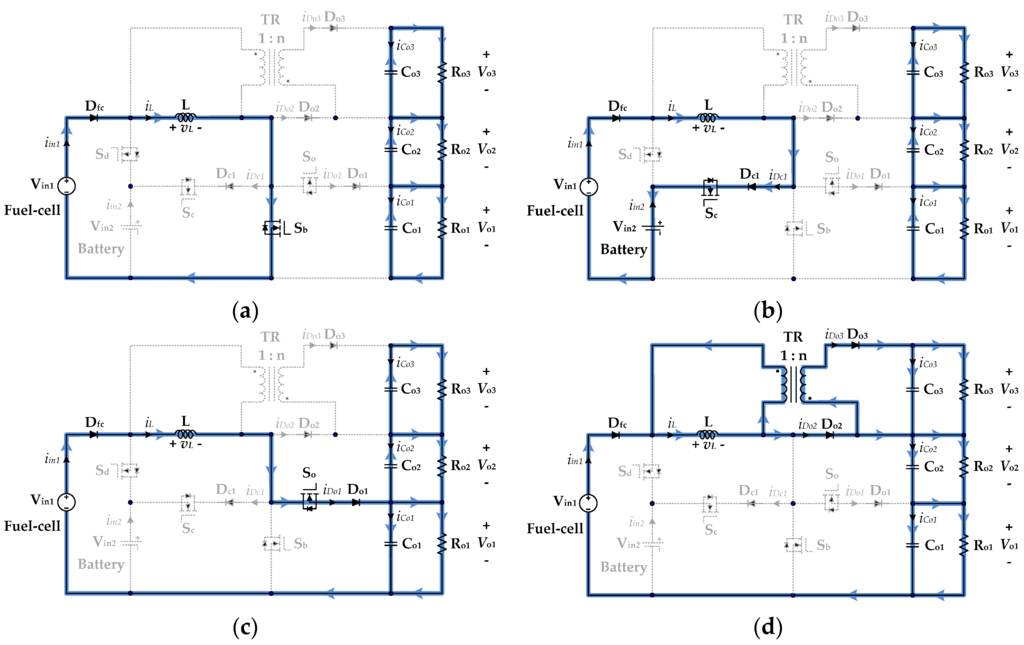

Figure 4 shows the gate signals of switches and voltage and current waveforms of the inductor. According to the switch states, four modes exist in one switching period, as shown in Figure 5.

State 1 (0 < t < D_bT): In this state, switch S_d is turned off; switches S_b, S_c, and S_o are turned on; and diodes D_o1–D_o3 are reverse-biased. V_in1 charges the inductor L, and the inductor current increases linearly. Moreover, the capacitors C_o1–C_o3 are discharged and deliver their stored energy to the load resistances R_o1–R_o3. Figure 5a shows the equivalent circuit of the proposed converter in this state. The inductor and capacitor equations in this state are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\text{in}1}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(5)

State 2 (D_bT < t < D_cT): In this state, the switches S_c and S_o are turned on, switches S_d and S_b are turned off, and diodes D_o1–D_o3 are reverse-biased. Because V_in1 < V_in2 in this state, during this period, the inductor current decreases linearly and the inductor delivers the energy to the battery (V_in2). Moreover, the capacitors C_o1–C_o3 are discharged and deliver their stored energy to the load resistances R_o1–R_o3. Figure 5b shows the equivalent circuit of the proposed converter in this state. The inductor and capacitor equations in this mode are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\text{in}1}-v_{\text{in}2}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(6)

State 3 (D_cT < t < D_oT): In this state, switches S_d, S_b, and S_c are turned off; switch S_o is turned on; and diodes D_o2 and D_o3 are reverse-biased. The inductor L is discharged and delivers the energy to the capacitor C_o1 and load resistance R_o1; the inductor current decreases linearly. The capacitor C_o1 is charged, and the capacitors C_o2 and C_o3 are discharged and deliver the stored energy to the load resistances R_o2–R_o3. Figure 5c shows the equivalent circuit of the proposed converter in this state. The energy storage element L and C_o1–C_o3 equations in this state are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\text{in}1}-v_{\mathrm{o}1}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=i_L-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(7)

State 4 (D_oT < t < T): In this state, all the switches are turned off. The diode D_o1 is reverse-biased, and diodes D_o2 and D_o3 are forward-biased. The inductor L is discharged, and the energy stored in L is now partly discharged through the ideal transformer to deliver the stored energy to the capacitors C_o1–C_o3 and load resistances R_o1–R_o3. Figure 5d shows the equivalent circuit of the proposed converter in this state. The inductor and capacitor equations are as follows:

$$\{\begin{array}{l}L\frac{\mathrm{d}{i}_{\mathrm{L}}}{\mathrm{d}t}=v_{\text{in}1}-(v_{\mathrm{o}1}+v_{\mathrm{o}2})=-\frac{v_{\mathrm{o}3}}{n}\\ C_{\mathrm{o}1}\frac{\mathrm{d}{v}_{\mathrm{o}1}}{\mathrm{d}t}=\mathsf{\alpha }{i}_{\mathrm{L}}-\frac{v_{\mathrm{o}1}}{R_{\mathrm{o}1}}\\ C_{\mathrm{o}2}\frac{\mathrm{d}{v}_{\mathrm{o}2}}{\mathrm{d}t}=\mathsf{\alpha }{i}_{\mathrm{L}}-\frac{v_{\mathrm{o}2}}{R_{\mathrm{o}2}}\\ C_{\mathrm{o}3}\frac{\mathrm{d}{v}_{\mathrm{o}3}}{\mathrm{d}t}=\frac{\mathsf{\beta }{i}_{\mathrm{L}}}{n}-\frac{v_{\mathrm{o}3}}{R_{\mathrm{o}3}}\end{array}$$

(8)

3. Steady-State Analysis

In the battery discharging mode, the energy of the two inputs can be controlled by tuning the duty cycle D_d of the switch S_d. Moreover, the total output voltage (V_o1 + V_o2 + V_o3 = V_T) can be regulated to the desired value by tuning the duty cycles D_b and D_o of the switches S_b and S_o, respectively. In the battery charging mode, the energy of the input power source V_in1 can be controlled to charge the battery by tuning the duty cycles D_b and D_c of the switches S_b and S_c, respectively. Moreover, the total output voltage V_T can be regulated to the desired value by tuning the duty cycles D_c and D_o of the switches S_c and S_o, respectively.

According to the voltage-second balance principle and Equations (1)–(4):

$$V_{\text{in}1}(1-D_{\mathrm{d}})+V_{\text{in}2}{D}_{\mathrm{d}}=V_{\mathrm{o}1}(1-D_{\mathrm{b}})+V_{\mathrm{o}2}(1-D_{\mathrm{o}})$$

(9)

$$V_{\text{in}1}(D_{\mathrm{o}}-D_{\mathrm{d}})+V_{\text{in}2}{D}_{\mathrm{d}}=V_{\mathrm{o}1}(D_{\mathrm{o}}-D_{\mathrm{b}})+\frac{V_{\mathrm{o}3}}{n}(1-D_{\mathrm{o}})$$

(10)

Similarly, according to Equations (5)–(8):

$$V_{\text{in}1}+V_{\text{in}2}(D_{\mathrm{b}}-D_{\mathrm{c}})=V_{\mathrm{o}1}(1-D_{\mathrm{c}})+V_{\mathrm{o}2}(1-D_{\mathrm{o}})$$

(11)

$$V_{\text{in}1}{D}_{\mathrm{o}}+V_{\text{in}2}(D_{\mathrm{b}}-D_{\mathrm{c}})=V_{\mathrm{o}1}(D_{\mathrm{o}}-D_{\mathrm{c}})+\frac{V_{\mathrm{o}3}}{n}(1-D_{\mathrm{o}})$$

(12)

According to the equivalent circuits (State 4) of the battery charging and discharging modes, the inductor current delivers the stored energy to load resistances R_o2 and R_o3, and the corresponding distributed currents for R_o2 and R_o3 can be expressed as follows:

$$I_{D\mathrm{o}2}=\frac{V_{\mathrm{o}2}}{R_2}=(1-D_{\mathrm{o}})\mathsf{\alpha }{I}_{\mathrm{L}}$$

(13)

$$I_{D\mathrm{o}3}=\frac{V_{\mathrm{o}3}}{R_3}=(1-D_{\mathrm{o}})\frac{\mathsf{\beta }}{n}{I}_{\mathrm{L}}$$

(14)

According to Equations (13) and (14):

$$\frac{\mathsf{\alpha }}{\mathsf{\beta }}=n\frac{V_{\mathrm{o}2}}{V_{\mathrm{o}3}}\frac{R_3}{R_2}$$

(15)

In summary, the values of the switch duty cycles of the discharging and charging modes are obtained using steady-state equations, which are expressed by Equations (16) and (17), respectively.

$$\left[\begin{array}{ccc}{V}_{\mathrm{o}1}& V_{\text{in}2}-V_{\text{in}1}& V_{\mathrm{o}2}\\ R_{\mathrm{o}1}{I}_{\mathrm{b}}& V_{\mathrm{o}1}& R_{\mathrm{o}1}{I}_{\mathrm{b}}(\mathsf{\alpha }-1)\\ 0& V_{\mathrm{o}2}& \mathsf{\alpha }{R}_{\mathrm{o}2}{I}_{\mathrm{b}}\\ 0& V_{\mathrm{o}3}& \frac{\mathsf{\beta }}{N}{R}_{\mathrm{o}3}{I}_{\mathrm{b}}\end{array}\right]\left[\begin{array}{c}{D}_{\mathrm{b}}\\ D_{\mathrm{d}}\\ D_{\mathrm{o}}\end{array}\right]=\left[\begin{array}{c}{V}_{\mathrm{o}1}+V_{\mathrm{o}2}-V_{\text{in}1}\\ \mathsf{\alpha }{R}_{\mathrm{o}1}{I}_{\mathrm{b}}\\ \mathsf{\alpha }{R}_{\mathrm{o}2}{I}_{\mathrm{b}}\\ \frac{\mathsf{\beta }}{N}{R}_{\mathrm{o}3}{I}_{\mathrm{b}}\end{array}\right]$$

(16)

$$\left[\begin{array}{ccc}{V}_{\text{in}2}& V_{\mathrm{o}1}-V_{\text{in}2}& V_{\mathrm{o}2}\\ R_{\mathrm{o}1}{I}_{\mathrm{b}}& V_{\mathrm{o}1}& R_{\mathrm{o}1}{I}_{\mathrm{b}}(\mathsf{\alpha }-1)\\ 0& V_{\mathrm{o}2}& \mathsf{\alpha }{R}_{\mathrm{o}2}{I}_{\mathrm{b}}\\ 0& V_{\mathrm{o}3}& \frac{\mathsf{\beta }}{N}{R}_{\mathrm{o}3}{I}_b\end{array}\right]\left[\begin{array}{c}{D}_{\mathrm{b}}\\ D_{\mathrm{c}}\\ D_{\mathrm{o}}\end{array}\right]=\left[\begin{array}{c}{V}_{\mathrm{o}1}+V_{\mathrm{o}2}-V_{\text{in}1}\\ \mathsf{\alpha }{R}_{\mathrm{o}1}{I}_{\mathrm{b}}\\ \mathsf{\alpha }{R}_{\mathrm{o}2}{I}_{\mathrm{b}}\\ \frac{\mathsf{\beta }}{N}{R}_{\mathrm{o}3}{I}_{\mathrm{b}}\end{array}\right]$$

(17)

4. Simulation and Experimental Results

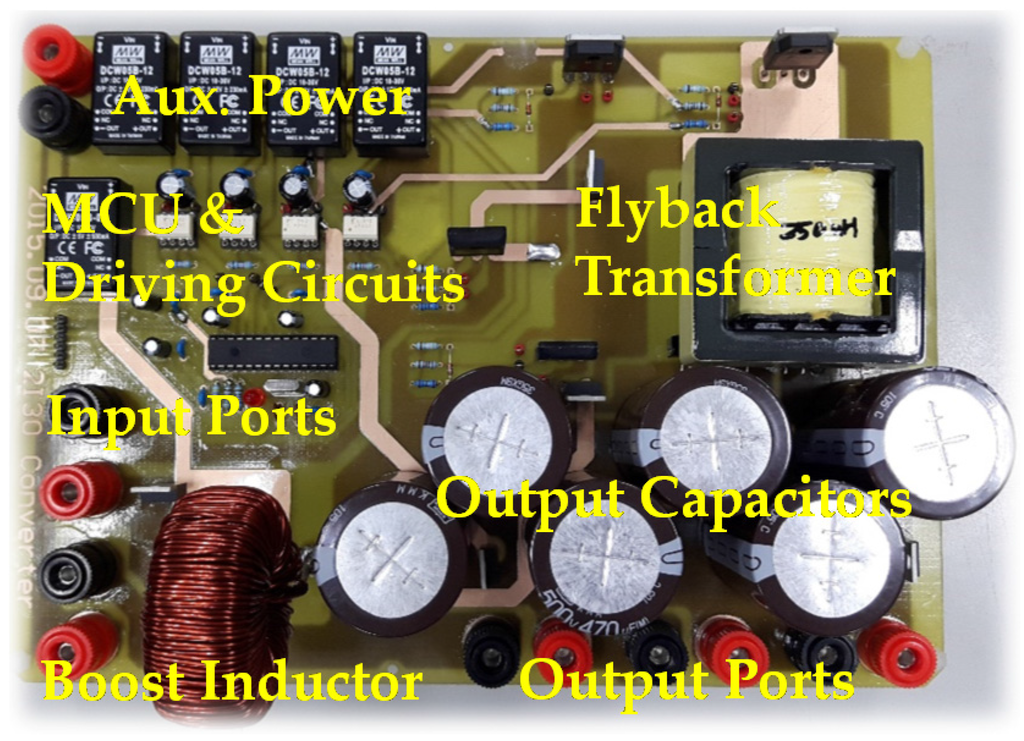

To verify the performance of the proposed converter, experiments were conducted using a 300-W circuit prototype in battery discharging and charging modes. The corresponding simulation results were also made utilizing the PSIM simulation software [27]. The parameters are listed in

Table 1. Specifications/component parameters. FC: fuel cell.

Specifications		Component Parameters
Vin1 (FC)	36 V	Transformer/magnetizing inductors	TR: EE55/55; L: 250 μH, n: 0.5
Vin2 (battery)	48 V	Capacitors	Co1–Co3: 2pcs 470 μF/450 V in parallel
Output power	Po: 300 W	Active switches	Sd, So: FDA59N30; Sc, Sb: FCH043N60
Switching frequency	fs: 20 kHz	Diodes	F15S60S

. The input voltage sources were V_in1 = 36 V, and V_in2 = 48 V. The total output voltage was regulated as V_T-ref = V_o1-ref + V_o2-ref + V_o3-ref = 300 V ± 10% (i.e., 270–330 V), and the voltage regulation ranges of the three-output terminals were set to V_o1-ref = V_o2-ref = 80 ± 10% (i.e., 72–88 V) and V_o3-ref = 140 ± 10% (i.e., 126–154 V). Moreover, the average battery currents were regulated as I_b(avg) = 1.4 A and I_b(avg) = −0.85 A for the battery discharging and charging modes, respectively. The load resistances R_o1 = 150 Ω, R_o2 = 75 Ω, and R_o3 = 75 Ω were used for the battery discharging and charging modes, which are described in Section 4.1 and Section 4.2, respectively.

4.1. Battery Discharging Mode

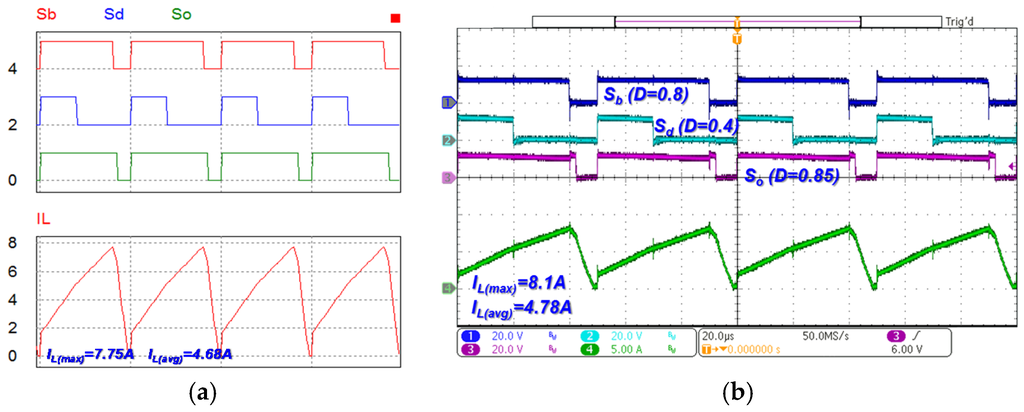

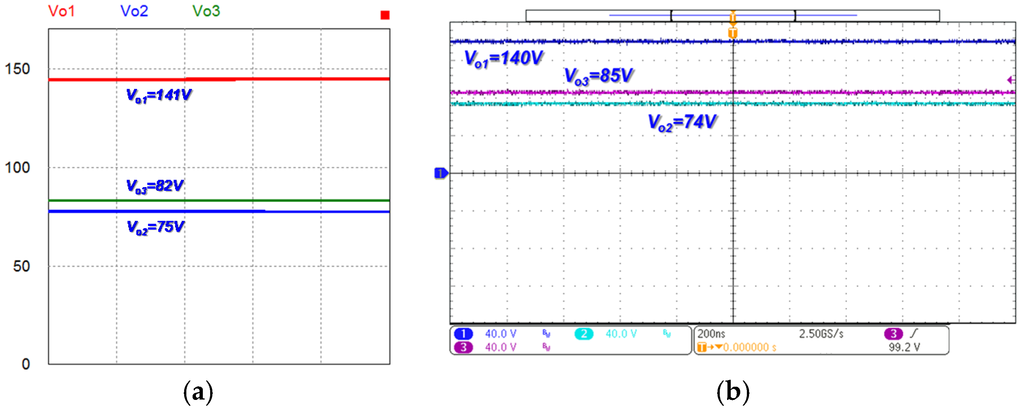

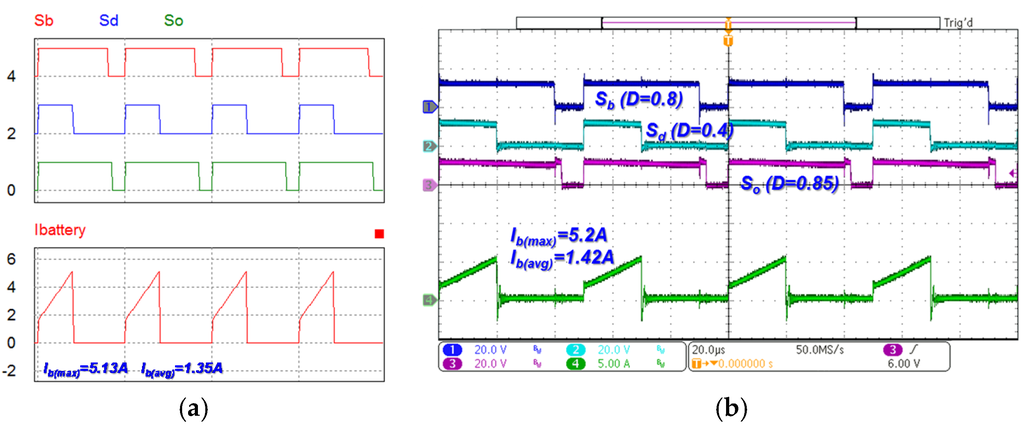

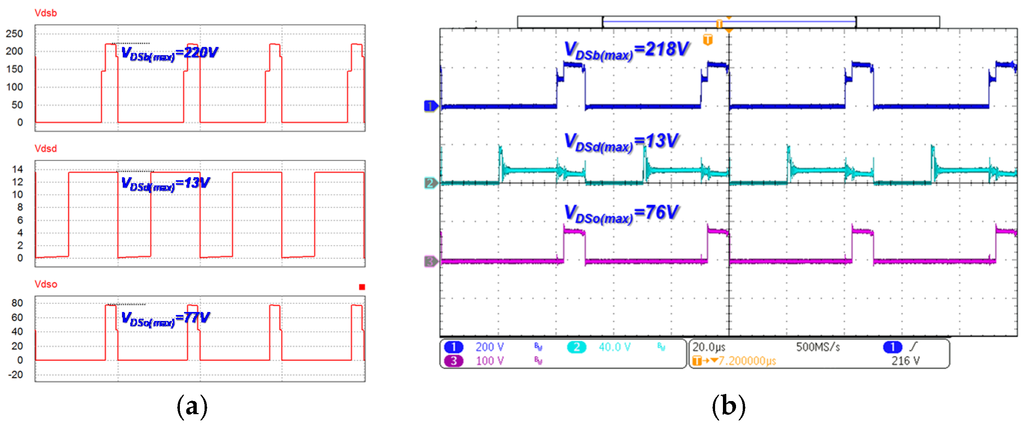

In the battery discharging mode, two input power sources V_in1 (FC) and V_in2 (battery) supply the energy to the loads. Figure 6 shows the measured waveforms of the switch gate signals and the voltage and current waveforms of the inductor. As shown in this figure, the switch S_c is turned off, and the switches S_b, S_d, and S_o are actively controlled. To control the output voltage, the duty cycles D_b and D_o are tuned first, and by tuning the duty cycle D_d to a higher value, the total output voltage V_T is higher, and vice versa. As shown in Figure 7, the regulated average battery current I_b(avg) = 1.42 A and average inductor current I_L(avg) = 4.78 A can be obtained. Notably, the battery current in this mode has a positive value, which implies that the battery has been discharged. Figure 8 shows both simulation and experimental results of the switch voltages in the battery discharging mode. The maximum voltage stresses of the power switches S_b, S_d, and S_o are 218 V, 13 V, and 76 V, respectively, which are in close agreement with the corresponding simulation results. All the voltage stresses are lower than the output voltage, and this result enables the adoption of lower voltage rating devices for reducing conduction and switching losses.

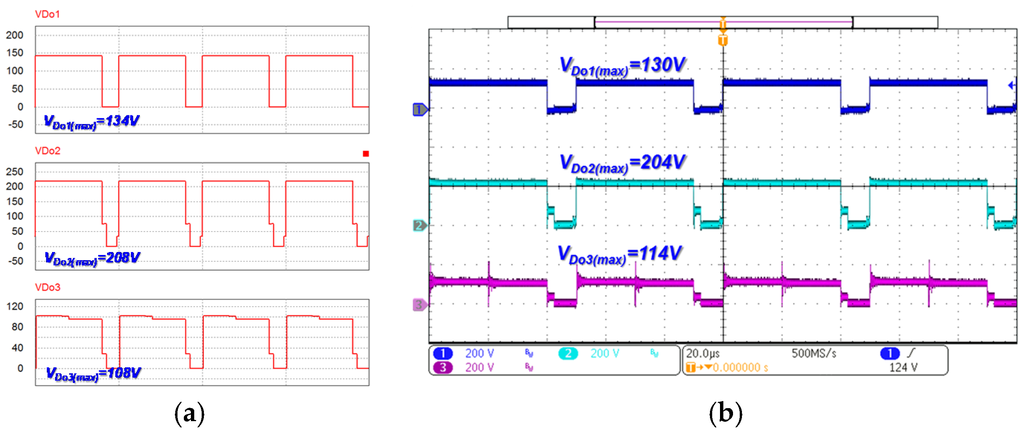

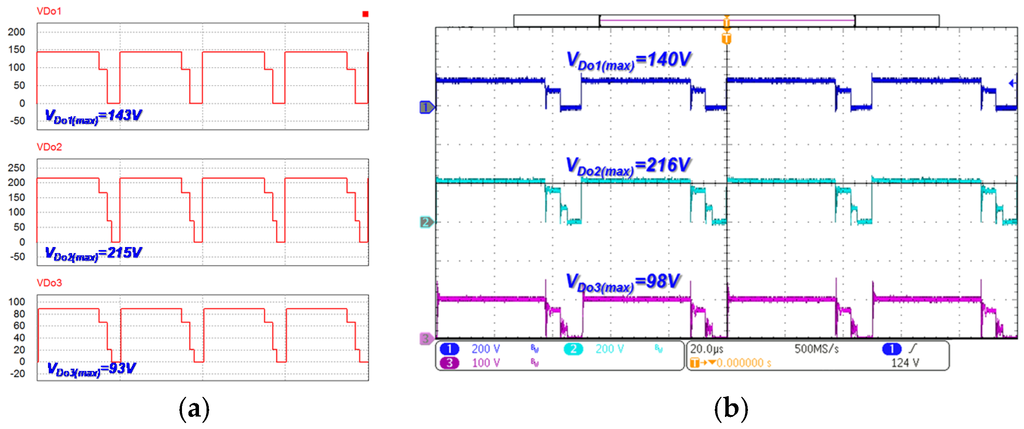

Figure 9 shows the measured waveforms of the diode voltages in the battery discharging mode; the maximum voltage stresses of the diodes D_o1, D_o2, and D_o3 are approximately 130 V, 204 V, and 114 V, respectively. As shown in Figure 9, both simulation and experimental results are consistent. As shown in Figure 10, the desired values of the output voltages are V_o1 = 140 V, V_o2 = 85 V, V_o3 = 74 V, and the total output voltage V_T = 299 V. The experimental results are consistent with the circuit simulation results.

4.2. Battery Charging Mode

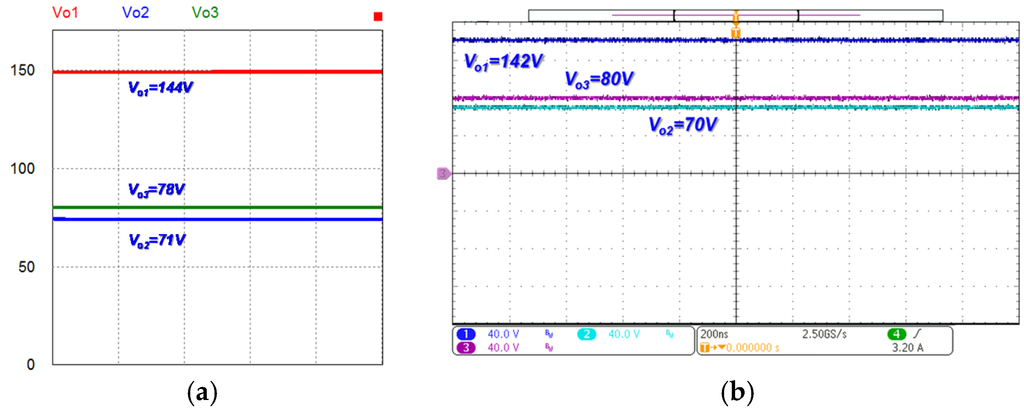

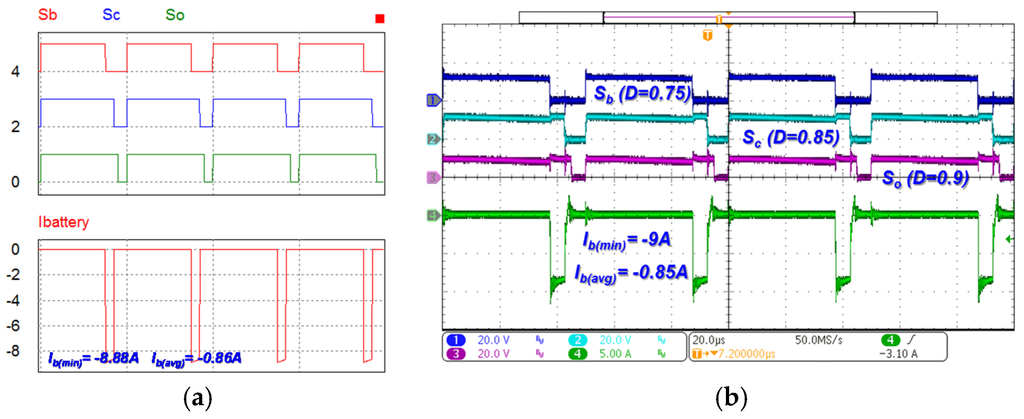

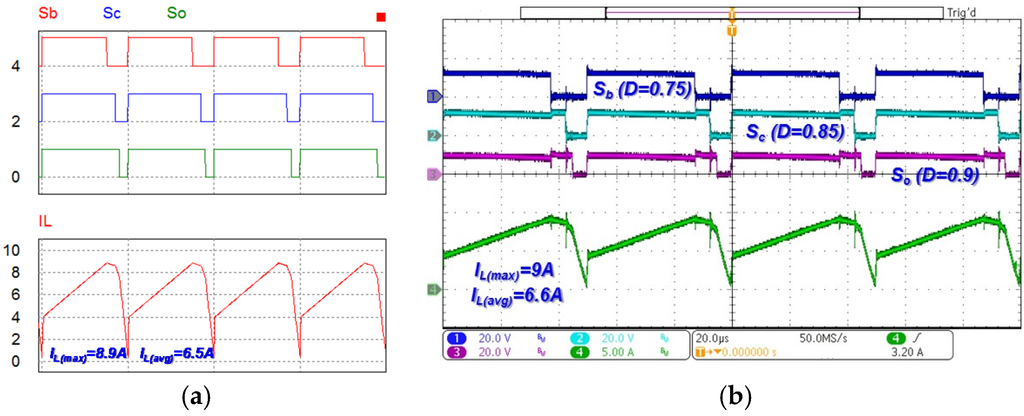

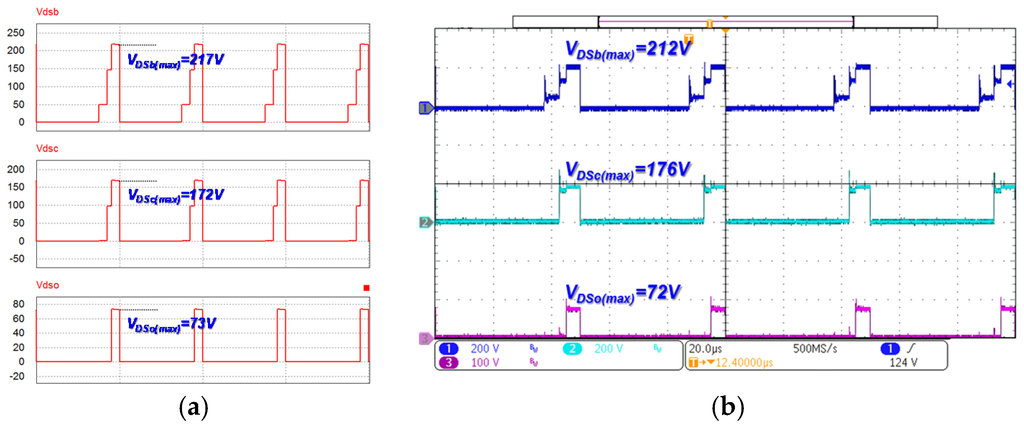

In the battery charging mode, V_in1 (FC) not only supplies loads but also delivers power to V_in2 (battery). This condition occurs when the load power is low and the battery requires to be charged. Figure 11 shows the measured waveforms of the switch gate signals, and voltage and current waveforms of the inductor. As shown in this figure, the switch S_d is turned off, and the switches S_b, S_c, and S_o are actively controlled. As shown in Figure 12, the regulated average battery current I_b(avg) = −0.85 A and inductor current I_L(avg) = 6.6 A are obtained. Notably, the battery current in this mode has a negative value, which implies that the battery has been charged. Figure 13 shows both simulation and experimental results of the switch voltages in the battery charging mode. The maximum voltage stresses of the power switches S_b, S_c, and S_o are 212 V, 176 V, and 72 V, respectively, which are in close agreement with the corresponding simulation results. Figure 14 shows the measured waveforms of the diode voltages in the battery charging mode; the maximum voltage stresses of the diodes D_o1, D_o2, and D_o3 are approximately 140 V, 216 V, and 98 V, respectively. Both the simulation and experimental results are in close agreement as well. As shown in Figure 15, the three-output voltages are V_o1 = 142 V, V_o2 = 80 V, V_o3 = 70 V, and the total output V_T = 292 V. These results are in the voltage regulation range as expected.

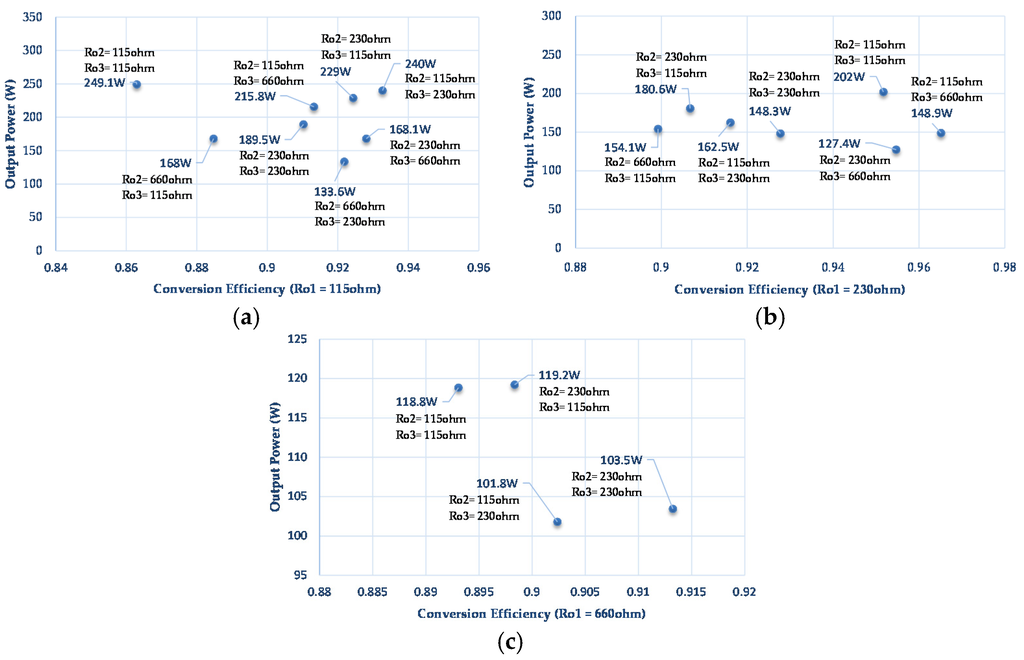

Figure 16 shows the measured conversion efficiency for different load conditions in the battery discharging mode. The conversion efficiency was measured using a digital power meter (Yokogawa-WT310, Tokyo, Japan). As shown in Figure 16, the measured highest conversion efficiency was as high as 96.6% at half-load output. In this condition, the load resistances are set as R_o1 = 230 Ω, R_o2 = 115 Ω, and R_o3 = 660 Ω. Figure 17 shows the image of the realized prototype for reference.

5. Conclusions

This paper proposed a high-gain three-port power converter with stacked output and simple configuration. The proposed converter receives the HEV electrical power from FC and battery sources and converts it to a suitable high voltage, which is applied to a dc-microgrid so that dc home appliances can use the electricity directly. The circuit operating principles and steady-state analysis of the proposed converter in battery discharging and charging modes were presented. The validity of the proposed power converter and its performance were verified through simulation and experimental results. The charging or discharging of the battery storage device can be controlled effectively using the FC source. Moreover, the measured highest conversion efficiency of the constructed prototype was as high as 96.6% in the battery discharging mode at two input sources of V_in1 = 36 V and V_in2 = 48 V.
