Design and Analysis of Jacket Substructures for Offshore Wind Turbines

Abstract

This study focused on investigating various existing types of offshore jacket substructures along with a proposed twisted-tripod jacket type (modified jacket (MJ)-structures). The architectures of the three-leg structure, as well as the patented twisted jacket structure motivated the design of the proposed MJ-structures. The dimensions of the structures were designed iteratively using static stress analysis to ensure that all structures had a similar level of load-carrying capability. The numerical global buckling analyses were performed for all structures after the validation by the scaled-down experiments. The local buckling strength of all compressive members was analyzed using the NORSOK standard. The results showed that the proposed MJ-structures possess excellent structural behavior and few structural nodes and components competitive with the patented twisted jacket structures, while still maintaining the advantages of low material usage similar to the three-leg jacket structures. This study provides alternatives for the initial selection and design of offshore wind turbine substructures for green energy applications.

1. Introduction

The consumption and overdevelopment of fossil energy have caused serious environmental problems and are believed to be some of the critical factors contributing to global warming. Renewable energy, such as solar, wind, geothermal and biomass, are all clean energy with tremendous amounts of resources for electricity generation. It was centuries ago when the technology of wind energy made its first steps. As one of the most developed renewable energy technologies, wind power has become the primary consideration with accelerated growth during the past few decades [1,2,3,4]. 2014 was a record year for the wind industry, as annual installations crossed the 50 GW mark for the first time. More than 51 GW of new wind power capacity was brought on line. The big story, of course, was China, installing an astonishing 23 GW in 2014, cornering 45% of the annual market, mostly onshore [5]. 2014 saw total cumulative installations in the offshore sector rise to nearly 9 GW. Most of all offshore wind installations can be found in European waters. As of 30 June 2015, cumulatively, there are 3072 offshore wind turbines with a combined capacity of 10,393.6 MW fully-grid connected in European waters in 82 wind farms across 11 countries, including demonstration sites [6]. However, governments outside of Europe have set ambitious targets for offshore wind, and development is staring to take off in China, Japan, South Korea, U.S. and, of course, Taiwan.

There are needs to develop associated wind technology, including support structures that can withstand local environmental conditions. Commonly, a few types of offshore wind tower support structures include monopile, gravity, tripod, jacket, tripile and floating types. The type of wind tower is chosen on the basis of two factors: depth of the open sea and the condition of the seabed [7,8]. Monopile and gravity structures are often found to be the most suitable for constructing in the shallow water region, where the water depth is lower than 30 m. Golightly [9] showed that the monopiles are developed in water depths greater than 30 m. Tripod and jacket structures can be built in transitional water regions, which have a water depth between 30 and 50 m. Floating structures are mostly constructed in deep water regions, where the water depth exceeds 50 m [10,11]. Note that a number of floating wave and offshore wind hybrids have been proposed as a new concept in recent times with the development of floating offshore wind prototypes [12].

The cost of the substructure and foundation was evaluated for approximately 14% of the total capital expenditures of the offshore wind plant reference project [13]. It has been suggested that using jacket structure rather than others offshore has positive effects, such as low wave and current impact loads on the structure compared to others [14]. In particular, four substructure types (monopile, tripile, tripod and jacket) designed for an average water depth of 70 m in central Mediterranean waters were compared [15]. The results showed that the jacket type substructure is least expensive considering the cost of procurement and fabrication for the Hurd Bank site (one of the sites considered for wind farms in Malta). In addition, the results of finite element analysis concluded that the jacket was the most hydrodynamically transparent among the four types. All aforementioned results agreed with those in [16,17] and indicated that the jacket type is most attractive for substructures in water depths greater than 30 m and is the most cost-efficient solution for wind turbines up to 8 MW.

A number of traditional jacket substructures have been introduced and investigated, including K-braces, X-braces, Z-braces, subdivided-braces, rhombus-braces and mixed-braces [18,19]. For instance, a jacket with Z-braces seems to have less mass of the structure and smaller dynamic forces acting on the structures, as compared to the jacket with X-braces [18]. Tubular joints are widely used for the jacket substructures. The tubular members create a complicated geometry at the intersection of members, i.e., joint-can. Joint-cans can play an important role in the jacket substructures. For extreme loads in the jacket, joint-cans help increase extreme capacity to a certain extent [20]. A well-designed jacket frame equipped with joint-cans dissipates energy much more effectively in comparison with a poorly-designed jacket frame without joint-cans [21]. Buckling of braces will be normally encountered prior to joint failure if the joint-cans were to be carefully designed and constructed [22]. This is rather expected since the buckling of structural members is better understood and controlled than the fracture of joints.

A recently-designed new jacket substructure was invented and patented by Keystone Engineering Inc., called the inward battered guide structure (IBGS), or “twisted jacket” foundation [23,24,25]. A number of advantages of the IBGS have been suggested, such as the fabrication costs are approximately 20% less expensive than traditional offshore wind turbine jackets, it has fewer nodes and components compared to a traditional jacket, it is safer and easier to manufacture than a traditional jacket, it is more compact, allowing for more structures to be transported, and it has less offshore welding and underwater work, greatly reducing commercial and schedule risks, etc. [25].

This study compares several jacket substructures on the basis of stress and buckling analysis. In total, 14 substructures categorized into four types were constructed and investigated, including one proposed type. Stress analysis using beam element models, as well as global and local buckling analysis were performed. The results provide insights into development of a novel design for offshore wind turbine substructures.

2. Design and Specification of Jacket Substructures

2.1. Basic Information for Design

The substructures investigated in the present study were designed and modeled for potentially supporting heavy wind turbines, such as the NREL 5-MW baseline wind turbine [26,27] in the Taiwan Strait with an average water depth 50 m. The wind turbine machine and tower were not of interest in the design. The weight of the structures above the tower and loads acting on the wind turbine and tower were simplified in the analysis.

All substructures were initially designed with the assumed dimensions. Stress analyses described in Section 3 were then performed to determine the maximum von Mises stresses in the structures. The dimensions of the structures were iteratively modified so that the maximum stresses generated in all designed structures, under identical load and boundary conditions, fell at a similar level. Note that the iteration procedure did not aim to optimize the structures and was stopped once the maximum stress was found within the expected level.

2.2. Dimensions of Jacket Substructures

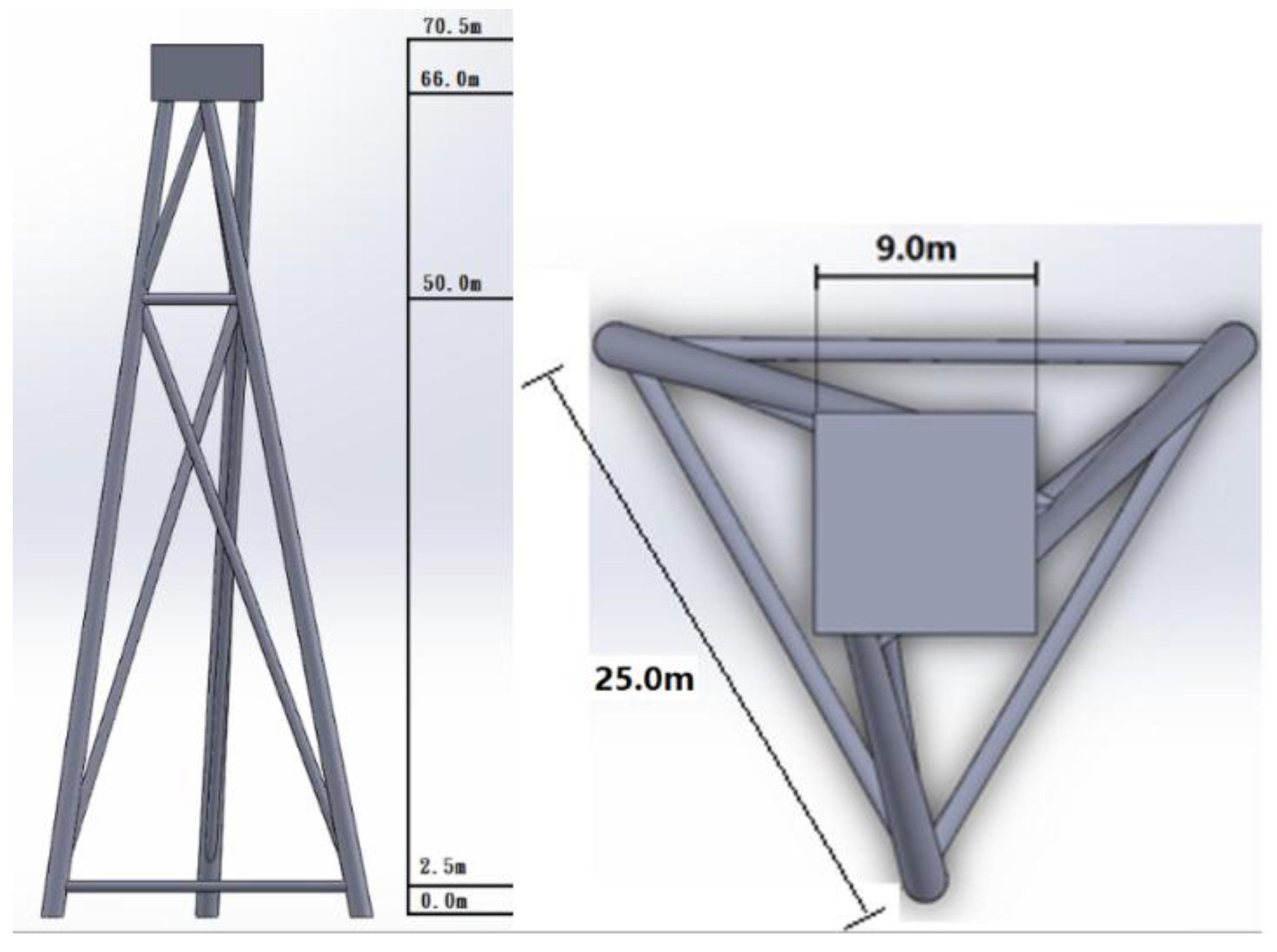

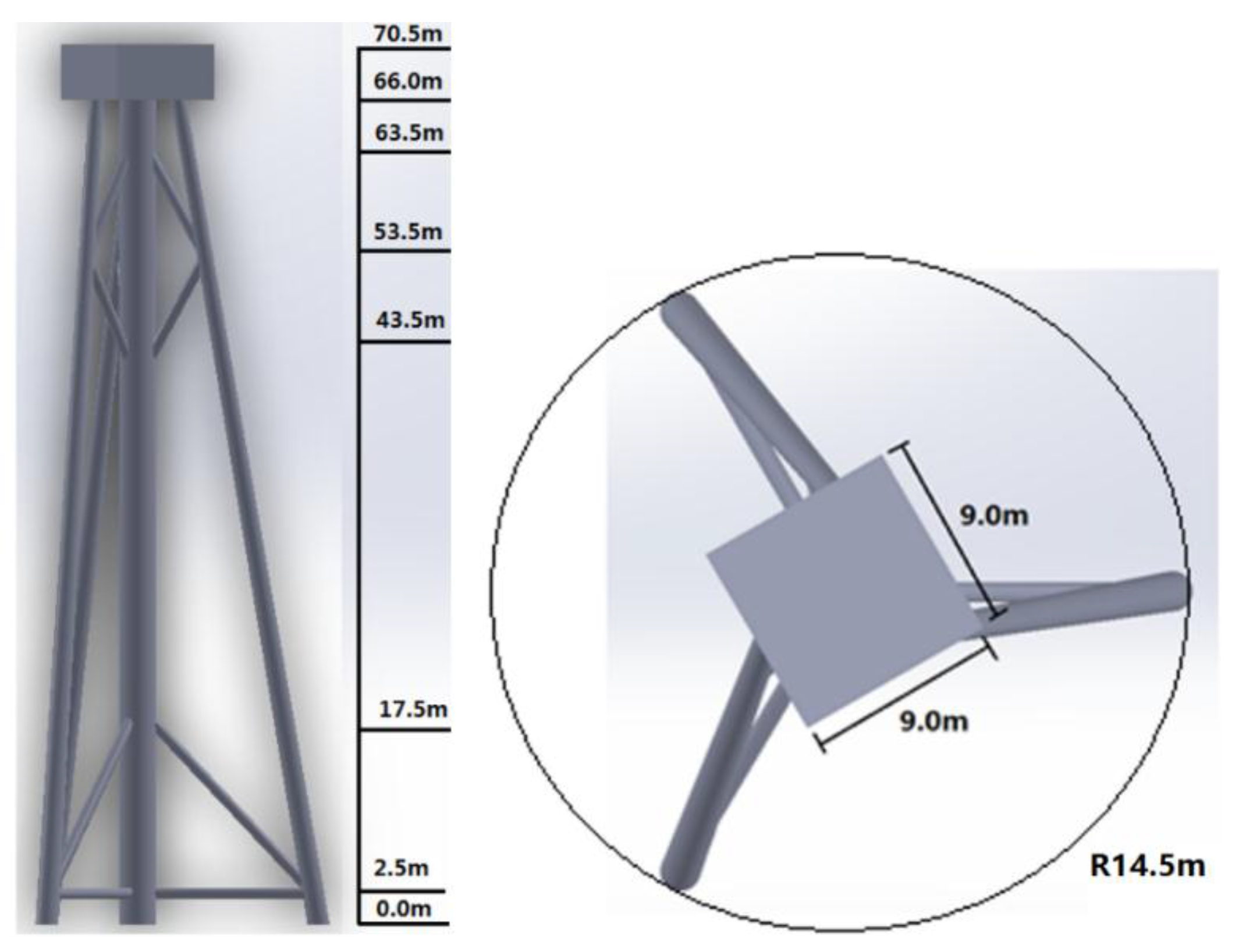

This study considered 14 jacket substructures categorized into four groups for comparison. Each jacket structure was assumed 70.5 m in total height installed at a 50.0-m water depth.

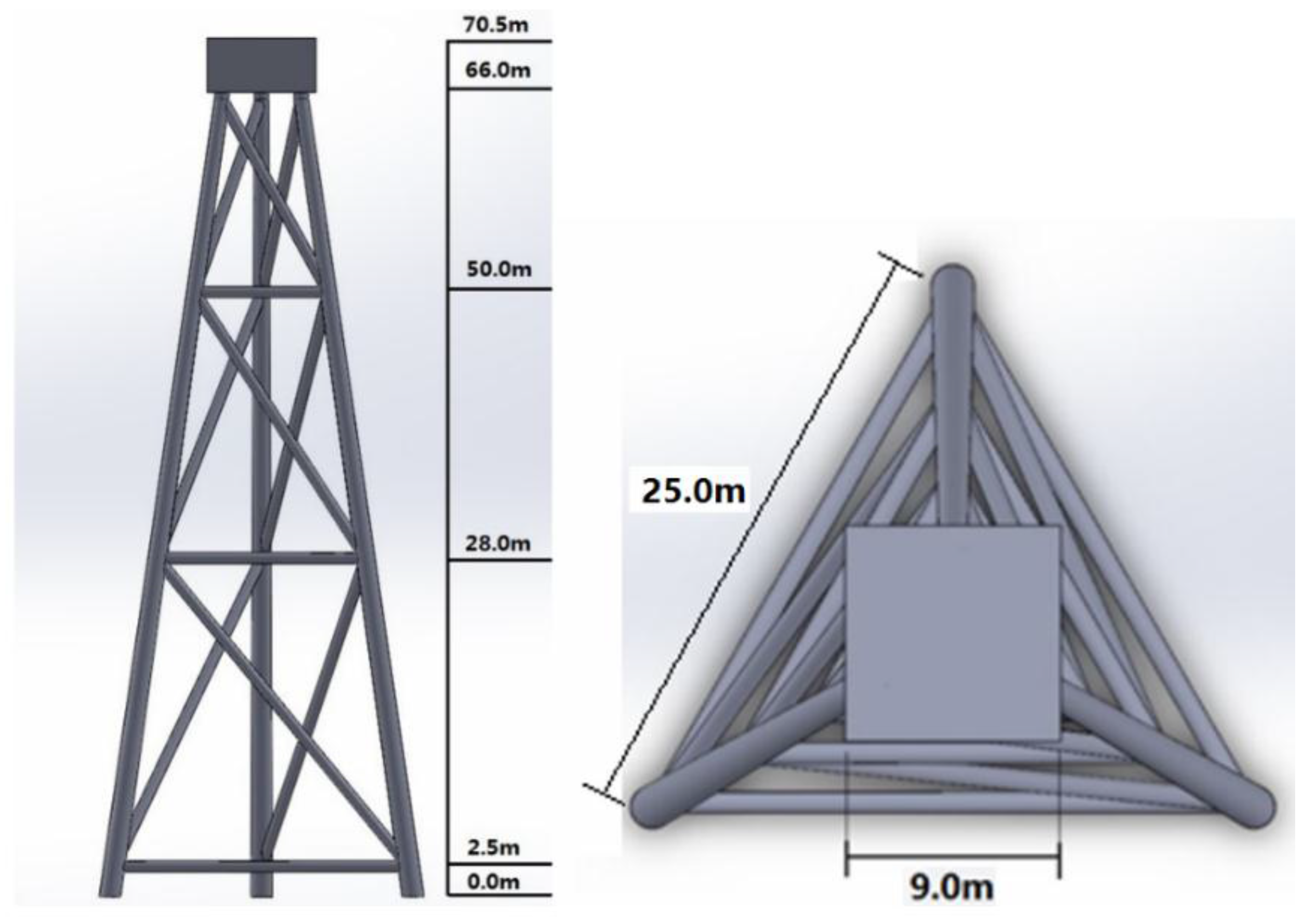

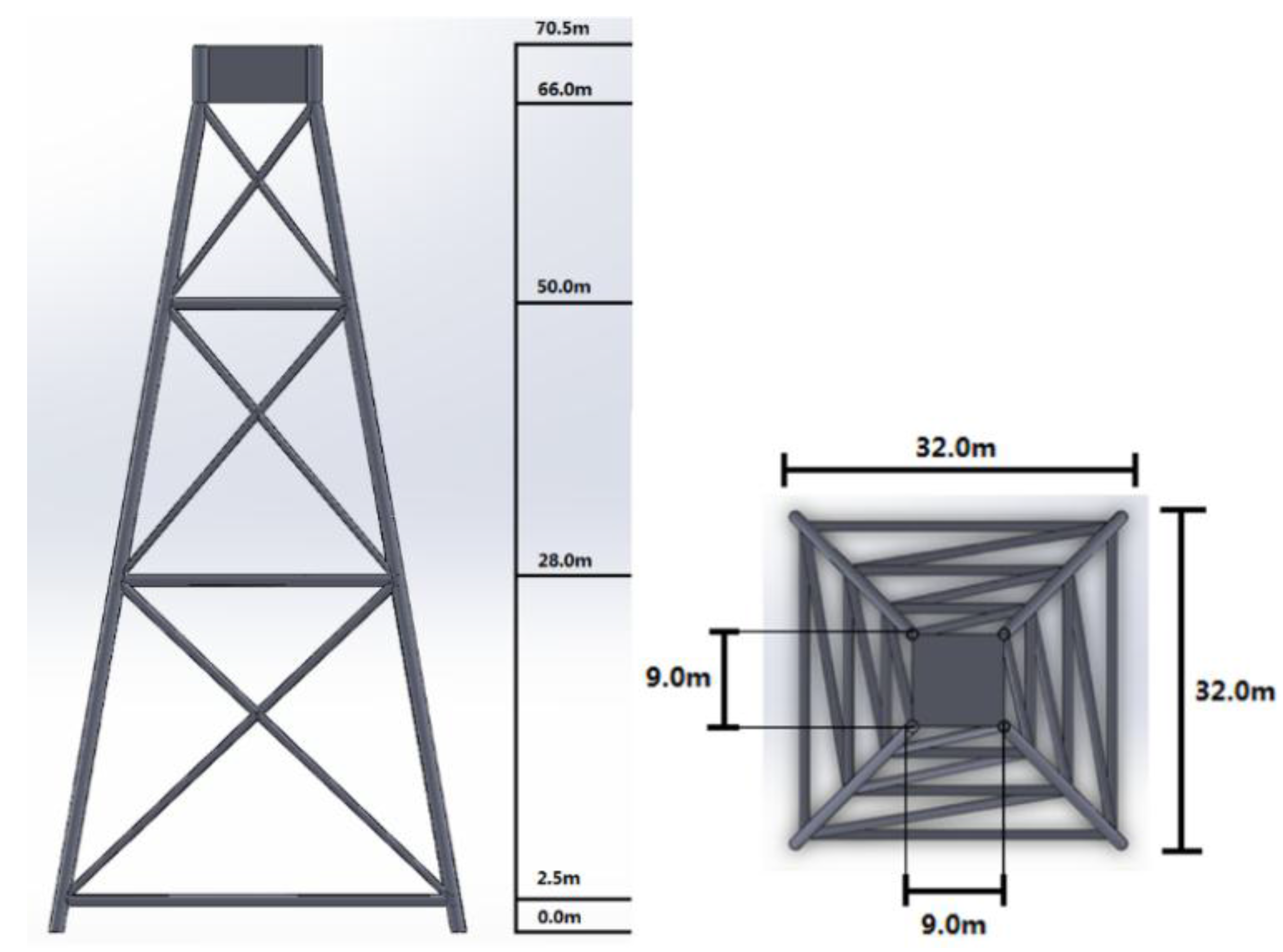

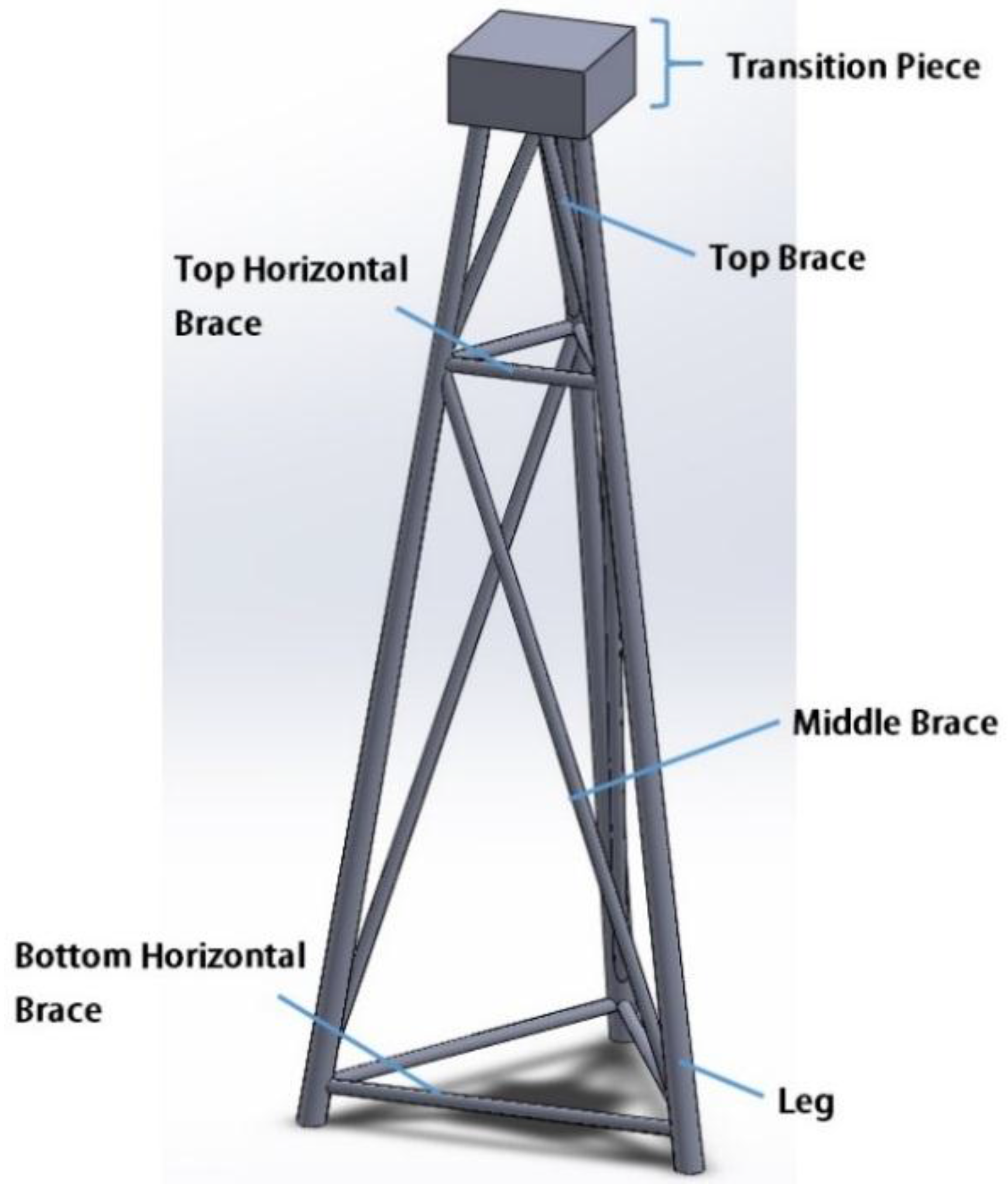

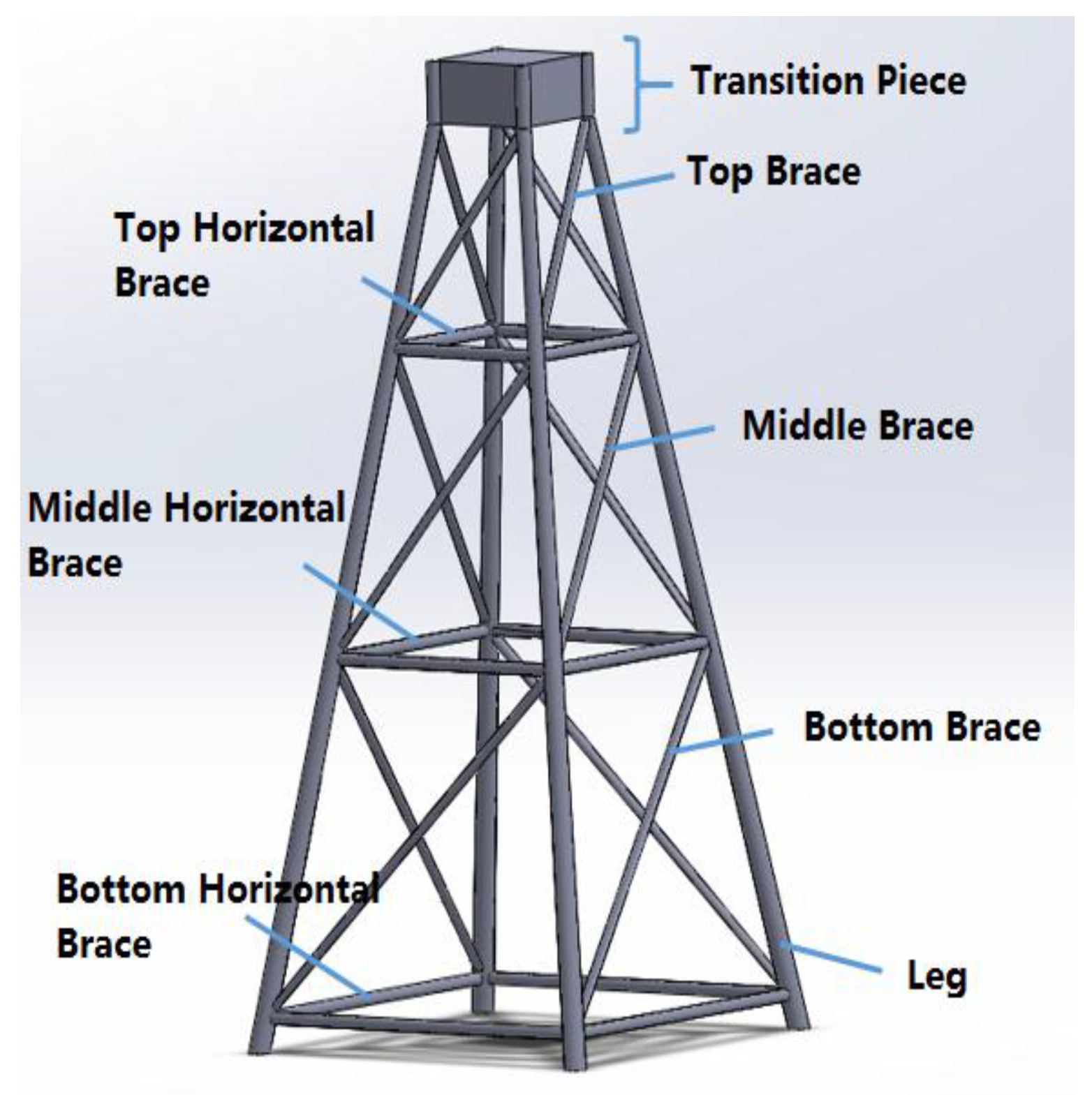

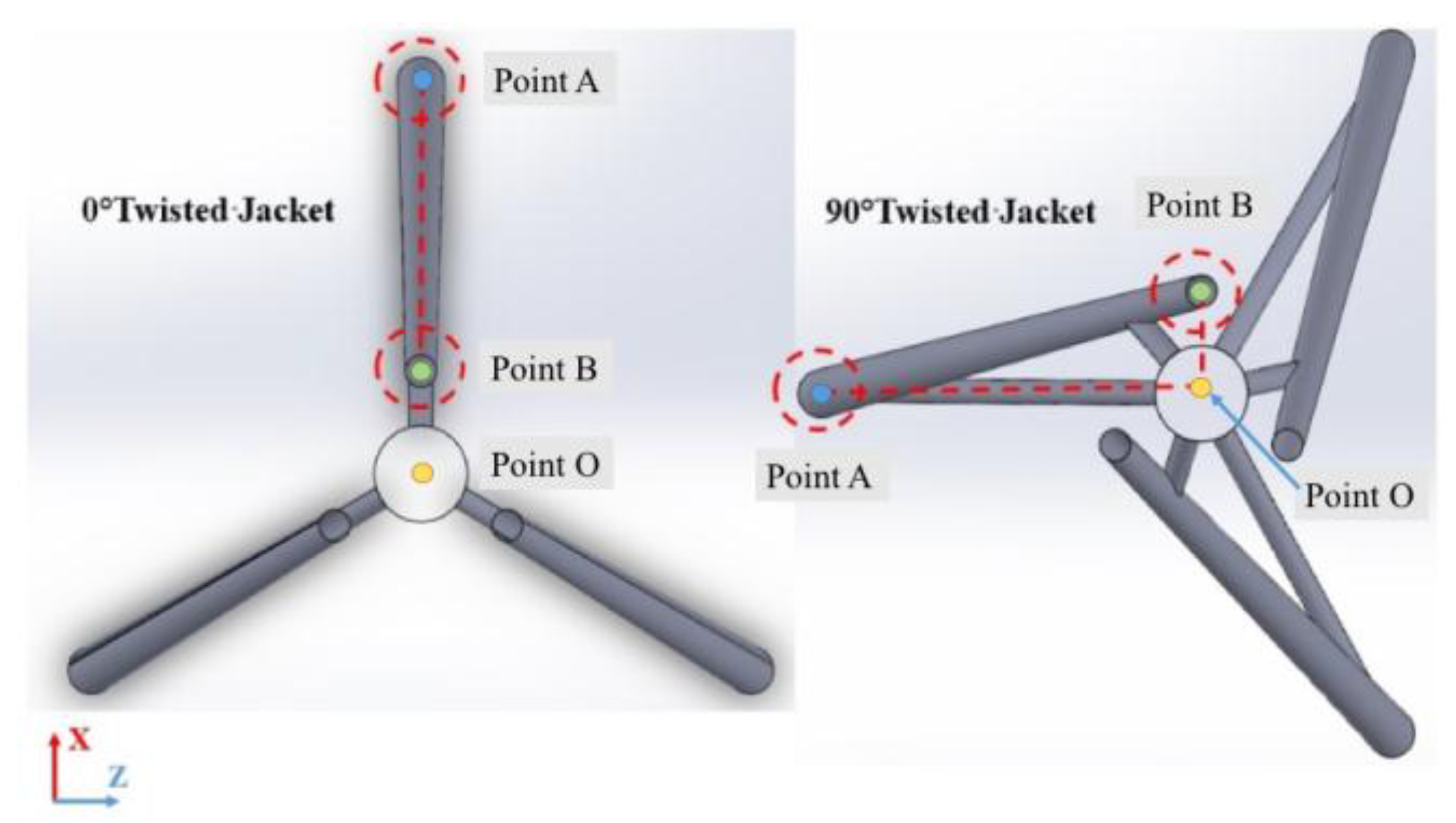

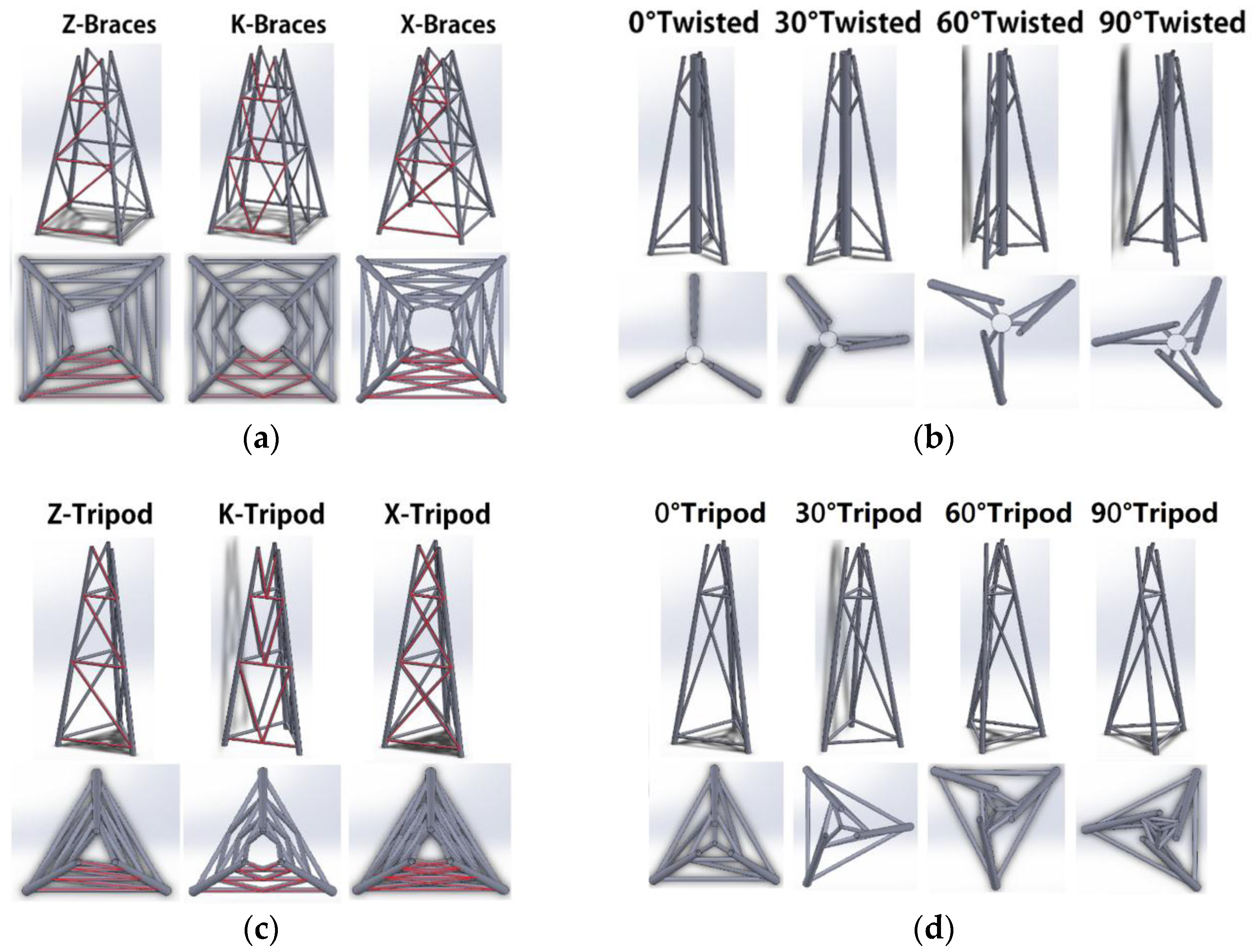

First, three traditional jacket substructures (abbreviated as J-structures) were selected as reference structures: namely, X-braces (JX), K-braces (JK) and Z-braces (JZ) (Figure 1a). Second, recently-patented twisted jacket substructures (TJ-structures) were considered [23,24,25]. Detailed geometrical information, however, was not disclosed anywhere in the patents. Thus, the geometrical information of the TJ-structures assumed in this study should not reflect the real-world cases. Four TJ-structures were considered: namely, 0° twisted (TJ0), 30° twisted (TJ30), 60° twisted (TJ60) and 90° twisted (TJ90) (Figure 1b).

The study in [28] concluded that both three- and four-leg jacket substructures are suitable for deep water conditions. It also noted that the designed three-leg jacket is the most lightweight and cost efficient among the studied models. A similar conclusion was reached in a comparison study [29]. We thus considered the three-leg jacket substructures (termed tripod jacket structures in the present study, abbreviated PJ-structures) as the third type. Three PJ-structures were considered: namely Z-tripod (PJZ), K-tripod (PJK) and X-tripod (PJX) (Figure 1c). Last, with the advantages of both TJ-structures and PJ-structures taken into consideration (e.g., few structural members, few welded connections, low cost, etc.), a number of twisted tripod jacket structures (or modified jacket structures, abbreviated as MJ-structures) were designed. Similar to the TJ-structures, the MJ-structures were designed with four different twisted angles of the three main structural legs: namely 0° tripod (MJ0), 30° tripod (MJ30), 60° tripod (MJ60) and 90° tripod (MJ90) (Figure 1d). It is noted that the designed MJ-structures are not optimal. Detailed final geometrical information is directed to Appendix A in this paper.

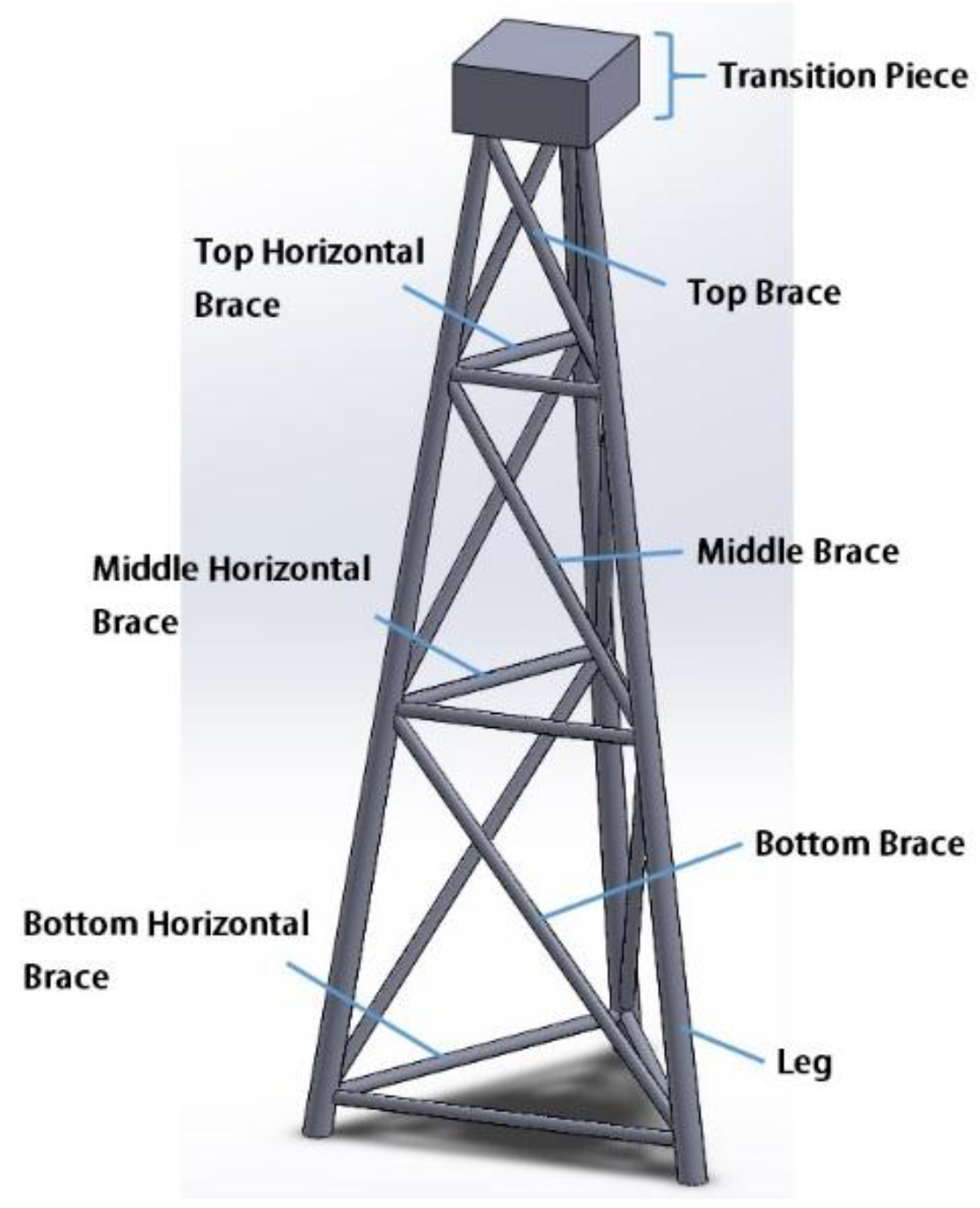

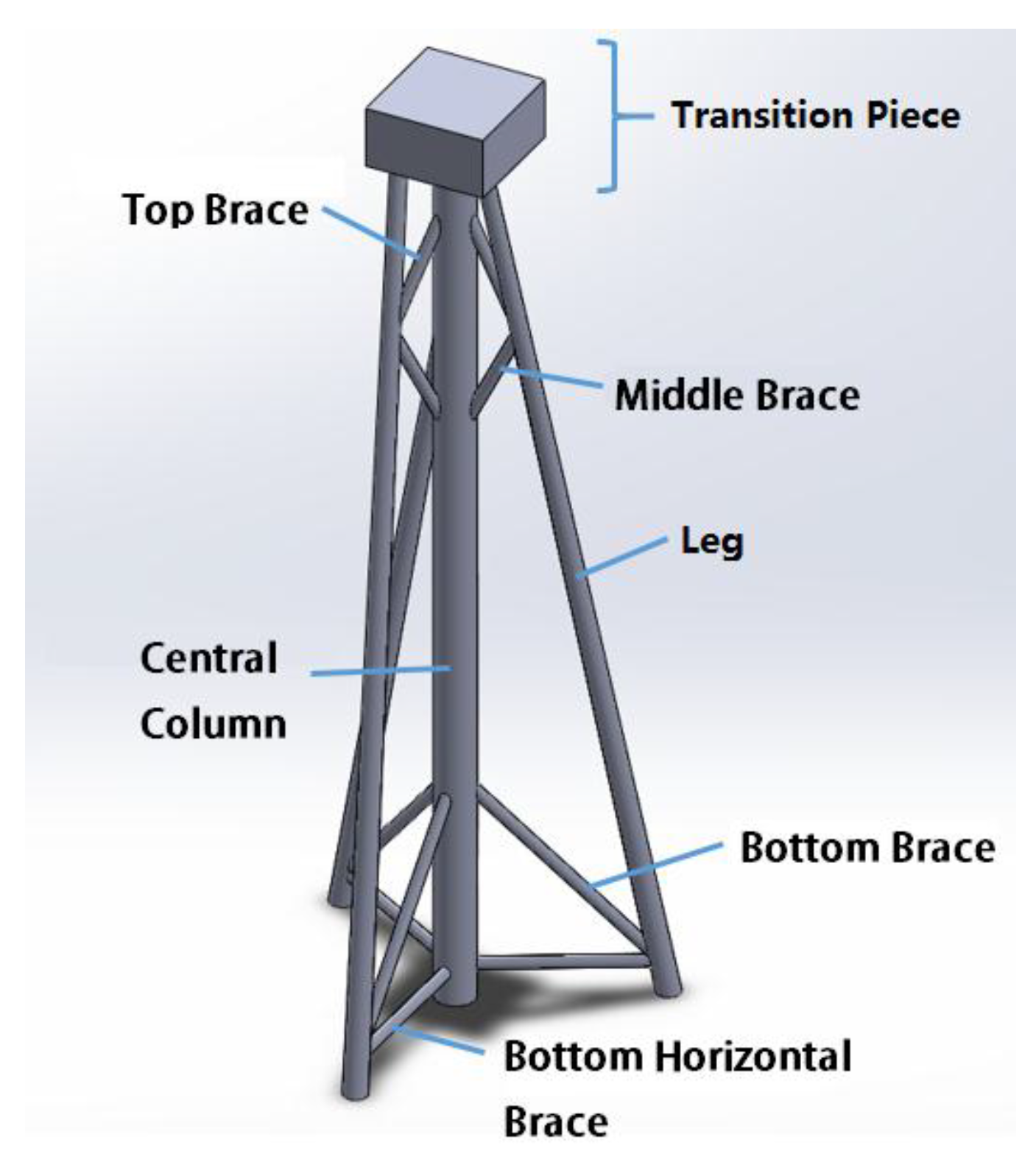

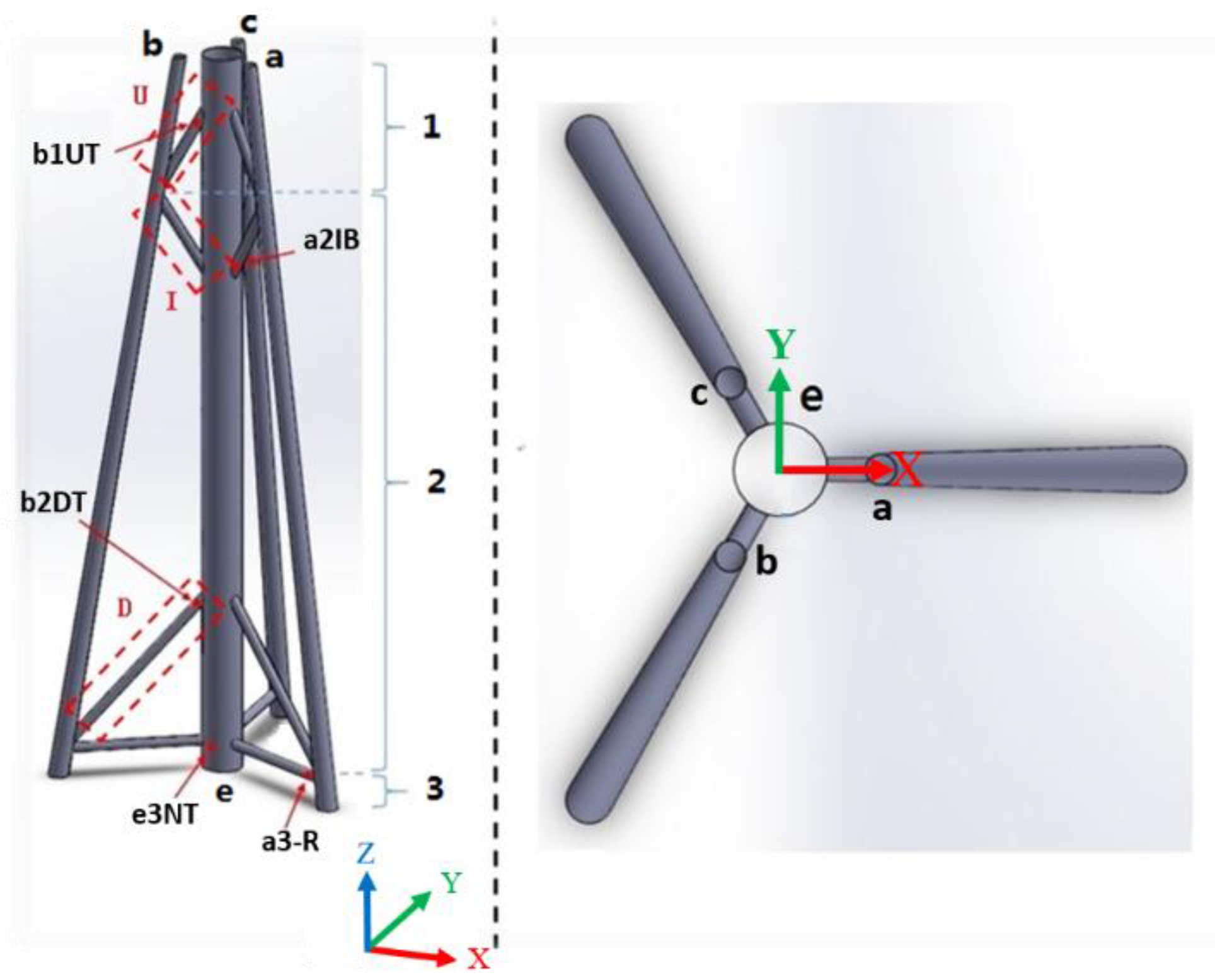

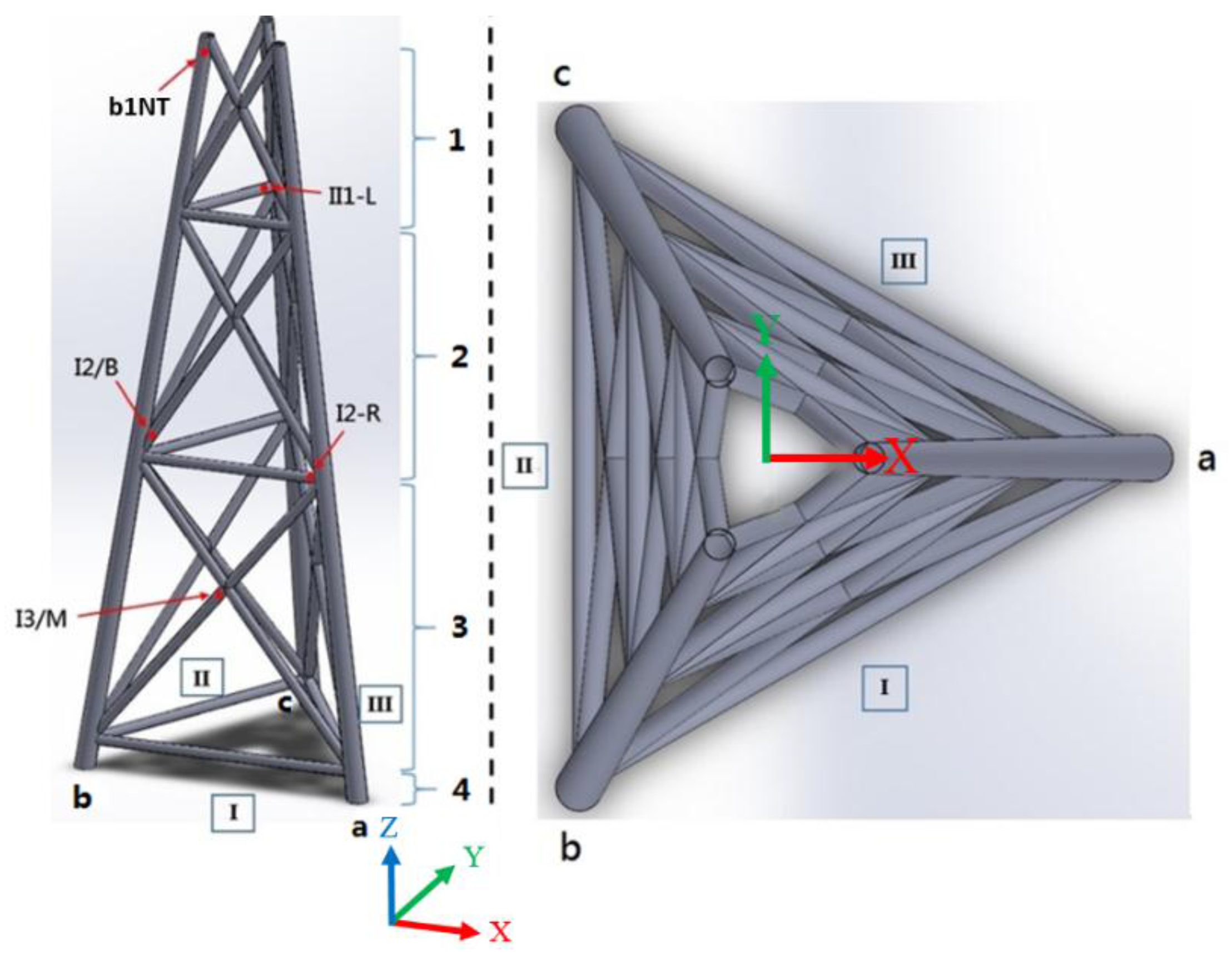

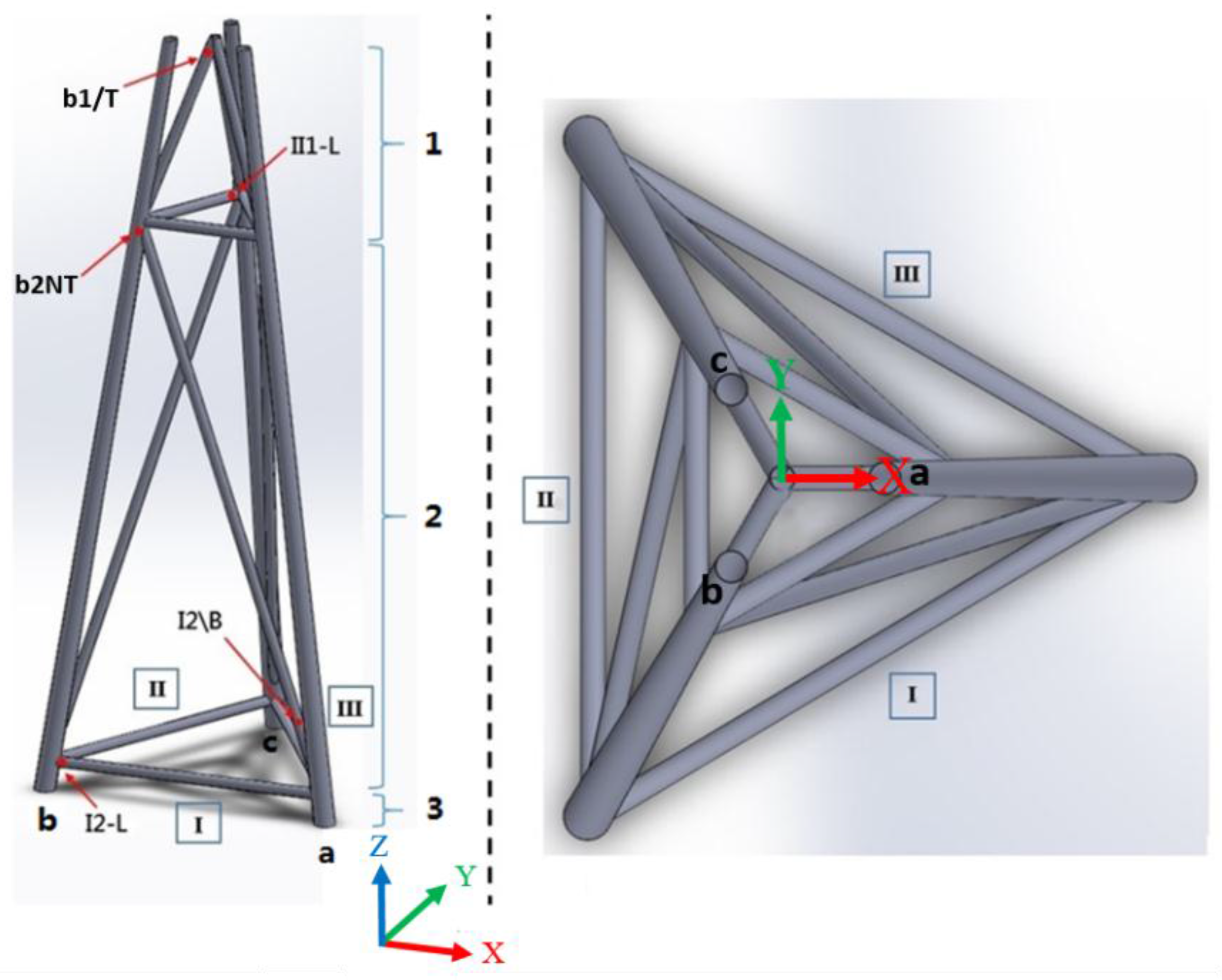

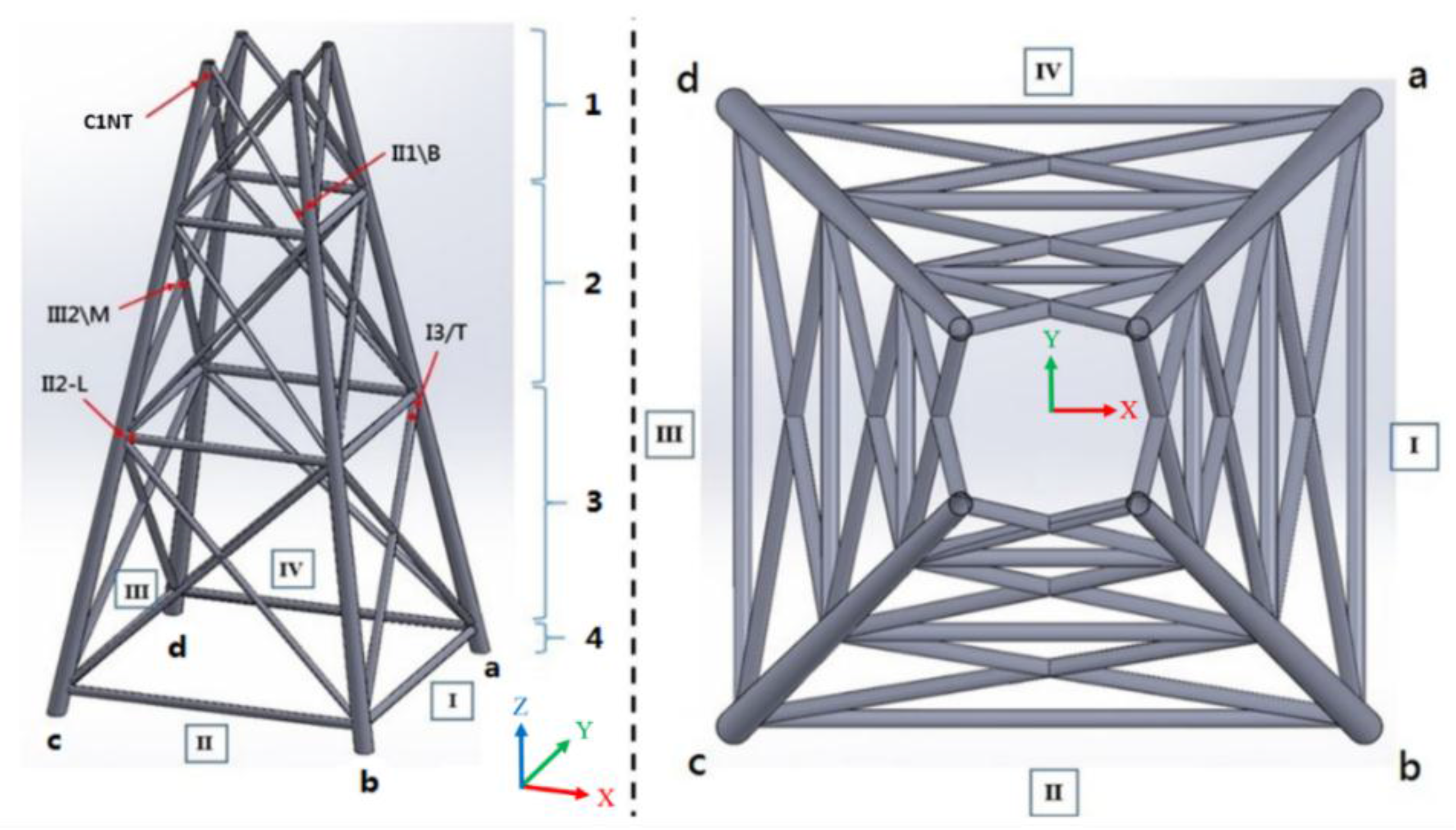

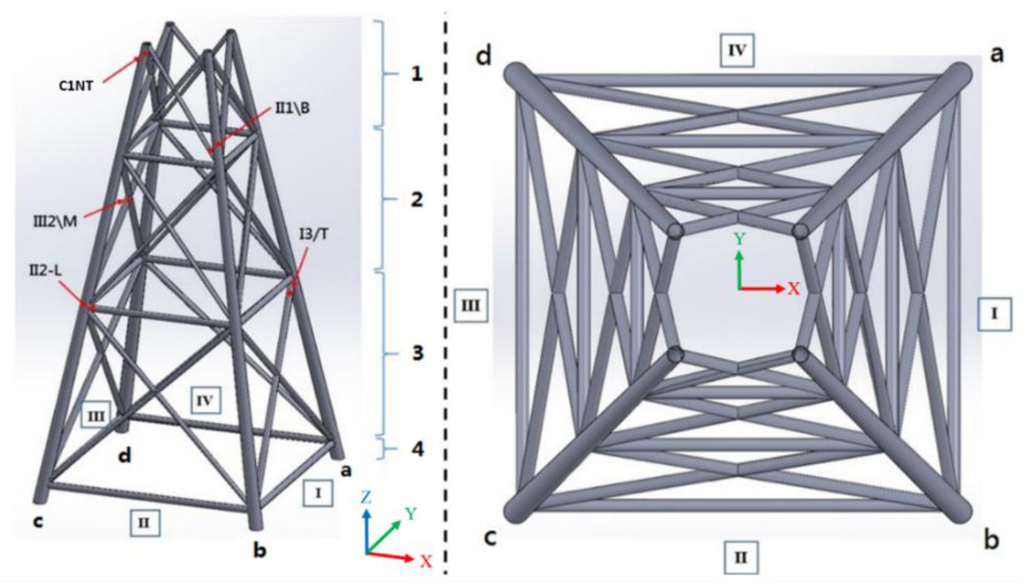

2.3. Terms and Definitions of Abbreviations for Jacket Members and Parts

This section lists the abbreviations that will be used hereafter in the study for convenience (

Table 1. Abbreviations for jacket structure members and parts.

Level	Abbreviation	Definition
$\alpha$	I, II, III, IV	First, second, third and fourth face
	a, b, c, d	Leg member
	e	Central vertical member (for TJ-structures only)
$\beta$	1, 2, 3, 4	First, second, third and fourth layer counting from the top
$\gamma$	\ and /	Oblique member with “\” and “/” orientation
	-	Horizontal member (“-“ orientation)
	U, I, D	Upper, middle and lower oblique member (for TJ-structures only)
	N	Particularly for leg members
$\delta$	T, B, M, R, L	Top, bottom, middle, right and left part

). Abbreviations are defined at four levels: (1) $\alpha$, (2) $\beta$, (3) $\gamma$ and (4) $\delta$. Members and parts are termed in the order of $\alpha \beta \gamma$, and the part (location) of the members are termed $\alpha \beta \gamma \delta$. The definitions and examples of the terminology for jacket structural members and parts is directed to Appendix B in this paper.

3. Methods of Analysis

3.1. Basic Properties

Commercial finite element software packages, including Abaqus/CAE and Abaqus/Standard, were used for stress and postbuckling analysis. All structures were assumed to be made of structural steel A36, where in the simulations, the density, Young’s modulus, Poisson’s ratio and yield stress were set to 7800 kg/m³, 200 GPa, 0.3 and 250 MPa, respectively. Material was assumed linear elastic for all analyses, except for global buckling analysis. The beam element method was employed for stress analysis and local buckling strength check. The modified Riks method with solid and shell elements was employed for unstable collapse and postbuckling analysis. In all analyses, the interaction between soil and structure was neglected, and thus, the structures were assumed fixed in all six degrees of freedom at the bottom.

3.2. Static Stress Analysis

The readers should be aware that the analysis of the present study was limited to static methods. Dynamic analyses, including modal analysis and time-domain analysis, as well as fatigue analysis, are important and require additional comprehensive investigation in the future. The beam element type, B31 (2-node linear beam in space), in Abaqus was selected for stress analysis. The maximum mesh size of all jackets was 3 m, such that the element numbers meshed for all jackets range from 151 to 432.

3.2.1. Load Settings

In general, loads that should be considered for design include permanent, variable, environmental, accidental, etc. [30,31]. The overall load combination applied on the whole offshore wind turbine structure is complex in nature and site specific. Since the focus of the present study was on the investigation of the modified substructures and the comparison of those proposed structures with other existing structures, for simplicity and without loss of generality, only permanent load-like mass of the structures and environmental loads, such as wind, wave and current loads, were considered in the analysis. Other environmental loadings, such as tidal, seismic and ice loads, as well as soil conditions and temperature effect, were not taken into account. Two load combinations were considered: normal condition with simplified (2D) loads and extreme condition comprehensive (3D) loads.

3.2.2. Load Combination 1: Normal Condition with Simplified (2D) Loads

The normal condition considered in this case refers to local oceanographic data collected near the Pescadores Islands (Penghu). Annual average wind speed, average wave height, average wave period, and average speed of ocean currents were set to 7.5 m/s, 0.49 m, 7.5 s and 0.134 m/s, respectively, for the normal condition [32].

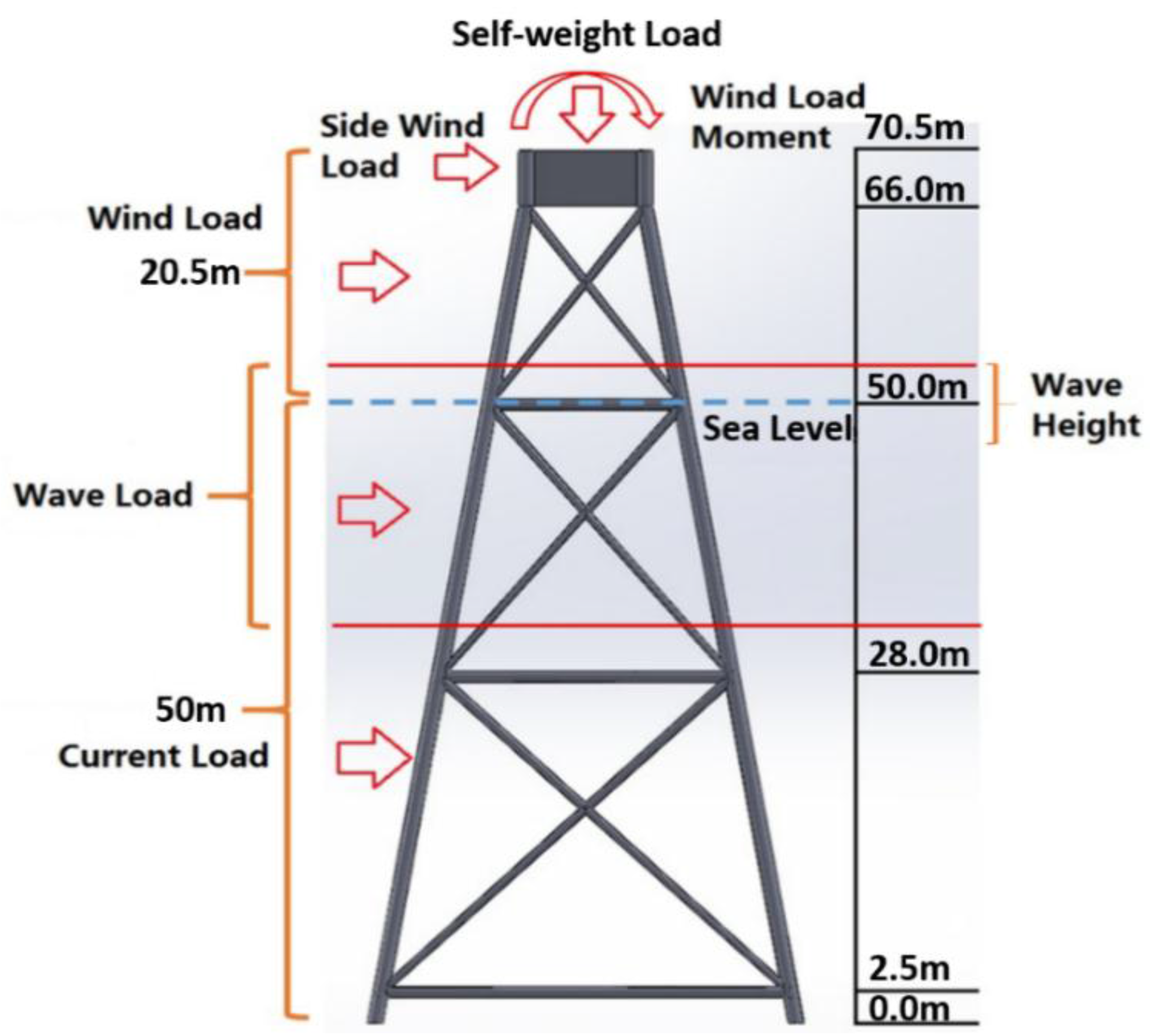

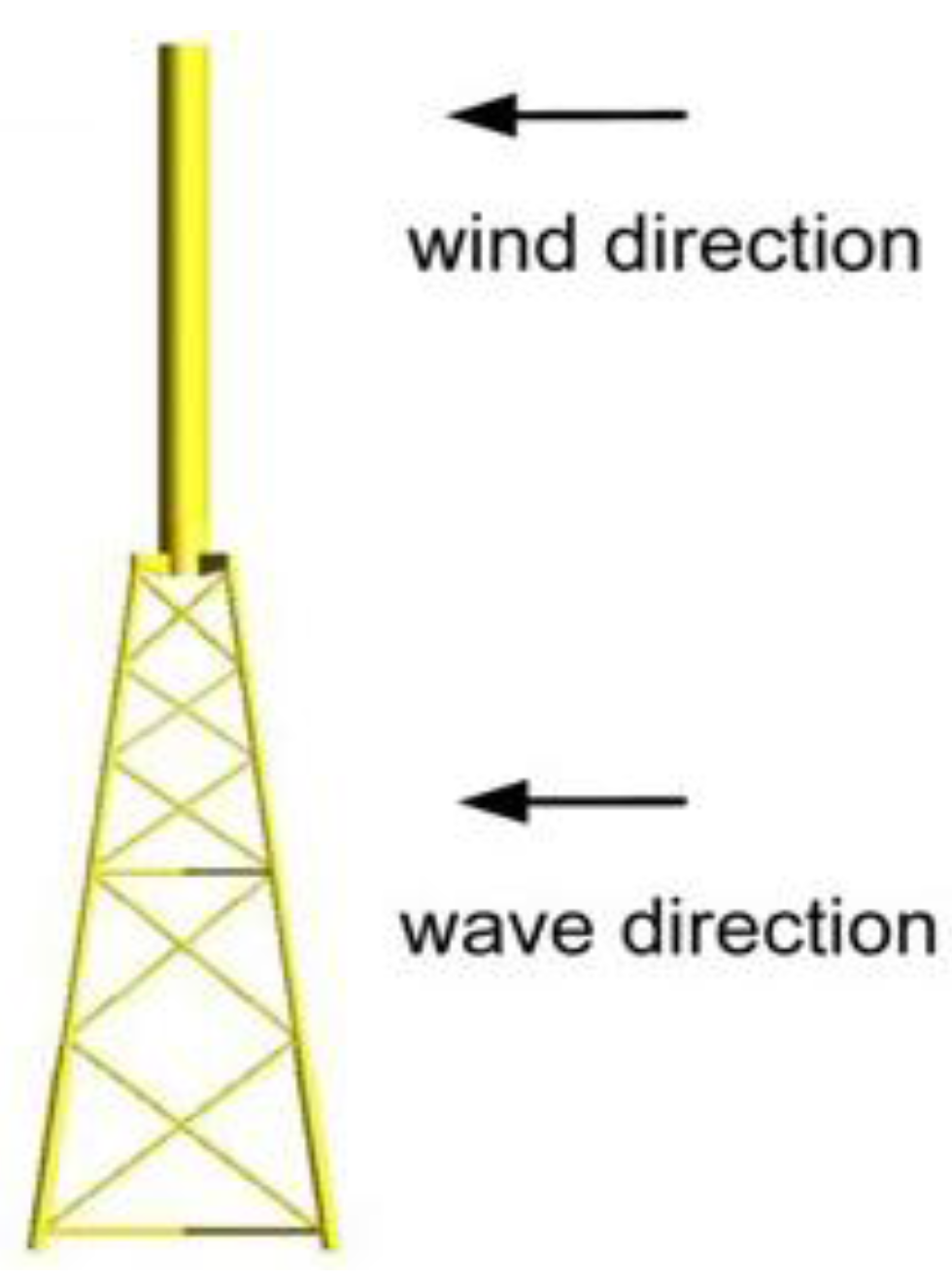

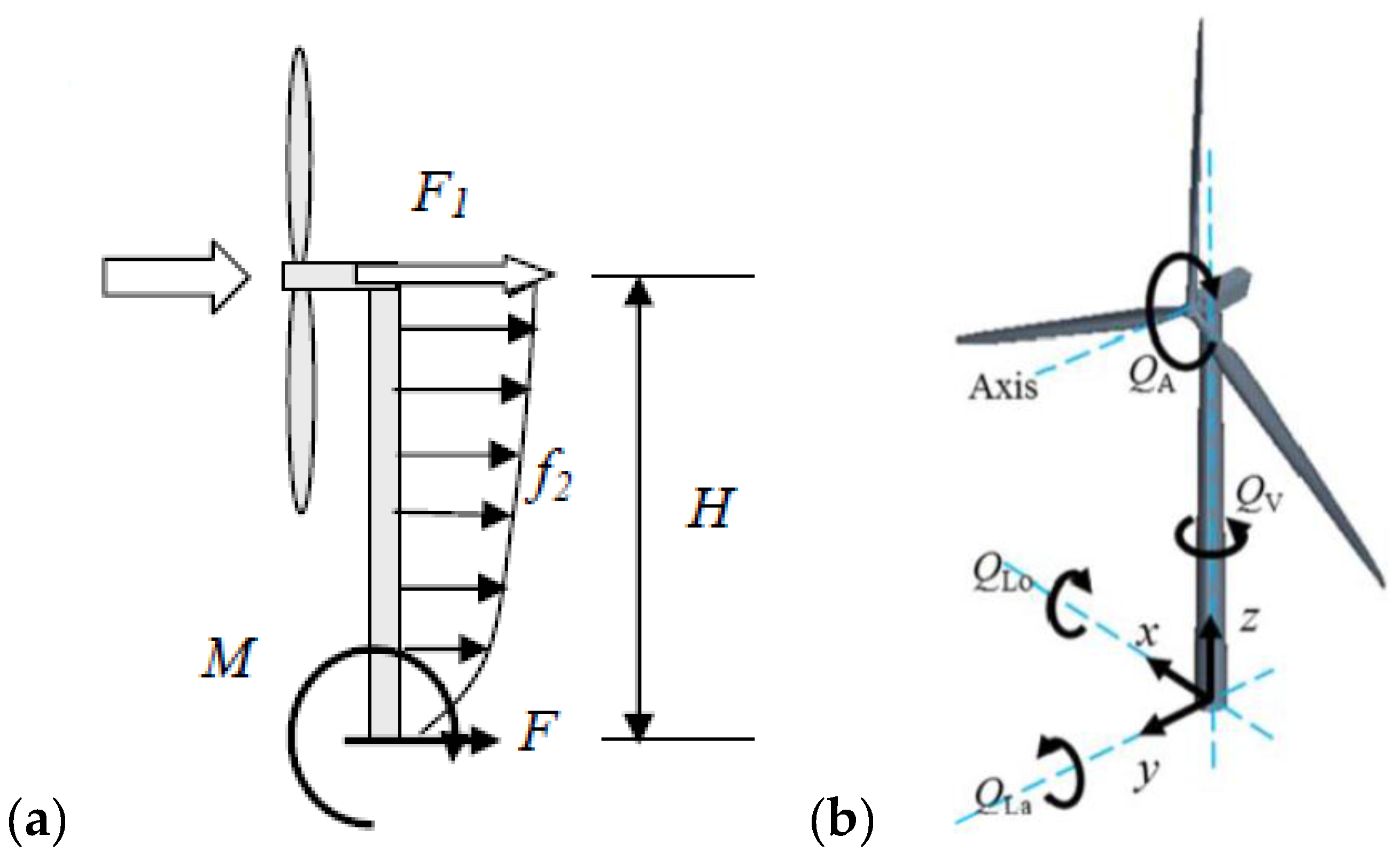

In this load combination, we simply assumed that the wind, wave and current loads act in the same horizontal direction and that the resultant forces and moment are solely in-plane (Appendix C.4). The combination of simplified (2D) loads includes the self-weight of the 5-MW baseline wind turbine machine and tower, side wind load and wind load moment acting on the top transition piece and the wind load, wave load and current load acting on the substructure. The self-weight of the baseline wind turbine machine and tower refer to [26,27]. It is simplified to a vertical point load acting on the center of the transition piece. The side wind load and wind load moment are effective loads and representative of the wind load acting on the wind turbine machine. They can be simply calculated using elementary mechanics, so long as the wind load acting on the blades and tower are identified. Wave and current loads are calculated using Morison’s equation and Airy’s linear theory with additional assumptions and approximations. The detailed description of the load settings is directed to Appendix C in this paper.

3.2.3. Load Combination 2: Extreme Condition with Comprehensive (3D) Loads

The extreme condition in this case considers the wind speed, wave height, wave period and speed of ocean currents equal to 70 m/s, 14.88 m, 12.47 s and 1.4 m/s, respectively.

The self-weight of the baseline wind turbine machine and tower was set identical to the first load case. The airflow around a stationary wind turbine is described by the time-averaged continuity and momentum equations together with a k-ω turbulence model [33]. Therefore, the flow solver StarCCM+ was employed to calculate the fully-three-dimensional flow around the wind turbine at the wind speed of 70 m/s. Wave and current loads are calculated using Morison’s equation and the nonlinear immediate-depth 5th-order Stokes’ wave theory. For the three-legged structures (all structures, except J-structures), the wave and current loads were applied in the principal direction (denoted (0)), defined as the positive direction of the x-axis for all three- and four-legged models in Appendix B), whereas for the four-legged structures (J-structures in this study), these loads were applied in the diagonal direction (denoted (45)), because the wave and current loads applied in the diagonal direction generated higher stresses than those applied in the principal direction.

3.3. Unstable Collapse and Postbuckling Analysis

The stability of the substructure during and after construction is of particular interest. In this analysis, not only simulations were carried out, but also the experimental validation was conducted using small-scale test specimens. First, the numerical simulation and experiment with scaled-down models were performed for validation. Then, full-scale models of all 14 substructures were numerically investigated for the comparison.

3.3.1. Experiment

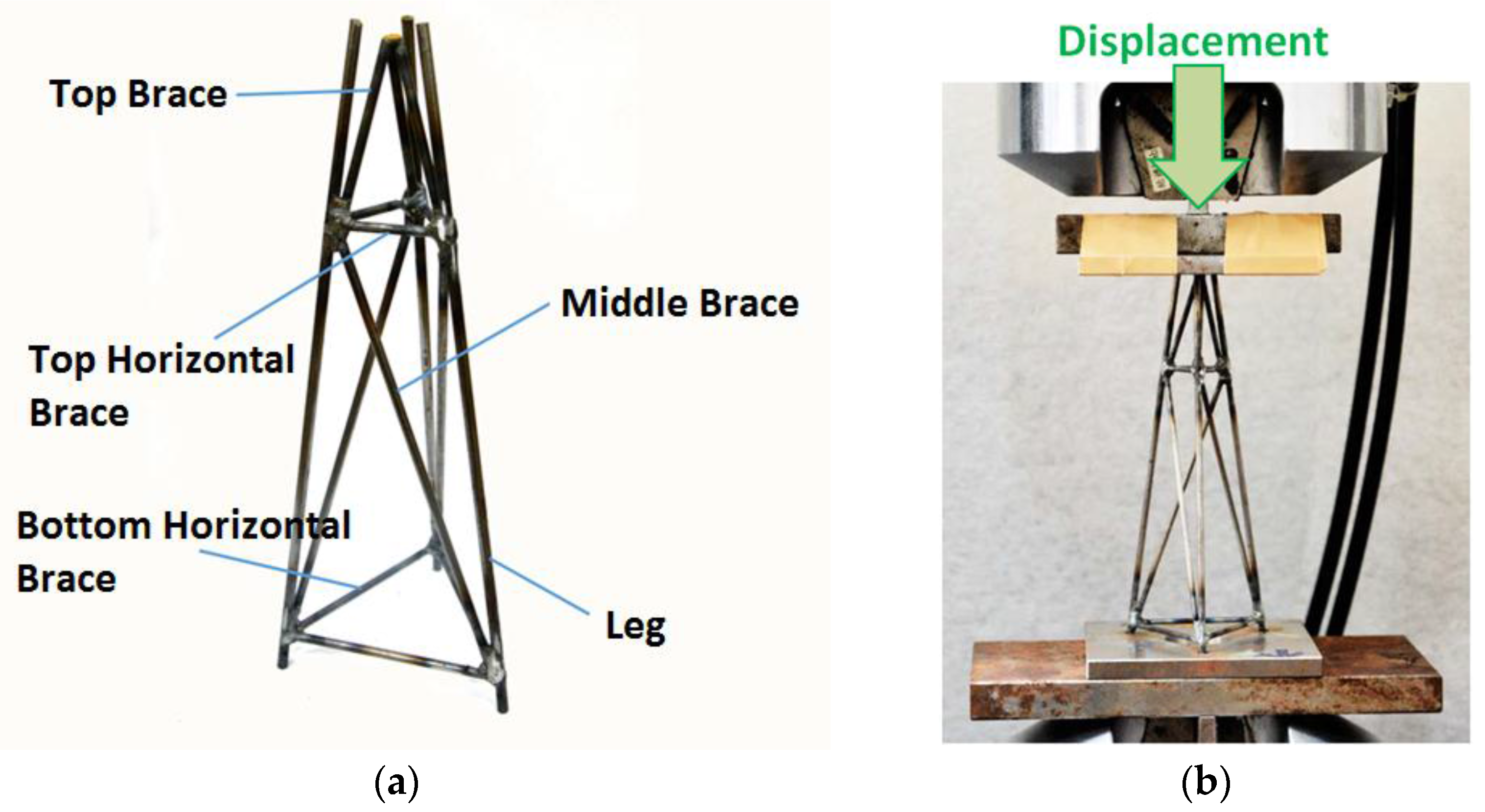

Small-scale experimental validation is an alternative and economic when the full-scale experimental validation is difficult. Three scaled-down test specimens of the MJ0-structure, having a scale of 1:330, made with solid steel tubes, were fabricated (Figure 2a). Because fabrication of the scaled-down specimens with hollow tubes was extremely difficult, solid cross-sections were purposely chosen as an alternation. The MTS 810 materials testing system was used for unidirectional compressive testing. Both the top and bottom ends were slightly inserted in the metal plates to create fixed-end boundary conditions. The displacement-controlled tests were performed, and the compression rate and total displacement of the tests were set to −0.04 mm/s and −25 mm, respectively (Figure 2b). During each displacement-controlled experiment, the load cell of the MTS machine continuously measured the corresponding applied vertical load on top of the structure, leading to a force-displacement diagram for analysis and comparison.

3.3.2. Numerical Simulation

The modified Riks method with solid and shell elements in Abaqus was employed for unstable collapse and postbuckling analysis [34]. In simple cases, linear eigenvalue analysis is sufficient for design evaluation. The Riks analysis, a load-deflection analysis method, yields very accurate results for problems with material nonlinearity, geometric nonlinearity prior to buckling or unstable postbuckling response.

The first part was the analysis using the scaled-down model for validation purposes. In the simulation, the material was assumed perfectly plastic, and the properties were defined in Section 3.1. The C3D8R (8-node linear brick, reduced integration with hourglass control) elements were used for the whole scaled-down model with the maximum mesh size equal to 0.025 mm. The applied force, as well as the top and bottom boundaries were set to represent the experiment.

The second part was the analysis of all 14 structures using full-scale models for comparison. The C3D8R (8-node linear brick, reduced integration with hourglass control) elements were used for the transition piece, whereas the S4R (4-node doubly-curved general-purpose shell, reduced integration with hourglass control under finite membrane strains) elements were used for the rest of the substructures. The maximum mesh size of the full-scale models was set to 150 mm. A nonlinear load-displacement relation was obtained from each analysis. We defined two points on the obtained nonlinear curve leading to the maximum load and the critical load for comparison purposes. The maximum load is the point with the absolute maximum load of the entire curve, whereas the critical load is the point at which the slope of the curve, i.e., the stiffness of the entire structure in the vertical direction, is 20% of the initial slope near the origin of the curve. With the two points defined, two loads and the corresponding displacements were obtained. Note that the maximum load is the load that the structure can no longer survive. In addition, determination of the critical load provides additional information that the structure may soon, and how soon to, experience catastrophic collapse.

3.4. Analysis of Local Buckling Strength Using the NORSOK Standard

The NORSOK standards are developed by the Norwegian petroleum industry to ensure adequate safety, value adding and cost effectiveness for petroleum industry developments and operations [35]. The standard specifies guidelines and requirements for the design and documentation of offshore steel structures and is applicable to all types of offshore structures made of steel with a specified minimum yield strength less than or equal to 500 MPa. Since the offshore steel structures used in the present study follow the standard, it was therefore of interest to check if all structural members in each type satisfy the requirements of the standard specifically in local buckling.

Structural members in all 14 types of substructure are tubular, subjected to combined axial compression and bending loads. The condition without hydrostatic pressure was assumed to meet the simulation conditions. According to the standard, tubular members subjected to combined axial compression and bending should be designed to satisfy the following conditions at all cross-sections along their length:

$$C_{R1}=\frac{N_{Sd}}{N_{t,Rd}}+\frac{\sqrt{M^2{}_{y,Sd}+M^2{}_{z,Sd}}}{M_{Rd}}\le 1.0$$

(1)

$$C_{R2}=\frac{N_{Sd}}{N_{c,Rd}}+\frac{1}{M_{Rd}}{\left\{{\left[\frac{C_{my}{M}_{y,Sd}}{1-\frac{N_{Sd}}{N_{Ey}}}\right]}^2+{\left[\frac{C_{mz}{M}_{z,Sd}}{1-\frac{N_{Sd}}{N_{Ez}}}\right]}^2\right\}}^{0.5}\le 1.0$$

(2)

where N_Sd is the design axial force, N_Ey and N_Ez are the Euler buckling resistance corresponding to the member y- and z-axis, respectively, N_t,Rd is the design axial tension resistance, N_c,Rd is the design axial compressive resistance, M_Rd is the design bending moment resistance, M_y,Sd is the in-plane design bending moment, M_z,Sd is the out-of-plane design bending moment and C_my and C_mz are the reduction factors corresponding to the member y- and z-axis, respectively. Readers are directed to the NORSOK standard for the complete definition of each parameter shown in Equations (1) and (2). Since buckling of structural members is of particular interest in the present study, only members under compression were checked using the aforementioned criteria.

4. Results and Discussion

4.1. Stress Analysis

The maximum von Mises stresses and their corresponding locations occurring on the structures for 14 substructures under two load cases were obtained from stress analyses (

Table 2. List of maximum von Mises stresses for 14 substructures under various load settings (denoted (0) and denoted (45)) represent the principal and diagonal directions, respectively).

Jacket Type (Wave, Current Directions)	Normal Condition + 2D		Extreme Condition + 3D
	Max. von Mises Stress (MPa)	Location	Max. von Mises Stress (MPa)	Location
JZ (0)	18.48	a4NB	N/A	N/A
JK (0)	19.81	a4NB	N/A	N/A
JX (0)	21.15	a4NB	N/A	N/A
JZ (45)	N/A	N/A	32.60	II3/M
JK (45)	N/A	N/A	32.05	b4NB
JX (45)	N/A	N/A	35.02	III3\T and IIII3/T
TJ0	17.10	a3NB	32.84	a3NB
TJ30	18.53	a3NB	37.26	a3NT
TJ60	18.84	a3NB	37.59	a2DB
TJ90	19.31	b3NB	46.24	a2IT
PJZ	20.11	a4NB	39.55	I3/M
PJK	21.65	a4NB	39.30	I3/B
PJX	22.47	a4NB	32.71	I3\T
MJ0	23.04	a3NB	45.30	c2NM
MJ30	30.19	a2NT	39.83	a3NB
MJ60	46.53	I2-L	41.79	a2NM
MJ90	34.62	II2-L	39.73	a2NM

). The maximum stresses were iteratively obtained, so that the values of all 14 cases fell at a similar level under the extreme condition. The location of the maximum von Mises stresses in all cases on the present designs are also given in Table 2. Notably, the structures were not optimized during the iteration. The maximum stresses can be further decreased by increasing the structural member sizes in all cases.

4.2. Unstable Collapse and Postbuckling Analysis

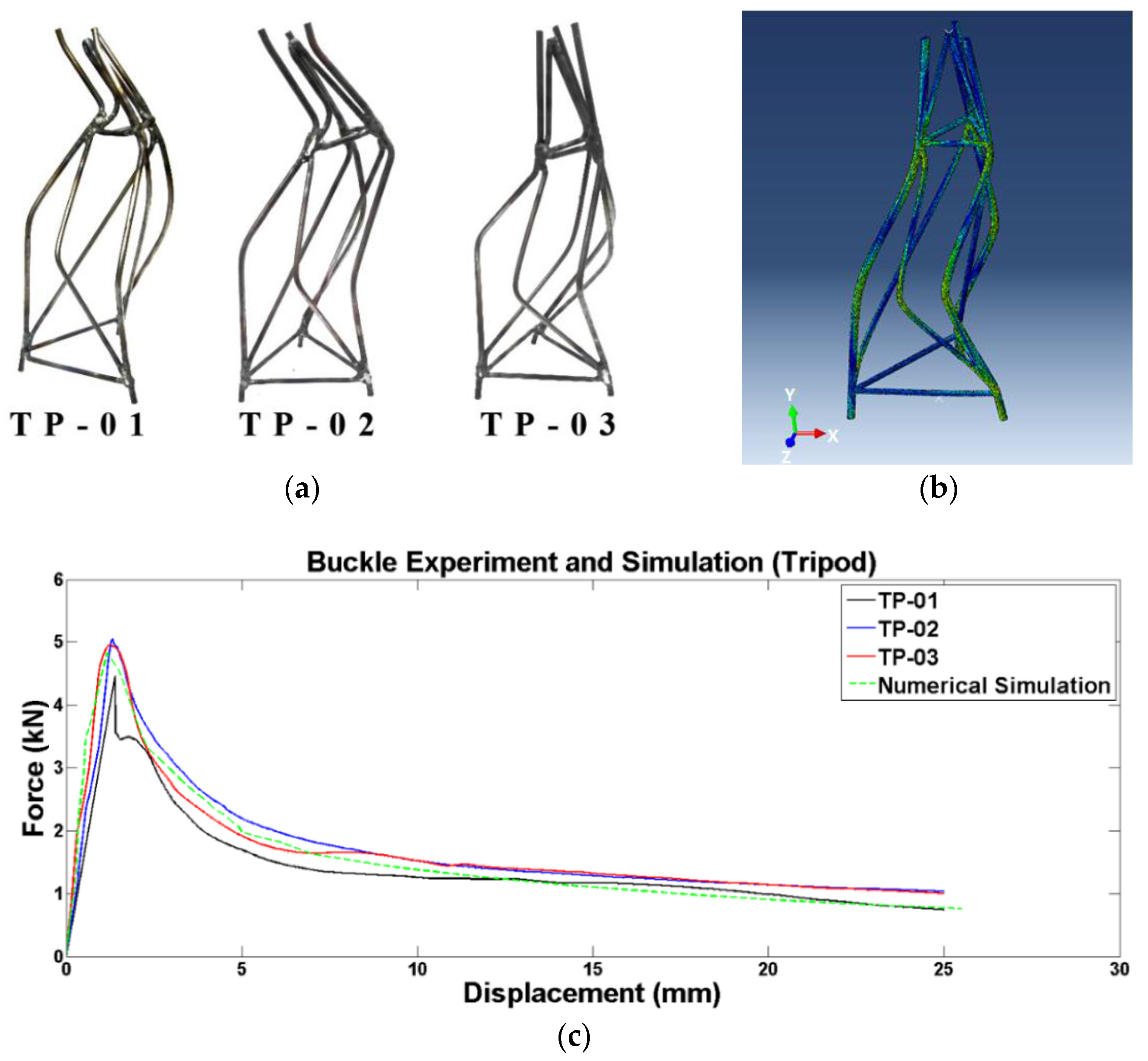

The first part is the validation of the simulation and experimental results using scaled-down models. Figure 3a,b show the after-compression deformation pattern of the scaled-down experimental test specimens and numerical models, respectively. Moreover, the load-displacement curves obtained from both the experimental and numerical tests are illustrated in Figure 3c. The results showed excellent agreement, indicating that the numerical method used for analysis is reliable and the numerical model is highly representative.

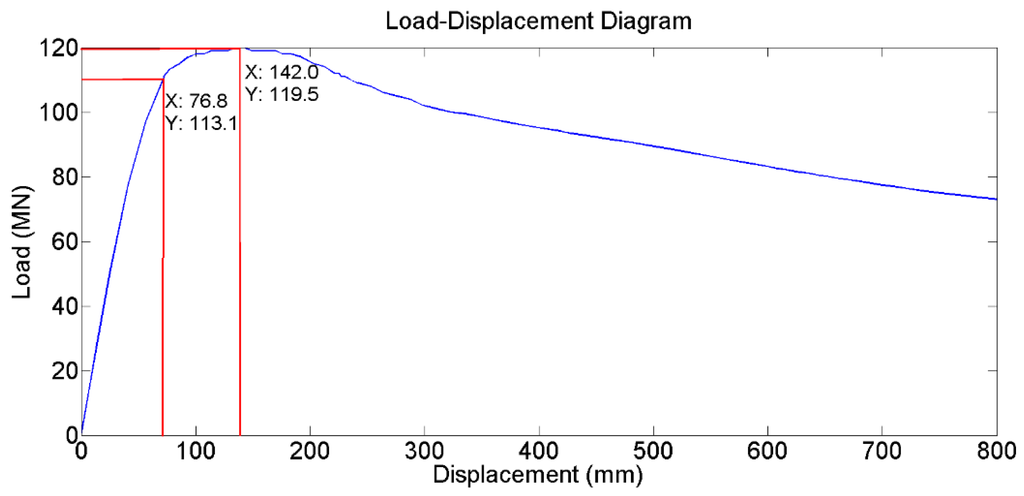

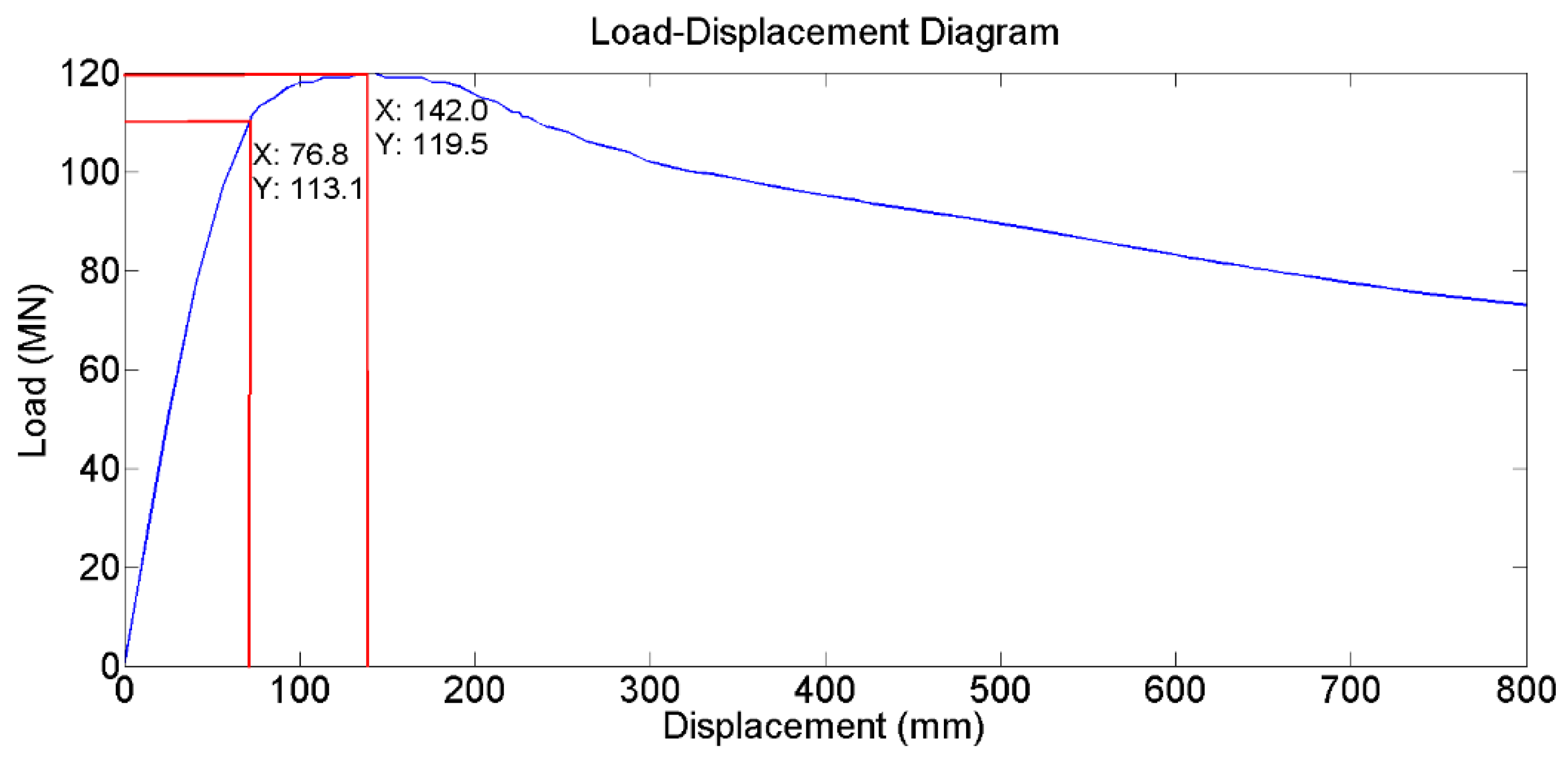

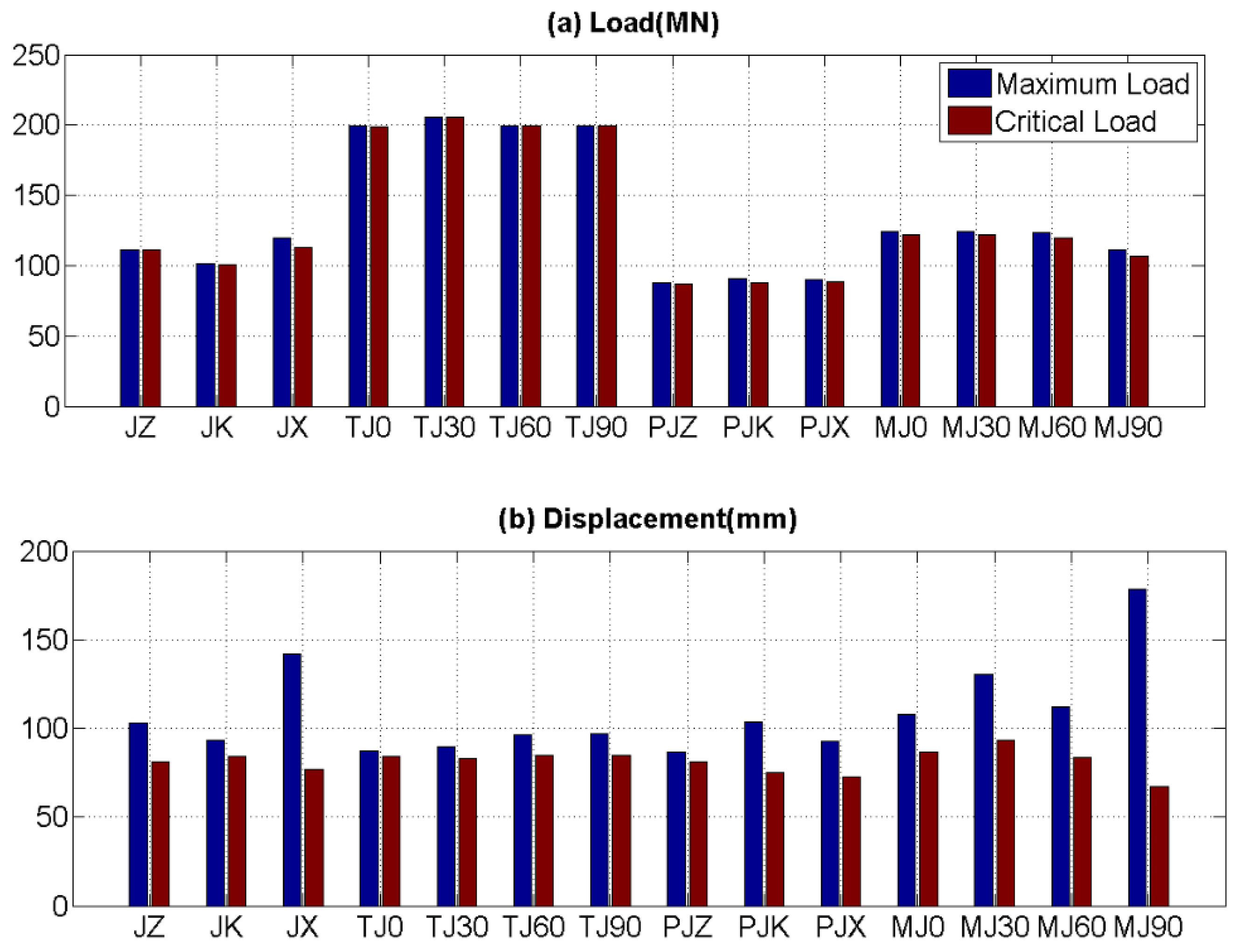

The second part is the analysis of 14 substructures using full-scale models. The force-displacement relations were determined for obtaining the maximum and critical loads and their corresponding vertical displacements (Figure 4). For instance, the force-displacement diagram of the JX-structure (Figure 5) shows that the maximum load and the corresponding displacement are 119.5 MN and 142.0 mm and that the critical load and the corresponding displacement are 113 MN and 76.8 mm, respectively. The TJ-structures resisted high critical and maximum loads compared to other types, possibly because the TJ-structures consist of a central huge column that is capable of withstanding vertical compressive loads, hence preventing buckling. The proposed MJ-structures are comparable to other types under Riks analysis.

4.3. Analysis of Local Buckling Strength

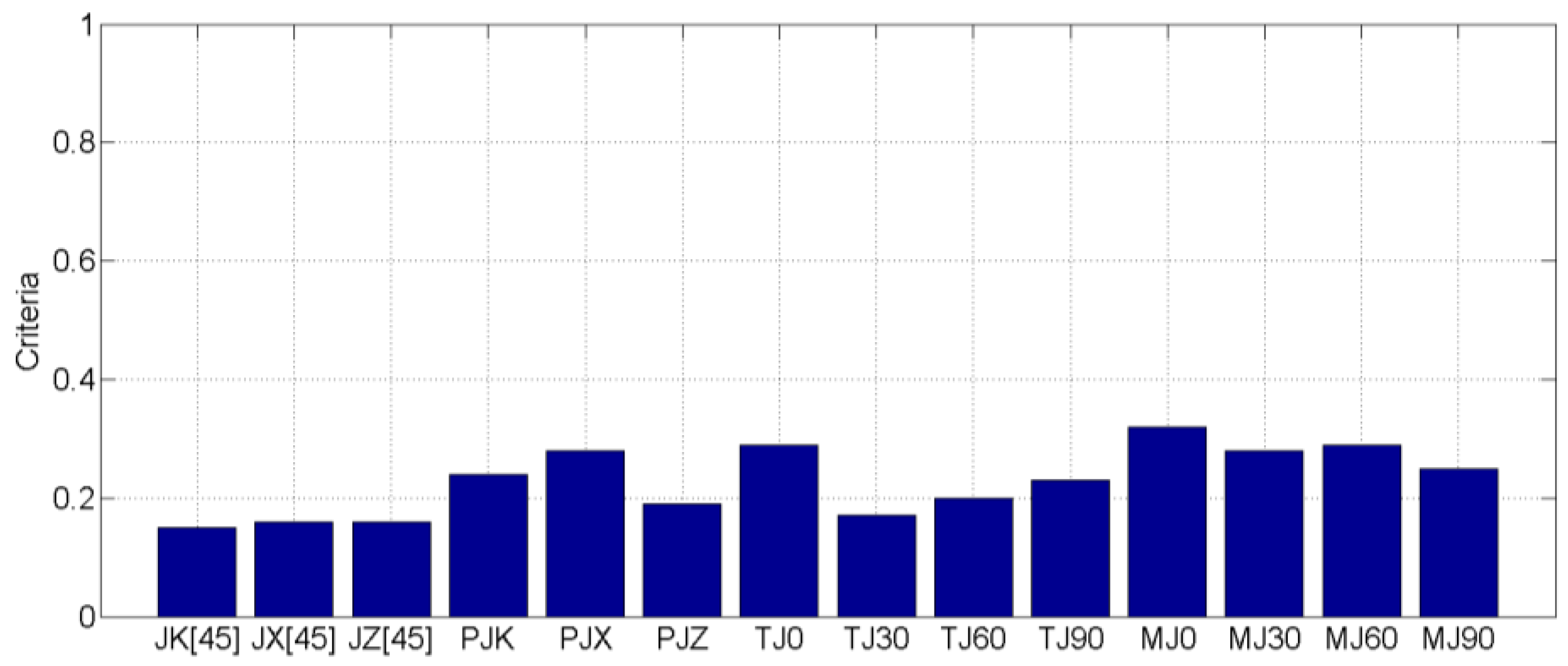

Let (C_R,max)_j = Max {(C_R1)_j, (C_R2)_j}, where (C_R1)_j and (C_R2)_j were obtained using Equations (1) and (2) for the member j of a substructure. Then, the maximum criteria calculated for a substructure with in total n members in compression were obtained as C_R,max = Max {(C_R,max)₁, (C_R,max)₂, … , (C_R,max)_j, … , (C_R,max)_n}. When the maximum criteria value, C_R,max, is greater than one, the corresponding structural member is subjected to local buckling failure. The maximum criteria of 14 substructures are illustrated in Figure 6. The results showed that all structures under the present designs were shown safe from local buckling failure and possessed similar local buckling strength during the comprehensive extreme condition.

4.4. Miscellaneous Properties

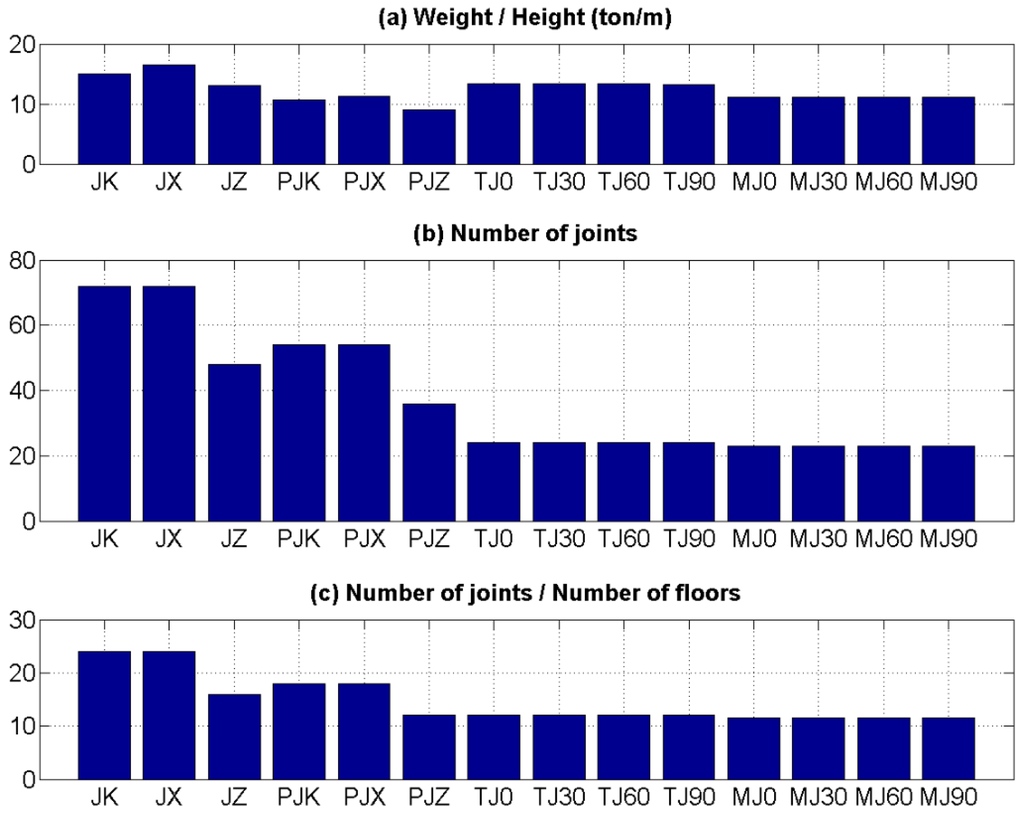

The weight of the structures that straightforwardly leads to the cost of materials and the number of welded joints, which implies the complexity of construction and the risks of fatigue and fracture, both under the present 14 geometrical designs, were also of main concern. Figure 7 shows the ratio of the weight to height, the number of joints and the ratio of joint numbers to floor numbers. The J-structures and PJ-structures were counted as three floors, and the TJ-structures and MJ-structures were counted as two floors.

Under the present designs, the group of J-structures is the heaviest, possessing the greatest number of joints per floor number. The MJ-structures, anticipated to combine both the advantages of TJ- and PJ-structures, are the lightest, simultaneously possessing the least number of joints per floor number. The performance of MJ-structures can be further optimized by increasing the thicknesses and diameters of the structural members or by adjusting the architecture of the substructure to change the slenderness ratio of structural members through iteration.

5. Conclusions

In summary, this study presented the investigation of various types of offshore jacket substructures along with a proposed twisted-tripod-jacket type. The dimensions of the structures were decided iteratively using static stress analysis to ensure that all structures had a similar level of load-carrying capability. The numerical global buckling analyses were performed for all structures after being validated by the scaled-down experiments. Analyses of local buckling strength using the NORSOK standard were also of interest. The results revealed that all structures were safe under the provided load combinations. The MJ-structures were expected and proven to possess excellent structural behavior similar to the patented twisted jacket structures, while still maintaining the advantage of low material usage, similar to the three-leg jacket structures. Although the design of offshore wind turbine substructures is site dependent and requires additional dynamic and fatigue analysis with many specific site load combinations, the results obtained in this study shall provide alternatives for the initial selection and design of offshore wind turbine substructures.
