Comparison of Dissolved Gases in Mineral and Vegetable Insulating Oils under Typical Electrical and Thermal Faults

Abstract

Dissolved gas analysis (DGA) is attracting greater and greater interest from researchers as a fault diagnostic tool for power transformers filled with vegetable insulating oils. This paper presents experimental results of dissolved gases in insulating oils under typical electrical and thermal faults in transformers. The tests covered three types of insulating oils, including two types of vegetable oil, which are camellia insulating oil, Envirotemp FR3, and a type of mineral insulating oil, to simulate thermal faults in oils from 90 °C to 800 °C and electrical faults including breakdown and partial discharges in oils. The experimental results reveal that the content and proportion of dissolved gases in different types of insulating oils under the same fault condition are different, especially under thermal faults due to the obvious differences of their chemical compositions. Four different classic diagnosis methods were applied: ratio method, graphic method, and Duval’s triangle and Duval’s pentagon method. These confirmed that the diagnosis methods developed for mineral oil were not fully appropriate for diagnosis of electrical and thermal faults in vegetable insulating oils and needs some modification. Therefore, some modification aiming at different types of vegetable oils based on Duval Triangle 3 were proposed in this paper and obtained a good diagnostic result. Furthermore, gas formation mechanisms of different types of vegetable insulating oils under thermal stress are interpreted by means of unimolecular pyrolysis simulation and reaction enthalpies calculation.

1. Introduction

Dissolved gas analysis (DGA) is an important and successful tool to detect incipient faults of oil-filled transformers [1]. Several interpretation methods for DGA, including the ratio methods, the graphic methods, and Duval Triangle or Pentagon methods, are available to identify the different types of faults occurring in operating transformers [2,3,4,5,6,7].

The vegetable insulating oil in transformers are applied more and more widely [8]. It has already been used in distribution transformers, and the next objective is to extend its use to HV power transformers [9]. It has different compositions between vegetable insulating oil and mineral insulating oil. Vegetable oil consists of hundreds of triglycerides, while mineral oils are mixtures of alkane, cyclones, and aromatic hydrocarbons containing carbon and hydrogen linked together by single and double bonds [10,11]. In addition, different types of vegetable insulating oils are also composed of different kinds and proportions of triglyceride molecules. Thus, there are differences in the variety and proportion of gas production among different types of insulating oils [12].

At present, investigations on comparisons of DGA between vegetable and mineral oils have attracted lots of interests of researchers. Martin et al. analyzed dissolved gas levels of a normally-operating power transformers filled with FR3 and indicate that ethane and hydrogen are significantly elevated compared to the same transformers filled with mineral oil [13]. However, since there is a significant lack of fault data of vegetable oil-filled transformers in service, several results of dissolved gases in vegetable oils obtained by laboratory tests. [14,15,16,17,18] concluded that vegetable oil and mineral oil have different dissolved gas characteristics under electrical and thermal faults. Several diagnostic methods, such as the Dornenburg method [15], IEC 60599 method [15], Roger’s ratio method [15,16], and classical Duval Triangle method [15,16,17,18], which are used for diagnosing the fault type of transformers filled with mineral oil, exist limitations to diagnose the fault of transformers filled with vegetable oils directly. Thus, new versions of the Duval triangle method (Duval Triangle 3) applied to equipment filled with non-mineral oils (silicone, Midel, FR3, and Bio Temp) have been proposed [19]. Furthermore, another modified Duval triangle method (Duval Triangle 6) aiming at the stray gassing diagnosis of FR3 oil-filled transformers has been put forward [20].

According to the aforementioned publications, until now, only a few methods, such as the modified Duval triangle (Duval Triangle 3 and 6), are utilized to identify faults in vegetable oil-filled transformers. The international standard IEEE C57.155-2014 [21] provides the DGA guide application for natural and synthetic ester-immersed transformers. However, previous studies pay more attention on the comparison of dissolved gases between mineral oils and natural or synthetic esters, much less effort is involved in the comparative studies of vegetable insulating oils with different chemical compositions. Due to the fact that different vegetable oils are formed by different kinds and proportions of triglyceride molecules, the dissolved gas characteristics have some differences. Thus, there is a need to verify and improve the DGA diagnostic methods used for FR3 oils to apply it to other vegetable oils. Moreover, it is necessary to study the gas formation mechanism of different vegetable oils and this will help to provide a theoretical basis for designing diagnostic methods of vegetable insulating oils with different chemical compositions.

This work is motivated by problems posed in the present publications for future applications. Experiments simulating typical thermal and electrical faults in transformers are proposed in this paper. Gases dissolved in two types of vegetable insulating oils (FR3 oil and camellia oil) and one mineral oil are analyzed by gas chromatography, the content and proportion of fault gases in three types of insulating oils are compared with each other, the main gas compositions in two types of vegetable insulating oils of different fault types are examined. Three ratio methods, the graph representation method, Duval’s Triangle method in the IEC standard [22], and the Duval pentagon method, are used to interpret experiment data, the applicability of these methods to vegetable insulating oil-filled transformers are analyzed. Furthermore, Duval’s Triangle 3, which is used for the diagnosis of FR3 oils, is applied to verify the applicability of fault diagnosis in FR3 oils and camellia oils, some modifications of Duval’s Triangle 3 aiming at camellia oils are also put forward. Finally, the gas formation mechanism of vegetable insulating oils based on the technique of molecular simulation and reaction enthalpies calculation is proposed in this paper.

2. Experiment

2.1. Preparation and Pretreatment of Samples

A conventional naphthenic-based mineral insulating oil, a kind of commercial soybean-based insulating oil (FR3), and a kind of camellia-based vegetable insulating oil were used in the experiment. The camellia insulating oil was obtained from camellia oil after three refinement procedures, which are alkaline refinement, vacuum distillation, and bleaching. The basic physical, chemical, and electrical properties of the camellia insulation oil are shown in

Table 1. Basic physical, chemical, and electrical properties of the three types of insulation oils.

Parameter	Camellia Oil	FR3 Oil [23]	Mineral Oil
Appearance	Light Yellow	Light Green	Transparent
Density (20 °C)/kg·m−3	0.90	0.92	<0.895
Viscosity (40 °C)/mm2·s−1	39.9	34.1	≤13.0
Pour point/°C	−28	−21	<−22
Flash point/°C	322	316	≥135
Acid value/mgKOH·g−1	0.03	0.04	≤0.03
Interfacial tension/mN·m	25	24	≥40
AC breakdown voltage/kV	70	56	≥35
Dissipation factor(90 °C)/%	0.88	0.89	≤0.1
Volume resistivity/Ω·m	1 × 1010/90 °C	2 × 1011/25 °C	7 × 1011/25 °C
Relative permittivity	2.9/90 °C	3.2/25 °C	2.2/90 °C

. The related properties of the FR3 and mineral insulating oil are also presented.

The insulating oil and insulating paper were dried under a vacuum of 50 Pa for 72 h at 90 °C. The moisture contents of oil was examined by the Karl Fischer titration method, the moisture contents of mineral, FR3, and camellia oils were 8 ppm, 36 ppm, and 29 ppm, respectively. The insulating paper was impregnated in insulating oils under a vacuum of 50 Pa for 24 h at 40 °C.

2.2. Experimental Setup

2.2.1. Thermal Stress Simulation

According to IEC 60599-2007 [22], thermal faults are classified into three groups (T1 < 300 °C, 300 °C < T2 < 700 °C, and T3 > 700 °C) according the temperature ranges of faults. Since the research was intended to simulate the thermal fault in transformers and analyze proportions of dissolved gases in different types of insulating oils under the same fault condition, thermal tests were carried out with and without insulating paper through setting the oven temperature at 90, 120, 150, 200, 300, 400, 500, 600, 700, or 800 °C.

In this experiment, thermal faults at temperatures below 300 °C (90 °C, 120 °C, 150 °C, 200 °C, and 250 °C) were simulated in sealed glass bottles and heated uniformly in an air circulating oven [14,15,16]. There was a thermocouple sensor next to the sealed glass to reflect the oil temperature.

For high-temperature thermal faults, due to the high pressure in containers at high temperature, the air circulating oven could not simulate the thermal faults above 300 °C. In addition, currently, some publications applied the method of heating wires in oil to simulate overheating faults [24,25]; however, it was not easy to make fault point temperatures reach above 700 °C (T3 region) because of the limitation of the maximum power source and meltdown of heating wire as presented in these papers. The highest temperature that the heating wire can achieve was 600 °C in [24] and the experimental simulating temperature was 280 °C in [25]. In order to simulate high-temperature thermal faults and obtain fault gas data at high temperature, a specially-designed experiment system containing a pipe heater, a L-shaped stainless steel container, and a temperature controller were designed to simulate thermal faults at temperatures above 300 °C (300 °C, 400 °C, 500 °C, 600 °C, 700 °C, and 800 °C), as shown in Figure 1. There was a thermocouple sensor processed by means of heat insulation and contacting the surface of pipe to reflect the approximate temperature of oil. In practical situations, overheating faults at high temperature will only take place at one point in the transformer, fault gases are generated at the fault point, and then diffuse to the entire oil tank, and this is why samples used in DGA are extracted from the oil drain valve instead of the fault point. In this simulation system, 30 mL oil added to the pipe heater were heated, and fault gases diffused to 0.5 L of oil added to the stainless steel container.

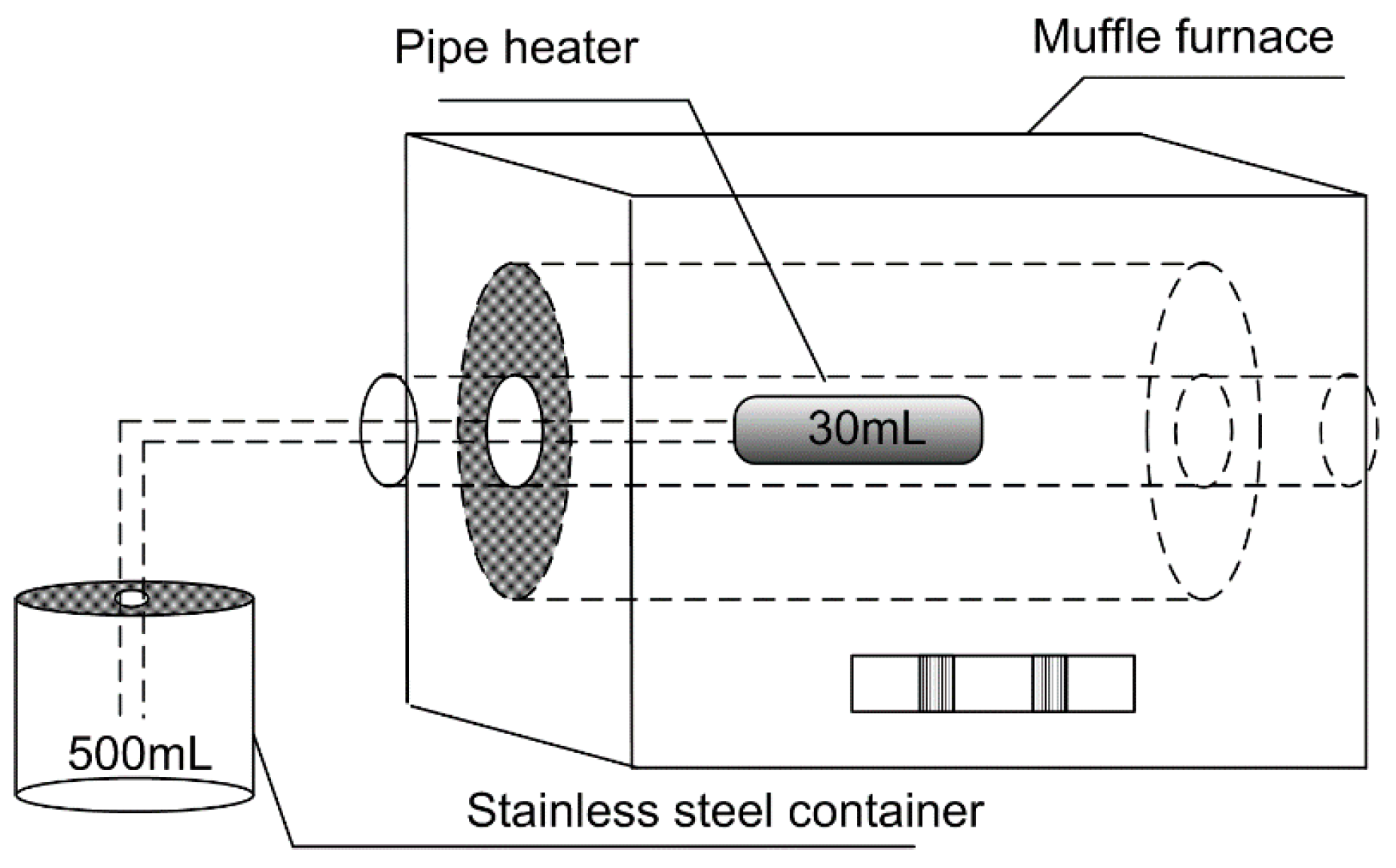

In order to ensure the 30 mL oil samples achieve the setting temperatures, the oil temperature rising process and rate were simulated before the tests.

The governing equation about the heat conduction is as follows:

$$\{\begin{array}{l}\mathsf{\rho }{c}_p\frac{\partial T}{\partial t}+\mathsf{\rho }{c}_p\mathrm{u}\cdot \nabla T+\nabla \cdot \mathrm{q}=Q+Q_p+Q_{vd}\\ \mathrm{q}=-k\nabla T\end{array}$$

(1)

where c_p is the specific heat capacity of material, $\mathsf{\rho }$ is the density of material, k is the thermal conductivity of material, Q is the conduction heat, Q_p is the convection heat, and Q_vd is the radiation heat.

The boundary condition is as follows:

$$\{\begin{array}{l}-n\cdot \mathrm{q}=0\\ T=T_0\end{array}$$

(2)

where T₀ is the temperature of boundary.

Figure 2 shows the temperature distribution of oil samples after heating different times when the oven temperature is 800 °C.

Figure 3a,b show the average temperature rising curve of mineral oil and vegetable oil, respectively. It is obvious that the temperature can approximately reach 800 °C during the heating time.

Table 2. Duration of mineral and vegetable oil samples before reaching required temperatures.

Temperature (°C)		300	400	500	600	700	800
Duration (min)	Mineral oil	2.54	2.36	2.83	2.57	2.84	2.37
	Vegetable oil	3.64	3.34	3.40	3.15	2.82	2.56

presents the time of heating duration before the mineral oil and vegetable oil can reach the required temperature from 300 °C to 800 °C. It can be seen that the oil can reach or approach the required temperature before heating of the oil stops.

In order to simulate thermal faults of operating transformers approximately, the temperature and duration of simulated thermal faults are shown in

Table 3. The temperature and duration of simulated thermal tests.

Temperature (°C)	T1					T2					T3
	90	120	150	200	250	300	400	500	600	700	800
Duration (h)	168	168	168	2	1	1/2	1/12	1/12	1/15	1/20	1/24

.

2.2.2. Electrical Stress Simulation

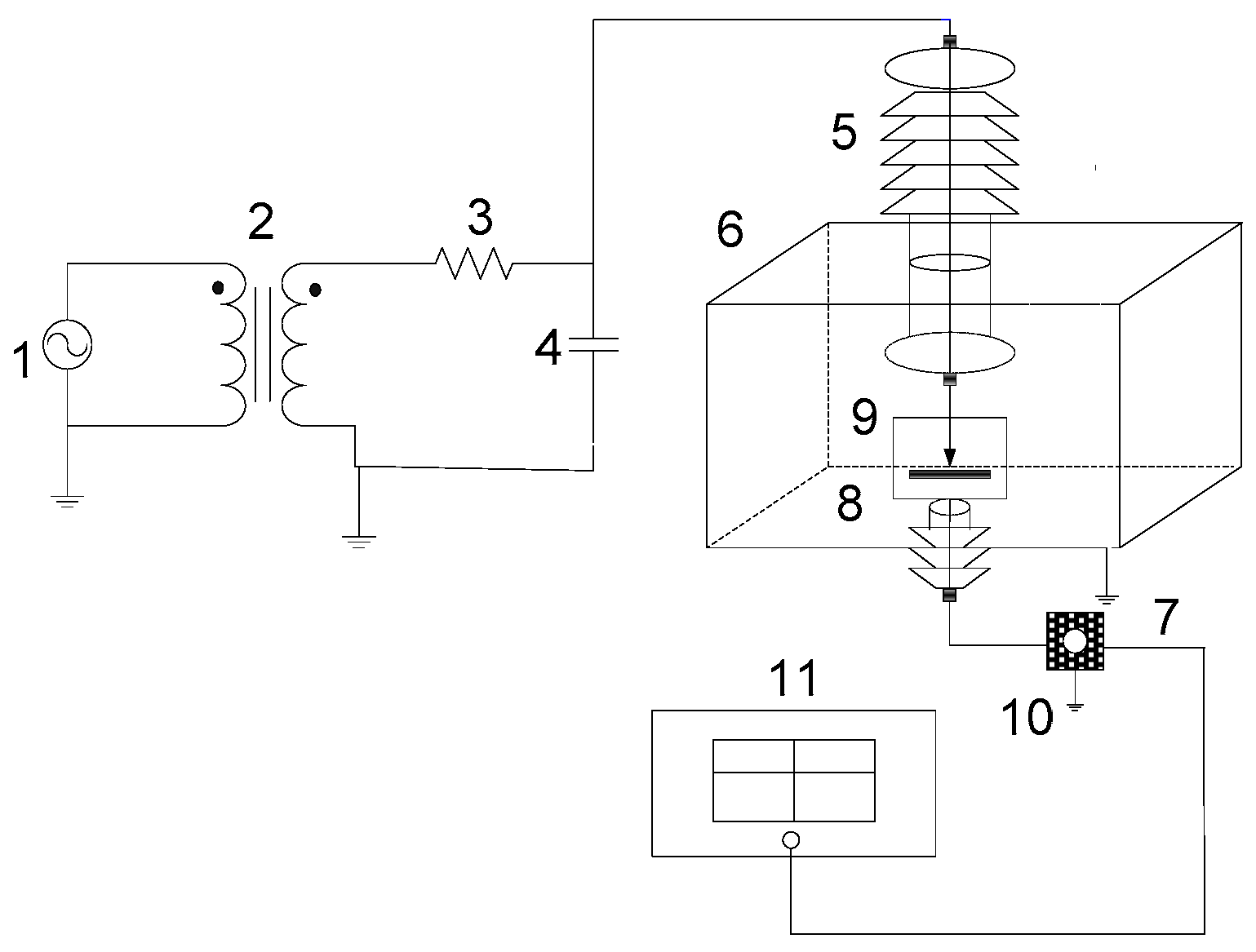

The experimental setup is shown in Figure 4. The step-up transformer is composed of a self-coupling voltage regulator and a testing transformer. The electrostatic voltmeter V is used to monitor voltage, resistor R is used to limit current. The 2000 pF coupling capacitor capable of withstanding a voltage of 50 kV is used to couple the pulse current generated by a partial discharge.

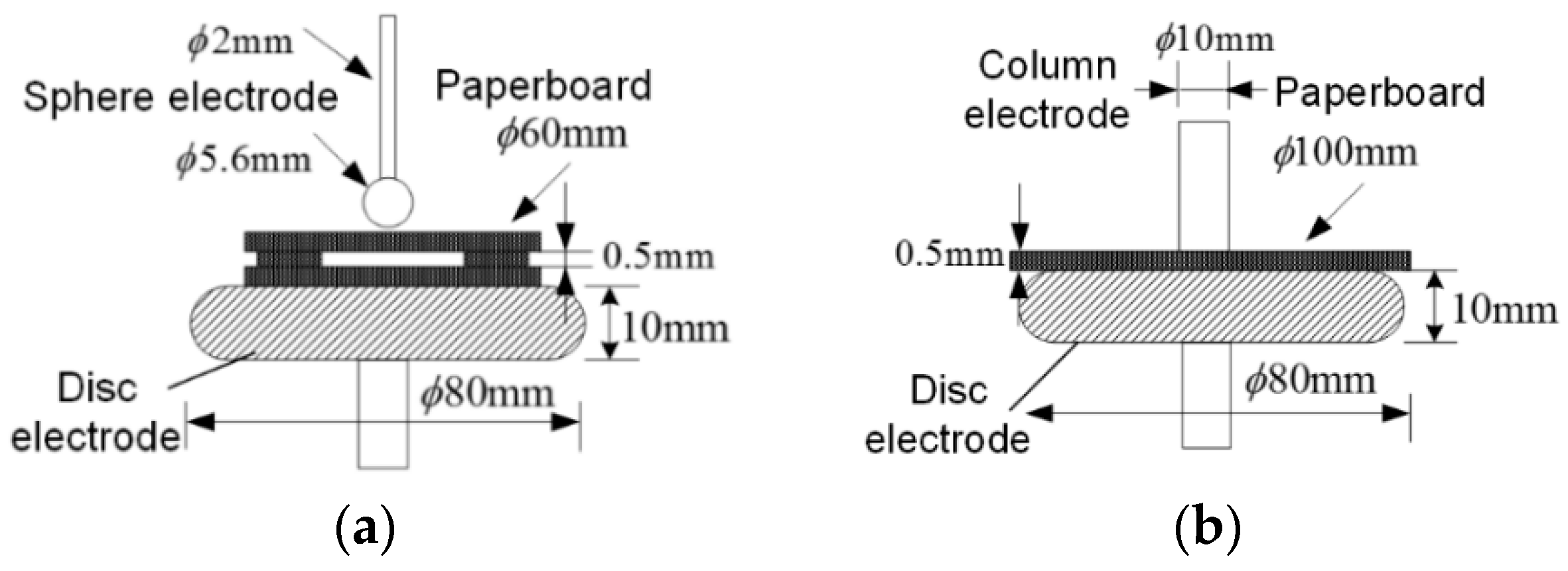

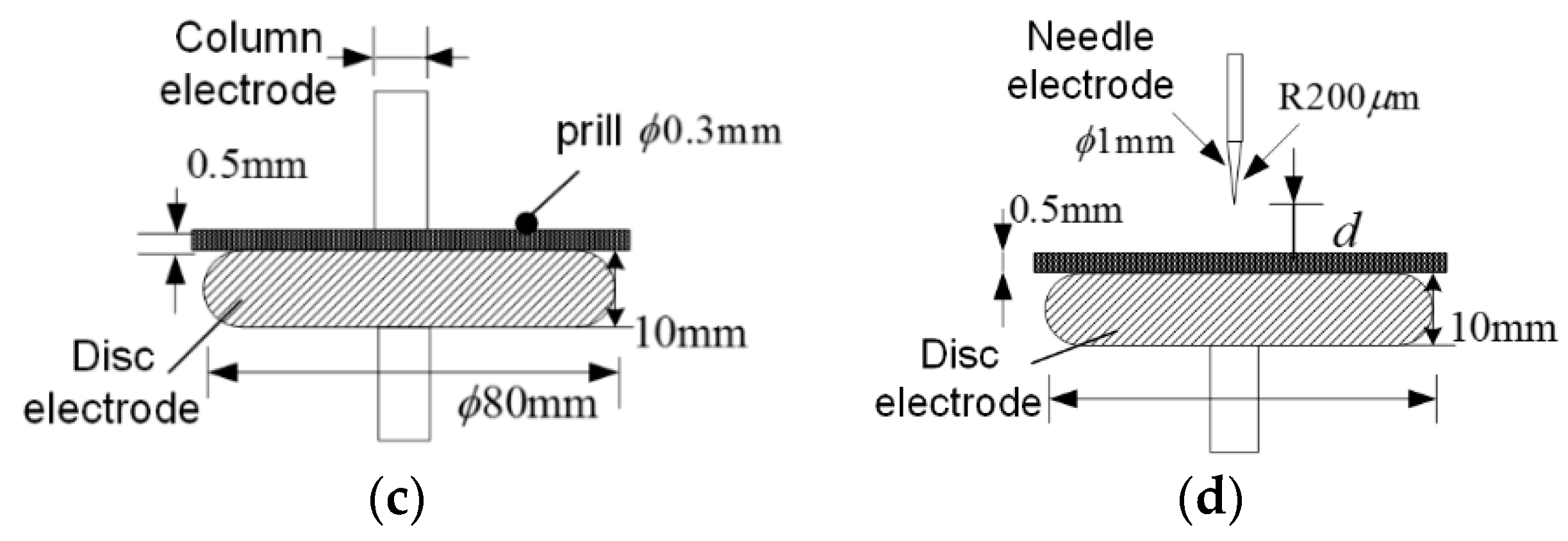

To simulate breakdown in different insulation structures, six breakdown models with and without insulating paper are designed, as shown in Figure 5.

To simulate a partial discharge in the transformers, four types of typical defect models–air gap discharge model, surface discharge model, floating discharge model, and corona in oil model—are used, as shown in Figure 6.

3. Dissolved Gas Analysis

3.1. DGA for Thermal Stress Simulation

3.1.1. DGA Results of Thermal Faults below 300 °C

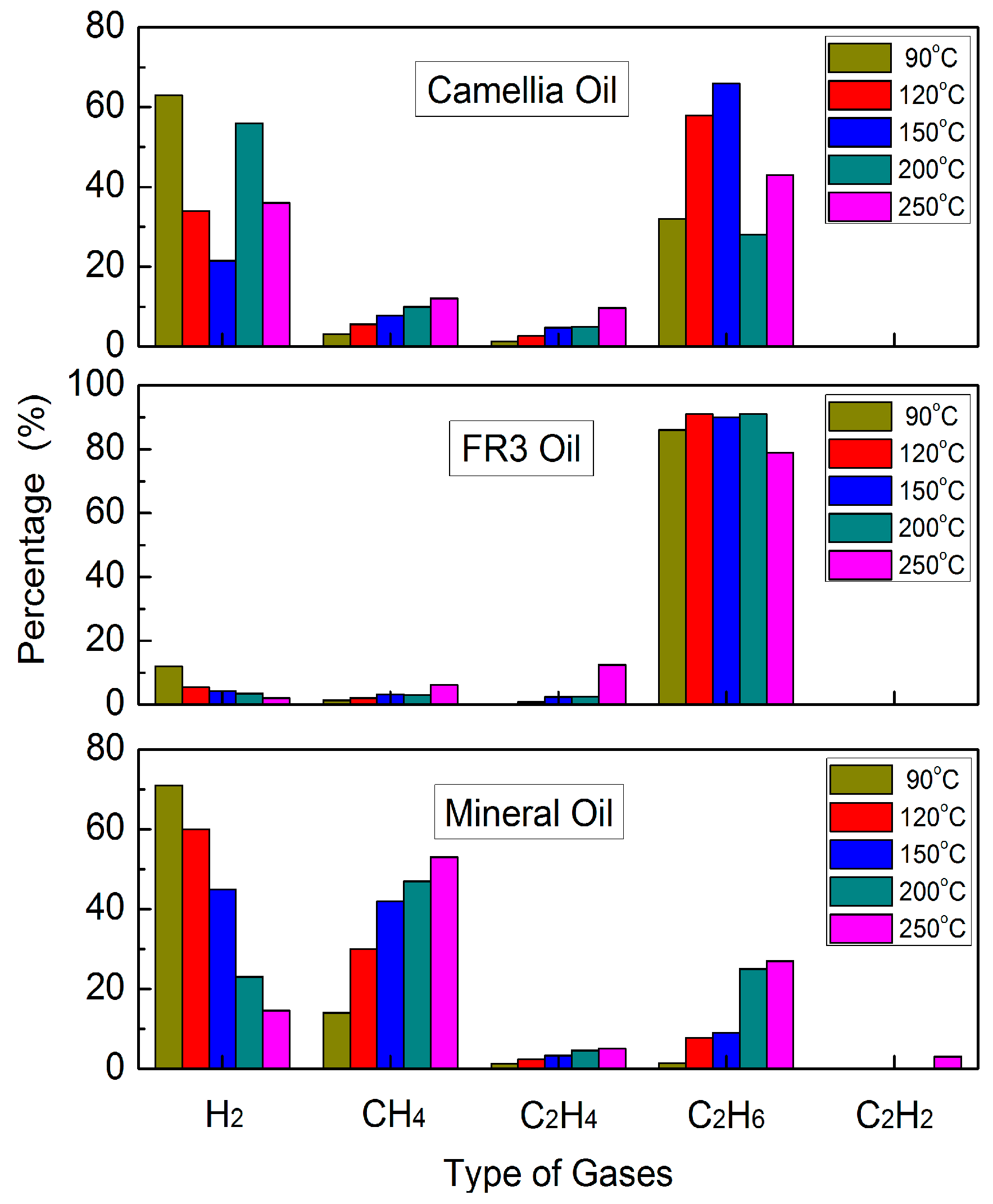

Figure 7 shows the relative percentages of fault gases, except CO and CO₂, in mineral insulating oil, camellia, and FR3 insulating oil, which are overheated in the oven at 90 °C, 120 °C, 150 °C, 200 °C, and 250 °C. C₂H₂ is not obviously observed in all cases. FR3 and camellia oil generate a significant amount of C₂H₆, which does not largely exist in mineral oil. In camellia oil, H₂ is generated in significant quantities. According to the percentage of fault gases, for FR3, the main dissolved gas is C₂H₆; for camellia oil, the main fault gases of are C₂H₆ and H₂. This is different from mineral oil, whose main fault gases are H₂ and CH₄.

As shown in

Table 4. CO and CO₂ content in oil under thermal faults below 300 °C.

Insulation Structure	Oil Type	Temperature/°C	CO/ppm	CO2/ppm
Oil	Camellia oil	90	49.3	1111.2
		200	68.8	1149.6
	FR3 oil	90	24.2	918.9
		200	29.5	542.7
	Mineral oil	90	15.89	800.5
		200	85.4	781.4
Oil-Paper	Camellia oil	90	65.3	1837.0
		200	1157.2	17,883.4
	FR3 oil	90	29.2	1379.3
		200	468.5	11,568.4
	Mineral oil	90	190.3	2638.6
		200	327.9	8192.8

, compared to the case in oil insulation, the existence of insulating paper increases the amount of gases dissolved in oil. The CO₂ content dissolved in FR3 oil-paper insulation are 2.5 times higher than that in FR3 oil insulation, and the ratio is six times of mineral oil. This is mainly due to the decomposition of cellulose forming hydrocarbons, alcohols, aldehydes, and acids, as well as the further decomposition of these molecules forming gas molecules, like CO and CO₂.

Figure 8 shows the relative percentages of fault gases in oil-paper insulation except CO and CO₂ below 300 °C. In mineral oil, the content of H₂ and CH₄ is the highest. In FR3 oil, the content of C₂H₆ is the highest. In camellia oil, the content of C₂H₆ is slightly higher than other types of gases, except H₂.

3.1.2. DGA Results of Thermal Faults above 300 °C

Figure 9 shows the relative percentages of fault gases, except CO and CO₂, in mineral insulating oil, FR3, and camellia insulating oil which are overheated in the muffle furnace at 300 °C, 400 °C, 500 °C, 600 °C, 700 °C, and 800 °C. C₂H₂ is also not obviously observed in all cases. In mineral oil, CH₄ is a key indicator of overheated oil, and C₂H₄ is a secondary indicator of overheated oil. However, CH₄ and C₂H₄ do not largely exist in FR3 and camellia oil. In contrast, FR3 and camellia oil generate a significant amount of C₂H₆, which does not largely exist in mineral oil. In camellia oil, H₂ is generated in significant quantities. According to the percentage of fault gases, the main dissolved gas for FR3 oil is C₂H₆, and the main dissolved gases in camellia oil are C₂H₆ and H₂, while that for mineral oil is CH₄.

As with the result obtained in the case under thermal faults below 300 °C, the existence of insulating paper also increases the amount of CO and CO₂ significantly under thermal faults above 300 °C, as shown in

Table 5. CO and CO₂ content in oil under thermal faults above 300 °C.

Insulation Structure	Oil Type	Temperature/°C	CO/ppm	CO2/ppm
Oil	Camellia oil	400	74.64	2664.4
		700	1854.3	10,517.3
	FR3 oil	400	434.6	2430.7
		700	1553.3	8945.1
	Mineral oil	400	250.8	2038.8
		700	1797.9	9845.1
Oil-Paper	Camellia oil	400	160.2	3628.4
		700	1792.4	12,481.1
	FR3 oil	400	171.5	3536.2
		700	1487.3	21,527.1
	Mineral oil	400	190.3	3160.1
		700	327.9	43,957.3

.

Figure 10 shows the relative percentages of fault gases in oil-paper insulation, except CO and CO₂, above 300 °C. In mineral oil, the content of CH₄ is highest; in FR3 oil, the content of C₂H₆ is highest; in camellia oil, the content of C₂H₆ is higher than other types of gases, followed by H₂. According to the percentage of fault gases, for FR3, the main dissolved gas is C₂H₆; for camellia oil, the main fault gases are C₂H₆ and H₂. This is different from mineral oil, whose main dissolved gases are CH₄ and C₂H₆.

3.2. DGA for Electrical Stress Simulation

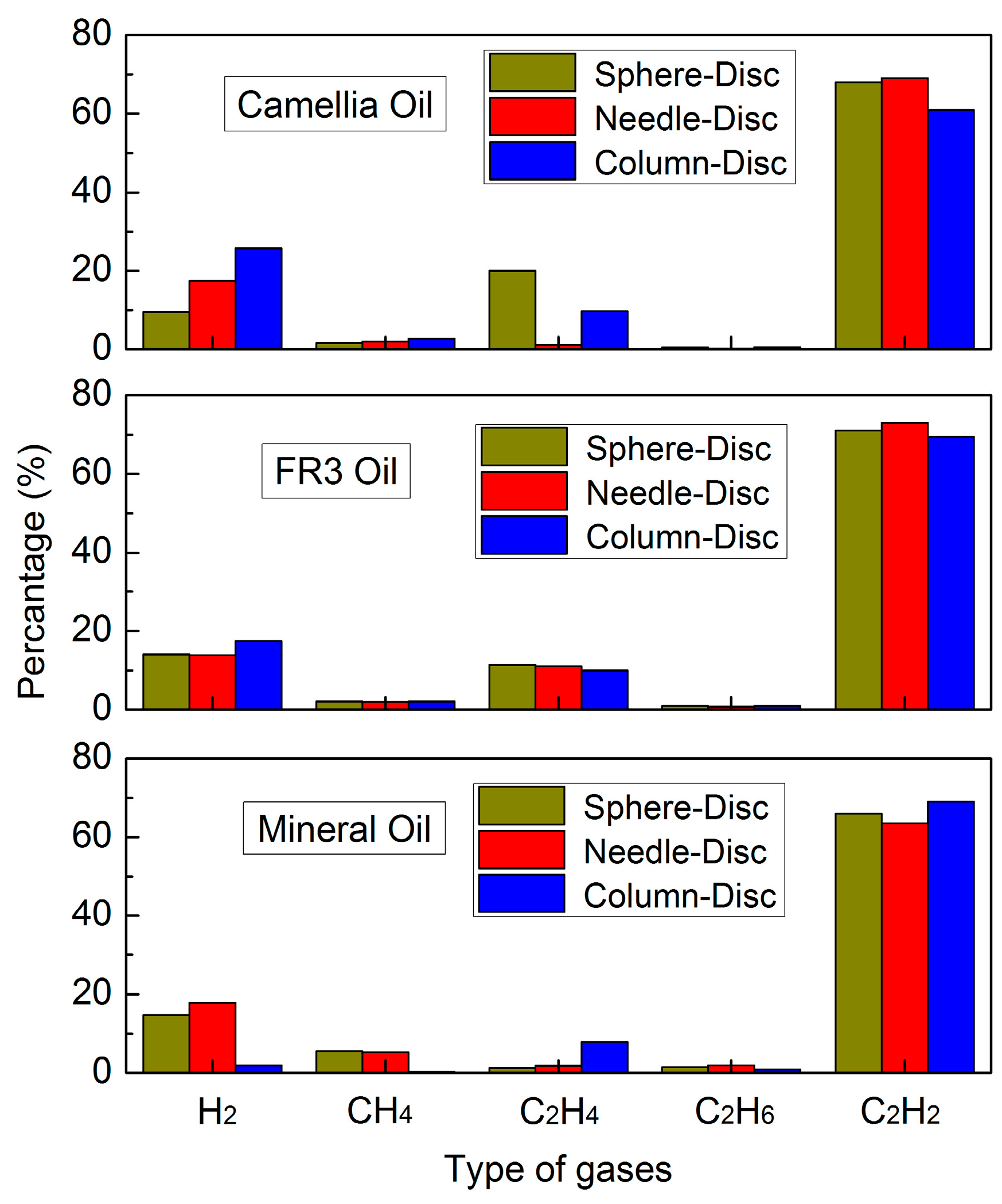

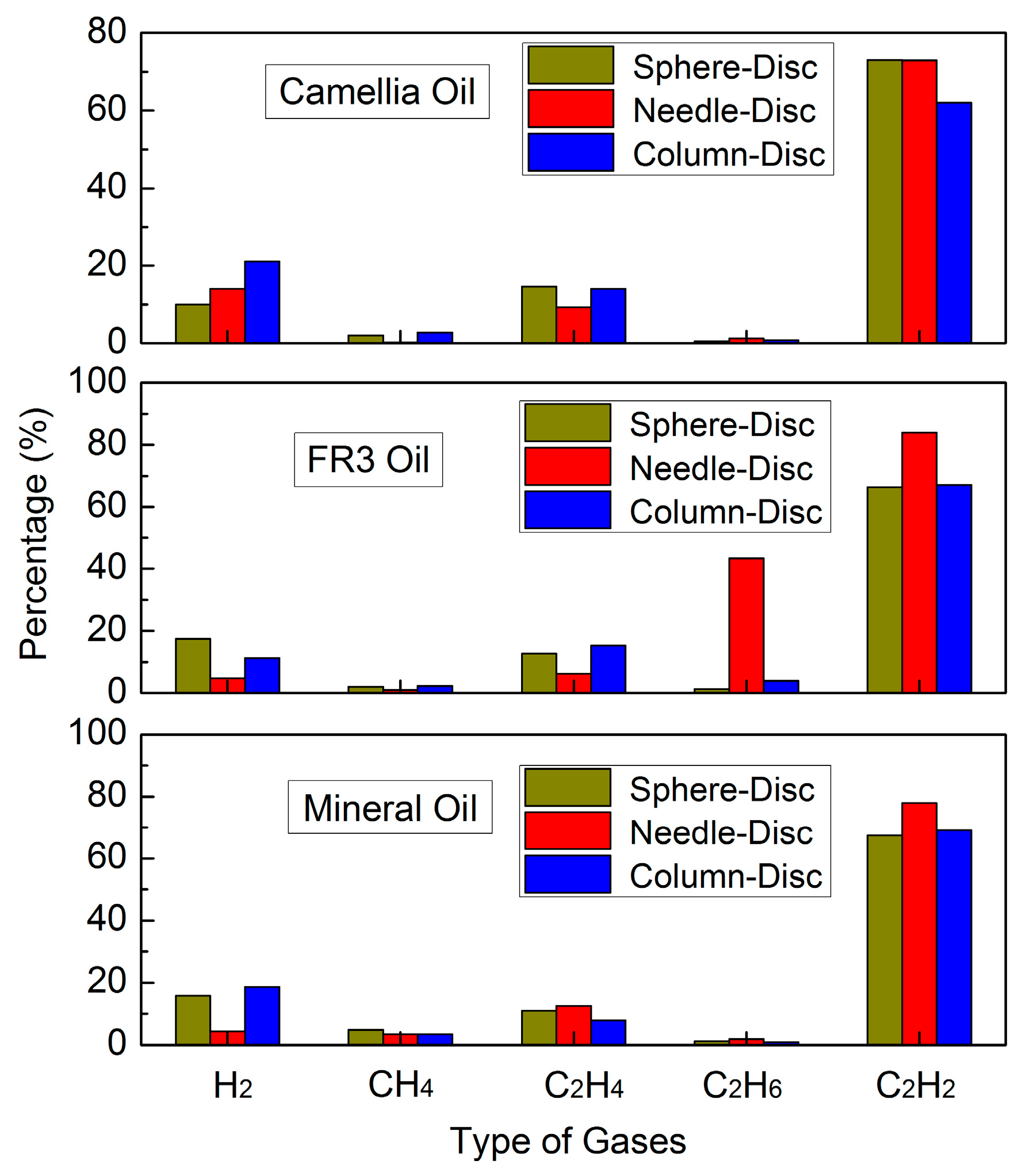

Figure 11 shows the relative percentages of fault gases, except CO and CO₂, under electrical breakdown. In all cases, a significant amount of H₂ and C₂H₂ are generated, it indicates that for mineral oil, FR3 oil, and camellia oil, the main fault gases of a breakdown fault are the same.

As shown in

Table 6. CO and CO₂ content (in ppm) in oil under needle-disc breakdown.

Insulation Structure	Gas Type	Camellia Oil	FR3 Oil	Mineral Oil
Oil	CO	15.52	9.11	15.52
	CO2	1259.49	690.16	1295.49
Oil-Paper	CO	442.31	563.85	86.88
	CO2	1704.2	1012.31	912.74

, compared to the case in pure oil, the content of CO and CO₂ in oil-paper insulation under breakdown is higher. This is mainly because under electrical stress, the decomposition of C–O bonds in the cellulose forms O₂, the reactions of O₂ and C in cellulose produce CO and CO₂.

Figure 12 shows the relative percentages of fault gases except CO and CO₂ under electrical breakdown. As the case in the oil insulation, a significant amount of H₂ and C₂H₂ are dissolved in all samples. It shows that C₂H₂ is the main dissolved gas of electrical breakdown for mineral oil, FR3 oil, and camellia oil.

Table 7. Fault gas contents (in ppm) in oil under partial discharge.

Model	Gas Type	Camellia Oil	FR3 Oil	Mineral Oil
Air gap	H2	6.2	25.64	13.54
	THGC *	7.7	23.66	3.39
	CO	37.4	22.47	4.39
	CO2	357.63	349.63	202.5

* THGC is the total hydrocarbon gas contents.

shows fault gas contents (in ppm) under partial discharge; the contents are mainly dependent on discharge energy, and it is hard to distinguish a partial discharge pattern through DGA.

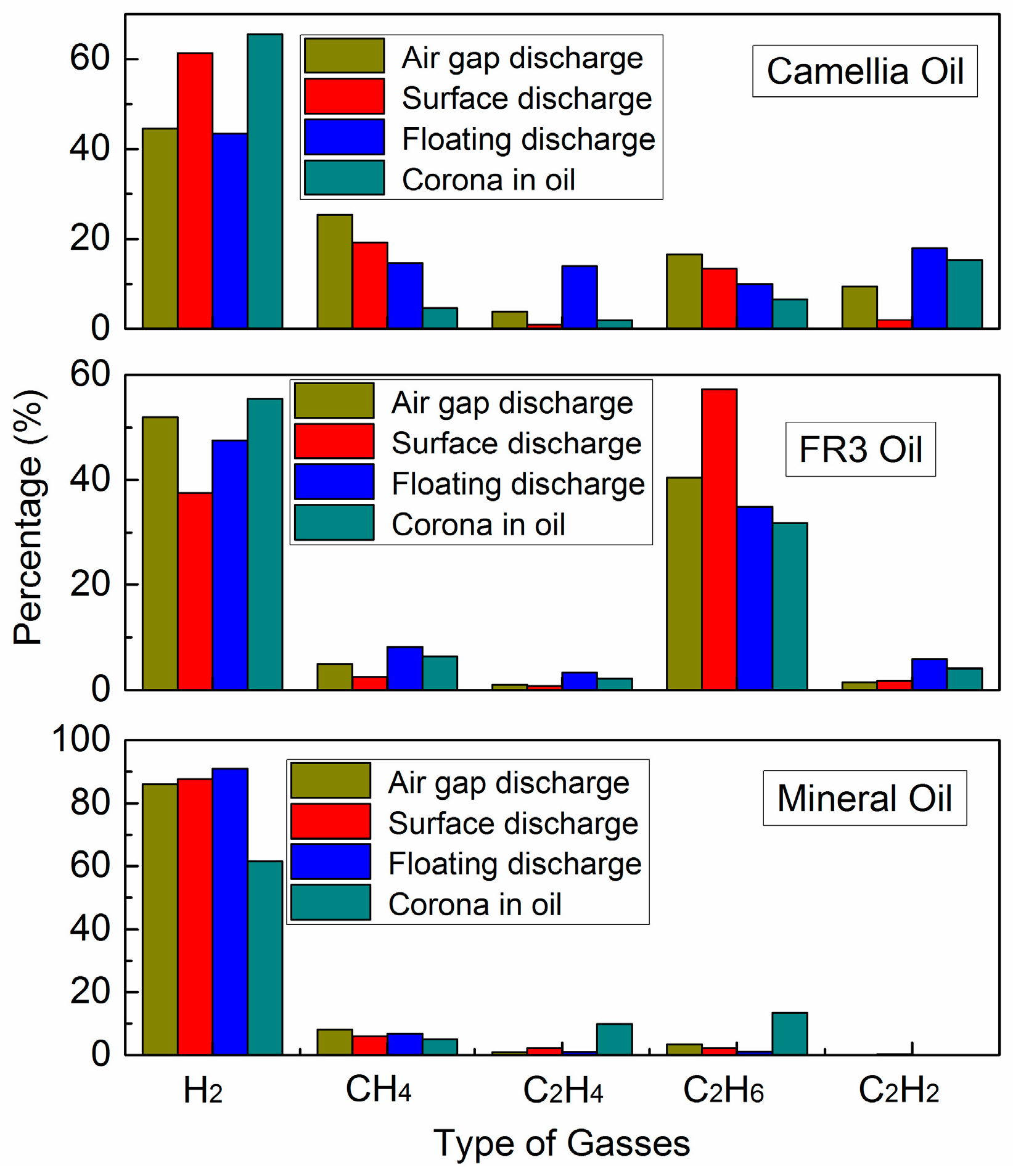

Figure 13 shows the relative percentages of fault gases, except CO and CO₂, under partial discharge. In mineral oil, the content of H₂ is highest, followed by CH₄; in FR3 oil, the content of H₂ is highest, followed by C₂H₆; in camellia oil, the content of H₂ is highest, and followed by CH₄ and C₂H₆. C₂H₂ does not largely exist in all samples, which shows that C₂H₂ is only the main dissolved gas of high-energy discharge.

4. Diagnostic Results Based on DGA

4.1. Three-Ratio Method

The three-ratio method was used to analyze the experiment data, the consistencies of the diagnosis results and actual fault types are shown in

Table 8. Consistencies of diagnosis results and simulated fault types.

Temperature/°C	Mineral Oil	FR3	Camellia Oil
90	Conformity	Inconformity	Inconformity
120	Conformity	Inconformity	Inconformity
150	Conformity	Conformity	Inconformity
200	Conformity	Conformity	Inconformity
250	Conformity	Inconformity	Conformity
300	Conformity	Inconformity	Inconformity
400	Conformity	Inconformity	Inconformity
500	Conformity	Inconformity	Inconformity
600	Conformity	Inconformity	Inconformity
700	Conformity	Inconformity	Inconformity
800	Conformity	Inconformity	Inconformity

.

The three-ratio method can correctly diagnose thermal faults in mineral insulating oil-filled transformers in all simulated situations; however, it makes incorrect conclusions when it is applied to vegetable insulating oils in most cases. This result is attributed to the difference in the molecular chemical structure between mineral insulating oil and vegetable insulating oil. The traditional three-ratio method for mineral insulating oil fill-transformers need to be reconsidered when they are applied to vegetable insulating oil filled-transformer.

When the three-ratio method was applied to analyze the data of simulated electrical faults in mineral oil, the diagnosis results are correct in all cases. However, when it is applied to analyze data in FR3 oil and camellia oil, it only diagnoses breakdown faults correctly; the diagnosis results are not consistent with simulated fault types under partial discharge, as shown in

Table 9. Consistencies of diagnosis results and simulated fault types.

Model	Mineral Oil	FR3	Camellia Oil
Sphere-disc (oil)	Conformity	Conformity	Conformity
Needle-disc (oil)	Conformity	Conformity	Conformity
Column-disc (oil)	Conformity	Conformity	Conformity
Sphere-disc (oil-paper)	Conformity	Conformity	Conformity
Needle-disc (oil-paper)	Conformity	Conformity	Conformity
Column-disc (oil-paper)	Conformity	Conformity	Conformity
Air gap	Conformity	Inconformity	Inconformity
Surface discharge	Conformity	Inconformity	Inconformity
Floating discharge	Conformity	Inconformity	Inconformity
Corona in oil	Conformity	Inconformity	Inconformity

.

4.2. Graph Representaion Method

Figure 14 shows diagnosis results of simulated thermal faults using the graph representation method in IEC 60599. In terms of results of mineral oil, the graph representation method diagnoses the majority of faults correctly. However, for FR3 oil and camellia oil, the majority of thermal faults are identified as the normal state or partial discharge. It shows that the graph representation method is no longer suitable for diagnosis of thermal faults in vegetable insulating oil.

Figure 15 shows diagnosis results of simulated electrical faults using the graph representation method in IEC 60599. For mineral oil, FR3 oil, and camellia oil, the graph representation method correctly diagnoses the majority of breakdown faults. In terms of the diagnosis results of partial discharge faults, most ratio points of mineral oil fall into the correct fault zone; however, for FR3 and camellia oil, the majority of partial discharge faults are not correctly diagnosed.

4.3. Duval Triangle and Pentagon Method

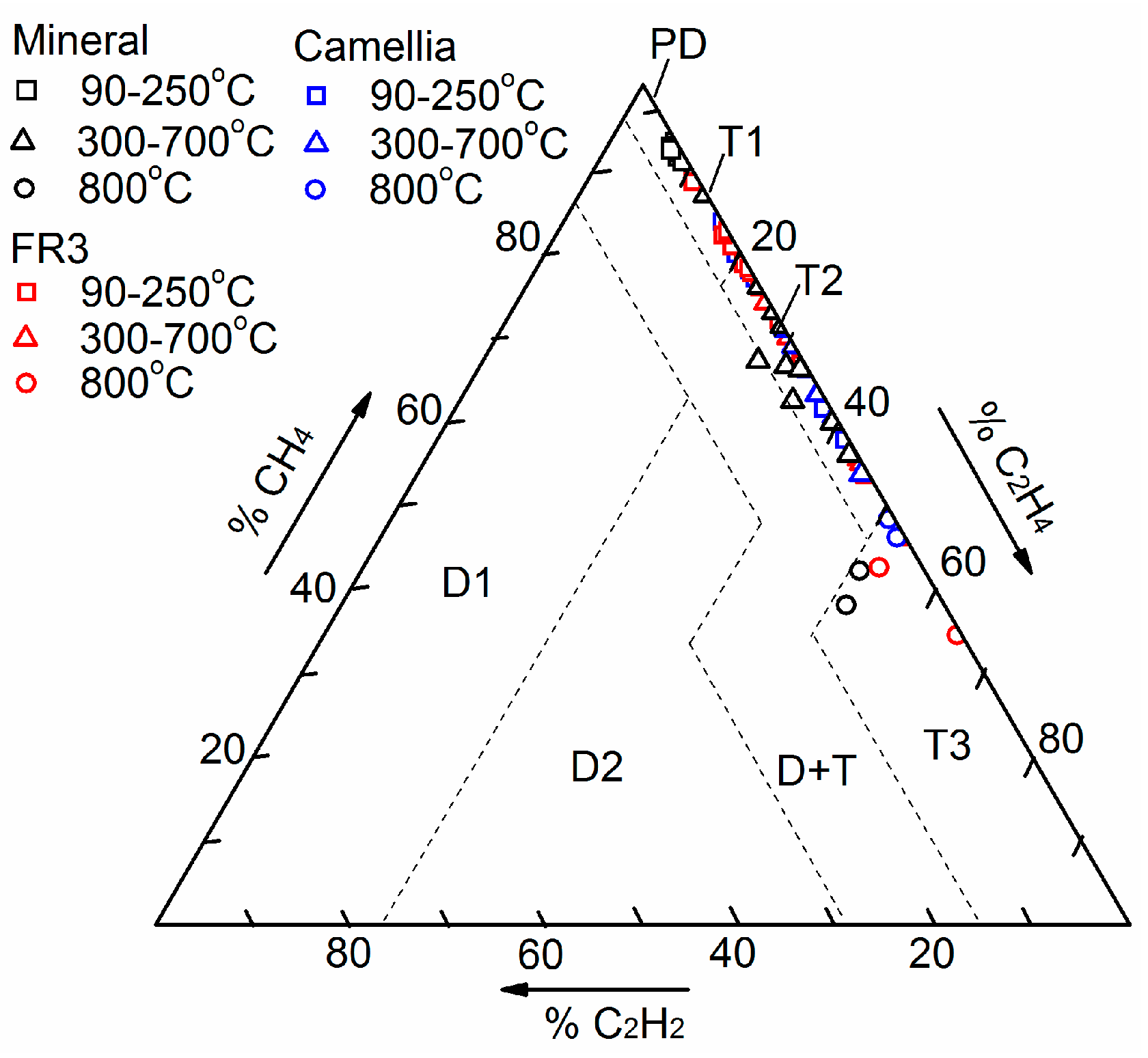

Figure 16 shows the diagnosis results of thermal faults using Duval Triangle 1 in IEC 60599. In terms of mineral oil, Duval Triangle 1 correctly diagnoses all thermal faults. For FR3, part of the simulated faults carried out at 90 °C–250 °C are placed incorrectly into the T2 (300 °C–700 °C) region. For camellia oil, several simulated faults carried out at 90 °C–250 °C are also incorrectly allocated to the T2 region.

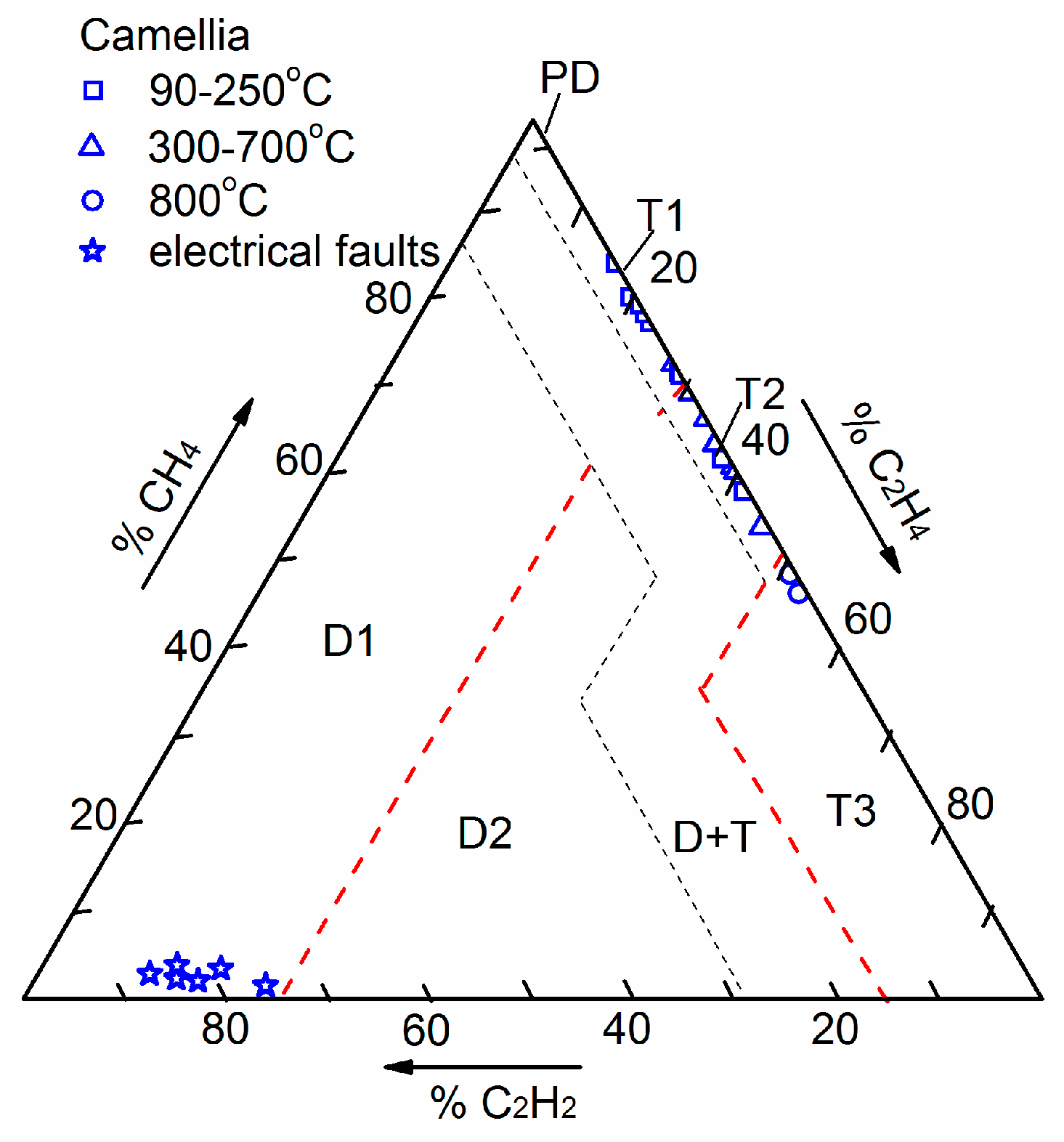

Figure 17 shows the diagnosis results of electrical faults using Duval Triangle 1. Unlike the case in simulated thermal faults, for all oils, the use of the Duval Triangle method diagnose nearly all electrical breakdown cases correctly.

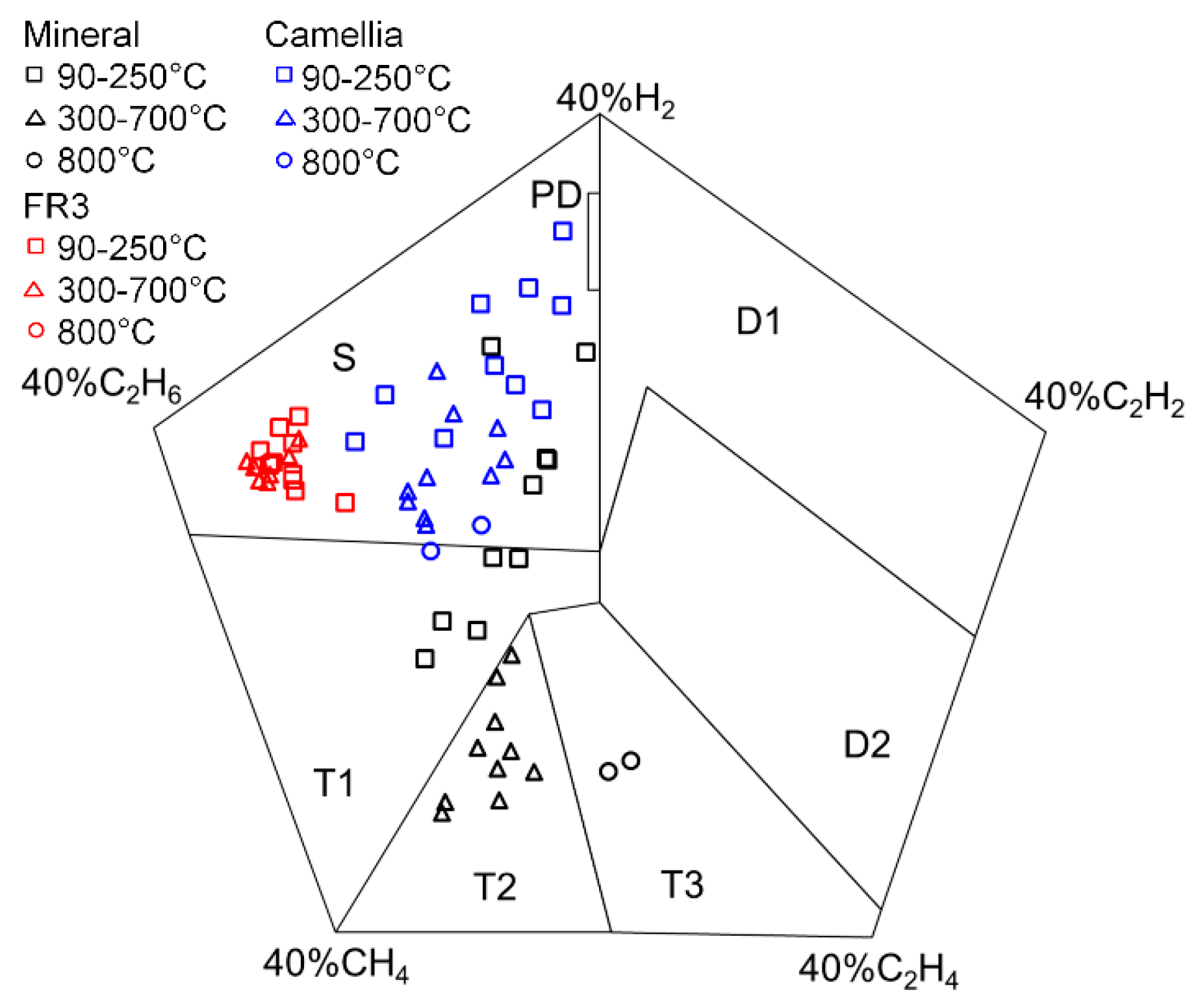

Figure 18 shows the diagnosis results of thermal faults using the Duval Pentagon proposed by Duval in 2014 [6]. The Duval Pentagon was designed to diagnose the fault of mineral oil. Therefore, for mineral oil, the Duval Pentagon correctly diagnoses almost all thermal faults. However, for FR3 and camellia oil, all of the thermal fault data are placed incorrectly into the stray gassing region. The diagnostic results gathered in one region mainly because percentages of C₂H₆ produced by vegetable oils are much higher than the mineral oil.

Figure 19 shows the diagnosis results of thermal faults using the Duval Pentagon. For all of the three types of oil, the use of the Duval Pentagon method diagnose nearly all electrical breakdown faults correctly.

Furthermore, Duval has proposed Duval Triangle 3, which is applied to diagnose the thermal and electrical faults of four types of natural and synthetic ester, including FR3 [19]. Duval Triangle 3 is obtained by adjusting the zone boundaries of Duval Triangle 1. Figure 20 shows the diagnosis result of electrical and thermal faults of FR3 oil using Duval Triangle 3. For FR3 oil, the modification of the Duval Triangle results in more correct diagnostic results. The fault gases data of electrical faults are all placed in the region D1. The fault data of thermal faults at 300 °C, 300 °C to 700 °C, and above 700 °C are placed more correctly than other diagnostic methods, and only a few of them fall in the wrong region.

As Duval illustrated in [19], non-mineral oil with different chemical structures may result in different gas patterns and zone boundaries. Thus, for camellia oil, since it has different chemical compositions with FR3, the zone boundaries which are suitable for FR3 are not applicable to camellia oil. Figure 21 shows the new boundaries divided according to different types of fault data of camellia oil and the diagnosis results using this modified Duval Triangle 3. As shown in the figure, only two fault data which should be placed in T1 region fall in the region of T2, and also only two data which should be placed in T2 region fall in the T1 region. Other fault data are all placed in the correct regions. It is obvious that the adjustment of zone boundaries of Duval Triangle 3 makes the diagnostic result of thermal and electrical faults of camellia oil more correctly. Of course, this modification needs to be verified by more fault data through further research.

4.4. Law of Key Gases Dissolved in Oils

A thermal fault is caused by effective thermal stress with a middle level of energy density. It should be noted that there is some difference between simulation faults and practical operation faults, but the basic mechanisms are the same. According to the experimental results, it could be identified that the main fault gases of overheated oil in mineral oil, FR3, and camellia oil are CH₄ and C₂H₄, C₂H₆, H₂ and C₂H₆, respectively.

The test results demonstrate that the percentage of main fault gases increase regularly with the increase of temperature. In mineral oil, the percentage of CH₄ and C₂H₄ increase with the increasing temperature. This was in good agreement with the results of the practical situation in mineral oil-filled transformer. In the overheating process of FR3, the percentage of C₂H₆ also increases as the temperature increases. In camellia oil, the percentage of H₂ increases while the percentage of C₂H₆ fluctuates with the increase of temperature. The level of thermal faults cannot be determined according to the percentage of C₂H₆ in camellia oil.

Under electrical breakdown, C₂H₂ is the key indicator for mineral insulating oil, FR3 and camellia insulating oil. Due to this consistency, diagnostic methods in IEC 60599 can correctly diagnose electrical breakdown in mineral insulating oil and vegetable insulating oils.

5. Gas Formation Mechanisms under Thermal Stress

A chemical reaction is a process that generates new products through the chain scission mechanism. Vegetable insulating oil mainly consists of triglycerides, which are actually generated from the esterification reaction. The decomposition of vegetable insulating oil, from the microscopic point of view, involves the breaking of chemical bonds, dehydration, and formation of small-molecular gas.

There are hundreds of triglycerides, which are formed by ester groups and various types of fatty acid groups, inside vegetable insulating oil. Therefore, due to the various structures and the multiplicity of possible reactions of mixed triglycerides, mechanisms of the gas generation of vegetable insulating oil are complex.

Table 10. Fatty acid content of soybean oil and camellia oil (%).

Vegetable Oil	Saturated Fatty Acid	Unsaturated Fatty Acids
		Mono-Unsaturated	Double-Unsaturated	Poly-Unsaturated
Soybean Oil	14.2	22.5	51.0	12.3
Camellia Oil	10.2	78.3	7.0	4.5

shows the composition and the content of various types of fatty acids in soybean oil (the raw material of FR3 oil) and camellia oil. It is obvious that the major differences of the fatty acids content between FR3 oil and camellia oil are the content of mono-unsaturated fatty acids and double-unsaturated fatty acids. In vegetable oil, mono-unsaturated fatty acids are mainly composed of oleic acid while double-unsaturated fatty acids are mainly composed of linoleic acid. Thus, oleic-type triglyceride and linoleic-type triglyceride are chosen to interpret the different characteristics of gas generation between FR3 oil and camellia oil.

According to several studies of pyrolysis of unsaturated triglyceride [26,27,28,29], the principal decomposition reactions of triglyceride are obtained. However there are multichannel reactions; the decomposition pathway of triglycerides and the intermediate product of the reactions could not be explicitly described through current experiments. Thus, unimolecular pyrolysis simulations are studied, and the standard enthalpies of reaction are calculated using M06-2x method with empirical dispersion in conjunction with the 6-31G (d,p) basis sets. As a result, the decomposition pathways of oleic-type triglyceride and linoleic-type triglyceride and the standard reaction enthalpies of each reactions are shown in Figure 22 and Figure 23.

As it is shown in Figure 22, the C₁₇H₃₃COO· radical and C₁₇H₃₃CO· radical are generated from oleic-type molecule decomposition at first. According to the calculation result of the standard reaction enthalpies (ΔE) of these two reactions, the calculated ΔE value of the cleavage of C–O bond is 399 kJ/mol, while that of the O–C(=O) bond is 438 kJ/mol. This means that it has a higher possibility to break the C–O bond than O–C(=O) bond; therefore, the formation of fatty acid radicals will be the initial decomposition intermediate products. This is consistent with the result obtained in [27] using the GC-MS analysis method.

Then C₁₇H₃₃COO· radical continues to decompose in several pathways and the two most possible pathways (pathway 3 and 4) are displayed in the figure.

Pathway 3 leads to the formation of C₁₇H₃₃· radicals by decarboxylation, which is the reason why CO₂ in vegetable insulating oil is higher than that in mineral insulating oil. Then, C₁₇H₃₃· radicals combine with H· radicals and generate alkenes C₁₇H₃₄ (pathway 5) or decompose directly and generate C₂H₄ (pathway 6). The intermediate product C₂H₄ combines with H· radicals and generates C₂H₆ (pathway 11), which is the main reason that C₂H₆ in vegetable insulating oil is higher than that in mineral insulating oil. The C₂H₄ can also decompose to C₂H₂ through the dehydrogenation reaction (pathway 12), however the calculated ΔE value of the dehydrogenation reaction is very high and it is not easy to reach unless the energy reaches a high level.

Pathway 4 leads to the formation of C₆H₁₂COO· radicals and C₁₁H₂₁· radicals because the unsaturated sites enhance cleavage at the position which is marked in the figure. Then, the C₆H₁₂COO· radical decomposes to CO₂ (pathway 13) and C₂H₄ (pathway 15). The C₁₁H₂₁· radical continues to decompose to CH₂=CH–CH=CH₂ and C₇H₁₅· radicals (pathway 14) also because the unsaturated sites enhance of C–C bond cleavage. CH₂=CH–CH=CH₂ then combines with C₂H₄ (pathway 16), and generates benzene and H₂ through the dehydrogenation reaction (pathway 17). The C₇H₁₅· radical decomposes through ethylene elimination and then generates C₂H₄ and C₃H₇· radicals (pathway 18).

Comparing Figure 22 with Figure 23, it is obvious that the principal decomposition pathways of oleic-type triglyceride and linoleic-type triglyceride during pyrolysis are basically the same, except pathways 14–18, and the standard reaction enthalpies of the same type of reaction are also consistent. The C₇H₁₀· radical, which is attributed by C–C bond cleavage has a higher degree of unsaturation, so it could not combine with C₂H₄ and then generate benzene and H₂ through the dehydrogenation reaction. This verifies the results that the H₂ concentration in overheated camellia insulating oil is higher than that in FR3.

6. Conclusions

The present work focuses on the dissolved gas analysis of vegetable insulating oil. The experiment and analysis results are summarized as follows:

(1)

The main fault gases of two types of vegetable insulating oils with different chemical compositions under the thermal faults are obtained. In the mineral insulating oil, the main gas composition of overheating is CH₄, while in FR3, it is C₂H₆, and in camellia insulating oil, the main gas compositions are H₂ and C₂H₆. The existence of insulating paper significantly increases the amount of CO and CO₂ dissolved in oil.

(2)

The percentage of main dissolved gases increase regularly with the increase in temperature. In mineral oil, the percentage of CH₄ and C₂H₄ increase as the temperature increases. In FR3 oil, the percentage of C₂H₆ also increases as the temperature increases. In camellia oil, the percentage of H₂ increases while the percentage of C₂H₆ fluctuates with the increase of temperature.

(3)

A large amount of C₂H₂ is generated under high energy electrical breakdown both in vegetable insulating oil and mineral insulating oil, which shows that the main dissolved gas under electrical breakdown in vegetable insulating oil and mineral insulating oil are the same.

(4)

The three-ratio method, graph representation method, Duval Triangle 1, and Duval Pentagon method are not applicable to diagnose thermal faults in vegetable insulating oils. When these interpretation methods are applied to interpret data of simulated electrical faults in vegetable insulating oils, the graph representation method, Duval Triangle, and Duval Pentagon methods can correctly diagnose electrical breakdown. Moreover, the modified Duval Triangle method based on Duval Triangle 3 is used to diagnose the thermal and electrical fault of FR3 oil and camellia oil through redefining zone boundaries of Duval Triangle 1 and obtains more accurate diagnostic results.

(5)

The gas formation mechanisms of FR3 oil and camellia oil under thermal stress are studied in this paper. The principle decomposition pathways of these two type of oils have been analyzed, and the different generation mechanisms of gases in FR3 oil, camellia oil, and mineral oil have been interpreted by means of unimolecular pyrolysis simulation and reaction enthalpies calculation.
