Performance Assessment of a Solar-Assisted Desiccant-Based Air Handling Unit Considering Different Scenarios

Abstract

In this paper, three alternative layouts (scenarios) of an innovative solar-assisted hybrid desiccant-based air handling unit (AHU) are investigated through dynamic simulations. Performance is evaluated with respect to a reference system and compared to those of the innovative plant without modifications. For each scenario, different collector types, surfaces and tilt angles are considered. The effect of the solar thermal energy surplus exploitation for other low-temperature uses is also investigated. The first alternative scenario consists of the recovery of the heat rejected by the condenser of the chiller to pre-heat the regeneration air. The second scenario considers the pre-heating of regeneration air with the warmer regeneration air exiting the desiccant wheel (DW). The last scenario provides pre-cooling of the process air before entering the DW. Results reveal that the plants with evacuated solar collectors (SC) can ensure primary energy savings (15%–24%) and avoid equivalent CO₂ emissions (14%–22%), about 10 percentage points more than those with flat-plate collectors, when the solar thermal energy is used only for air conditioning and the collectors have the best tilt angle. If all of the solar thermal energy is considered, the best results with evacuated tube collectors are approximately 73% in terms of primary energy saving, 71% in terms of avoided equivalent CO₂ emissions and a payback period of six years.

1. Introduction

In the last few years, desiccant and evaporative cooling (DEC) devices have been widely studied as a suitable alternative to conventional electrical-driven heating, ventilation and air conditioning systems (HVAC). They allow several benefits in terms of humidity control, indoor air quality, equivalent CO₂ emissions reduction, primary energy and electricity savings. The last three advantages are further improved considering solar thermal energy as the main source of energy for the plant [1,2].

The solar-driven desiccant and evaporative cooling systems (SDEC) are composed of two main parts: a solar field and an air handling unit (AHU).

In the following literature, special attention is paid to the AHU configurations. Starting from the first system with desiccant wheel (DW) proposed by Pennington [3], other configurations such as recirculation cycle [4], Dunkle cycle [4,5], simplified advanced solid desiccant (SENS) cycle [4,6], revers cycle [4,6], direct-indirect evaporative coolers (DINC) cycle [4,6], and cycles with staged dehumidification/regeneration in one or two rotors [7,8,9,10] were introduced.

Some of the newer studies carried out on unconventional DEC-based plants are reported below. In Zhu and Chen [11], a novel marine desiccant-based air conditioning system was developed and studied; experimental tests were performed on a test rig in order to assess the most significant influencing factors on the system efficiency and to find optimal sets of parameters that maximize utilization of the ship residual heat. It was a one-rotor two-stage system with compact size and good performance. The regeneration process was guaranteed by the thermal energy available from the diesel engine and not used for domestic hot water purposes. The cooling process was achieved by direct or indirect contribution of the abundant seawater source.

A two-stage two-rotor system that supplies cool air to produce chilled water was designed, constructed and tested by La et al. [12]. Experimental results obtained under different conditions revealed that the novel device can supply chilled water at 15–20 °C with a thermal coefficient of performance (COP) (ratio between the cooling capacity associated with the cooled water and that for the regeneration) of 0.3–0.6 using a low-grade heat source (solar air collectors). The novel DW-based cooling plant reached a specific thermal COP of about 0.8–0.9 (considering the production of both chilled water and dry air in the ratio with the regeneration power).

Enteria et al. [13,14] considered a SDEC system whose main components were a silica-gel DW, two cross-flow heat exchangers (CFs) and a flat-plate solar subsystem with an electric auxiliary heater. The first measured experimental data showed that about three-quarters of the thermal energy of the system was derived from the solar field and the total COP of the AHU (considering electrical and thermal requests) was 0.25. A more detailed analysis considering different regeneration temperatures (in the range 60–75 °C) showed an improvement of dehumidification performance with the regeneration temperature but a decrease of thermal COP.

Hürdoğan et al. [15] described a new rotary desiccant cooling system with a rotary heat exchanger that is not conventionally used in the DEC plant. It allowed pre-heating of the regeneration air with the exhaust regeneration air. Two other CFs were considered, respectively, for pre-heating of the same regeneration air and for pre-cooling of the process air. Moreover, the system was coupled with an electric chiller to cool down the process air and with an electric heater to heat up the regeneration air. The initial recorded experimental data indicated that in this configuration only 15% of all the energy of cooling is provided by the electric chiller, and only 65% of the regeneration energy is required for regeneration by the electric heat source.

Chung and Lee [16] analyzed the effect of eleven design parameters for two configurations of AHU equipped with DW: in the first case, the pre-heating of the regeneration air was provided by the dehumidified process air; in the second case, the regeneration air was pre-heated with the same exhaust regeneration air. The cooling performance of the regenerative evaporative cooler (EC) was revealed to be the most crucial parameter in the applications of the desiccant-based AHUs with solar systems.

Dynamic simulations were performed by Enteria et al. [17] to compare the operation of a SDEC plant equipped with two coating hygroscopic materials for the DW (silica-gel, titanium dioxide) in three different locations of East Asia. Titanium dioxide revealed higher performance than silica-gel; it achieved lower indoor temperature and humidity ratio.

Zang [18] studied a DW-based AHU with a cooling coil (CC), an enthalpy and a DW. The aim of the work is to determine the optimal values of the control variables in order to minimize the energy consumption satisfying internal thermal comfort criteria. Significant reduction of energy consumption was achieved with the proposed optimized control strategy. Energy savings in the range 27.85%–41.33% were estimated in the different climatic conditions considered.

Ghali [19] analyzed a desiccant-based hybrid air conditioning system in which an electric heat pump (EHP) is integrated in the AHU; the evaporator of the EHP was used to cool the process air while its condenser was used to partially heat the regeneration air. The plant was dimensioned to serve a 150 m² office as replacement of a conventional HVAC system with a 23 kW EHP. In the very humid climatic condition of Beirut (Lebanon), even if the latent load is high, the performance improves. In fact, a smaller EHP was employed (15 kW), and over 20 years, which is considered a useful life span, economic benefits were obtained.

In the study of Sheng et al. [20], the performance of a DW used in an AHU operating with an integrated high temperature heat pump was evaluated by means of experimental investigation and regression analysis. The combined influences of multiple variables on the performance of the DW, the most influential being regeneration temperature and outdoor air humidity ratio rather than outdoor air temperature and ratio between regeneration and process air flow rates, were investigated based on evaluating different indices such as: dehumidification effectiveness and COP, moisture removal capacity and sensible energy ratio.

Elzahzby et al. [21] predicted through a mathematical model the performance of a solar energy-assisted hybrid AHU with a six-stage one-rotor DW, in which a two-stage dehumidification process, two-stage pre-cooling process and two-stage regeneration process were realized. The authors assessed the influence of operating parameters (rotational speed, process air inlet temperature, humidity ratio and velocity) on some performance indicators (moisture removal capacity, relative moisture removal capacity, dehumidification COP, thermal COP, supply air temperature and humidity ratio), and also discussed the life cycle cost analysis. A payback period of 4.86 years was obtained.

Based on the works described, hereinafter the authors introduce some feasible simple modifications to the hybrid desiccant cooling systems installed at the University of Sannio [22] and then simulated these AHUs coupled with solar collectors (SC) (flat-plate and evacuated tube).

Through TRNSYS (TRaNsient System Simulation program, Solar Energy Laboratory: University of Wisconsin-Madison, Madison, WI, USA) dynamic simulations, the different configurations are evaluated by a thermo-economic assessment and parametric analysis (collector type, surface and tilt angle) are carried out, considering as user a university classroom. The above-described changes are studied to upgrade the existing system installed in the laboratory. These are not all the possible solutions but those that are considered by the scientific literature to have an experimental system standard configuration that can improve system performance with changes that are not too expensive and can be implemented easily.

To the best of the authors’ knowledge, although there are numerous papers in the scientific literature analyzing alternative layouts for the desiccant-based AHUs, including those reported in the above literature review, there are only very few studies on the optimal configuration of the solar subsystem for different desiccant HVAC system layouts that consider energy, environmental and economic aspects on an annual basis.

2. Overall Standard Innovative System Description (Scenario A)

2.1. Load Description

A rectangular plan building (63.5 m², 30 seats), located in Benevento (Latitude: 41°08′ N; Longitude: 14°47′ E) and used as a university classroom, is simulated to determine the sensible and latent loads (

Table 1. Building gains and loads.

Gains Per Occupants (Seated—Very Light Writing, ISO 7730, [24])
Sensible (W)		65
Latent (W)		55
Gain from Artificial Lighting (9:00–18:00), [25]
Sensible (W/m2)		10
Load	Cooling Period	Heating Period	Intermediate Period
Sensible (MWh)	1.54	2.90	-
Latent (MWh)	0.69	0.56	-
Electric (MWh)	0.44	0.56	0.50

), that are balanced by the desiccant-based and conventional plants compared in this work.

The air conditioning systems are switched on before the building is occupied in order to ensure comfort conditions (20 °C in heating period, 26 °C in in cooling period, relative humidity of 50% in both periods) from the outset of the room occupancy, and for the whole opening period (9:00–18:00). A dead band of ±0.5° and ±10% is assumed in the control strategy respectively for temperature and humidity. The main building envelope characteristics are listed in

Table 2. Building characteristics.

Parameter	Opaque Components				Transparent Components
	Roof	External Walls (N/S)	External Walls (E/W)	On the Ground Floor	North	South	East/West
U (W/m2K)	2.30	1.11	1.11	0.297	2.83	2.83	2.83
Area (m2)	63.5	36	15.87	63.5	8.53	9.40	0.976
g	-	-	-	-	0.755	0.755	0.755

[23].

2.2. Innovative Desiccant Air Handling Unit-Based Air Conditioning System

The innovative plant in the standard configuration, for the cooling operation mode, consists of a three-channel AHU equipped with a silica gel DW and a solar subsystem (Figure 1). The HVAC system is arranged on the base of the experimental AHU of University of Sannio (Benevento, Southern Italy). The DW interacts with two air flows: the process air and the regeneration air.

Dehumidification through DW is an exothermic process based on adsorption. While passing through the hygroscopic material, the process air loses some of its vapour content, which is captured by the wheel, and simultaneously heats up (1–2). The moisture content reduction that takes place in this way is managed (through the regeneration air temperature) to completely meet the latent load of the building. This air flow has to be cooled before it is introduced into the room. The cooling process is carried out through an air-to-air CF, (2–3) and a CC, (3–4). In the first heat exchanger, the cooling air flows and heats up (7–8); it is outdoor air cooled by the evaporation of water (1–7) in the EC. The second heat exchanger is fed with cold water from the air-cooled electric chiller, CH. For the application considered in this work, the cooling process is due to the CF for about 1/3 (1.5 MWh/year) and for the remaining 2/3 (2.86 MWh/year) to the CC. In the regeneration section, the DW is deprived of the vapour, that was removed from the process air thanks to a hot air flow (5–6), creating the regeneration air. It is outdoor air heated (1–5) in an air-to-water heat exchanger (HC) fed by the solar subsystem. The SC are assisted by the natural gas boiler (B), which operates as a back-up system when there is an insufficient irradiation level, and heats the water to a temperature that ensures the regeneration of the DW. A thermal storage (TS) tank is used to compensate the uncertainty of the solar source and improve its exploitation by storing the available solar thermal energy during periods of low or zero demand.

During the non-operation periods of the air conditioning plant and whenever the temperature of the fluid (a water/glycol mixture) in the solar loop becomes too high (higher than 100 °C), a cooling system (hot water heat exchanger, HW-HX) operates to produce hot water at 45 °C. Therefore thermal energy obtained from solar energy surplus can be used as domestic hot water, or for low temperature on-site heating processes or by a nearby user with thermal energy requirements, such as a university campus, a gym, a swimming pool, etc.

In the heating mode operation (Figure 2), the regeneration duct, the DW and the electric chiller are excluded, and a post-heating coil (HC2) and a humidifier (EC) are added to the process air duct. In addition, the CC becomes a heating coil (HC) and it is fed by the solar subsystem, no longer by the electric chiller. The AHU consists of a heat recovery process (1–2, 1–6) from the exhaust air of the air conditioned space in the CF, followed by pre-heating (2–3), humidification (3–4) and post-heating (4–5) sections. The solar subsystem with the back-up boiler regulates the water temperature from the TS in order to ensure the necessary heat adduction to the two coils, HC and HC2.

The main components of the air conditioning system are previously described by Calise et al. [23] and by Angrisani et al. [22], and detailed information about their characteristics and design condition are reported there.

3. Alternative System Layouts

Starting from the standard configuration of the innovative system (Figure 1, Scenario A), three alternative solutions for the cooling operation are proposed and described below. The DW considered in these three scenarios is the same as the existing experimental plant (Scenario A). Moreover, its rotational speed, the process and regeneration air flowrate, humidity and temperature are fixed (according to the load), so also the DW capacity does not change. Instead, the heating layout remains the same in all scenarios. They are plant modifications related to the AHU to improve system performance. The first alternative Scenario B consists in the recovery of the heat rejected by the condenser of the chiller to pre-heat the regeneration air flow. The second Scenario C consists in the pre-heating of regeneration air with the warmer regeneration air exiting the DW. The last Scenario D involves the pre-cooling of the process air before entering the DW.

These alternative layouts allow to maintain comfort conditions in the conditioned space.

With regards to the solar subsystem, several arrangements differentiated by collector type (flat-plate and evacuated tubes), collecting surface (20, 27 and 34 m²) and tilt angle (20°–55°) are considered. These arrangements are then combined with the three alternative scenarios previously introduced.

The AHU technical and operational details will be illustrated in the following subsections.

3.1. Desiccant-Based Air Handling Unit with Heat Recovery from Chiller Condenser (Scenario B)

In hybrid desiccant-based plants, it is convenient to use integrated heat pump systems: cooling energy from the chiller (evaporator) is used for an accurate control of the supply air temperature, and thermal energy (condenser) is used to pre-heat the regeneration air flow.

In the standard configuration (Scenario A, Figure 1), the chiller supplies cooling energy only, to control the temperature of the process air. Thermal energy of the condensation phase (rejected heat) is dissipated in the environment. Therefore, a first modification to the standard plant consists in recovering part of the condensation heat by using a share of the condenser air flow rate (3300 m³/h) as regeneration air.

As regards the process and cooling air flows, the AHU (Figure 3) remains unchanged compared to the standard configuration, whereas for the regeneration air (psychrometric diagram, Figure 3), a pre-heating process with heat recovery from chiller condenser appears (1–5), thereby reducing the contribution from the HC (5–6) that is used to ensure the required temperature for the regeneration process (6–7).

3.2. Desiccant-Based Air Handling Unit with Cross-Flow Heat Recovery Unit (Scenario C)

In the hybrid AHU, the highest temperature level is reached by the regeneration air before passing through the DW; at the outlet of this component, the air still has a temperature greater than the outside one. It can therefore be advantageously used to pre-heat the regeneration air flow drawn from the outside.

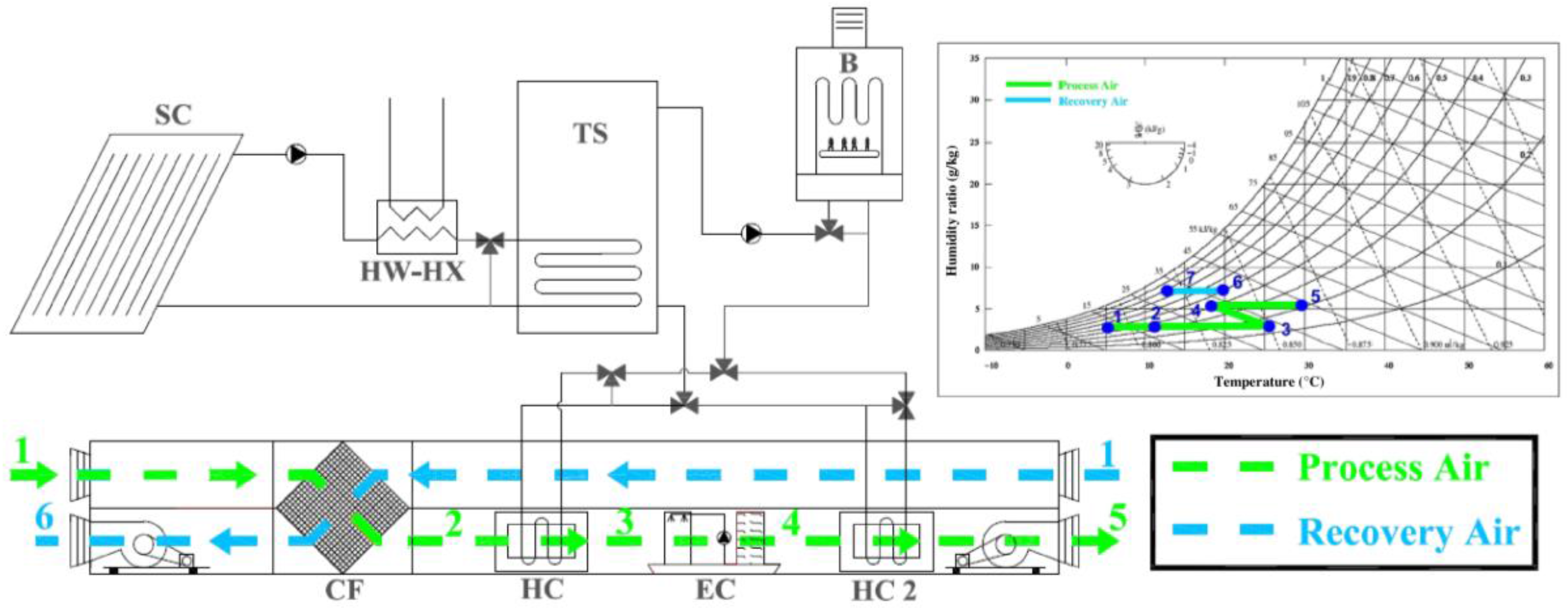

Several devices exist for heat recovery [26]. In this case, a CF, CF2 (Figure 4), is used, and simulated using experimental results for the CF of the test facility (CF) to calibrate and validate the model. Therefore, the regeneration air (psychrometric diagram, Figure 4) is pre-heated (1–5) in CF2, further heated in HC (5–6) with the thermal energy supplied by the solar subsystem, before proceeding to regenerate the DW (6–7) and passing through the recuperative heat exchanger CF2 (7–8). The HC has the task of ensuring the desired regeneration temperature.

Due to the presence of this new component, a higher power requirement for the regeneration fan is assumed (350 W). Also in this scenario, the cooling and process air ducts remain identical to those of the standard plant.

3.3. Desiccant-Based Air Handling Unit with Pre-Cooling of Process Air (Scenario D)

Pre-cooling/dehumidification of the process air before dehumidification with DW has two advantages:

(1)

allows the operation even in places characterized by very humid climates [27];

(2)

reduces the regeneration temperature for a given value of the desired humidity ratio reduction [28].

Analyzing the simulated and experimental results of the standard configuration, one notes that the chilled water temperature after the heat exchange in the CC is still lower than that of the outside air, so the possibility of employing a pre-cooling coil (CC2) (Figure 5) can be evaluated. In some climatic conditions (high relative humidity), a slight pre-dehumidification process can also occur in this CC2.

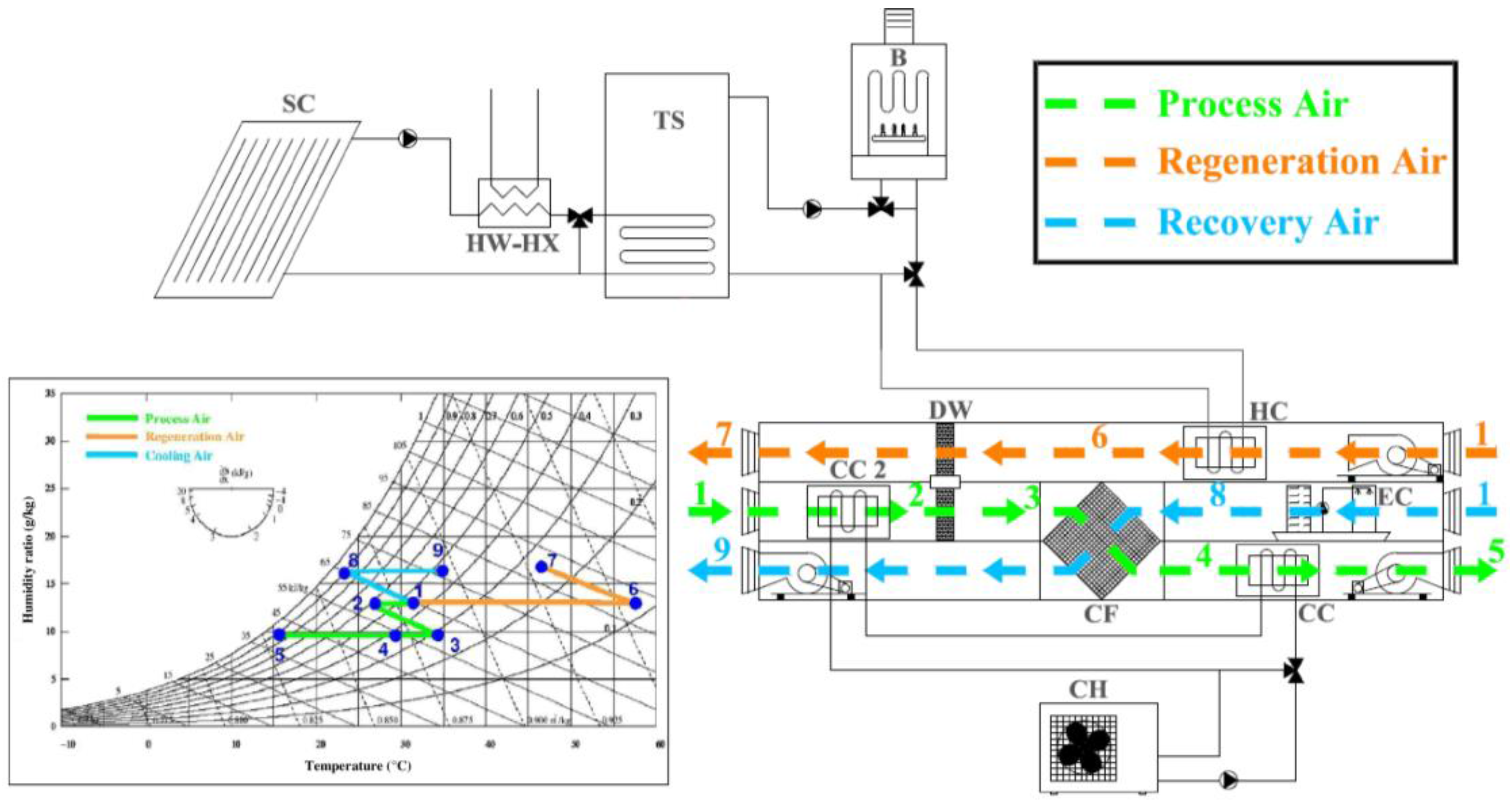

In this scenario, the transformations (psychrometric diagram, Figure 5) of the regeneration and cooling air remain unchanged with respect to standard configuration; instead, the process air is firstly pre-cooled (1–2), then dehumidified by adsorption (2–3), cooled in CF (3–4), and finally cooled in CC (4–5).

4. Conventional System Layout

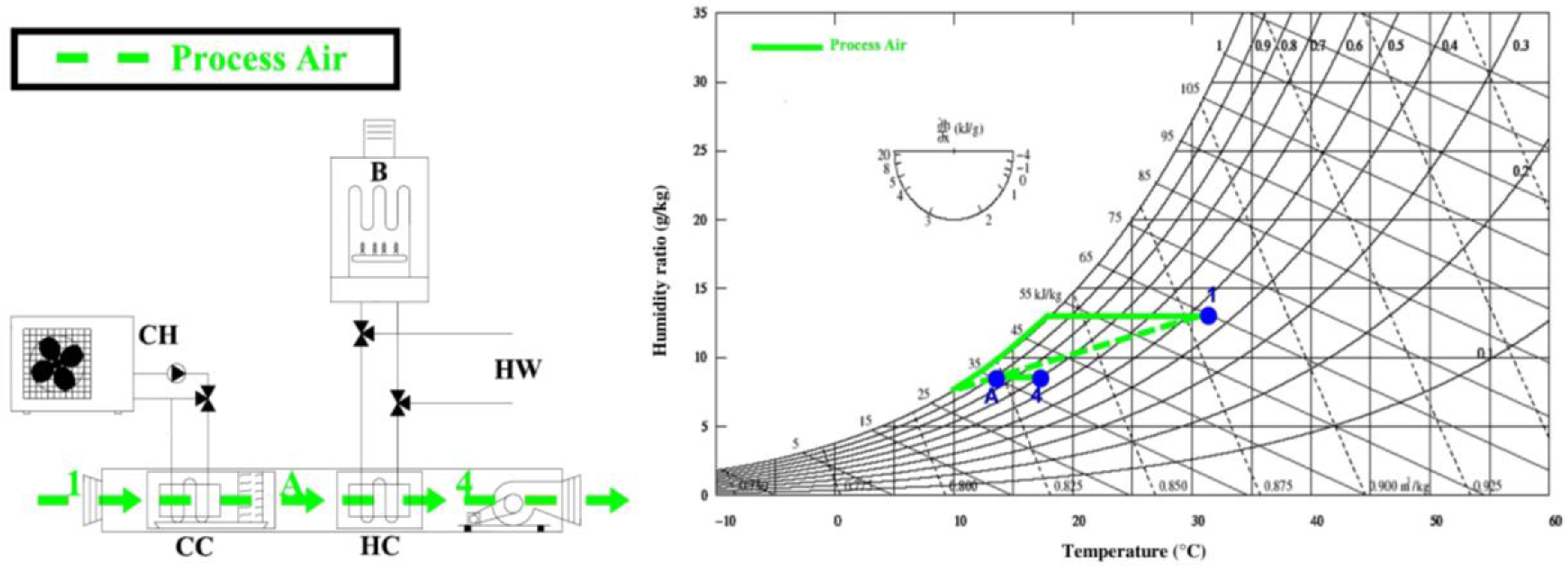

A standard AHU with cooling dehumidification (1-A) and post-heating (A-4) constitutes the simulated air conditioning system in the conventional system (CS) during cooling period (Figure 6). A vapor compression chiller with a cooling capacity of 16 kW feeds the cooling and dehumidification coil, whereas a 24 kW boiler (η_B = 90.2%) feeds the post-HC [1,29]. This boiler has the same characteristics of that in the AS. In the heating period, the simulated AHU of the CS is the same of the AS (Figure 2), but the HCs are fed by the natural gas boiler only. All electricity of the conventional HVAC system is taken from the grid and hot water is produced with the boiler.

5. Model and Performance Assessment Methodology

Dynamic simulations with a time step of 1.5 min have been carried out using the software “TRNSYS 17” [30] integrated with the “TESS” (Thermal Energy Systems Specialists, Madison, WI, USA) libraries [31]. The models of the main plant components were described and characterized in detail in previous works [1,32,33].

The component parameters have been chosen on the basis of experimental values, when available, or otherwise according to the rated values.

Therefore, only some details of the main components are presented below:

• SC: the model is based on the following expression for the efficiency [34]:

  $${\mathsf{\eta }}_{\mathrm{col}}={\mathsf{\eta }}_0-a_1\frac{\Delta T}{G}-a_2\frac{\Delta T^2}{G}$$

  (1)

  where the temperature differences characterize the thermal energy losses between the heat transfer fluid and the outdoor environment and the constant term represents the optical performance. This last term is corrected according to the incident angle modifier (IAM). It is a second-order polynomial (function of the incident angle with the constant equal to 1) for the flat-plate collectors and the product of transversal and longitudinal IAM factors (they are typically proposed by manufactures in tables or figures) for the evacuated tube collectors.

• DW: the two efficiencies, η_F1 and η_F2, calculated with the potentials F₁ and F₂, are used [35]:

  $${\mathsf{\eta }}_{F1}=(F_{1,2}-F_{1,1})/(F_{1,5}-F_{1,1})$$

  (2)

  $${\mathsf{\eta }}_{F2}=(F_{2,2}-F_{2,1})/(F_{2,5}-F_{2,1})$$

  (3)

  $$F_{1,j}=\frac{-2865}{{\left(t_j+273.15\right)}^{1.49}}+4.344{\left({\mathsf{\omega }}_j/1000\right)}^{0.8624}$$

  (4)

  $$F_{2,j}=\frac{{\left(t_j+273.15\right)}^{1.49}}{6360}-1.127{\left({\mathsf{\omega }}_j/1000\right)}^{0.07969}$$

  (5)

  where the subscript “j” refers to the generic air state at which the two potentials are evaluated, whereas t and ω are the air temperature (°C) and the humidity ratio (g/kg), respectively.

These two potentials allow to assimilate the complex phenomenon (adsorption), that takes place in the DW, to the simple heat transfer process in a heat exchanger. The model has been validated and calibrated with experimental data [32].

• Storage tank: the model simulates the tank as a cylinder divided in a series of superimposed sections (called “nodes”) at uniform temperature. Each node thermally interacts with the upper and the lower nodes, with the outdoor environment, with internal heat exchangers and with two water flowrates entering/leaving the tank from/to the outside. The energy balance for a node is:

  $$\begin{array}{l}\left(m_i{C}_{\mathrm{p}}\right)\frac{\mathrm{d}{T}_i}{\mathrm{d}\mathsf{\tau }}=\frac{\left(k+\Delta k\right)A_{\mathrm{c},i}}{\Delta x_{i+1\to i}}\left(T_{i+1}-T_i\right)+\frac{\left(k+\Delta k\right)A_{\mathrm{c},i}}{\Delta x_{i-1\to i}}\left(T_{i-1}-T_i\right)+\left(U_{\tan k}+\Delta U_i\right)A_{\mathrm{s},i}\left(T_{\mathrm{a}}-T_i\right)+{\dot{m}}_{\mathrm{down}}{C}_{\mathrm{p}}{T}_{i-1}\hfill \\ -{\dot{m}}_{\mathrm{up}}{C}_{\mathrm{p}}{T}_i-{\dot{m}}_{\mathrm{down}}{C}_{\mathrm{p}}{T}_i-{\dot{m}}_{\mathrm{up}}{C}_{\mathrm{p}}{T}_{i+1}+U{A}_{\mathrm{hx}1}\Delta T_{\ln 1}+U{A}_{\mathrm{hx}2}\Delta T_{\ln 2}+U{A}_{\mathrm{hx}3}\Delta T_{\ln 3}+{\dot{m}}_{1\mathrm{in}}{C}_{\mathrm{p}}{T}_{1\mathrm{in}}-{\dot{m}}_{1\mathrm{out}}{C}_{\mathrm{p}}{T}_i\hfill \\ +{\dot{m}}_{2\mathrm{in}}{C}_{\mathrm{p}}{T}_{2\mathrm{in}}-{\dot{m}}_{2\mathrm{out}}{C}_{\mathrm{p}}{T}_i\hfill \end{array}$$

  (6)

  where the term on the left side represents the time variation of energy in the node, the first two terms on the right side represent the conductive interactions with the upper and lower one; the third term evaluates the heat losses towards the surrounding ambient; the terms related to ${\dot{m}}_{\mathrm{up}}$, ${\dot{m}}_{\mathrm{down}}$, ${\dot{m}}_{\mathrm{in}}$ and ${\dot{m}}_{\mathrm{out}}$ are the convective terms, and the remaining terms, marked with the subscript “hx,” represent the contributions of the exchangers.

This model has been validated and calibrated with experimental data in [33].

The most important parameters of the components described above and of the other main plant devices, their TRNSYS types and references in which their validation processes were carried out, are listed in the following

Table 3. Main models used for the simulation and their main parameters. DW: desiccant wheel; TESS: Thermal Energy Systems Specialists; CF: cross-flow heat exchanger; COP: coefficient of performance; HC: heating coil; CC: cooling coil; SC: solar collector; IAM: incident angle modifier.

Component (Reference)	Type	Library	Main Parameters	Values	Units
Building	56	Standard	See Table 1 and Table 2
DW [32]	1716	TESS	Effectiveness ηF1	0.207	-
			Effectiveness ηF2	0.717	-
CF [32]	91	Standard	Effectiveness	0.446	-
Humidifier [32]	506c	TESS	Saturation efficiency	0.551	-
Natural gas boiler [32]	6	Standard	Nominal thermal power	24.1	kW
			Efficiency	0.902	-
Air-cooled chiller [32]	655	TESS	Rated capacity	8.50	kW
			Rated COP	2.98	-
HC [32]	670	TESS	Liquid-specific heat	4.190	kJ/(kg·K)
			Effectiveness	0.864	-
CC [32]	508	TESS	Liquid-specific heat	4.190	kJ/(kg·K)
			Bypass fraction	0.177	-
Flat-plate SC	1b	Standard	Tested flow rate	0.0112	kg/(s·m2)
			Intercept efficiency η0	0.673	-
			Efficiency slope a1	2.98	W/(m2·K)
			Efficiency curvature a2	0.0078	W/(m2·K2)
			Fluid-specific heat	3.84	kJ/(kg·K)
			First-order Incident Angle Modifier coefficient	0.072	-
			Second-order Incident Angle Modifier coefficient	0.00	-
Storage tank [33]	60f	Standard	Volume	971	l
			Height	2.04	m
			Tank loss coefficient	1.37	W/(m2·K)
			Liquid-specific heat	4.190	kJ/(kg·K)
Evacuated SC	71	Standard	Tested flow rate	8.43·10−3	kg/(s·m2)
			Intercept efficiency η0	0.676	-
			Efficiency slope a1	1.15	W/(m2·K)
			Efficiency curvature a2	0.004	W/(m2·K2)
			Fluid-specific heat	3.85	kJ/(kg·K)
			IAM data	See Table 4

and

Table 4. Evacuated tube collectors IAM factors.

Direction (°)	Transversal IAM	Longitudinal IAM
0	1.00	1.00
10	1.00	1.00
20	1.00	1.00
30	1.00	1.00
40	1.03	0.98
50	1.08	0.96
60	1.15	0.87
70	1.11	0.72
80	0.72	0.50
90	0.00	0.00

.

The performance assessment is realized through the comparison of the alternative systems (AS) and CS on energy, environmental and economic bases. The primary energy and the equivalent CO₂ emissions percent differences between CS an AS, primary energy saving (PES) and equivalent CO₂ avoided emission (ΔCO₂), respectively, have been calculated:

$$PES=\left(1-E_{\mathrm{p}}^{\mathrm{AS}}/E_{\mathrm{p}}^{\mathrm{CS}}\right)\times 100$$

(7)

$$\Delta {\mathrm{CO}}_2=\left(1-{\mathrm{CO}}_2^{\mathrm{AS}}/{\mathrm{CO}}_2^{\mathrm{CS}}\right)\times 100$$

(8)

where the primary energy and the equivalent CO₂ emissions of the alternative and CS ($E_{\mathrm{p}}^{\mathrm{AS}/\mathrm{CS}}$ and ${\mathrm{CO}}_2^{\mathrm{AS}/\mathrm{CS}}$) are evaluated as:

$$E_{\mathrm{p}}^{\mathrm{AS}/\mathrm{CS}}=\raisebox{1ex}{$\left(E_{\mathrm{el},\mathrm{chil}}^{\mathrm{AS}/\mathrm{CS}}+E_{\mathrm{el},\mathrm{aux}}^{\mathrm{AS}/\mathrm{CS}}\right)$}\!\left/ \!\raisebox{-1ex}{${\mathsf{\eta }}_{\mathrm{EG}}$}\right.+\raisebox{1ex}{$E_{\mathrm{th},\mathrm{B}}^{\mathrm{AS}/\mathrm{CS}}$}\!\left/ \!\raisebox{-1ex}{${\mathsf{\eta }}_{\mathrm{B}}$}\right.$$

(9)

$${\mathrm{CO}}_2^{\mathrm{AS}/\mathrm{CS}}=\left(E_{\mathrm{el},\mathrm{chil}}^{\mathrm{AS}/\mathrm{CS}}+E_{\mathrm{el},\mathrm{aux}}^{\mathrm{AS}/\mathrm{CS}}\right)\times \mathsf{\alpha }+\raisebox{1ex}{$E_{\mathrm{th},\mathrm{B}}^{\mathrm{AS}/\mathrm{CS}}\times \mathsf{\beta }$}\!\left/ \!\raisebox{-1ex}{${\mathsf{\eta }}_{\mathrm{B}}$}\right.$$

(10)

In Equations (9) and (10), $E_{\mathrm{el},\mathrm{chil}}^{\mathrm{AS}/\mathrm{CS}}$ represents the electric energy required by the chiller in the AS and CS; $E_{\mathrm{el},\mathrm{aux}}^{\mathrm{AS}/\mathrm{CS}}$ represents the electric energy required by the HVAC auxiliaries for both AS and CS; and $E_{\mathrm{th},\mathrm{B}}^{\mathrm{AS}/\mathrm{CS}}$ the heat supplied by the boiler in AS and CS. Furthermore, the energy efficiency of the Italian national electric system (η_EG) and of the boiler (η_B) are assumed equal to 42% [36,37,38] and 90.2% [29], respectively. The specific emission factor of primary energy due to natural gas combustion, β is equal to 0.207 kgCO₂/kWh_Ep, [39], and α the specific emission factor of electricity drawn from the grid is equal to 0.573 kgCO₂/kWh_el, [29].

The economic analysis is performed by calculating the simple payback period (SPB):

$$SPB=EC/{\displaystyle \sum _{k=1}^N{F}_k}$$

(11)

where N is the number of years to pay back the investment, EC is the extra cost of the AS (desiccant-based AHU, storage tank and collectors) with respect to the reference system (CS), and F_k is the cash flow for the generic year k:

$$F_k=O{C}^{\mathrm{CS}}-O{C}_k^{\mathrm{AS}}$$

(12)

where $O{C}_k^{\mathrm{AS}}$ and OC^CS are the operating costs of the AS and CS; the former is calculated as:

$$O{C}_k^{\mathrm{AS}}={\displaystyle \sum _r{V}_{\mathrm{NG},r}{c}_{\mathrm{NG},r}}+\left(E_{\mathrm{el},\mathrm{chil}}^{\mathrm{AS}}+E_{\mathrm{el},\mathrm{aux}}^{\mathrm{AS}}\right)\times c_{\mathrm{el}}+M{C}_{\mathrm{B}}+M{C}_{\mathrm{chil}}^{\mathrm{AS}}+M{C}_{\mathrm{col}}-I_{\mathrm{a},\mathrm{tot}}$$

(13)

where taking into account Italian conditions and components characteristics the following assumptions, were considered:

-

lower heating value (LHV) of natural gas equal to 9.52 kWh/Nm³;

-

the total volume of natural gas $V_{\mathrm{NG},\mathrm{tot}}={\displaystyle \sum _r{V}_{\mathrm{NG},r}}=E_{\mathrm{th},\mathrm{B}}/\left({\mathsf{\eta }}_{\mathrm{B}}\times LHV\right)$ should be divided according to the brackets of

Table 5. Unitary costs.

r	Volume Brackets (Nm3)	cNG,r (€/Nm3)
1	1–120	0.561
2	121–480	0.884
3	481–1560	0.912
4	1561–5000	0.943
5	5001–80,000	0.896

, to which different unitary costs (c_NG,r) are associated;

-

unitary cost of electricity (c_el) equal to 0.211 €/kWh;

-

extra cost of desiccant-based AHU with respect to the conventional one equal to €10,000, it also includes maintenance costs, as provided by the purchase contracts;

-

investment cost of storage tank equal to €3,000;

-

investment cost of chiller: €3,000 for the AS and €6,000 for the CS;

-

specific cost of collectors (c_col) equal to €360/m² and €600/m² for flat-plate and evacuated tube collectors, respectively;

-

maintenance cost of the boiler (MC_B) equal to €80/year;

-

maintenance cost of the chiller in the AS ($M{C}_{\mathrm{chil}}^{\mathrm{AS}}$) equal to €150/year [29];

-

maintenance cost of the SC (MC_col = mc_col × S × c_col) with specific maintenance cost mc_col equal to 2% and S gross SC area [40];

-

incentive, provided for two years (the installed surface is lower than 50 m²), it is evaluated as $I_{\mathrm{a},\mathrm{tot}}=C\times S$ where I_a,tot is the annual economic incentive, with C as a valorization coefficient depending on the type of plant (equal to €255/m² for solar cooling systems).

OC^CS, instead, was calculated with an equation similar to Equation (13) but without incentive and with a maintenance cost for the chiller $M{C}_{\mathrm{chil}}^{\mathrm{AC}}$ equal to €288/year.

6. Results

The operation of the alternative and CSs is simulated considering space-cooling energy demands during weekdays of the summer season (1 June–15 September); space-heating energy demands during weekdays of winter period (15 November–31 March); hot water production for further thermal energy demands (with solar thermal energy surplus) all year long.

The electrical devices of the classroom are turned on during its opening hours (Monday–Friday; 9:00−18:00).

Three subscenarios are also considered: 0%, 50% and 100% of thermal energy of the hot water produced from solar surplus (HW-HX) is effectively used for further demands.

In all configurations it is assumed that the collectors face south, as this orientation is the one that allows consistent obtaining of the maximum PES, regardless of the angle of inclination. As an example, the figure obtained for the standard system with 34 m² of evacuated tube collectors is reported (Figure 7).

In order to have an immediate view of the advantages deriving from the plant modification, the performance curves of the standard configuration, Scenario A, are shown below. The four graphs, labeled “(a)”, “(b)”, “(c)”, and “(d)” in the following Figure 8, Figure 9, Figure 10 and Figure 11, show the results of the comparison between the ASs and the conventional one (respectively for Scenarios A, B, C and D).

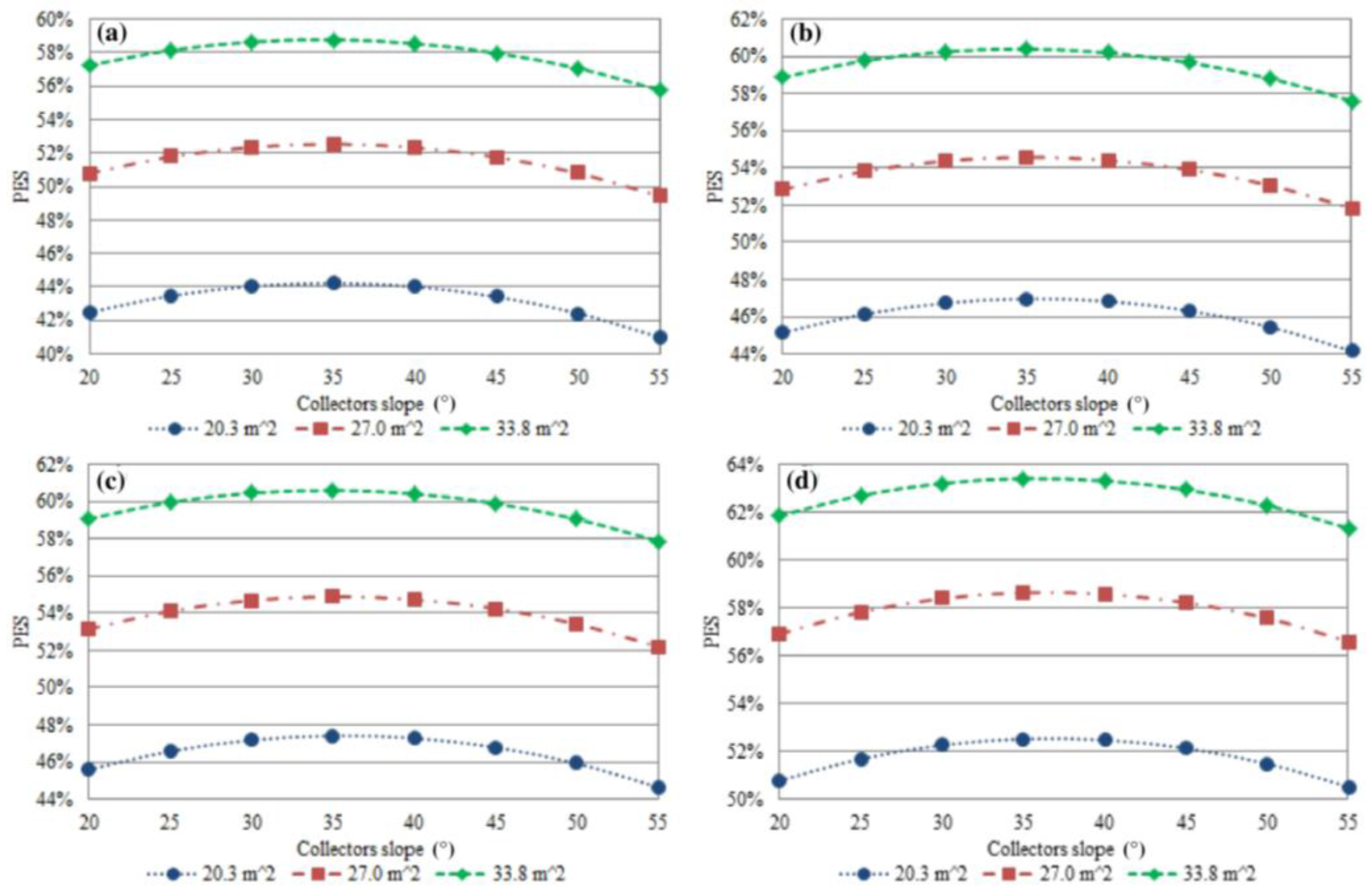

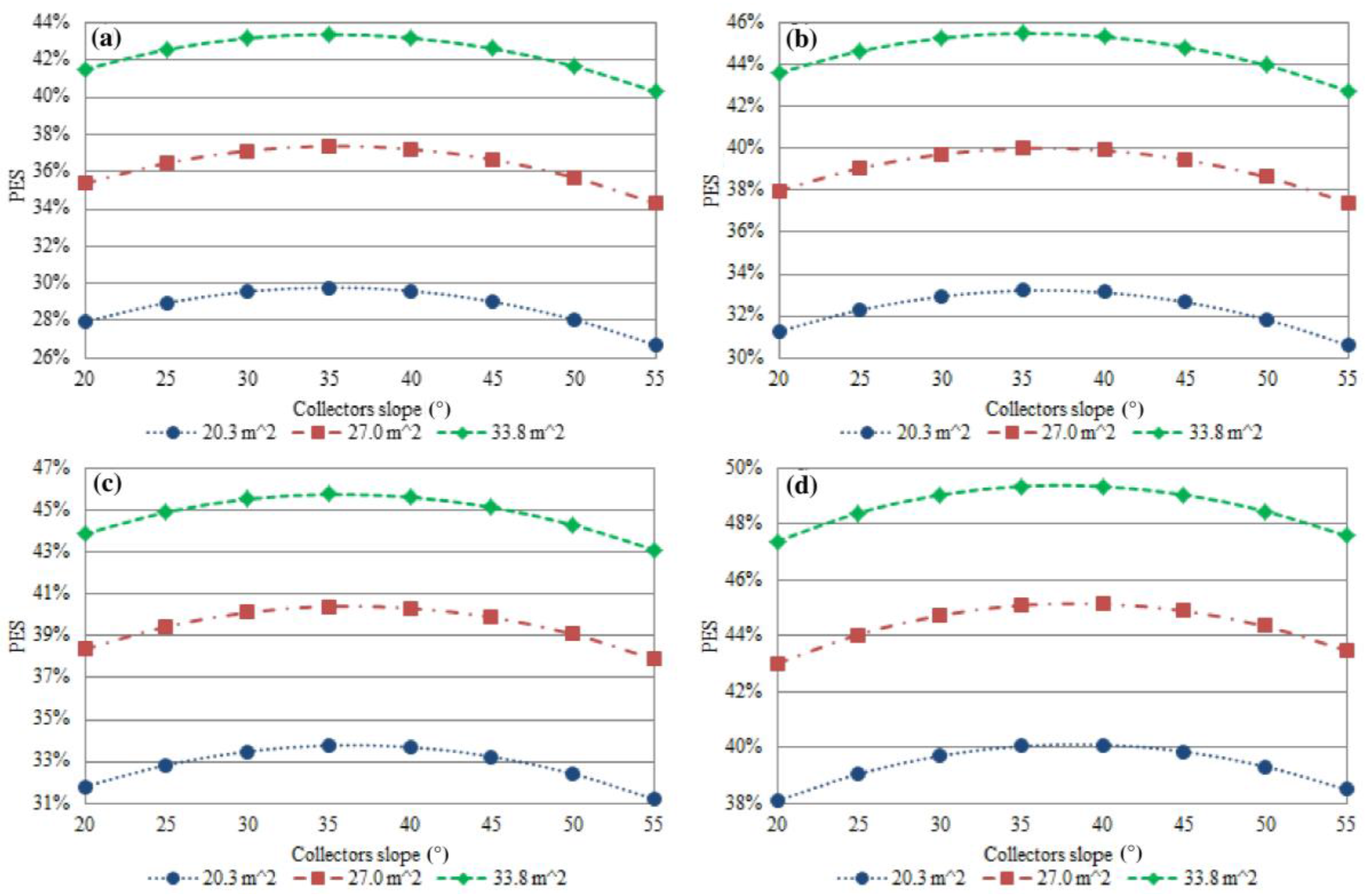

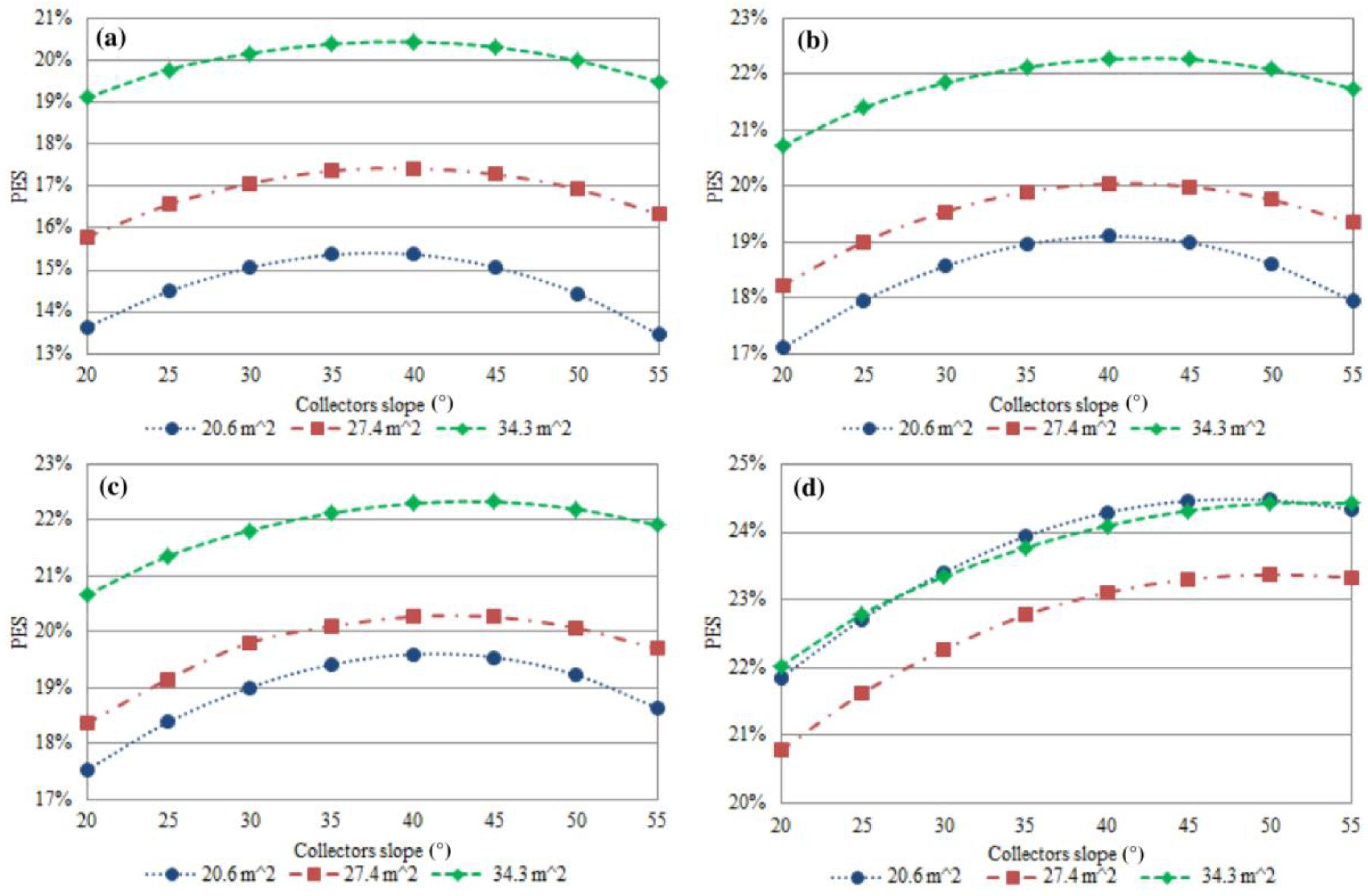

Regarding the energy analysis, the PES index, as a function of the SC slope and area, is reported in Figure 8, Figure 10 and Figure 11 for the hybrid AHU with flat collectors and in Figure 9, and

Table 6. Best PES with evacuated tube collectors and solar thermal energy recovery of 50% and 100%.

Evacuated Tube Collectors	Scenario A		Scenario B		Scenario C		Scenario D
Surface (m2)	50%	100%	50%	100%	50%	100%	50%	100%
20.6	43.15	57.17	45.83	59.32	46.19	59.61	50.02	62.78
27.4	51.04	65.18	52.93	66.67	53.13	66.84	55.50	68.74
34.3	58.15	71.60	59.44	72.58	59.52	72.65	61.05	73.84

for the same AHU with evacuated tube collectors. The results reveal that:

(1)

The PES is always positive; therefore ASs are always energetically convenient with respect to CS;

(2)

The energy performance, as expected, improves with increasing collector area except for Scenario D when 0% of solar thermal energy surplus used is considered (Figure 8d and Figure 9d);

(3)

The systems with evacuated tube collectors are generally more efficient than those with flat-plate collectors: there is a difference of about ten percentage points in the standard configuration (Scenario A, Figure 8a and Figure 9a) and in those with the pre-heating process (Scenarios B and C, Figure 8b,c and Figure 9b,c); six percentage points in the system with the CC2 (Scenario D, Figure 8d and Figure 9d);

(4)

Modifications to the AHU when it is coupled to evacuated tube collectors provide lower improvements in the annual operation (Figure 9b,c); in fact, there is an increase of only two to three percentage points in the scenarios that involve pre-heating of the regeneration air (Scenario B and C) compared to the AS without modifications (Scenario A). With flat-plate collectors, the increase is slightly higher, 3%–5% (Figure 8b,c);

(5)

Although the trends of Scenario D and A are not similar, the Scenario D associated with evacuated collectors provides an average smaller percentage of improvements to Scenario A with respect to the same configuration coupled with flat-plate collectors (Figure 8 and Figure 9);

(6)

Scenario D shows some anomalies (they will be better clarified at the following points 13 and 14) when 0% of solar thermal energy surplus use is considered (Figure 8d and Figure 9d). It allows getting the best performance but it is also the least affected by the increase of the collector area, confirming the fact that with the process air pre-cooling, less energy is required to regenerate the DW;

(7)

Scenario B and C with 0% of solar thermal energy surplus used show similar performance, although the second one is slightly more effective (Figure 8 and Figure 9b,c);

(8)

With 0% of solar thermal energy surplus used and flat-plate collectors, the maximum PES is obtained for a tilt angle of 40°, except in Scenario D (Figure 8), while with evacuated tube collectors, the optimum tilt angle is 40°–45° (Figure 9);

(9)

For Scenario D with 0% of solar thermal energy surplus used (Figure 8d and Figure 9d) the maximum PES occurs at tilt angles of 45°–55° as the energy benefits are especially derived from the winter exploitation of solar energy when the sun is lower on the horizon, while the regeneration energy is significantly reduced;

(10)

If a certain amount of solar thermal energy surplus is used, a homogenization of PES curves appears and for all the analyzed solutions the optimal tilt angle is 35° (Figure 10 and Figure 11 and Table 6). Figure 10 and Figure 11 show the PES trends in the case of systems with flat-plate collectors when solar thermal energy surplus are exploited for half or total, respectively. Conversely, for the layouts with evacuated tube collectors, only the maximum values are reported in Table 6; the trends remain the same for solutions with flat-plate collectors only shifted upwards. Because of the long periods (intermediate season and weekends) in which the AHU is off and the solar energy is not exploited for air conditioning, the amount of energy associated with the solar surplus becomes preponderant with respect to the other thermal energy flows;

(11)

Even if only 50% of the solar thermal energy surplus is used, a huge performance improvement appears; the best solution (34 m² of collectors and CC2, Scenario D) ensures a PES of about 50% with flat-plate collectors (Figure 10d), that grows over 61% with evacuated tube collectors (Table 6);

(12)

Taking into account 100% use of solar thermal energy surplus, the maximum PES always occurs in Scenario D, with a tilt angle of 35° and the maximum SC area (34.3 m²). The performance increases to a PES of over 63% (Figure 11d) and about 74% (Table 6) for flat-plate and evacuated tube collectors, respectively;

(13)

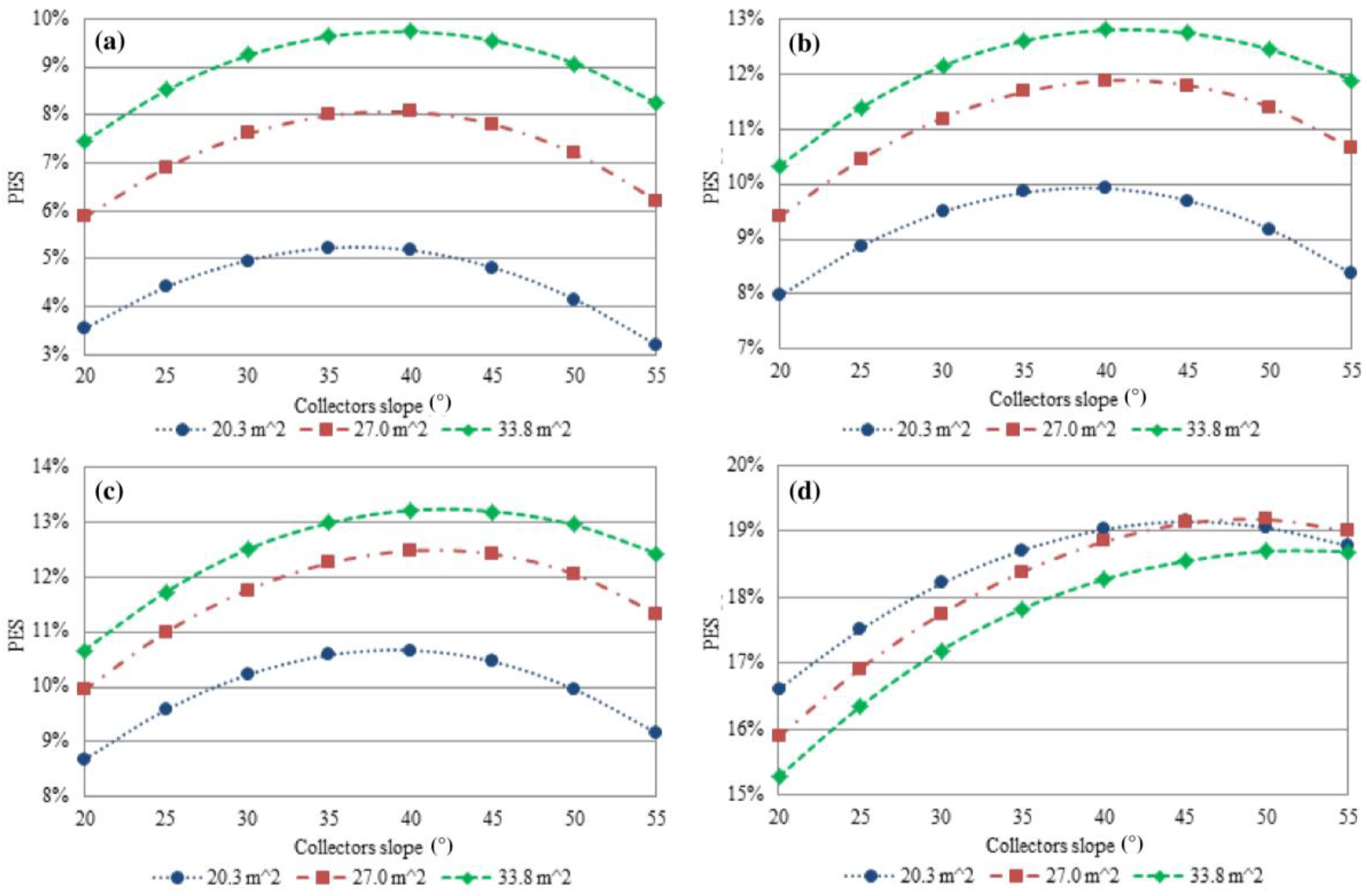

In Scenario D, with flat-plate collectors and tilt angles up to 45° (Figure 8d), the system is more efficient with lower absorbing surfaces. This situation arises from the fact that with 0% of solar thermal energy surplus used, the annual increase in electricity demand (E_p,el,WD,Su; E_p,el,WD,Wi; E_p,el,Int; E_p,el,WED in terms of primary energy), due to the operation of the solar loop, is not accompanied by a sufficient reduction of the thermal energy (E_p,th,WD,Su in terms of primary energy) required by the AHU in the summer (Figure 12). In fact, the summer solar fraction (the percentage of thermal energy for regeneration supplied by the solar subsystem) is very high, about 85%, even with 20 m² of collectors.

(14)

Scenario D with 27 m² of evacuated tube collectors shows the worst performance (Figure 9d and Figure 13) among the investigated surfaces. The curves for 20 m² and 34 m² almost overlap, as moving from the former to the latter, the increase in electricity demand of the solar subsystem balances the increased availability of thermal energy on an annual basis. The summer solar fraction is greater than 94% with 20 m² of collectors.

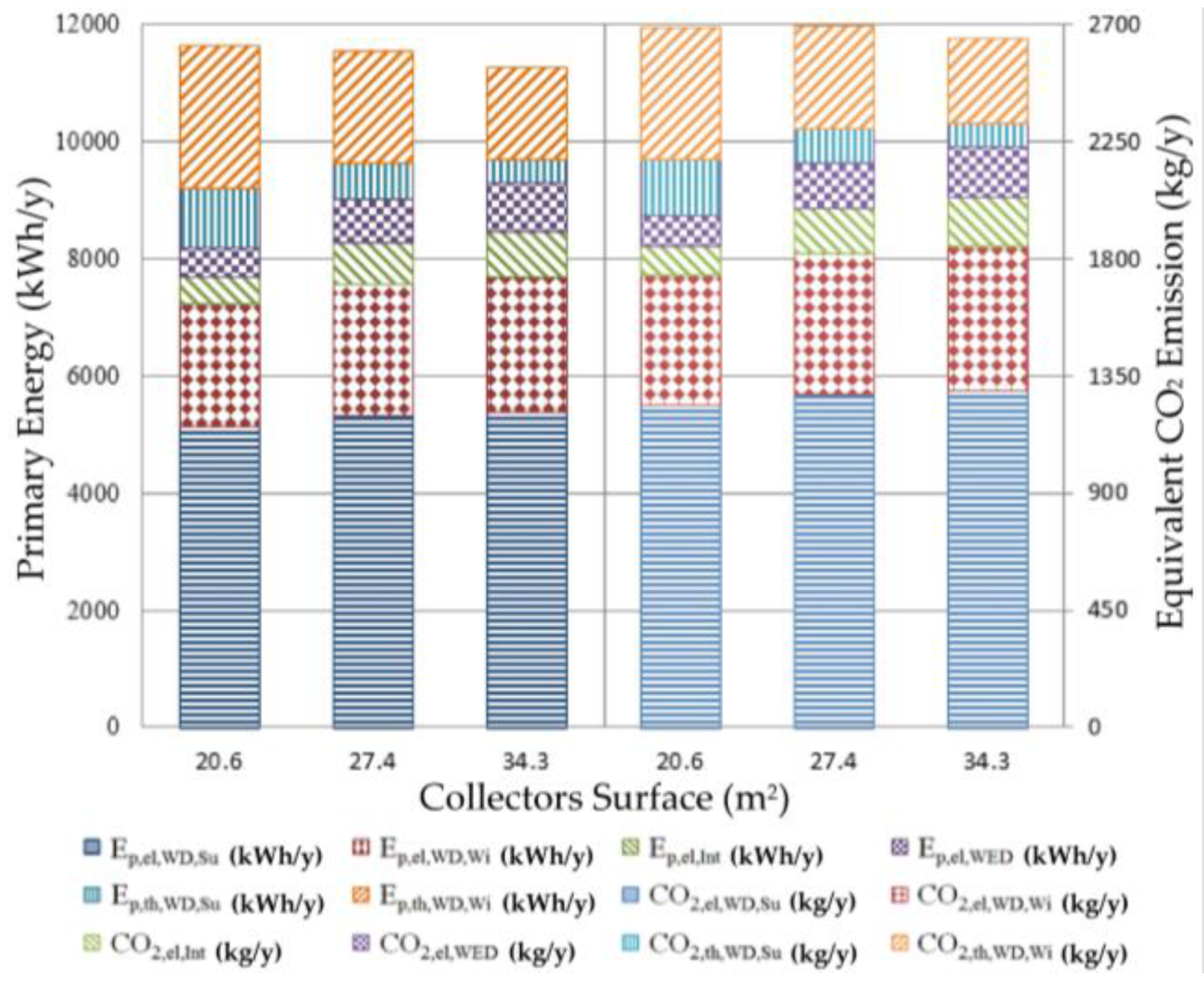

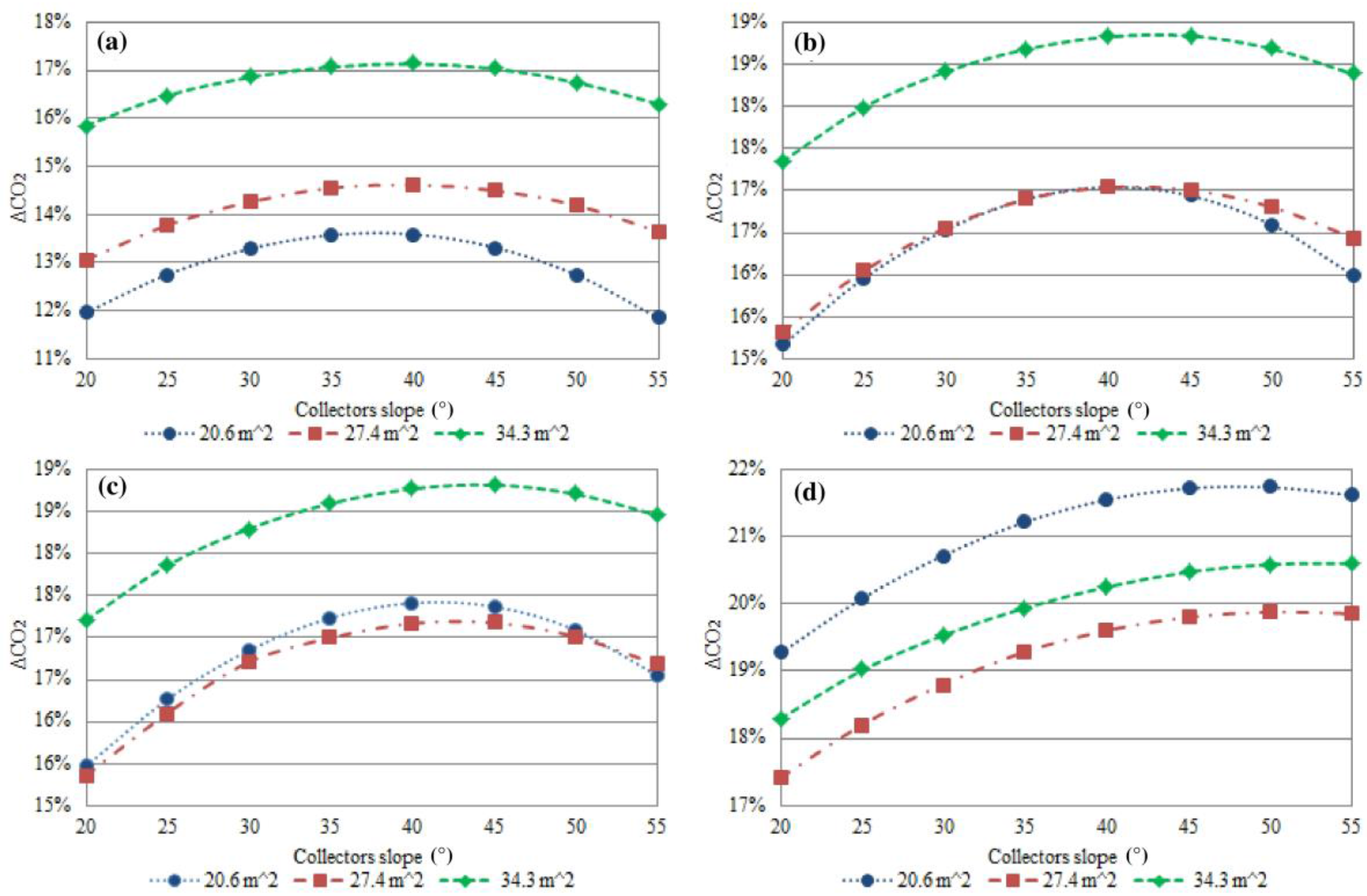

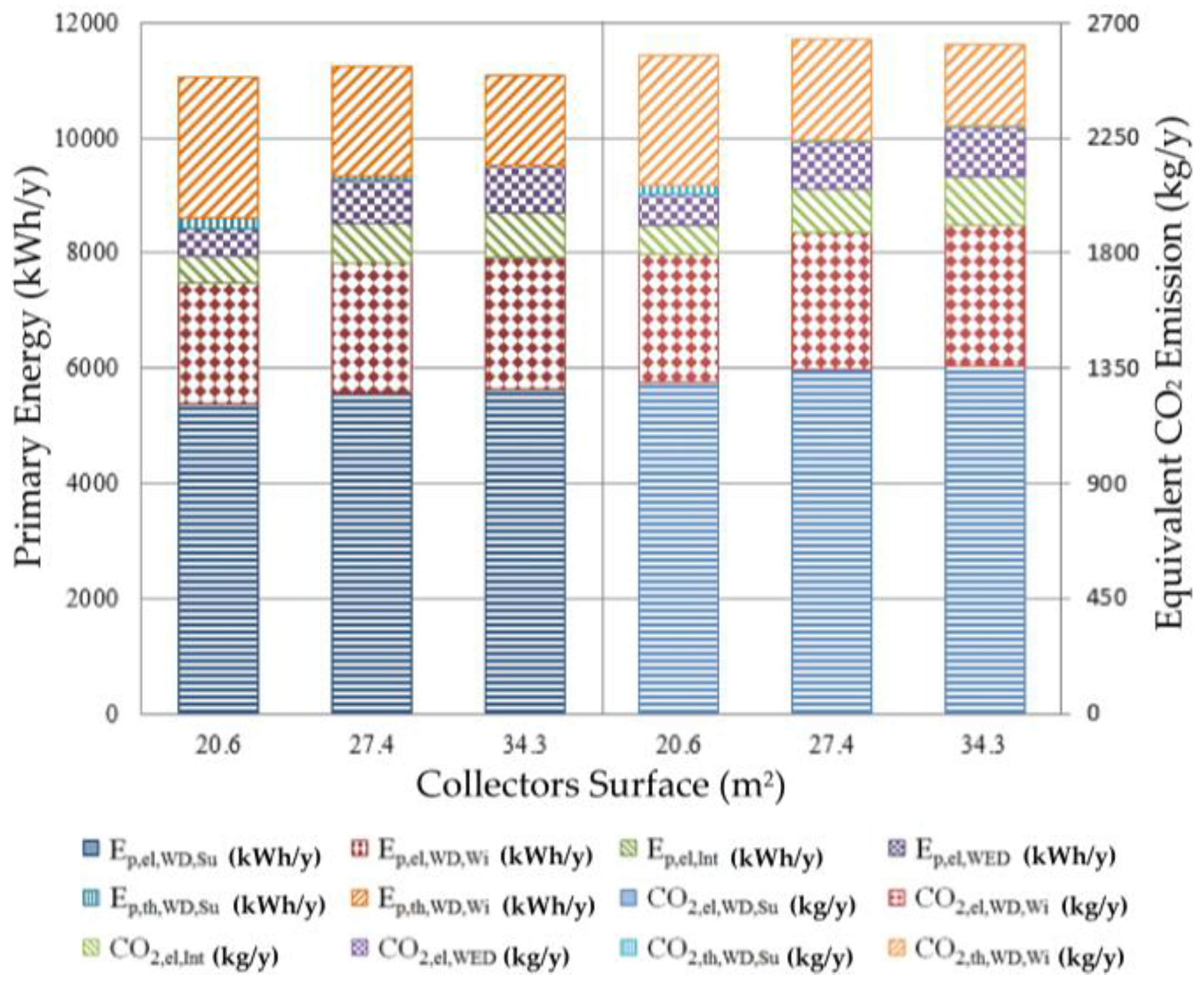

With regard to the equivalent CO₂ emissions, the results are in part different from the energetic ones. In particular:

(1)

Scenario D with flat-plate collectors always operates better with smaller absorbing surfaces (Figure 14d);

(2)

Scenario D with evacuated tube collectors (Figure 15d) and an absorbing surface of 27 m² has higher emissions; it is better with 34 m² and even better with 20 m²;

(3)

Scenarios B and C with flat-plate collectors (Figure 15b,c) show that, by increasing the absorbing surface from 27 m² to 34 m², emissions benefits decrease with respect to the increase from 20 m² to 27 m². On the contrary, the environmental performance of systems with 20 m² and 27 m² of evacuated tube collectors are very similar (Figure 15b,c).

For the sake of brevity, the curves of the avoided equivalent CO₂ emissions in the case of total and partial (50%) use of solar thermal energy surplus are not shown. Their trends, as a function of the tilt angle and of the collectors surface, are similar to those of PES.

In order to find the energy demands that mainly affect energy and environmental performance, in Figure 12, Figure 13 and Figure 16, the share of primary energy consumption and CO₂ emission are shown. The subscripts el and th indicate the primary energy associated, respectively, with the electrical and thermal demands of the plant. It can be observed that:

(1)

the primary energy and the equivalent CO₂ emission associated with the summer electrical requirements for all systems (E_p,el,WD,Su and CO_2,el,WD,Su) are always the largest amounts and increase with the collecting surface;

(2)

the primary energy and the equivalent CO₂ emission associated with the electrical requirements of the periods when the air conditioning is turned off (E_p,el,Int; E_p,el,WED and CO_2,el,Int; CO_2,el,WED) increase with the collector area, but they are less important than the other electrical loads;

(3)

the primary energy demand of the boiler in winter (E_p,th,WD,Wi) is higher than in summer (E_p,th,WD,Sum);

(4)

the primary energy and the equivalent CO₂ emission associated with the heat supplied by the boiler in the winter period (E_p,th,WD,Wi and CO_2,th,WD,Wi) has a decreasing trend with the surface of the solar field;

(5)

the thermal energy provided by the boiler during summer (E_p,th,WD,Sum) insignificantly contributes to the total primary energy and equivalent CO₂ emissions when referring to systems with evacuated tube collectors (Figure 13 and Figure 16).

As regards economic analysis, SDEC systems are more expensive than conventional plants, mainly due to the presence of a DW, solar field and TS tank.

The Italian financial support mechanism, currently applicable to this type of renewable energy technology, establishes a contribution that depends on the surface and on the type of SC employed, but it does not take into account the typology of the solar cooling system installed (absorption, adsorption heat pumps, DEC, etc.). For the specific applications considered in this paper, it occurs that economic subsidy is too low to obtain an acceptable payback period if these systems are only used for the summer and winter air conditioning of the classroom.

If 50% of surplus solar thermal energy is exploited, the SPB period ranges between 25 and 9 years, with the lowest value obtained when the maximum flat-plate SC surface (about 34 m²), optimal tilt angle and pre-cooling/dehumidification coil (Scenario D) are chosen. The largest value occurs for the standard system (Scenario A) worse tilt angle and a solar field of 20 m² of flat-plate collectors.

If the total use of solar thermal energy surplus is assumed, the differences between the various scenarios reduce, and the most influential factor becomes the absorbing surface. The SPB ranges between 12 years (Scenario A, 20 m² of flat collectors and optimal tilt angle) and 5 years (system with pre-cooling and 34 m² of flat-plate collectors). The SPB period for plants with evacuated tube collectors decreases to 11 years in Scenario A with 20 m² of collectors and optimal tilt angle, while a minimum value of 6 years is obtained in Scenario D with 34 m² of collectors.

In order to summarize the best energy, environmental and economic results,

Table 7. Best energy, environmental and economic results with flat-plate collectors.

Energy Surplus Used	Scenario A			Scenario B			Scenario C			Scenario D
	PES (%)	ΔCO2 (%)	SPB (y)	PES (%)	ΔCO2 (%)	SPB (y)	PES (%)	ΔCO2 (%)	SPB (y)	PES (%)	ΔCO2 (%)	SPB (y)
0%	9.74	7.36	-	12.80	10.20	-	13.22	10.50		19.18	17.03	-
50%	43.38	40.13	11	45.50	42.17	10	45.77	42.37	11	49.37	45.72	10
100%	58.78	55.81	6	60.40	57.40	6	60.61	57.56	5	63.41	60.23	5

and

Table 8. Best energy, environmental and economic results with evacuated tube collectors.

Energy Surplus Used	Scenario A			Scenario B			Scenario C			Scenario D
	PES (%)	ΔCO2 (%)	SPB (y)	PES (%)	ΔCO2 (%)	SPB (y)	PES (%)	ΔCO2 (%)	SPB (y)	PES (%)	ΔCO2 (%)	SPB (y)
0%	20.45	17.14	-	22.27	18.84	-	22.33	18.81	-	24.47	21.74	-
50%	58.14	54.72	13	59.44	56.00	13	59.52	56.04	13	61.05	57.47	12
100%	71.60	68.86	7	72.58	69.84	7	72.65	69.89	7	73.84	71.04	6

show PES, ΔCO₂ and SPB for the four analyzed scenarios with 0%, 50% and 100% use of the solar thermal energy surplus, when the optimal configuration (surface and tilt angle) are chosen for plants with flat-plate and evacuated tube collectors, respectively. The SPB values for cases with 0% use of the solar thermal energy surplus are not reported because they far exceed the useful life of the plant.

7. Conclusions

A desiccant-based AHU fed with a renewable energy source such as solar energy is an excellent choice for the air conditioning of buildings. Energy and environmental benefits can be achieved in comparison with conventional plants. However economic feasibility is still hard to obtain. Suitable modifications to the standard layout can deliver significant performance improvements and operating cost reductions.

In this paper, the hybrid AHU installed at University of Sannio (Italy) was modelled in TRNSYS, both in the standard configuration and by applying some modifications to reduce the thermal energy required for regeneration of the DW. The introduced modifications concern:

-

the pre-heating of the regeneration air with heat recovery from chiller condenser;

-

the pre-heating of the regeneration air with heat recovery from the exhaust regeneration air in a CF;

-

the pre-cooling/dehumidification of the process air.

Moreover, for each configuration, different collector types (flat-plate, evacuated tube), surfaces (20−34 m²) and tilt angles (20°−55°) are considered.

Simulations of the innovative AHU, coupled to a solar field, were carried out in order to develop a thermo-economic assessment.

The obtained results show that the evacuated tube collectors improve the energy and environmental performance of the hybrid desiccant systems compared to conventional ones (up to 24% of primary energy saving with optimal tilt angle and surface) but they are more expensive than flat-plate collectors that can provide primary energy savings up to 19%, with optimal tilt angle and surface. With regards to the equivalent CO₂ avoided emissions, they range between 2.5% and 17% in the scenarios with flat-plate collectors and between 12% and 22% with evacuated tube collectors.

For both collector types, the best plant modification is the pre-cooling of the process air. A further analysis is performed, considering different use (0%−100%) of the solar thermal energy not used for air conditioning purposes and that can be used for further heating requirements. The exploitation of this surplus becomes fundamental for the achievement of acceptable SPB periods, even in the presence of economic incentives. If 50% of solar thermal energy surplus is used, the SPB period ranges between 25 and 9 years (for the standard configuration with 20 m² of flat-plate collectors and the pre-cooling modification with 34 m² of flat-plate collectors, respectively, the optimal tilt angle is assumed in the best case).

The best energy, environmental and economic results reached in the innovative plants (in particular in Scenario D) with flat-plate and evacuated tube collectors when 100% of solar surplus is used are: 63%, 60%, 5 years and 74%, 71%, 6 years respectively.

A further analysis for a future work concerns the study of plant layouts which combine the modifications presented above. Furthermore, the desiccant-based AHU could be compared with the traditional one when both are coupled with SC.
