Review on Graphene-, Graphene Oxide-, Reduced Graphene Oxide-Based Flexible Composites: From Fabrication to Applications

by
Aamir Razaq
1,*,
Faiza Bibi
1,
Xiaoxiao Zheng
2,
Raffaello Papadakis
3,4,
Syed Hassan Mujtaba Jafri
5 and
Hu Li
2,6,*
1
Department of Physics, COMSATS University Islamabad, Lahore Campus 54000, Pakistan
2
Shandong Technology Centre of Nanodevices and Integration, School of Microelectronics, Shandong University, Jinan 250101, China
3
TdB Labs AB, Uppsala Business Park, 75450 Uppsala, Sweden
4
Department of Chemistry, Uppsala University, 75120 Uppsala, Sweden
5
Department of Electrical Engineering, Mirpur University of Science and Technology (MUST), Mirpur Azad Jammu and Kashmir 10250, Pakistan
6
Ångström Laboratory, Department of Materials Science and Engineering, Uppsala University, 75121 Uppsala, Sweden
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(3), 1012; https://doi.org/10.3390/ma15031012
Submission received: 6 January 2022 / Revised: 23 January 2022 / Accepted: 25 January 2022 / Published: 28 January 2022
(This article belongs to the Special Issue Advanced Graphene and Graphene Oxide Materials)
Browse Figures
Versions Notes

Abstract

In the new era of modern flexible and bendable technology, graphene-based materials have attracted great attention. The excellent electrical, mechanical, and optical properties of graphene as well as the ease of functionalization of its derivates have enabled graphene to become an attractive candidate for the construction of flexible devices. This paper provides a comprehensive review about the most recent progress in the synthesis and applications of graphene-based composites. Composite materials based on graphene, graphene oxide (GO), and reduced graphene oxide (rGO), as well as conducting polymers, metal matrices, carbon–carbon matrices, and natural fibers have potential application in energy-harvesting systems, clean-energy storage devices, and wearable and portable electronics owing to their superior mechanical strength, conductivity, and extraordinary thermal stability. Additionally, the difficulties and challenges in the current development of graphene are summarized and indicated. This review provides a comprehensive and useful database for further innovation of graphene-based composite materials.

1. Introduction

It is well known that materials play an important role in the development of science and technology, because the realization of a new technology often requires the support of novel materials. Therefore, exploring materials with excellent properties has always been an important subject of scientific research. A remarkable material, graphene, has attracted widespread attention since it was first exfoliated from graphite by Andre Geim and Konstantin Novoselov in 2004. As a result of its prominent performances, graphene can be used in various fields, such as energy storage, biosensing, optoelectronics, flexible electronics, electrochemical sensing, robotics, textile industry, and so on [1,2,3,4]. The discovery of graphene marked the beginning of a new era in material science research [5].
Graphene with a thickness of a single carbon atom is arranged in a honeycomb lattice. It is very solid and can be fashioned into 0D, 1D, 3D forms (Figure 1) [6]. In addition, it is extraordinary transparent and possesses high crystallite as well as outstanding electronic properties. Although graphene has many excellent properties, there is no bandgap in graphene, and it has poor water solubility, which greatly limits its application in some areas [7]. An effective way to overcome these limitations and expand the range of application of graphene is to prepare graphene derivatives. For example, treating graphite with strong oxidants will add epoxy groups, hydroxyl groups, and carboxyl group on the basal plan of graphite layers, thus producing graphene oxide (GO). These polar oxygen-containing functional groups make GO highly hydrophilic. This allows GO to have excellent dispersibility in many solvents, especially in water. In addition, the oxygen-containing functional groups can provide reactive sites for chemical modification or functionalization of GO, which in turn can be used to develop GO-based materials. Although the oxygen-containing groups can obviate some disadvantages of graphene, they also cause some problems. For example, they make GO electrically insulating. Nevertheless, the chemical reduction of GO can restore its conductivity to some extent. The obtained reduced GO (rGO) still carries some functional groups, which results in a good dispersion of rGO in many solvents. Most importantly, it is relatively easy to control the electrical performance and solubility of rGO by controlling the number of the remaining functional groups. The properties of this chemically reduced graphene approximately resemble those of pristine graphene [6,8]. The transformation of graphite to graphite oxide, GO and graphene is shown in Figure 2.
Graphene and its derivatives have their own unique advantages and can be used in many domains applying different techniques, such as thermal chemical vapor deposition (CVD), self-assembly technique, spin coating, vacuum filtration, thermal decomposition, solution dispersion technique, and chemical decomposition polymer processing technique [8,10,11,12,13,14,15]. This review comprises of synthesis of composite material based on graphene and its derivatives along with chemical properties, and mainly focus on the potential applications of these materials.

2. Synthesis of Graphene and Its Derivatives

2.1. GO

There are many reports about the synthesis of GO, and the structures of the obtained products are slightly different (Figure 3). One of the most classical methods was proposed by Williams Hummers JR and Richard Offeman in 1958. The general process was as follows. Graphite was first mixed with concentrated sulfuric acid and oxidizers such as sodium nitrate, then potassium permanganate was added under a precise temperature control, followed by the addition of reducing and reaction stopping agents such as hydrogen peroxide at the end of the process [16]. This method supplies a high yield of colloidal suspension and powdery product [17]. Later, numerous research groups made further improvements of the preparation method focusing on three main parameters, i.e., precursors ratio, time, and temperature [18]. For example, Marcano et al. synthesized GO by using the Tours method and obtained high-quality GO by adding phosphoric acid as a key precursor and removing sodium nitrate with the product. This method is better than previous methods due to its simplicity and outstanding product quality [19]. In addition to these three parameters, the size of graphite particle also has a great effect on the quality of the final products [20]. According to the demands of different applications, various physical forms of GO such as suspension, powder, and flexible sheet can be prepared. The corresponding photos are shown in Figure 4.

2.2. Graphene

Several attempts have been adopted to study the synthesis methods of carbon-based materials. The very first attempt dates back to 1962. Boehm et al. prepared soot composed of thin-layer graphite-intercalated compounds by the reduction and combustion of graphite oxide. In 1944, these products were named as graphene platelets and had a single carbon layer [22]. In 2004, Novoselov et al. obtained graphene by the scotch tape method and won the Noble Prize in 2010 [23]. Till now, the preparation methods of graphene include top-down and bottom-up techniques. Top-down methods include scotch tape exfoliation, liquid-phase exfoliation, and chemical synthesis. Bottom-up methods mainly comprise CVD and molecular beam epitaxy [24,25,26]. In this section, typical methods of graphene synthesis will be introduced.

2.2.1. Exfoliation and Cleavage

Micromechanical cleavage is a process in which the bonds in graphite crystal are broken by mechanical energy so that graphene sheets are peeled from a silicon substrate. Exfoliation can be done in solution by intercalating graphite and exfoliating to a single carbon sheet [27]. GO prepared by the conventional Hummer’s method acts as a precursor for the preparation of graphene sheets when intercalated with sulphuric acid. The process involves the reduction and expansion of sulphuric acid-intercalated graphite oxide for the large-scale production of graphene. As shown in Figure 5, when the slurry obtained by Hummer’s method is placed in a box furnace, graphite oxide can be expanded into graphene [28].

2.2.2. Thermal CVD Techniques

The CVD technique is another common method used to synthesize graphene. Certain carrier gases and carbon-based precursors like camphor and methane are injected into a CVD chamber at a specific temperature. Then, the carbon precursor is decomposed to form graphene on transition metal sheets such as a nickel foam (Figure 6). In addition to exfoliation and the CVD method, there are many other methods that can be used to prepare graphene, such as thermal decomposition of SiC [10] and others.

2.3. rGO

GO prepared by Hummer’s method consists of a-few-layer carbon platelets decorated with oxygen containing functional groups. The removal of some oxygen-based groups by reducing agents or thermal treatment can yield rGO (Figure 7). The main process is as follows. GO is exfoliated via ultrasonication and then reduced by hydrazine hydrate, a strong reducing agent, for 2 h. Since hydrazine is toxic, alternative reagents such as NaBH4, ascorbic acid, and HI can be used. Among these, ascorbic acid is essential for the scalable production of rGO. The chemical procedure to obtain rGO using ascorbic acid as a reducing agent is shown in Figure 8. This reaction does not produce toxic gases [29]. rGO has been proven to be a good candidate for various applications such as field effect transistors (FET), solar cells, energy applications, and production of composite paper-like materials [30] due to its abundant atomic defects.

3. Flexible Graphene Composites: From Fabrication to Applications

With the evolution of science and technology, more and more novel materials with fascinating properties have been discovered and can be applied in many domains. Among these novel materials, graphene has received a lot of attention because of its excellent properties, such as high mechanical strength, stability, charge storage capacity, etc. Furthermore, graphene has very good flexibility and shows excellent application prospects in some flexible composite materials. For instance, a flexible composite consisting of polyethylene–ioxythiophene–graphene was fabricated by the following method. First, PtCl4 was added to an NaOH solution under stirring followed by heating at 160 °C for 3 h. Next, the solution was treated with 2 M sulphuric acid and ethyl glycol and then was electrochemically deposited on a graphene-filtrated carbon cloth/graphene paper substrate. It is worth noting that this flexible composite material is expected to be used in energy storage, because the square shape of the corresponding electrochemical graph indicates excellent capacitive properties [32]. Likewise, when polyaniline (PANI), a conducting polymer with good stability, was mixed with graphene in the form of nanofibers by the vacuum filtration method, the obtained composite film showed not only excellent flexibility but also good electrochemical stability [33].
Many additional related reports on the preparation and application of other flexible graphene-based composites have been published [34]. For example, by regulating the ratio of each components, poly(3,4-ethylenedioxythiophene)/poly(4-styrenesulfonate) (PEDOT/PSS)/graphene composites can be fabricated; they show great potential applications in energy-harvesting systems such as thermoelectric devices and solar cells [35]. Besides, a flexible composite was prepared by simple coating MnO2 on Zn2SnO4 (ZTO) nanowires grown on carbon microfibers. This material can be used in supercapacitor electrodes, whose composite analysis suggests a long cycle life [36]. A typical rectangular voltammogram can be seen for carbon cloth and graphene-coated carbon cloth with electrodeposited PEDOT. This result indicates that graphene-based materials have excellent electrical performance and can be excellent electrode materials in energy storage devices. A simple spin coating technique used at ambient conditions for the fabrication of graphene-based transparent electrodes was proposed. In this method, a graphene slurry was added to dimethyl sulfoxide (DMSO) and then to a pure PEDOT/PSS aqueous solution. Then, a spin coater was used to spin the coating, and the product was left to rest at room temperature [37]. Graphene/MnO2 combined with light-weight carbon nanotubes (CNTs) formed an ultra-flexible thin-film composite, which has been used for various energy storage devices as a robust electrode, as it holds extraordinary mechanical properties with superb electrochemical activities when fabricated by the chemical co-precipitation method [38].
Beside flexibility, the light weight and the efficiency of a device are also very important. To meet the current energy demand and increase the performance of energy devices, paper-based electrodes of graphene/PANI composite have been reported. They were prepared by the electropolymerization of PANI on graphene paper [39]. As shown in Figure 9a,b, graphene/PANI paper retains the origin flexibility of graphene paper. Graphene/PANI paper as a supercapacitor electrode exbibits a high specific capacitance and excellent cycling stability due to the uniform growth of PANI on graphene (Figure 9c–f); it has great potential for application in the construction of portable energy devices. Light-weight and flexible graphene/polypyrrole (PPy) fibers were fabricated by spinning GO and pyrrole in a FeCl3 solution, which helped to control the diameter of fiber, finally obtaining graphene/PPy fibers [40]. MnO2 can also be used for the fabrication of this composite due to its high specific capacitance. A 3D graphene/MnO2 composite foam to be used as a negative electrode for asymmetric supercapacitors was fabricated by the solution casting method. GO was reduced on Ni foam and then subjected to electrodeposition of MnO2 to obtain an asymmetric supercapacitor, showing excellent cyclic stability (Figure 10) [41].
The incorporation of graphene-based composites provides an innovative way for wearable electronics and energy storage devices. Various techniques have been used for the synthesis of these composites. For example, a hydrothermal approach can be applied to fabricate a textile-base graphene composite as an electrode. First, graphene is transferred onto a polyester fabric, and then the graphene/polyester/MnO2 composite is placed in an autoclave at 140 °C. Finally, the product is washed with deionized water and dried in an oven. The composite reveals good electrochemical performance with high mechanical stability [42]. TiO2 is also another promising electro-active metal oxide. For instance, it was used to fabricate the material for a supercapacitor electrode. The fabrication process of the TiO2/graphene/PPy composite for energy applications is as follows. At different temperatures, titian as a starting precursor, was mixed with chemically modified graphene. After drying, electrodeposition of PPy was carried out. As illustrated in Figure 11, the composite revealed increased capacitance and cycling stability [43].
Multiple graphene-based composites including epoxy/graphene, polystyrene/graphene, polyaniline/graphene, nafion/graphene, poly(3,4-ethyldioxythiophene)/graphene, polyethylene terephthalate/graphene, and polycarbonate/graphene nanocomposites have been fabricated through in situ intercalative polymerization, solution intercalation, as well as melt intercalation [44,45]. In addition, a flexible graphene/MnO2 composite for paper electrodes was prepared by three steps, during which the GO/MnO2 composite was obtained by dispersion. Composite paper was obtained by vacuum filtration followed by thermal reduction [46]. Beside physical synthesis routes, CVD is also a good approach for the fabrication of materials. Therefore, a graphene composite with porous carbon was fabricated via CVD on a Ni gauze substrate, which had excellent compatibility because of the porosity of the composite [47]. Likewise, the hydrothermal method is commonly used on account of its simplicity. For example, ZnFe2O4 nanoparticles treated with nitrogen-doped reduced graphene were reported as suitable in energy application, specifically for supercapacitors [48]. To attain maximum charge storage and long cycle durability, another composite of 3D graphene/NiOOH/Ni3S2 was fabricated in two steps. First, 3D graphene was prepared on the surface of nickel foam by the CVD method. Second, the composite was generated by the hydrothermal method [49].
Although the material choice for certain application remains crucial, the choice of the substrate has a great effect on flexibility. Textile fibers, carbon cloth, and paper pulp have evolved as excellent substrate choices for various graphene-based composites. For example, a graphene-based carbon cloth composite fabricated by the simple brush coating technique showed great properties as an electrode material [50]. Light weight, ultrathin, and flexible electrodes with outstanding mechanical and electrochemical properties are needed of today. As shown in Figure 12, a cellulose fiber-based graphene paper composite was obtained by the dipping and drying method via the hydrothermal route, and possesses environment-friendly and cost-effective features [51].
The composite of vanadium oxide with graphene paper is binder-free and shows versatility. The fabrication follows an alkaline deoxygenation process, which is more suitable than the chemical reduction of GO to graphene. This flexible composite paper membrane possesses remarkable advantages for double-layered and pseudocapacitive electrodes [52]. In order to avoid toxicity effects, dimethylformamide was utilized instead of hydrazine for the reduction of GO, obtaining outstanding efficiency along with flexibility. Graphene nanosheets were combined with carbon nanofibers to form a composite with enhanced properties via electrospinning, which is favorable for energy applications [53]. In addition to the capacitive properties of carbon-based materials, the mechanical and thermal properties of flexible composite materials obtained from conductive graphene/poly(vinyl chloride) (graphene/PVC) films have also been studied. PVC and graphene sheets were mixed together by liquid dispersion and dripped onto cells, followed by drying in an oven. The acquired composite possesses good thermal stability [54]. Additionally, the properties of conductive polymers like PANI are remarkably enhanced by the addition of graphene-based composites. The formation of a graphene/polyaniline flexible composite can be obtained via in situ anodic electro polymerization. Graphene paper (Figure 13) was directly used as a working electrode in PANI electrolyte, washed, and dried after the complete process, recording a high capacitance [55].
Moreover, combing graphene with some common substances in nature can lead to composites with outstanding performances. As shown in Figure 14, lignocellulose/graphene conductive paper composite, which worked as a good active electrode, was fabricated through a simple and time-efficient technique by the one-pot method [56].
A nano nickel oxide/graphene PANI composite with enhanced cyclic stability and a high specific capacitance of 92% after 2500 charge–discharge cycles can be applied in the fabrication of energy storage devices [57]. Consequently, graphene-based polymer/metal oxide composite paper electrodes show enhanced electrochemical performance and great potential for application in portable electronics industry.

4. Flexible Composites and Applications of GO/rGO

The designed flexible composites should have not only excellent flexibility but also a certain strength which would enable the composites to withstand external environmental factors. Recently, a layered composite of GO/PVC with large mechanical strength fabricated by the vacuum filtration method was reported [58]. These flexible composites composed of GO and rGO are useful in multiple applications including energy storage, water purification, textiles, and robotics. Polymerization was used to prepare PANI nanowires on a GO sheet composite. The obtained products showed excellent performance when used as supercapacitor electrodes [59,60]. Water purification has become another issue in the past few decades. Ongoing research has tackled this problem. For example, a GO-based TiO2 composite membrane could be used as a filtration membrane for the removal of water impurities. The composite was fabricated by vacuum filtration and allowed a moderate water purification [61]. Although chemically modified graphene or rGO itself is not very appealing in terms of its properties, these properties can be enhanced in forming composite materials with conductive polymers. For instance, an rGO/polypyrrole nanowires composite fabricated in situ showed better performances than rGO and can be used in the fabrication of portable electronic devices [62]. Yarns were used to produce an electronic textile fabric by coating rGO through electrostatic self-assembly in the presence of adhesive bovine serum albumin. The preparation of the material is shown in Figure 15 [63].
E-textile has revolutionized the whole flexible and portable device industry with the introduction of additional properties. In addition, a pressed composite of rGO–MnFe2O4 and polyvinylidene fluoride fabricated by a simple sonication method turned out to be a good absorber of harmful microwaves in the electromagnetic spectrum [64]. Within energy applications, flexible composites of V2O5/polyindole and activated carbon cloth were used as cathodic and anodic electrodes of an asymmetric supercapacitor. V2O5 nanostructures were constructed on a carbon cloth by in situ polymerization and showed good cyclic stability on testing (Figure 16) [65].
Paper electrodes for energy application are receiving great attention. A GO solution was prepared by Hummer’s method. Then, GO-based paper electrodes which can act as flexible substrates, actuators, supercapacitor electrodes etc., were fabricated through the steps of vacuum infiltration, spin coating, and drop casting.
A composite of nickel cobalt oxide/GO was tested as a supercapacitor electrode and revealed a large capacitance of 1211 Fg-1. Its fabrication was achieved by coprecipitation using sodium dodecyl sulfate as the template and ammonia as the precipitant [66]. rGO obtained from GO by the hydrothermal route and titanium carbide obtained by selective etching of aluminum were combined by ultra-sonication and filtration, yielding the rGO/titanium carbide composite. CV, GCD, and EIS analysis proved it to be outstanding for electrochemical performance in supercapacitors [67]. Additionally, other carbon-based materials like CNT are extraordinary products due to several characteristics when hybridized with conducting polymers such as MnOx and rGO composites developed by spray coating and electrodeposition. They show a high capacitive behavior and improve the cyclic stability for supercapacitors [68]. Notably, graphene and its derivatives are analogous to other carbon-based materials, providing new perspectives to research. The fabrication techniques are also being modified. Recently, the metal-organic framework template-assisted method was utilized on a large scale and showed great potential for energy applications. In this regard, as shown in Figure 17, rGO/MoO3 was reported to be an excellent composite for energy storage in supercapacitors as an electrode [69].
Organic substrates have been widely used in recent studies, but metallic substrates remain an important choice. Copper metallic foil acted as a substrate for the growth of rGO/Cu2O through the hydrothermal technique and showed moderate advantages as an electrode in supercapacitors [70]. However, the sol–gel approach is also simple and has been used for the fabrication of rGO-based composites. rGO paper was obtained by a modified Hummer’s method followed by evaporation drying. ZnO was deposited in the form of layers on rGO paper by using a stabilizer through a synthesis process. The composite ZnO/rGO/ZnO has been utilized for supercapacitor electrodes [71]. The choice of the material for positive or negative electrodes plays a vital role in energy devices. A compatible negative electrode material in a supercapacitor for Fe2O3 nanoparticle clusters/rGO paper was investigated. The composite was synthesized through the hydrothermal technique [72]. Chong et al. [73] prepared an MnO2/rGO nanocomposite by a facial one-step electrochemical method. MnO2 nanoparticles were uniformly distributed on rGO nanosheets and acted as spacers to prevent rGO nanosheets from restacking. This unique structure provided MnO2/rGO with high specific capacitance. Furthermore, the MnO2/rGO composite also showed high conductivity and excellent potential cycling stability, and has potential as electrode material for highly stable supercapacitors. In addition to MnO2, tungsten oxide (WOx) is widely studied as electrode material for supercapacitors. Recently, a W18O49 nanowires (NWs)/rGO nanocomposite, which can act as the negative electrode in asymmetric supercapacitor devices, was prepared from the precursors WCl6 and GO by the solvothermal method [74]. The asymmetric supercapacitor W18O49 NWs-rGO//rGO showed high specific capacitance and excellent cycling stability. For the fabrication of paper-based electrode, the incorporation of celluloses and pulps is desirable to attain flexibility and stability. GO-based nanocomposite of nanocrystalline cellulose acetate fabricated via stirring and a solvent casting method showed high thermal stability and good mechanical strength [75]. Likewise, cotton pulp was mixed with LiCl in addition with anhydrous DMAc by stirring. Further addition of a GO suspension to cotton pulp resulted in the formation of a cellulose-based composite useful for energy and memory storage [76]. An outstanding anodic electrode material was designed by fabricating a composite of GO and TiO2, whereas further reduction of the composite to rGO/TiO2 was obtained by stirring and drying. Anatase TiO2 exhibits higher power and energy density than other conventional metal oxides [77]. In comparison with cellulose, the residual paper pulp is more stable. As a consequence, it can be used in the fabrication of rGO-based flexible composites. First, the paper pulp was stirred in stable solvent and then it was mixed with GO. Next, the suspension was infiltrated with and reduced by hydrazine vapors at a certain temperature via the drop casting technique. The obtained composite possessed better performance compared with cellulous-based composites when applied in flexible electrodes [78]. Altogether, natural fiber-based GO/rGO paper composites have been proven to have excellent performance in multiple applications, especially in energy storage and conversion devices in the modern portable device industry.

5. Conclusions and Perspective

With the fast development of portable, wearable, and lightweight electronic devices, highly efficient and flexible energy strategies are urgently needed. In order to achieve this goal, it is crucial to explore novel materials. Graphene has attracted tremendous attention in the field of material science due to its outstanding properties since it was first exfoliated in 2004. This review aimed to outline the different fabrication methods and applications of graphene-based materials, especially for flexible, portable, environment-friendly, and cost-effective energy storage and conversion devices. Some representative methods used to prepare the composites based on graphene and the corresponding applications are listed in Table 1. The outstanding performances of these composites are due to the special structure and excellent properties of graphene, as well as the ease of functionalization of GO and rGO. Graphene-based materials show great application potential in flexible devices. In addition, they further promote the miniaturization and portability of devices and have a huge effect on human life. For example, integrating graphene-based energy storage into wearable devices is promising for human health monitoring. Graphene-based composite membranes also show potential applications in water purification and can be used to remove dyes molecules in water. The progress in flexible composites based on graphene and its derivatives is rapid, and some achievements have been made in recent years. However, to realize graphene‘s practical applications, there are still many challenges to solve. For example, the large-scale production of graphene with high quality and uniform structure is still a big challenge. There are many techniques that can be used to prepare graphene, such as exfoliation from graphite and CVD techniques, but they are cumbersome, time-consuming, and expensive. Furthermore, the complicate transfer process further limits the wide application of graphene. Chemical oxidation of graphite is the most widely used method way to prepare graphene derivatives. However, the synthesis and purification procedures of the oxidation of graphite are complex and risky. It is hard to precisely control the compositions and sizes of graphene sheets, which heavily affects the performance of the composites. In addition, in order to synthesize composites with excellent performances, interfacial interactions between graphene or its derivatives and other functional materials need to be systematically studied. Although difficulties and challenges still exist, with the development of science and technology, more and more technically feasible strategies will be explored. We believe that flexible graphene-based devices and systems will emerge as essential instruments in our daily lives.

Funding

This research was funded by Shandong Natural Science Foundation of China (Grant No.: ZR2021QE148), Guangdong Natural Science Foundation of China (Grant No.: 2214050001485), Olle Engkvist (Grant No.: 211-0068), Swedish Research Council Formas (2019-01538), and Qilu Young Scholar Program of Shandong University (Grant No.: 11500082063141).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

The authors would like to thank Aimin Song (Shandong University) for inspiration, showing the way, and providing substantive support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jalili, R.; Aboutalebi, S.H.; Esrafilzadeh, D.; Shepherd, R.L.; Chen, J.; Aminorroaya–Yamini, S.; Konstantinov, K.; Minett, A.I.; Razal, J.M.; Wallace, G.G. Scalable one–step wet–spinning of graphene fibers and yarns from liquid crystalline dispersions of graphene oxide: Towards multifunctional textiles. Adv. Funct. Mater. 2013, 23, 5345–5354. [Google Scholar] [CrossRef] [Scilit]
  2. Lundstedt, A.; Papadakis, R.; Li, H.; Han, Y.; Jorner, K.; Bergman, J.; Leifer, K.; Grennberg, H.; Ottosson, H. White–Light Photoassisted Covalent Functionalization of Graphene Using 2–Propanol. Small Methods 2017, 1, 1700214. [Google Scholar] [CrossRef] [Scilit]
  3. Li, H.; Papadakis, R.; Jafri, S.H.M.; Thersleff, T.; Michler, J.; Ottosson, H.; Leifer, K. Superior adhesion of graphene nanoscrolls. Commun. Phys. 2018, 1, 44. [Google Scholar] [CrossRef] [Scilit]
  4. Huang, W.; Xia, X.; Zhu, C.; Steichen, P.; Quan, W.; Mao, W.; Yang, J.; Chu, L.; Li, X. Memristive Artificial Synapses for Neuromorphic Computing. Nanomicro. Lett. 2021, 13, 85. [Google Scholar] [CrossRef] [Scilit]
  5. Chabot, V.; Higgins, D.; Yu, A.; Xiao, X.; Chen, Z.; Zhang, J. A review of graphene and graphene oxide sponge: Material synthesis and applications to energy and the environment. Energy Environ. Sci. 2014, 7, 1564–1596. [Google Scholar] [CrossRef] [Scilit]
  6. Khan, Z.U.; Kausar, A.; Ullah, H.; Badshah, A.; Khan, W.U. A review of graphene oxide, graphene buckypaper, and polymer/graphene composites: Properties and fabrication techniques. J. Plast. Film Sheeting 2016, 32, 336–379. [Google Scholar] [CrossRef] [Scilit]
  7. Geim, A.; Novoselov, K. The Rise of Graphene, Nanoscience and Technology: A Collection of Reviews from Nature Journals; World Scientific: Singapore, 2009; pp. 11–19. [Google Scholar]
  8. Eda, G.; Chhowalla, M. Chemically derived graphene oxide: Towards large-area thin-film electronics and optoelectronics. Adv. Mater. 2010, 22, 2392–2415. [Google Scholar] [CrossRef] [Scilit]
  9. Sajibul, M.; Bhuyan, A.; Uddin, M.N.; Islam, M.M.; Bipasha, F.A.; Hossain, S.S. Synthesis of graphene. Int. Nano Lett. 2016, 6, 65–83. [Google Scholar]
  10. Choi, W.; Lahiri, I.; Seelaboyina, R.; Kang, Y.S. Synthesis of graphene and its applications: A review. Crit. Rev. Solid State Mater. Sci. 2010, 35, 52–71. [Google Scholar] [CrossRef] [Scilit]
  11. Tsou, C.-H.; An, Q.-F.; Lo, S.-C.; De Guzman, M.; Hung, W.-S.; Hu, C.-C.; Lee, K.-R.; Lai, J.-Y. Effect of microstructure of graphene oxide fabricated through different self-ssembly techniques on 1-butanol dehydration. J. Membr. Sci. 2015, 477, 93–100. [Google Scholar] [CrossRef] [Scilit]
  12. Naficy, S.; Jalili, R.; Aboutalebi, S.H.; Gorkin III, R.A.; Konstantinov, K.; Innis, P.C.; Spinks, G.M.; Poulin, P.; Wallace, G.G. Graphene oxide dispersions: Tuning rheology to enable fabrication. Mater. Horiz. 2014, 1, 326–331. [Google Scholar] [CrossRef] [Scilit]
  13. Liu, Y.; Feng, J. An attempt towards fabricating reduced graphene oxide composites with traditional polymer processing techniques by adding chemical reduction agents. Compos. Sci. Technol. 2017, 140, 16–22. [Google Scholar] [CrossRef] [Scilit]
  14. Liu, J.; Chen, S.; Papadakis, R.; Li, H. Nanoresolution patterning of hydrogenated graphene by electron beam induced C-H dissociation. Nanotechnology 2018, 29, 415304. [Google Scholar] [CrossRef] [Scilit]
  15. Liu, J.; Papadakis, R.; Li, H. Experimental observation of size-dependent behavior in surface energy of gold nanoparticles through atomic force microscope. Appl. Phys. Lett. 2018, 113, 083108. [Google Scholar] [CrossRef] [Scilit]
  16. Hummers, W.S., Jr.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef] [Scilit]
  17. Dikin, D.A.; Stankovich, S.; Zimney, E.J.; Piner, R.D.; Dommett, G.H.; Evmenenko, G.; Nguyen, S.T.; Ruoff, R.S. Preparation and characterization of graphene oxide paper. Nature 2007, 448, 457–460. [Google Scholar] [CrossRef] [Scilit]
  18. Paulchamy, B.; Arthi, G.; Lignesh, B. A simple approach to stepwise synthesis of graphene oxide nanomaterial. J. Nanomed. Nanotechnol. 2015, 6, 1. [Google Scholar]
  19. Marcano, D.C.; Kosynkin, D.V.; Berlin, J.M.; Sinitskii, A.; Sun, Z.; Slesarev, A.; Alemany, L.B.; Lu, W.; Tour, J.M. Improved synthesis of graphene oxide. ACS Nano 2010, 4, 4806–4814. [Google Scholar] [CrossRef] [Scilit]
  20. Chowdhury, D.R.; Singh, C.; Paul, A. Role of graphite precursor and sodium nitrate in graphite oxide synthesis. RSC Adv. 2014, 4, 15138–15145. [Google Scholar] [CrossRef] [Scilit]
  21. Song, J.; Wang, X.; Chang, C.-T. Preparation and characterization of graphene oxide. J. Nanomater. 2014, 2014, 276143. [Google Scholar] [CrossRef] [Scilit]
  22. Boehm, H.; Clauss, A.; Fischer, G.O.; Hofmann, U. In Surface Properties of Extremely Thin Graphite Lamellae. In Proceedings of the Fifth Conference on Carbon, University Park, PA, USA, 19–23 June 1961; pp. 73–80. [Google Scholar]
  23. McNaught, A.D.; Wilkinson, A. Compendium of Chemical Terminology. IUPAC Recommendations; Blackwell Science: Hoboken, NJ, USA, 1997. [Google Scholar]
  24. Kumar, V.; Kumar, A.; Lee, D.J.; Park, S.S. Estimation of Number of Graphene Layers Using Different Methods: A Focused Review. Materials 2021, 14, 4590. [Google Scholar] [CrossRef] [Scilit]
  25. Kamedulski, P.; Ilnicka, A.; Lukaszewicz, J.P. Selected Aspects of Graphene Exfoliation as an Introductory Step Towards 3D Structuring of Graphene Nano-Sheets. Curr. Graphene Sci. 2019, 2, 106–117. [Google Scholar] [CrossRef] [Scilit]
  26. Prekodravac, J.R.; Kepić, D.P.; Colmenares, J.C.; Giannakoudakis, D.A.; Jovanović, S.P. A comprehensive review on selected graphene synthesis methods: From electrochemical exfoliation through rapid thermal annealing towards biomass pyrolysis. J. Mater. Chem. C 2021, 9, 6722–6748. [Google Scholar] [CrossRef] [Scilit]
  27. Novoselov, K.S.; Jiang, Z.; Zhang, Y.; Morozov, S.; Stormer, H.L.; Zeitler, U.; Maan, J.; Boebinger, G.; Kim, P.; Geim, A.K. Room-temperature quantum Hall effect in graphene. Science 2007, 315, 1379. [Google Scholar] [CrossRef] [Scilit]
  28. Hong, Y.; Wang, Z.; Jin, X. Sulfuric acid intercalated graphite oxide for graphene preparation. Sci. Rep. 2013, 3, 3439. [Google Scholar] [CrossRef] [Scilit]
  29. Alam, S.N.; Sharma, N.; Kumar, L. Synthesis of graphene oxide (GO) by modified hummers method and its thermal reduction to obtain reduced graphene oxide (rGO). Graphene 2017, 6, 1–18. [Google Scholar] [CrossRef]
  30. Ray, S. Applications of Graphene and Graphene-Oxide Based Nanomaterials; William Andrew: Norwich, NY, USA, 2015. [Google Scholar]
  31. Abdolhosseinzadeh, S.; Asgharzadeh, H.; Kim, H.S. Fast and fully–scalable synthesis of reduced graphene oxide. Sci. Rep. 2015, 5, 10160. [Google Scholar] [CrossRef] [Scilit]
  32. Chu, C.-Y.; Tsai, J.-T.; Sun, C.-L. Synthesis of PEDOT-modified graphene composite materials as flexible electrodes for energy storage and conversion applications. Int. J. Hydrogen Energy 2012, 37, 13880–13886. [Google Scholar] [CrossRef] [Scilit]
  33. Wu, Q.; Xu, Y.; Yao, Z.; Liu, A.; Shi, G. Supercapacitors based on flexible graphene/polyaniline nanofiber composite films. ACS Nano 2010, 4, 1963–1970. [Google Scholar] [CrossRef] [Scilit]
  34. Tang, P.; Han, L.; Zhang, L. Facile synthesis of graphite/PEDOT/MnO2 composites on commercial supercapacitor separator membranes as flexible and high–performance supercapacitor electrodes. ACS Appl. Mater. Interfaces 2014, 6, 10506–10515. [Google Scholar] [CrossRef] [Scilit]
  35. Yoo, D.; Kim, J.; Kim, J.H. Direct synthesis of highly conductive poly (3,4-ethylenedioxythiophene): Poly (4-styrenesulfonate) (PEDOT: PSS)/graphene composites and their applications in energy harvesting systems. Nano Res. 2014, 7, 717–730. [Google Scholar] [CrossRef] [Scilit]
  36. Bao, L.; Zang, J.; Li, X. Flexible Zn2SnO4/MnO2 core/shell nanocable-carbon microfiber hybrid composites for high-performance supercapacitor electrodes. Nano Lett. 2011, 11, 1215–1220. [Google Scholar] [CrossRef] [Scilit]
  37. Chang, H.; Wang, G.; Yang, A.; Tao, X.; Liu, X.; Shen, Y.; Zheng, Z. A transparent, flexible, low-temperature, and solution-processible graphene composite electrode. Adv. Funct. Mater. 2010, 20, 2893–2902. [Google Scholar] [CrossRef] [Scilit]
  38. Cheng, Y.; Lu, S.; Zhang, H.; Varanasi, C.V.; Liu, J. Synergistic effects from graphene and carbon nanotubes enable flexible and robust electrodes for high-performance supercapacitors. Nano Lett. 2012, 12, 4206–4211. [Google Scholar] [CrossRef] [Scilit]
  39. Cong, H.-P.; Ren, X.-C.; Wang, P.; Yu, S.-H. Flexible graphene-polyaniline composite paper for high-performance supercapacitor. Energy Environ. Sci. 2013, 6, 1185–1191. [Google Scholar] [CrossRef] [Scilit]
  40. Ding, X.; Zhao, Y.; Hu, C.; Hu, Y.; Dong, Z.; Chen, N.; Zhang, Z.; Qu, L. Spinning fabrication of graphene/polypyrrole composite fibers for all-solid-state, flexible fibriform supercapacitors. J. Mater. Chem. A 2014, 2, 12355–12360. [Google Scholar] [CrossRef] [Scilit]
  41. Zhang, Z.; Xiao, F.; Qian, L.; Xiao, J.; Wang, S.; Liu, Y. Facile Synthesis of 3D MnO2-Graphene and Carbon Nanotube-Graphene Composite Networks for High-Performance, Flexible, All-Solid-State Asymmetric Supercapacitors. Adv. Energy Mater. 2014, 4, 1400064. [Google Scholar] [CrossRef] [Scilit]
  42. Guo, M.-X.; Bian, S.-W.; Shao, F.; Liu, S.; Peng, Y.-H. Hydrothermal synthesis and electrochemical performance of MnO2/graphene/polyester composite electrode materials for flexible supercapacitors. Electrochim. Acta 2016, 209, 486–497. [Google Scholar] [CrossRef] [Scilit]
  43. Jiang, L.-L.; Lu, X.; Xie, C.-M.; Wan, G.-J.; Zhang, H.-P.; Youhong, T. Flexible, free-standing TiO2-graphene-polypyrrole composite films as electrodes for supercapacitors. J. Phys. Chem. C 2015, 119, 3903–3910. [Google Scholar] [CrossRef] [Scilit]
  44. Kuilla, T.; Bhadra, S.; Yao, D.; Kim, N.H.; Bose, S.; Lee, J.H. Recent advances in graphene based polymer composites. Prog. Polym. Sci. 2010, 35, 1350–1375. [Google Scholar] [CrossRef] [Scilit]
  45. Sun, F.; Li, H.; Leifer, K.; Gamstedt, E.K. Rate effects on localized shear deformation during nanosectioning of an amorphous thermoplastic polymer. Int. J. Solids Struct. 2017, 129, 40–48. [Google Scholar] [CrossRef] [Scilit]
  46. Li, Z.; Mi, Y.; Liu, X.; Liu, S.; Yang, S.; Wang, J. Flexible graphene/MnO2 composite papers for supercapacitor electrodes. J. Mater. Chem. 2011, 21, 14706–14711. [Google Scholar] [CrossRef] [Scilit]
  47. Li, X.; Zang, X.; Li, Z.; Li, X.; Li, P.; Sun, P.; Lee, X.; Zhang, R.; Huang, Z.; Wang, K. Large-area flexible core-shell graphene/porous carbon woven fabric films for fiber supercapacitor electrodes. Adv. Funct. Mater. 2013, 23, 4862–4869. [Google Scholar] [CrossRef] [Scilit]
  48. Li, L.; Bi, H.; Gai, S.; He, F.; Gao, P.; Dai, Y.; Zhang, X.; Yang, D.; Zhang, M.; Yang, P. Uniformly dispersed ZnFe2O4 nanoparticles on nitrogen-modified graphene for high-performance supercapacitor as electrode. Sci. Rep. 2017, 7, 43116. [Google Scholar] [CrossRef] [Scilit]
  49. Lin, T.-W.; Dai, C.-S.; Hung, K.-C. High energy density asymmetric supercapacitor based on NiOOH/Ni3S2/3D graphene and Fe3O4/graphene composite electrodes. Sci. Rep. 2014, 4, 7274. [Google Scholar] [CrossRef] [Scilit]
  50. Liu, W.-W.; Yan, X.-B.; Lang, J.-W.; Peng, C.; Xue, Q.-J. Flexible and conductive nanocomposite electrode based on graphene sheets and cotton cloth for supercapacitor. J. Mater. Chem. 2012, 22, 17245–17253. [Google Scholar] [CrossRef] [Scilit]
  51. Liu, L.; Niu, Z.; Zhang, L.; Zhou, W.; Chen, X.; Xie, S. Nanostructured graphene composite papers for highly flexible and foldable supercapacitors. Adv. Mater. 2014, 26, 4855–4862. [Google Scholar] [CrossRef] [Scilit]
  52. Perera, S.D.; Liyanage, A.D.; Nijem, N.; Ferraris, J.P.; Chabal, Y.J.; Balkus, K.J., Jr. Vanadium oxide nanowire-Graphene binder free nanocomposite paper electrodes for supercapacitors: A facile green approach. J. Power Sources 2013, 230, 130–137. [Google Scholar] [CrossRef] [Scilit]
  53. Tai, Z.; Yan, X.; Lang, J.; Xue, Q. Enhancement of capacitance performance of flexible carbon nanofiber paper by adding graphene nanosheets. J. Power Sources 2012, 199, 373–378. [Google Scholar] [CrossRef] [Scilit]
  54. Vadukumpully, S.; Paul, J.; Mahanta, N.; Valiyaveettil, S. Flexible conductive graphene/poly(vinyl chloride) composite thin films with high mechanical strength and thermal stability. Carbon 2011, 49, 198–205. [Google Scholar] [CrossRef] [Scilit]
  55. Wang, D.-W.; Li, F.; Zhao, J.; Ren, W.; Chen, Z.-G.; Tan, J.; Wu, Z.-S.; Gentle, I.; Lu, G.Q.; Cheng, H.-M. Fabrication of graphene/polyaniline composite paper via in situ anodic electropolymerization for high-performance flexible electrode. ACS Nano 2009, 3, 1745–1752. [Google Scholar] [CrossRef] [Scilit]
  56. Wang, R.; Bian, H.; Ji, H.; Yang, R. Preparation of lignocellulose/graphene composite conductive paper. Cellulose 2018, 25, 6139–6149. [Google Scholar] [CrossRef] [Scilit]
  57. Pan, L.; Xia, Y.; Qiu, B.; Zhao, H.; Guo, H.; Jia, K.; Gu, Q.; Liu, Z. Synthesis and electrochemical performance of micro-sized Li-rich layered cathode material for Lithium-ion batteries. Electrochim. Acta 2016, 211, 507–514. [Google Scholar] [CrossRef] [Scilit]
  58. Xu, Y.; Hong, W.; Bai, H.; Li, C.; Shi, G. Strong and ductile poly (vinyl alcohol)/graphene oxide composite films with a layered structure. Carbon 2009, 47, 3538–3543. [Google Scholar] [CrossRef] [Scilit]
  59. Xu, J.; Wang, K.; Zu, S.-Z.; Han, B.-H.; Wei, Z. Hierarchical nanocomposites of polyaniline nanowire arrays on graphene oxide sheets with synergistic effect for energy storage. ACS Nano 2010, 4, 5019–5026. [Google Scholar] [CrossRef] [Scilit]
  60. Wang, L.; Ye, Y.; Lu, X.; Wen, Z.; Li, Z.; Hou, H.; Song, Y. Hierarchical nanocomposites of polyaniline nanowire arrays on reduced graphene oxide sheets for supercapacitors. Sci. Rep. 2013, 3, 3568. [Google Scholar] [CrossRef] [Scilit]
  61. Xu, C.; Cui, A.; Xu, Y.; Fu, X. Graphene oxide–TiO2 composite filtration membranes and their potential application for water purification. Carbon 2013, 62, 465–471. [Google Scholar] [CrossRef] [Scilit]
  62. Yu, C.; Ma, P.; Zhou, X.; Wang, A.; Qian, T.; Wu, S.; Chen, Q. All-solid-state flexible supercapacitors based on highly dispersed polypyrrole nanowire and reduced graphene oxide composites. ACS Appl. Mater. Interfaces 2014, 6, 17937–17943. [Google Scholar] [CrossRef] [Scilit]
  63. Yun, Y.J.; Hong, W.G.; Kim, W.J.; Jun, Y.; Kim, B.H. A novel method for applying reduced graphene oxide directly to electronic textiles from yarns to fabrics. Adv. Mater. 2013, 25, 5701–5705. [Google Scholar] [CrossRef] [Scilit]
  64. Zhang, X.-J.; Wang, G.-S.; Cao, W.-Q.; Wei, Y.-Z.; Liang, J.-F.; Guo, L.; Cao, M.-S. Enhanced microwave absorption property of reduced graphene oxide (RGO)-MnFe2O4 nanocomposites and polyvinylidene fluoride. ACS Appl. Mater. Interfaces 2014, 6, 7471–7478. [Google Scholar] [CrossRef] [Scilit]
  65. Zhou, X.; Chen, Q.; Wang, A.; Xu, J.; Wu, S.; Shen, J. Bamboo–like composites of V2O5/polyindole and activated carbon cloth as electrodes for all-solid-state flexible asymmetric supercapacitors. ACS Appl. Mater. Interfaces 2016, 8, 3776–3783. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  66. Xu, Y.; Wang, L.; Cao, P.; Cai, C.; Fu, Y.; Ma, X. Mesoporous composite nickel cobalt oxide/graphene oxide synthesized via a template-assistant co-precipitation route as electrode material for supercapacitors. J. Power Sources 2016, 306, 742–752. [Google Scholar] [CrossRef] [Scilit]
  67. Zhao, C.; Wang, Q.; Zhang, H.; Passerini, S.; Qian, X. Two-dimensional titanium carbide/RGO composite for high-performance supercapacitors. ACS Appl. Mater. Interfaces 2016, 8, 15661–15667. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  68. Han, Z.J.; Seo, D.H.; Yick, S.; Chen, J.H.; Ostrikov, K.K. MnOx/carbon nanotube/reduced graphene oxide nanohybrids as high-performance supercapacitor electrodes. NPG Asia Mater. 2014, 6, e140. [Google Scholar] [CrossRef] [Scilit]
  69. Cao, X.; Zheng, B.; Shi, W.; Yang, J.; Fan, Z.; Luo, Z.; Rui, X.; Chen, B.; Yan, Q.; Zhang, H. Reduced graphene oxide-wrapped MoO3 composites prepared by using metal–organic frameworks as precursor for all-solid-state flexible supercapacitors. Adv. Mater. 2015, 27, 4695–4701. [Google Scholar] [CrossRef] [Scilit]
  70. Dong, X.; Wang, K.; Zhao, C.; Qian, X.; Chen, S.; Li, Z.; Liu, H.; Dou, S. Direct synthesis of RGO/Cu2O composite films on Cu foil for supercapacitors. J. Alloys Compd. 2014, 586, 745–753. [Google Scholar] [CrossRef] [Scilit]
  71. Ghorbani, M.; Golobostanfard, M.R.; Abdizadeh, H. Flexible freestanding sandwich type ZnO/rGO/ZnO electrode for wearable supercapacitor. Appl. Surf. Sci. 2017, 419, 277–285. [Google Scholar] [CrossRef] [Scilit]
  72. Hu, Y.; Guan, C.; Ke, Q.; Yow, Z.F.; Cheng, C.; Wang, J. Hybrid Fe2O3 nanoparticle clusters/rGO paper as an effective negative electrode for flexible supercapacitors. Chem. Mater. 2016, 28, 7296–7303. [Google Scholar] [CrossRef] [Scilit]
  73. Ali, G.A.M.; Yusoff, M.M.; Algarni, H.; Chong, K.F. One-step electrosynthesis of MnO2/rGO nanocomposite and its enhanced electrochemical performance. Ceram. Int. 2018, 44, 7799–7807. [Google Scholar] [CrossRef] [Scilit]
  74. Thalji, M.R.; Ali, G.A.M.; Liu, P.; Zhong, Y.L.; Chong, K.F. W18O49 nanowires-graphene nanocomposite for asymmetric supercapacitors employing AlCl3 aqueous electrolyte. Chem. Eng. J. 2021, 409, 128216. [Google Scholar] [CrossRef] [Scilit]
  75. Kabiri, R.; Namazi, H. Nanocrystalline cellulose acetate (NCCA)/graphene oxide (GO) nanocomposites with enhanced mechanical properties and barrier against water vapor. Cellulose 2014, 21, 3527–3539. [Google Scholar] [CrossRef] [Scilit]
  76. Kafy, A.; Sadasivuni, K.K.; Kim, H.-C.; Akther, A.; Kim, J. Designing flexible energy and memory storage materials using cellulose modified graphene oxide nanocomposites. Phys. Chem. Chem. Phys. 2015, 17, 5923–5931. [Google Scholar] [CrossRef] [Scilit]
  77. Kim, H.; Cho, M.Y.; Kim, M.H.; Park, K.Y.; Gwon, H.; Lee, Y.; Roh, K.C.; Kang, K. A novel high-energy hybrid supercapacitor with an anatase TiO2-reduced graphene oxide anode and an activated carbon cathode. Adv. Energy Mater. 2013, 3, 1500–1506. [Google Scholar] [CrossRef] [Scilit]
  78. Mianehrow, H.; Sabury, S.; Bazargan, A.; Sharif, F.; Mazinani, S. A flexible electrode based on recycled paper pulp and reduced graphene oxide composite. J. Mater. Sci. Mater. Electron. 2017, 28, 4990–4996. [Google Scholar] [CrossRef] [Scilit]
Materials 15 01012 g001

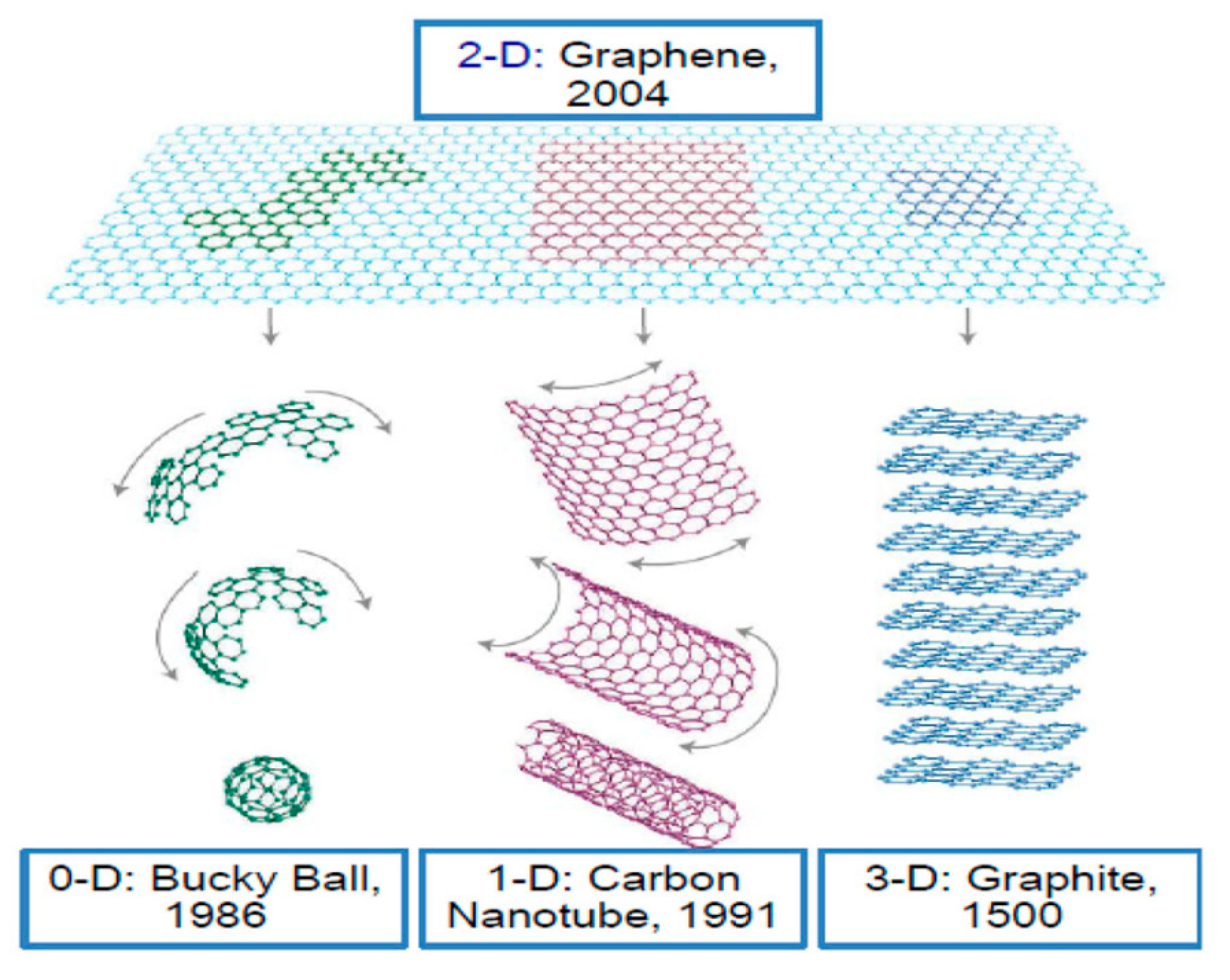

Figure 1. Various structures of graphene (0D bucky ball, 1D carbon nanotube, 3D graphite). (Reproduced with permission from ref. [9]. Copyright 2016 Springer Publications).
Figure 1. Various structures of graphene (0D bucky ball, 1D carbon nanotube, 3D graphite). (Reproduced with permission from ref. [9]. Copyright 2016 Springer Publications).
Materials 15 01012 g001
Materials 15 01012 g002

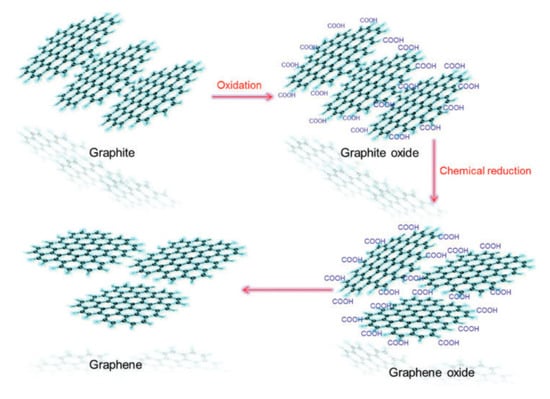

Figure 2. Schematic of the transformation of graphite oxide to GO and graphene. (Reproduced with permission from ref. [6]. Copyright 2016 SAGE Publications).
Figure 2. Schematic of the transformation of graphite oxide to GO and graphene. (Reproduced with permission from ref. [6]. Copyright 2016 SAGE Publications).
Materials 15 01012 g002
Materials 15 01012 g003

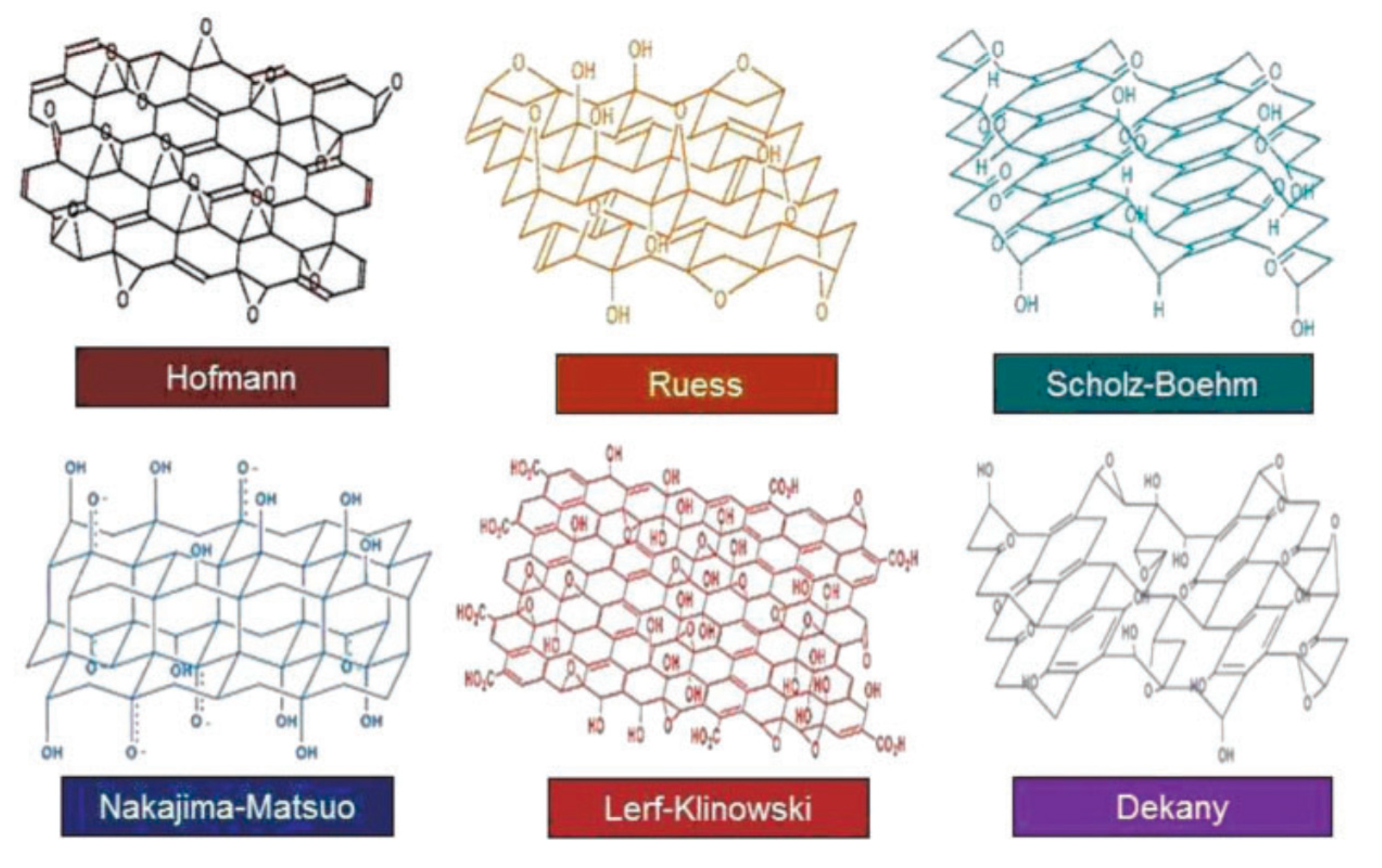

Figure 3. Different structures of GO. (Reproduced with permission from ref. [6]. Copyright 2016 SAGE Publications).
Figure 3. Different structures of GO. (Reproduced with permission from ref. [6]. Copyright 2016 SAGE Publications).
Materials 15 01012 g003
Materials 15 01012 g004

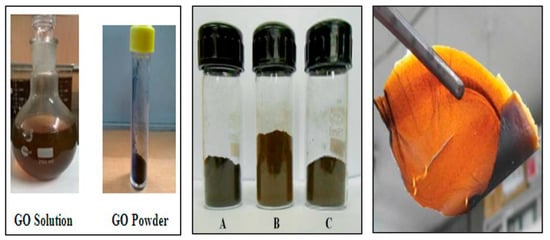

Figure 4. GO suspension (left side), powder, and flexible sheet (right side). (Reproduced with permission from ref. [18,21]. Copyright 2015 JNMNT and 2014 Hindawi Publications).
Figure 4. GO suspension (left side), powder, and flexible sheet (right side). (Reproduced with permission from ref. [18,21]. Copyright 2015 JNMNT and 2014 Hindawi Publications).
Materials 15 01012 g004
Materials 15 01012 g005

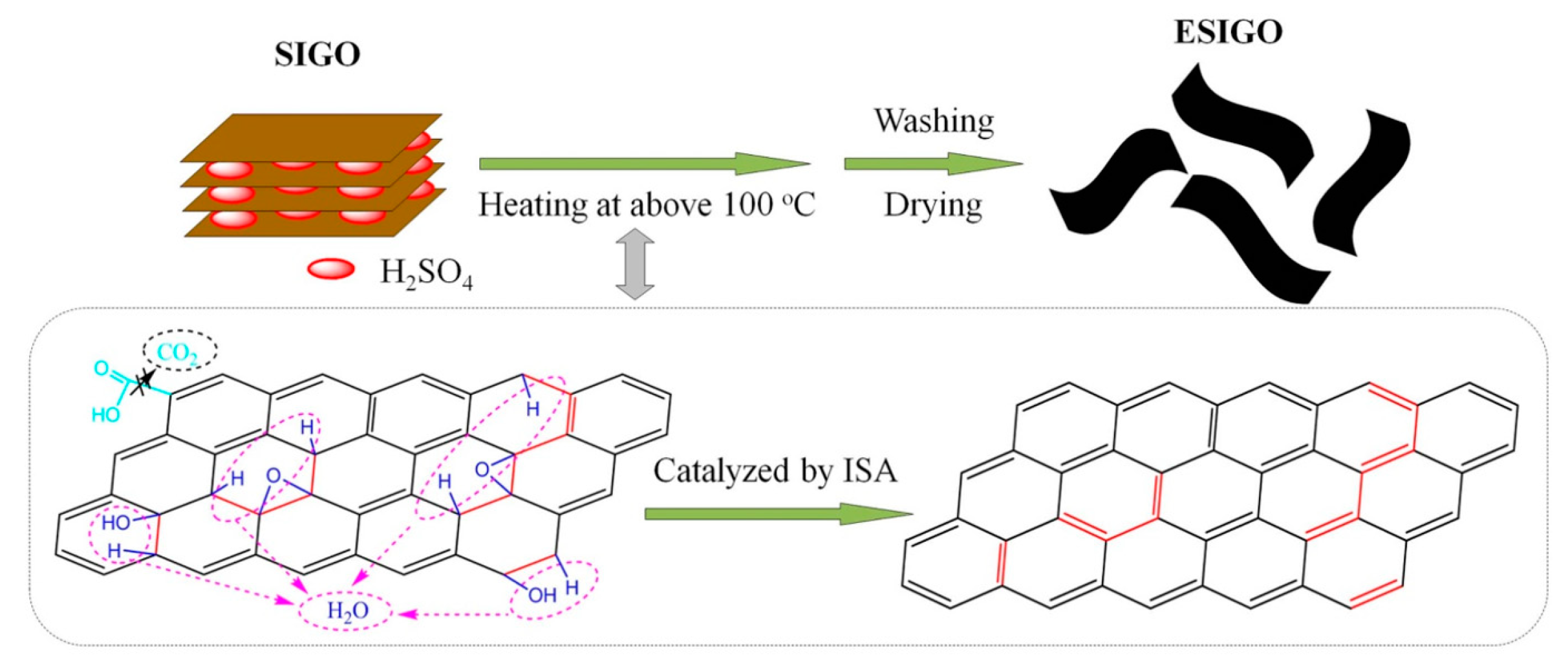

Figure 5. Schematic of the H2SO4-intercalated GO (SIGO) process. (Reproduced with permission from ref. [28]. Copyright 2013 Springer Nature Publications).
Figure 5. Schematic of the H2SO4-intercalated GO (SIGO) process. (Reproduced with permission from ref. [28]. Copyright 2013 Springer Nature Publications).
Materials 15 01012 g005
Materials 15 01012 g006

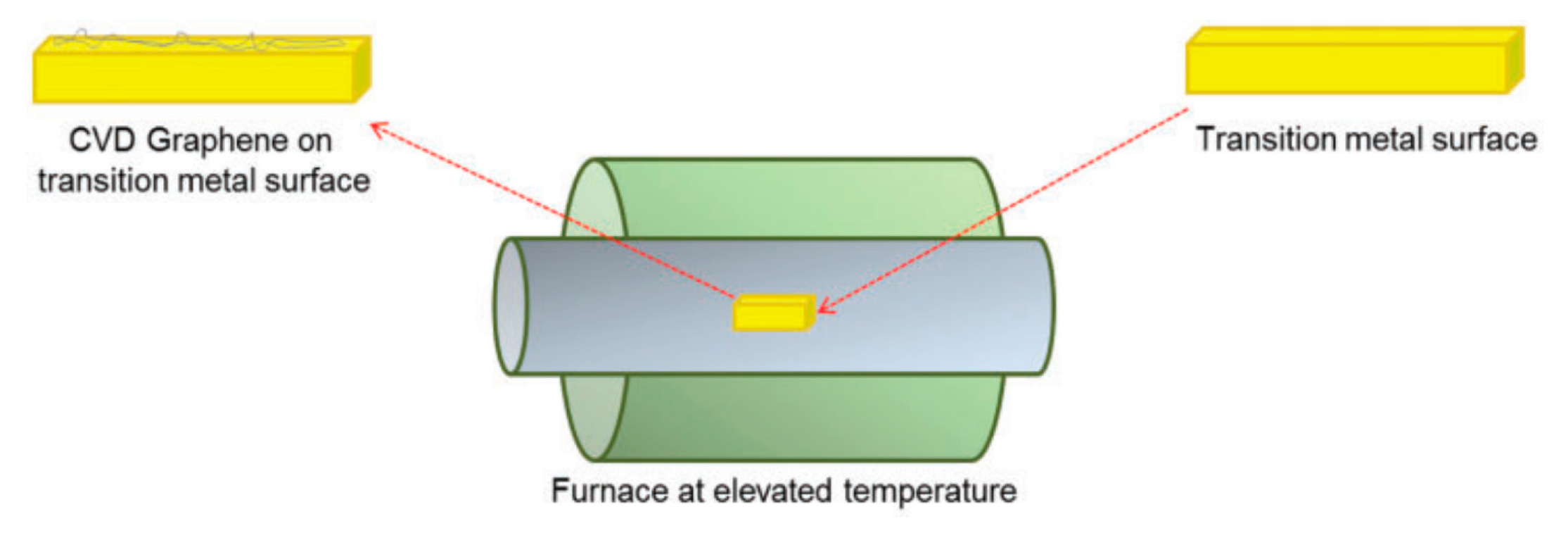

Figure 6. Graphene synthesis via the CVD method. (Reproduced with permission from ref. [6]. Copyright 2016 SAGE Publications).
Figure 6. Graphene synthesis via the CVD method. (Reproduced with permission from ref. [6]. Copyright 2016 SAGE Publications).
Materials 15 01012 g006
Materials 15 01012 g007

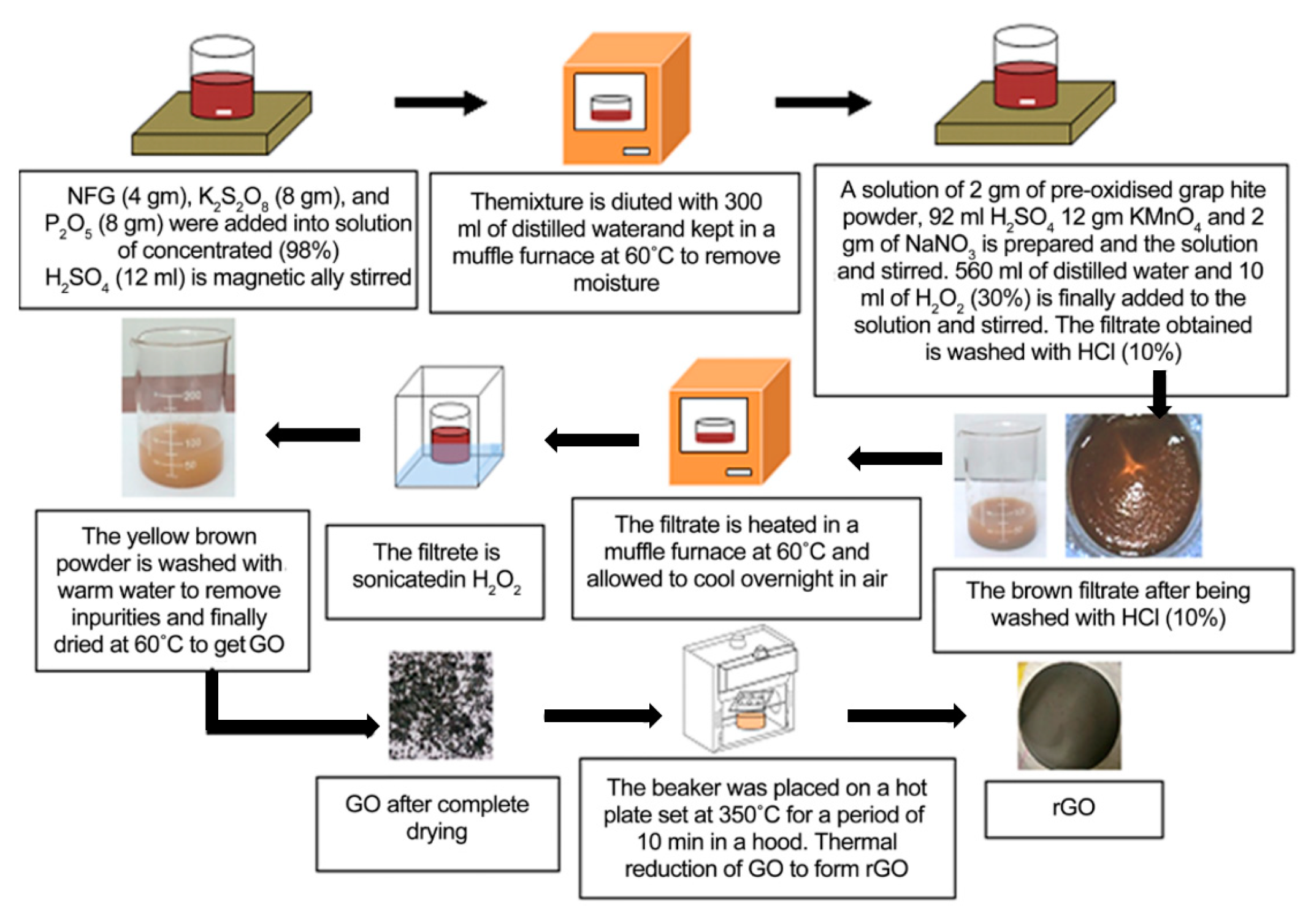

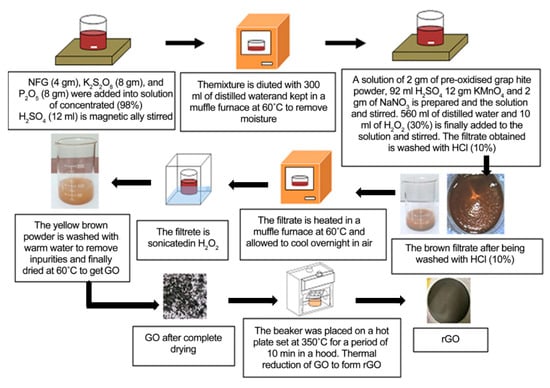

Figure 7. Steps of the synthesis of GO and rGO. (Reproduced with permission from ref. [29]. Copyright 2017 Scientific Research Publications).
Figure 7. Steps of the synthesis of GO and rGO. (Reproduced with permission from ref. [29]. Copyright 2017 Scientific Research Publications).
Materials 15 01012 g007
Materials 15 01012 g008

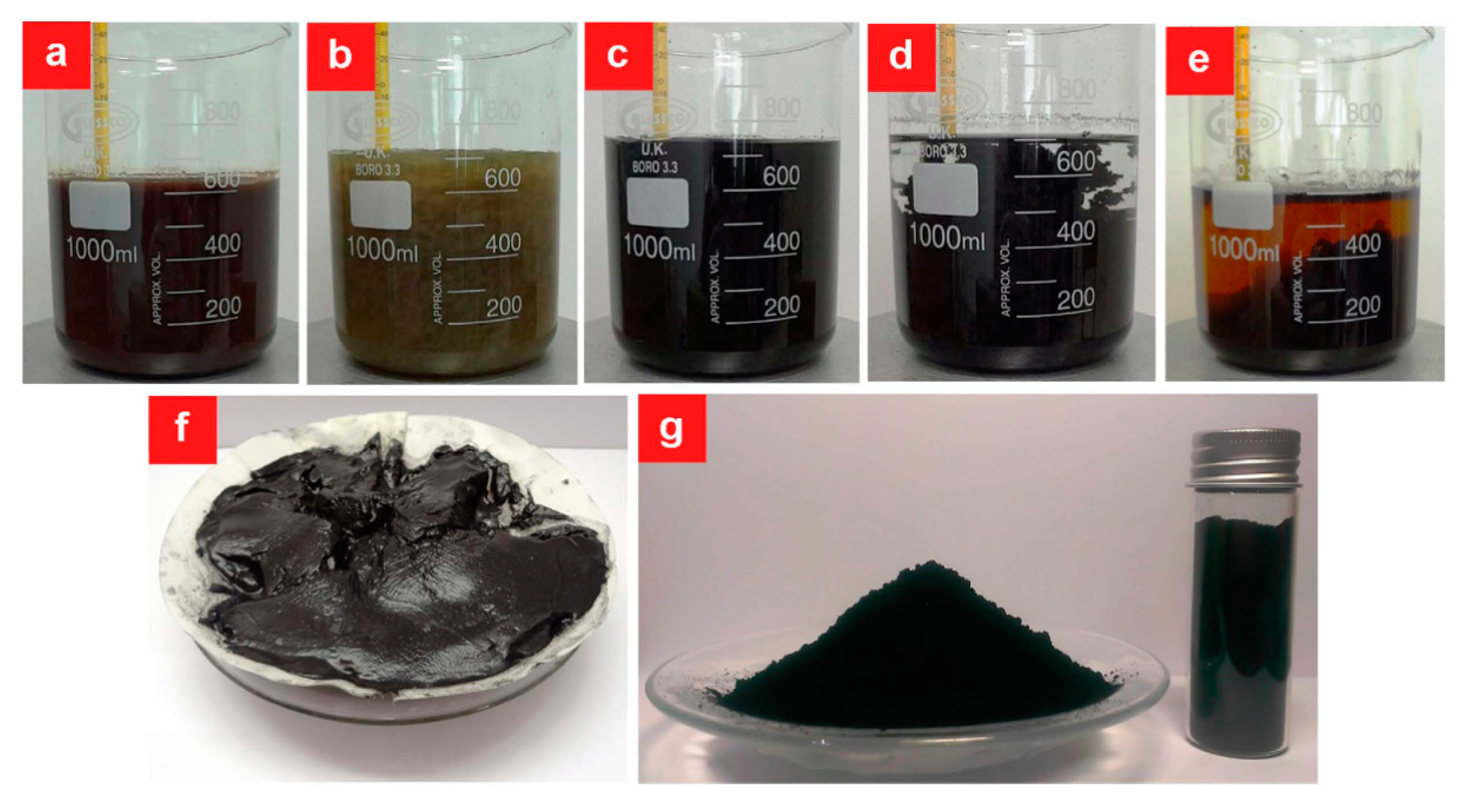

Figure 8. Consecutive steps in the chemical synthesis of rGO using ascorbic acid as a reducing agent. (a) Oxidation and exfoliation of graphite using Hummer’s method. (b) Reduction and conversion of Mn (VII) ions to soluble Mn (II) ions by the addition of ascorbic acid. (c) Color transition of the exfoliated graphite oxide from greenish yellow to black in the early stage of reduction. (d) Loss of hydrophilicity of GO when stirring is paused. (e) Precipitation of rGO after completion of the reduction stage and cooling down to room temperature. (f) Filtration of rGO using cellulose filter paper. (g) rGO powder after freeze-drying. (Reproduced with permission from ref. [31]. Copyright 2015 Springer Nature Publications).
Figure 8. Consecutive steps in the chemical synthesis of rGO using ascorbic acid as a reducing agent. (a) Oxidation and exfoliation of graphite using Hummer’s method. (b) Reduction and conversion of Mn (VII) ions to soluble Mn (II) ions by the addition of ascorbic acid. (c) Color transition of the exfoliated graphite oxide from greenish yellow to black in the early stage of reduction. (d) Loss of hydrophilicity of GO when stirring is paused. (e) Precipitation of rGO after completion of the reduction stage and cooling down to room temperature. (f) Filtration of rGO using cellulose filter paper. (g) rGO powder after freeze-drying. (Reproduced with permission from ref. [31]. Copyright 2015 Springer Nature Publications).
Materials 15 01012 g008
Materials 15 01012 g009

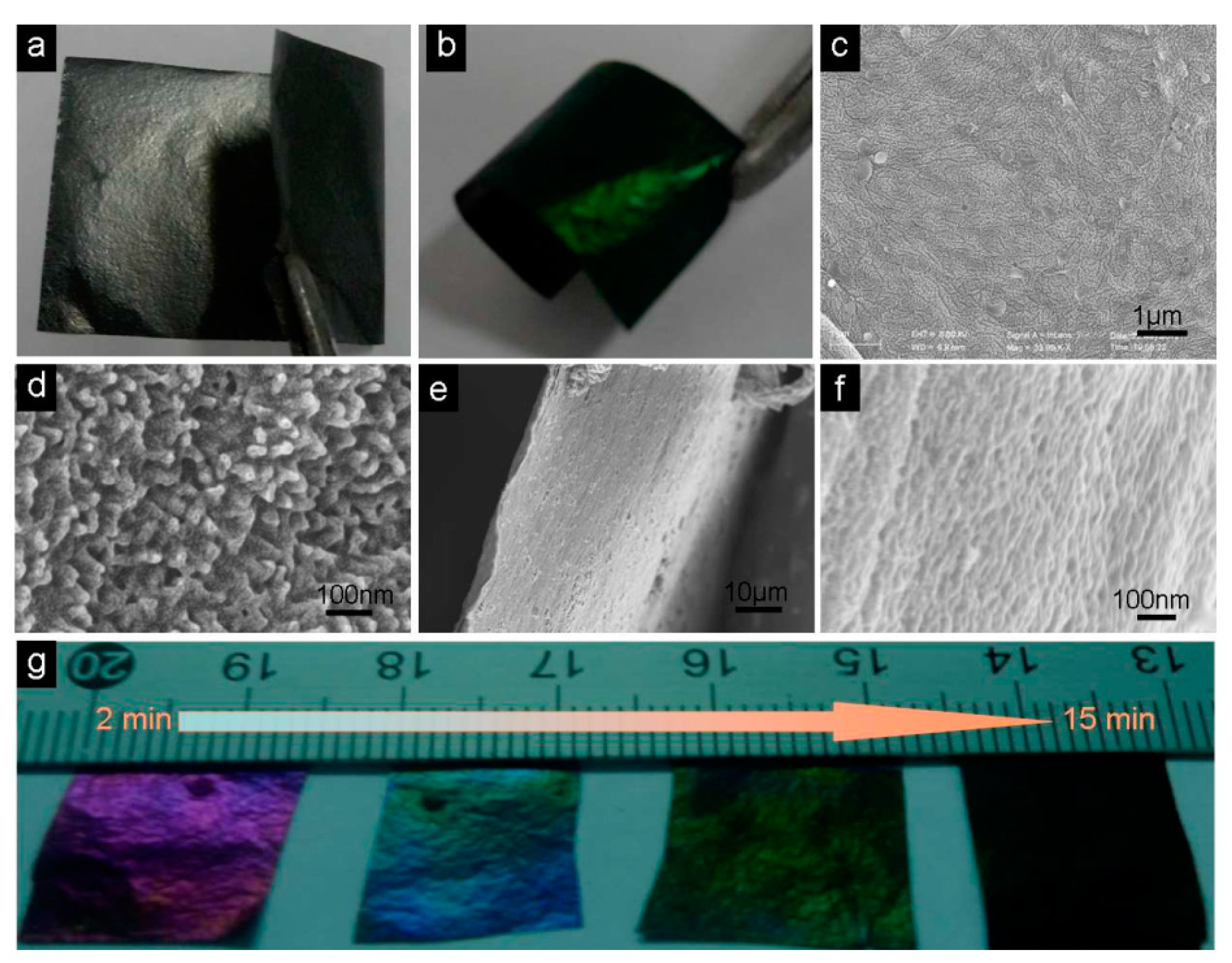

Figure 9. (a) Flexible graphene paper with the size of 8 × 5 cm. (b) Graphene/PANI paper (3 cm × 1.5 cm), electrochemical deposition time of 10 min. (c,d) SEM images of the surface of graphene/PANI paper at different magnifications. (e,f) SEM images of cross sections of graphene/PANI paper at different magnifications. (g) Graphene/PANI composite papers with different electropolymerization times (From left to right: 2, 5, 10, 15 min). (Reproduced with permission from ref. [39]. Copyright 2013 RSC Publications).
Figure 9. (a) Flexible graphene paper with the size of 8 × 5 cm. (b) Graphene/PANI paper (3 cm × 1.5 cm), electrochemical deposition time of 10 min. (c,d) SEM images of the surface of graphene/PANI paper at different magnifications. (e,f) SEM images of cross sections of graphene/PANI paper at different magnifications. (g) Graphene/PANI composite papers with different electropolymerization times (From left to right: 2, 5, 10, 15 min). (Reproduced with permission from ref. [39]. Copyright 2013 RSC Publications).
Materials 15 01012 g009
Materials 15 01012 g010

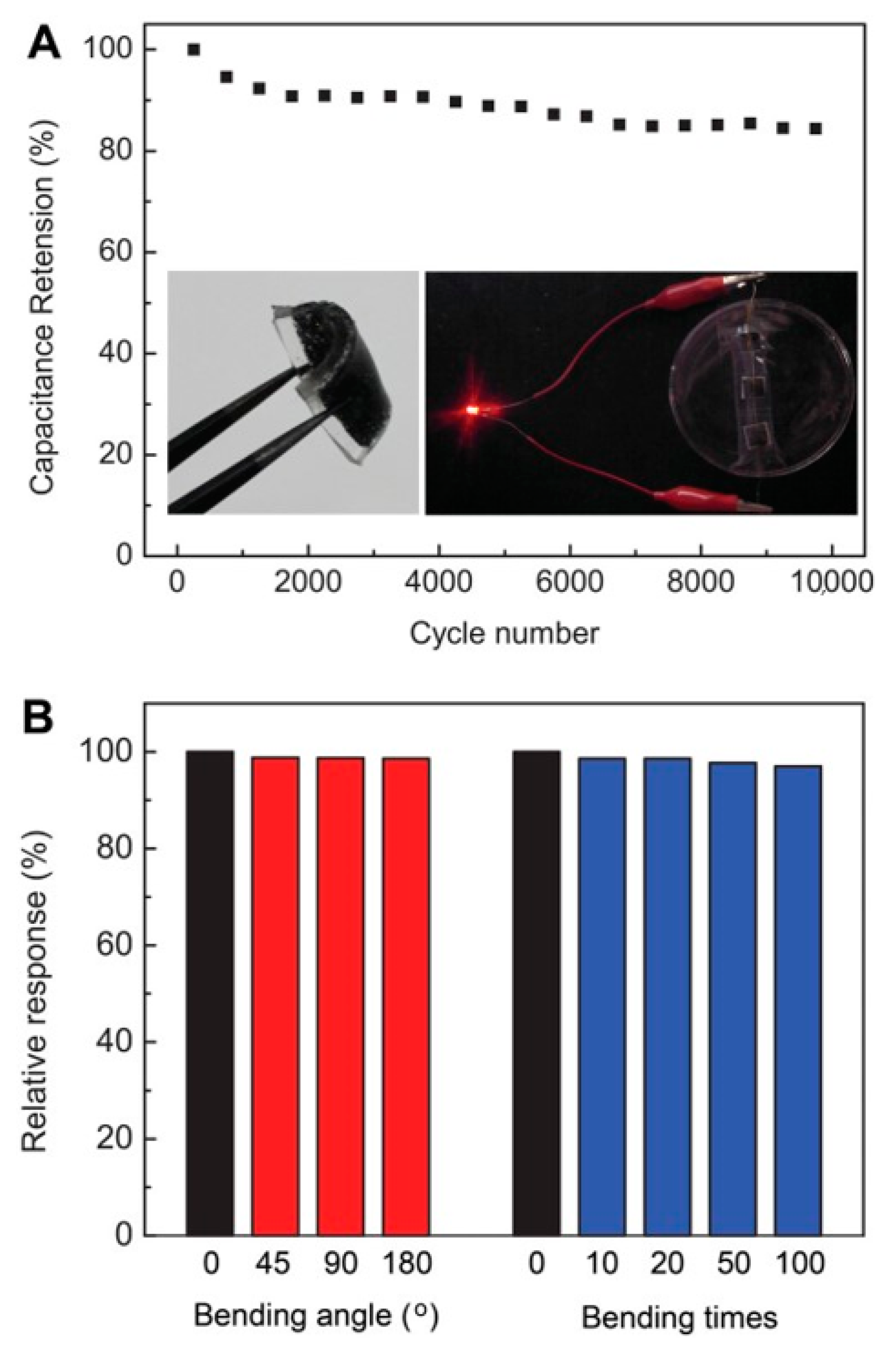

Figure 10. (A) Cyclic behavior of MnO2/ERGO//CNT ERGO. (B) Specific capacitance retention ratio of the flexible supercapacitor after inward bending by different angles or repeated bending. (Reproduced with permission from ref. [41]. Copyright 2014 Wiley Publications).
Figure 10. (A) Cyclic behavior of MnO2/ERGO//CNT ERGO. (B) Specific capacitance retention ratio of the flexible supercapacitor after inward bending by different angles or repeated bending. (Reproduced with permission from ref. [41]. Copyright 2014 Wiley Publications).
Materials 15 01012 g010
Materials 15 01012 g011

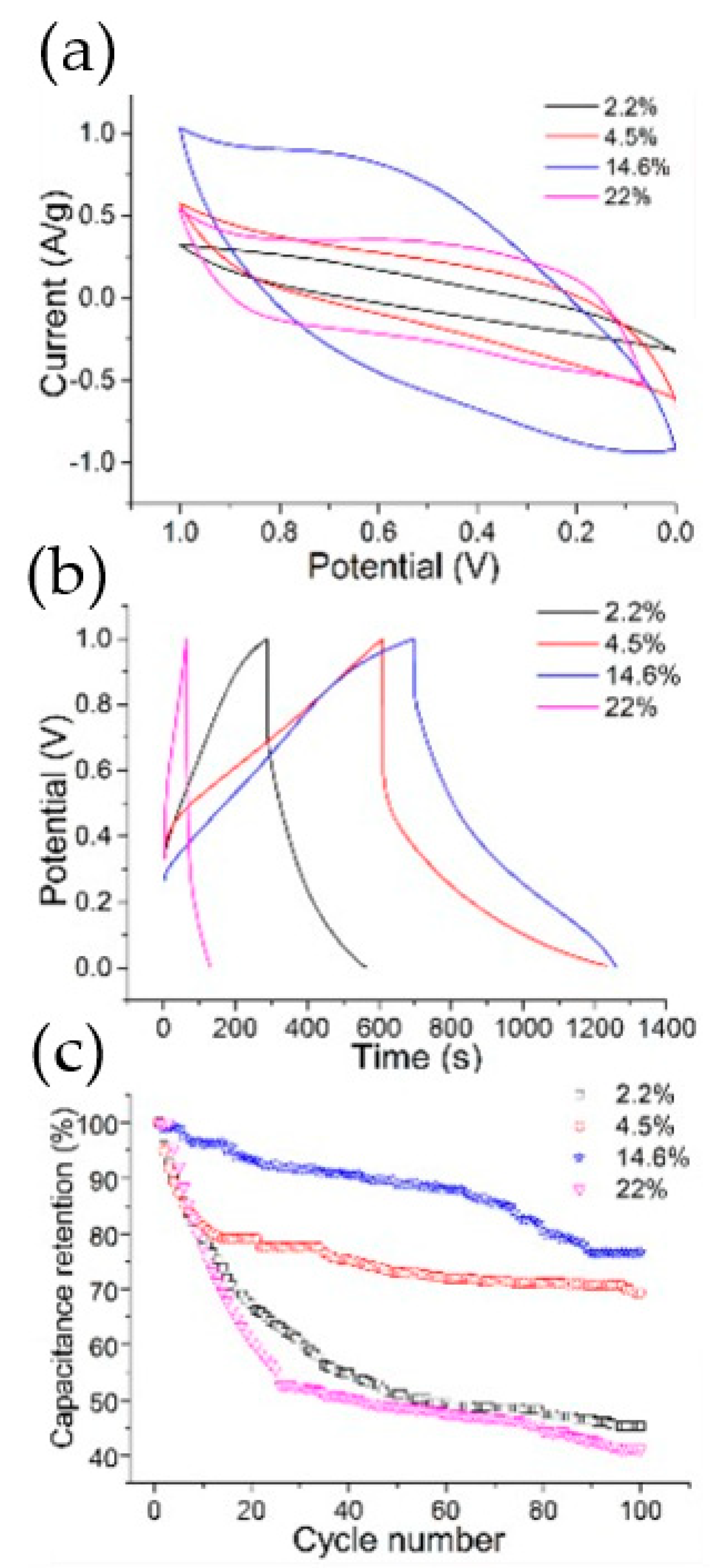

Figure 11. Electrochemical performances of TiO2/graphene/PPy with different TiO2 content: (a) CV curves; (b) galvanostatic charge–discharge curves; (c) cycle stability. (Reproduced with permission from ref. [43]. Copyright 2015 ACS Publications).
Figure 11. Electrochemical performances of TiO2/graphene/PPy with different TiO2 content: (a) CV curves; (b) galvanostatic charge–discharge curves; (c) cycle stability. (Reproduced with permission from ref. [43]. Copyright 2015 ACS Publications).
Materials 15 01012 g011
Materials 15 01012 g012
Figure 12. (a) Schematic diagram of the preparation of PANI-rGO/cellulose fiber composite paper. Optical images of (b) pure cellulose fiber paper and (c,d) nanostructured rGO/cellulose fiber composite paper. SEM images of (e,f) rGO-coated cellulose fiber paper, (g,h) nanostructured rGO/cellulose fiber composite paper, and (i,j) PANI-rGO/cellulose fiber composite paper. (Reproduced with permission from ref. [51]. Copyright 2014 Wiley Publications).
Figure 12. (a) Schematic diagram of the preparation of PANI-rGO/cellulose fiber composite paper. Optical images of (b) pure cellulose fiber paper and (c,d) nanostructured rGO/cellulose fiber composite paper. SEM images of (e,f) rGO-coated cellulose fiber paper, (g,h) nanostructured rGO/cellulose fiber composite paper, and (i,j) PANI-rGO/cellulose fiber composite paper. (Reproduced with permission from ref. [51]. Copyright 2014 Wiley Publications).
Materials 15 01012 g012
Materials 15 01012 g013

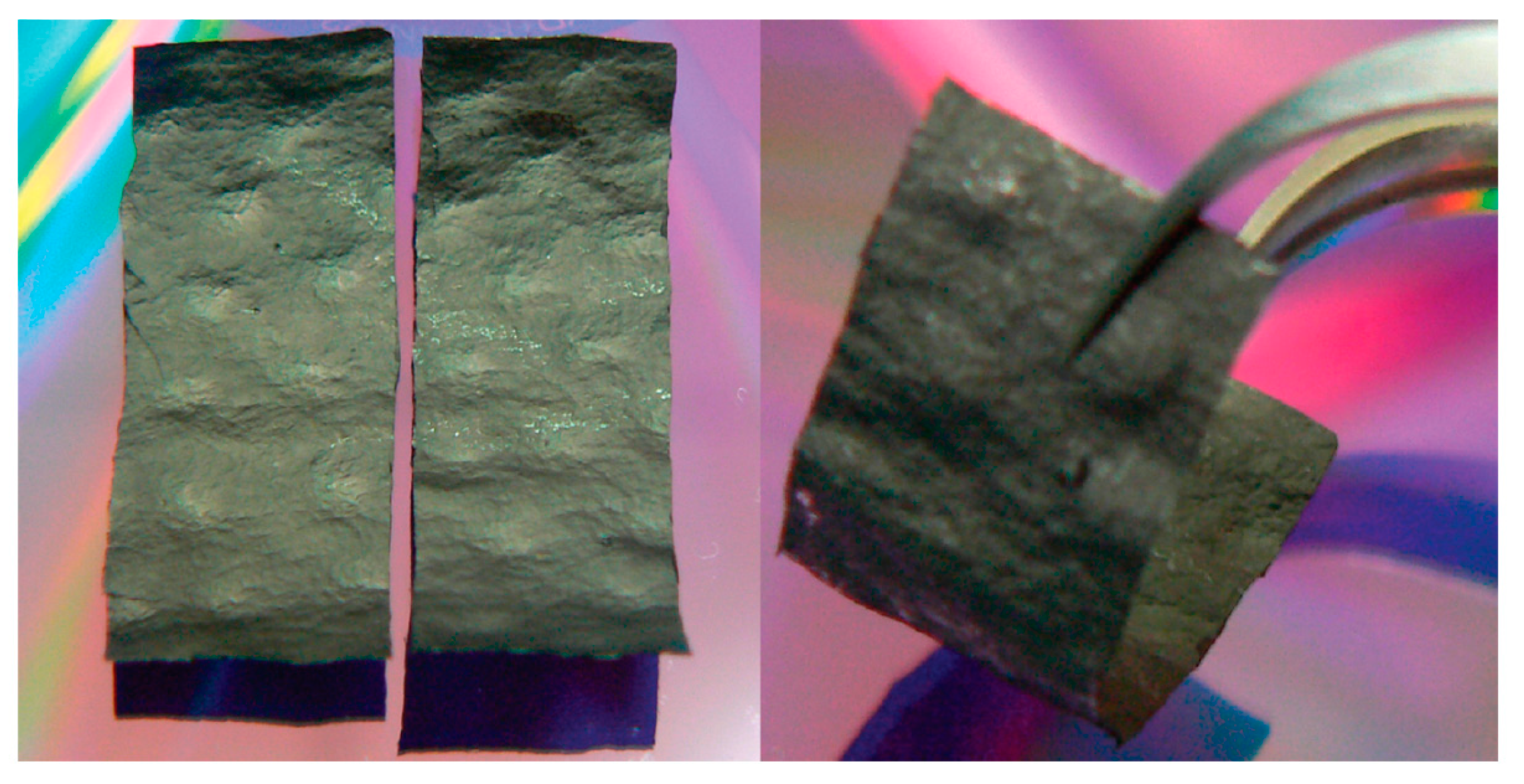

Figure 13. Flexible graphene paper. (Reproduced with permission from ref. [55]. Copyright 2009 ACS Publications.)
Figure 13. Flexible graphene paper. (Reproduced with permission from ref. [55]. Copyright 2009 ACS Publications.)
Materials 15 01012 g013
Materials 15 01012 g014

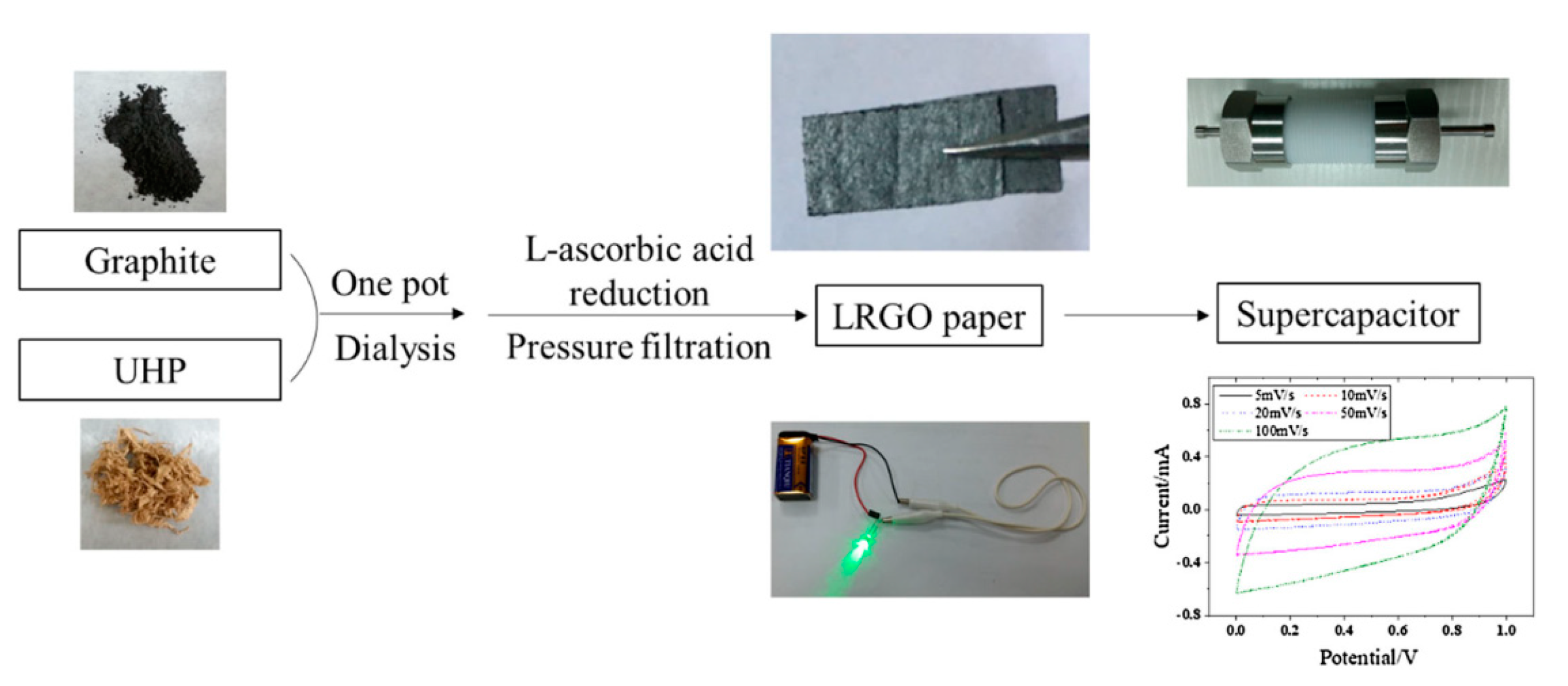

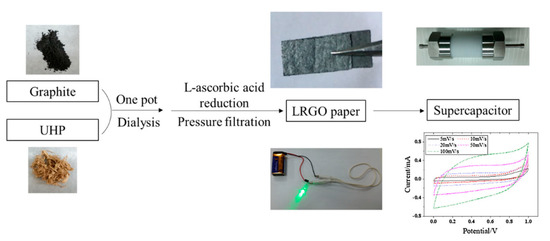

Figure 14. Supercapacitor derived from a conductive paper consisting of a lignocellulose/rGO (LRGO) composite. (Reproduced with permission from ref. [56]. Copyright 2018 Springer Nature Publications).
Figure 14. Supercapacitor derived from a conductive paper consisting of a lignocellulose/rGO (LRGO) composite. (Reproduced with permission from ref. [56]. Copyright 2018 Springer Nature Publications).
Materials 15 01012 g014
Materials 15 01012 g015
Figure 15. Illustration of the three steps used to prepare rGO/nano yarns (rGO/NYs). (Reproduced with permission from ref. [63]. Copyright 2013 Wiley Publications).
Figure 15. Illustration of the three steps used to prepare rGO/nano yarns (rGO/NYs). (Reproduced with permission from ref. [63]. Copyright 2013 Wiley Publications).
Materials 15 01012 g015
Materials 15 01012 g016

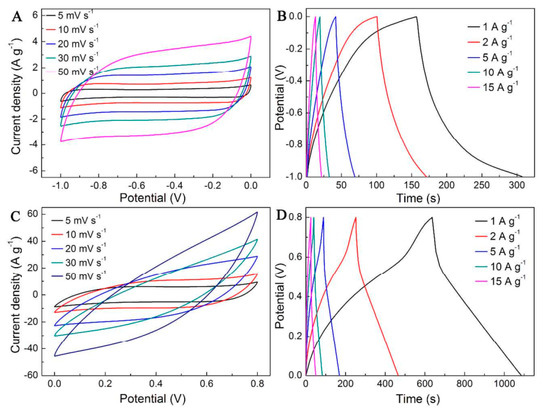

Figure 16. CVs of (A) rGO@actived carbon cloth (rGO@ACC) and (C) V2O5/polyindole@ACC. Galvanostatic charge–discharge curves of (B) rGO@ACC and (D) V2O5/polyindole@ACC. (Reproduced with permission from ref. [65]. Copyright 2016 ACS Publications).
Figure 16. CVs of (A) rGO@actived carbon cloth (rGO@ACC) and (C) V2O5/polyindole@ACC. Galvanostatic charge–discharge curves of (B) rGO@ACC and (D) V2O5/polyindole@ACC. (Reproduced with permission from ref. [65]. Copyright 2016 ACS Publications).
Materials 15 01012 g016
Materials 15 01012 g017

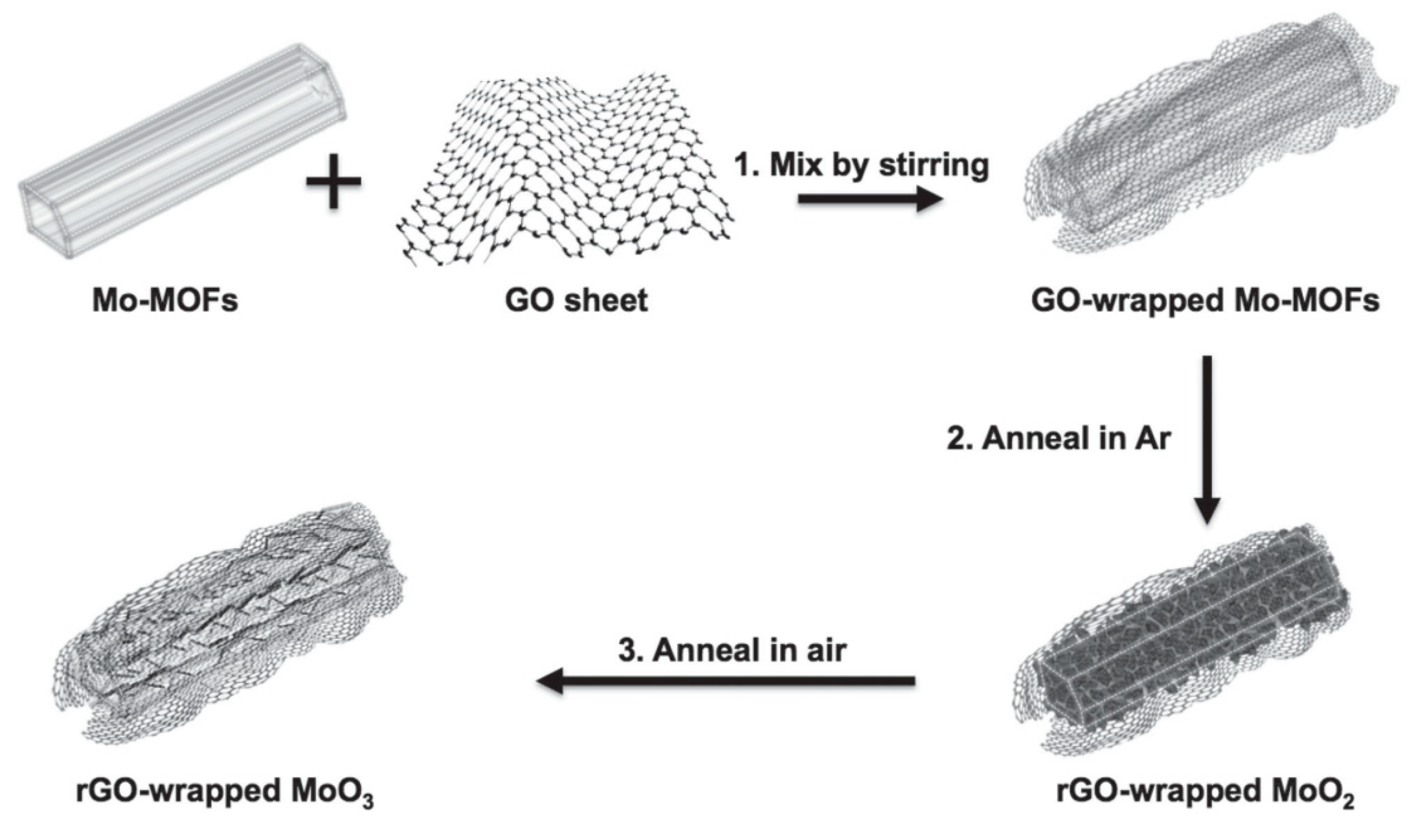

Figure 17. Preparation process of rGO/MoO3 composites. (Reproduced with permission from ref. [69]. Copyright 2015 Wiley Publications).
Figure 17. Preparation process of rGO/MoO3 composites. (Reproduced with permission from ref. [69]. Copyright 2015 Wiley Publications).
Materials 15 01012 g017
Table 1. Preparation and application of graphene-based composites.
Table 1. Preparation and application of graphene-based composites.
Carbon-Based MaterialCompositesPreparation MethodsApplications
graphenepoly ethylenedioxythiophene-grapheneelectrochemically depositionenergy storage devices [32]
(PEDOT:PSS)/graphenein situ polymerizationenergy harvesting systems [35]
graphene/MnO2/CNTschemical co-precipitation methodenergy storage devices as a robust electrode [38]
graphene/PANI electropolymerizationpaper electrode [39]
graphene/MnO2 electrodepositionasymmetric supercapacitor [41]
TiO2/graphene/PPy electrodepositionsupercapacitor [43].
GO/rGOPANI/GO polymerizationsupercapacitor electrodes [59,60]
GO based TiO2 composite membranevacuum filtration water purification system [61]
nickel cobalt oxide/GOcoprecipitation supercaps electrode [66]
rGO/polypyrrole nanowires compositein situ routeportable electronic devices [62]
rGO/Cu2Ohydrothermal techniquesupercaps [70]
paper pulp/rGOdrop casting techniqueflexible electrode [78]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Razaq, A.; Bibi, F.; Zheng, X.; Papadakis, R.; Jafri, S.H.M.; Li, H. Review on Graphene-, Graphene Oxide-, Reduced Graphene Oxide-Based Flexible Composites: From Fabrication to Applications. Materials 2022, 15, 1012. https://doi.org/10.3390/ma15031012

AMA Style

Razaq A, Bibi F, Zheng X, Papadakis R, Jafri SHM, Li H. Review on Graphene-, Graphene Oxide-, Reduced Graphene Oxide-Based Flexible Composites: From Fabrication to Applications. Materials. 2022; 15(3):1012. https://doi.org/10.3390/ma15031012

Chicago/Turabian Style

Razaq, Aamir, Faiza Bibi, Xiaoxiao Zheng, Raffaello Papadakis, Syed Hassan Mujtaba Jafri, and Hu Li. 2022. "Review on Graphene-, Graphene Oxide-, Reduced Graphene Oxide-Based Flexible Composites: From Fabrication to Applications" Materials 15, no. 3: 1012. https://doi.org/10.3390/ma15031012

APA Style

Razaq, A., Bibi, F., Zheng, X., Papadakis, R., Jafri, S. H. M., & Li, H. (2022). Review on Graphene-, Graphene Oxide-, Reduced Graphene Oxide-Based Flexible Composites: From Fabrication to Applications. Materials, 15(3), 1012. https://doi.org/10.3390/ma15031012

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
