Interleukin-10-Mediated Lymphopenia Caused by Acute Infection with Foot-and-Mouth Disease Virus in Mice

by
Zijing Guo
1,2,
Yin Zhao
1,
Zhidong Zhang
2,* and
Yanmin Li
2,*
1
State Key Laboratory on Veterinary Etiological Biology, Lanzhou Veterinary Research Institute, Chinese Academy of Agricultural Sciences, Lanzhou 730030, China
2
College of Animal Husbandry and Veterinary Medicine, Southwest Minzu University, Chengdu 610041, China
*
Authors to whom correspondence should be addressed.
Viruses 2021, 13(12), 2358; https://doi.org/10.3390/v13122358
Submission received: 22 September 2021 / Revised: 6 November 2021 / Accepted: 20 November 2021 / Published: 24 November 2021
(This article belongs to the Special Issue Global Foot-and-Mouth Disease Control)
Browse Figures
Review Reports Versions Notes

Abstract

:
Foot-and-mouth disease (FMD) is characterized by a pronounced lymphopenia that is associated with immune suppression. However, the mechanisms leading to lymphopenia remain unclear. In this study, the number of total CD4+, CD8+ T cells, B cells, and NK cells in the peripheral blood were dramatically reduced in C57BL/6 mice infected with foot-and-mouth disease virus (FMDV) serotype O, and it was noted that mice with severe clinical symptoms had expressively lower lymphocyte counts than mice with mild or without clinical symptoms, indicating that lymphopenia was associated with disease severity. A further analysis revealed that lymphocyte apoptosis and trafficking occurred after FMDV infection. In addition, coinhibitory molecules were upregulated in the expression of CD4+ and CD8+ T cells from FMDV-infected mice, including CTLA-4, LAG-3, 2B4, and TIGIT. Interestingly, the elevated IL-10 in the serum was correlated with the appearance of lymphopenia during FMDV infection but not IL-6, IL-2, IL-17, IL-18, IL-1β, TNF-α, IFN-α/β, TGF-β, and CXCL1. Knocking out IL-10 (IL-10-/-) mice or blocking IL-10/IL-10R signaling in vivo was able to prevent lymphopenia via downregulating apoptosis, trafficking, and the coinhibitory expression of lymphocytes in the peripheral blood, which contribute to enhance the survival of mice infected with FMDV. Our findings support that blocking IL-10/IL-10R signaling may represent a novel therapeutic approach for FMD.

1. Introduction

FMD is recognized as one of the most infectious and economically important diseases of domestic livestock [1]. The etiological agent, FMD virus (FMDV), an aphthovirus of the Picornaviridae family, can infect a multitude of cloven-hoofed animal species, including both ruminants and suids [1,2]. The FMDV genome is approximately 8.5 kb in length, with a positive-sense, single-stranded RNA that encodes four structural proteins (VP1, VP2, VP3, and VP4) and eight nonstructural proteins (L, 2A, 2B, 2C, 3A, 3B, 3C, and 3D) [1]. To date, seven known serotypes of FMDV (A, O, Asia1, C, SAT1, SAT2, and SAT3) exist and consist of numerous subtypes [1].
Following FMDV infection, lymphocyte depletion in the peripheral blood, referred to as lymphopenia, is a common characteristic in pigs [3,4], cattle [5,6], and C57BL/6 mice [7]. Lymphopenia is considered to be one of the important mechanisms by which the FMDV evade the host immune response and cause immune suppression [2,8]. However, the mechanisms of lymphopenia caused by FMDV are still unclear. A previous study reported that FMDV serotype C can directly infect T and B cells in lymphoid compartments of swine, which may result in lymphoid depletion [4]. Despite high viremia in pigs infected with FMDV (serotypes of C, O, and A), no viral RNA or virus could be isolated on BHK-21 cells from the lysate of peripheral blood mononuclear cells (PBMCs), indicating that the active infection of lymphocytes is not believed to be responsible for lymphopenia [3,9]. Thus, it was hypothesized that lymphopenia may be induced by the tissue redistribution of lymphocyte and/or apoptosis through the activation of caspase 3, as IFN-α/β of Type 1 interferons (Type 1 IFN), reported to be related to the trafficking of lymphocytes, was increased following FMDV infection, and the expression of caspase 3 mRNA was upregulated more in PBMC from infected pigs compared to uninfected controls [3,10,11]. Until now, no direct evidence of peripheral blood lymphocyte apoptosis and trafficking have been reported following FMDV infection.
Interleukin-10 (IL-10), a master regulator of the anti-inflammatory response, is critical to protect the host from tissue damage during acute phases of immune responses [12]. IL-10 can be produced by virtually all immune cells, and it can also modulate the function of these cells [13]. Despite its primary anti-inflammatory role, IL-10 plays a dual role of promoting pathogen persistence [14,15,16,17] and limiting immune pathology [18,19], and these effects may be due to the IL-10-producing immune cell, the available IL-10 levels, the target cell, and the microenvironmental cofactors, such as other cytokines [20]. It has been suggested that IL-10 was able to suppress T-cell proliferation [12]. In animal models of chronic virus infection, blocking IL-10 signaling could successfully prevent T-cell exhaustion [15]. Furthermore, IL-10 produced by CD9+-regulatory B cells was found to induce T-cell apoptosis [21], which indicated that IL-10 may be involved in lymphopenia. During FMDV infection, the elevated IL-10 level has been widely reported in the serum of FMDV-infected cattle and pigs, with a peak at day 3 or 4 post-infection, which coincides with the development of the clinical disease [22,23,24]. The elevated IL-10 produced by dendritic cells (DCs) suppresses T-cell proliferation during FMDV infection [22,25]. In addition, it also may impair the major histocompatibility complex class II molecule (MHC II) expression and antigen processing function during FMDV infection [23]. Thus, elevated IL-10 has been proposed to be related to immune suppression during FMDV infection [22,26]. However, it is still unclear if IL-10 is involved in lymphopenia caused by FMDV infection.
In the present study, we reported that lymphopenia caused by FMDV was associated with the disease severity, and IL-10 was related to the occurrence of lymphopenia caused by FMDV infection. IL-10-/- or blocking IL-10/IL-10R signaling in vivo is able to prevent lymphopenia via downregulating apoptosis, trafficking, and the expression of coinhibitory molecules of lymphocytes from FMDV-infected mice, which contribute to enhance the survival of mice infected with FMDV. These results could provide new insights into the pathogenicity of FMDV and potential therapeutics for FMDV-infected animals.

2. Materials and Methods

2.1. Mice and Virus Strain

C57BL/6 mice at age of four to five weeks were obtained from the Animal Center for Lanzhou Veterinary Research Institute (LVRI), Chinese Academy of Agricultural Sciences (CAAS). C57BL/6-background IL-10-/- mice were purchased from Cyagen Biosciences Inc (Guangzhou, China). All infectious animal work was performed in the biosafety level 3 biocontainment laboratory at LVRI, in strict accordance with good animal practice as stipulated by the Animal Ethics Procedures and Guidelines of the People’s Republic of China, and the study was approved by the Animal Ethics Committee of LVRI, CAAS (Approval Code: LVRIAEC-2019-085, approval date: 20 December 2019). The animals were euthanized when infected mice showed severe respiratory distress, inability to maintain body temperature, or secondary infection. FMDV O/BY/CHA/2010 (GenBank accession number JN998085) was used for viral infection experiments in this study. O/BY/CHA/2010 was obtained from the National/OIE Foot-and-Mouth Diseases Reference Laboratory, LVRI, CAAS.

2.2. Animal Infection and Preparation of Samples

Mice were infected with FMDV subcutaneously (0.05 mL) with 5 × 105.5 TCID50 per mice, which was the lowest dose of infection previously determined by our laboratory to cause death in mice at 4-6 weeks [7]. Mock mice were inoculated subcutaneously with 0.05-mL phosphate-buffered saline (PBS). C57BL/6 mice infected with FMDV developed clear signs of disease, including respiratory distress, neurological signs, and wasting [27]. At 48 h post-inoculation (hpi), mice were euthanized, and tissues of the liver, lung, spleen, heart, and kidney were collected and stored at −80 °C until use. The serum was isolated from the whole blood obtained from the infraorbital sinus of the mice at 12, 24, 36, 48, and 60 hpi. Blood was collected in tubes containing an ethylene diamine tetra acetic acid (EDTA) anticoagulant, and the PBMCs were isolated using density gradient centrifugation (Lymphocyte Separation Medium; Tianjin Haoyang Inc., Tianjin, China). The PBMCs were resuspended in staining buffer (PBS containing 2% fetal bovine serum) for flow cytometry. Before sample collection, the mice were sacrificed using intraperitoneal (i.p.) injections with 200-μL pentobarbital, followed by cervical dislocation or exsanguination under terminal anesthesia.

2.3. Antibodies and Flow Cytometry

Anti-mouse CD3, CD19, NK1.1, CD8, and CD4 were used to identify T lymphocytes, B lymphocytes, natural killer (NK) lymphocytes, CD3+CD8+ T lymphocytes, and CD3+CD4+ T lymphocytes, respectively. Anti-mouse PD-1, CTLA-4, Tim-3, LAG-3, 2B4, TIGIT, CD160, and the isotype control of these antibodies were used to evaluate CD4+ and CD8+ T cell exhaustion. Anti-mouse CD16/32 was used to preincubate for blocking Fc receptors. The detailed information of these antibodies was shown in Supplementary Table S1. For cell surface staining, antibodies were incubated for 20 min on the ice in staining buffer. After staining, all samples were washed by PBS twice. Lymphocytes populations were selected on the basis of forward and side light scatter and counting the number of lymphocytes by flow cytometry. Data were acquired on a CytoFLEX (Beckman Coulter Inc., Shanghai, China) and were analyzed with FlowJo software (Treestar, Ashland, OR, USA).

2.4. In Vivo Antibody Treatment

In vivo anti-mouse IL-10R (clone 1B1.3A) for blocking IL-10/IL-10R signaling and in vivo rat IgG1 isotype control (clone HRPN) were purchased from BioXCell (West Lebanon, NH, USA). Mice were injected with an intraperitoneal injection (i.p.) with 200 μg of anti-IL-10R Ab (clone 1B1.3A) or a control rat IgG1 Ab (clone HRPN), as described previously [28], on days 1 and 0 after FMDV infection.

2.5. Apoptosis Detection

The PBMCs were isolated from mock mice and FMDV-infected mice. The cells were labeled separately with surface markers, Alexa Flour@ 647 anti-mouse CD3, APC anti-mouse CD19, and APC anti-mouse NK1.1 in staining buffer for 20 min on ice in the dark to detect the apoptosis of T, B, and NK cells. After washing, cells apoptosis was detected using the Annexin V/PI detection kit (BD Biosciences Inc., Franklin Lakes, N.J., USA) according to the manufacturer’s instructions. Annexin V+/PI− cells were considered early apoptotic cells, and Annexin V+/PI+ cells were considered late apoptotic cells [29] using CytoFLEX (Beckman Coulter Inc., Shanghai, China).

2.6. RT-qPCR

The serums were collected from mock mice and infected mice at 12, 24, 36, 48, and 60 h post-FMDV infection; the total RNAs were extracted from 100-μL serum using TRIzol reagent (Invitrogen, Waltham, MA, USA). The cDNA was synthesized from the extracted RNA preparation using PrimeScript™ RT Master Mix (Takara, Tokyo, Japan), according to the manufacturer’s instructions. FMDV RNA in the serums was quantitatively determined by RT-qPCR, and the primers targeting the FMDV 3D gene were reported in a previous study [30].
Tissues samples of the heart from mock mice or infected mice were collected at 48 hpi. The total RNAs were extracted using TRIzol reagent (Invitrogen, Waltham, MA, USA). One microgram of purified RNA was transcribed into cDNA using the PrimeScript™ RT reagent kit with gDNA Eraser (Takara, Tokyo, Japan) according to the manufacturer’s instructions. The levels of the lymphocytes in the heart were analyzed by RT-qPCR using TB Green Premix ExTaq reagents (TaKaRa, Tokyo, Japan) and with the following forward (F) and reverse (R) primers. The primer sequences were as follows: CD3-F: GCCCAGAGGGCAAAACAAG, CD3-R: TGCGGATGGGCTCATAGTCT. NK1.1-F: GACTCTCCCGAAACCCATCA, and NK1.1-R-GTTCACCGAGTTTCCATTTGTG. The GAPDH (Mm01205647_g1) and CD19 (Mm01205647_g1) primers were purchased from Life Technologies (Shanghai, China). The relative expression of mRNA was calculated using the comparative cycle threshold (2–ΔΔCT) method. All the experiments were repeated three times for each experiment.

2.7. Tracking Lymphocytes Labeled with CFSE In Vivo

Carboxyfluorescein diacetate succinimidyl ester (CFSE) can be used to label a cell population of interest easily and quickly for in vivo investigation. This labeling has classically been used to study lymphocyte proliferation and trafficking [31]. Splenic lymphocytes were isolated by the Mouse Spleen Lymphocyte Isolation Kit (Tianjin Haoyang Inc., Tianjin, China), and these lymphocytes were labeled CFSE with the CellTrace™ Cell Proliferation Kit (Invitrogen, Waltham, MA, USA) according to the manufacturer’s instructions. These cells were resuspended in 0.9% NaCl and the numbers counted again, and the staining was assessed by a FACS analysis of the excess cells prior to injection. The suspension of 5 × 106-labeled cells was injected into the tail veins of per mice before the virus challenge. After this, the animals were classified as the virus-infected group and mock group, with three mice in each group. The animals were killed at 48 hpi and dissected as described previously for the CFSE-labeled lymphocytes analysis. The lymphocytes from the spleen and blood were analyzed directly with the flow cytometer gated on the lymphocyte populations, counting 20,000 lymphocytes for each compartment. The heart, lung, liver, and kidney were observed by fluorescence microscope.

2.8. Detection of Cytokine Levels in the Serum

The IL-10, IL-6, tumor necrosis factor-α (TNF-α), IFN-α, IFN-β, transforming growth factor-β (TGF-β), and CXCL13 enzyme linked immunosorbent assay (ELISA) kits were purchased from MyBioSource (Vancouver, DC, USA), while the IL-2, IL-17, IL-18, IL-1β, and CXCL1 ELISA kits were purchased from Cloud Clone Corp (Wuhan, China). The level of cytokines in the serum was measured according to the manufacturer’s instructions.

2.9. Statistical Analysis

All statistical analyses were performed using GraphPad Prism version 5.03 software. The cell counts, the expression of coinhibitory molecules, and cytokine/chemokines levels were compared by an unpaired t-test. The percent of T, B cell, CD4+, and CD8+ T cells and the apoptosis and the mRNA expression of T, B, and NK cells were analyzed by two-way ANOVA with Tukey’s multiple comparison test. The survival rates in the mice were compared by the log-rank test. Throughout this article, *, **, ***, and **** indicate statistically significant differences, with p-values of <0.05, 0.01, 0.001, and 0.0001 respectively, while ns indicates a non-statistically significant difference (p > 0.05).

3. Results

3.1. FMDV Infection Was Lethal to C57BL/6 Mice

All infected mice (n = 15) showed signs of clinical disease at 36–72 h post-inoculation (hpi) and died within 4–6 h after showing signs of severe clinical disease. The infected mice initially showed lethargy, isolation, and anorexia, which were scored as mild clinical symptoms in this study. After that, the infected mice showed respiratory distress, ruffled fur, and humped posture, which were scored as severe clinical symptoms in this study. The quick disease progression resulted in the deaths of all animals within 72 hpi (Supplementary Figure S1). To investigate the kinetics of the virus in the serum of the infected mice, time course studies were carried out, and the viral RNA level in the serum was determined at different times post-infection. The FMDV RNA (1.1 ± 1.8 × 108 copies viral RNA/100-μL serum, n = 3) was detected in infected mice as early as 36 hpi, and the highest level was 5.9 × 108 copies viral RNA/100-μL serum at 60 hpi with the severe clinical symptoms (Figure 1D). It is noted that the signs of clinical disease were observed coinciding with the onset of FMDV RNA in the serum detected.

3.2. Lymphopenia in Mice Acutely Infected with FMDV

The number of lymphocytes in the peripheral blood was monitored in mice infected with type O FMDV (5 × 105.5 TCID50) by using flow cytometry. The results showed that a significant reduction in the number and percentage of lymphocytes counts occurred at 36 (120.3 ± 0.1 × 104 cells/mL, n = 3, p = 0.0016) and then further decreased at 48 and 60 hpi (12.0 ± 0.3 × 104 and 8.5 ± 1.3 × 104 cells/mL, respectively, n = 3, p < 0.0001) when compared with that of mock mice (213.4 ± 0.1 × 104 cells/mL, n = 3) (Figure 1A,B). Notably, the infected mice with severe clinical symptoms showed significantly lower lymphocyte counts (6.2 ± 1.6 × 104 cells/mL, n = 5) than those mock mice (202.6 ± 8.7 × 104 cells/mL, n = 5, p < 0.0001) or the infected mice without severe clinical symptoms (94.7 ± 17.1 × 104cells/mL, n = 5, p = 0.0009) (Figure 1C), which indicated that the lymphocyte count was associated with the disease severity in mice infected with FMDV. Indeed, the drop in lymphocyte counts coincided with the onset of FMDV RNA in the serum of the infected mice (Figure 1B,D). The viral RNA loads in the serum were detected in the infected mice at 36 hpi, and they were significantly increased in the infected mice at 48 hpi and continued to increase at 60 hpi (Figure 1D). Overall, the infected mice with severe clinical symptom showed obvious lymphopenia and high viral RNA loads in the serum.

3.3. Loss of CD3+, CD19+, and NK1.1+ Cells Involved in Lymphopenia

In order to determine which lymphocyte subset counts were reduced during FMDV infection in mice, PBMCs were isolated from mock and FMDV-infected mice at different times post-infection. The PBMCs obtained were then incubated with anti-mouse CD19, anti-mouse NK1.1, anti-mouse CD3, anti-mouse CD4, and anti-mouse CD8 antibodies and analyzed by flow cytometry (Supplementary Figure S2). The results showed that the number of CD3+ T cells, CD19+ B cells, and NK1.1+ cells were reduced during FMDV infection (Figure 2A–C). An obvious reduction in the number of CD3+ T cells and CD19+ B cells occurred from 48 hpi, while the NK1.1+ cells obviously decreased from 12 hpi (Figure 2C). A further analysis revealed that the percentages of the T cells and B cells in the peripheral blood changed with the times post-infection. The percentage of B cells was initially decreased at 12 hpi (mock vs. 12 hpi, n = 3, p = 0.9982) and then increased at 24 hpi (mock vs. 24 hpi, n = 3, p = 0.0147); after that, it gradually decreased from 36 to 60 hpi (mock vs. 48 hpi and mock vs. 60 hpi, n = 3, p = 0.0321 and 0.0436, respectively) (Figure 2D). Among the CD3+ T cells, the percentage of CD3+CD8+CD4- T cells decreased during the whole progression of FMDV infection (Figure 2E). Indeed, the percentage of CD19+ B cells in infected mice with severe clinical symptoms (10.5 ± 1.0%, n = 8, p < 0.0001) was significantly reduced when compared with mock mice (27.6 ± 2.5%, n = 8) (Figure 2F), and among CD3+ T cells, the percentage of CD3+CD8+CD4− lymphocytes was significantly reduced in infected mice with severe clinical symptoms (26.4 ± 1.9%, n = 8, p = 0.0196) when compared with mock mice (34.9 ± 1.6%, n = 8) (Figure 2F). These results suggested that T cells, B cells, and NK cells were involved in lymphopenia, and the loss of B cells was more severe as compared to T cells; among the T cells, CD3+CD8+CD4− T cells was the main loss of the T population.

3.4. Apoptosis of T Cells, B Cells, and NK Cells Induced following FMDV Infection

The rapid depletion of lymphocytes in the blood could be due to virus-induced apoptosis cells. To determine whether peripheral blood lymphocytes suffered apoptosis following FMDV infection in mice, we applied annexin V+/PI+ among the total CD3+ T cells, CD19+ B cells, and NK1.1+ NK cells in the peripheral blood. The results showed that the apoptosis of CD3+ T cells was increased in FMDV-infected mice at 48 and 60 hpi (66.6 ± 6.7% and 66. 3 ± 5.9%, n = 3, p = 0.0018 and p = 0.0020, respectively) when compared with the mock mice (27.4 ± 0.5%, n = 3) and, among the late apoptosis of CD3+ T cells, was significantly increased in FMDV-infected mice at 48 and 60 hpi (47.1 ± 7.5% and 45.6 ± 6.6%, n = 3, p = 0.0007 and p = 0.0013, respectively) when compared with the mock mice (17 ± 0.5%, n = 3) (Figure 3A,D). The apoptosis of CD19+ B cells was also increased in FMDV-infected mice at 36 and 48 hpi (39.4 ± 1.8% and 41.3 ± 4.4%, n = 3, p = 0.0089 and p = 0.0033, respectively) when compared with the mock mice (21.0 ± 1.8%, n = 3), and the late apoptosis of CD19+ B cells was significantly increased in FMDV-infected mice at 48 hpi (29.0 ± 4.7%, n = 3, p = 0.0083) when compared with the mock mice (15.5 ± 2.1%, n = 3) (Figure 3B,E). In addition to 60 hpi, the apoptosis of NK cells was increased with time, and the apoptosis of NK cells was significantly greater in FMDV-infected mice at 48 hpi (39.2 ± 0.4%, n = 3, p = 0.0355) than that of the mock mice (18.2 ± 4.0%, n = 3) (Figure 3C,F). These results suggested that the apoptosis of T cells, B cells, and NK cells was induced following FMDV infection, especially T cells.

3.5. Trafficking of Lymphocytes from the Peripheral Blood to Heart following FMDV Infection

Lymphocytes being sequestered from the circulation and migration to infected tissues could lead to the rapid depletion of lymphocytes in the blood. To determine if lymphocytes migrated from the peripheral blood to infected tissue following FMDV infection, the mice were injected with the CFSE-labeled spleen lymphocytes intravenously, and the blood, spleen, heart, kidney, lung, and liver were collected at 48 hpi. The CFSE-labeled lymphocytes in the blood and spleen were detected by flow cytometry, and the CFSE-labeled lymphocytes in the heart, kidney, and lung were observed by fluorescence microscope, because it is difficult to separate lymphocytes from these tissues. The results showed that the CFSE-labeled lymphocytes in the blood of the infected mice (6.7 ± 2.0 × 102 cells/mL, n = 3, p = 0.0016) were significant decreased compared with that of the mock mice (48.1 ± 5.4 × 102 cells/mL, n = 3), which further supported lymphopenia induced by FMDV infection (Supplementary Figure S3A,B). Although the CFSE-labeled lymphocytes in the spleen of the infected mice (6.2 ± 1.1 × 104 cells/mL, n = 3, p = 0.2646) were also reduced, there is no significant difference with the mock mice (8.0 ± 0.9 × 104 cells/mL, n = 3) (Supplementary Figure S3C,D). By using an immunofluorescence microscope, the CFSE-labeled lymphocytes were observed in tissues of the heart, kidney, lung, and liver. The results showed that the levels of CFSE-labeled lymphocytes in the kidneys, lungs, and livers of the infected mice were similar to those of the mock mice (Figure 4). However, the CFSE-labeled lymphocytes in the hearts of the infected mice were obviously increased compared with that of the mock mice (Figure 4). Taken together, these results suggested that lymphocytes migrate from the peripheral blood to the heart following FMDV infection.

3.6. The Upregulated Expression of Coinhibitory Molecules on T Lymphocytes during FMDV Infection

The coinhibitory receptors such as PD-1, LAG-3, and Tim-3 are considered T cell exhaustion markers, and the upregulated expression of these coinhibitory molecules were reported to inhibit T-cell proliferation and then promote apoptosis. To determine whether the expression of coinhibitory molecules was upregulated during acute infection with FMDV in mice, the expression of all known seven coinhibitory molecules (PD-1, CTLA-4, Tim-3, LAG-3, 2B4, TIGIT, and CD160) was analyzed on peripheral blood T lymphocytes, which were harvested from the mock mice and infected mice at 48 hpi when the increased apoptosis of T lymphocytes occurred (Supplementary Figure S4). The results showed that TIM-3 and CD160 expression on CD4+ and CD8+ T cells from FMDV-infected mice was not obviously affected during FMDV infection as compared to the mock mice (CD4-Tim3, 3.1 ± 0.4% vs. 2.4 ± 0.2% and CD8-Tim3, 1.9 ± 0.6% vs. 1.2 ± 0.2%, n = 10, p = 0.1165 and p = 0.2459, respectively; CD4-CD160, 1.6 ± 0.5% vs. 0.9 ± 0.1% and CD8-CD160, 10.4 ± 2.2% vs. 16.5 ± 2.0%, n = 10, p = 0.2621 and p = 0.0528, respectively) (Figure 5). However, CTLA-4, LAG-3, 2B4, and TIGIT were indeed highly expressed on both CD4+ and CD8+ T cells from FMDV-infected mice, as compared to the mock mice (CD4-CTLA4, 4.3 ± 0.7% vs. 2.2 ± 0.3% and CD8-CTLA4, 2.4 ± 0.5% vs. 1.2 ± 0. 2%, n = 10, p = 0.0169 and p = 0.0457, respectively; CD4-LAG3, 1.8 ± 0.3% vs. 1.0 ± 0.2% and CD8-LAG3, 2.5 ± 0.4% vs. 1.2 ± 0.1%, n = 10, p = 0.0352 and p = 0.0026, respectively; CD4-2B4, 1.5 ± 0.2% vs. 0.9 ± 0.1% and CD8-2B4, 11.6 ± 1.6% vs. 3.0 ± 0.3%, n = 10, p = 0.0235 and p < 0.0001, respectively; CD4-TIGIT, 4.1 ± 0.7% vs. 1.7 ± 0.1% and CD8-TIGIT, 4.9 ± 0.6% vs. 2.9 ± 0.3%, n = 10, p = 0.0150 and p = 0.0167, respectively); the PD-1 on CD8+ T cells from FMDV-infected mice also displayed a high expression, as compared to the mock mice (12.0 ± 1.4% vs. 7.2 ± 0.5%, n = 10, p = 0.0056) (Figure 5). These results showed that the expression of multiple coinhibitory molecules was upregulated on CD4+ and CD8+ cells during FMDV infection.

3.7. The Elevated Levels of IL-10 Coincided with Development of Lymphopenia following FMDV Infection

As per an earlier report, the elevated IL-10 level was detected in the serum of FMDV-infected cattle and pigs, which coincided with the development of the clinical disease. To determine whether IL-10 was upregulated following FMDV infection in mice and then explore its association with the lymphopenia observed, we examined the concentrations of IL-10 and other potential cytokines/chemokines, including IL-10, IL-6, IL-2, IL-17, IL-18, IL-1β, TNF-α, IFN-α, IFN-β, TGF-β, CXCL13, and CXCL1, in the serum from the mice infected with FMDV. As shown in Figure 6, only the levels of IL-10 and CXCL-13 were significantly increased in FMDV-infected mice, especially in the infected mice with severe clinical symptoms. Importantly, the level of IL-10 was significantly increased from 48 hpi (16.5 ± 4.1 pg/mL, n = 3, p = 0.0266) and then continued to increase until the deaths of the infected mice at 72 hpi (57.6 ± 4.0 pg/mL, n = 3, p = 0.0002) when compared with the mock mice (2.3 ± 0.7 pg/mL, n = 3), which not only coincided with the onset of the viral RNA level in the serum but also coincided with the onset of lymphopenia (Supplementary Figure S5). The elevated levels of IL-10 also coincided with the elevated levels of CXCL13 (Figure 6). In contrast, the levels of IL-6, IL-2, IL-17, IL-18, IL-1β, TNF-α, IFN-α/β, TGF-β, and CXCL1 in the serum of infected mice were not different from those of the mock mice (Figure 6).

3.8. Blocking IL-10 Signaling with IL-10 Receptor Blocker Prevented Lymphopenia Driven by FMDV Infection

IL-10 was previously reported to induce T-cell apoptosis [21]. Therefore, to determine if IL-10 mediated apoptosis, leading to the decline of peripheral blood lymphocytes in FMDV-infected mice, IL-10R blocker for blocking IL-10/IL-10R signaling was used to inject into the mice on days 1 and 0 after FMDV infection. The survival time of mice and the number of peripheral blood lymphocytes were analyzed in comparison with the isotype control mice (n = 10). The results showed that 60% (6/10) of the IL-10R blocker-treated mice still survived at 60 hpi, but all of the isotype group died at this time point (Figure 7A). Overall, IL-10R blocker-treated mice contribute to the enhanced survival of mice infected with FMDV. A further analysis showed that the number of peripheral blood lymphocytes in the IL-10R treatment group (16.8 ± 2.5 × 105 cells/mL, n = 5, p = 0.0028) was significantly higher than that of the isotype group at 48 hpi (4.7 ± 1.3 × 105 cells/mL, n = 5) (Figure 7B). An analysis of cell apoptosis demonstrated that, compared with mice of the isotype group, the level of apoptosis was significantly lower in T cells of mice treated by IL-10R at 48 hpi (T cells: 23.5 ± 3.0% vs. 16.2 ± 0.4%, respectively, n = 5, p = 0.0271) but not B and NK cells (B cells: 49.9 ± 3.3% vs. 41.0 ± 4.8%, n = 5, p = 0.4398, respectively, and NK cells: 39.8 ± 2.7% vs. 28.1 ± 2.0%, n = 5, p = 0.0772, respectively) (Figure 7C). To analyze if the IL-10R blocker could also inhibit the trafficking of lymphocytes from the peripheral blood to the heart, the frequencies of the CD3 T cells, CD19 B cells, and NK1.1 cells in the heart were analyzed by RT-qPCR at 48 hpi. The results showed that the CD19 mRNA levels significantly decreased in the heart of the IL-10R group when compared to the isotype group, and the CD3 and NK1.1 mRNA levels in the IL-10R group show no obvious differences from those that of the isotype group. It indicated that the IL-10R blocker can inhibit the trafficking of CD19+ B cells from the peripheral blood to the heart (Figure 7D). Similarly, the expression of CTLA-4 was significantly decreased in the CD4+ T cells of mice treated by IL-10R at 48 hpi compared with mice of the isotype group (3.6 ± 0.3% vs. 5.4 ± 0.5%, respectively, n = 5, p = 0.0430), and the expression of TIGIT and 2B4 was significantly decreased in CD8+ T cells of the mice treated by IL-10R at 48 hpi compared with mice of the isotype group (CD8-TIGIT: 1.6 ± 0.3% vs. 10.4 ± 3.1% and CD8-2B4: 1.2% vs. 18.8 ± 2.0%, n = 5, p = 0.0234 and p = 0.0010, respectively) (Figure 7E). Overall, these results indicated that the IL-10R blocker contributed to the enhance survival of mice infected with FMDV through alleviating lymphopenia.

3.9. Knocking Out IL-10 Prevented Lymphopenia Driven by FMDV Infection

To further determine the role of IL-10 in lymphopenia, IL-10-/- mice was used to further observe the survival time of mice and the number of peripheral blood lymphocytes. The results showed that 77.8% (7/9) of IL-10-/- mice still survived at 60 hpi, but all wild-type mice died at this time point (Figure 8A). A further analysis showed that the number of peripheral blood lymphocytes from IL-10-/- mice (99.8 ± 14.5 × 104 cells/mL, n = 5, p = 0.0003) was significantly higher than that of wild-type mice at 48 hpi (8.02 ± 2.8 × 104 cells/mL, n = 5) (Figure 8B). An analysis of cell apoptosis demonstrated that, compared with wild-type mice, the level of apoptosis was significantly lower in the T cells and NK cells of IL-10−/− mice at 48 hpi (T cells: 51.9± 4.4% vs. 34.9 ± 2.1%, respectively, n = 5, p = 0.0244 and NK cells: 41.8 ± 3.6% vs. 29.5 ± 2.2%, respectively, n = 5, p = 0.0447) but not B cells (49.1± 5.5% vs. 42.7 ± 3.4%, respectively, n = 5, p = 0.5371) (Figure 8C). Similarly, the CD19 mRNA levels significantly decreased in the hearts of IL-10-/- mice when compared to the wild-type mice, but the NK1.1 mRNA levels significantly increased in the hearts of IL-10-/- mice when compared to the wild-type mice, and the CD3 mRNA levels of IL-10-/- mice showed no obvious differences with that of the wild-type mice. It further supported that IL-10 mediated the trafficking of CD19+ B cells from the peripheral blood to the heart (Figure 8D). The expression of TIGIT, CTLA-4, and PD-1 was significantly decreased in the CD4+ T cells of IL-10-/- mice at 48 hpi compared with that of wild-type mice (CD4-TIGIT: 1.6 ± 0.2% vs. 3.5 ± 0.5%, CD4-CTLA-4: 1.8 ± 0.1% vs. 2.8 ± 0.4%, and CD4-PD-1: 4.9 ± 0.4% vs. 9.6 ± 0.5%, n = 5, p = 0.0056, p = 0.0360, and p = 0.0002, respectively), and the expression of TIGIT, PD-1, and 2B4 was significantly decreased in the CD8+ T cells of IL-10-/- mice at 48 hpi compared with that of the wild-type mice (CD8-TIGIT: 1.7 ± 0.1% vs. 5.3 ± 0.6%, CD8-PD-1: 2.8 ± 0.4% vs. 12.9 ± 0.5%, and CD8-2B4: 1.8 ± 0.4% vs. 17.2 ± 3.3%, n = 5, p = 0.0004, p < 0.0001, and p = 0.0017, respectively) (Figure 8E). Overall, these results from the IL-10-/- mice further indicated that IL-10 plays an important role in lymphopenia caused by FMDV infection.

4. Discussion

Viral infections leading to lymphopenia have been widely reported, such as severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) [32], Ebola virus (EBOV) [33], human immunodeficiency virus (HIV) [34], measles virus (MV) [35], influenza A virus (IAV) [36], and African swine fever virus (ASFV) [37]. Recent studies have indicated that lymphopenia was associated with the disease severity of patients, because individuals who died of SARS-CoV-2 and EBOV infection had expressively lower lymphocyte counts than survivors [38,39]. During FMDV infection, more profound lymphopenia was more prone to be induced by more virulent strains (O1 Campos, O Taiwan 97, A24 Cruzeiro, C3 Resende, and Cs8C1) than the less virulent strains (O SK 2000 and A12) [3,4,26]. In this study, lymphopenia was observed in C57BL/6 mice infected with the FMDV serotype O, and the mice with severe clinical symptoms had significantly lower lymphocyte counts than mild or without clinical symptoms (p < 0.001), which indicated that the level of lymphocyte counts was related to the disease severity during FMDV infection.
Lymphopenia is likely to delay viral clearance in favor of macrophage stimulation and the accompanying “cytokine storm”, which results in the dysfunction of host organs [40]; these damages could increase the risk of developing opportunistic infections. A report described that lymphopenia in COVID-19 patients could increase the risk of developing opportunistic infections of mucormycosis, while the recovery of the lymphocyte count could improve the acquired immune response and induce the production of mucoralean-specific T cells [41]. Similarly, opportunistic infection is a significant feature during HIV infection, which can result in high morbidity and even mortality [42,43]. To the best of our knowledge, there are no reports of opportunistic infections in FMD. It is interesting to further investigate whether opportunistic infections accompany lymphopenia caused by FMDV infection in the future.
A previous study reported that the mRNA expression of caspase 3 was upregulated in PBMC from infected pigs compared to uninfected controls, which supported that lymphocytes apoptosis may be involved in lymphopenia [3]. In this study, the apoptosis of the T cells, B cells, and NK cells in the peripheral blood was detected by Annexin V+/PI+ detection following FMDV infection. To investigate whether lymphocyte apoptosis is related to FMDV infection, the RdRp and VP1 sequences of FMDV were detected in T, B, and NK cells from mice infected with FMDV by flow sorting in our study. The results showed that no sequence of FMDV was detected by RT-qPCR, which supported that these lymphocytes could not be infected with FMDV serotype O [3,9]. Thus, it was believed that lymphocyte apoptosis was caused by indirect factors, such as the activation of apoptosis related-receptors (Fas/FasL) [36], the interaction between the viral protein and host cellular receptors [44], and cytokines (TNF-α) [45]. Interestingly, IL-10 but not TNF-α in the serum from infected mice was upregulated following FMDV infection, and the elevated levels of IL-10 coincided with the occurrence of lymphopenia in this study. IL-10, as an autocrine growth factor in malignant B-1 cells, lies in its ability to inhibit the apoptosis induction of B cells [46,47], which supported that anti-IL-10R antibody treatment or the knock out of IL-10 may not lower the level of apoptosis of B cells. However, IL -10 produced by CD9+ regulatory B cells of severe asthmatic patients induced T-cell apoptosis by the extrinsic and intrinsic apoptosis pathways via a MAPK-dependent mechanism [21]. Moreover, IL-10 overproduction in lupus induced lymphocyte apoptosis via the activation of Fas and caspase [48]. In this study, knocking out IL-10 and blocking IL-10/IL-10R signaling in vivo were able to inhibit the apoptosis of T lymphocytes. Moreover, IL-10 could induce T apoptosis in vitro (Supplementary Figure S6), which was consistent with a previous report [21]. Thus, the elevated IL-10 in the serum is able to induce T-cell apoptosis in the peripheral blood, which contributes to lymphopenia during FMDV infection. It is interesting to further the molecular mechanism of IL-10 induing T-lymphocyte apoptosis during FMDV infection.
Type 1 IFN was originally identified as a humoral factor that confer an antiviral state on cells [49], but it was also found to regulate lymphocyte recirculation and cause transient lymphopenia [10]. The elevated IFN-α level was observed in cattle and pigs infected with FMDV, and it was speculated that the tissue redistribution of lymphocytes may be involved in lymphopenia [11]. In this study, lymphocytes migrated from the peripheral blood to the heart after FMDV infection by tracking CFSE-labeled lymphocytes. Interestingly, the levels of IFN-α/β reported to be involved in trafficking were not upregulated. In addition, the levels of IL-6, IL-2, IL-17, IL-18, IL-1β, TNF-α, IFN-α/β, TGF-β, and CXCL1 in the serum of infected mice were similar with that from mock mice. Notably, elevated IL-10 not only coincided with the occurrence of lymphopenia but, also, with elevated levels of CXCL13. Interestingly, knocking out IL-10 and blocking IL-10/IL-10R signaling in vivo could inhibit the trafficking of CD19+ B cells from the peripheral blood to the heart. These results supported that lymphocyte trafficking may be related to IL-10 or CXCL13 rather than type I IFNs. CXCL13, also known as B cell-attracting chemokine-1, could attract B cells to secondary lymphoid tissue. It is expressed by follicular dendritic cells (FDCs), stromal cells, monocytes, and macrophages [50,51,52]. A recent study reported that IL-10 can control the expression of CXCL13 via the JAK/STAT pathway [53]. Therefore, it was speculated that IL-10 may mediate B cell trafficking by regulating CXCL13 expression.
T-cell exhaustion is a state of T-cell dysfunction that arises during many chronic infections and cancers. It is defined by a poor effector function, the sustained expression of inhibitory receptors, and a transcriptional state distinct from that of a functional effector or memory T cells [54,55]. Previous studies have reported that lymphopenia was accompanied by the upregulated expression of coinhibitory molecules during viral infections, including SARS-CoV-2- [56,57], HIV [58], EBOV [59], and IAV infection [60]. Notably, the expression of PD-1, LAG-3, and TIGIT in CD4+ T cells showed the strongest inverse associations with CD4+ T-cell counts during HIV infection [58], and the blockade of PD-L1 in vivo improves the number of CD8+ T cells in high pathological IAV infection [60]. The downstream effects of PD-1 signaling include the inhibition of AKT, phosphoinositide 3-kinase, extracellular signal-regulated kinase, and phosphoinositide phospholipase C-γ and regulation of the cell cycle, leading to decreased IFN-γ/IL-2 production, reduced proliferation, and increased risk for apoptosis [61]. In this study, the upregulated expression of CTLA-4, LAG-3, 2B4, and TIGIT were observed in CD8+ T cells and CD4+ T cells of mice infected with FMDV, which would inhibit T-cell proliferation and promote T-cell apoptosis during virus infections [56,57]. As per an earlier report, IL-10 could induce PD-L1 expression on peripheral blood monocytes via STAT3 [62]. In this study, knocking out IL-10 and blocking IL-10/IL-10R signaling in vivo downregulated the expression of TIGIT and 2B4 on CD8+ T cells and CTLA-4 on CD4+ T cells. Thus, IL-10-/- and blocking IL-10/IL-10R signaling contribute to T-cell proliferation and inhibit T-cell apoptosis via regulating the expression of coinhibitory molecules on T cells.

5. Conclusions

Lymphopenia involving in CD4+ and CD8+ T cells, B cells, and NK cells was observed in C57BL/6 mice infected with FMDV. Lymphopenia was associated with disease severity. Elevated IL-10 in the serum from infected mice was related to the occurrence of lymphopenia, and the knocking out of IL-10 and blocking IL-10/IL-10R signaling prevent lymphopenia via inhibiting apoptosis, trafficking, and the expression of coinhibitory molecules of lymphocytes, which contributes to enhancing the survival of mice infected with FMDV. Our results indicate that knocking out IL-10 and blocking IL-10/IL-10R signaling may contribute to preempting disease progression in FMDV-infected animals with low lymphocyte counts, which could be considered as a treatment strategy for FMD animals with high IL-10 levels.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/v13122358/s1: Table S1: The detailed information of the antibodies used in this study. Figure S1: The survival curve of mice infected with FMDV (n = 15). Figure S2: Representative FACS plots of CD3+ T cells, CD19+ B cells, and CD3+CD4+ and CD3+CD8+ T cells from mock mice and infected mice at 48 hpi. Figure S3: The CFSE-labeled lymphocytes in the peripheral blood and spleen. (A) Representative FACS plots of CFSE-labeled lymphocytes in the blood from mock mice and infected mice. (B) CFSE-labeled lymphocytes in the blood were significantly decreased in FMDV-infected mice compared with mock mice. (C) Representative FACS plots of CFSE-labeled lymphocytes in the spleen from mock mice and infected mice. (D) CFSE-labeled lymphocytes in the spleen were decreased in FMDV-infected mice compared with mock mice. Figure S4: Representative FACS plots of PD-1, CTLA-4, Tim-3, LAG-3, 2B4, TIGIT, and CD160 on CD4 and CD8 T cells from mock mice and infected mice. Figure S5. The trend of viremia, lymphocyte count in the peripheral blood, and IL-10 concentration in the serum during FMDV infection. Figure S6: T-cell apoptosis was induced by IL-10 in vitro.

Author Contributions

Conceptualization, Z.Z. and Y.L.; methodology, Z.G. and Y.Z.; software, Z.G.; validation, Z.G. and Y.Z.; resources, Z.G. and Z.Z.; data curation, Z.Z. and Z.G.; writing—original draft preparation, Z.G.; writing—review and editing, Z.Z. and Y.L.; visualization, Z.Z. and Z.G.; supervision, Z.Z and Y.L.; and funding acquisition, Z.Z. and Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Southwest Minzu University Research Startup Funds (125900/16011211013 and 2021115) and the National Key R&D Program of China (2016YFE0204100 and 2016YFD0500108).

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of LVRI, Chinese Academy of Agricultural Sciences (approval Code: LVRIAEC-2019-085, approval date: 20 December 2019).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

FMDFoot-and-mouth disease
FMDVFoot-and-mouth disease virus
PBMCsperipheral blood mononuclear cells
IFNInterferon
ILInterleukin
DCsdendritic cells
MHC IIMajor histocompatibility complex class II molecule
PBSPhosphate-buffered saline
Hpihours post-inoculation
EDTAEthylene diamine tetra acetic acid
NKNatural killer
CFSECarboxyfluorescein diacetate succinimidyl ester
TNF-αTumor necrosis factor-α
TGF-βTransforming growth factor-β
ELISAEnzyme linked immunosorbent assay
SCSSeverity clinical symptoms
SARS-CoV-2Severe acute respiratory syndrome coronavirus 2
EBOVEbola virus
HIVHuman immunodeficiency virus
MVMeasles virus
IAVInfluenza A virus
FDCsFollicular dendritic cells

References

  1. Jamal, S.M.; Belsham, G.J. Foot-and-mouth disease: Past, present and future. Vet. Res. 2013, 44, 116. [Google Scholar] [CrossRef] [Green Version]
  2. Stenfeldt, C.; Diaz-San Segundo, F.; de Los Santos, T.; Rodriguez, L.L.; Arzt, J. The pathogenesis of foot-and-mouth disease in pigs. Front. Vet. Sci. 2016, 3, 41. [Google Scholar] [CrossRef] [PubMed]
  3. Bautista, E.M.; Ferman, G.S.; Golde, W.T. Induction of lymphopenia and inhibition of T cell function during acute infection of swine with foot and mouth disease virus (FMDV). Vet. Immunol. Immunopathol. 2003, 92, 61–73. [Google Scholar] [CrossRef]
  4. Díaz-San Segundo, F.; Salguero, F.J.; de Avila, A.; de Marco, M.M.; Sánchez-Martín, M.A.; Sevilla, N. Selective lymphocyte depletion during the early stage of the immune response to foot-and-mouth disease virus infection in swine. J. Virol. 2006, 80, 2369–2379. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Joshi, G.; Sharma, R.; Kakker, N.K. Phenotypic and functional characterization of T-cells and in vitro replication of FMDV serotypes in bovine lymphocytes. Vaccine 2009, 27, 6656–6661. [Google Scholar] [CrossRef] [PubMed]
  6. Saravanan, S.; Umapathi, V.; Priyanka, M.; Hosamani, M.; Sreenivasa, B.P.; Patel, B.H.M.; Narayanan, K.; Sanyal, A.; Basagoudanavar, S.H. Hematological and serum biochemical profile in cattle experimentally infected with foot-and-mouth disease virus. Vet. World 2020, 13, 426–432. [Google Scholar] [CrossRef]
  7. Salguero, F.J.; Sanchez-Martin, M.A.; Diaz-San Segundo, F.; de Avila, A.; Sevilla, N. Foot-and-mouth disease virus (FMDV) causes an acute disease that can be lethal for adult laboratory mice. Virology 2005, 332, 384–396. [Google Scholar] [CrossRef] [Green Version]
  8. Cusick, M.F.; Libbey, J.E.; Fujinami, R.S. Picornavirus infection leading to immunosuppression. Future Virol. 2014, 9, 475–482. [Google Scholar] [CrossRef] [Green Version]
  9. Nfon, C.K.; Toka, F.N.; Kenney, M.; Pacheco, J.M.; Golde, W.T. Loss of plasmacytoid dendritic cell function coincides with lymphopenia and viremia during foot-and-mouth disease virus infection. Viral Immunol. 2010, 23, 29–41. [Google Scholar] [CrossRef]
  10. Junt, T.; Waibler, Z.; Forster, R.; Kalinke, U. Type I interferons directly regulate lymphocyte recirculation and cause transient blood lymphopenia. Blood 2006, 108, 3253–3261. [Google Scholar] [CrossRef]
  11. Eschbaumer, M.; Stenfeldt, C.; Rekant, S.I.; Pacheco, J.M.; Hartwig, E.J.; Smoliga, G.R.; Kenney, M.A.; Golde, W.T.; Rodriguez, L.L.; Arzt, J. Systemic immune response and virus persistence after foot-and-mouth disease virus infection of naïve cattle and cattle vaccinated with a homologous adenovirus-vectored vaccine. BMC Vet. Res. 2016, 12, 205. [Google Scholar] [CrossRef] [Green Version]
  12. Rojas, J.M.; Avia, M.; Martín, V.; Sevilla, N. IL-10: A Multifunctional Cytokine in Viral Infections. J. Immunol. Res. 2017, 2017, 6104054. [Google Scholar] [CrossRef] [Green Version]
  13. Saraiva, M.; O’Garra, A. The regulation of IL-10 production by immune cells. Nat. Rev. Immunol. 2010, 10, 170–181. [Google Scholar] [CrossRef] [Green Version]
  14. Smith, L.K.; Boukhaled, G.M.; Condotta, S.A.; Mazouz, S.; Guthmiller, J.J.; Vijay, R.; Butler, N.S.; Bruneau, J.; Shoukry, N.H.; Krawczyk, C.M.; et al. Interleukin-10 directly inhibits CD8(+) T cell function by enhancing N-Glycan branching to decrease antigen sensitivity. Immunity 2018, 48, 299–312. [Google Scholar] [CrossRef]
  15. Ejrnaes, M.; Filippi, C.M.; Martinic, M.M.; Ling, E.M.; Togher, L.M.; Crotty, S.; von Herrath, M.G. Resolution of a chronic viral infection after interleukin-10 receptor blockade. J. Exp. Med. 2006, 203, 2461–2472. [Google Scholar] [CrossRef] [PubMed]
  16. Brooks, D.G.; Trifilo, M.J.; Edelmann, K.H.; Teyton, L.; McGavern, D.B.; Oldstone, M.B.A. Interleukin-10 determines viral clearance or persistence in vivo. Nat. Med. 2006, 12, 1301–1309. [Google Scholar] [CrossRef]
  17. Wilson, E.B.; Brooks, D.G. The role of IL-10 in regulating immunity to persistent viral infections. Curr. Top. Microbiol. Immunol. 2011, 350, 39–65. [Google Scholar] [PubMed] [Green Version]
  18. Weiss, K.A.; Christiaansen Af Fau—Fulton, R.B.; Fulton Rb Fau—Meyerholz, D.K.; Meyerholz Dk Fau—Varga, S.M.; Varga, S.M. Multiple CD4+ T cell subsets produce immunomodulatory IL-10 during respiratory syncytial virus infection. J. Immunol. 2011, 187, 3145–3154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Schorer, M.; Rakebrandt, N.; Lambert, K.A.-O.; Hunziker, A.; Pallmer, K.; Oxenius, A.A.-O.; Kipar, A.A.-O.; Stertz, S.; Joller, N.A.-O. TIGIT limits immune pathology during viral infections. Nat. Commun. 2020, 11, 1288. [Google Scholar] [CrossRef] [Green Version]
  20. Bedke, T.; Muscate, F.; Soukou, S.; Gagliani, N.; Huber, S. Title: IL-10-producing T cells and their dual functions. Semin. Immunol. 2019, 44, 101335. [Google Scholar] [CrossRef]
  21. Brosseau, C.; Durand, M.; Colas, L.; Durand, E.; Foureau, A.; Cheminant, M.A.; Bouchaud, G.; Castan, L.; Klein, M.; Magnan, A.; et al. CD9(+) Regulatory B Cells Induce T Cell Apoptosis via IL-10 and Are Reduced in Severe Asthmatic Patients. Front. Immunol. 2018, 9, 3034. [Google Scholar] [CrossRef] [Green Version]
  22. Díaz-San Segundo, F.; Rodríguez-Calvo, T.; de Avila, A.; Sevilla, N. Immunosuppression during acute infection with foot-and-mouth disease virus in swine is mediated by IL-10. PLoS ONE 2009, 4, e5659. [Google Scholar] [CrossRef] [Green Version]
  23. Sei, J.J.; Waters, R.A.; Kenney, M.; Barlow, J.W.; Golde, W.T. Effect of Foot-and-Mouth Disease Virus Infection on the Frequency, Phenotype and Function of Circulating Dendritic Cells in Cattle. PLoS ONE 2016, 11, e0152192. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, Z.; Doel, C.; Bashiruddin, J.B. Interleukin-10 production at the early stage of infection with foot-and-mouth disease virus related to the likelihood of persistent infection in cattle. Vet. Res. 2015, 46, 132. [Google Scholar] [CrossRef] [Green Version]
  25. Ostrowski, M.; Vermeulen, M.; Zabal, O.; Geffner, J.R.; Sadir, A.M.; Lopez, O.J. Impairment of thymus-dependent responses by murine dendritic cells infected with foot-and-mouth disease virus. J. Immunol. 2005, 175, 3971–3979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Golde, W.T.; Nfon, C.K.; Toka, F.N. Immune evasion during foot-and-mouth disease virus infection of swine. Immunol. Rev. 2008, 225, 85–95. [Google Scholar] [CrossRef]
  27. Habiela, M.; Seago, J.; Perez-Martin, E.; Waters, R.; Windsor, M.; Salguero, F.J.; Wood, J.; Charleston, B.; Juleff, N. Laboratory animal models to study foot-and-mouth disease: A review with emphasis on natural and vaccine-induced immunity. J. Gen. Virol 2014, 95, 2329–2345. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Burrack, K.S.; Huggins, M.A.; Taras, E.; Dougherty, P.; Henzler, C.M.; Yang, R.; Alter, S.; Jeng, E.K.; Wong, H.C.; Felices, M.; et al. Interleukin-15 Complex Treatment Protects Mice from Cerebral Malaria by Inducing Interleukin-10-Producing Natural Killer Cells. Immunity 2018, 48, 760–772.e764. [Google Scholar] [CrossRef] [Green Version]
  29. Liang, J.; Liang, J.; Hao, H.; Lin, H.; Wang, P.; Wu, Y.; Jiang, X.; Fu, C.; Li, Q.; Ding, P.; et al. Corrigendum: The Extracts of Morinda officinalis and Its Hairy Roots Attenuate Dextran Sodium Sulfate-Induced Chronic Ulcerative Colitis in Mice by Regulating Inflammation and Lymphocyte Apoptosis. Front. Immunol. 2020, 11, 2092. [Google Scholar] [CrossRef] [PubMed]
  30. Sun, P.; Zhang, S.; Qin, X.; Chang, X.; Cui, X.; Li, H.; Zhang, S.; Gao, H.; Wang, P.; Zhang, Z.; et al. Foot-and-mouth disease virus capsid protein VP2 activates the cellular EIF2S1-ATF4 pathway and induces autophagy via HSPB1. Autophagy 2018, 14, 336–346. [Google Scholar] [CrossRef]
  31. Schuster, M.; Tschernig, T.; Krug, N.; Pabst, R. Lymphocytes migrate from the blood into the bronchoalveolar lavage and lung parenchyma in the asthma model of the brown Norway rat. Am. J. Respir. Crit. Care Med. 2000, 161, 558–566. [Google Scholar] [CrossRef]
  32. Zhang, J.J.; Dong, X.; Cao, Y.Y.; Yuan, Y.D.; Yang, Y.B.; Yan, Y.Q.; Akdis, C.A.; Gao, Y.D. Clinical characteristics of 140 patients infected with SARS-CoV-2 in Wuhan, China. Allergy 2020, 75, 1730–1741. [Google Scholar] [CrossRef] [PubMed]
  33. Younan, P.; Santos, R.I.; Ramanathan, P.; Iampietro, M.; Nishida, A.; Dutta, M.; Ammosova, T.; Meyer, M.; Katze, M.G.; Popov, V.L.; et al. Ebola virus-mediated T-lymphocyte depletion is the result of an abortive infection. PLoS Pathog. 2019, 15, e1008068. [Google Scholar] [CrossRef]
  34. Garg, H.; Mohl, J.; Joshi, A. HIV-1 induced bystander apoptosis. Viruses 2012, 4, 3020–3043. [Google Scholar] [CrossRef]
  35. De Vries, R.D.; de Swart, R.L. Measles immune suppression: Functional impairment or numbers game? PLoS Pathog. 2014, 10, e1004482. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Boonnak, K.; Vogel, L.; Feldmann, F.; Feldmann, H.; Legge, K.L.; Subbarao, K. Lymphopenia associated with highly virulent H5N1 virus infection due to plasmacytoid dendritic cell-mediated apoptosis of T cells. J. Immunol. 2014, 192, 5906–5912. [Google Scholar] [CrossRef]
  37. Gómez-Villamandos, J.C.; Bautista, M.J.; Sánchez-Cordón, P.J.; Carrasco, L. Pathology of African swine fever: The role of monocyte-macrophage. Virus Res. 2013, 173, 140–149. [Google Scholar] [CrossRef]
  38. Fathi, N.; Rezaei, N. Lymphopenia in COVID-19: Therapeutic opportunities. Cell Biol. Int. 2020, 44, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
  39. Guo, Z.; Zhang, Z.; Prajapati, M.; Li, Y. Lymphopenia caused by virus infections and the mechanisms beyond. Viruses 2021, 13, 1876. [Google Scholar] [CrossRef] [PubMed]
  40. Peng, X.; Ouyang, J.; Isnard, S.; Lin, J.; Fombuena, B.; Zhu, B.; Routy, J.P. Sharing CD4+ T Cell Loss: When COVID-19 and HIV Collide on Immune System. Front. Immunol. 2020, 11, 596631. [Google Scholar] [CrossRef] [PubMed]
  41. Pasero, D.; Sanna, S.; Liperi, C.; Piredda, D.; Branca, G.P.; Casadio, L.; Simeo, R.; Buselli, A.; Rizzo, D.; Bussu, F.; et al. A challenging complication following SARS-CoV-2 infection: A case of pulmonary mucormycosis. Infection 2021, 49, 1055–1060. [Google Scholar] [CrossRef]
  42. Masur, H. Recurring and emerging questions related to management of HIV-related opportunistic infections. Top. Antivir Med. 2018, 26, 79–84. [Google Scholar] [PubMed]
  43. Ranganathan, K.; Umadevi, K.M.R. Common oral opportunistic infections in Human Immunodeficiency Virus infection/Acquired Immunodeficiency Syndrome: Changing epidemiology; diagnostic criteria and methods; management protocols. Periodontology 2019, 80, 177–188. [Google Scholar] [CrossRef]
  44. Garg, H.; Joshi, A. Host and Viral Factors in HIV-Mediated Bystander Apoptosis. Viruses 2017, 9, 237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Brenner, D.; Blaser, H.; Mak, T.W. Regulation of tumour necrosis factor signalling: Live or let die. Nat. Rev. Immunol. 2015, 15, 362–374. [Google Scholar] [CrossRef] [PubMed]
  46. Gary-Gouy, H.; Harriague, J.; Bismuth, G.; Platzer, C.; Schmitt, C.; Dalloul, A.H. Human CD5 promotes B-cell survival through stimulation of autocrine IL-10 production. Blood 2002, 100, 4537–4543. [Google Scholar] [CrossRef] [PubMed]
  47. Yen Chong, S.; Lin, Y.C.; Czarneski, J.; Zhang, M.; Coffman, F.; Kashanchi, F.; Raveche, E. Cell cycle effects of IL-10 on malignant B-1 cells. Genes Immun. 2001, 2, 239–247. [Google Scholar] [CrossRef] [Green Version]
  48. Yang, X.; Sun, B.; Wang, H.; Yin, C.; Wang, X.; Ji, X. Increased serum IL-10 in lupus patients promotes apoptosis of T cell subsets via the caspase 8 pathway initiated by Fas signaling. J. Biomed. Res. 2015, 29, 232–240. [Google Scholar] [CrossRef] [Green Version]
  49. Biron, C.A. Role of early cytokines, including alpha and beta interferons (IFN-alpha/beta), in innate and adaptive immune responses to viral infections. Semin. Immunol. 1998, 10, 383–390. [Google Scholar] [CrossRef] [PubMed]
  50. Legler, D.F.; Loetscher, M.; Roos, R.S.; Clark-Lewis, I.; Baggiolini, M.; Moser, B. B cell-attracting chemokine 1, a human CXC chemokine expressed in lymphoid tissues, selectively attracts B lymphocytes via BLR1/CXCR5. J. Exp. Med. 1998, 187, 655–660. [Google Scholar] [CrossRef] [PubMed]
  51. Gunn, M.D.; Ngo, V.N.; Ansel, K.M.; Ekland, E.H.; Cyster, J.G.; Williams, L.T. A B-cell-homing chemokine made in lymphoid follicles activates Burkitt’s lymphoma receptor-1. Nature 1998, 391, 799–803. [Google Scholar] [CrossRef]
  52. Carlsen, H.S.; Baekkevold, E.S.; Morton, H.C.; Haraldsen, G.; Brandtzaeg, P. Monocyte-like and mature macrophages produce CXCL13 (B cell-attracting chemokine 1) in inflammatory lesions with lymphoid neogenesis. Blood 2004, 104, 3021–3027. [Google Scholar] [CrossRef] [PubMed]
  53. Bellamri, N.; Viel, R.; Morzadec, C.; Lecureur, V.; Joannes, A.; de Latour, B.; Llamas-Gutierrez, F.; Wollin, L.; Jouneau, S.; Vernhet, L. TNF-α and IL-10 Control CXCL13 Expression in Human Macrophages. J. Immunol. 2020, 204, 2492–2502. [Google Scholar] [CrossRef] [PubMed]
  54. Wherry, E.J. T cell exhaustion. Nat. Immunol. 2011, 12, 492–499. [Google Scholar] [CrossRef] [PubMed]
  55. Kahan, S.M.; Wherry, E.J.; Zajac, A.J. T cell exhaustion during persistent viral infection. Virology 2015, 479-480, 180–193. [Google Scholar] [CrossRef]
  56. Bellesi, S.; Metafuni, E.; Hohaus, S.; Maiolo, E.; Marchionni, F.; D’Innocenzo, S.; La Sorda, M.; Ferraironi, M.; Ramundo, F.; Fantoni, M.; et al. Increased CD95 (Fas) and PD-1 expression in peripheral blood T lymphocytes in COVID-19 patients. Br. J. Haematol. 2020, 191, 207–211. [Google Scholar] [CrossRef] [PubMed]
  57. Diao, B.; Wang, C.; Tan, Y.; Chen, X.; Chen, Y. Reduction and Functional Exhaustion of T Cells in Patients With Coronavirus Disease 2019 (COVID-19). Front. Immunol. 2020, 11, 827. [Google Scholar] [CrossRef]
  58. Fromentin, R.; Bakeman, W.; Lawani, M.B.; Khoury, G.; Hartogensis, W.; DaFonseca, S.; Killian, M.; Epling, L.; Hoh, R.; Sinclair, E.; et al. CD4+ T Cells Expressing PD-1, TIGIT and LAG-3 Contribute to HIV Persistence during ART. PLoS Pathog. 2016, 12, e1005761. [Google Scholar] [CrossRef] [PubMed]
  59. Ruibal, P.; Oestereich, L.; Lüdtke, A.; Becker-Ziaja, B.; Wozniak, D.M.; Kerber, R.; Korva, M.; Cabeza-Cabrerizo, M.; Bore, J.A.; Koundouno, F.R.; et al. Unique human immune signature of Ebola virus disease in Guinea. Nature 2016, 533, 100–104. [Google Scholar] [CrossRef]
  60. Rutigliano, J.A.; Sharma, S.; Morris, M.Y.; Oguin, T.H., 3rd; McClaren, J.L.; Doherty, P.C.; Thomas, P.G. Highly pathological influenza A virus infection is associated with augmented expression of PD-1 by functionally compromised virus-specific CD8+ T cells. J. Virol. 2014, 88, 1636–1651. [Google Scholar] [CrossRef] [Green Version]
  61. Jubel, J.M.; Barbati, Z.R.; Burger, C.; Wirtz, D.C.; Schildberg, F.A. The Role of PD-1 in Acute and Chronic Infection. Front. Immunol. 2020, 11, 487. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Chen, S.; Crabill, G.A.; Pritchard, T.S.; McMiller, T.L.; Wei, P.; Pardoll, D.M.; Pan, F.; Topalian, S.L. Mechanisms regulating PD-L1 expression on tumor and immune cells. J. Immunother. Cancer 2019, 7, 305. [Google Scholar] [CrossRef] [PubMed]
Viruses 13 02358 g001 550

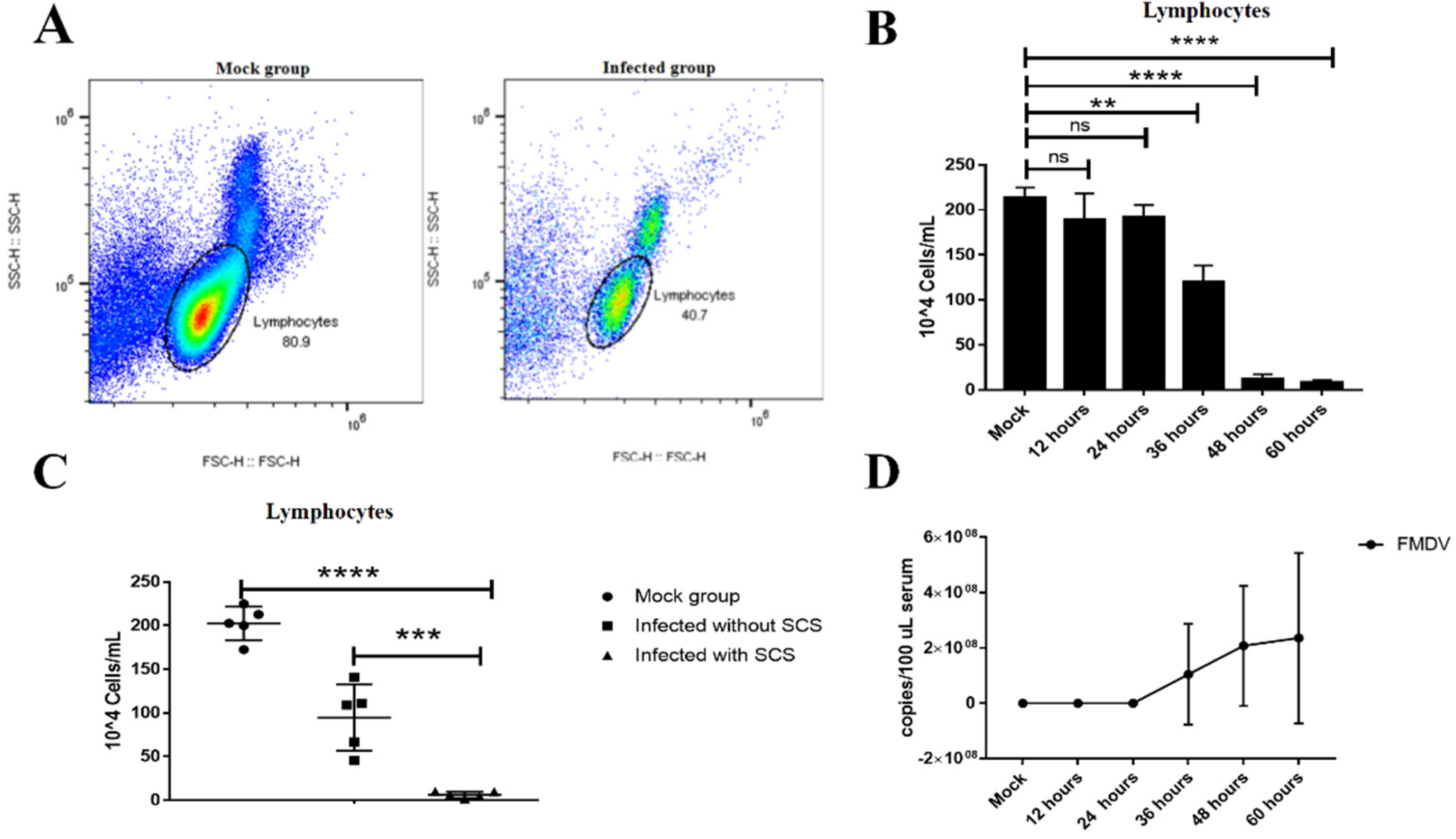

Figure 1. Lymphopenia coincided with FMDV RNA in the serum during FMDV infection. (A) Representative FACS plots of lymphocytes from mock mice and infected mice at 48 hpi. (B) The number of lymphocytes in the peripheral blood were shown in mock mice and infected mice at 12, 24, 36, 48, and 60 hpi. (C). The number of lymphocytes in the peripheral blood were shown in mock mice, infected mice with severity clinical symptoms (SCS), and infected mice without SCS (including mild clinical symptoms). (D) FMDV RNA copies in the serum from mock mice and infected mice at 12, 24, 36, 48, and 60 hpi were determined by RT-qPCR. The significance was detected using an unpaired t-test. **, p  ≤ 0.01; ***, p  ≤ 0.001; ****, p  ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Figure 1. Lymphopenia coincided with FMDV RNA in the serum during FMDV infection. (A) Representative FACS plots of lymphocytes from mock mice and infected mice at 48 hpi. (B) The number of lymphocytes in the peripheral blood were shown in mock mice and infected mice at 12, 24, 36, 48, and 60 hpi. (C). The number of lymphocytes in the peripheral blood were shown in mock mice, infected mice with severity clinical symptoms (SCS), and infected mice without SCS (including mild clinical symptoms). (D) FMDV RNA copies in the serum from mock mice and infected mice at 12, 24, 36, 48, and 60 hpi were determined by RT-qPCR. The significance was detected using an unpaired t-test. **, p  ≤ 0.01; ***, p  ≤ 0.001; ****, p  ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Viruses 13 02358 g001
Viruses 13 02358 g002 550
Figure 2. The numbers and frequencies of T cells, B cells, and NK cells in the peripheral blood were decreased in FMDV-infected mice. The numbers of T cell (A), B cells (B), and NK cells (C) in the peripheral blood from mock mice and FMDV-infected mice at 12, 24, 36, 48, and 60 hpi (D). The frequencies of the T cells and B cells were measured from mock mice and FMDV-infected mice at 12, 24, 36, 48, and 60 hpi (E). The frequencies of the CD4+ T cells and CD8+ T cells were measured from mock mice and FMDV-infected-mice at 12, 24, 36, 48, and 60 hpi (F). The frequencies of the T cells, B cells, CD4+ T cells, and CD8+ T cells from mock mice and infected mice with SCS were measured during FMDV infection. The T, B, and NK cell counts were analyzed by an unpaired t-test. The percentages of T, B, CD4+, and CD8+ T cells were analyzed by two-way ANOVA with Tukey’s multiple comparison test. *, p ≤ 0.05; **, p ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Figure 2. The numbers and frequencies of T cells, B cells, and NK cells in the peripheral blood were decreased in FMDV-infected mice. The numbers of T cell (A), B cells (B), and NK cells (C) in the peripheral blood from mock mice and FMDV-infected mice at 12, 24, 36, 48, and 60 hpi (D). The frequencies of the T cells and B cells were measured from mock mice and FMDV-infected mice at 12, 24, 36, 48, and 60 hpi (E). The frequencies of the CD4+ T cells and CD8+ T cells were measured from mock mice and FMDV-infected-mice at 12, 24, 36, 48, and 60 hpi (F). The frequencies of the T cells, B cells, CD4+ T cells, and CD8+ T cells from mock mice and infected mice with SCS were measured during FMDV infection. The T, B, and NK cell counts were analyzed by an unpaired t-test. The percentages of T, B, CD4+, and CD8+ T cells were analyzed by two-way ANOVA with Tukey’s multiple comparison test. *, p ≤ 0.05; **, p ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Viruses 13 02358 g002
Viruses 13 02358 g003 550

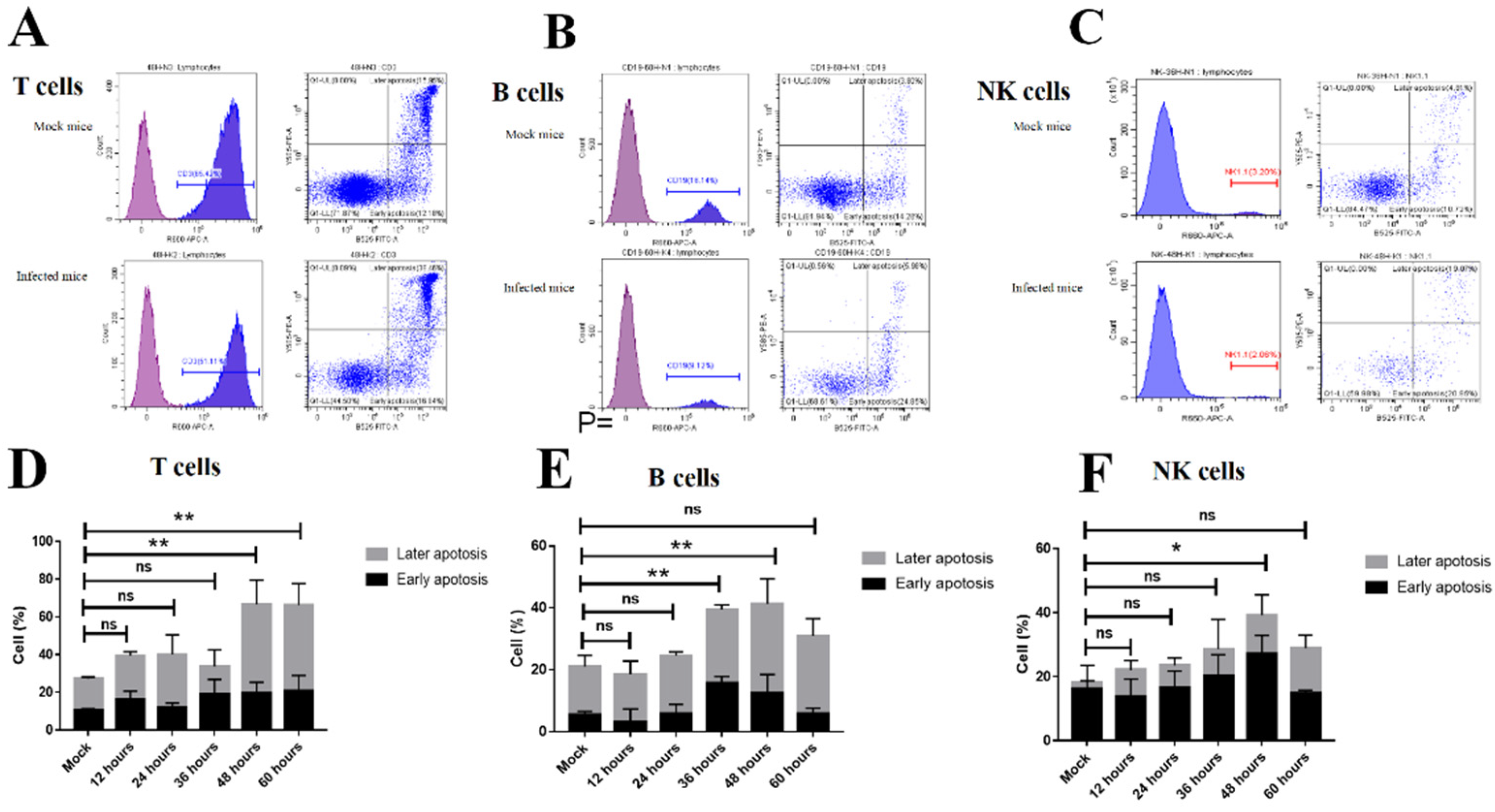

Figure 3. The apoptosis was detected in T cells, B cells, and NK cells in the peripheral blood from mock mice and FMDV-infected mice. Representative FACS plots of apoptosis in T cells (A), B cells (B), and NK cells (C) from mock mice and FMDV-infected mice. The apoptosis was detected in T cells (D), B cells (E), and NK cells (F) from mock mice and FMDV-infected mice at 12, 24, 36, 48, and 60 hpi by Annexin V/PI detection. Annexin V+/PI− cells were considered early apoptotic cells, and Annexin V+/PI+ cells were considered late apoptotic cells. The apoptosis of the T, B, and NK cells was analyzed by two-way ANOVA with Tukey’s multiple comparison test. Significance was detected using an unpaired t-test. *, p ≤ 0.05; **, p  ≤ 0.01. ns indicates a non-statistically significant difference (p > 0.05).
Figure 3. The apoptosis was detected in T cells, B cells, and NK cells in the peripheral blood from mock mice and FMDV-infected mice. Representative FACS plots of apoptosis in T cells (A), B cells (B), and NK cells (C) from mock mice and FMDV-infected mice. The apoptosis was detected in T cells (D), B cells (E), and NK cells (F) from mock mice and FMDV-infected mice at 12, 24, 36, 48, and 60 hpi by Annexin V/PI detection. Annexin V+/PI− cells were considered early apoptotic cells, and Annexin V+/PI+ cells were considered late apoptotic cells. The apoptosis of the T, B, and NK cells was analyzed by two-way ANOVA with Tukey’s multiple comparison test. Significance was detected using an unpaired t-test. *, p ≤ 0.05; **, p  ≤ 0.01. ns indicates a non-statistically significant difference (p > 0.05).
Viruses 13 02358 g003
Viruses 13 02358 g004 550
Figure 4. The CFSE-labeled lymphocytes migrate from the blood to tissue. The CFSE-labeled lymphocytes in the heart, liver, kidney, and lung from mock mice and infected mice were observed by fluorescence microscope (10×).
Figure 4. The CFSE-labeled lymphocytes migrate from the blood to tissue. The CFSE-labeled lymphocytes in the heart, liver, kidney, and lung from mock mice and infected mice were observed by fluorescence microscope (10×).
Viruses 13 02358 g004
Viruses 13 02358 g005 550
Figure 5. The expression of PD-1, CTLA-4, Tim-3, LAG-3, 2B4, TIGIT, and CD160 was analyzed on CD4 and CD8 T cells from mock mice and FMDV-infected mice. The expression of all known seven coinhibitory molecules was analyzed on peripheral blood T lymphocytes, which were harvested from the mock mice and FMDV-infected mice at 48 hpi (n  =  10 per group). Significance was detected using an unpaired t-test. *, p ≤ 0.05; **, p ≤ 0.01; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Figure 5. The expression of PD-1, CTLA-4, Tim-3, LAG-3, 2B4, TIGIT, and CD160 was analyzed on CD4 and CD8 T cells from mock mice and FMDV-infected mice. The expression of all known seven coinhibitory molecules was analyzed on peripheral blood T lymphocytes, which were harvested from the mock mice and FMDV-infected mice at 48 hpi (n  =  10 per group). Significance was detected using an unpaired t-test. *, p ≤ 0.05; **, p ≤ 0.01; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Viruses 13 02358 g005
Viruses 13 02358 g006 550
Figure 6. Potential cytokines/chemokines were detected in the serum from mock mice and FMDV-infected mice. The circulating levels (mean ± SEM) of various cytokines were measured by ELISA in the serum of mock mice and FMDV-infected mice at 12, 24, 36, 48, 60, and 72 hpi. The results are representative of a single experiment with 3 mice per time point. Significance was detected using an unpaired t-test. *, p ≤ 0.05; **, p  ≤ 0.01; ***, p ≤ 0.001. ns indicates a non-statistically significant difference (p > 0.05).
Figure 6. Potential cytokines/chemokines were detected in the serum from mock mice and FMDV-infected mice. The circulating levels (mean ± SEM) of various cytokines were measured by ELISA in the serum of mock mice and FMDV-infected mice at 12, 24, 36, 48, 60, and 72 hpi. The results are representative of a single experiment with 3 mice per time point. Significance was detected using an unpaired t-test. *, p ≤ 0.05; **, p  ≤ 0.01; ***, p ≤ 0.001. ns indicates a non-statistically significant difference (p > 0.05).
Viruses 13 02358 g006
Viruses 13 02358 g007 550
Figure 7. Blocking IL-10/IL-10R signaling with the IL-10R blocker prevented lymphopenia driven by FMDV infection. (A) The survival curve of mice treated with in vivo anti-mouse IL-10R (n = 10) and mice treated with in vivo rat IgG1 isotype control (n = 10) after FMDV infection. (B) The number of lymphocytes in the peripheral blood from mice treated with in vivo rat IgG1 isotype control (n = 5) and mice treated with in vivo anti-mouse IL-10R (n = 5). (C) The apoptosis of T cells and B cells in the peripheral blood from mice treated with in vivo rat IgG1 isotype control (n = 5) and mice treated with in vivo anti-mouse IL-10R (n = 5). (D) The frequencies of CD3, CD19, and NK1.1 cells in the heart from mice treated with in vivo rat IgG1 isotype control (n = 3) and mice treated with in vivo anti-mouse IL-10R (n = 3) are shown. (E) The expression of TIGIT, PD-1, 2B4, CTLA-4, and LAG-3 on CD4 and CD8 in the peripheral blood from mice treated with in vivo rat IgG1 isotype control (n = 5) and mice treated with in vivo anti-mouse IL-10R (n = 5). The survival rates in mice were compared by the log-rank test. The lymphocytes counts and the expression of coinhibitory molecules were analyzed by an unpaired t-test. The apoptosis of T, B, and NK cells and the mRNA expression of T, B, and NK cells in the heart were analyzed by two-way ANOVA with Tukey’s multiple comparison test. *, p ≤ 0.05; **, p  ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Figure 7. Blocking IL-10/IL-10R signaling with the IL-10R blocker prevented lymphopenia driven by FMDV infection. (A) The survival curve of mice treated with in vivo anti-mouse IL-10R (n = 10) and mice treated with in vivo rat IgG1 isotype control (n = 10) after FMDV infection. (B) The number of lymphocytes in the peripheral blood from mice treated with in vivo rat IgG1 isotype control (n = 5) and mice treated with in vivo anti-mouse IL-10R (n = 5). (C) The apoptosis of T cells and B cells in the peripheral blood from mice treated with in vivo rat IgG1 isotype control (n = 5) and mice treated with in vivo anti-mouse IL-10R (n = 5). (D) The frequencies of CD3, CD19, and NK1.1 cells in the heart from mice treated with in vivo rat IgG1 isotype control (n = 3) and mice treated with in vivo anti-mouse IL-10R (n = 3) are shown. (E) The expression of TIGIT, PD-1, 2B4, CTLA-4, and LAG-3 on CD4 and CD8 in the peripheral blood from mice treated with in vivo rat IgG1 isotype control (n = 5) and mice treated with in vivo anti-mouse IL-10R (n = 5). The survival rates in mice were compared by the log-rank test. The lymphocytes counts and the expression of coinhibitory molecules were analyzed by an unpaired t-test. The apoptosis of T, B, and NK cells and the mRNA expression of T, B, and NK cells in the heart were analyzed by two-way ANOVA with Tukey’s multiple comparison test. *, p ≤ 0.05; **, p  ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Viruses 13 02358 g007
Viruses 13 02358 g008 550
Figure 8. Knocking out IL-10 prevented lymphopenia driven by FMDV infection. (A) The survival curve of IL-10-/- mice (n = 9) and wild-type mice (n = 9) infected with FMDV. (B) The number of lymphocytes in the peripheral blood from IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. (C) The apoptosis of T cells, B cells, and NK cells in the peripheral blood from IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. (D) The frequency of CD3, CD19, and NK1.1 cells in the heart from IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. (E) The expression of TIGIT, PD-1, 2B4, CTLA-4, and LAG-3 on CD4 and CD8 in the peripheral blood of IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. The survival rates in mice were compared by the log-rank test. The lymphocyte counts and the expression of coinhibitory molecules were analyzed by an unpaired t-test. The apoptosis of T, B, and NK cells and the mRNA expression of T, B, and NK cells in the heart were analyzed by two-way ANOVA with Tukey’s multiple comparison test. *, p ≤0.05; **, p  ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Figure 8. Knocking out IL-10 prevented lymphopenia driven by FMDV infection. (A) The survival curve of IL-10-/- mice (n = 9) and wild-type mice (n = 9) infected with FMDV. (B) The number of lymphocytes in the peripheral blood from IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. (C) The apoptosis of T cells, B cells, and NK cells in the peripheral blood from IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. (D) The frequency of CD3, CD19, and NK1.1 cells in the heart from IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. (E) The expression of TIGIT, PD-1, 2B4, CTLA-4, and LAG-3 on CD4 and CD8 in the peripheral blood of IL-10-/- mice (n = 5) and wild-type mice (n = 5) at 48 hpi. The survival rates in mice were compared by the log-rank test. The lymphocyte counts and the expression of coinhibitory molecules were analyzed by an unpaired t-test. The apoptosis of T, B, and NK cells and the mRNA expression of T, B, and NK cells in the heart were analyzed by two-way ANOVA with Tukey’s multiple comparison test. *, p ≤0.05; **, p  ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001. ns indicates a non-statistically significant difference (p > 0.05).
Viruses 13 02358 g008
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Guo, Z.; Zhao, Y.; Zhang, Z.; Li, Y. Interleukin-10-Mediated Lymphopenia Caused by Acute Infection with Foot-and-Mouth Disease Virus in Mice. Viruses 2021, 13, 2358. https://doi.org/10.3390/v13122358

AMA Style

Guo Z, Zhao Y, Zhang Z, Li Y. Interleukin-10-Mediated Lymphopenia Caused by Acute Infection with Foot-and-Mouth Disease Virus in Mice. Viruses. 2021; 13(12):2358. https://doi.org/10.3390/v13122358

Chicago/Turabian Style

Guo, Zijing, Yin Zhao, Zhidong Zhang, and Yanmin Li. 2021. "Interleukin-10-Mediated Lymphopenia Caused by Acute Infection with Foot-and-Mouth Disease Virus in Mice" Viruses 13, no. 12: 2358. https://doi.org/10.3390/v13122358

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
