Iron Related Biomarkers Predict Disease Severity in a Cohort of Portuguese Adult Patients during COVID-19 Acute Infection
by
, , , , , , and
Ana C. Moreira
1,2,3
,
Maria Jose Teles
1,4,5
,
Tânia Silva
1,2,3,
Clara M. Bento
1,2,6,
Inês Simões Alves
1,
Luisa Pereira
1,7,
João Tiago Guimarães
4,5,8,
Graça Porto
1,2,3,9,
Pedro Oliveira
3,5
and
Maria Salomé Gomes
1,2,3,*
1
i3S—Instituto de Investigação e Inovação em Saúde, Universidade do Porto, 4200-135 Porto, Portugal
2
IBMC—Instituto de Biologia Molecular e Celular, Universidade do Porto, 4200-135 Porto, Portugal
3
ICBAS—Instituto de Ciências Biomédicas Abel Salazar, Universidade do Porto, 4050-313 Porto, Portugal
4
CHUSJ—Centro Hospitalar Universitário São João, 4200-319 Porto, Portugal
5
ISPUP-EPIUnit—Instituto de Saúde Pública da Universidade do Porto, 4050-091 Porto, Portugal
6
MCBiology—Programa Doutoral em Biologia Molecular e Celular, Instituto de Ciências Biomédicas Abel Salazar da Universidade do Porto, 4200-135 Porto, Portugal
7
IPATIMUP—Instituto de Patologia e Imunologia Molecular da Universidade do Porto, 4200-135 Porto, Portugal
8
FMUP—Faculdade de Medicina da Universidade do Porto, 4200-319 Porto, Portugal
9
CHPorto—Centro Hospitalar do Porto, 4099-001 Porto, Portugal
*
Author to whom correspondence should be addressed.
Viruses 2021, 13(12), 2482; https://doi.org/10.3390/v13122482
Submission received: 3 November 2021
/
Revised: 3 December 2021
/
Accepted: 7 December 2021
/
Published: 10 December 2021
(This article belongs to the Collection SARS-CoV-2 and COVID-19)
Abstract
:Large variability in COVID-19 clinical progression urges the need to find the most relevant biomarkers to predict patients’ outcomes. We evaluated iron metabolism and immune response in 303 patients admitted to the main hospital of the northern region of Portugal with variable clinical pictures, from September to November 2020. One hundred and twenty-seven tested positive for SARS-CoV-2 and 176 tested negative. Iron-related laboratory parameters and cytokines were determined in blood samples collected soon after admission. Demographic data, comorbidities and clinical outcomes were recorded. Patients were assigned into five groups according to severity. Serum iron and transferrin levels at admission were lower in COVID-19-positive than in COVID-19-negative patients. The levels of interleukin (IL)-6 and monocyte chemoattractant protein 1 (MCP-1) were increased in COVID-19-positive patients. The lowest serum iron and transferrin levels at diagnosis were associated with the worst outcomes. Iron levels negatively correlated with IL-6 and higher levels of this cytokine were associated with a worse prognosis. Serum ferritin levels at diagnosis were higher in COVID-19-positive than in COVID-19-negative patients. Serum iron is the simplest laboratory test to be implemented as a predictor of disease progression in COVID-19-positive patients.
1. Introduction
The clinical spectrum of COVID-19 is wide, ranging from slight fatigue to severe acute respiratory failure and death [1,2]. The identification of relevant early biomarkers that can predict disease progression and severity is very important to allow a more efficient allocation of resources, to identify and protect groups at higher risk, and to reduce mortality.
Alterations of iron distribution are important host defense mechanisms against infection [3,4,5]. The most consistently reported alteration of iron distribution in COVID-19-positive patients is hypoferremia [6,7,8]. Hypoferremia in the context of infection and inflammation is usually attributed to hepcidin, an hepatic peptide hormone produced in the liver in response to inflammatory cytokines [9]. However, contradictory results have been obtained regarding the correlations between iron or hepcidin levels and COVID-19 severity [10,11,12,13,14]. Another iron-related alteration that has been proposed as a predictor of disease severity in COVID-19 is hyperferritinemia, an increase in the serum levels of ferritin, a usually intracellular iron storage protein [6,11,12,13,14,15,16,17]. However, data on the impact of hyperferritinemia on COVID-19 prognosis is not consistent [6,7,8].
In our study, we compared iron-related, inflammatory, and hematological biomarkers in COVID-19-positive patients with COVID-19-negative patients admitted to the same hospital during the same period. The results support the notion that infection by SARS-CoV-2 elicits a distinctive pattern of alterations in the host immune response and iron homeostasis and stresses the importance of implementing the use of simple iron-related parameters in the analytical workup of these patients.
2. Materials and Methods
2.1. Study Design
We analyzed data from 127 patients diagnosed with COVID-19 at Centro Hospitalar e Universitário de São João (CHUSJ), Porto, Portugal, between 2 September 2, and 17 November 2020. COVID-19 diagnosis was based on SARS-CoV-2 RNA detection by reverse-transcription real-time PCR in a nasopharyngeal swab sample. Blood samples collected in the context of clinical evaluation were used to obtain routine analytical data and to make additional determinations relevant to this study, as explained below. The interval between the SARS-CoV-2 PCR test and the first blood collection was less than 6 days for all patients except for four positive patients. These came to the hospital several days after a diagnosis was made elsewhere, making the interval between diagnosis and the first sample increase to 8, 10, 11 and 21 days, respectively. Detailed information about the number of samples used in each determination is shown in Table S1.
For comparison, samples from 176 patients admitted to the hospital with variable clinical pictures in the same period, with a negative test for SARS-CoV-2 RNA, were also investigated. All patients 18 years old or more were considered eligible, except those with active or recent oncological disease, pregnancy, or hematological disease. Additionally, 35 serum samples were obtained from blood donors at the Clinic Hematology Service of Centro Hospitalar Universitário do Porto (CHUP) in the same metropolitan area as CHUSJ. Blood donors were not tested for SARS-CoV-2, but they had no symptoms of disease and filled the criteria for blood donation, thus were used as healthy controls.
The study was approved by the local ethics committee of CHUSJ (Comissão de Ética CHUSJ/FMUP). The project received the designation “Projeto de investigação n.° 352/20: “Ironing COVID-19—Finding in the host iron status the signature to predict the severity of the disease” and was approved on 16 October 2020. All studies were performed in the respect of the Helsinki declaration. Routine clinical data were collected in an anonymized format and no additional procedures or sample collections were performed for this study. As such, the study was considered by the ethical committee as exempt from the need to take specific written informed consent from the patients enrolled.
2.2. Patient Stratification
Once enrolled, patients were followed according to Hospital standards. According to the severity of the disease, patients were assigned to one of five groups: (1) asymptomatic, (2) outpatients (3) general inward, (4) intensive care unit, and (5) fatal outcome. The criteria for hospital stay or ambulatory, as well as for admission at a general ward or an intensive care unit, were based on clinical signs and symptoms and were the same all over the study period. Each patient was assigned to the group corresponding to the worst condition experienced during the follow-up for that specific clinical condition.
2.3. Laboratory Determinations
Complete blood counts and erythrocytes parameters were determined using a Sysmex XE-2100 or XE-5000 (Emilio de Azevedo Campos, Senhora da Hora, Portugal) equipment, in fresh peripheral blood anticoagulated with K3-EDTA. For serum or plasma determinations, collection tubes were centrifuged at 1000× g for 10 min, supernatants were transferred into 15 mL tubes and stored at −80° before laboratory determinations.
Serum or heparin-plasma samples were used to determine erythropoietin, iron, transferrin, ferritin, and C-reactive protein. Erythropoietin was determined using a chemiluminescent immunoassay on an Immulite 2000 analyzer (Siemens Healthcare Diagnostics, Munich, Germany). Iron and transferrin were determined by a colorimetric method and ferritin by an immunoturbidimetric assay, using Olympus reagents and analyser (Olympus Diagnostics, Passadena, CA, USA). Normal reference ranges were obtained from National Health Authorities’ Regulations [18] and commercial companies, according to the hospital laboratory procedures.
Heme quantification was performed using the QuantiChrom Heme Assay Kit from BioAssay Systems (Hayward, CA, USA). Hepcidin levels were measured using Hepcidin 25 (bioactive) HS ELISA from DRG instruments GmbH (Marburg, Germany). Haptoglobin was measured using Human Haptoglobin ELISA kit from Abcam, plc (Cambridge, UK). Quantification of cytokines was performed with the BD cytometric bead array (CBA) human inflammation kit (catalog no. 551811) from BD Biosciences (San Jose, CA, USA), or with Human Inflammation Panel 1 Mix and Match Subpanel Catalog. No. 740809 from BioLegend (San Diego, CA, USA). Data were analyzed with BD Accuri C6 with FCAP ArrayTM Software v3.0.1 (BD Biosciences) or LEGENDplexTM Data Analysis Software Suite (San Diego, CA, USA), respectively.
2.4. Statistical Analysis
For quantitative variables with pronounced asymmetry, data are presented by median, P25 and P75. Otherwise, data are presented as mean ± standard deviation. Categorical variables are presented by their counts and corresponding percentages. When comparing two groups, an unpaired t-test or Mann–Whitney test was performed. For comparisons between groups, one-way ANOVA was performed after confirming the normality and homogeneity of variances and the Kruskal–Wallis test was used, when these assumptions were not met. Post hoc analysis was performed by Tukey HSD test. Correlation coefficients were obtained using Spearman’s rho. Association between variables was assessed by chi-square test or Fisher´s exact test. Statistical significance was reached when p value was lower than 0.05 unless otherwise specified. Statistical analysis was performed using SPSS from IBM, (Armonk, NY, USA).
3. Results
3.1. Baseline Characterization of the Patients
As detailed in Methods, we conducted an observational study of patients admitted to CHUSJ most of them with symptoms compatible with COVID-19. According to the result of the PCR test for SARS-CoV-2, the patient was included in the -positive or -negative group. Blood was collected typically within the first 48 h after admission. Sera from healthy blood donors were used for comparisons. Table 1 summarizes the baseline demographic and clinical characterization of the individuals enrolled. The number and type of co-morbidities were similar between COVID-19-positive and COVID-19-negative patients. The most prevalent co-morbidity was hypertension, followed by dyslipidemia. Diabetes was also present in an important proportion of the patients, especially among COVID-19-positive. This picture reflects the overall prevalence of these morbidities in the Portuguese population [19].
3.2. Impact of COVID-19 in Iron-Related and Hematological Parameters
Both COVID-19-positive and COVID-19-negative patients had lower serum iron at Hospital admission than healthy blood donors (Figure 1a). Moreover, COVID-19-positive patients had significantly lower serum iron levels than COVID-19-negative patients (25 (17–42) versus 42 (23.3–76.8) µg/dL). Defining hypoferremia as serum iron level lower than 50 µg/dL, 80.7% of COVID-19-positive and 57.1% (p < 0.001) of COVID-19-negative patients were hypoferremic at admission, suggesting that COVID-19 and serum iron levels are not independent. Accordingly, transferrin level was also lower in COVID-19-positive compared to COVID-19-negative patients (Figure 1b). Of note, decreased transferrin in COVID-19-positive patients was not related to a hepatic disorder, as 91.5% of the patients with low transferrin levels had alanine aminotransferase concentration below twice the highest normal value. Conversely, the levels of serum ferritin were significantly higher in COVID-19-positive (628.2 (365.8–1246.0) ng/mL) as compared to COVID-19-negative patients (190.5 (119.9–382.4) ng/mL) and blood donors (56.9 (34.3–127.3) ng/mL) (Figure 1d). Interestingly, hepcidin levels were not significantly different between COVID-19-positive (73.3 (32.8–103.9) nM) and COVID-19-negative patients (36.52 (6.0–118.3) nM). However, in both cases, they were significantly higher than in blood donors (14.5 (2.4–32) nM) (Figure 1e). No significant differences were found between blood donors, COVID-19-positive and COVID-19-negative patients, regarding heme, haptoglobin, or erythropoietin levels (Figure 1f–h).
Despite the clear decrease in serum iron levels, COVID-19-positive patients on average had no decrease in hemoglobin concentration or red blood cells (RBC) counts when compared to COVID-19-negative patients (Table 2).
Although on average the white blood cells, neutrophils, monocytes, lymphocytes, and platelets counts were within the intervals considered as normal, COVID-19-positive patients had significantly lower levels than COVID-19-negative. Of note, 36.1% of COVID-19-positive patients were lymphopenic at diagnosis (number of lymphocytes lower than 0.8 × 109/L), as compared to 14.2% of COVID-19-negative patients (p < 0.001), consistent with previous studies [1,16,20].
In general, all patients had increased levels of hepatic enzymes and C-reactive protein (CRP), the latter being significantly higher in COVID19-positive patients (Table 2).
3.3. Relationship between Iron-Related Parameters and Disease Severity
To further understand whether alterations in iron metabolism were related to disease severity, patients were assigned to one of five severity groups, as described in the Methods section, and summarized in Table 3. Group 1 included 35 healthy blood donors, as well as 15 patients admitted to the hospital with no symptoms suggestive of COVID-19: eight had psychiatric disorders (organic causes were excluded), two had light gastrointestinal symptoms without signs of acute surgical abdomen or infection, and five came for minor elective surgeries without systemic inflammation or infection. Group 2 included patients with mild clinical conditions, which did not imply hospitalization. Patients included in group 3 had to stay in hospital for at least 1 day. Most patients stayed 7 days, 25% stayed less than 5 days and only 35% stayed more than 11 days. Patients included in group 4 were patients admitted to the intensive care unit. Group 5 corresponds to fatal cases.
Notably, serum iron levels at first evaluation were significantly lower in fatal cases, as compared to survivors, both in COVID-19-positive and in COVID-19-negative patients (Figure 2a). In addition, the transferrin levels were lower in fatal cases than in outpatients or general inward patients. Serum transferrin was significantly higher in outpatients (group 2) than in all the groups of inpatients (groups 3, 4, and 5) (Figure 2b). Interestingly, when we compared patients at the same level of disease severity, we found that COVID-19-positive patients always had significantly lower iron and transferrin levels than COVID-19-negative patients (Figure 2a,b), except for serum iron in fatal cases.
In the opposite direction, the levels of ferritin were higher in COVID-19-positive in comparison with COVID-19-negative patients in all severity groups (Figure 2c). However, the levels of ferritin were not significantly different between severity groups. No statistically significant differences were found in hepcidin levels, either between severity groups or between COVID-19-positive and negative patients.
Regarding the leukocyte counts, WBC and lymphocytes were lower in COVID-19-positive than in COVID-19-negative patients in all severity levels (Figure 2e,g), while the decreases in monocytes, neutrophils and platelets lost statistical significance after stratification for disease severity (Figure 2d,f,h).
In this cohort, patients with previously diagnosed hypertension, and/or dyslipidemia had an increased chance of developing severe disease (Table S2). Anemia, chronic respiratory disease, chronic kidney disease, diabetes, obesity, or hypocoagulation were not significantly associated with severe forms of the disease. In fact, in this cohort, none of the (11) previously hypocoagulated COVID-19-positive patients died (Table S2).
3.4. Inflammation and Immune Response Markers
Iron metabolism is strongly regulated by immune mediators. We measured the serum levels of several cytokines including IL-6, IL-8, IL-10, IL-12p70, IL-18, and MCP-1.
The levels of circulating IL-6 and MCP-1 were significantly elevated in COVID-19-positive patients when compared to COVID-19-negative patients (Figure 3a,f). Importantly, outpatients (group 2) had lower IL-6 levels than fatal cases (group 5) (Figure 3a). Interestingly, IL-10 was higher on average in COVID-19-positive than in COVID-19-negative patients (32.7 (21.4–61.5) versus 12.7 (5.9–28.5)). However, this difference was not observed once the patients were stratified according to severity groups (Figure 3c).
3.5. Correlations between Iron Parameters and Cytokine Levels
To gain some insight into the mechanisms of iron dysregulation in COVID-19-positive patients, we performed association tests between specific parameters. We found a significant, although modest, negative correlation between iron and CRP and IL-6, but not other cytokines or hepcidin (Figure 4). Interestingly, the level of transferrin was also negatively correlated with CRP, but also with IL-8, IL-18, hepcidin and ferritin. Ferritin levels were positively correlated with CRP, IL-18 and hepcidin. As expected, a positive correlation was found between hepcidin and IL-6, but also (more surprising) between hepcidin and IL-10. The levels of inflammatory cytokines were positively correlated with each other (Figure 4).
3.6. Evolution of Iron and Immune Parameters over Time
For a limited number of admitted patients, we had access to multiple blood samples along the hospitalization, enabling us to evaluate the evolution of iron and immune-related parameters with time. To achieve some homogeneity, we selected those patients for which the first sample was collected up to 6 days after diagnosis and with at least one sample 4 to 9 days after the first one. Given the low number of patients included (5 fatal cases and 18 survivors) and the high heterogeneity of the observations, no major conclusions could be drawn for most parameters (Figure 5 and Table S1). However, it was possible to observe a tendency for a decrease in serum iron over time in fatal cases, contrasting with stabilization or increase in recovery cases (Figure 5a). In contrast, serum ferritin tended to increase over time in fatal cases and decrease or stabilize in recovery cases (Figure 5c). Additional studies are needed to draw conclusions.
4. Discussion
In this study, we evaluated different iron-related parameters in acute COVID-19 positive and negative patients with similar age and prevalence of comorbidities. Iron- and immune-related determinations were made in the same samples, allowing the identification of correlations between some immune determinants and iron alterations.
The first striking observation is the decrease in serum iron in COVID19-positive patients when compared to COVID19-negative patients and healthy donors (Figure 1a) that has been reported in previous studies [6,7,8,11,12,17]. Here, we show that the reduction is clearly deeper than in patients with similar clinical manifestations but with a negative SARS-CoV-2 test. Interestingly, the levels of transferrin were also lower in COVID19-positive patients (Figure 1b), highlighting the negative acute phase nature of this protein. This parallel decrease in serum iron and transferrin may explain why transferrin saturation was not significantly lower in COVID19-positive patients than in COVID19-negative patients (Figure 1c). Decreased transferrin and transferrin saturation were found in COVID-19 patients in 3 previous studies [6,13,17], but not in another one [6].
Low circulating iron levels predicted a poor outcome. In fact, the patients with the lowest serum iron levels at first evaluation were the ones that died (Figure 2a). This result corroborates previous findings that associate lower serum iron levels with increased oxygenation demand, mild or severe respiratory failure [6,12], and fatal outcome [7]. Interestingly, we observed a tendency towards the stabilization of low serum iron over time in patients who died, while in those that recovered the serum iron levels tended to increase over time (Figure 5). This agrees with a previous study showing persistent alterations in iron status in severe cases of COVID-19 [12]. The low number of individuals observed precludes any definitive conclusion in this respect.
Despite the reduction of serum iron in COVID-19-positive patients in this cohort, we did not find important alterations in RBC, hemoglobin, or hematocrit, in accordance with previous studies [6,7,8,12,20]. Increased heme was observed in sepsis patients [21] and murine models of infection [22]. However, in our cohort, we did not find any increase in the levels of either heme or haptoglobin (Figure 1f,g), indicating that hemolysis is not common in COVID-19.
Globally, neutrophils, lymphocytes, monocytes, and platelets are lower in COVID-19-positive patients in our cohort. These data agree with other cohorts, except concerning neutrophils, which were described as increased [10].
In this study, the levels of circulating ferritin were clearly higher in COVID19-positive patients as compared, not only to healthy controls but also to COVID19-negative patients (Figure 1d). Other studies also found increased serum ferritin in patients with COVID-19 [7,12,23] and some authors suggest that COVID-19 should be included in the list of pathologies presenting as hyperferritinemia ([24]). The use of increased ferritin as a predictor of COVID-19 disease severity has been suggested [12,14]. However, we could not find significant differences in the serum ferritin levels at admission between the different severity groups (Figure 2c). Interestingly, in the small number of patients followed over time, the ferritin levels at first evaluation tended to be higher but to decrease with time in those that recovered, as opposed to the fatal cases, who presented with slightly lower ferritin levels at diagnosis but evolved to higher levels during hospitalization. These fluctuations in serum ferritin levels over time highlight its relationship to the different phases of the inflammatory response and the need to be careful in the interpretation of a single measurement obtained in critically ill patients. It can also explain the high variability in the values reported before in different cohorts [6,12]. Future studies addressing the kinetics of serum ferritin during infectious and inflammatory diseases would be very pertinent.
Decreased serum iron was not completely explained by increased hepcidin in our study, although it correlated with IL-6. The role of hepcidin in the reduction of circulating iron during SARS-CoV-2 infection is controversial [6,10,13]. Our data suggest that other cytokines, such as MCP-1, IL-8, and IL-18, may also modulate iron homeostasis, although the mechanisms are not explored. Importantly, along with low serum iron, high IL-6 levels were strongly associated with poor outcomes. This confirms previous reports [25,26] and supports the recent World Health Organization (WHO) recommendations for IL-6-receptor blockers as a therapeutic strategy against COVID-19 [27,28].
This study has several limitations. Its retrospective and non-interventional nature limited the availability of follow-up samples with pre-established time-points. The lack of asymptomatic COVID19-positive patients precluded additional comparisons. Additionally, the COVID-19-negative individuals presented with heterogeneous clinical manifestations. Nevertheless, the large and well-defined cohort allowed the confirmation that COVID-19 causes more marked decreases in serum iron and increases in serum ferritin than other pathologies.
5. Conclusions
Our data consolidate low serum iron, low transferrin, and high IL-6 as important predictors of disease severity in COVID-19. The evolution of serum ferritin levels over time should also be considered as an indicator of disease progression.
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/v13122482/s1, Table S1: Number of individual determinations per figure or table, Table S2: Distribution of COVID-19 patients among the severity groups, according to the presence of different comorbidities.
Author Contributions
A.C.M., M.J.T., T.S., G.P. and M.S.G. designed the project and M.S.G. supervised its implementation. M.J.T., G.P. and J.T.G. were responsible for access to samples and data. A.C.M., M.J.T., T.S., C.M.B. and I.S.A. performed the experimental measurements. A.C.M., M.J.T., L.P., G.P., P.O. and M.S.G. analyzed and discussed the data. A.C.M. wrote the first draft of the manuscript, which was completed by M.J.T., T.S., C.M.B., I.S.A., L.P., J.T.G., G.P., P.O. and M.S.G.; A.C.M., M.J.T., T.S., C.M.B., I.S.A., L.P., J.T.G., G.P., P.O. and M.S.G. contributed to the work. All authors have read and agreed to the published version of the manuscript.
Funding
This work was funded by Fundação para a Ciência e a Tecnologia, grant 569 of the second edition of RESEARCH4COVID call.
Institutional Review Board Statement
The study was approved by the local ethics committee of CHUSJ (352/20) and performed in the respect of the Helsinki declaration. Routine clinical data were collected in an anonymized format and no additional procedures or sample collections were performed for this study.
Informed Consent Statement
The study was considered by the ethical committee as exempt from the need to take specific written informed consent from the patients enrolled.
Data Availability Statement
All the data generated in this study is contained within the article and the supplementary material.
Acknowledgments
The authors thank all the staff at the Clinical Pathology Department of CHUSJ, and the Tracy Core Facility of i3S, particularly Emília Cardoso, for technical assistance.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
References
- Chen, G.; Wu, D.; Guo, W.; Cao, Y.; Huang, D.; Wang, H.; Wang, T.; Zhang, X.; Chen, H.; Yu, H.; et al. Clinical and immunological features of severe and moderate coronavirus disease 2019. J. Clin. Investig. 2020, 130, 2620–2629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ko, J.Y.; Danielson, M.L.; Town, M.; Derado, G.; Greenlund, K.J.; Kirley, P.D.; Alden, N.B.; Yousey-Hindes, K.; Anderson, E.J.; Ryan, P.A.; et al. Risk Factors for Coronavirus Disease 2019 (COVID-19)-Associated Hospitalization: COVID-19-Associated Hospitalization Surveillance Network and Behavioral Risk Factor Surveillance System. Clin. Infect. Dis. 2021, 72, e695–e703. [Google Scholar] [CrossRef]
- Gomes, A.C.; Moreira, A.C.; Mesquita, G.; Gomes, M.S. Modulation of Iron Metabolism in Response to Infection: Twists for All Tastes. Pharmaceuticals 2018, 11, 84. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Gomes-Pereira, S.; Rodrigues, P.N.; Appelberg, R.; Gomes, M.S. Increased susceptibility to Mycobacterium avium in hemochromatosis protein HFE-deficient mice. Infect. Immun. 2008, 76, 4713–4719. [Google Scholar] [CrossRef] [Green Version]
- Vale-Costa, S.; Gomes-Pereira, S.; Teixeira, C.M.; Rosa, G.; Rodrigues, P.N.; Tomás, A.; Appelberg, R.; Gomes, M.S. Iron overload favors the elimination of Leishmania infantum from mouse tissues through interaction with reactive oxygen and nitrogen species. PLoS Negl. Trop. Dis. 2013, 7, e2061. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hippchen, T.; Altamura, S.; Muckenthaler, M.U.; Merle, U. Hypoferremia is Associated With Increased Hospitalization and Oxygen Demand in COVID-19 Patients. Hemasphere 2020, 4, e492. [Google Scholar] [CrossRef]
- Shah, A.; Frost, J.N.; Aaron, L.; Donovan, K.; Drakesmith, H.; Collaborators. Systemic hypoferremia and severity of hypoxemic respiratory failure in COVID-19. Crit. Care 2020, 24, 320. [Google Scholar] [CrossRef] [PubMed]
- Zhao, K.; Huang, J.; Dai, D.; Feng, Y.; Liu, L.; Nie, S. Serum Iron Level as a Potential Predictor of Coronavirus Disease 2019 Severity and Mortality: A Retrospective Study. Open Forum Infect. Dis. 2020, 7, ofaa250. [Google Scholar] [CrossRef] [PubMed]
- Camaschella, C.; Nai, A.; Silvestri, L. Iron metabolism and iron disorders revisited in the hepcidin era. Haematologica 2020, 105, 260–272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Nai, A.; Lorè, N.I.; Pagani, A.; De Lorenzo, R.; Di Modica, S.; Saliu, F.; Cirillo, D.M.; Rovere-Querini, P.; Manfredi, A.A.; Silvestri, L. Hepcidin levels predict Covid-19 severity and mortality in a cohort of hospitalized Italian patients. Am. J. Hematol. 2021, 96, E32–E35. [Google Scholar] [CrossRef] [PubMed]
- Sonnweber, T.; Boehm, A.; Sahanic, S.; Pizzini, A.; Aichner, M.; Sonnweber, B.; Kurz, K.; Koppelstätter, S.; Haschka, D.; Petzer, V.; et al. Persisting alterations of iron homeostasis in COVID-19 are associated with non-resolving lung pathologies and poor patients’ performance: A prospective observational cohort study. Respir. Res. 2020, 21, 276. [Google Scholar] [CrossRef]
- Tojo, K.; Sugawara, Y.; Oi, Y.; Ogawa, F.; Higurashi, T.; Yoshimura, Y.; Miyata, N.; Hayami, H.; Yamaguchi, Y.; Ishikawa, Y.; et al. The U-shaped association of serum iron level with disease severity in adult hospitalized patients with COVID-19. Sci. Rep. 2021, 11, 13431. [Google Scholar] [CrossRef]
- Yağcı, S.; Serin, E.; Acicbe, Ö.; Zeren, M.; Odabaşı, M.S. The relationship between serum erythropoietin, hepcidin, and haptoglobin levels with disease severity and other biochemical values in patients with COVID-19. Int. J. Lab. Hematol. 2021, 43 (Suppl. 1), 142–151. [Google Scholar] [CrossRef]
- Zhou, C.; Chen, Y.; Ji, Y.; He, X.; Xue, D. Increased Serum Levels of Hepcidin and Ferritin Are Associated with Severity of COVID-19. Med. Sci. Monit. 2020, 26, e926178. [Google Scholar] [CrossRef] [PubMed]
- Biamonte, F.; Botta, C.; Mazzitelli, M.; Rotundo, S.; Trecarichi, E.M.; Foti, D.; Torti, C.; Viglietto, G.; Torella, D.; Costanzo, F. Combined lymphocyte/monocyte count, D-dimer and iron status predict COVID-19 course and outcome in a long-term care facility. J. Transl. Med. 2021, 19, 79. [Google Scholar] [CrossRef]
- Henry, B.M.; de Oliveira, M.H.S.; Benoit, S.; Plebani, M.; Lippi, G. Hematologic, biochemical and immune biomarker abnormalities associated with severe illness and mortality in coronavirus disease 2019 (COVID-19): A meta-analysis. Clin. Chem. Lab. Med. 2020, 58, 1021–1028. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lv, Y.; Chen, L.; Liang, X.; Liu, X.; Gao, M.; Wang, Q.; Wei, Q.; Liu, L. Association between iron status and the risk of adverse outcomes in COVID-19. Clin. Nutr. 2021, 40, 3462–3469. [Google Scholar] [CrossRef] [PubMed]
- Saúde, D.-D.G.D. Prescrição e Determinação do Hemograma. 2011, 2011. 63. Available online: https://nocs.pt/prescricao-determinacao-hemograma/ (accessed on 1 January 2021).
- Rodrigues, A.M.; Gregório, M.J.; Sousa, R.D.; Dias, S.S.; Santos, M.J.; Mendes, J.M.; Coelho, P.S.; Branco, J.C.; Canhão, H. Challenges of Ageing in Portugal: Data from the EpiDoC Cohort. Acta Med. Port. 2018, 31, 80–93. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Maguire, D.; Richards, C.; Woods, M.; Dolan, R.; Wilson Veitch, J.; Sim, W.M.J.; Kemmett, O.E.H.; Milton, D.C.; Randall, S.L.W.; Bui, L.D.; et al. The systemic inflammatory response and clinicopathological characteristics in patients admitted to hospital with COVID-19 infection: Comparison of 2 consecutive cohorts. PLoS ONE 2021, 16, e0251924. [Google Scholar] [CrossRef]
- Ekregbesi, P.; Shankar-Hari, M.; Bottomley, C.; Riley, E.M.; Mooney, J.P. Relationship between Anaemia, Haemolysis, Inflammation and Haem Oxygenase-1 at Admission with Sepsis: A pilot study. Sci. Rep. 2018, 8, 11198. [Google Scholar] [CrossRef]
- Gomes, A.C.; Moreira, A.C.; Silva, T.; Neves, J.V.; Mesquita, G.; Almeida, A.A.; Barreira-Silva, P.; Fernandes, R.; Resende, M.; Appelberg, R.; et al. IFN-gamma-Dependent Reduction of Erythrocyte Life Span Leads to Anemia during Mycobacterial Infection. J. Immunol. 2019, 203, 2485–2496. [Google Scholar] [CrossRef]
- Mathew, D.; Giles, J.R.; Baxter, A.E.; Oldridge, D.A.; Greenplate, A.R.; Wu, J.E.; Alanio, C.; Kuri-Cervantes, L.; Pampena, M.B.; D’Andrea, K.; et al. Deep immune profiling of COVID-19 patients reveals distinct immunotypes with therapeutic implications. Science 2020, 369, eabc8511. [Google Scholar] [CrossRef] [PubMed]
- DePalma, R.G.; Hayes, V.W.; O’Leary, T.J. Optimal serum ferritin level range: Iron status measure and inflammatory biomarker. Metallomics 2021, 13, mfab030. [Google Scholar] [CrossRef] [PubMed]
- Sabaka, P.; Koščálová, A.; Straka, I.; Hodosy, J.; Lipták, R.; Kmotorková, B.; Kachlíková, M.; Kušnírová, A. Role of interleukin 6 as a predictive factor for a severe course of Covid-19: Retrospective data analysis of patients from a long-term care facility during Covid-19 outbreak. BMC Infect. Dis. 2021, 21, 308. [Google Scholar] [CrossRef]
- Santa Cruz, A.; Mendes-Frias, A.; Oliveira, A.I.; Dias, L.; Matos, A.R.; Carvalho, A.; Capela, C.; Pedrosa, J.; Castro, A.G.; Silvestre, R. Interleukin-6 Is a Biomarker for the Development of Fatal Severe Acute Respiratory Syndrome Coronavirus 2 Pneumonia. Front. Immunol. 2021, 12, 613422. [Google Scholar] [CrossRef]
- Angriman, F.; Ferreyro, B.L.; Burry, L.; Fan, E.; Ferguson, N.D.; Husain, S.; Keshavjee, S.H.; Lupia, E.; Munshi, L.; Renzi, S.; et al. Interleukin-6 receptor blockade in patients with COVID-19: Placing clinical trials into context. Lancet Respir. Med. 2021, 9, 655–664. [Google Scholar] [CrossRef]
- WHO. WHO Recommends Life-Saving Interleukin-6 Receptor Blockers for COVID-19 and Urges Producers to Join Efforts to Rapidly Increase Access; WHO: Geneva, Switzerland, 2021. [Google Scholar]

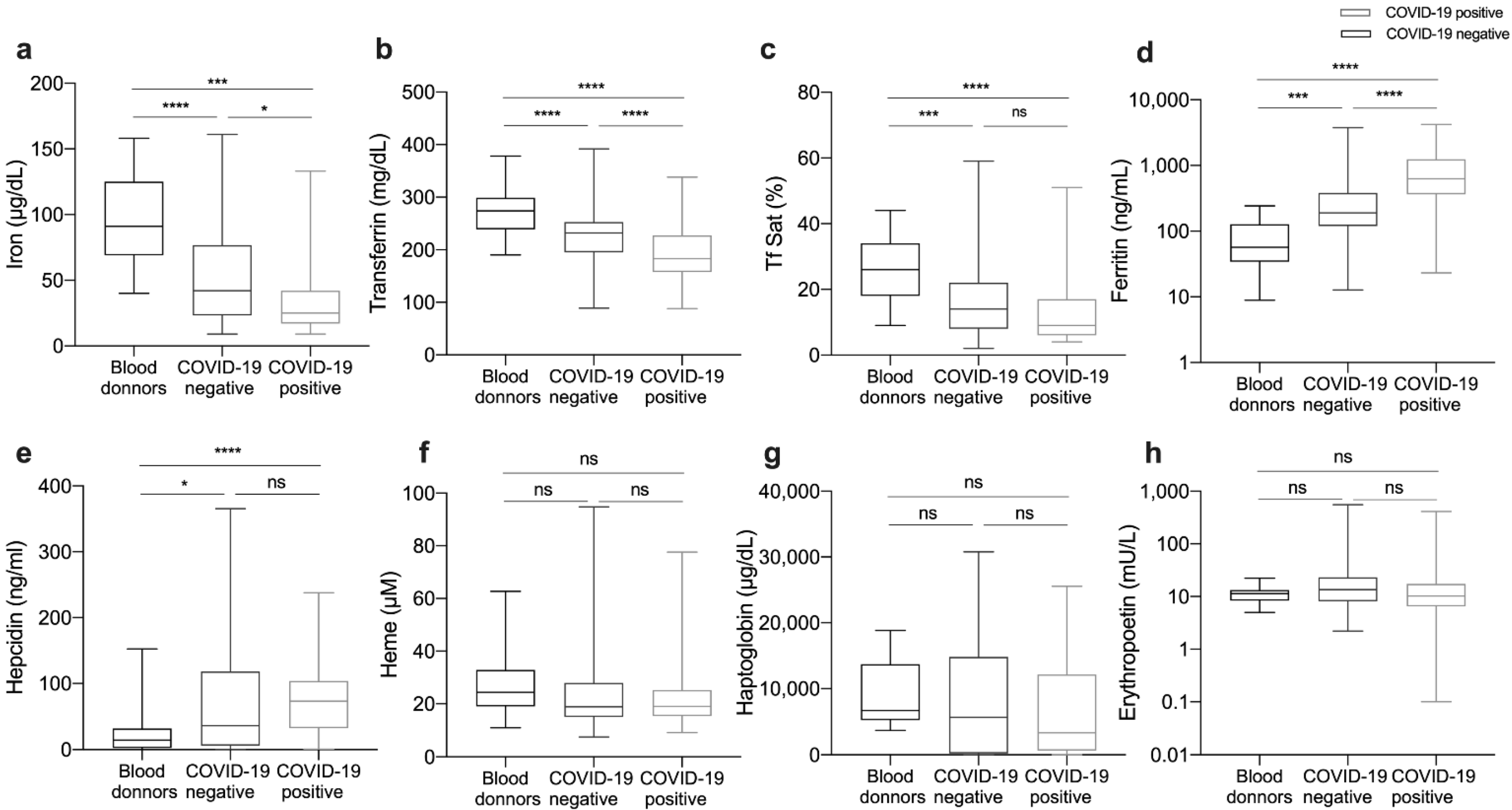

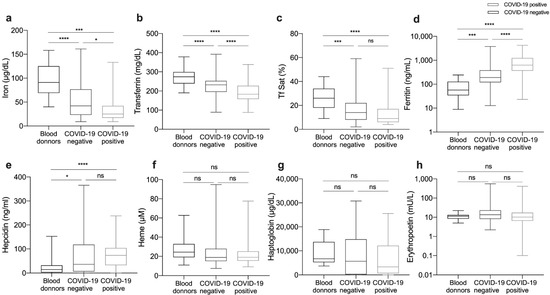

Figure 1.
Blood iron parameters are altered in COVID-19 patients. Blood samples were obtained at patients’ admission to CHUSJ, and plasma or serum was used to measure iron (a), transferrin (b), transferrin saturation (c), ferritin(d), hepcidin (e), heme (f), haptoglobin (g), and erythropoietin (h). Samples obtained from healthy blood donors were used for comparison. Boxes represent the lower and higher quartile, and the horizontal bar represents the median value. The whiskers represent the minimum and maximum values of each group. Statistical analysis was performed with one-way-ANOVA and Kruskal–Wallis test, following multiple comparisons with Tukey’s test and Mann–Whitney’s test, respectively. * p < 0.05, *** p < 0.001, **** p < 0.0001, ns = not significant.
Figure 1.
Blood iron parameters are altered in COVID-19 patients. Blood samples were obtained at patients’ admission to CHUSJ, and plasma or serum was used to measure iron (a), transferrin (b), transferrin saturation (c), ferritin(d), hepcidin (e), heme (f), haptoglobin (g), and erythropoietin (h). Samples obtained from healthy blood donors were used for comparison. Boxes represent the lower and higher quartile, and the horizontal bar represents the median value. The whiskers represent the minimum and maximum values of each group. Statistical analysis was performed with one-way-ANOVA and Kruskal–Wallis test, following multiple comparisons with Tukey’s test and Mann–Whitney’s test, respectively. * p < 0.05, *** p < 0.001, **** p < 0.0001, ns = not significant.

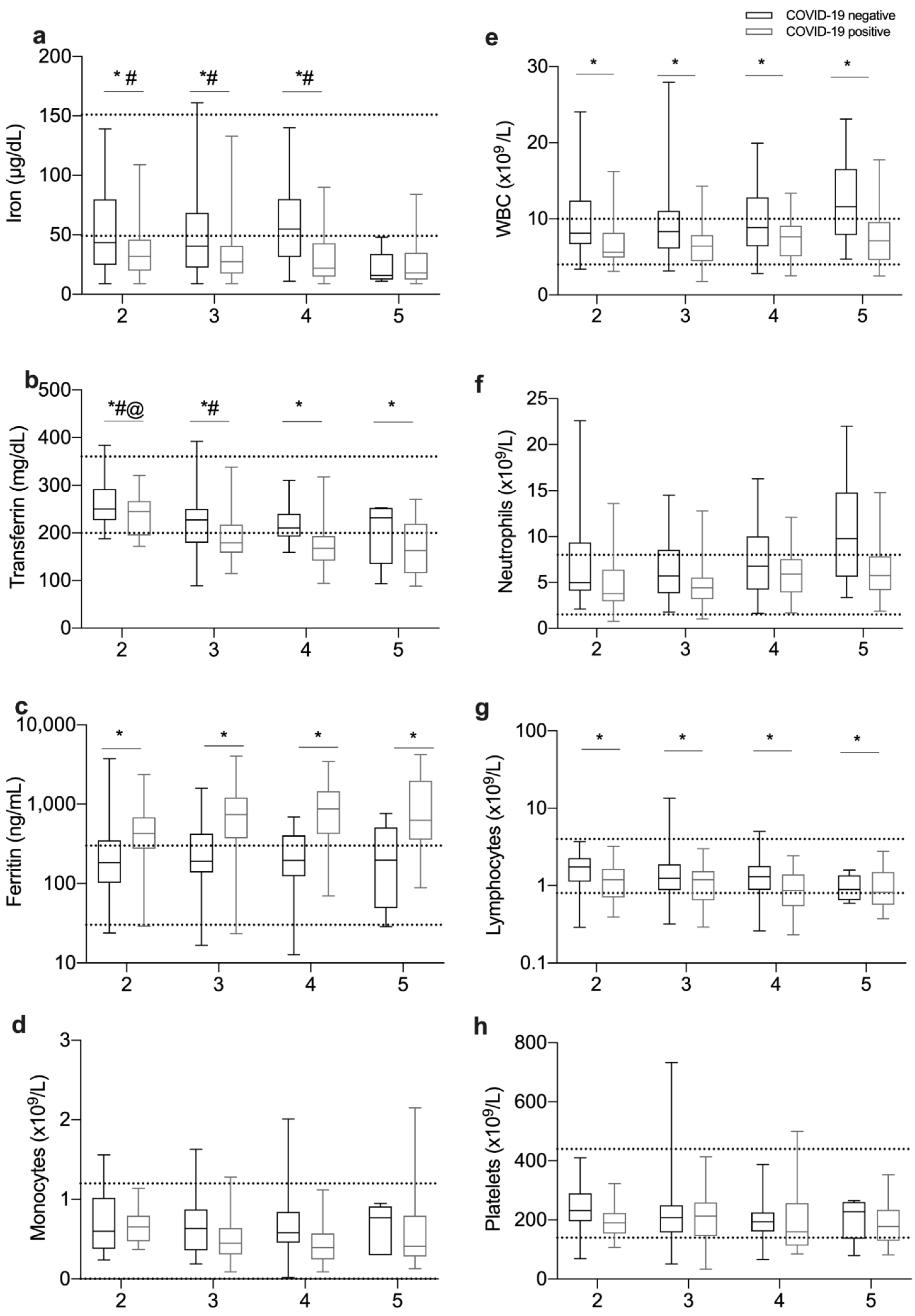

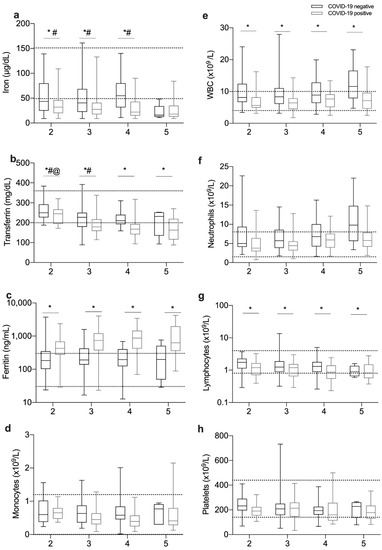

Figure 2.
Alterations in blood iron parameters in COVID-19 are related to disease severity. Patients were stratified according to disease severity, as described in the Methods section. The first blood sample available from each patient after admission was used to measure iron (a), transferrin (b), ferritin (c) in plasma or serum and to quantify different types of white blood cells (d–h). Boxes represent the lower and higher quartile, and the horizontal bar represents the median value. The whiskers represent the minimum and maximum values of each group. Horizontal dotted lines represent maximum and minimum values of the normal range considered at CHUSJ following the National Health Authorities’ Regulations. Statistical analysis was performed with one-way-ANOVA and Kruskal–Wallis test, following multiple comparisons with Tukey’s test and Mann–Whitney’s test respectively. * p < 0.05 between COVID-19-positive and COVID-19-negative patients. # < 0.05 compared with severity 5, @ < 0.05 compared with severities 4 and 5.
Figure 2.
Alterations in blood iron parameters in COVID-19 are related to disease severity. Patients were stratified according to disease severity, as described in the Methods section. The first blood sample available from each patient after admission was used to measure iron (a), transferrin (b), ferritin (c) in plasma or serum and to quantify different types of white blood cells (d–h). Boxes represent the lower and higher quartile, and the horizontal bar represents the median value. The whiskers represent the minimum and maximum values of each group. Horizontal dotted lines represent maximum and minimum values of the normal range considered at CHUSJ following the National Health Authorities’ Regulations. Statistical analysis was performed with one-way-ANOVA and Kruskal–Wallis test, following multiple comparisons with Tukey’s test and Mann–Whitney’s test respectively. * p < 0.05 between COVID-19-positive and COVID-19-negative patients. # < 0.05 compared with severity 5, @ < 0.05 compared with severities 4 and 5.

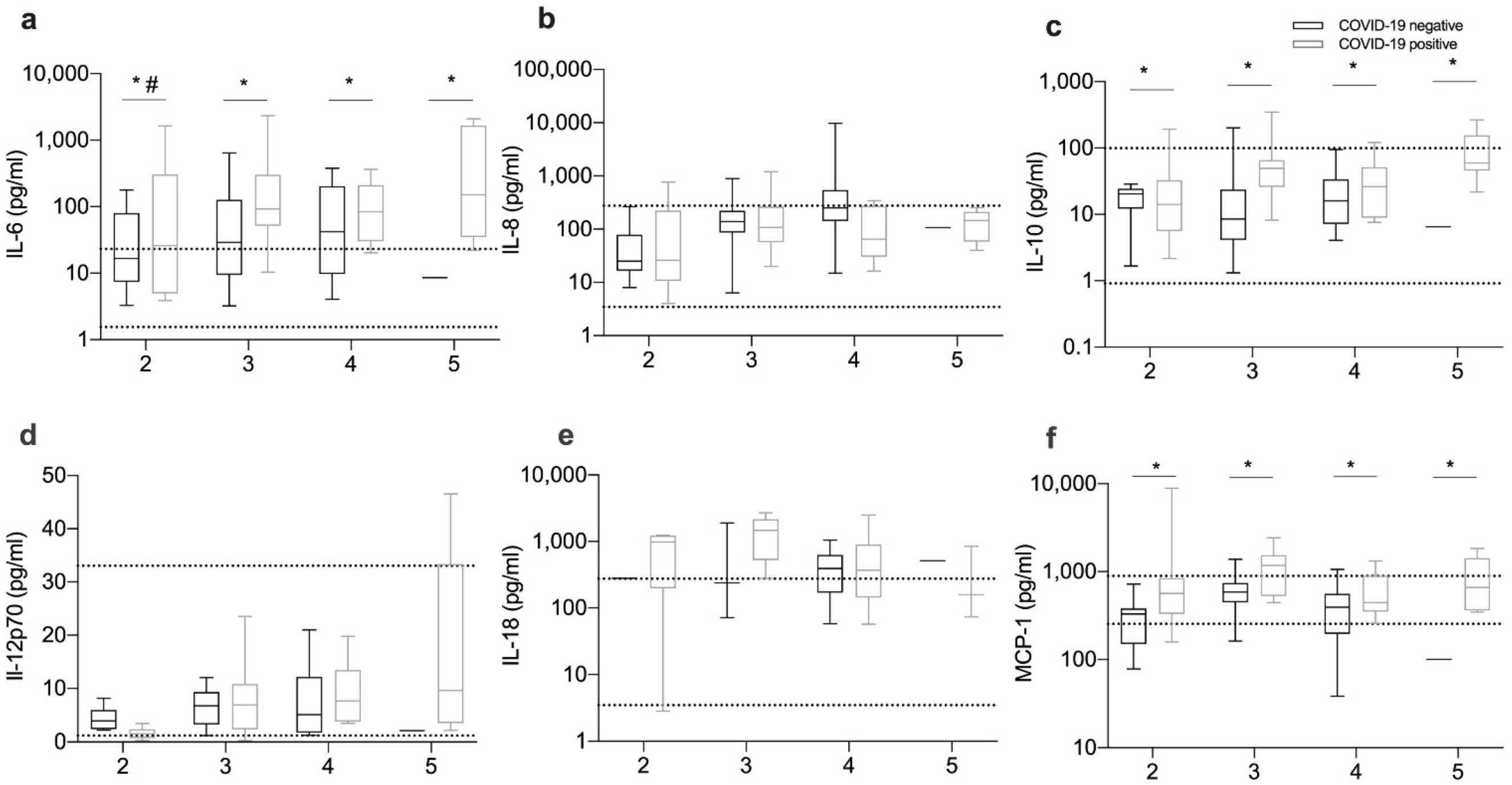

Figure 3.
Cytokine levels in COVID-19 are related to disease severity. Patients were stratified according to disease severity, as described in the Methods section. The first blood sample available from each patient after admission was used to quantify IL-6 (a), IL-8 (b), IL-10 (c), IL-12p70 (d), IL-18 (e) and MCP-1 (f) using cytometric beads assay as described in the methods section. Multiple comparisons were made after one-way-ANOVA. Boxes represent the lower and higher quartile, and the horizontal bar represents the median value. The whiskers represent the minimum and maximum values of each group. Horizontal dotted lines represent the lowest and higher levels measured in blood donors’ samples. Statistical analysis was performed with one-way-ANOVA and Kruskal–Wallis test, following multiple comparisons with Tukey’s test and Mann–Whitney’s test respectively. * p < 0.05 between COVID-19-positive and COVID-19-negative patients, # < 0.05 compared with severity 5 within COVID-19-positive patients.
Figure 3.
Cytokine levels in COVID-19 are related to disease severity. Patients were stratified according to disease severity, as described in the Methods section. The first blood sample available from each patient after admission was used to quantify IL-6 (a), IL-8 (b), IL-10 (c), IL-12p70 (d), IL-18 (e) and MCP-1 (f) using cytometric beads assay as described in the methods section. Multiple comparisons were made after one-way-ANOVA. Boxes represent the lower and higher quartile, and the horizontal bar represents the median value. The whiskers represent the minimum and maximum values of each group. Horizontal dotted lines represent the lowest and higher levels measured in blood donors’ samples. Statistical analysis was performed with one-way-ANOVA and Kruskal–Wallis test, following multiple comparisons with Tukey’s test and Mann–Whitney’s test respectively. * p < 0.05 between COVID-19-positive and COVID-19-negative patients, # < 0.05 compared with severity 5 within COVID-19-positive patients.

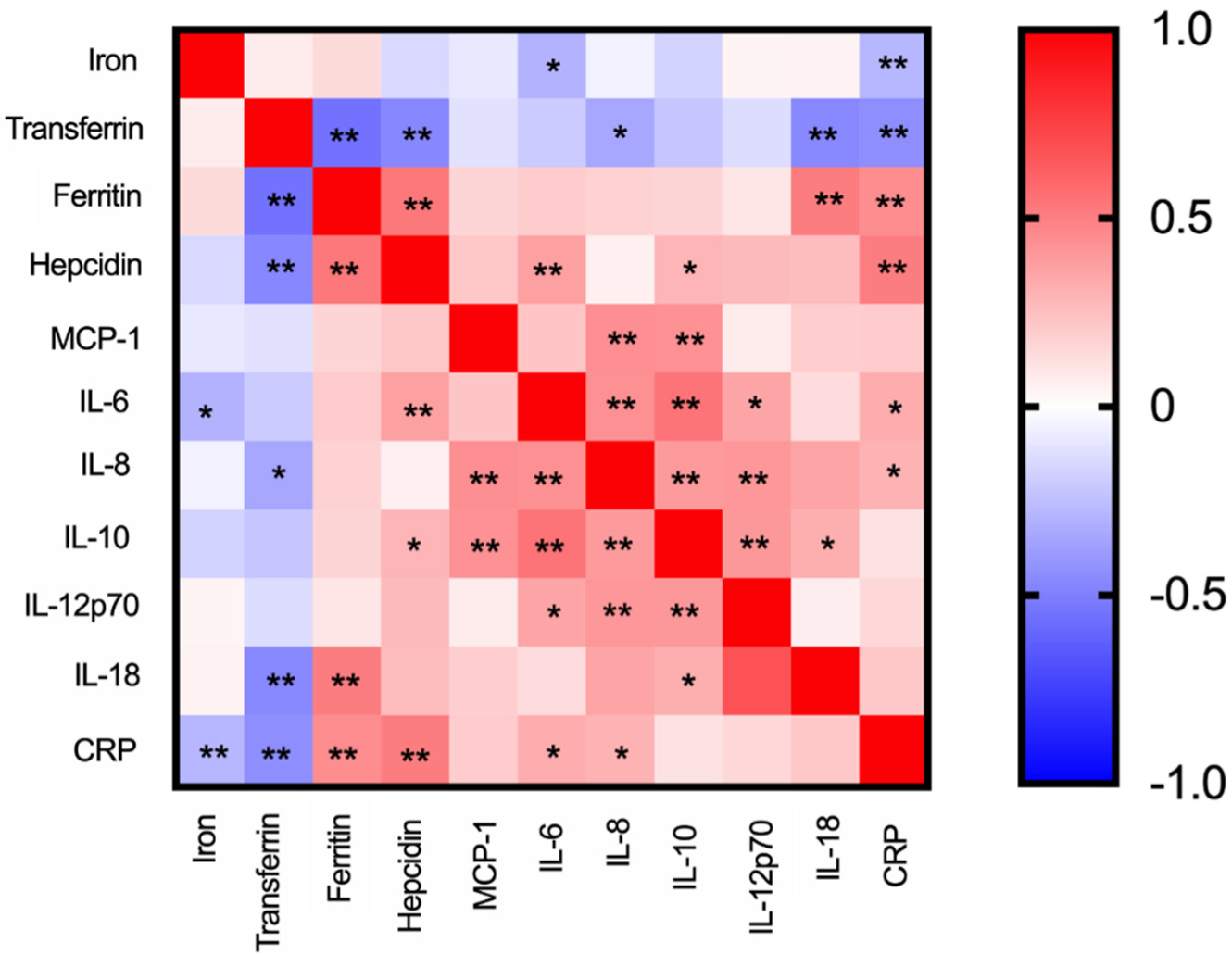

Figure 4.
Spearman correlations between different iron markers and cytokines. Non-parametric Spearman correlations were obtained in iron parameters or cytokines determinations of the first sample of COVID-19-positive patients enrolled in this study. Spearman’s rho was converted in color from blue to red and significance within positive or negative correlations were shown as * p < 0.05 and ** p < 0.01.
Figure 4.
Spearman correlations between different iron markers and cytokines. Non-parametric Spearman correlations were obtained in iron parameters or cytokines determinations of the first sample of COVID-19-positive patients enrolled in this study. Spearman’s rho was converted in color from blue to red and significance within positive or negative correlations were shown as * p < 0.05 and ** p < 0.01.

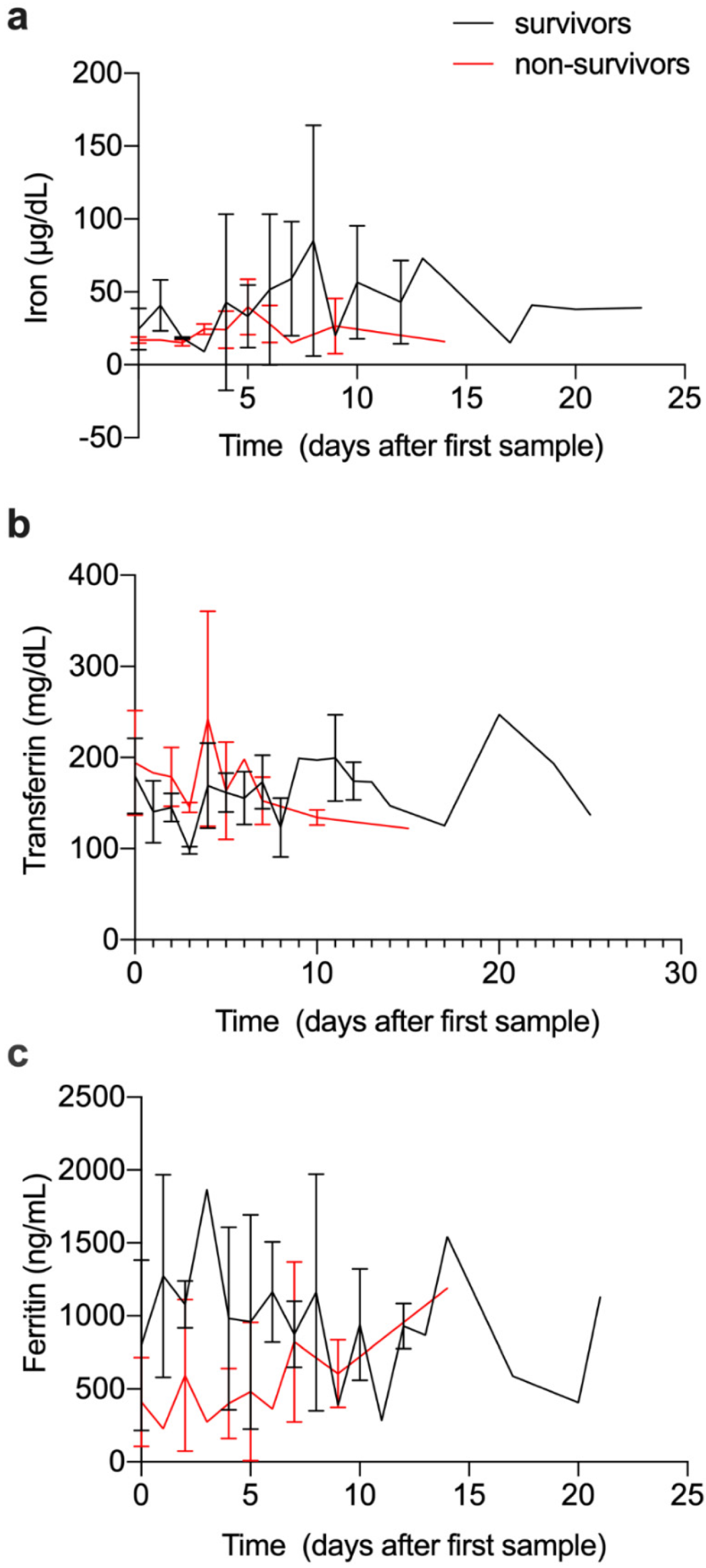

Figure 5.
Evolution of iron parameters over time, during hospital stay. Blood samples were obtained over the time of stay, from a limited number of COVID-19-positive inpatients: 5 fatal cases and 18 survivors. Circulating iron levels (a), transferrin (b) and ferritin (c) were measured as described in the methods section. Graphs show mean and standard deviations within each group: survivors (black lines) and non-survivors (grey lines).
Figure 5.
Evolution of iron parameters over time, during hospital stay. Blood samples were obtained over the time of stay, from a limited number of COVID-19-positive inpatients: 5 fatal cases and 18 survivors. Circulating iron levels (a), transferrin (b) and ferritin (c) were measured as described in the methods section. Graphs show mean and standard deviations within each group: survivors (black lines) and non-survivors (grey lines).
Table 1.
Baseline demographic and clinical characterization of the individuals included in the study.
Table 1.
Baseline demographic and clinical characterization of the individuals included in the study.
| COVID19-Negative | COVID19-Positive | ||
|---|---|---|---|
| Blood Donors | Patients | ||
| Number of patients | 35 | 176 | 127 |
| Median age (P25–P75) a | 46 (42–59) | 65 (50–78) | 72 (61–81) |
| Number of males (%) | 16 (45.7) | 102 (58.0) | 78 (61.4) |
| Number of comorbidities, median (P25–P75) a | 4.0 (2–6) | 4.0 (2–6) | |
| Frequency of comorbidities (%): | |||
| Hypertension (*) | 52.8 | 65.4 | |
| Dyslipidemia (ns) | 44.3 | 44.1 | |
| Diabetes (**) | 26.1 | 40.9 | |
| Obesity (ns) | 23.3 | 24.4 | |
| Chronic kidney disease (ns) | 15.3 | 14.2 | |
| Chronic respiratory disease (ns) | 13.6 | 14.2 | |
| Iron supplementation (ns) | 10.8 | 5.5 | |
| Hypocoagulation (ns) | 9.7 | 8.7 | |
| Anemia (ns) | 3.4 | 3.1 | |
a Median (percentile 25-percentile 75) for age and number of comorbidities; * p < 0.05; ** p < 0.01; ns: not significant.
Table 2.
Hematological and biochemical determinations on the first sample after hospital admission.
| Normal Range | COVID-19-Negative | COVID-19-Positive | ||
|---|---|---|---|---|
| Red blood cells (1012/L) Males Females | 4.31–6.4 3.85–5.20 | 4.44 (3.99–4.94) 4.20 (3.55–4.53) | 4.54 (4.05–4.98) 4.35 (4.00–4.68) | ns * |
| Hemoglobin (g/dL) Males Females | 13.6–18 11.5–16 | 13.3 (11.30–15.23) 12.6 (10.80–13.50) | 13.6 (12.30–15.2) 13.2 (12.10–13.90) | ns ns |
| Hematocrit (%) Males Females | 39.8–52 34.7–46 | 39.95 (34.80–44.80) 37.6 (32.90–40.50) | 40.09 (36.35–43.65) 38.9 (36.80–41.70) | ns * |
| Mean corpuscular volume (fL) | 80–97 | 89.7 ± 6.28 | 90.1 ± 5.55 | ns |
| Mean corpuscular hemoglobin (pg) | 26–34 | 30.0 ± 2.49 | 30.2 ± 2.14 | ns |
| Mean corpuscular hemoglobin concentration (g/dL) | 32–36 | 33.5 ± 1.43 | 33.6 ± 1.15 | ns |
| Red blood cell distribution width-CV (%) | 11.5–15 | 14.2 ± 1.68 | 13.8 ± 1.60 | ns |
| Red blood cell distribution width-SD (fL) | 37–54 | 46.1 ± 5.99 | 45.4 ± 5.38 | ns |
| White blood cells (×109/L) | 4.0–10.0 | 8.44 (6.35–11.49) | 6.48 (4.77–8.32) | *** |
| Neutrophils (×109/L) | 1.5–8 | 5.97 (4.05–9.14) | 4.49 (3.17–6.81) | *** |
| Lymphocytes (×109/L) | 0.8–4 | 1.41 (0.92–1.95) | 1.02 (0.63–1.49) | *** |
| Monocytes (×109/L) | 0.0–1.2 | 0.60 (0.38–0.87) | 0.50 (0.32–0.71) | *** |
| Platelets (109/L) | 140–440 | 216.0 (167.0–257.5) | 191.5 (144.0–251.5) | * |
| Mean platelet volume (fL) | 10.8 ± 1.01 | 10.9 ± 1.03 | ns | |
| Platelet distribution width (fL) | 12.8 ± 2.42 | 13.1 ± 2.37 | ns | |
| CRP a (mg/L) | <3 | 8.10 (2.33–63.93) | 64.2 (21.40–133.83) | ** |
| AST a (U/L) | 10–37 | 30.00 (22.00–43.00) | 35.00 (25.00–57.25) | ns |
| ALT a (U/L) | 10–37 | 24.00 (16.00–35.5) | 25.00 (16.00–47.00) | ns |
| Gamma GT a (U/L) | 10–49 | 30.00 (18.00–56.75) | 48.00 (25.00–88.00) | ns |
| Total Protein (g/L) | 64–83 | 68.1 ± 9.95 | 69.1 ± 9.32 | ns |
a CRP: C-Reactive-Protein; AST: Aspartate Aminotransferase; ALT: Alanine Aminotransferase; Gamma GT: Gamma-glutamyl transferase. Results are presented as mean ± standard deviation and comparisons were performed using unpaired Mann–Whitney and Student’s t-tests. Statistical differences: * p < 0.05, ** p < 0.01, *** p < 0.001, ns = not significant.
Table 3.
Stratification of individuals according to the severity of disease.
| Number | Minimum O2 Saturation a | Pneumonia (%) | ||
|---|---|---|---|---|
| All | ||||
| COVID-19-negative | 176 | 93.0 ± 7.3 | 15.3% | |
| COVID-19-positive | 127 | 88.3 ± 7.9 | 60.6% | |
| 1 | Asymptomatic | |||
| COVID-19-negative | 15 | 96.8 ± 2.1 | --- | |
| COVID-19-positive | 0 | --- | --- | |
| 2 | Ambulatory | |||
| COVID-19-negative | 40 | 95.1 ± 3.4 | 15.0% | |
| COVID-19-positive | 28 | 94.4 ± 2.5 | 14.3% | |
| 3 | General inward | |||
| COVID-19-negative | 72 | 92.9 ± 5.6 | 20.8% | |
| COVID-19-positive | 48 | 89.1 ± 6.9 | 60.4% | |
| 4 | Intensive care | |||
| COVID-19-negative | 43 | 93.0 ±7.2 | 9.3% | |
| COVID-19-positive | 32 | 86.4 ± 7.0 | 84.4% | |
| 5 | Fatalities | |||
| COVID-19-negative | 6 | 77.3 ± 18.4 | 33.3% | |
| COVID-19-positive | 19 | 81.2 ± 10.0 | 89.5% |
a Minimum O2 saturation values are presented as mean ± standard deviation.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Moreira, A.C.; Teles, M.J.; Silva, T.; Bento, C.M.; Alves, I.S.; Pereira, L.; Guimarães, J.T.; Porto, G.; Oliveira, P.; Gomes, M.S. Iron Related Biomarkers Predict Disease Severity in a Cohort of Portuguese Adult Patients during COVID-19 Acute Infection. Viruses 2021, 13, 2482. https://doi.org/10.3390/v13122482
AMA Style
Moreira AC, Teles MJ, Silva T, Bento CM, Alves IS, Pereira L, Guimarães JT, Porto G, Oliveira P, Gomes MS. Iron Related Biomarkers Predict Disease Severity in a Cohort of Portuguese Adult Patients during COVID-19 Acute Infection. Viruses. 2021; 13(12):2482. https://doi.org/10.3390/v13122482
Chicago/Turabian StyleMoreira, Ana C., Maria Jose Teles, Tânia Silva, Clara M. Bento, Inês Simões Alves, Luisa Pereira, João Tiago Guimarães, Graça Porto, Pedro Oliveira, and Maria Salomé Gomes. 2021. "Iron Related Biomarkers Predict Disease Severity in a Cohort of Portuguese Adult Patients during COVID-19 Acute Infection" Viruses 13, no. 12: 2482. https://doi.org/10.3390/v13122482
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
