Exposure Route Influences Disease Severity in the COVID-19 Cynomolgus Macaque Model

Abstract

The emergence of SARS-CoV-2 and the subsequent pandemic has highlighted the need for animal models that faithfully replicate the salient features of COVID-19 disease in humans. These models are necessary for the rapid selection, testing, and evaluation of potential medical countermeasures. Here, we performed a direct comparison of two distinct routes of SARS-CoV-2 exposure—combined intratracheal/intranasal and small particle aerosol—in two nonhuman primate species, rhesus and cynomolgus macaques. While all four experimental groups displayed very few outward clinical signs, evidence of mild to moderate respiratory disease was present on radiographs and at necropsy. Cynomolgus macaques exposed via the aerosol route also developed the most consistent fever responses and had the most severe respiratory disease and pathology. This study demonstrates that while all four models produced suitable representations of mild COVID-like illness, aerosol exposure of cynomolgus macaques to SARS-CoV-2 produced the most severe disease, which may provide additional clinical endpoints for evaluating therapeutics and vaccines.

1. Introduction

The threat of a previously unknown emerging pathogen has long been a concern of the scientific and medical communities. This includes the challenge of rapidly developing and implementing scientific tools for characterization and investigation of the new threat, as well as the production and deployment of vaccines and therapeutics. The discovery of severe acute respiratory syndrome (SARS) and Middle East respiratory syndrome (MERS), both caused by coronaviruses (CoV), demonstrated this need on a limited scale. However, the emergence of COVID-19 disease in Wuhan, China, in late 2019 and the subsequent identification of SARS-CoV-2 as the causative agent, has illustrated the challenge of responding to a new threat on an unprecedented global scale. The key components of a “toolbox” required for responding to any emerging pathogen includes a well-characterized agent for use as reference material, reagents such as antigens and antibodies for serological assays, assays for rapid detection of infected individuals, and animal models for evaluation of pathogenesis and medical countermeasures.

Although two vaccines for SARS-CoV-2 have received approval from the Food and Drug Administration (FDA) and another one is being used under an IND protocol, the development of relevant animal models for COVID-19 remains a critical need. Animal models that faithfully replicate the salient aspects of human COVID-19 disease are not only crucial for identifying potential early-stage medical countermeasures, but also for understanding the pathophysiological changes and immunological processes resulting from the disease. While a number of animal models of SARS-CoV-2 infection have been developed including genetically-modified mice, hamsters, and nonhuman primates (NHPs) [1], additional development and refinement of these animal models is still needed. Moreover, although antibody responses are likely involved, the correlates of protection for SARS-CoV-2 still remain unknown [2]. The NHP model, which is commonly considered a “gold standard” in infectious disease research due to its close fidelity to human disease and immunology, will be important for linking potential correlates of protection to the immune responses generated in humans.

As with other members of the betacoronavirus family, SARS-CoV-2 causes respiratory disease of variable severity in humans, from mild illness resembling the common cold to severe respiratory distress resulting in death [3,4,5,6]. The clinical signs of COVID-19 most commonly include fever, cough, and shortness of breath, with a subset of patients developing gastrointestinal and neurological signs [3,4,5,6]. Severe respiratory disease is characterized by pneumonia with “ground-glass” opacity and consolidation on chest radiographs [3,4,5,6] and histopathological findings of alveolar damage, multinucleated giant cells, congestion and hemorrhage, inflammatory infiltrates, and fibrin deposition [7]. The development of NHP models of COVID-19 has been largely focused on routes of infection that may reflect or simulate potential respiratory and mucosal modes of transmission, such as intranasal (IN), intratracheal (IT), oral, ocular, and combinations thereof [8,9,10,11,12,13]. Generally, most NHP models for SARS-CoV-2 infection have used rhesus macaques (RM), cynomolgus macaques (CM), or African green monkeys (AGM) and have resulted in very mild respiratory disease with minimal to no mortality [8,9,10,11,12,13]. Severe respiratory distress and mortality have only been observed in instances where older animals were utilized [12]. Previous NHP model evaluation performed at the United States Army Medical Research Institute of Infectious Diseases (USAMRIID) has suggested that there are likely species-associated differences in the type and severity of disease following aerosol (AE) exposure to SARS-CoV-2, with AGMs and CMs demonstrating the most consistent presentation of disease [13].

While a number of potential routes of transmission have been proposed for SARS-CoV-2, the primary modes of transmission are likely contact, droplet, and aerosol, which are similar to other respiratory viruses [14,15,16]. Droplets are thought to be produced by coughing, sneezing, and talking. They are generally >5 µm in size, meaning they do not remain suspended in the air over long periods of time and distances [17,18]. Aerosols are considered to be ≤5 µm and can remain suspended in the air for long distances and periods of time [16,17]. While the relative contribution of each of these routes to SARS-CoV-2 transmission is still unknown, reports of transmission between individuals separated by greater distances (>2 m) and in poorly ventilated indoor areas indicate that aerosol transmission is indeed occurring [14,16]. In studies of SARS-CoV-2 and other respiratory pathogens, combined IT/IN administration is often used as a surrogate to achieve exposure of both the upper and lower respiratory tracts to pathogen. Although IT/IN is often the more favored route due to the relative ease of performance in a laboratory setting, AE may represent a more natural route of exposure and may be useful in developing an animal model that accurately captures the clinical features of human COVID-19 disease. In addition to prolonged suspension, the generation of small aerosol particles enables deeper penetration into the lungs [17], potentially resulting in more severe respiratory disease and pathology. As the majority of the current NHP models have failed to replicate the more severe cases of disease seen in some COVID-19 patients, AE represents a potential opportunity to fill this critical gap. Additionally, USAMRIID’s AE delivery system incorporates a head-only exposure chamber, ensuring that animals are also exposed to the virus through mucosal surfaces including the mouth and eyes, which may replicate the multifaceted mode of SARS-CoV-2 transmission in humans.

To date, there are no published data on the direct comparison of AE to IT/IN for SARS-CoV-2, particularly in the primate model. Comparisons of exposure routes in other animal models, such as oral versus intranasal administration and airborne versus fomite transmission in Syrian hamsters, have suggested that differences in disease severity can be achieved [19,20]. Here, we performed a head-to-head comparison of AE to IT/IN exposure in two nonhuman primate species: RMs and CMs.

2. Materials and Methods

2.1. Virus

A stock of SARS-CoV-2, Washington state’s first isolate in 2020 (WA-1/2020), was obtained from the Centers for Disease Control and Prevention (CDC) and designated as Lot R4713. This strain was isolated from nasopharyngeal and oropharyngeal swabs obtained from a patient in Washington who had traveled to China [21]. The CDC isolate had been passaged three times in CCL-81 cells prior to receipt at the USAMRIID laboratory. A master (Lot R4714a) and seed stock (Lot R4716) were made. The seed stock was then passaged in ATCC Vero 76 cells (CRL-1587, American Type Culture Collection, Manassas, VA, USA) at an MOI of 0.01 and incubated for approximately 50 h. The supernatant was clarified by centrifugation, and the resulting virus production stock was designated as Lot R4719. The production stock contained an average of 5.45 × 10⁶ pfu/mL of infectious virus particles as determined using a neutral red plaque assay. R4719 was fully sequenced using an Illumina MiSeq platform (Illumina, San Diego, CA, USA). The production stock underwent additional testing to evaluate sterility and mycoplasma and endotoxin levels, as well as a number of real-time reverse transcriptase polymerase chain reaction (RT-PCR) assays for exclusivity and inclusivity, to include two specific for SARS-CoV-2 virus. Lot R4719 was determined to have no detectable mycoplasma, endotoxin or adventitious agents based on the assays and techniques used. No known contaminants were detected during sequencing of the stock. Identity was confirmed by real-time RT-PCR and sequencing; the sequence of lot R4719 was identical to the original stock obtained from the patient isolate, with no deletions or mutations observed.

2.2. Telemetry

Telemetry implants were utilized for continuous monitoring of body temperature and activity in the NHPs. Approximately ten days prior to virus exposure, animals were surgically implanted with M00 implants (Data Sciences International, St. Paul, MN, USA) by USAMRIID veterinary staff and allowed to recover from surgery prior to release for study. Animals with implanted devices were housed in standard NHP caging. Temperature and activity signals were collected using a sampling rate of one sample per second.

2.3. Non-Human Primates

The study used eight healthy cynomolgus macaques and eight healthy rhesus macaques with equal distribution of sex among the species. All animals were of Chinese origin and were obtained from the USAMRIID NHP colony. The animals were between the ages of 5.3 and 9.8 years and weighed between 2.976 and 9.585 kg. They were determined to be serologically negative for SARS-CoV-2 at the outset of the study as determined by ELISA and PRNT.

2.4. Virus Exposure

Animals were randomized to one of two exposure routes balanced by sex and weight. On the designated day of virus exposure, animals were exposed to the WA-1/2020 strain of SARS-CoV-2 by either the small particle AE route (n = 8) or combined IT/IN administration (n = 8).

The AE exposure dose was calculated from the minute volume for each animal measured with a plexiglass whole body plethysmograph box using Buxco FinePointe software (Data Sciences International). The total volume of aerosol inhaled was determined by the exposure time required to deliver the estimated inhaled dose. Animals were exposed to the target AE dose between 5.0 × 10⁴ and 5.0 × 10⁵ pfu of virus in the USAMRIID head-only exposure system. The AE exposure was generated using a Collison Nebulizer (CH Technologies, Westwood, NJ, USA) to produce a highly respirable aerosol (flow rate 7.5 ± 0.1 L/min). The system generated a target aerosol of 1–3 µm mass median aerodynamic diameter determined by aerodynamic particle sizer. Samples of the aerosol collected from the exposure chamber using an all-glass impinger (AGI) during each exposure were assessed using a neutral red plaque assay to determine the inhaled dose for each animal.

The IT/IN animals were administered a target dose of 2.0 × 10⁷ pfu split between the two routes of exposure. Four milliliters of virus was administered with a syringe via a feeding tube catheter for the IT route. Following administration of virus, a bolus of air was delivered using a syringe to ensure that the full dose of virus was administered and that no material remained in the catheter. Immediately following IT administration, animals were administered 0.25 mL of virus inserted dropwise via syringe into each nare for the IN route (a total of 0.5 mL for IN route). The animals’ heads were held facing upwards for up to 2 min to ensure proper delivery of the inoculum into the nasal passages. A neutral red plaque assay was performed on the viral inoculum to confirm the titer of the stock virus.

2.5. Post-Exposure Observations and Sample Collection

Animals were observed at least once daily for clinical signs of SARS-CoV-2 infection, including respiratory signs and changes in responsiveness and activity. Physical examinations, including weights and radiographs, were performed under anesthesia two days prior to virus exposure (Day-2), the day of exposure (Day 0), Days 2, 4, 6, and 8 post-exposure (PE), and at the time of euthanasia. Eight animals (two from each of the four groups) were randomly selected for euthanasia on Day 9 PE, with the eight remaining animals euthanized on Day 10 PE. While under anesthesia and at euthanasia, blood, nasopharyngeal, oropharyngeal, and rectal swabs, and bronchoalveolar lavage (BAL) fluid (baseline, Day 4 PE, and terminal only) were collected for evaluation of viral RNA, infectious virus, and clinical pathology to include serum chemistry and hematology. Swabs were collected into 1 mL of viral transport media (VTM; Hanks Balanced Salt Solution (Gibco) containing 2% heat-inactivated fetal bovine serum, 100 µg/mL gentamicin, and 0.5 µg/mL amphotericin B), vortexed for 15–20 s, and the lysate was removed. To collect BAL fluid, an 8 French by 16-inch feeding tube (Covidien/Kendall, Dublin, Ireland) was measured, marked to the appropriate length, and inserted into the airway of dorsal recumbent NHPs with the aid of an endotracheal tube and laryngoscope. After confirming correct placement, 10 mL of sterile 0.9% sodium chloride (Becton Dickinson, Franklin Lakes, NJ, USA) was delivered into the lungs via syringe attached to the feeding tube. After delivery, the solution was suctioned out of the airway using the syringe. This process was repeated twice, for a total administration of 30 mL.

2.6. Radiographs

Ventrodorsal and lateral radiographs were performed during each anesthetized physical examination and were scored for evidence of respiratory disease by veterinarian blinded to species and exposure route. Radiographic scores for each animal represent the summation of scores across each lung lobe per day: 0 = Normal, no change from baseline; 1 = Mild opacity increase and/or mild interstitial pulmonary infiltrates; 2 = Moderate pulmonary infiltrates +/− small areas of consolidation; 3 = Severe pulmonary infiltrates, large areas of consolidation, alveolar pattern.

2.7. Clinical Pathology

Serum chemistry analysis was performed on a Piccolo point-of-care instrument (Abaxis, Union City, CA, USA) using its General Chemistry 13 and MetLyte Plus CRP panels. Hematology analysis was performed on EDTA whole blood using a VETSCAN^® HM5 hematology analyzer and multispecies software (Zoetis, Parsippany, NJ, USA).

2.8. SARS-CoV-2 Quantitative Real-Time RT-PCR

Samples collected for PCR analysis were inactivated in TRIzol™ LS (Thermo Fisher Scientific, Waltham, MA, USA) in a ratio of three parts TRIzol™ LS to one part sample. Inactivated samples were then extracted and eluted with AVE buffer using a QIAamp^® Viral RNA Mini Kit (Qiagen, Germantown, MD, USA). Samples were tested for viral copies using two qRT-PCR assays targeting the nucleocapsid (N2) and envelope (E) genes. The RT-PCR reaction used Invitrogen™ SuperScript^® One-Step RT-PCR System (Thermo Fisher Scientific) with additional magnesium sulfate (MgSO₄) added to a final concentration of 3.0 mM. Specimens were run in triplicate using a 5 µL volume on an Applied Biosystems^® 7500 Fast Dx instrument (Thermo Fisher Scientific). The average of the triplicates was multiplied by 200 to obtain genomic equivalents per mL, then multiplied by a dilution factor of four (one part biological sample to three parts TRIzol™ LS) for the final reported value. The genomic equivalents were determined using a standard curve of synthetic RNA of known concentration. The sequences of primers and probes for the N2 and E genes from SARS-CoV-2 that were used in the assays were previously described in [13,22,23].

2.9. SARS-CoV-2 Subgenomic RNA Real-Time RT-PCR

Total SARS-CoV-2 E gene and subgenomic E gene target copy numbers were determined by real-time RT-PCR using previously described assays [22,23] and a synthetic RNA containing the subgenomic E RNA sequence (Bio-Synthesis, Lewisville, TX, USA). Extracted nucleic acid was tested in triplicate (5 µL extracted nucleic acid) with each assay using the synthetic RNA as a standard curve on each run. Samples were run on a LightCycler 480 (Roche Diagnostics, Indianapolis, IN, USA) using a Superscript III one-step RT-PCR system with Platinum taq (Thermo Fisher Scientific). Cycling conditions were 50 °C for 10 min; 95 °C for 3 min; 45 cycles of 95 °C for 10 s, 56 °C for 15 s, and 72 °C for 5 s, with a final hold of 40 °C for 30 s. Copy numbers for each target were determined using the synthetic RNA standard curve, and the amount of target amplicon in the original sample was calculated from these results. The limit of detection for the assay was 100 copies/µL.

2.10. Plaque Assay

A neutral red plaque assay using ATCC Vero 76 cells was performed on the virus stock, AGIs from the AE-exposed animals, and nasopharyngeal and oropharyngeal swab lysates as previously described [13]. Briefly, the required dilutions of each specimen, in duplicate, were added to plates containing ATCC Vero 76 cells on assay Day 0. The cells were stained with neutral red on assay Day 2, and plaque counts were obtained on assay Day 3.

2.11. EUROIMMUN SARS-CoV-2 S1 ELISA

NHP serum samples were screened with the EUROIMMUN SARS-CoV-2 S1 ELISA (EUROIMMUN Medizinische Labor diagnostika AG, Lübeck, Germany) kit as per the manufacturer’s instructions. Briefly, the kit materials were brought to room temperature for 30 min. Serum samples were diluted 1:101 using the supplied sample buffer. One hundred microliters of the diluted samples, supplied controls, and supplied calibrator were added to the pre-coated wells and incubated at 37 °C for 1 h. After 1 h, the plate was washed three times with 300 µL of supplied wash buffer using a Biotek 405TS microplate washer (Agilent, Santa Clara, CA, USA). One hundred microliters of enzyme conjugate was added to the wells and incubated at 37 °C for 30 min. The plate was washed three times as outlined above prior to adding 100 µL of substrate for 30 min at RT. Finally, 100 µL of stop solution was added prior to reading absorbance at 450 nm, with a reference wavelength at 635 nm on a Tecan M200 (Tecan, Zurich, Switzerland). Data were processed according to the kit instructions to determine negative, positive, or borderline results.

2.12. SARS-CoV-2 MAGPIX Multiplex Immunoassay

Serum samples were diluted at 1:100 in phosphate buffer saline (PBS) (Sigma-Aldrich, St. Louis, MO, USA) with 0.02% Tween-20 (PBST) (Sigma-Aldrich) with 5% skim milk (PBST-SK). Recombinant SARS-CoV-2 full trimeric spike (Dr. Jason McLellan; University of Texas, Austin, TX, USA) [24], RBD (40592-V08H, Sino Biological, Chesterbrook, PA, USA), and NP (REC31812-100, Native Antigen Company, Kidlington, United Kingdom) proteins were coupled to Magplex microsphere regions #45, #65, and #25 using the Luminex xMAP^® antibody coupling kit (Luminex, Austin, TX, USA) according to the manufacturer’s instructions. Each individual antigen-coupled bead was mixed at a 1:1 ratio prior to diluting in PBST to 5 × 10⁴ microspheres/mL and added to the wells of a Costar (Corning, Corning, NY, USA) polystyrene 96-well plate at 50 µL per well (2500 microspheres of each antigen bead set/well). The plate was placed on a magnetic plate separator (Luminex) covered with foil, and microspheres were allowed to collect for 60 s. While still attached to the magnet, the buffer was removed from the plate by inverting and disposing into the sink. Then, 50 µL of the diluted plasma samples was added to appropriate wells. The plate was covered with a black, vinyl plate cover and incubated with shaking for 1 h at room temperature. Using the plate magnet to retain the Magplex microspheres in the wells, the plate was washed three times with 100 µL of PBST for each wash. Liquid was discarded as above. Fifty microliters of a 1:100 dilution of mouse anti-human IgM phycoerythrin conjugate (MA1-10381, Invitrogen) or goat anti-human IgG phycoerythrin conjugate (P9170, Millipore Sigma, Burlington, MA, USA) in PBST-SK was added to the wells. The plate was covered again with a black, vinyl plate sealer and incubated with shaking for 1 h at RT. After incubation, the plate was washed three times as detailed above, and the Magplex microspheres were resuspended in 100 µL of PBST for analysis using the Magpix multiplex assay (Luminex). Raw data were reported as median fluorescence intensity for each bead set in the multiplex.

2.13. Plaque Reduction Neutralization Test (PRNT)

The PRNT was performed on serum samples from the terminal time point as previously described [13]. PRNT₈₀ titers were calculated as the reciprocal of the highest dilution that generated an 80% reduction in plaque counts relative to the virus only.

2.14. Necropsy and Histology

Necropsies were conducted by a veterinary pathologist on all animals in this study. The tissue samples were trimmed, routinely processed, and embedded in paraffin. Sections of the paraffin-embedded tissues 5 µm thick were cut for histology. For histology, slides were deparaffinized, stained with hematoxylin and eosin (H&E), coverslipped, and labeled. Slides were read by a pathologist who was blinded to route of exposure. The slides were scored for the presence/severity of the lesions as follows: 0 = None (lesion not present); 1 = Minimal (<10% of the section is affected); 2 = Mild (10–25% of the section is affected); 3 = Moderate (26–50% of the section is affected); 4 = Marked (51–75% of the section is affected); 5 = Severe (>75% of the section is affected).

2.15. Immunofluorescence

Formalin-fixed paraffin-embedded (FFPE) tissue sections were deparaffinized using xylene and a series of ethanol washes. After 0.1% Sudan black B (Millipore Sigma) treatment to eliminate the autofluorescence background, the sections were heated in Tris-EDTA buffer (10 mM Tris Base, 1 mM EDTA Solution, 0.05% Tween 20, pH 9.0) for 15 min to reverse formaldehyde crosslinks. After rinses with PBS (pH 7.4), the sections were blocked with PBT (PBS +0.1% Tween-20) containing 5% normal goat serum overnight at 4 °C. Then, the sections were incubated with primary antibodies: rabbit anti-SARS-CoV Spike (1:200, 40150-T62-COV2, Sino Biological), mouse anti-SARS-CoV NP (1:200, 40143-MM05, Sino Biological), mouse anti-Pan-Cytokeratin (1:100, M351529-2, Dako Agilent Pathology Solutions, Carpinteria, CA, USA), rabbit anti-CD3 (1:200, A045229-2, Dako Agilent Pathology Solutions), rabbit anti-MPO (1:200, A039829-2, Dako Agilent Pathology Solutions), rabbit anti-CD68 (1:200, ab125047, Abcam, Cambridge, MA, USA), mouse anti-CD68 (1:100, M081401-2, Dako Agilent Pathology Solutions), mouse anti-CD45 (1:100, M070101-2, Dako Agilent Pathology Solutions), and/or mouse anti-MX1 (1:200, MABF938, Millipore Sigma) for 2 h at room temperature. After rinses with PBT, the sections were incubated with secondary goat anti-rabbit Alexa Fluor 488 (1:500, Thermo Fisher Scientific) and goat anti-mouse Alexa Fluor 568 (red, 1:500, Thermo Fisher Scientific) antibodies, for 1 h at room temperature. Sections were coverslipped using the Vectashield mounting medium with DAPI (Vector Laboratories, Burlingame, CA, USA). Images were captured on a Zeiss LSM 880 confocal system (Zeiss, Oberkochen, Germany) and processed using ImageJ software (National Institutes of Health, Bethesda, MD, USA).

2.16. RNA In Situ Hybridization

To detect SARS-CoV-2 genomic RNA in FFPE tissues, in situ hybridization (ISH) was performed using the RNAscope 2.5 HD RED kit (Advanced Cell Diagnostics, Newark, CA, USA) as described previously [25]. Briefly, 40 ZZ ISH probes targeting SARS-CoV-2 genomic RNA fragment 21571-25392 (GenBank #LC528233.1) were designed and synthesized by Advanced Cell Diagnostics (#854841). Tissue sections were deparaffinized with xylene, underwent a series of ethanol washes and peroxidase blocking, and were then heated in kit-provided antigen retrieval buffer and digested by kit-provided proteinase. Sections were exposed to ISH target probe pairs and incubated at 40 °C in a hybridization oven for 2 h. After rinsing, the ISH signal was amplified using kit-provided pre-amplifier and amplifier conjugated to alkaline phosphatase and incubated with a Fast Red substrate solution for 10 min at room temperature. Sections were then stained with hematoxylin, air-dried, and coverslipped.

2.17. Data Analysis

Telemetry data in the NSS files were extracted and further reduced into a validated MS Excel workbook for each NHP using Notocord-derived formula add-ins. Data reduction was done in 30-min intervals for temperature and 12-h intervals for activity. Data collected for four days prior to virus exposure were used to generate a baseline dataset used for comparisons post exposure. For temperature, thirty-minute baseline data points were calculated by averaging the time-matched values from each baseline day. Fever was defined as body temperature > 1.5 °C above time-matched baseline for longer than 2 h. Hyperpyrexia was defined as body temperature > 3.0 °C above time-matched baseline for longer than 2 h. Severe hypothermia was defined as body temperature > 2.0 °C below time-matched baseline for 30 min. For activity, 12-h baseline data points were calculated by averaging the time-matched values from each baseline day. The 12-h activity values that were 3 SD above or below their concomitant baseline value were defined as significant.

2.18. Statistics

All analyses were performed using GraphPad Prism 9 (GraphPad Software, San Diego, CA, USA). Data are presented as the mean ± SEM. Statistical analysis of PRNT₈₀ GMTs was performed using unpaired 2-tailed Student’s t test, with a p-value of less than 0.05 considered significant. Statistical analysis of radiographic scores, fever-h, maximum temperature change, and daily percent TE_sig duration was performed using the Kruskal–Wallis test, with a p-value of less than 0.05 considered significant.

3. Results

3.1. SARS-CoV-2 Infection of RM and CM Exposed by AE or IT/IN

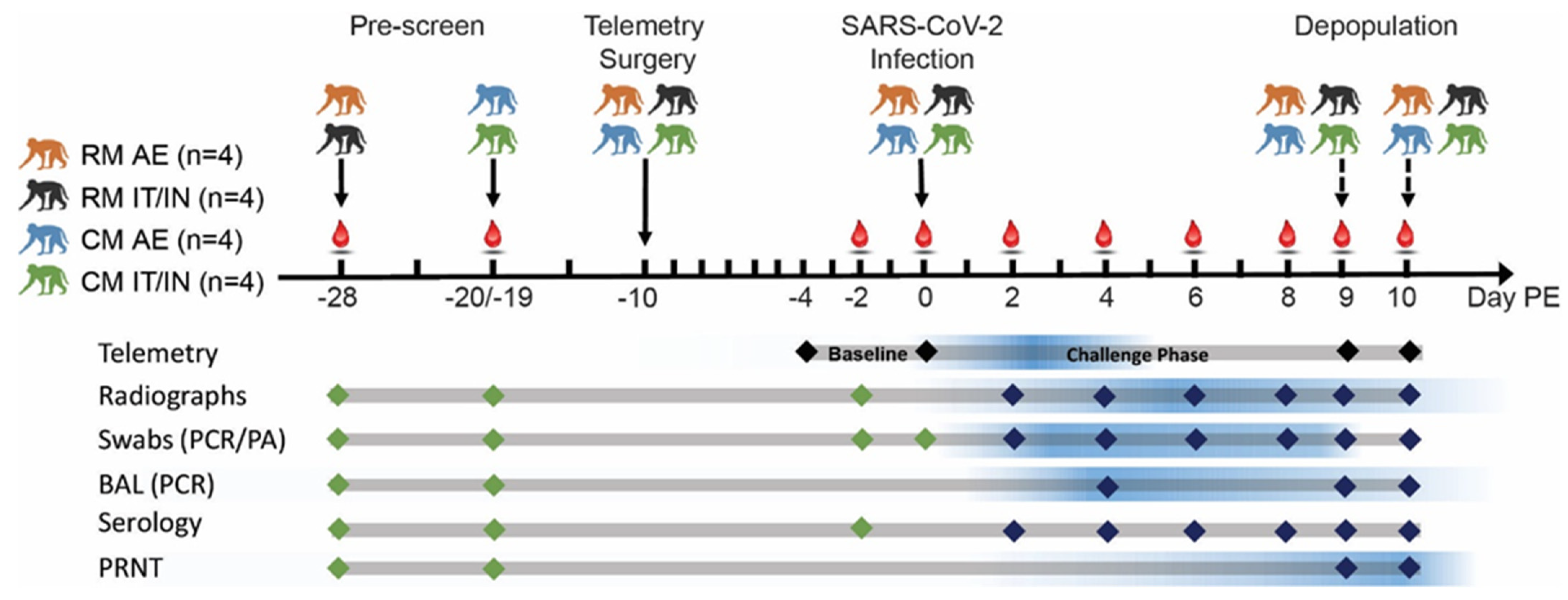

Eight RMs and eight CMs were exposed to the WA-1/2020 strain of SARS-CoV-2. Four animals of each species were infected by combined IT/IN administration, while the remaining four animals of each species were exposed to small particle AE. We exposed the animals to the highest possible dose of virus achievable based on route of exposure and the titer of the virus stock. Based on a titer of 5.45 × 10⁶ plaque-forming units (pfu)/mL, the target dose was 2 × 10⁷ pfu for the IT/IN exposure route, which was comparable to the published doses for combination exposure models at the time [8,10]. Due to the dynamics of the aerosolization procedure which results in an approximately two log reduction in virus titer, the target dose was between 5 × 10⁴ and 5 × 10⁵ pfu for the AE route. The actual dose received by the animals in the IT/IN group as determined by neutral red plaque assay was 2.65 × 10⁷ pfu. The AE animals received between 4.45 × 10⁴ and 8.79 × 10⁴ pfu, with a mean inhaled dose of 5.85 × 10⁴ pfu for RMs and 6.66 × 10⁴ pfu for CMs.

A variety of biosamples including blood, nasopharyngeal (NP) swabs, oropharyngeal (OP) swabs, rectal swabs, and bronchoalveolar lavage (BAL) fluid were periodically collected from animals to confirm SARS-CoV-2 infection, to monitor infection kinetics and viral replication, and to detect potential shedding from mucosal surfaces (Figure 1).

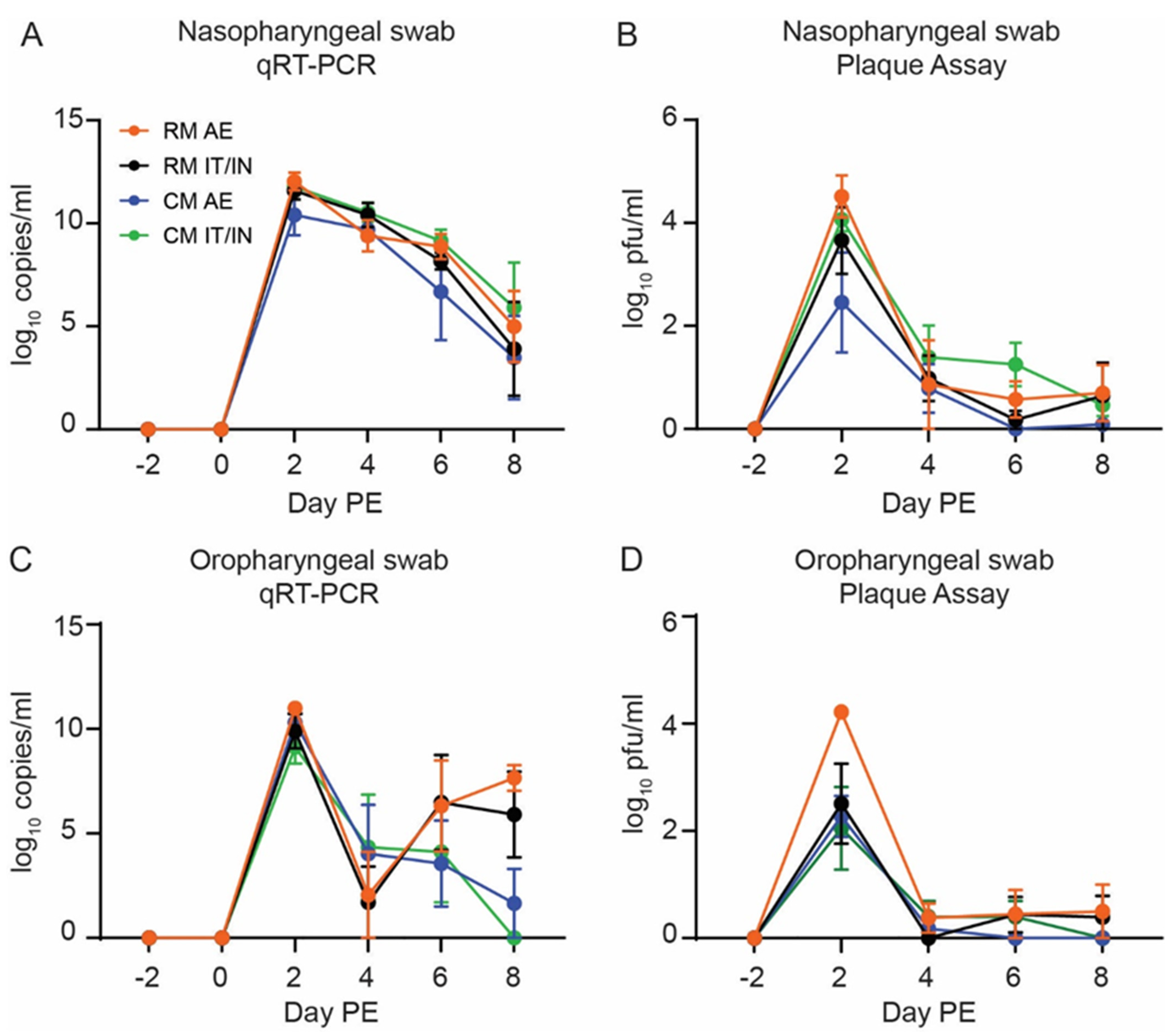

Using quantitative reverse transcription polymerase chain reaction (qRT-PCR), the presence of viral RNA was detected on Day 2 PE in NP and OP swabs from all animals, regardless of species or exposure route (Figure 2A,C). In most instances, peak RNA levels were observed at this time point (7.98–12.47 log₁₀ target copies/mL). The amount of viral RNA in NP swabs was generally consistent between the groups, with a gradual decline in viral RNA levels after Day 2 PE and more variability present at the later sampling time points (Days 6 and 8 PE). This was in contrast to OP swabs, which showed a more dramatic decrease in viral RNA by Day 4 PE and a trend towards increased viral titers in RMs (AE and IT/IN) on Day 8 PE as compared to CMs (AE and IT/IN). In rectal swabs, viral RNA was only detected in one CM (CM IT/IN 4) as compared to six RMs (four from RM IT/IN and two from RM AE) on Day 2 PE (Figure S1A,E). Interestingly, no viral RNA was detected from any rectal swabs on Day 4 PE but was detected in the majority of the animals in the RM AE, RM IT/IN, and CM IT/IN groups on Day 6 PE. The absence of detectable viral RNA on Day 4 PE may suggest a possible sampling error. In addition, viral RNA was never detected in rectal swabs from any of the CM AE animals.

While no viable virus was detected in any rectal swabs by neutral red plaque assay, the presence of viable virus was confirmed for both NP and OP swabs. Virus was detected for the majority of animals by Day 2 PE for both NP and OP swabs, which often represented peak titers (Figure 2B,D). Peak levels in NP, OP, and rectal swabs are shown in

Table 1. Peak infectious SARS-CoV-2 titers for nasopharyngeal (NP), oropharyngeal (OP), and rectal swabs by study group.

Study Group	NP Swab pfu/mL	OP Swab pfu/mL	Rectal Swab pfu/mL
RM AE	3.70–5.34 log10	4.00–4.44 log10	ND
RM IT/IN	1.80–4.78 log10	0.35–3.70 log10	ND
CM AE	1.84–4.19 log10	1.48–3.26 log10	ND
CM IT/IN	3.40–4.44 log10	2.22–3.74 log10	ND

RM = Rhesus macaques, CM = Cynomolgus macaques; AE = aerosol exposure, IT/IN = intratracheal and intranasal exposure; ND = Not detected.

. For both NP and OP swabs, the highest titers were present in the RM AE group. While significant differences between swab types and experimental groups were not observed, the virus tended to persist in NP swabs longer than in OP swabs for most animals. By Day 8 PE, the virus was still detected in only half of the animals and more often in NP swabs than OP swabs.

The presence of infectious virus in the plaque assay was supported by the detection of subgenomic RNA, indicative of replicating virus. All animals had detectable subgenomic RNA in either NP swabs or BAL fluid during the study, with the exception of CM AE 3 (Figure S1B,D,F,H). In general, Day 2 PE represented the peak subgenomic titers in NP swabs from all groups, with the CM AE animals having the lowest average titer on this day. This mirrors the trend observed in the plaque assay data. Subgenomic titers decreased from Day 2 to Day 8 PE, with some fluctuation from time point to time point. Only one animal (CM IT/IN 1) still had detectable subgenomic RNA at the terminal time point (Days 9 or 10 PE). Although fewer sampling time points were available for the BAL samples, subgenomic RNA was detectable in a number of animals on Day 4 PE and only one animal (RM AE 3) at the time of euthanasia.

3.2. Early Physiological Changes following SARS-CoV-2 Infection

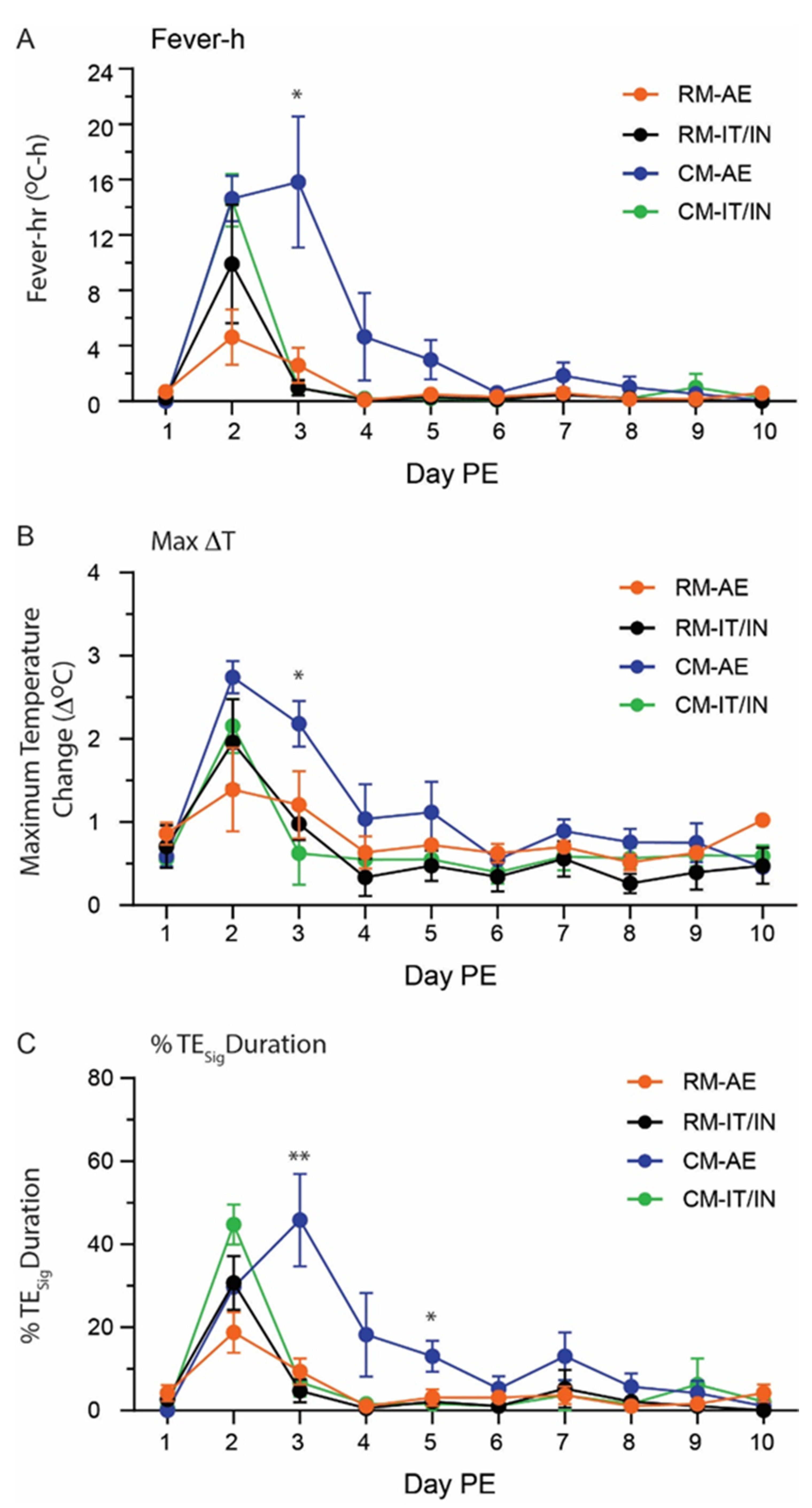

All animals were implanted with M00 telemetry devices to monitor body temperature and activity over the course of infection. This enabled the detection of transient changes in temperature that might otherwise be overlooked by periodic, infrequent collection of rectal temperatures during anesthetized physical examination. Fever was the earliest clinical sign that developed following SARS-CoV-2 exposure, appearing as early as 17 h post-infection (Figure 3). All of the CMs in the AE and IT/IN groups developed fever at some point during the course of the study, although fever was not sustained (i.e., each fever episode was shorter than 2 h) in two of the CM IT/IN animals (CM IT/IN 3 and 4). Only one RM AE animal (RM AE 2) and two RM IT/IN animals (RM IT/IN 3 and RM IT/IN 4) developed fever during the study. The mean maximum temperature change for each group was 1.4 °C for RM AE (range = 0.5–2.8 °C), 2.0 °C for RM IT/IN (range = 1.1–3.3 °C), 2.7 °C for CM AE (range = 2.3–3.2 °C), and 2.2 °C for CM IT/IN (range = 1.7–3.1 °C) (Figure 3B). Fever-hours (Fever-h) is the sum of the significant temperature elevations (defined as >3 standard deviations above baseline) in a 24-h period; this measure gives an indication of the intensity of the fever by calculating the area between the baseline and the post-exposure temperature curves. The greatest mean fever-h for each group in a 24-h period was 4.6 °C-h for RM AE (range = 1.0–9.6 °C-h), 9.9 °C-h for RM IT/IN (range = 2.8–21.9 °C-h), 15.8 °C-h for CM AE (range = 5.5–25.2 °C-h), and 14.5 °C-h for CM IT/IN (range = 9.5–18.5 °C-h) (Figure 3A). The daily percentage of significant temperature elevation (TE_sig) duration is the percentage of the 24-h daily time period where body temperatures were significantly elevated (>3 SD for that time period). The peak percentages of TE_sig values were 46% in the CM AE group, 19% in the RM AE group, 45% in CM IT/IN group, and 31% in the RM IT/IN group (Figure 3C). Taken together, CM had a greater fever response than RM based on both maximum temperature change and fever-h. By route of exposure, the IT/IN animals had the shortest duration of fever, as fever responses were limited to Day 1 PE. In the AE animals, elevated temperatures generally lasted through Day 2 PE, although one CM AE animal (CM AE 4) had a fever response that persisted to Day 4 PE. Although activity data did not reveal a common pattern of change following SARS-CoV-2 exposure, a general depression in daytime activity was observed for most subjects in all groups as early as Day 2 PE and continuing through Day 7 PE, at times significant (RM IT/IN 2 and 4; CM IT/IN 2 and 3) (Figures S9 and S10). In clear cases of significant activity reduction (RM IT/IN 4; CM IT/IN 2 and 3), daytime activity values return to average baseline between Days 7 and 8 PE. Significant reductions in nighttime activity were also present in several subjects (RM AE 1, 2, and 3; RM IT/IN 4; CM AE 2; CM IT/IN 2 and 3) between Days 1 and 3 PE, lasting no longer than two consecutive nights prior to returning to their baseline activity level.

3.3. Clinical Signs of Disease following SARS-CoV-2 Exposure

SARS-CoV-2 exposure did not result in lethal infection, regardless of species or exposure route. Clinical signs of disease were largely absent during cage-side examination, with no change in responsiveness and food consumption. While one animal (RM IT/IN 2) was noted for the absence of urine in the cage pan on Day 4 PE, which could be indicative of decreased water intake, none of the animals had evidence of dehydration on physical examination. However, evidence of respiratory disease was present on radiographs beginning on Day 2 PE for all animals. At that time, lung infiltrates were limited to animals who were exposed to SARS-CoV-2 via the IT/IN route (two of four for CM IT/IN; three of four for RM IT/IN). For all groups, the severity of lung disease peaked on Days 4–6 PE, with increases in opacity and worsening of infiltrates (Figure 4A). Stabilization or mild improvement of the lungs was noted beginning on Day 6 or 8 PE and continued until the time of euthanasia (Day 9 or 10 PE), with near complete to complete resolution in all but one animal (CM AE 4). In general, the RM AE animals had the least severe disease, as two of four animals did not have marked changes in their lungs during the course of the study (Figure 4B). The remaining two RM AE animals had only mild increases in opacity that completely resolved by the end of the study and had radiographic scores that never exceeded a value of two on any given day. Conversely, the CM AE animals developed the most pronounced radiographic changes, despite the fact that the AE animals received a lower dose than the IT/IN animals. Lung consolidation was present in three of four CM AE animals over at least two study days with incomplete resolution of disease by Day 9 or 10 PE in all animals. A significant difference was observed in radiographic scores for CM AE versus RM AE animals on Days 4, 6, and 8 PE (Figure 4B).

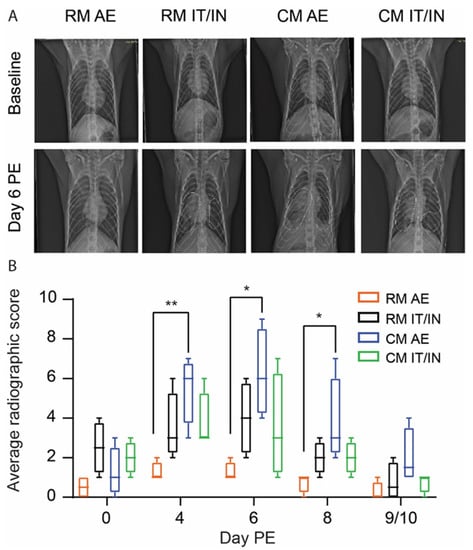

Except for the radiographic findings, clinical signs indicative of disease were largely absent in these animals. However, one consistent finding for RM was erythema of the eyes, which was present between Days 4 and 10 PE (4 of 4 RM IT/IN; 2 of 4 RM AE). This observation was not present in the CMs, and the implications of this finding are unclear at this time.

3.4. Clinical Pathology and Immunological Responses

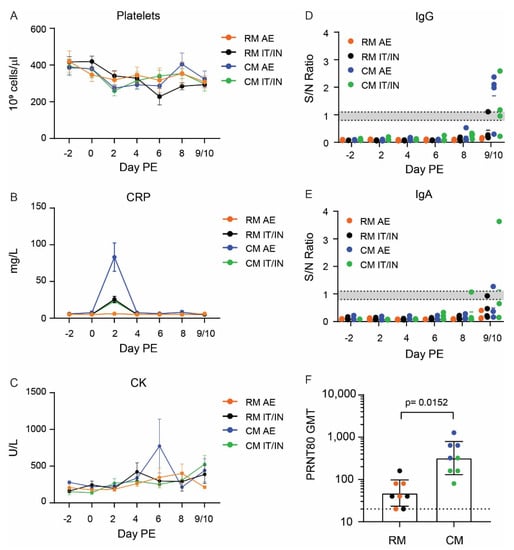

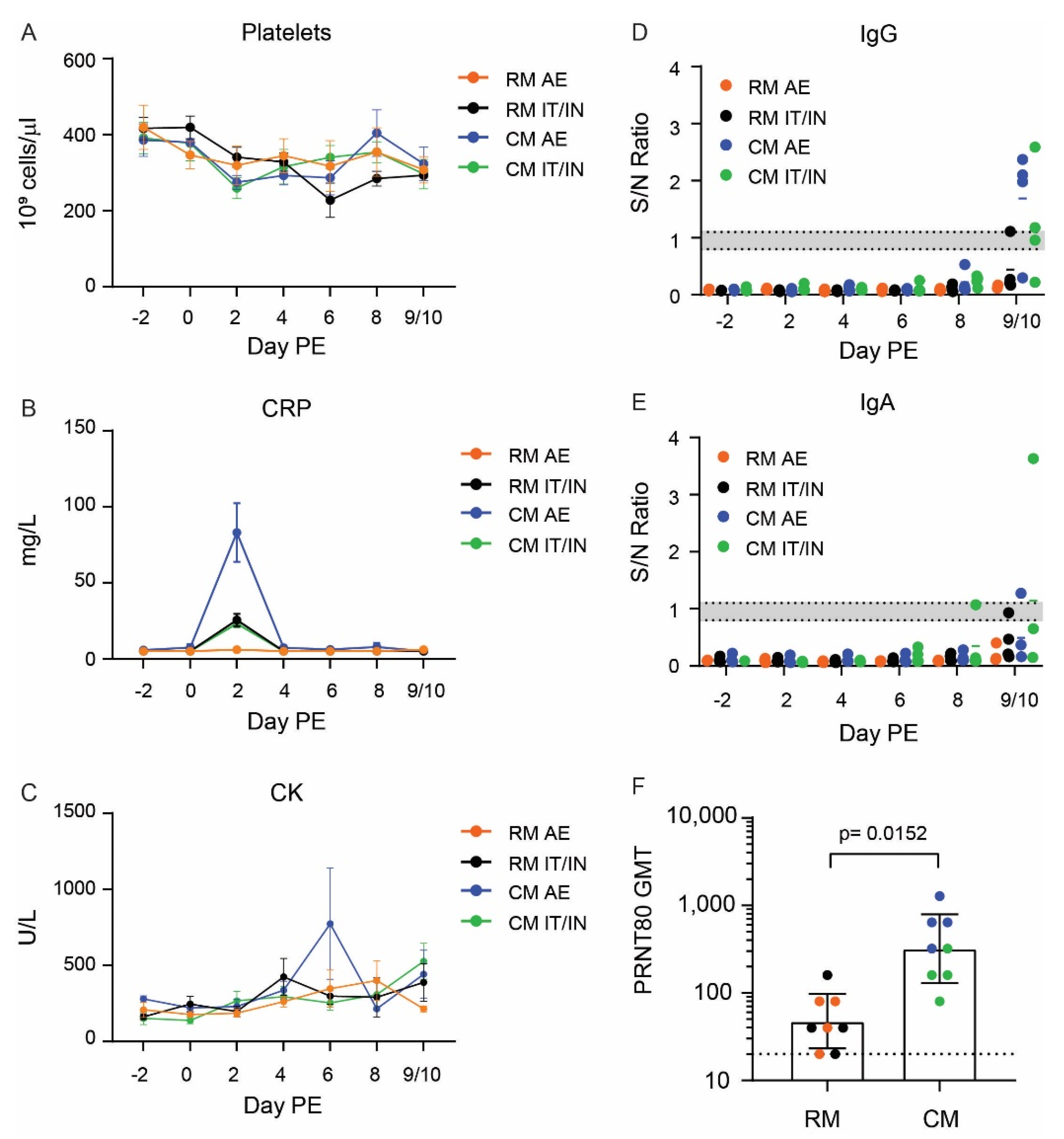

Human COVID-19 disease has been marked by alterations in hematology and serum chemistry markers, including lymphopenia and increases in C-reactive protein (CRP) [3,4,5,6]. Other markers, such as creatine kinase (CK), aspartate aminotransferase (AST) and alanine aminotransferase (ALT), have been associated with more severe cases of disease and poor prognosis for survival [26,27]. Among the NHPs in this study, there was a great degree of animal-to-animal variation in the clinical pathology responses that limited differences from reaching statistical significance, but a number of trends did emerge. A decrease in platelet counts was observed early (Day 2 PE) following SARS-CoV-2 exposure, with partial recovery by the day of terminal sampling (Day 9 or 10 PE) (Figure 5A). Three groups, RM IT/IN, CM AE, CM IT/IN, demonstrated a slight decrease in lymphocyte counts on Day 2 PE, which was followed by a gradual increase to baseline or above baseline over the remainder of the study (Figure S2A,E).

With the exception of the RM AE group, mild increases in one or more hepatocellular enzymes (ALT and AST) were observed for animals in the RM IT/IN, CM AE, and CM IT/IN groups starting as early as two days PE; the RM AE animals had very mild changes in these enzymes (Figure S2C,D,G,H). The most noteworthy and consistent serum chemistry alterations were highly elevated levels of C-reactive protein (CRP) and creatine kinase (CK) post-exposure to SARS-CoV-2 (Figure 5B,C). CRP levels increased in nearly all NHPs in the RM IT/IN, CM AE, and CM IT/IN groups beginning two days PE. Only 2/4 RM AE animals demonstrated increases in CRP (+36–46% over baseline), which were mild and significantly lower than the other groups (+190–1786%). In the IT/IN animals (RM and CM), CRP levels were moderately elevated and largely returned to baseline by the next sampling time point (Day 4 PE). The highest levels of CRP were observed in the CM AE group, with >1000-fold increases in three of the four CM AE animals on Day 2 PE. As seen with the IT/IN animals, CRP levels returned to baseline by Day 4 PE in three of the four CM AE animals. Similar elevations were observed in CK levels, although these alterations persisted for a longer duration (often until the day of euthanasia) and included the RM AE group as well.

Serum was also evaluated for antibody responses to SARS-CoV-2 infection using the commercially available EUROIMMUN ELISA kit for IgG and IgA. An IgG response was only detectable at the terminal time point (Days 9 or 10 PE) in select animals from the CM AE and CM IT/IN groups (Figure 5D). This finding was not unexpected as a previous study noted detectable IgG responses by Day 10 PE in CMs and Day 15 PE in RMs [13]. Similarly, an IgA response was only detected in two CMs by Day 9/10 PE (Figure 5E).

A MAGPIX multiplex assay for IgG and IgM responses directed against SARS-CoV-2 full-length spike glycoprotein, receptor-binding domain (RBD) of the spike protein, and nucleoprotein provided additional insight into the antibody response following SARS-CoV-2 exposure (Figure S3). IgM responses to SARS-CoV-2 glycoproteins were detected as early as Day 6 PE, while IgG responses were detected by Day 8 PE. As previously observed [13], the IgG assay, particularly in the CMs, had less specificity for the glycoproteins than IgM, as nucleoprotein responses were detected in a subset of animals. IgM responses predominantly favored the full spike protein over the RBD, with responses appearing earlier in CMs than RMs. IgG responses were more evenly distributed between the full spike protein and RBD, with the highest responses favoring the IT/IN route over AE.

Terminal sera samples (Day 9 or 10 PE) were assessed in a plaque reduction neutralization test (PRNT) for neutralizing antibodies directed against SARS-CoV-2. An obvious difference in neutralizing antibody titers between the two species emerged, as all but one RM had PRNT₈₀ titers of 80 or lower (Figure 5F). The majority of the CMs demonstrated stronger neutralizing antibody responses, with PRNT₈₀ values ranging from 160 to 1280. The PRNT₈₀ titers were significantly greater in CMs versus RMs, with the three highest titers attributed to the CM AE group.

3.5. Pathology

All NHPs were euthanized on either Day 9 or Day 10 PE for histopathologic analysis. No significant gross findings were noted except that one animal from the CM AE group had pulmonary fibrinous adhesions from the thoracic cavity to the pleural surface of the lungs (Figure 6A). Moreover, more than half of the animals from each group had enlarged tracheobronchial lymph nodes of varying degrees of severity. Histological findings compatible with lesions that have been described in humans infected with SARS-CoV-2 were present in the lungs of all groups [7], as well as in the nasal turbinates. Significant pulmonary histological lesions for individual animals in the four groups are detailed in Table S1; these included inflammation, type 2 pneumocyte hyperplasia, multinucleated giant cells, alveolar fibrin deposition (septal and intra-alveolar), and septal fibrous change (Figure 6B,C; Figures S4–S6). The lungs of the CMs were more severely affected compared to RMs (Table S1), with the CM AE group having the most severe pulmonary lesions. These lesions were confirmed to be the result of SARS-CoV-2 infection using RNA in situ hybridization (ISH) to detect genomic RNA of SARS-CoV-2 (Figure 6D). While inflammation of the nasal turbinates was minimal to moderate in all groups, AE-exposed animals (RM AE and CM AE) had more edema present; additionally, one CM AE animal (CM AE 3) had ulceration of the nasal epithelium (Table S2). The enlarged tracheobronchial lymph nodes noted during gross examination corresponded to lymph node hyperplasia. This finding, along with nasal turbinate inflammation and edema, is suspected to be disease- or exposure-related.

Since CM AE animals had more severe pulmonary pathology as compared to the other groups, we performed immunofluorescence staining to map the cellular targets of SARS-CoV-2 and characterize the inflammatory infiltrates in the lungs of CM AE animals. Immunofluorescence staining demonstrated SARS-CoV-2 primarily infected pan-cytokeratin-labelled pneumocytes and CD68+ macrophages (Figure 7A,B). Consistent with the above histopathological observations, increased numbers of CD3+ T cells, CD45+ leukocytes, CD68+ macrophages, Ki67+ proliferating cells, and myeloperoxidase (MPO)+ polymorphonuclear cells (neutrophils, eosinophils, and basophils) were present in the lungs of CM AE animals in comparison with the lungs of historic uninfected CMs (Figure 7C–H). Furthermore, significantly increased expression of the type 1 interferon-induced GTP-binding protein Mx1, was detected in the lungs of CM AE animals (Figure 7G,H). Interestingly, immunofluorescence staining illustrated alveolar spaces were congested by CD68+ macrophages in some areas of the lungs of cynomolgus macaques with aerosol exposure of SARS-CoV-2 (Figure 7I,J). Together, the above pathologic data indicate CM AE animals had the most consistent and severe pulmonary lesions among the four groups of nonhuman primates.

4. Discussion

The global COVID-19 outbreak spurred the development of the necessary tools to fight the pandemic, including relevant animal models that reproduce the hallmarks of human disease. While the highest aspiration of animal model development is a single model of human disease, the reality is typically a series of models, each capturing a different combination of key disease features and severity. To date, the nonhuman primate models for SARS-CoV-2 have primarily replicated the mild form of COVID-19 that predominates in humans. While some of the small animal models for COVID-19 have resulted in severe and/or lethal disease, the NHP models have yet to capture the more severe end of the clinical spectrum of human COVID-19 disease.

Previous NHP studies with SARS-CoV-2 have explored differences in primate species as well as routes of virus exposure [10,13]. Here, we expanded on this work by performing a direct comparison of two routes of exposure (AE and combined IT/IN) in two NHP species with the goal of refining the NHP model for SARS-CoV-2 and recapitulating some of the more significant clinical and pathological effects of SARS-CoV-2 infection.

Exposure of RM and CM to SARS-CoV-2 via either AE or combined IT/IN administration resulted in mild disease that was similar to human COVID-19. Both routes of exposure enabled delivery of virus to the lower and upper respiratory tract using two different processes: the IT/IN route used direct contact of the nasal and respiratory tissues with small volumes of virus-containing liquid, while the AE route utilized inhalation of experimentally-generated aerosols containing virus. Although the aerosolization process inherently results in an approximate two log decrease in exposure dose, inhalational exposure to aerosols is likely more physiologically relevant than direct IT instillation [28]. Direct IT instillation also runs the risk of generating an uneven distribution of viral infection and localized disease if delivery of the inoculum is restricted to only one lung lobe. Additionally, the small size of the aerosol particles produced (1–3 µm) generates a distinct, more uniform distribution pattern from liquid or large droplets, as small particles are capable of traveling into deep lung tissue [18,29].

All CMs on the study displayed evidence of either temperature elevation or fever by telemetry, although the two routes of exposure produced different patterns. Fever in the CM IT/IN animals was short in duration, while the CM AE animals demonstrated fever that often persisted for several days. Fever was present in select RM animals as well, although this clinical finding was less consistent and lower in intensity. While a previous comparison of CMs and RMs exposed to SARS-CoV-2 did not note any significant temperature changes [10], another study that also utilized real-time telemetry was able to detect different temperature responses amongst three NHP species [13]; this highlights the value of using such technology to monitor physiological parameters that might be otherwise overlooked on physical examination. The consistent presentation of fever in the CMs, particularly the intensity and duration of fever in AE animals, presents an attractive endpoint for this model, particularly in light of the absence of mortality. In non-lethal models, alternative endpoints such as fever and clinical pathology become even more important in assessing the efficacy of vaccines or therapeutics. As such, protective effects may be more readily apparent in CMs (than RMs) exposed to SARS-CoV-2, and even more so when aerosol exposure is used instead of IT/IN. Moreover, the stronger early immunological response in CMs over RMs, as measured by Magpix, ELISA, and PRNT, following SARS-CoV-2 infection may have additional implications for vaccine studies where these measurements may be potential correlates of protection. As only an assessment of early immunological responses was possible based here on the study design, longitudinal analysis of the later immune response will be important for assessing any species-related differences.

While alterations in serum chemistry and hematology parameters can be useful markers of disease, we found that SARS-CoV-2 infection of NHPs did not result in any significant changes or in a distinct profile. These observations are consistent with other nonhuman primate studies of SARS-CoV-2 infection [13,30]. While we did observe several potential trends in such analytes as ALT, AST, CRP, and CK and hematological parameters such as lymphocyte counts and platelets, it is difficult to conclude whether these observations are biologically significant, particularly for NHPs. Moreover, it is likely that the changes observed were the result of a combination of factors, including repeated anesthetic events, repeated phlebotomy, inflammation, and stress in addition to SARS-CoV-2 infection.

The decision to euthanize the animals on Days 9 and 10 PE enabled the evaluation of the lungs prior to complete resolution of disease and the resulting pathology. While the ISH results from a previous SARS-CoV-2 NHP study were all negative at the time of necropsy on Study Day 18 [13], the majority of CM and a few RM were still ISH positive in the lung tissue on Days 9 and 10 PE in this study. This suggests that earlier scheduled termination may be useful in assessing the protective vaccine or therapeutic effect on lung pathology in the NHP model. The CM AE animals displayed the most severe pathology of all the groups at the time of necropsy with moderate levels of inflammation, type II pneumocyte hyperplasia, fibrin deposition, and fibrosis. By comparison, inflammation in the RM (both AE and IT/IN) was minimal, with little to no fibrosis present. While Salguero et al. found similar degrees of respiratory pathology in both cynomolgus and rhesus macaques exposed to SARS-CoV-2 by IT/IN [10], the addition of AE exposure here appears to result in very different presentations in the two species. While the ability of small aerosol particles to reach deeper sections of the lung may explain the severity observed in the CM AE animals, it is interesting that the same degree of severity was not present in the RM AE group. It is possible that species-specific differences in immune cell composition or tissue structures may explain this dichotomy. Although we hypothesize that the increased severity of pathology in the CM AE animals may be attributable to particle size and penetration, it is difficult to make any definitive conclusions due to the lack of longitudinal pathology samples in this study as the respiratory pathology was already well-established at Days 9 and 10 PE. A serial sampling study in which the progression of SARS-CoV-2 infection through the respiratory tract is monitored over time would provide valuable information regarding the influence of exposure route (AE versus IT/IN) on the resulting distribution of pathology in the upper versus lower respiratory tract. Additionally, a head-to-head comparison of the two exposure routes using matched exposure doses would provide further evidence of the contribution of particle size to disease severity in this model; importantly, it is likely that a matched exposure would result in an even more pronounced difference in severity between the two exposure models.

Similar to the previous USAMRIID SARS-CoV-2 study conducted in NHPs [13], erythema around the eyes was a consistent finding in this study and was only present in the RM. As small particle aerosol exposure utilizes a head-only chamber in which the eyes are not covered during aerosol exposure, it was previously hypothesized that ocular exposure to SARS-CoV-2 during the aerosolization process may have been responsible for this observation in the previous study [13]. However, the fact that this clinical sign was present in all of the RM IT/IN animals and only half of the RM AE animals in this study suggests that another mechanism may be responsible and should be investigated further. Moreover, this clinical sign was not observed in AGMs exposed to SARS-CoV-2 by AE [11].

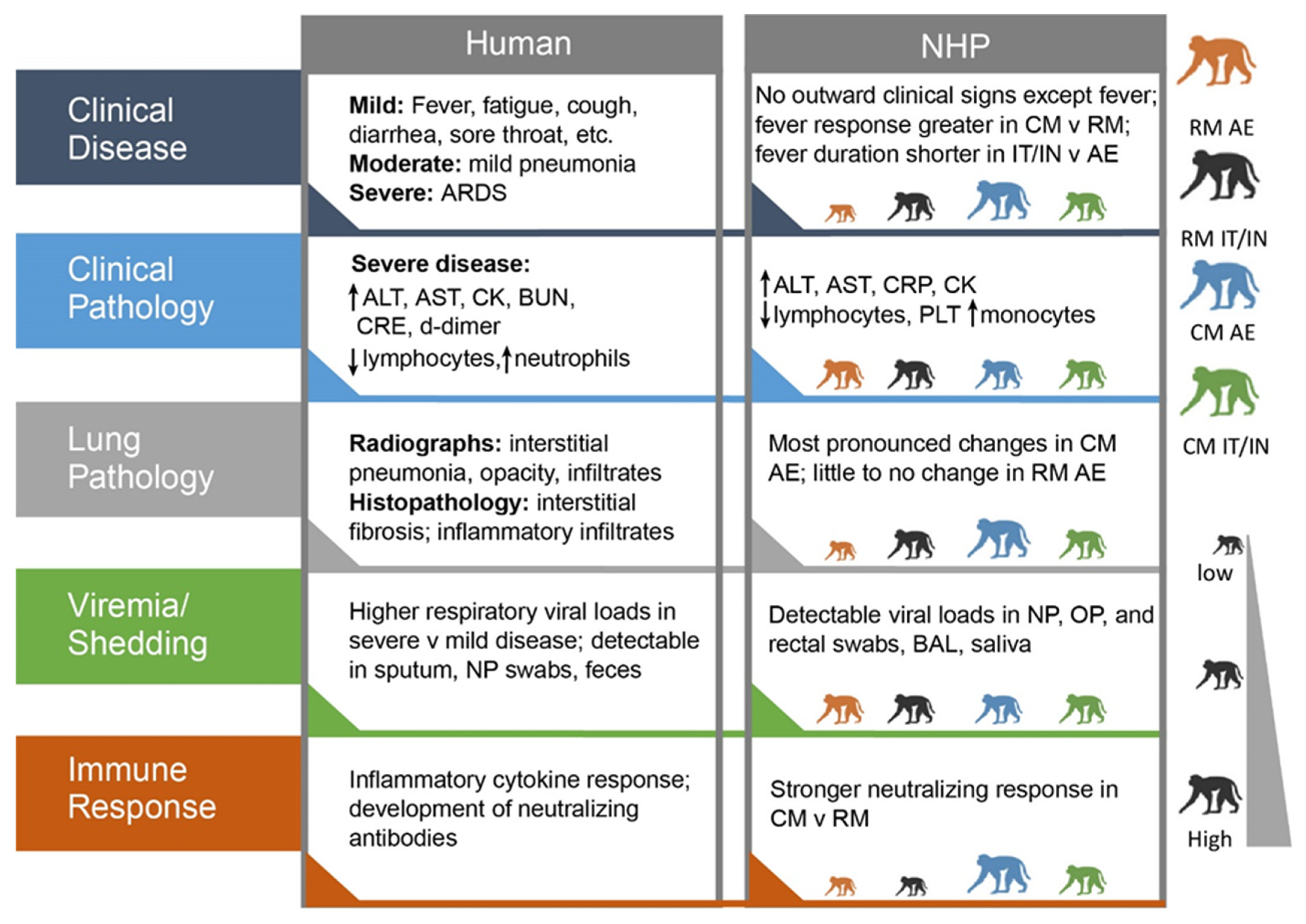

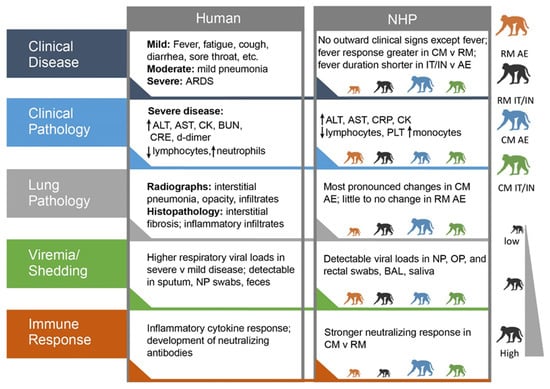

Although the CM AE animals developed the most severe pathology and physiological changes in this study, exposure of both RM and CM to SARS-CoV-2 via either aerosol or combined IT/IN administration still resulted in mild disease overall that was similar to human COVID-19 (Figure 8). One of the unexpected effects of the SARS-CoV-2 pandemic has been an unprecedented demand for nonhuman primates for COVID research. This increased demand, coupled with decreased supply due to export restrictions, is quickly resulting in a shortage of available NHPs. Additionally, aerosol exposure capability requires specialized equipment and expertise that is not available at all research institutions. The IT/IN route is an alternative that presents fewer technical challenges and can more readily be implemented at a wide range of laboratories. This study demonstrates that different NHP species and routes of exposure produce a spectrum of disease severity, which may be comparable to the range of COVID-19 disease presentations in the human population, and moreover, affords the SARS-CoV-2 research community several NHP model options that can be tailored to facility capabilities and animal availability.

Taken together, the clinical findings suggest that CM may be the better model for SARS-CoV-2 than RM, as these animals had the most severe and consistent disease presentation. Of the two exposure routes, AE produced more severe respiratory disease and lung pathology than the IT/IN route in the CM. While the AE animals received an exposure dose that was approximately two logs lower than that of the IT/IN animals, the ability of small particle aerosol to reach deep into the lung tissue may be a possible explanation for this finding. It is interesting to note that while the AE animals received a lower dose of virus, SARS-CoV-2 was detected at similar levels in all four groups overall, as indicated by PCR (genomic and subgenomic) and plaque assay. Notably, the CM AE animals, which had the most severe pathology, demonstrated a trend toward lower levels of infectious and replicating virus than the other groups, although this did not achieve statistical significance due to animal variability. Future studies that are able to expose animals to a higher AE dose of SARS-CoV-2 may result in further refinement of this promising NHP model, potentially with a concomitant increase in disease severity and/or mortality.
