Review

A Pocket Guide to CCR5—Neurotropic Flavivirus Edition

by
Amit Garg
and
Jean K. Lim
*
Department of Microbiology, The Icahn School of Medicine at Mount Sinai, One Gustave L. Levy Place, Box 1124, New York, NY 10029, USA
*
Author to whom correspondence should be addressed.
Viruses 2024, 16(1), 28; https://doi.org/10.3390/v16010028
Submission received: 17 November 2023 / Revised: 19 December 2023 / Accepted: 21 December 2023 / Published: 23 December 2023
(This article belongs to the Special Issue Neurotropic Viral Pathogens)
Browse Figures
Review Reports Versions Notes

Abstract

:
CCR5 is among the most studied chemokine receptors due to its profound significance in human health and disease. The notion that CCR5 is a functionally redundant receptor was challenged through the demonstration of its unique protective role in the context of West Nile virus in both mice and humans. In the nearly two decades since this initial discovery, numerous studies have investigated the role of CCR5 in the context of other medically important neurotropic flaviviruses, most of which appear to support a broad neuroprotective role for this receptor, although how CCR5 exerts its protective effect has been remarkably varied. In this review, we summarize the mechanisms by which CCR5 controls neurotropic flaviviruses, as well as results from human studies evaluating a genetic link to CCR5, and propose unexplored areas of research that are needed to unveil even more exciting roles for this important receptor.

1. Introduction

CCR5 belongs to a family of 7-transmembrane G-protein-coupled receptors that mediates leukocyte recruitment through the engagement of its ligands, CCL3, CCL4, and CCL5 [1,2]. CCR5 was believed to function redundantly with other closely related receptors due, in part, to the coexpression of multiple related chemokine receptors in specialized leukocyte subsets. The idea of functional redundancy among these receptors was further supported by the general failure of chemokine receptor antagonists to alter the clinical course of immune/inflammatory diseases [3]. To further this tenet at the genetic level, individuals lacking CCR5 due to the presence of two copies of a commonly found 32-base-pair deletion (CCR5Δ32 homozygotes) were found to have essentially identical health and lifespan compared to CCR5-sufficient individuals. The loss of CCR5 is, in fact, a genetic asset, as it is linked with several health benefits, the most remarkable of which is resistance to HIV infection [4,5,6,7,8]. While CXCR4 can also serve as a coreceptor for HIV entry, CCR5 is essential for HIV transmission, which was most clearly demonstrated by the identification of CCR5Δ32 homozygotes that are resistant to HIV infection [9,10,11]. However, the hypothesis that CCR5 is a dispensable gene was challenged by the finding that Ccr5-deficient mice, as well as CCR5Δ32 homozygotes, are more susceptible to West Nile virus (WNV), a mosquito-transmitted neurotropic flavivirus [7]. In the nearly two decades following these initial studies, the role of CCR5 has been examined in the context of numerous other medically important neurotropic flaviviruses, including tick-borne flaviviruses, Japanese encephalitis virus (JEV), and Zika virus (ZIKV) [12,13,14]. Most of these studies collectively indicate that CCR5 is broadly neuroprotective, yet we are still uncovering novel mechanisms by which this receptor can offer protection against this group of viruses. Here, we discuss the studies that have evaluated Ccr5 in mice in the context of several neurotropic flaviviruses; review the genotype: phenotype studies that have tested for the frequency of CCR5Δ32 homozygotes in cohorts of neurotropic flavivirus-infected individuals; and propose new areas of research and/or tools needed to further advance our understanding of CCR5.

2. CCR5 Guides Effector Leukocytes into the CNS

Flaviviruses are vector-borne RNA viruses and a major cause of neuroinfections globally. These viruses can emerge and re-emerge unexpectedly in human populations, causing meningitis, encephalitis, paralysis, and death, and those who survive are often left with long-term neurologic sequelae [15]. Neurotropic flaviviruses were not considered a significant cause of CNS infections in the US until 1999, when WNV was identified as the cause of an outbreak of encephalitis in the New York City area. WNV spread across the US unimpeded and has caused annual outbreaks ever since, with a total of 56,575 cases and 2776 deaths from 1999 to 2022 (www.cdc.gov, accessed on 11 October 2023). Today, WNV is a major cause of encephalitis and the predominant flavivirus that circulates in the US. Studies of immunocompetent wild-type (WT) mice showed that infection with WNV (NY99 strain) resulted in the development of encephalitis, with mice succumbing to infection 7–12 days post infection, with a mortality rate of 30–40% [16,17]. Evaluation of the CNS tissue showed a high level of induction of several inflammatory chemokines, such as Ccl2, Ccl3, Ccl4, Ccl5, and Cxcl10, in response to viral infection in the brain. The roles of these chemokines and their receptors have been systematically evaluated in vivo, including Ccr2 [18], Cxcr3 (and its ligand, Cxcl10) [17,19], and Cxcr4 [20,21]. Since three of the ligands for Ccr5 (Ccl3, Ccl4, and Ccl5) were induced in the CNS following WNV encephalitis, the role of this receptor was investigated in mice by comparing WNV pathogenesis in wild-type (WT) versus Ccr5−/− mice. Infection in Ccr5−/− mice was uniform fatal, with no mice surviving infection beyond eight days post infection, while the majority of the WNV-infected WT mice survived. Analysis of the CNS revealed an inability to control viral replication that was coupled with a global loss of leukocyte infiltration, with a >50% decrease in CD4+ T, CD8+ T, NK cells, and peripherally derived monocytes in the CNS compared to WNV-infected WT mice (Figure 1). Strikingly, no differences were observed in viral replication, cell activation, or cytokine induction outside of the CNS, suggesting that Ccr5′s primary role was to guide peripheral leukocytes into the barrier-protected WNV-infected brain tissue [16]. The protective role of Ccr5 was replicated in another study, although the phenotype was less dramatic, with 50% mortality observed in Ccr5-deficient mice infected with WNV (NY99) compared to 20% in WT mice [22]. The authors of this study showed that the loss of Ccr5 resulted in an earlier onset of disease compared to WT mice, which coincided with increased Ccr5 ligand induction and blood–brain barrier (BBB) permeability within the cortical region of the brain. Total leukocyte infiltration was significantly reduced in the absence of Ccr5, driven largely by the loss of CD4+ T cells, CD8+ T cells, and peripherally derived monocytes. These observations are supported by several studies that have demonstrated that Ccr5 promotes the recruitment and/or generation of memory CD8+ T cells in mice [23,24]. Interestingly, no differences in leukocyte infiltration were observed in other regions of the brain or the periphery, suggesting that CCR5 may control cell migration through the BBB with finer specificity than previously thought.
To evaluate the role of CCR5 in human WNV infections, several groups have probed the frequency of CCR5Δ32 homozygous individuals, who naturally lack CCR5 expression, in cohorts of neurotropic flavivirus-infected individuals, allowing for genotype: phenotype association studies. An initial study evaluated the frequency of CCR5Δ32 homozygotes among WNV-infected patients (n = 395) from two US states (Arizona and Colorado) who experienced severe West Nile fever or neuroinvasive disease compared to a large group of random US blood donors (n = 1318) who provided samples before 1999 and were therefore presumed to be WNV-uninfected. CCR5Δ32 homozygosity was enriched from 1.0% in the control population to 4.3% in the symptomatic WNV patient population from both Arizona and Colorado (OR = 4.5; p < 0.0001), with the enrichment of CCR5Δ32 being highest in Arizona individuals with fatal outcomes (OR = 13.2; p = 0.03) [25]. To further validate these findings using a geographically matched control population, a cohort of symptomatic WNV-seronegative patients from Arizona was also genotyped (n = 125), among whom the frequency of CCR5Δ32 was found to be 0.7%. A followup study with two additional symptomatic WNV-infected cohorts sampled from Illinois and California also showed an enrichment for CCR5Δ32 homozygotes (3.6%; OR = 3.7, p = 0.002) when compared to the same reference cohort of random blood donors utilized in the aforementioned study (n = 1318) [26]. A third study identified WNV-infected individuals through screening of blood donations between 2003 and 2008. This study was fundamentally different from the previous two, as the vast majority of the WNV-infected individuals enrolled were either asymptomatic or developed mild symptoms that did not result in a doctor’s visit or hospitalization. The frequency of CCR5Δ32 homozygotes among asymptomatic WNV-infected individuals was 0% (n = 169), while those who developed one or more symptoms associated with WNV accounted for 3.2%, suggesting that all CCR5Δ32 homozygotes that were infected with WNV developed some degree of symptomatology. These data also demonstrate that CCR5Δ32 homozygosity is not a risk factor for infection with WNV (as is the case for the presence of CCR5 and HIV infection) but for the development of symptoms following WNV infection [27].
Two additional studies were conducted that did not show any association between CCR5Δ32 homozygosity and WNV infection. The first study compared WNV-infected individuals who developed a neuroinvasive disease (meningitis or encephalitis; n = 821) to WNV-infected individuals who did not (n = 1233) and found no significant change in CCR5Δ32 homozygote frequency (1.58% in neuroinvasive disease cases versus 1.05% in non-neuroinvasive cases; OR = 1.51) [28]. While this study did not include a WNV-uninfected population, the frequency of CCR5Δ32 homozygosity was not higher than expected in a WNV-negative population. Another study also failed to find a significant association of CCR5Δ32 homozygosity when comparing symptomatic to asymptomatic WNV-infected individuals (OR = 2.14, p > 0.05). However, when the CCR5Δ32 homozygous frequencies of the symptomatic WNV-infected individuals and all WNV-infected individuals from their cohort were compared to that of the reference cohort of random blood donors used in previous studies (n = 1318) [26], a significant difference was observed, with an OR = 1.38 (p < 0.05) or 1.36 (p < 0.01), respectively) [29]. A recent meta-analysis was conducted that supports a role for CCR5 in preventing the development of severe WNV disease, with an overall OR of 1.29 (p = 0.005) [30]. It is unclear why some studies show a clear association with WNV disease severity while others do not, but these discrepancies may be due to the rigor of the control populations used, as some of the aforementioned studies utilized a reference cohort, while others utilized an asymptomatic WNV-infected cohort, both of which have strengths and weaknesses. Well-defined control populations matched geographically and ethnically are ideal for studies seeking to define a role for CCR5Δ32. Interestingly, no change in susceptibility to WNV is observed among CCR5Δ32 heterozygotes, whose expression of CCR5 is reduced by ~30–50%. These data suggest that lower levels of CCR5 expression are sufficient to confer protection against WNV [31].

3. CCR5 Directs Regulatory T-Cell Migration to the CNS

Given that CCR5 appeared to offer protection in the context of WNV infection, the next major question was to understand whether these protective effects were relevant for other neurotropic flaviviruses. To address this, Ccr5 was next evaluated in a mouse model of Japanese encephalitis virus (JEV). JEV is a mosquito-borne flavivirus antigenically related to WNV and the predominant cause of viral encephalitis in Asia [32]. Over three billion individuals are at risk of infection due to endemic JEV transmission in 24 countries in the western Pacific and southeast Asia areas. According to the World Health Organization (WHO), China and India have suffered the greatest JEV burden, with 33,488 and 21,572 cases reported over the last 20 years, respectively (www.who.int, accessed on 11 July 2023). Like WNV, there is an immunocompetent mouse model to study JEV pathogenesis. Different chemokines and chemokine receptors have also been investigated in the context of JEV infection in vivo. One study showed that the loss of Ccr2 resulted in fewer Ly6chiCD11b+ monocytes in the JEV-infected CNS and a survival advantage, while the loss of Ccl2 resulted in increased Ly6chiCD11b+ monocytes and T cells (both CD4+ and CD8+) in the CNS, as well as increased mortality, suggesting fewer leukocytes in the CNS and, thus, less inflammation, resulting in a protective effect [33]. Likewise, examination of the Cxcr3 and its ligands, Cxcl10 and Cxcl4, also suggested that less inflammation in the CNS is associated with favorable outcomes, with either the blockade of Cxcl10 or Cxcr3, or Cxcl4 deficiency, resulting in increased viral clearance, less inflammation, and an overall protective effect [34,35,36].
In the context of Ccr5, one study found that infection with JEV (Beijing-1) resulted in 54% mortality in WT mice, which increased to 100% in Ccr5-deficient mice. Unlike WNV, the loss of Ccr5 in the context of JEV did not increase CNS viral loads but instead caused an early dysregulation in the production of cytokines and chemokines in the CNS, resulting in a surprising increase in neutrophils and, to a lesser extent, monocytes and CD8+ T cells. This was concomitant with decreased numbers of NK cells and regulatory CD4+ T cells (Tregs). Given that Tregs can express Ccr5 and are known to moderate inflammatory responses induced by pathogens, the authors hypothesized that Tregs may be critical in controlling the aberrant inflammation caused by the excessive influx of neutrophils and increased cytokine production. Adoptive transfer of Ccr5-sufficient Tregs but not Ccr5-deficient Tregs into JEV-infected Ccr5−/− mice was able to restore survival to ~50% (similar the survival rate of WT mice) and ameliorate paralysis through production of the anti-inflammatory cytokine IL-10 and TGF-β. However, neutrophil and monocyte numbers remained elevated in the CNS of Ccr5-deficient mice reconstituted with Ccr5-expressing Tregs. This may have been due to the timing of the Treg cell transfer, which took place on day 3 post infection, a time point at which both neutrophils and monocytes had already entered the CNS [13]. Overall, these data show that Ccr5 provides neuroprotection in the context of JEV by promoting the infiltration of Tregs in the CNS, which can offset the inflammatory damage caused by an early and pathogenic presence of neutrophils and other innate immune cells (Figure 2).
The role of CCR5 was also evaluated in the context of Langat virus (LGTV) infection, a naturally attenuated member of the tick-borne encephalitis virus (TBEV) complex. Tick-borne flaviviruses are endemic throughout most of the northern hemisphere, causing neuroinvasive disease of varying severity, with mortality reported to be as high as 20–30% [37]. Infection with LGTV (TP21) in Ccr5-deficient mice resulted in an overall survival rate that was decreased (48% survival) compared to WT mice (90% survival). Reminiscent of observations in the CNS of mice infected with JEV, Ccr5-deficient mice infected with LGTV presented with decreased levels of T cells and NK cells in the CNS, along with a significant increase in neutrophil infiltration. The increased mortality observed in Ccr5−/− mice was partially reversed by depleting neutrophils just prior to viral entry into the CNS or adoptive transfer of Ccr5-sufficient splenocytes into LGTV-infected Ccr5−/− mice [12]. While the role of Tregs was not formally evaluated in this study, it appears that the protection offered by Ccr5 in the context of LGTV is similar to that of JEV. The role of Tregs in the CNS has also been shown to be critical during WNV encephalitis both in mice and humans [38,39,40,41], and the critical role of Tregs may be to inhibit neutrophil infiltration, a function that has recently emerged in various other inflammatory settings [42,43].
Testing the role of CCR5 in the context of human JEV infections has been challenging, since the homozygous frequency of CCR5Δ32 is much lower in populations in which JEV circulates and causes disease, including in China and India. One study evaluated a cohort from northern India for CCR5Δ32 frequency in a population of 183 JEV cases versus 361 geographically matched healthy controls [44]. No CCR5Δ32 homozygotes were identified in either cases or controls, consistent with the expected homozygous frequency in India, which is estimated to be ~0.04% (1 in 2500) [45]. In China, CCR5Δ32 homozygosity is expected to be even less frequent, estimated to be ~0.002% (1 in ~50,000) [45]. This contrasts with many European and northern European populations, where the CCR5Δ32 homozygous frequency is between 1.0% (1 in 100) and 2.6% (1 in 36) [45]. Thus, testing the extent to which CCR5 is neuroprotective in the context of JEV infections will be difficult to address.
Because TBEV circulates primarily in European countries, association studies with CCR5Δ32 and TBEV infections have been more insightful. The first study, conducted in a Lithuanian population, showed a significant enrichment for CCR5Δ32 homozygotes (2.3%) in severely TBEV-infected individuals (n = 129), while the frequency in geographically matched negative controls (n = 134) and a group of TBEV-negative patients presenting with aseptic meningoencephalitis (n = 76) was 0% (p = 0.026) [46]. A second study found a similar correlation between CCR5Δ32 homozygosity and severe TBEV cases (n = 349), with the CCR5Δ32 frequency reported at 2.3% compared to the control population (n = 210), where the authors observed no CCR5Δ32 homozygotes (p = 0.023) [47]. However, no association was found in a study in a Russian population, where the CCR5Δ32 homozygotes were found in 2.9% of TBEV cases (n = 137) versus 1.5% among controls (n = 268; p > 0.05), although the frequency of CCR5Δ32 homozygosity trended towards a pathogenic effect [48]. Interestingly, one study evaluated PBMCs and cells obtained from the cerebrospinal fluid of CCR5 WT or CCR5Δ32 heterozygous individuals acutely infected with TBEV and found that while CCR5 expression was lower on the cells obtained from CCR5Δ32 heterozygotes, this did not impact TBEV susceptibility or response [49]. Consistent with observations in WNV, these results further support the notion that haploinsufficiency for CCR5 does not increase susceptibility to TBEV.

4. NK and CD8+ T-Cell Effector Functions Are CCR5-Dependent

NK cells are cytotoxic lymphocytes critical to innate immunity and are functionally analogous to cytotoxic T cells (CTLs). A subset of both NK cells [50] and CD8+ [51] CTLs are known to express CCR5, and the role of these effector cells within the CNS has also been shown to be a critical part of CCR5′s arsenal. NK cells and CD8+ T cells function in the direct killing of virally- infected cells through the release of effector cytokines, such as IFNγ and TNFα, and through degranulation. Ccr5′s role during JEV was tested by another group utilizing the Nakayama strain [52]. Consistent with a JEV study conducted in mice utilizing the Beijing-1 strain [13], the loss of Ccr5 resulted in a significant increase in mortality (64% compared to 28% observed in WT mice). In addition to observing a delay in the influx of CD8+ T, CD4+ T, NK cells, and monocytes into the CNS, the authors evaluated the functional capacity of the effector cells. To do this, NK cells were isolated from the spleens of Ccr5-sufficient or Ccr5-deficient JEV-infected mice on day 4 post infection. They found that the NK cells isolated from the Ccr5-deficient mice were ~50% less effective at killing target cells ex vivo and produced less IFNγ compared to NK cells obtained from JEV-infected Ccr5-sufficient mice (Figure 3). Similarly, CD8+ CTLs isolated from JEV-infected Ccr5-deficient mice on days 4 and 7 post infection were less capable of producing IFNγ and/or TNFα following ex vivo stimulation with an immunodominant JEV-derived peptide or whole virus compared to WT mice. Collectively, these data suggest that the loss of Ccr5 not only reduces the number of leukocytes capable of reaching the CNS but that the NK and CTLs that do reach the brain are further crippled functionally, leaving the host suboptimally equipped to fight virally infected neurons within the CNS [52]. Several studies have shown a critical role of Ccr5 in guiding and enhancing interactions of T cells with dendritic cells, suggesting that T cells may not be sufficiently primed, which may, in part, explain this phenotype [24,53,54,55]. Once in the CNS, perforin-dependent granule exocytosis is a major pathway required for the successful clearance of numerous viruses, including flaviviruses [56,57]. Currently, it is unknown how the loss of Ccr5 on these effector cells might result in reduced functionality, and more work is needed to understand this functional defect.

5. CCR5 Promotes Viral Persistence in the Brain Endothelium

The most recent flavivirus to cause a large-scale epidemic is Zika virus (ZIKV), which first made headlines due to an outbreak in Micronesia in 2007, followed by its introduction into the western Hemisphere that started in Brazil and rapidly spread through South and Central America in 2015–2016 [58]. Similar to other neurotropic flaviviruses, ZIKV is vector-transmitted through a mosquito bite, but it is unique, as it can be vertically transmitted from a mother to a fetus [59]. Infection of pregnant individuals with ZIKV, irrespective of symptom development, can lead to microcephaly and other congenital malformations, as well as fetal loss, stillbirth, and preterm birth. Since the initial outbreak, there has been a global reduction in ZIKV cases, but this virus still circulates in at least 89 countries (www.who.int, accessed on 8 December 2022). Given that there are no vaccine or antiviral options and the potential for another large-scale outbreak, ZIKV still poses a significant global concern, particularly for people who are pregnant or planning to become pregnant. Another interesting feature of ZIKV is the sexual transmission that has been documented [60,61,62,63,64]. Furthermore, ZIKV infection in humans can lead to viral persistence in some tissues, such as the testes, for months following initial exposure, allowing the virus to be transmitted through seminal fluid long after the acute phase of the infection has passed [65,66]. It was previously shown that barrier endothelia, such as the blood–brain barrier (BBB) [14] or the blood–testes barrier (BTB) [67], can become persistently infected with ZIKV without triggering cytopathology, offering a reservoir and possible mechanism for viral persistence. Using an in vitro human brain microvascular endothelial cell (hBMEC) model to study persistent infection of the BBB, one study showed that the CCR5:CCL5 interaction was critical for the survival and persistence of ZIKV-infected hBMECs. Blocking the interaction of CCL5 with CCR5 on ZIKV-infected hBMECs knocked-out for either CCR5 or CCL5 resulted in a significant decrease in ZIKV infection (Figure 4) and a reduction in the cell viability of the hBMECs, suggesting that the CCR5:CCL5 interaction promotes the survival of the ZIKV-infected brain endothelium, allowing for persistent infection. Blockade of this interaction using CCR5-specific antagonist Maraviroc recapitulated this phenotype, resulting in the rapid clearance of ZIKV from the endothelial cells [14,68]. While these in vitro data suggest a pathogenic role of CCR5 in the context of ZIKV infection, it is unclear to what extent this mechanism would impact ZIKV infection in vivo. While CCR5 appears to be expressed on hBMECs in vitro, whether it is expressed on the BBB in a steady state or under inflammatory conditions in vivo has not been characterized. Furthermore, it is unclear whether the loss of CCR5 on the BBB would promote pathogenesis or protect against ZIKV in mice and humans. While CCR5 deficiency may abrogate ZIKV persistence in the long term, even a transient breach in the BBB caused by a loss of viability of the ZIKV-infected brain endothelium in the absence of CCR5 could be detrimental to the host in the short term. It is possible that CCR5 could play a protective role during the acute phase of infection while still promoting viral persistence in the BBB. To study the role of Ccr5 in the context of ZIKV infection in vivo, utilization of the recently generated humanized STAT2 knock-in mice would be the most powerful model, as these mice are immunocompetent [69].
To date, no studies have evaluated the association between CCR5Δ32 and ZIKV infection. Similar to challenges faced with JEV, the frequency of CCR5Δ32 homozygosity in Brazil and other countries in South and Central America is lower than in European populations [45,70]. Future studies must also keep in mind that the allele frequency for CCR5Δ32 can vary widely, even within a country, such as Brazil, where the frequency of CCR5Δ32 homozygotes ranges between 0.03% (~1 in 3300) and 0.86% (~1 in 116) depending on the region [70]. Thus, future cohort studies that seek to associate ZIKV outcomes with loss of CCR5 in flavivirus-endemic countries must carefully control for this.

6. CCR5-Mediated Leukocyte Infiltration Promotes Pathogenesis

While the loss of leukocyte infiltration into the CNS in the absence of Ccr5 often results in increased mortality, there are studies that have shown that fewer leukocytes in the CNS as a result of Ccr5 deficiency can be beneficial as well. In fact, Ccr5-deficient mice infected with Rocio virus, a neurotropic flavivirus in the JEV serocomplex that circulates in South America [71], displayed a greater survival rate (~40%) compared to WT mice, where infection was uniformly fatal [71]. The authors showed that brain viral loads between the WT and Ccr5-deficient mice were similar, but leukocyte infiltration was greatly reduced in the Ccr5−/− brains. Likewise, another study showed that the mortality observed in mice intraperitoneally infected with JEV (NJ2008 strain) could be reversed through the administration of CCR5 antagonist Maraviroc (20% survival without Maraviroc to 70% survival in Maraviroc-treated mice) [72]. Similar to the studies involving Rocio virus, treatment with Maraviroc resulted in fewer leukocytes in the CNS. Together, these results suggest that Ccr5 guides leukocytes into the virally infected CNS, but the collateral damage from the cellular infiltration outweighs the benefit of viral clearance offered by their presence, leading to a better survival outcome in the absence of Ccr5. These studies suggest a detrimental role for Ccr5 in the context of some neurotropic flaviviruses, and more in-depth studies are needed to further confirm these results.

7. Future Directions

Most of studies conducted to date appear to align with a neuroprotective role for CCR5 that is enabled through numerous mechanisms that likely overlap in vivo, depending on the pathogen and model system used (Table 1). It remains unclear whether the protective role of CCR5 may also extend beyond the CNS to include other barrier-protected tissues, including the testes and the placenta-protected fetus. To test this, ZIKV would be the best candidate pathogen, as this virus is known to breach both the BTB to infect the seminiferous tubules and cross the placenta to infect the developing fetus, both of which occur in the context of ZIKV infection in humans and have also been reported in mice [73,74]. It is important to note that while most in vivo studies in mice appear to show a protective role for CCR5, there are several studies that have demonstrated that loss of Ccr5, and the concomitant loss of leukocyte infiltration into the CNS may improve survival by lowering the immunopathology. Furthermore, the impact of CCR5 in the context of flavivirus persistence is completely unknown; for this, a model of flavivirus persistence will need to be established.
Maraviroc is a weak antagonist against mouse Ccr5; this is not surprising, given the ~77% identity between mouse and human CCR5 at the protein level. While Maraviroc can block human CCR5 ligand binding with an IC50 of 1.9nM, this is dramatically increased to 3600nM when tested against the mouse receptor [75]. Another study showed that Maraviroc was 76 times less effective at inhibiting signaling through mouse Ccr5 compared to human CCR5 [76]. Given this drastic decrease in efficacy, most mouse studies utilize high levels of Maraviroc that should be sufficient to block mouse Ccr5 in vivo, but off-target effects of Maraviroc are completely unknown. Thus, the findings of studies that seek to understand the role of Ccr5 in mice utilizing Maraviroc should be validated utilizing another methodology if possible.
To fully understand the multitude of mechanisms by which CCR5 impacts inflammation and immunity in the context of any disease, the field needs several new reagents and tools. Currently, there is considerable confusion about the expression of Ccr5 on cells in tissues and through differentiation and development in mice in the steady state and during any immune process, all of which stems from the low specificity of the commercially available anti-mouse Ccr5 antibodies. Thus, a new suite of antibodies that are highly specific for mouse Ccr5 and able to not only identify cells expressing this receptor but also block chemokine binding/chemotaxis are necessary. The availability of a blocking antibody would also provide a more effective way to assess Ccr5 function in mice and allow researchers to circumvent the use of Maraviroc. To resolve some of the controversy regarding the cellular expression of Ccr5, a reporter mouse for Ccr1, Ccr2, Ccr3, and Ccr5 was recently described [77], which showed that Ccr5 was preferentially expressed in tissue resting macrophages and T cells. It has been immensely informative in assigning expression profiles in leukocytes in blood and tissues in the steady state and in some inflammatory conditions, but individual chemokine receptor reporter knock-in mice may be necessary to assign receptor-specific functions in the context of specific inflammatory or infection conditions. For these purposes, a Ccr5 reporter mouse, as well as a floxed Ccr5 transgenic mouse, would be incredibly useful. There is a multitude of questions that still need to be addressed regarding how CCR5 functions broadly in health and disease. In addition to the generation of new tools to study Ccr5, investigation into additional flaviviruses and assessment of the role of Ccr5 in barrier-protected tissues besides the CNS, such as the testes, as well as in the context of pregnancy, will help unlock even more exciting roles for this multifunctional receptor.

Author Contributions

Conceptualization, J.K.L. and A.G.; writing—original draft preparation, A.G. and J.K.L.; figure preparation, A.G. and J.K.L.; writing—review and editing, J.K.L. and A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Institute of Allergy and Infectious Disease under award numbers R01AI166594 (JKL) and R01AI150837 (JKL).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We would like to thank Dusan Bogunovic and Christopher Obara for critical review of the manuscript. We would also like to thank Aum Patel and Haylen Rosberger for conceptual assistance with the figures.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mueller, A.; Strange, P.G. The chemokine receptor, CCR5. Int. J. Biochem. Cell Biol. 2004, 36, 35–38. [Google Scholar] [CrossRef] [PubMed]
  2. Lederman, M.M.; Penn-Nicholson, A.; Cho, M.; Mosier, D. Biology of CCR5 and its role in HIV infection and treatment. JAMA 2006, 296, 815–826. [Google Scholar] [CrossRef] [PubMed]
  3. Schall, T.J.; Proudfoot, A.E. Overcoming hurdles in developing successful drugs targeting chemokine receptors. Nat. Rev. Immunol. 2011, 11, 355–363. [Google Scholar] [CrossRef] [PubMed]
  4. Fischereder, M.; Luckow, B.; Hocher, B.; Wuthrich, R.P.; Rothenpieler, U.; Schneeberger, H.; Panzer, U.; Stahl, R.A.; Hauser, I.A.; Budde, K.; et al. CC chemokine receptor 5 and renal-transplant survival. Lancet 2001, 357, 1758–1761. [Google Scholar] [CrossRef] [PubMed]
  5. Maier, R.; Akbari, A.; Wei, X.; Patterson, N.; Nielsen, R.; Reich, D. No statistical evidence for an effect of CCR5-∆32 on lifespan in the UK Biobank cohort. Nat. Med. 2020, 26, 178–180. [Google Scholar] [CrossRef] [PubMed]
  6. Joy, M.T.; Ben Assayag, E.; Shabashov-Stone, D.; Liraz-Zaltsman, S.; Mazzitelli, J.; Arenas, M.; Abduljawad, N.; Kliper, E.; Korczyn, A.D.; Thareja, N.S.; et al. CCR5 Is a Therapeutic Target for Recovery after Stroke and Traumatic Brain Injury. Cell 2019, 176, 1143–1157.e13. [Google Scholar] [CrossRef] [PubMed]
  7. Lim, J.K.; Glass, W.G.; McDermott, D.H.; Murphy, P.M. CCR5: No longer a “good for nothing” gene—Chemokine control of West Nile virus infection. Trends Immunol. 2006, 27, 308–312. [Google Scholar] [CrossRef]
  8. Dean, M.; Carrington, M.; Winkler, C.; Huttley, G.A.; Smith, M.W.; Allikmets, R.; Goedert, J.J.; Buchbinder, S.P.; Vittinghoff, E.; Gomperts, E.; et al. Genetic restriction of HIV-1 infection and progression to AIDS by a deletion allele of the CKR5 structural gene. Hemophilia Growth and Development Study, Multicenter AIDS Cohort Study, Multicenter Hemophilia Cohort Study, San Francisco City Cohort, ALIVE Study. Science 1996, 273, 1856–1862. [Google Scholar]
  9. Maartens, G.; Celum, C.; Lewin, S.R. HIV infection: Epidemiology, pathogenesis, treatment, and prevention. Lancet 2014, 384, 258–271. [Google Scholar] [CrossRef]
  10. Jasinska, A.J.; Pandrea, I.; Apetrei, C. CCR5 as a Coreceptor for Human Immunodeficiency Virus and Simian Immunodeficiency Viruses: A Prototypic Love-Hate Affair. Front. Immunol. 2022, 13, 835994. [Google Scholar] [CrossRef]
  11. Shaik, M.M.; Peng, H.; Lu, J.; Rits-Volloch, S.; Xu, C.; Liao, M.; Chen, B. Structural basis of coreceptor recognition by HIV-1 envelope spike. Nature 2019, 565, 318–323. [Google Scholar] [CrossRef] [PubMed]
  12. Michlmayr, D.; Bardina, S.V.; Rodriguez, C.A.; Pletnev, A.G.; Lim, J.K. Dual Function of Ccr5 during Langat Virus Encephalitis: Reduction in Neutrophil-Mediated Central Nervous System Inflammation and Increase in T Cell-Mediated Viral Clearance. J. Immunol. 2016, 196, 4622–4631. [Google Scholar] [CrossRef] [PubMed]
  13. Kim, J.H.; Patil, A.M.; Choi, J.Y.; Kim, S.B.; Uyangaa, E.; Hossain, F.M.; Park, S.Y.; Lee, J.H.; Eo, S.K. CCR5 ameliorates Japanese encephalitis via dictating the equilibrium of regulatory CD4+Foxp3+ T and IL-17+CD4+ Th17 cells. J. Neuroinflamm. 2016, 13, 223. [Google Scholar] [CrossRef] [PubMed]
  14. Mladinich, M.C.; Schwedes, J.; Mackow, E.R. Zika Virus Persistently Infects and Is Basolaterally Released from Primary Human Brain Microvascular Endothelial Cells. mBio 2017, 8. [Google Scholar] [CrossRef] [PubMed]
  15. Maximova, O.A.; Pletnev, A.G. Flaviviruses and the Central Nervous System: Revisiting Neuropathological Concepts. Annu. Rev. Virol. 2018, 5, 255–272. [Google Scholar] [CrossRef]
  16. Glass, W.G.; Lim, J.K.; Cholera, R.; Pletnev, A.G.; Gao, J.L.; Murphy, P.M. Chemokine receptor CCR5 promotes leukocyte trafficking to the brain and survival in West Nile virus infection. J. Exp. Med. 2005, 202, 1087–1098. [Google Scholar] [CrossRef] [PubMed]
  17. Klein, R.S.; Lin, E.; Zhang, B.; Luster, A.D.; Tollett, J.; Samuel, M.A.; Engle, M.; Diamond, M.S. Neuronal CXCL10 directs CD8+ T-cell recruitment and control of West Nile virus encephalitis. J. Virol. 2005, 79, 11457–11466. [Google Scholar] [CrossRef]
  18. Lim, J.K.; Obara, C.J.; Rivollier, A.; Pletnev, A.G.; Kelsall, B.L.; Murphy, P.M. Chemokine receptor Ccr2 is critical for monocyte accumulation and survival in West Nile virus encephalitis. J. Immunol. 2011, 186, 471–478. [Google Scholar] [CrossRef]
  19. Zhang, B.; Chan, Y.K.; Lu, B.; Diamond, M.S.; Klein, R.S. CXCR3 mediates region-specific antiviral T cell trafficking within the central nervous system during West Nile virus encephalitis. J. Immunol. 2008, 180, 2641–2649. [Google Scholar] [CrossRef]
  20. McCandless, E.E.; Zhang, B.; Diamond, M.S.; Klein, R.S. CXCR4 antagonism increases T cell trafficking in the central nervous system and improves survival from West Nile virus encephalitis. Proc. Natl. Acad. Sci. USA 2008, 105, 11270–11275. [Google Scholar] [CrossRef]
  21. Bardina, S.V.; Lim, J.K. The role of chemokines in the pathogenesis of neurotropic flaviviruses. Immunol. Res. 2012, 54, 121–132. [Google Scholar] [CrossRef] [PubMed]
  22. Durrant, D.M.; Daniels, B.P.; Pasieka, T.; Dorsey, D.; Klein, R.S. CCR5 limits cortical viral loads during West Nile virus infection of the central nervous system. J. Neuroinflammation 2015, 12, 233. [Google Scholar] [CrossRef] [PubMed]
  23. Kohlmeier, J.E.; Miller, S.C.; Smith, J.; Lu, B.; Gerard, C.; Cookenham, T.; Roberts, A.D.; Woodland, D.L. The chemokine receptor CCR5 plays a key role in the early memory CD8+ T cell response to respiratory virus infections. Immunity 2008, 29, 101–113. [Google Scholar] [CrossRef] [PubMed]
  24. Castellino, F.; Huang, A.Y.; Altan-Bonnet, G.; Stoll, S.; Scheinecker, C.; Germain, R.N. Chemokines enhance immunity by guiding naive CD8+ T cells to sites of CD4+ T cell-dendritic cell interaction. Nature 2006, 440, 890–895. [Google Scholar] [CrossRef] [PubMed]
  25. Glass, W.G.; McDermott, D.H.; Lim, J.K.; Lekhong, S.; Yu, S.F.; Frank, W.A.; Pape, J.; Cheshier, R.C.; Murphy, P.M. CCR5 deficiency increases risk of symptomatic West Nile virus infection. J. Exp. Med. 2006, 203, 35–40. [Google Scholar] [CrossRef] [PubMed]
  26. Lim, J.K.; Louie, C.Y.; Glaser, C.; Jean, C.; Johnson, B.; Johnson, H.; McDermott, D.H.; Murphy, P.M. Genetic deficiency of chemokine receptor CCR5 is a strong risk factor for symptomatic West Nile virus infection: A meta-analysis of 4 cohorts in the US epidemic. J. Infect. Dis. 2008, 197, 262–265. [Google Scholar] [CrossRef] [PubMed]
  27. Lim, J.K.; McDermott, D.H.; Lisco, A.; Foster, G.A.; Krysztof, D.; Follmann, D.; Stramer, S.L.; Murphy, P.M. CCR5 deficiency is a risk factor for early clinical manifestations of West Nile virus infection but not for viral transmission. J. Infect. Dis. 2010, 201, 178–185. [Google Scholar] [CrossRef] [PubMed]
  28. Loeb, M.; Eskandarian, S.; Rupp, M.; Fishman, N.; Gasink, L.; Patterson, J.; Bramson, J.; Hudson, T.J.; Lemire, M. Genetic variants and susceptibility to neurological complications following West Nile virus infection. J. Infect. Dis. 2011, 204, 1031–1037. [Google Scholar] [CrossRef]
  29. Bigham, A.W.; Buckingham, K.J.; Husain, S.; Emond, M.J.; Bofferding, K.M.; Gildersleeve, H.; Rutherford, A.; Astakhova, N.M.; Perelygin, A.A.; Busch, M.P.; et al. Host genetic risk factors for West Nile virus infection and disease progression. PLoS ONE 2011, 6, e24745. [Google Scholar] [CrossRef]
  30. Cahill, M.E.; Conley, S.; DeWan, A.T.; Montgomery, R.R. Identification of genetic variants associated with dengue or West Nile virus disease: A systematic review and meta-analysis. BMC Infect. Dis. 2018, 18, 282. [Google Scholar] [CrossRef]
  31. Venkatesan, S.; Petrovic, A.; Van Ryk, D.I.; Locati, M.; Weissman, D.; Murphy, P.M. Reduced cell surface expression of CCR5 in CCR5Delta 32 heterozygotes is mediated by gene dosage, rather than by receptor sequestration. J. Biol. Chem. 2002, 277, 2287–2301. [Google Scholar] [CrossRef] [PubMed]
  32. Srivastava, K.S.; Jeswani, V.; Pal, N.; Bohra, B.; Vishwakarma, V.; Bapat, A.A.; Patnaik, Y.P.; Khanna, N.; Shukla, R. Japanese Encephalitis Virus: An Update on the Potential Antivirals and Vaccines. Vaccine 2023, 11, 742. [Google Scholar] [CrossRef] [PubMed]
  33. Kim, J.H.; Patil, A.M.; Choi, J.Y.; Kim, S.B.; Uyangaa, E.; Hossain, F.M.; Park, S.Y.; Lee, J.H.; Kim, K.; Eo, S.K. CCL2, but not its receptor, is essential to restrict immune privileged central nervous system-invasion of Japanese encephalitis virus via regulating accumulation of CD11b+ Ly-6C(hi) monocytes. Immunology 2016, 149, 186–203. [Google Scholar] [CrossRef] [PubMed]
  34. Singh, A.; Ghosh, R.; Guchhait, P. CXCR3 antagonist rescues ER stress and reduces inflammation and JEV infection in mice brain. Cytokine 2023, 172, 156380. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, K.; Wang, H.; Lou, W.; Ma, L.; Li, Y.; Zhang, N.; Wang, C.; Li, F.; Awais, M.; Cao, S.; et al. IP-10 Promotes Blood-Brain Barrier Damage by Inducing Tumor Necrosis Factor Alpha Production in Japanese Encephalitis. Front. Immunol. 2018, 9, 1148. [Google Scholar] [CrossRef] [PubMed]
  36. Singh, A.; Ghosh, R.; Asuru, T.R.; Prajapat, S.K.; Joshi, G.; Gaur, K.K.; Shrimali, N.M.; Ojha, A.; Vikram, N.K.; Poncz, M.; et al. Inhibition of cellular activation induced by platelet factor 4 via the CXCR3 pathway ameliorates Japanese encephalitis and dengue viral infections. J. Thromb. Haemost. 2023, in press. [Google Scholar] [CrossRef] [PubMed]
  37. Pletnev, A.G.; Men, R. Attenuation of the Langat tick-borne flavivirus by chimerization with mosquito-borne flavivirus dengue type 4. Proc. Natl. Acad. Sci. USA 1998, 95, 1746–1751. [Google Scholar] [CrossRef]
  38. Lanteri, M.C.; O’Brien, K.M.; Purtha, W.E.; Cameron, M.J.; Lund, J.M.; Owen, R.E.; Heitman, J.W.; Custer, B.; Hirschkorn, D.F.; Tobler, L.H.; et al. Tregs control the development of symptomatic West Nile virus infection in humans and mice. J. Clin. Investig. 2009, 119, 3266–3277. [Google Scholar] [CrossRef]
  39. Okeke, E.B.; Mou, Z.; Onyilagha, N.; Jia, P.; Gounni, A.S.; Uzonna, J.E. Deficiency of Phosphatidylinositol 3-Kinase delta Signaling Leads to Diminished Numbers of Regulatory T Cells and Increased Neutrophil Activity Resulting in Mortality Due to Endotoxic Shock. J. Immunol. 2017, 199, 1086–1095. [Google Scholar] [CrossRef]
  40. Lewkowicz, P.; Lewkowicz, N.; Sasiak, A.; Tchorzewski, H. Lipopolysaccharide-activated CD4+CD25+ T regulatory cells inhibit neutrophil function and promote their apoptosis and death. J. Immunol. 2006, 177, 7155–7163. [Google Scholar] [CrossRef]
  41. Okeke, E.B.; Uzonna, J.E. The Pivotal Role of Regulatory T Cells in the Regulation of Innate Immune Cells. Front. Immunol. 2019, 10, 680. [Google Scholar] [CrossRef] [PubMed]
  42. Ring, S.; Inaba, Y.; Da, M.; Bopp, T.; Grabbe, S.; Enk, A.; Mahnke, K. Regulatory T Cells Prevent Neutrophilic Infiltration of Skin during Contact Hypersensitivity Reactions by Strengthening the Endothelial Barrier. J. Investig. Dermatol. 2021, 141, 2006–2017. [Google Scholar] [CrossRef] [PubMed]
  43. Richards, H.; Williams, A.; Jones, E.; Hindley, J.; Godkin, A.; Simon, A.K.; Gallimore, A. Novel role of regulatory T cells in limiting early neutrophil responses in skin. Immunology 2010, 131, 583–592. [Google Scholar] [CrossRef] [PubMed]
  44. Deval, H.; Alagarasu, K.; Mittal, M.; Srivastava, N.; Bachal, R.; Gondhalekar, A.; Chaudhary, U.; Chowdhary, D.; Bondre, V.P. Association of single nucleotide polymorphisms in TNFA and CCR5 genes with Japanese Encephalitis: A study from an endemic region of North India. J. Neuroimmunol. 2019, 336, 577043. [Google Scholar] [CrossRef] [PubMed]
  45. Solloch, U.V.; Lang, K.; Lange, V.; Bohme, I.; Schmidt, A.H.; Sauter, J. Frequencies of gene variant CCR5-Delta32 in 87 countries based on next-generation sequencing of 1.3 million individuals sampled from 3 national DKMS donor centers. Hum. Immunol. 2017, 78, 710–717. [Google Scholar] [CrossRef] [PubMed]
  46. Kindberg, E.; Mickiene, A.; Ax, C.; Akerlind, B.; Vene, S.; Lindquist, L.; Lundkvist, A.; Svensson, L. A deletion in the chemokine receptor 5 (CCR5) gene is associated with tickborne encephalitis. J. Infect. Dis. 2008, 197, 266–269. [Google Scholar] [CrossRef] [PubMed]
  47. Mickiene, A.; Pakalniene, J.; Nordgren, J.; Carlsson, B.; Hagbom, M.; Svensson, L.; Lindquist, L. Polymorphisms in chemokine receptor 5 and Toll-like receptor 3 genes are risk factors for clinical tick-borne encephalitis in the Lithuanian population. PLoS ONE 2014, 9, e106798. [Google Scholar] [CrossRef] [PubMed]
  48. Barkhash, A.V.; Voevoda, M.I.; Romaschenko, A.G. Association of single nucleotide polymorphism rs3775291 in the coding region of the TLR3 gene with predisposition to tick-borne encephalitis in a Russian population. Antiviral Res. 2013, 99, 136–138. [Google Scholar] [CrossRef]
  49. Grygorczuk, S.; Osada, J.; Parczewski, M.; Moniuszko, A.; Swierzbinska, R.; Kondrusik, M.; Czupryna, P.; Dunaj, J.; Dabrowska, M.; Pancewicz, S. The expression of the chemokine receptor CCR5 in tick-borne encephalitis. J. Neuroinflammation 2016, 13, 45. [Google Scholar] [CrossRef]
  50. Mack, M.; Cihak, J.; Simonis, C.; Luckow, B.; Proudfoot, A.E.; Plachy, J.; Bruhl, H.; Frink, M.; Anders, H.J.; Vielhauer, V.; et al. Expression and characterization of the chemokine receptors CCR2 and CCR5 in mice. J. Immunol. 2001, 166, 4697–4704. [Google Scholar] [CrossRef]
  51. Lind, L.; Svensson, A.; Thorn, K.; Krzyzowska, M.; Eriksson, K. CD8+ T cells in the central nervous system of mice with herpes simplex infection are highly activated and express high levels of CCR5 and CXCR3. J. Neurovirol 2021, 27, 145–153. [Google Scholar] [CrossRef] [PubMed]
  52. Larena, M.; Regner, M.; Lobigs, M. The chemokine receptor CCR5, a therapeutic target for HIV/AIDS antagonists, is critical for recovery in a mouse model of Japanese encephalitis. PLoS ONE 2012, 7, e44834. [Google Scholar] [CrossRef] [PubMed]
  53. Aliberti, J.; Reis e Sousa, C.; Schito, M.; Hieny, S.; Wells, T.; Huffnagle, G.B.; Sher, A. CCR5 provides a signal for microbial induced production of IL-12 by CD8 alpha+ dendritic cells. Nat. Immunol. 2000, 1, 83–87. [Google Scholar] [CrossRef] [PubMed]
  54. Hickman, H.D.; Li, L.; Reynoso, G.V.; Rubin, E.J.; Skon, C.N.; Mays, J.W.; Gibbs, J.; Schwartz, O.; Bennink, J.R.; Yewdell, J.W. Chemokines control naive CD8+ T cell selection of optimal lymph node antigen presenting cells. J. Exp. Med. 2011, 208, 2511–2524. [Google Scholar] [CrossRef] [PubMed]
  55. Hugues, S.; Scholer, A.; Boissonnas, A.; Nussbaum, A.; Combadiere, C.; Amigorena, S.; Fetler, L. Dynamic imaging of chemokine-dependent CD8+ T cell help for CD8+ T cell responses. Nat. Immunol. 2007, 8, 921–930. [Google Scholar] [CrossRef] [PubMed]
  56. Licon Luna, R.M.; Lee, E.; Mullbacher, A.; Blanden, R.V.; Langman, R.; Lobigs, M. Lack of both Fas ligand and perforin protects from flavivirus-mediated encephalitis in mice. J. Virol. 2002, 76, 3202–3211. [Google Scholar] [CrossRef]
  57. Shrestha, B.; Samuel, M.A.; Diamond, M.S. CD8+ T cells require perforin to clear West Nile virus from infected neurons. J. Virol. 2006, 80, 119–129. [Google Scholar] [CrossRef]
  58. Baud, D.; Gubler, D.J.; Schaub, B.; Lanteri, M.C.; Musso, D. An update on Zika virus infection. Lancet 2017, 390, 2099–2109. [Google Scholar] [CrossRef]
  59. Teixeira, F.M.E.; Pietrobon, A.J.; Oliveira, L.M.; Oliveira, L.; Sato, M.N. Maternal-Fetal Interplay in Zika Virus Infection and Adverse Perinatal Outcomes. Front. Immunol. 2020, 11, 175. [Google Scholar] [CrossRef]
  60. Counotte, M.J.; Kim, C.R.; Wang, J.; Bernstein, K.; Deal, C.D.; Broutet, N.J.N.; Low, N. Sexual transmission of Zika virus and other flaviviruses: A living systematic review. PLoS Med. 2018, 15, e1002611. [Google Scholar] [CrossRef]
  61. Brooks, R.B.; Carlos, M.P.; Myers, R.A.; White, M.G.; Bobo-Lenoci, T.; Aplan, D.; Blythe, D.; Feldman, K.A. Likely Sexual Transmission of Zika Virus from a Man with No Symptoms of Infection—Maryland, 2016. MMWR Morb. Mortal Wkly. Rep. 2016, 65, 915–916. [Google Scholar] [CrossRef] [PubMed]
  62. Freour, T.; Mirallie, S.; Hubert, B.; Splingart, C.; Barriere, P.; Maquart, M.; Leparc-Goffart, I. Sexual transmission of Zika virus in an entirely asymptomatic couple returning from a Zika epidemic area, France, April 2016. Eurosurveillance 2016, 21, 30254. [Google Scholar] [CrossRef] [PubMed]
  63. D’Ortenzio, E.; Matheron, S.; Yazdanpanah, Y.; de Lamballerie, X.; Hubert, B.; Piorkowski, G.; Maquart, M.; Descamps, D.; Damond, F.; Leparc-Goffart, I. Evidence of Sexual Transmission of Zika Virus. N. Engl. J. Med. 2016, 374, 2195–2198. [Google Scholar] [CrossRef] [PubMed]
  64. Harrower, J.; Kiedrzynski, T.; Baker, S.; Upton, A.; Rahnama, F.; Sherwood, J.; Huang, Q.S.; Todd, A.; Pulford, D. Sexual Transmission of Zika Virus and Persistence in Semen, New Zealand, 2016. Emerg. Infect. Dis. 2016, 22, 1855–1857. [Google Scholar] [CrossRef] [PubMed]
  65. Osuna, C.E.; Lim, S.Y.; Deleage, C.; Griffin, B.D.; Stein, D.; Schroeder, L.T.; Omange, R.W.; Best, K.; Luo, M.; Hraber, P.T.; et al. Zika viral dynamics and shedding in rhesus and cynomolgus macaques. Nat. Med. 2016, 22, 1448–1455. [Google Scholar] [CrossRef] [PubMed]
  66. Nicastri, E.; Castilletti, C.; Liuzzi, G.; Iannetta, M.; Capobianchi, M.R.; Ippolito, G. Persistent detection of Zika virus RNA in semen for six months after symptom onset in a traveller returning from Haiti to Italy, February 2016. Eurosurveillance 2016, 21, 30314. [Google Scholar] [CrossRef] [PubMed]
  67. Siemann, D.N.; Strange, D.P.; Maharaj, P.N.; Shi, P.Y.; Verma, S. Zika Virus Infects Human Sertoli Cells and Modulates the Integrity of the In Vitro Blood-Testis Barrier Model. J. Virol. 2017, 91, e00623-17. [Google Scholar] [CrossRef] [PubMed]
  68. Berger, O.; Gan, X.; Gujuluva, C.; Burns, A.R.; Sulur, G.; Stins, M.; Way, D.; Witte, M.; Weinand, M.; Said, J.; et al. CXC and CC chemokine receptors on coronary and brain endothelia. Mol. Med. 1999, 5, 795–805. [Google Scholar] [CrossRef]
  69. Gorman, M.J.; Caine, E.A.; Zaitsev, K.; Begley, M.C.; Weger-Lucarelli, J.; Uccellini, M.B.; Tripathi, S.; Morrison, J.; Yount, B.L.; Dinnon, K.H., 3rd; et al. An Immunocompetent Mouse Model of Zika Virus Infection. Cell Host Microbe 2018, 23, 672–685.e6. [Google Scholar] [CrossRef]
  70. Kulmann-Leal, B.; Ellwanger, J.H.; Chies, J.A.B. CCR5Delta32 in Brazil: Impacts of a European Genetic Variant on a Highly Admixed Population. Front. Immunol. 2021, 12, 758358. [Google Scholar] [CrossRef]
  71. Chavez, J.H.; Franca, R.F.; Oliveira, C.J.; de Aquino, M.T.; Farias, K.J.; Machado, P.R.; de Oliveira, T.F.; Yokosawa, J.; Soares, E.G.; da Silva, J.S.; et al. Influence of the CCR-5/MIP-1 alpha axis in the pathogenesis of Rocio virus encephalitis in a mouse model. Am. J. Trop. Med. Hyg. 2013, 89, 1013–1018. [Google Scholar] [CrossRef] [PubMed]
  72. Liu, K.; Xiao, C.; Wang, F.; Xiang, X.; Ou, A.; Wei, J.; Li, B.; Shao, D.; Miao, D.; Zhao, F.; et al. Chemokine receptor antagonist block inflammation and therapy Japanese encephalitis virus infection in mouse model. Cytokine 2018, 110, 70–77. [Google Scholar] [CrossRef] [PubMed]
  73. Govero, J.; Esakky, P.; Scheaffer, S.M.; Fernandez, E.; Drury, A.; Platt, D.J.; Gorman, M.J.; Richner, J.M.; Caine, E.A.; Salazar, V.; et al. Zika virus infection damages the testes in mice. Nature 2016, 540, 438–442. [Google Scholar] [CrossRef] [PubMed]
  74. Miner, J.J.; Cao, B.; Govero, J.; Smith, A.M.; Fernandez, E.; Cabrera, O.H.; Garber, C.; Noll, M.; Klein, R.S.; Noguchi, K.K.; et al. Zika Virus Infection during Pregnancy in Mice Causes Placental Damage and Fetal Demise. Cell 2016, 165, 1081–1091. [Google Scholar] [CrossRef] [PubMed]
  75. Saita, Y.; Kondo, M.; Shimizu, Y. Species selectivity of small-molecular antagonists for the CCR5 chemokine receptor. Int. Immunopharmacol. 2007, 7, 1528–1534. [Google Scholar] [CrossRef]
  76. Passman, A.M.; Strauss, R.P.; McSpadden, S.B.; Finch-Edmondson, M.; Andrewartha, N.; Woo, K.H.; Diepeveen, L.A.; Zhao, W.; Fernandez-Irigoyen, J.; Santamaria, E.; et al. Maraviroc Prevents HCC Development by Suppressing Macrophages and the Liver Progenitor Cell Response in a Murine Chronic Liver Disease Model. Cancers 2021, 13, 4935. [Google Scholar] [CrossRef]
  77. Medina-Ruiz, L.; Bartolini, R.; Wilson, G.J.; Dyer, D.P.; Vidler, F.; Hughes, C.E.; Schuette, F.; Love, S.; Pingen, M.; Hayes, A.J.; et al. Analysis of combinatorial chemokine receptor expression dynamics using multi-receptor reporter mice. Elife 2022, 11, e72418. [Google Scholar] [CrossRef]
Viruses 16 00028 g001

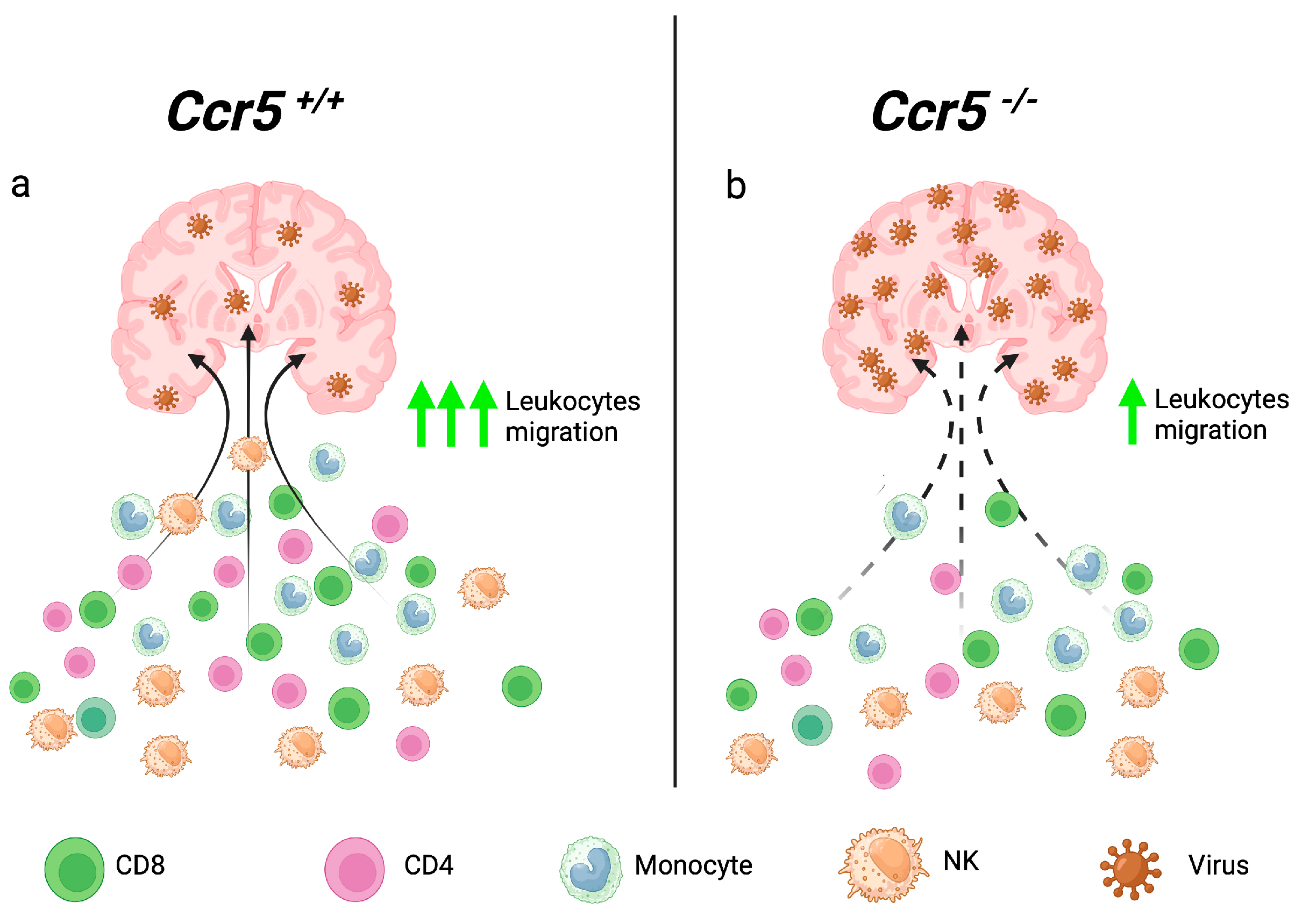

Figure 1. Ccr5 controls leukocytes trafficking into the CNS. Following entry and replication within the CNS, neurotropic flaviviruses, such as WNV, trigger the recruitment of CD4+ T cells, CD8+ T cells, NK cells, and peripherally derived monocytes in wild-type (Ccr5+/+) mice (a). However, in the absence of Ccr5 (Ccr5−/−), these cell subsets are unable to migrate into the CNS, eventually leading to uncontrolled virus replication and mortality. Dotted arrows represent reduced cell migration into the infected brain (b). CNS: central nervous system; WNV: West Nile virus; NK: natural killer.
Figure 1. Ccr5 controls leukocytes trafficking into the CNS. Following entry and replication within the CNS, neurotropic flaviviruses, such as WNV, trigger the recruitment of CD4+ T cells, CD8+ T cells, NK cells, and peripherally derived monocytes in wild-type (Ccr5+/+) mice (a). However, in the absence of Ccr5 (Ccr5−/−), these cell subsets are unable to migrate into the CNS, eventually leading to uncontrolled virus replication and mortality. Dotted arrows represent reduced cell migration into the infected brain (b). CNS: central nervous system; WNV: West Nile virus; NK: natural killer.
Viruses 16 00028 g001
Viruses 16 00028 g002

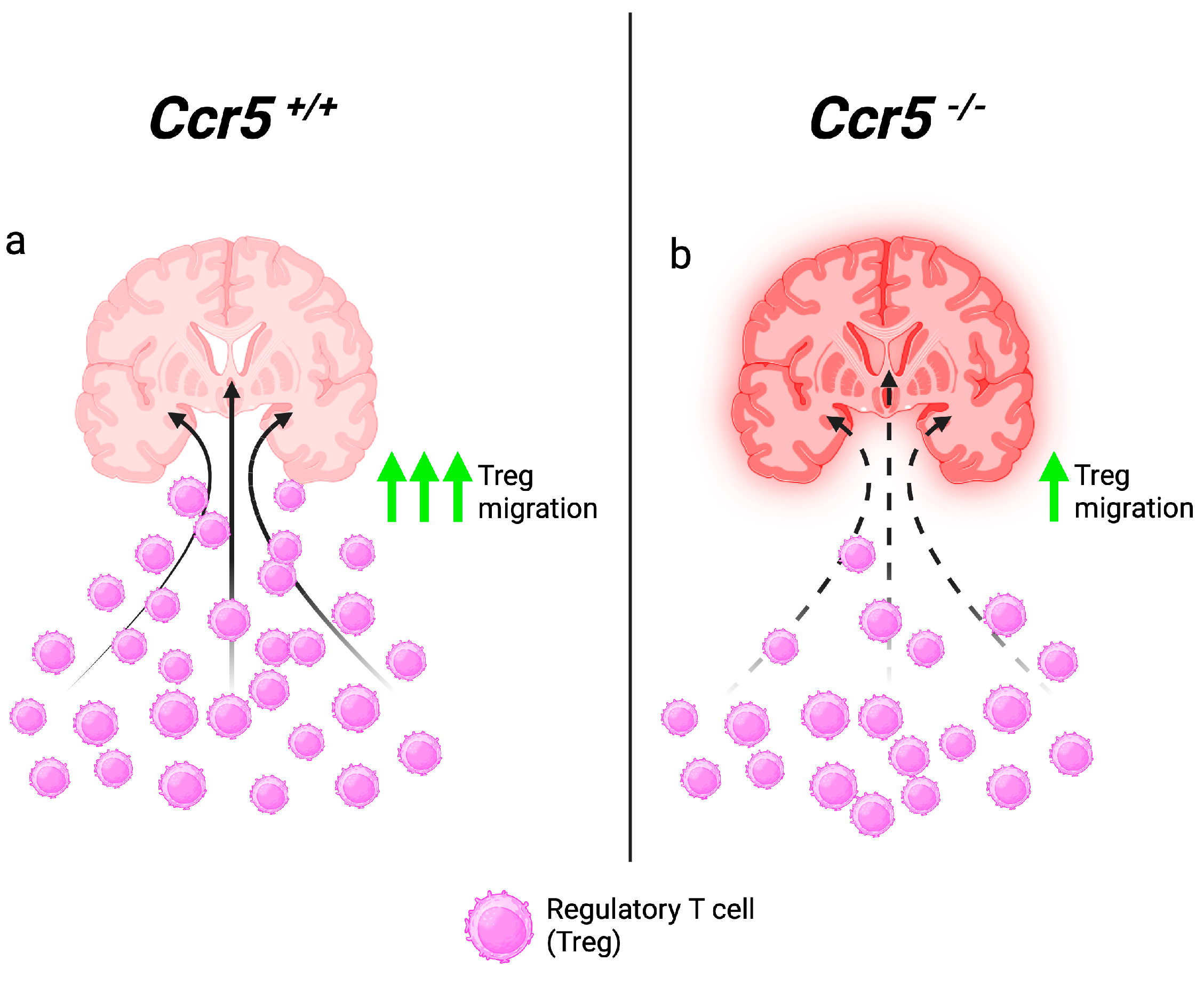

Figure 2. Ccr5-expressing regulatory T cells mitigate CNS inflammation. After entry into the CNS, neurotropic flaviviruses such as JEV and LGTV trigger inflammation mediated by both innate immune cells and cytokines in the CNS that is mitigated by the presence of regulatory T cells (Tregs) guided into the CNS through Ccr5 expression in wild-type (Ccr5+/+) mice. Solid arrows represent the direction of Tregs into the infected site (a). In the absence of Ccr5, Treg migration into the CNS is impaired, leading to uncontrolled inflammation of the brain tissue (represented by the red shadow). Dotted arrows represent reduced migration of Tregs into the infected brain (b). CNS: central nervous system; JEV: Japanese encephalitis virus.
Figure 2. Ccr5-expressing regulatory T cells mitigate CNS inflammation. After entry into the CNS, neurotropic flaviviruses such as JEV and LGTV trigger inflammation mediated by both innate immune cells and cytokines in the CNS that is mitigated by the presence of regulatory T cells (Tregs) guided into the CNS through Ccr5 expression in wild-type (Ccr5+/+) mice. Solid arrows represent the direction of Tregs into the infected site (a). In the absence of Ccr5, Treg migration into the CNS is impaired, leading to uncontrolled inflammation of the brain tissue (represented by the red shadow). Dotted arrows represent reduced migration of Tregs into the infected brain (b). CNS: central nervous system; JEV: Japanese encephalitis virus.
Viruses 16 00028 g002
Viruses 16 00028 g003

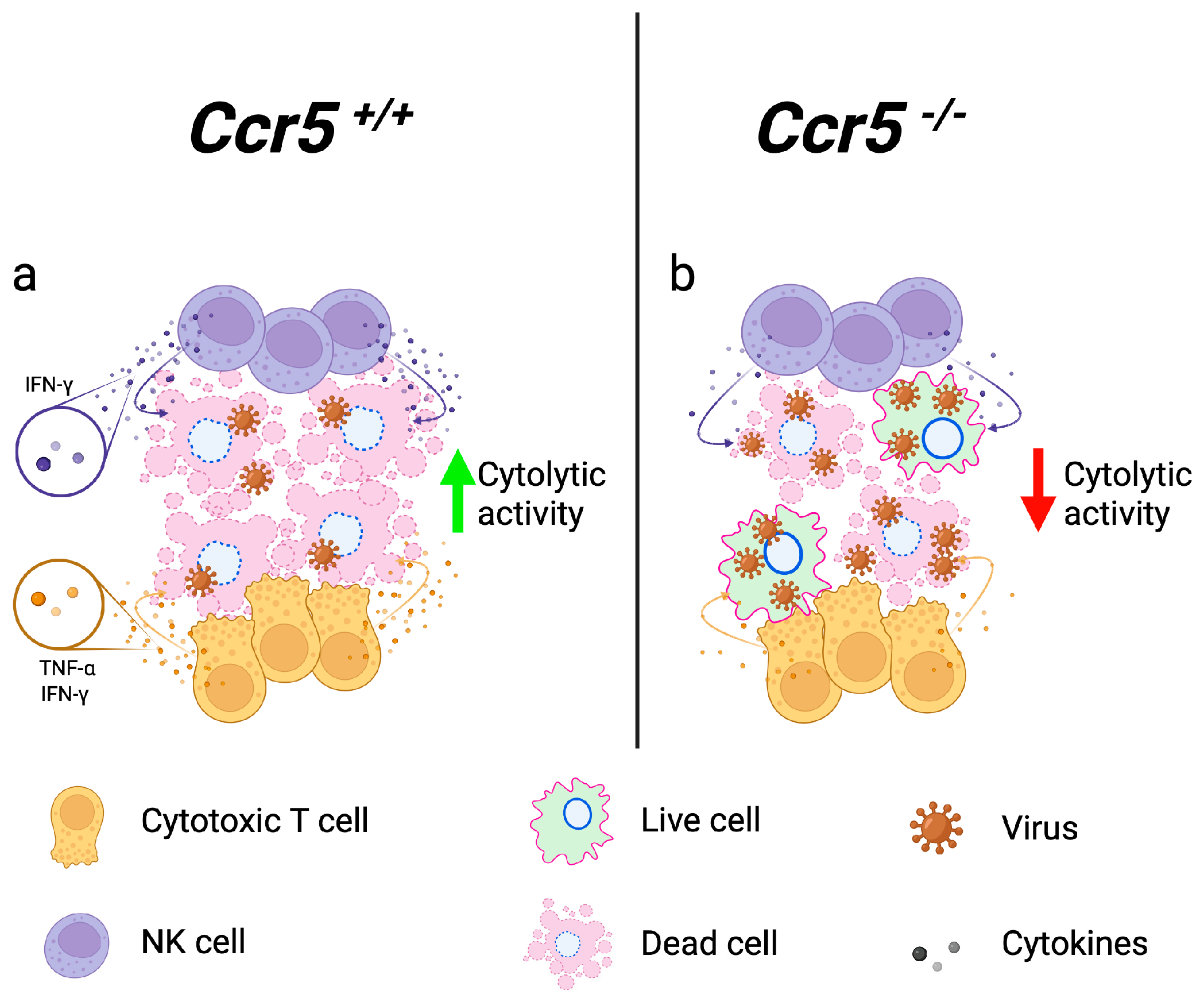

Figure 3. Optimal effector functions of NK and CD8+ T cells require Ccr5. NK cells and effector CD8+ T cells isolated from flavivirus-infected mice were tested for effective killing of target cells ex vivo and production of IFNγ and/or TNFα after ex vivo stimulation with immunodominant JEV-derived peptide or whole virus. Compared to wild-type Ccr5+/+ mice (a), NK cells and CD8+ cells isolated from Ccr5−/− mice were functionally impaired, leading to increased viral replication in the CNS (b). NK: natural killer; JEV: Japanese encephalitis virus; IFN: interferon; TNF: tumor necrosis factor.
Figure 3. Optimal effector functions of NK and CD8+ T cells require Ccr5. NK cells and effector CD8+ T cells isolated from flavivirus-infected mice were tested for effective killing of target cells ex vivo and production of IFNγ and/or TNFα after ex vivo stimulation with immunodominant JEV-derived peptide or whole virus. Compared to wild-type Ccr5+/+ mice (a), NK cells and CD8+ cells isolated from Ccr5−/− mice were functionally impaired, leading to increased viral replication in the CNS (b). NK: natural killer; JEV: Japanese encephalitis virus; IFN: interferon; TNF: tumor necrosis factor.
Viruses 16 00028 g003
Viruses 16 00028 g004

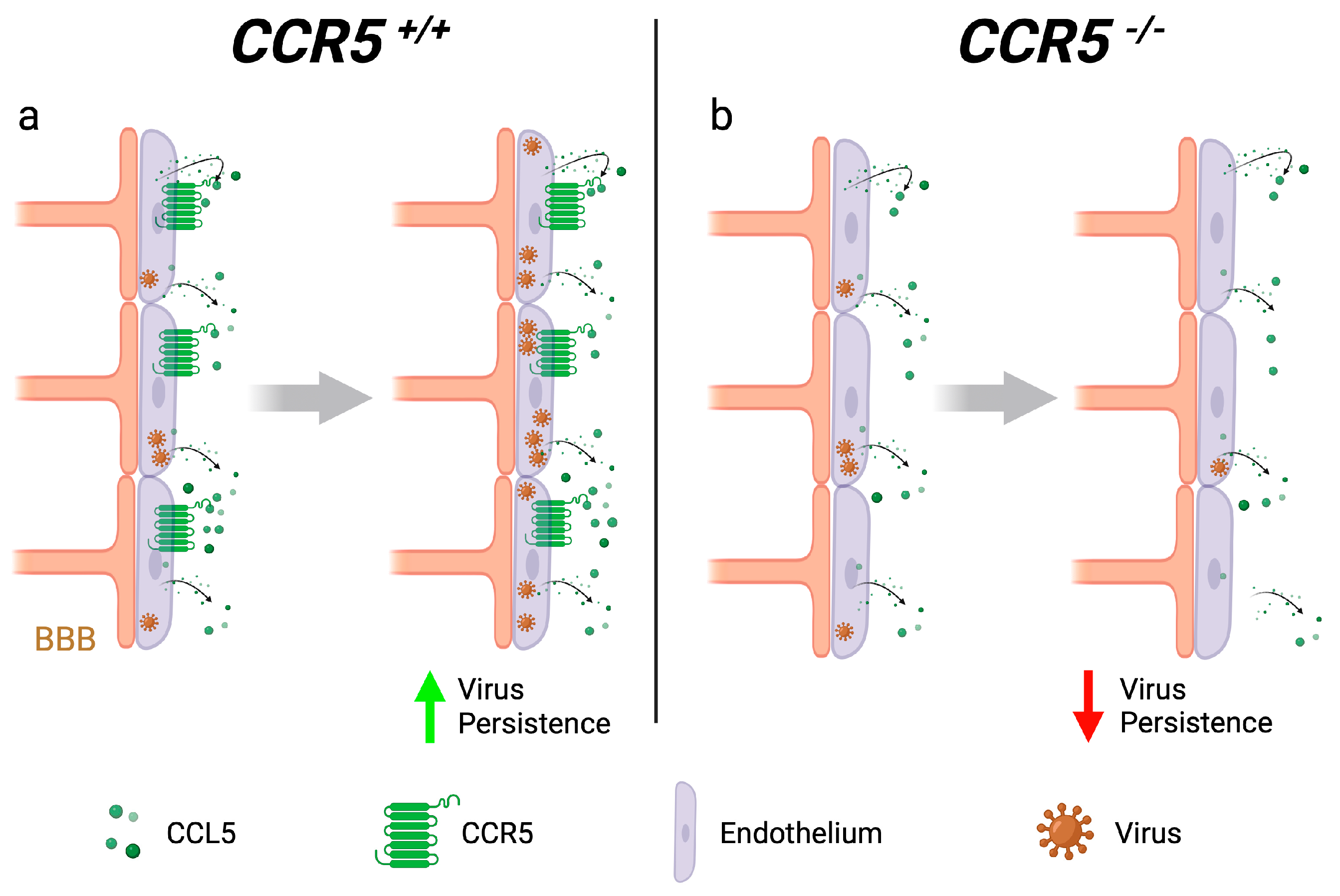

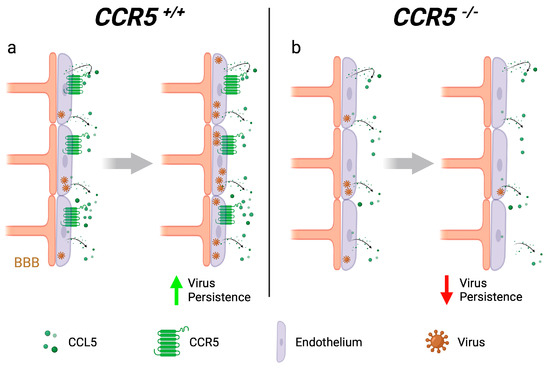

Figure 4. CCR5 promotes persistence of flaviviruses in the brain endothelium. Neurotropic flaviviruses, including ZIKV, can infect the brain endothelium in vitro. Signaling events induced by CCL5 binding to its receptor, CCR5, lead to persistent, long-term infection of the infected endothelium (a). Blocking the CCL5:CCR5 interaction, as would be the case in CCR5Δ32 homozygosity, triggers cytopathology of the virus-infected endothelial cell that ultimately promotes viral clearance (b). ZIKV: Zika virus.
Figure 4. CCR5 promotes persistence of flaviviruses in the brain endothelium. Neurotropic flaviviruses, including ZIKV, can infect the brain endothelium in vitro. Signaling events induced by CCL5 binding to its receptor, CCR5, lead to persistent, long-term infection of the infected endothelium (a). Blocking the CCL5:CCR5 interaction, as would be the case in CCR5Δ32 homozygosity, triggers cytopathology of the virus-infected endothelial cell that ultimately promotes viral clearance (b). ZIKV: Zika virus.
Viruses 16 00028 g004
Table 1. In vivo role of CCR5 during neurotropic flavivirus infections.
Table 1. In vivo role of CCR5 during neurotropic flavivirus infections.
Neurotropic FlavivirusProtectivePathogenicNo Association
West Nile virusGlass et al. [16]
Durrant et al. [22]
* Glass et al. [25]
* Lim et al. [26]
* Lim et al. [27]
* Cahill et al. [30]		 * Loeb et al. [28]
* Bigham et al. [29]
Japanese encephalitis virusKim et al. [13]
Larena et al. [52]		Liu et al. [72]* Deval et al. [44]
Langat virusMichlmayr et al. [12]
Tick-borne encephalitis virus* Kindberg et al. [46]
* Mickiene et al. [47]		 * Barkhash et al. [48]
Rocio virus Chavez et al. [71]
* Human cohort studies.
