Analysis of Spatiotemporal Dynamics of the Chinese Vegetation Net Primary Productivity from the 1960s to the 2000s

Abstract

Field net primary productivity (NPP) is useful in research modeling of regional and global carbon cycles and for validating results by remote sensing or process-based models. In this study, we used multiple models of NPP estimation and vegetation classification methods to study Chinese vegetation NPP characteristics, trends, and drivers using 7618 field measurements from the 1960s, 1980s, and 2000s. The values of other relevant NPP models, as well as process-based simulation and remote sensing models, were compared. Our results showed that NPP ranged from 3 to 12,407 gC·m⁻²·year⁻¹ with a mean value of 571 gC·m⁻²·year⁻¹. Vegetation NPP gradually decreased from the southeast to the northwest. Forest, farmland, and grassland NPP was 1152, 294, and 518 gC·m⁻²·year⁻¹, respectively. Total NPP of grassland was higher than that of farmland. Total terrestrial NPP decreased from 3.58 to 3.41 Pg C·year⁻¹ from the 1960s to the 2000s, a decadal decrease of 4.7%. Total NPP in forests and grasslands consistently showed a decreasing trend and decreased by 0.46 Pg C·year⁻¹and 0.16 Pg C·year⁻¹, respectively, whereas NPP for farmland showed an opposite trend, with a growth of 0.45 Pg C·year⁻¹. Our research findings filled gaps in the information regarding NPP for the entire landmass of China based on field data from a long-term time series and provide valuable information and a basis for validation analyses by remote sensing models, as well as a robust quantification of carbon estimation to anticipate future development at the national and global scale.

1. Introduction

Net primary production (NPP) is the amount of organic matter produced by photosynthesis per unit of time and area, minus autotrophic respiration of vegetation [1,2,3]. Regional estimates of NPP are not only important variables with which to characterize vegetation activities, but also strongly influence the dynamics of the regional and global carbon cycle [4,5,6,7,8].

NPP at the site level can be acquired by field measurements, such as the aboveground biomass (AGB) and belowground biomass (BGB) in grasslands. However, for one researcher or a small group of researchers, this method is not feasible on a large scale as it is time-consuming, costly, and is unable to obtain full spatial coverage and a continuous long-term time-series.

With the rapid development of remote sensing and GIS technology, numerous studies at regional and global scales have been conducted concerning the method of rapidly estimating NPP using moderate-resolution satellite Normalized Difference Vegetation Index (NDVI) datasets (e.g., the Advanced Very High Resolution Radiometer (AVHRR) data and the Moderate Resolution Imaging Spectroradiometer (MODIS) data) [9,10,11,12,13,14,15,16,17,18] into an estimation model, such as the Carnegie-Ames-Stanford-Approach (CASA) model [19,20,21], the Global Production Efficiency Model (GLO-PEM) [22,23], or the Eddy Covariance-Light Use Efficiency (EC-LUE) model [24], the Atmosphere-Vegetation Interaction Model (AVIM2) [25,26], or spatial interpolation [27,28]. The remote sensing images can provide continuous, dynamic, and comprehensive land-surface information for any region on Earth [29,30].

Unfortunately, many researchers avoid validating models with independent observations when estimating NPP by data-based models or remote sensing models. The results obtained by these models have differences with uncertainty [31,32,33,34], which may influence our understanding of the whole-ecosystem carbon balance [3,35,36,37]. On the one hand, a coarse resolution can lead to an obvious accuracy loss when modeling NPP based on the spatial heterogeneity of the data [38], especially for the AVHRR datasets with a spatial resolution of 8 km [39,40]. On the other hand, the MODIS datasets [41,42] and Satellite Pour l’Observation de la Terre (SPOT) vegetation products [43] also have their limitations, with no data available before the year 2000, and the possibly confounding influence of cloud cover.

Reliance solely on data-based models or remote sensing models will not yield the true NPP value because of the uncertainty of these models [31,32,33,34]. Reliable data is needed for robust assessments of resource availability. Thus, it is necessary for field measurements of regional NPP because remote sensing may yield great uncertainty or time discontinuity. It is possible to use the continuous accumulation of field data by different scholars over long periods of time to show regional NPP more accurately at a large scale to resolve the problems associated with different remote sensing data and models, and provide valuable information for validation analyses by remote sensing models.

However, NPP based on field data for Chinese vegetation, which contains forest, grassland, and farmland ecosystems at the national scale, has rarely been reported. Previous studies typically focused on small scales or a single Chinese vegetation ecosystem at the large scale [44,45,46] and they also lack long-term time series. At the same time, robust quantification of carbon estimation is needed because, to anticipate future development, we must understand the historic growth conditions across all biomes. Thus, it is of great significance to obtain a long-term NPP series using NPP derived from field observations.

The specific objectives of this study were: (1) to compile NPP data using a Chinese vegetation classification method based on 7618 field data points between 1952 and 2010; (2) analyze its trends and drivers; and (3) to compare this estimated NPP with other relevant NPP models, as well as process-based simulation and remote sensing models.

2. Materials and Methods

2.1. Chinese Vegetation Classification and Its Spatial Distribution

China covers a broad geographical region and has a large climatic range, extending from arid to humid areas from the northwest to southeast and cold temperate to tropical climate zones from the north to south. The broad climatic gradient supports a diversity of vegetation ecosystems throughout China. We obtained the spatial distribution of different vegetation types from a vegetation map of China from the 1960s (1:4,000,000 scale) by Environmental and Ecological Science Data Center for West China, National Natural Science Foundation of China (http://westdc.westgis.ac.cn) [47] (Figure S1a), the 1980s (1:1,000,000 scale) (Figure S1b) [48], and the 2000s (1:1,000,000 scale) (Figure S1c) (http://www.geodata.cn/) [49]. According to the principles and bases of Chinese vegetation regionalization in the original maps, Chinese vegetation was classified into the forest (16 forest types) (Table S1), grassland (10 grassland types) (Table S1), and farmland (Table S1) for this study. Thus, an NPP estimate can be scaled up from the 27 vegetation types.

Until the 2000s, grassland encompassed the largest area, accounting for about 43.7% of the total vegetation area. Grasslands were mainly distributed in Northern Inner Mongolia, Xinjiang, Gansu, Qinghai, and the Tibet region. A total of 25.0%, 23.2%, and 16.3% of the total grassland, respectively, were comprised of Kobresia spp. Forb in high-cold meadows; grass, Carex spp. high-cold steppes; and temperate tufted grass steppes (Figure S1c).

The second largest area was farmland (Figure S1c), accounting for about 31.93% of the total vegetation area, mainly distributed in the Eastern Plain, the Huang-Huai-Hai Plain, the Yangtze River Plain, and other regions.

Forest land (Figure S1c) encompassed about 24.4% of the total area, mainly distributed in the southern and northeast regions. The forest type is mainly needleleaf forests in subtropical zone, and broadleaf deciduous forests in temperate zone, accounting for 30.5% and 26.2% of the total area of woodland, respectively. Needleleaf forests in tropical zone, and tropical monsoon forests, accounting for less than 1% of the total forest land area, were limited to the southeastern margin of Tibet, Western Sichuan and Northwest Yunnan, with limited distribution.

2.2. Observations Datasets

2.2.1. Observation Methods of Vegetation NPP

In this study, the harvest method and biomass survey are the types of data collection procedures that originated the data, which are the most common and easiest methods, and do not require expensive and complex instruments [50,51,52]. These procedures can be divided into two situations. For the first procedure, aboveground and belowground farmland and grassland observations in this study were obtained using the harvesting method, where the actual biomass of green plants was physically harvested and weighed, although the data source for farmland was different from that used for grasslands and forests. In the second procedure, the forest observations were mainly based on biomass surveys obtained by destructive harvesting and weighing of tree components (e.g., stems, branches, leaves, and roots), which were subsequently scaled-up to the stand level (e.g., stems, branches, leaves, and roots were oven-dried to determine mass per unit area, Mg·ha⁻¹). It should be noted that our stand-level biomass data of trees excluded biomass data estimated using the biomass expansion factors (BEF) method and modeling methods.

The frequencies of the data collection differed for different vegetation types. For croplands, the data covered the continuous years from 1960 to 2010 and was collected once each year. Grasslands and forest data collections rarely covered continuous observation over a long-term time scale at the same site, with observations typically occurring at uncertain times each year. This is also one of the main reasons for the periodic basis for analyses rather than continuous chronological observations. Thus, we analyzed field data from 1952 to 1970 as the same period termed “1960s”, from 1980 to 1990 as 1980s, and from 2000 to 2010 as the 2000s.

2.2.2. Data Source

The field data on Chinese vegetation (forest, grassland) NPP were collected from peer reviewed published studies using the China National Knowledge Infrastructure database (http://www.cnki.net/) [53] for Chinese-language papers (1950–2015) and the Web of Science (www.webofknowledge.com) [54] for English-language papers (1950–2015). The China Statistical Yearbooks Database (http://tongji.cnki.net/overseas/Dig/Dig.aspx#) [55] was the source for farmland NPP data (1960–2010). The key words used were restricted to net primary product, NPP, net CO₂ exchange, carbon flux, and China. From this literature, only studies meeting the following criteria were selected: first, the study contained the desired variable, net primary productivity (NPP); second, the study reported a certain biome (forest, grassland, or cropland) at some sites in China. The studies with incompatible methods or unclear assumptions were omitted for quality-control purposes.

2.2.3. Date Collection

We extracted the desired observed site-level data, including the biomass, yield data, volume at the site level with clear latitude and longitude coordinates (during the 1960s, 1980s, and 2000s), as well as the vegetation types. In total, 7618 field data (4446 samples for farmland, 1220 samples for grassland, and 1952 samples for forest) were collected. The distribution of field samples is shown in Figure 1. These sites approximately represented all climatic zones, spanning cold humid regions, temperate humid and semi-humid regions, temperate arid and semi-arid regions, warm temperate humid and sub-humid regions, north subtropical humid regions, mid-subtropical humid regions, south subtropical humid regions, to tropical humid regions.

We used county-level crop yields (paddy, wheat, corn, legumes, potatoes, cotton, oil, and sugar) and area statistics to derive county-level net primary production (NPP). We collected 2055 samples and 2289 samples at the county level in the 1980s and 2000s, respectively, and 102 samples at the city-level and province-level were selected in the 1960s. The belowground farmland NPP estimates were obtained using a standard factor that is described in detail in Section 2.3.1.

A total of 1220 grassland biomass samples was obtained at the site-level. In the 1960s, 117 samples with fresh weight data from each sampling site located in all northern provinces and part of the southern provinces (e.g., Guizhou, Sichuan, Yunnan, and Guangxi) were obtained [56]. A total of 656 and 447 samples from papers published in the 1980s and 2000s were obtained, respectively, with records of aboveground and belowground biomass and forage-yield field data obtained from sites widely distributed in tropical, subtropical, warm temperate, temperate, and cold temperate zones. These data reflect the spatial distribution pattern of China’s grassland biomass and NPP.

The data on forest NPP included samples from over 1952 plots. In detail, the 1960s data included the initial vegetation records for 209 plots, of which 30 plots included forest areas and volume data at the province-level, 160 plots included volume data for four species of age-class accumulation in 10 counties in Southeastern Guizhou, 14 plots included volume data (dominant tree species) in Xinjiang, and five NPP plots. In the 1980s, data included 1024 forest plots (trunk biomass, branch biomass, leaf biomass, and root biomass) with precise spatial geo-coordinates collected by Luo [57]. In the 2000s, we obtained the initial vegetation biomass and forest age data of 147 plots from the literature, including 572 samples contained NPP in the Global Primary Production Data Initiative (GPPDI) (https://daac.ornl.gov/cgi-bin/dataset_lister.pl?p=13) [58].

2.3. Estimation of NPP

2.3.1. Farmland NPP

The farmland NPP was estimated from eight kinds of crop production data using the following equation [59,60,61]:

$$\mathrm{NPP}={{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{N}}\frac{{\mathrm{Y}}_{\mathrm{i}}\times \left(1-{\mathrm{Mc}}_{\mathrm{i}}\right)\times 0.45\frac{\mathrm{gC}}{\mathrm{g}}}{{\mathrm{HI}}_{\mathrm{i}}\times f_{AG}}/{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{N}}{\mathrm{A}}_{\mathrm{i}},$$

(1)

where NPP refers to the total farmland NPP (gC·m⁻²·year⁻¹), ${\mathrm{Y}}_{\mathrm{i}}$ is the crop production (t)$,{\mathrm{Mc}}_{\mathrm{i}}$ is the water content of the crop harvest (%) (Table S2)$,{\mathrm{HI}}_{\mathrm{i}}$ is the crop harvest index (economic production and the ratio of plant dry weight above ground.) (Table S2) [59,60,61], ${\mathrm{A}}_{\mathrm{i}}$ is the crop harvest area (hm²), 0.45 is the carbon conversion coefficient [61,62], and $f_{AG}$ refers to the fraction of the aboveground biomass to the total biomass (Table S2) [59,63,64,65,66]. Different crops had different parameters, which can be seen in Table S2.

2.3.2. Grassland NPP

A series of grassland NPP estimation algorithms from biomass measurements are described [67,68,69], where the assumptions may only apply in certain sub-biomes. In this study, grassland NPP was estimated from biomass data using two separate equations. When the biomass data contained the aboveground biomass (AGB) and belowground biomass (BGB), we used the following equation:

$$\mathrm{NPP}=\left({\mathrm{Biomass}}_{\mathrm{up}}+{\mathrm{Biomass}}_{\mathrm{down}}\right)\times 0.45,$$

(2)

where NPP refers to the total grassland NPP (gC·m⁻²·year⁻¹), ${\mathrm{Biomass}}_{\mathrm{up}}$ is the dry matter yield AGB (g·m⁻²), and ${\mathrm{Biomass}}_{\mathrm{down}}$ is the dry matter yield BGB (g·m⁻²), and 0.45 is the carbon conversion coefficient [61].

When only the AGB data was available, the formula was calculated based on the ratio coefficient of AGB and BGB, which mainly used the different ratios between AGB and BGB for all grassland types according to the published literature which relied on field data (Table S3). The formula is as follows [70]:

$$\mathrm{NPP}=\mathrm{Bg}\times \mathrm{Sbn}\times \left(1+\mathrm{Sug}\right),$$

(3)

where NPP refers to the total grassland NPP (gC·m⁻²·year⁻¹), $\mathrm{Bg}$ is the dry matter yield above-ground (g·m⁻²) (Table S3); $\mathrm{Sbn}$ is the conversion factor from dry matter yield to NPP (g·g⁻¹·C) (Table S3); and $\mathrm{Sug}$ is the ratio of below-to above-ground biomass (Table S3) [70]. Different grassland types had different parameters, which can be seen in Table S3.

To obtain the dry matter values (Bg), first, it was necessary to calculate the amount of fresh grass and the amount of grass production data in accordance with a unified conversion factor for the dry matter content. The fresh grass hay equivalent ratio of the ten different types of grass (Rfd) is shown in Table S3 [70,71,72,73], whereas in the 1980s and 2000s, the percentage of water content (PWC) in the dried hay was 15% [61], and the aboveground biomass (dry matter content) ($\mathrm{Bg}$) was obtained by grass yield minus moisture content in hay.

2.3.3. Forest NPP

The forest NPP was estimated from the biomass data (i.e., the dataset in the 2000s) using the following equation [61,72]:

$${\mathrm{NPP}}_{\mathrm{T}}=\mathrm{B}/\left(\mathrm{c}\times \mathrm{A}+\mathrm{d}\times \mathrm{B}\right),$$

(4)

$${\mathrm{NPP}}_{\mathrm{L}}=\frac{1}{\mathrm{e}/\mathrm{B}+\mathrm{f}},$$

(5)

where ${\mathrm{NPP}}_{\mathrm{T}}$ is the tree NPP (gC·m⁻²·year⁻¹), ${\mathrm{NPP}}_{\mathrm{L}}$ is annual litterfall per unit area (gC·m⁻²·year⁻¹)$,\mathrm{B}$ is biomass (gC·m⁻²·year⁻¹), A is age;$\mathrm{and}\mathrm{c},\mathrm{d}$, $\mathrm{e},$ and $\mathrm{f}$ are the corresponding forest type constants (Table S4) [74,75,76].

There are two methods for calculating the biomass. The first method is that calculating from the sum of the parts [77]:

$$\mathrm{B}={\mathrm{B}}_{\mathrm{S}}+{\mathrm{B}}_{\mathrm{b}}+{\mathrm{B}}_{\mathrm{l}}+{\mathrm{B}}_{\mathrm{r}},$$

(6)

where $\mathrm{B}$ is the tree biomass (gC·m⁻²·year⁻¹); ${\mathrm{B}}_{\mathrm{S}},{\mathrm{B}}_{\mathrm{b}},{\mathrm{B}}_{\mathrm{l}},$ and ${\mathrm{B}}_{\mathrm{r}}$ represent the trunk biomass (gC·m⁻²·year⁻¹), branch biomass (gC·m⁻²·year⁻¹), leaf biomass (gC·m⁻²·year⁻¹), and root biomass (gC·m⁻²·year⁻¹) in year i, respectively. The method was suitable for estimates of forests in the 1980s, for which the dataset included biomass measurements for parts of the forest. However, some of the samples only included the volume and ages (i.e., 1960s), and we first used the following formula to estimate the biomass:

$$\mathrm{B}=\mathrm{V}/\left(\mathrm{a}+\mathrm{b}*\mathrm{V}\right),$$

(7)

where $\mathrm{B}$ is the biomass (gC·m⁻²·year⁻¹)$,\mathrm{V}$ is the volume of the tree (m³·hm⁻²)$,\mathrm{and}\mathrm{a}$ and $\mathrm{b}$ were the constants (Table S4) [74].

Thus, the forest NPP, which is the estimation of annual growth and annual litterfall in the forest community, is calculated using the following formula:

$$\mathrm{NPP}={\mathrm{NPP}}_{\mathrm{T}}+{\mathrm{NPP}}_{\mathrm{L}},$$

(8)

where $\mathrm{NPP}$ is the forest NPP (gC·m⁻²·year⁻¹), ${\mathrm{NPP}}_{\mathrm{T}}$ is the tree NPP gC·m⁻²·year⁻¹), and ${\mathrm{NPP}}_{\mathrm{L}}$ is the annual litterfall per unit area (gC·m⁻²·year⁻¹).

2.4. The Method of Scaling-Up Using NPP Classification Methods

To investigate the differences in NPP values among different regions, we used site-scale NPP estimates for large-scale estimates based on Chinese vegetation types. Chinese vegetation has horizontal and vertical distribution patterns, which are divided into forest, grassland, and farmland types, and are influenced by climate (e.g., temperature and precipitation), topography, soil types, and management history [78,79]. In this study, the Chinese vegetation could be divided into forest, grassland, and farmland. Consequently, the process of scale-up is significant, presenting a challenge for using site-scale NPP estimates for large-scale estimates.

Forest sites represented all climatic zones, spanning cold temperate to tropical zones, which is consistent with horizontal and vertical distribution patterns [78,79]. Forests were divided into sixteen types, corresponding to climate regions (Table S1, Figure S1). Each site can be identified based on the sub-type to which it belongs. We can then obtain the average NPP of the same forest type sub-class, multiplying this value by the area of the corresponding forest type can calculate the corresponding forest type total NPP. Thus, the calculated total NPP at the national scale by the mean NPP method, e.g., the total NPP for the different forest components in China’s forest ecosystems, was analyzed according to the average NPP of sixteen forest types and their corresponding areas for each type [48,80], which can be obtained from the spatial distribution map of the forest types.

The method of estimating grassland NPP from site-scale to large-scale is similar to the forest method. For the statistical and comparative analyses, the Chinese grasslands were divided into ten types (Table S1, Figure S1). The total NPP of grassland could be calculated from ten grassland types and their corresponding areas by the mean NPP method.

Farmland NPP estimates differ from forests and grasslands at the national scale. Since farmland data are mainly derived from national statistics, including data for each county, the total farmland NPP can be easily calculated based on the NPP at county-level scales and its corresponding area. The results obtained by this method are also the main sources of the results of other model estimation methods.

2.5. Process-Based and Remote Sensing Models

There are process models and remote sensing models to simulate NPP. In our study, the methods of estimating NPP included the Boreal Ecosystem Productivity Simulator (BEPS) model, the BIOME BioGeochemical Cycles (BIOME-BGC) model, the Carbon Exchange between Vegetation, Soil and Atmosphere model (CEVSA) model, the Terrestrial Ecosystem Model (TEM) model, and the Integrated Biosphere Simulator (IBIS) model. The remote sensing models included the CASA, the EC-LUE, the GLO-PEM, and the MOD17 models. The features of these models have been well-documented in the papers [81,82,83].

2.6. Statistical Analysis

Statistical characteristics of NPP, including the maximum, minimum, mean, and the percentile values (25th, 50th, 75th) in three periods were calculated based on multiple sites in the same periods by SPSS software (version 18.0) [84]. The analysis of NPP distribution was performed using ArcGIS 10.1 software[85].

3. Results

3.1. Statistical Characteristics of NPP in Different Periods

Within the 7618 field-measured samples published from the 1960s to 2000s, Chinese vegetation NPP ranged from 3 to 12,407 gC·m⁻²·year⁻¹ with an average value of 571 gC·m⁻²·year⁻¹. Among them, 63.2% of the samples were distributed from 200 gC·m⁻²·year⁻¹ to 1500 gC·m⁻²·year⁻¹.

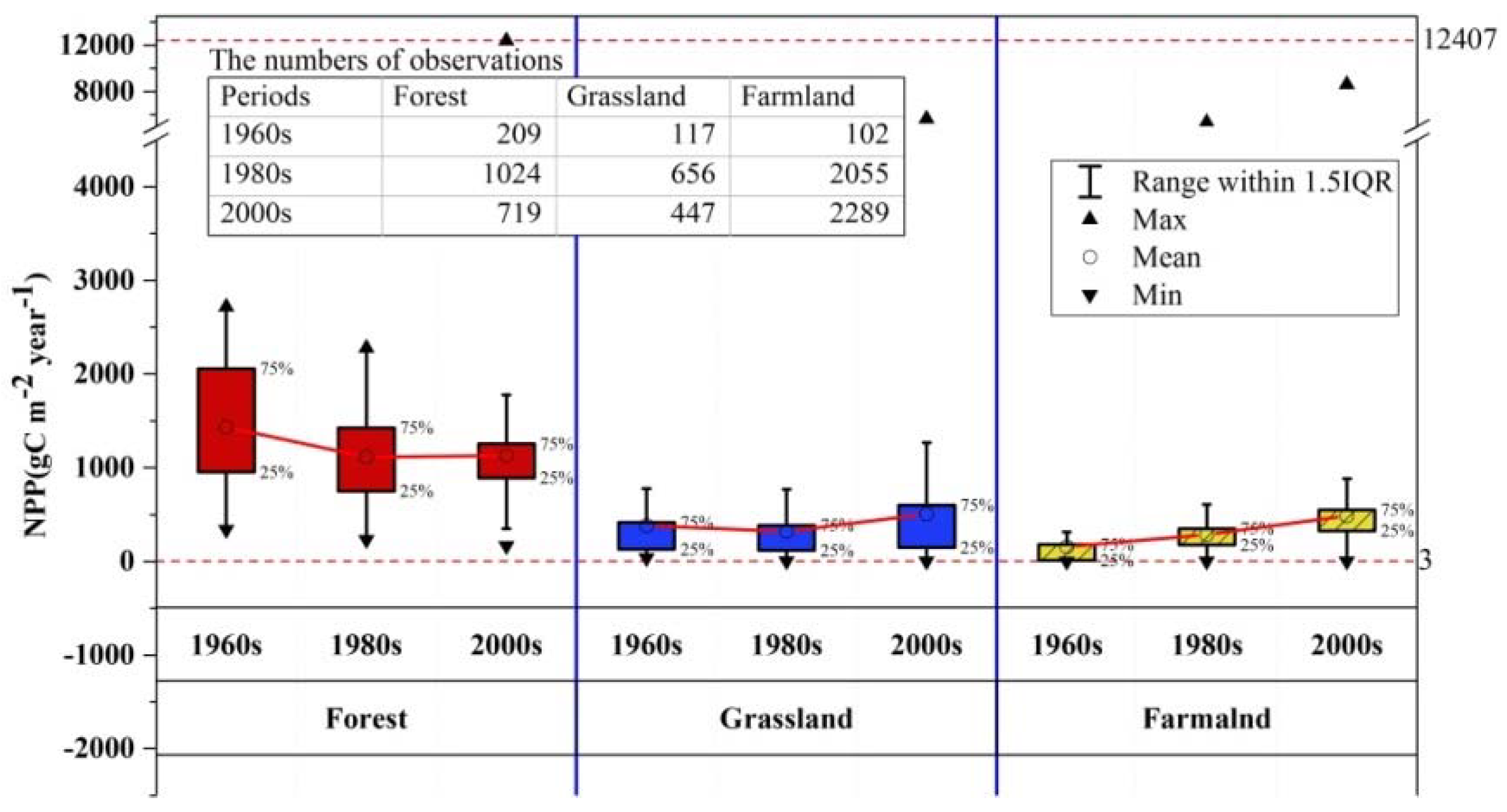

Remarkable differences in NPP were found in different vegetation types (Figure 2). The mean of the NPP for forest, grassland, and farmland in the 1960s, 1980s, and 2000s decreased in turn. The forest NPP had the highest value, with a mean value of 1128 gC·m⁻²·year⁻¹ ranging from 600 to 12,407 gC·m⁻²·year⁻¹. The grassland NPP ranged from 3 to 5663 gC·m⁻²·year⁻¹.The forest and grassland both decreased first from the 1960s to the 1980s and increased from the 1980s to the 2000s. Farmland ranged from 4 to 8624 gC·m⁻²·year⁻¹, and increased from the 1960s to the 2000s. In all, a decrease in forest NPP and an increase both in grassland and farmland NPP from the 1960s to 2000s was observed.

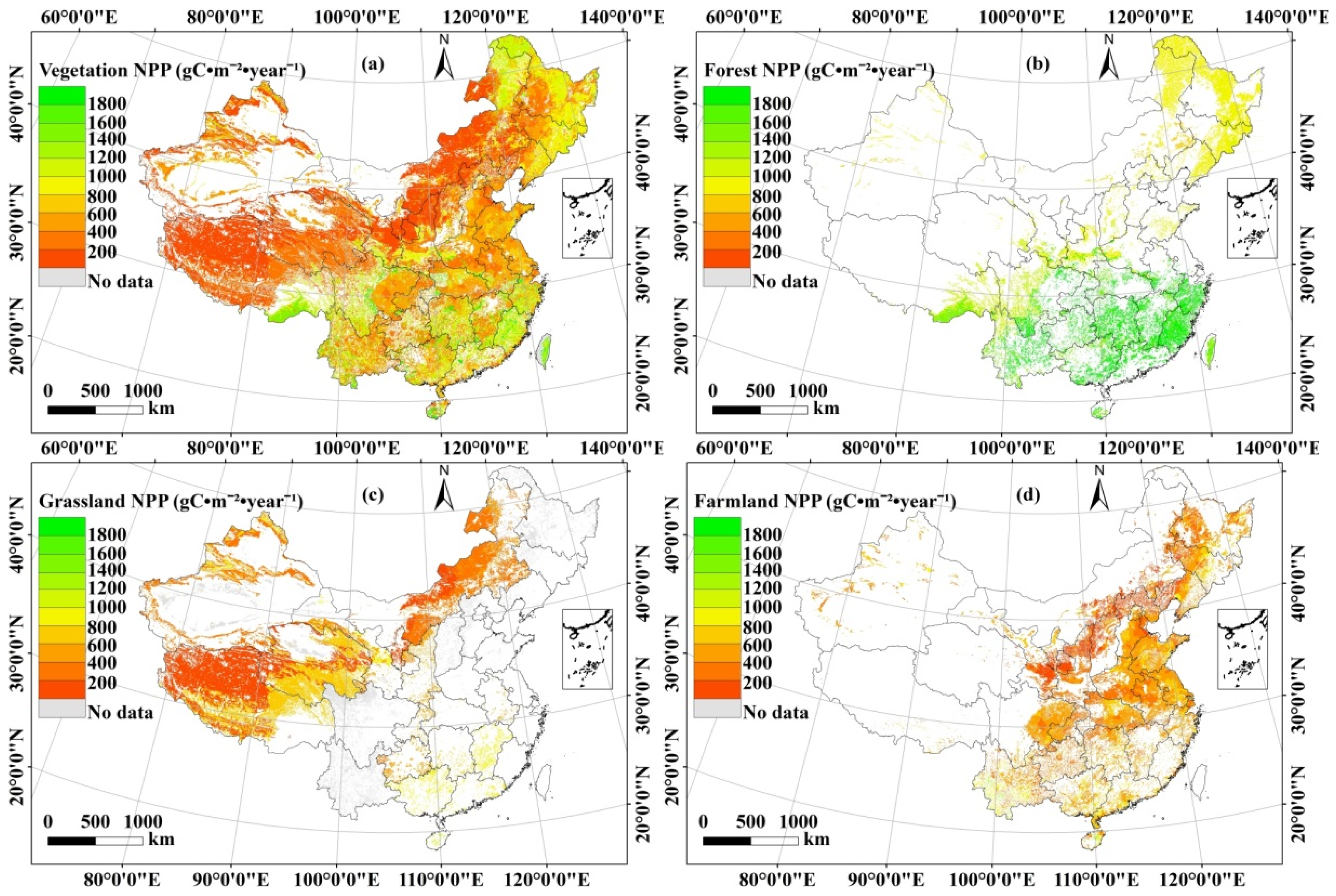

3.2. Distribution of China’s Vegetation NPP in the 2000s

3.2.1. Summary Analysis

In the 2000s, the mean and total NPP of Chinese vegetation was 596 gC·m⁻²·year⁻¹ and 3.41 Pg C·year⁻¹, respectively. The vegetation NPP in southern China was larger compared with that in Northern China (Figure 3). The higher NPP was mainly distributed in the southern tropical humid region and the southeastern edge of the Tibetan Plateau, especially in Western Yunnan, Central Sichuan, the southeastern margin of Tibet, Southern Zhejiang, Northern Guangdong, and most parts of Hainan and Fujian, where the NPP was more than 900 gC·m⁻²·year⁻¹, mainly in forest types, grasslands, meadows, and three season rice because of the good hydrothermal and heat conditions. The NPP of Guangxi, Southern Guangdong, the Huang-Huai-Hai plain (HHH), Jiangsu, and Zhejiang were 500 to 800 gC·m⁻²·year⁻¹, mainly in crops harvested two or three times per year, or three times every two years. The lower NPP occurred in the temperate tufted grass steppes, temperate tufted low grass. and nano-semi-shrub desert steppes grass and Carex spp. high-cold steppes, and one or two season crops or drought crops with poor water conditions, which were mainly distributed in the eastern and southern part of Inner Mongolia, the northwest of Tibet, and part of Xinjiang where the NPP was below 200 gC·m⁻²·year⁻¹.

3.2.2. Distribution of the Individual Vegetation Type in the 2000s

Remarkable differences in NPP were found in the three vegetation types. The average NPP values of forest, farmland, and grassland were 1152 gC·m⁻²·year⁻¹, 518 gC·m⁻²·year⁻¹, and 294 gC·m⁻²·year⁻¹, respectively. The NPP values from forests were higher in the east and south than that in the west and north. The average NPP for Tropical monsoon forests was the highest with the value of 2019 gC·m⁻²·year⁻¹, followed by broadleaf deciduous forests in the subtropical zone, broadleaf evergreen and deciduous mixed forests in the subtropical zone, broadleaf evergreen forests in the subtropical zone, Sclerophyllus broadleaf evergreen forests in the subtropical zone, tropical rain forests, bamboo forests and scrubs in the subtropical and tropical zones, for which NPP was above 1500 gC·m⁻²·year⁻¹. The lowest NPP was in Microphyllous deciduous woodlands in the temperate zone, with an average value of approximately 906 gC·m⁻²·year⁻¹.

Approximately 58% of the farmland sample NPP values were within 300 to 600 gC·m⁻²·year⁻¹. The distribution of crop NPP increased from northwest to southeast. NPP in Hainan, Guangdong, Fujian, and Zhejiang were higher, with values above 600 gC·m⁻²·year⁻¹, and approximately 5% of the county’s crop NPP was above 1000 gC·m⁻²·year⁻¹, for which two or three plantings a year were normal, given the steady water supply, constant sun, and rich soil. The lower NPP values occurred in Inner Mongolia, Shaanxi, Xinjiang, and Shanxi, with values less than 200 gC·m⁻²·year⁻¹ in one or two-season crops or drought crops.

Grassland NPP was in the range of 3 to 5663 gC·m⁻²·year⁻¹ in the eastern region was generally higher than that in the central and western regions. The largest NPP was in Grass, Carex, and forb swamp meadows with an average NPP of 1219 gC·m⁻²·year⁻¹, which were located in Yunnan and Guangxi, and Eastern Tibet. The NPP for steppes and meadows were lower, especially in the temperate tufted low grass and nano-semi-shrub desert steppes, and grass and Carex spp. high-cold steppes with values of 131 and 143 gC·m⁻²·year⁻¹, respectively. These were mainly distributed in western China in the Alashan Desert area, the Ma Zongshan-Nuo Min Gobi shrubs, and semi-shrub desert areas.

However, the distribution of the total NPP was different from the average of NPP. The total NPP in the forest was 57.5% of the total Chinese vegetation NPP. This was followed by grassland, which accounts for 24.3% of the total NPP. The lowest total NPP occurred in farmland, which accounts for 18.1%. The total NPP of the forest was approximately 3.2 times that of farmland. Grassland total NPP was higher than farmland because the total area of grassland (281.98 × 10⁴ km²) was much greater than the total cropland area (119.31 × 10⁴ km²). The highest total NPP in the forest was not only due to the area, but also because the per unit area NPP of the forest was much larger than that of cropland and grassland.

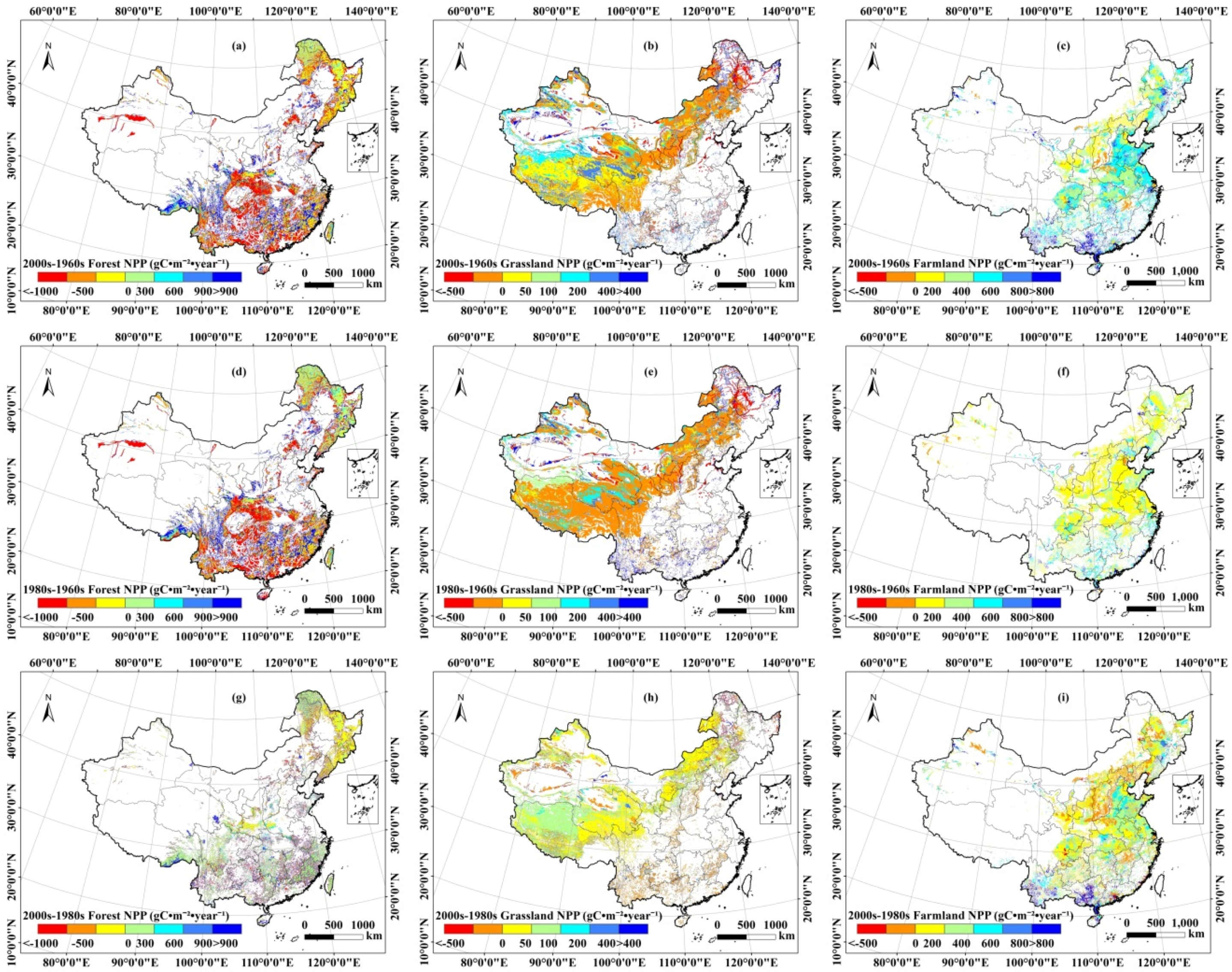

3.3. Temporal and Spatial Trends in Average NPP and Total NPP

3.3.1. Summary Analysis

From the 1960s to the 2000s, the Chinese total NPP fell from 3.58 to 3.41 Pg C·year⁻¹, with a decrease of 4.7%. There was an overall decrease, but a partial increase in the spatial trend (Figure 4a,

Table 1. The total and mean NPP of Chinese vegetation in 1960s, 1980s, and 2000s.

Time Period	Vegetation Area (104 km2)	Mean NPP (gC·m−2·year−1)	Total NPP (Pg C·year−1)
1960s	612.24	584	3.58
1980s	535.92	525	2.82
2000s	571.43	596	3.41

). The higher decline of NPP was mainly distributed in the northern part of Southwest China, along the Yangtze River Middle Plains (YR) with a decrease above 60%, followed by the northern part of Inner Mongolia, the Changbai mountain forest area in Northeastern China, and the Eastern Liaoning Plain, with a decline below 20%. However, NPP increased by more than 60% in the central area of HHH, the Northern YR, the Sichuan Basin (SCB), and the southeastern margin of the Tibetan Plateau. NPP changed directions in the period of the 1960s–1980s and the 1980s–2000s, and the reduction of the former was higher than the increase of the latter (Table 1).

The two periods (1960s–1980s and 1980s–2000s) showed opposite trends, and the decrease in the previous period was greater than the increase in the latter period. During the period of the 1960s–1980s (Figure 4b, Table 1), the total NPP dropped by 21.2%. The area of forests and grasslands has decreased significantly by the deforestation which, in turn, has led to a decline in NPP per unit area of vegetation, leading to a decrease in total NPP. The decrease of the average annual precipitation and the average annual solar radiation may also lead to a decrease in NPP. The significant decline in NPP was observed at YR South China and Southwest China, with reductions of more than 60%, followed by the high-cold region of the northwestern area of the Tibetan Plateau, the Ganxin Region, Northern Inner Mongolia, and scattered distribution areas in YR and the southwestern region, with the decrease between 20% and 60%. During the period of the 1980s to 2000s (Figure 4c, Table 1), the total and average NPP increased by 0.59 Pg C·year⁻¹ and 71 gC·m⁻²·year⁻¹, which was significantly increased by 21.0%. The increasing temperatures in Northeast China and the Qinghai-Tibet Plateau, the increasing precipitation in Northwest China and increasing solar radiation in East China and South China may all promote vegetation growth to increase NPP. The NPP increased by more than 60% mainly in HHH, Western and Northwestern Tibet Plateau, and Northern China. This was followed by the southeastern margin of the Tibetan Plateau, SCB, and YR with growth between 20% and 60%. However, a small portion in the south of Northeast China, Southwest China, and south of YR fell by 20–60%.

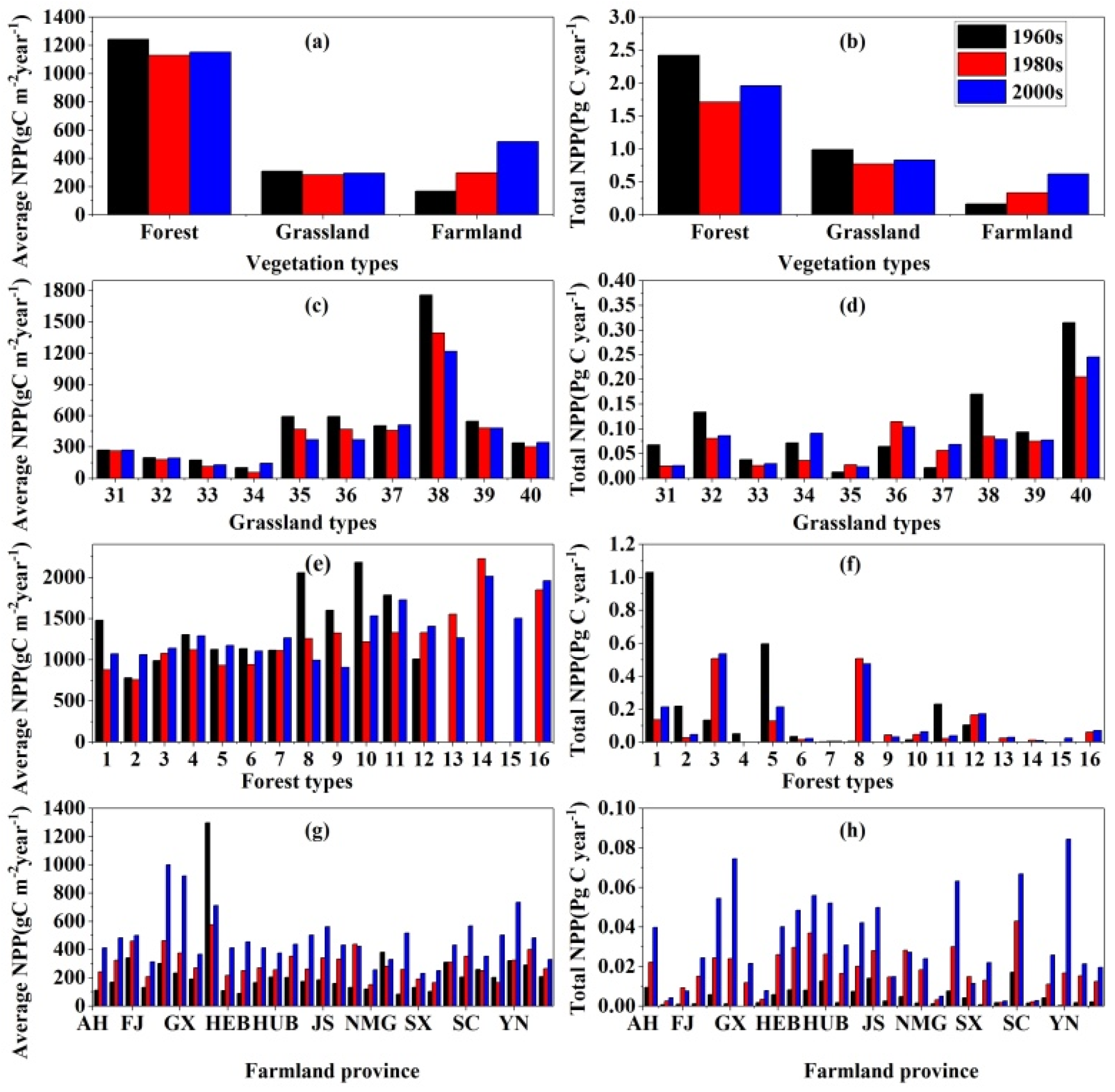

3.3.2. Trends in Individual Vegetation Types

The NPP trends of the three vegetation types were different. From the 1960s to the 2000s, the trends in forest and grassland were consistent with Chinese vegetation NPP, whereas the trend for farmland NPP was in the opposite direction (Figure 5 and Figure 6). In particular, the total NPP of forest and grassland decreased by 0.46 Pg C·year⁻¹and 0.16 Pg C·year⁻¹, by nearly −4.5% and 0.8% per year, respectively. However, farmland increased by 0.45 Pg C·year⁻¹, with a higher growth rate of 18 gC·m⁻²·year⁻¹, but with a lower NPP and areas. Comparing the NPP in the two periods, the 1960s–1980s and the 1980s–2000s, the forest and grassland NPP first decreased and then increased, but farmland NPP showed a steady increase.

In the 1960s–1980s, the total NPP of woodland decreased from 2.42 to 1.71 Pg C·year⁻¹, with an average annual decrease of 0.0355 Pg C·year⁻¹ and 6 gC·m⁻²·year⁻¹, and with a decline of 5.5% (Figure 5). The NPP decreased more in the south than in the north (Figure 6d), where the decline was over 40%, mainly in the needleleaf forests in cold-temperate zone and on mountains in temperate zone, broadleaf deciduous forests in temperate zone, and broadleaf deciduous forests in subtropical zone. The total grassland NPP also decreased from 0.99 to 0.77 Pg C·year⁻¹, with a percentage decline of 1.1%, which means that there was an average annual decrease of 0.011 Pg C·year⁻¹ and 1.0 gC·m⁻²·year⁻¹. All eight types of grassland were in a decreasing trend, with an average decline of 18.7%. The larger change mainly occurred in the grass, and Carex and forb swamp meadows, which were located in Tibet, Guangdong, Guangxi, and Inner Mongolia (Figure 6). Farmland total NPP changed differently from that of forests and grasslands and increased from 0.17 to 0.34 Pg C·year⁻¹. The average annual growth was 0.0085 Pg C·year⁻¹ and 7 gC·m⁻²·year⁻¹, with a growth of 5.2%. The farmland NPP in Liaoning, Shandong, Henan, and Anhui Provinces grew faster (Figure 6f).

In the periods of the 1980s–2000s, the total NPP of forest, farmland, and grassland all increased. Forest NPP increased from 1.71 Pg C·year⁻¹ to 1.96 Pg C·year⁻¹ with growth of 0.7%, representing a growth rate of 0.01 Pg C·year⁻¹ and 1 gC·m⁻²·year⁻¹. Except for some areas of Heilongjiang, the forest NPP of southern China had increased little, especially the forests of the type needleleaf forests in the temperate zone, and needleleaf forests on mountains in a subtropical tropical zone, and broadleaf deciduous forests in a subtropical zone increased more, with a growth of 20% and 30%, respectively (Figure 6g). Grassland total NPP increased from 0.77 to 0.83 Pg C·year⁻¹with the growth of 0.39%, and the average growth per year was 0.003 Pg C·year⁻¹ and 1 gC·m⁻²·year⁻¹ with an average growth of 14.2%. The highest increase was observed in grass and Carex spp. on high-cold steppes, followed by temperate tufted low grass, nano-semi-shrub desert steppes, and Kobresia spp., forb high-cold meadows, with a growth of approximately 13.0% (Figure 6h). Farmland NPP increased from 0.34 Pg C·year⁻¹ to 0.62 Pg C·year⁻¹, with a growth of 4.2%, representing a growth rate of 0.014 Pg C·year⁻¹ and 11 gC·m⁻²·year⁻¹. The speed of farmland NPP increase was at a greater rate in Guangdong, Guangxi, Xinjiang, Yunnan, and Shandong than other regions (Figure 6i).

4. Discussion

4.1. Uncertainties and Limitations in Estimating NPP

In our study, based on 7618 field data obtained in the 1960s, 1980s, and 2000s, we estimated the spatial distribution and variation of NPP by vegetation classification methods, and then analyzed the relationship between NPP and climate factors. However, our results still retain some uncertainties (

Table 2. Estimation of average NPP and total NPP from the 1960s to the 2000s.

Vegetation Type	Mean NPP ± SE (gC·m−2·year−1)			Total NPP ± SE (Pg C·year−1)
	1960s	1980s	2000s	1960s	1980s	2000s
Forest	1241 ± 115	1129 ± 89	1152 ± 71	2.42 ± 0.9	1.71 ± 0.43	1.96 ± 0.41
Grassland	310 ± 91	284 ± 81	294 ± 73	0.99 ± 0.28	0.77 ± 0.18	0.83 ± 0.2
Farmland	168 ± 27	298 ± 21	518 ± 41	0.17 ± 0.01	0.34 ± 0.02	0.62 ± 0.05
Vegetation	584 ± 80	525 ± 67.21	596 ± 8	3.58 ± 0.24	2.82 ± 0.14	3.41 ± 0.13

) for the following reasons. First, there exists a limit in the field dataset (e.g., the number of samples, and their field measurement methods). Especially from the 1960s, the field-data derived from published literature were relatively fewer, which may have resulted in some uncertainties in the estimation of NPP during the 1960s. Furthermore, there has been a rapid development of observation protocols and instruments for measurement of Vegetation NPP from the 1960s to 2000s, which may have also resulted in certain uncertainties in the datasets. Secondly, most NPP determinations as a result of the estimation methods from the published field biomass data, may have some errors, resulting in some errors for the results, but this uncertainty is likely lower compared with estimations resulting from the use of remote sensing data simulation or spatial interpolation. Thirdly, the upscaling approach may lead to biased results, especially for some samples located close to infrastructure (settlements, roads, research stations), possibly missing unmanaged areas.

Identifying and understanding the sources of uncertainties and improving them are important in improving the accuracy of NPP. In the future, we will likely revise and circumvent potential confounds by using grid-based inventory data for reducing the uncertainties from different sources during the process of NPP estimation.

4.2. Comparison with Other Process-Based Simulation Models and Remote Sensing Models

Although global terrestrial NPP has increased in the northern middle and high latitudes in the past twenty years, as evidenced by numerous studies, including remote sensing data [86,87], carbon process models [88,89], and numerous field measurements of plant biomass and NPP for various ecosystems in China, few detailed studies with field measurements exist on the temporal and spatial patterns of NPP trends at the country-level in China.

The major characteristics of the NPP distribution across China in this study were similar to the modeling NPP [90], which showed that high NPP values occurred in southern forested areas and low NPP in Northwest China under cold climatic conditions with low precipitation and/or low solar radiation. The total NPP of China’s three periods of vegetation NPP (3.58, 2.82, and 3.41 Pg C·year⁻¹) was also in the range of 1.43 Pg C·year⁻¹–4.60 Pg C·year⁻¹ during 1980–2000, as estimated by 36 process-based models and remote sensing models [91]. Specifically, the total NPP (2.82 Pg C·year⁻¹) in the 1980s was between 1.43 and 3.30 Pg C·year⁻¹. Of the relevant research results, 77.8% lie within this range. Furthermore, this finding is in line with Gao’s results (2.828 ± 0.827 Pg C·year⁻¹) [91]. However, average NPP in this study is higher than those in other models which did not contain the higher NPP estimated by the IBIS model, which was not mentioned in its study. This could be caused by upscaling when using land cover maps.

In the dynamic characteristics of NPP, although there are differences between the study estimates performed by different researchers, the trend of the increase found in this study from 1980–2010 (Figure 7) is consistent with the increased trends of NPP in the world from 1982 to 1999 evidenced by the MOD17 NPP model [92]. The increased NPP for northern mid-latitudes (22.5°N to 47.5°N) from 2000 to 2009 [15], is different from the Yuan’s simulated NPP with climate change based on the IBIS, which varied from 3.61 Pg C·year⁻¹ to 4.24 Pg C·year⁻¹ from 1961 to 2005 when warming was particularly striking [93].

The spatial distribution of terrestrial ecosystems made the simulation of NPP of China different owing to differences in approaches and uncertainties contained in the data sources [13,94]. Differences in this study with other process-based models and remote sensing models can result in large differences in the estimation of NPP.

4.2.1. Comparison with Results Obtained by Process-Based Simulation Models

Although numerous studies have demonstrated the usefulness of integrating a process-based ecosystem model [95] which incorporates key ecosystem processes, such as plant photosynthesis, plant respiration, decomposition of soil organic matter, and nutrient cycling with Chinese geo-referenced spatial data for examining the spatial patterns and dynamics of NPP of terrestrial ecosystems, simultaneous interactions in the processes are complex and spatially variable because of a number of controlled abiotic factors (e.g., water, light, temperature, soil texture, and nutrients). These variables ultimately lead to the simulated NPP to be underestimated (e.g., BEPS, BIOME-BGC model), or overestimated (e.g., the CEVSA model, the TEM model, and the IBIS model) compared with field measurements.

The BEPS model underestimated the NPP (2.235 Pg C·year⁻¹) as it had three major limitations within the NPP results, including the quality of input data at a 1 km resolution, inadequate estimation for C4 plants (e.g., some grasses and crops), and underestimation of management effects on plant growth (e.g., irrigation, insect control, and fertilizer application) [90]. Similar to the BEPS model, the BIOME-BGC model also underestimated the NPP (1.5–1.65 Pg C·year⁻¹) because the vegetation system was divided into only seven types, including deciduous broad-leaved forest, evergreen broad-leaved forest, evergreen coniferous forest, shrub, deciduous coniferous forest, and C3 and C4 plants. However, other eco-physiological parameters only modified the existing ecosystem type parameters [96]. Additionally, some studies have shown that percent errors of total NPP estimates from the Biome-BGC model varied from 35.2% to 43.3%, and especially for belowground NPP (BNPP), the range of percent errors was 58.9–77.3% [97].

The NPP derived from the CEVSA model was significantly overestimated in most areas of China and had a large systematic error. This model relies on climate input data, with underestimation in some mountainous areas [27]. The simulated NPP proposed by Gu et al. ranged from 3.53 to 3.96 Pg C·year⁻¹, which is 6% to 12% higher than the reference value over the entire landmass of China, as the input climate datasets overestimated the 25-year mean annual temperature by 7.66–12.25% and the precipitation by 2.83–8.43%, respectively [27].

The TEM model, which has been used to examine patterns of NPP in South America [98], North America [99], and at the global scale [100], overestimated the Chinese annual NPP of 3.65 Pg C·year⁻¹, and confirmed that the temperate broadleaf evergreen forest is the most productive biome and accounts for the largest portion of annual NPP in China [95], which was similar to this study. However, the spatial pattern of NPP was also closely correlated to the spatial distributions of precipitation and temperature [95]. Additionally, the main limitation for simulation of TEM is the vegetation-specific parameters, which are mostly defined from published references, but only for the 18 vegetation types of the global vegetation classification [98,99,100]. This limitation accounts for the difference between field observation-derived NPP and simulated NPP.

Our study showed results similar to the derived from the IBIS model. Total NPP from China’s combined ecosystems varied from 3.61 Pg C·year⁻¹ to 4.24 Pg C·year⁻¹ from 1961 to 2005, which was higher than that seen in this study for the same time period. These results, in addition to the previously-mentioned limitations in existing observations, likely stem from the simulation merely approximating the NPP dynamics of a natural ecosystem while ignoring the very large influence of human activities [93].

4.2.2. Comparison with Results Derived by Remote Sensing Estimations

Remote sensing models (e.g., CASA, EC-LUE, GLO-PEM, MOD17) have shown the uncertainty in estimating NPP in major ecosystem types [22,101,102,103,104] where the lowest global NPP (39.9 Pg C·year⁻¹) was almost 50% smaller than the maximum estimate (80.5 Pg C·year⁻¹) [81,103,104]. Except for the MOD17 model, these remote sensing models have comparable consistency and correctly estimate spatiotemporal NPP [22]. In addition, Nemani et al. [11] reported that NPP increased globally by 6.17% (3.4 Pg C·year⁻¹) over the past 18 years, while this value was 10% during the 1980s, based on work by Malmström et al. [105], and Ichii et al. [106].

Our results also suggested that field NPP in China was higher [13,88,107]. For example, Piao [13] underestimated the Chinese annual NPP by 1.43 Pg C·year⁻¹, corresponding to a total increase of 18.5% from 1982 to 1999, using a satellite-derived NDVI, CASA model [13], which was 20.79% lower than the estimate in this study. Such NPP results calculated from CASA can also be evidenced from nationwide forest inventory surveys [108] and the well-documented food yield statistics [88]. The underestimated NPP by the NDVI product is due to satellite drift or change over time, and incomplete corrections for calibration loss and atmospheric effects (clouds, aerosols, etc.). At the same time, in the case of dense leaf canopies in humid tropical forests and old growth forests [109,110], NPP also may be underestimated.

4.2.3. Comparison with Vegetation Types

Except for the differences in approaches and data sources, the distribution of vegetation types was also the main reason for errors in NPP estimation. The mapped area of different vegetation types is, itself, an estimate, that may contain inherent error, affecting the estimation of total and mean NPP.

In this study, the areas obtained from the spatial distribution of vegetation types in China (the 1960s, 1980s, and 2000s) were different from other studies and secondary surveys. The farmland area (119.31 × 10⁴ km²) used in this study was slightly smaller than that of the farmland area (135.39 × 110⁴ km²) cited in the Second National Land Survey. For grassland, the area (281.98 × 10⁴ km²) in the 2000s was essentially the same as that of the grassland area (287.31 × 110⁴ km²) in the Second National Land Survey, but smaller than that estimated by Fang (331 × 10⁴ km²) [111]. In addition, the field total grassland NPP (0.73 Pg C·year⁻¹) in the 1980s was significantly lower than that (1.04Pg C·year⁻¹) estimated by Piao (2004) based on the NDVI model [70], as the latter area is larger (331.41 × 10⁴ km²) than the former (271.76 × 10⁴ km²).

The forest area (170.14 × 10⁴ km²) in the 2000s was slightly larger than that estimated by Fang (142.8 × 10⁴ km²), which is far lower than that of the second-order forest area (253.95 × 10⁴ km²). However, the increasing trend in the area from the 1980s to the 2000s was consistent with the results cited by Fang. At the same time, Forest NPP (1129 gC·m⁻²·year⁻¹) was close to that calculated by Luo (1205 gC·m⁻²·year⁻¹), which is higher than that (984 gC·m⁻²·year⁻¹) estimated based on the average volume of forest in China by Fang from 1982 to 1989 [88], but with smaller areas (116.5 × 10⁴ km²) than that of this study (151.38 × 10⁴ km²), Thus, the NPP (1.00 Pg C·year⁻¹) calculated according to the third forest resource inventory data was lower than that of our study (1.71 Pg C·year⁻¹).

4.3. Impact of Climate Change on NPP

Many studies have suggested that climate change is probably a major controller in the overall response of NPP [13,94,95,112,113]. Based on the complex processes (Figure S2), and the significant climate changes in China [114,115], these factors may have resulted in large variations in China’s terrestrial ecosystem production. The distribution of NPP and historical trends in this study indicated a high degree of spatial heterogeneity and large regional variations, coupled with regional climate variations, including temperature, precipitation, and solar radiation. The effect of temperature on NPP changes was stronger than that of precipitation, such as in the Hengduan Mountains area of China [112], while other areas may show opposite effects. The effect of climate variations also had regional differences.

Taking grassland NPP as an example (

Table 3. The partial correlation coefficients between grassland NPP and climate factors.

Climatic Factors	31	32	33	34	35	36	37	38	39	40
Precipitation	0.41	0.62	0.65	0.62	0.44	−0.15	0.49	0.51	0.32	−0.31
Temperature	0.62	0.38	−0.35	0.26	−0.81	−0.73	0.26	−0.54	−0.87	0.71
Solar radiation	0.42	0.51	0.93	−0.20	0.90	0.74	0.22	0.93	1.00	0.35

Note: The meaning of the id number for grassland (31–40) can be seen in Table S1.

), there was a significant positive correlation between NPP, precipitation, and solar radiation, and a significant negative correlation with temperature. The effects of precipitation and solar radiation on grassland NPP were greater than that of temperature.

In terms of the specific types of grassland, the average coefficient of the partial correlation of precipitation to desert steppe, typical steppe, and meadow steppe was higher than that of meadow type (typical meadow, swamp meadow, and salinized meadow). However, the NPP of alpine meadow was significantly negatively correlated with precipitation, and positively correlated with temperature, whose influence is greater than precipitation. Temperature and desert grassland, temperate grasslands, subtropical and tropical grasslands, marsh meadow, and salinized meadow have significant negative correlations, which is largest for Grasslands. In addition, there is a significant positive correlation among meadow grassland, typical grassland, typical meadow, and alpine meadow. The average coefficient of partial correlation of solar radiation to meadow steppe (grass, Carex and forb swamp meadows, grass and forb halophytic meadows), temperate tufted low grass, nano-semi-shrub desert steppes, and temperate grasslands was higher. At the same time, the solar radiation and grass, Carex spp. high-cold steppes had a small negative correlation.

Furthermore, the trends of NPP was in line with the trend of climate factors. The average annual temperatures increased significantly in most areas, and precipitation also increased in South and Northeastern China, whereas the north and northwest regions were relatively reduced. This is in line with the decreasing trend of the southern vegetation (mainly forested) NPP and the trend of growth of northern vegetation (mainly grassland) NPP. In Southern China, the temperature is the main factor affecting NPP [11], and water is not closely related to temperature. In Northern China, precipitation was the main factor affecting vegetation NPP [116], but vegetation NPP is also affected by human irrigation in some areas, and precipitation may be less than the effect of temperature, such as the eastern part of North China and in Northeast China [11]. There was also a significant positive correlation between the time variation of vegetation NPP and the average annual solar radiation. Both were decreased significantly overall, but rose slightly in the later period in most areas. In all, the trends of NPP may be the result of the combined effects of temperature, precipitation, solar radiation, and human irrigation, rather than a single factor.

5. Conclusions

In this study, Chinese vegetation, including forest, grassland, and farmland NPP, were firstly estimated with field data for long-term time series. Then, the temporal and spatial variation and drivers in vegetation NPP and individual vegetation NPP from the 1960s to the 2000s were analyzed. The values of other relevant NPP models, as well as process-based simulation and remote sensing models, were compared. Lastly, the uncertainties of field NPP of this study were discussed. Our research provides valuable information and a basis for validation analyses by remote sensing models, as well as a robust quantification of carbon estimation to anticipate future development at the national and global scale.

Generally, Chinese vegetation NPP ranged from 3 to 12,407 gC·m⁻²·year⁻¹ with a mean value of 571 gC·m⁻²·year⁻¹. Forest, farmland, and grassland NPP were 1152, 518, and 294 gC·m⁻²·year⁻¹, respectively. However, total NPP in grassland was higher than farmland.

The distribution of vegetation NPP in China had large spatial heterogeneity and large regional variations. It gradually decreases from the southeast to the northwest. The relatively higher value is mainly in tropical forest types and swamp meadows, with a mean value of 2642 gC·m⁻²·year⁻¹ and 455 gC·m⁻²·year⁻¹, respectively, which is distributed primarily in the southern Chinese provinces of Hainan, Fujian, Guangxi, and the southeast margin of Tibet province. The lower NPP is mainly in desert grassland types, with a mean NPP of 214 gC·m⁻²·year⁻¹, which distributed in the Hexi Corridor, the extremely arid desert areas in the northwest part of the Alashan area, and the Mazongshan-Nuo Min Gobi shrubs.

The total vegetation NPP fell from 3.58 to 3.41 Pg C·year⁻¹ from the 1960s to 2000s, with a decrease of 4.7%. The trends in forest and grassland were similar, with a decrease of 0.46 Pg C·year⁻¹ and 0.16 Pg C·year⁻¹, nearly −4.5% and −0.8% per year, respectively, whereas farmland NPP was in the opposite direction, with the growth of 0.45 Pg C·year⁻¹ and 18 gC·m⁻²·year⁻¹. Chinese vegetation NPP decreased in the 1960s–1980s and increased the 1980s–2000s, but the reduction of the former period (−0.76 Pg C·year⁻¹) was higher than the increase in the latter period (0.59 Pg C·year⁻¹). In addition, forest and grassland NPP showed similar trends, but farmland NPP showed an increasing trend.

Precipitation, temperature, and solar radiation were the dominant factors affecting the spatial variability of NPP in the north and south of China, respectively. In addition, the effect of precipitation on grassland NPP was higher than temperature and solar radiation, especially for deserts, followed by steppes and meadows.
