Interdependent Dynamics of LAI-Albedo across the Roofing Landscapes: Mongolian and Tibetan Plateaus

Abstract

The Mongolian Plateau (MP) and Tibetan Plateau (TP) have experienced higher-than-global average warming in recent decades, resulting in many significant changes in ecosystem structure and function. Among them are the leaf area index (LAI) and albedo, which play a fundamental role in understanding many causes and consequences of land surface processes and climate. Here, we focused on the spatiotemporal changes of LAI, albedo, and their spatiotemporal relationships on the two roofing landscapes in Eurasia. Based on the MODIS products, we investigated the spatiotemporal changes of albedo_{(VIS, NIR and SHO)} and LAI from 2000 through 2016. We found that there existed a general negative logarithmic relationship between LAI and three measures of albedo on both plateaus. No significant relationship was found for LAI-albedo_NIR on the TP, due to more complex land surface canopy characteristics affected by the NIR reflection there. During 2000–2016, overall, annual mean LAI increased significantly by 119.40 × 10³ km² on the MP and by 28.35 × 10³ km² on the TP, while the decreased areas for annual mean albedo_VIS were 585.59 × 10³ km² and 235.73 × 10³ km² on the MP and TP, respectively. More importantly, the LAI-albedo relationships varied substantially across the space and over time, with mismatches found in some parts of the landscapes. Substantial additional efforts with observational and/or experimental investigations are needed to explore the underlying mechanisms responsible for these relationships, including the influences of vegetation characteristics and disturbances.

1. Introduction

Vegetation greening up across global terrestrial surfaces has been widely recognized as a sound indicator for understanding fundamental changes in ecosystem functions and their feedback to the regional/global climate [1,2]. This change is particularly pronounced in high latitude and altitude regions [3]. One of the coupled changes with the warming trend is local-to-regional land use that has produced very different land covers, in turn resulting in dramatically different land surface properties (e.g., land cover type, canopy structure, surface temperature, moisture, albedo, energy balances) that drive key ecosystem processes, dynamics, and functions (e.g., greenhouse gas emissions), as well as the exchanges in materials and energy between the land surface and the atmosphere [4,5,6,7]. For example, altered spatiotemporal trends in albedo have been argued to be a key factor for the significant increases in warming potentials at regional and global scales [2,8,9,10,11].

Surface albedo, defined as the ratio of the radiation reflected from a surface to the total incoming radiation on the Earth’s surface, is directly altered and dependent of land cover types (e.g., forests vs. croplands), canopy characteristics (e.g., leaf area and distribution, foliar N, and moisture), and length of growing season (i.e., duration of green leaves) that reflect different amounts of radiation back to the atmosphere [12]. Albedo is also indirectly altered by microclimates, especially soil and surface temperatures that emit different amounts of long wave radiation (i.e., according Botzmen’s Law). In sum, the advance of vegetation greenness coverage will decrease the surface albedo, while reductions in leaf area will elevate albedo. Recent studies have also suggested positive albedo feedbacks with increased cooling of the atmosphere due to higher evapotranspiration that is associated with the changes in leaf area and temperature differences between the land surface and the atmosphere [9,13,14]. Nevertheless, it appears that the changes in leaf area, its spatiotemporal distributions, and the warming/cooling of the atmosphere are key processes for understanding the significance of albedo in time and space, including its role in modeling biophysical processes such as the thawing of frozen soil, deforestation, and vegetation cover that are crucial for modeling ecosystem dynamics at landscape, regional, and global scales [12].

Both modelling and observational studies suggest that climate warming will likely enhance vegetation growth in northern terrestrial ecosystems [15,16,17,18]. Several recent investigations have further emphasized the rapid changes in high altitude and high latitude areas in the Northern Hemisphere [2,7,11,18,19,20]. The Mongolian Plateau (hereafter MP) with a high altitude (>1000 m) and latitude, and the Tibetan Plateau (hereafter TP) with a high altitude (>4000 m), have witnessed much more rapid and higher magnitude changes in vegetation and climate [9]. In this study, we focused on the spatiotemporal changes of the LAI-Albedo relationships on these two roofing landscapes of the Eurasian continent.

As an initial step for our long-term goal of understanding the interdependent LAI—Albedo relationships, land surface albedo will be independently assessed through its three bands: near infrared (NIR), visible active (VIS), and shortwave radiation (SHO). These bands represent the leaf reflection, photosynthetic absorption, and dominant energy, respectively. The data required for albedo and the leaf area index (LAI) are available through a variety of sources and approaches. Because our interest is to investigate the long-term relationships on the two large plateaus, data products from satellite remote sensing imagery are sound resources to achieve our study objectives. The albedo products from the Moderate Resolution Imaging Spectroradiometer satellite (MODIS) have a long and stable history, and have been widely used to study land cover changes and regional ecosystem functions, and the modeling of regions to the changing climate and human activities [2,10,21,22,23,24]. Specifically, we used the MODIS Bidirectional Reflectance Distribution Function (BRDF)/Albedo gap-filled snow-free product (MOD43A3(V005)) and LAI/fPAR product (MCD15A2) [21,25] to answer the following pivotal questions:

(1)

Have the changes in albedo, LAI, and their relationships over the past 17 years been similar at the Mongolian and Tibetan Plateaus?

(2)

Are there any significant inter- and intra- annual differences in albedo and LAI?

(3)

Are the changes spatially homogeneous within each plateau? If not, how much land area has experienced significant (vs. insignificant) changes? Where are they located within a plateau?

(4)

Do the three measures of albedo have similar relationships with LAI in time and space?

Both plateaus have experienced higher-than-global average climate warming [22,26]. Due to their geospatial locations, the solar irradiances between the two plateaus are significantly different. The total incoming radiation on the TP can reach ~1000 W m⁻² in the summer months [27], while the highest value on the MP is ~900 W m⁻² [28]. Both plateaus have also experienced intensified land uses including deforestation, grazing, urbanization, and agricultural expansion [29,30]. Yet, land use intensity and types are different across the two plateaus and in different time periods [31]. Here, we hypothesize that the spatiotemporal changes in albedo and LAI, as well as their interdependent changes in recent decades, differ significantly in time and space because of different warming trends and contrasting climate, vegetation, and historical land usage between the plateaus. As a result, there may exist “hot spots” on both plateaus where the rate of change in either albedo or LAI is substantially higher/lower than the average changes. Temporally, we hypothesize that the long-term changes in annual means are unevenly contributed from monthly values during the growing seasons, with such contributions varying by year and between the two plateaus.

2. Materials and Methods

2.1. Study Areas

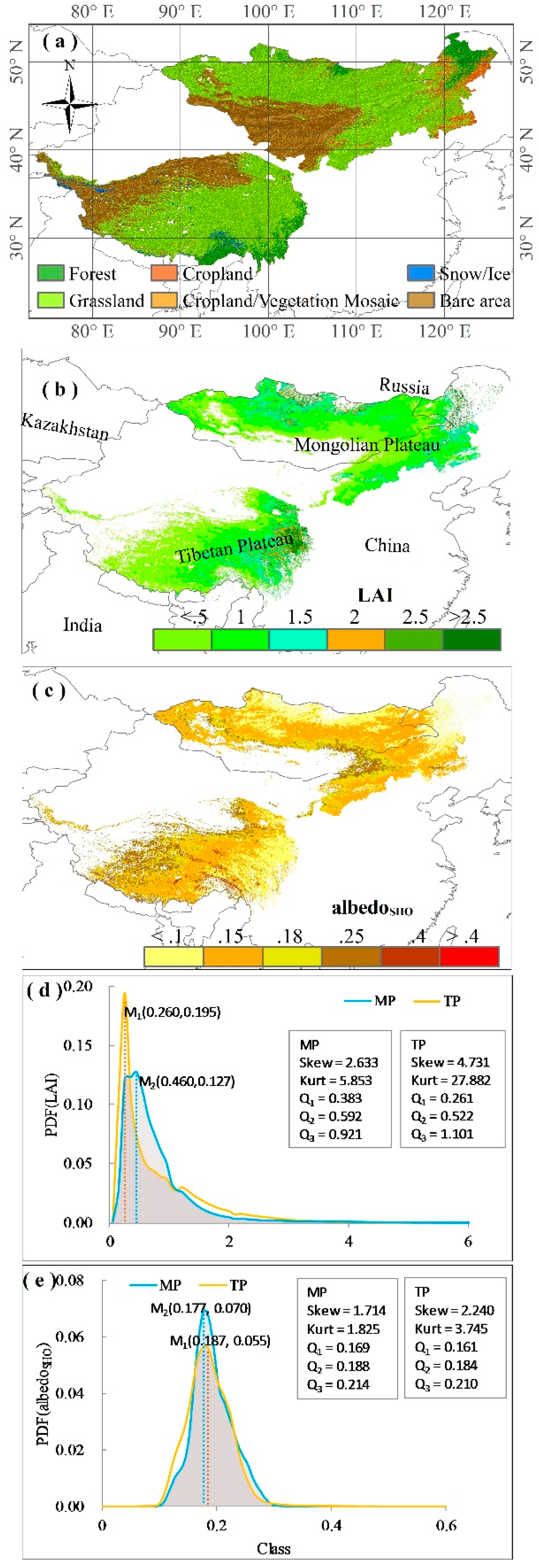

The Mongolian Plateau (87.8–126.0°E, 37.7–53.3°N) covers 2.75 × 10⁶ km² and is part of the central Asian Plateau and has an elevation of 1000–1500 m (Figure 1a). It includes two jurisdictions: Mongolia in the north and Inner Mongolia (IM) of China in the south. Four major biomes (i.e., steppe, desert, forest, and cropland) are distributed largely along the precipitation and temperature gradient, with the exception of the croplands [22]. The steppe covers 65% of the total land area (Figure 1a). Perennial green-up onset occurs in mid-to-late April and reaches maturity from early July to the end of August. In September and October, the vegetation gradually drops it leaves (i.e., vegetation senescence). The climate is predominantly semi-arid continental, with an annual mean temperature ranging from −1.7 °C in the meadow steppe to 5.6 °C in the desert steppe, and an annual mean precipitation of 90–433 mm [22]. The majority of its precipitation falls from June through August.

The Tibetan Plateau (26.5–39.5°N, 78.3–103°E) covers 2.57 × 10⁶ km² and extends from the sub-tropical to mid-latitude regions (Figure 1a) and has an elevation of 4000–8800 m. The mean temperature in the coldest and the warmest month is approximately −10 °C and 10 °C, respectively [32]. Temperature and precipitation have distinct decreasing gradients from the southeast to the northwest, with the majority of precipitation falling in July–August. Three main types of grasslands (i.e., alpine meadow, alpine steppe, and alpine desert steppe) cover 63% of the plateau (Figure 1a), distributed from the southeast to the northwest along the precipitation and temperature gradient. Sparse vegetation also grows in the arid northwestern mountains with low canopy coverage. The growing season spans from late April and mid-May to late September and early October.

In this study, we focused on the changes in grasslands that cover >60% of the plateaus. This was necessary because extremely high or low values of ET and LAI (e.g., in glaciers in the TP and forests in the MP) can potentially mask the mean values.

2.2. MODIS Data

The land surface products of MODIS onboard NASA’s Earth Observing System’s satellite Terra [21,24] and the black-sky data set for MOD43A3 (V005) BRDF/Albedo product (eight days Global 500 m SIN Grid) during 2000–2016 were used to quantify the surface reflectance of VISible spectral bands (albedo_VIS, 0.3–0.7 µm), Near-Infrared (albedo_NIR, 0.7–5.0 µm), and SHOrt wave (albedo_SHO, 0.3–5.0 µm) for the growing season (May–September). Since this study aims to explore the spatiotemporal changes of albedo and their interdependent relationships with LAI on the two plateaus, it is necessary to examine the three bands independently. For grasslands, albedo_VIS during the onset of new growth decreases as the green leaves absorb more shortwave radiation through photosynthesis, while albedo_NIR is unlikely to change. Following the leaf extension, both photosynthetically-active radiation (PAR) and fraction of PAR (fPAR) will remain high, resulting in reduced albedo_VIS and albedo_SHO. Theoretically, the leaf expansion will increase canopy scattering and increase albedo_NIR reflectance. This will also increase land surface roughness that in turn increases diffuse reflection, or lower albedo_NIR. After the mature stage of the leaves, decreased PAR and LAI will cause albedo to increase. In addition, albedo_SHO reflects the exchanges of energy and may therefore show different dynamics with LAI. The LAI/fPAR product is coded as the MCD15A2 eight-day (2000–2016), with a 1-km spatial resolution.

The two products of LAI and albedo were further improved by filtering out noises through smooth processing that may have resulted from cloud contamination and topographic differences using the subset tool to restrict the analysis. Altogether, we included 20 images produced between the day of year (DOY) 121 and 273 (1 May to 30 September). For analysis of the correlation between albedo and LAI, the products of the three bands for albedo were resampled to a spatial resolution of 1 km using the Python code of Arcpy Resample management to match with the LAI data. Our initial examination of the relationship between albedo and LAI demonstrated that the maximum LAI matched well with the minimum albedo. Consequently, we compiled the monthly minimum albedo and maximum LAI for each month. For example, albedo in May was extracted as the minimum values among values of DOY 121, 129, 137, and 145 for each pixel; the monthly albedo_min and the annual albedo_mean in the growing season were calculated using Equations (1) and (2), respectively; and the monthly LAI_max and annual LAI_mean were calculated using Equations (3) and (4), respectively.

2.3. Quantitative Metrics and Analysis

The annual averages of the three bands of albedo_mean and the monthly minimum albedo_min are calculated using Equations (1) and (2), respectively:

$${\mathrm{albedo}}_{(VIS, NIR, SHO)min}=\mathrm{Min}({\mathrm{albedo}}_{(VIS, NIR, SHO)min,i})$$

(1)

$${\mathrm{albedo}}_{(VIS, NIR, SHO)mean}=\frac{1}{5}{{\displaystyle \sum }}_{i=1}^5{\mathrm{albedo}}_{(VIS, NIR, SHO)min}$$

(2)

where albedo_{(VIS, NIR, SHO)min} is the minimum albedo value of each month of the three bands, respectively; and ${\mathrm{albedo}}_{(VIS, NIR, SHO)mean}$ is the annual mean value in the growing season of the three bands, respectively. i denotes the months of May, June, July, August, and September. Similarly, the month LAI_max and annual LAI_mean are calculated as:

$${\mathrm{LAI}}_{max}=\mathrm{Max}({\mathrm{LAI}}_{max,i})$$

(3)

$${\mathrm{LAI}}_{mean}=\frac{1}{5}{{\displaystyle \sum }}_{i=1}^5{\mathrm{LAI}}_{max}$$

(4)

where LAI_max $\mathrm{is}$ the maximum LAI of each month; i represents the months of May, June, July, August, and September; and LAI_mean is the annual mean value in the growing season.

To explore the inter-annual changes in albedo and LAI, we separated the growing season by month and analyzed the empirical relationships between LAI and albedo_{(VIS, NIR, and SHO)}. To explore the intra-annual dynamics and changing trends, we calculated the Z-score normalization of albedo and LAI to estimate the rate of change (i.e., the slope of a linear trend) for each pixel, and to extract the statistically significant points (p < 0.05). Within the ArcGIS 10.2 platform, the pixel number and value of the annual mean LAI and albedo_SHO were retrieved to delineate extreme high/low values as the “hot spots” of the changes based on the probability density function (PDF) using the R Package. For the monthly and yearly LAI and albedo_{(NIR, VIS, SHO)}, we applied linear regression models to calculate the coefficient of variation (CV) for the two plateaus by the origin data in order to quantify their inter-annual variations. Finally, we used natural logarithmic regression to examine the relationship between annual albedo_{(NIR, VIS, SHO)} and LAI on the two plateaus by average annual LAI class to test our hypothesis.

3. Results

3.1. The Spatiotemporal Changes in LAI & Albedo

Grassland is the major cover type among the six cover types on both plateaus, accounting for 65% and 63% of the Mongolian and Tibetan Plateau, respectively (Figure 1a). On the TP, alpine meadow is distributed in the southeast region and the alpine steppe dominates the northwest (Figure 1a), resulting in a gradual decrease in LAI (Figure 1b) and increasing albedo_SHO (Figure 1c) from the southeast to the northwest. On the MP, the Eurasian steppe includes meadow, meadow steppe, typical steppe, desert steppe, and desert from the southeast (i.e., Inner Mongolia) to the north (Mongolia) before it reaches the desert (Figure 1a), which is coupled with a decrease in LAI (Figure 1b) and increasing albedo_SHO (Figure 1c) along the same gradient.

The long-term mean (±std) of LAI on the MP and the TP was 0.728 (±0.63) and 0.698 (±0.71), respectively, and albedo_SHO was 0.193 (±0.035) and 0.188 (±0.040), respectively (

Table 1. The average annual and standard deviation (std) of LAI and albedo_{(NIR, VIS, SHO)} during 2000–2016 by average annual LAI class on the Mongolian Plateau (MP) and the Tibetan Plateau (TP).

LAI Class	MP				TP
	LAI	VIS	SHO	NIR	LAI	VIS	SHO	NIR
<0.5	0.31	0.158	0.213	0.286	0.22	0.155	0.204	0.254
0.5–1.0	0.72	0.101	0.187	0.267	0.74	0.099	0.174	0.243
1.0–1.5	1.21	0.080	0.169	0.246	1.26	0.074	0.163	0.242
1.5–2.0	1.72	0.064	0.153	0.235	1.73	0.062	0.158	0.245
2.0–2.5	2.23	0.057	0.145	0.228	2.24	0.057	0.160	0.253
>2.5	3.47	0.050	0.143	0.226	3.14	0.054	0.164	0.264
Mean	0.73	0.111	0.193	0.275	0.70	0.123	0.188	0.249
Std	0.63	0.036	0.035	0.042	0.71	0.058	0.040	0.042

). The probability density function (PDF) indicates that both LAI and albedo_SHO were left-skewed. Because we focused on the changes in grassland vegetation type for the two plateaus, the value of LAI focused on a very narrow frequency range for both plateaus; comparing two plateaus, the TP showed a stronger level of skewedness for annual LAI and albedo_SHO (Figure 1d,e). The mode value of PDF (LAI) was significantly higher for the TP than that for the MP, while there was no significant difference in the mode values of albedo_SHO. For LAI, a greater number of pixels fell in the <0.36 range for the TP than the MP, but the TP had fewer pixels in LAI classes of 0.36–1.22 (Figure 1d).

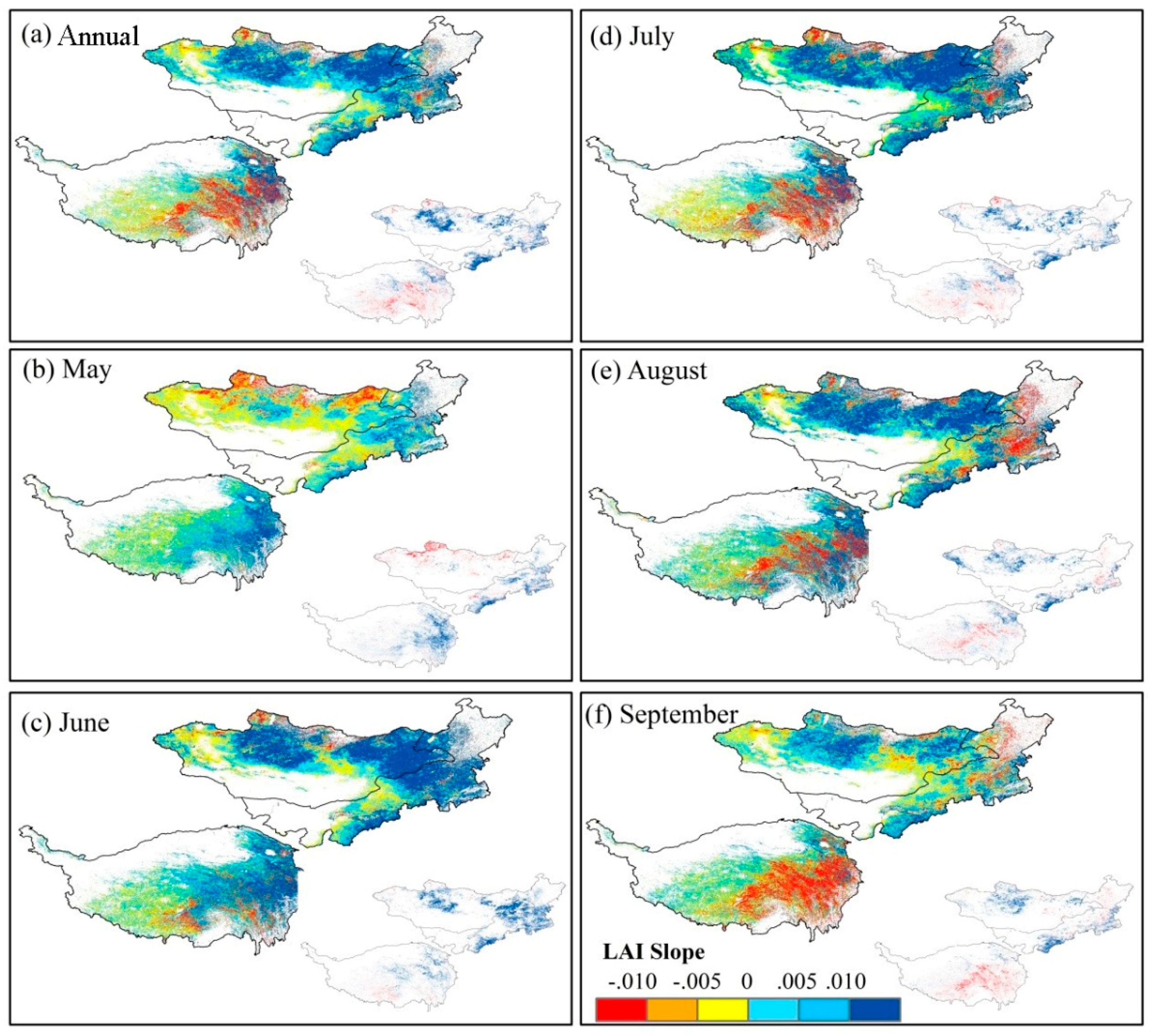

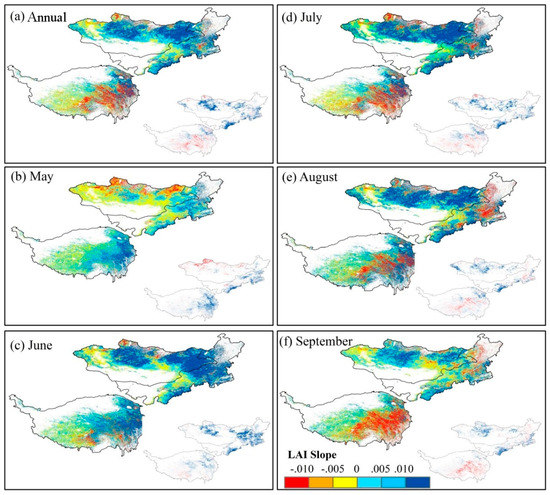

The long-term changes (i.e., slopes of the linear models) of annual and monthly LAI and albedo_{(VIS, NIR, SHO)} during 2000–2016 showed great spatial variations on both plateaus (Figure 2, Figure 3, Figure 4 and Figure 5). For the annual LAI, the regions with increasing LAI on the TP were mostly found in the northeast, while it decreased in the southeast (Figure 2a). Overall, we found that 57.41 × 10³ km² on the TP experienced significant change in LAI, which included 28.35 × 10³ km² and 29.06 × 10³ km² that experienced increasing and decreasing change, respectively (

Table 2. The total area that experienced significant change in LAI and albedo_{(SHO, NIR, VIS)} on the two plateaus by year and month during 2000–2016; the significant change area (Total) (km²) is also expressed as its percentage (%) to the total all-changed area; the significant decreasing (Decreasing) and significant increasing (Increasing) areas (km²) are not provided with their portions.

Var	Loc	Sig. Area	Annual	May	June	July	Aug.	Sep.
LAI	MP	Total (103 km2) (%)	128.19 (21.35)	57.12 (11.96)	100.63 (21.07)	80.81 (16.92)	62.59 (13.11)	61.36 (12.85)
		Decreasing	8.70	23.90	4.10	7.80	10.10	16.10
		Increasing	119.40	52.80	123.10	94.30	68.20	64.30
	TP	Total (103 km2) (%)	57.41 (14.69)	65.03 (16.64)	38.39 (9.83)	47.92 (12.26)	48.00 (12.28)	42.96 (11.00)
		Decreasing	29.06	3.16	6.53	19.99	18.55	31.03
		Increasing	28.35	61.86	31.86	27.93	29.45	11.93
AlbedoNIR	MP	Total (103 km2) (%)	639.42 (33.45)	478.36 (25.39)	469.16 (24.84)	464.35 (24.40)	255.66 (13.40)	481.96 (25.33)
		Decreasing	441.64	289.87	313.19	323.75	154.56	418.98
		Increasing	197.78	188.48	155.96	140.60	101.10	62.98
	TP	Total (103 km2) (%)	330.58 (19.34)	148.03 (11.00)	149.08 (12.21)	148.03 (11.68)	115.74 (10.02)	190.03 (11.68)
		Decreasing	249.82	117.64	95.54	117.64	63.43	135.01
		Increasing	80.76	30.39	53.54	30.39	52.30	55.02
AlbedoVIS	MP	Total (103 km2) (%)	605.48 (31.68)	412.24 (21.85)	420.77 (22.31)	434.24 (22.84)	378.71 (19.85)	456.77 (24.00)
		Decreasing	585.59	366.15	403.18	413.06	354.84	442.86
		Increasing	19.89	46.09	17.59	21.18	23.86	13.91
	TP	Total (103 km2) (%)	283.53 (16.59)	197.08 (10.44)	130.54 (11.01)	179.60 (14.38)	143.54 (12.79)	157.62 (9.70)
		Decreasing	235.73	183.17	85.95	152.02	97.95	122.69
		Increasing	47.80	13.90	44.59	27.58	45.59	34.93
AlbedoSHO	MP	Total (103 km2) (%)	597.17 (31.24)	468.47 (24.89)	431.68 (22.94)	429.77 (22.62)	324.27 (17.00)	426.51 (22.43)
		Decreasing	495.83	359.54	360.11	355.50	242.20	389.51
		Increasing	101.34	108.93	71.56	74.27	82.07	36.99
	TP	Total (103 km2) (%)	290.79 (17.01)	179.78 (13.54)	130.97 (11.39)	116.43 (9.54)	137.26 (12.46)	173.21 (10.75)
		Decreasing	224.23	162.09	84.32	79.43	80.19	121.13
		Increasing	66.56	17.68	46.64	37.00	57.07	52.08

). On the MP, however, 128.19 × 10³ km² grassland of LAI experienced significant change, including an increase for the majority of the land area of 119.40 × 10³ km² (96.75%), with only a few patches (8.70 × 10³ km², or 3.25%) showing a decreasing trend. More interestingly, the monthly changes in LAI unevenly contributed to these long-term changes in annual LAI (Figure 2, Table 2). For the TP, the LAI increase in May (61.86 × 10³ km², or 95.14%) was more pronounced than that during June–September (31.86 × 10³ km², 27.93 × 10³ km², 29.45 × 10³ km², 11.93 × 10³ km², respectively); whereas, on the MP, the increasing trend seemed more obvious in June (123.10 × 10³ km², or 98.39%) and July (94.30 × 10³ km², or 75.82%) than in May (52.80 × 10³ km²), August (68.20 × 10³ km²), and September (64.30 × 10³ km²) (Table 2).

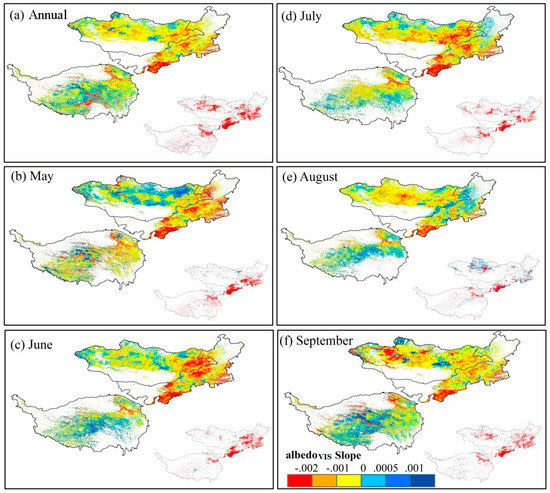

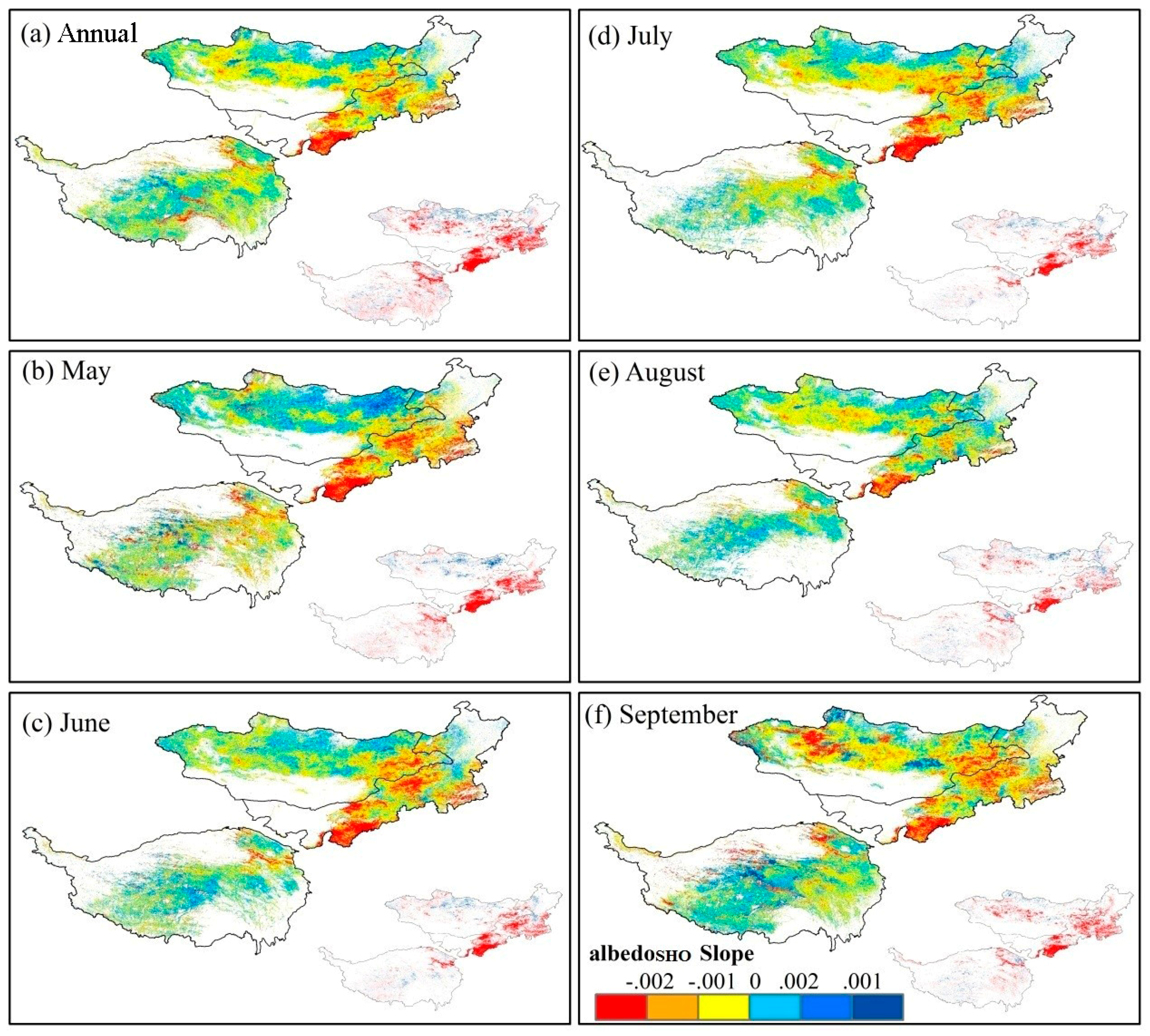

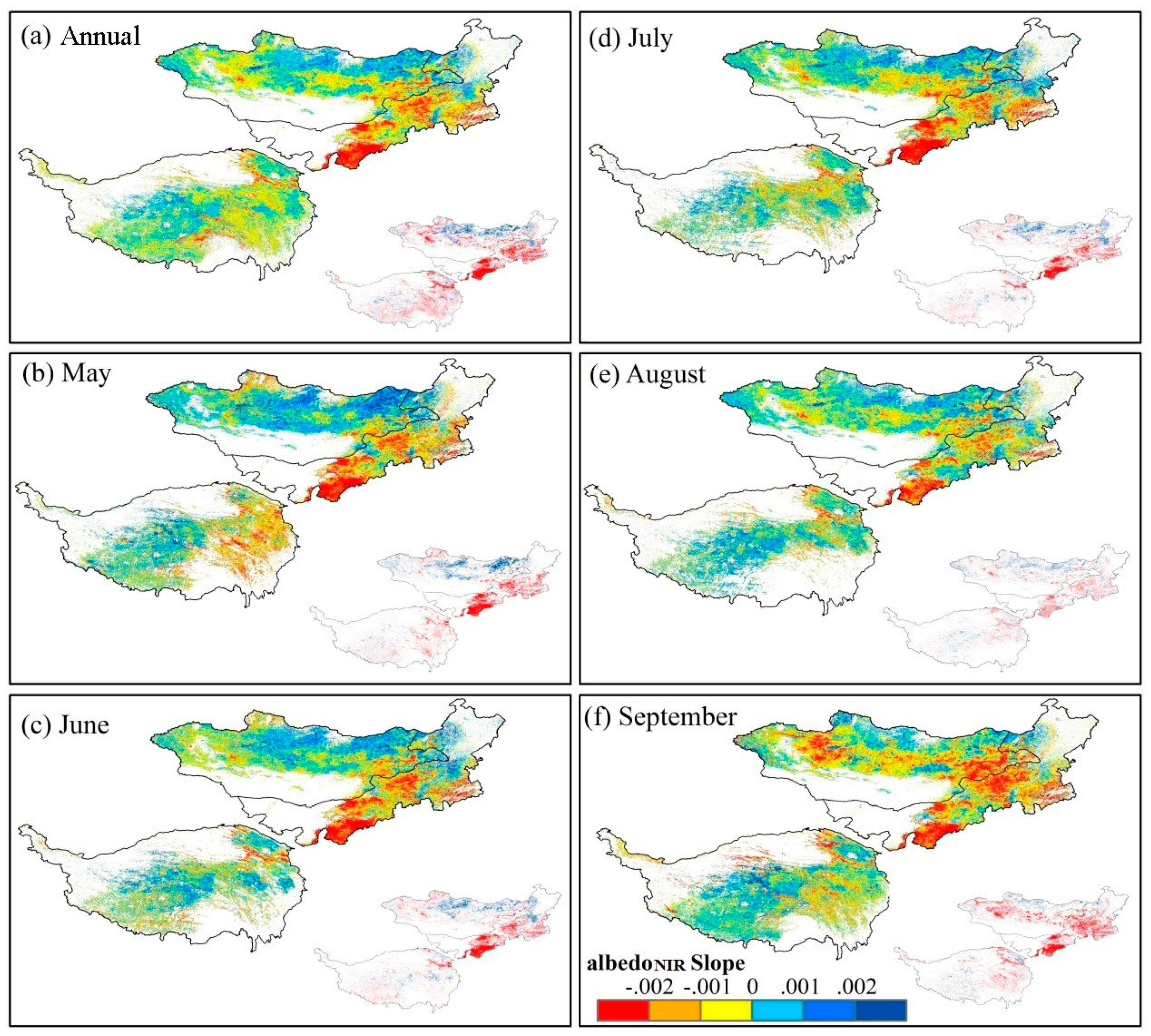

Large spatial variations in the long-term changing trends were also detected for three measures of albedo on both plateaus; however, the spatial patterns of the changing trends were not the same for both plateaus (Figure 3, Figure 4 and Figure 5). Although there were no significant differences in annual albedo between the two plateaus (Table 2), the rates of change of the three albedo terms seemed stronger for the MP than for the TP. On the MP, the percentage of grassland that experienced significant increasing/decreasing trends in albedo_NIR, albedo_VIS, and albedo_SHO was 33.45%, 31.68%, and 31.24%, respectively; this figure was 19.34%, 16.59%, and 17.01%, respectively, on the TP (Table 2). It is worth noting the albedo changes in the southeastern MP where very strong decreases in albedo_NIR (Figure 3) and albedo_SHO (Figure 5) were detected, whereas more widespread decreases in albedo_VIS appeared for the whole MP (Figure 4). These differences among the annual albedo changes were not apparent on the TP.

Similar to LAI, the annual change in albedo was contributed to differently by month. For the MP, the change in albedo_NIR during May–August matched well with that of annual albedo_NIR, but not for September. Whereas for the TP, May had the only monthly spatial change that matched well with the annual means (Figure 3b–f). For albedo_VIS, the spatial distribution of the annual mean on the MP matched well with that during June–September, but not with that in May. On the TP, there appeared no good matches with any month (Figure 4b–f). For albedo_SHO, there were no good matches with any monthly changes on either plateau (Figure 5b–f). Additionally, the amount of land area that experienced significant decreasing or increasing changes at the monthly scale was not consistent by month, plateau, or among the three measures of albedo (Table 2). For example, the total land area with decreasing albedo_SHO on the MP was the highest in September (389.51 × 10³ km², or 91.32%) and the lowest in August (242.20 × 10³ km², or 74.69%), while this figure on the TP was the highest in May (162.09 × 10³ km², or 90.16%) and the lowest in July (79.43 × 10³ km², or 68.22%) (Table 2).

3.2. Inter-Annual Variations of LAI and Albedo

The normalized (i.e., Z-score) LAI and albedo_{(VIS, NIR and SHO)} showed great inter-annual variations by year and month, as well as between the plateaus (Figure 6 and Figure 7). For LAI, the Z-score on the MP had a higher mean and variation than that on the TP (CV_MP = 0.091, 0.119, 0.157, 0.126, 0.108, 0.192; CV_TP = 0.049, 0.049, 0.119, 0.061, 0.083 and 0.121 for annual, May, June, July, August, and September, respectively) (Figure 6).

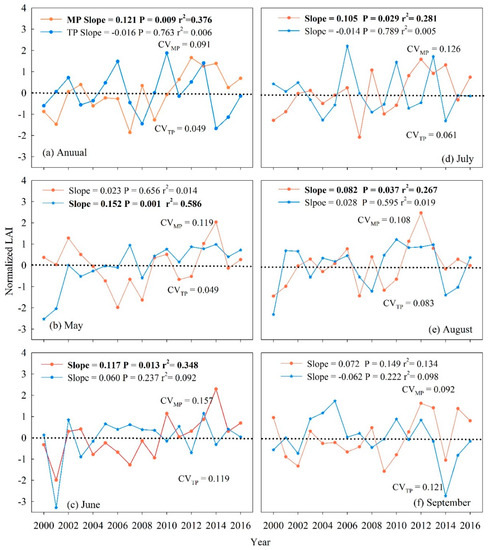

On the TP, the LAI showed a significant increase in May (Slope = 0.152, p = 0.001) (Figure 6b); on the MP, the LAI showed a significant increase at the annual scale (slope = 0.121, p = 0.009), as well as for the months of June (slope = 0.117, p = 0.013), July (slope = 0.105, p = 0.029), and August (slope = 0.082, p = 0.037) (Figure 6a,c–e). The absolute value of the slope on the MP was higher than that on the TP, except in May (Figure 6). It is also worth noting that the vegetation improvement in LAI on the MP was more apparent than that on the TP during the study period. Over the 17-year study period, there were seven years when the Z-score was above or below the long-term annual LAI mean on MP. There were also seven years when the Z-score was above and below the long-term mean on the TP; however, these years were not the same as those on the MP (Figure 6a). When examined by month, the inter-annual variation (i.e., CV values) on the MP was higher than that on the TP, and the long-term change of the monthly means also differed between the plateaus (Figure 6b–f). Additionally, a large deviation in the LAI of May on the MP was found for 2002, 2006, 2008, and 2014, while it occurred in 2000, 2001, and 2006 on the TP. These differences for other months were not consistent on either plateau (Figure 6c–f). Finally, it seemed that: (1) LAI on both plateaus was reduced in the June of 2001 and September of 2014; (2) LAI in May–June of 2014 on the MP was the highest; (3) LAI values in June–August on the TP were low; and (4) LAI of all five months in 2007 was below the average on the MP.

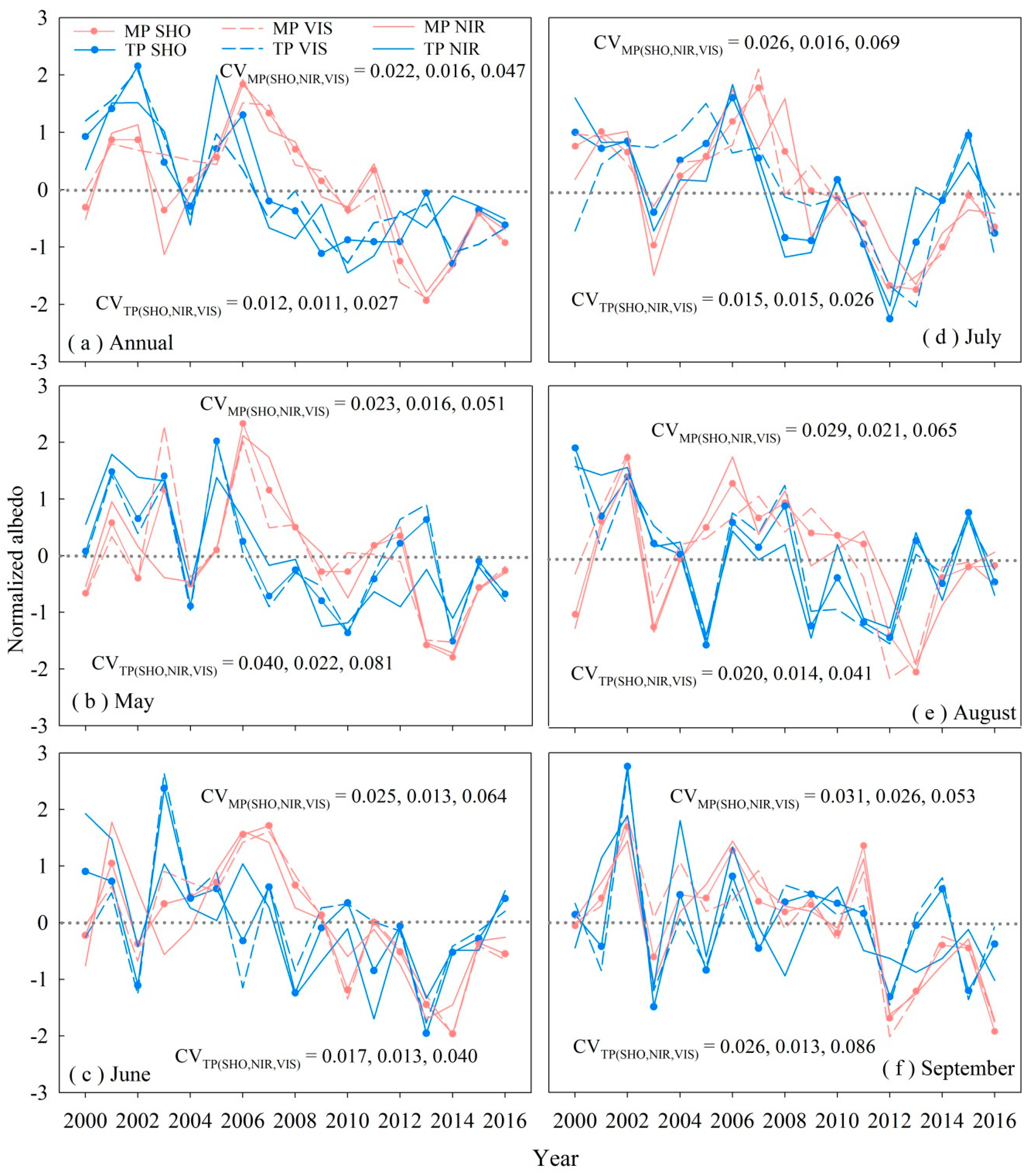

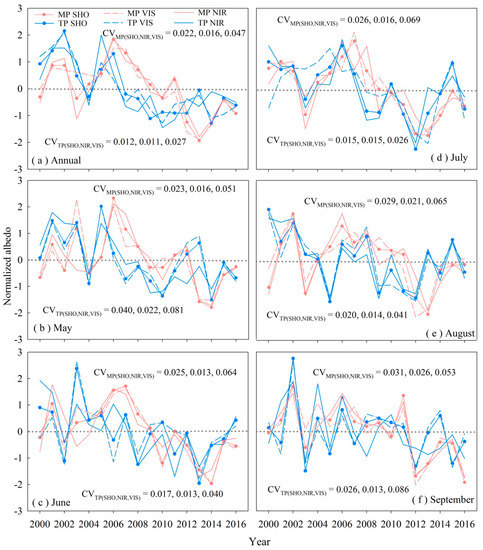

The three measures of albedo at yearly and monthly time scales showed decreasing trends and large inter-annual variations over the study period, with similar changes among the three albedo measures within the plateaus, but different between the plateaus (Figure 7,

Table 3. The regression trends in the normalized average annual albedo and minimum albedo by month on the vegetated grasslands of the Mongolian and Tibetan plateau during 2000–2016. The bold number reached a statistical significant level.

Var	Loc		Annual	May	June	July	August	September
SHO	TP	Slope	−0.149	−0.098	−0.085	−0.103	−0.092	−0.048
		p	0.001	0.043	0.185	0.033	0.060	0.348
		R2	0.563	0.247	0.085	0.268	0.217	0.060
	MP	Slope	−0.115	−0.073	−0.108	−0.119	−0.059	−0.112
		p	0.151	0.143	0.296	0.011	0.250	0.018
		R2	0.334	0.137	0.024	0.360	0.087	0.318
NIR	TP	Slope	−0.122	−0.147	−0.115	−0.090	−0.110	−0.093
		p	0.009	0.001	0.015	0.067	0.027	0.058
		R2	0.377	0.550	0.334	0.206	0.286	0.219
	MP	Slope	−0.092	−0.072	−0.098	−0.091	−0.044	−0.11
		p	0.059	0.151	0.044	0.065	0.397	0.020
		R2	0.217	0.132	0.244	0.209	0.048	0.311
VIS	TP	Slope	−0.161	−0.079	−0.05	−0.093	−0.087	−0.035
		p	0.001	0.111	0.324	0.056	0.079	0.497
		R2	0.657	0.160	0.065	0.223	0.192	0.031
	MP	Slope	−0.137	−0.078	−0.108	−0.13	−0.093	−0.126
		p	0.002	0.117	0.023	0.004	0.058	0.006
		R2	0.479	0.047	0.300	0.431	0.219	0.405

). Between the two plateaus, the Z-score on the MP was higher than that on the TP (CV_MP = 0.022, 0.023, 0.025, 0.026, 0.029, 0.031; CV_TP = 0.012, 0.040, 0.017, 0.015, 0.020, and 0.026 for annual, May, June, July, August, and September, respectively). The extra-annual change trend for the three bands albedo on the two plateaus had a negative slope (Table 3), and for the annual albedo_VIS on the two plateaus, showed a significant decreasing trend (slope = −0.161 p = 0.001; slope = −0.137, p = 0.002) for TP and MP, respectively. In addition, for MP, June, July, and September all showed significant decreases (Table 3), with slopes and P values of −0.108(p = 0.023), −0.13(p = 0.004), and −0.126(p = 0.006) for June, July, and September, respectively. For the annual albedo_NIR, as well as that in May and June, on the TP, the slope was −0.122 (p = 0.009), −0.147 (p = 0.001), and −0.115 (p = 0.015), respectively, which were lower values than those on the MP. For the MP, only June and September showed significant negative changes (slope = −0.098, p = 0.044; slope = −0.110, p = 0.020)), respectively (Table 3). For the abledo_SHO, the TP had a lower slope value both annually and in May, with significant change found for the annual, May, and July values (slope = −0.149, p = 0.001; slope = −0.098, p = 0.043; and slope = −0.103, p = 0.033, respectively). However, on the MP, only July and September showed a significant decrease, with a slope of −0.119 (p = 0.011) and −0.112 (p = 0.018), respectively (Table 3). In sum, it appeared that there was a greater overall decreasing trend on the TP than that on the MP, although the LAI increased faster on the MP than on the TP (Figure 6 and Figure 7, Table 3). The anomaly in annual albedo was generally above the long-term mean before 2007 on the TP and 2010 on MP, except 2003 for the TP and 2004 for the MP (Figure 7a). During 2006–2011, the MP witnessed an overall higher deviation from the mean than the TP. An extremely low Z-score was found in 2013 on the TP. Similar to LAI, the long-term changes in monthly albedo values had different contributions to the annual values, regardless of the decreasing trends for all months (Figure 7b–f). For example, the low annual albedo on the MP in 2003 seemed to be related to the extremely low value in July–September, whereas another extremely low value in 2013 was contributed from those from July through August.

3.3. The Interdependent Dynamics of Albedo & LAI

There existed negative relationships between LAI and all three measures of albedo (Table 2, Figure 7). When examined by LAI classes, all three albedo measures were higher for lower LAI classes (LAI < 1.5) on the MP than those on the TP, but were lower when LAI exceeded 2.0 (Table 1).

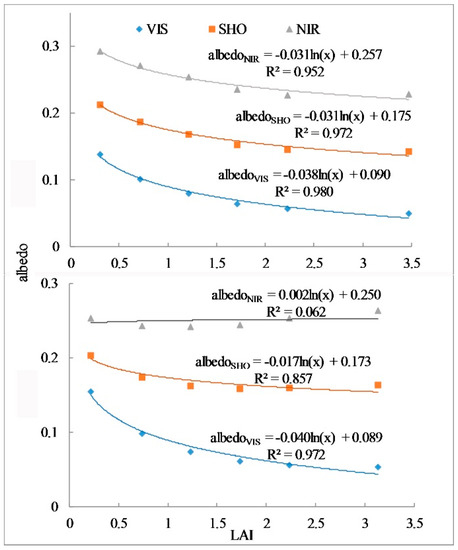

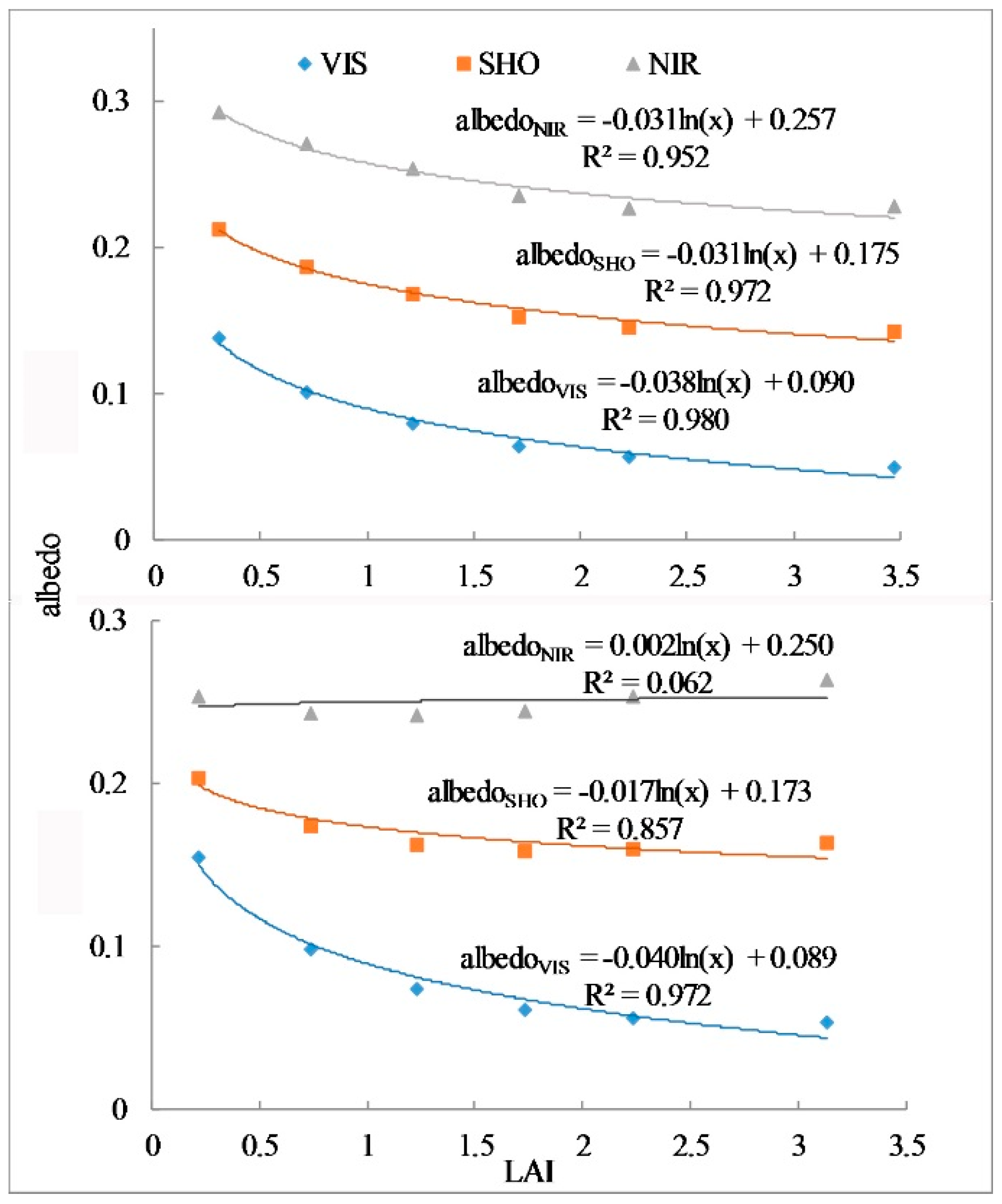

The negative relationships illustrated in Table 2 between LAI and albedo measures were modeled reasonably with a logarithm equation (Figure 8). For the MP, the correlation coefficient of determination (R²) was >0.95, whereas on the TP, a similar degree of confidence was only achieved for albedo_VIS. Again, the decrease in albedo with LAI was not apparent when LAI exceeded 1.5. Surprisingly, albedo_NIR on the TP did not show a significant relationship with LAI and was stabilized at about >2.50 (Figure 8b). Additionally, the changes in three albedo measures with LAI were parallel on the MP (Figure 8a), but not on the TP (Figure 8b). The sharpest decrease was found for albedo_VIS on the TP when LAI < 1.5.

4. Discussion

Albedo is a critical measure of the net radiation on land surfaces, which is the largest flux term of the energy balance. A minor change in albedo can result in significant changes in other energy fluxes, including latent heat, sensible heat, and soil heat fluxes. For example, a 1% change in albedo at the peak net radiation (i.e., 1000 w m⁻²) on the TP means 10 w m⁻² energy, which is equivalent to or greater than the average soil heat flux of the grasslands on both plateaus [7,27,28,33]. Our results indicate that the annual mean normalized albedo during the 17-year study period ranged from −1.935 (2013) to1.835 (2006) for the MP and from −1.288 (2010) to +2.154 (2002) for the TP (Figure 7, Table 3). Additionally, the spatial variation of land surface energy on the TP was higher than that on the MP. For the spatial variation, it decreased significantly, pointing to a maximum variation of >8% during the study period for yearly and monthly albedo on both plateaus. These intra-annual variations are at similar magnitudes as those in boreal forests [9], a northern high latitude region [2], the South American Chaco [34], Berbet and Costa (2003) [35] in the tropical rain forests, and the Swiss Alps mountains in Europe [36]. These changes in albedo would not only influence the energy partitions of the local ecosystems, but, more importantly, also alter the feedback to the regional climate [1,2,20,37].

Across the global land surface, cloud cover is the most direct and significant variable determining the spatial and temporal changes in land surface albedo. Land cover and change, meanwhile, has been reasoned as another major variable responsible for the changes in albedo [5,31,38,39]. Theoretically, high vegetation cover and dense canopies (i.e., high LAI) would intercept and absorb more incoming radiation, resulting in a lowered land surface albedo. This suggests that there should be a negative relationship between LAI and albedo. This relationship was confirmed in this study for both plateaus, except the relationship between LAI and albedo_NIR on the TP (Figure 8). Generally, albedo_NIR reflectance increases with canopy development due to increased multiple scattering within the canopy [40], whereas improved surface roughness in the growing season for the grassland ecosystem increases diffuse reflectance, resulting in decreased albedo_NIR. On the TP, although the albedo_NIR showed a decreasing trend by year and month, a negative relationship between LAI class and albedo_NIR was not detected (Figure 2 and Figure 3). It was clear that the change in NIR reflection may be affected by a combination of canopy characteristics and microclimate, on the TP, including the high altitude (i.e., thin atmosphere) [25,28], canopy structure, soil moisture, permafrost, and other biophysical conditions. This interesting phenomenon begs further study. On the MP, the response of three albedo measures to LAI appeared the same (Figure 8a); the decrease in albedo with LAI was more pronounced at lower LAI (<1.5) (Figure 8a), but on the TP, only albedo_VIS with LAI was more pronounced at lower LAI (<1.5) (Figure 8b).

As hypothesized, the LAI-albedo relationship was not spatially homogenous and is likely dependent of landform, different warming trends and contrasting climate, land cover type, and historical land usage (Figure 1, Figure 2 and Figure 3). While it is a shortcoming of this study to not explore how the LAI-albedo relationship may co-vary with the above variables, it is clear that the high increase/decrease in areas for albedo_NIR (i.e., the hot spots) does not always match with the hot spots of LAI changes (Figure 2 and Figure 3) at yearly or monthly scales on the TP. The rapid decrease in LAI in the southeast and increase in the northeast for the average annual LAI on the TP (Figure 2a) was due to the intensified land use and protection of the grasslands, respectively [7,41,42,43], where the annual mean albedo_VIS hotspots also decreased in the southeast and increased in the northeast (Figure 3a) to achieve synergy with the LAI changes. Meanwhile, we succeed in detecting similar matches for the LAI-albedo_VIS reverse synergistic change on the two plateaus. For example, a rapid increase in LAI in northern Mongolia and southeast Inner Mongolia (Figure 2a) was also observed with a high decrease in albedo_VIS (Figure 3a). On the TP, the annual change trends in both LAI and the three bands of albedo were found to be mismatches; only in the May did the area with increased/decreased LAI in the southeast/northwest match well with the decrease/increase in albedo_VIS (Figure 2b and Figure 3b). This result showed that on the TP, the correlation between LAI-albedo was more complex than on the MP, and such matches and mismatches need to be further explored with detailed in-situ data and analysis while considering land use practices (e.g., grazing, urbanization, agricultural expansion), as well as vegetation type, canopy structure, soil moisture, and other biophysical conditions [7].

The interdependent changes in LAI and albedo on the plateaus also showed large variations over time (Figure 6 and Figure 7), with LAI of the MP showing an elevated LAI after 2010 (Figure 6a). Here, we found some major mismatches between LAI and albedo for several years, including 2003 on the TP and 2004 and 2015 on the MP, when albedo was significantly lower than the long term mean value (Figure 7a), while LAI did not show a similar level of increase (Figure 6a). When albedo was examined by month, it seemed that the interdependent relationships were not the same, with earlier months contributing more to the annual means on the TP, while later months (August–September) played a more vital role on the MP. The low annual albedo on the MP in 2003 seemed to be due to the extremely low value in July–September, whereas another extremely low value in 2015 was contributed to from those from May through August.

5. Conclusions

We compared and quantified the spatiotemporal changes in LAI and albedo on the two roofing plateaus in Eurasia using MODIS products from 2000 through 2016. We found that the frequency in LAI increase was stronger on the MP than on the TP. Additionally, the spatial variation of albedo on the TP was higher than that on the MP. While there existed a general negative logarithmic relationship between LAI and three measures of albedo on both plateaus, the relationships varied greatly in time and space. No relationship was found for LAI-albedo_NIR on the TP, likely because vegetation cannot absorb NIR. Additionally, TP has high altitude, different seasonal changes in soil moisture, permafrost, etc. that can indirectly affect NIR reflection. For the LAI-albedo_VIS, more green leaves would absorb more shortwave radiation through photosynthesis and in turn decrease albedo_VIS. Overall, 119.40 × 10³ km² (96.75%) and 28.35 × 10³ km² (48.53%) of the land area, respectively, of the Mongolian and Tibetan plateaus, experienced significant increases in LAI, while 585.59 × 10³ km² (96.72%) and 235.73 × 10³ km² (83.14%) of the land areas of the Mongolian and Tibetan Plateau, respectively, experienced decreases in albedo_VIS. More importantly, the relationships varied substantially across time and space. Substantial areas were found to have mismatches between changes in LAI and the three bands of albedo. Substantial additional efforts in the form of observational and/or experimental investigations are needed to explore the relationships by including the influences from landform, land cover, vegetation characteristics, and disturbances.
