The Impact of Spatiotemporal Changes in Land Development (1984–2019) on the Increase in the Runoff Coefficient in Erbil, Kurdistan Region of Iraq

Abstract

Nowadays, geospatial techniques are a popular approach for estimating urban flash floods by considering spatiotemporal changes in urban development. In this study, we investigated the impact of Land Use/Land Cover (LULC) changes on the hydrological response of the Erbil basin in the Kurdistan Region of Iraq (KRI). In the studied area, the LULC changes were calculated for 1984, 1994, 2004, 2014 and 2019 using the Digital Elevation Model (DEM) and satellite images. The analysis of LULC changes showed that the change between 1984 and 2004 was slower than that between 2004 and 2019. The LULC analysis revealed a 444.4% growth in built-up areas, with a 60.4% decrease in agricultural land between 1984 and 2019. The influence of LULC on urban floods caused by different urbanization scenarios was ascertained using the HEC-GeoHMS and HEC-HMS models. Over 35 years, there was a 15% increase in the peak discharge of outflow, from 392.2 m³/s in 1984 to 450 m³/s in 2014, as well as the runoff volume for a precipitation probability distribution of 10%, which increased from 27.4 mm in 1984 to 30.9 mm in 2014. Overall, the probability of flash floods increased in the center of the city due to the large expansion of built-up areas.

1. Introduction

Since the last decades of the twentieth century, Remote Sensing (RS) has become a popular approach for detecting LULC changes. RS imagery has been universally applied in urban expansion and environmental analysis, with a large number of functional and sophisticated strategies being developed [1]. LULC classification plays an essential role in research on the physical and social sciences concerning urbanization and soil mapping [2]. LULC is an essential parameter for detecting human activities and natural changes due to climate change. LULC change detection is valuable for a broad variety of subjects, such as urban development, coastal dynamics, deforestation monitoring, shoreline changes and river transportation using multitemporal satellite images [3,4,5]. LULC changes are affected by human beings seeking to meet different needs, for instance, residential, agricultural, industrial, mining and other infrastructural facilities, and as such are main concerns connected with the economic and sustainable development of a region [6,7]. The timely and precise detection and identification of changes in the Earth’s surface provide a foundation for a deeper understanding of human-nature interactions and correlations [8,9,10,11,12,13]. Formerly, in situ data had been used for studying LULC, although such kinds of data are inadequate in a spatial and temporal extent. It is also hard, if not impossible, to collect data from unreachable areas. Thus, data collection is drawn-out and often expensive. Therefore, such data are not dependable for effective planning and decision-making [14,15]. Satellite images are a valuable source of information on LULC as they provide swift, cyclic and precise data acquisition from the RS system [16]. Multitemporal RS data, mainly time-series Multispectral Scanner (MSS), Thematic Mapper (TM), Enhanced Thematic Mapper Plus (ETM+) and Landsat Data Continuity Mission (LDCM) images, have been extensively applied for detecting LULC changes since the launch of the Landsat satellite in the early 1970s [17,18,19]. The reason for the wide use of Landsat images by researchers is because they are relatively inexpensive, more accessible and have a long history.

The expansion of built-up areas is widely known as a means of establishing an unacceptable climate in terms of air quality and controlling natural resources. This is because urban sprawl is turning the natural land cover into man-made land cover to meet human needs [20]. Investigating spatial and temporal forms of urban development has become one of the most critical challenges in monitoring and analyzing present and future directions of urban growth issues [21]. Over the last 300 years, the global trend of LULC has been characterized by deforestation and the expansion of agricultural land [22]. However, during the last decades, developing countries have experienced a reduction in rural land and an expansion of urban areas through urbanization [23,24,25,26]. In many respects, urban growth phenomena have become unsustainable, in the majority of cities globally [27]. In fact, urbanization itself is a hot topic of concern globally, where people are leaving rural areas and settling in big cities [28].

The increase in impermeable areas in a catchment is known to boost flood risk [29]. Urbanization is considered to be the major cause of transformations in hydrologic and hydraulic processes, decreasing drainage capacity and increasing the number of flash floods in urban areas [30,31]. Consequently, it increases the total runoff volume and peak discharge of storm runoff events [23,32,33,34,35,36]. Therefore, it is essential and useful to understand to what degree, for what purpose, and at what place LULC changes occur. Such radical changes in LULC have drawn the attention of researchers more and more to determine the extreme effects of these transformations on several directions of urban planning and the environment, including strategic land management, air quality requirements, and the probability of decreasing flash floods [37,38,39,40,41,42]. Many papers have investigated the effects of LULC changes on urban flash floods. Sanyal et al. [34] regarding the Konar catchment in eastern India, showed that the increase in peak discharge for different LULC scenarios, like 1976 to 2004, was 1023.3 to 1194.7 m³/s with a shorter time to peak, at one hour and 10 min. Al-Aysen, Riyadh, in Saudi Arabia, after a 15% increase in urbanization in the mentioned watershed, caused nearly a 30% step-up in the peak discharge for the five-year return period event. An increase of 115% appeared when the basin became entirely urbanized for the five-year return period event [43]. Wałęga et al. [29] determined the effect of catchment impermeability on flow variability in the Sudół Dominikański stream, Cracow, Poland and their investigation showed an increment in maximum flows over time connected to an increase in catchment imperviousness.

The KRI, from 2003 to present, witnessed its most significant development and expansion. The LULC patterns of Erbil, the capital city of the KRI, have changed extensively in the last two decades. These changes are because of the growth of the economy, and the region being comparatively safer than middle and southern Iraq. There is still a high demand for buying properties. Moreover, the Kurdistan Regional Government (KRG) encourages local and international investors to build residential and industrial areas. At the same time, the probability of the occurrence of urban flash floods in the center of Erbil Province is also increasing accordingly. Hameed, in his work that concerned the central district part of Erbil Province, showed that between 1984 and 2014, built-up areas and bare land expanded, while areas of vegetation and farmlands decreased dramatically [44]. Since 2010, the number of urban flash floods has increased, and as a consequence, many sewer pipes overflowed, which led to sewage escaping and mixing with stormwater. Flooding also caused more power outages as many local and small power generators were flooded [45].

During the last decades, the LULC of Erbil Province has significantly changed. Thus, the resulting changes need to be mapped urgently in order to recognize the direction of LULC transformation in the different parts of the city to assist in any possible land development planning, flood control and resource management. Assessing, identifying and classifying LULC changes in Erbil Province, and particularly how rapid urban development affects the center of the city, would contribute to managing the hydro-structures effectively and monitoring environmental changes. Additionally, it would help authorities in Erbil municipality and the General Directorate of Water and Sewerage to identify priorities, as well as helping them in making the right decisions. In this paper, we examined changes in LULC in the studied area in five phases. The time-steps started in 1984, 1994, 2004, 2014 and 2019. The studied area is located in Erbil-KRI (North of Iraq). We attempted to find answers to the four research questions concerning LULC changes and their influence on the runoff coefficient (the runoff coefficient is a unitless determinant that is used to convert the amounts of rainfall to runoff, or the ratio of the peak runoff rate to the rainfall intensity [46]) in the studied area from 1984 to 2019:

(1) How was the LULC changed during this period, after every ten years?

(2) How did the economic, social and political situation affect the LULC changes?

(3) How did this transformation affect the hydrological response in the studied area?

(4) Is the probability of urban flash floods increasing?

2. Materials and Methods

2.1. Study Area

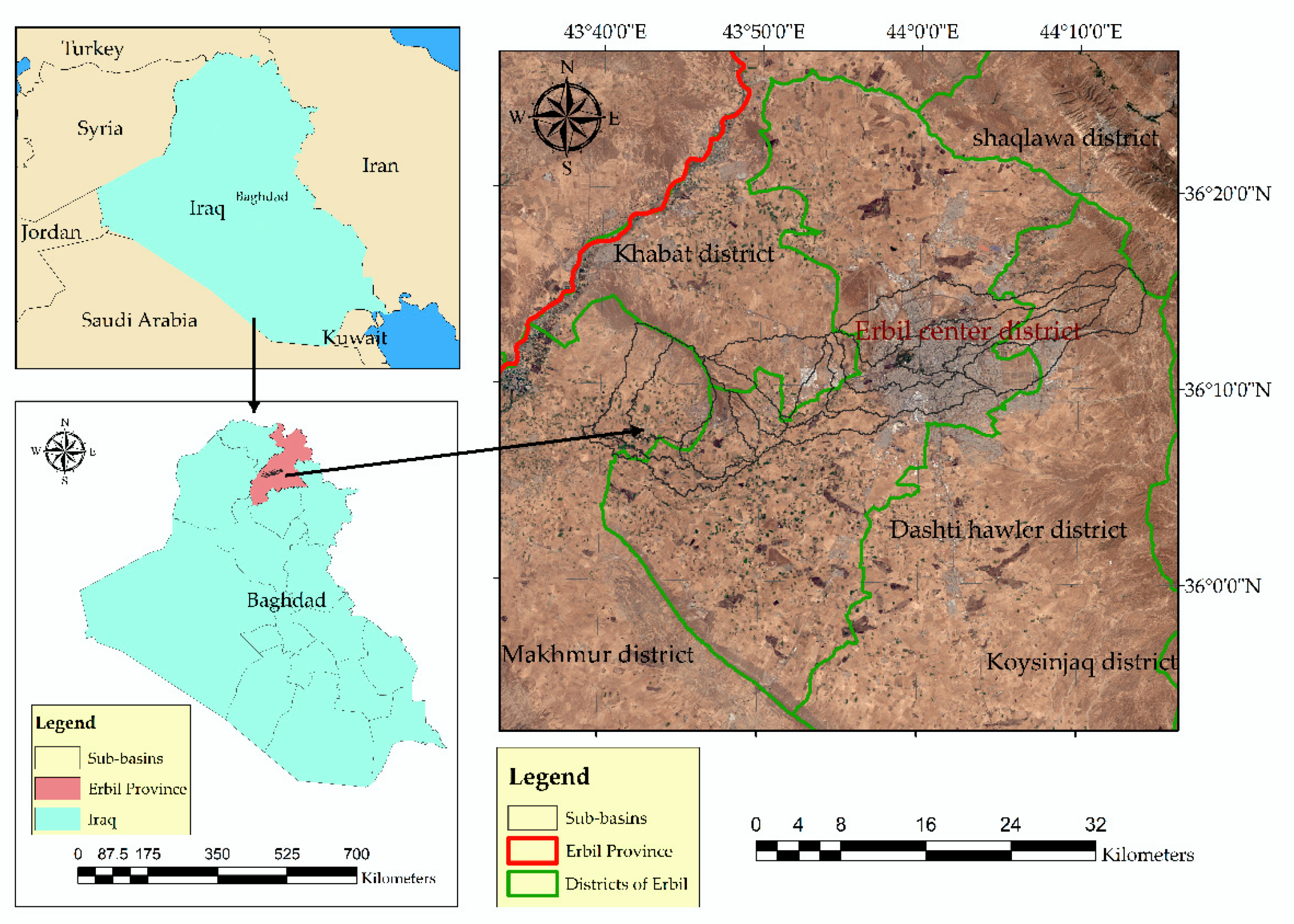

Erbil is a province located in the north of Iraq, and it is the capital city of the KRI. Erbil Province is considered to be the fourth biggest city in Iraq after Baghdad, Basra and Mosul. It lies approximately 350 km (220 miles) from Baghdad, the capital of Iraq. The total area of Erbil Province is 14,873.68 km²; however, the area considered as the studied area in this work is 508.074 km² (Figure 1). The studied area is delineated based on the hydrological situation, using HEC-GeoHMS in ArcGIS 10.5.1, which affects the center of the city in terms of runoff during precipitation events. Due to the location of Erbil Province, it has a semi-arid continental climate and is characterized by hot and dry summers and cold and wet winters. The mean annual precipitation in the central district of Erbil Province from 1980 to 2018 was 419.2 mm. Moreover, the maximum annual rainfall in 1992 reached 866.3 mm, and the minimum in 1999 was 225.8 mm [47].

Erbil is going through essential changes because of the impact of political, economic, global, cultural and demographic transformations. The independent management of resources and revenues hand-in-hand with economic prosperity allowed the city to speed up its reconstruction and development, with the benefit of more stability and a safer environment compared to other cities in the center and south of Iraq [48,49]. After several political upheavals and demographic changes in the region, Erbil Province stands as a durable model of exponential urban development, for instance, recently, following the ISIS attack on Syria and Iraq, from 2013 to 2019. In Iraq, the attack targeted the Sunnis zones in the center and mid-west of Iraq as well as the Yazidis area in the Sinjar district, forcing thousands of civilians to flee their homes to the KRI, especially Erbil and Duhok. At that time, the international community, Internal Displaced People (IDP) and refugee organizations built shelters and temporary camps for those people who relocated from their homelands. This demographic change is one of the tens of political upheavals in the region.

2.2. Workflow

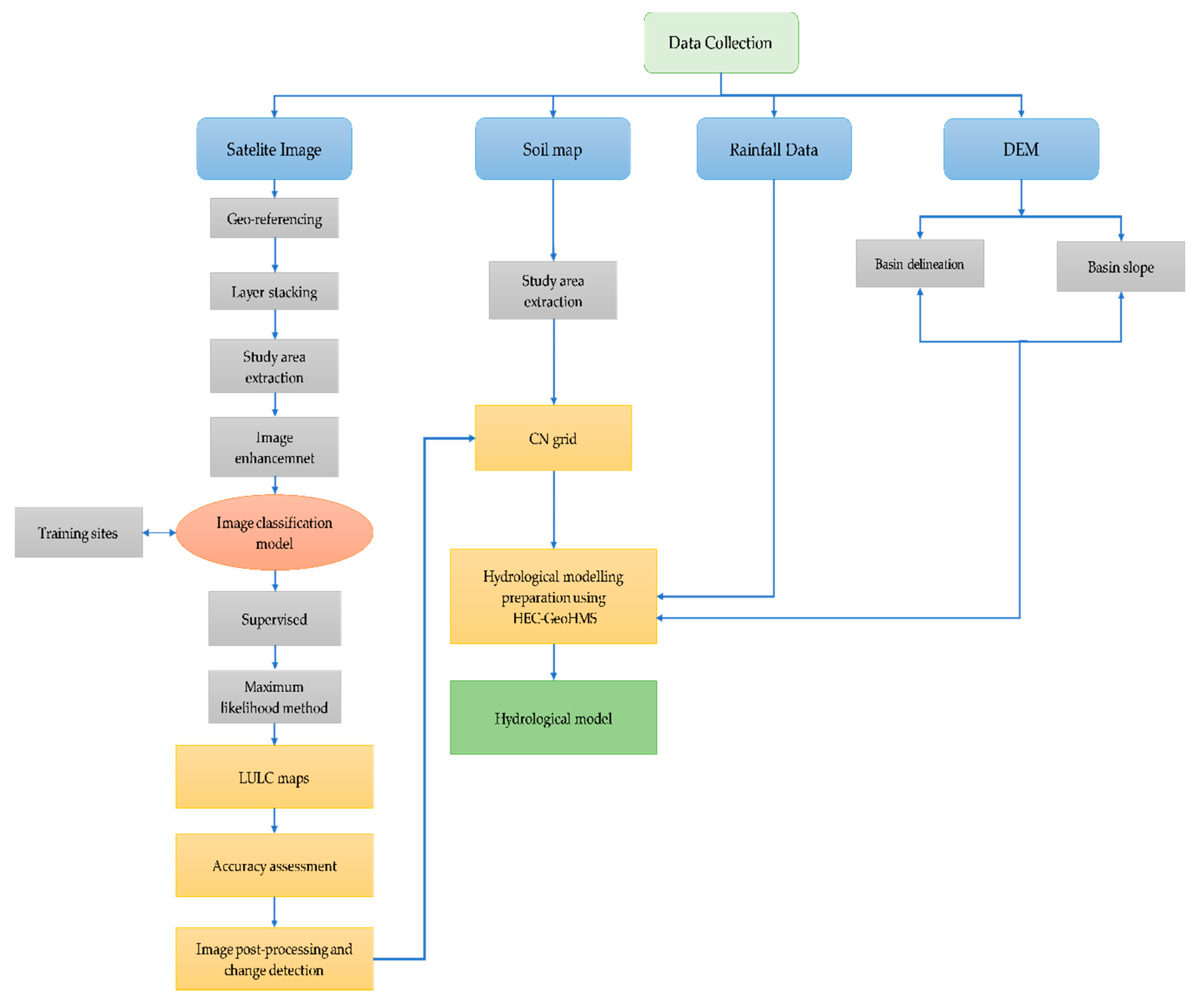

The methodology applied in this study is illustrated in Figure 2. The expected outcomes are the LULC scenarios for 1984, 1994, 2004, 2014 and 2019. Furthermore, their influence on the hydrological response. To reach these targets, several steps were taken. First, we collected the required data for the study, such as remote sensing data, rainfall datasets and soil maps. Second, we started with image analyses using supervised classification; we used the maximum likelihood classification to extract LULC maps from Landsat images. In the third step, unifying both the LULC maps and soil maps in ArcMap using the HEC-GeoHMS tool, a CN grid was prepared. Moreover, we calculated the basin characteristics and basin slope using DEMs. Lastly, we simulated the hydrological model in HEC-HMS, in order to compare different scenarios and assess the transformation and development in the studied area. In the following sub-sections, the methodology is described in detail.

2.3. Remote Sensing Data Acquisition

To examine the LULC changes in the center of Erbil Province, different LULC cover types were prepared from remotely sensed data. Satellite images from Landsat 4-5 TM (1982–2011), Landsat 7 ETM+ (1999–present) and Landsat 8 OLI (2013–present) were downloaded from the LandsatLook viewer (https://landsatlook.usgs.gov/viewer.html). The images were taken by the satellite on different dates, as listed in

Table 1. Source and details of Landsat images used for classification.

Satellite	Sensor_ID	Path/Row	No. Bands	Date of Acquisition	Grid Cell Size (m)
Landsat 4-5 TM C1 Level-1	LT51690351984167XXX02	169/35	7	15 June 1984	30
Landsat 4-5 TM C1 Level-1	LT51690351994226RSA00	169/35	7	14 August 1994	30
Landsat 7 ETM+ C1 Level-1	LE71690352004198ASN01	169/35	9	16 July 2004	30
Landsat 8 OLI/TIRS C1 Level-1	LC81690352014201LGN01	169/35	11	20 July 2014	30
Landsat 8 OLI/TIRS C1 Level-1	LC81690352019183LGN00	169/35	11	2 July 2019	30

. The images were selected based on quality, especially those images which were free of cloud or had a limited rate. Moreover, images were selected nearly in the same season, between June and August, in order to have a similar seasonal variation of LULC. In addition, the DEM of the Shuttle Radar Topography Mission (SRTM) (http://dwtkns.com/srtm30m/) was acquired at 1 arc-second (30 m) resolution, to delineate the watershed boundary of the studied area. Furthermore, higher spatial resolution true-color satellite and aerial imagery were retrieved from Google Maps and HERE WeGo (wego.here.com). A soil map of the studied area was extracted using a basin boundary from the prepared digital soil map of Iraq by the Food and Agriculture Organization (FAO) (Figure 3).

2.4. Image Pre-Processing

Extensive pre-processing was done, particularly geo-referencing, layer stacking, extraction and image enhancement. Layers were stacked using Edras Imagine 2014 in order to obtain multi-composite images for further processing, and then from the stacked satellite image, the study area was extracted with “extract by mask” using the Erbil basin boundary prepared in ArcGIS 10.5.1, and again, using Edras Imagine 2014, the resolution of the images was enhanced twice using the convolution function in spatial tools and the subset function in subset and chip tools. The enhancement process was carried out in order to obtain a clear image for the classification and accuracy assessment stage.

2.5. Image Classification

Image classification and change identification are two of the most common techniques for observing LULC changes in urban areas. The process is complex and requires the consideration of several factors, and it should be done accurately. Concerning the LULC classification, the basin was categorized into five different classes: water (including rivers, tributaries and ponds), built-up (including residential, industrial, commercial, local streets, roads and other urban areas), bare land (uncovered soils, unused areas, rocky mountains and dry river beds), agriculture (including crop fields and fallow areas) and finally vegetation (including forests, orchards, vegetable fields, parks, lawns, shrubs and others). For this study, supervised classification was performed using Edras Imagine 2014. Supervised classification is where the software user creates spectral signatures of known classes, such as urban, water and agriculture, and then the software specifies each pixel in the image to the cover type to which its signature is most comparable [50]. The maximum likelihood classifier (MLC) is one of the most popular adopted parametric classification algorithms [12,51,52,53,54]. At the beginning of the classification process, three bands were combined as a false-color composite, including band nos. 5, 4 and 3, for each LULC class in each satellite image, 20 training sites were collected. In total, 100 training sites were collected for one image. With this background, 500 training sites have been collected for five satellite images. During this process, Google Maps and HERE WeGo (wego.here.com) were used with the aim of obtaining an accurate definition of the training sites. The training sites were different in pixel size and used as an area of interest to train the images, to be later merged into one signature for a given LULC category and used for the classification.

2.6. Image Post-Processing

The LULC maps were noisy as a consequence of the resemblances of the spectral responses of specific land cover classes such as pasture/scrubland and built-up areas. In this process, the classified image was accurately compared to reality, and an accuracy assessment analysis was performed to verify the classification results. The purpose of the accuracy assessment was to quantitatively evaluate how or to what effective degree the pixels were sampled into the LULC categories. The accuracy of the classified images from 1984, 1994, 2004, 2014 and 2019 was evaluated by Edras Imagine 2014 using randomly generated points. Some studies used 500 reference points for accuracy assessment [55,56], however number of reference points depends on the size of the studied area. In this study for each image, 500 reference points were generated (equalized random points per class) and aligned to the boundary of the study area shapefile. This was necessary to assess the accuracy of the classification results and the modification of land cover categories.

2.7. Hydrological Modeling Using HEC-HMS

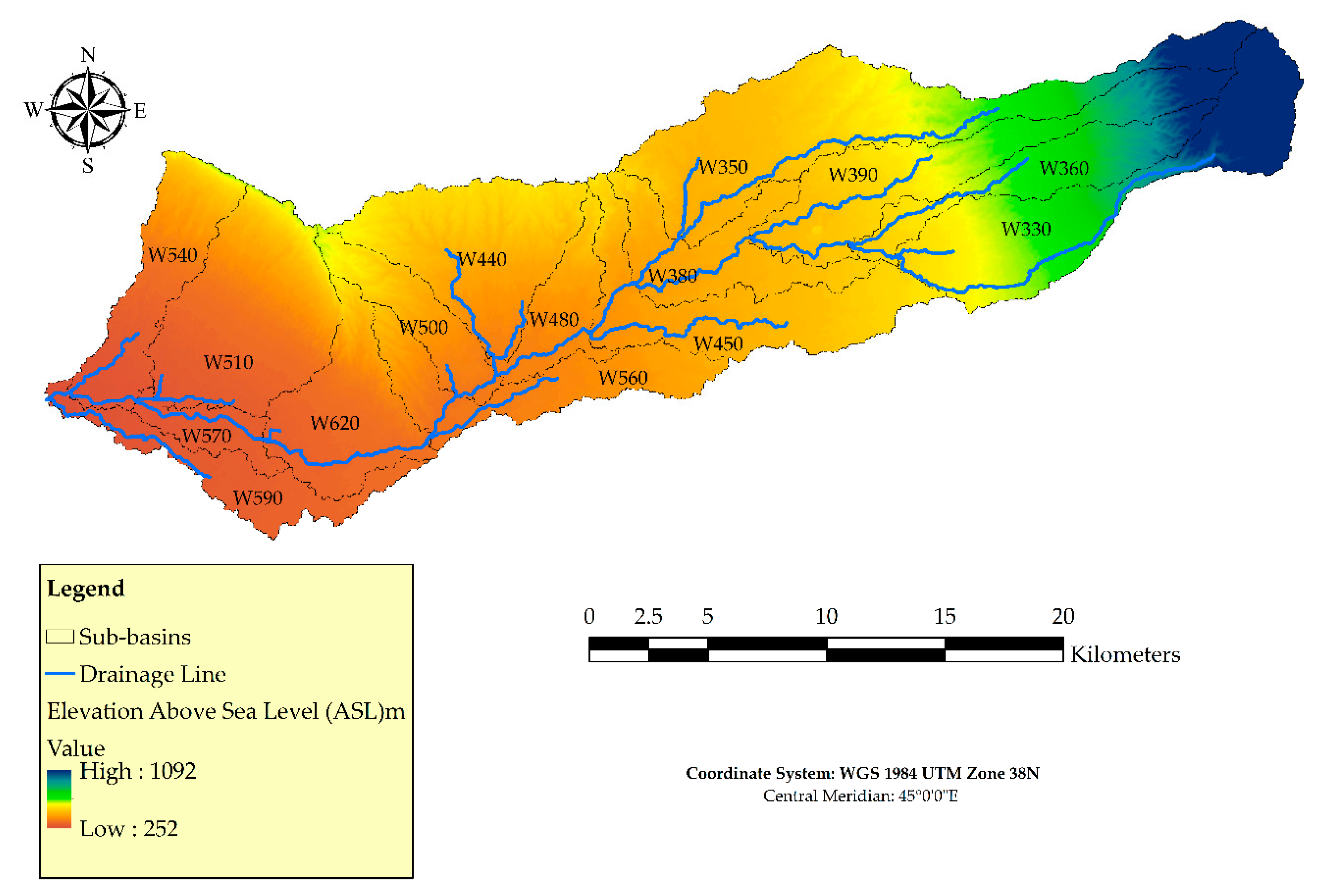

The Hydrologic Engineering Center-Hydrologic Modeling System (HEC-HMS) was developed to simulate the precipitation-runoff procedures of dendritic watershed systems [57]. The model consists of multi sub-models to simulate different elements of the runoff formation process with the choice of various infiltrations, unit hydrographs and flood routing methods. Because of its simplicity and the limited number of parameters, HEC-HMS is universally used, which makes calibration relatively uncomplicated [36]. The basin model, meteorological model and control specification are the three main models of simulation in HEC-HMS [32]. The basin model, consisting of the delineation of sub-basins, sub-basin areas, river length, river slope, longest flow path, elevation and basin slope, was developed using HEC-GeoHMS [58], and the said basin model was then converted to the HEC-HMS model (Figure 4). The Soil Conservation Service (SCS) Curve Number (CN) (today, the Natural Resources Conservation Service (NRCS)) method was applied for precipitation losses. Many studies showed that the CN method could be applied in different environments and, despite its simplicity, can produce practicable results comparable to those of more complicated models [59,60]. The SCS-Unit hydrograph method was applied for transformation, and the Muskingum–Cunge method was used for river routing. Analyzed long-term series of maximum daily rainfall data were used in this study and within them, a probability distribution of 10%, which is equal to 71.16 mm [47].

3. Results

3.1. LULC Accuracy Assessment

The classification accuracy of the prepared LULC change maps was evaluated. The producer’s accuracy is the number of correctly classified reference points of a particular class divided by the total number of reference points for that category. It is an indicator of the error of omission [61]. The user’s accuracy is an alternative measure for individual category accuracy. It is the number of correctly classified reference points of a specific class divided by the total number of points being classified as that category. It measures the error of commission [62]. The accuracy assessment for the results of five images showed an overall classification accuracy of 85.60%. While each image was analyzed and assessed independently, as in this study, different satellite images were used (

Table 2. Accuracy assessment for the 1984, 1994, 2004, 2014 and 2019 classified images based on the error matrix.

	Years	Water	Built-up	Bare Land	Agriculture	Vegetation
Producer’s Accuracy (%)	1984	100	98.88	62.99	78.69	94.74
User’s Accuracy (%)		86.00	88.00	80.00	96.00	72.00
Overall Classification Accuracy (%)				84.40
Kappa Statistics (%)				80.50
Producer’s Accuracy (%)	1994	100	98.80	57.25	80.70	97.73
User’s Accuracy (%)		77.00	82.00	79.00	92.00	86.00
Overall classification Accuracy (%)				83.20
Kappa Statistics (%)				79.00
Producer’s Accuracy (%)	2004	-	99.04	68.21	81.02	99.07
User’s Accuracy (%)		-	82.40	82.40	88.80	85.60
Overall Classification Accuracy (%)				84.80
Kappa Statistics (%)				79.73
Producer’s Accuracy (%)	2014	-	95.28	83.85	77.78	93.69
User’s Accuracy (%)		-	80.80	87.20	95.20	83.20
Overall Classification Accuracy (%)				86.60
Kappa Statistics (%)				82.13
Producer’s Accuracy (%)	2019	-	95.37	83.21	84.83	95.45
User’s Accuracy (%)		-	82.40	91.20	98.40	84.00
Overall Classification Accuracy (%)				89.00
Kappa Statistics (%)				85.33

). The accuracy rate depends on the quality of RS data such as the resolution, available bands and the quality of the image. In this study, there is a limitation to examine the accuracy of classified maps because of the nature of LULC changes, which alter according to different regional conditions, and also due to the lack of availability of ground values.

3.2. LULC Results and Change Detection

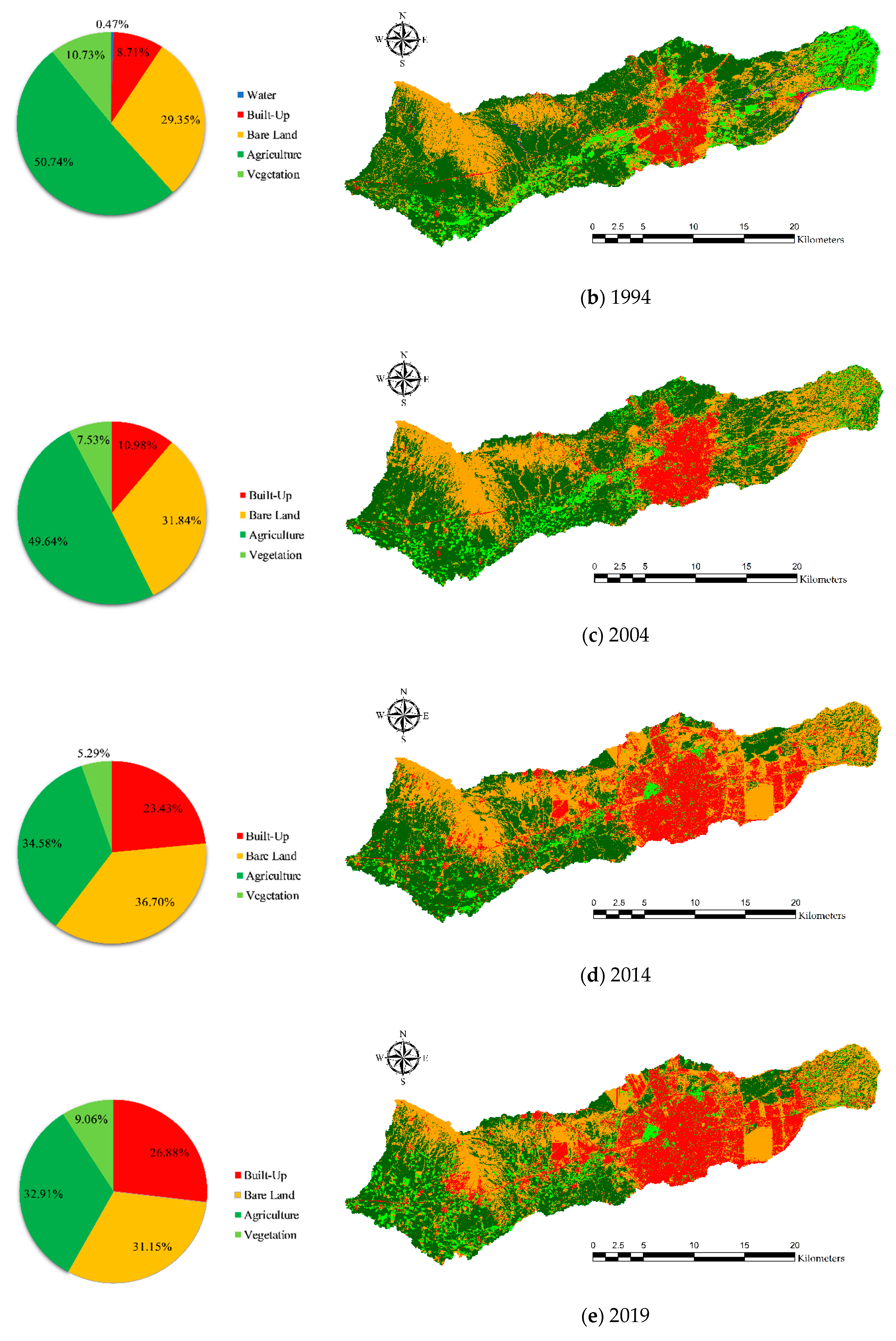

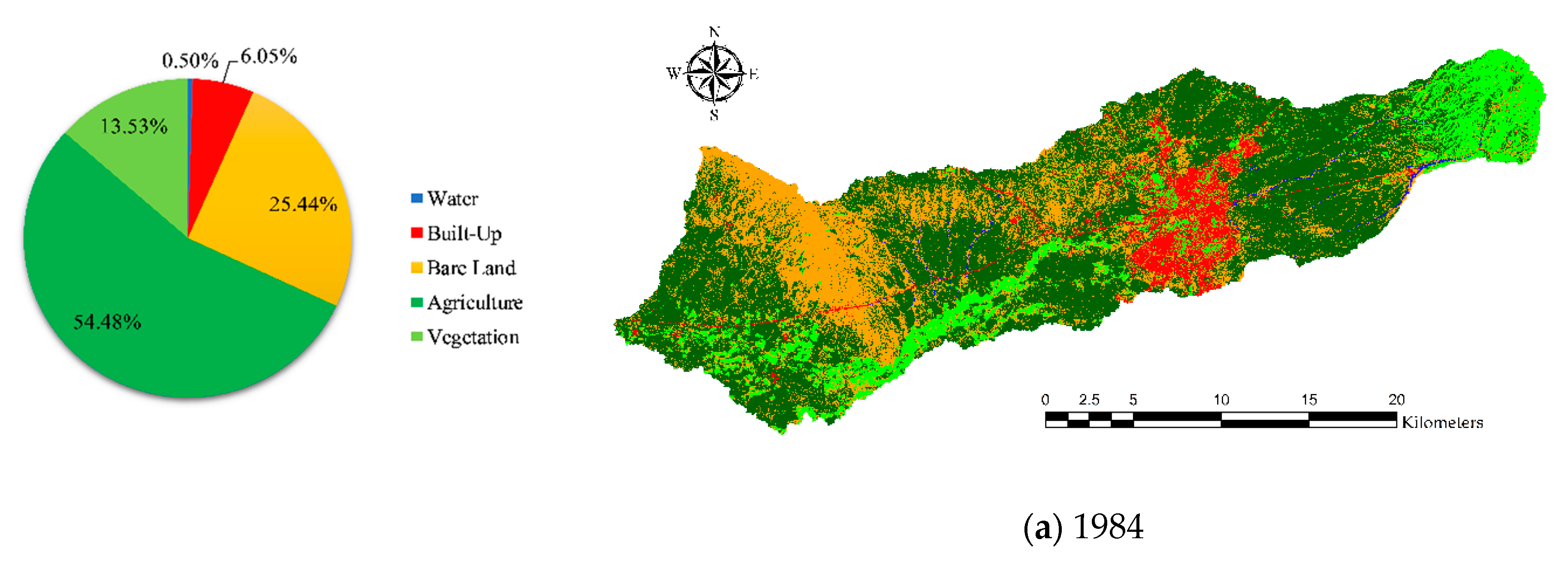

The resulting LULC maps generated for the studied area for 1984, 1994, 2004, 2014 and 2019 are shown in Figure 5a–e, respectively.

The water class was only about 0.50% in 1984 and 1994, and after this period surface waters disappeared in the basin. Nevertheless, surface waters flow in seasonal streams if there is enough precipitation in the year. For example, in 2018, annual precipitation reached 721.3 mm, and this amount was not recorded in Erbil city center from 1992. As a consequence of this, some seasonal streams appeared again. In 1984, 1994 and 2004, built-up areas steadily increased, starting from 30.751 km² to 44.283 and then to 55.823, respectively (Figure 5). While in 2014, this amount leaped enormously to about 119.101 km². From 1984 to 2014, the areas of agriculture and vegetation decreased significantly. For instance, agricultural areas in 1984 were 54% of the total area but this range in 2019 decreased to about 33%, and the range of vegetation also decreased from about 14% in 1984 to just 5% in 2014. The results, as mentioned earlier, revealed that there is a steady transformation in the LULC from 1984 to 2004 compared with that between 2004 and 2014. Impactful LULC changes, and ultimately, development in the urban area, were observed in the studied area from 2004 to the present. In 2019, built-up areas reached 136.658 km², and bare land, compared to 2014, was reduced. In contrast to the decreasing trend of the previous decades, starting from 68.756 to 54.568 and 38.298, and then to 26.893 km², in 2019 the area of vegetation increased to about 46.054 km² (

Table 3. LULC categories; their corresponding areas for 1984, 1994, 2004, 2014 and 2019.

LULC Category	1984	1994	2004	2014	2019
	Area (km2)
Water	2.537	2.387	-	-	-
Built-up	30.751	44.283	55.823	119.101	136.658
Bare land	129.337	149.191	161.863	186.572	158.347
Agriculture	276.966	257.919	252.363	175.781	167.288
Vegetation	68.756	54.568	38.298	26.893	46.054

).

3.3. Influence of Urbanization on the Flash Flood Potential

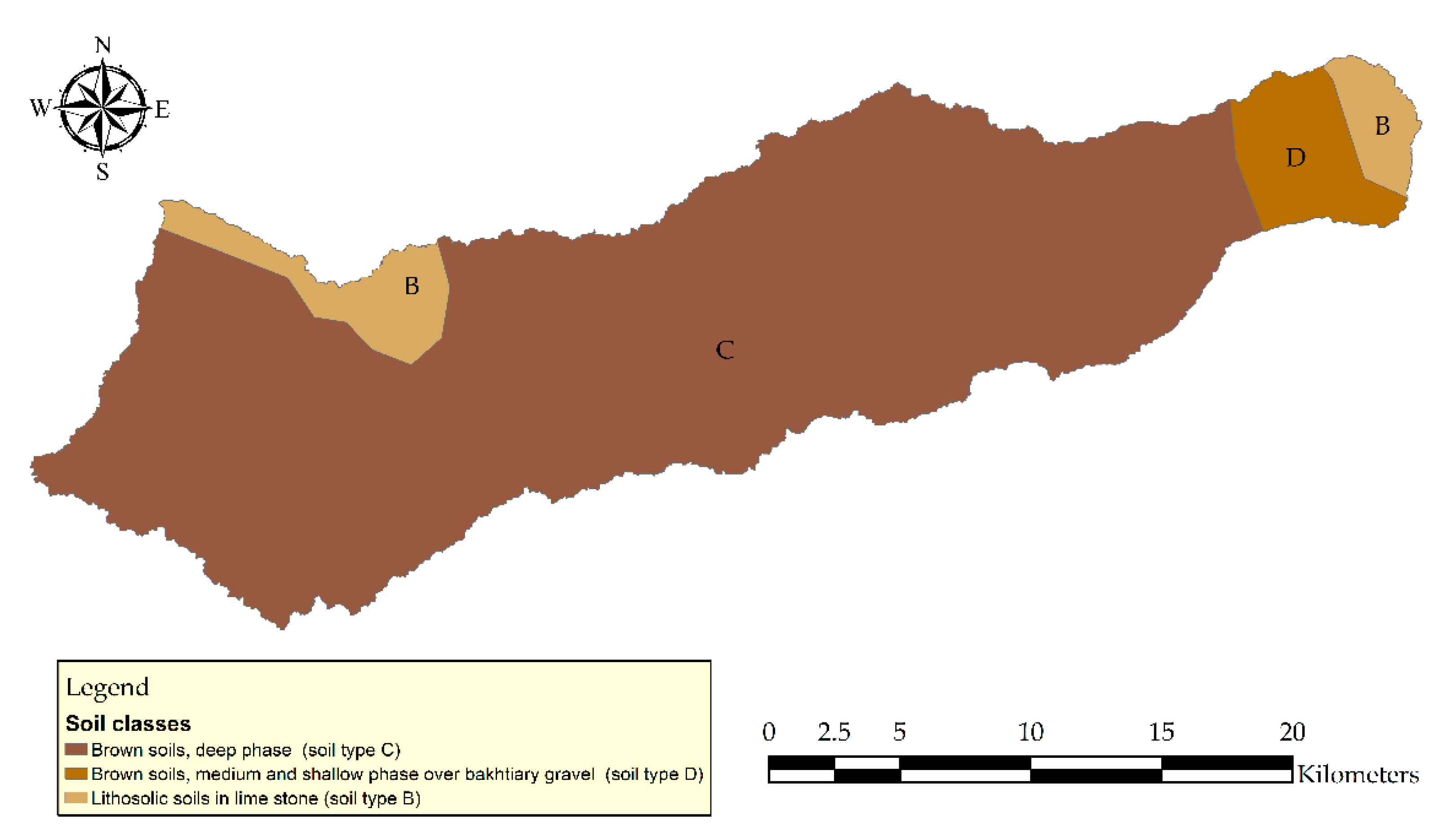

The present study is focused on both urban development and its impact on the flood peak discharge, as well as the runoff coefficient and the flood hydrograph, using the rainfall-runoff hydrological modeling for a storm rainfall depth with the probability distribution of 10%, which is equal to 71.16 mm, and the land use conditions of 1984, 1994, 2004, 2014 and 2019. The SCS-CN loss method has been applied in the HEC-HMS model for computing the runoff. The soil group, land use and hydrological condition of the land cover are the main factors in calculating the CN. The LULC and soil maps are unified, and the hydrological soil group was set as per the soil cover. The assigned CN, relevant to the hydrological soil group and land use cover, is tabulated in

Table 4. Runoff curve number for the integration of different land cover and hydrological soil groups.

LULC Category	Runoff Curve Number for Different Soil Groups
	A	B	C	D
Water	100	100	100	100
Built Up	77	85	90	92
Bare Land	68	79	86	89
Agriculture	65	76	84	88
Vegetation	43	65	76	82

. The composite CN for each sub-basin was derived and used as the input for the SCS-CN modeling in HEC-HMS (

Table 5. Calculated runoff curve number based on the unified soil groups layer and LULC layer of the sub-basins in the studied area using HEC-GeoHMS.

Sub-Basins	Years
	1984	1994	2004	2014	2019
W330	81.12	81.81	83.74	86.14	86.15
W350	83.89	83.99	84.57	86.07	86.10
W360	84.39	85.58	86.15	87.74	87.84
W380	84.84	85.26	85.62	87.02	86.96
W390	85.03	86.31	87.07	87.52	87.44
W440	83.49	83.53	83.68	84.06	83.83
W450	84.92	85.15	85.70	87.21	87.20
W480	82.95	83.71	83.44	85.01	85.23
W500	82.21	82.28	82.17	82.68	82.44
W510	84.20	84.38	84.18	84.39	83.79
W540	83.55	83.64	83.51	83.73	83.19
W560	83.10	83.71	83.47	84.52	84.21
W570	82.37	83.44	83.12	83.59	82.83
W590	82.75	82.97	82.79	83.18	82.93
W620	83.21	83.89	83.82	84.32	83.96

).

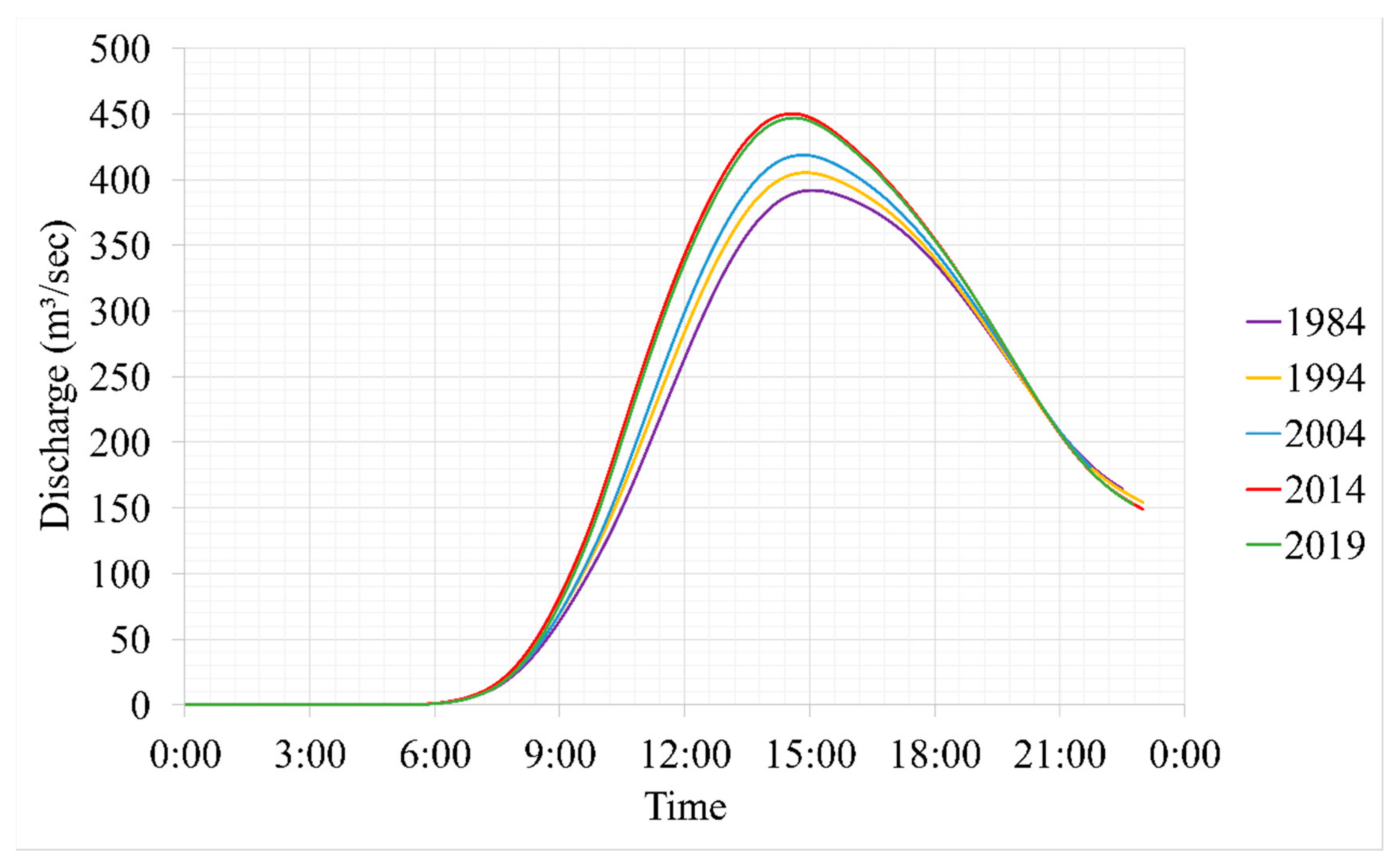

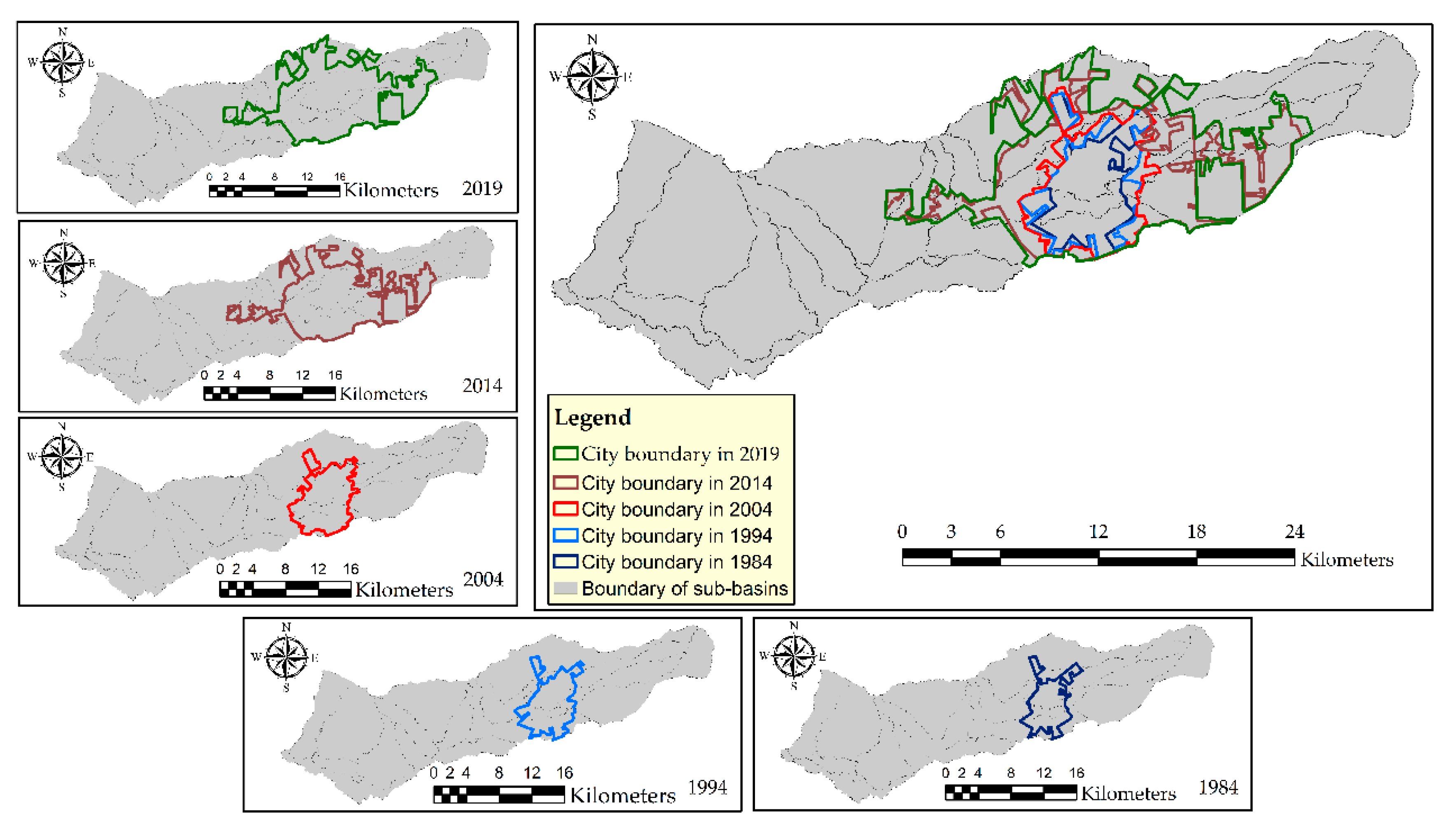

The hydrological modeling reveals that flash flooding caused by more frequent rainfall events (with a smaller probability distribution [47,63]) is increased more by urban growth than by large storm events. Erbil is undergoing an observable horizontal expansion. It has been developing in all directions due to its location on flat terrain and the form and height of Erbil Citadel, which have shaped the urban model of the peripheral areas as concentric rings with a radial axis [48]. A large number of land parcels were distributed within the city master plan, but some of these distributed lands lack municipal services and facilities, and have therefore remained undeveloped [48]. Nevertheless, the category of the land has changed, for instance, from agricultural land to residential land, for example, a neighborhood called Hasarok 8, which was distributed more than fifteen years ago. Generally, the residential areas are more concentrated on the east, north-east and south-east of the city. Hence, the mentioned areas are among the most populated. While the other part of the city is more developed regarding architecture and urban design trends. Wealthy quarters and exclusive compounds have been established, along with several office buildings and business centers [48]. Nowadays, Erbil is considered to be the region’s most developed city and it is a powerful economy for several reasons, such as: being the capital of the KRI, and the existence of KRG ministries, the parliament, international organizations (UN, UNHCR, UNDP, NRC, AMG, etc.), the airport, diplomatic representatives, international companies and the newly generated and expanded political infrastructure. At present, Erbil has more than ninety different quarters, in comparison to eighty-two in 2012, and in 1950 only eight [64]. This can be noticed more visibly in the upper sub-basins (W330, W350, W360, W380, W390 and W450) (

Table 6. LULC changes in the studied area in each sub-basin with changes between 1984–2004 and 2004–2019.

Sub-Basin	LULC	Area (km2)					(%) Change in LULC
		1984	1994	2004	2014	2019	1984–2004	2004–2019
W330	Water	0.854	1.025	-	-	-	−100	-
	Built-up	0.762	2.206	2.696	16.932	19.301	+253.72	+2178.28
	Bare Land	5.843	14.292	21.413	29.678	25.958	+266.48	+77.79
	Agriculture	29.296	20.035	24.719	4.972	5.155	−15.62	−66.78
	Vegetation	16.323	15.521	4.251	1.498	2.664	−73.96	−9.72
Total Area (km2)		53.078
W350	Water	0.036	0.002	-	-	-	−100	-
	Built-up	3.333	4.163	5.681	16.387	21.182	+70.46	+465.14
	Bare Land	12.965	12.467	19.114	33.339	25.371	+47.43	+48.26
	Agriculture	46.222	46.396	40.575	17.280	18.666	−12.22	−47.40
	Vegetation	7.542	7.070	4.728	3.092	4.878	−37.32	+1.99
Total Area (km2)		70.097
W360	Water	0.553	0.597	-	-	-	−100	-
	Built-up	0.919	2.619	3.584	10.787	13.042	+290.01	+1029.29
	Bare Land	3.468	11.200	12.087	11.249	7.593	+248.56	−129.59
	Agriculture	16.694	7.953	9.266	2.977	3.677	−44.50	−33.48
	Vegetation	4.079	3.344	0.776	0.699	1.400	−80.98	+15.31
Total Area (km2)		25.712
W380	Water	0.001	0.013	-	-	-	−100	-
	Built-up	5.621	6.935	8.647	13.931	14.428	+53.83	+102.83
	Bare Land	7.730	7.224	6.353	7.232	6.761	−17.81	+5.27
	Agriculture	10.229	9.926	9.282	3.511	2.939	−9.26	−62.00
	Vegetation	3.424	2.907	2.723	2.332	2.877	−20.45	+4.50
Total Area (km2)		27.005
W390	Water	0.175	0.145	-	-	-	−100	-
	Built-up	9.845	14.216	16.450	20.655	23.027	+67.09	+66.80
	Bare Land	4.758	11.270	12.197	13.073	8.367	+156.33	−80.48
	Agriculture	19.722	11.188	11.493	5.535	6.600	−41.72	−24.81
	Vegetation	7.933	5.613	2.292	3.169	4.439	−71.10	+27.06
Total Area (km2)		42.432
W440	Water	0.715	0.398	-	-	-	−100	-
	Built-up	0.421	0.496	1.052	4.559	5.655	+149.79	+1092.74
	Bare Land	14.171	16.943	21.560	20.381	18.803	+52.14	−19.45
	Agriculture	28.335	25.929	20.874	18.471	17.225	−26.33	−12.88
	Vegetation	0.347	0.223	0.503	0.578	2.306	+44.82	+518.91
Total Area (km2)		43.988
W450	Water	0.002	0.018	-	-	-	−100	-
	Built-up	7.715	11.196	14.386	20.695	22.026	+86.47	+99.03
	Bare Land	8.209	9.412	6.848	7.685	6.645	−16.58	−2.48
	Agriculture	19.366	12.792	13.140	8.281	7.050	−32.15	−31.45
	Vegetation	3.530	5.404	4.448	2.161	3.101	+26.01	−38.14
Total Area (km2)		38.822
W480	Water	0.006	0.017	-	-	-	−100	-
	Built-up	0.412	0.412	0.501	3.074	3.984	+21.62	+844.98
	Bare Land	2.728	3.442	3.759	5.422	5.020	+37.81	+46.22
	Agriculture	10.135	10.704	9.620	6.254	5.592	−5.08	−39.75
	Vegetation	3.032	1.739	2.433	1.563	1.717	−19.77	−23.60
Total Area (km2)		16.313
W500	Water	0.167	0.022	-	-	-	−100	-
	Built-up	0.117	0.053	0.137	1.495	1.607	+16.92	+1256.92
	Bare Land	8.689	8.331	7.939	7.928	8.351	−8.63	+4.74
	Agriculture	7.570	8.710	8.875	7.691	6.380	+17.24	−32.96
	Vegetation	1.278	0.704	0.869	0.706	1.481	−31.96	+47.90
Total Area (km2)		17.820
W510	Water	0.001	0.028	-	-	-	−100	-
	Built-up	0.410	0.275	0.500	3.173	4.655	+22.20	+1014.51
	Bare Land	25.180	23.697	22.507	21.094	17.429	−10.62	−20.17
	Agriculture	24.115	27.329	27.149	25.700	23.766	12.58	−14.03
	Vegetation	2.027	0.404	1.576	1.765	5.882	−22.25	+212.48
Total Area (km2)		51.732
W540	Water	0	0.120	-	-	-	0	-
	Built-up	0.344	0.358	0.521	1.378	1.278	+51.57	+220.16
	Bare Land	9.729	8.786	9.393	10.290	8.258	−3.45	−11.67
	Agriculture	18.395	19.655	18.356	16.514	17.271	−0.22	−5.90
	Vegetation	0.607	0.156	0.805	0.893	2.267	+32.64	+241.10
Total Area (km2)		29.075
W560	Water	0.023	0.005	-	-	-	−100	-
	Built-up	0.109	0.354	0.426	1.441	1.348	+290.91	+847.11
	Bare Land	7.691	7.992	6.161	7.881	7.113	−19.90	+12.38
	Agriculture	15.518	16.963	18.141	18.059	18.073	+16.91	−0.44
	Vegetation	5.179	3.206	3.793	1.139	1.986	−26.76	−34.88
Total Area (km2)		28.520
W570	Water	0	0	-	-	-	0	-
	Built-up	0.189	0.264	0.252	0.517	0.578	+33.33	+172.38
	Bare Land	1.503	1.158	0.536	0.952	1.054	−64.31	+34.43
	Agriculture	5.664	7.253	7.664	7.268	6.115	35.32	−27.36
	Vegetation	2.532	1.212	1.435	1.151	2.141	−43.33	27.91
Total Area (km2)		9.887
W590	Water	0	0.001	-	-	-	0	-
	Built-up	0.098	0.137	0.149	0.662	0.766	+52.29	+628.44
	Bare Land	2.908	2.078	1.101	0.848	1.945	−62.15	+29.03
	Agriculture	13.808	15.264	15.896	16.425	14.231	15.12	−12.06
	Vegetation	3.956	3.290	3.623	2.835	3.828	−8.40	5.16
Total Area (km2)		20.769
W620	Water	0.003	0.003	-	-	-	−100	-
	Built-up	0.408	0.499	0.717	3.166	3.498	+75.94	+682.12
	Bare Land	13.628	10.655	10.617	9.240	9.427	−22.09	−8.74
	Agriculture	11.525	17.570	17.003	16.593	14.267	47.52	−23.74
	Vegetation	6.710	3.547	3.936	3.273	5.081	−41.34	17.08
Total Area (km2)		32.273

), where there is a dramatic increase in built-up areas, especially in W330 which grew by about 2178% between 2004 and 2019. Also, built-up areas in sub-basins such as W350 and W360 grew by 465.14% and 1029.29%, respectively. However, there was also development in the built-up areas in the lower sub-basins (440, 480 and 500, 510, 540, 560, 570, 590 and 620). Generally, a lower sub-basin is considered as a rural agricultural area. Between 1984 and 2004, development in these areas was slow. Then after 2004, development started in these areas but the development could not be compared in size to the upper sub-basins.

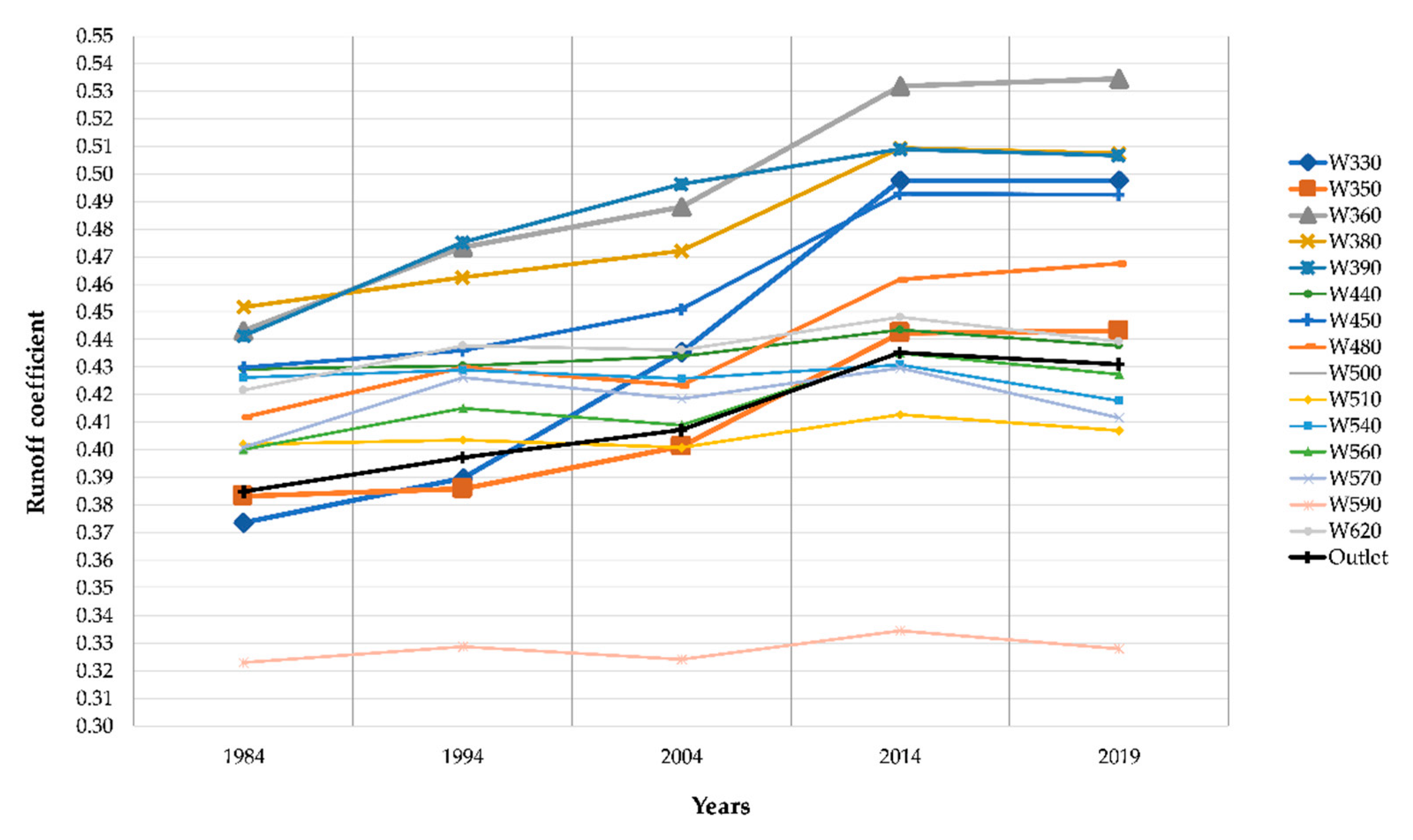

As a consequence of the LULC transformation, the runoff coefficient for Erbil basin was also changed. The example results of the hydrological modeling of the outflow for 10% rainfall probability are presented in Figure 6. The hydrological modeling using HEC-HMS showed that in 1984 the runoff coefficient for Erbil basin was only 0.39, in 1994 and 2004 the rate increased to 0.40 and 0.41, respectively, while in 2014, this rate reached 0.44, which could be considered as a high rate.

As expected, the runoff volume varied in each sub-basin; for instance, there was a considerable LULC change in the sub-basins (W330, W350, W360, W380, W390 and W450). In sub-basin W330, as a consequence of urban development, which was about 2178% only between 2004 and 2019, the runoff volume increased from 26.58 to 35.42 mm (

Table 7. Runoff and runoff coefficient in each sub-basin for p = 10% rainfall (71.16 mm).

Sub-Basins	Runoff (mm)/Runoff Coefficient
	1984		1994		2004		2014		2019
W330	26.58	0.37	27.72	0.39	30.99	0.44	35.42	0.50	35.42	0.50
W350	27.28	0.38	27.47	0.39	28.55	0.40	31.49	0.44	31.54	0.44
W360	31.52	0.44	33.68	0.47	34.74	0.49	37.84	0.53	38.03	0.53
W380	32.15	0.45	32.91	0.46	33.59	0.47	36.25	0.51	36.12	0.51
W390	31.40	0.44	33.82	0.48	35.31	0.50	36.22	0.51	36.05	0.51
W440	30.56	0.43	30.63	0.43	30.88	0.43	31.55	0.44	31.14	0.44
W450	30.59	0.43	31.03	0.44	32.08	0.45	35.06	0.49	35.04	0.49
W480	29.31	0.41	30.59	0.43	30.13	0.42	32.87	0.46	33.28	0.47
W500	28.60	0.40	28.71	0.40	28.53	0.40	29.38	0.41	28.97	0.41
W510	31.73	0.45	32.04	0.45	31.68	0.45	32.06	0.45	31.02	0.44
W540	30.34	0.43	30.51	0.43	30.29	0.43	30.65	0.43	29.73	0.42
W560	28.47	0.40	29.53	0.41	29.11	0.41	30.97	0.44	30.41	0.43
W570	28.53	0.40	30.32	0.43	29.78	0.42	30.58	0.43	29.30	0.41
W590	22.98	0.32	23.40	0.33	23.07	0.32	23.79	0.33	23.33	0.33
W620	29.99	0.42	31.14	0.44	31.03	0.44	31.90	0.45	31.27	0.44
Outlet	27.40	0.39	28.26	0.40	28.97	0.41	30.97	0.44	30.66	0.43

). This revealed that there is a significant impact of urbanization on runoff characteristics. Moreover, Figure 7 and Table 7 show that in all those sub-basins where there was significant urban growth, the runoff coefficient increased as well. The hydrological model has not been validated so far due to the lack of outflow measurements in any of the sub-basins in the studied area. The model verification is planned in the next stage of research on urban flash flood risk mitigation in Erbil.

4. Discussion

RS data, by employing the maximum likelihood method for image classification, were used to provide detailed information to describe the LULC dynamics around the central district of Erbil Province. Regarding the percentage of the accuracy assessment of the classified images (85.60%), this could be considered to be an acceptable classification. A Kappa statistics value of between 0 and 1 for the analysis of classified maps has become the standard for the agreement of maps in practice [65]. The Kappa values for the results of our study and the validation of the visual interpretation classification of five classified images were over 0.79, which means that all maps agree well (a Kappa value between 0.61 and 0.8 is considered to correspond well [66,67]).

Urbanization in Erbil city has witnessed both dramatic changes and shifts in different periods. These changes principally corresponded to legislation factors, in parallel with the political situation, and economic and social determinants over four subsequent periods: (1920–1958), (1958–1991), (1991–2003), (2003–present) [68]. Between 1984 and 2003, Iraq generally and the Kurdistan Region, which was established in 1992, were in a period of slow economic growth, due to the number of wars that happened in this area, such as the Iraq–Iran war (22 September 1980–20 August 1988), Gulf War (2 August 1990–28 February 1991), and Kurdish conflict (1994–1998). However, the Kurdistan Region, and especially Erbil as the capital of the region, witnessed considerable growth and development after 2004. Generally, since 1991, the KRI has been a de facto independent entity making its own regulations and policies, and according to the new constitution, which was prepared in 2005, Iraq is a federal country, with the Kurdistan Region as the only federal state within its borders [69]. Further analysis showed that the increase in built-up areas was about 25 km² between 1984 and 2004, which nearly equals 1.25 km² per year. Furthermore, only between 2004 and 2014, the increase in built-up areas was about 63 km², which is the equivalent of 6.3 km² per year, which can be considered as very high, indicating rapid urban growth in the city with a spatial and temporal change in land use over only ten years. Oil production and real estate investment caused an economic boom. The population of Erbil Province grew from approximately 95,000 inhabitants in 1965 to about 1.3 million in 2010 [70], recently reaching more than 2 million. Figure 8 shows the evolution of built-up areas from 1984 to 2019. The current study, supported by previous research in this area, demonstrates that increasing urban development in flood plain zones will boost peak discharge, reduce the time to peak, and increase the runoff volume [2,29,71,72,73,74].

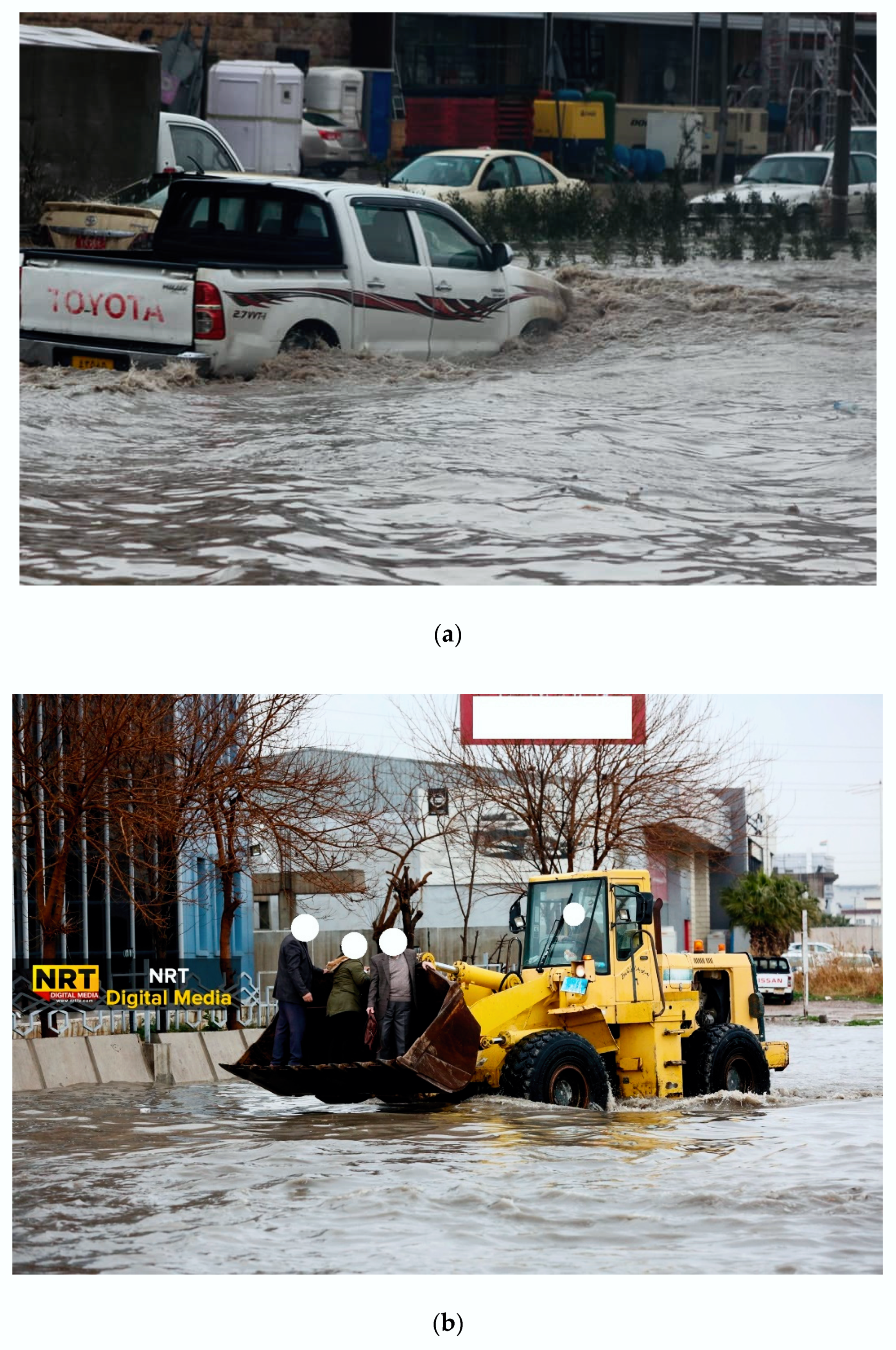

The findings of this study indicate that urbanization resulted in an increased risk of urban flash floods. Another cause of this risk is also the changing characteristics of precipitation as a result of global climate change [47,63]. Such floods are dangerous to people and destroy the urban infrastructure due to the overflow of the stormwater drainage system [75] and increase erosion of the land surface [76]. Generally, urban development will not only boost peak discharge but will also elevate the runoff volume and the extent of the flooded zone within a catchment. Because Erbil city center is more or less a flat territory, the flooding will last for a longer time compared to steeper areas, as well as due to the circularity of the main roads around Erbil Citadel, such as Barzani circular street, Kurdistan circular street, Peshawa circular road, 120 m ring road and the under-construction 150 m ring road. All these mentioned roads cross rivers and streams passing through the city. As a consequence, the routes of most of the rivers and streams have been either blocked or changed to smaller sewer culverts or pipes. This means for urbanized areas, streets, underpasses and low elevation areas, the possibility to be flooded is greater compared to other areas. Erbil center district has suffered from urban flash floods since the 1930s. In the last two decades, the number of flash floods due to heavy rainfalls has increased. Recently, on February 20, 2020, some neighborhoods in the Erbil center district were flooded. According to the meteorological station of the Erbil Directorate of Irrigation, the amount of 24.3 mm rainfall was measured within six hours. Moreover, the highest rainfall intensity recorded in this episode was 9.8 mm/hour in the middle of the event. Water accumulated in the expected areas within a short time. The inundation level was more than 25 cm in some areas, as shown in Figure 9a,b.

5. Conclusions

This study investigated both the dynamic changes in LULC and evolution in the hydrological response in the center of Erbil Province, KRI, from 1984 to 2019 using multispectral satellite data. To sum up our research questions from the introduction section, our outcomes are presented as follows:

• The results revealed that between 1984 and 2004, bare land and built-up areas steadily increased, while between 2004 and 2019, built-up areas soared by almost 245% (from just 55.823 to 136.658 km²). Permeable areas like agricultural land and vegetation steadily decreased from 1984 to 2019. Only between 2014 and 2019 did vegetation areas increase, especially in the downstream area of the city. In our opinion, these changes are related to farming types in these areas, and the remote sensing data showed the class as vegetation;
• Three factors (economic, social and political) influenced the LULC changes in the studied area. For instance, after 2004, the KRI generally, and especially Erbil, enjoyed a decade of prosperity and development due to many factors such as stable security, local and international investment, and the successful implementation of some of the American free market-based developmental policies;
• The influence of urbanization on the flood peak discharge, runoff volume and runoff coefficient were investigated for the depth of storm rainfall at the probability distribution of 10%, which is equal to 71.16 mm under different urbanization scenarios. The simulations showed that urban development could considerably aggravate flooding caused by a given storm due to the hindrance of natural drainage and decreasing permeability;
• As it is obvious in the analysis, parallel to urban development, the runoff volume and peak discharge increased as well. Therefore, the probability of more flash floods in the city is increasing likewise. If the authorities do not take steps related to adopting a new strategy in order to stop urban flash floods, such flash floods will target areas that are denser in urban development and population.

The outcome of this study shows how important remote sensing is for the detection of previous, present and future human activities, in a relatively simple, cheap and easy way. Moreover, without using RS data and GIS techniques, the analysis of LULC in third world countries is somehow difficult or impossible. The results achieved from the study indicate that there is an increase in the runoff peak and volume, which is due to the hydrological response related to urbanization in the city. As a consequence of this, the possibility of flash floods is increased and it becomes a risk to life quality in the studied area, especially in the center of the city. The findings of the study are also important for policymakers and local authorities when deciding how to re-adapt the city to the current situation and plan for future development. In addition, the findings and the prepared LULC scenarios of this study will be useful in the research field on the flash floods mitigation in the studied area.
