Comparative Analysis on the Estimation of Diurnal Solar-Induced Chlorophyll Fluorescence Dynamics for a Subtropical Evergreen Coniferous Forest

Abstract

Solar-induced chlorophyll fluorescence (SIF) is considered as a prospective indicator of vegetation photosynthetic activity and the ecosystem carbon cycle. The current coarse spatial-temporal resolutions of SIF data from satellite missions and ground measurements still cannot satisfy the corroboration of its correlation with photosynthesis and carbon flux. Practical approaches are needed to be explored for the supplementation of the SIF measurements. In our study, we clarified the diurnal variations of leaf and canopy chlorophyll fluorescence for a subtropical evergreen coniferous forest and evaluated the performance of the canopy chlorophyll concentration (CCC) approach and the backward approach from gross primary production (GPP) for estimating the diurnal variations of canopy SIF by comparing with the Soil Canopy Observation Photosynthesis Energy (SCOPE) model. The results showed that the canopy SIF had similar seasonal and diurnal variations with the incident photosynthetically active radiation (PAR) above the canopy, while the leaf steady-state fluorescence remained stable during the daytime. Neither the CCC nor the raw backward approach from GPP could capture the short temporal dynamics of canopy SIF. However, after improving the backward approach with a correction factor of normalized PAR incident on leaves, the variation of the estimated canopy SIF accounted for more than half of the diurnal variations in the canopy SIF (SIF₆₈₇: R² = 0.53, p < 0.001; SIF₇₆₀: R² = 0.72, p < 0.001) for the subtropical evergreen coniferous forest without water stress. Drought interfered with the utilization of the improved backward approach because of the decoupling of SIF and GPP due to stomatal closure. This new approach offers new insight into the estimation of diurnal canopy SIF and can help understand the photosynthesis of vegetation for future climate change studies.

1. Introduction

Chlorophyll Fluorescence (ChlF) is regarded as a prospective marker of vegetation photosynthetic activity and a vital indicator of the carbon cycle. Leaf chlorophyll molecules capture light energy and transmit it to the reaction centers to release through three pathways: photochemistry to drive photosynthesis, non-photochemical quenching (NPQ, i.e., thermal energy dissipation) and a small part re-emitted as ChlF [1,2]. The physics-physiology mechanism linking the photosynthetic function to ChlF indicates that the fluorescence can be an observable and valid indicator of vegetation photosynthetic activity. With the recent advancements in remote sensing techniques, solar-induced chlorophyll fluorescence (SIF) can be detected by remote sensing instruments and has been found to be correlated with gross photosynthetic carbon dioxide (CO₂) assimilation or gross primary production (GPP) at the canopy and landscape scales [3,4,5,6]. Numerous satellite missions provide space-borne SIF datasets, including GOSAT [7], GOME-2 [8], SCIAMACHY [9], OCO-2 [10], TROPOMI [11] and TANSAT [12]. Therefore, the application of fluorescence signals to derive plant photosynthesis for regional and global carbon cycle research has received increasing attention.

However, those satellite sensors only provide SIF data as passage grids, with a spatial resolution of at most several kilometers and unsatisfactory space coverage. Global satellite-based SIF data are only aggregated to biweekly and monthly at a coarse spatial resolution of 1° and 0.5° (e.g., OCO-2 and GOME-2). Spectroradiometer systems, which offer continuous tower-based SIF measurements at the canopy level, have gradually popularized. The systems semi-synchronously measure solar irradiance and plant canopy radiance for calculating the canopy SIF signals. Tower-based SIF observation systems include FluoSpec [6,13], AutoSIF [14], FloX [15], PhotoSpec [16], FAME [17] and SIFspec [18], offering an opportunity to bridge the measurement gap between satellites and carbon flux towers. ChinaSpec, a network of collaborating sites to conduct ground-based continuous SIF measurements along with flux for ecosystem research, has founded starting in 2016 and been used to assist in the validation of fluorescence models and satellite SIF products [19]. However, the distribution of these sites is still too limited to verify the satellite SIF data for multi-biome and large-scale studies so far. Thus, more SIF data resources are still needed for the verification of satellite observations and the corroboration of its correlation with photosynthesis.

Process models have been considered to be helpful approaches for quantifying the ecosystem processes and supplementing the limited practical measurements. SCOPE (Soil Canopy Observation Photosynthesis Energy) model [20] has been used proverbially as an essential tool for estimating continuous SIF and exploring fluorescence-photosynthesis linkages at different temporal scales. Holding a complete physiological expression of photosynthesis and fluorescence process, SCOPE has been considered to be a robust and reliable model for comprehending SIF and photosynthetic status in numerous research [21,22,23]. However, SCOPE model requests lots of input data, including leaf traits, leaf biochemical, canopy structure, meteorology and geometry, which might be difficult to obtain fully. SIF has usually been found sensitive to leaf chlorophyll content (Cab) and leaf area index (LAI) by a global sensitivity analysis using the SCOPE model [24]. Depending on that, an approach for estimating SIF at landscape and seasonal scale was established using the empirical non-linear logarithmic relationship between SIF and a product of Cab and LAI (i.e., canopy chlorophyll concentration, CCC) [25]. Except that, a forward GPP estimation approach based on canopy SIF measurement and leaf ChlF parameter was proven useful for the estimation of GPP dynamics [26], which implies whether we can use a backward way from measured GPP as a new alternative approach for canopy SIF estimation. An evaluation of these two approaches is needed for better interpreting the temporal dynamics of the SIF signal, especially for the diurnal dynamics.

Subtropical forests, a widely distributed ecosystem in southern China, are crucial to the regional and even global carbon cycle because of their high carbon sequestration capacity. It was estimated that the total annual net ecosystem production (NEP) of monsoon subtropical forests in East Asia accounted for 8% of the global forest NEP [27]. A recent study reported that the rapid increase of afforestation in the past 30 years resulted in the large carbon sink in mainland China, especially in Southwest China, in which the carbon uptake accounted for approximately one-third of the carbon uptake in mainland China [28]. Due to the highly significant correlation of chlorophyll fluorescence and photosynthesis, accurately quantifying the SIF dynamics of this vital ecosystem is essential both for verifying satellite observation data and interpreting the underlying driving forces in the global terrestrial carbon cycle.

Therefore, the practical issue is how we can accurately estimate SIF for the subtropical evergreen coniferous forests. We evaluated the performances of two approaches, i.e., (1) the CCC approach and (2) the backward approach from GPP, for diurnal SIF estimation using measured and simulated data for a typical subtropical evergreen coniferous forest site in eastern China. In this study, our objectives are: (1) interpreting the diurnal dynamics of chlorophyll fluorescence (F_s and SIF) of a subtropical evergreen coniferous forest; (2) quantitatively evaluating the performance of the two approaches for estimating SIF by comparing with the timulation of the SCOPE model.

2. Materials and Methods

2.1. Study Site

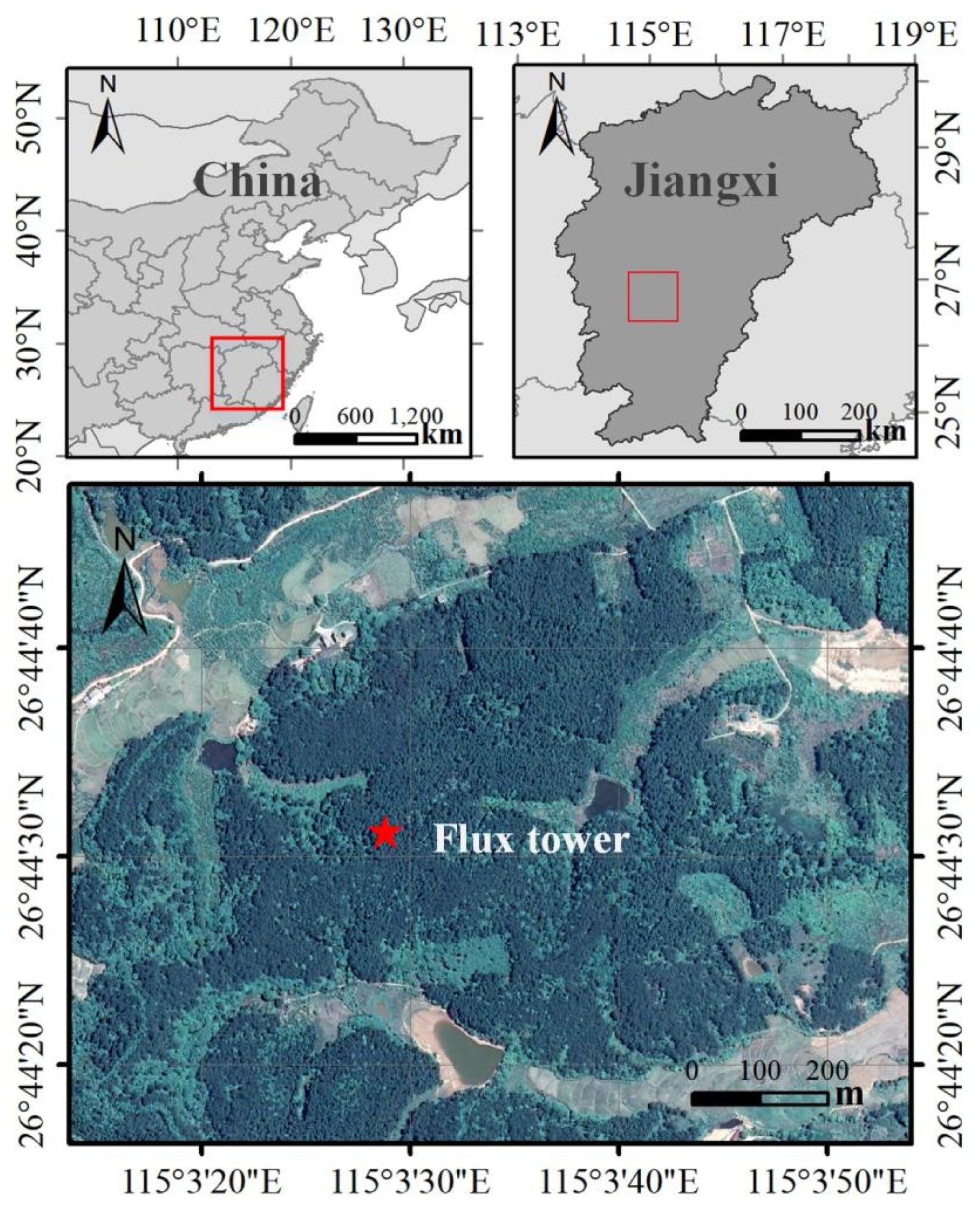

The study was conducted at the flux tower of the Qianyanzhou (QYZ) Ecological Research Station (26°44′48″ N, 115°04′13″ E, elevation 110.8 m), located in the Ji’an, Jiangxi Province in southern China (Figure 1). QYZ site has a typical subtropical monsoon climate. The annual average solar radiation is 4661 MJ·m⁻² and the annual average air temperature is 17.9 °C. The annual average precipitation is 1485.1 mm and the rainfall occurs mainly from March to June. The soil taxonomy of the site is red soil. The evergreen coniferous forest covers 90% of the flux tower surrounding area. Major species including Pinus massoniana, Pinus elliottii occupy more than 95% of the evergreen coniferous plantation plot, which was established in the 1980s [29]. The mean canopy height of the forest is 15.5 m [30].

2.2. In Situ Measurements

2.2.1. Eddy Flux and Ancillary Measurement

Eddy covariance (EC) system was fixed at the height of 23 m on the flux tower to measure the net ecosystem exchange of CO₂ (NEE). The EC system comprises an open-path infrared gas analyzer (LI-7500, LI-COR Inc., Lincoln, NE, USA) for the measurement of CO₂/H₂O concentrations and a three-dimensional sonic anemometer (CSAT3, Campbell Scientific Inc., Logan, UT, USA) for the measurement of wind speed and virtual temperature. All raw EC data were recorded at 10 Hz frequency by a data logger (CR5000, Campbell Scientific, Logan, UT, USA) and then stored as the 30 min average of the EC data. Data quality control and processing were conducted using the EddyPro software (LI-COR Inc., Lincoln, NE, USA) for the production of NEE estimates. A flux partitioning algorithm [31] was employed to estimate EC-measured GPP (GPP_EC) using NEE and daytime ecosystem respiration (R_e).

$${\mathrm{GPP}}_{\mathrm{EC}}=-\mathrm{NER}+{\mathrm{R}}_{\mathrm{e}}$$

(1)

Ancillary environmental variables at canopy level were measured synchronously with EC flux measurements. The environmental variables included downward shortwave radiation (R_in) and longwave radiation (R_li) (CMP11, Kipp & Zonen, Delft, The Netherlands), PAR incident above the canopy (PAR_canopy) (LI-190SB, LI-COR Inc., Lincoln, NE, USA), air temperature (Ta) (HMP45C, Vaisala Group, Helsinki, Finland), air pressure (p) and atmospheric vapor pressure (ea) (CS105, Vaisala Group, Helsinki, Finland), wind speed (u) (A100R, Vector Instruments, North Wales, UK) and volumetric soil moisture content (SMC, 20 cm depth) (CS615-L, Campbell Scientific Inc., Logan, UT, USA).

2.2.2. Canopy Reflectance

The AMSPEC II spectra system [32] was installed at 31 m height of the flux tower to measure the reflectance of the canopy. The system consists of a UniSpec-DC dual-channel spectrometer (PP Systems, Amesbury, MA, USA), a PTU-D46 automatic tilt rotation device (FLIR Systems, Goleta, CA, USA), a computer and some accessories [30]. The spectrometer is equipped with both up-looking and down-looking fibers and covers a spectral range from around 300 to 1100 nm with 256 contiguous bands and 3.1–3.4 nm of FWHM. The up-looking fiber equipped with a cosine receptor is used to collect hemisphere incident irradiance, while the down-looking bare fiber simultaneously measures canopy radiance with an instantaneous field of view (IFOV) of 20°. Then, the canopy reflectance was calculated to be the ratio of the canopy radiance and incident irradiance, see [30] for details. The canopy reflectance was sampled every 2–3 s and recorded every 15 min from sunrise to sunset [33].

2.2.3. Leaf Chlorophyll Fluorescence and Photosynthesis Rates

Leaf chlorophyll fluorescence and photosynthesis rates of two major species (i.e., Pinus massoniana and Pinus elliottii) were measured on a wooden platform of 14 m height next to the flux tower. An open gas exchange system (LI-6400XT, LI-COR Inc., Lincoln, NE, USA) with an integrated leaf chamber fluorometer (LCF) (LI-6400-40, LI-COR Inc., Lincoln, NE, USA) was used to simultaneously measure the leaf chlorophyll fluorescence and photosynthesis rates. Meanwhile, some environmental variables at the leaf level were measured, including the PAR incident on the leaves (PAR_leaf), leaf temperature and leaf humidity. We randomly selected 3 clusters of the upper canopy needles of each species for in situ measurement every month during the 2017 growing season, namely 21 April, 22 May, 1 July, 22 July, 31 August, 24 September, 23 October and 25 November. When we used LI-6400XT to measure, the cluster of needles was flattened and they covered the entire leaf chamber to avoid measurement errors caused by overlapping leaves or gaps between leaves [33].

The selected needles were wrapped in tin foil for at least 30 min [34] before the dark-adapted measurements at around 8:00. Then, they were measured once an hour for light-adapted measurements till 17:00. After being placed in the dark for at least 30 min, the leaves were shined on by a weak red light from the LCF and the initial minimum fluorescence (F_o) was detected. Net photosynthetic rate (P_net, μmol m⁻² s⁻¹) of the leaves was recorded together with the measurements of F_o. The P_net under dark-adapted light ambient was regarded as dark respiration. Next, when the leaves were exposed to a saturating pulse, the fluorescence immediately rose to an initial maximal level (F_m) [26]. After the dark-adapted process, all leaves were exposed to ambient light to prepare for the light-adapted process. In this process, LCF provided an actinic light at an intensity equal to the ambient light. Then, the steady-state fluorescence (F_s) and P_net were recorded once they fluctuated in allowed ranges after the leaves were illuminated for 20–30 min. The P_net was quantified under an ambient-synchronized light intensity (i.e., PAR_leaf) and CO₂ level, except for the first measurement under a dark-adapted light ambient. Then, the leaf apparent photosynthesis (P_apparent) was calculated as the sum of dark respiration and P_net at a given ambient light intensity [35].

2.2.4. Leaf Traits and Canopy Structure

After each photosynthetic measurement, a Chlorophyll Content Meter CCM 300 (Opti-Sciences, Inc., Hudson, NH, USA) was used to measure the Cab of the same leaves (

Table 1. Leaf chlorophyll content (Cab) and canopy structure variable (LAI) used in this study.

Date	21 April	22 May	1 July	22 July	31 August	24 September	23 October	25 November
Cab (μg cm−2)	43.53 ± 3.51	43.83 ± 3.14	45.42 ± 3.25	41.76 ± 3.82	40.87 ± 6.36	43.48 ± 5.38	46.23 ± 5.59	42.88 ± 3.26
LAI (m2 m−2)	4.31 ± 0.58	4.37 ± 1.07	4.56 ± 0.49	4.85 ± 1.07	4.63 ± 0.62	4.41 ± 0.68	4.37 ± 0.40	4.24 ± 0.48

). The chlorophyll contents of leaves were measured at least five times and averaged for the final values. Plant canopy analyzer LAI-2200 (LI-COR Inc., Lincoln, NE, USA) was used to measure the effective LAI (i.e., LAI_e) on the same day as leaf fluorescence and photosynthesis measurements. In order to minimize the impact of multiple scattering of solar radiation, we measured LAI_e at overcast days or near sunset [36]. We averaged around thirty values to obtain the final LAI_e value of the day. Then, the effect of foliage clumping was considered on true LAI (LAI = (1 − α) × LAI_e × γ_E/Ω_E) with average shoot projected area (α = 0.07 [37]), needle-to-shoot area ratio (γ_E = 1.45 [38]) and clumping index (Ω_E = 0.81 [38]). The maximum rate of Rubisco carboxylation (V_cmax) was obtained from [33], which observed the same tree species during the same period.

2.3. SIF Simulation by SCOPE Model

2.3.1. SCOPE Model Description

We used the SCOPE model to retrieve vegetation parameters from the measured canopy reflectance (Ref) and then to simulate the canopy SIF (SIF_SCOPE). SCOPE is an integrated energy balance and radiative transfer model [20,39], which integrates the energy balance process with the radiative transfer of solar radiation (RTMo), thermal radiation emitted by the vegetation (RTMt) and re-emission as fluorescence (RTMf). In the energy balance process, a biochemical module processes the emission efficiency of fluorescence according to the other two energy de-excitation pathways: photochemical quenching via photochemical and non-photochemical quenching via heat dissipation. SCOPE can complete the calculations of canopy reflected radiation, thermal radiation and SIF in company with energy, carbon and water flux. In our study, we applied SCOPE version 2.0 to simulate SIF_SCOPE. To perform the simulation, the model needs input data associated with leaf optical and biochemical properties, canopy structure, meteorology and sun-view geometry (

Table 2. Major input data of SCOPE model used in our study.

Variables	Definition	Unit	Range	Value/Source
Leaf traits
Cab	chlorophyll a and b content	µg cm−2	0–100	measurement
Cca	carotenoid content	µg cm−2	0–25	inversion
Cdm	dry matter content	g cm−2	0–0.02	inversion
Cw	equivalent water thickness	cm	0–0.2	inversion
Cs	brown pigments	a.u.	0–1	inversion
N	leaf structure parameter	–	1–3.5	inversion
Leaf biochemical
Vcmax	maximum rate of Rubisco carboxylation (at optimum temperature)	µmol m−2 s−1	0–200	literature
m	Ball-Berry stomatal conductance parameter	–	5–20	9
Canopy structure
LAI	leaf area index	m2 m−2	0–7	measurement
hc	vegetation height	m	/	measurement
LIDFa	leaf inclination	–	−1–1	inversion
LIDFb	variation in leaf inclination	–	−1–1	inversion
leafwidth	leaf width	m	/	0.001
Meteorology
Rin	broadband incoming shortwave radiation	W m−2	0–1400	measurement
Rli	broadband incoming longwave radiation	W m−2	200–500	measurement
Ta	air temperature	°C	−10–50	measurement
p	air pressure	hPa	900–1100	measurement
ea	atmospheric vapor pressure	hPa	0–60	measurement
u	wind speed at canopy height	m s−1	0–50	measurement
SMC	volumetric soil moisture content	%	5–55	measurement
Geometry
LAT	latitude	decimal deg	/	measurement
LON	longitude	decimal deg	/	measurement
tto	observation zenith angle	decimal deg	0–60	0

) [21]. The major input variables were derived from field measurements and model inversion. Other required variables of the SCOPE model were assumed as their default values. Our analysis concentrated on the SIF estimation results at 687 nm and 760 nm (SIF₆₈₇ and SIF₇₆₀), standing for the red and far-red solar-induced fluorescence, respectively.

2.3.2. Parameter Inversion and SIF Simulation

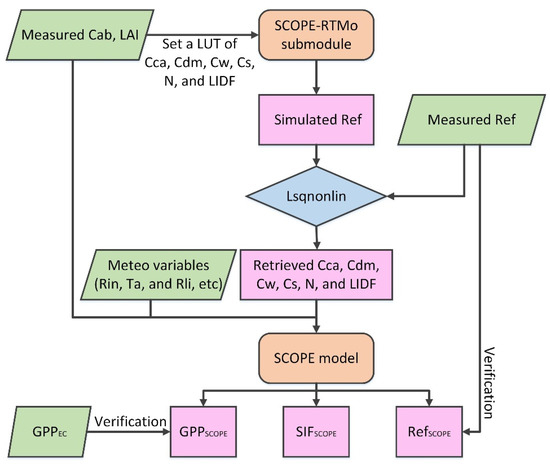

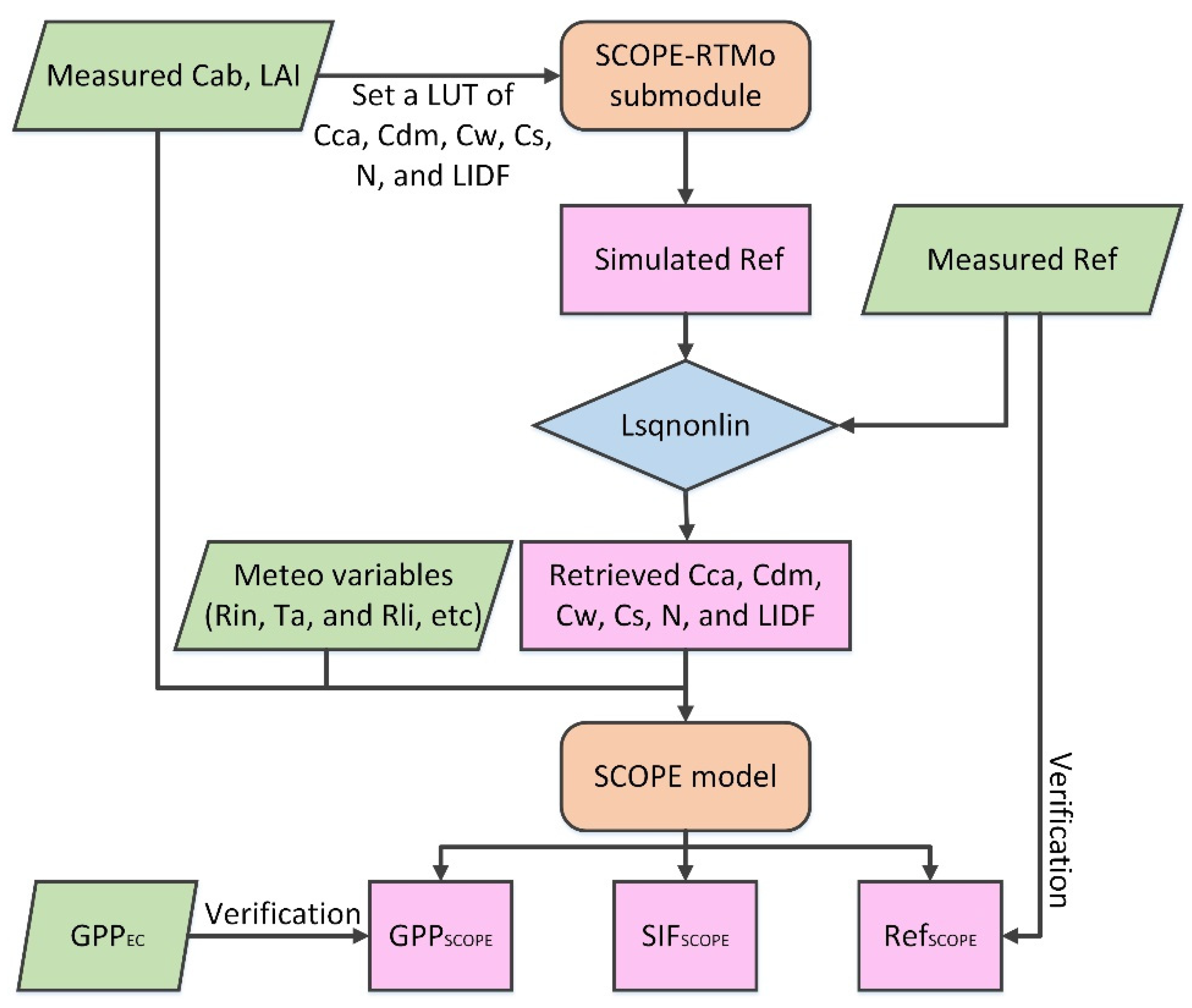

The values of some vegetation parameters (see details in Table 2) were retrieved from the reflectance apectra (400 to 850 nm) using the optical radiative transfer routine of SCOPE (i.e., RTMo). We used the numerical optimization (NO) method for the retrieval of required leaf and canopy parameters (Cca, Cdm, Cw, Cs, N, LIDFa and LIDFb). NO method aims to minimize the cost function that quantifies the difference between measured and simulated data by successively changing the input parameters. One set of parameter values were retrieved separately for each of the measurement days, using the canopy reflectance measured at midday [40]. Before the method started, the measured canopy reflectance spectra were linearly interpolated to a resolution of 1 nm to match the simulated one. We used the ‘lsqnonlin’ function listed in the optimization toolbox of MatlabR2017 and chose the ‘Trust Region algorithm’ for updating the values of required parameters within the ranges in [41]. With the retrieved vegetation parameters and half-hourly meteorological variables as input, we simulated diurnal cycles of SIF (SIF_SCOPE, i.e., SIF₆₈₇ and SIF₇₆₀), GPP (GPP_SCOPE) and canopy reflectance (Ref_SCOPE) using the full SCOPE model. The SCOPE model outputs the net canopy photosynthesis, representing the total gross photosynthesis minus the CO₂ flux caused by leaf respiration [21]. Therefore, we added the total photosynthesis rate of leaf as one of the outputs for the codes of the biochemical module in the SCOPE model, then the total gross photosynthesis rate of the canopy, known as GPP_SCOPE, was calculated as the same way of net photosynthesis. The measured GPP_EC and Ref were compared with the simulated ones to validate the accuracy of SCOPE model simulation (Figure 2).

2.4. Evaluation of the Two SIF Estimation Approaches by Comparing with SCOPE Model

2.4.1. SIF Estimation of the CCC Approach

It was found that CCC (canopy chlorophyll concentration) had a non-linear logarithmic relationship with canopy SIF for the deciduous mixed forest plantation, which was used to estimate spatial SIF [25]. Thus, we supposed that the CCC might be an approach to estimate the diurnal dynamics of SIF. In the CCC approach, SIF is described as a logarithmic function of CCC as follows:

$${\mathrm{SIF}}_{\mathrm{CCC}}=\mathrm{a}\times \mathrm{In}\left(\mathrm{CCC}\right)+\mathrm{b}$$

(2)

where CCC was calculated by the product of Cab and LAI.

2.4.2. SIF Estimation of the Backward Approach

The backward approach is a reverse process of GPP estimation. With the given leaf-based parameter, namely, $\frac{{\mathrm{P}}_{\mathrm{apparent}}}{\mathrm{c}\times {\mathrm{F}}_{\mathrm{s}}}$, GPP was forward estimated using SIF measurements [26]. Therefore, we could reversely estimate SIF using GPP measurements and the parameter:

$${\mathrm{SIF}}_{\mathrm{BACK}}={\mathrm{GPP}}_{\mathrm{EC}}\times \frac{\mathrm{c}\times {\mathrm{F}}_{\mathrm{s}}}{{\mathrm{P}}_{\mathrm{apparent}}}$$

(3)

where c is the correction coefficient, which is proven to be a typical constant of 0.0001 (mW m⁻² sr⁻¹ nm⁻¹ per F_s count) [26].

However, the coefficient c was obtained under a given incident PAR at the light intensity of 600 μmol m⁻² s⁻¹ [26], so we improved the backward approach through a correction factor (k), a ratio of PAR_leaf and the given PAR.

$${\mathrm{SIF}}_{\mathrm{BACK}*}={\mathrm{GPP}}_{\mathrm{EC}}\times \frac{\mathrm{k}\times \mathrm{c}\times {\mathrm{F}}_{\mathrm{s}}}{{\mathrm{P}}_{\mathrm{apparent}}}$$

(4)

2.4.3. Evaluation Process of the Two Approaches

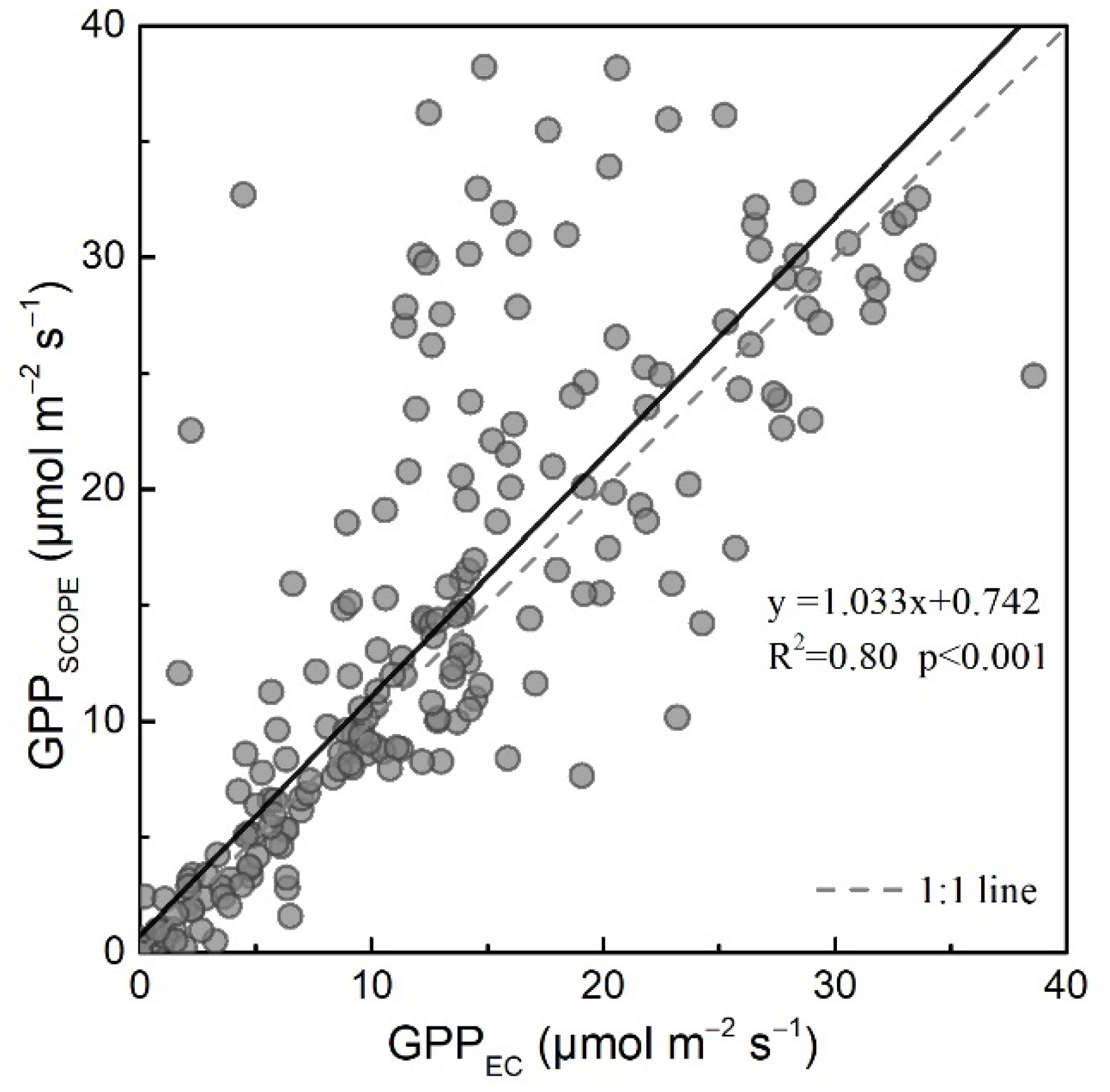

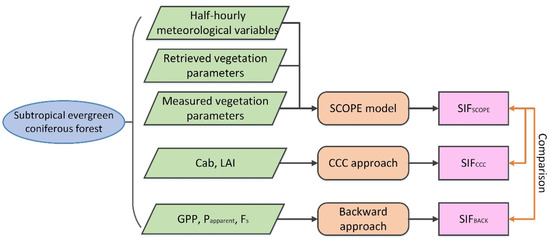

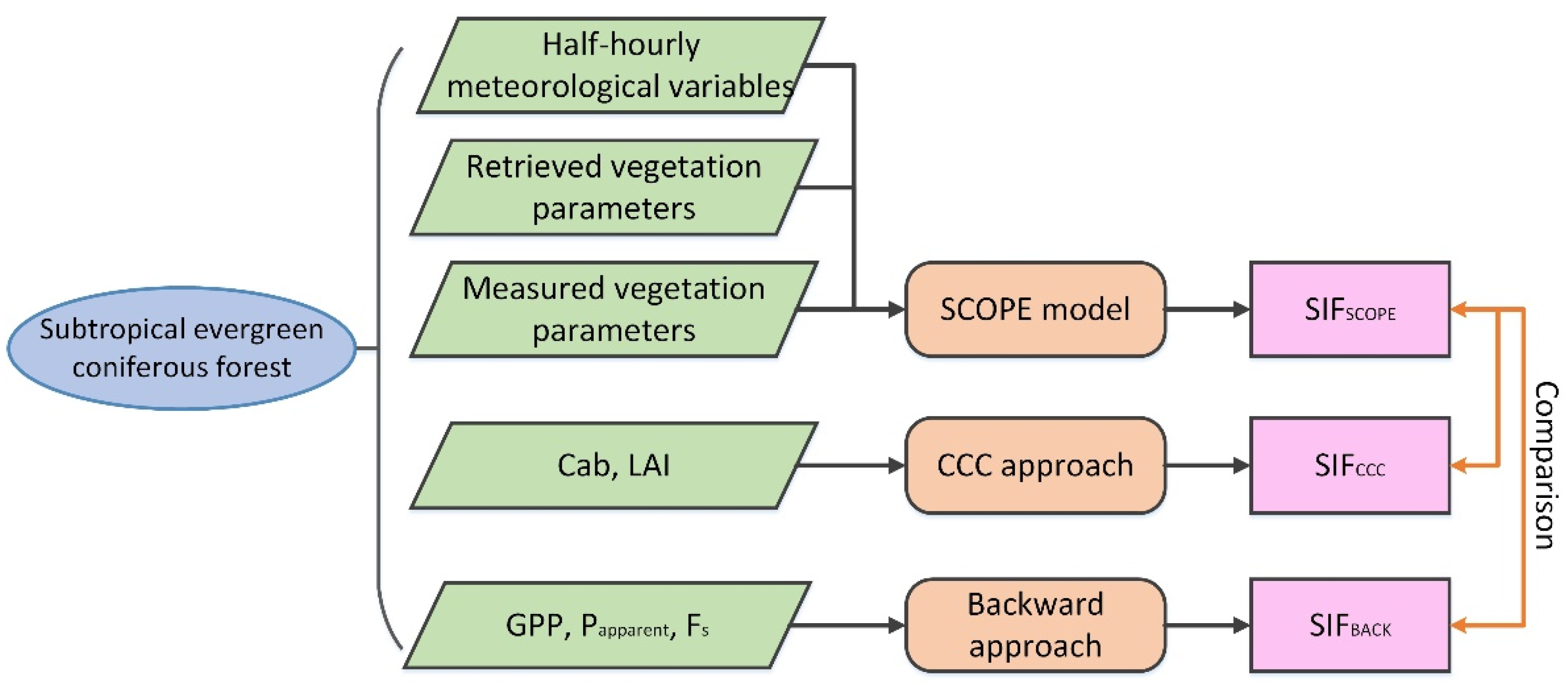

Taking SIF simulated by the SCOPE model (SIF_SCOPE) at the canopy level as a benchmark, we compared the diurnal variations in SIF estimated by both CCC and backward approaches with the SIF_SCOPE (Figure 3). The performances of relationships between SIF_SCOPE and SIF estimated from different approaches were evaluated by the coefficient of determination (R²). Cab, F_s and P_apparent were measured hourly; thereby, half-hourly GPP_EC and SIF_SCOPE were averaged to every hour to match the time resolution of the others. Due to a malfunction of the LI-6400XT, the erroneous observation data on 22 May was eliminated.

3. Results

3.1. Parameters Retrieved from In Situ Measurements for SCOPE Model

The leaf traits and canopy structure parameters, including Cab, Cca, Cs, Cw, Cdm, N, LIDFa, LIDFb and LAI, together govern the changes in the canopy reflectance. Based on the inversion procedure as shown in Figure 2, vegetation parameters including Cca, Cdm, Cw, Cs, N, LIDFa and LIDFb were retrieved on the eight fieldwork days (

Table 3. Retrieved parameters from measured canopy reflectance by SCOPE model on fieldwork days in 2017 for the subtropical evergreen coniferous forest at QYZ site.

Date	21 April	22 May	1 July	22 July	31 August	24 September	23 October	25 November
Cca	5.02	6.23	8.59	10.13	9.65	13.14	7.20	2.86
Cdm	0.02	0.02	0.02	0.02	0.02	0.02	0.02	0.02
Cw	0.050	0.05	0.049	0.050	0.050	0.049	0.050	0.050
Cs	0.72	0.34	0.64	0.25	0.26	0.24	0.33	0.69
N	3.00	3.00	3.00	2.17	3.00	2.96	3.00	3.00
LIDFa	0.91	−0.45	−0.51	−0.75	−0.89	−1.00	−0.97	0.00
LIDFb	−0.40	1.00	0.78	−0.09	1.00	0.65	1.00	1.00
SSR of Ref	1.02	0.16	0.14	0.02	0.04	0.02	0.04	0.28

). Cab and LAI were obtained from field measurements. The results showed that the Cca varied from 2.86 μg cm⁻² to 13.14 μg cm⁻² on different days of the growing season, although Cab of the subtropical evergreen forest did not change significantly during the year (Table 1). Cdm and Cw remained almost stable at 0.02 and 0.05, respectively, during the whole growing season. N was also stable at 3, except for a relatively low value in July. Cs varied greatly throughout the year, showing higher values in spring and autumn and lower values in summer. The seasonal variation in LAI ranged from 4.85 m² m⁻² to 4.24 m² m⁻², with the highest in July and lowest in November (Table 1). The seasonal variation in the pattern of LIDFa and LIDFb showed that the leaf inclination and its distribution both changed during the growing season. The model reproduced the measured canopy reflectance well with sum squared residuals (SSR) between 0.02 and 1.02 (Table 3). The results also showed that the simulated half-hourly GPP_SCOPE significantly correlated to the measured GPP_EC (R² = 0.80, p < 0.001, Figure 4). The linear relationship between GPP_SCOPE and GPP_EC was close to the 1:1 line, in spite of some data spread caused by the uncertainty of measured meteorological data and the simplify of the model processes. All these results proved that the SCOPE model could accurately retrieve the characteristics of leaf trait and canopy structure using the measured reflectance as a constraint.

3.2. Diurnal Variations of Chlorophyll Fluorescence on Different Days during the Season

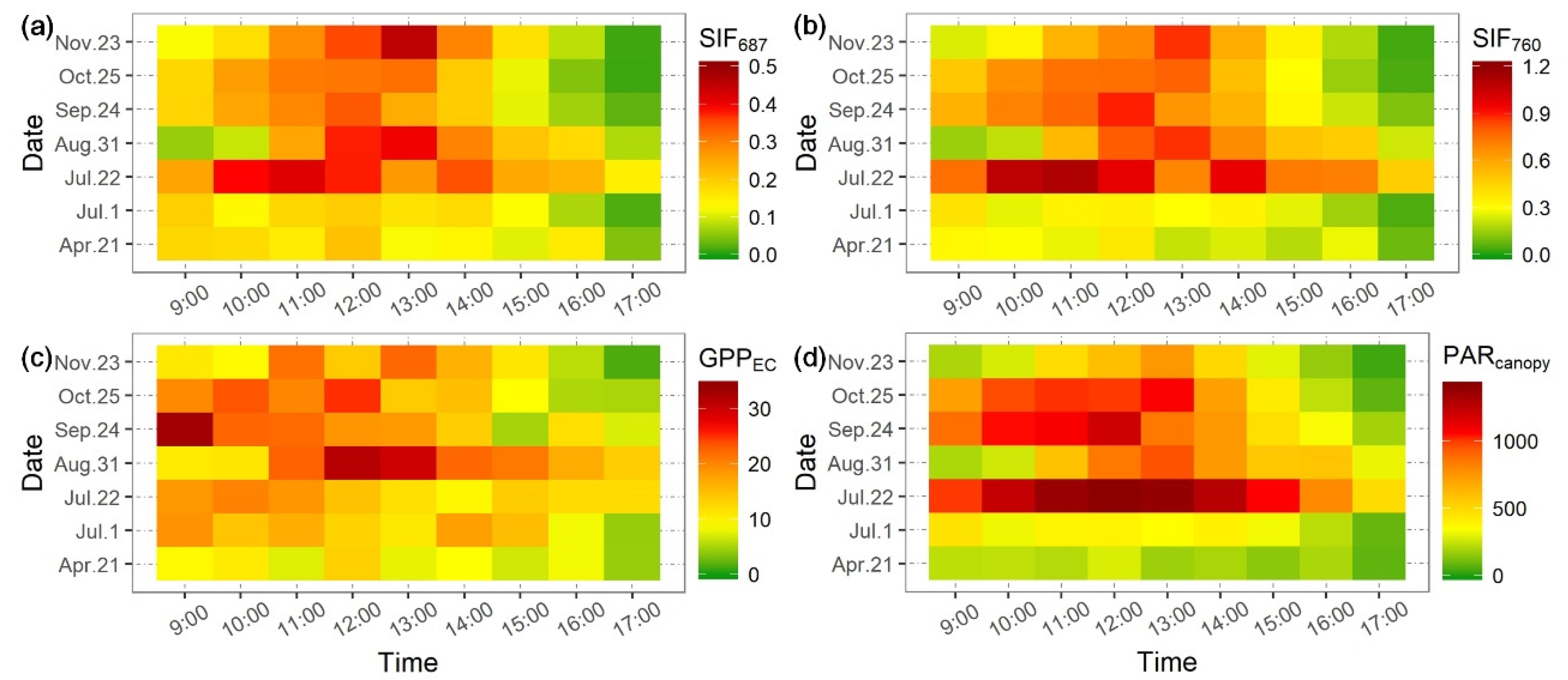

The canopy SIF simulated by the SCOPE model showed that canopy SIF₆₈₇ and SIF₇₆₀ had similar seasonal and diurnal variations (Figure 5a,b). They both reached their peaks in the summer across all these days and their daily maximum appeared near noon (12:00). The variations of canopy SIF closely correlated to the PAR incident above the canopy (SIF₆₈₇: R² = 0.67, p < 0.001; SIF₇₆₀: R² = 0.89, p < 0.001). Noticing that an extremely high PAR occurred on July 22th at both SIF₆₈₇ and SIF₇₆₀. However, the GPP on that day did not show significant high values. We inferred that the excess light was emitted in the form of fluorescence to avert damage to the photosynthetic apparatus of the leaves. For the leaf level, the results illustrated that the value of F_s remained stable throughout one given daylight, although it held seasonal variations with lower in spring and higher in autumn. The variations in leaf PAR and photosynthesis rate (PAR_leaf and P_apparent) were consistent with these of PAR and GPP in the canopy (Figure 5 and Figure 6). The P_apparent also happened to be at the lowest level on 22 July with the high incident PAR (Figure 6c).

3.3. Evaluation of the CCC Approach Compared with the SCOPE Model

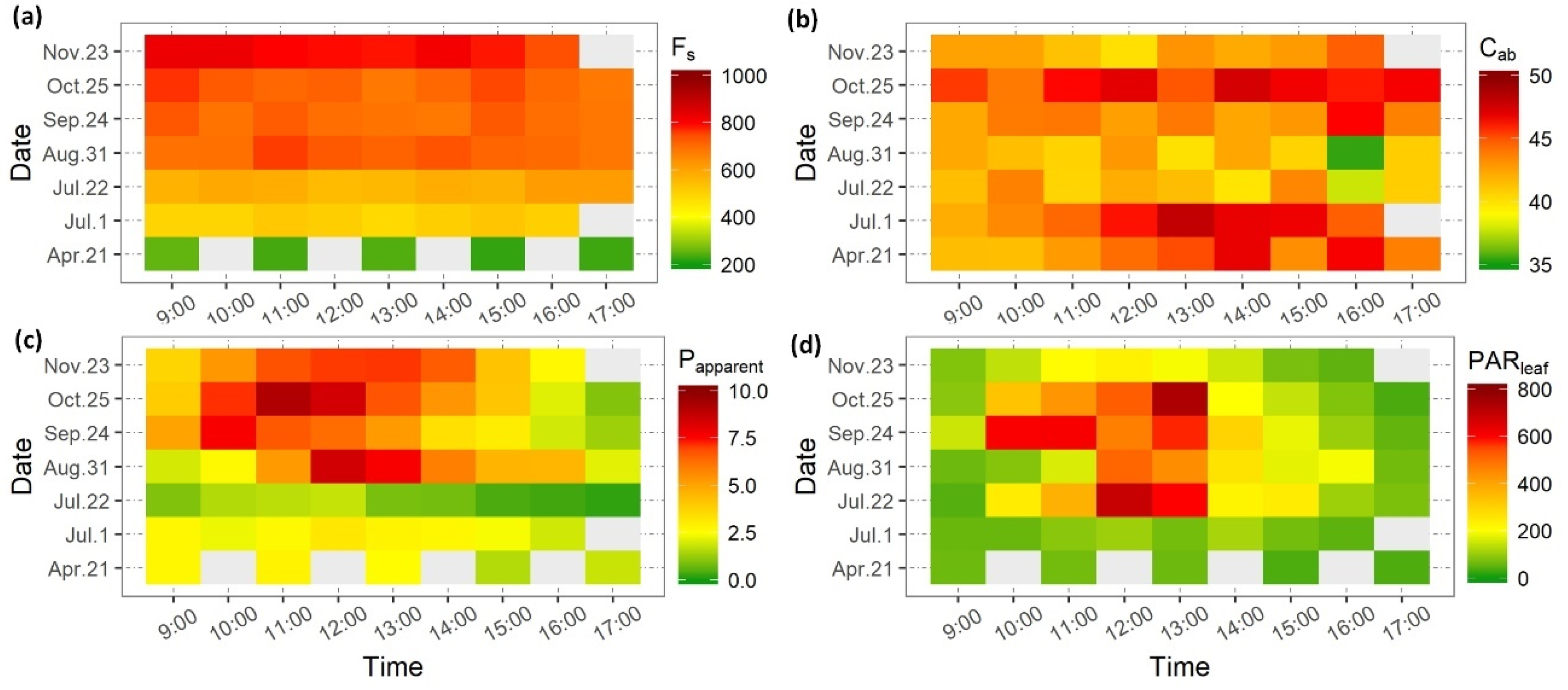

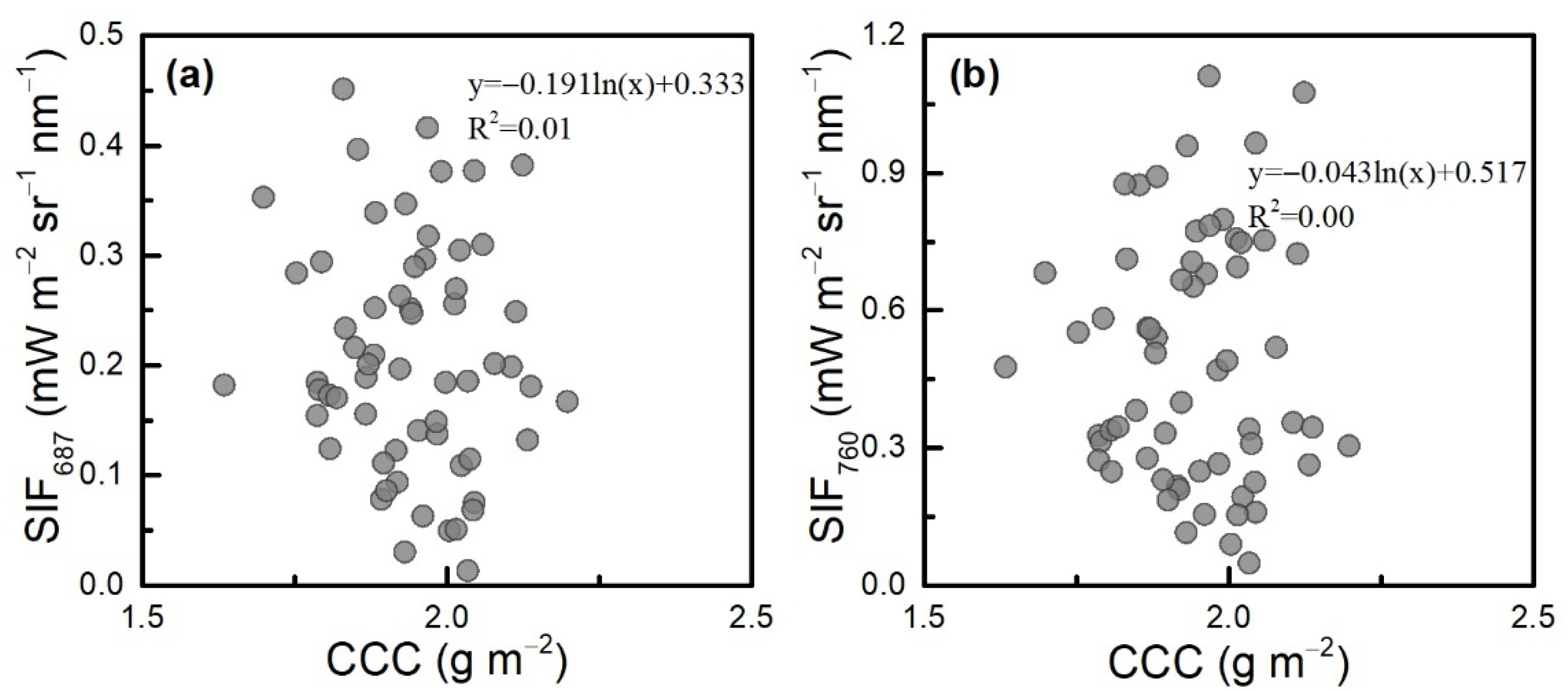

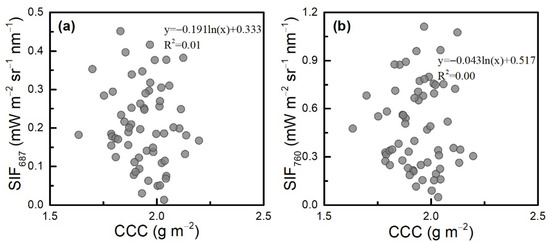

Figure 7 showed the logarithmic relationship between both SIF₆₈₇ and SIF₇₆₀ with the canopy chlorophyll concentration (CCC). The results showed that CCC ranged from 1.6 to 2.2 g m⁻² during the experimental days and it could not capture the diurnal variation in either SIF₆₈₇ or SIF₇₆₀ (R² = 0.01 and R² = 0.00, respectively) with the logarithmic function. The CCC was the product of Cab and LAI. LAI remained unchanged throughout the day; thus, the diurnal variations of CCC depended on the Cab dynamics. However, the diurnal cycle of Cab is no obvious (Figure 6b). Thus, it can be seen that the CCC approach may not be suitable to track the diurnal variations in canopy SIF for the subtropical evergreen coniferous forest.

3.4. Evaluation of the Backward Approach Compared with the SCOPE Model

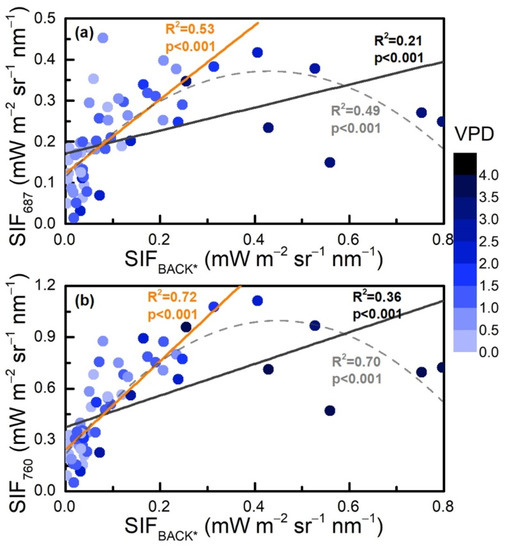

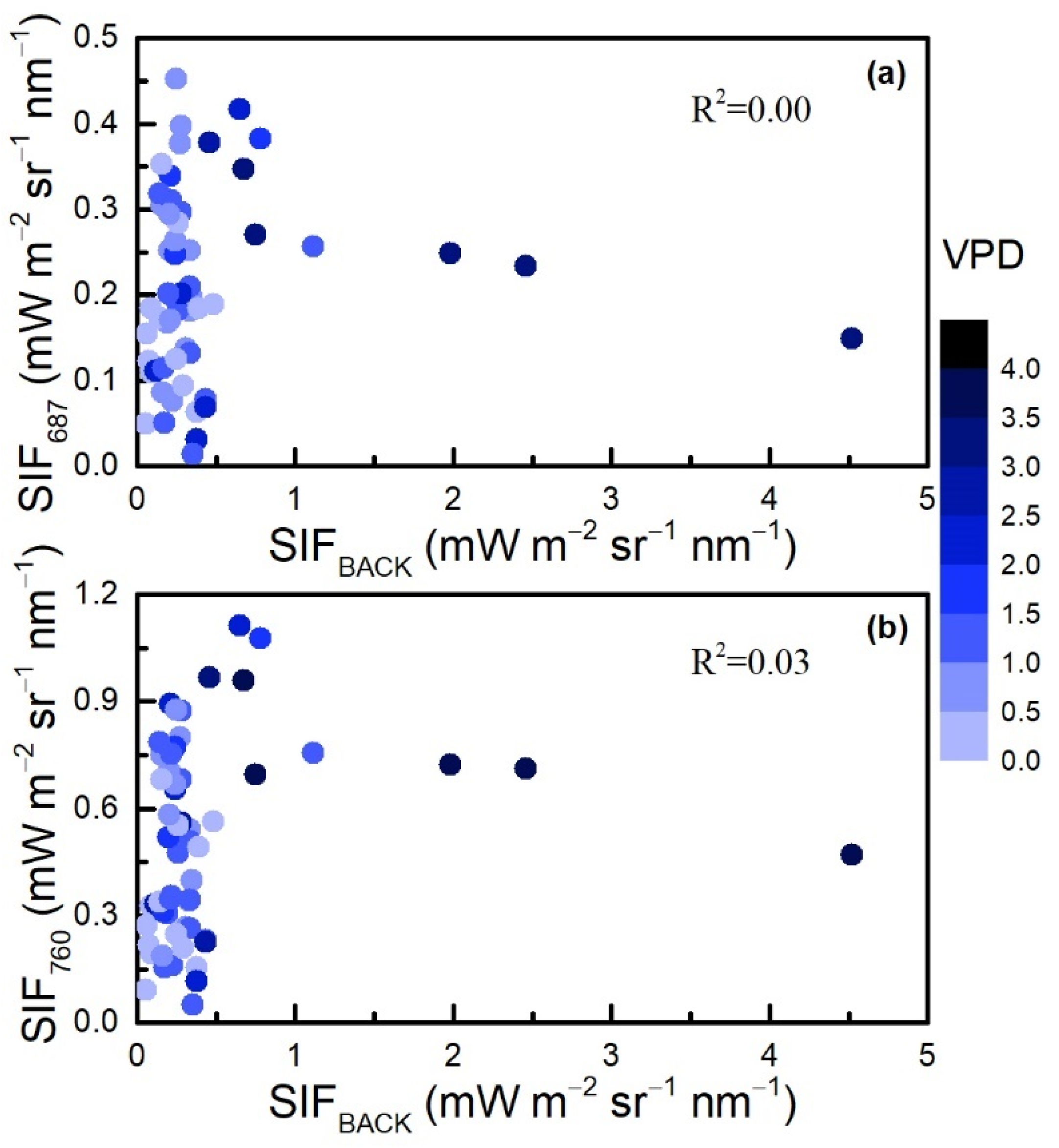

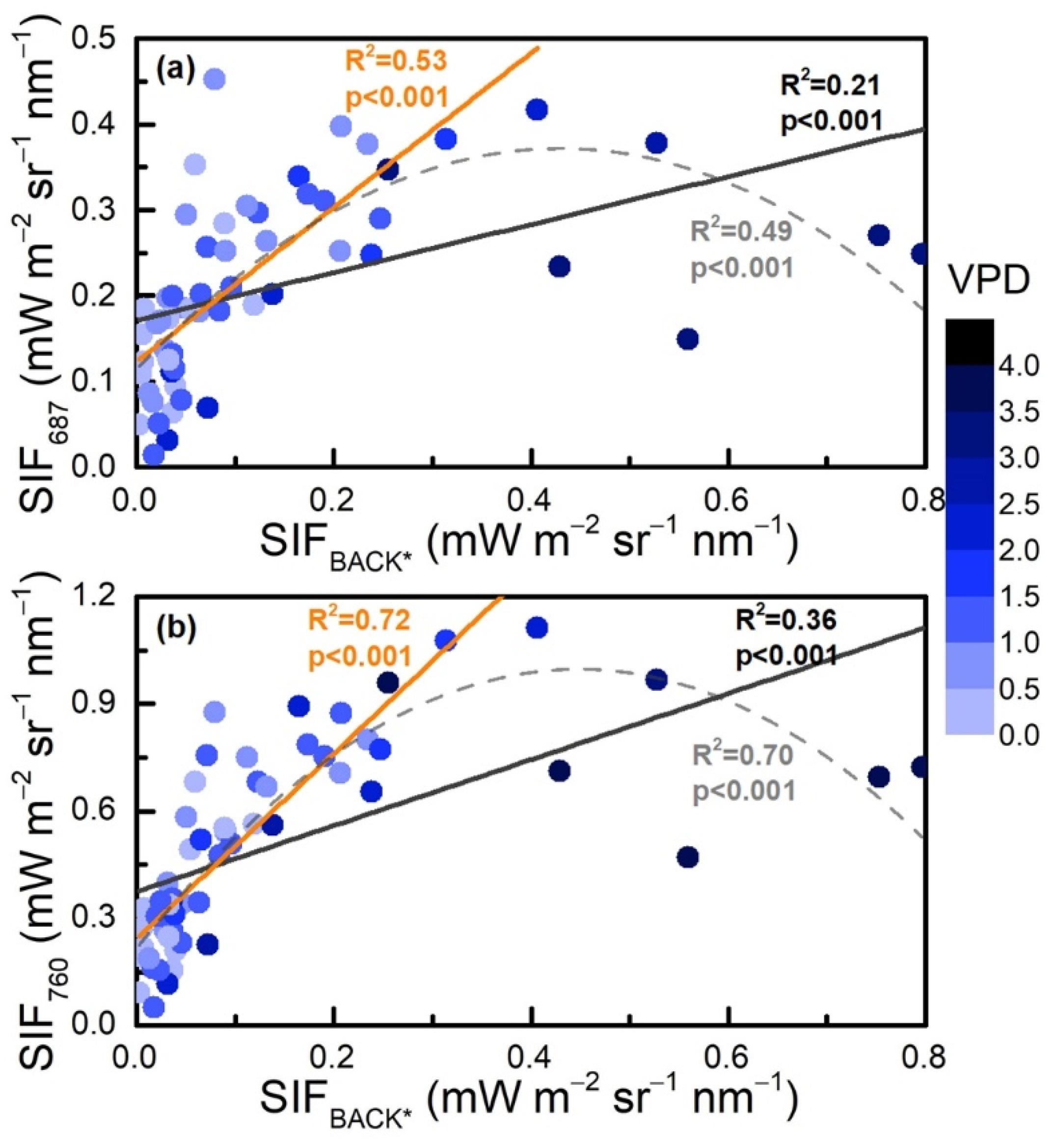

Although the forward estimation of GPP by SIF observations was also designed for its temporal variation through seasons, we assessed the backward approach from GPP for the estimation of diurnal SIF dynamics. Figure 8 illustrated that the SIF_BACK using the direct backward approach did not significantly correlate with SIF₆₈₇ (R² = 0.00) or SIF₇₆₀ (R² = 0.03). It was also found that the high value of SIF_BACK was usually accompanied by high VPD. Considering the coefficient c in the raw forward approach was obtained under the given PAR, the correction factor k was used in our study to improve the approach. Using the improved backward approach, the SIF_BACK* accounted for 21% and 36% of temporal variations of SIF₆₈₇ and SIF₇₆₀, respectively (R² = 0.21, p < 0.001; R² = 0.36, p < 0.001) (Figure 9a,b). The parabola regressions showed higher coefficients of determination (Figure 9), which was caused by the interference of high VPD on their positive correlation. After removing the abnormal points under drought stress (VPD > 2.7), the R² between SIF_BACK* and SIF_SCOPE improved to 0.53 for SIF₆₈₇ (p < 0.001) and 0.72 for SIF₇₆₀ (p < 0.001). The high VPD appeared on 22 July, when the subtropical forest experienced the seasonal drought. That also explained the lower GPP on this day. Thereby, the improved backward approach offers a new insight to estimate the diurnal canopy SIF dynamics without the water stress for subtropical coniferous forests.

4. Discussion

4.1. Variations of Chlorophyll Fluorescence across Scales

In our study, the diurnal changes of the canopy SIF₆₈₇ and SIF₇₆₀ both showed typical single-peaks (Figure 5a,b), similar with the pattern of the irradiance incident above the canopy (Figure 5d).The variation in canopy SIF was dominated by the incident PAR above the canopy [42,43] and even more correlated to the absorbed PAR than GPP at short-time resolution [44]. In contrast, the variation of leaf F_s was non-obvious during the daytime (Figure 6a). Although the changes of leaf F_s are also related to the irradiance [45,46], the correlation was weakened in this study because of the average of F_s across leaves under different illumination due to the canopy geometry and varied solar irradiance. The incident irradiance field is required to be carefully characterized when we compare spectra-based SIF observations with PAM fluorescence measurements. The values and diurnal variations of PAR_leaf were both less than that of PAR_canopy in our results (Figure 5d and Figure 6d). Another explanation might be the influence of different fluorescence emission bands for canopy SIF and F_s. SIF was usually measured at narrow wavelengths of O₂-A (687 nm) and O₂-B (760 nm) at canopy and landscape levels, whereas leaf F_s was measured over a broad spectral range between 700 and 715 nm. ChlF signal emitted from plants contains two crests in the range of 650–800 nm: One in the red spectral region (650–700 nm) with a maximum around 687 nm is mainly contributed by photosystem II (PSII) and the other in the near-infrared spectral region (700–800 nm) with a maximum near 740 nm is contributed by both photosystem I (PSI) and PSII [2]. Some model-based studies found the different sensitivities of SIF bands to leaf biochemistry and canopy structure [22,47].

Canopy SIF signal changed throughout the season. Canopy structure and leaf pigments matter on the variation of canopy SIF on the seasonal scale except for the illumination effect. Despite no sizeable seasonal variation of LAI, it displayed a slight increase in summer, which might lead to a rise in SIF emitted by total leaves. Leaf chlorophyll content modulates light absorption and fluorescence reabsorption, thereby regulating ChlF. Leaf chlorophyll content usually varies within the seasonal range, which is especially obvious due to leaf development and senescence [48,49]. However, the adjustments in chlorophyll content rarely occurred in these subtropical evergreen needles during the seasons. However, the retrieved carotenoid content varied a large range from 2.86 to 13.14 µg cm⁻². In addition, the effects of xanthophyll pigment also need to be taken into consideration to comprehend the seasonal variability of SIF for evergreen forests [5].

4.2. Explanations and Limitations of the CCC Approach and the Backward Approach

A non-linear logarithmic relationship (R² > 0.9, p < 0.05) was shown between simulated SIF by SCOPE model and CCC calculated by measured LAI and leaf Cab in a deciduous mixed forest plantation [25]. Based on this, the CCC approach was presented to estimate spatial SIF using the empirical relationship. However, the CCC did not capture the variations of SIF with the logarithmic function in our study (Figure 7). We infer that the different result is caused by the much fewer changes in the canopy chlorophyll that occurs in the evergreen forest than that in deciduous forest. In contrast to crops and deciduous plants, the canopy structure of forests is generally considered to be constant throughout the day. The LAI of the subtropical evergreen forests, which this study focused on, rarely even had large seasonal changes (Table 1). Therefore, the diurnal changes of SIF for the same canopy would hardly be disturbed by the canopy structure. The diurnal SIF dynamics estimated from the canopy chlorophyll concentration (CCC) mainly depended on the diurnal changes of leaf chlorophyll content. However, changes in the leaf chlorophyll content have rarely been found during the season (Table 1) nor the days (Figure 6b). There is a link between the amount of chlorophyll in leaves and the fluorescence emitted by chlorophyll, but the CCC typically represents a kind of potential fluorescence emission when all available chlorophyll is used at maximum efficiency. In fact, many regulation mechanisms make the efficiency could not fully used. The fewer canopy chlorophyll changes in the evergreen forest might be regulated by long-term environmental adaptation in the subtropical area. Radiance, rather than canopy chlorophyll, matters for the fluorescence emission for evergreen forests. CCC could be a valuable approach to estimate spatial SIF at landscape scale using the empirical logarithmic relationship between CCC and SIF [25]. Still, the application of the CCC approach needs more evidence for the temporal SIF estimation, especially in the evergreen forests.

The backward approach estimates canopy SIF through an inverse way from [26], in which the estimation of GPP from the forward model using tower-based SIF and leaf-level F_s measurements agreed well with flux tower observations of GPP (R² = 0.68, p < 0.0001). We proved that the backward approach improved with the correction factor k could capture the diurnal dynamics of canopy SIF under normal weather conditions. Although the coefficient of determination of SIF_BACK* and SIF₇₆₀ was higher than that of SIF_BACK* and SIF₆₈₇, but the values of SIF_BACK* and SIF₆₈₇ were much closer. This might be caused by the different scattering and reabsorption effects on different wavelengths. One assumption of the backward approach is that both photosynthesis and fluorescence can be calculated as a product of the absorbed radiance and light conversion efficiency across different spatial levels. However, the top-of-canopy SIF observed from the tower is not merely the accumulative signal of SIF emitted by all leaves of the forest canopy but contains an additional term quantifying the effect of canopy scattering and reabsorption. Considering the escape probability of all SIF photons emitted from all leaves to the outer canopy (f_esc), we have SIF = APAR × ε_FC × f_esc [4,50,51]. In addition, the f_esc differed with the wavelength [52], which caused different degrees of underestimation of SIF₆₈₇ and SIF₇₆₀ using the backward approach (Figure 9). The f_esc and another correction factor FCVI, both designed to eliminate the effects of PAR scattering and reabsorption in the canopy, are used to downscale SIF from canopy level to leaf level, which is more directly related to photosynthesis [51,52,53]. The neglect of the scattering and reabsorption led to some uncertainties of the backward approach. Thus, we suggest the downscaling of canopy SIF signals with the f_esc or FCVI might benefit the application of the approach we proposed here if further research was made to improve the approach.

4.3. Impact of Seasonal Drought on the SIF Estimation

Despite the plentiful water and heat resources of the subtropical forests, changes in their seasonal cycles lead to frequent occurrences of seasonal drought, which affect the function of forest ecosystems (e.g., photosynthesis) [54,55]. In our study, the high VPD interfere the performance of the GPP backward approach for the SIF estimation. Photosynthesis contains light reaction and dark reaction, but these two reactions show different sensitivities to environmental factors such as illumination, temperature and water availability [56,57]. The emission of ChlF occurs in the light reaction stage, while the CO₂ fixation in the dark reaction stage is directly restricted by stomatal conductance. Water stress usually leads to the closure of stomata, thereby slowing the dark reaction rate and, thus, photosynthesis rate. The light and dark reactions are interdependent and restrict each other, so the decrease in stomatal conductance will theoretically-inevitably lead to the reduction of fluorescence quantum yield [58]. Some researchers found that the ChlF would decrease due to water stress while the vegetation canopy greenness would remain unchanged during drought [58,59]. Thereby, SIF anomaly was applied to monitor the drought events [60,61,62].

However, recent research found that with the treatment of stomatal closure, no obvious change occurred in SIF or F_s, despite evident reductions in stomatal conductance and carbon assimilation in leaves [63]. Responses of fluorescence emission and photosynthesis could decouple during drought, representing that vegetation photosynthesis might still be suppressed in spite of the variation in ChlF signal. Most works on SIF assumed a constant ratio of photosynthetic quantum efficiency (ε_P) and fluorescence quantum efficiency (ε_F) to establish the linear relationship between GPP and SIF, which was consistent with observations at large scales. Nevertheless, the assumption was questioned by a recent research, which suggested that SIF captured the variations of linear electron transport rate, thus only providing insights into the light reactions of photosynthesis, without the dark reactions [17]. This explained why the SIF estimated by the backward approach under high VPD was poorly correlated with the SIF simulated by the SCOPE model. When fluorescence and photosynthesis are decoupled under environmental stress, the improved backward approach cannot be used validly. While the backward approach from GPP offers new insight into estimating canopy SIF, we suggest that the application of the approach under drought stress should be utilized properly and further experiments and research need to be done to interpret the influence of drought interfered with the stomata in response to future climate change.

5. Conclusions

In this study, we explored the practical approaches for the estimation of diurnal SIF dynamics using measured and simulated data for a typical subtropical evergreen coniferous forest site in eastern China. We described the diurnal changes in leaf and canopy chlorophyll fluorescence and compared the CCC (canopy chlorophyll concentration) approach and the backward GPP approach with the SCOPE model to evaluate their performance for estimating the temporal changes in canopy SIF. We found that the canopy SIF had similar seasonal and diurnal variations with the incident PAR above the canopy, while the leaf F_s remained stable throughout the daylight. The diurnal cycles of CCC relied on the leaf chlorophyll content, whose changes could not capture the canopy SIF dynamics. The raw backward approach did not work either. However, after improving the backward approach with a correction factor of normalized PAR_leaf, the simulated canopy SIF_BACK* accounted for more than half of the diurnal variations of canopy SIF for the subtropical evergreen coniferous forest without water stress. This approach offers a unique insight into the estimation of diurnal canopy SIF and can help understand the response of vegetation to future climate change. In addition, the application of the approach should be utilized with care, especially under environmental stress.
