Article

The Spatiotemporal Change of Glacier Runoff Is Comparably Attributed to Climatic Factors and Physical Properties in Northwestern China

1
State Key Laboratory of Urban and Regional Ecology, Research Center for Eco-Environmental Sciences, Chinese Academy of Sciences, Beijing 100085, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(10), 2393; https://doi.org/10.3390/rs14102393
Submission received: 8 March 2022 / Revised: 5 May 2022 / Accepted: 13 May 2022 / Published: 16 May 2022
(This article belongs to the Topic Cryosphere: Changes, Impacts and Adaptation)

Abstract

:
The spatiotemporal regimes of glacier runoff (GR) under a warming climate are of great concern, especially in dryland areas in northwestern China (DAC). Due to the difficulty of observing GR, little attention has been given to the spatiotemporal change in GR at regional scales. This study uses the regional individual glacier mass balance (GMB) dataset developed by digital elevation models (DEMs) to simulate the spatiotemporal regime of GR using atmospheric parameters considering both ablation and accumulation processes on glaciers. In this study, GR, including glacier meltwater runoff (MR) and delayed water runoff (DR) of the DAC, was quantitatively assessed at a catchment scale from 1961 to 2015. The total annual GR in the DAC was (100.81 ± 68.71) × 108 m3 in 1961–2015, where MR accounted for 68%. Most basins had continuously increasing tendencies of different magnitudes from 1961 to 2015. The least absolute shrinkage and selection operator (LASSO) and random forest techniques were used to explore the contributions of climate factors and glacier physical properties to GR, and the results indicated that climate factors could explain 56.64% of the variation. In comparison, the remaining 43.36% could be explained by the physical properties of glaciers themselves (i.e., degree-day factor on ice, degree-day factor on snow, glacier median height, aspect, and slope). This study not only improves our understanding of the spatiotemporal change in GR in the drylands of northwestern China at spatial and temporal resolutions but also highlights the role of physical properties in explaining the heterogeneous dynamics among GRs unlike previous studies that only emphasize rising temperatures.

Graphical Abstract

1. Introduction

Glaciers and ice sheets, which store most of the ice and snow on Earth, are known as the largest reservoirs of freshwater [1,2]. Glaciers release meltwater in wet seasons, carrying precious freshwater downstream of glacierized basins and thus alleviating drought [3,4,5] and poverty [6,7], which in turn affects socioeconomic development [8,9,10,11]. Climate change has spurred rapid changes in the cryosphere [5,12,13,14,15,16]. Additionally, the interactions between the cryosphere and the atmosphere and anthroposphere are increasingly intensifying, being especially prominent for hydrological processes, ecosystems [17,18], and the sustainable development of the human economy and society. By the end of the 21st century, one-third of glacierized drainage basins might experience runoff decreases of greater than 10% due to glacier mass loss, with the largest reductions occurring in central Asia [19]. Understanding the dynamics of snow and ice, particularly at the regional scale, is a scientific requirement to meet targets of the Sustainable Development Goals (SDGs) [20,21,22,23,24,25] and two goals of the Intergovernmental Science-Policy Platform on Biodiversity and Ecosystem Services (IPBES) [26,27,28,29,30].
Most river basins in dryland areas of northwestern China (the DAC) depend heavily on GR, which is a high-altitude water resource [31,32,33,34], and GR supports 90 percent of local residents by providing water for oasis agriculture areas (OAAs) [35,36], such as that in the Hexi Corridor (2.17 × 104 km2) [37]. Under high demand for water as a result of a rapidly growing population and irrigation combined with the arid climate of the DAC [8,38,39], the importance of water provided by glaciers in arid regions is apparent [4,16,38,40].
Accurate and detailed glacier mass balance (GMB) data are obtained through continuous field observation, which provide a deeper understanding of glacier–climate and glacier–hydrology interactions and are the basis for glacier-related modeling verification [41,42]. Due to field observations’ financial and logistical difficulties, it is common to calculate continuous GMB for long time series at a regional scale [43,44]. However, only 40 glaciers, which are internationally called “climate reference” glaciers, have been consistently monitored long enough to measure changes under climate change, while none of them are located in the DAC, indicating a lack of long-term mass balance observations for this region. At the regional scale, degree-day factor models are widely used to calculate glacier runoff (GR) driven by the atmosphere based on meteorological data recorded by meteorological stations [45,46]. Nevertheless, the degree-day factor model is limited by the number of meteorological stations available, and the model does not fully restore the two processes of glacier ablation and accumulation.
In recent decades, many studies have used methods including in situ measurements, remote sensing, or modeling to explore glacier change and its influencing factors [5,12,13,14,15,16], with most focusing on the effects of atmospheric factors on GR [33,47,48]. Some studies generally indicate that glacier shrinkage is mainly caused by a significant increase in temperature [33,48]. Increases in precipitation have been observed in most glacial areas of China, while these precipitation increases are far from offsetting the impact of temperature [49,50]. However, few studies have described the influence of glacier physical properties on GR [5]. Studies have shown that physical properties also significantly impact GR in addition to atmospheric driving factors, so this paper presents a comprehensive analysis of climate and physical properties.
Taking advantage of the development of digital elevation models (DEMs), high-resolution mass balance datasets have been published, enabling the estimation of high-resolution GR data [43,44]. Although still limited by time series, the GMB dataset provides an opportunity to explore the influencing factors of the dynamics of glaciers at a large regional scale. This study first used the mass balance model and high-resolution mass balance dataset to restore atmospheric-driven glacial accumulation by correcting precipitation at high altitudes. Then, the degree-day factor model was used to calculate the glacier ablation process to obtain the runoff time series generated for the glacier region from 1961 to 2015. Second, we verified the quantity or trend of GR at the watershed scale from existing studies [15,25,37,38,51,52,53]. Glaciers were classified according to the variation trend and time point of significant change in GR, and the composition of glaciers in each basin was obtained. After exploring the consistency of the change trend of GR with that of temperature and precipitation, the least absolute shrinkage and selection (LASSO) and random forest techniques were used to identify climatic factors (precipitation and temperature) and physical properties of glaciers themselves (slope, aspect, altitude, etc.) to calculate the contribution rates of various factors to GR. Climatic factors were identified based on factors taken into account in the glacier model of Huss et al. (2018). The angle of a glacier could divide glaciers into debris-free glaciers and debris-covered glaciers, and the elevations of the glaciers corrected the temperature on glaciers. The time series of GR and the influence of atmospheric factors and physical properties on GR can benefit the cryosphere science, ecology, hydrology, climate change, and social and economic development of each glacierized basin, providing a scientific basis for decision-making on regional sustainable development.

2. Materials and Methods

2.1. Observations

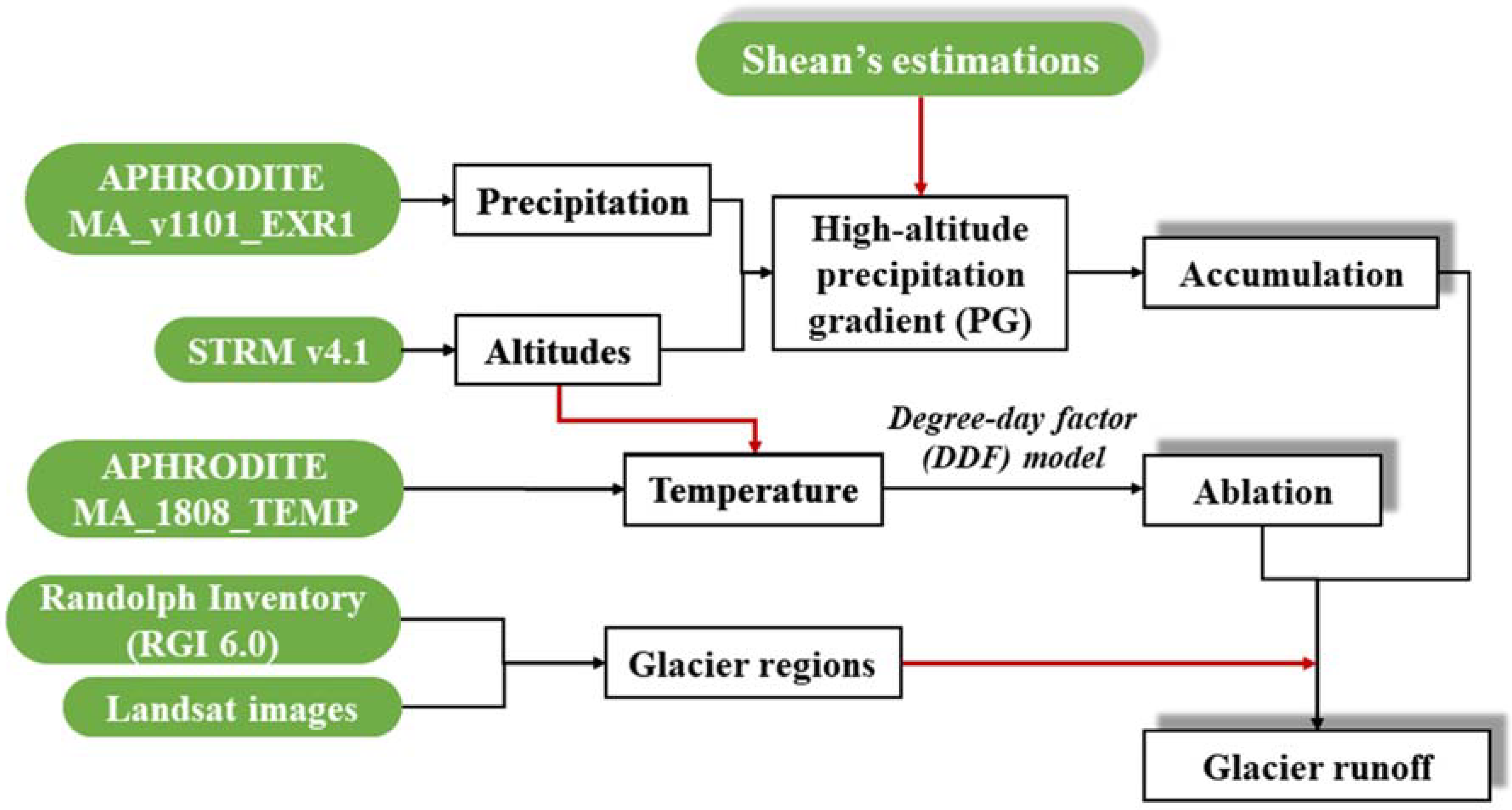

The sources of data used in this study are listed in Table 1 and are accessible at the given websites.

2.2. Study Area

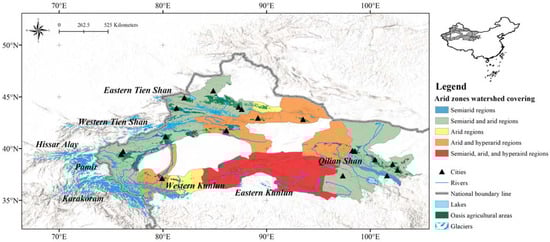

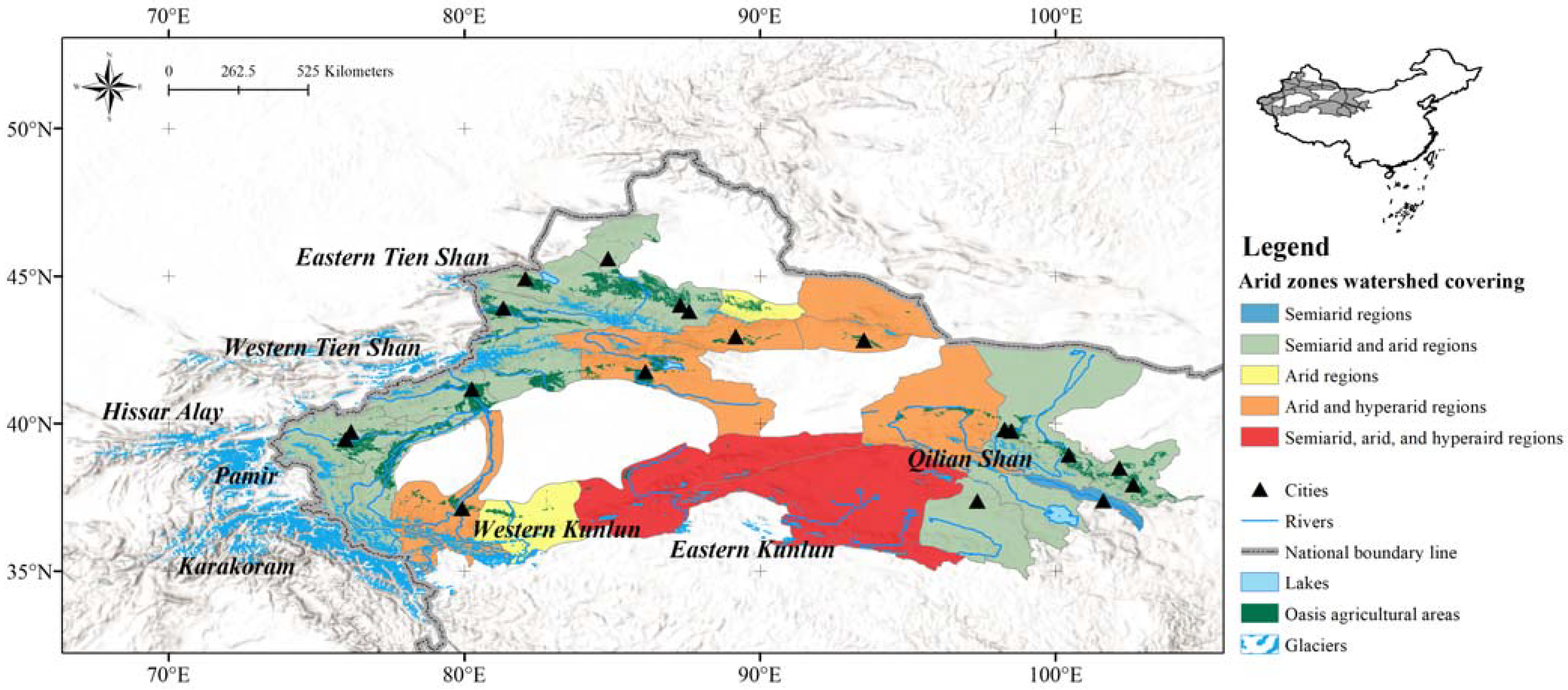

Data for the DAC region were obtained from the aridity index supported by the United Environment Programme (UNEP), excluding the range of the Tibetan Plateau, which should be discussed separately because of its unique characteristics. There are eight glacier regions around the DAC, including approximately 42,000 glaciers affecting 22 tertiary watersheds. Specific glacier region and tertiary watershed names are listed in Table 2. These watersheds cover different arid zones in the DAC, including hyperarid regions (AH); semiarid and arid regions (SA); and semiarid (S), arid (A), and hyperarid zones (SAH). The study area is shown in Figure 1 along with the abbreviations used in this study.

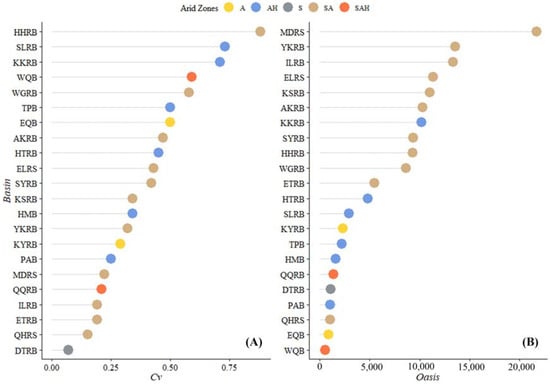

Figure 2 shows the coefficient of variation of precipitation (Cv) (Figure 2A) and the area of OAAs (Figure 2B) for each watershed in the DAC. The area of OAAs in each watershed in the DAC reached a maximum of 21,699.18 km2 (MDRB), with an average area of 6543.69 km2, while the Cv of precipitation in the DAC reached a maximum of 0.88 (HHRB), with an average statistic of 0.40, showing that sources of precipitation were unstable and highlighting the importance of stable meltwater runoff (MR) provided by GR in our study areas. The oasis is the most important area for the livelihood of residents in drylands. A stable water source will affect the livelihood and economic development of the whole region. The coefficient of variability of rainfall in arid regions is so great that the relatively steady flow of water provided by GR is even more valuable.

2.3. Methods

2.3.1. Glacial Accumulation

We imported the maximum precipitation height ( H p r e _ m ) and precipitation gradient ( P G ) to calculate glacier accumulation according to previous studies [54,55,56,57]. We assumed that precipitation lapsed negatively with the specific P G from its actual height to its H p r e _ m . As the RGI provided each glacier’s outline, the equation for reconciling high-altitude precipitation ( P r e c o n ) is shown in Equation (1):
P r e c o n = P A P H × [ 1 + | ( H H p r e _ m ) | × P G × 0.01 ]
where P A P H (m) is the precipitation from APHRODITE, H (m) is the altitude from the DEM at a grid scale, P G (% m−1) is the vertical precipitation gradient for each glacier as a constraint factor, and H p r e _ m (m) is the maximum precipitation height of each glacier region based on previous studies [54,55,56,57].
The calculation of glacial atmospheric accumulation depends on temperature. We divided precipitation into solid (snow) and liquid (rain) by a temperature set to 4 °C, T 1 (°C). Glacial accumulation can be calculated using Equation (2) [58,59]:
A c = { P r e c o n , T a 0 ( 1 T a 4 ) P r e c o n , 0 < 0 , T a > 4 T a 4 ,
where T a (°C) is the actual temperature adjusted by a commonly used temperature lapse rate (0.65 °C/100 m) over the glacier area within each grid cell, P r e c o n (m) is the reconciled precipitation based on Equation (1), and A c (m) is the accumulation on a glacier.

2.3.2. Glacial Ablation

The degree-day factor ( D D F ) model is a common method used to obtain glacier ablation, as shown in Equations (3)–(5):
A b = D D F × P D D ,
P D D = t = 1 n H t · T a , t
H t = { 1 , T a , t 0 0 , T a , t < 0
where P D D are positive-degree days, H t is a logistic variable, t refers to the time scale, and T a , t is the temperature adjusted by a commonly used temperature lapse rate (0.65 °C/100 m) over the glacier area within each grid cell. It is worth mentioning that monthly positive-degree days ( P D D m ) were used in this paper, namely, the sum of daily positive-degree days temperature. Based on the field observations of 40 glaciers in western China, Zhang et al. (2006) established the spatial distribution of D D F with a spatial resolution of 0.5 degrees, revealing that D D F had great spatial heterogeneity [60]. The value of D D F increased gradually from northwest to southeast, consistent with the change in hydrothermal conditions from northwest to southeast in western China.

2.3.3. Mass Balance

We used the regional available GMB dataset to constrain high-altitude precipitation. The glacier mass balance (m w.e.) was computed by multiplying mean glacier elevation change, glacier area, and the density of water, where the density of water was 1000 kg/m3 and the water equivalent (m w.e.) was equal to the thickness (m). B y is the sum of accumulation, A c , y (m), and ablation, A b , y (m), at a yearly time step for each glacier following Equation (6):
B y = A b , y + A c , y
We compare datasets from Brun et al. (2017) (Brun Mass Balance), Shean et al. (2020) (Shean Mass Balance), and NASA’s Ice, Cloud and Land Elevation Satellite (ICESat) data (ICESat Mass Balance) in Supplementary Materials Table S1 and Supplementary Materials Figure S1 [61,62,63]. The Shean Mass Balance dataset was used to simulate mass balance using each glacier’s mass balance and uncertainty based on multisource glacier inventory RGI v6.0.

2.3.4. Precipitation Gradient

Limited by the time range of the APHRODITE and Shean Mass Balance datasets, the annual yearly glacier ablation from 2000 to 2015 could be calculated following Equations (3)–(5). Each glacier’s annual mass balance ( B y ) was provided by the Shean Mass Balance dataset. We substituted B y into Equation (6) to obtain the annual accumulation A c on each glacier in the same period. The P G on each glacier could be obtained by substituting A c into Equations (1) and (2). Since the resolution of the APHRODITE dataset was much larger than 100 m, the distribution of P G at regional scales was aggregated using the nearest neighbor algorithm to reduce the impact of grid mutation [64].

2.3.5. Glacial Runoff

By substituting the map of P G , original precipitation, and temperature from the APHRODITE dataset and DEM into Equations (1)–(6), the time series of mass balance for each glacier can be obtained.
Specifically, GR, including MR and delayed water runoff (DR), in this study, was runoff generated within the glacier range, where glacier areas change over time. DR resulted from the remaining precipitation stored as snow in cold seasons and discharged in warm seasons after offsetting ablation [3,40,44], including part of the precipitation in warm seasons. MR, also called excessive MR or the imbalanced part of GR, resulted from the mass loss of glaciers when atmospheric accumulation could not offset glacier ablation.
GR, G m (m), during warm seasons was calculated according to the proportion of monthly P D D , P D D m to yearly P D D , P D D y and the absolute value of yearly mass balance at each grid cell of 100 m with Equation (7):
G m = | B y | × P D D m / P D D y
The monthly DR, D m (m), was measured as the product of B y greater than zero and the proportion of P D D m to P D D y . Accordingly, MR, M m , was measured as the product of B y less than zero and the proportion of P D D m to P D D y as shown in Equations (8) and (9):
D m = B y × P D D m / P D D y ,   B y 0
M m = B y × P D D m / P D D y ,   B y < 0
In this paper, we present a means to obtain a time series of GR, including DR and MR, generated for glacier regions after reconciling high-altitude precipitation using the Shean Mass Balance dataset, which makes up for datasets incomprehensive (only mass balance) or semiquantitative (only GR proportion) for glacier areas at a regional scale. This dataset can be used in hydrological models to better simulate the whole hydrological process.

2.3.6. Glacial Area

We used Landsat TM scenes from Google Earth Engine (GEE) to extract glacier outlines at the end of ablation seasons (September to November in the DAC) in each watershed for 1985–1995 and 1995–2005 by applying band ratio segmentation (red band/midinfrared band, 2.0 as the threshold) [41,65,66]. A 100 m buffer of the glacier outline of the RGI was used as the basic extraction region. The DEM from GEE was used to calculate the terrain slope, while a value of 24 was used as the threshold to distinguish debris-free glaciers from debris-covered glaciers [2]. After classifying dates of Landsat scenes used in the RGI, we determined to use the RGI as the glacier outline for 2000–2015 (Supplementary Materials Table S2 shows the time periods of scenes used in the RGI for different basins).

2.3.7. Total Uncertainty Analysis

The individual glacier uncertainty (including random and systematic errors) calculated in the Shean Mass Balance dataset denotes the uncertainty range of GMB changes. Using the same routine that we described in Section 2.3.4 to calculate the distributions of P G corresponding to the maximum and minimum mass balance values from the Shean Mass Balance dataset, the time series of the maximum and minimum GR generated by the map of the corresponding P G were obtained by substituting the original precipitation and temperature levels from the APHRODITE dataset and DEM into Equations (1)–(9). The calculations of DR and MR and their uncertainties are shown in Figure 3, where shaded blocks are the calculated results with uncertainties.

2.3.8. Trend Analysis

The temporal trends of annual GR, DR, and MR in the DAC were tested using the Mann–Kendall (MK) test [67,68]. Given a time series x ( t ) with length n , the statistics denote that the data series is an independent random variable with the same distribution composed of n elements.
d k = i = 1 k m i
m i = { 1 , x j > x i 0 , x j x i
where m i represents the cumulative number of x ( i ) greater than x ( j ) ,   1 j i ,   1 k n .
E ( d k ) = k ( k 1 ) / 4
V a r ( d k ) = k ( k 1 ) ( 2 k + 5 ) / 72
where mean E ( d k ) and variance V a r ( d k ) are calculated and 1 k n .
After standardizing d k , U F k and U B k can be obtained from Equations (14) and (15):
U F k = d k E ( d k ) v a r ( d k )
U B k = U F k
The intersection point of the U F curve and U B curve in the confidence interval was determined as a turning point. An increasing trend of a time series was found when U F > 0 ; in contrast, a declining trend of a time series was observed when U F < 0 .

3. Results

3.1. Glacial Area Change

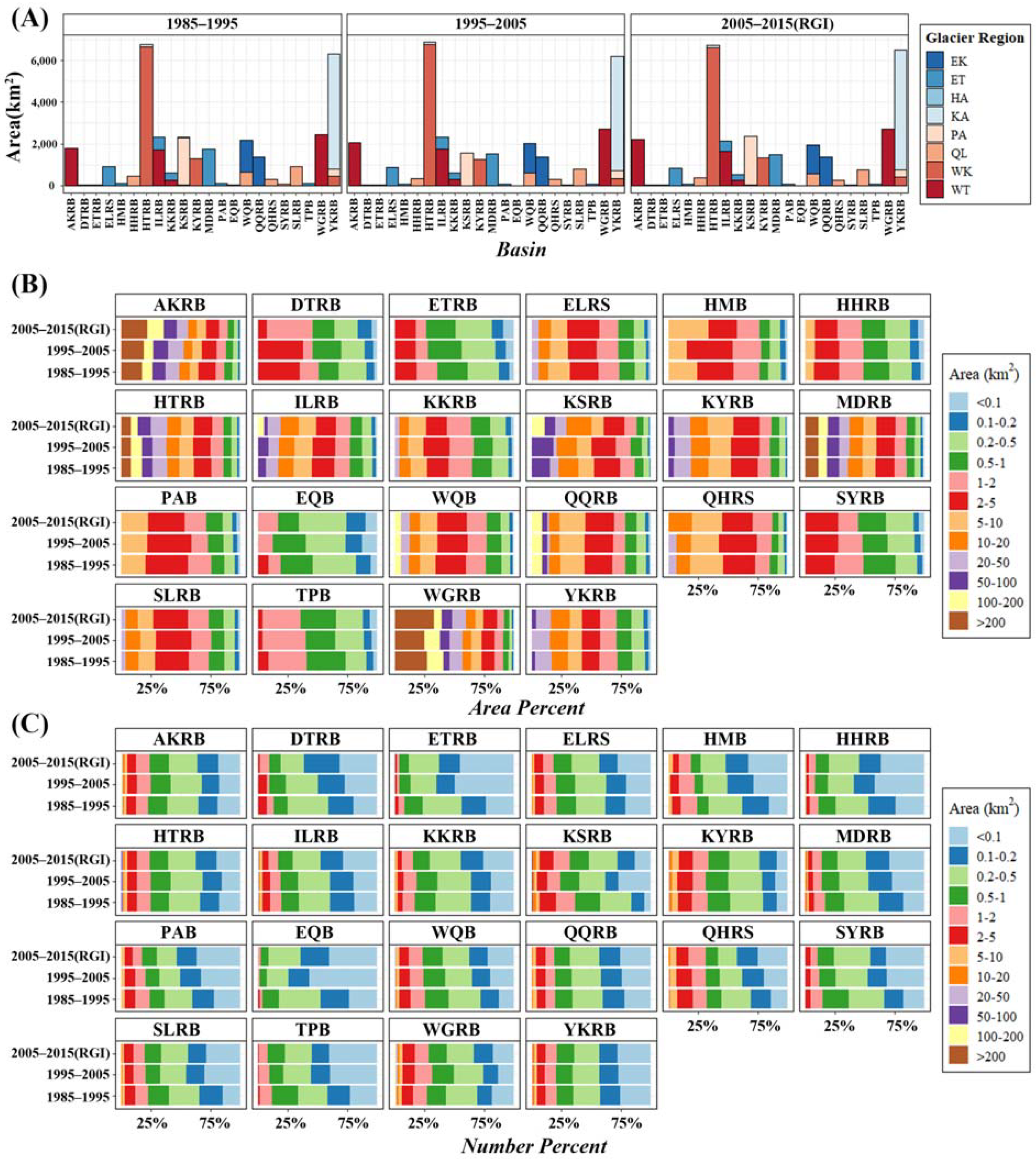

In the RGI, 53,749 glaciers were found with a total area of 32,008 km2 in our study area. The HTRB had the largest glacier area (6719.50 km2), and the YKRB had the most significant number of glaciers (4487). Figure 4A shows the glacier area in each watershed originating from different glacier regions in three periods (1985–1995, 1995–2005, 2005–2015). The general characteristics of glacier size distribution are that large numbers of small glaciers account for a small proportion of the total area, while fewer large glaciers account for a large proportion of the total area [41,65,69,70,71]. This feature is also evident in our study area, especially in the AKRB, HTRB, and WGRB, as shown in Figure 4B,C. Glaciers in the DAC are mainly less than 1 km2, accounting for 70% or more of the total glacier area in the corresponding basin. Except for the DTRB, ETRB, EQB, SYRB, TPB, and ELRS, glaciers larger than 2 km2 account for 50% or more of each basin.
The area proportion of glaciers in the YKRB is controlled by the KA, QQRB, and WQB, where the EK controls remain almost unchanged, as the KA, referred to as the “Karakoram anomaly” [55], remains relatively stable, and the EK has a positive mass balance [43,44]. The area proportion of glaciers larger than 5 km2 in the QKRB, HTRB, ILRB, KSRB, MDRB, and WGRB, controlled by large glaciers, increases with each period. The area proportion of glaciers smaller than 1 km2 in the HHRB, EQB, SYRB, and ETRB increases period by period. The higher area proportions of >1 km2 glaciers in these basins also illustrate the dominance of small glaciers.

3.2. Glacial Runoff from 1961 to 2015

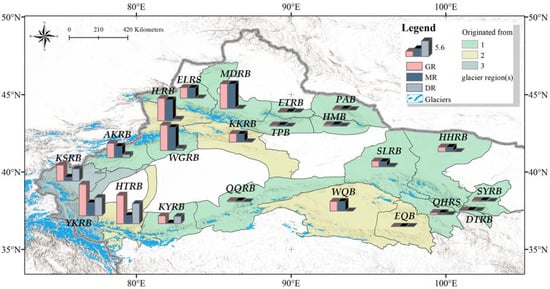

In this study, the Shean Mass Balance dataset was used to reconcile high-altitude precipitation. The yearly mass balance of glaciers influencing the DAC from 1961 to 2015 was calculated from the difference between accumulation obtained from corrected precipitation and ablation calculated by the DDF model. We created a long-time series dataset of the total GR dataset, including DR and MR, based on atmospheric hydrothermal conditions at large regional scales with a spatial resolution of 100 m. It is worth noting that GR in this paper refers to the runoff generated within the geographical area of a glacier or the runoff generated under the glacier area of different time ranges extracted from GEE based on the RGI. GR included DR, which was stored rainfall in the cold seasons and released runoff in the ablation seasons, while MR resulted from glacier mass balance, which is also called excessive MR or the imbalanced part of GR. The GR in each basin from different glacier regions in the DAC is shown in Figure 5. The average GR in the DAC for the period was (100.81 ± 68.71) × 108 m3, where MR accounted for 68%. MR largely controlled basins affected by the DAC’s glaciers.
We used the ratio of DR to GR to estimate the health and sustainability of glaciers in the DAC, as reported by Miles et al. (2021) [72]. The GR in the HTRB, KYRB, YKRB, and QQRB influenced primarily by the KA, WK, and EK with positive mass balance estimated was judged healthier than that in the other glacierized basins in the DAC, with more than 50% of GR consisting of DR brought by precipitation. In contrast, the GR in other basins, including the ELRS, ILRB, and MDRB (the largest OAAs in the DAC), was nearly entirely MR, indicating that measures to adapt should put environmental and cryosphere changes in these basins forward as soon as possible.

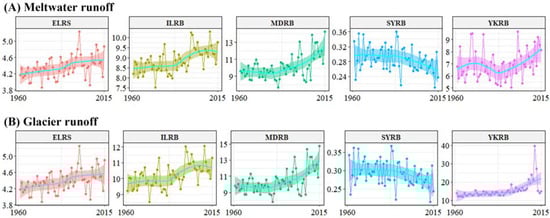

Figure 6 shows the time series of MR and total GR in basins with the top four OAAs and SYRB after Loess smoothing. Locally estimated scatterplot smoothing (LOESS) and locally weighted scatterplot smoothing (LOWESS) are two nonparametric regression methods developed for scatterplot smoothing. When there is only one independent variable and no prior weights, the functions “LOESS” [73] and “LOWESS” [74] in R language programming are equivalent, in principle. In the past 50 years, except for the DTRB, HHRB, and SYRB, the runoff of the other basins showed a continuously increasing trend, although periods of significant increase differed. The MK test showed that the GR in the ELRS and KKRB increased significantly after 2000, while KSRB and HTRB levels increased significantly after 1980. In the DTRB, GR began to decrease after 1990, while in the HHRB, it began to decline after 1995, but neither decreased significantly before 2015. Only the GR series in the SYRB began to decline after 2000 and significantly reduced after 2010, as the results of the MK test showed, and the trend was consistent with previous studies [75]. The MK value and time series of DR, MR, and total GR for all basins are illustrated in Supplementary Materials Figures S2–S6.

3.3. Sustainability of Glaciers in the DAC

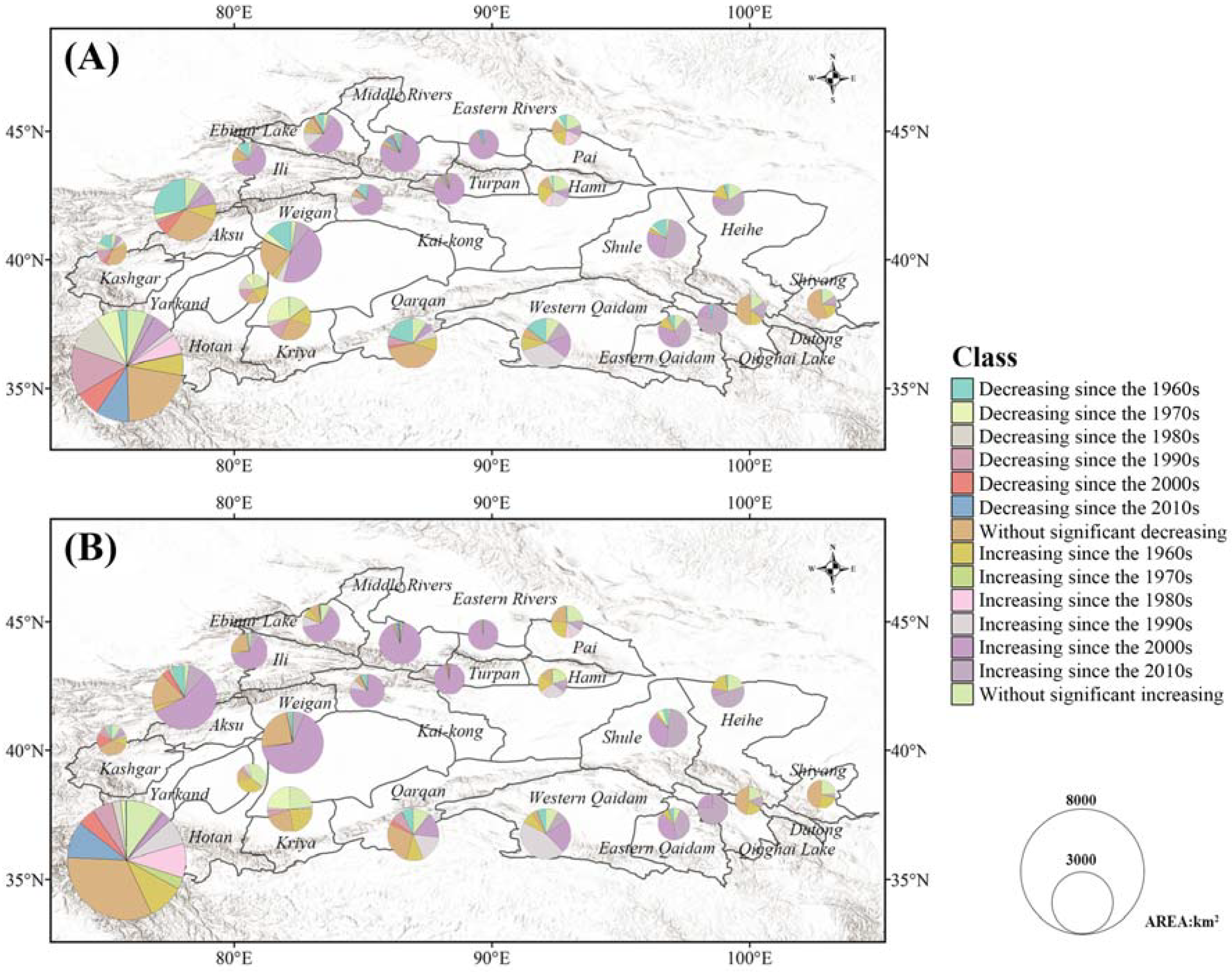

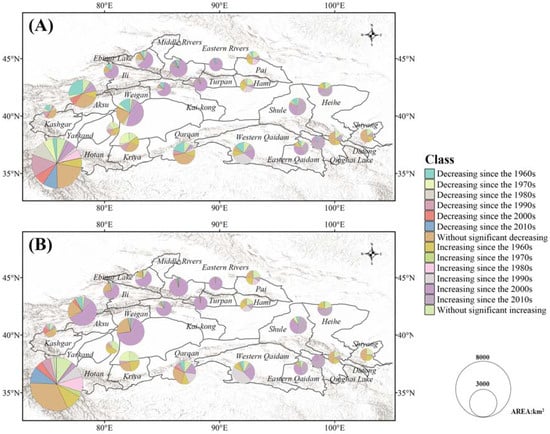

The time series of glacial MR for the past 55 years for each glacier was counted based on the RGI, and the MK test was conducted for each MR series to obtain statistics of the change trend and the time when significant changes occurred for each glacier. The classification of glaciers in each watershed in the DAC was guided by the results of the MK tests, while glaciers were divided into 14 categories, including those that expanded or reduced significantly since the 1960s, 1970s, 1980s, 1990s, 2000s, and 2010s and varied without significant increase or decrease in the past 55 years. The numbers and areas of the composition and distribution of different glacier types in each basin are shown in Figure 7A,B.
The areas and numbers of glaciers in different basins directly determined glacial trends. For example, in the SYRB, over the past 55 years, both the numbers and areas of glaciers almost all showed a declining trend, resulting in a declining GR in the basin. Glaciers in the YKRB exhibited varied patterns of expansion and contraction in different periods. Although the numbers and areas of glaciers without a significant decrease accounted for 72.24% and 56.97% of the total amount and area of glaciers in the whole basin, respectively, the MR in the YKRB was still on the rise and reached a significant level after 1995. This suggests that the trend of MR could only be assessed by fully considering the mass balance of each glacier in the basin in addition to the area and amount ratios and significant time points.
Establishing the relationship between MR and air temperature is a common means to calculate MR and reflects the dominant role of temperature in meltwater [12,45,75,76]. The MK test was also used for temperature, and the composition of different temperature changes was obtained using the same classification method as that of MR. The results showed that the number and area of glaciers with the same trends of temperature and MR accounted for 27.12% of the total number and area of all glaciers. Considering the lagged influence of temperature on MR (5–10 years) [76], the number and area of glaciers with trends of temperature and MR in coordination accounted for 31.68% of all glaciers. Due to the findings not reflecting a strong correlation between temperature and MR, we attempted to clarify the factors affecting MR and the respective explanatory rates.

3.4. Climatic Factors and Physical Properties Explain the Spatiotemporal Patterns of GR

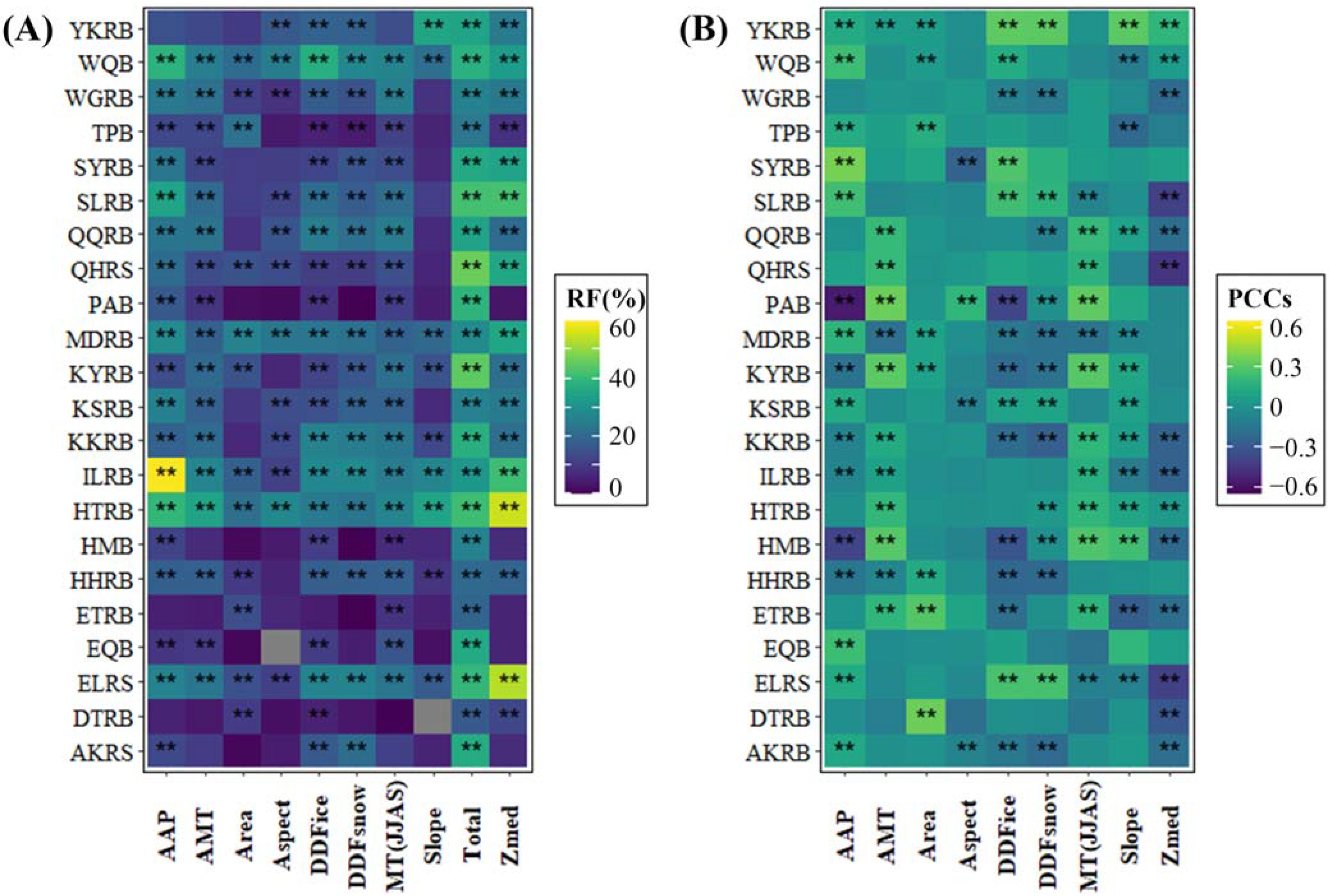

To find the impact factors of MR, a linear model with variable selection based on the LASSO operator was used to select a subset of potential MR predictors that could reduce predictors by decreasing the estimated regression coefficients toward zero to avoid an overfitting of the models caused by high-dimensional problems. The coefficients and significance of the MR predictors for each river basin based on the LASSO regression method are shown in Supplementary Materials Table S3. The correlations between MR and normalized potential predictors (the degree-day factor on ice (DDFice), the degree-day factor on snow (DDFsnow), median glacier height (Zmed), aspect, slope, annual average precipitation (AAP), annual mean temperature (AMT), mean temperature in wet seasons (MT(JJAS)), and area) after the LASSO regression were analyzed for each basin. Additionally, the RF technique was used to calculate the relative rate of the contribution of the potential predictors with significance based on a large number of decision trees (in this study, 500) fitted to random subsets of the training sample. Both the results of the RF and Pearson correlation coefficients (PCCs) are shown in Figure 8.
The MR predictors were obviously different in different basins. The PCCs of AAP in the HMB and PAB were −0.39 and −0.56, respectively, while the PCCs in the WQB, EQB, SYRB, and SLRB were 0.24, 0.38, and 0.25, respectively. Among all basins where AMT dominated, there was a significant positive correlation, with coefficients of 0.22 in the QQRB, 0.21 in the HTRB, 0.22 in the QHRS, and 0.32 in the KYRB. The absolute PCC of Zmed was the highest among all predictors in all basins, with a coefficient of 0.17, followed by DDFice and AAP, with coefficients of 0.16, and the absolute PCC of AMT and MT(JJAS) was 0.13. The RF results showed that the overall explanation rate of the nine potential predictors of MR selected by LASSO was 31.49 ± 14.97% in the DAC. The explanatory rates of Zmed and AAP in each watershed were 32.40 ± 27.14% and 29.39 ± 26.09%, respectively. AAP accounted for 59.53% of the MR in the ILRB, and Zmed accounted for 55.47% and 53.42% of the MR in the HTRB and ELRB, respectively. Overall, climate factors could explain 56.64% of the MR, while physical factors, including DDF, aspect, slope, Zmed, and area, could explain 43.36% of the MR, showing that the MR of continental glaciers was not only related to the hydrothermal conditions, especially precipitation and temperature in wet seasons [77,78,79,80,81], but also greatly related to the physical properties of glaciers themselves. In other words, the explanatory rates of climate and physical factors among the potential predictors of MR were relatively consistent. When considering glacier MR, the physical properties of glaciers themselves should be taken into account, and spatial heterogeneity should be considered when climate factors are considered based on climate factors considered in previous studies.

4. Discussion

4.1. Precipitation Correction at High Altitudes

Glaciologists and meteorologists have long debated whether mountains have one or two maximum rainfall heights [18,53,54,82,83,84,85]. Even in the same location, H p r e _ m varies across the seasons observed and data and methods used. For example, the APHRODITE dataset and the GPM show H p r e _ m at 4200 and 2600 m in the Junggar Basin, respectively, and at 2750 and 4050 m in the Northern Tarim Basin, respectively [86]. Bai et al., found that in the summer on the northern slope of Tien Shan, the median height of H p r e _ m was 2100 m, while in the winter, it was 1100 m, and the average height was approximately 3000 m, consistent with Zhang et al. (2019) [18,83].
Horizontal precipitation, such as fog, frost, and dew, can be seen in mountainous areas year-round, especially in areas above 3500 m. After condensation, the underlying surface picks up this water vapor. Nevertheless, standard rain gauges commonly used for meteorological observations cannot capture it, which results in a deviation in the precipitation record of the rainfall gauges for high mountains, whether the rainfall gauge is correct in recording precipitation in high mountain areas directly affecting rainfall correction in mountain areas or not. Therefore, P G was calculated according to the average regional H p r e _ m in this paper, and H p r e _ m was used as the calculation standard in this paper. The H p r e _ m of each glacier area was shown in Table 3.

4.2. Comparison of GR Estimations

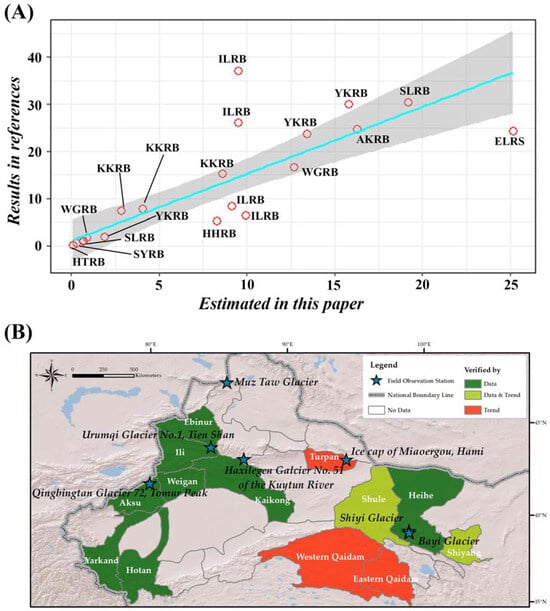

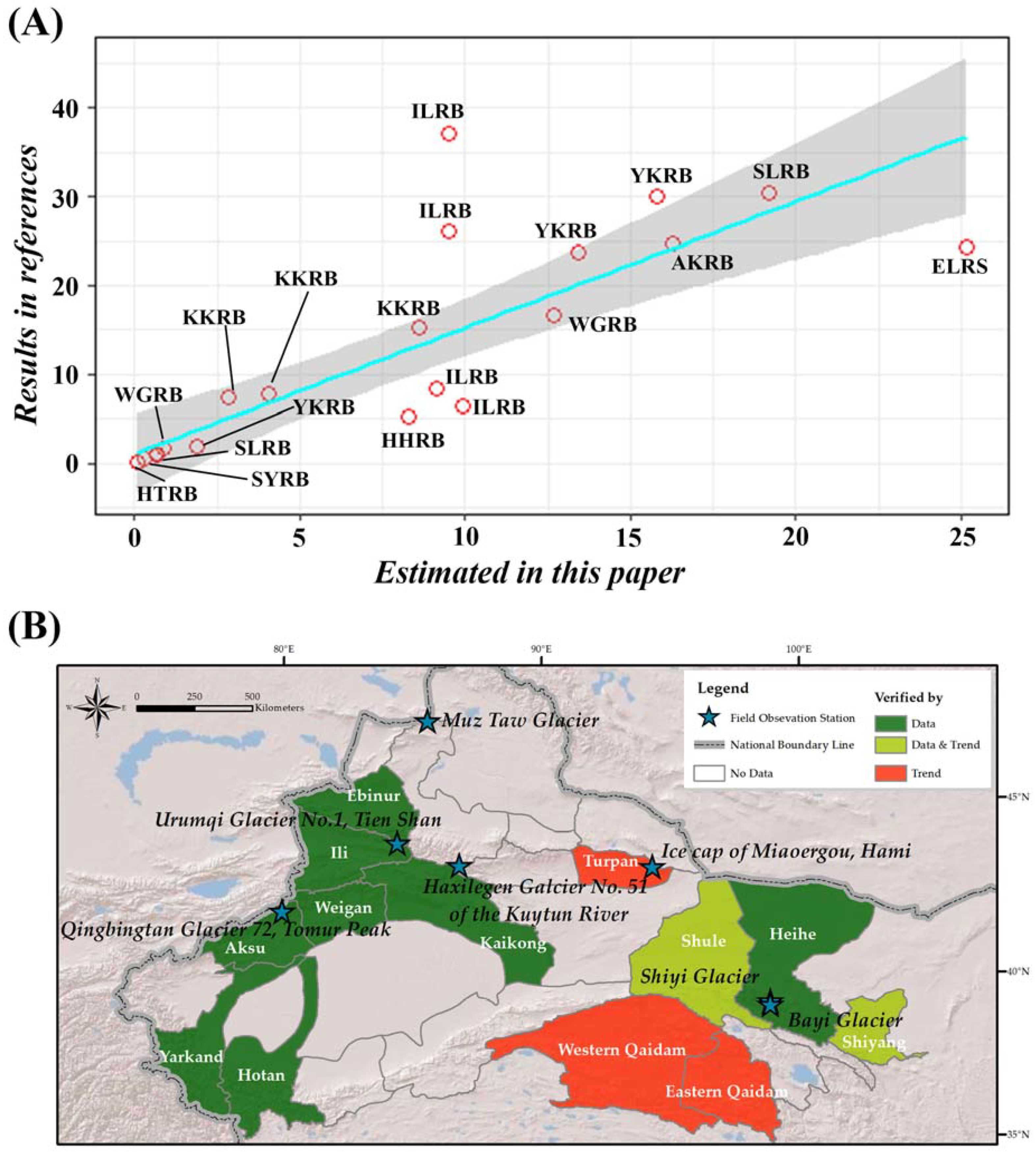

Some studies [15,25,37,38,51,52,53] have simulated the GR in the DAC by qualitative or semiquantitative methods or using hydrological or physical models. We compared our estimations to these results, although there were no numeric data for partial river basins due to there only being trend studies, as shown in Figure 9.
In this paper, scientific references were selected via systematic searches of keywords including the name of each watershed, “glacier runoff”, and “meltwater runoff” using the websites of academic journals (Science Direct, Web of Knowledge, China National Knowledge Infrastructure) to compare the estimated values of the GR obtained in this paper. In total, only 11 of the 22 glacier-derived basins in the DAC [33,51,85,88,89,90,91,92,93,94,95,96] had reference numerical values and GR tendencies [51,97] for the other three watersheds, as shown in Figure 9. Based on these studies, reference numeric values were classified as the GR recharge percentage (four basins), the GR growth rate (four basins), and GR (five basins). The ratio of our results and reference values for the DAC was 0.67. The MR in the HMB showed a slight decreasing trend consistent with our estimate. Hydrological stations in the WQB and EQB showed a sudden change in runoff in 2004, and our estimates show that the turning points of the MR in the EQB and WQB occurred in 2001 and 2002, respectively [87].
The difference between our estimates and previous studies is partly due to the use of different GMB datasets. For example, in the ILRB, GR was measured as 3.72 × 109 m3 by Li et al. [98], which is greatly different from our estimate of 9.5 × 108 m3. Previous studies often deduce the mass balance of a whole region based on the long-term observed mass balance data of a glacier in a certain region while ignoring the spatial heterogeneity of a glacier itself and the hydrothermal conditions it is subject to [94,99]. This method is prone to cause great uncertainty. Another reason for the difference concerns the use of the DDF model which ignores the accumulation process on glaciers [33,76,99]. Amid the current qualitative and semiquantitative analyses of the impact of glaciers on runoff, there is a lack of quantitative research on glacial meltwater, which leaves considerable uncertainty in future predictions for different basins. The model established in this paper can serve as a new method for predicting GR in the future. Of course, field observation is the most accurate means to study glaciers. The establishment of observation systems and continuous hydrological monitoring according to different types and regions of glaciers can further predict the evolution of glaciers and glacial water sources more accurately.

4.3. Implications for the Evaluation and Prediction of GR

Compared to the first Chinese Glacier Inventory (CGI-1) and second Chinese Glacier Inventory (CGI-2), the glacier area in the QL varied greatly in terms of area, altitude, and aspect, and there was obvious longitude zonal differentiation [75]. The DDF model indicates that increased GR is the main cause of the projected increase in total runoff for the upper Indus Basin [100]. However, when glacial ablation and accumulation processes were both considered, the contribution rate of GR to the projected increase in total runoff decreased, changing the pattern of the contribution rate to total runoff to increase. In the same way, while the modified Budyko equation only considers ablation and not accumulation, the finding that accelerated glacier melt contributed to a nearly 80.9% increase in surface runoff in the upper Brahmaputra Basin is overestimated [101]. To improve the estimation of the GMB, glacier physical properties have been taken into account in some studies. In the European Alps, Podsiadlo et al. (2020) extracted glacier surface properties such as slope and aspect and integrated them into a hydroclimatological model to estimate the spatially distributed annual glacier mass balance, confirming the effectiveness of the considered physical properties by in situ observations [102]. After comparing the CGI-1 and CGI-2, Su et al., suggested that both climatic conditions and glacial morphology mainly influence glacier shrinkage in China, while shrinkage manifests in the DTRB (−19.97%), SYRB (−14.21%), and HHRB (−15.67%) [5,41]. In conclusion, the prediction of GR was improved by making full use of the physical properties of glaciers and combining the two processes of glacier melting and accumulation with field measurement data.

4.4. Socioeconomic Consequences

OAAs in the DAC were most dependent on DR for irrigation and the maintenance of agriculture and for maintaining soil moisture, vegetation growth, and groundwater recharge to maintain security [24,103,104]. Twenty-two glacierized basins irrigated 143,939.24 km2 of OAAs, providing water for 14 million people in 19 urban districts. In 2015, the gross domestic product (GDP) of the primary industry in these districts was nearly 111.54 billion US dollars, accounting for 14.1 percent of the total GDP of these districts, double that of the primary industry and accounting for 7 percent of the national GDP. While the real primary industry GDP of the DAC was 40.46 million US dollars, OAAs accounted for 79.86 percent. Increased GR could provide more water for agriculture and livestock to ensure food security and water for residential and industrial use. However, the increase in GR was unsustainable [4,95].

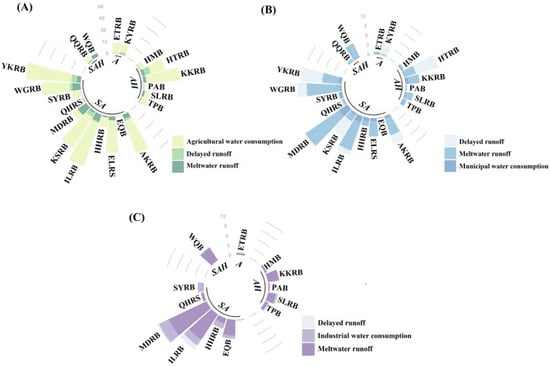

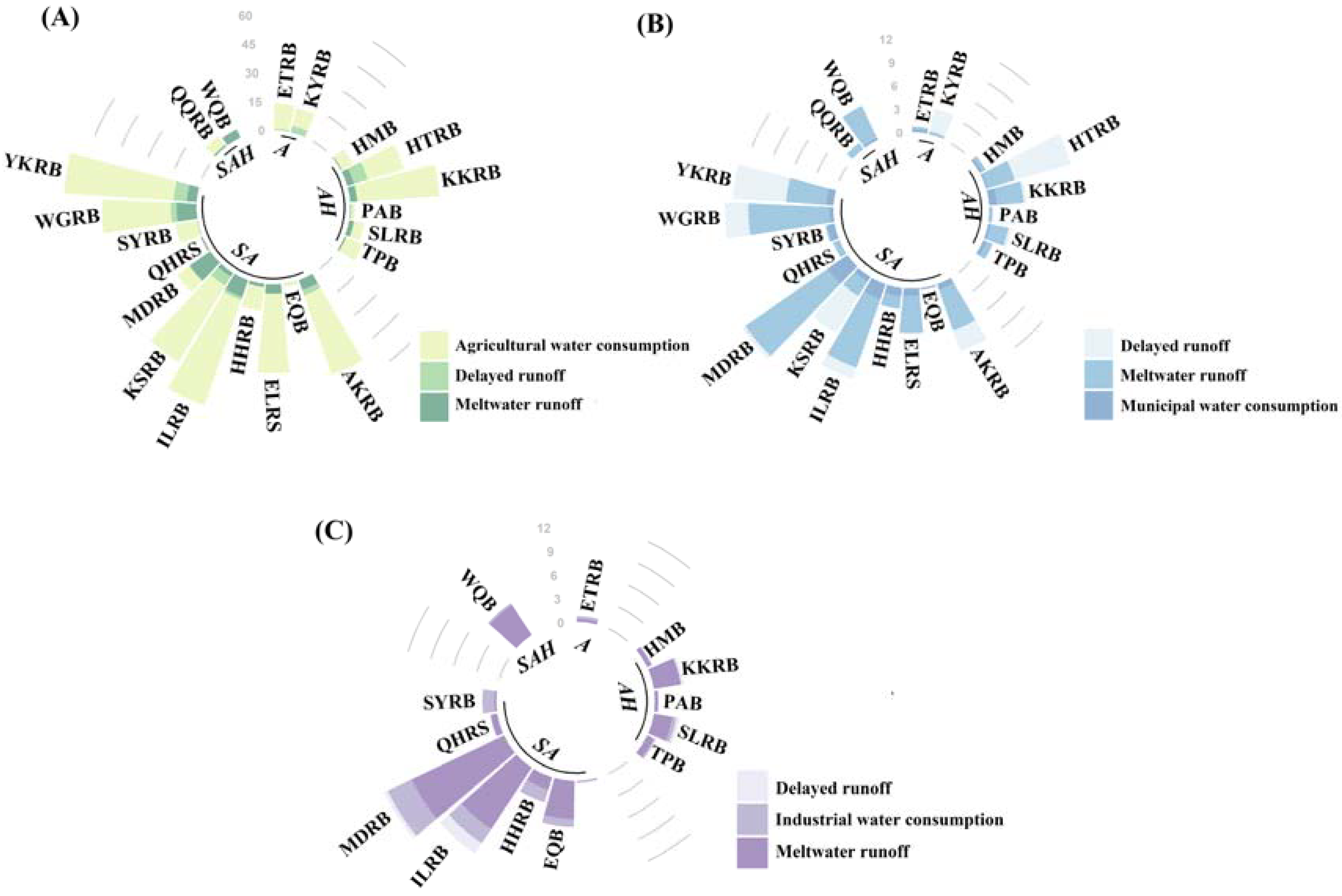

The proportion of GR in agricultural, industrial, and municipal water consumption DAC basins is shown in Figure 10. Agrarian water consumption at the watershed scale was obtained by averaging agricultural water consumption statistical data to land use types of agricultural land and then ranging regional statistics, which were the same as those of industrial and municipal water consumption. Because quantifying the economic and social impacts of cryospheric change is critical to make public policy and impact adaptation decisions, our estimate may support the referentially quantifiable long-term GR time series.

5. Conclusions

This paper overcomes the shortcomings of large-scale geodetic quality assessments. We used the Shean Mass Balance dataset and calculated the precipitation gradient to quantitatively study the seven major glacier regions around the DAC, including nearly 42,000 glaciers. We established the spatiotemporal changes in the GR (DR and MR) in 22 glacierized watersheds with a spatial resolution of 100 m from 1961 to 2015.
1. This paper used the mass balance of the Shean Mass Balance dataset to obtain a high-altitude precipitation gradient with uncertainties and then calculated the long-term time series of GR, including DR and MR, considering both ablation and accumulation processes, while the average total GR in the DAC was (100.81 ± 68.71) × 108 m3. Moderate MR reached (63.44 ± 46.65) × 108 m3 and DR was (37.37 ± 22.06) × 108 m3 in 1961–2015. The ratio of our estimations to existing studies was measured as 0.67, proving the influence of the accumulation process on the estimation of GR.
2. After comparing the number and area of glaciers with the same trend of temperature and MR, the temperature was found to be the most central factor affecting MR, and the lagged influence of temperature on MR did not show a strong correlation between the former two variables. Based on the LASSO and RF results, the contributions of hydrothermal conditions, including temperature and precipitation, and glacier physical properties, including area, slope, aspect, and altitude, to GR were nearly equal. It was effective to improve the estimation of GR by making full use of the physical properties of glaciers and combining the two processes of glacier ablation and accumulation with field measurement data.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/2072-4292/14/10/2393/s1, Figure S1: Mass balance in different glacier regions. Figure S2: Mann-Kendall Test of delayed runoff with a confidence of 95%. Figure S3: Mann-Kendall Test of meltwater runoff with a confidence of 95%. Figure S4: Mann-Kendall Test of glacier runoff with a confidence of 95%. Figure S5: Time series of MR in each watershed. Figure S6: Time series of GR in each watershed. Table S1: Comparison about mass balance datasets in different glacier regions. Table S2: Dates of Landsat imageries used in RGI. Table S3: Coefficients of potential predictor based on LASSO regression method.

Author Contributions

Conceptualization, X.L. and X.F.; Data curation, X.L. and Y.Z.; Formal analysis, X.L.; Funding acquisition, X.F. and B.F.; Investigation, Y.Z.; Methodology, X.L.; Project administration, X.F. and B.F.; Supervision, X.F. and B.F.; Validation, X.L.; Visualization, X.L.; Writing—original draft, X.L. and X.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (41991233).

Data Availability Statement

Datasets used in this study were described in Section 2.1. The results of this paper can be obtained by contacting [email protected].

Conflicts of Interest

The authors declare no conflict of interest.

Correction Statement

This article has been republished with a minor correction to the existing affiliation information. This change does not affect the scientific content of the article.
