MCAFNet: A Multiscale Channel Attention Fusion Network for Semantic Segmentation of Remote Sensing Images
Abstract

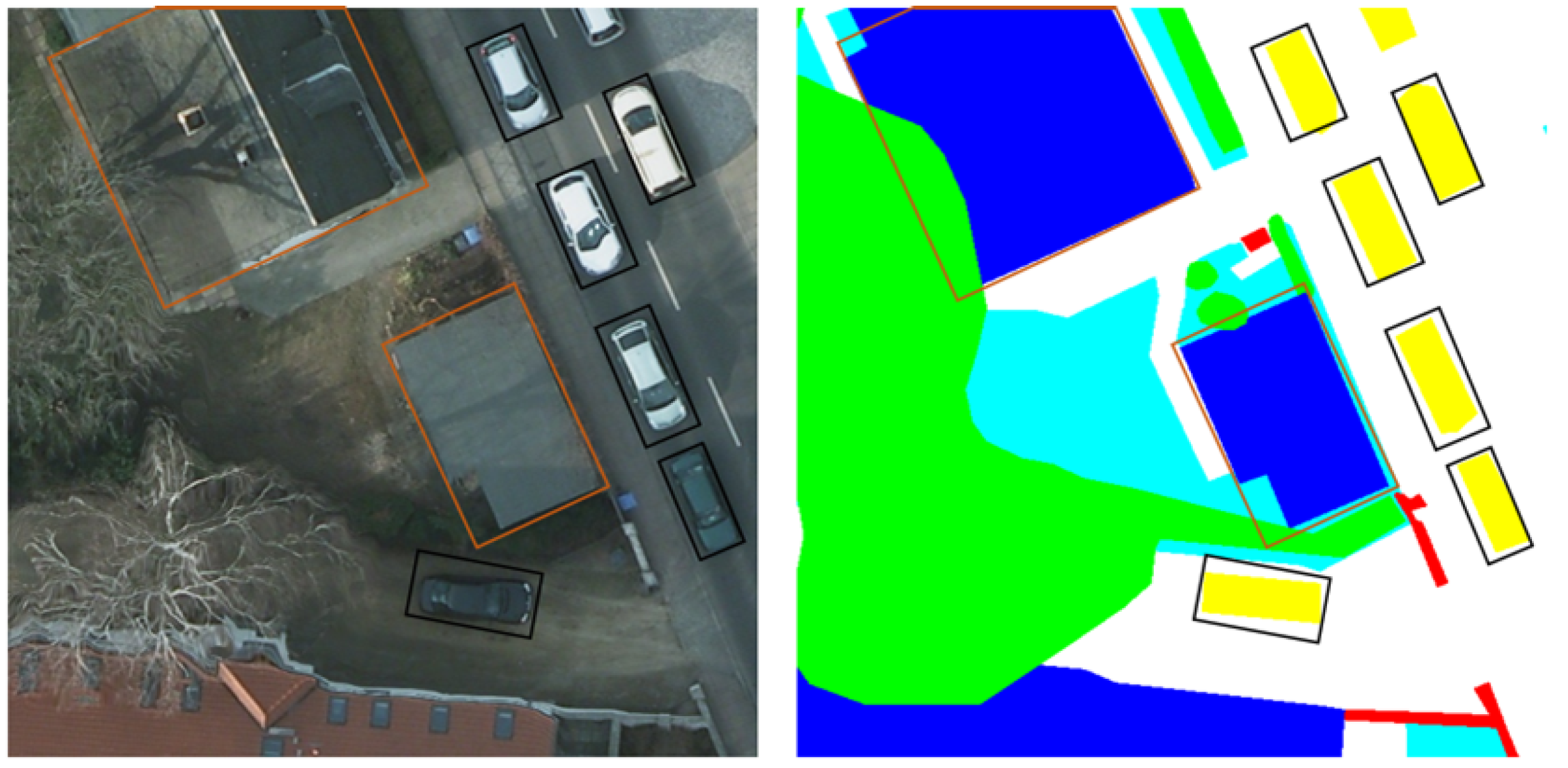

:1. Introduction
- (1)
- We combine the ResNet-50 and a transformer hybrid model to improve the current mainstream semantic segmentation network structure, and the proposed global–local transformer block models the spatial distance correlation in the image while maintaining the hierarchical characteristics.
- (2)
- We propose a channel attention module decoder (CAMD). In the module, a pooling fusion module is designed to enrich the feature expression of the network. We evaluated the efficiency of each part of the decoder module through ablation research.
- (3)
- We added a fusion module to optimize the structure of the hybrid model, merge feature maps from different scales, and improve semantic representation of the underlying features.
2. Related Work
2.1. Methods for Semantic Segmentation Based on Deep Learning
2.2. Methods for Semantic Segmentation Based on Transformers

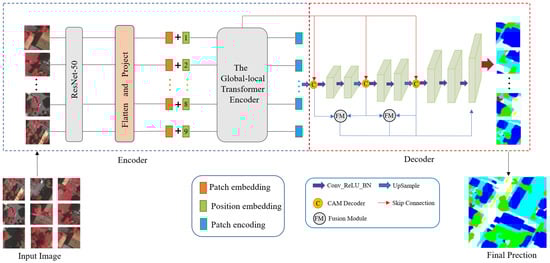

3. The Proposed Method

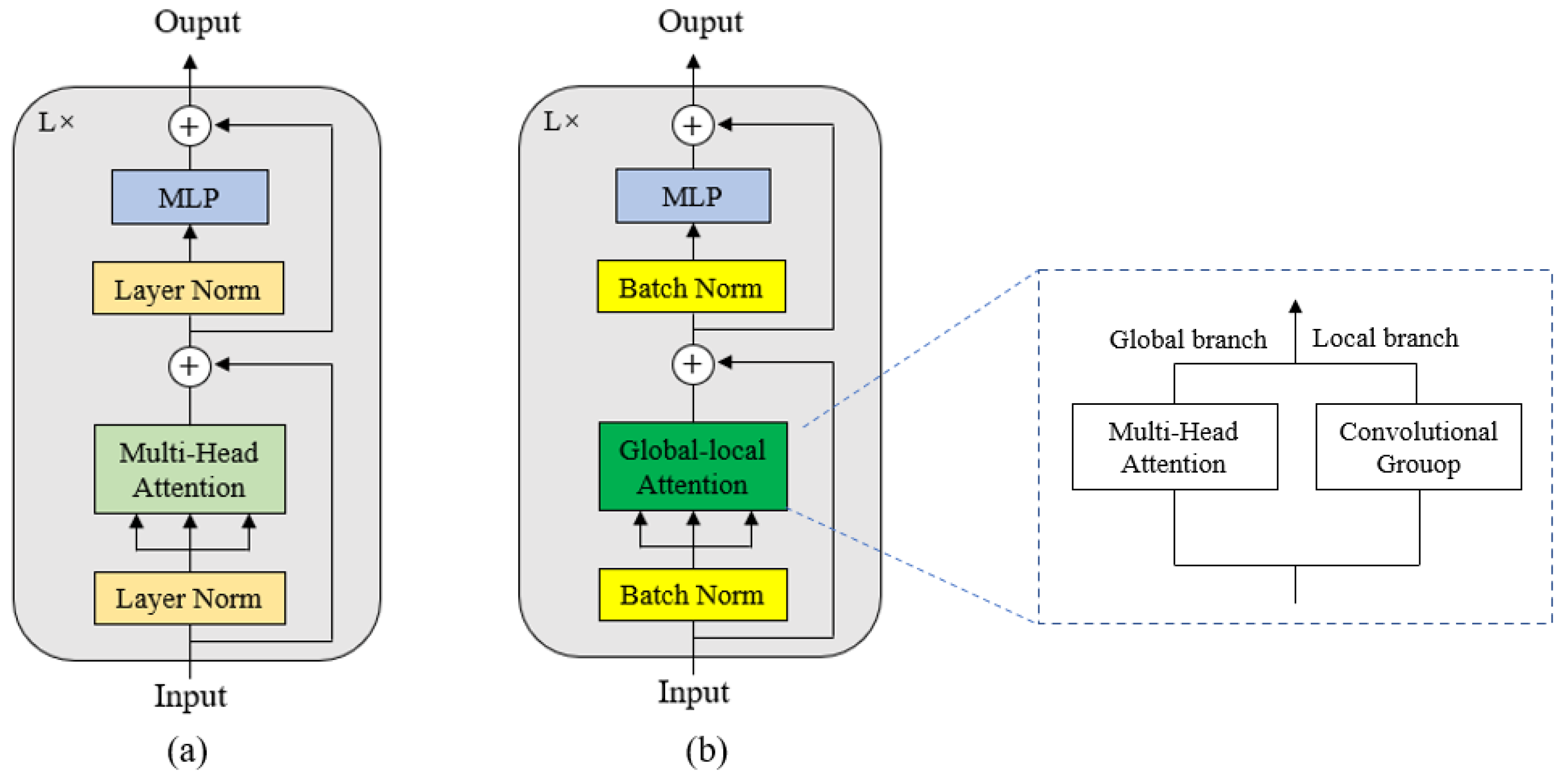

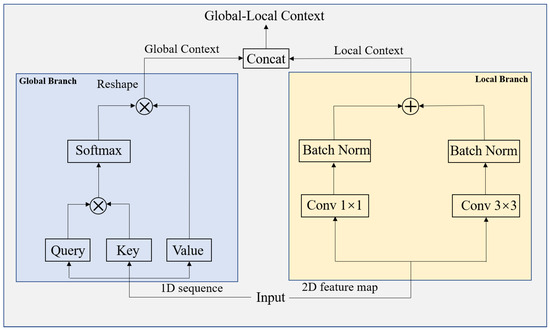

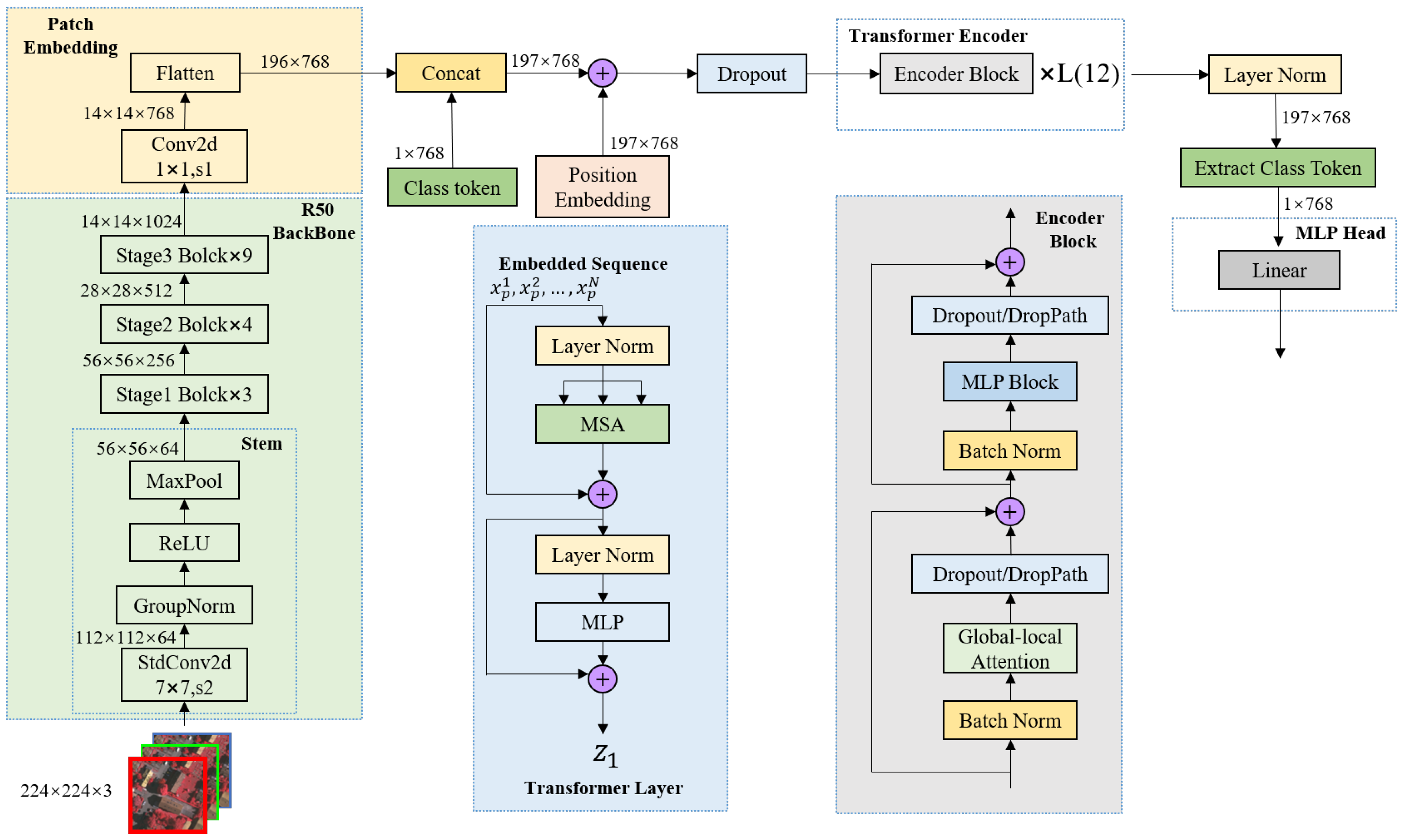

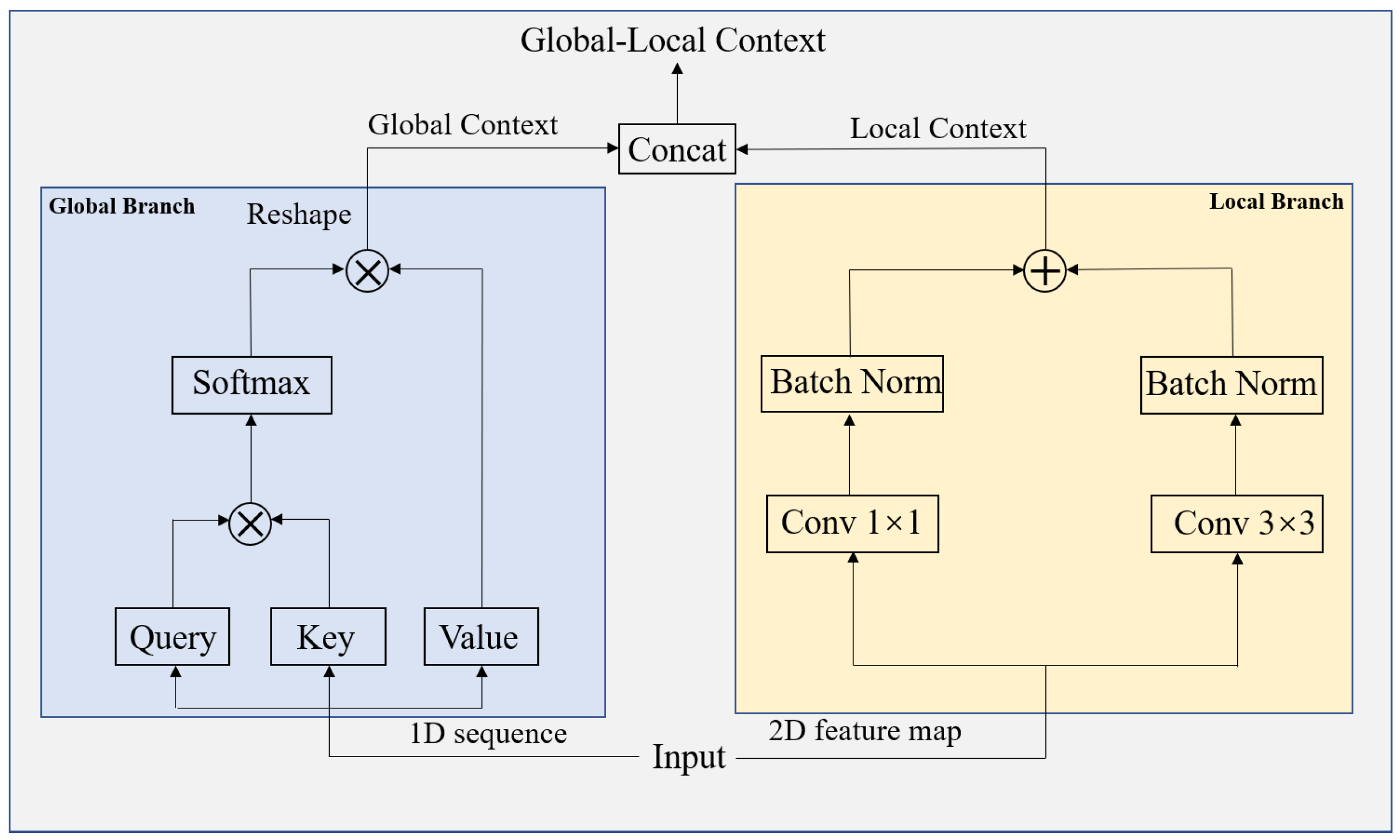

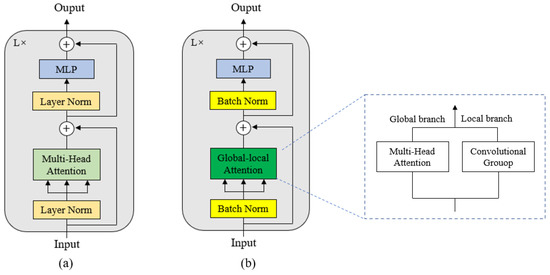

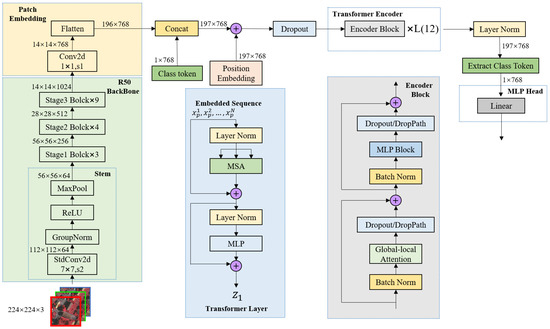

3.1. CNN-Transformer Hybrid as Encoder

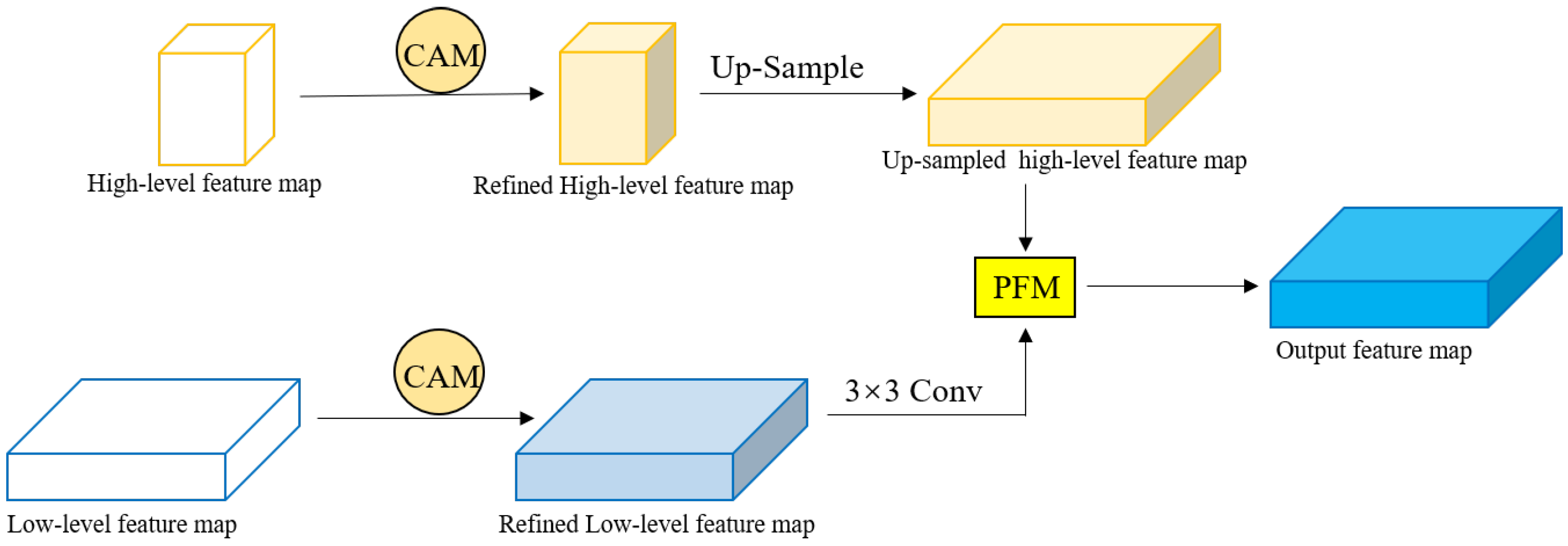

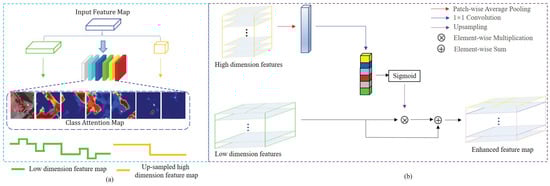

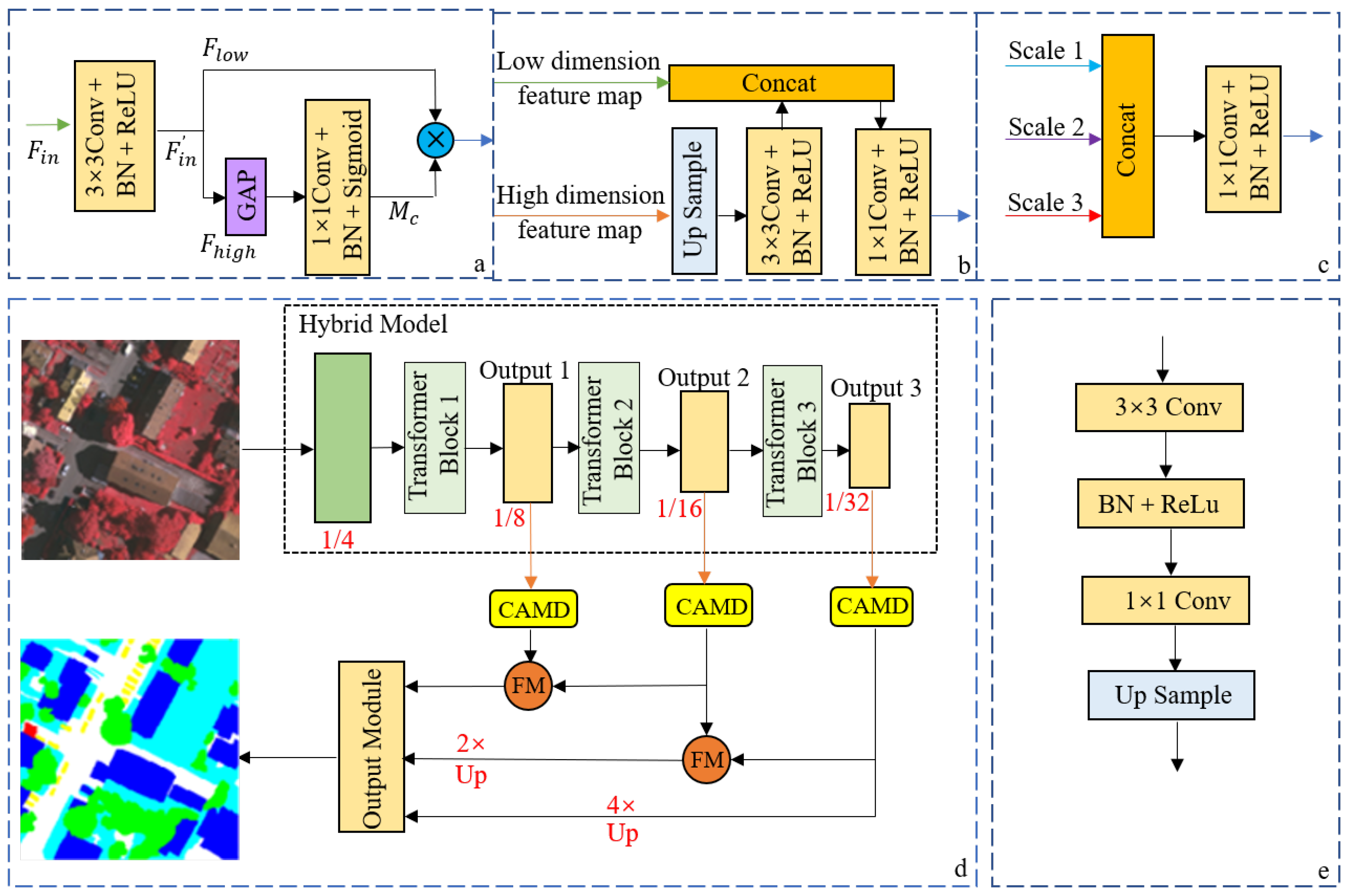

3.2. CNN-Based Decoder

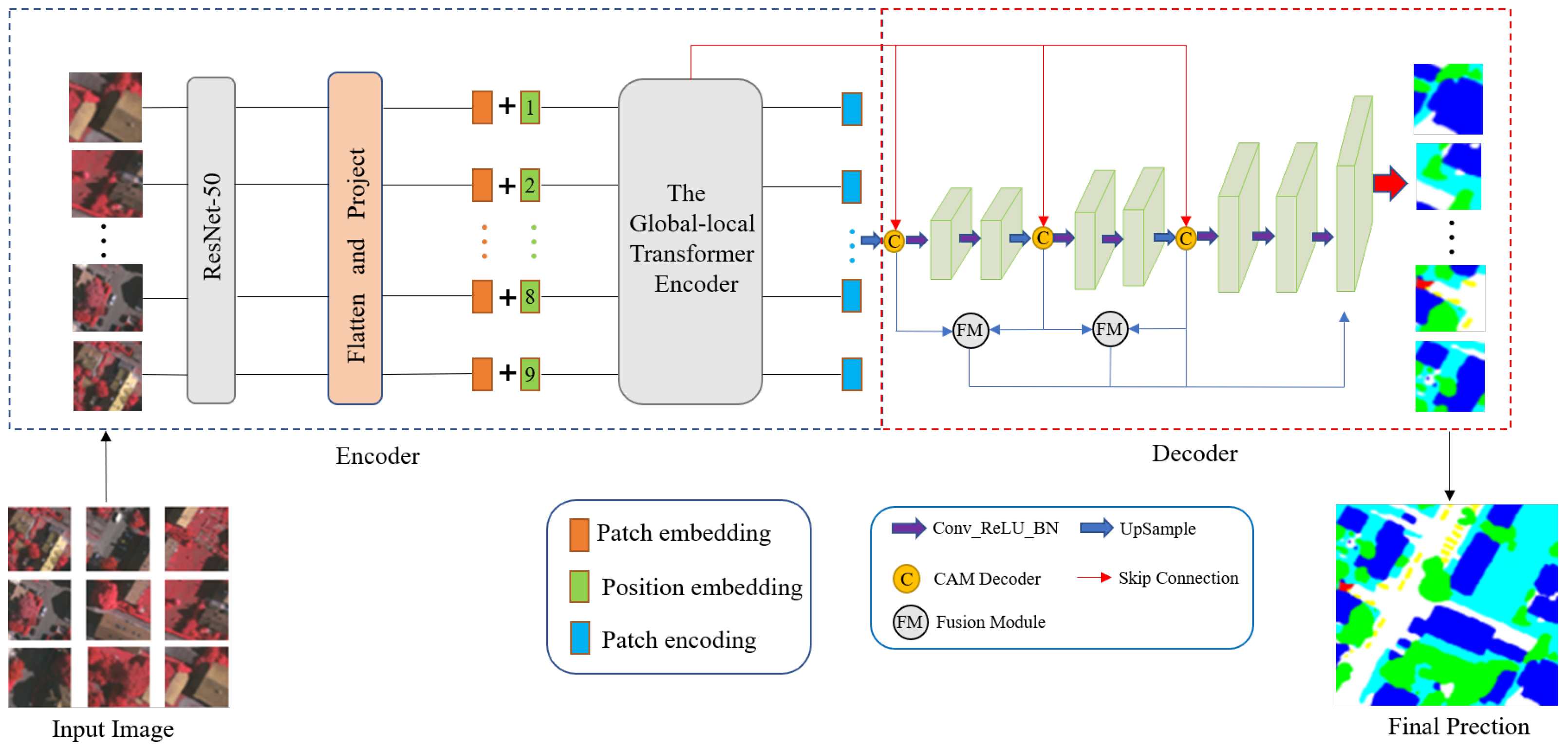

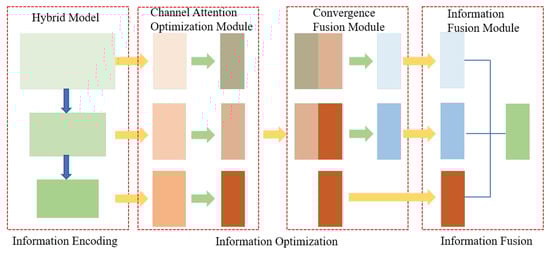

3.3. Network Architecture
4. Experiment Setup
4.1. Datasets and Evaluation Metrics
4.2. Implementation Details
5. Experiments and Results

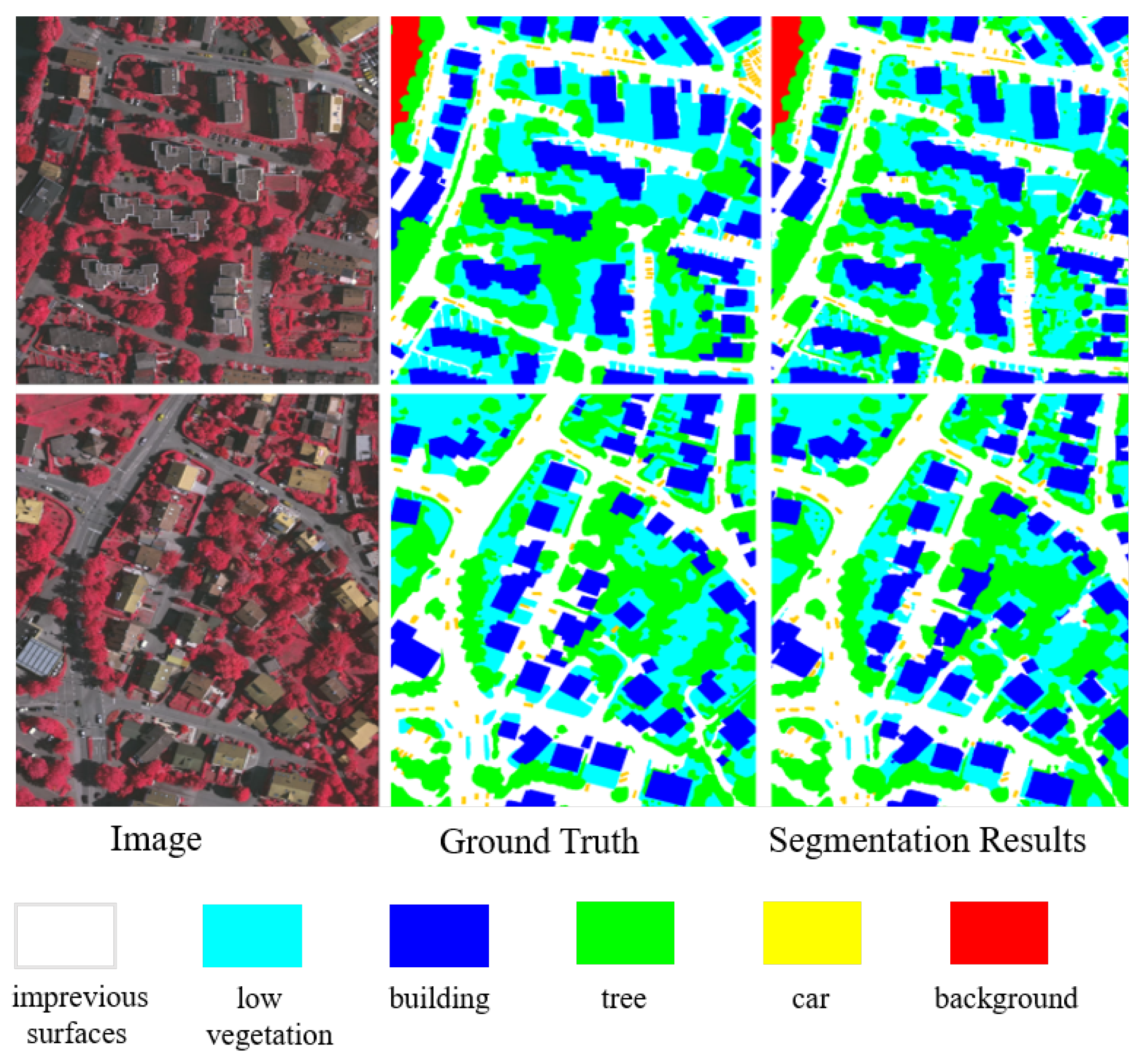

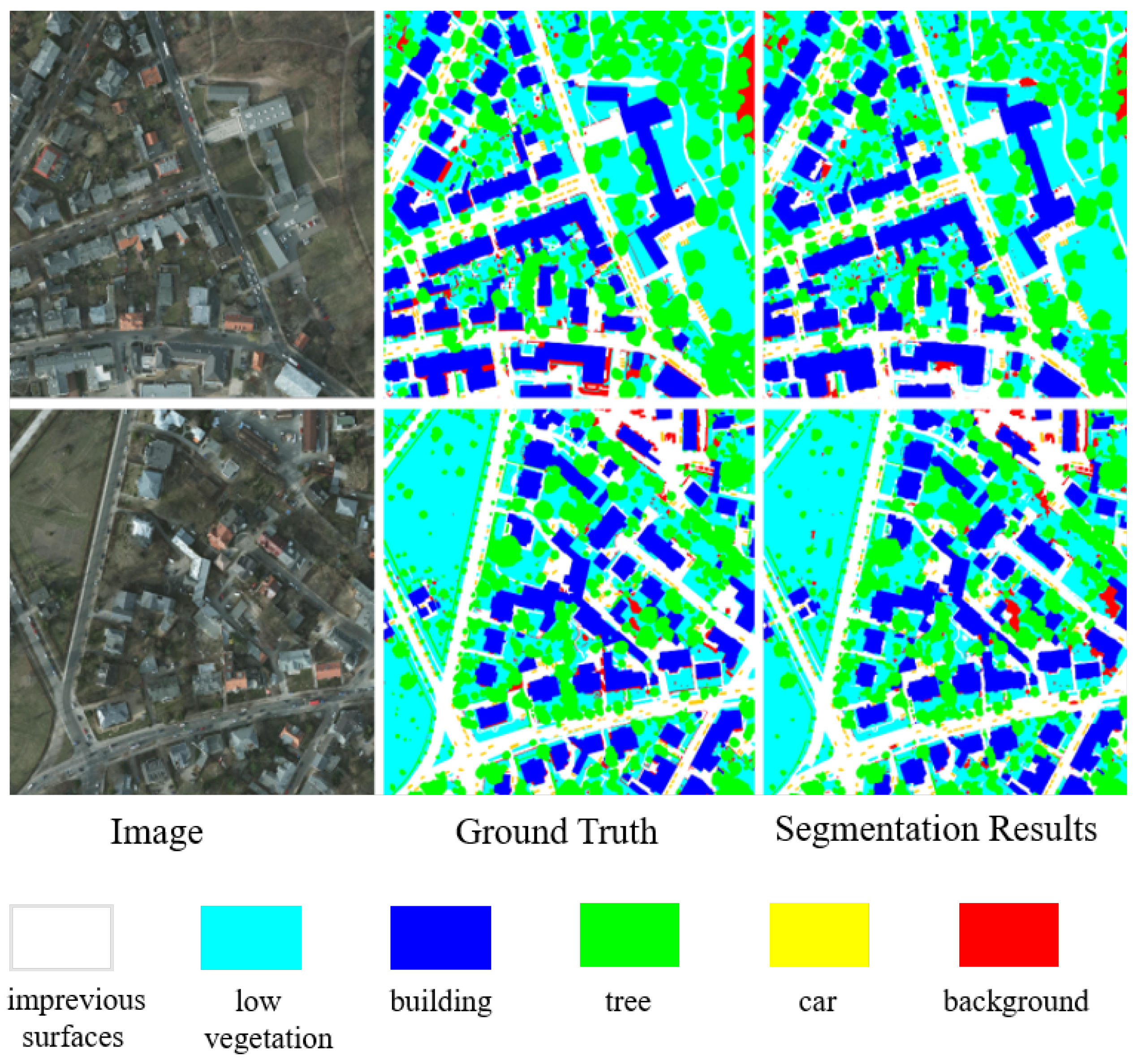

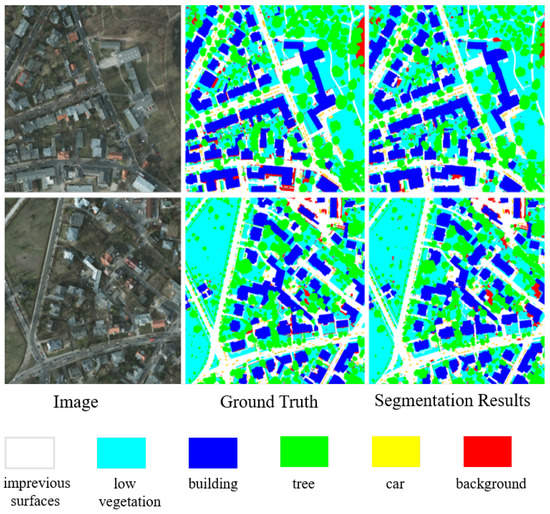

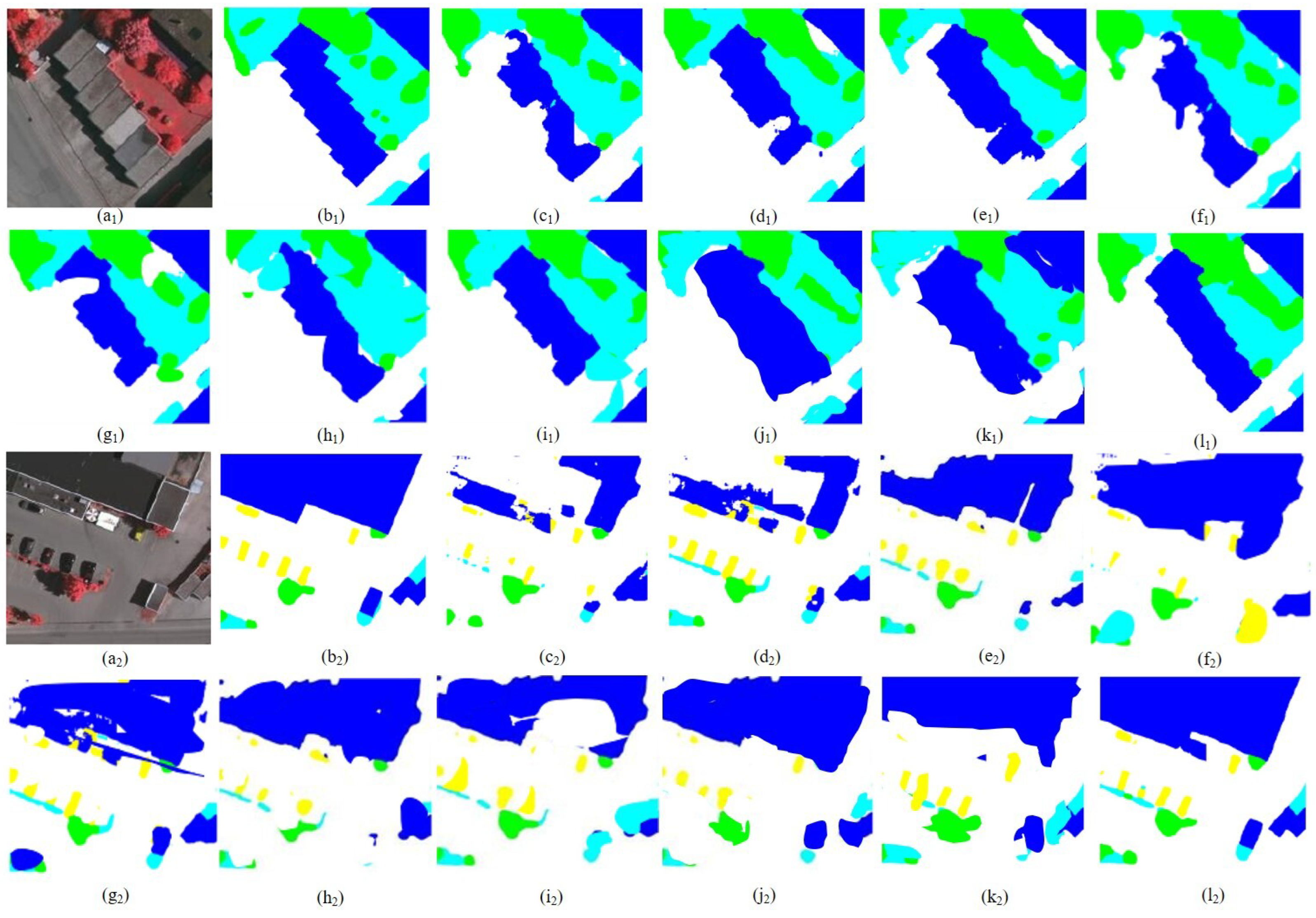

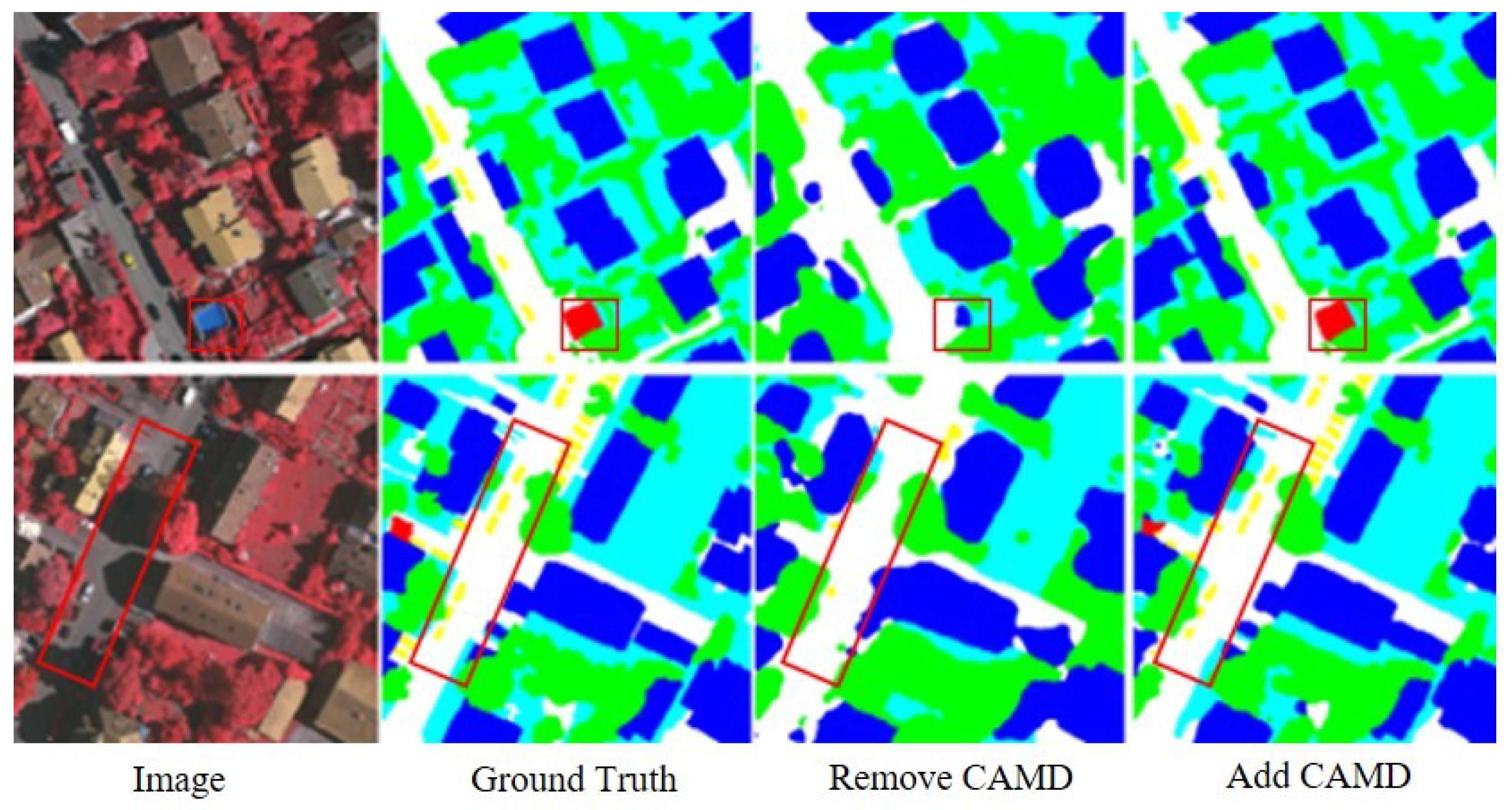

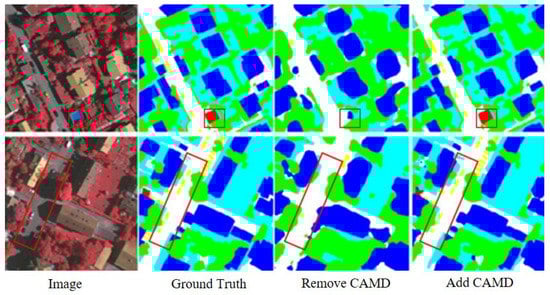

5.1. Result Display

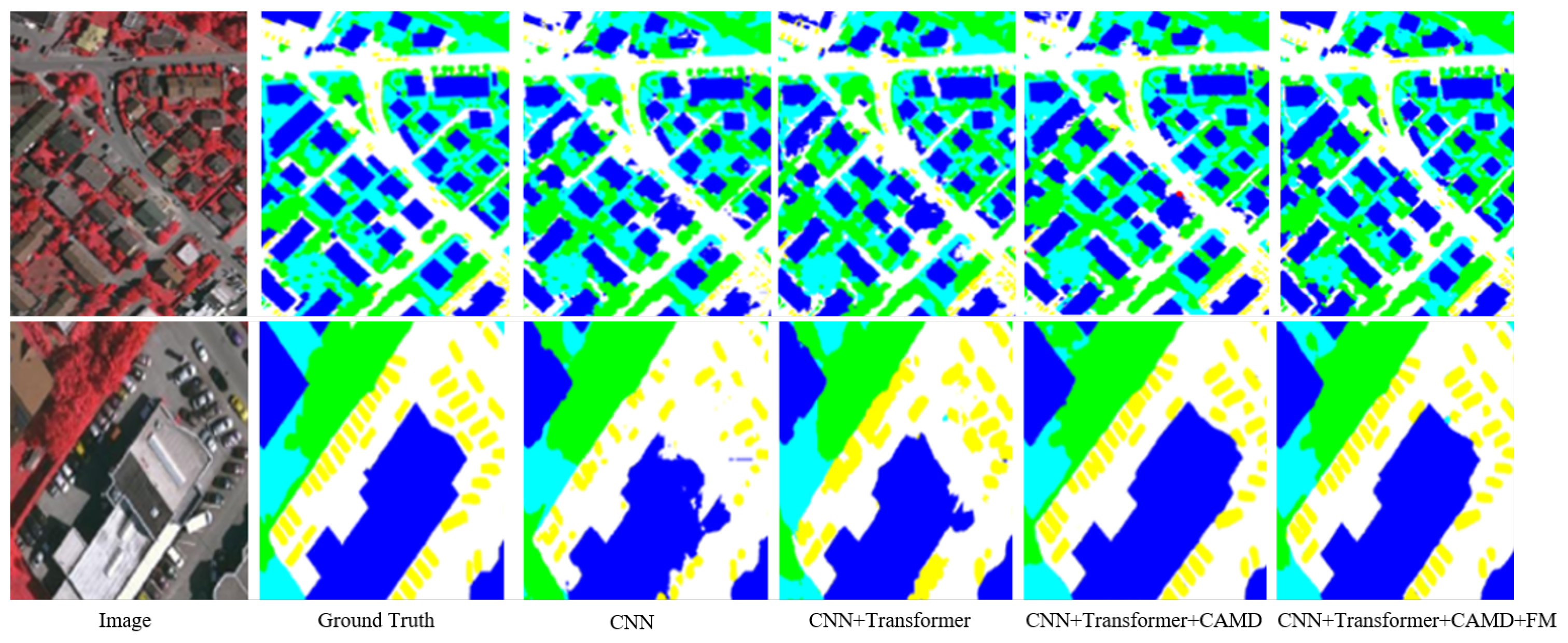

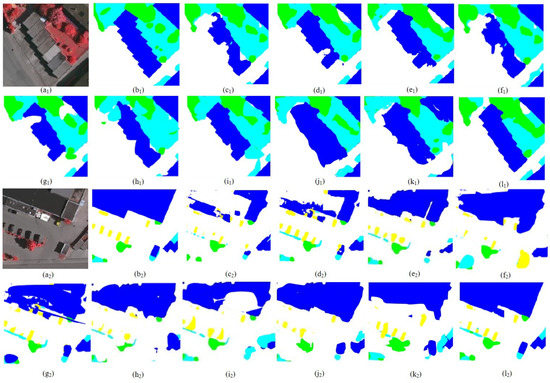

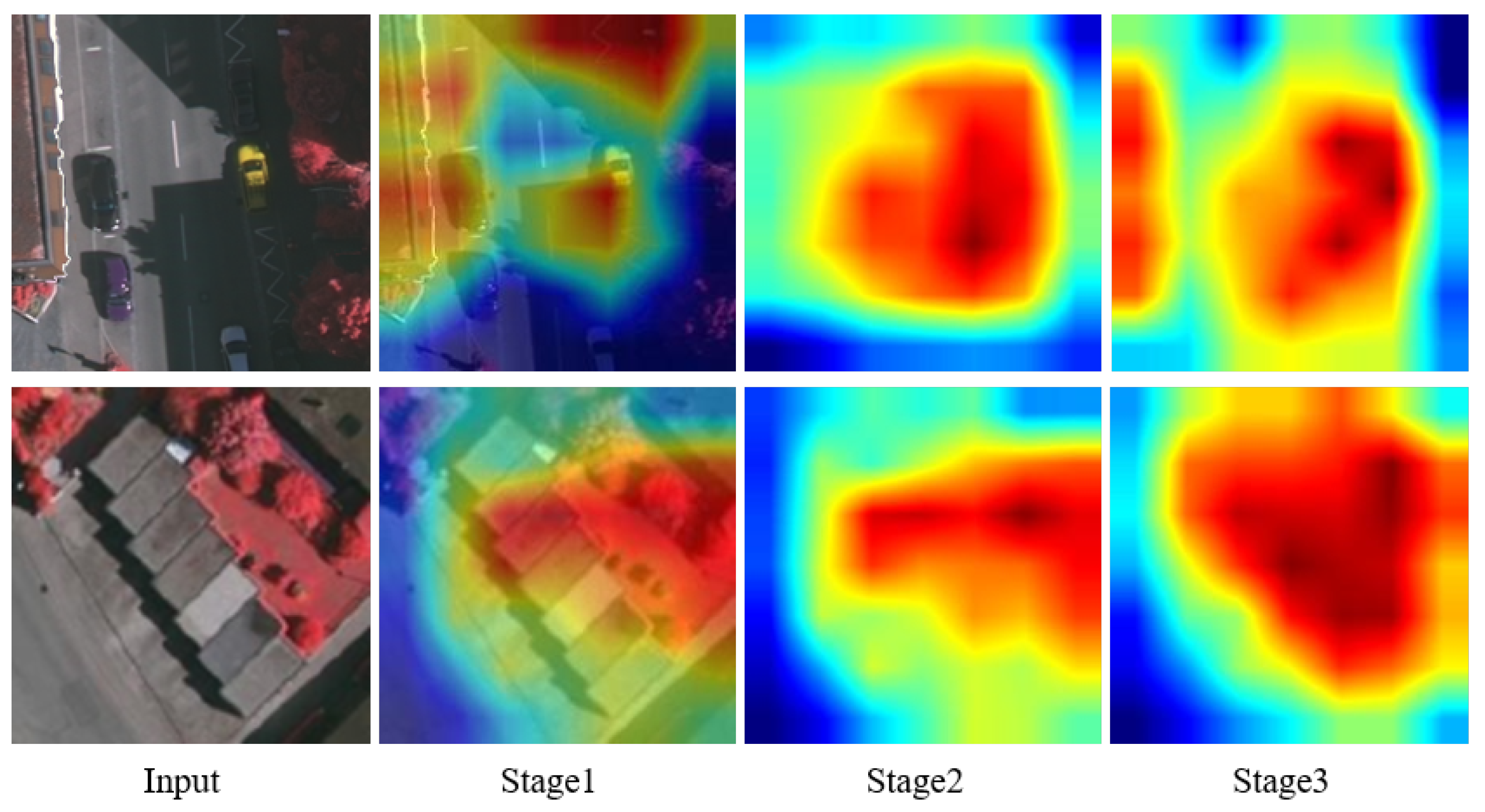

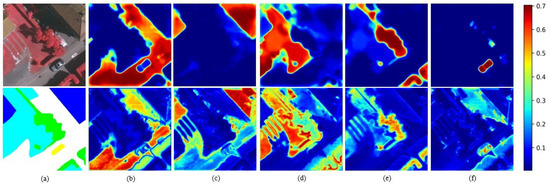

5.2. CAM Visualization Analysis
