Improved van Zyl Polarimetric Decomposition Lessening the Overestimation of Volume Scattering Power

Abstract

This paper improves van Zyl’s Nonnegative Eigenvalue Decomposition (NNED). Orientation angle compensation and helix scattering are introduced to the decomposition. The volume scattering parameters that explain the most cross-polarized power are selected. If volume scattering and helix scattering explain all cross-polarized power in the measured coherency matrix, then simply perform van Zyl decomposition to the remainder matrix; otherwise, the measured coherency matrix is decomposed into three components, i.e., helix scattering, volume scattering, and one ground scattering. The latter two scattering are all modeled by Neumann’s adaptive depolarizing model, according to which some cross-polarized power is attributed to ground scattering hence the orientation angle randomness of volume scattering and the dominant ground scattering are obtained. In this way, all cross-polarized power could be well explained. Experiments using UAVSAR data showed that more than 99.8% of total pixels are well fitted. Negative power is avoided. Compared with van Zyl decomposition, volume scattering power is reduced by up to 8.73% on average. The given volume scattering power is often lower than that by three latest NNED.

1. Introduction

In the field of polarimetric Synthetic Aperture Radar (PolSAR), model-based incoherent decomposition is an important research topic [1]. Since Freeman and Durden proposed the three-component decomposition in 1992 [2] and 1998 [3], more than 20 decompositions have been published [4–16]. Model-based decomposition has been successfully used in PolSAR image classification [17–21], speckle filtering [22], polarimetric SAR Interferometry [23], wetland research [24], soil moisture and roughness estimation [25–27], target detection [28,29], disaster assessment [30], and so on. In the past several years, the largest advances include adaptive scattering models [16,26,31,32], Orientation Angle Compensation (OAC) [33], Nonnegative Eigenvalue Constraint (NNEC) [7], etc.

van Zyl et al. [7] demonstrated that if model-based decomposition is valid, then after subtracting any components from the observed covariance or coherency matrix, the remainder matrix must be positive semidefinite, or its eigenvalues must be nonnegative. This constraint is named as NNEC. It could be easily proved that, usually, the decomposition results satisfy NNEC as long as the obtained component powers are nonnegative. In [8,15], NNEC was adopted to eliminate negative power as much as possible. In recent years, several Nonnegative Eigenvalue Decompositions (NNED) were proposed by van Zyl et al. [7], Arii et al. [6], Cui et al. [12], and Wang et al. [13]. In all NNED, the maximum volume scattering power that makes the remainder matrix positive semidefinite is thought to be optimal and selected. In this way, the overestimation of volume scattering power in Yamaguchi decomposition or Freeman-Durden decomposition is largely eliminated. In addition, negative power is fundamentally avoided.

However, NNED still has two potential problems. The first problem is the overestimation of volume scattering power is not entirely eliminated. Since the maximum volume scattering power in theory is adopted, the overestimation is inevitable to a large degree. When applying adaptive volume scattering models, the overestimation is more serious [6,13].

The second problem is how to explain cross-polarized power. Subject to the Reflection Symmetry Assumption (RSA) and employment of elemental scatterers of which cross-polarized complex scattering coefficient, or S_HV is zero, the derived coherent models of surface scattering and double-bounce scattering cannot describe depolarizing effect. However, it was observed [7] that if volume scattering power is computed with RSA, then, in many natural forest pixels, volume scattering and helix scattering cannot explain all cross-polarized power. van Zyl attributed these unexplained cross-polarized power to a remainder component which is thought to represent terrain effects and rough surface scattering. If volume scattering power is computed without RSA, then in almost every pixel, volume scattering and helix scattering cannot explain all cross-polarized power. Wang et al. [13] and Cui et al. [12] utilized elemental scatterers of which S_HV is non-zero and coherent models, to explain these remaining cross-polarized power. Unfortunately, among all widely recognized scattering mechanisms, only helix scattering with standard orientation has non-zero S_HV.

Some researchers may argue that there are possibly some unknown scattering mechanisms, which could produce cross-polarized power. However, according to the latest incoherent adaptive scattering models, such as X-Bragg model [26], Arii’s model [31], and Neumann’s model [32], when the orientation angles of scatterers in one component are not exactly the same, this component will give cross-polarized power as long as S_HH + S_VV ≠ 0, where S_HH and S_VV are the complex scattering coefficients, HH means horizontal transmitting and horizontal receiving, VV means vertical transmitting and vertical receiving.

Generally, in incoherent scattering, the assumption that orientation angles in one component are the same cannot be guaranteed even for man-made targets, let alone for natural distributed targets. Natural terrain, like the ground in old-growth forest, is usually rough even when the wavelength is long. Hence, surface scattering could produce non-zero cross-polarized power. Similarly, double-bounce scattering with cross-polarized power also widely distribute in natural environment. From this perspective, both surface scattering and double-bounce scattering could give cross-polarized power in incoherent scattering. Neumann [32] found that in forest, ground scattering has significant cross-polarized power. Therefore, it is wiser to apply incoherent models for ground scattering to explain cross-polarized power instead of unknown scattering mechanisms. The above idea is also supported in [10,15,34]. Singh et al. [10] pointed out that, to understand the depolarization effects on the decomposition results, using extended incoherent ground scattering models are required. Lee et al. [15] tried to incorporate incoherent ground scattering models into Freeman-Durden decomposition.

A new decomposition was proposed in this paper. Since RSA is applied in the computation of volume scattering, the proposed decomposition could be considered as an improved version of van Zyl decomposition. Experiment using Uninhabited Aerial Vehicle Synthetic Aperture Radar (UAVSAR) data well demonstrated the effectiveness of the proposed decomposition.

2. Scattering Models

In this paper, T_mn stands for the element in the m_th row and n_th column of matrix [T].

2.1. Helix Scattering Model

The helix scattering model [T_H] can be found in [4], so the authors would not give it here.

2.2. Volume Scattering Model

In [35], Neumann et al. assume the scattering matrix of an elemental scatterer is:

$$[S]=\left[\begin{array}{cc}{S}_{HH}& 0\\ 0& S_{VV}\end{array}\right]$$

(1)

If the orientation angles of elemental scatterer follow unimodal circular normal von Mises distribution and mean orientation angle is zero, the derived reflection symmetric scattering model [T_Neum] will be:

$$[T_{\mathit{Neum}}]=\frac{1}{L+N}[T_{\mathit{Neumann}}]$$

(2)

with

$$[T_{\mathit{Neumann}}]=\left[\begin{array}{ccc}L& g_c(\tau )M& 0\\ g_c(\tau )M^{*}& \left(1+g(\tau )\right)N/2& 0\\ 0& 0& (1-g(\tau ))N/2\end{array}\right]$$

(3)

$$L={\left|S_{HH}+S_{VV}\right|}^2,M=(S_{HH}+S_{VV}){(S_{HH}-S_{VV})}^{*},N={\left|S_{HH}-S_{VV}\right|}^2$$

(4)

$$\tau =I_0(k){\text{e}}^{-k},\hspace{0.17em}\hspace{0.17em}{g}_c(\tau )=\frac{I_1(k)}{I_0(k)},\hspace{0.17em}\hspace{0.17em}g(\tau )=\frac{I_2(k)}{I_0(k)}$$

(5)

^* is the sign of complex conjugate operator; τ, as the randomness of orientation angles, is defined in the range of [0,1]; k is the concentration degree of orientation angles; I_n(k) is the modified Bessel function of order n and parameter k; and g(τ) ∈ [0,1], g_c(τ) ∈ [0,1]. [T_Neum] describes coherent scattering if τ = 0. The advantages of [T_Neum] over X-Bragg model and improved Yamaguchi’s model were clearly pointed out by Lee et al. [15].

When horizontal dipole (see Equation (6) for scattering matrix [S_Horz]) is used as elemental scatterer, the volume scattering model is [T_{Vol_H}] (see Equation (8)); when vertical dipole (see Equation (7) for scattering matrix [S_Vert]) is used as elemental scatterer, the volume scattering model is [T_{Vol_V}] (see Equation (9)). τ_V is the τ of volume scattering.

$$[S_{\mathit{Horz}}]=\left[\begin{array}{cc}1& 0\\ 0& 0\end{array}\right]$$

(6)

$$[S_{\mathit{Vert}}]=\left[\begin{array}{cc}0& 0\\ 0& 1\end{array}\right]$$

(7)

$$[T_{\mathit{Vol}\_\text{H}}]=\frac{1}{2}\left[\begin{array}{ccc}1& g_c({\tau }_V)& 0\\ g_c({\tau }_V)& \frac{1+g({\tau }_V)}{2}& 0\\ 0& 0& \frac{1-g({\tau }_V)}{2}\end{array}\right]$$

(8)

$$[T_{\mathit{Vol}\_\text{V}}]=\frac{1}{2}\left[\begin{array}{ccc}1& -g_c({\tau }_V)& 0\\ -g_c({\tau }_V)& \frac{1+g({\tau }_V)}{2}& 0\\ 0& 0& \frac{1-g({\tau }_V)}{2}\end{array}\right]$$

(9)

2.3. Ground Scattering Model

The classical coherent surface scattering model is:

$$[T_S]=\frac{1}{1+{\left|\beta \right|}^2}\left[\begin{array}{ccc}1& {\beta }^{*}& 0\\ \beta & {\left|\beta \right|}^2& 0\\ 0& 0& 0\end{array}\right]$$

(10)

The classical coherent double-bounce scattering model is:

$$[T_D]=\frac{1}{1+{\left|\alpha \right|}^2}\left[\begin{array}{ccc}{\left|\alpha \right|}^2& \alpha & 0\\ {\alpha }^{*}& 1& 0\\ 0& 0& 0\end{array}\right]$$

(11)

In case the cross-polarized power cannot be entirely explained by helix scattering and volume scattering, the dominant ground scattering is described by [T_Neum] to explain a proportion of cross-polarized power. Although [T_Neum] was originally proposed to describe volume scattering, as a generic scattering model, [T_Neum] is also capable of describing ground scattering by using proper scattering matrix of elemental scatterers [36,37]. For example, combining the complex scattering coefficients predicted by Bragg model [26] with von Mises distribution, the derived incoherent model could describe depolarizing effects, and it may be considered as another X-Bragg model [26]. When [T_Neum] is used to describe surface scattering, the τ is denoted as τ_S; when [T_Neum] is used to describe double-bounce scattering, the τ is denoted as τ_D.

3. Polarimetric Decomposition

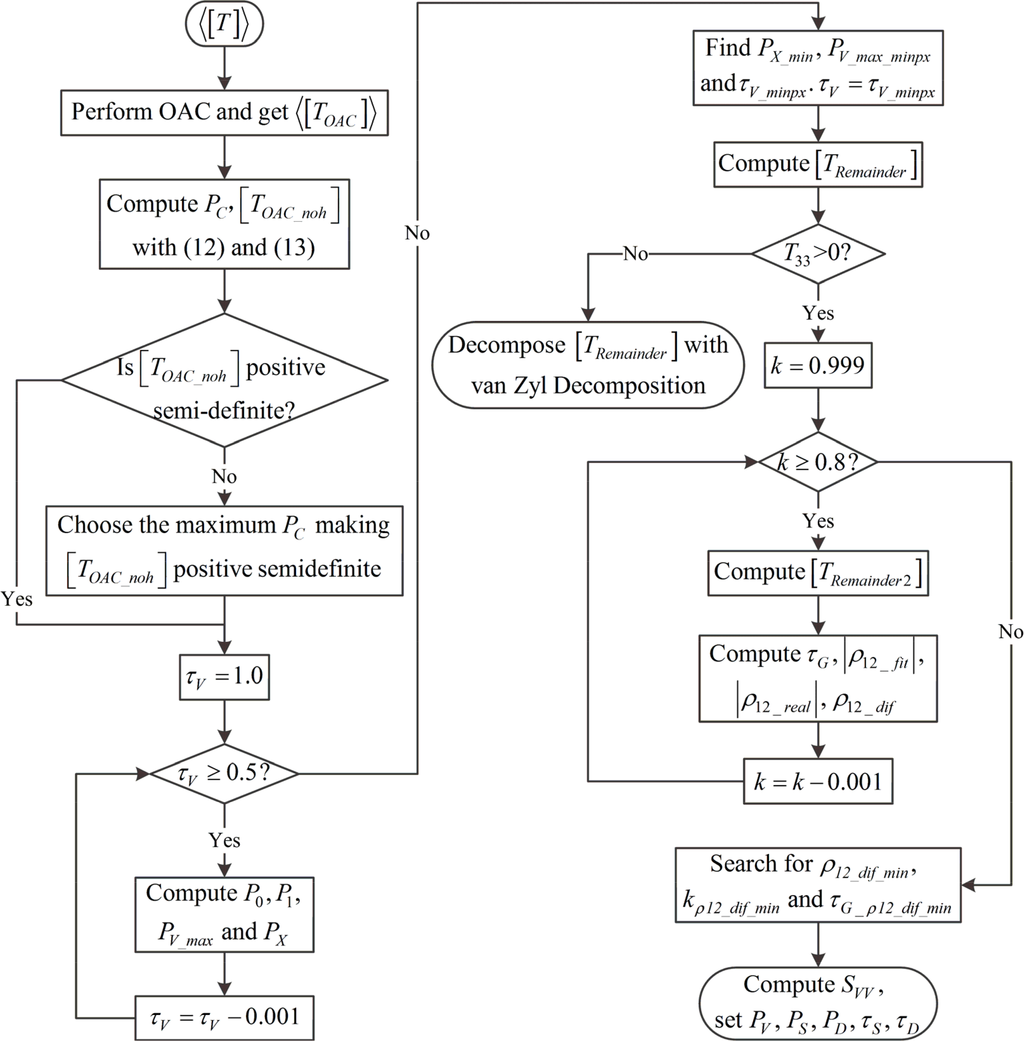

Figure 1 is the flow chart of the proposed decomposition.

3.1. Orientation Angle Compensation

In order to make 〈[T]〉 be closer to RSA so that it is more reasonable to utilize [T_Neum], perform OAC to 〈[T]〉 and get 〈[T_OAC]〉. The details of OAC processing could be found in [33]. 〈 〉 stands for ensemble average processing.

3.2. Helix Scattering Power Computation

Helix scattering power P_C is first calculated as [4]:

$$P_C=2\left|\text{Im}\left(\langle T_{23}\rangle \right)\right|$$

(12)

Re(x) and Im(x) denote the real and imaginary part of complex number x in this paper. Subtracting helix scattering from 〈[T_OAC]〉, we have:

$$[T_{\mathit{OAC}\_\mathit{noh}}]=\langle [T_{\mathit{OAC}}]\rangle -P_C[T_H]$$

(13)

However, P_C given in Equation (12) cannot always guarantee [T_{OAC_noh}] satisfy NNEC. Once [T_{OAC_noh}] violates NNEC, P_C is recomputed as the maximum value that makes [T_{OAC_noh}] positive semidefinite. In this paper, T₁₃ in [T_{OAC_noh}] is ignored and treated to be zero because no scattering model could explain non-zero T₁₃. Since, in most cases, [T_{OAC_noh}] has T₂₃ = 0, so [T_{OAC_noh}] is reflection symmetric.

3.3. Volume Scattering Parameter Computation

In [7], van Zyl et al. gave the formulas of computing volume scattering power P_V with RSA. Wang et al. [13] and Cui et al. [12] extended the formulas without RSA. Assume [T_{OAC_noh}] is:

$$[T_{\mathit{OAC}\_\mathit{noh}}]=\left[\begin{array}{ccc}{A}_{11}& A_{12}& 0\\ A_{12}^{*}& A_{22}& 0\\ 0& 0& A_{33}\end{array}\right]$$

(14)

Assume the volume scattering model [T_V] is:

$$[T_V]=\left[\begin{array}{ccc}{B}_{11}& B_{12}& 0\\ B_{12}^{*}& B_{22}& 0\\ 0& 0& B_{33}\end{array}\right]$$

(15)

Subtracting volume scattering from [T_{OAC_noh}], the remainder matrix [T_Remainder] is:

$$[T_{\mathit{Remainder}}]=[T_{\mathit{OAC}\_\mathit{noh}}]-P_V[T_V]$$

(16)

In [6,7,12,13], the maximum P_V (denoted as P_{V_max}) that makes [T_Remainder] positive semidefinite is selected, so the smallest eigenvalue of [T_Remainder] is zero. Therefore, we have:

$$\left|[T_{\mathit{Remainder}}]\right|=\left|[T_{\mathit{OAC}\_\mathit{noh}}]-P_{\mathit{V}\_\mathit{max}}[T_V]\right|=0$$

(17)

|[T]| is the determinant of [T]. If [T_V] is strictly positive definite (nearly all available volume scattering models reach this demand), then Equation (17) could be rewritten as:

$$\left|{[T_V]}^{-1}[T_{\mathit{OAC}\_\mathit{noh}}]-P_{\mathit{V}-\mathit{max}}I\right|=0$$

(18)

where I is a 3 × 3 identity matrix. From Equation (18), we could know P_{V_max} is the smallest eigenvalue of [T_V]⁻¹ [T_{OAC_noh}]. P_{V_max} could be written as another form:

$$P_{\mathit{V}\_\mathit{max}}=\mathit{max}(W)\hspace{0.17em}\text{with}\hspace{0.17em}W=\left\{P_V|0\hspace{0.17em}\le P_V\le \mathit{min}\{P_0,P_1\}\right\}$$

(19)

P₁ = A₃₃/B₃₃, P₀ is the smallest nonnegative solution of Equation (20), and min{P₀, P₁} means the smaller one of P₀ and P₁.

$$(A_{11}-P_V{B}_{11})(A_{22}-P_V{B}_{22})-{\left|A_{12}-P_V{B}_{12}\right|}^2=0$$

(20)

For adaptive volume scattering models, the parameters that give the maximum P_{V_max} (denoted as P_{V_max _maxpv}) are selected. The above criterion is named as ‘maximum P_V criterion.’ It was proved by Cheng [38] that if Re(T₁₂) in [T_{OAC_noh}] is positive, then P_{V_max} given by [T_{Vol_H}(τ_V)] is larger than that by [T_{Vol_V}(τ_V)]; if Re(T₁₂) in [T_{OAC_noh}] is negative, then P_{V_max} given by [T_{Vol_V}(τ_V)] is larger than that by [T_{Vol_H}(τ_V)]. Thus, with maximum P_V criterion, if Re(T₁₂) > 0 in [T_{OAC_noh}], then we should use [T_{Vol_H}]; if Re(T₁₂) < 0 in [T_{OAC_noh}], then we should use [T_{Vol_V}]. Here, we denote the selected model as [T_Vol]. Obviously, τ_V is the only parameter in [T_Vol]. We denote the τ_V that gives P_{V_max _maxpv} as τ_{V_maxpv}. It is well known that volume scattering is regarded to be primarily from trees. The observation in [35] indicated the τ of forest mainly lies in [0.6, 0.9], so τ_V is confined within [0.5, 1.0].

Evidently, maximum P_V criterion tends to overestimates real P_V since the maximum P_V in theory is selected. We need a new criterion. It is widely recognized that cross-polarized power mainly or even entirely comes from volume scattering [3–5,8,10,14]. From this perspective, we could let volume scattering explain as much cross-polarized power as possible. The cross-polarized power not explained by volume scattering and helix scattering, namely, P_X, is expressed as:

$$P_X=F_{33}=A_{33}-P_V{B}_{33}$$

(21)

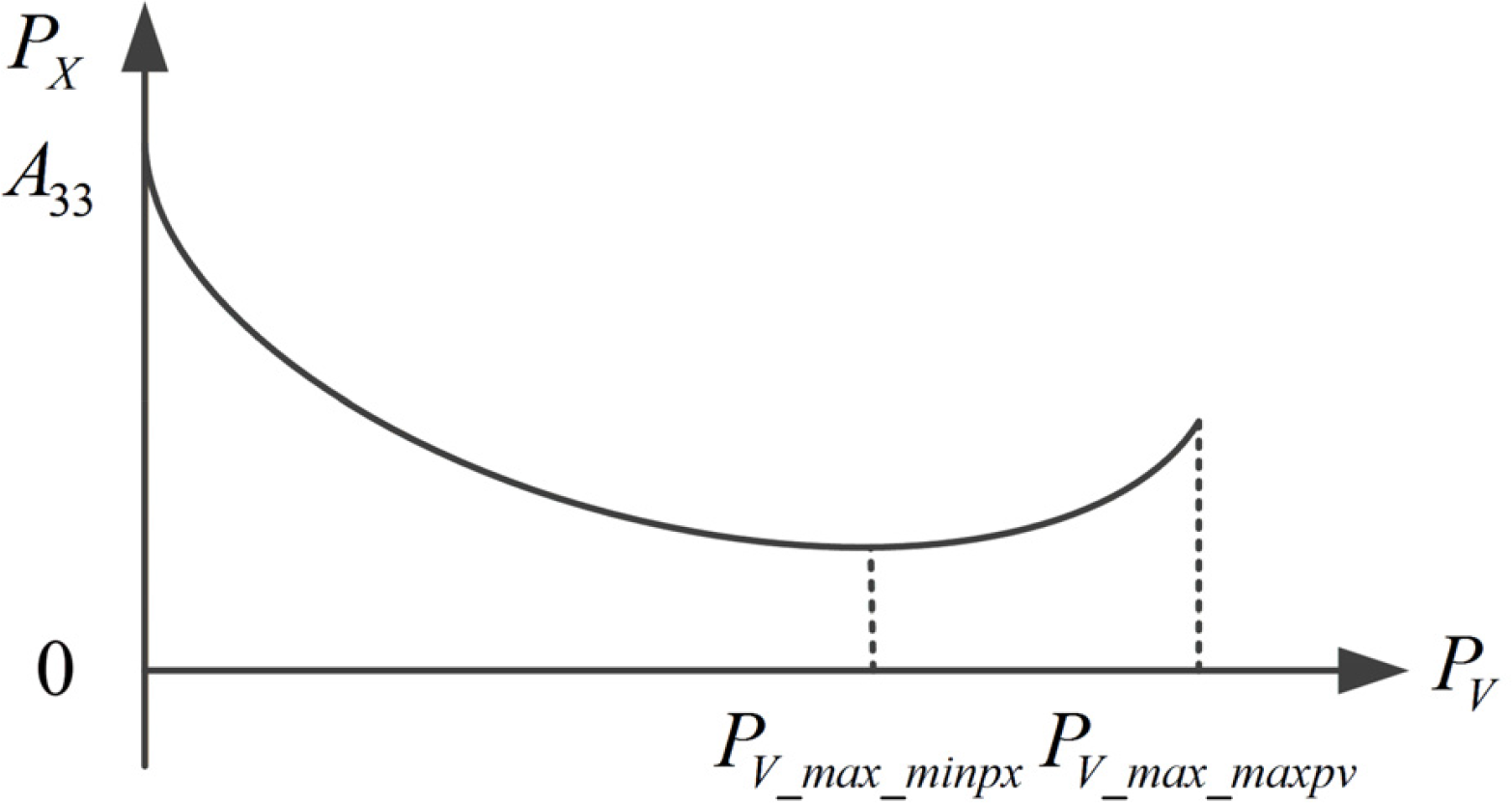

F₃₃ stands for T₃₃ of [T_Remainder]. From Equation (21), we could know, when B₃₃ is fixed, then the larger P_V, the smaller P_X. In other words, when we use a fixed [T_V], the maximum P_V constrained by NNEC lets volume scattering explain the most cross-polarized power. However, for adaptive models, like [T_Vol], we cannot guarantee the maximum P_V yields the minimum P_X because of the varying B₃₃. Here the volume scattering parameters that produce the minimum P_X (denoted as P_{X_min}) are selected. This new criterion is called ‘minimum P_X criterion.’

Again, τ_V is confined within [0.5, 1.0]. For each τ_V, we compute [T_Vol(τ_V)] and corresponding P_{V_max}, P_X. Among all results, choose the τ_V and P_{V_max} that produce P_{X_min} If more than one combinations of τ_V and P_{V_max} give the same P_{X_min}, then choose the one with the smallest P_{V_max}. We denote the chosen τ_V as τ_{V_minpx} and P_{V_max} as P_{V_max_minpx}. Considering that P_{V_max_maxpv} is the maximal one of P_{V_max}, we have P_{V_max_minpx} ≤ P_{V_max_maxpv}, indicating that minimum P_X criterion tends to lower the estimation of P_V (see Figure 2). Combining this conclusion with Equation (21), we could know that in order to get smaller P_X, P_VB₃₃ needs to be larger. Since P_{V_max_minpx} ≤ P_{V_max_maxpv}, so B₃₃ or τ_V by minimum P_X criterion should be larger than B₃₃ or τ_V by maximum P_V criterion. In other words, τ_{V_minpx} > τ_{V_maxpv}. Section 5 provides a detailed analysis. Finally, [T_Remainder] is expressed as:

$$[T_{\mathit{Remainder}}]=[T_{\mathit{OAC}\_\mathit{noh}}]-P_{\mathit{V}\_\mathit{max}\_\mathit{minpx}}[T_{\mathit{Vol}}({\tau }_{\mathit{V}\_\mathit{minpx}})]$$

(22)

3.4. Ground Scattering Solution

If T₃₃ = 0 in [T_Remainder], or volume scattering and helix scattering explain all cross-polarized power in 〈[T]〉, then with Eigen-decomposition, we could decompose [T_Remainder] into two components of which Pauli-basis target vectors are orthogonal to each other. The correspondence between these eigenvectors and scattering mechanisms could be determined using van Zyl’s method [7]. τ_S = 0 and τ_D = 0. The whole decomposition could be written as:

$$\langle [T_{\mathit{OAC}}]\rangle =P_C[T_H]+P_{\mathit{V}\_\mathit{max}\_\mathit{minpx}}[T_{\mathit{Vol}}({\tau }_{\mathit{V}\_\mathit{minpx}})]+P_D[T_D]+P_S[T_S]$$

(23)

If T₃₃ > 0 in [T_Remainder], one ground scattering is modeled by [T_Neum] to explain some cross-polarized power in [T_{OAC_noh}]. The next step is determining which ground scattering should be modeled by [T_Neum]. It was pointed out in [36] that, usually, in surface scattering model, T₁₁ > T₂₂ + T₃₃; in volume scattering model, T₁₁ = T₂₂ + T₃₃; in double bounce scattering model, T₁₁ < T₂₂ + T₃₃. Taken in this sense, we give the following judging criterion: if A₁₁ > A₂₂ + A₃₃, then surface scattering is the dominant ground scattering, so we model it with [T_Neum], and [T_{OAC_noh}] is written as Equation (24); if A₁₁ < A₂₂ + A₃₃, then double bounce scattering is the dominant ground scattering, so we model it with [T_Neum], and [T_{OAC_noh}] is written as Equation (25).

$$[T_{\mathit{OAC}\_\mathit{noh}}]=2f_V[T_{\mathit{Vol}}({\tau }_{\mathit{V}\_\mathit{minpx}})]+f_S[T_{\mathit{Neumann}}({\tau }_S)]$$

(24)

$$[T_{\mathit{OAC}\_\mathit{noh}}]=2f_V[T_{\mathit{Vol}}({\tau }_{\mathit{V}\_\mathit{minpx}})]+f_D[T_{\mathit{Neumann}}({\tau }_D)]$$

(25)

In Equations (21) and (22), the coefficients f_V, f_S, and f_D are introduced to make the decomposition expression look simpler in form. After doing some mathematical operations to Equation (24) or Equation (25), we have:

$$g({\tau }_G)=\frac{A_{22}-A_{33}-f_{V}g({\tau }_{\mathit{V}\_\mathit{minpx}})}{A_{22}+A_{33}-f_V}$$

(26)

$$\frac{1+g({\tau }_G)}{g_c^2({\tau }_G)}=\frac{(A_{11}-f_V)\left(2A_{22}-f_V\left(1+g({\tau }_{\mathit{V}\_\mathit{minpx}})\right)\right)}{{\left|A_{12}\pm f_V{g}_C({\tau }_{\mathit{V}\_\mathit{minpx}})\right|}^2}$$

(27)

τ_G denotes τ_S in Equation (24) or τ_D in Equation (25). To the right of the “=” sign in Equation (27), the “±” sign depends on which volume scattering model is used. If we use [T_{Vol_H}], then “−” should be used; otherwise, “+” should be used. Two unknowns exist in Equations (26) and (27), namely, τ_G and f_V. In theory, we could get analytical solutions from Equations (26) and (27). But that is difficult due to the complexity of g(τ_G) and g_c (τ_G).

This problem may be solved from another point of view. P_{V_max_minpx} still possibly overestimates volume scattering power because volume scattering is probably unable to explain so much cross-polarized power. If we lower P_V to a value smaller than P_{V_max_minpx}, we could check whether the new remainder matrix [T_Remainder2], which has positive cross-polarized power, could be well fitted with [T_Neum] or not. Assume P_V = P_{V_max_minpx}k, where k ∈ (0,1), then [T_Remainder2] is:

$$[T_{\mathit{Remainder}2}]=[T_{\mathit{OAC}\_\mathit{noh}}]-P_{\mathit{V}\_\mathit{max}\_\mathit{minpx}}k[T_{\mathit{Vol}}({\tau }_{\mathit{V}\_\mathit{minpx}})]$$

(28)

To fit [T_Remainder2] with [T_Neum], we relate them together in the following way:

$$\begin{array}{l}[T_{\mathit{Remainder}2}]=\left[\begin{array}{ccc}{G}_{11}& G_{12}& 0\\ G_{12}^{*}& G_{22}& 0\\ 0& 0& G_{33}\end{array}\right]\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=\frac{G_{11}+G_{22}+G_{33}}{L+N}\left[\begin{array}{ccc}L& g_c({\tau }_G)M& 0\\ g_c({\tau }_G)M^{*}& \frac{1+g({\tau }_G)}{2}N& 0\\ 0& 0& \frac{1-g({\tau }_G)}{2}N\end{array}\right]\end{array}$$

(29)

From Equation (29), we first obtain τ_G using:

$$g({\tau }_G)=\frac{G_{22}-G_{33}}{G_{22}+G_{33}}$$

(30)

In [T_Neum], the absolute value of the correlation coefficient between T₁₁ and T₂₂, namely, |ρ₁₂__fit|, is:

$$\left|{\rho }_{12\_\mathit{fit}}\right|=\frac{\sqrt{2}{g}_C({\tau }_G)}{\sqrt{1+g({\tau }_G)}}$$

(31)

The corresponding value in [T_Remainder2], namely, |ρ₁₂__real|, is:

$$\left|{\rho }_{12\_\mathit{real}}\right|=\frac{\left|G_{12}\right|}{\sqrt{G_{11}{G}_{22}}}$$

(32)

If [T_Remainder2] is perfectly fitted with [T_Neum], then |ρ₁₂__real| should be equal to |ρ_{12_fit}|. A simple measure ρ_{12_dif} is defined to measure the goodness of fitting [T_Remainder2] with k and τ_G.

$${\rho }_{12\_\mathit{dif}}=\left|\left|{\rho }_{12\_\mathit{fit}}\right|-\left|{\rho }_{12\_\mathit{real}}\right|\right|$$

(33)

The k and τ_G yielding the minimum ρ_{12_dif}, namely, ρ_{12_dif_min}, are thought to be the best fit. Here, we refer to them as k_{ρ12_dif_min} and τ_{G_ρ12_dif_min}. If ρ_{12_dif_min} = 0, k_{ρ12_dif_min} and τ_{G_ρ12_dif_min} are the perfect parameters to fit [T_Remainder2] with [T_Neum].

With k_{ρ12_dif_min} and τ_{G_ρ12_dif_min}, we could further get the value of S_VV, L, M, and N (see Appendix). Finally, the solution of Equation (24) is:

$$\begin{array}{c}{P}_V=P_{\mathit{V}\_\mathit{max}\_\mathit{minpx}}{k}_{\rho 12\_\mathit{dif}\_\mathit{min}},P_S=G_{11}+G_{22}+G_{33}-P_V\\ {\tau }_S={\tau }_{G\_\rho 12\_\mathit{dif}\_\mathit{min}},P_D=0,\hspace{0.17em}\hspace{0.17em}{\tau }_D=0\end{array}$$

(34)

The solution of Equation (25) is:

$$\begin{array}{c}{P}_V=P_{\mathit{V}\_\mathit{max}\_\mathit{minpx}}{k}_{\rho 12\_\mathit{dif}\_\mathit{min}},P_D=G_{11}+G_{22}+G_{33}-P_V\\ {\tau }_D={\tau }_{G\_\rho 12\_\mathit{dif}\_\mathit{min}},P_S=0,\hspace{0.17em}\hspace{0.17em}{\tau }_S=0\end{array}$$

(35)

We could easily know, P_V < P_{V_max_minpx}. Experiment reveals that the pixels whose T₃₃ > 0 in [T_Remainder] are primarily located in forest where volume scattering dominates. To avoid the searching of ρ_{12_dif_min} ending up in a small k so that volume scattering is not dominant in the decomposition results, the varying of k is empirically confined in [0.8, 1.0). From above derivation, we could know negative power is completely avoided.

4. Experiment

UAVSAR is a fully polarimetric L-band sensor designed for acquiring airborne repeat-track interferometry SAR data [39]. Its applications include monitoring ground deformations, ice dynamics, volcano dynamics, local sea ice dynamics, time-varying evaporation and hydraulic properties of soils, and aboveground biomass [40]. UAVSAR data collected near Howland Forest, Maine, USA, on 5 August 2009 under a clear weather was used to test the applicability of proposed method. The study site is relatively flat and consists of forests, bare land, rivers, wetlands, road, buildings, etc. The data was downloaded from Alaska Satellite Facility website [41]. The look angle range is approximately [25°, 65°], while the local incidence angles vary within [0°, 90°]. Basic scattering area correction, antenna pattern correction and range dependent radiometric correction have been performed. The resolution of the ground range image is 5 m. Lee sigma filtering [42] is implemented in a 9 × 9 window. The equivalent number of looks is hard to estimate for ground range image because of lack of single look data. However, in multi-look slant range image, ensemble averaging was implemented with 12 looks in azimuth direction and three looks in range direction.

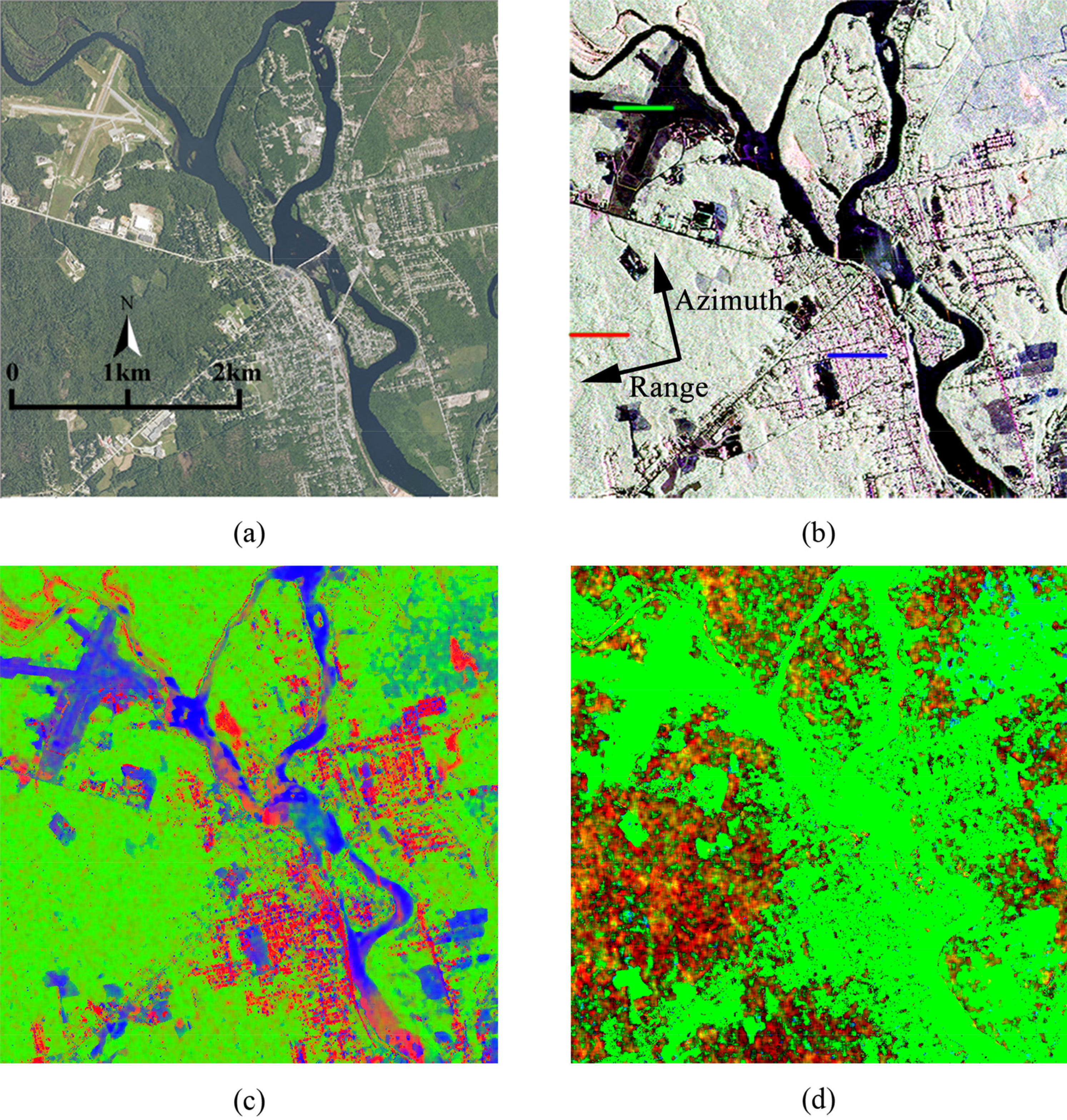

Among all pixels, 99.83% are perfectly fitted and only 0.17% cannot get good fitting of T₁₂. Figure 3c is the image of component power normalized by P_span, where P_span is the span of 〈[T]〉. Figure 3d is the image of τ of different components.

From Figure 3c, we could see all the major land cover features are identified. Dense natural forests are colored with bright green, indicating P_V is large. A large proportion of dense natural forests are characterized by non-zero P_D and zero P_S, although not all. τ_V mostly concentrates in [0.60, 0.90]. Non-zero τ_D primarily locates in dense natural forests with value in [0.03, 0.35]. Only a small number of forest pixels show non-zero τ_S. It is found that they mainly lie in the boundaries between forests and land with little vegetation cover. However, in forests with low canopy density, the pixels may have τ_S = 0 and τ_D = 0. In the upper right corner of the image, there exists a sparse forest. This area gets much higher proportion of P_S compared with dense forests. Since the tree cover is low, it is reasonable to have more surface scattering from ground. In most locations of this sparse forest, τ_V = 1, τ_S = 0, and τ_D = 0, meaning volume scattering and helix scattering do explain all cross-polarized power. We could observe from Figure 3d that, generally, in forest, the easier to be accessed by human beings or the lower canopy density, the more likely to have τ_D = 0. We may interpret this phenomenon in the following way: in easily accessible forests, the terrain may be relatively flat and the understory may probably be underdeveloped; in the untraversed forests, the understory is fully developed, making the scattering process very complex. Most of the areas dominated by surface scattering, like river surfaces, airport, and grasslands, are colored with blue, showing that P_S is quite high. In these areas, P_S and P_D are obtained with van Zyl’s method, thus, τ_S = 0 and τ_D = 0. In urban areas, the main buildings are oriented parallel to SAR azimuth direction. Many pixels near buildings are characterized by high P_D while a small proportion show high P_S. An apparent characteristic of these areas dominated by surface scattering or double bounce scattering is, they almost all have τ_V = 1, τ_S = 0, and τ_D = 0, which differs greatly from the dense natural forests.

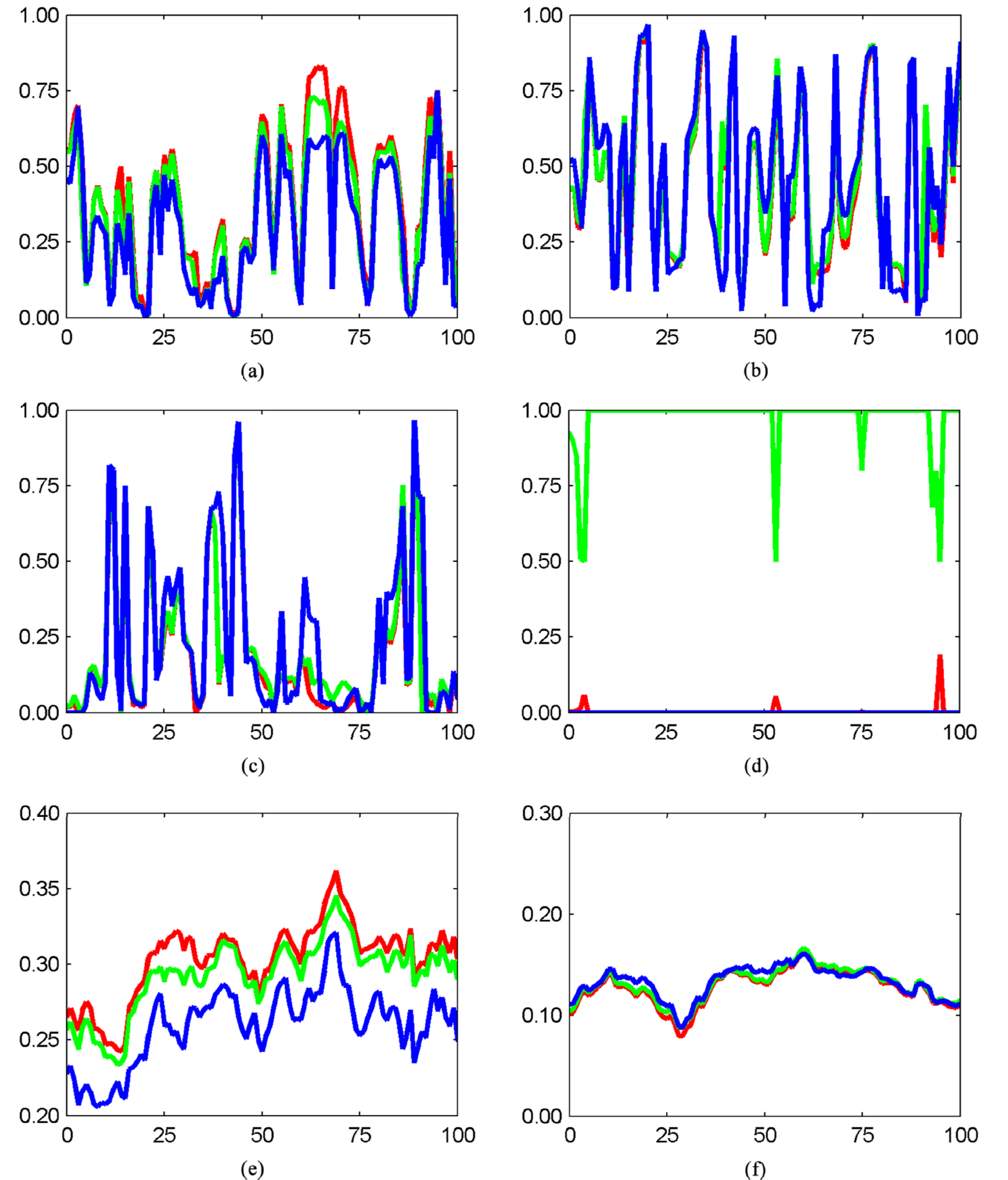

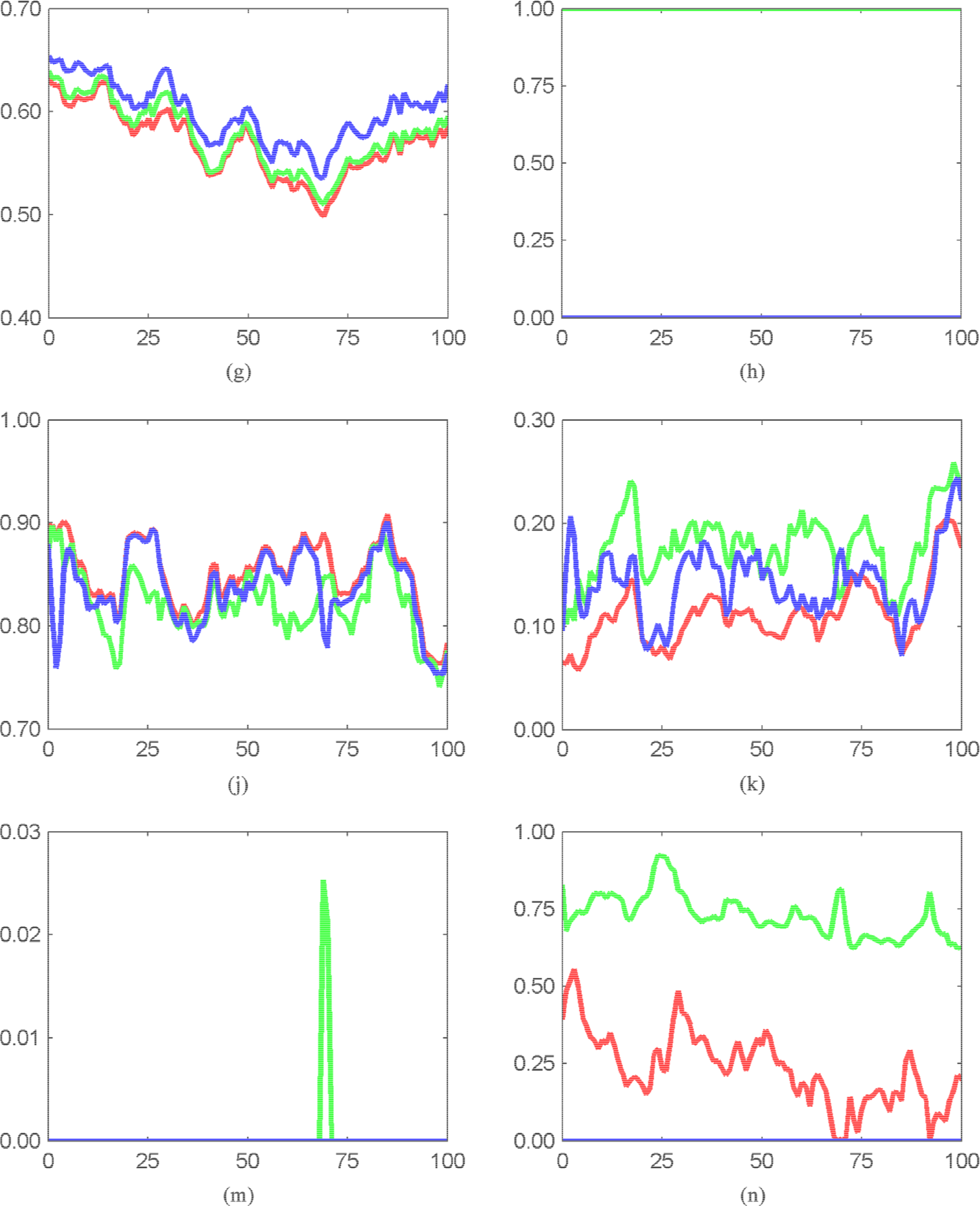

The results of the proposed decomposition were compared with these of van Zyl decomposition and the other three latest NNED raised by Cui et al. [12] and Wang et al. [13]. Two NNED were raised by Cui et al. [12] and they only differ in the decomposition of the remainder matrix, one is based on Eigen-decomposition, namely, Cui1, and the other on model fitting, namely, Cui2. It is found that the performance of Cui1 is not as good as Cui2 and Wang decomposition, while the results of Cui2 and Wang decomposition are quite similar. To avoid five profiles existing in one plot so the readers are confused, Figure 4 only gives the profiles of Wang, van Zyl and the proposed decomposition along three 500-m-long lines in Figure 3b. Red, green, and blue lines cover natural forests, airport, and urban areas, respectively.

Compared with van Zyl decomposition with OAC, the proposed decomposition lowered the estimation of P_V in all pixels. The degree is −7.72% on average and the standard deviation is 0.103. In airports and almost all building areas, the proposed method gives the lowest estimation of P_V. In locations 63 to 68 of Figure 4a, P_V/P_span is reduced by over 0.10. Consequently, at most locations, the P_S + P_D by the proposed decomposition are generally higher or at least equal to that by other decompositions. Several isolated pixels have positive τ_D, which may correspond to the trees in urban areas. In airport, P_V/P_span is lowered by more than 0.03, so we could observe the evident elevation of P_S. P_D by all three decompositions are approximately the same.

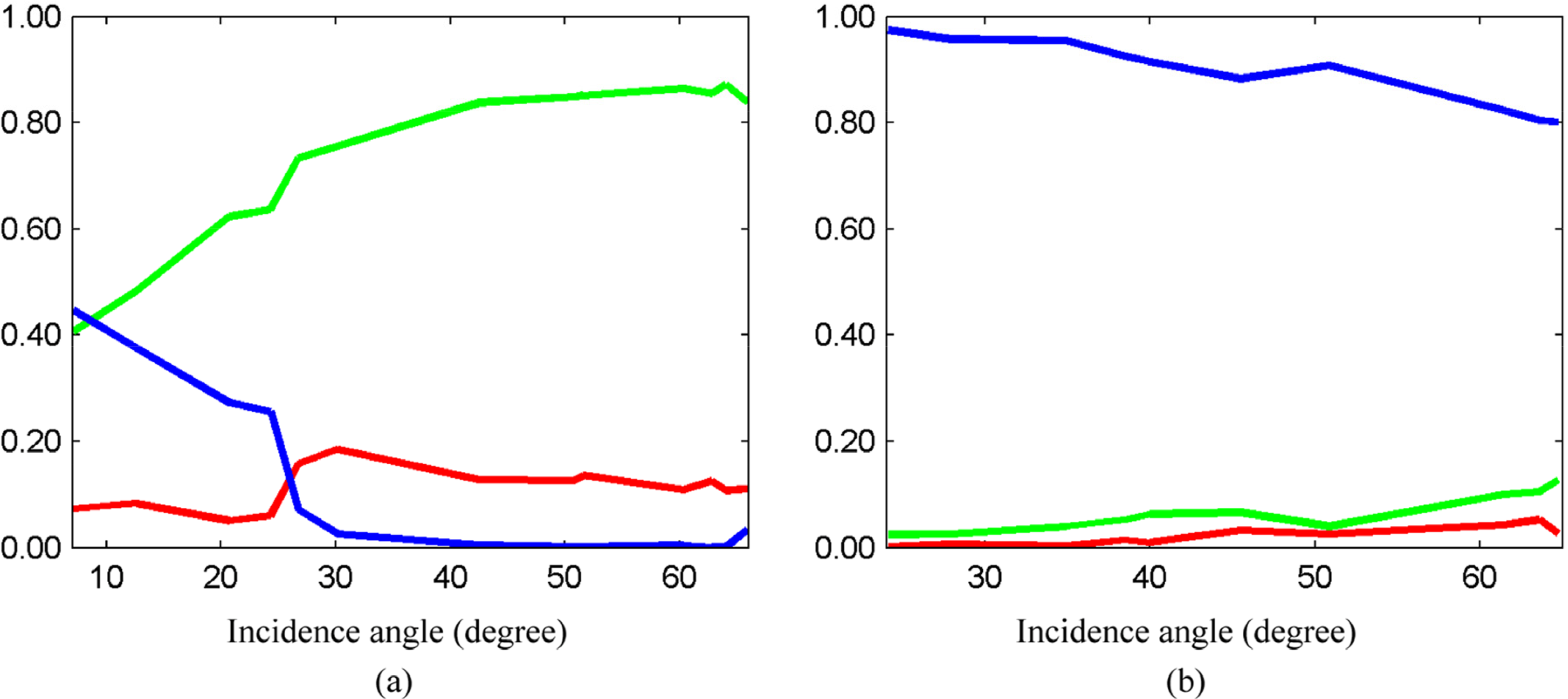

The dependency of decomposition results upon local incidence angles (short for incidence angle) was partly investigated. It is well known that SAR backscatter is influenced by land cover types and local incidence angle. Many land cover types reside in this study area, but it is difficult to select pixels with exactly the same land cover but different incidence angles. For simplicity, the authors just did this investigation for dense natural forests and lakes. First, dense natural forest and lake samples with the size 41 × 41 were selected in PolSAR image with the assistance of optical images. These samples could be roughly thought to be homogeneous inside. Next, the mean values of span-normalized powers of different components in diverse samples were plotted against their incidence angles (see Figure 5).

From Figure 5a, it seems the perspective that volume scattering dominates in dense natural forests only holds when the incidence angle is larger than a value, for example, 18°. When the incidence angle is medium or large, P_V/P_span can be over 0.75 and double-bounce is much stronger than surface scattering. However, if the incidence angle is smaller than a value, like 26°, with the decreasing of incidence angle, P_V/P_span drops quickly, at the same time, P_S/P_span goes up fast and surpasses P_D/P_span. If the incidence angle is smaller than 10°, P_S/P_span could be even larger than P_V/P_span.

To understand above facts, the authors treat the volume scattering caused by canopies to be approximately isotropic [43], thus, when other factors are fixed, the volume scattering power does not vary much when incidence angle changes. However, the ordinary ground or soil is not isotropic. The smaller incidence angles the stronger surface scattering power; the larger incidence angles the weaker surface scattering power. In forest, double-bounce scattering is usually caused by ground-trunk structure. When the incidence angle is large, although the first scattering occurring at ground is not so strong, the microwave backscattered by the tree bark could be relatively strong due to the smooth bark and small incidence angle of the second scattering. On the contrary, when the incidence angle is small, the second scattering occurring at bark has very large incidence angle, possibly making the backscattered microwave be weak in comparison to surface scattering. Here, we summarize that, with the decreasing of incidence angle, P_S, P_span, and P_S/P_span gradually increases; P_V/P_span drops which is mainly due to the increasing of P_span.

Evidently, lakes are dominated by surface scattering, which is supported by the decomposition results in Figure 5b. No matter the incidence angle is small or large, P_S/P_span is always much larger than P_D/P_span and P_V/P_span. A basic trend is the larger incidence angle the smaller P_S/P_span.

Cheng [38] simulated PolSAR data with Bragg scatterer and incoherent scattering models. He observed such trend for surface scattering-dominated samples. He also found that the larger incidence angle the larger T33/P_span. Since in most lake pixels, volume scattering and helix scattering explain all cross-polarized power, and τ_V = 1, we could easily infer that P_V/P_span increases with T₃₃/P_span or incidence angle.

5. Discussion

Experiment revealed the dependence of the decomposition results on land covers. Analytically explaining why these results are like this is challenging because many parameters are involved, so the authors show the relationship between τ_V and P₀, P₁, P_X for four pixels, one is in airport and the other three are in forest (see Figure 6). Please note that if P_{V_max} = P₁, then P_X = 0; if P_{V_max} = P₀, then P_X > 0

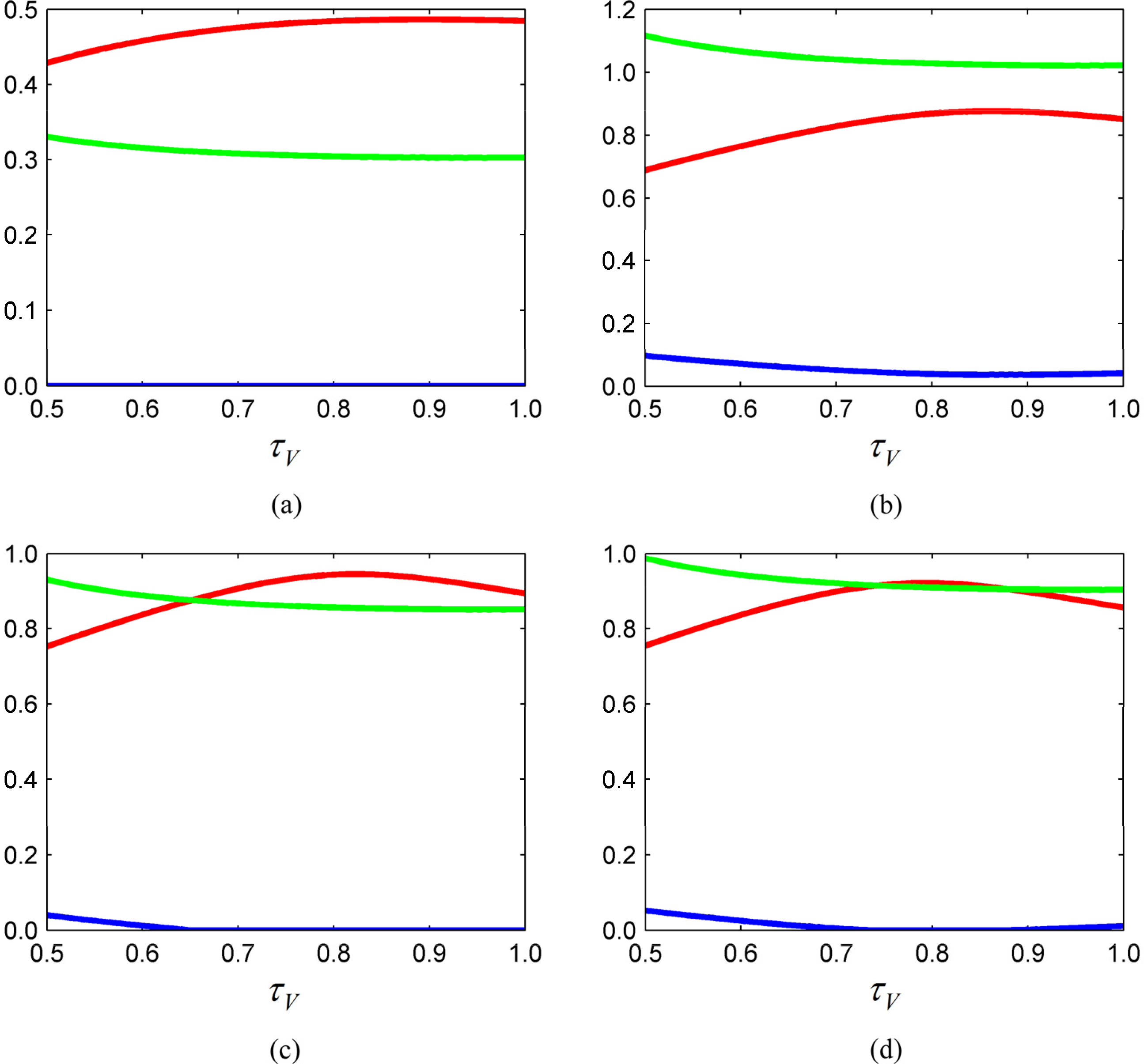

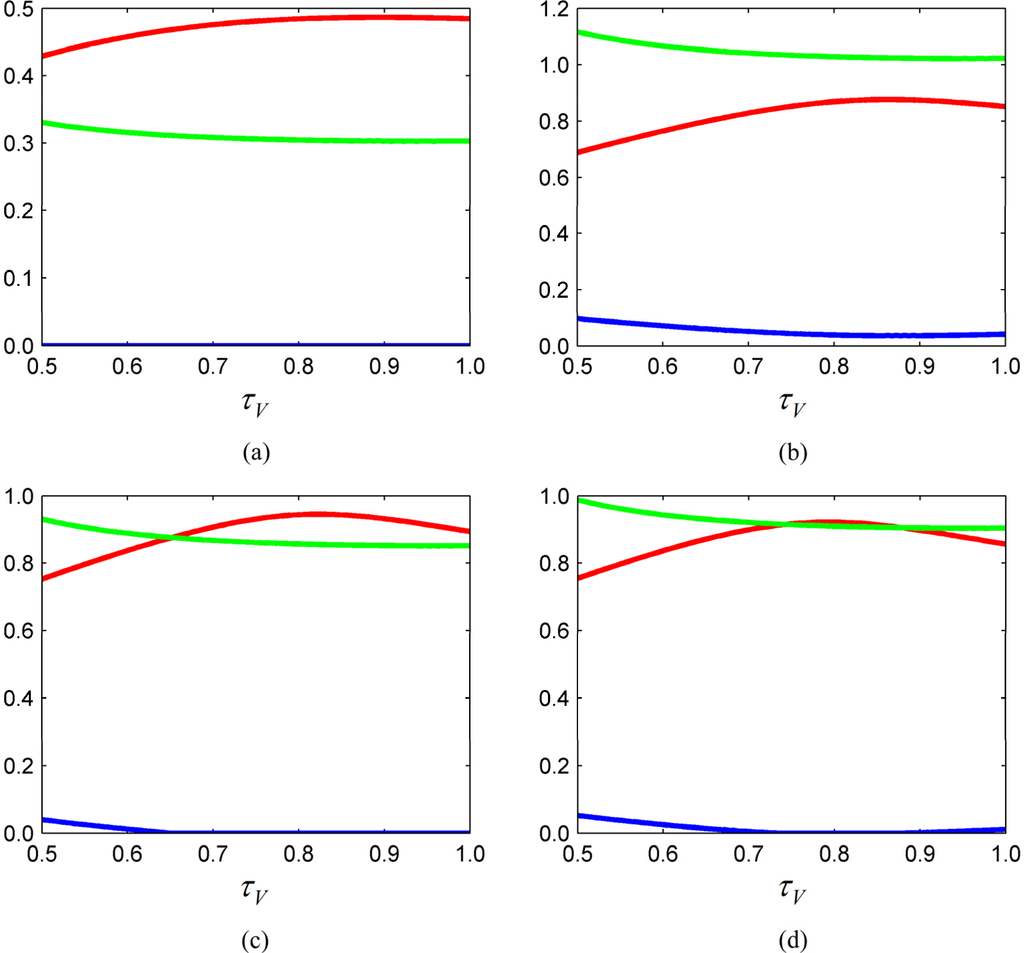

From the sub-figures in Figure 6, we could know P₁ is a monotonous decreasing function of τ_V. The relationship between P₀ and τ_V is more complex: P₀ first monotonously increases with τ_V until reaches a peak at τ_V = τ_{V_0}, then monotonously decreases with τ_V.

The line of P₀ and the line of P₁ are possible to have zero (see Figure 6a,b), one (see Figure 6c) or two (see Figure 6d) cross points. When these two lines do not intersect, then the situations are simple. It is observed that land covers dominated by surface scattering and double-bounce often have A₃₃/P_sp < 0.15, or even A₃₃/P_sp < 0.10, where P_sp is the span of [T_{OAC_noh}]. For the same τ_V, P₁ is always smaller than P₀ (see Figure 6a), then P_{V_max} = P₁. Finally, τ_{V_maxpv} = 0.5 < τ_{V_minpx} = 1.0, P_{V_max_maxpv}.= 4A₃₃/(1 − g(0.5)) > P_{V_max_minpx} = 4A_33· But as observed in UAVSAR data, dense natural forests usually show A₃₃/P_sp > 0.20. If A33/P_span > 0.25, then P₁ ≥ 4A₃₃ > P_sp, so the P₁ line and P₀ line never intersect, P_{V_max} = P₀ (see Figure 6b). In this case, τ_{V_maxpv} = τ_{V_0} < τ_{V_minpx}, P_{V_max_maxpv} > P_{V_max_minpx·} Please remember that the P₀ line and P₁ line may do not intersect even when A₃₃/P_sp ≤ 0.25. Some forest pixels have P₀ line and P₁ line intersected with one or two cross points. When there is one cross point (see Figure 6c), assume the cross point is (τ_{V_1}, P_{V_max}_₁), then in [0.50, τ_{V_1}], P_{V_max} = P₀; in [τ_{V_1}, 1.0], P_{V_max} = P_1· Finally, τ_{V_maxpv} = τ_{V_1} < τ_{V_minpx} = 1.0, P_{V_max_maxpv} = P_{V_max}_₁ > P_{V_max_minpx} = 4A_33· When there are two cross points, assume the two cross points are (τ_{V_1}, P_{V_max}_₁) and τ_{V_2}, P_{V_max}_₂), and τ_{V_2} > τ_{V_1}, then in [0.50, τ_{V_1}] and [τ_{V_2}, 1.0], P_{V_max} = P₀; in [τ_{V_1}, τ_{V_2}], P_{V_max} = P_1· Finally, τ_{V_maxpv} = τ_{V_1} < τ_{V_minpx} = τ_{V_2}, P_{V_max_maxpv} = P_{V_max_1} > P_{V_max_minpx} = P_{V_max_2·}

Why P_V by the proposed decomposition is lower than that by van Zyl decomposition has been proven in previous sections. When it comes to the comparison between the proposed method and Wang decomposition, quantitatively explaining is much more difficult because Wang decomposition computes volume scattering parameters without RSA which is equal to solving cubic equations. Cheng [38] proved that for a fixed [T_V], P_V computed without RSA is usually smaller than that computed with RSA. As a result, we are not sure whether P_V computed without RSA and with maximum P_V criterion is larger, or P_V computed with RSA and minimum P_V criterion is larger. That explains the situations of forest. For pixels dominated by surface scattering and double-bounce scattering, Wang decomposition commonly gives τ_V = 0.5, on the contrary, the proposed method has τ_V = 1.0. According to Equation (21), to explain the same amount of cross-polarized power, P_V by Wang decomposition needs to be larger than that by the proposed method.

With simulated data, Cheng [38] found the proposed decomposition works worst in areas dominated by double-bounce scattering. In surface scattering-dominated areas, the cross-polarized power is usually relatively low, so even if we think cross-polarized power is entirely from volume scattering, the given P_V will not be large. For areas dominated by volume scattering, letting volume scattering explain the most cross-polarized power in theory is reasonable to a large degree. However, it was pointed out in [36,37] that T₃₃ of double-bounce scattering model may be comparable to that of volume scattering model. In other words, sometimes, double-bounce scattering produces significant cross-polarized power. Minimum P_X criterion forces volume scattering to explain as much cross-polarized power as possible. Therefore, a proportion of explained cross-polarized power is probably from double-bounce scattering instead of volume scattering. In this sense, P_V may be overestimated.

6. Conclusions

The main differences between the proposed method and van Zyl, Cui, Wang’s NNED include: (1) helix scattering are introduced in our method; (2) our method use minimum P_X criterion while the three NNED use maximum P_V criterion; (3) sometimes the dominant ground scattering is described by incoherent and depolarizing models, so there is no remainder component. In the three NNED, ground scattering are all coherently modeled; (4) to describe ground scattering, Cui and Wang NNED use elemental scatterers with S_HV ≠ 0, but our method utilizes elemental scatterers with S_HV = 0.

Negative component power is completely avoided in the proposed decomposition. In the experiment done by Cheng [38] with simulated data, he found that compared with van Zyl decomposition, the proposed method is capable of partly lessening volume scattering overestimation, which is mainly achieved by introducing helix scattering, utilizing minimum P_X criterion, and performing two-component fitting to [T_{OAC_noh}]. But Cheng [38] also emphasized that minimum P_X criterion could not fully eliminate P_V overestimation in that volume scattering probably cannot explain the most cross-polarized power in theory. Ground scattering also contributes to cross-polarized power. The proposed method usually better estimates the power of each component than van Zyl, Wang and Cui decomposition. One significant advantage of the proposed method is, when volume scattering and helix scattering cannot explain all cross-polarized power, the dominant ground scattering is modeled by depolarizing models, so that its orientation angle randomness could be obtained. In the proposed decomposition, all cross-polarized power is explained by models with solid physical meanings.

How to utilize the power, complex scattering coefficients, orientation angle randomness of different components given by the proposed method for the applications like land cover mapping, scattering mechanism classification, understory mapping, or surface roughness and soil moisture estimation, needs more research. Another future research direction is proposing a decomposition that computes volume scattering parameters without RSA to utilize T₁₃ in [T_{OAC_noh}].
