Review

Nanoparticles to Improve the Efficacy of Peptide-Based Cancer Vaccines

by
Anna Lucia Tornesello
1,*,
Maria Tagliamonte
2,
Maria Lina Tornesello
1,
Franco M. Buonaguro
1 and
Luigi Buonaguro
2,*
1
Molecular Biology and Viral Oncology Unit, Istituto Nazionale Tumori IRCCS “Fondazione G. Pascale”, via Mariano Semmola, 80131 Napoli, Italy
2
Innovative Immunological Models, Istituto Nazionale Tumori IRCCS “Fondazione G. Pascale”, via Mariano Semmola, 80131 Napoli, Italy
*
Authors to whom correspondence should be addressed.
Cancers 2020, 12(4), 1049; https://doi.org/10.3390/cancers12041049
Submission received: 13 February 2020 / Revised: 24 March 2020 / Accepted: 20 April 2020 / Published: 23 April 2020
Browse Figures
Versions Notes

Abstract

:
Nanoparticles represent a potent antigen presentation and delivery system to elicit an optimal immune response by effector cells targeting tumor-associated antigens expressed by cancer cells. Many types of nanoparticles have been developed, such as polymeric complexes, liposomes, micelles and protein-based structures such as virus like particles. All of them show promising results for immunotherapy approaches. In particular, the immunogenicity of peptide-based cancer vaccines can be significantly potentiated by nanoparticles. Indeed, nanoparticles are able to enhance the targeting of antigen-presenting cells (APCs) and trigger cytokine production for optimal T cell response. The present review summarizes the categories of nanoparticles and peptide cancer vaccines which are currently under pre-clinical evaluation.

Graphical Abstract

1. Introduction

Cancer vaccines are based on tumor antigens administered as nucleic acids, tumor lysates, full proteins or short peptides. In particular, peptides are protein subunits presented by antigen-presenting cells (APCs) to elicit cell-mediated immunity. Indeed, APCs, such as dendritic cells (DCs), are able to capture, internalize and process into short peptides, proteins expressed by viruses or tumor cells.
Peptides are then loaded to MHC class I and MHC class II molecules. The peptide-MHC-I complex is recognized by CD8+ T cells which are activated to exert their cytotoxic activity on tumor cells presenting the same peptide-MHC-I complex.
In parallel, the peptide-MHC-II complex interacts with CD4+ T helper cells which may differentiate in two major subtype, Th2 and Th1, that are involved in inflammatory response and in potentiating and sustaining the activity of CD8+ T (CTLs), respectively [1]. Therefore, the development of a cancer vaccine requires an optimal targeting of DCs for an efficient antigen presentation to CD4+ T helper cells. This can be achieved by either modifying the antigen structure, or conjugation with specific peptide sequences (cell penetrating peptides, CPPs) or loading nanoparticles. Moreover, the use of adjuvants allows to potentiate the antigen immunogenity and to drive the differentiation of Th cells towards a Th1 pattern [2].
Peptides used for vaccine formulations are 15–30 amino acid-long sequences corresponding to the relevant epitopes for antigenic recognition by T cells. Therefore, they represent an alternative strategy compared to standard vaccine formulations which are mainly based on attenuated or killed whole pathogens, toxoids or carbohydrates. Peptide-based vaccines have a low risk of pathogenic effects or off target responses and are very versatile being formulated as synthetic peptides or encoded by DNA or RNA molecules [3].
Peptide-based cancer vaccines aim at expanding pre-existing immunity as well as at inducing de novo antitumor T cell responses in cancer patients [4]. High throughput technologies for synthetic peptide production allows the introduction of several modifications in the peptide linear sequence to refine cancer vaccine specificity [5]. The major advantage of such approach is that the immune responses can be specifically directed toward minimal tumor antigens thus limiting autoimmunity and other side effects. On the contrary, major limitations of such an approach are represented by the need of MHC prediction binding algorithms for the selection of immunogenic peptides, the heterogeneity of MHC restriction, the down regulation of MHC class I molecules in many tumor types and, most importantly, the limited immunogenicity of peptides. The consequence of the latter aspect is that an optimal combination of tumor-specific associated antigens, adjuvant formulations and delivery system is crucial for the effective induction of anti-tumor immune response.
In this framework, nanotechnology provides an effective tool for developing optimal antigen delivery strategies to improve the targeting of APCs and the efficacy of peptide-based cancer vaccines. Many types of nanoparticles have been developed by tuning specific parameters, such as particle size, surface properties (e.g., charge, hydrophilic property), geometry and kinetics [6,7]. In this review we report current strategies on the use of nanoparticles and nanomaterials in peptide-based cancer vaccine development.

2. Nanomaterials and Nanoparticles for Cancer Vaccines

Delivery systems in peptide-based vaccines should protect the peptides from degradation and actively or passively deliver them into APCs, aiming at inducing their maturation by interacting with elements of the innate immune system such as Toll-like receptors [8].
Nanoparticles have most of such properties, including prolonged biological activity, enhanced bioavailability, antigen protection from degradation and controlled antigen release. Different nanoparticles have specific chemical and physical properties affecting the interaction with target cells and include polymeric materials, liposomes, micelles, mesoporous silica nanoparticles (MSNs), gold nanoparticles (AuNPs) and virus nanoparticles. In addition, the delivery and the intra-cellular trafficking of nanoparticles can be optimized by selected modification of their surface (e.g., charge, structure, dimension and hydrophobicity) [9,10] and by incorporating cell-penetrating peptides, APC-specific cellular epitopes or immune-stimulant lipid moieties [11].

2.1. Liposome

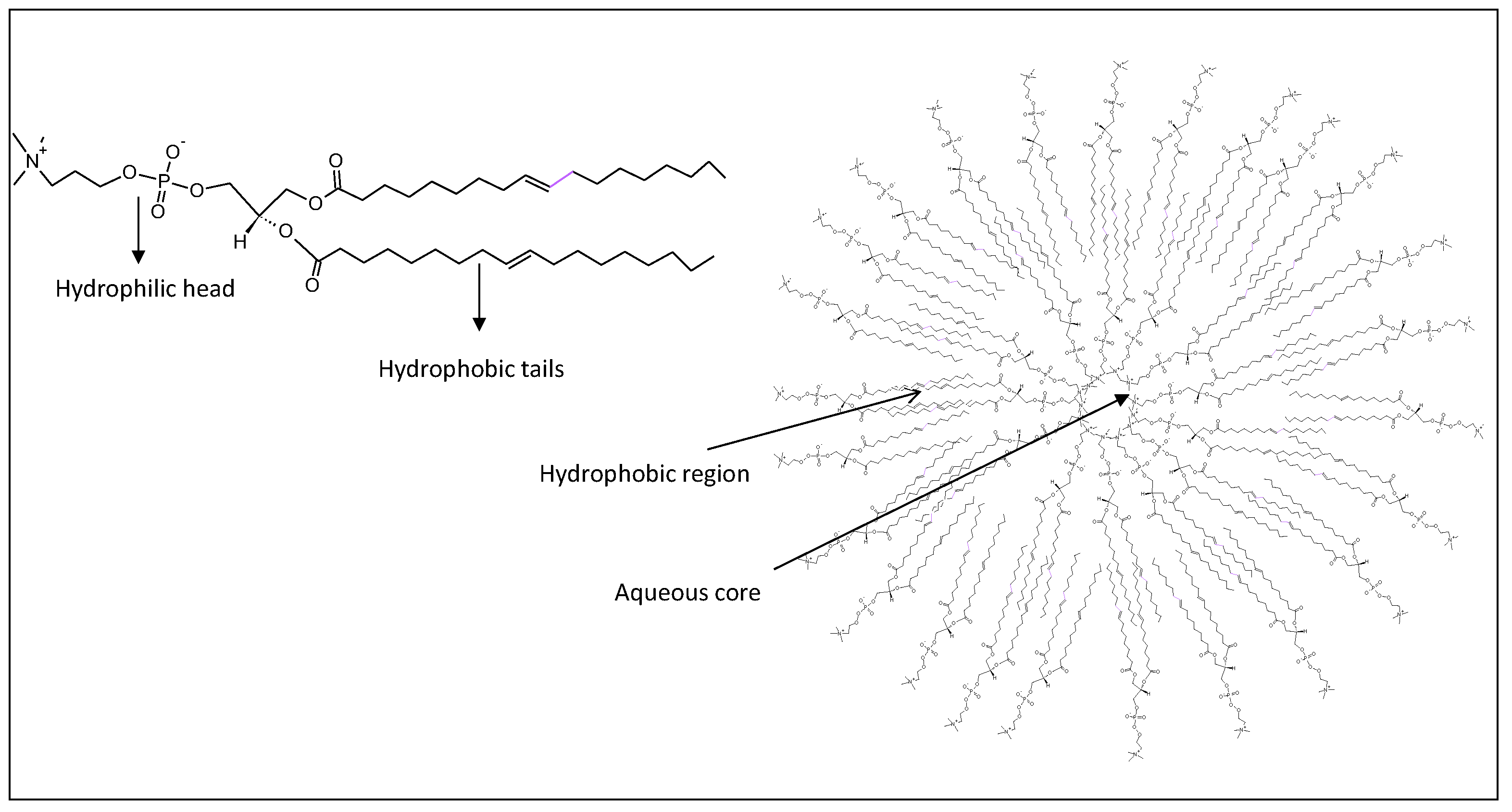

Liposomes are spherical nanovesicles consisting of single or multiple phospholipid bilayers which, for their dual hydrophilic or hydrophobic characteristics, can incorporate hydrophilic antigens into the aqueous inner space or lipophilic components into the lipid bilayer (Figure 1) [12,13].
The liposome properties depend on their lipid composition, surface charge and size. Combination of different lipid types, or chemical modifications of the surface charge with cationic or anionic moieties, such as amine or carboxylic groups, can significantly enhance the immune response to carried cancer vaccines. Depending on the preparation process, liposomes have sizes between 0.5 microns to 5 microns but they can also been downsized in postproduction [12]. Drug encapsulation can be carried out by passive or active loading methods. It has been shown that the passive method requires controlled temperature and is time-dependent [14]. Generally, this method gives low encapsulation efficiency mostly for hydrophobic compound. While active methods, such as pH gradient or solvent-assisted active loading technology, are used for different types of molecules and consist in the preformation of liposomes containing a transmembrane gradient [15]. Surface functionalization of liposomes is an alternative method to conjugate peptides to liposomes and enhances cellular uptake, prevents lysosomal degradation and improves the stability of nanoparticles [16].
Liposomes have been successfully used as delivery systems for siRNA, DNA and protein or peptide antigens. Positively charged liposomes have been shown to induce stronger immune responses even at low doses, compared to negatively charged liposomes, since they can be more efficiently taken up by APC-like macrophages and DCs [17].
Gao et al. compared the antigen cross-presentation proficiency of cationic liposomes, composed of 3β-[N-(N’,N’-dimethylaminoethane)-carbamoyl]cholesterol (DC-Chol) and 1,2-dioleoyl-3- trimethylammonium-propane (DOTAP) with tertiary amine groups, with negatively charged liposomes composed of EPC/Chol/DSPE-mPEG. DOTAP/DC-Chol cationic liposomes induced an increased lysosomal pH in DCs and a reduced antigen degradation, thus promoting cross-presentation and cross-priming of CD8+ T-cell responses [18]. The study also evaluated the activity of nanoparticles at different concentrations. It has been shown that at low concentration DOTAP-CLs (20 μg/mL) promote cross-presentation but not at 100 or 500 μg/mL. On the contrary, DC-Chol-CLs promote cross-presentation at 100 μg/mL, but not at 500 μg/mL. Moreover, the high concentrations cause cytotoxicity that is one of the most limitations of using cationic liposomes.
Heuts et al. developed three liposome formulations to encapsulate 15 different long synthetic peptides (LSPs). The peptide containing the OVA SIINFEKL epitope was encapsulated in DOTAP:DOPC (dioleoyl-3-trimethylammonium propane:dioleyl phosphatidylcholine) liposome using three solvents and all three formulations were shown to activate CD8+ T-cells and antigen presentation by dendritic cells, suggesting the potential of such liposomes as delivery system for personalized cancer vaccines [19] (Table 1).
The combination of five lipids, including DMPC, DMPG, cholesterol, DOPE and MPLA, has been used to generate a liposomal carrier for peptide P5 (Lip-DOPE-P5-MPL) to be employed as effective cancer vaccine against breast cancer. To improve the P5 peptide encapsulation efficacy, liposomes have been chemically modified by conjugation with maleimide-PEG2000-DSPE and the formulation Lip-DOPE-P5-MPL was shown to elicit robust CTL response in vitro by efficient release of P5 peptide into APCs cytosol [14].
A peptide-CpG-DNA-liposome complex vaccine has been developed by Park et al. to treat pancreatic cancer. The study has been carried out in a mouse allograft model with TM4SF5 expressing pancreatic cells. Liposome complexes consisting of cyclic peptide and CpG-DNA co-encapsulated with DOPE:CHEMS (dioleoylphosphatidylethanolamine:cholesteryl hemi- succinate) induced the production of anti-hTM4SF5 antibodies and suppressed the growth of TM4SF5-expressing pancreatic cancer.
The same TM4SF5 cyclic peptide complexed with DOPE:CHEMS liposomes and CpG-DNA adjuvant was previously studied in metastatic HCC and colon cancer. Furthermore, the same liposome complexes showed a growth inhibition of colon tumors in a mouse lung metastasis model [20].
However, liposomes have some disadvantages, such as low encapsulation efficiency, limited solubility, propensity to phospholipid degradation, compound leakage and fusion. Nevertheless, this can be overcome modifying their properties by incorporating specific components such as cell-penetrating peptides (RRRRRRRR) or KALA peptides (WEAKLAKALAKALAKHLAKA LAKALKA) [37] or by surface functionalization [16]. Miura et al. demonstrated that the conjugation of the α-helical peptide KALA to OVA liposomes induced a much more potent OVA-specific MHC class I restricted antigen presentation in comparison with R8-OVA liposomes, which were previously reported to be efficient antigen carriers [21]. Such an improved efficacy seems to correlate with a more pronounced membrane-fusogenic activity of the α-helix structure in the KALA-OVA liposomes [37].
Razazan et al. produced DOPE-based pH-sensitive liposomes (DMPC-DMPG-Chol-DOPE) linking on their surface the monophosphoryl lipid A (MPL) adjuvant together with the breast cancer Gp2 peptide, derived from HER2 protein transmembrane domain (DMPC-DMPG- DOPE-MPL-Gp2). The DMPC-DMPG-DOPE-MPL-Gp2 vaccine was shown to enhance the therapeutic efficacy with an increased INF-γ production by splenocytes compared to the GP2 free peptide in a mice xenograft model. Importantly, the presence of MPL in the vaccine complex induces a Th1 immune response and activation of Toll-like receptor 4 (TLR4). In parallel, DOPE lipids in the cells undergo acidification (pH < 6.5) and destabilization with lamellar-to-hexagonal transition and release of carried molecules. The results of the study suggested that this formulation could be a potential vaccine candidate for HER2/neu breast cancers [38]. DMPC-DMPG-Chol-DOPE formulation has also been used in combination with MPL to conjugate the HER2 epitope, P435 (Lip + DOPE + MPL + P435). The conjugation of peptide on the surface of liposome was carried out through the binding to maleimide-Peg2000-DSPE via thioether binding. The size of obtained nanoparticles was between 159 and 183 nm, optimal for the delivery to lymph nodes. Lip + DOPE + MPL + P435 was shown to inhibit the most tumor growth in the TUBO mice model and extend the survival time [39].
In a recent study, Lay et al. reported that the combination with mannose and CpG-ODN, increases the efficacy of liposomes in stimulating DCs activation. The vaccination strategy was based on a liposomal vaccine (M/CpG-ODN-TRP2-Lipo), obtained by the assembling of the DC-targeting mannose and immune adjuvant CpG-ODN on the surface of liposomes loaded with melanoma-specific TRP2180-188 peptide. Such a combination showed an enhanced anti-melanoma effects in mice compared with a whole tumor cell lysate-based vaccine [40].

2.2. Polymeric Nanoparticles

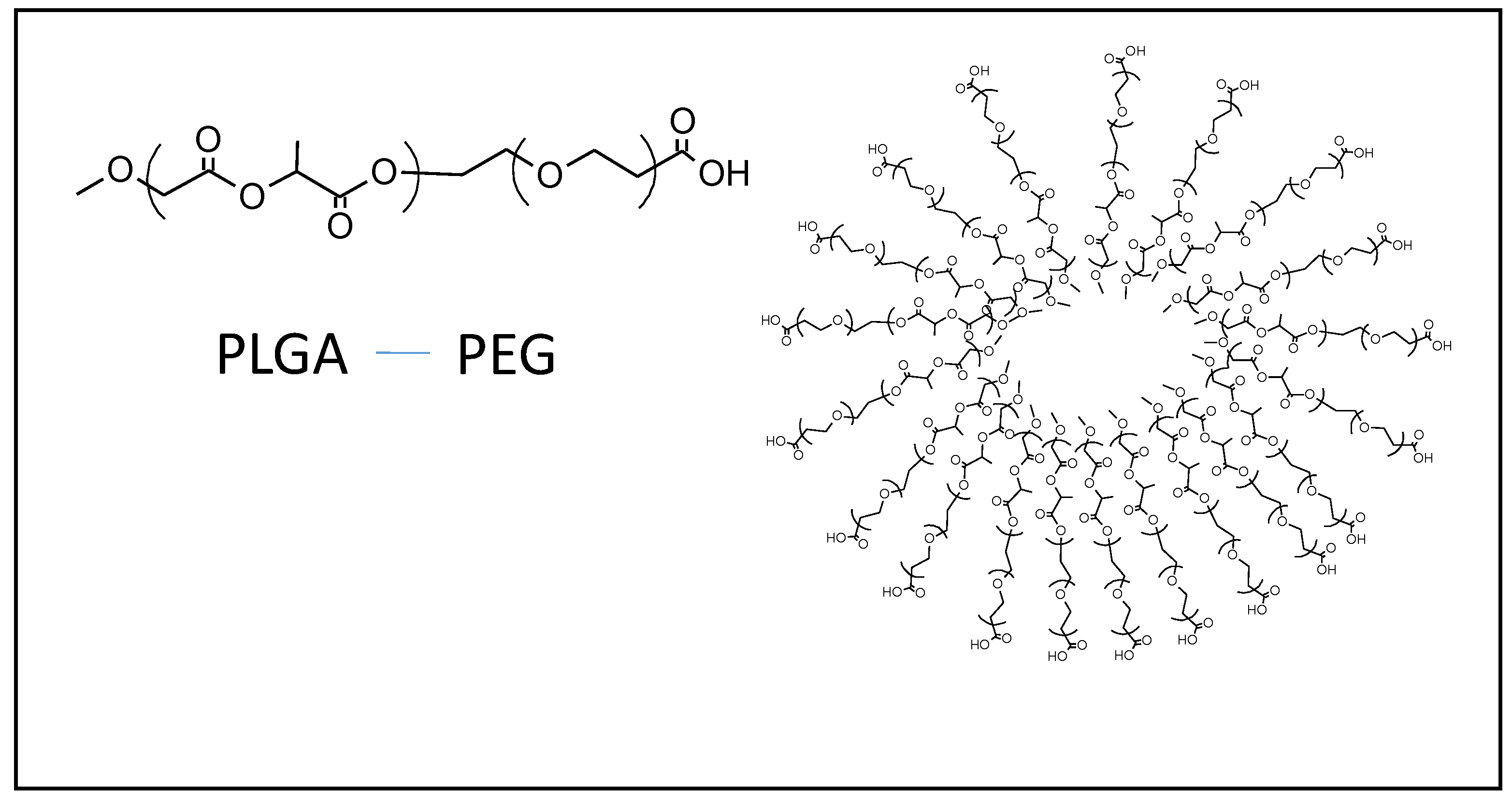

Polymeric nanoparticles have been developed as antigen delivery system and, in particular, poly(D-L-lactic-co-glycolide) nanoparticles (PLGA-NPs) are the best known model used in cancer vaccine together with PEG (Figure 2) [22,23].
Polymeric NPs show biological properties partially shared with liposomes, including high stability in biological fluids, tissue biocompatibility and formulation versatility. Several techniques have been used to produce such nanoparticles, and the final characteristics, size and structural organization, depend on the method and solvents chosen. The most common strategy to produce polymeric NPs is single or double emulsion-solvent evaporation. To incorporate hydrophobic molecules polymers and drugs are dissolved in an organic solvent, and then emulsifying this in water. Subsequently the obtained oil-in-water emulsion is lyophilized. While, hydrophilic drugs are first dissolved in water and then emulsified in organic polymer solution. The sizes are in the micron range but they can be reduced, as well as for liposome, by filtration methods [22].
Moreover, physicochemical properties (e.g., hydrophobicity, surface charge), drug release profile and biological behavior (e.g., bioadhesion, targeted drug delivery, improved cellular uptake) can be modulated by application of different polymeric materials and targeting ligands [24].
Besides PLGA, PEG and their combination, different polymers have been used in nanocarrier systems, including polycaprolactone, chitosan and dextran, cellulose, nanocrystal [41].
The efficacy of PLGA NPs and PLGA/PEI NPs (polyethylenimine) as peptide delivery system for therapeutic cancer vaccine development was assessed in an ex vivo cell culture model [23]. Flow cytometry as well as confocal laser scanning microscopy (CLSM) showed that PLGA/PEI NPs are more readily taken up by both human CD14+ monocytes and mouse Hepa 1-6 hepatoma cell line compared to PLGA NPs. Both NPs showed a clathrin-dependent as well as a caveolin-dependent internalization pathway and, once in the cells, they formed multivesicular endosomes (MVE). An ex vivo priming experiment showed that PLGA NPs are more efficient in delivering a non-self antigen (i.e., ovalbumin − OVA) to immature dendritic cells (imDCs), which fully matured inducing autologous naïve CD4+ T cells to differentiate to memory (i.e., central memory and effector memory) cells. Such a differentiation was associated with a Th1 phenotype. The same OVA antigen in a soluble form was unable to induce maturation of DCs, indicating that both NP formulations provided an intrinsic adjuvant effect combined to efficient antigen delivery [23].
Galiverti et al. have shown that conjugation of a HPV E7 synthetic long peptide to ultra-small polymeric nanoparticles (NPs) enhances the antitumor efficacy of therapeutic vaccination in different mouse models of HPV+ cancers. In particular, they demonstrated that the NP-E7LP vaccine formulation is capable, in comparison to the non-NP-conjugated free-E7LP, of eliciting a systemic immune response characterized by a larger pool of E7-specific CD8+ T cells producing activation-associated cytokines and granzyme B (GZB) [25].
In a recent study, PLGA nanoparticles have been used for the delivery of a immunogenic heteroclitic peptide (BCMA72-80) (Table 1). The heteroclitic BCMA72−80 [YLMFLLRKI] peptide is encapsulated in PLGA to improve antigen delivery and presentation, thereby inducing more robust polyfunctional BCMA-specific anti-tumor CD8+ CTL responses compared to vaccination with peptide alone [42].
It has been shown that polystyrene nanoparticles (PSNPs) are biocompatible, do not induce inflammation and induce CD8+T cell responses specific for the delivered peptide. Xiang et al., developed a nanoparticles based hSp17 peptide vaccine for the treatment of ovarian cancer. The immunogenicity of the formulation made with six hSp17 peptides conjugated to PSNPs has been compared with the hSp17 peptides adjuvanted in CpG. Both formulations induced similar levels of IgG in HLA-A2.1 transgenic mice, which were also comparable to the CpG adjuvanted formulation in C57BL/6 mice. Nevertheless, the PSNPs adjuvanted formulation in C57BL/6 mice induced much lower antibody response [43]. More recently, the same authors tested the immunogenicity of 24 peptides associated with most frequent gynecological malignancies (e.g., HPVE7, Survivin (SV) and Wilms tumor antigen 1 (WT1) conjugated with PSNPs). The results showed that the PSNPs-conjugated peptides were able to elicit a strong CD8+ T cell immune response, even when the same peptides adjuvanted with CpG failed. Therefore, PSNPs may represent an alternative vaccination strategy when conventional adjuvants are unable to elicit the desired CD8+ T cell reactivity [26].

2.3. Hydrogels, Nanogels, Micelles, Dendrimers

Another type of polymeric nanoparticles such as nanogels, dendrimers, hydrogels and micelles have been designed and used as vaccine delivery carriers, after conjugation with immune stimulants (Figure 3, Figure 4 and Figure 5).

2.3.1. Hydrogel Nanoparticles

Hydrogels are three-dimensional cross-linked polymer networks that absorb a large amount of water when placed in aqueous solution and their surface is appropriate for multivalent conjugation [27]. Hydrogels can be classified in three categories depending on their size: macroscopic hydrogels (size about millimeters), nanogels (sizes about nanometers) and microgels (size about micrometers). Different synthetic methods have been developed for the production of hydrogels, in particular cross-linking methods [28]. The properties of hydrogels can be chemically modified to regulate the solubility by functionalization with hydrophilic and hydrophobic polymers or other materials such as magnetic particles [44].
Other important modifications in the hydrogel delivery system were reported previously by Muraoka et al., encapsulating a synthetic long peptide antigen, derived from the human tumor antigen MAGE-A4, within a cholesteryl pullulan (CHP) nanogel. Indeed, it was demonstrated that the pullulan polysaccharide modified with cholesteryl group is able to form nanogels in the aqueous environment. In the same study was also shown the induction of strong anti-tumor immune response and CT26/MAGE-A4 tumor growth control when the MAGE-A4/CHP delivery system was adjuvanted CpG [45]. Similar results were obtained in the B16-F1 tumor model with nanogels delivering the KVPRNQDWL peptide derived from melanoma antigen gp100.

2.3.2. Nanogel Nanoparticles

Polymeric nanogels are nanoparticles with hydrogels-like particles, with particle size of 100–200 nm. Like hydrogels, they can be chemically modified for improved efficacy. Cationic nanogels, with high uptake by DCs, have been developed using dextran, SLPs, containing CTL and CD4+ T-helper (help) epitopes, and polyinosinic-polycytidylic acid poly(I:C). The peptides, modified with a cysteine at N-terminus, were covalently conjugated via disulfide bonds to the polymeric network of cationic dextran nanogels. The in vivo study showed that the covalently conjugated peptide nanogels stimulate strong functional CD8+ and CD4+ responses in comparison to naked SLP and non-conjugated formulations, indicating the key role of reducible covalent bond for intracellular delivery of vaccine peptides [46]. Despite the existence of several studies reporting on hydrogel production, there are still many problems regarding the translation process, including the stability during the storage, the regulatory complexity and the cost [47].

2.3.3. Polimeric Micelles

Polymeric hybrid micelles made of amphiphilic di-block copolymers, like PEG-phosphorethanolamine (PEG-PE) and polyethylenimine-stearic acid (PSA) conjugate, were reported to enhance the immunological potency of cancer vaccine models. The most common way to prepare micelles is oil in water emulsion or solvent evaporation. Generally, depending on composition, the sizes are between 2 to 20 nm. One of the principal differences with other nanoparticles, in particular with liposomes, is the stability of the resulting formulations. The critical micelle concentration (CMC), defined as the concentration of surfactants above which the micelles are spontaneous formed, increases in the presence of salts with consequently breakdown the micelles’ structures [48]. Moreover, in the blood stream micellar formulations are diluted in blood and tend to dissociate into monomers with immediate drug release. For these reasons several chemical modifications have been considered to improve the stability and the efficiency of micelles [49] and actually only a few are FDA approved [50].
The hybrid micelles were loaded with melanoma antigen peptide Trp2 (Table 1), cytosine-phosphate-guanine oligodeoxynucleotide (CpG ODN), and polyethylenimine-stearic acid (PSA) was added for positive charging in order to improve cellular uptake in vitro. Hybrid micelles HM50 showed more efficient targeting of popliteal draining lymph nodes (DLNs) and stronger induction of cytotoxic T-lymphocytes (CTLs) responses than free CpG and Trp2-PEG-PE micelles in vivo [51]. Polymeric micelles are currently considered to be a more exploratory nanoparticle carrier system for cancer immunotherapy. Indeed, these colloidal systems can selectively accumulate in solid tumors, showing improved loading capability, therapeutic efficacy and targeting ability by surface modification with tumor homing ligands and aptamers. Micelles have been developed using synthetic polymers as well as natural polysaccharides to deliver a variety of molecules, including, but not limited to drugs, proteins, peptides, DNA, SiRNA. In particular, micelles based on polysaccharides have shown promising results in cancer therapies [52].
The delivery of tyrosinase-related protein 2 peptide antigen and adjuvant to the lymph node in the B16F0 melanoma mouse model was performed using cationic diblock polymeric micelles. The resulting increased T lymphocyte anticancer activity indicates the efficiency of such micelles in treating cancer by improving the immune response [2].

2.3.4. Dendrimer Nanoparticles

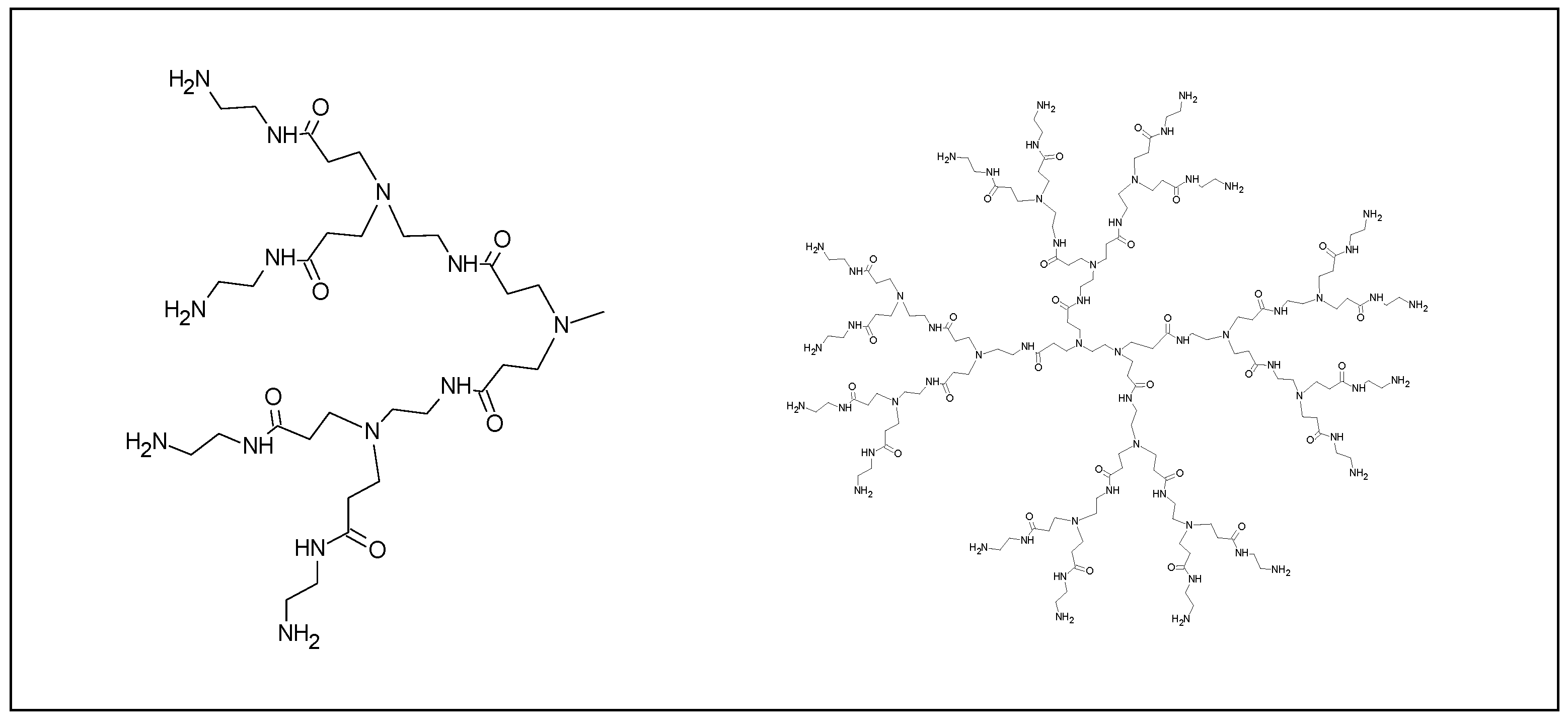

Dendrimers are hyper-branched polymers that possess versatile multivalent surfaces for interacting with surrounding surfaces [53]. In a recent application, multivalent glycodendrimers, generated using branched polyamidoamine (PAMAM) dendrimers, have been considered as scaffold for melanoma-specific gp100 SLPs. Ligands for the DC-SIGN and langerin have been added on the scaffold to evaluate the targeting efficacy to human dermal DCs and Langerhans cells (LCs). The strategy resulted in enhanced gp100 internalization and antigen-specific CD8+ T cell activation [29].

2.4. Inorganic Nanoparticles

Inorganic nanoparticles have been used in various applications, such as bioimaging, sensors, drug delivery and therapeutics, and cancer immunotherapy due to their unique optical, physical, chemical, electronic and magnetic properties. The size, shape and surface properties of inorganic nanoparticles can be easily manipulated during the synthesis. Several inorganic nanoparticles are in preclinical stage as vaccine delivery systems, showing significant biostability. Furthermore, inorganic nanoparticle trafficking and cargo release can be internally or externally induced by factors like temperature, pH, metabolites, magnetic fields and/or light. Gold, iron oxide, aluminum-based nanoparticles, upconversion nanoparticles and mesoporous silica are all viable delivery systems for cancer vaccines (Figure 6).
Inorganic nanomaterials can form cores and provide scaffolding with unique structural and dynamic properties for other biomaterials, such as polymers and lipids, to construct robust and effective delivery vectors.

2.4.1. Gold Nanoparticles

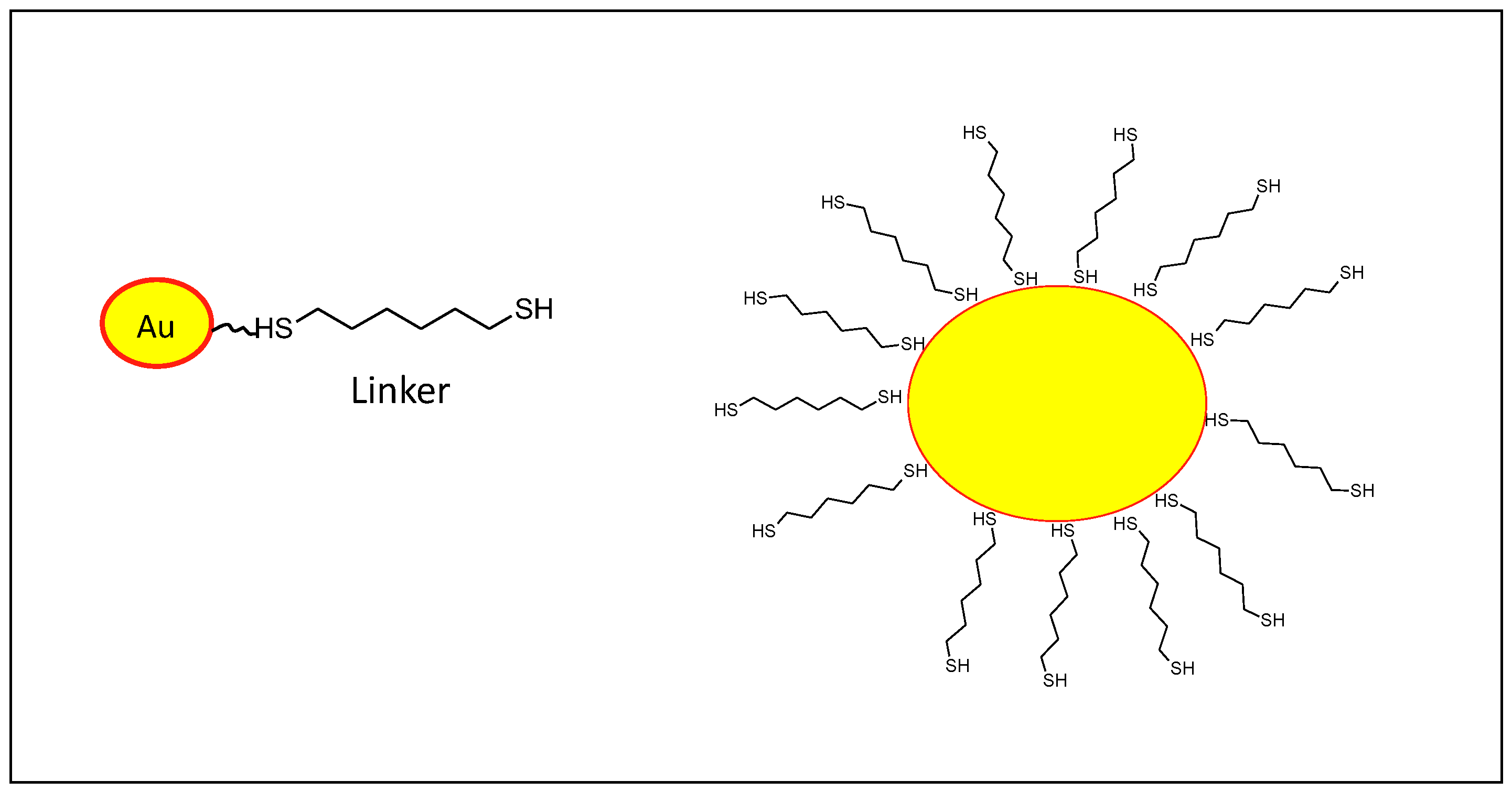

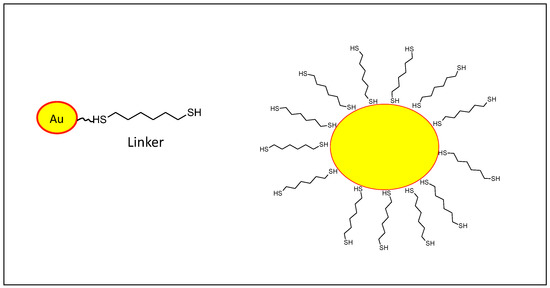

Gold nanoparticles (AuNPs) are biocompatible, not immunogenic and manufactured in diverse sizes and shapes [30]. AuNPs can be easily prepared from gold salt (H[AuCl4]) in water and their particle sizes are controllable (ranging from 1-100 nm diameter) [54,55].
AuNPs were functionalized with mucin-1 (MUC-1) glycoprotein and the resulting nano-constructions have been shown to induce the production of cytokines such as TNF-alpha, IL-6, IL-10, and IL-12 by peritoneal macrophages isolated from mice [31,32]. Glycosylated gold nanoparticles are constructed as synthetic cancer vaccines by conjugating them with tumor-associated (Tn) antigen glycans to induce strong antibody response specific for aberrant mucin glycans. The AuNPs modified with PEG25Tn25 and PEG80Tn2 showed the strongest immune stimulatory antibodies among all PEG-modified formulations in vivo [33]. To improve the therapeutic effect, AuNPs have been modified and combined with peptides. Fytianos et al. combined AuNPs with PEG, polyvinyl alcohol (PVA) or a mixture of both with either positive or negative surface charge. The results suggested that surface modification influenced uptake, with a high degree of internalization of (PEG+PVA)-NH2 and PVA-NH2 AuNPS [56]. It has been shown that the combination of AuNps with OVA peptide and the CpG adjuvant can improve the delivery of peptide and enhance the therapeutic effect in a B16-OVA tumor model [57].
Liang et al. reported a new nanoplatform of liposome-coated AuNPs modified with DCs specific aCD11c antibody for targeted delivery of adjuvant MPLA and melanoma antigen peptide TRP2180-188 (SVYDFFVWL). The nanoparticle system was shown to efficiently stimulate DCs, resulting in the maturation of DCs and activation of anti-tumor CD8+ T lymphocytes with tumor growth inhibition in both B16-F10 prophylactic and lung metastasis models [58].

2.4.2. Iron Oxide Nanoparticles

Iron oxide nanoparticles can also be used as potent carriers for vaccine delivery and can be used as antitumor agents for cancer therapy. A very recent study described a superparamagnetic Fe3O4 as a delivery system of OVA, showing superior induction of both immune cell activation and cytokine production with effective control of tumor growth [59]. Indeed, magnetic nanoparticles can be directly controlled by an external magnetic field to significantly improve lymph node as well as intra-tumor retention [60].

2.4.3. Aluminum Salts (Alum)

Alum is one of the few licensed adjuvants for human use and is included in several licensed vaccine formulations. It can form a depot at the injection site, inducing sustained release of antigen, and prolonging the interaction between antigen and immune cells, resulting in the induction of more potent antigen-specific B or T cell response [61].
Alum has been used as adjuvant in combination with CpG oligodeoxynucleotide (CpG) and innate defense regulator peptide HH2 for improving anti-tumor immune responses. The CpG-HH2 complex significantly enhanced the production of IFN-γ, TNF-α and IL-1β, promoted the uptake of antigen and strengthened the activation of p38, Erk1/2 and NF-κB in vitro, compared to CpG or HH2 alone [34]. Aluminum hydroxide nanoparticles (~100 nm) containing OVA was shown to have a strong in vitro immune activity and to delay tumor progression in vivo after immunization with a dose lower than traditional aluminum hydroxide (~9 μm) [35].

2.4.4. Other Inorganic Nanoparticles

Multishell calcium phosphate (CaP) nanoparticles are considered ideal carriers for biomolecules as they can transport many molecules across the cell membrane and protect the encapsulated biomolecules against enzymatic degradation. In combination with CpG and viral antigens, CaP nanoparticles facilitate a strong activation of DCs and generation of virus-specific T cells. Application of functionalized CaP nanoparticles during chronic viral infection was sufficient to overcome barriers of T-cell exhaustion and supported the reinforcement of cytotoxic CD8+ T cells in contrast to the administration of soluble CpG and peptides. Heβe et al. demonstrated that the administration of HA-peptide and CpG functionalized CaP nanoparticles in murine xenograft tumor model expressing the viral antigen hemagglutinin (HA) was highly sufficient to enhance the antitumor T-cell response and to repress progression of tumor induced by HA-transduced CT26 cell line. In the same study, particles were loaded with a whole peptide pool derived from a primary tumor cell lysate, as a universal approach for individual cancer therapy, and a significantly decreased tumor growth was observed in immunized animals [62].
Fluorescent magnetic nanoparticles (α-AP-fmNPs) were constructed from iron oxide nanoparticles, indocyanine green and fusion peptides (α-AP). External stimulation by a magnetic pulling force significantly enhanced the migration of α-AP-fmNP-loaded DCs than control DCs both in vitro and in vivo. BMDCs treated with α-APOVA-fmNP showed enhanced in vitro CD8+ T-cell proliferation and cytokine IFN-γ production, as well as in vivo CTL response compared to nonmagnetic nanoparticle treated and non-treated controls [36].
Mesoporous silicas are solid materials featured by mesoporous structure encapsulation of biomolecules. Mesoporous silicas have been intensively studied as drug delivery systems due to the advantage of high surface area, tunable pore size and stable chemical/thermal properties [36,63]. MSNs can also be used as antigen carriers and/or adjuvants for cancer immunotherapy.
Dellacherie et al. reported a vaccine strategy based on dendritic cell-recruiting Mesoporous Silica Rod (MSR) scaffolds to enhance T-cell responses against subunit peptide antigen. The small peptide OVA-derived SIINFEKL, modified with a cysteine at N-terminus, was covalently conjugated via thioether linkage to the MSRs. The conjugation enhanced the stability in subcutaneous tissue in vivo, and their ability to stimulate the OT-II T-cell, although a decreased antigen presentation by bone marrow derived dendritic cells was observed [64].
Cha et al., synthesized mesoporous silica nanoparticles with extra-large pores and tunable pore structure and particle size, which resulted in a high loading capacity of large biomolecules. Amine-modified XL-MSNs showed significantly higher loading of OVA and CpG. The XL-MSNs successfully delivered the antigen protein and TLR9 agonist into the cytosol and led to enhanced maturation and antigen presentation of DCs. Subcutaneously injected XL-MSNs were transported from the injection site to LNs in the animal study, with strong stimulation of antigen-specific cytotoxic T cells and tumor growth suppression in a prophylactic tumor model [65].

3. Virus-Like Particles, Proteinlike Nanoparticles and Peptides

3.1. Virus-Like Particles

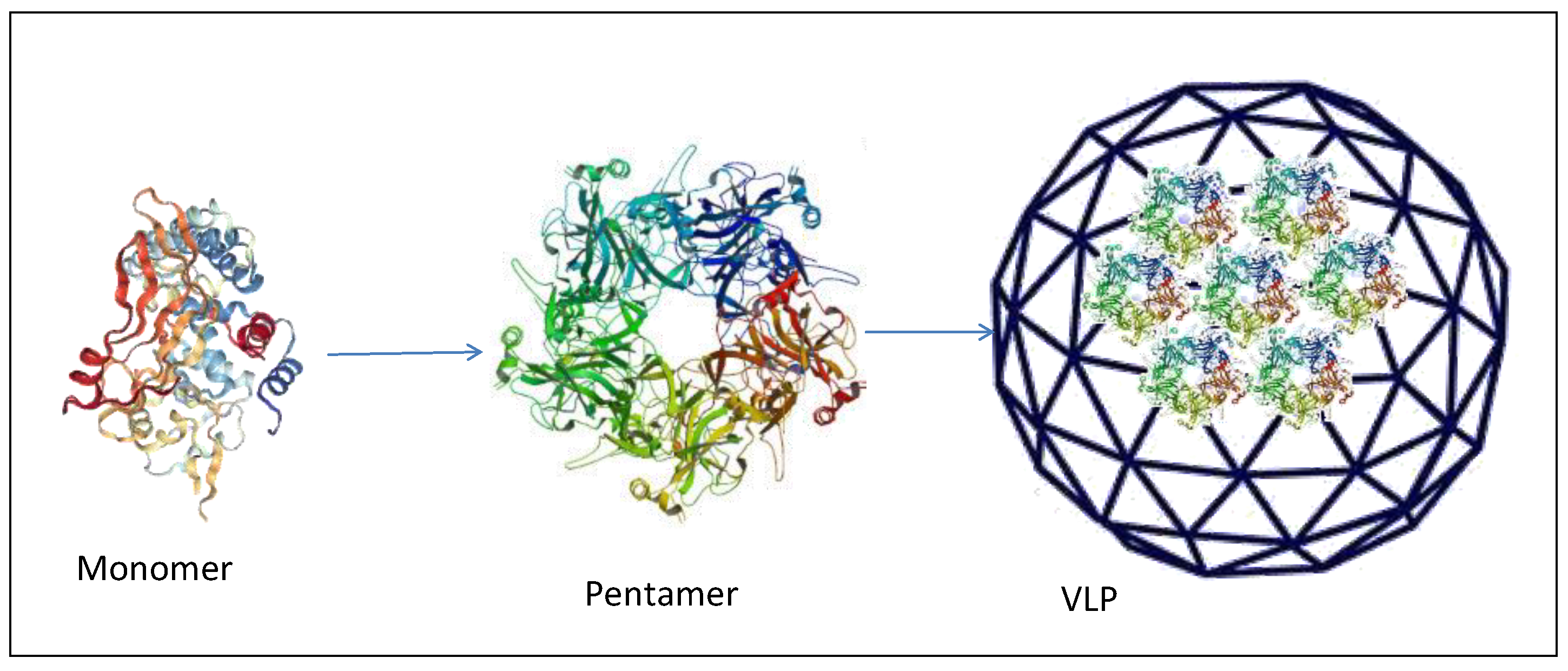

Virus-like particles (VLPs) (Figure 7) have attracted significant interest as a cancer vaccine platform for inducing antigen-specific immune responses. Viral capsid proteins are able to self-assemble into particulate structures closely resembling the natural virus, from which they are derived. VLPs are replication as well as infection incompetent and can efficiently deliver antigens to APCs which are cross-presented in association with both MHC class I and class II eliciting both humoral and cellular immune responses [66].
VLPs are commercially available as preventive vaccines, such as the HPV cancer vaccines Cervarix™ (GSK) and Gardasil® (Merck), inducing high levels of long lasting antibodies against HPV16 and HPV18 [67,68].
VLPs can be used as scaffolds and delivery systems for peptide vaccines. Storni et al. reported a VLPs vaccine that can eradicate established solid fibrosarcoma tumors in mice. CpG and the p33 peptide derived from the glycoprotein of lymphocytic choriomeningitis virus (LCMV) were packed into VLPs derived from the hepatitits B core antigen or bacteriophage Qβ. They found that such a vaccine induced high levels of peptide-specific CD8+ T cells that can eradicate solid fibroblastoma tumors [69].
In a recent study, Shukla et al. evaluated the potency of Cowpea mosaic virus (CPMV) nanoparticle-based cancer vaccine in several mouse models of HER2+ tumors in conjugation with the antigenic CH401 peptide (CPMV-CH401) (Table 1) derived from the extracellular domain of HER2 receptor. CH401-specific anti-sera elicited in immunized animals were shown to generate a strong cytotoxic effect against HER2 expressing cancer cells using a MTT assay [70].
A VLP system made of pyruvate dehydrogenase E2 protein nanoparticle showed great potential as a vaccine delivery platform for cancer. E2 nanoparticles co-delivering melanoma-associated gp100 epitope and CpG (CpG-gp-E2) induced a significantly enhanced in vitro CTL activity and cytokine IFN-γ secretion as well as an increased induction of T cell response and tumor growth control in vivo [71].
Recently, a nano-vaccine has been generated by coupling the p33 epitope to cucumber-mosaic virus (CuMV) coat protein. The CuMVTT-p33 nano-sized vaccine was next formulated with the micron-sized microcrystalline tyrosine (MCT) adjuvant and the formed depot effect was studied using confocal microscopy and trafficking experiments. The efficacy of such nanoparticles was next assessed in an aggressive transplanted murine melanoma model showing that CuMVTT-VLPs can efficiently and rapidly drain into the lymphatic system due to their nano-size of ~ 30 nm. The addition of the micron-sized MCT adjuvant of ~ 5 μM resulted in a local depot for the nanoparticles and a longer exposure to the immune system, eliciting an enhanced specific T cell response in the stringent B16F10p33 murine melanoma model. The study showed that the micron-sized MCT adjuvant was as potent as B type CpGs and superior to the alum adjuvant [72].

3.2. Protein and Peptide Particles

A large number of peptide epitopes able to induce strong, long-lasting humoral and cellular immunity against specific tumor or viral antigens, have been identified and studied. Chemical modifications to improve the peptide stability and/or to preserve the tertiary structure have been shown to enhance their immunogenicity in vivo. Nevertheless, a native conformational structure is not needed to elicit a T cell immunity given that the linear epitope of 8-10 amino acids is sufficient to be loaded onto the MHC-I molecules and presented to the T cell receptor.
Naked peptides correspond to unmodified amino acid sequences used mostly in DC vaccines, in which expanded DCs are loaded with target peptide antigens in vitro, prior to re-introduction to the patient. In this case, delivery of concentrated naked peptides is sufficient for an efficient uptake and loading of DCs [73].
Stapled peptides consist of stabilized short sequences of amino acids modified by inserting hydrocarbon bonds into their natural alpha-helical conformation through side chains of amino acids [74]. Such modified peptides have not used as cancer vaccine approach yet, the only experimental model has been developed for inducing neutralizing Abs against the HIV-1 [75].
Different methods have been developed to improve metabolic stability of peptide antigens, for example acetylation of N-terminus, or amidation of C-terminus, modification of the structure of peptides into dendrimers, cyclization or replacement of some amino acids with unnatural amino acids, introduction of D-amino acids [71]. Efforts to improve the potency and quality of peptide vaccines include introduction of amphiphilic peptides, peptide fusions to Toll-like receptor (TLR) agonists, addition of powerful inflammatory adjuvants, and combinations with other immune modulators [76].
Covalent conjugation of peptides to carrier proteins is a standard method to improve the immunogenicity of peptides. One of the most used immunogenic peptide carriers, the Keyhole limpet hemocyanin (KLH), has been used in several clinical trials for anti-MUC1 vaccines in breast, ovarian, and colorectal cancer, although a phase III clinical trial failed to generate significant responses in breast cancer patients [77]. It has been shown that the conjugation of survivin53-67 peptide with KLH (SVN53-67/M57-KLH) stimulate an antitumor immune response against murine glioma in vivo as well as human glioma cells ex vivo [78].
More recently, cell-penetrating peptides (CPPs) have been generated to create multifunction drug delivery systems able to target specific cell compartments employing many different cargoes, including nanoparticles, proteins, liposomes and nucleic acids [71,79,80,81].
Two CPPs, HR9 and Cady-2, have been used in combination with natural adjuvant for an efficient in vitro and in vivo delivery of a complex antigen made of the Heat-shock-protein 27 and HCV NS3 DNA [82]. The Cady-2 improves the uptake of protein antigens, due to the presence in its sequence of hydrophobic and positively charged amino acids with two WW and two WF tandems, five Arg groups, but no negative charges (˜40% and ˜25%, respectively). Histidine-rich R9 (HR9: CH5-R9-H5C) contains poly-histidine and nona-arginine sequences and two cysteine residues which has been shown to increase gene delivery in vitro. The efficiency of cell penetration and immunogenicity was assessed in BALB/c mice, showing that heterologous prime/boost (G10: Hsp27-NS3 DNA + HR9/ rHsp27-NS3 protein + Cady-2) induced high levels of IgG2a, IgG2b, IFN-γ and Granzyme B and low levels of IgG1 and IL-5 directed toward Th1 responses [82].
Six cell penetrating peptides for in vitro and in vivo delivery of HPV16 E7 DNA and protein have been studied, with different formulation, as an antigenic model for therapeutic vaccine. The results showed that the immunization with the E7 protein/P28CPP nanoparticles, in both homologous and heterologous prime/boost vaccinations, induce the highest levels of IFN-γ and Granzyme B with complete protective and therapeutic anti-tumor effects [83].

4. Nanoparticles in Clinical Trials

Some of the nanoparticle vaccines have been evaluated in clinical trials for different cancers (reviewed in [84,85,86]). Among all, liposomes have been used extensively due to their versatility, including Tecemotide™ liposomes [87,88,89], AS15™ lipids [90,91,92], DepoVax™ liposomes [93,94,95], Iscomatrix [96], Cholesteryl pullulan (CHP) nanogels [97], and virus-like nanoparticles [98,99].
Most of these studies have shown induction of immune response specific to the antigen delivered by the nanoparticles, although none of the trials demonstrated statistically significant survival benefit. Such a lack of correlation between a significant immune response and poor clinical efficacy has not been yet explained but is suggestive of an immune response characterized by either wrong type, low magnitude, or not lasting. Moreover, nanoparticles may suffer from poor biodistribution and immune response may be hampered or suppressed by immunosuppressive tumor microenvironment (TME). All these aspects need to be addressed in detail in order to improve the efficacy of nanoparticle-based cancer vaccines (reviewed in [84,85,86] Table 2).

5. Conclusions

The development of nanoparticles in cancer vaccines is constantly expanding. Various type of nanoparticles including polymeric nanoparticles, liposome, virus, inorganic nanoparticles, natural nanoparticles such as polysaccharides, cell penetrating peptides and proteins have attracted great interest in the vaccine research fields. The nanoparticles can be tuned through modulating surface properties, size, shape and composition to enhance the immune responses against cancer.
Moreover, adjuvants loaded into nanocarriers via hydrophobic or electrostatic interactions can further increase immunogenicity of tumor antigens. Furthermore, numerous nanocarriers designed for the delivery of conventional chemotherapeutics can be potentially applied to initiate and enhance immunogenic cell death and may further provoke the immune system against tumor cells when co-administered with cancer immunotherapeutics (Table 3).
Nevertheless, despite encouraging results obtained in pre-clinical settings compared to soluble peptide antigens, the few clinical trials evaluating the efficacy of therapeutic cancer vaccines based on nanoparticles have not resulted in significant clinical outcomes. Such unsatisfactory results need to be thoroughly analyzed in order to identify strategies for improvements.
Moreover, translation into clinics of nanoparticles faces several challenges, including biological aspects, large-scale manufacturing, biocompatibility and safety, intellectual property (IP), government regulations, and overall cost-effectiveness in comparison to current therapies.
Therefore, although nanotechnology in medicine has the potential to have a major impact on human health, a number of issues still need to be addressed and solved before nanoparticles will be translated into a clinically applicable cancer vaccine.

Author Contributions

M.T. performed the literature search; M.L.T. and F.M.B. contributed to data analysis; A.L.T. and L.B. designed and supervised the analysis as well as drafted the manuscript. All authors have read and agree to the published version of the manuscript.

Funding

This research was funded by EU Transcan2-HEPAMUT project (Grant nr. 643638); Italian Ministry of Health through Institutional “Ricerca Corrente” (LB); POR FESR 2014/2020 “Campania OncoTerapie”; POR FESR 2014/2020 “NANOCAN”. MT is funded by FP-7 HEPAVAC (Grant nr. 602893). A.L.T. is the recipient of a postdoctoral fellowship from Regione Campania (PO FSE 2007/2013 DR N. 134 del 18/05/2015).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hoebe, K.; Janssen, E.; Beutler, B. The interface between innate and adaptive immunity. Nat. Immunol. 2004, 5, 971–974. [Google Scholar] [CrossRef] [PubMed]
  2. Surendran, S.P.; Moon, M.J.; Park, R.; Jeong, Y.Y. Bioactive Nanoparticles for Cancer Immunotherapy. Int. J. Mol. Sci. 2018, 19, 3877. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Reche, P.; Flower, D.R.; Fridkis-Hareli, M.; Hoshino, Y. Peptide-Based Immunotherapeutics and Vaccines 2017. J. Immunol. Res. 2018, 2018, 4568239. [Google Scholar] [CrossRef] [Green Version]
  4. Finn, O.J. The dawn of vaccines for cancer prevention. Nat. Rev. Immunol. 2018, 18, 183–194. [Google Scholar] [CrossRef]
  5. Calvo, T.M.; Allard, M.; Dutoit, V.; Dietrich, P.Y.; Walker, P.R. Peptides as cancer vaccines. Curr. Opin. Pharmacol. 2019, 47, 20–26. [Google Scholar] [CrossRef] [PubMed]
  6. Gregory, A.E.; Titball, R.; Williamson, D. Vaccine delivery using nanoparticles. Front. Cell. Infect. Microbiol. 2013, 3, 13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Bachmann, M.F.; Jennings, G.T. Vaccine delivery: A matter of size, geometry, kinetics and molecular patterns. Nat. Rev. Immunol. 2010, 10, 787–796. [Google Scholar] [CrossRef]
  8. Guo, Y.; Lei, K.; Tang, L. Neoantigen Vaccine Delivery for Personalized Anticancer Immunotherapy. Front. Immunol. 2018, 9, 1499. [Google Scholar] [CrossRef] [Green Version]
  9. Biswas, S.; Torchilin, V.P. Nanopreparations for organelle-specific delivery in cancer. Adv. Drug Deliv. Rev. 2014, 66, 26–41. [Google Scholar] [CrossRef] [Green Version]
  10. Koshy, S.T.; Mooney, D.J. Biomaterials for enhancing anti-cancer immunity. Curr. Opin. Biotechnol. 2016, 40, 1–8. [Google Scholar] [CrossRef] [Green Version]
  11. Fujita, Y.; Taguchi, H. Current status of multiple antigen-presenting peptide vaccine systems: Application of organic and inorganic nanoparticles. Chem. Cent. J. 2011, 5, 48. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Bozzuto, G.; Molinari, A. Liposomes as nanomedical devices. Int. J. Nanomed. 2015, 10, 975–999. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Schwendener, R.A. Liposomes as vaccine delivery systems: A review of the recent advances. Ther. Adv. Vaccines 2014, 2, 159–182. [Google Scholar] [CrossRef] [PubMed]
  14. Shariat, S.; Badiee, A.; Jalali, S.A.; Mansourian, M.; Yazdani, M.; Mortazavi, S.A.; Jaafari, M.R. P5 HER2/neu-derived peptide conjugated to liposomes containing MPL adjuvant as an effective prophylactic vaccine formulation for breast cancer. Cancer Lett. 2014, 355, 54–60. [Google Scholar] [CrossRef] [PubMed]
  15. Pauli, G.; Tang, W.L.; Li, S.D. Development and Characterization of the Solvent-Assisted Active Loading Technology (SALT) for Liposomal Loading of Poorly Water-Soluble Compounds. Pharmaceutics 2019, 11, 465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Riaz, M.K.; Riaz, M.A.; Zhang, X.; Lin, C.; Wong, K.H.; Chen, X.; Zhang, G.; Lu, A.; Yang, Z. Surface Functionalization and Targeting Strategies of Liposomes in Solid Tumor Therapy: A Review. Int. J. Mol. Sci. 2018, 19, 195. [Google Scholar] [CrossRef] [Green Version]
  17. He, H.; Lu, Y.; Qi, J.; Zhu, Q.; Chen, Z.; Wu, W. Adapting liposomes for oral drug delivery. Acta Pharm. Sin. B 2019, 9, 36–48. [Google Scholar] [CrossRef]
  18. Gao, J.; Ochyl, L.J.; Yang, E.; Moon, J.J. Cationic liposomes promote antigen cross-presentation in dendritic cells by alkalizing the lysosomal pH and limiting the degradation of antigens. Int. J. Nanomed. 2017, 12, 1251–1264. [Google Scholar] [CrossRef] [Green Version]
  19. Heuts, J.; Varypataki, E.M.; van der Maaden, K.; Romeijn, S.; Drijfhout, J.W.; van Scheltinga, A.T.; Ossendorp, F.; Jiskoot, W. Cationic Liposomes: A Flexible Vaccine Delivery System for Physicochemically Diverse Antigenic Peptides. Pharm. Res. 2018, 35, 207. [Google Scholar] [CrossRef] [Green Version]
  20. Park, S.; Kim, D.; Wu, G.; Jung, H.; Park, J.A.; Kwon, H.J.; Lee, Y. A peptide-CpG-DNA-liposome complex vaccine targeting TM4SF5 suppresses growth of pancreatic cancer in a mouse allograft model. OncoTargets Ther. 2018, 11, 8655–8672. [Google Scholar] [CrossRef] [Green Version]
  21. Miura, N.; Akita, H.; Tateshita, N.; Nakamura, T.; Harashima, H. Modifying Antigen-Encapsulating Liposomes with KALA Facilitates MHC Class I Antigen Presentation and Enhances Anti-tumor Effects. Mol. Ther. 2017, 25, 1003–1013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Nakamura, T.; Ono, K.; Suzuki, Y.; Moriguchi, R.; Kogure, K.; Harashima, H. Octaarginine-modified liposomes enhance cross-presentation by promoting the C-terminal trimming of antigen peptide. Mol. Pharm. 2014, 11, 2787–2795. [Google Scholar] [CrossRef] [PubMed]
  23. Razazan, A.; Behravan, J.; Arab, A.; Barati, N.; Arabi, L.; Gholizadeh, Z.; Hatamipour, M.; Reza, N.A.; Momtazi-Borojeni, A.A.; Mosaffa, F.; et al. Conjugated nanoliposome with the HER2/neu-derived peptide GP2 as an effective vaccine against breast cancer in mice xenograft model. PLoS ONE 2017, 12, e0185099. [Google Scholar] [CrossRef] [PubMed]
  24. Farzad, N.; Barati, N.; Momtazi-Borojeni, A.A.; Yazdani, M.; Arab, A.; Razazan, A.; Shariat, S.; Mansourian, M.; Abbasi, A.; Saberi, Z.; et al. P435 HER2/neu-derived peptide conjugated to liposomes containing DOPE as an effective prophylactic vaccine formulation for breast cancer. Artif. Cells Nanomed. Biotechnol. 2019, 47, 665–673. [Google Scholar] [CrossRef] [PubMed]
  25. Lai, C.; Duan, S.; Ye, F.; Hou, X.; Li, X.; Zhao, J.; Yu, X.; Hu, Z.; Tang, Z.; Mo, F.; et al. The enhanced antitumor-specific immune response with mannose- and CpG-ODN-coated liposomes delivering TRP2 peptide. Theranostics 2018, 8, 1723–1739. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Rezvantalab, S.; Drude, N.I.; Moraveji, M.K.; Guvener, N.; Koons, E.K.; Shi, Y.; Lammers, T.; Kiessling, F. PLGA-Based Nanoparticles in Cancer Treatment. Front. Pharmacol. 2018, 9, 1260. [Google Scholar] [CrossRef] [Green Version]
  27. Petrizzo, A.; Conte, C.; Tagliamonte, M.; Napolitano, M.; Bifulco, K.; Carriero, V.; De, S.A.; Tornesello, M.L.; Buonaguro, F.M.; Quaglia, F.; et al. Functional characterization of biodegradable nanoparticles as antigen delivery system. J. Exp. Clin. Cancer Res. 2015, 34, 114. [Google Scholar] [CrossRef] [Green Version]
  28. Qiu, F.; Becker, K.W.; Knight, F.C.; Baljon, J.J.; Sevimli, S.; Shae, D.; Gilchuk, P.; Joyce, S.; Wilson, J.T. Poly(propylacrylic acid)-peptide nanoplexes as a platform for enhancing the immunogenicity of neoantigen cancer vaccines. Biomaterials 2018, 182, 82–91. [Google Scholar] [CrossRef]
  29. Kumari, A.; Yadav, S.K.; Yadav, S.C. Biodegradable polymeric nanoparticles based drug delivery systems. Colloids Surf. B Biointerfaces 2010, 75, 1–18. [Google Scholar] [CrossRef]
  30. Galliverti, G.; Tichet, M.; Domingos-Pereira, S.; Hauert, S.; Nardelli-Haefliger, D.; Swartz, M.A.; Hanahan, D.; Wullschleger, S. Nanoparticle Conjugation of Human Papillomavirus 16 E7-long Peptides Enhances Therapeutic Vaccine Efficacy against Solid Tumors in Mice. Cancer Immunol. Res. 2018, 6, 1301–1313. [Google Scholar] [CrossRef]
  31. Bae, J.; Parayath, N.; Ma, W.; Amiji, M.; Munshi, N.; Anderson, K. BCMA peptide-engineered nanoparticles enhance induction and function of antigen-specific CD8(+) cytotoxic T lymphocytes against multiple myeloma: Clinical applications. Leukemia 2020, 34, 210–223. [Google Scholar] [CrossRef] [PubMed]
  32. Xiang, S.D.; Gao, Q.; Wilson, K.L.; Heyerick, A.; Plebanski, M. A Nanoparticle Based Sp17 Peptide Vaccine Exposes New Immuno-Dominant and Species Cross-reactive B Cell Epitopes. Vaccines 2015, 3, 875–893. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Xiang, S.D.; Wilson, K.L.; Goubier, A.; Heyerick, A.; Plebanski, M. Design of Peptide-Based Nanovaccines Targeting Leading Antigens from Gynecological Cancers to Induce HLA-A2. 1 Restricted CD8(+) T Cell Responses. Front. Immunol. 2018, 9, 2968. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Dannert, C.; Stokke, B.T.; Dias, R.S. Nanoparticle-Hydrogel Composites: From Molecular Interactions to Macroscopic Behavior. Polymers 2019, 11, 275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Akhtar, M.F.; Hanif, M.; Ranjha, N.M. Methods of synthesis of hydrogels…A review. Saudi Pharm. J. 2016, 24, 554–559. [Google Scholar] [CrossRef] [Green Version]
  36. Kousalova, J.; Etrych, T. Polymeric nanogels as drug delivery systems. Physiol. Res. 2018, 67, S305–S317. [Google Scholar] [CrossRef]
  37. Muraoka, D.; Harada, N.; Hayashi, T.; Tahara, Y.; Momose, F.; Sawada, S.; Mukai, S.A.; Akiyoshi, K.; Shiku, H. Nanogel-based immunologically stealth vaccine targets macrophages in the medulla of lymph node and induces potent antitumor immunity. ACS Nano 2014, 8, 9209–9218. [Google Scholar] [CrossRef]
  38. Kordalivand, N.; Tondini, E.; Lau, C.Y.J.; Vermonden, T.; Mastrobattista, E.; Hennink, W.E.; Ossendorp, F.; Nostrum, C.F.V. Cationic synthetic long peptides-loaded nanogels: An efficient therapeutic vaccine formulation for induction of T-cell responses. J. Control. Release 2019, 315, 114–125. [Google Scholar] [CrossRef]
  39. Li, J.; Mooney, D.J. Designing hydrogels for controlled drug delivery. Nat. Rev. Mater. 2016, 1, 16071. [Google Scholar] [CrossRef]
  40. Hanafy, N.A.N.; El-Kemary, M.; Leporatti, S. Micelles Structure Development as a Strategy to Improve Smart Cancer Therapy. Cancers 2018, 10, 238. [Google Scholar] [CrossRef] [Green Version]
  41. Clay, N.E.; Whittenberg, J.J.; Leong, J.; Kumar, V.; Chen, J.; Choi, I.; Liamas, E.; Schieferstein, J.M.; Jeong, J.H.; Kim, D.H.; et al. Chemical and mechanical modulation of polymeric micelle assembly. Nanoscale 2017, 9, 5194–5204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Ventola, C.L. Progress in Nanomedicine: Approved and Investigational Nanodrugs. Pharm. Ther. 2017, 42, 742–755. [Google Scholar]
  43. Zeng, Q.; Li, H.; Jiang, H.; Yu, J.; Wang, Y.; Ke, H.; Gong, T.; Zhang, Z.; Sun, X. Tailoring polymeric hybrid micelles with lymph node targeting ability to improve the potency of cancer vaccines. Biomaterials 2017, 122, 105–113. [Google Scholar] [CrossRef] [PubMed]
  44. Deshmukh, A.S.; Chauhan, P.N.; Noolvi, M.N.; Chaturvedi, K.; Ganguly, K.; Shukla, S.S.; Nadagouda, M.N.; Aminabhavi, T.M. Polymeric micelles: Basic research to clinical practice. Int. J. Pharm. 2017, 532, 249–268. [Google Scholar] [CrossRef]
  45. Heegaard, P.M.; Boas, U.; Sorensen, N.S. Dendrimers for vaccine and immunostimulatory uses. A review. Bioconjug. Chem. 2010, 21, 405–418. [Google Scholar] [CrossRef]
  46. Duinkerken, S.; Horrevorts, S.K.; Kalay, H.; Ambrosini, M.; Rutte, L.; de Gruijl, T.D.; Garcia-Vallejo, J.J.; van Kooyk, Y. Glyco-Dendrimers as Intradermal Anti-Tumor Vaccine Targeting Multiple Skin DC Subsets. Theranostics 2019, 9, 5797–5809. [Google Scholar] [CrossRef]
  47. Male, K.B.; Lachance, B.; Hrapovic, S.; Sunahara, G.; Luong, J.H. Assessment of cytotoxicity of quantum dots and gold nanoparticles using cell-based impedance spectroscopy. Anal. Chem. 2008, 80, 5487–5493. [Google Scholar] [CrossRef] [Green Version]
  48. Kang, S.; Ahn, S.; Lee, J.; Kim, J.Y.; Choi, M.; Gujrati, V.; Kim, H.; Kim, J.; Shin, E.C.; Jon, S. Effects of gold nanoparticle-based vaccine size on lymph node delivery and cytotoxic T-lymphocyte responses. J. Control. Release 2017, 256, 56–67. [Google Scholar] [CrossRef]
  49. Lin, A.Y.; Lunsford, J.; Bear, A.S.; Young, J.K.; Eckels, P.; Luo, L.; Foster, A.E.; Drezek, R.A. High-density sub-100-nm peptide-gold nanoparticle complexes improve vaccine presentation by dendritic cells in vitro. Nanoscale Res. Lett. 2013, 8, 72. [Google Scholar] [CrossRef] [Green Version]
  50. Tavernaro, I.; Hartmann, S.; Sommer, L.; Hausmann, H.; Rohner, C.; Ruehl, M.; Hoffmann-Roeder, A.; Schlecht, S. Synthesis of tumor-associated MUC1-glycopeptides and their multivalent presentation by functionalized gold colloids. Org. Biomol. Chem. 2015, 13, 81–97. [Google Scholar] [CrossRef] [Green Version]
  51. Mocan, T.; Matea, C.; Tabaran, F.; Iancu, C.; Orasan, R.; Mocan, L. In Vitro Administration of Gold Nanoparticles Functionalized with MUC-1 Protein Fragment Generates Anticancer Vaccine Response via Macrophage Activation and Polarization Mechanism. J. Cancer 2015, 6, 583–592. [Google Scholar] [CrossRef] [PubMed]
  52. Parry, A.L.; Clemson, N.A.; Ellis, J.; Bernhard, S.S.; Davis, B.G.; Cameron, N.R. ‘Multicopy multivalent’ glycopolymer-stabilized gold nanoparticles as potential synthetic cancer vaccines. J. Am. Chem. Soc. 2013, 135, 9362–9365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Fytianos, K.; Rodriguez-Lorenzo, L.; Clift, M.J.; Blank, F.; Vanhecke, D.; von Garnier, C.; Petri-Fink, A.; Rothen-Rutishauser, B. Uptake efficiency of surface modified gold nanoparticles does not correlate with functional changes and cytokine secretion in human dendritic cells in vitro. Nanomedicine 2015, 11, 633–644. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Almeida, J.P.M.; Lin, A.Y.; Figueroa, E.R.; Foster, A.E.; Drezek, R.A. In vivo gold nanoparticle delivery of peptide vaccine induces anti-tumor immune response in prophylactic and therapeutic tumor models. Small 2015, 11, 1453–1459. [Google Scholar] [CrossRef] [Green Version]
  55. Liang, R.; Xie, J.; Li, J.; Wang, K.; Liu, L.; Gao, Y.; Hussain, M.; Shen, G.; Zhu, J.; Tao, J. Liposomes-coated gold nanocages with antigens and adjuvants targeted delivery to dendritic cells for enhancing antitumor immune response. Biomaterials 2017, 149, 41–50. [Google Scholar] [CrossRef]
  56. Zhao, Y.; Zhao, X.; Cheng, Y.; Guo, X.; Yuan, W. Iron Oxide Nanoparticles-Based Vaccine Delivery for Cancer Treatment. Mol. Pharm. 2018, 15, 1791–1799. [Google Scholar] [CrossRef]
  57. Zhang, X.; Wu, F.; Men, K.; Huang, R.; Zhou, B.; Zhang, R.; Zou, R.; Yang, L. Modified Fe3O4 Magnetic Nanoparticle Delivery of CpG Inhibits Tumor Growth and Spontaneous Pulmonary Metastases to Enhance Immunotherapy. Nanoscale Res. Lett. 2018, 13, 240. [Google Scholar] [CrossRef] [Green Version]
  58. Gavin, A.L.; Hoebe, K.; Duong, B.; Ota, T.; Martin, C.; Beutler, B.; Nemazee, D. Adjuvant-enhanced antibody responses in the absence of toll-like receptor signaling. Science 2006, 314, 1936–1938. [Google Scholar] [CrossRef] [Green Version]
  59. Tian, Y.; Li, M.; Yu, C.; Zhang, R.; Zhang, X.; Huang, R.; Lu, L.; Yuan, F.; Fan, Y.; Zhou, B.; et al. The novel complex combination of alum, CpG ODN and HH2 as adjuvant in cancer vaccine effectively suppresses tumor growth in vivo. Oncotarget 2017, 8, 45951–45964. [Google Scholar] [CrossRef] [Green Version]
  60. Li, X.; Aldayel, A.M.; Cui, Z. Aluminum hydroxide nanoparticles show a stronger vaccine adjuvant activity than traditional aluminum hydroxide microparticles. J. Control. Release 2014, 173, 148–157. [Google Scholar] [CrossRef] [Green Version]
  61. Hesse, C.; Kollenda, S.; Rotan, O.; Pastille, E.; Adamczyk, A.; Wenzek, C.; Hansen, W.; Epple, M.; Buer, J.; Westendorf, A.M.; et al. A Tumor-Peptide-Based Nanoparticle Vaccine Elicits Efficient Tumor Growth Control in Antitumor Immunotherapy. Mol. Cancer Ther. 2019, 18, 1069–1080. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Jin, H.; Qian, Y.; Dai, Y.; Qiao, S.; Huang, C.; Lu, L.; Luo, Q.; Chen, J.; Zhang, Z. Magnetic Enrichment of Dendritic Cell Vaccine in Lymph Node with Fluorescent-Magnetic Nanoparticles Enhanced Cancer Immunotherapy. Theranostics 2016, 6, 2000–2014. [Google Scholar] [CrossRef] [PubMed]
  63. Bharti, C.; Nagaich, U.; Pal, A.K.; Gulati, N. Mesoporous silica nanoparticles in target drug delivery system: A review. Int. J. Pharm. Investig. 2015, 5, 124–133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Dellacherie, M.O.; Li, A.W.; Lu, B.Y.; Mooney, D.J. Covalent Conjugation of Peptide Antigen to Mesoporous Silica Rods to Enhance Cellular Responses. Bioconjug. Chem. 2018, 29, 733–741. [Google Scholar] [CrossRef] [PubMed]
  65. Cha, B.G.; Jeong, J.H.; Kim, J. Extra-Large Pore Mesoporous Silica Nanoparticles Enabling Co-Delivery of High Amounts of Protein Antigen and Toll-like Receptor 9 Agonist for Enhanced Cancer Vaccine Efficacy. ACS Cent. Sci. 2018, 4, 484–492. [Google Scholar] [CrossRef] [Green Version]
  66. Buonaguro, L.; Tagliamonte, M.; Tornesello, M.L.; Buonaguro, F.M. Developments in virus-like particle-based vaccines for infectious diseases and cancer. Expert Rev. Vaccines 2011, 10, 1569–1583. [Google Scholar] [CrossRef]
  67. Harper, D.M.; Franco, E.L.; Wheeler, C.M.; Moscicki, A.B.; Romanowski, B.; Roteli-Martins, C.M.; Jenkins, D.; Schuind, A.; Costa Clemens, S.A.; Dubin, G. Sustained efficacy up to 4. 5 years of a bivalent L1 virus-like particle vaccine against human papillomavirus types 16 and 18: Follow-up from a randomised control trial. Lancet 2006, 367, 1247–1255. [Google Scholar] [CrossRef] [Green Version]
  68. Dawar, M.; Deeks, S.; Dobson, S. Human papillomavirus vaccines launch a new era in cervical cancer prevention. CMAJ 2007, 177, 456–461. [Google Scholar] [CrossRef] [Green Version]
  69. Storni, T.; Ruedl, C.; Schwarz, K.; Schwendener, R.A.; Renner, W.A.; Bachmann, M.F. Nonmethylated CG motifs packaged into virus-like particles induce protective cytotoxic T cell responses in the absence of systemic side effects. J. Immunol. 2004, 172, 1777–1785. [Google Scholar] [CrossRef] [Green Version]
  70. Shukla, S.; Jandzinski, M.; Wang, C.; Gong, X.; Bonk, K.W.; Keri, R.A.; Steinmetz, N.F. A Viral Nanoparticle Cancer Vaccine Delays Tumor Progression and Prolongs Survival in a HER2+ Tumor Mouse Model. Adv. Ther. 2019, 2, 1800139. [Google Scholar] [CrossRef]
  71. Borrelli, A.; Tornesello, A.L.; Tornesello, M.L.; Buonaguro, F.M. Cell Penetrating Peptides as Molecular Carriers for Anti-Cancer Agents. Molecules 2018, 23, 295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Mohsen, M.O.; Heath, M.D.; Cabral-Miranda, G.; Lipp, C.; Zeltins, A.; Sande, M.; Stein, J.V.; Riether, C.; Roesti, E.; Zha, L.; et al. Vaccination with nanoparticles combined with micro-adjuvants protects against cancer. J. Immunother. Cancer 2019, 7, 114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Zhang, L.; Huang, Y.; Lindstrom, A.R.; Lin, T.Y.; Lam, K.S.; Li, Y. Peptide-based materials for cancer immunotherapy. Theranostics 2019, 9, 7807–7825. [Google Scholar] [CrossRef] [PubMed]
  74. Skwarczynski, M.; Toth, I. Peptide-based synthetic vaccines. Chem. Sci. 2016, 7, 842–854. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Bird, G.H.; Irimia, A.; Ofek, G.; Kwong, P.D.; Wilson, I.A.; Walensky, L.D. Stapled HIV-1 peptides recapitulate antigenic structures and engage broadly neutralizing antibodies. Nat. Struct. Mol. Biol. 2014, 21, 1058–1067. [Google Scholar] [CrossRef] [PubMed]
  76. Hollingsworth, R.E.; Jansen, K. Turning the corner on therapeutic cancer vaccines. NPJ Vaccines 2019, 4, 7. [Google Scholar] [CrossRef] [PubMed]
  77. Miles, D.; Roche, H.; Martin, M.; Perren, T.J.; Cameron, D.A.; Glaspy, J.; Dodwell, D.; Parker, J.; Mayordomo, J.; Tres, A.; et al. Phase III multicenter clinical trial of the sialyl-TN (STn)-keyhole limpet hemocyanin (KLH) vaccine for metastatic breast cancer. Oncologist 2011, 16, 1092–1100. [Google Scholar] [CrossRef] [Green Version]
  78. Fenstermaker, R.A.; Ciesielski, M.J.; Qiu, J.; Yang, N.; Frank, C.L.; Lee, K.P.; Mechtler, L.R.; Belal, A.; Ahluwalia, M.S.; Hutson, A.D. Clinical study of a survivin long peptide vaccine (SurVaxM) in patients with recurrent malignant glioma. Cancer Immunol. Immunother. 2016, 65, 1339–1352. [Google Scholar] [CrossRef] [Green Version]
  79. Belnoue, E.; Di Berardino-Besson, W.; Gaertner, H.; Carboni, S.; Dunand-Sauthier, I.; Cerini, F.; Suso-Inderberg, E.M.; Walchli, S.; Konig, S.; Salazar, A.M.; et al. Enhancing Antitumor Immune Responses by Optimized Combinations of Cell-penetrating Peptide-based Vaccines and Adjuvants. Mol. Ther. 2016, 24, 1675–1685. [Google Scholar] [CrossRef] [Green Version]
  80. Yang, J.; Luo, Y.; Shibu, M.A.; Toth, I.; Skwarczynskia, M. Cell-penetrating Peptides: Efficient Vectors for Vaccine Delivery. Curr. Drug Deliv. 2019, 16, 430–443. [Google Scholar] [CrossRef]
  81. Skwarczynski, M.; Toth, I. Cell-penetrating peptides in vaccine delivery: Facts, challenges and perspectives. Ther. Deliv. 2019, 10, 465–467. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Alizadeh, S.; Irani, S.; Bolhassani, A.; Sadat, S.M. Simultaneous use of natural adjuvants and cell penetrating peptides improves HCV NS3 antigen-specific immune responses. Immunol. Lett. 2019, 212, 70–80. [Google Scholar] [CrossRef] [PubMed]
  83. Shahbazi, S.; Bolhassani, A. Comparison of six cell penetrating peptides with different properties for in vitro and in vivo delivery of HPV16 E7 antigen in therapeutic vaccines. Int. Immunopharmacol. 2018, 62, 170–180. [Google Scholar] [CrossRef] [PubMed]
  84. Grippin, A.J.; Sayour, E.J.; Mitchell, D.A. Translational nanoparticle engineering for cancer vaccines. Oncoimmunology 2017, 6, e1290036. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Lopez-Campos, F.; Candini, D.; Carrasco, E.; Berenguer Frances, M.A. Nanoparticles applied to cancer immunoregulation. Rep. Pract. Oncol. Radiother. 2019, 24, 47–55. [Google Scholar] [CrossRef]
  86. Gao, S.; Yang, D.; Fang, Y.; Lin, X.; Jin, X.; Wang, Q.; Wang, X.; Ke, L.; Shi, K. Engineering Nanoparticles for Targeted Remodeling of the Tumor Microenvironment to Improve Cancer Immunotherapy. Theranostics 2019, 9, 126–151. [Google Scholar] [CrossRef]
  87. Butts, C.; Maksymiuk, A.; Goss, G.; Soulieres, D.; Marshall, E.; Cormier, Y.; Ellis, P.M.; Price, A.; Sawhney, R.; Beier, F.; et al. Updated survival analysis in patients with stage IIIB or IV non-small-cell lung cancer receiving BLP25 liposome vaccine (L-BLP25): Phase IIB randomized, multicenter, open-label trial. J. Cancer Res. Clin. Oncol. 2011, 137, 1337–1342. [Google Scholar] [CrossRef]
  88. Butts, C.; Murray, R.N.; Smith, C.J.; Ellis, P.M.; Jasas, K.; Maksymiuk, A.; Goss, G.; Ely, G.; Beier, F.; Soulieres, D. A multicenter open-label study to assess the safety of a new formulation of BLP25 liposome vaccine in patients with unresectable stage III non-small-cell lung cancer. Clin. Lung Cancer 2010, 11, 391–395. [Google Scholar] [CrossRef]
  89. Butts, C.; Murray, N.; Maksymiuk, A.; Goss, G.; Marshall, E.; Soulieres, D.; Cormier, Y.; Ellis, P.; Price, A.; Sawhney, R.; et al. Randomized phase IIB trial of BLP25 liposome vaccine in stage IIIB and IV non-small-cell lung cancer. J. Clin. Oncol. 2005, 23, 6674–6681. [Google Scholar] [CrossRef] [Green Version]
  90. Kruit, W.H.; Suciu, S.; Dreno, B.; Mortier, L.; Robert, C.; Chiarion-Sileni, V.; Maio, M.; Testori, A.; Dorval, T.; Grob, J.J.; et al. Selection of immunostimulant AS15 for active immunization with MAGE-A3 protein: Results of a randomized phase II study of the European Organisation for Research and Treatment of Cancer Melanoma Group in Metastatic Melanoma. J. Clin. Oncol. 2013, 31, 2413–2420. [Google Scholar] [CrossRef]
  91. McQuade, J.L.; Homsi, J.; Torres-Cabala, C.A.; Bassett, R.; Popuri, R.M.; James, M.L.; Vence, L.M.; Hwu, W.J. A phase II trial of recombinant MAGE-A3 protein with immunostimulant AS15 in combination with high-dose Interleukin-2 (HDIL2) induction therapy in metastatic melanoma. BMC Cancer 2018, 18, 1274. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Vansteenkiste, J.F.; Cho, B.C.; Vanakesa, T.; De, P.T.; Zielinski, M.; Kim, M.S.; Jassem, J.; Yoshimura, M.; Dahabreh, J.; Nakayama, H.; et al. Efficacy of the MAGE-A3 cancer immunotherapeutic as adjuvant therapy in patients with resected MAGE-A3-positive non-small-cell lung cancer (MAGRIT): A randomised, double-blind, placebo-controlled, phase 3 trial. Lancet Oncol. 2016, 17, 822–835. [Google Scholar] [CrossRef]
  93. Berinstein, N.L.; Karkada, M.; Oza, A.M.; Odunsi, K.; Villella, J.A.; Nemunaitis, J.J.; Morse, M.A.; Pejovic, T.; Bentley, J.; Buyse, M.; et al. Survivin-targeted immunotherapy drives robust polyfunctional T cell generation and differentiation in advanced ovarian cancer patients. Oncoimmunology 2015, 4, e1026529. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Berinstein, N.L.; Karkada, M.; Morse, M.A.; Nemunaitis, J.J.; Chatta, G.; Kaufman, H.; Odunsi, K.; Nigam, R.; Sammatur, L.; MacDonald, L.D.; et al. First-in-man application of a novel therapeutic cancer vaccine formulation with the capacity to induce multi-functional T cell responses in ovarian, breast and prostate cancer patients. J. Transl. Med. 2012, 10, 156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Karkada, M.; Berinstein, N.L.; Mansour, M. Therapeutic vaccines and cancer: Focus on DPX-0907. Biologics 2014, 8, 27–38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Klein, O.; Davis, I.D.; McArthur, G.A.; Chen, L.; Haydon, A.; Parente, P.; Dimopoulos, N.; Jackson, H.; Xiao, K.; Maraskovsky, E.; et al. Low-dose cyclophosphamide enhances antigen-specific CD4(+) T cell responses to NY-ESO-1/ISCOMATRIX vaccine in patients with advanced melanoma. Cancer Immunol. Immunother. 2015, 64, 507–518. [Google Scholar] [CrossRef]
  97. Kitano, S.; Kageyama, S.; Nagata, Y.; Miyahara, Y.; Hiasa, A.; Naota, H.; Okumura, S.; Imai, H.; Shiraishi, T.; Masuya, M.; et al. HER2-specific T-cell immune responses in patients vaccinated with truncated HER2 protein complexed with nanogels of cholesteryl pullulan. Clin. Cancer Res. 2006, 12, 7397–7405. [Google Scholar] [CrossRef] [Green Version]
  98. Goldinger, S.M.; Dummer, R.; Baumgaertner, P.; Mihic-Probst, D.; Schwarz, K.; Hammann-Haenni, A.; Willers, J.; Geldhof, C.; Prior, J.O.; Kundig, T.M.; et al. Nano-particle vaccination combined with TLR-7 and -9 ligands triggers memory and effector CD8(+) T-cell responses in melanoma patients. Eur. J. Immunol. 2012, 42, 3049–3061. [Google Scholar] [CrossRef] [Green Version]
  99. Speiser, D.E.; Schwarz, K.; Baumgaertner, P.; Manolova, V.; Devevre, E.; Sterry, W.; Walden, P.; Zippelius, A.; Conzett, K.B.; Senti, G.; et al. Memory and effector CD8 T-cell responses after nanoparticle vaccination of melanoma patients. J. Immunother. 2010, 33, 848–858. [Google Scholar] [CrossRef]
Cancers 12 01049 g001 550
Figure 1. Schematic representation of liposome (right). Chemical structure of a generic phospholipid used to prepare the liposome (left).
Figure 1. Schematic representation of liposome (right). Chemical structure of a generic phospholipid used to prepare the liposome (left).
Cancers 12 01049 g001
Cancers 12 01049 g002 550
Figure 2. Schematic representation of polymeric nanoparticle (right). Chemical structure of polymer based on the combination of PEG and PLGA (left) used for the formation of the nanoparticle.
Figure 2. Schematic representation of polymeric nanoparticle (right). Chemical structure of polymer based on the combination of PEG and PLGA (left) used for the formation of the nanoparticle.
Cancers 12 01049 g002
Cancers 12 01049 g003 550

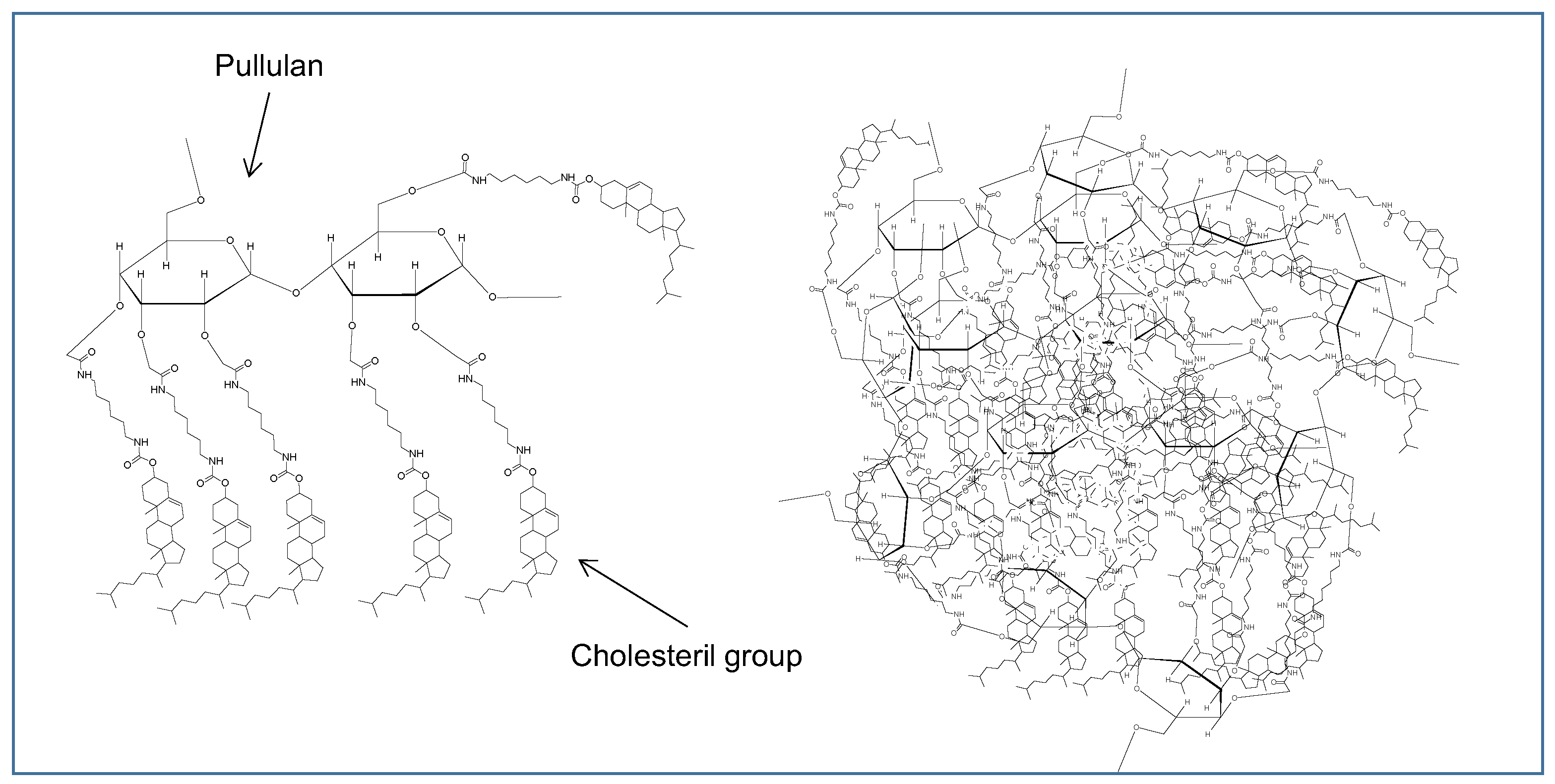

Figure 3. Schematic representation of cholesteryl pullulan polysaccharide (CHP)-nanogel (right). Chemical structure of (CHP) (left).
Figure 3. Schematic representation of cholesteryl pullulan polysaccharide (CHP)-nanogel (right). Chemical structure of (CHP) (left).
Cancers 12 01049 g003
Cancers 12 01049 g004 550

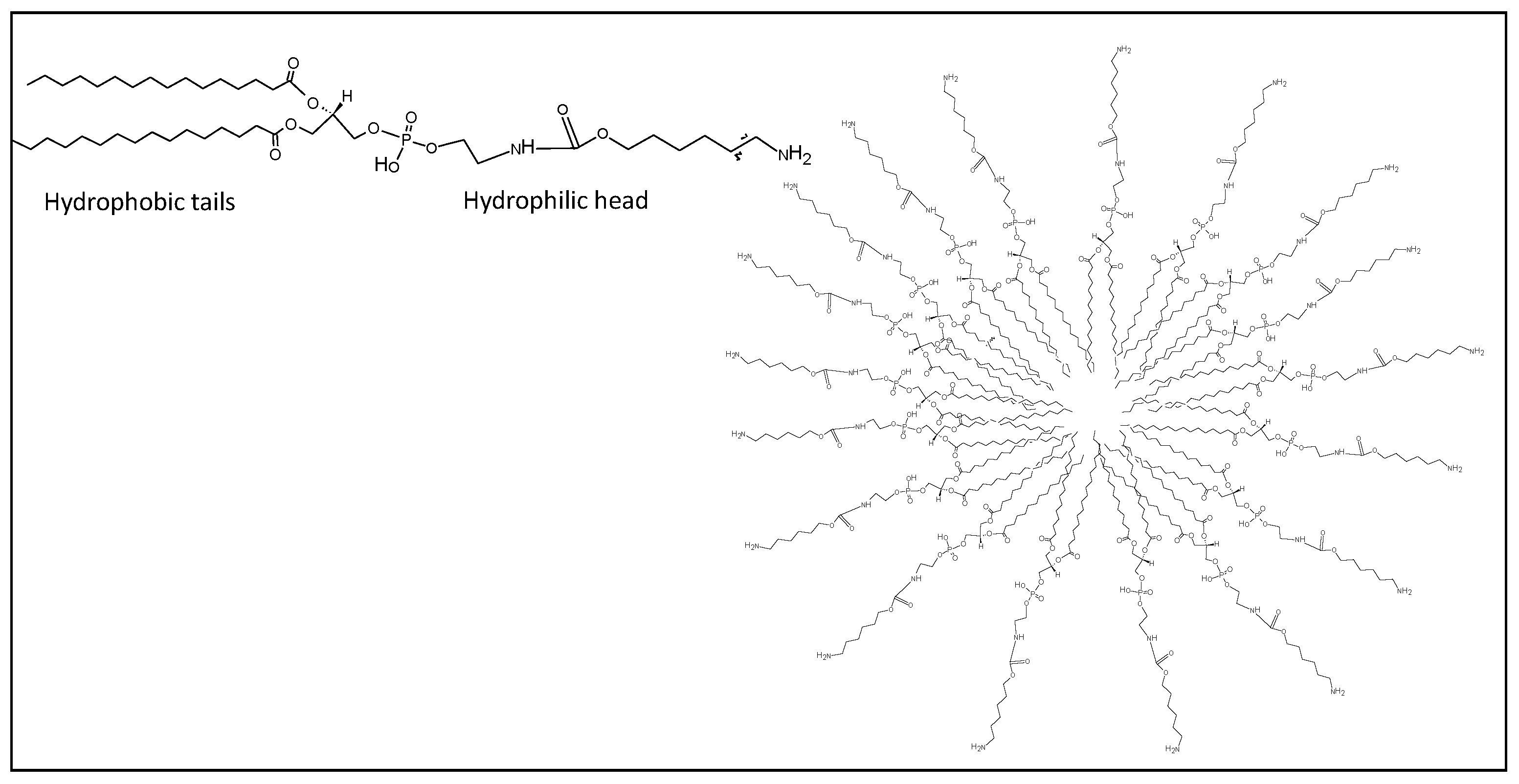

Figure 4. Schematic representation of micelle (right). Chemical structure of PEG-PE (left).
Figure 4. Schematic representation of micelle (right). Chemical structure of PEG-PE (left).
Cancers 12 01049 g004
Cancers 12 01049 g005 550
Figure 5. Schematic representation of dendrimer (right). Chemical structure of the monomer (left).
Figure 5. Schematic representation of dendrimer (right). Chemical structure of the monomer (left).
Cancers 12 01049 g005
Cancers 12 01049 g006 550
Figure 6. Schematic representation of gold (Au) nanoparticle modified with likers on the surface for further functionalization (right). Au Core (yellow) conjugated with a dithioether linker (left).
Figure 6. Schematic representation of gold (Au) nanoparticle modified with likers on the surface for further functionalization (right). Au Core (yellow) conjugated with a dithioether linker (left).
Cancers 12 01049 g006
Cancers 12 01049 g007 550
Figure 7. Schematic representation of VLPs (right). Modified from https://doi.org/10.1172/JCI85446.
Figure 7. Schematic representation of VLPs (right). Modified from https://doi.org/10.1172/JCI85446.
Cancers 12 01049 g007
Table
Table 1. Examples of nanoparticles formulated with peptides and adjuvants as cancer vaccine strategies.
Table 1. Examples of nanoparticles formulated with peptides and adjuvants as cancer vaccine strategies.
NanomaterialsPeptide SequenceAdjuvantTumorREF
LiposomeSLP OVA24:
(SIINFEKL)		poly(inosinic-polycytidylic acid) (poly(I:C)N/A [16]
Liposomep5 (ELAAWCRWGFLLALLPPGIAG),
p373 (KIFGSLAFL), p435(IRGRILHDGAYSLTLQGLGIH),
p1209 (SPPHPSPAFSPAFDNLYYWDQ)		CpG ODN 1826 (5-TCCATGACGTTCCTGACGTT-3)
MPL		Breast cancer[17,18]
LiposomeGP2 (654–662: IISAVVGIL)MPLBreast cancer[18]
LiposomeGP2 (Ac-CGGGIISAVVGIL)MPLBreast cancer[18]
LiposomeTM4SF5 peptide (TAGAYLLNRTLWDRCEAPPRVVPWNVT),
hTM4SF5EC2-C: (TACAYLLNRTLWDRCEAPPRVVPWNcT)		CpG-DNA or flagellaHCC and colon cancer
Pancreatic cancer		[19,20]
LiposomeTRP-2180–188 (SVYDFFVWL)CpG-ODNMelanoma[21]
Polymeric nanoparticlesHPV E7 SLP (GQAEPDRAHYNIVTFCCKCDSTLRLCVQSTHVDIR)CpGHPV cancer[22,23]
Polymeric nanoparticlesBCMA72−80 (YLMFLLRKI) Myeloma[24]
PolystyrenehSp17111-142 (KEKEEVAAVKIQAAFRGHIAREEAKKMKTNSL),
HPV16-E782−94 and HPV16-E641−65 (LLMGTLGIVCPICKQQLLRREVYDFAFRDLCIVYRDGN),
WT1126−134 (RMFPNAPYL),
SV90−124 (KKQFEELTLGEFLKLDRERAKNKIAKETNNKKKEF), SV2−36 (GAPTLPPAWQPFLKDHRISTFKNWPFLEGCACTPE)		CpGGynecological cancer[25]
Hydrogel(KVPRNQDWL)CpGMelanoma[26]
HydrogelCTL (DEWSGLEQLESIINFEKLAAAAAK),
Help (DEWEISQAVHAAHAEINEAGRE)		Poly(I:C)Different cancers[27]
MicellesTrp2180-188 (SVYDFFVWL)CpG ODNMelanoma[28]
Inorganic NanoparticlesTRP2180-188 (SVYDFFVWL)MPLMelanoma[29]
Inorganic nanoparticlesOVA (ISQAVHAAHAEINEAGR) Colon adenocarcinoma[30]
Inorganic nanoparticlesHA110–120 (SVSSFERFERFEIFPKESS)
HA512–520 (YQILAIYSTVASSLVLL)		CpGColorectal cancer[31,32]
Inorganic nanoparticlesAPgp100 peptide (gp10025-33) (KVPRNQDWL) Lymphoma[33]
VLPsgp33 (KAVYNFATM)CpGFibrosarcoma [34]
Viral nanoparticles (CPMV)human163-182 (YQDTILWKDIFHKNNQLALT)
rat167-186 (YQDMVLWKDVFRKNNQLAPV)		 Breast carcinomas[35]
VLPsP33 (KAVYNFATMGGCK)MCTMelanoma[36]
CpG = cytosine-phosphate-guanine, MPL = monophosphoryl lipid A, MCT = Microcrystalline tyrosine, Poly(I:C) = Polyinosinic-polycytidylic acid.Reference List.
Table
Table 2. Nanoparticles evaluated in clinical trials.
Table 2. Nanoparticles evaluated in clinical trials.
Nanoparticles Payloads Clinical Stages Indications Ref
Liposome (L-BLP25) MUC-1, tecemotide monophosphoryl lipid A Terminated after phase III NSCLC [87,88,89]
Liposome (AS15) MAGE-A3, CpG 7909 monophosphoryl lipid A Terminated after phase III Melanoma, NSCLC [90,91,92]
Liposome (ISCOMATRIX) NY-ESO-1 Terminated after Phase II Melanoma [96]
Liposome (DPX) HLA-A2, Survivin polynucleotide Phase I/II Ovarian cancer[93,94,95]
Cholesteryl pullulan (CHP) HER-2 protein Phase I/II Esophageal cancer [97]
Virus-like particles (VLPs)Melan-A/MART-1, CpG Phase I/II Melanoma [98,99]
Table
Table 3. Biological, chemical and manufacturing characteristics of nanoparticles.
Table 3. Biological, chemical and manufacturing characteristics of nanoparticles.
NanoparticlesAdvantagesDisadvantagesManufacturing Limitations
Liposomes
  • Wide size range
  • Ag encapsulated or on surface
  • Hydrophobic or hydrophilic Ag
  • FDA approved/Non-toxic
  • Biodegradable
  • Reproducibility issues
  • Oxidative Degradation
High cost
Polymeric Nanoparticles
  • Ag encapsulated or on surface
  • Biodegradable
  • FDA approved/Non-toxic
  • Prolonged release of antigen
  • Ag degradation
  • Ag burst release
Low scale-up
Hydrogels, Nanogels
  • Ag encapsulated
  • Cell targeting with adhesion ligands
  • Biodegradable
  • Difficult to handle
  • Mechanically weak
Reproducibility
Difficult to sterilize
Micelles
  • Biocompatible
  • Biodgradable
  • Easy to prepare and chemical modify
  • Highly unstable
  • Must be fresh
  • Cannot be stored
Reproducibility
costs
Dendrimers
  • Hydrophobic Ags
  • Tunable chemical and physical properties
  • Cell targeting with adhesion ligands
  • No hydrophilic Ags
  • Toxicity
High cost
Inorganic Nanoparticles(e.g., Gold NPs)
  • Size control
  • Low cytotoxicity
  • Non-biodegradable
  • Coating required
Low scale-up
High cost
Mesoporous Silicas
  • Uniform pore diameter
  • High surface area
  • Electrostatic immobilization
  • Suitable for covalent immobilization
  • pH sensitivity
High cost
VLPs
  • Prevention of off-target effects
  • Stability
  • Immunogenicity of capsid
  • Low encapsidation efficiency
Low stability
CPPS
  • Selective targeting
  • Intracellular delivery
  • Low toxicity
  • Bioaction
  • High stability
  • Resistance to drug
  • Aggregation
  • Endosomal entrapment
No limitation

Share and Cite

MDPI and ACS Style

Tornesello, A.L.; Tagliamonte, M.; Tornesello, M.L.; Buonaguro, F.M.; Buonaguro, L. Nanoparticles to Improve the Efficacy of Peptide-Based Cancer Vaccines. Cancers 2020, 12, 1049. https://doi.org/10.3390/cancers12041049

AMA Style

Tornesello AL, Tagliamonte M, Tornesello ML, Buonaguro FM, Buonaguro L. Nanoparticles to Improve the Efficacy of Peptide-Based Cancer Vaccines. Cancers. 2020; 12(4):1049. https://doi.org/10.3390/cancers12041049

Chicago/Turabian Style

Tornesello, Anna Lucia, Maria Tagliamonte, Maria Lina Tornesello, Franco M. Buonaguro, and Luigi Buonaguro. 2020. "Nanoparticles to Improve the Efficacy of Peptide-Based Cancer Vaccines" Cancers 12, no. 4: 1049. https://doi.org/10.3390/cancers12041049

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
