Article

Within-Modality Synthesis and Novel Radiomic Evaluation of Brain MRI Scans

by
Seyed Masoud Rezaeijo
1,
Nahid Chegeni
1,
Fariborz Baghaei Naeini
2,
Dimitrios Makris
2 and
Spyridon Bakas
2,3,*
1
Department of Medical Physics, Faculty of Medicine, Ahvaz Jundishapur University of Medical Sciences, Ahvaz, Iran
2
Faculty of Engineering, Computing and the Environment, Kingston University, Penrhyn Road Campus, Kingston upon Thames, London KT1 2EE, UK
3
Richards Medical Research Laboratories, Center for Biomedical Image Computing and Analytics (CBICA), University of Pennsylvania, Floor 7, 3700 Hamilton Walk, Philadelphia, PA 19104, USA
*
Author to whom correspondence should be addressed.
Cancers 2023, 15(14), 3565; https://doi.org/10.3390/cancers15143565
Submission received: 20 May 2023 / Revised: 27 June 2023 / Accepted: 5 July 2023 / Published: 10 July 2023
(This article belongs to the Special Issue Role of Novel Imaging Technique in Brain Tumors)

Abstract

:

Simple Summary

Brain MRI scans often require different imaging sequences based on tissue types, posing a common challenge. In our research, we propose a method that utilizes Generative Adversarial Networks (GAN) to translate T2-weighted-Fluid-attenuated-Inversion-Recovery (FLAIR) MRI volumes into T2-Weighted (T2W) volumes, and vice versa. To evaluate the effectiveness of our approach, we introduce a novel evaluation schema that incorporates radiomic features. We train two distinct GAN-based architectures, namely Cycle GAN and Dual Cycle-Consistent Adversarial network (DC2Anet), using 510 pair-slices from 102 patients. Our findings indicate that the generative methods can produce results similar to the original sequence without significant changes in radiometric features. This method has the potential to assist clinicians in making informed decisions based on generated images when alternative sequences are unavailable, or time constraints prevent re-scanning MRI patients.

Abstract

One of the most common challenges in brain MRI scans is to perform different MRI sequences depending on the type and properties of tissues. In this paper, we propose a generative method to translate T2-Weighted (T2W) Magnetic Resonance Imaging (MRI) volume from T2-weight-Fluid-attenuated-Inversion-Recovery (FLAIR) and vice versa using Generative Adversarial Networks (GAN). To evaluate the proposed method, we propose a novel evaluation schema for generative and synthetic approaches based on radiomic features. For the evaluation purpose, we consider 510 pair-slices from 102 patients to train two different GAN-based architectures Cycle GAN and Dual Cycle-Consistent Adversarial network (DC2Anet). The results indicate that generative methods can produce similar results to the original sequence without significant change in the radiometric feature. Therefore, such a method can assist clinics to make decisions based on the generated image when different sequences are not available or there is not enough time to re-perform the MRI scans.

1. Introduction

Medical imaging scans, including Magnetic Resonance Imaging (MRI) and Computed Tomography (CT), are routinely acquired and used clinically to macroscopically assess, diagnose, and monitor patients with brain abnormalities. MRI in particular can depict normal anatomy and apparent pathologies while providing data relating to the anatomical structure, tissue density, and microstructure, as well as tissue vascularization, depending on the acquired sequence [1,2,3]. Structural MRI sequences represent the basic scans acquired across comprehensive centers and community-based healthcare sites, comprising native T1-weighted (T1W), post-contrast T1-weighted (T1Gd), T2-weighted (T2W), and T2-weighted Fluid-Attenuated Inversion Recovery (FLAIR). T1W scans facilitate observation and analysis of the brain anatomy, with the T1Gd scans particularly being able to easily identify the boundaries of an active tumor, while T2-weighted scans (T2w and FLAIR) help in identifying brain abnormalities, both those related to vascular lesions (e.g., stroke) and vasogenic edema [4]. The simultaneous assessment of multiple varying MRI scans (also known as multi-parametric MRI—mpMRI) from the same patient is the standard clinical practice for the evaluation of patients suspected of stroke or diffuse glioma, as it offers the maximal available medical diagnostic information.
Acquisition of mpMRI might not be possible at all times, due to numerous reasons, including but not limited to the patient’s cooperation during a scanning session that could result in motion-degraded scans, thereby hindering further diagnostic usage [5,6,7]. Towards this end, the artificial synthesis of specific MRI scans has been an active area of research [8,9], with the intention of either substituting specific MRI scans corrupted by various artifacts, or generating scans that were not acquired at all. Although such synthetic scans have been successfully used in many applications, and Generative Adversarial Networks (GANs) have significantly improved their realism, the final result may not always look as realistic and/or may contain information that adversely affects downstream quantitative analyses [10,11]. Cross-domain synthesis of medical images has drawn significant interest in the medical imaging community and describes the artificial generation of a target-modality scan by learning the relationship between paired given source-modality scans and their associated target modality scans [12,13]. Of note, the data is here described as paired when it arises from the same individual at different points in time.
In recent years, deep-learning procedures and particularly Convolutional Neural Networks (CNNs) [14] and GANs have rapidly dominated the domain of medical image synthesis [15,16]. GANs use two competing CNNs: one that generates new images and another that discriminates the generated images as either real or fake. To address the problem of unpaired cross-domain data, which is common in healthcare, the Cycle Generative Adversarial Network (CycleGAN) [17] is typically chosen to obtain high-quality information translatable across images. In CycleGAN, based on the image of a subject b1 in the source domain, the purpose is to estimate the relevant image of the same subject b2 in the target domain. In theory, the CycleGAN model entails two mapping functions, i.e., G1: X → Y and G2: Y → X, and associated adversarial discriminators DY and DX. DY encourages G1 to translate X into outputs indistinguishable from domain Y and contrariwise for DX and G2. Nie et al. [18] trained a fully convolutional network (FCN) to generate CT scans from corresponding MRI scans. They specifically used the adversarial training method to train their FCN. Welander et al. [19] evaluated two models, i.e., CycleGAN and UNIT [20], for image-to-image translation of T1- and T2W MRI slices by comparing synthetic MRI scans to real ones. They used paired T1W and T2W images from 1113 axial images (only slice 120). The scans were registered to a standard anatomical template, so they were in the same coordinate space and of the same size. Two models were compared using quantitative metrics, including mean absolute error (MAE), mutual information (MI), and peak signal-to-noise ratio (PSNR). It was shown that the executed GAN models can synthesize visually realistic MRI slices. Dar et al. [21] proposed a method for multi-contrast MRI synthesis based on Conditional GANs (CGANs). They demonstrated how CGANs could generate a T2W scan from a T1W. Theis et al. [22] found that GANs can generate more realistic training data to improve the classification performance of machine learning methods. Also, they showed that models creating more visually realistic synthetic images do not certainly have better quantitative error measurements when compared to real images. Despite the mounting promise of GANs for healthcare, both optimal model selection and quantitative evaluation remain challenging tasks, and solutions produced so far are use-specific and not generalizable. Specifically, for their quantitative performance evaluation, several metrics (such as the MAE, Mean Squared Error (MSE), and PSNR) have been proposed in the literature [23], albeit no consensus has been reached on an optimal evaluation metric for a particular domain.
Radiomics describe a novel and rapidly advancing area in medical imaging. In contrast to the traditional clinical assessment of considering medical images as pictures intended only for visual interpretation, radiomics represent visual and sub-visual quantitative measurements (also called “features”) extracted from acquired radiology scans [24,25], following specific mathematical formulations, and resulting in measurements that are not even perceivable by the naked eye, i.e., sub-visual [26,27,28,29,30,31,32,33,34]. These features are widely used in both clinical and pre-clinical research studies attempting to identify associations between radiologic scans and clinical outcomes, or even molecular characteristics [35,36,37,38]. The hypothesis is that quantitative computational interrogation of medical scans can provide more and better information than the physician’s visual assessment. This is further exacerbated in observations related to the texture analyses of different imaging modalities. Various open-source tools have been developed to facilitate the harmonized extraction of high throughput radiomic features [39,40,41], contributing to the increasing evidence of their value. The primary purpose of these tools has been to expedite robust quantitative image analyses based on radiomics and standardize both feature definitions and computation strategies, thereby guaranteeing the reproducibility and reliability of radiomic features. In this study, considering the importance of T2-weighted scans (T2W and FLAIR), we focus on generating FLAIR from T2W MRI scans, and vice versa, based on the CycleGAN [17] and dual cycle-consistent adversarial network (DC2Anet) [42] architectures. We further consider radiomics as a novel way to quantify the dissimilarity between the distribution of the actual/real and synthesized scans. We think that radiomics can represent the first potential solution for the quantitative performance evaluation of GANs in the domain of radiology. For comparison, we also compare with traditional metrics, including MSE, MAE, and PSNR [43].

2. Methods

2.1. Dataset and Registration

The data utilized in our study were obtained from the public data collection ‘ACRIN-DSC-MR-Brain (ACRIN 6677/RTOG 0625)’ [44] at The Cancer Imaging Archive (TCIA) [45]. These data describe brain MRI scans from a multicenter phase-II trial of bevacizumab with temozolomide in recurrent glioblastoma (GBM) patients. We extracted 510 T2W/FLAIR paired slices from 102 patients, which were further divided into 410 pairs from 81 patients for training and 100 pairs from 21 patients to evaluate synthesis results (test set). Due to the limitation of the dataset, the validation set is not considered to train the networks. Each pair include the axial paired T2W/FLAIR slices for the same patient and at the same axial depth. Of note, the testing data are held out of the training process at all times. Our networks take 2D axial-plane slices of the volumes as inputs. In the pre-processing step, T2W 2D scans were first rigidly registered to FLAIR scans using the ITK-SNAP software (version 3.8.0) [46], considering 6 degrees of freedom (i.e., 3 translations and 3 rotations).

2.2. CycleGAN

A GAN network uses an image generator (G) to synthesize images of a target domain and a discriminator (D) to distinguish between real and synthesized images. A suitable analogy for visual data considers one network as an art forger and the other as an art specialist. The forger (generator G) creates forgeries. The specialist, (discriminator D) receives both forgeries and real images and attempts to tell them apart (Figure 1). Both networks are in competition with each other and are trained simultaneously.
CycleGAN is a framework that allows the unpaired data to generate an image from one domain to another. Therefore, CycleGAN reduces the problem caused by the lack of paired data. A diagram of the CycleGAN model used in this study is presented in Figure 2. Let us assume nA images xA ∈ XA (e.g., T2W) and nB images xB ∈ XB (e.g., FLAIR). The CycleGAN for T2W and FLAIR images include two mappings GT2W: T2W → FLAIR and GFLAIR: FLAIR → T2W. Therefore, the proposed CycleGAN operates with two generators (GT2W, GFLAIR) and two discriminators (DT2W, DFLAIR). Given a T2W image, GT2W learns to generate the respective FLAIR image of the same anatomy that is indistinguishable from real FLAIR images, whereas DT2W learns to discriminate between synthetic and real FLAIR images. The architecture of the CycleGAN generator is adapted from [17] with 9 residual blocks after early convolutional layers. Similarly, given a FLAIR image, GFLAIR learns to generate the respective T2W image of the same anatomy that is indistinguishable from real T2W images, whereas DFLAIR learns to discriminate between synthetic and real T2W images. We apply adversarial losses to both mapping functions for matching the distribution of generated images to the data distribution in the target domain. For the mapping function GT2W: T2W → FLAIR and its discriminator DT2W, the objective is expressed as follows:
ԼGAN (GT2W, DT2W, T2W, FLAIR)
Similarly, the adversarial loss is presented for the mapping function GFLAIR: FLAIR → T2W and its discriminator DFLAIR as follows:
ԼGAN (GFLAIR, DFLAIR, FLAIR, T2W)
Also, the cycle consistency loss, or Լcyc (Forward cycle-consistency and Backward cycle-consistency), is used to keep the cycle consistency between the two sets of networks as follows:
Լcyc (GT2W, GFLAIR) = [║GFLAIR (GT2W(T2W)) − T2W║1] + [║GT2W (GFLAIR (FLAIR)) − FLAIR ║1]
The loss of the whole CycleGAN network is:
ԼCycleGAN = ԼGAN (GT2W, DT2W, T2W, FLAIR) + ԼGAN (GFLAIR, DFLAIR, FLAIR, T2W) + Լcyc (GT2W, GFLAIR)
Figure 3 illustrates the architecture of the generator and discriminator networks within the proposed CycleGAN model, depicting the size and type of each layer.

2.3. DC2Anet

The DC2Anet model, introduced by Jin et al. [42], follows a semi-supervised learning approach that alternates between optimizing supervised and unsupervised learning in order to seek a global minimum for the optimal network. The forward and backward mappings are used to generate the T2W image from a FLAIR image, and vice versa. In the forward cycle-consistent adversarial network with aligned learning, the GFLAIR network generates a synthetic T2W image from a FLAIR image, and this T2W image is then used by the GT2W network to generate the original FLAIR image in order to learn the domain structures. The input to the discriminators DisT2W is either a sample T2W image from the real T2W data or a synthetic T2W image. In the backward cycle-consistent adversarial network with aligned learning, the GT2W network generates a synthetic FLAIR image from a T2W image, and this FLAIR image is then used by the GFLAIR network to generate the original T2W image in order to learn the domain structures. The discriminator’s DisT2W and DisFLAIR are expressed as follows:
L sup-adver   G e n T 2 W , D i s T 2 W , G e n F L A I R , D i s F L A I R = E F L A I R , T 2 W p data   F L A I R , T 2 W log D i s T 2 W F L A I R , T 2 W                     + E F L A I R p data   F L A I R log 1 D i s T 2 W F L A I R , Gen T 2 W F L A I R + E T 2 W , F L A I R p data   T 2 W , F L A I R log D i s F L A I R T 2 W , F L A I R                       + E T 2 W p data   T 2 W log 1 D i s F L A I R T 2 W , Gen FLAIR D W I T 2 W
In the DC2Anet model, in addition to adversarial and dual cycle consistency used in the CycleGAN model, to achieve accurate and perceptual outputs, four loss functions were measured as follows: voxel-wise, gradient difference, perceptual, and structural similarity losses. We name the loss function of the supervised training of our model as L_sup. Then the value of this function is defined as a weighted sum of Lsup-adversarial, Lsup-cycle-consistency, and these four losses (Lvoxel-wise, Lgradient, Lperceptual, Lstructural). The weights used to calculate the Lsup are hyperparameters of the model, and we set all of them to be one in our experiment. Hence, these four terms are combined, and the relation between them is as follows: Lsup = Lsup-adversarial + Lsup-cycle-consistency + Lvoxel-wise + Lgradient + Lperceptual + Lstructural. A diagram outlining the forward and backward adversarial losses of the DC2Anet model is shown in Figure 4. Of note, the generator network of the DC2Anet model is the same as the CycleGAN model (Figure 3a), but the discriminator network is different. The architecture of this discriminator is shown in Figure 5.

2.4. Implementation

To generate a T2W MRI from a FLAIR, and vice versa, the T2W and FLAIR values are converted to [0, 1] tensor. The resolutions of the FLAIR and T2W images in our dataset are 256 × 256 and 512 × 512 respectively. Therefore, in the first preprocessing step, FLAIR images are registered to T2W images using rigid registration to ensure that all images have a 256 × 256 resolution. Then, the axial T2W/FLAIR pairs were the input of the network with 256 × 256 pixels. Of note, instead of image patches, whole 2D images are used for training. CycleGAN and DC2Anet were trained for 400 epochs. The batch size was set to 2, and both the generator and the discriminator used the Adam optimizer [47]. In the first 200 epochs, the learning rate was fixed at 2·10−4. For the rest 200 epochs, the learning rate linearly decayed from 2·10−4 to 0. It was observed that the discriminators found success faster than the generators, therefore the values of iterations for the generator and the discriminator were set to three and one, respectively. The loss function plays a crucial role in training the networks and achieving the desired translation between T2-weighted (T2W) and FLAIR images. In both CycleGAN and DC2Anet, adversarial losses are employed to match the distribution of generated images with the target domain data distribution. Specifically, for the mapping function GT2W: T2W → FLAIR and its discriminator DT2W, we use the adversarial loss defined as ԼGAN (GT2W, DT2W, T2W, and FLAIR). Similarly, for the mapping function GFLAIR: FLAIR → T2W and its discriminator DFLAIR, the adversarial loss is expressed as ԼGAN (GFLAIR, DFLAIR, FLAIR, and T2W). Additionally, to maintain cycle consistency between the generator networks, a cycle consistency loss (Լcyc) is utilized, which ensures that the translated images can be successfully converted back to the original domain. The complete loss function for the CycleGAN network is given by ԼCycleGAN = ԼGAN (GT2W, DT2W, T2W, FLAIR) + ԼGAN (GFLAIR, DFLAIR, FLAIR, T2W) + Լcyc (GT2W, GFLAIR).
Cyc (GT2W, GFLAIR) losses were multiplied by a constant lambda (λ) based on the importance of the cycle consistency losses (Equation (4)) concerning the adversarial loss; therefore, we set λcyc (GT2W, GFLAIR) = 10 and λGAN = 1. All experiments including data preprocessing and analysis were performed on the Google Cloud computing service “Google Colab” (colab.research.google.com) using Python 3.7 and TensorFlow 2.4.1. The parameters of training and hardware configurations are provided in (Table 1).

2.5. Evaluation

Several metrics were used to compare the real and synthetic T2W, and FLAIR, images. These metrics including MAE, MSE, and PSNR were used widely in the literature for the same purpose [48,49,50]. These metrics are defined as:
MAE = 1 N i = 1 N   real MRI ( T2W / FLAIR ) ( i ) synthetic MRI ( T2W / FLAIR ) ( i )
MSE = 1 N i = 1 N   ( real MRI ( T2W / FLAIR ) ( i ) synthetic MRI T2W / FLAIR ( i ) ) 2
PSNR = 10 · log 10 ( M A X 2 M S E )
where N is the total number of voxels inside the input image and i is the index of the aligned pixel. MAX denotes the largest pixel value of ground truth T2W and synthetic T2W images, and vice versa, for FLAIR images.
Considering a use-inspired generalizable evaluation approach, beyond just the essential quantification but also considering radiologic appearance, in this study we introduce a novel approach based on radiomic features to compare the real and synthetic images. After running the models and generating all the synthetic images, we segmented the whole brain volume, both in the real and synthetic images, using the module of ITK-SNAP [51,52] within the Cancer Imaging Phenomics Toolkit (CaPTk) [41,53]. CaPTk is a software platform written in C++ to analyze medical images. The package leverages the value of quantitative imaging analytics along with machine learning to derive phenotypic imaging signatures. The specific ITK-SNAP module is based on the geometric active contour model and defines the contours using energy forces and the geometric flow curve. The counter is a collection of points that undergo the interpolation process. In this study, manual delineation of the whole brain and skull is performed. Following this segmentation, radiomic features compliant with the Image Biomarker Standardization Initiative (IBSI) [54] were extracted from both the real and synthetic T2W, as well as from the real and synthetic FLAIR images using the CaPTk 1.9.0 software [53,55]. Twenty-three features were extracted, comprising 8 Gray Level Co-occurrence Matrix features (GLCM) [56,57], 8 Gray Level Size Zone (GLSZM) [58], and 7 Gray Level Run Length Matrix features (GLRLM) [54] (Table 2).
The choice of specific features in our study, namely the 8 Gray Level Co-occurrence Matrix (GLCM) features 8 Gray Level Size Zone (GLSZM) features, and 7 Gray Level Run Length Matrix (GLRLM) features, was based on their established significance in characterizing textural patterns and capturing distinct image characteristics (Table 2). These features have been widely utilized in radiomics studies and have demonstrated their efficacy in quantifying spatial relationships, size variations, and run lengths within an image. By utilizing this comprehensive set of radiomic features, we aimed to capture a wide range of textural characteristics that could potentially distinguish real and synthetic images. Details of radiomic features are included in Supplementary Materials (Supplementary S1).
These features have shown promise in previous studies as reliable indicators of image heterogeneity and structural differences. Their selection was based on their ability to quantitatively represent textural properties and provide discriminative information regarding the underlying tissue or lesion composition. We believe that the inclusion of these 23 selected radiomic features, derived from GLCM, GLSZM, and GLRLM matrices, offers a robust and comprehensive approach for evaluating the differentiation between real and synthetic images. Their relevance lies in their proven capability to capture textural patterns and provide meaningful insights into the image composition, thereby contributing to the assessment and discrimination of real and synthetic images in our study.
The exact parameters used for the feature extraction are: Bins = 20, Radius = 1, and Offset = Combined. Available studies use bin numbers varying from 8 to 1000, as suggested by the IBSI [59], or bin widths from 1 to 75. In this study, textural features were computed using the fixed-bin width approach. Radiomics data were then analyzed using the GraphPad Prism 9.5 software (GraphPad, San Diego, CA, USA). The normality of the extracted radiomic features was evaluated based on the D’Agostino test [60]. When data was described by a normal distribution we used a t-test, otherwise we used the Mann-Whitney U test was used. For determining whether the radiomic features between the real and synthetic T2W (as well as between the real and synthetic FLAIR images) are statistically significant, confidence intervals (commonly abbreviated as CI) were calculated.

3. Results

We evaluated the proposed CycleGAN and DC2Anet architectures on T2W and FLAIR brain tumor images. For the quantitative performance evaluation of the T2W and FLAIR synthesis, in line with current literature we considered the three metrics of MAE, MSE, and PSNR (Table 3).
The CycleGAN model shows superior performance when compared with the DC2Anet model across all the 3 quantitative metrics. In general, we observe a better performance for FLAIR images. Of note, smaller values of the MAE and MSE indicate better results, as opposed to PSNR where larger values are better. The quantitative superiority of CycleGAN and DC2Anet for FLAIR images corresponds to the visual realness and the mapping in Figure 6 and Figure 7 which show axial views of five patients’ synthetic and real images for CycleGAN and DC2Anet, for both the T2W and the FLAIR images. Of note, for both of the T2W and FLAIR images in the perceptual study similar to quantitative analyses, CycleGAN shows the best performance. Hence, the CycleGAN model trained using adversarial and dual cycle consistency generates more realistic synthetic MR images. More examples of CycleGAN and DC2Anet for FLAIR and T2W translation are provided in Supplementary Material (Figures S1 and S2).
The differences observed between real and synthesis imaging modalities can be attributed to multiple factors. Firstly, synthesis images are computer-generated simulations of original images based on GAN models, while real original images are directly acquired from patients using MRI scanners. Consequently, variations can arise due to the inherent limitations and assumptions of the synthesis process. Furthermore, physiological and technical factors, such as variances in tissue contrast, signal intensity, and image artifacts, can contribute to dissimilarities between synthesis and real images. To further investigate and address these differences, future studies should focus on refining the synthesis algorithms, incorporating more realistic training data, and exploring the impact of various imaging parameters on the synthesis process.
We then performed a secondary quantitative performance evaluation that considers the radiophenotypical properties of the images, by virtue of the extracted radiomic features. Unlike the metrics of MAE, MSE, and PSNR, significance levels and values of radiomic features vary depending on the type of feature and image. Following a comparison of the radiomic features for both the T2W and FLAIR images, our results pointed out that for most radiomic features, there was no significant difference between the real and synthetic T2W, as well as for the real and synthetic FLAIR images. The mean and standard error (SE) of the GLCM features for both T2W and FLAIR images, as well as their statistically significant difference for the CycleGAN and DC2Anet models, are shown in Table 4 and Table 5. No significant differences were observed for all extracted GLCM features using the CycleGAN model between real T2W images and synthetic T2W images. However, this was not the case for three features (cluster prominence, contrast, and correlation) extracted from the synthetic images of the DC2Anet model (Table 4). Notably, there was a significant difference for FLAIR images using the DC2Anet model for two extracted features (cluster prominence and correlation), and for the cluster prominence feature of the CycleGAN model (Table 5).
Similarly, with GLCM features, no significant differences were observed for all extracted GLRLM features using the CycleGAN model between real T2W images and synthetic T2W images (Table 6). However, with feature extraction on the DC2Anet synthetic images, there was a significant difference for two extracted features (High Grey Level Run Emphasis, and Long Run Low Grey Level Emphasis) between the real and synthetic T2W, as well as between the real and synthetic FLAIR images (Table 7).
Extracted features based on GLSZM for the two models used are shown in Table 8 and Table 9. By comparing the real and synthetic T2W based on CycleGAN and DC2Anet, except for two features (Grey Level Nonuniformity, and Large Zone Low Grey Level Emphasis), no significant differences were observed for other extracted GLSZM features (Table 8). However, for FLAIR images using the DC2Anet model as shown in Table 8, for two features (High Grey Level Emphasis, and Large Zone Low Grey Level Emphasis), significant differences were observed.

4. Discussion

A within-modality synthesis strategy was presented for Generating FLAIR images from T2W images and vice versa based on CycleGAN and DC2Anet networks. Comprehensive evaluations were conducted for two distinct methods where training images were registered within single subjects. It has been shown, via a perceptual study and in terms of quantitative assessments based on MAE, MSE, PSNR metrics, as well as based on a novel radiomic evaluation, that CycleGAN and DC2Anet can be used to generate visually realistic MR images. While our synthesis approaches were primarily evaluated for two specific brain MRI sequences, it has the potential to be applied for image-to-image MRI synthesis, as well as for synthesis across imaging modalities (such as MRI, CT, and PET). The proposed CycleGAN technique uses adversarial loss functions and cycle-consistency loss for learning to synthesize from registered images for improved synthesis. In the DC2Anet model, in addition to used losses in the CycleGAN model, four-loss functions, including voxel-wise, gradient difference, perceptual, and structural similarity losses, were used. In modern medical imaging modalities, generating realistic medical images that can be utterly similar to their real ones remains a challenging objective. Generated synthetic images can ensure a trustworthy diagnosis. Based on the quantitative evaluation, for all metrics, the CycleGAN model was found accurate and outperformed the DC2Anet model.
CycleGAN and DC2Anet models learn the mapping directly from the space of T2W images to the corresponding FLAIR images, and vice versa. Moreover, three metrics including MAE, MSE, and PSNR applied to the data from 510 T2W/FLAIR paired slices from 102 patients, were favorably compared with other reported results in the brain region literature. For example, Krauss et al. [61] compared the assessment results of synthetic and conventional MRIs for patients with Multiple Sclerosis (MS). The images were prospectively acquired for 52 patients with the diagnosed MS. In addition to quantitative evaluations and using the GAN-based approach, the CycleGAN model obtained better results than the study of Krauss et al. Han et al. [62] proposed a GAN-based approach to generate synthetic multi-sequence brain MRI using Deep Convolutional GAN (DCGAN) and Wasserstein GAN (WGAN). Their model was validated by an expert physician who employed Visual Turing test. In agreement with our study, their results revealed that GANs could generate realistic multi-sequence brain MRI images. Nevertheless, this study was different from other research attempts in terms of the employed quantitative evaluation and the proposed models, CycleGAN and DC2Anet. In addition to the MAE, MSE, and PSNR metrics, we also conducted a novel evaluation based on radiomic features, to compare the real and synthetic MRI cases. Li et al. [63] proposed a procedure to synthesize brain MRI from CT images. They reported an MAE value of 87.73 and an MSE value of 1.392 × 104 for real MRI and synthesized MRI. Although their results differed from our findings, there was a common understanding that the application of the CycleGAN model was subject to much error.
For evaluation, generated images and comparing them with real images, quantitative evaluations can be used. It is clear that even if the model achieves a relatively satisfactory score in quantitative measurements including MAE, MSE, and PSNR metrics, it does not necessarily generate visually realistic images. Although visually CycleGAN produced realistic images there is not much difference between the two models CycleGAN and DC2Anet in quantitative measurements including MAE, MSE, and PSNR metrics, as shown in Table 3. It can be implied that the process of determining whether or not an image is visually realistic cannot be done based on the mentioned metrics. However, the current study employed radiomic features as a new evaluation approach to compare the real MRI and their synthetic counterparts. Our results (Table 4, Table 5, Table 6, Table 7, Table 8 and Table 9) revealed that for the vast majority of radiomic features regarding the two T2W and FLAIR images, no significant difference was observed between real images and images synthesized using CycleGAN. On the other side, some radiomic features indicate significant differences for images synthesized by DC2Anet, indicating that the set of radiomic features is more successful in assessing the realism of the generated images than traditional metrics such as MAE, MSE, and PSNR. Therefore, according to the metrics used in this study, it can be concluded that performing evaluations based on radiomic features is a viable option in the GAN models.
In this study, we have used the ACRIN 6677/RTOG 0625 data set which is a multi-center dataset and is one of the strengths of this study. Of note, as a limitation, future studies with a large sample size are suggested. This study considered synthesis for two-contrast brain MRI; hence the proposed models can also be used for other related tasks in medical image analysis such as T1W, CT-PET, and MR-CT. For future research, it is suggested that relevant evaluations be carried out based on radiomic features with larger data sets and other anatomical areas.
Despite the demonstrated effectiveness of our method in generating a T2W MRI from a FLAIR, and vice versa, it is important to acknowledge that the applicability of our approach may have limitations in certain specific cases. The performance of our method may be influenced by factors such as extreme variations in tumor size, irregular tumor shapes, or cases with substantial edema or necrosis. While our methodology has shown promising results in brain tumor patients, further research is needed to investigate its robustness in challenging scenarios and to develop additional techniques to address these limitations. Future studies should also consider expanding the dataset to include a larger cohort of patients with a wider spectrum of brain pathologies to ensure the generalizability of our findings.

5. Conclusions

The CycleGAN method can be used to generate realistic synthetic T2W and FLAIR brain scans, supported by both experimental qualitative and quantitative results. Radiomic features, representing quantitative data extracted from radiology images, hold a lot of promise as a novel approach to quantitatively evaluate similarities between synthetic and real MRI scans and make decisions based on the radiologic quality of the synthetic scans. Synthesis of realistic MRI scans can facilitate imaging of uncooperative patients and significantly shorten the image acquisition time thereby contributing to reducing costs to healthcare systems.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers15143565/s1, Supplementary S1: The radiomics features extracted in our study encompassed a total of twenty-three features, which were categorized into three groups: Gray Level Co-occurrence Matrix (GLCM), Gray Level Size Zone (GLSZM), and Gray Level Run Length Matrix (GLRLM). The GLCM features included Auto Correlation, Cluster Prominence, Cluster Shade, Contrast, Correlation, Energy, Entropy, and Homogeneity. The GLSZM features comprised Grey Level Mean, Grey Level Nonuniformi-ty, Grey Level Variance, Large Zone Emphasis, Large Zone High Grey Level Emphasis, Large Zone Low Grey Level Emphasis, Low Grey Level Emphasis, and Grey Level Nonuniformity. Lastly, the GLRLM features consisted of High Grey Level Run Emphasis, Long Run High Grey Level Emphasis, Long Run Low Grey Level Emphasis, Low Gray Level Run Emphasis, Run Length Nonuniformity, and Short Run Emphasis; Supplementary S2: Figure S1: Qualitative comparison of CycleGAN model. There are five examples of T2W and FLAIR synthesis based on two mappings: Generating FLAIR Images from T2W Images (a), and Generating T2W Images from FLAIR Images (b); Figure S2: Qualitative comparison of the DC2Anet model. There are five examples of T2W and FLAIR synthesis based on two mappings: Generating FLAIR Images from T2W Images (a), and Generating T2W Images from FLAIR Images (b).

Author Contributions

Conceptualization, S.M.R. and N.C.; methodology, S.M.R. and N.C.; software, S.M.R., N.C. and F.B.N.; validation, S.M.R. and N.C.; formal analysis S.M.R. and N.C.; investigation, S.M.R. and N.C.; resources, S.M.R. and N.C.; data curation, S.M.R. and N.C.; writing—original draft preparation, S.M.R., N.C., F.B.N., D.M. and S.B.; writing—review and editing; supervision, D.M. and S.B.; funding acquisition, S.B. All authors have read and agreed to the published version of the manuscript.

Funding

The research reported in this publication was partly supported by the National Cancer Institute (NCI) of the National Institutes of Health (NIH) under award numbers: NIH/NCI:U24CA189523, NIH/NCI:U01CA242871. The content of this publication is solely the responsibility of the authors and does not represent the official views of the NIH.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Ethical review and approval were waived for this study due to the information is from a public dataset.

Data Availability Statement

The data presented in this study are available in this article.

Acknowledgments

The completion of this research project would not have been possible without the contributions and support of many individuals and organizations. We are deeply grateful to Jundishapur University of Medical Sciences, Kingston University and the University of Pennsylvania as well as the National Cancer Institute (NCI) of the National Institutes of Health (NIH).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Faro, S.H.; Mohamed, F.B. Functional MRI: Basic Principles and Clinical Applications; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
  2. Bakas, S.; Reyes, M.; Jakab, A.; Bauer, S.; Rempfler, M.; Crimi, A.; Takeshi Shinohara, R.; Berger, C.; Min Ha, S.; Rozycki, M.; et al. Identifying the best machine learning algorithms for brain tumor segmentation, progression assessment, and overall survival prediction in the BRATS challenge. arXiv 2018, arXiv:181102629. [Google Scholar]
  3. Shukla, G.; Alexander, G.S.; Bakas, S.; Nikam, R.; Talekar, K.; Palmer, J.D.; Shi, W. Advanced magnetic resonance imaging in glioblastoma: A review. Chin. Clin. Oncol. 2017, 6, 40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Bruzzone, M.G.; D’Incerti, L.; Farina, L.L.; Cuccarini, V.; Finocchiaro, G. CT and MRI of brain tumors. Q. J. Nucl. Med. Mol. Imaging 2012, 56, 112–137. [Google Scholar] [PubMed]
  5. Rohde, G.K.; Barnett, A.S.; Basser, P.J.; Marenco, S.; Pierpaoli, C. Comprehensive approach for correction of motion and distortion in diffusion-weighted MRI. Magn. Reson. Med. 2004, 51, 103–114. [Google Scholar] [CrossRef]
  6. Aoki, J.; Kimura, K.; Iguchi, Y.; Shibazaki, K.; Sakai, K.; Iwanaga, T. FLAIR can estimate the onset time in acute ischemic stroke patients. J. Neurol. Sci. 2010, 293, 39–44. [Google Scholar] [CrossRef]
  7. Krupa, K.; Bekiesińska-Figatowska, M. Artifacts in magnetic resonance imaging. Pol. J. Radiol. 2015, 80, 93. [Google Scholar]
  8. Hiasa, Y.; Otake, Y.; Takao, M.; Matsuoka, T.; Takashima, K.; Carass, A.; Prince, J.L.; Sugano, N.; Sato, Y. Cross-modality image synthesis from unpaired data using CycleGAN. In Proceedings of the Simulation and Synthesis in Medical Imaging: Third International Workshop, SASHIMI 2018, Held in Conjunction with MICCAI 2018, Granada, Spain, 16 September 2018; Springer: Berlin/Heidelberg, Germany, 2018; pp. 31–41. [Google Scholar]
  9. Nie, D.; Trullo, R.; Lian, J.; Wang, L.; Petitjean, C.; Ruan, S.; Wang, Q.; Shen, D. Medical Image Synthesis with Deep Convolutional Adversarial Networks. IEEE Trans. Biomed. Eng. 2018, 65, 2720–2730. [Google Scholar] [CrossRef]
  10. Xie, C.; Wang, J.; Zhang, Z.; Zhou, Y.; Xie, L.; Yuille, A. Adversarial Examples for Semantic Segmentation and Object Detection. In Proceedings of the 2017 IEEE International Conference on Computer Vision (ICCV), Venice, Italy, 22–29 October 2017; pp. 1378–1387. [Google Scholar] [CrossRef] [Green Version]
  11. Goodfellow, I.J.; Shlens, J.; Szegedy, C. Explaining and harnessing adversarial examples. arXiv 2014, arXiv:14126572. [Google Scholar]
  12. Xiang, L.; Li, Y.; Lin, W.; Wang, Q.; Shen, D. Unpaired deep cross-modality synthesis with fast training. In Deep Learning in Medical Image Analysis and Multimodal Learning for Clinical Decision Support; Springer: Berlin/Heidelberg, Germany, 2018; pp. 155–164. [Google Scholar]
  13. Van, N.H.; Zhou, K.; Vemulapalli, R. Cross-domain synthesis of medical images using efficient location-sensitive deep network. In Proceedings of the Medical Image Computing and Computer-Assisted Intervention—MICCAI 2015: 18th International Conference, Munich, Germany, 5–9 October 2015; Springer: Berlin/Heidelberg, Germany, 2015; pp. 677–684. [Google Scholar]
  14. Abdullah, M.A.M.; Alkassar, S.; Jebur, B.; Chambers, J. LBTS-Net: A fast and accurate CNN model for brain tumour segmentation. Health Technol. Lett. 2021, 8, 31–36. [Google Scholar] [CrossRef]
  15. Lan, L.; You, L.; Zhang, Z.; Fan, Z.; Zhao, W.; Zeng, N.; Chen, Y.; Zhou, X. Generative Adversarial Networks and Its Applications in Biomedical Informatics. Front. Public Health 2020, 8, 164. [Google Scholar] [CrossRef]
  16. Goodfellow, I.; Pouget-Abadie, J.; Mirza, M.; Xu, B.; Warde-Farley, D.; Ozair, S.; Courville, A.; Bengio, Y. Generative adversarial nets. In Advances in Neural Information Processing Systems 27 (NIPS 2014); Neural Information Processing Systems Foundation, Inc.: La Jolla, CA, USA, 2014. [Google Scholar]
  17. Zhu, J.-Y.; Park, T.; Isola, P.; Efros, A.A. Unpaired image-to-image translation using cycle-consistent adversarial networks. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 2223–2232. [Google Scholar]
  18. Nie, D.; Trullo, R.; Lian, J.; Petitjean, C.; Ruan, S.; Wang, Q.; Shen, D. Medical image synthesis with context-aware generative adversarial networks. In Proceedings of the Medical Image Computing and Computer Assisted Intervention—MICCAI 2017: 20th International Conference, Quebec City, QC, Canada, 11–13 September 2017; Springer: Berlin/Heidelberg, Germany, 2017; pp. 417–425. [Google Scholar]
  19. Welander, P.; Karlsson, S.; Eklund, A. Generative adversarial networks for image-to-image translation on multi-contrast MR images-A comparison of CycleGAN and UNIT. arXiv 2018, arXiv:180607777. [Google Scholar]
  20. Richardson, E.; Weiss, Y. The Surprising Effectiveness of Linear Unsupervised Image-to-Image Translation. In Proceedings of the 25th International Conference on Pattern Recognition, Milano, Italy, 10–15 January 2021; pp. 7855–7861. [Google Scholar] [CrossRef]
  21. Dar, S.U.; Yurt, M.; Karacan, L.; Erdem, A.; Erdem, E.; Cukur, T. Image Synthesis in Multi-Contrast MRI with Conditional Generative Adversarial Networks. IEEE Trans. Med. Imaging 2019, 38, 2375–2388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Theis, L.; van den Oord, A.; Bethge, M. A note on the evaluation of generative models. arXiv 2015, arXiv:151101844. [Google Scholar]
  23. Gui, J.; Sun, Z.; Wen, Y.; Tao, D.; Ye, J. A review on generative adversarial networks: Algorithms, theory, and applications. IEEE Trans. Knowl. Data Eng. 2021, 35, 3313–3332. [Google Scholar] [CrossRef]
  24. Zwanenburg, A.; Vallières, M.; Abdalah, M.A.; Aerts, H.J.W.L.; Andrearczyk, V.; Apte, A.; Ashrafinia, S.; Bakas, S.; Beukinga, R.J.; Boellaard, R.; et al. The Image Biomarker Standardization Initiative: Standardized Quantitative Radiomics for High-Throughput Image-based Phenotyping. Radiology 2020, 295, 328–338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. McNitt-Gray, M.; Napel, S.; Jaggi, A.; Mattonen, S.; Hadjiiski, L.; Muzi, M.; Goldgof, D.; Balagurunathan, Y.; Pierce, L.; Kinahan, P.; et al. Standardization in Quantitative Imaging: A Multicenter Comparison of Radiomic Features from Different Software Packages on Digital Reference Objects and Patient Data Sets. Tomography 2020, 6, 118–128. [Google Scholar] [CrossRef]
  26. Parekh, V.S.; Jacobs, M.A. Deep learning and radiomics in precision medicine. Expert Rev. Precis. Med. Drug Dev. 2019, 4, 59–72. [Google Scholar] [CrossRef] [Green Version]
  27. Mayerhoefer, M.E.; Materka, A.; Langs, G.; Häggström, I.; Szczypiński, P.; Gibbs, P.; Cook, G. Introduction to radiomics. J. Nucl. Med. 2020, 61, 488–495. [Google Scholar] [CrossRef]
  28. Rizzo, S.; Botta, F.; Raimondi, S.; Origgi, D.; Fanciullo, C.; Morganti, A.G.; Bellomi, M. Radiomics: The facts and the challenges of image analysis. Eur. Radiol. Exp. 2018, 2, 36. [Google Scholar] [CrossRef]
  29. Lv, W.; Yuan, Q.; Wang, Q.; Ma, J.; Jiang, J.; Yang, W.; Feng, Q.; Chen, W.; Rahmim, A.; Lu, L. Robustness versus disease differentiation when varying parameter settings in radiomics features: Application to nasopharyngeal PET/CT. Eur. Radiol. 2018, 28, 3245–3254. [Google Scholar] [CrossRef]
  30. Lei, M.; Varghese, B.; Hwang, D.; Cen, S.; Lei, X.; Azadikhah, A.; Desai, B.; Oberai, A.; Duddalwar, V. Benchmarking features from different radiomics toolkits/toolboxes using Image Biomarkers Standardization Initiative. arXiv 2020, arXiv:200612761. [Google Scholar]
  31. Lambin, P.; Rios-Velazquez, E.; Leijenaar, R.; Carvalho, S.; van Stiphout, R.G.P.M.; Granton, P.; Zegers, C.M.L.; Gillies, R.; Boellard, R.; Dekker, A.; et al. Radiomics: Extracting more information from medical images using advanced feature analysis. Eur. J. Cancer 2012, 48, 441–446. [Google Scholar] [CrossRef] [Green Version]
  32. Avanzo, M.; Stancanello, J.; El Naqa, I. Beyond imaging: The promise of radiomics. Phys. Med. 2017, 38, 122–139. [Google Scholar] [CrossRef] [PubMed]
  33. Aerts, H.; Velazquez, E.R.; Leijenaar, R.T.H.; Parmar, C.; Grossmann, P.; Carvalho, S.; Bussink, J.; Monshouwer, R.; Haibe-Kains, B.; Rietveld, D.; et al. Data from: Decoding tumour phenotype by noninvasive imaging using a quantitative radiomics approach. Nat. Commun. 2014, 5, 4006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Gillies, R.J.; Kinahan, P.E.; Hricak, H. Radiomics: Images Are More than Pictures, They Are Data. Radiology 2016, 278, 563–577. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Binder, Z.A.; Thorne, A.H.; Bakas, S.; Wileyto, E.P.; Bilello, M.; Akbari, H.; Rathore, S.; Ha, S.M.; Zhang, L.; Ferguson, C.J.; et al. Epidermal Growth Factor Receptor Extracellular Domain Mutations in Glioblastoma Present Opportunities for Clinical Imaging and Therapeutic Development. Cancer Cell 2018, 34, 163–177.e7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Fathi Kazerooni, A.; Bakas, S.; Saligheh Rad, H.; Davatzikos, C. Imaging signatures of glioblastoma molecular characteristics: A radiogenomics review. J. Magn. Reson. Imaging 2020, 52, 54–69. [Google Scholar] [CrossRef]
  37. Bakas, S.; Akbari, H.; Pisapia, J.; Martinez-Lage, M.; Rozycki, M.; Rathore, S.; Dahmane, N.; O′Rourke, D.M.; Davatzikos, C. In vivo detection of EGFRvIII in glioblastoma via perfusion magnetic resonance imaging signature consistent with deep peritumoral infiltration: The φ-index. Clin. Cancer Res. 2017, 23, 4724–4734. [Google Scholar] [CrossRef] [Green Version]
  38. Bakas, S.; Shukla, G.; Akbari, H.; Erus, G.; Sotiras, A.; Rathore, S.; Sako, C.; Ha, S.M.; Rozycki, M.; Shinohara, R.T.; et al. Overall survival prediction in glioblastoma patients using structural magnetic resonance imaging (MRI): Advanced radiomic features may compensate for lack of advanced MRI modalities. J. Med. Imaging 2020, 7, 031505. [Google Scholar] [CrossRef]
  39. Van Griethuysen, J.J.M.; Fedorov, A.; Parmar, C.; Hosny, A.; Aucoin, N.; Narayan, V.; Beets-Tan, R.G.H.; Fillion-Robin, J.C.; Pieper, S.; Aerts, H.J.W.L. Computational radiomics system to decode the radiographic phenotype. Cancer Res. 2017, 77, e104–e107. [Google Scholar] [CrossRef] [Green Version]
  40. Prasanna, P.; Tiwari, P.; Madabhushi, A. Co-occurrence of Local Anisotropic Gradient Orientations (CoLlAGe): A new radiomics descriptor. Sci. Rep. 2016, 6, 37241. [Google Scholar] [CrossRef] [PubMed]
  41. Davatzikos, C.; Rathore, S.; Bakas, S.; Pati, S.; Bergman, M.; Kalarot, R.; Sridharan, P.; Gastounioti, A.; Jahani, N.; Cohen, E.; et al. Cancer imaging phenomics toolkit: Quantitative imaging analytics for precision diagnostics and predictive modeling of clinical outcome. J. Med. Imaging 2018, 5, 011018. [Google Scholar] [CrossRef] [PubMed]
  42. Jin, C.-B.; Kim, H.; Liu, M.; Han, I.H.; Lee, J.I.; Lee, J.H.; Joo, S.; Park, E.; Ahn, Y.S.; Cui, X. DC2Anet: Generating Lumbar Spine MR Images from CT Scan Data Based on Semi-Supervised Learning. Appl. Sci. 2019, 9, 2521. [Google Scholar] [CrossRef] [Green Version]
  43. Larue, R.T.H.M.; Defraene, G.; De Ruysscher, D.; Lambin, P.; van Elmpt, W. Quantitative radiomics studies for tissue characterization: A review of technology and methodological procedures. Br. J. Radiol. 2017, 90, 20160665. [Google Scholar] [CrossRef]
  44. Kinahan, P.; Muzi, M.; Bialecki, B.; Herman, B.; Coombs, L. Data from the ACRIN 6668 Trial NSCLC-FDG-PET. Cancer Imaging Arch. 2019, 10. [Google Scholar] [CrossRef]
  45. Clark, K.; Vendt, B.; Smith, K.; Freymann, J.; Kirby, J.; Koppel, P.; Moore, S.; Phillips, S.; Maffitt, D.; Pringle, M.; et al. The Cancer Imaging Archive (TCIA): Maintaining and Operating a Public Information Repository. J. Digit. Imaging 2013, 26, 1045–1057. [Google Scholar] [CrossRef] [Green Version]
  46. Yushkevich, P.A.; Piven, J.; Hazlett, H.C.; Smith, R.G.; Ho, S.; Gee, J.C.; Gerig, G. User-guided 3D active contour segmentation of anatomical structures: Significantly improved efficiency and reliability. Neuroimage 2006, 31, 1116–1128. [Google Scholar] [CrossRef] [Green Version]
  47. Kingma, D.P.; Ba, J. Adam: A method for stochastic optimization. arXiv 2014, arXiv:14126980. [Google Scholar]
  48. Bi, L.; Kim, J.; Kumar, A.; Feng, D.; Fulham, M. Synthesis of Positron Emission Tomography (PET) Images via Multi-channel Generative Adversarial Networks (GANs). In Proceedings of the Molecular Imaging, Reconstruction and Analysis of Moving Body Organs, and Stroke Imaging and Treatment: Fifth International Workshop, CMMI 2017, Second International Workshop, RAMBO 2017, and First International Workshop, SWITCH 2017, Held in Conjunction with MICCAI 2017, Québec City, QC, Canada, 14 September 2017; pp. 43–51. [Google Scholar] [CrossRef] [Green Version]
  49. Nie, D.; Cao, X.; Gao, Y.; Wang, L.; Shen, D. Estimating CT Image from MRI Data Using 3D Fully Convolutional Networks. In Design, User Experience, and Usability: Design Thinking and Methods; Springer: Cham, Switzerland, 2016; pp. 170–178. [Google Scholar] [CrossRef] [Green Version]
  50. Jin, C.-B.; Kim, H.; Liu, M.; Jung, W.; Joo, S.; Park, E.; Ahn, Y.S.; Han, I.H.; Lee, J.I.; Cui, X. Deep CT to MR Synthesis Using Paired and Unpaired Data. Sensors 2019, 19, 2361. [Google Scholar] [CrossRef] [Green Version]
  51. Hemalatha, R.; Thamizhvani, T.; Dhivya, A.J.A.; Joseph, J.E.; Babu, B.; Chandrasekaran, R. Active Contour Based Segmentation Techniques for Medical Image Analysis. In Medical and Biological Image Analysis; IntechOpen: London, UK, 2018; p. 2. [Google Scholar] [CrossRef] [Green Version]
  52. Heydarheydari, S.; Firoozabadi, S.M.; Mirnajafi-Zadeh, J.; Shankayi, Z. Pulsed high magnetic field-induced reversible blood-brain barrier permeability to enhance brain-targeted drug delivery. Electromagn. Biol. Med. 2021, 40, 361–374. [Google Scholar] [CrossRef]
  53. Pati, S.; Singh, A.; Rathore, S.; Gastounioti, A.; Bergman, M.; Ngo, P.; Ha, S.M.; Bounias, D.; Minock, J.; Murphy, G.; et al. The Cancer Imaging Phenomics Toolkit (CaPTk): Technical Overview. In Proceedings of the Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries: 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, 17 October 2019; Volume 11993, pp. 380–394. [Google Scholar] [CrossRef]
  54. Galloway, M.M. Texture analysis using gray level run lengths. Comput. Graph. Image Process. 1975, 4, 172–179. [Google Scholar] [CrossRef]
  55. Rathore, S.; Bakas, S.; Pati, S.; Akbari, H.; Kalarot, R.; Sridharan, P.; Rozycki, M.; Bergman, M.; Tunc, B.; Verma, R.; et al. Brain cancer imaging phenomics toolkit (brain-CaPTk): An interactive platform for quantitative analysis of glioblastoma. In Proceedings of the Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries: Third International Workshop, BrainLes 2017, Held in Conjunction with MICCAI 2017, Quebec City, QC, Canada, 14 September 2017; Springer: Berlin/Heidelberg, Germany, 2017; pp. 133–145. [Google Scholar]
  56. Mohanaiah, P.; Sathyanarayana, P.; GuruKumar, L. Image texture feature extraction using GLCM approach. Int. J. Res. Publ. 2013, 3, 1–5. [Google Scholar]
  57. Haralick, R.M.; Shanmugam, K.; Dinstein, I.H. Textural Features for Image Classification. IEEE Trans. Syst. Man Cybern. 1973, 6, 610–621. [Google Scholar] [CrossRef] [Green Version]
  58. Thibault, G.; Angulo, J.; Meyer, F. Advanced statistical matrices for texture characterization: Application to DNA chromatin and microtubule network classification. In Proceedings of the 18th IEEE International Conference on Image Processing, Brussels, Belgium, 11–14 September 2011; pp. 53–56. [Google Scholar] [CrossRef]
  59. Duron, L.; Balvay, D.; Perre, S.V.; Bouchouicha, A.; Savatovsky, J.; Sadik, J.-C.; Thomassin-Naggara, I.; Fournier, L.; Lecler, A. Gray-level discretization impacts reproducible MRI radiomics texture features. PLoS ONE 2019, 14, e0213459. [Google Scholar] [CrossRef] [PubMed]
  60. Yap, B.W.; Sim, C.H. Comparisons of various types of normality tests. J. Stat. Comput. Simul. 2011, 81, 2141–2155. [Google Scholar] [CrossRef]
  61. Krauss, W.; Gunnarsson, M.; Nilsson, M.; Thunberg, P. Conventional and synthetic MRI in multiple sclerosis: A comparative study. Eur. Radiol. 2017, 28, 1692–1700. [Google Scholar] [CrossRef] [Green Version]
  62. Han, C.; Hayashi, H.; Rundo, L.; Araki, R.; Shimoda, W.; Muramatsu, S.; Furukawa, Y.; Mauri, G.; Nakayama, H. GAN-based synthetic brain MR image generation. In Proceedings of the 2018 IEEE 15th International Symposium on Biomedical Imaging (ISBI 2018), Washington, DC, USA, 4–7 April 2018; pp. 734–738. [Google Scholar]
  63. Li, W.; Li, Y.; Qin, W.; Liang, X.; Xu, J.; Xiong, J.; Xie, Y. Magnetic resonance image (MRI) synthesis from brain computed tomography (CT) images based on deep learning methods for magnetic resonance (MR)-guided radiotherapy. Quant. Imaging Med. Surg. 2020, 10, 1223–1236. [Google Scholar] [CrossRef]

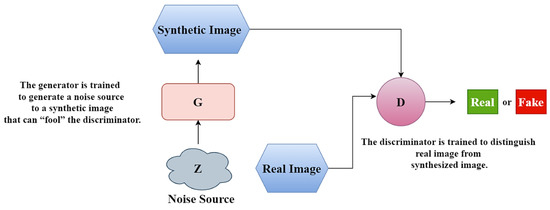

Figure 1. Simultaneous training of both models, the generator (G) and the discriminator (D), in competition with each other.
Figure 1. Simultaneous training of both models, the generator (G) and the discriminator (D), in competition with each other.
Cancers 15 03565 g001

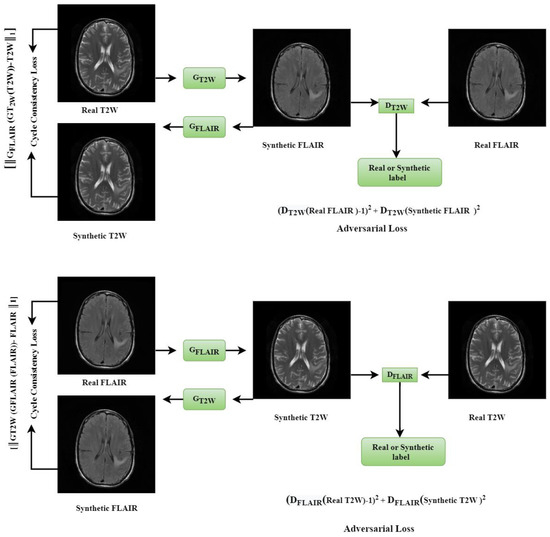

Figure 2. The CycleGAN model based on two mappings GT2W: T2W → FLAIR and GFLAIR: FLAIR → T2W.
Figure 2. The CycleGAN model based on two mappings GT2W: T2W → FLAIR and GFLAIR: FLAIR → T2W.
Cancers 15 03565 g002

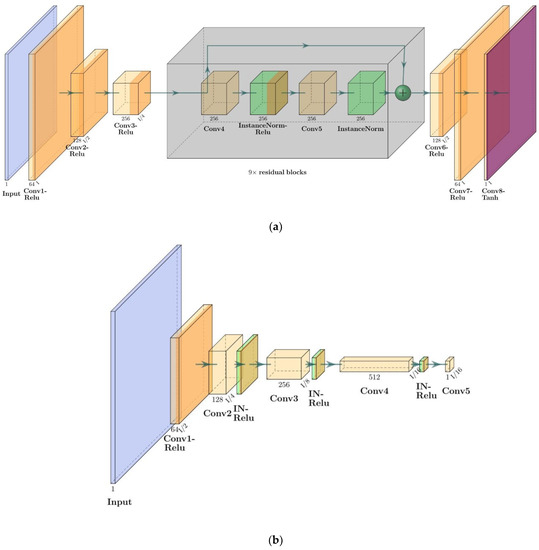

Figure 3. The architecture of proposed CycleGAN model; (a,b) are generator and discriminator networks respectively. Conv and IN are Convolution and Instance normalization, respectively.
Figure 3. The architecture of proposed CycleGAN model; (a,b) are generator and discriminator networks respectively. Conv and IN are Convolution and Instance normalization, respectively.
Cancers 15 03565 g003

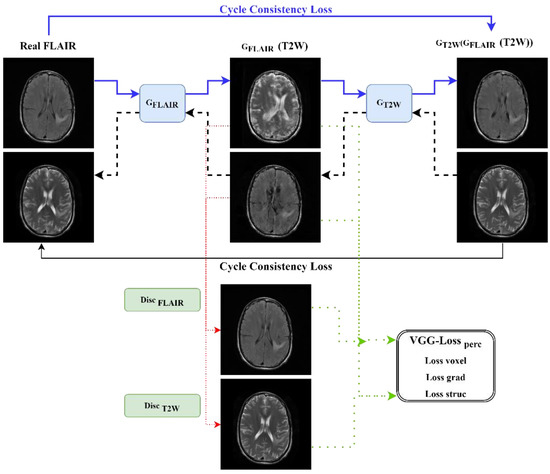

Figure 4. Diagram of the DC2Anet model.
Figure 4. Diagram of the DC2Anet model.
Cancers 15 03565 g004

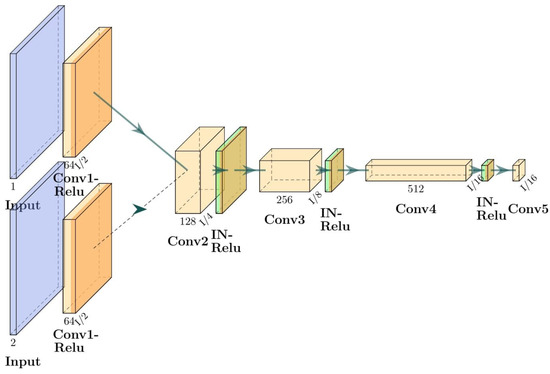

Figure 5. The architecture of discriminator used for DC2Anet model. Conv: Convolution. IN: Instance Normalization.
Figure 5. The architecture of discriminator used for DC2Anet model. Conv: Convolution. IN: Instance Normalization.
Cancers 15 03565 g005

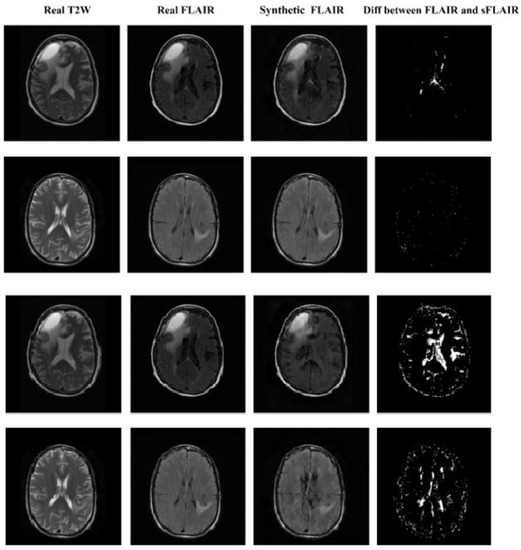

Figure 6. Qualitative comparison of T2W to FLAIR for CycleGAN (First and second row) and DC2Anet (Third and fourth row).
Figure 6. Qualitative comparison of T2W to FLAIR for CycleGAN (First and second row) and DC2Anet (Third and fourth row).
Cancers 15 03565 g006

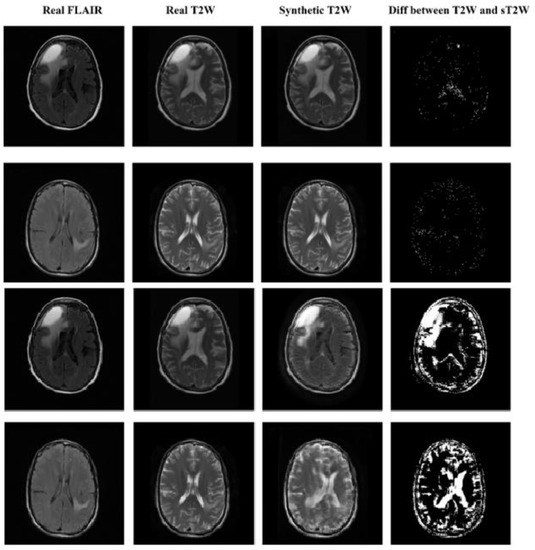

Figure 7. Qualitative comparison of FLAIR to T2W for CycleGAN (First and second row) and DC2Anet (Third and fourth row).
Figure 7. Qualitative comparison of FLAIR to T2W for CycleGAN (First and second row) and DC2Anet (Third and fourth row).
Cancers 15 03565 g007
Table 1. Network Hyperparameters, Tuning, and Computing for Image Translation using CycleGAN and DC2Anet.
Table 1. Network Hyperparameters, Tuning, and Computing for Image Translation using CycleGAN and DC2Anet.
Implementation (Hyperparameter, Tuning, and Computing)Value
Resolution (FLAIR)256 × 256
Resolution (T2W)512 × 512
PreprocessingRigid registration to ensure 256 × 256 resolution for FLAIR images
Input Image Size256 × 256 pixels
Training Epochs400
Batch Size2
OptimizerAdam
Learning Rate2·10−4 (fixed for the first 200 epochs, linear decay to 0 for the next 200 epochs)
Generator Iterations3
Discriminator Iterations1
Cycle Consistency Loss Weight (λcyc)10
Adversarial Loss Weight (λGAN)1
Computing PlatformGoogle Colab
Programming LanguagePython 3.7
Deep Learning FrameworkTensorFlow 2.4.1
Table 2. Extracted Radiomic features for the evaluation of CycleGAN and DC2Anet translations.
Table 2. Extracted Radiomic features for the evaluation of CycleGAN and DC2Anet translations.
Radiomic Features Extracted
GLCMGLSZMGLRLM
Auto Correlation Grey Level MeanGrey Level Nonuniformity
Cluster ProminenceGrey Level NonuniformityHigh Grey Level Run Emphasis
Cluster ShadeGrey Level VarianceLong Run High Grey Level Emphasis
ContrastHigh Grey Level EmphasisLong Run Low Grey Level Emphasis
CorrelationLarge Zone EmphasisLow Gray Level Run Emphasis
EnergyLarge Zone High Grey Level EmphasisRun Length Nonuniformity
EntropyLarge Zone Low Grey Level EmphasisShort Run Emphasis
HomogeneityLow Grey Level Emphasis
Table 3. Results of three metrics between the real T2W and synthetic T2W and real FLAIR and synthetic FLAIR, including MAE, MSE, and PSNR. Bold text highlights the best result per column.
Table 3. Results of three metrics between the real T2W and synthetic T2W and real FLAIR and synthetic FLAIR, including MAE, MSE, and PSNR. Bold text highlights the best result per column.
ExperimentMAE MSE PSNR
Synthetic and Real T2WCycleGAN24.2 ± 8.1916.6 ± 15727.5 ± 5.6
DC2Anet35.2 ± 121100 ± 16920.5 ± 8.2
Synthetic and Real FLAIRCycleGAN17.23 ± 8.2813.8 ± 19829.7 ± 6.55
DC2Anet25.6 ± 6.2915.8 ± 15621 ± 7.2
Table 4. GLCM-based radiomic features for real and synthetic T2W for CycleGAN and DC2Anet models.
Table 4. GLCM-based radiomic features for real and synthetic T2W for CycleGAN and DC2Anet models.
FeaturesReal T2WSynthetic T2W-CycleGANSynthetic T2W-DC2Anet95% CI of Diff
Mean ± SE **Mean ± SEMean ± SEReal T2W vs. Synthetic T2W-CycleGANReal T2W vs. Synthetic T2W-DC2Anet
Auto Correlation 330 ± 26.40331 ± 52.22348 ± 49.5−176.8 to 173.8−194.5 to 156.1
Cluster Prominence17,303 ± 150115,367 ± 100912,133 ± 455−2019 to 58921214 to 9125 *
Cluster Shade722.4 ± 41.14716 ± 18.76677.2 ± 33.74−111.2 to 124.0−72.39 to 162.7
Contrast43.96 ± 0.942.06 ± 1.0431.67 ± 0.86−1.487 to 5.2968.902 to 15.68 *
Correlation0.005 ± 0.00040.0051 ± 0.00070.05 ± 0.0098−0.0212 to 0.0195−0.0703 to −0.0296 *
Energy0.43 ± 0.010.44 ± 0.010.43 ± 0.007−0.040 to 0.027−0.029 to 0.037
Entropy2.47 ± 0.082.4 ± 0.032.34 ± 0.03−0.139 to 0.263−0.074 to 0.328
Homogeneity0.67 ± 0.010.68 ± 0.0090.63 ± 0.007−0.044 to 0.0210.0052 to 0.071
* Significant difference; ** Standard error (SE).
Table 5. GLCM-based radiomic features for real and synthetic FLAIR for CycleGAN and DC2Anet models.
Table 5. GLCM-based radiomic features for real and synthetic FLAIR for CycleGAN and DC2Anet models.
FeaturesReal FLAIRSynthetic FLAIR-CycleGANSynthetic FLAIR -DC2Anet95% CI of Diff
Mean ± SEMean ± SEMean ± SEReal FLAIR vs. Synthetic FLAIR—CycleGANReal FLAIR vs. Synthetic FLAIR—DC2Anet
Auto Correlation 277 ± 5.69269.6 ± 5.1263.9 ± 5.84−12.42 to 27.11−6.673 to 32.86
Cluster Prominence17372 ± 16.3417134 ± 44.0817036 ± 50.1796.26 to 379.2 *194.3 to 477.2 *
Cluster Shade825.8 ± 42.54819.7 ± 37.53807.4 ± 40.61−137.6 to 149.6−125.2 to 162.0
Contrast47.53 ± 1.9945.03 ± 1.7442.13 ± 1.78−4.076 to 9.062−1.166 to 11.97
Correlation0.005 ± 0.00050.0005 ± 0.00030.05 ± 0.003−0.0077 to 0.0076−0.0531 to −0.0378 *
Energy0.45 ± 0.0060.42 ± 0.010.41 ± 0.01−0.0283 to 0.0777−0.0093 to 0.0968
Entropy2.33 ± 0.022.41 ± 0.12.3 ± 0.11−0.4098 to 0.2388−0.2971 to 0.3515
Homogeneity0.67 ± 0.010.65 ± 0.010.63 ± 0.01−0.0287 to 0.0726−0.0028 to 0.0985
* Significant difference.
Table 6. GLRLM-based radiomic features for real and synthetic T2W for CycleGAN and DC2Anet models.
Table 6. GLRLM-based radiomic features for real and synthetic T2W for CycleGAN and DC2Anet models.
FeaturesReal T2WSynthetic T2W-CycleGANSynthetic T2W-DC2Anet95% CI of Diff
Mean ± SEMean ± SEMean ± SEReal T2W vs. Synthetic T2W-CycleGANReal T2W vs. Synthetic T2W-DC2Anet
Grey Level Nonuniformity73.95 ± 0.5873.89 ± 0.8474.66 ± 0.94−2.821 to 2.937−3.590 to 2.168
High Grey Level Run Emphasis60.38 ± 2.356.89 ± 2.4369.63 ± 1.56−4.241 to 11.21−16.87 to −1.630 *
Long Run High Grey Level Emphasis92.88 ± 1.3292.84 ± 1.9595.25 ± 1.94−6.258 to 6.338−8.670 to 3.926
Long Run Low Grey Level Emphasis29.69 ± 0.5928.40 ± 0.6025.88 ± 0.29−0.5560 to 3.1381.973 to 5.667 *
Low Gray Level Run Emphasis0.62 ± 0.0070.62 ± 0.0060.61 ± 0.004−0.0130 to 0.0300−0.0068 to 0.0362
Run Length Nonuniformity53.88 ± 1.5755.08 ± 1.1853.63 ± 0.94−5.690 to 3.296−4.237 to 4.749
Short Run Emphasis0.48 ± 0.010.50 ± 0.010.47 ± 0.01−0.0579 to 0.0336−0.0313 to 0.0601
* Significant difference.
Table 7. GLRLM-based radiomic features for real and synthetic FLAIR for CycleGAN and DC2Anet models.
Table 7. GLRLM-based radiomic features for real and synthetic FLAIR for CycleGAN and DC2Anet models.
FeaturesReal FLAIRSynthetic FLAIR -CycleGANSynthetic FLAIR -DC2Anet95% CI of Diff
Mean ± SEMean ± SEMean ± SEReal FLAIR vs. Synthetic FLAIR-CycleGANReal FLAIR vs. Synthetic FLAIR-DC2Anet
Grey Level Nonuniformity74.05 ± 0.2971. 9 ± 0.4874.53 ± 0.780.1455 to 4.144 *−2.477 to 1.522
High Grey Level Run Emphasis69.12 ± 1.568.21 ± 1.7262.75 ± 1.23−4.442 to 6.2591.019 to 11.72 *
Long Run High Grey Level Emphasis118.4 ± 5.58115.6 ± 5.34114.3 ± 5.29−16.41 to 22.17−15.10 to 23.48
Long Run Low Grey Level Emphasis31.27 ± 0.6729.16 ± 125.5 ± 0.82−0.9038 to 5.1122.757 to 8.773 *
Low Gray Level Run Emphasis0.62 ± 0.0060.61 ± 0.0090.62 ± 0.009−0.0205 to 0.0412−0.0301 to 0.0317
Run Length Nonuniformity53.23 ± 1.1558.62 ± 3.4358 ± 3.31−15.50 to 4.714−14.87 to 5.338
Short Run Emphasis0.51 ± 0.0060.53 ± 0.010.52 ± 0.01−0.0642 to 0.0236−0.0631 to 0.0247
* Significant difference.
Table 8. GLSZM-based radiomic features for real and synthetic T2W for CycleGAN and DC2Anet models.
Table 8. GLSZM-based radiomic features for real and synthetic T2W for CycleGAN and DC2Anet models.
FeaturesReal T2WSynthetic T2W-CycleGANSynthetic T2W-DC2Anet95% CI of Diff
Mean ± SEMean ± SEMean ± SEReal T2W vs. Synthetic T2W-CycleGANReal T2W vs. Synthetic T2W-DC2Anet
Grey Level Mean8.92 ± 0.389.49 ± 0.489.2 ± 0.48−2.191 to 1.049−1.905 to 1.336
Grey Level Nonuniformity1.26 ± 0.021.4 ± 0.041.38 ± 0.03−0.2608 to −0.0051 *−0.2419 to 0.0137
Grey Level Variance42.32 ± 0.5743.40 ± 1.4742.5 ± 1.372−5.407 to 3.232−4.504 to 4.134
High Grey Level Emphasis136.1 ± 4.6139.1 ±10.21137.6 ± 10.27−34.25 to 28.30−32.82 to 29.73
Large Zone Emphasis121.8 ± 8.08119.9 ± 7.38121.6 ± 7.41−25.29 to 29.12−27.03 to 27.38
Large Zone High Grey Level Emphasis240.6 ± 4.04245.6 ± 3.71249.1 ± 3.56−18.50 to 8.430−22.00 to 4.930
Large Zone Low Grey Level Emphasis152.2 ± 2.93145.4 ± 5.44135.1 ± 4.12−8.474 to 22.101.827 to 32.40 *
Low Grey Level Emphasis0.18 ± 0.010.19 ± 0.0090.18 ± 0.008−0.0510 to 0.0237−0.0451 to 0.0296
* Significant difference.
Table 9. GLSZM-based radiomic features for real and synthetic FLAIR for CycleGAN and DC2Anet models.
Table 9. GLSZM-based radiomic features for real and synthetic FLAIR for CycleGAN and DC2Anet models.
FeaturesReal FLAIRSynthetic FLAIR -CycleGANSynthetic FLAIR-DC2Anet95% CI of Diff
Mean ± SEMean ± SEMean ± SEReal FLAIR vs. Synthetic FLAIR-CycleGANReal FLAIR vs. Synthetic FLAIR-DC2Anet
Grey Level Mean10.13 ± 0.2610.12 ± 0.259.6 ± 0.19−0.860 to 0.874−0.349 to 1.386
Grey Level Nonuniformity1.34 ± 0.021.3 ± 0.051.21 ± 0.06−0.139 to 0.206−0.047 to 0.298
Grey Level Variance45.95 ± 2.3447.5 ± 1.3946.13 ± 1.24−7.729 to 4.629−6.357 to 6.001
High Grey Level Emphasis152.5 ± 2.33152.4 ± 2.66141.3 ± 3.24−9.836 to 9.9401.322 to 21.10 *
Large Zone Emphasis146.6 ± 9.91142.8 ± 8143.5 ± 8.1−27.19 to 34.78−27.88 to 34.09
Large Zone High Grey Level Emphasis333.9 ± 8.78331 ± 6.32323.4 ± 7.4−24.08 to 29.90−16.49 to 37.49
Large Zone Low Grey Level Emphasis147.8 ± 9.1146 ± 8.18119 ± 5.88−26.05 to 29.570.995 to 56.61 *
Low Grey Level Emphasis0.17 ± 0.0070.18 ± 0.0060.18 ± 0.005−0.035 to 0.011−0.032 to 0.014
* Significant difference.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rezaeijo, S.M.; Chegeni, N.; Baghaei Naeini, F.; Makris, D.; Bakas, S. Within-Modality Synthesis and Novel Radiomic Evaluation of Brain MRI Scans. Cancers 2023, 15, 3565. https://doi.org/10.3390/cancers15143565

AMA Style

Rezaeijo SM, Chegeni N, Baghaei Naeini F, Makris D, Bakas S. Within-Modality Synthesis and Novel Radiomic Evaluation of Brain MRI Scans. Cancers. 2023; 15(14):3565. https://doi.org/10.3390/cancers15143565

Chicago/Turabian Style

Rezaeijo, Seyed Masoud, Nahid Chegeni, Fariborz Baghaei Naeini, Dimitrios Makris, and Spyridon Bakas. 2023. "Within-Modality Synthesis and Novel Radiomic Evaluation of Brain MRI Scans" Cancers 15, no. 14: 3565. https://doi.org/10.3390/cancers15143565

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
