Structural and Magnetic Behavior of Oxidized and Reduced Fe Doped LiNbO₃ Powders

Abstract

Changes in structural and magnetic properties have been systematically induced in lithium niobate (LiNbO₃) powders, Fe-doped with different concentrations and thermally treated in oxidized and reduced states. A rather strong ferromagnetic response at room temperature with a saturation magnetization of 0.96 Am²kg⁻¹ was obtained for the higher utilized doping concentration, which is of the order of 1% mol. This may be considered a first report of the manifestation of ferromagnetism in nanocrystalline lithium niobate powders within the regime of very low Fe-doping concentrations. Post-thermal treatment in a controlled atmosphere is key for inducing and detecting this behavior, which can also be explained as the effective recombination of Fe impurities with oxygen vacancies in the surface of the material. Mechanochemical-calcination was employed for the synthesis of LiNbO₃ powders and after that, a diffusion process of 0.44%, 0.89%, 1.47% and 2.20% mass of Fe₂O₃ was used in the Fe-doping. Oxidation and reduction processes were performed using a controlled atmosphere of ultra-high purity oxygen and hydrogen, respectively. X-ray diffraction and Raman spectroscopy were employed to characterize the materials. The magnetic properties were studied using Vibration Sample magnetometry and Electron Spin Resonance spectroscopy.

1. Introduction

Given the great variety of physical and chemical properties that can be ascribed to lithium niobate (LiNbO₃; LN), it can be classified into several subclasses of materials. Ever since the pioneering work at Bell Laboratories—published in 1966 [1,2,3,4,5]—a myriad of well-known existent and potential applications of this material have been addressed, which are described elsewhere [6,7,8,9,10,11]. Interestingly enough, apart from its structure, the definition or description of LN is given in accordance with the particular property or application to be investigated. Effectively, LN can be labeled with any of the following: dielectric, uniaxial crystal, metallic oxide, ceramic, ferroelectric, pyroelectric, piezoelectric, photorefractive, photovoltaic, non-centrosymmetric non-linear medium and frequency converter, among others. The exacerbation/detriment of a property associated with each of these terms is to be tuned by proper control of point defects, either intrinsic or extrinsic [12,13,14,15]. Historically, this has been a major subject of interest for the scientific community involved in the study of LN.

Particularly important are the extrinsic point defects, such as ion-doped LN crystals, for which the intrinsic capabilities of the crystal might not only be improved but new ones could also arise [15]. That is the case with Co-doped LN (LiNbO₃:Co) and Fe-doped LN (LiNbO₃:Fe), for which the manifestation of ferromagnetism at room temperature has been previously reported [16,17,18]. Likewise, ferromagnetism can be induced in LN crystals by creating a rather large number of oxygen vacancies after chemical reduction [19]. Both trends hold at the nanoscale (Fe-doped), however, have the drawback of small magnetic coefficients. Díaz-Moreno et al. have reported a saturation magnetization M_S = 0.017 Am²kg⁻¹ for nanocrystalline LN (nLN), which is non-doped but annealed in Ar-5% H atmosphere in order to generate oxygen vacancies at the surface of the nanocrystals [20]. Furthermore, a maximum M_S of 1.18 Am²kg⁻¹ for Fe-doped nLN with 5% mol in doping concentration was reported by Li et al. [21].

In this work, we wish to report a substantial increment of ferromagnetic response in LN nanocrystals, induced by a proper combination of these two types of point extrinsic defects. A value of M_S = 0.94 Am²kg⁻¹ has been determined for a significant lower Fe concentration of the order of 1% mol, in contrast to the results presented by Li et al. [21]. The structural characterization and magnetic behavior associated with each type of defect are given. This investigation was conducted in three main stages: (1) synthesis of nLN, in the form of powders created by a mechano-chemical reaction, followed by a fixed calcination process, (2) diffusion process of Fe-dopant in the previously obtained LN powders via mixing and milling, using different mass percentages of the dopant and fixed thermal treatments for several hours and (3) reduction and oxidation processes by post-thermal annealing in a controlled atmosphere. Structure and phase formation were verified using X-ray diffraction (XRD) and Raman spectroscopy characterization techniques.

2. Experimental

2.1. Synthesis

In stage one, nanocrystalline LN (nLN) powders were obtained by a mechanochemical-calcination route [22,23]. High purity lithium carbonate Li₂CO₃ and niobium pentoxide Nb₂O₅ (Alpha Aesar) were used as starting reagents in a 1:1 molar ratio. The respective masses of precursors were thus determined, such that 3 g of LN are produced from the following balanced chemical equation:

Li₂CO₃ + Nb₂O₅ → 2LiNbO₃ + CO₂,

(1)

The high-energy milling process was carried out in a SPEX 800 mill, using nylon vials with YSZ balls; a powder/ball ratio of 0.1 was used for each sample preparation. The milling was performed in 30 min cycles with 30 min pauses to avoid excessive heat inside the milling chamber, until 120 min of effective milling time was reached. The resultant amorphous materials were calcined in a Thermo Scientific F21135 furnace at 850 °C for 120 min—no ramp was used during this stage and the samples were cooled down slowly to room temperature.

Afterwards, in stage 2, nLN was mixed with Fe₂O₃ powder at different rates: 0.44%, 0.89%, 1.47% and 2.20% of nLN mass. A 30 min milling was performed for the homogenization of particle size distribution and lowering of the energy on the surface of the mixture. Then, doping of Fe ions was carried out by means of diffusion after a thermal treatment for 60 h at 850 °C. Hereafter the resultant materials are referred to as nLN:Fe—0.44, nLN:Fe—0.89, nLN:Fe—1.47 and nLN:Fe—2.20. Assuming that all the Fe content in Fe₂O₃ enters into the LN structure and from simple calculations in mass percentages, the theoretical or ideal Fe-doping concentrations would respectively correspond to 0.167%, 0.333%, 0.550% and 0.833% mol. However, because these values were not measured, we prefer not to label our samples with them. Here, it is relevant to further discussion to emphasize that by no means does the actual Fe-doping concentration surpass 1% mol for any of the studied samples.

During the final stage, reduction and oxidation treatments were performed for 30 min at 850 °C in controlled atmospheres of ultra-high purity hydrogen (TTAH) and oxygen (TTAO), so that all Fe ions shared a common valence state. An—O (oxidized) or a—R (reduced) is added to the samples labeled in the previous stage. With the thermal annealings, we sought not only an enhancement of total ferromagnetism in the samples via a secondary contribution different from the Fe-doping but also the isolation of the structures’ changes as well as changes in the properties due to each type of defect.

2.2. Characterization and Magnetic Measurements

After the first stage was concluded, the formation of pure LN phases was confirmed from XRD and (non-polarized) Raman spectroscopy. The XRD patterns were recorded using a Panalytical X-Pert system (Almelo, The Netherlands) with a CuKa radiation source (λ = 1.54 $\dot{\mathrm{A}}$) at 40 keV and 30 mA in the 2θ range between 10° and 80°, at 0.02° steps every 4 s. COD 2101175 containing the supplementary crystallographic data of sample nLN have been deposited with The Crystallographic Open Database. This data can be obtained free of charge via [24]. The Raman spectra were collected in the range 100–1200 cm⁻¹, with a 1 cm⁻¹ resolution, using a WITEC Confocal-Raman microscopy (WITec Raman Imaging, Ulm, Germany) with 532 nm of excitation wavelength. Both experimental procedures were repeated after stage 1, at the end of stage 3, to study changes in the structure and their effect on the magnetic properties of the materials.

The ferromagnetic loops were measured with a Quantum Design VSM magnetometer (Quantum Design, Inc., San Diego, CA, USA) at room temperature and with a maximum applied field H_max = 2.4 × 10⁶ Am⁻¹. Ultimately, a final verification of some concepts at work was obtained from Electron Spin Resonance (ESR) spectroscopy studies. The ESR spectra of the synthesized powders were recorded at room temperature, using an ESR JEOL (JES-RE3X) (JEOL Ltd., Tokyo, Japan) spectrometer equipped with a cylindrical TE 011 mode cavity in X band (9.129076–9.130250 GHz) with a 100 kHz field modulation.

3. Results and Discussion

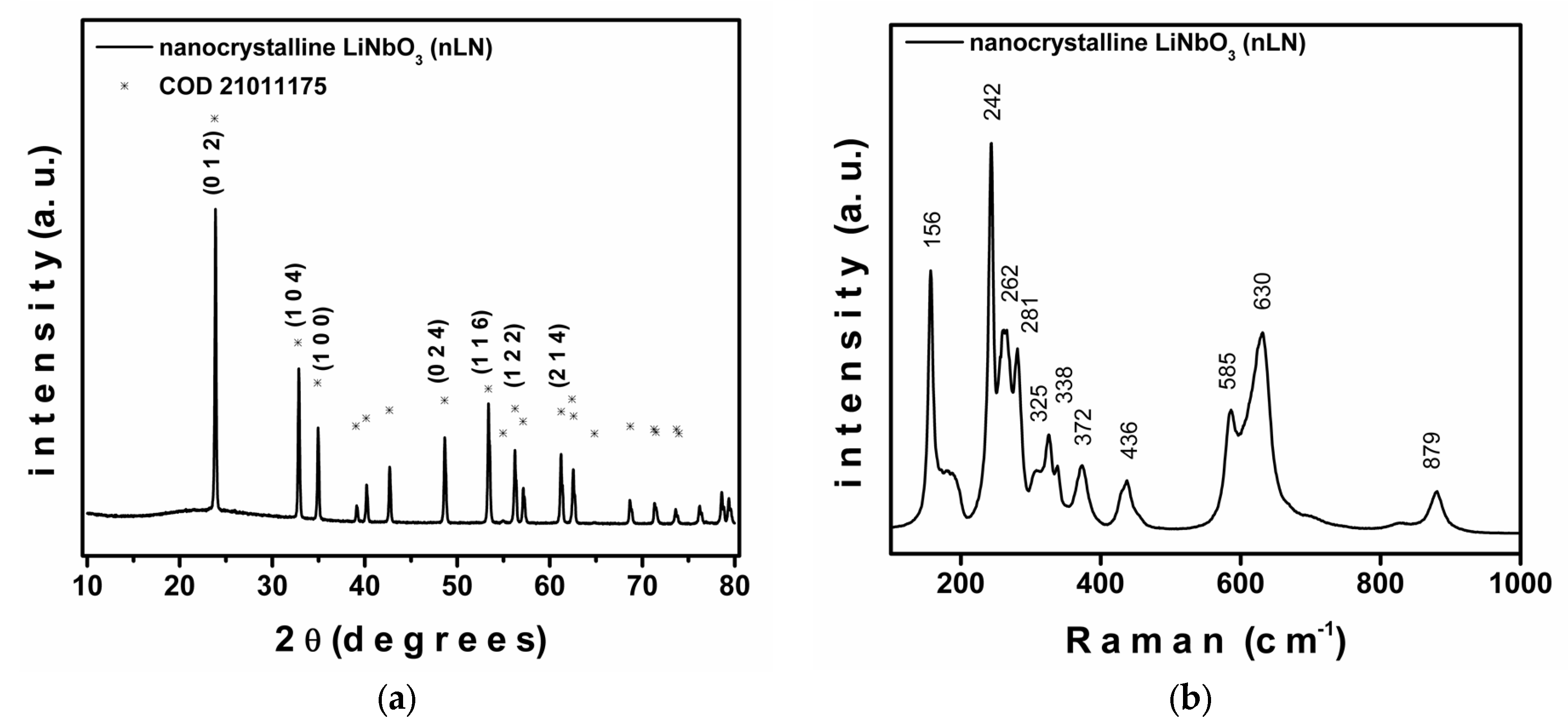

XRD patterns and Raman spectra of the produced nLN powders (stage 1) are shown in Figure 1. From the full width at half maximum (FWHM) of the broadening (0 1 2) peak and using the Scherrer equation [25], an average crystallite size of 658 $\dot{\mathrm{A}}$ was calculated (Figure 1a). Phase formation of pure LiNbO₃ is also confirmed by the Raman spectra obtained (Figure 1b), which indeed resemble the vibrational modes of this crystalline system [26,27]. Furthermore, chemical composition (Li/Nb ratio) was determined through the quantification of Li content in the sample, c_Li., which, according to Schlarb et al., obeys a linear relationship to the linewidth of the lowest frequency E(TO₁) vibrational mode (154 cm⁻¹) [28]. A Lorentzian fit was applied to this vibrational mode after deconvolution, using the Fytyk computational package [29]. A value of c_Li = 49.3% mol Li was obtained. Although we recognize that perhaps this value does not represent the actual or real Li content of our sample—because polarized Raman spectroscopy experiments were not conducted as described in [28]—it does support the fact of the natural tendency of LN to have intrinsic defects, namely the combination of Li vacancies and Nb_Li antisites.

Quantification of the saturation magnetization coefficient (M_s) was also done during this first stage through experiments with a Vibrating Sample Magnetometer (VSM). A negligible M_s for nLN was observed, compared to M_s = 0.006 Am²kg⁻¹ for the same nLN with a post-thermal treatment of controlled atmosphere in hydrogen (TTAH). The corresponding figure is omitted for the sake of a better visualization. This result is in agreement with the work of Díaz-Moreno et al. [20].

During experimental stage 2, neither characterization-related, nor magnetic experiments, were performed. Li et al. have already described the effect of Fe-doping on nanocrystalline LN [21]. In summary, a small shift of no more than 0.02° towards lesser values in 2θ is expected for the (0 1 2) peaks present in all our nLN:Fe samples. This trend has been related to a slight decrease in the lattice parameters and thus, to contraction of the cell volume noticeable only by structure refinement procedures. Moreover, in principle, no Fe-Nb substitution might be assumed for our samples at this stage. A relatively low M_s is also expected. From Raman spectra analysis and according to Y. Y. Li et al., Fe replaces Li first and then substitutes Nb at higher doping concentrations; the latter only observed in their study for the 5% mol case. The same work reports a change of an order of magnitude in M_s after the Fe-doping concentration exceeded 2% mol, which has been attributed to Fe-Li substitution.

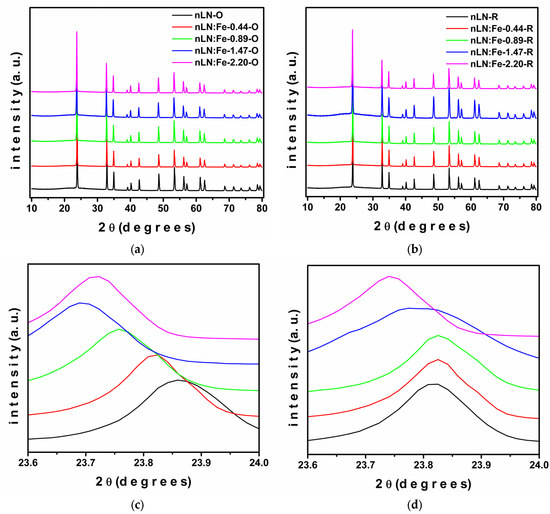

After Fe-doping, final thermal treatments in a controlled atmosphere, TTAH and TTAO, were done in stage 3. Figure 2a,b shows the XRD patterns obtained for both cases, these are compared to samples without Fe-doping, respectively (black lines). Significant changes cannot be seen for the diffraction data of pure nLN (Figure 1a), that is, neither a single Bragg peak associated with LN was substantially diminished nor it was observed the presence of additional peaks corresponding to binary oxides or other phases associated to Fe. Hence, Fe enters the LN structure in a substitutional fashion, not interstitially; in other words, different solid solutions of nLN have taken place. Nevertheless, with the enlarged views of XRD patterns around the (0 1 2) peaks (Figure 2c,d) a significant shift of the order of 0.10° in 2θ can be noticed. This effect has been observed notwithstanding the fact that it has already been reported that lattice parameters do not change in lightly Fe-doped LiNbO₃ [30]; as stated above, it has a close relationship with the contraction/relaxation of the cell volume, which has been quantitatively determined through Rietveld refinement analysis.

Figure 3 shows the calculated cell volumes as a function of the mass% in Fe₂O₃.

Table 1. Refined lattice parameters and cell volumes, along with relevant agreement indices.

Sample	a ($\dot{\mathbf{A}}$) = b ($\dot{\mathbf{A}}$)	c ($\dot{\mathbf{A}}$)	Cell Volume ($\dot{\mathbf{A}}$3)	Weighted R Profile	Goodness of Fit
nLN-O	5.15351	13.85655	318.70730	12.97	21.07
nLN:Fe-0.44-O	5.15117	13.85305	318.33790	12.89	24.94
nLN:Fe-0.89-O	5.15023	13.84717	318.08590	13.53	26.14
nLN:Fe-1.47-O	5.14999	13.84339	317.96950	13.03	22.69
nLN:Fe-2.20-O	5.15042	13.84527	318.06570	12.52	23.37
nLN-R	5.15154	13.85371	318.39860	14.25	27.32
nLN:Fe-0.44-R	5.15196	13.85424	318.46240	14.87	32.88
nLN:Fe-0.89-R	5.15349	13.84612	318.59460	13.45	24.15
nLN:Fe-1.47-R	5.15245	13.84793	318.37750	13.42	23.53
nLN:Fe-2.20-R	5.15265	13.84850	318.41600	12.48	23.14

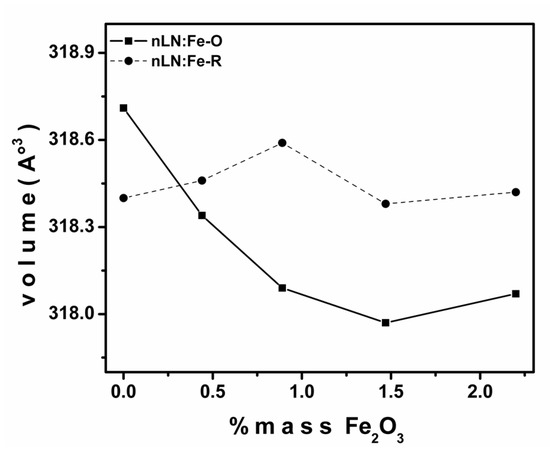

contains this information along with the relevant fitting parameters resultant from the Rietveld analysis described in Appendix A. In the case of nLN:Fe-O, a gradual decrease can be seen in the cell volume up to a Fe-doping concentration equivalent to a 1.47% mass of Fe₂O₃, then it stabilizes for the maximum utilized doping concentration. While a cell volume contraction has previously been addressed to an initial incorporation of Fe³⁺ ions into Nb_Li⁴⁺ and Li⁺ ions in Li sites, its stabilization through further inclusion (Fe²⁺ in this case) implies Nb⁵⁺ substitution in Nb sites [31,32]. Still, because of the low Fe-doping concentrations used in this investigation, we assume that Fe-Nb substitution has not occurred for all samples. Also, in contrast to the work of Y. Y. Li et al., in which it is stated that no Fe-Li substitution occurs for Fe-doping concentrations less than 2 mol% [21], we believe that it does exist whenever Fe is being doped into the LN structure, regardless of its molar concentration. In fact, it could be said that it always exists but is hardly seen without further TTAO.

The observed trend in Figure 3 would be a constant if no TTAO were conducted. Then, its origin cannot be any other than the partial or complete change of the valence state in Fe after TTAO: Fe²⁺ → Fe³⁺. To understand this statement, first it has to be recalled that for more than 25 years or so it has been known that Fe²⁺ and Fe³⁺ coexist in Fe-doped LN [33]. Recently the Fe²⁺/Fe³⁺ ratio has been found to be 0.15 in nanocrystalline Fe-doped LN (no post-thermal treatment) [30]. The ionic radii for Fe²⁺, Fe³⁺, Nb⁵⁺ and Li⁺ are 78, 64.5, 64 and 76 pm, respectively [12,34]. Thus, at low concentrations, not much effort is needed for Fe³⁺ ions to substitute Nb_Li⁴⁺ ions, as well as for Fe²⁺ ions to occupy Li vacancies. Neither of these would affect the lattice parameter abruptly, given the similarity between the ionic radii of elements that are interchanged. As Fe concentration increases gradually, all Nb_Li antisites become filled by Fe³⁺ ions and Li vacancies might be partially filled with Fe²⁺ and partially with Fe³⁺; in this case, a small contraction of the cell volume could be noticed. A further increment of Fe concentration would lead to both, Fe²⁺-Li and Fe³⁺-Li substitution, with the former causing a stronger contraction of the cell which Y. Y. Li et al. did not observe until a concentration of 2 mol% [21]. In this investigation, the application of TTAO homogenizes the valence state of Fe into Fe³⁺, causing a multitudinous decrease of ionic radii from 78 to 64.5 pm of all Fe ions present in Li sites, which in turn leads to a significant contraction of the cell volume. The small increment in the cell volume seen in the last point of the trend discussed so far (nLN:Fe-O) could be explained as to be caused by a partial change in the valence of the Fe ions; 2.20% mass of Fe₂O₃ and higher concentrations have sufficient Fe content so that the TTAO applied with the given experimental conditions cannot change its valence state completely. Finally, a similar discussion on the inverse (Fe³⁺ → Fe²⁺ by TTAH) could explain the relaxation-of-the-cell-volume behavior in the trend observed for the nLN:Fe-R samples. This case, however, does not necessarily imply Fe-Li substitution, although it is permissible since Fe-doping is prior to either TTAO or TTAH.

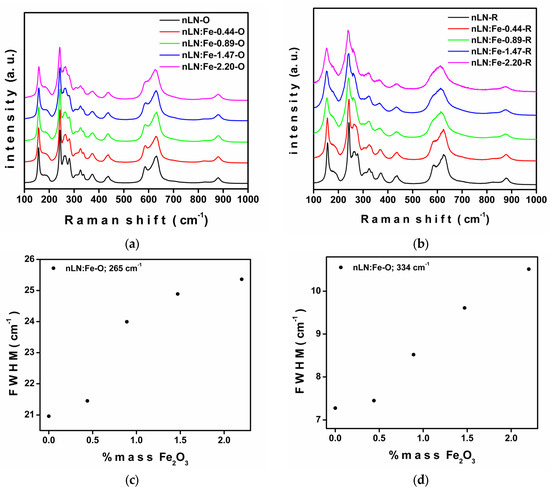

Raman spectra analysis has also been performed as an auxiliary tool to confirm the preliminary conclusions already given above. In short, there are three different vibrational modes which provide information about Fe-Li and Fe-Nb substitution in Fe-doped LN. Vibrational modes corresponding to peaks at 265 and 334 cm⁻¹ are closely linked to Li cation displacements [26]. A consecutive broadening of these peaks with increasing Fe-doping concentration has been interpreted already as a trace for Fe-Li substitution [21]. On the other hand, the evidence for Fe-Nb substitution is to be found in progressive narrowing or intensity increment of the peak centered at 582 cm⁻¹, which corresponds to vibrational mode E(TO₈), closely linked to the Nb-O stretching mode [21]. The obtained results from Raman spectroscopy are shown in Figure 4. It can readily be seen that the changes presented between all the oxidized samples (Figure 4a) are much less than those presented between all the reduced samples (Figure 4b). According to C. Díaz-Moreno et al., the creation of oxygen vacancies at the surface comes along with TTAH, considerably affecting the vibrational modes within the structure [20]. Moreover, the broadening of the three peaks discussed above is evident in the reduced samples, supporting Fe-Li substitution while forbidding Fe-Nb substitution. These implications hold for the oxidized samples even though the broadenings of peaks 265 cm⁻¹ (Figure 4c) and 334 cm⁻¹ (Figure 4d) are not that easily seen. Here Fe-Li substitution appears to saturate at 2.20% mass of Fe₂O₃ and this was not observed in the case of the reduced samples.

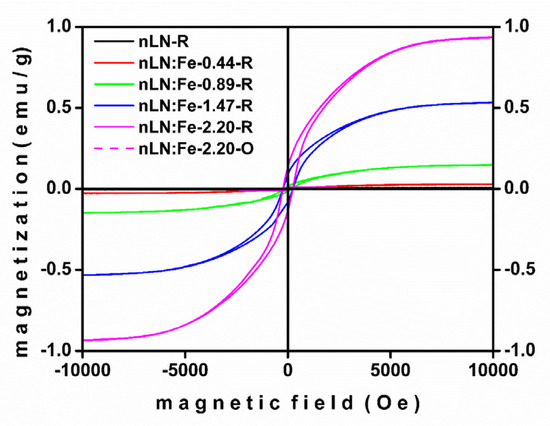

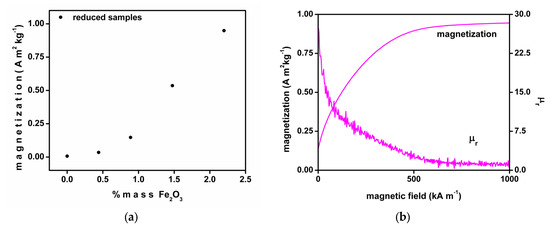

Figure 5 shows the comparison of the hysteresis loops for the reduced samples with different Fe-doped concentrations; the coercitive field, Hc, is constant for all samples with a value of 2 × 10⁴ Am⁻¹ and a maximum M_S = 0.94 Am²kg⁻¹ for the highest doping concentration. Also, is presented the 2.20% mass of Fe₂O₃, for both valence states. It can readily be seen that the magnetization for TTHA is about two orders of magnitude higher than that of TTAO; this is the reason why a detailed analysis of the magnetic properties for samples after TTAO has been herein neglected. Figure 6a shows the expected growing behavior of the magnetization in terms of the doping concentration. Relative permeability was calculated for the sample with 2.20% mass of Fe₂O₃ using the equation ${\mu }_r=1+\chi$ and it was compared with the magnetization curve as seen in Figure 6b. The ${\mu }_r$ does not have a constant behavior and decreases as the applied magnetic field increases; this tendency is typical of the ferromagnetic materials. This behavior is similar for all samples, presenting a decrease of ${\mu }_r$ as the percentage of Fe diminution.

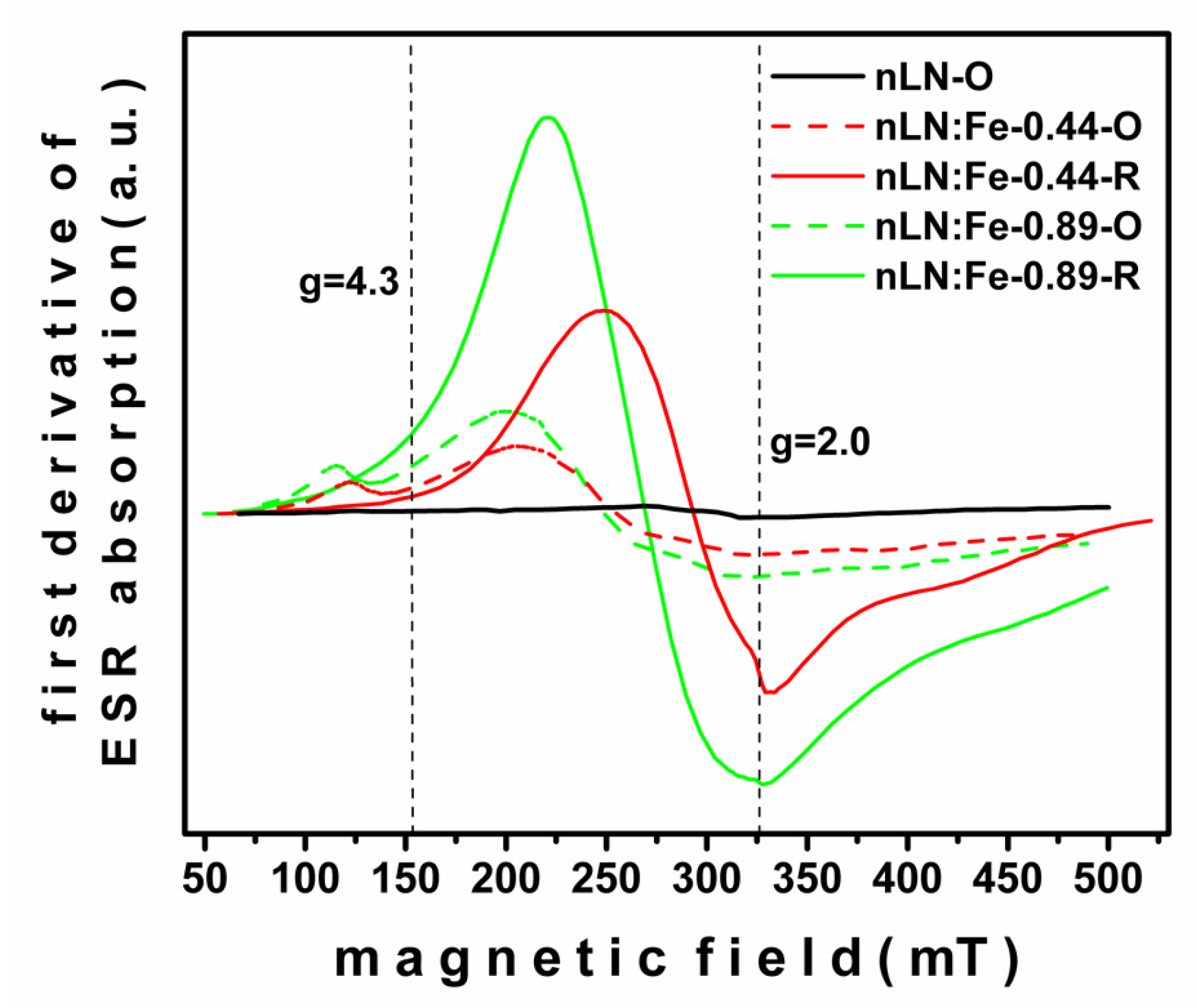

A better understanding of the change in the magnetic properties, from one thermal treatment to another, is to be extracted from the Electron Spin Resonance (ESR) spectroscopy results. These also serve to confirm the interpretation given above to the XRD results. The ESR spectra for samples nLN:Fe—0.44 and nLN:Fe—0.89 after the application of both thermal treatments, are shown in Figure 7. The black line corresponds to nLN without Fe-doping and it does not differ much from the one obtained for a tube used to hold the samples. These spectra are alike to those extracted from single crystal LN doped with a trace of iron (Fe³⁺), as one could have guessed (see Figures 1 and 2 in Ref. [35]). Nevertheless, a better similarity to ERS spectra obtained for some “65-million-year-old glasses and rocks from the Cretaceous-Tertiary boundary” can be noticed (Figures 1 and 2a–c) in Ref. [36]). Straightforwardly, from the analysis given by Griscom et al. (Discussion section in Ref. [36]), a local broadened maximum around g = 4.3 is an unmistakable trace for paramagnetic Fe³⁺ (g is defined by the equation $h\nu =g\beta H$, h is Planck’s constant, ν the spectrometer frequency, $\beta$ the Bohr magnetron and H is the magnitude of the applied magnetic field at resonance). Likewise, a value g = 2.0 placed in a zone between another local maximum followed by a local minimum (nearer to the minima) is a characteristic of a lesser contribution of Fe³⁺ to the spectra and, it is also very likely to imply a much stronger contribution arising from Fe²⁺ ions. Hence this being said, a bigger net magnetization observed for the continuous lines in Figure 7 has its origin from a major population of Fe²⁺ ions with respect to Fe²⁺ inside the LN structure, of which the application of TTAH is the main cause. Contrastingly, the application of TTAO promotes the transition Fe²⁺ → Fe³⁺ that shortens the net magnetization (non-continuous lines). Notwithstanding, in this case a shift of approximately 30 mT towards lower values of H is observed. This might come from a strong interaction of the Fe³⁺ ions with their surroundings as a result from the cell volume contraction, described above in the discussion given of XRD results. Finally, it is worth to mention that the obtained ESR spectra support the description derived from XRD and Rietveld analysis, that is, the contraction/relaxation of the cell volume for low Fe-doping concentrations as a response to a multitudinous change of the Fe ionic radii, caused and tuned by a proper post-thermal treatment.

4. Conclusions

The systematic generation of oxygen vacancies after Fe-doping in nanocrystalline lithium niobate (nLN) could result in an effective enhancement of its magnetic behavior at room temperature, in contrast to that in equivalent nLN materials restricted to the application of only one of these processes. The increment in the magnetic coefficients (0.96 Am²kg⁻¹ at maximum) is likely to be rather large and unexpected and it could be attributed to two main mechanisms. On one hand, to a proper control of the state of valence for the Fe ions that adopt the LN structure (reduction). On the other, through isolation of changes in structure and vibrational modes in LN. Both of these can be simultaneously obtained with the application of a post-thermal treatment in a controlled atmosphere of ultra-high purity hydrogen (TTAH). These arguments have their basis in the exciting fact of the possibility of room temperature ferromagnetic behavior in Fe-doped nLN with low concentrations, observed herein for a concentration lesser than 1% mol. This subject must be further investigated, so that for instance, the threshold for the presence of ferromagnetic behavior in this type of materials is determined. Meanwhile, it seems to be clear now that in these concentration regimes, post-thermal treatment is a key point not only for the inducement of ferromagnetic properties but also for their detection and quantitative analysis.
