Thermal Expansion and Electro-Elastic Features of Ba₂TiSi₂O₈ High Temperature Piezoelectric Crystal

Abstract

A high-quality Ba₂TiSi₂O₈ (BTS) single crystal was grown using the Czochralski (Cz) pulling method. The thermal expansion and electro-elastic properties of BTS crystal were studied for high temperature sensor applications. The relative dielectric permittivities ${\epsilon }_{11}^T/{\epsilon }_0$ and ${\epsilon }_{33}^T/{\epsilon }_0$ were determined to be 16.3 and 11.8, while the piezoelectric coefficients d_15, d_31, d₃₃ were found to be 17.8, 2.9, and 4.0 pC/N, respectively. Temperature dependence of electro-elastic properties were investigated, where the variation of elastic compliance $s_{55}^E$ (= $s_{44}^E$) was found to be <6% over temperature range of 20–700 °C. Taking advantage of the anisotropic thermal expansion, linear thermal expansion comparable to insulating alumina ceramic was achieved over temperature range up to 650 °C. The optimum crystal cut with large effective piezoelectric coefficient (>8.5 pC/N) and linear thermal expansion coefficient (8.03 ppm/°C) achieved for BTS crystal along the (47°, φ) direction (φ is arbitrary in 0–360°), together with its good temperature stability up to 650 °C, make BTS crystal a promising candidate for high temperature piezoelectric sensors.

1. Introduction

High temperature piezoelectric sensors operational above 600 °C are in great demand for industries, such as automotive, aerospace and power plants, etc. [1,2,3,4,5]. As the heart of piezoelectric sensors, the piezoelectric materials are usually required to possess the merits of high sensitivity and electrical resistivity, broad temperature usage range and stable piezoelectric sensitivity [6,7,8].

Among the actively studied high-temperature piezoelectric crystals [9,10,11,12,13], Ba₂TiSi₂O₈ (BTS) was found to exhibit no structural phase transition prior to its melting point of 1445 °C and large thickness shear piezoelectric coefficient d₁₅ of 18 pC/N [14,15]. The electrical resistivities ρ₁₁ and ρ₃₃ were found to be 1.9 × 10⁷ and 3.6 × 10⁹ Ω·cm at 600 °C, respectively [15,16], higher than the values of disordered langasite type crystals [17,18], while comparable to the ordered langasite type crystal Al doped Ca₃NbGa₃Si₂O₁₄ [8]. Of particular interest is that the BTS crystal belongs to the tetragonal phase with point group of 4mm, thus possessing three independent piezoelectric coefficients [19], which will benefit the design of optimum piezoelectric crystal cut without piezoelectric cross-talks. All these features indicate the potentials of BTS crystal for high temperature piezoelectric applications.

In addition to the electrical resistivity and piezoelectric properties, the thermal parameter is another important factor for sensor applications. The thermal effect could affect the accuracy and stability of sensors, for example the quartz crystal microbalance devices, the microelectromechanical systems and the piezo-resistance sensors etc. [20,21,22]. For high temperature piezoelectric sensor fabrication, the thermal expansion nonlinearity plays a negative impact on the stability of piezoelectric performance over a broad temperature range, while the mismatch of thermal expansion for different components in a sensor would cause the packaged device failure under thermal cyclic loading [23]. The thermal expansion anomaly of BTS crystal around 180 °C [15,24] will restrict its further implementation at elevated temperatures.

In order to explore the optimum piezoelectric crystal cut for high temperature sensor applications, in this work, high quality BTS single crystals are grown and the electro-elastic properties, together with the thermal expansion behavior, are studied as a function of temperature and crystallographic orientation. The optimum crystal cut with large piezoelectric coefficient and suitable thermal expansion over a broad temperature range is explored.

2. Materials and Methods

2.1. Single Crystal Growth

High-purity raw materials BaCO₃ (4N, Alfa Aesar), TiO₂ (4N, Alfa Aesar), SiO₂ (4N, HWRK CHEM) were used to grow Ba₂TiSi₂O₈ single crystals. An excess of TiO₂ (2%) was added to the starting components [16]. The weighted raw materials were put in a plastic jar (no more than 2/3 of the volume) then fix the plastic jar into a mixer (YGJ-5KG, no use of ZrO₂ balls) and run for 10 h. The mixed raw materials were then pressed into tablets. The tablets were first calcined at 1000 °C for 12 h and then sintered at 1300 °C for 15 h to achieve the compound following the solid-state reaction process:

2BaCO₃ + TiO₂ + 2SiO₂ = Ba₂TiSi₂O₈ + 2CO₂↑

The sintered compound was charged into iridium crucible for crystal growth by Czochralski (Cz) pulling method. The pulling and rotation rates were set to be 0.3–0.6 mm/h and 10–14 rpm, respectively. In order to avoid the crystal crack after growth, the as-grown crystal was cooled down to room temperature at a slow rate of 10–30 °C/h and then annealed at 1300 °C for 24 h.

2.2. Crystal Quality Evaluation

Due to the relatively high content of SiO₂ (40 mol% in BTS), the melt solid solution was prone to form amorphous phase during the growth process, thus hard to obtain the high-quality single crystal. For evaluating the crystalline quality, the as-grown BTS crystal was sliced into three square plates with the thickness of 1 mm along the growth direction (Z-axis). The high resolution X-ray diffraction (HRXRD, Bruker-axs D5005, Bruker-axs, Karlsruhe, Germany) tests were performed on the square plates at room temperature.

2.3. Property Characterizations

For the thermal expansion measurement, the rectangular samples with dimension ratio of 3:4:5 (thickness: width: length) were prepared and tested using a thermal dilatometer (Netzsch, model DIL402C Netzsch, Selb, Germany). The heating rate was 5 °C/min over temperature range of 25 °C to 500 °C.

BTS crystal belongs to 4 mm point group, the physical X-, Y- and Z- axes are parallel to the crystallographic directions of [100], [010] and [001], respectively. The BTS crystal has eleven nonzero independent electro-elastic constants, including two relative dielectric permittivities (${\epsilon }_{11}^T/{\epsilon }_0$ and ${\epsilon }_{33}^T/{\epsilon }_0$), six elastic constants ($s_{11}^E,s_{12}^E,s_{13}^E,s_{33}^E,s_{44}^E$ and $s_{66}^E$) and three piezoelectric coefficients (d₃₁, d₃₃, and d₁₅).For evaluating the dielectric, elastic and piezoelectric properties of BTS crystal, the crystal cuts with different piezoelectric vibration modes were prepared.

Table 1. Crystal cuts and corresponding electro-elastic constants for BTS crystal.

Crystal Cuts	Vibration Modes	Material Constants	Related Equations
X-plate	Thickness shear	${\epsilon }_{11}^T,s_{55}^E,$k15, d15	$\frac{{\epsilon }_{11}^T}{{\epsilon }_0}=\frac{C_{p}t}{A{\epsilon }_0}$ $s_{55}^E=\frac{1}{4\rho {(t{f}_a)}^2(1-k^2)}$ $d_{15}=k_{15}\sqrt{{\epsilon }_{11}^T{s}_{55}^E}$ $k^2=\frac{\pi }{2}\frac{f_r}{f_a}cot\frac{\pi }{2}(\frac{f_r}{f_a})$
Z-bar	longitudinal extensional	d33, k33	$s_{33}^E=\frac{1}{4\rho {(t{f}_a)}^2(1-k^2)}$ $d_{33}=k_{33}\sqrt{{\epsilon }_{33}^T{s}_{33}^E}$
Z-plate		${\epsilon }_{33}^T$	$\frac{{\epsilon }_{33}^T}{{\epsilon }_0}=\frac{C_{p}t}{A{\epsilon }_0}$
ZX cut	length extensional	d31, $s_{11}^E$	$d_{31}=k_{31}\sqrt{{\epsilon }_{33}^T{s}_{11}^E}$ $s_{11}^E=\frac{1}{4\rho {(l{f}_r)}^2}$
ZXtw(θ) θ = 30°,45°	length extensional	$s_{12}^E,s_{66}^E$	$s_{11}^{E^{\prime }}(\theta )=\frac{1}{4\rho {(l{f}_r)}^2}$ $s_{11}^{E^{\prime }}(\theta )=s_{11}^E(co{s}^4\theta +si{n}^4\theta )+(2s_{12}^E+s_{66}^E)co{s}^2\theta si{n}^2\theta$
ZYw(φ) φ = 45°	length extensional	$s_{13}^E$	$s_{22}^{E^{\prime }}(\phi )=\frac{1}{4\rho {(l{f}_r)}^2}$ $s_{22}^{E^{\prime }}(\phi )=s_{11}^{E}co{s}^4\phi +s_{33}^{E}si{n}^4\phi +(2s_{13}^E+s_{55}^E)co{s}^2\phi si{n}^2$

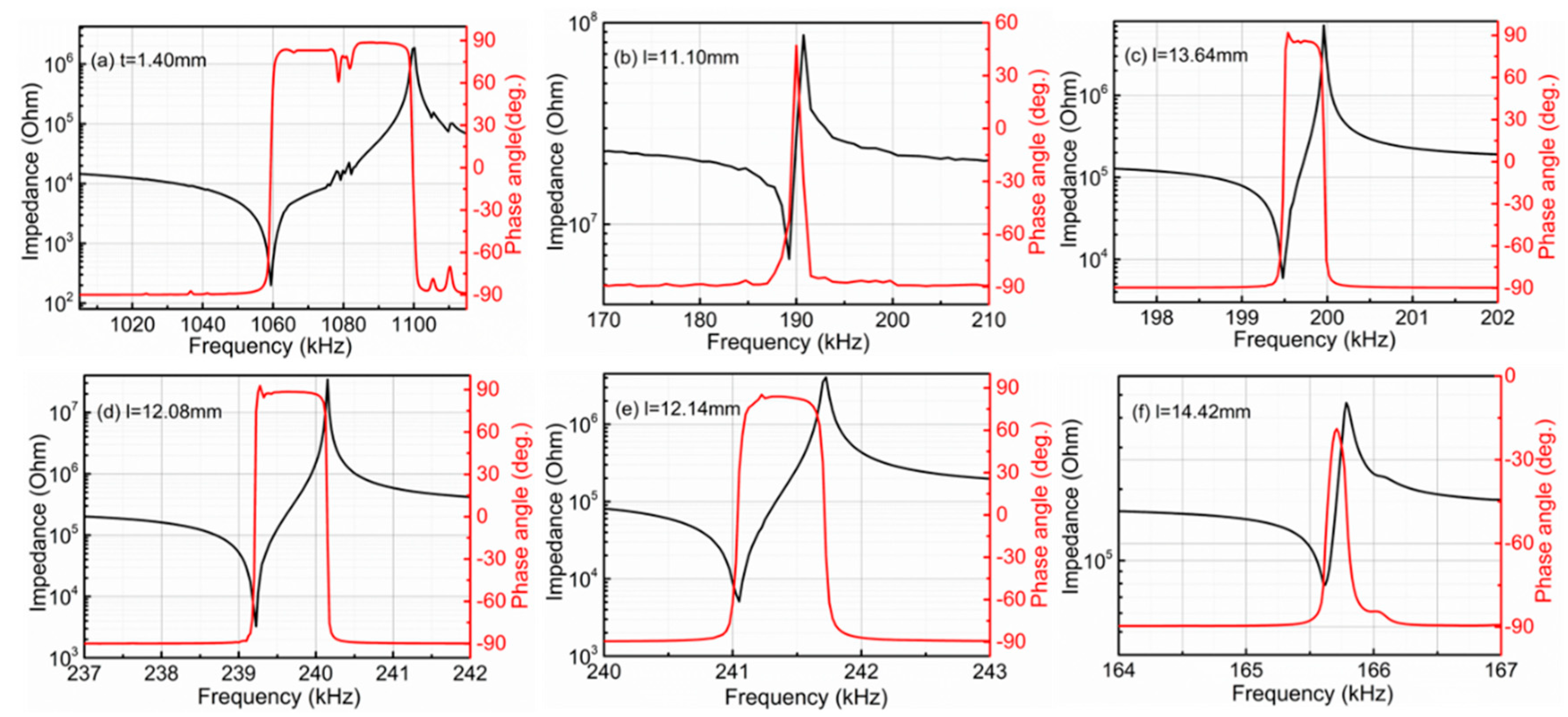

lists the crystal cuts used for measurements by impedance method and the corresponding material constants. The equations used for parameter evaluation are referred to the IEEE standard on piezoelectricity [25]. In this work, the dielectric permittivities were determined using a multi-frequency LCR meter (HP4263B) (Agilent, Santa Clara, CA, USA), the resonance and anti-resonance frequencies for different vibration modes were measured by using an impedance network analyzer (E4990A) (Keysight, Santa Rosa, CA, USA). All the samples were sputtered with platinum films (200 nm in thickness).

The elastic stiffness constants could be extracted from the ultrasonic phase velocity by pulse-echo ultrasonic method, which was performed on two different kinds of rectangular BTS samples. The dimension ratio (t:w:l) of the samples was ranged from 3:4:5 to 4:5:6. For the first crystal cube, the orientations of the thickness, width and length were parallel to the physical X- , Y- and Z-axes, respectively. For another crystal cube, the orientation of the thickness was parallel to the Z-axis, while the orientations of the width and length were 45° deviating from the Y- and X- axes. Based on the measured acoustic velocities along different directions of the samples, the elastic constants were calculated using Equations (1)–(5).

$$\rho v_{z/x}^2=c_{44}^E$$

(1)

$$\rho v_{x/x}^2=c_{11}^E$$

(2)

$$\rho v_{x^{\prime }/x^{\prime }}^2=\frac{c_{11}^E+c_{12}^E}{2}+c_{66}^E$$

(3)

$$\rho v_{x/y}^2=c_{66}^E$$

(4)

$$\rho v_{z/z}^2=\frac{c_{33}^E}{\left(1-k_t{}^2\right)}$$

(5)

In this study, the electric pulses used to excite the transducer were generated by a Panametrics 200 MHz pulser/receiver (Panametrics, Waltham, MA, USA), and the time of flight between echoes were measured using the Tektronix 460A digital oscilloscope (Tektronix, Beaverton, OH, USA).

3. Results and Discussion

3.1. Crystal Quality and Thermal Expansion Evaluation

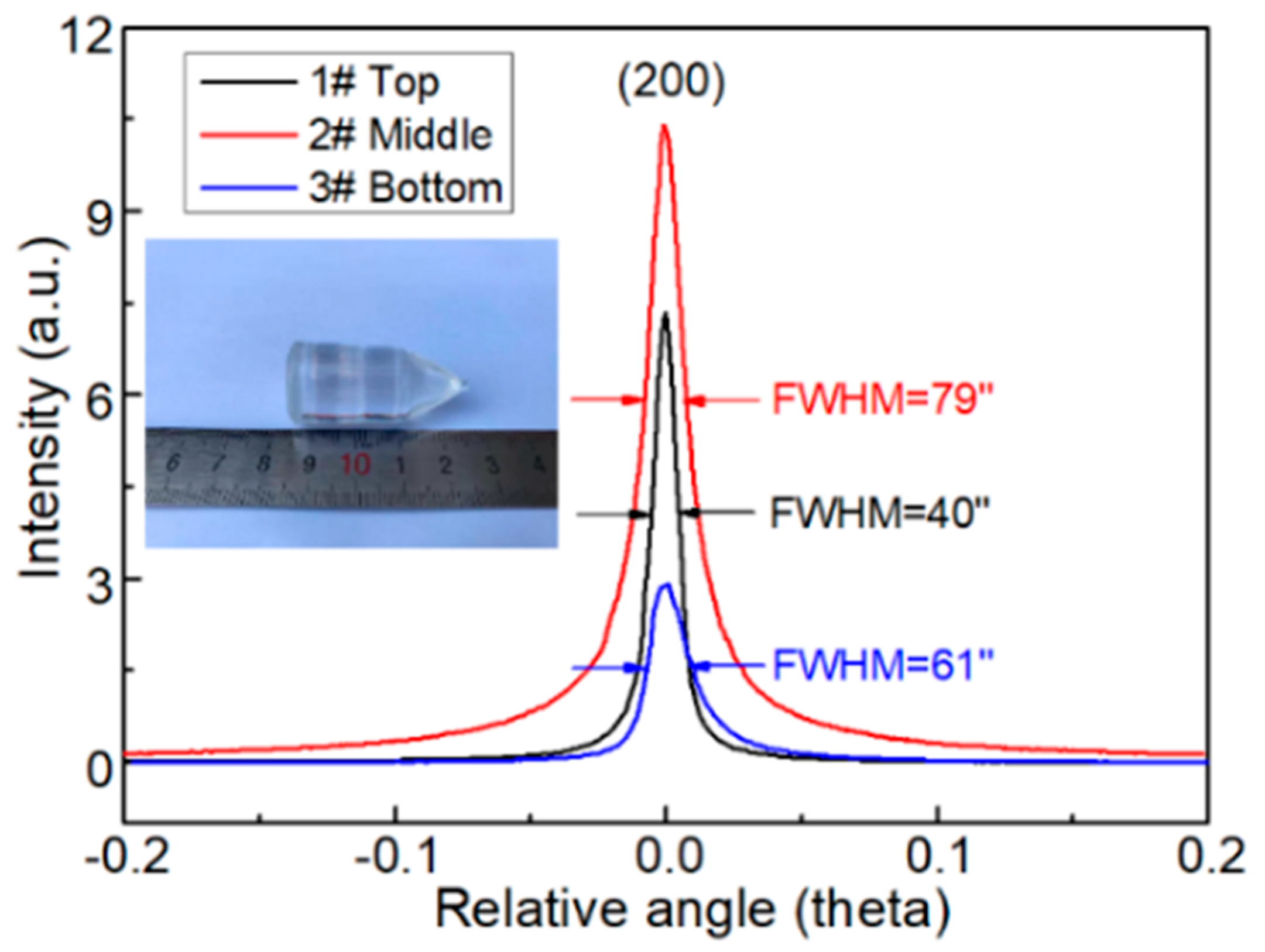

The as-grown BTS crystal is transparent and colorless, as shown in the small inset of Figure 1. The crystal quality is characterized using HRXRD, based on the recorded rocking curves of the (200) facet, the full-width half maximum (FWHM) is obtained and found to be 40″–79″, indicating the good structure integrity and crystal quality of the grown BTS crystal. The different FWHM values for different parts in BTS crystal might arise from the segregation of components during the crystal growth process, which affects the crystal quality to an extent, as described in Ref [16]. In addition, the possible glass phase formation [26] in local bulk crystal is deemed another factor affects the crystal quality.

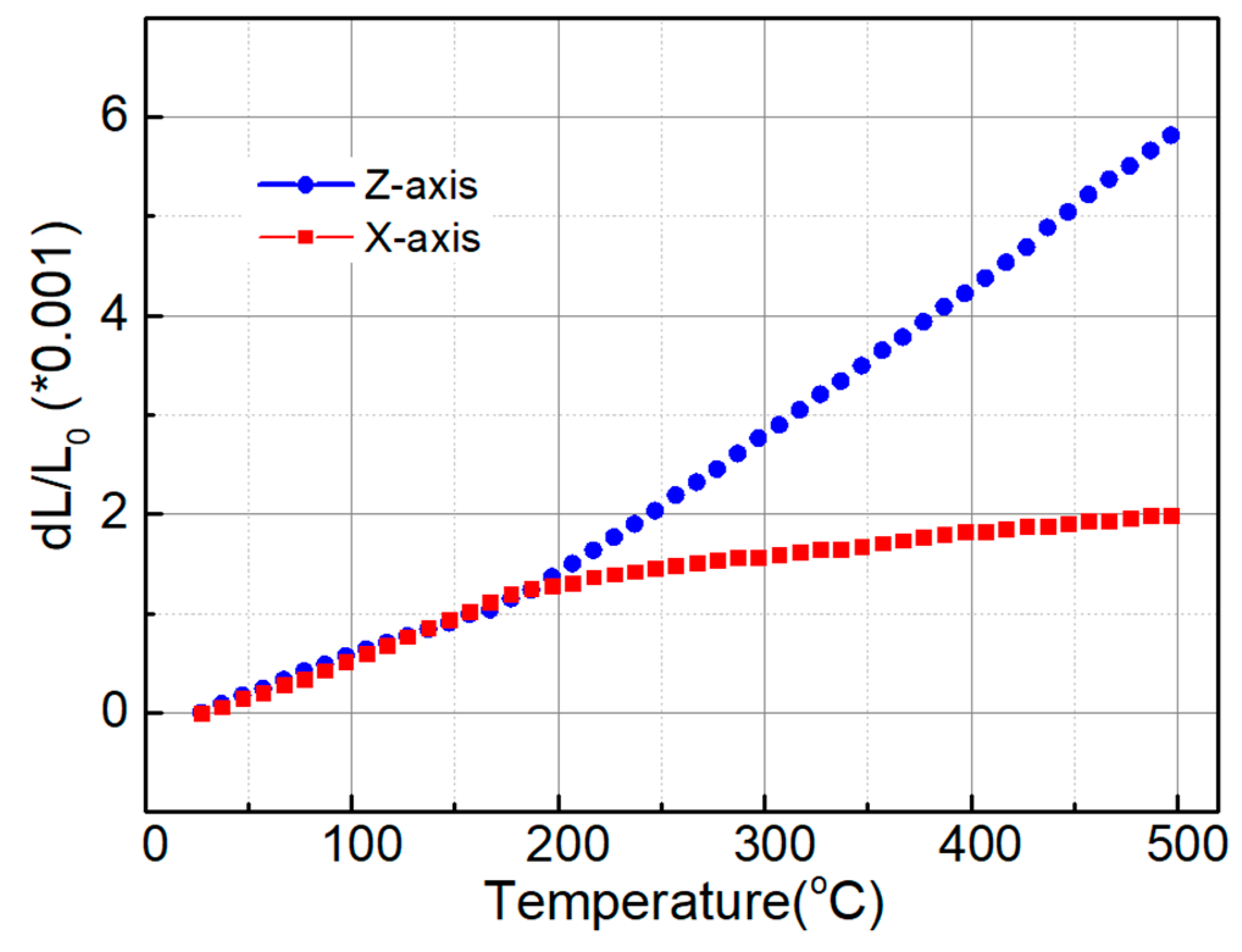

The thermal expansion behavior of BTS crystal is studied along the physical X- and Z-axes, and the results are presented in Figure 2. It is found that the linear thermal expansion coefficients along the X- and Z- axes are very close (7.96–7.98 ppm/°C) over the temperature range of 25–180 °C. However, a turning point is found at round ~185 °C, above which, the thermal expansion coefficients α₁₁ and α₃₃ show a large discrepancy up to 500 °C, being on the order of 2.3 ppm/°C and 15.0 ppm/ °C, respectively. This phenomenon is attributed to the fact that the bond strength of the Ba-O bonds along the Z-axis is much weaker than those of Si-O and Ti-O bonds lying inside the X-Y plane. In addition, the thermal expansion anomaly around 185 °C is associated with the incommensurate phase transition [24].

3.2. The Electro-Elastic Properties

Table 2. The bulk acoustic wave velocities of BTS crystals.

Velocity (m/s)	${\mathit{v}}_{\mathit{x}/\mathit{x}}$	${\mathit{v}}_{\mathit{z}/\mathit{x}}$	${\mathit{v}}_{\mathit{x}/\mathit{y}}$	${\mathit{v}}_{{\mathit{x}}^{\prime }/{\mathit{x}}^{\prime }}$	${\mathit{v}}_{\mathit{z}/\mathit{z}}$
Pulse-echo I	6161	2828	3952	6228	4714
Pulse-echo II	6182	2993	3960	6268	4802

lists the measured bulk acoustic wave velocities along different orientations of BTS crystal. The acoustic velocities have taken the average value of the twice tests (written as pulse-echo I and pulse-echo II). The longitudinal velocity along the X^’-axis (V_x/x) is found to be the highest, while the transverse velocity propagating along the Z-axis (oscillating along the X-axis) is the lowest, being on the order of 2828 m/s. Based on the measured acoustic velocities, the elastic stiffness constants are calculated. The elastic compliance constants are evaluated based on the resonance and/or anti-resonance frequencies measured by impedance method.

Table 3. Summary of the elastic constants of BTS.

Constants	Pulse-Echo Method	Impendence Method	Supported Values	Ref [15]	Ref [28]
$s_{11}^E$		7.5	7.5	7.5
$s_{12}^E$		−1.5	−1.3	−1.2
$s_{13}^E$		−3.2	−3.5	−3.0
$s_{33}^E$		13	13	13
$s_{44}^E$		25.5	25.5	32.2
$s_{66}^E$		14.3	14.3	14.2
$c_{11}^E$	17.0	16.9	17.0	15.9	16.55
$c_{12}^E$	3.9	5.7	5.6	4.4	5.77
$c_{13}^E$	/	5.6	5.8	4.7	4.36
$c_{33}^E$	9.7	10.4	10.4	9.9	9.99
$c_{44}^E$	3.8	3.9	3.9	3.1	3.17
$c_{66}^E$	7.0	7.0	7.0	7.0	6.49

summarizes the elastic constants obtained by the combination of impedance and pulse-echo methods. It needs to mention that the $c_{13}^E$ cannot be obtained directly, which can be indirectly extracted from the effective elastic stiffness constants by solving a coupled Christoffel equation, leading to a relatively large error in the numerical procedure [27]. According to the self-consistency of the elastic constants, the supported values are also listed. It is noticed that the elastic stiffness $c_{11}^E$ is higher than the $c_{33}^E$, this may arise from the fact that the Ba-O bonds (parallel to Z-axis) are weaker than the Si-O and Ti-O bonds (inside the flat sheets) [14,15].

Table 4. Summary of the electro-elastic constants of BTS crystals.

	${\mathit{\epsilon }}_{\mathit{i}\mathit{i}}^{\mathit{T}}/{\mathit{\epsilon }}_0$			k (%)				dij (pC/N)
	${\mathit{\epsilon }}_{11}^{\mathit{T}}/{\mathit{\epsilon }}_0$	${\mathit{\epsilon }}_{33}^{\mathit{T}}/{\mathit{\epsilon }}_0$	k33	k15	k31	kt	d31	d33	d15
BTS	16.3	11.8	11.4	29.3	10.2	20	2.9	4.0	17.8
Ref [14]	15	11	11	28	10		2.7	3.8	18
Ref [15]	16.5	10.8	11.4	25.5	10.1	16.2	2.7	4.0	17.5
Ref [28]				34		23

summarizes the relative dielectric permittivity, electromechanical coupling factor and piezoelectric coefficients of BTS crystals. The relative dielectric permittivities ${\epsilon }_{11}^T/{\epsilon }_0$, and ${\epsilon }_{33}^T/{\epsilon }_0$ are determined at 100 kHz and found to be on the order of 16.3 and 11.8, respectively. Figure 3 illustrates the impedance spectra of the crystal cuts of the BTS crystal measured at room temperature (t is sample thickness and l is sample length). From the measured resonance and antiresonance frequencies, the piezoelectric coefficients d₁₅, d₃₁ and d₃₃ are calculated to be on the order of 17.8, 2.9, and 4.0 pC/N, respectively, in good agreement with the reported values [14,15]. The clear resonance and anti-resonance peaks and high phase angle indicate the low dielectric loss of BTS crystals. The dielectric loss at room temperature in air was measured to be ~0.5% at 100 kHz.

3.3. Temperature Dependence of Electro-Elastic Constants

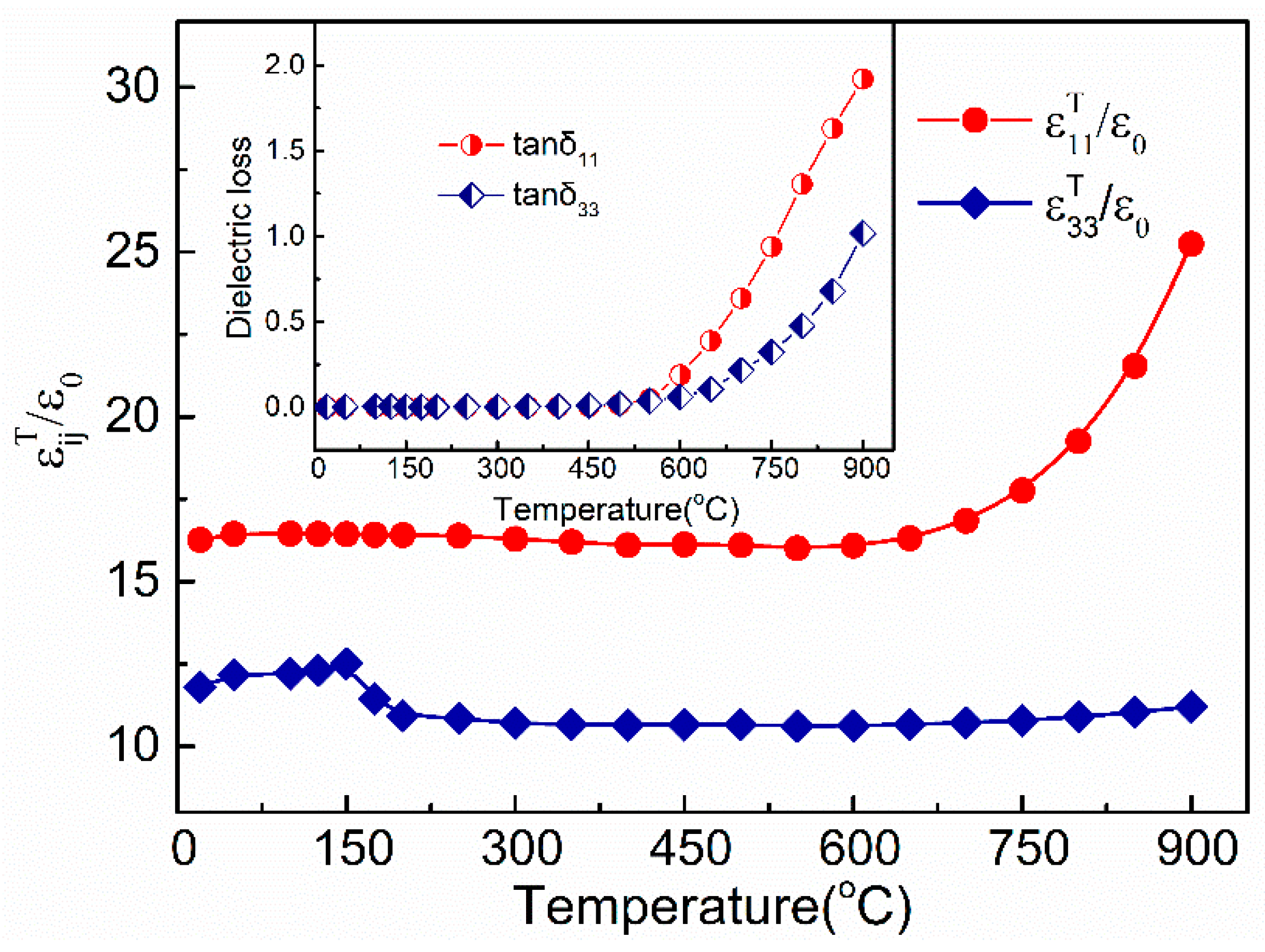

Figure 4 presents the dielectric behaviors along the X- and Z-directions as a function of temperature up to 900 °C. The relative dielectric permittivity ${\epsilon }_{11}^T/{\epsilon }_0$ is found to maintain the similar values of 16.3–16.0 up to 600 °C, above which, the permittivity is increased rapidly with increasing temperature to 900 °C. On the contrary, the relative dielectric permittivity ${\epsilon }_{33}^T/{\epsilon }_0$ is found to descend slightly from 11.8 to 11.2, showing minimal variation over the whole temperature range, with the exception of a small anomaly at 150 °C, corresponding to the incommensurate phase transition. The dielectric losses tan${\mathsf{\delta }}_{11}$ and tan${\mathsf{\delta }}_{33}$ (shown in the small inset of Figure 4) are found to maintain low values up to 600 °C, being around 18% and 6%, respectively. Above 600 °C, the dielectric loss increases quickly, due to the increase of ionic conduction in BTS crystal. The relatively low dielectric loss $\tan {\delta }_{33}$ at elevated temperatures is associated with the relatively high electric resistivity along the Z direction [16].

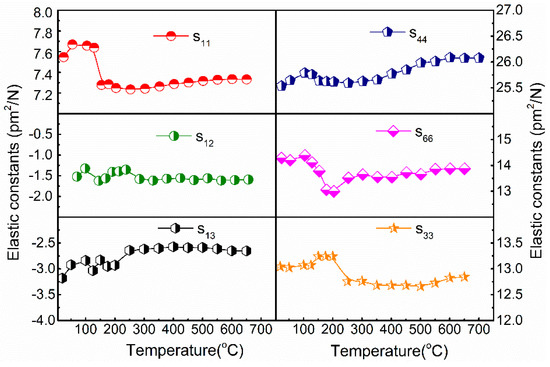

The temperature dependence of the elastic constants for BTS crystal is investigated over temperature range of 20–700 °C. Results are presented in the Figure 5. The elastic constants $s_{11}^E$, $s_{33}^E$, $s_{44}^E$ and $s_{66}^E$ are observed to show anomaly near the temperature of 150 °C, which is associated with the incommensurate phase transition [15,24]. The overall variations of the elastic compliance constants ($s_{11}^E$, $s_{33}^E$, $s_{44}^E$ and $s_{66}^E$) are below 6% over the tested temperature range.

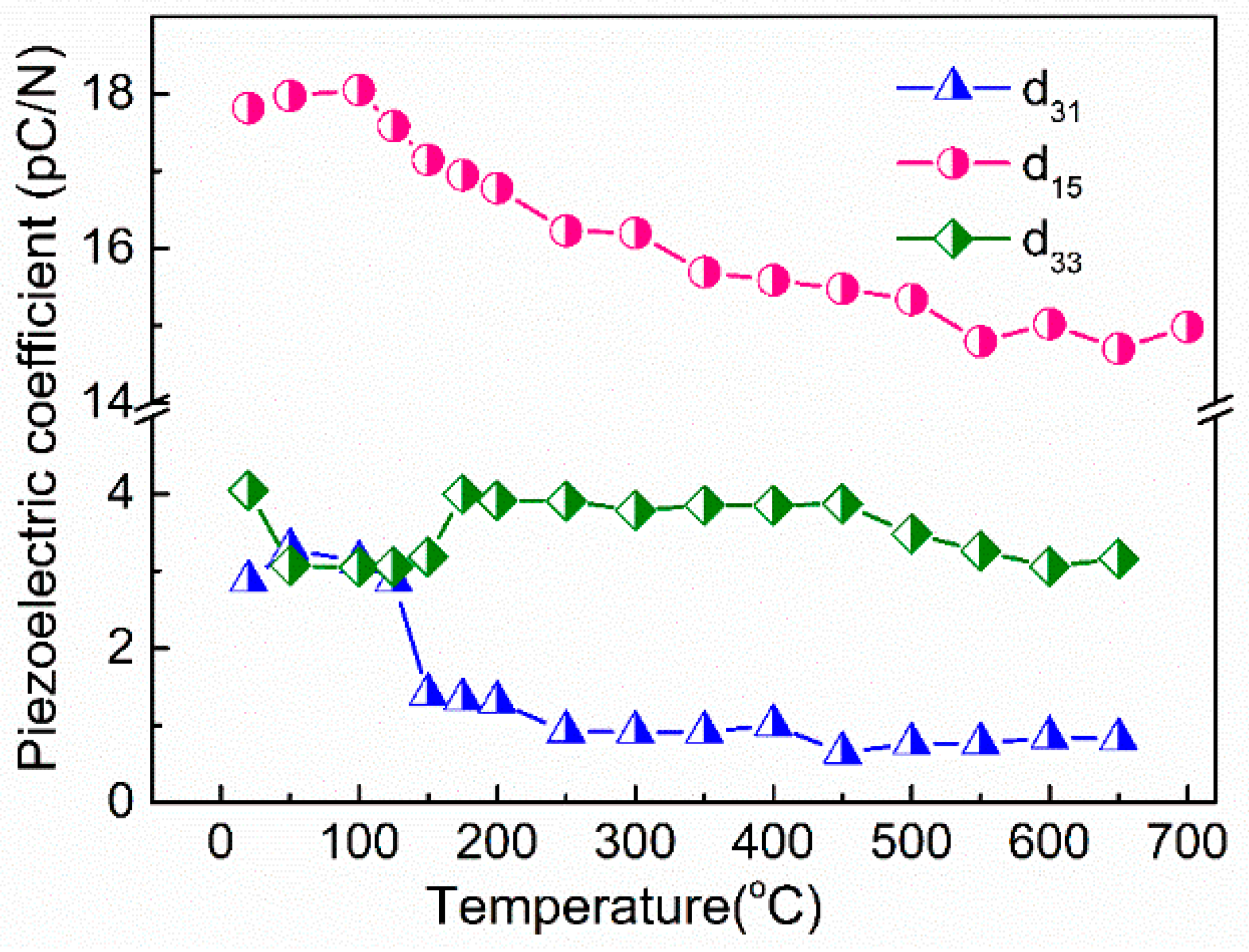

Based on the temperature dependent dielectric permittivity and elastic constants, the piezoelectric coefficients for BTS crystal as a function of temperature are also investigated. Results are presented in Figure 6. As can be observed, all the piezoelectric coefficients d₁₅, d₃₁ and d₃₃ show anomaly in the temperature range of 100–150 °C. The d₁₅ and d₃₁ are found to decrease slightly over the temperature range of 20–700 °C, from 17.8 pC/N and 2.9 pC/N at room temperature to 14.9 pC/N and 0.82 pC/N at 700 °C. The piezoelectric coefficient d₃₃ exhibits a decrease near the incommensurate phase transition temperature, where the overall variation is minimal.

3.4. Design of The Optimum Piezoelectric Crystal Cut

The figures of merit of piezoelectric crystal for high temperature piezoelectric sensors include, but not limited to, sensitivity, resistivity, temperature stability and usage temperature range. In addition, the crystal cut without piezoelectric cross-talk is also very important to avoid the electric charge interference, while the thermal expansion matching with package component is critical for the robust and reliability of the sensors. Based on the thermal expansion behaviors of BTS crystal discussed in Section 3.1, the thermal expansion anomaly over the entire temperature range could be eliminated by thermal expansion compensation. The anisotropy of thermal expansion over different temperature ranges (a: 25–185 °C; b: 185–500 °C) are studied and results are given in Figure 7a,b, respectively, from which we can find the optimum crystal cuts with the same thermal expansion coefficient. Figure 7c shows the variation of thermal expansion coefficients as a function of spatial orientation. As expected, the linear thermal expansion coefficient is achieved along the direction of 47° deviated from Z-axis, which we can label as direction k and write as (θ, φ), θ is the angle between k and the Z-axis (here θ = 47°), and φ is the angle between the X-axis and projection of k in XY-plane (here φ is arbitrary in the range of 0–360°).

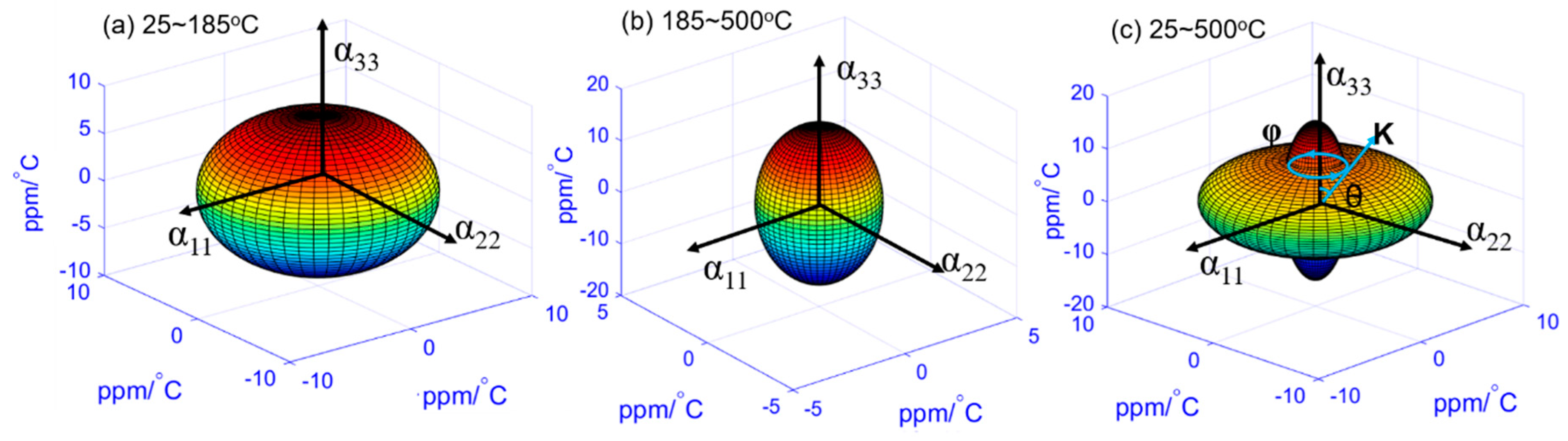

For confirmation, the variation of thermal expansion coefficients ${\alpha }_{33}^{*}$ (in the ranges of 25–185 °C and 185–500 °C) for BTS crystal cut rotated around X-axis in the Z-Y plane were studied. The effective thermal expansion coefficient ${\alpha }_{33}^{*}$ for crystal cut rotated around X-axis in the Z-Y plane can be expressed by the following equations:

$${\alpha }_{33}^{*}={\alpha }_{11}{\sin }^2\theta +{\alpha }_{33}{\cos }^2\theta$$

(6)

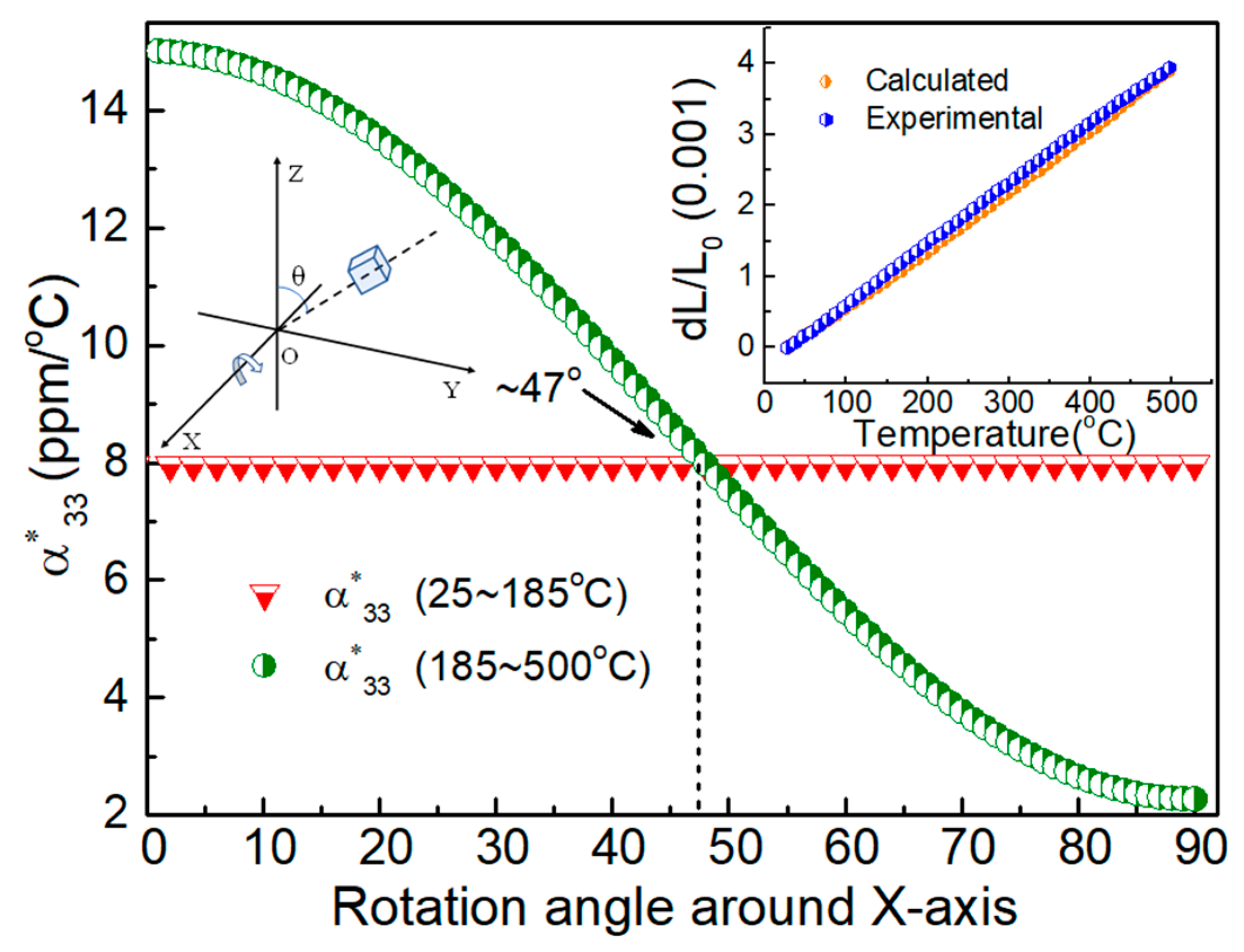

Figure 8 gives the ${\alpha }_{33}^{*}$ as a function of rotation angle around X-axis, where we can see that the expansion coefficients below and above the incommensurate phase transition temperature of 185 °C merges at ~47°. This result is further experimentally verified by measuring the thermal expansion of (ZXl)-47° crystal cut, of which the thermal expansion coefficient is found to be on the order of 8.03 ppm/°C, very close to the calculated result of 7.98 ppm/°C (small inset of Figure 8). Of particular significance is that the effective thermal expansion coefficient of the (ZXl)-47° crystal cut can match with the alumina ceramic (α = 8.0 ppm/°C) [29], which is generally used for the insulating component in sensor devices, thus guarantee the robust and reliability of the device under thermal cycling condition.

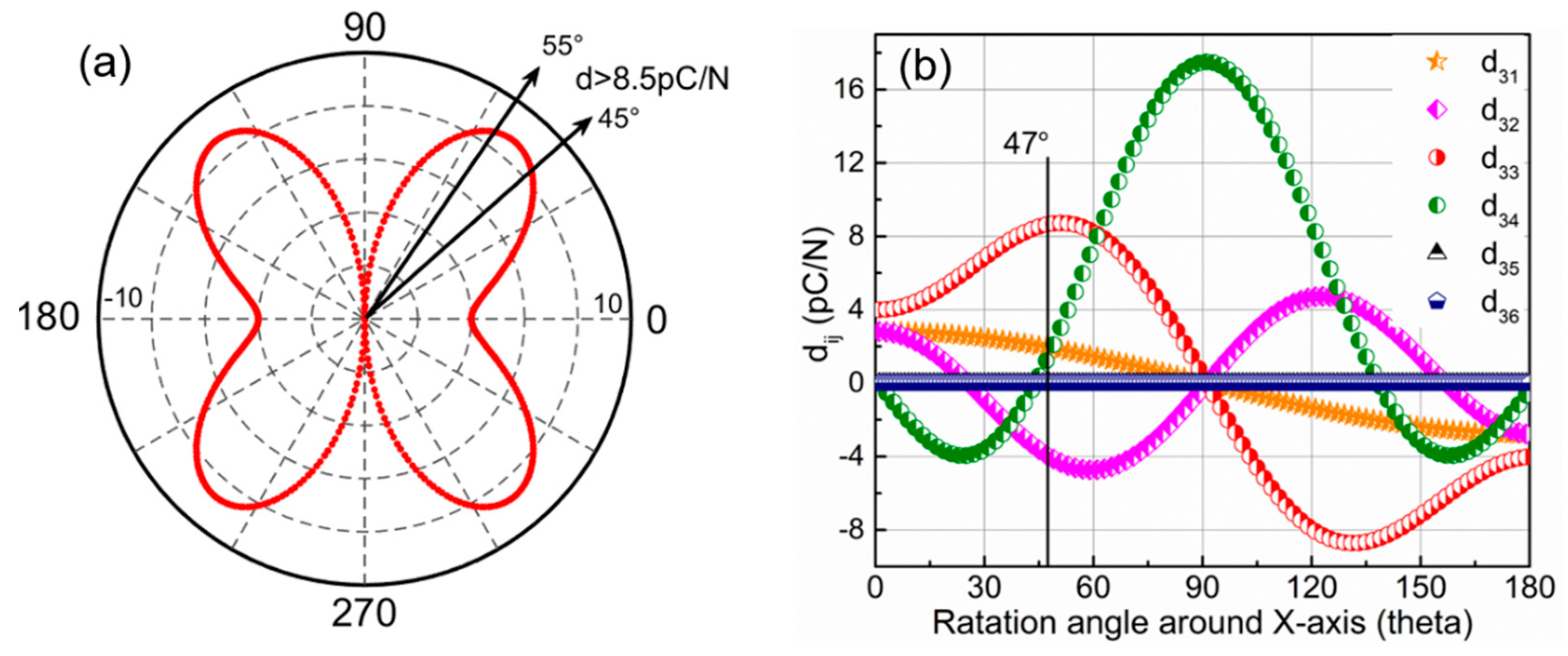

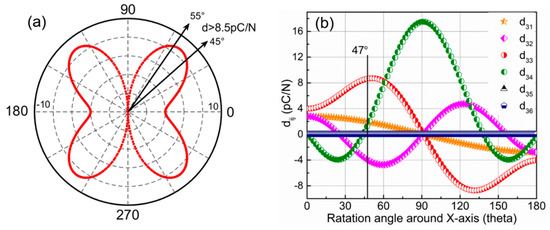

In addition to the thermal expansion, crystal cut with optimum piezoelectric coefficient is also studied in this work. Figure 9a shows the orientation dependence of the effective piezoelectric coefficient $d_{33}^{*}$ as a function rotation angle around X-axis. After rotation around X-axis for θ angle, the effective piezoelectric coefficient $d_{33}^{*}$ and elastic constant $s_{33}^{*}$ can be calculated according to the following equations:

$$d_{33}^{*}=\cos \theta (d_{15}{\sin }^2\theta +d_{31}{\sin }^2\theta +d_{33}{\cos }^2\theta )$$

(7)

$$s_{33}^{*}={\sin }^2\theta \left(s_{11}{\sin }^2\theta +s_{13}{\cos }^2\theta \right)+{\cos }^2\theta \left(s_{13}{\sin }^2\theta +s_{33}{\cos }^2\theta \right)+\frac{1}{4}{s}_{44}{\sin }^{2}2\theta$$

(8)

Results show that the highest longitudinal piezoelectric coefficient $d_{33}^{*}$ (±8.7 pC/N) could be achieved in (ZXl)±50°, similar results are also obtained for (ZYl) ±50° crystal cuts. Of particular interest is that high effective piezoelectric coefficient above 8.5 pC/N can be achieved for crystal cut with rotation angle in the range of 45°–55° (Figure 9a). Moreover, it is observed from Figure 9b that the (ZXl)-47° crystal cut not only possess a high piezoelectric coefficient $d_{33}^{*}$ (>8.5 pC/N), but also low shear piezoelectric coefficients d₃₄, d₃₅, and d₃₆, with values approximate to zero, which could significantly reduce the interference from different vibration modes for piezoelectric sensors. It worth to point out that the highest piezoelectric coefficient $d_{33}^{*}$ for BTS crystal can be obtained along the direction of k (θ, φ) (θ = 45°–55°, and φ is an arbitrary angle in the range of 0–360°).

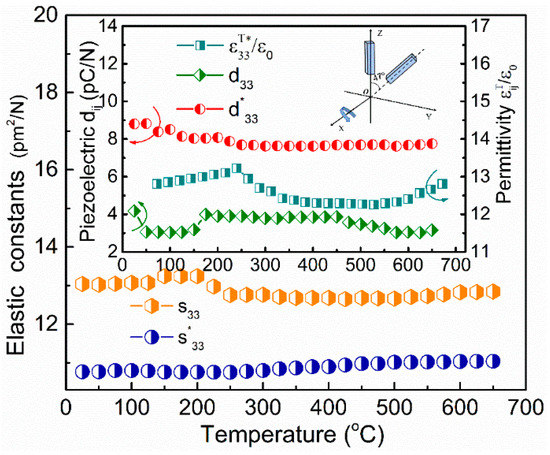

Based on the above anisotropy analysis for the thermal expansion and piezoelectric properties, the elastic and piezoelectric properties of the selected (ZXl)-47° crystal cut, which possesses the linear thermal expansion, are studied. Figure 10 gives the temperature dependent behaviors of the effective piezoelectric coefficient $d_{33}^{*}$, elastic compliance $s_{33}^{*}$ and relative permittivity ${\epsilon }_{33}^{T*}/{\epsilon }_0$ for the (ZXl)-47° crystal cut, together with the original d₃₃ and s₃₃ for comparison. It is interesting to find that the anomalies in elastic compliance and piezoelectric coefficient at ~180 °C are eliminated for the (ZXl)-47° crystal cut, whereas the anomaly in ${\epsilon }_{33}^{T*}/{\epsilon }_0$ is still distinct, with the maximum variation is around 4%. The total variation of effective elastic compliance $s_{33}^{*}$ is < 3% over the tested temperature range. Comparing to the piezoelectric coefficient d₃₃ (the maximum variation is ~28% from room temperature to 650 °C), the effective piezoelectric coefficient $d_{33}^{*}$ for (ZXl)-47° crystal cut (upper inset in Figure 10) exhibits much improved temperature stability, which decreases monotonously from 8.8 at room temperature to 7.7 pC/N at 650 °C.

4. Conclusions

High quality BTS single crystals were grown by using the Cz method. The thermal expansion and electro-elastic properties were studied as functions of temperature and orientation. Combining the thermal expansion and piezoelectric anisotropic characteristics in BTS crystal, the crystal cuts along the direction of (47°, φ) (φ is arbitrary in 0–360°) was designed and determined to possess linear thermal expansion coefficient α^*₃₃ and large piezoelectric coefficient $d_{33}^{*}$, being on the order of 8.03 ppm/°C and 8.8 pC/N, respectively. Of particular importance is that the linear thermal expansion coefficient of these crystal cuts is matchable with the alumina ceramic, which is insulating component of the sensor device, together with good temperature stability of the effective piezoelectric coefficient $d_{33}^{*}$ up to 650 °C, make BTS crystal a promising candidate for high temperature sensor devices with high reliability and thermal stability.
