Long-Term Fertilization Alters the Storage and Stability of Soil Organic Carbon in Chinese Paddy Soil

by
Adnan Mustafa
1,†,
Hu Xu
2,†,
Nan Sun
1,*,
Kailou Liu
3,
Qinghai Huang
3,
Mohammad Tahsin Karimi Nezhad
4 and
Minggang Xu
1,5,*
1
State Key Laboratory of Efficient Utilization of Arid and Semi-Arid Arable Land in Northern China, Key Laboratory of Arable Land Quality Monitoring and Evaluation, Ministry of Agriculture and Rural Affairs, Institute of Agricultural Resources and Regional Planning, Chinese Academy of Agricultural Sciences, Beijing 100081, China
2
Key Laboratory of Plant Nutrition and the Agri-Environment in Northwest China, Ministry of Agriculture and Rural Affairs, College of Resources and Environment, Northwest A&F University, Xianyang 712100, China
3
Institute of Red Soil Research, Jinxian 331700, China
4
Department of Forest Ecology, The Silva Tarouca Research Institute for Landscape and Ornamental Gardening, Lidicka 25/27, 60200 Brno, Czech Republic
5
Shanxi Province Key Laboratory of Soil Environment and Nutrient Resources, Institute of Eco-Environment and Industrial Technology, Shanxi Agricultural University, Taiyuan 030031, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Agronomy 2023, 13(6), 1463; https://doi.org/10.3390/agronomy13061463
Submission received: 27 April 2023 / Revised: 21 May 2023 / Accepted: 23 May 2023 / Published: 25 May 2023
(This article belongs to the Special Issue Carbon Farming: Agriculture’s Solution to Climate Change)
Browse Figures
Versions Notes

Abstract

:
The storage of soil organic carbon (SOC) in cropland soils is an essential strategy that serves the dual purpose of enhancing soil fertility and mitigating climate change. However, how the stability of stored carbon is altered under long-term fertilization has not been well understood, especially in the double rice cropping system in Chinese paddy soils. In this study, we explored the SOC storage and consequent stability of SOC under long-term fertilization. The soil samples were fractionated chemically to isolate various fractions and constituent pools of SOC (i.e., very labile C/VLC, labile C/LC, less labile C/LLC, and non-labile C/NLC). The following treatments were tested: control (CK), recommended rate of inorganic fertilizer (NPK), double the amount of recommended rate of inorganic fertilizer (2NPK), and NPK combined with manure (NPKM). The results showed that, relative to the initial level, the application of NPKM significantly improved the SOC storage as compared to the control. The long-term NPKM increased the total SOC in the paddy soil and this increased SOC was mainly stored in LLC, as revealed by the highest increase (142%) over the control. Furthermore, the highest proportion of labile pool was associated with unfertilized CK, while the reverse was true for the recalcitrant pool, which was highest under NPKM. This supports the role of combining manure with NPK to improve the stability of SOC, further verified by the high recalcitrance index under NPKM (56.75% for 0–20 cm and 57.69% for 20–40 cm) as compared to the control.

1. Introduction

Soil organic carbon (SOC) is the key contributor to soil fertility and crop productivity, potentially controlling the nutrient cycling and promoting physical, chemical, and biological soil health. The storage of SOC is the outcome of a net balance between carbon (C) accumulation (through the addition of amendments) and decomposition (through abiotic and microbial oxidation) in agro-ecosystems [1]. The accumulation of SOC is regulated by the type and intensity of soil management practices, land use types, climatic fluctuations, and edaphic factors [2]. The continuous and compositionally heterogeneous nature of SOC necessitates the identification and isolation of fractions with varying stability to facilitate a comprehensive understanding of the influence of long-term management practices on soil fertility [3,4,5]. Therefore, it becomes imperative to ascertain the impacts of management strategies on SOC dynamics.
The application of organic and inorganic fertilizers to arable soils is the most commonly reported management strategy for improving soil fertility and quality [6,7,8]. Manure addition in agricultural fields enhances C input and so does the SOC pool, while the inorganic fertilizer might have a positive, negative, or near neutral influence on SOC pools [9,10,11,12]. Moreover, the addition of organic and inorganic fertilizers enhances crop biomass and yields which ultimately increases crop residue inputs and hence SOC [13,14]. The storage and stability of SOC depends on C stabilization mechanisms which are categorized as: (a) inherent recalcitrance; (b) spatial inaccessibility; and (c) organo-mineral interactions [3,15,16]. To better describe these stabilization mechanisms, the SOC is separated into labile and recalcitrant pools with differing stability [12,17]. The labile pool is characterized by fast turnover rates representing products of a microbial origin and live microbes [1,18]. This labile pool changes quickly under the influence of management practices and derives the flux of nutrients in agro-ecosystems [2,19]. However, the less labile and non-labile C pool is characterized by the stabilized fractions of SOC which are protected against microbial degradation due to the formation of organo-mineral interactions [20]. Since this pool is considered stable, its evaluation provides the basis to understand and improve SOC sequestration [12,21]. It is well-established in the literature that organo-mineral associations stabilize organic C against biodegradation in a variety of ways, including: (1) adsorption of organic matter to mineral surfaces [22,23]; (2) formation of metal-organic matter complexes [24,25]; and (3) occlusion of organic matter within aggregates [15,26]. Thus, to understand the soil fertility change and C sequestration potential of fertilization, the labile and recalcitrant C pools are separated and quantified [2]. However, to date, the understanding of the influence of long-term fertilization on SOC stability by altering recalcitrant C pool has been limited. The SOC in subsoil depths is assumed to be stable [27,28] as it is found in association with soil minerals showing biochemical recalcitrance and physical protection in deep soil [2]. Moreover, almost half of the SOC is found below 30 cm [2,29] showing the potential of subsoil to sequester and stabilize SOC. Therefore, understanding the dynamics of SOC pools in subsoil provides deeper insights into the effects of long-term management practices. It is worth noting that the term subsoil refers to the layer immediately below the topsoil [30], however, different works define topsoil and subsoil depths based on their sampling strategies.
Red soils (Ultisols, as referred by the FAO soil classification system) represent 30% of Chinese arable soils, covering 2.04 million km2 in tropical and subtropical areas of China [31,32]. These soils are a base for the high food demands for the growing population, especially fulfilling the need for rice [33,34] due to favorable climatic conditions. In general, these paddy soils have been characterized as having higher SOC stocks as compared to their counterpart upland soils in the same region [35,36]. Previously, it has been reported that the application of long-term fertilization has resulted in the enhanced accumulation of SOC [34,37]. However, most of the studies on these typical soils have explored the SOC dynamics of the surface soil. Moreover, the intensive cultivation (rice–rice) associated with higher chemical fertilization and enhanced soil erosion has resulted in the degradation and loss of soil fertility. Therefore, more studies are required to assess the actual benefits of long-term nutrient management practices on the stability of SOC and its inter-depth variations at (0–20 cm and 20–40 cm) depths. Therefore, we took advantage of a long-term fertilization experiment with red paddy soil to assess the changes in soil fertility at different depths. The specific aims were: (i) to assess changes in the accrual of SOC in the soil profile (0–40 cm); and (ii) to assess variations in SOC stability as revealed by pools separated by chemical fractionation and their sensitivity to long-term fertilization.

2. Materials and Methods

2.1. Site Description

The long-term experiment was commenced in 1981 at Jinxian (28°15′30″ N, 116°20′24″ E, elevation 30 m above sea level), managed by the Institute of Red Soil, Jinxian Town, Jiangxi, China. The soil is a loam and classified as a Stagnic Anthrosols (IUSS working group) [38] and a red paddy soil in the Chinese classification system, originally derived from Quaternary Red Clays. The soil sampled in 1981 had SOC 16.2 g kg−1, TN 0.95 g kg−1, TP 0.05 g kg−1, TK 1.07 g kg−1, C:N 10.5, pH of 6.9, and clay contents (<0.002 mm) of 26.6% [32]. The climate is subtropical humid monsoon, the mean annual precipitation is 1627 mm, and the mean annual temperature is 18.1 °C.

2.2. Experimental Design and Treatments

This long-term experiment had a double rice cropping system (rice–rice–winter fallow), which represents the most common cropping practice of this area. The early rice was grown from April to early July, and the late rice from the middle of July to late October. Rice seedlings, 30 days old, were transplanted manually in the experimental field plots. Crops were harvested manually close to the ground and all harvested biomass was removed from the plots. Each experimental plot had an area of 46.67 m2 with each treatment replicated three times, in a randomized complete block design. The following treatments were the tested control (CK), recommended rate of inorganic fertilizer (NPK), double the amount of the recommended rate of inorganic fertilizer (2NPK), and NPK combined with manure (NPKM). The inorganic fertilizers were supplied as urea, calcium-magnesium phosphate, and potassium chloride, while for the early rice the source of manure was milk vetch (Astragalus sinicus L.) with the following composition: water contents 80%, organic carbon 39.24%, and organic nitrogen 3.01%; and for late rice it comes from pig manure having the following composition: water content 70%, organic carbon 41.38%, and organic nitrogen 2.09%. All of the P, K, and manure fertilizers were applied as a basal dose, while 60% of N fertilizer was applied as a basal dose before the rice seedling transplantation. The remaining 40% N fertilizer was applied in equal portions at the panicle initiation stage. The annual doses of arranged treatments in this site are presented in (Table 1).

2.3. Soil Sampling and Analyses

Composite soil samples were obtained in 2010 by collecting three auger samples from each of the replicated plots from 0–20 (topsoil) and 20–40 cm (subsoil) depth intervals after the crop harvest. Crop remains, dead roots, and pebbles were removed. Soil samples were brought to the lab after air drying and passed through a 2 mm sieve for further analysis. A portion of the soil samples were crushed and passed through a 0.15 mm sieve for the analysis of SOC, TN, and different fractions of C. The separate soil samples were collected from each plot and two depths following the ring method (volume of 100 g cm−1) for measuring bulk density [39]. For SOC quantification, the samples were processed to remove carbonates and then ground. The content of SOC and TN was analyzed using a CHN analyzer (EA–3000, EuroEA Elemental Analyzer, EuroVector, Pavia, Italy).

2.4. Oxidizable Organic Carbon and Its Fractions

Different fractions of oxidizable organic carbon were determined following a modified Walkley–Black method [40]. This involved using different concentrated H2SO4 resulting in three acid–aqueous solution ratios corresponding 12, 18, and 24 N of H2SO4, respectively, and caused the oxidation of SOC by the produced heat [41]. The amount of oxidizable organic carbon was determined using 5, 10, and 20 mL of concentrated sulfuric acid, which allowed for the separation of total organic carbon into four fractions of decreasing oxidizability, as defined by Chan et al. [40].
In this regard, each chemically isolated SOC pool was calculated as the difference between the total SOC (TOC) and the SOC content after the treatment, as shown in (Table 2).
Subsequently, in line with the study objectives, the very labile and labile C were pooled as the labile pool, while the less labile and non-labile C were the recalcitrant pool [40]. Moreover, the recalcitrance index was measured as a ratio of recalcitrant pool/labile pool [42].
Furthermore, the SOC stock (Mg ha−1) was calculated from the following equation:
SOC stock (Mg ha−1) = Cconc × Bd × D × 10
where Cconc represents the SOC concentration (g kg−1), Bd is the bulk density (Mg cm−3), D is the soil depth interval, and 10 is the unit conversion factor.

2.5. Statistical Analyses

Data processing and statistical analysis were performed using MiniTab 21.3 (MiniTab Inc., State College, PA, USA, 2022) and Microsoft Excel 2019 (Microsoft Corporation, Redmond, WA, USA). Two-way ANOVA with separation of means by Tukey test (p < 0.05) was used to examine the impacts of treatments on soil BD, total SOC, SOC (NLC, VLC, LC, LLC) and corresponding pools, total N, C:N ratio, and RI. Additionally, linear regression as well as bivariate association analyses were conducted to evaluate the link between the content of selected organic C fractions to the total SOC. Pearson correlation (heat map) was plotted using R software version 4.2.3.

3. Results

3.1. Lability and Stability of SOC in Top and Subsoil

Considerable differences were examined for the distribution of C contents in fractions of SOC and its pools under the 29-years-long fertilization. Generally, higher SOC contents were observed in the top layer as compared to the deep layer (20–40 cm) for VLC, LC, LLC, and NLC (Figure 1a,b). The application of manure in combination with inorganic fertilizer (NPKM) significantly (p < 0.0001) increased the SOC contents of VLC, LLC, and NLC compared to the control treatment. However, the effect of NPKM on the content of LC was not statistically significant (Figure 1a). Moreover, this effect was only pronounced in the 0–20 cm layer. These findings for SOC fractions were patterned as 0–20 > 20–40 for soil depths, while for treatments it patterned as NPKM > 2NPK ≈ NPK > CK (Figure 1a,b). Furthermore, the highest increase in SOC contents under NPKM over control (142%) in 0–20 cm was observed in LLC, suggesting that these fractions are the most responsive in the accumulation of SOC (Figure 1b). These results were further verified by a two-way ANOVA showing the significant (p < 0.001) effects of treatment, depth, and their interaction on LLC (Supplementary Materials, Table S1).
In addition, the labile and recalcitrant pools mirrored the findings of relevant fractions. Specifically, the application of different fertilizer regimes for 29 years did not change the labile pool (LP) relative to the control (Figure 2a). The addition of two levels of inorganic fertilizers (NPK and 2NPK) non-significantly decreased the labile pool as compared to the control, while NPKM yielded higher values of LP but remained non-significant to the control (Figure 2a). Moreover, the labile pool considerably decreased in the following trend 0–20 > 20–40 (Figure 2a). Contrarily, the recalcitrant pool was considerably higher in the fertilized treatments as compared to the control and found in the order 0–20 > 20–40 (Figure 2). In this case, the application of NPKM and 2NPK yielded the highest (RP), ranging between 64.21 and 24.40%, respectively, in the topsoil layer (Figure 2a). Moreover, the treatments, soil depths, and their interaction had a significant effect on RP (Table S1). Furthermore, the proportion of LP and RP varied among the applied treatments and soil depths (Figure 2b). The highest proportion of LP was associated with the unfertilized CK soil while the lowest proportion was with the NPKM treatment. The reverse was true for RP, whereby the highest proportion was found under NPKM treatment, which was statistically significant as compared to CK (Figure 2b). This suggests the potential of combining manure with NPK fertilizers for stabilizing higher amounts of C in soil. This was further verified by the findings of the recalcitrance index which was significantly higher under NPKM (56.75% for 0–20 cm and 57.69% for 20–40 cm) treatment as compared to the control (Figure 3a). In addition, a strong positive relationship of RI was found with total SOC for topsoil as compared to subsoil (Figure 3b).

3.2. Soil Basic Characteristics in Top and Subsoil

The soil basic properties exhibited significant differences following long-term fertilization, as expected. These properties vary greatly between both soil depths (Table 3). The soil BD was the most affected and increased with increasing depth intervals. The application of 2NPK and NPKM resulted in the highest values (1.57 and 1.56 Mg m−3), respectively, in 20–40 cm which were significantly different than those in 0–20 cm (1.21 and 1.06 Mg m−3, respectively). The highest SOC was observed under NPKM (22.94 g/kg), which was 30% higher than the control in the 0–20 cm layer (Table 3). In this case, the higher values were associated with the surface rather than the sub-surface soil layer. A similar SOC trend was observed for TN, whereby the application of NPKM significantly enhanced TN contents by 33.62% as compared to the control in the 0–20 cm soil layer. The same treatment significantly enhanced the SOC stocks by 15.4% in the 0–20 cm soil depth as compared to the control; however, no significant effect was observed for the 20–40 cm soil depth. The soil C:N, however, remained statistically unchanged under fertilization treatments with higher values observed for the unfertilized control (Table 3).

3.3. Relationships among Observed Attributes

A significant (p < 0.05) linear relationship was found between labile pool and bulk SOC in both soil layers (0–20 and 20–40 cm) (Figure 4a). It can be seen that the slope of the relationship for the bottom soil layer is higher than that of the topsoil. A similar trend was observed for the recalcitrant–SOC relationship. However, no significant relationship was found for the SOC–recalcitrant contents in the 20–40 cm soil layer (Figure 4b). Linear regression analysis showed that there was a significant relationship between the recalcitrance index (RI) and the total SOC content for the topsoil layer only (Figure 3b). This means that a higher RI value (recalcitrant pool/labile pool ratio) led to higher total SOC content in the topsoil layer, suggesting that recalcitrant pool contributes significantly to the SOC content of the surface soil.
Pearson correlation analysis for the two soil layer datasets is shown in (Figure 5). The topsoil dataset (Figure 5) displayed a strong positive correlation between total SOC and its fractions (r = 0.702–0.978) and SOC-TN (r = 0.996 at p < 0.0001). However, SOC is not significantly correlated with labile C fractions.
In contrast to the topsoil dataset, no significant correlation was found in the subsoil layer for the inter-organic C relationships (i.e., SOC with isolated fractions), except for the SOC very labile C (r = 0.886 at p < 0.01) and SOC labile pool (r = 0.649 at p < 0.05). This indicates that increasing SOC will result in an increase in labile C. No substantial correlation was found for SOC-TN, implying that the total N content in the bottom soil layers was not significantly regulated by the soil organic carbon content (Figure 5).

4. Discussion

Higher accumulation and distribution of SOC in VLC, LLC, and NLC pools in manure and NPK-treated soils can be attributed to the higher amount of decomposed organic manure (pig and or milk vetch) and a higher rate of its decomposition [43] which resulted in a greater amount of VLC in the present study. Moreover, the enhancement of crop yields and biomass under the combined application of NPK and manure has been well acknowledged [8]. The enhanced crop yield and root biomass would resultantly increase labile C inputs in the soil, ultimately increasing the contribution of labile C in soil [29,44]. These results are substantiated with the findings of Sun et al. [10] who found a similar pattern to the one observed in the present study. Additionally, our observations revealed that the highest accumulation of SOC occurred in the LLC (Figure 1a), indicating that this fraction was the most responsive to SOC accumulation. These findings are in line with Mandal et al. [17] who observed that organic amendments derived C accumulated more in LLC and NLC. Moreover, the enhanced LLC and NLC under NPKM addition might be associated with the fact that the manure might be partially decomposed with an increased recalcitrant compound [45]. These findings stand in agreement with Belay-Tedla et al. [46] who reported that the application of manure resulted in enhanced lignin (recalcitrant compound of decomposition). The correlations among different SOC fractions and bulk contents as well as labile and recalcitrant pool (Figure 4a,b and Figure 5) demonstrate their interconversion. This shows that some of the labile C might become incorporated into NLC, or NLC into LC, through the microbially enhanced mineralization of manure [47]. Manure, combined with NPK, has been recognized to improve SOC stability [12,48]. We found higher recalcitrant pool in soils fertilized with either inorganic manure or combined with manure–NPKM treatments (Figure 2). These results are in accord with the findings of Zhou et al. [12] who found higher recalcitrant pool under long-term fertilization in four cropland soils in China. However, these results contrast with the findings of Chen et al. [49] who found higher labile pool under integrated fertilizer treatments. Such contradictions could be due to the quantity and quality of the added manure types [10]. Moreover, a higher proportion of the total SOC of recalcitrant pool was found in the sub-surface (20–40 cm) layer amounting (55%), with the higher proportion being observed for the NPKM treatment (Figure 2b). These results could be due to (i) the inherent recalcitrance of the applied manure and its interaction with soil minerals in the deep layer [50]; or (ii) the stimulatory effect of the combined nutrient treatment on crop root biomass [44] and reduced access of microbes to available SOC for decomposition [2]. Soil microbes in the sub-surface layers are more distant from the rhizosphere, resulting in decreased microbial activity and biomass, ultimately limiting the decomposition of SOC in the deeper soil layers [51,52]. Thus, this higher accumulation of C into recalcitrant pool explains higher values of recalcitrance index (RP/LP) (Figure 3), which might be due to the intercalation of OC in soil clay minerals, which ultimately increases the chemical recalcitrance of SOC [53,54].
Increasing SOC and TN contents under NPKM treatment (Table 3) in the present study are in line with several previous works that describe increased SOC and TN under long-term fertilization [55,56,57,58]. Bhattacharyya et al. [59] reported enhanced SOC contents in bulk soil through addition of manure combined with NPK fertilization in India. Moreover, Li et al. [60] and Mustafa et al. [48] found higher TN in soils subjected to long-term NPKM application in a Chinese Mollisol, which was related to higher OM input and improved soil physico-chemical properties. Furthermore, the higher SOC and TN in the surface soil layer (0–20 cm) might be associated with higher root and plant biomass coming to the topsoil and the reduced concentration of nutrients associated with the lower microbial biomass in the sub-surface layers [61,62]. The soil C and N dynamics in the topsoil are regulated by management practices [63] which corroborate well with the findings obtained in the present study, in which different fertilization treatments had different effects on SOC and TN and their effects were more pronounced in the topsoil as compared to the subsoil (Table 3). Interestingly, no significant correlation was found for the SOC–C:N ratio suggesting that the total SOC content of topsoil was not significantly controlled by SOC turnover. The long-term fertilization significantly enhanced SOC stocks (Table 3) which were higher in the surface than the sub-surface soil layers. These findings are substantiated with Abrar et al. [14] who reported the highest SOC storage in the topsoil layer under long-term fertilization in a Chinese Mollisol. In another study, Zhou et al. [11] found a depreciation in SOC stocks with increasing soil depths, a pattern similar to the one observed in the present study (Table 3). Furthermore, the highest SOC stocks were observed under manure combined with inorganic fertilizer application, which is directly linked to the higher OC derived from manure and its stabilization in soil as also revealed by a higher proportion of passive carbon pool under this treatment. The higher SOC stocks with manure application could also be due to the better soil aggregation and encapsulation of C in soil aggregates under manure addition [57,64]. Previous studies have reported that NPKM treatment could significantly enhance crop yields, resulting in higher C addition from crop biomass to soil [65,66], which ultimately enhances SOC stocks. The advantage of using green manures in addition to animal manure is the large increment in C input in soils. The advantage of using green manure in agricultural soils in improving SOC sequestration was also observed in previous studies [67,68]. Regarding the types of manures (green versus animal manure in this study), it should be noted that animal manure incorporation has the tendency to increase SOC stock, and such manures are efficient in increasing SOC stocks in the surface soil layers due to the fact that these manures are incorporated through tillage in the upper 0–20 cm soil layers [69,70]. On the other hand, the inclusion of green manures (milk vetch in this case) may increase the SOC stocks through improved C input by extensive root systems in deep soil profile, as noted by Guan et al. [71] in a previous study that including alfalfa promoted SOC stocks in addition to animal manure. Another study reported that adding green manure increased SOC down the soil profile up to 2 m [72]. As the deep soil depths have a great potential to sequester SOC, therefore, management practices that promote the translocation of manures to deeper soil depths are highly recommended. This study is an effort to promote SOC sequestration into the deep soil profile by including milk vetch in addition to animal manure in order to improve and synchronize C input under the double rice cropping system of southern China.

5. Conclusions

Long-term fertilization for 29 years improves SOC sequestration and its stability in Chinese red paddy soil under the double rice cropping system. Among various fractions, the highest increase was associated with less labile carbon (LLC) which suggests this fraction is the most robust in the accumulation of SOC. Among treatments, the manure combined with inorganic fertilizers (NPKM) yielded the highest recalcitrant pool (RP) which supports the role of combining manure with inorganic fertilization in enhancing the stability of sequestered carbon in red paddy soil. In conclusion, these findings suggest the role of long-term manure addition in improving sequestration and stability of SOC relative to initial conditions by modifying soil physico-chemical properties and distribution of SOC pools in the red paddy soil of China.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy13061463/s1, Table S1: title; Analysis of variance (Two-Way ANOVA) for determined soil properties.

Author Contributions

Conceptualization, A.M. and M.X.; methodology, A.M.; software, M.T.K.N. and H.X.; validation, M.X., N.S. and Q.H.; formal analysis, M.T.K.N.; investigation, N.S.; resources, data analysis, H.X.; data curation, M.X.; writing—original draft preparation, A.M.; writing—review and editing, M.X.; visualization, K.L.; supervision, K.L.; project administration, Q.H.; funding acquisition, M.X. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by the National Key Research and Development Program of China (2021YFD1901205) and the National Natural Science Foundation of China (42177341).

Data Availability Statement

All the data can be available from corresponding author on a reasonable request.

Acknowledgments

The authors are grateful to the Jinxian Red Soil Fertility Long-term Monitoring Network staff for establishing field site and for the assistance in the field.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dixit, A.K.; Rai, A.K.; Prasad, M.; Choudhary, M.; Kumar, S.; Srivastava, M.K.; Rai, S.K.; Singh, H.V. Long-term ferti-lization effects on carbon pools and carbon management index of loamy soil under grass–forage legumes mixture in semi-arid environment. Arch. Agron. Soil. Sci. 2020, 66, 1373–1383. [Google Scholar] [CrossRef]
  2. Ghosh, A.; Bhattacharyya, R.; Meena, M.; Dwivedi, B.; Singh, G.; Agnihotri, R.; Sharma, C. Long-term fertilization effects on soil organic carbon sequestration in an Inceptisol. Soil Tillage Res. 2018, 177, 134–144. [Google Scholar] [CrossRef]
  3. von Lützow, M.; Kögel-Knabner, I.; Ekschmitt, K.; Flessa, H.; Guggenberger, G.; Matzner, E.; Marschner, B. SOM frac-tionation methods: Relevance to functional pools and to stabilization mechanisms. Soil. Biol. Biochem. 2007, 39, 2183–2207. [Google Scholar] [CrossRef]
  4. Poeplau, C.; Don, A.; Six, J.; Kaiser, M.; Benbi, D.; Chenu, C.; Cotrufo, M.F.; Derrien, D.; Gioacchini, P.; Grand, S.; et al. Isolating organic carbon fractions with varying turnover rates in temperate agricultural soils—A comprehensive method comparison. Soil Biol. Biochem. 2018, 125, 10–26. [Google Scholar] [CrossRef]
  5. Mustafa, A.; Frouz, J.; Naveed, M.; Ping, Z.; Nan, S.; Minggang, X.; Núñez-Delgado, A. Stability of soil organic carbon under long-term fertilization: Results from 13C NMR analysis and laboratory incubation. Environ. Res. 2022, 205, 112476. [Google Scholar] [CrossRef] [PubMed]
  6. Huang, X.; Jia, Z.; Guo, J.; Li, T.; Sun, D.; Meng, H.; Yu, G.; He, X.; Ran, W.; Zhang, S.; et al. Ten-year long-term organic fertilization enhances carbon sequestration and calcium-mediated stabilization of aggregate-associated organic carbon in a reclaimed Cambisol. Geoderma 2019, 355, 113880. [Google Scholar] [CrossRef]
  7. Cui, J.; Zhu, Z.; Xu, X.; Liu, S.; Jones, D.L.; Kuzyakov, Y.; Shibistova, O.; Wu, J.; Ge, T. Carbon and nitrogen recycling from microbial necromass to cope with C:N stoichiometric imbalance by priming. Soil Biol. Biochem. 2020, 142, 107720. [Google Scholar] [CrossRef]
  8. Mustafa, A.; Hu, X.; Abrar, M.M.; Shah, S.A.A.; Nan, S.; Saeed, Q.; Kamran, M.; Naveed, M.; Conde-Cid, M.; Hongjun, G.; et al. Long-term fertilization enhanced carbon mineralization and maize biomass through physical protection of organic carbon in fractions under continuous maize cropping. Appl. Soil Ecol. 2021, 165, 103971. [Google Scholar] [CrossRef]
  9. Mancinelli, R.; Campiglia, E.; Di Tizio, A.; Marinari, S. Soil carbon dioxide emission and carbon content as affected by conventional and organic cropping systems in Mediterranean environment. Appl. Soil Ecol. 2010, 46, 64–72. [Google Scholar] [CrossRef]
  10. Sun, Y.; Huang, S.; Yu, X.; Zhang, W. Stability and saturation of soil organic carbon in rice fields: Evidence from a long-term fertilization experiment in subtropical China. J. Soils Sediments 2013, 13, 1327–1334. [Google Scholar] [CrossRef]
  11. Gong, W.; Yan, X.; Wang, J. The effect of chemical fertilizer on soil organic carbon renewal and CO2 emission—A pot experiment with maize. Plant Soil 2012, 353, 85–94. [Google Scholar] [CrossRef]
  12. Zhou, W.; Wen, S.; Zhang, Y.; Gregory, A.S.; Xu, M.; Shah, S.A.A.; Zhang, W.; Wu, H.; Hartley, I.P. Long-term fertilization enhances soil carbon stability by increasing the ratio of passive carbon: Evidence from four typical croplands. Plant Soil 2022, 478, 579–595. [Google Scholar] [CrossRef]
  13. He, Y.T.; Zhang, W.J.; Xu, M.G.; Tong, X.G.; Sun, F.X.; Wang, J.Z.; Huang, S.M.; Zhu, P.; He, X.H. Long-term combined chemical and manure fertilizations increase soil organic carbon and total nitrogen in aggregate fractions at three typical cropland soils in China. Sci. Total Environ. 2015, 532, 635–644. [Google Scholar] [CrossRef]
  14. Abrar, M.M.; Shah, S.A.A.; Sun, N.; Mehmood, K.; Aziz, T.; Waqas, M.A.; Luo, Y.; Zhou, B.; Ma, X.; Xu, M.; et al. Long-term manure application enhances organic carbon and nitrogen stocks in Mollisol subsoil. Land Deg. Dev. 2022, 241, 155–176. [Google Scholar] [CrossRef]
  15. Six, J.; Conant, R.T.; Paul, E.A.; Paustian, K. Stabilization mechanisms of soil organic matter: Implications for C-saturation of soils. Plant Soil 2002, 241, 155–176. [Google Scholar] [CrossRef]
  16. Mustafa, A.; Bartuška, M.; Fryčová, K.; Nezhad, M.T.K.; Frouz, J. Comparison of Zimmermann and Six Fraction-ation Methods Aimed at Distinguishing Between Active, Slow, and Passive Pools of Soil Organic Matter. J. Soil. Sci. Plant. Nut. 2022, 22, 3110–3117. [Google Scholar] [CrossRef]
  17. Mandal, B.; Majumder, B.; Adhya, T.K.; Bandyopadhyay, P.K.; Gangopadhyay, A.; Sarkar, D.; Kundu, M.C.; Choudhury, S.G.; Hazra, G.C.; Kundu, S.; et al. Potential of double-cropped rice ecology to conserve organic carbon under subtropical climate. Glob. Chang. Biol. 2008, 14, 2139–2151. [Google Scholar] [CrossRef]
  18. Zhang, H.; Wu, P.; Fan, M.; Zheng, S.; Wu, J.; Yang, X.; Zhang, M.; Yin, A.; Gao, C. Dynamics and driving factors of the organic carbon fractions in agricultural land reclaimed from coastal wetlands in eastern China. Ecol. Indic. 2018, 89, 639–647. [Google Scholar] [CrossRef]
  19. Abrar, M.M.; Xu, M.; Shah, S.A.A.; Aslam, M.W.; Aziz, T.; Mustafa, A.; Ashraf, M.N.; Zhou, B.; Ma, X. Variations in the profile distribution and protection mechanisms of organic carbon under long-term fertilization in a Chinese Mollisol. Sci. Total. Environ. 2020, 723, 138181. [Google Scholar] [CrossRef]
  20. Dumale, W.A., Jr.; Miyazaki, T.; Nishimura, T.; Seki, K. Short-term dynamics of the active and passive soil organic carbon pools in a volcanic soil treated with fresh organic matter. E-Int. Sci. Res. J. 2011, 3, 128. [Google Scholar]
  21. Xu, L.; Wang, C.; Zhu, J.; Gao, Y.; Li, M.; Lv, Y.; Yu, G.; He, N. Latitudinal patterns and influencing factors of soil humic carbon fractions from tropical to temperate forests. J. Geogr. Sci. 2018, 28, 15–30. [Google Scholar] [CrossRef]
  22. Jindaluang, W.; Kheoruenromne, I.; Suddhiprakarn, A.; Singh, B.P.; Singh, B. Influence of soil texture and miner-alogy on organic matter content and composition in physically separated fractions soils of Thailand. Geoderma 2013, 195, 207–219. [Google Scholar] [CrossRef]
  23. Sollins, P.; Kramer, M.G.; Swanston, C.; Lajtha, K.; Filley, T.; Aufdenkampe, A.K.; Wagai, R.; Bowden, R.D. Se-quential density fractionation across soils of contrasting mineralogy: Evidence for both microbial-and mineral-controlled soil organic matter stabilization. Biogeochemistry 2009, 96, 209–231. [Google Scholar] [CrossRef]
  24. Baldock, J.; Skjemstad, J. Role of the soil matrix and minerals in protecting natural organic materials against biological attack. Org. Geochem. 2000, 31, 697–710. [Google Scholar] [CrossRef]
  25. Wiseman, C.; Püttmann, W. Interactions between mineral phases in the preservation of soil organic matter. Geoderma 2006, 134, 109–118. [Google Scholar] [CrossRef]
  26. Heckman, K.; Throckmorton, H.; Clingensmith, C.; Vila, F.J.G.; Horwath, W.R.; Knicker, H.; Rasmussen, C. Factors affecting the molecular structure and mean residence time of occluded organics in a lithosequence of soils under ponderosa pine. Soil Biol. Biochem. 2014, 77, 1–11. [Google Scholar] [CrossRef]
  27. Jenkinson, D.S.; Coleman, K. The turnover of organic carbon in subsoils. Part 2. Modelling carbon turnover. Eur. J. Soil Sci. 2008, 59, 400–413. [Google Scholar] [CrossRef]
  28. Jia, J.; Cao, Z.; Liu, C.; Zhang, Z.; Lin, L.; Wang, Y.; Haghipour, N.; Wacker, L.; Bao, H.; Dittmar, T.; et al. Climate warming alters subsoil but not topsoil carbon dynamics in alpine grassland. Glob. Chang. Biol. 2019, 25, 4383–4393. [Google Scholar] [CrossRef]
  29. Dutta, D.; Singh, V.K.; Upadhyay, P.K.; Meena, A.L.; Kumar, A.; Mishra, R.P.; Dwivedi, B.S.; Shukla, A.K.; Yadav, G.S.; Tewari, R.B.; et al. Long-term impact of organic and inorganic fertilizers on soil organic carbon dynamics in a rice- wheat system. Land Degrad. Dev. 2022, 33, 1862–1877. [Google Scholar] [CrossRef]
  30. Raper, R. Agricultural traffic impacts on soil. J. Terramechanics 2005, 42, 259–280. [Google Scholar] [CrossRef]
  31. Xu, R.; Zhao, A.; Li, Q.; Kong, X.; Ji, G. Acidity regime of the Red Soils in a subtropical region of southern China under field conditions. Geoderma 2003, 115, 75–84. [Google Scholar] [CrossRef]
  32. Huang, Q.R.; Feng, H.U.; Huang, S.; Li, H.-X.; Yuan, Y.-H.; Pan, G.-X.; Zhang, W.J. Effect of long-term fertilization on organic carbon and nitrogen in a subtropical paddy soil. Pedos 2009, 19, 727–734. [Google Scholar] [CrossRef]
  33. Zhang, W.; Xu, M.; Wang, X.; Huang, Q.; Nie, J.; Li, Z.; Li, S.; Hwang, S.W.; Lee, K.B. Effects of organic amendments on soil carbon sequestration in paddy fields of subtropical China. J. Soils Sediments 2012, 12, 457–470. [Google Scholar] [CrossRef]
  34. Liu, K.L.; Huang, J.; Li, D.M.; Yu, X.C.; Ye, H.C.; Hu, H.W.; Hu, Z.H.; Huang, Q.H.; Zhang, H.M. Com-parison of carbon sequestration efficiency in soil aggregates between upland and paddy soils in a red soil region of China. J. Integr. Agric. 2019, 18, 1348–1359. [Google Scholar] [CrossRef]
  35. Xie, Z.; Zhu, J.; Liu, G.; Cadisch, G.; Hasegawa, T.; Chen, C.; Sun, H.; Tang, H.; Zeng, Q. Soil organic carbon stocks in China and changes from 1980s to 2000s. Glob. Chang. Biol. 2007, 13, 1989–2007. [Google Scholar] [CrossRef]
  36. Yan, X.; Zhou, H.; Zhu, Q.; Wang, X.; Zhang, Y.; Yu, X.; Peng, X. Carbon sequestration efficiency in paddy soil and upland soil under long-term fertilization in southern China. Soil Tillage Res. 2013, 130, 42–51. [Google Scholar] [CrossRef]
  37. Xu, H.; Liu, K.; Zhang, W.; Rui, Y.; Zhang, J.; Wu, L.; Colinet, G.; Huang, Q.; Chen, X.; Xu, M. Long-term fertilization and intensive cropping enhance carbon and nitrogen accumulated in soil clay-sized particles of red soil in South China. J. Soils Sediments 2020, 20, 1824–1833. [Google Scholar] [CrossRef]
  38. IUSS Working Group (WRB). World Reference Base for Soil Resources; World Soil Resources Report; Cambridge University Press and Assessment: Cambridge, UK, 2006; p. 103. [Google Scholar]
  39. Blake, G.R.; Hartge, K.H. Particle density. Methods of soil analysis: Part 1. Phys. Mineral. Methods 1986, 5, 377–382. [Google Scholar]
  40. Chan, K.Y.; Bowman, A.; Oates, A. Oxidizible organic carbon fractions and soil quality changes in an oxic paleustalf under different pasture leys. Soil Sci. 2001, 166, 61–67. [Google Scholar] [CrossRef]
  41. Walkley, A. A critical examination of a rapid method for determining organic carbon in soils—effect of variations in digestion conditions and of inorganic soil constituents. Soil Sci. 1947, 63, 251–264. [Google Scholar] [CrossRef]
  42. Datta, A.; Mandal, B.; Basak, N.; Badole, S.; Chaitanya, K.; Majumder, S.P.; Thakur, N.P.; Kumar, P.; Kachroo, D. Soil carbon pools under long-term rice-wheat cropping system in Inceptisols of Indian Himalayas. Arch. Agron. Soil Sci. 2018, 64, 1315–1320. [Google Scholar] [CrossRef]
  43. Kautsar, V.; Tang, S.; Kimani, S.M.; Tawaraya, K.; Wu, J.; Toriyama, K.; Kobayashi, K.; Cheng, W. Carbon decomposition and nitrogen mineralization of foxtail and milk vetch incorporated into paddy soils for different durations of organic farming. Soil Sci. Plant Nutr. 2022, 68, 158–166. [Google Scholar] [CrossRef]
  44. Kundu, S.; Bhattacharyya, R.; Prakash, V.; Ghosh, B.N.; Gupta, H.S. Carbon sequestration and relationship between carbon addition and storage under rainfed soybean–wheat rotation in a sandy loam soil of the Indian Himalayas. Soil Tillage Res. 2007, 92, 87–95. [Google Scholar] [CrossRef]
  45. Trivedi, A.; Bhattacharyya, R.; Biswas, D.R.; Das, S.; Das, T.K.; Mahapatra, P.; Shahi, D.K.; Sharma, C. Long-term impacts of integrated nutrient management with equivalent nutrient doses to mineral fertilization on soil organic carbon se-questration in a sub-tropical Alfisol of India. Carbon Manag. 2020, 11, 483–497. [Google Scholar] [CrossRef]
  46. Belay-Tedla, A.; Zhou, X.; Su, B.; Wan, S.; Luo, Y. Labile, recalcitrant, and microbial carbon and nitrogen pools of a tallgrass prairie soil in the US Great Plains subjected to experimental warming and clipping. Soil Biol. Biochem. 2009, 41, 110–116. [Google Scholar] [CrossRef]
  47. Stevenson, F.J. Humus Chemistry: Genesis, Composition, Reactions; John Wiley & Sons: New York, NY, USA, 1994. [Google Scholar]
  48. Mustafa, A.; Saeed, Q.; Nezhad, M.T.K.; Nan, S.; Hongjun, G.; Ping, Z.; Naveed, M.; Minggang, X.; Nez-Delgado, A.N. Physically separated soil organic matter pools as indicators of carbon and nitrogen change under long-term fertilization in a Chinese Mollisol. Environ. Res. 2022, 216, 114626. [Google Scholar] [CrossRef]
  49. Chen, X.; Guo, J.; Liu, M.; Jiao, J.; Huang, Q.; Lai, T.; Li, H.; Hu, F. Effects of fertilization on lability and recalcitrancy of organic carbon of red paddy soils. Ac. Pedo. Sin. 2011, 48, 125–131. [Google Scholar]
  50. Fontaine, S.; Barot, S.; Barré, P.; Bdioui, N.; Mary, B.; Rumpel, C. Stability of organic carbon in deep soil layers controlled by fresh carbon supply. Nature 2007, 450, 277–280. [Google Scholar] [CrossRef]
  51. Korenblum, E.; Dong, Y.; Szymanski, J.; Panda, S.; Jozwiak, A.; Massalha, H.; Meir, S.; Rogachev, I.; Aharoni, A. Rhizosphere microbiome mediates systemic root metabolite exudation by root-to-root signaling. Proc. Natl. Acad. Sci. USA 2020, 117, 3874–3883. [Google Scholar] [CrossRef]
  52. Hao, J.; Chai, Y.N.; Lopes, L.D.; Ordóñez, R.A.; Wright, E.E.; Archontoulis, S.; Schachtman, D.P. The effects of soil depth on the structure of microbial communities in agricultural soils in Iowa (United States). Appl. Environ. Microbiol. 2021, 87, e02673-20. [Google Scholar] [CrossRef]
  53. Spielvogel, S.; Prietzel, J.; Kögel-Knabner, I. Soil organic matter stabilization in acidic forest soils is preferential and soil type-specific. Eur. J. Soil Sci. 2008, 59, 674–692. [Google Scholar] [CrossRef]
  54. Kennedy, M.J.; Löhr, S.C.; Fraser, S.A.; Baruch, E.T. Direct evidence for organic carbon preservation as clay-organic nanocomposites in a Devonian black shale; from deposition to diagenesis. Earth Planet. Sci. Lett. 2014, 388, 59–70. [Google Scholar] [CrossRef]
  55. Shah, S.A.A.; Xu, M.; Abrar, M.M.; Mustafa, A.; Fahad, S.; Shah, T.; Yang, X.; Zhou, W.; Zhang, S.; Nan, S.; et al. Long-term fertilization affects functional soil organic carbon protection mechanisms in a profile of Chinese loess plateau soil. Chemosphere 2021, 267, 128897. [Google Scholar] [CrossRef]
  56. Piazza, G.; Pellegrino, E.; Moscatelli, M.C.; Ercoli, L. Long-term conservation tillage and nitrogen fertilization effects on soil aggregate distribution, nutrient stocks and enzymatic activities in bulk soil and occluded microaggregates. Soil Tillage Res. 2020, 196, 104482. [Google Scholar] [CrossRef]
  57. Mustafa, A.; Minggang, X.; Shah, S.A.A.; Abrar, M.M.; Nan, S.; Baoren, W.; Zejiang, C.; Saeed, Q.; Naveed, M.; Mehmood, K.; et al. Soil aggregation and soil aggregate stability regulate organic carbon and nitrogen storage in a red soil of southern China. J. Environ. Manag. 2020, 270, 110894. [Google Scholar] [CrossRef]
  58. Mustafa, A.; Hu, X.; Shah, S.A.A.; Abrar, M.M.; Maitlo, A.A.; Kubar, K.A.; Saeed, Q.; Kamran, M.; Naveed, M.; Boren, W.; et al. Long-term fertilization alters chemical composition and stability of aggregate-associated organic carbon in a Chinese red soil: Evidence from aggregate fractionation, C mineralization, and 13C NMR analyses. J. Soils Sediments 2021, 21, 2483–2496. [Google Scholar] [CrossRef]
  59. Bhattacharyya, R.; Kundu, S.; Srivastva, A.K.; Gupta, H.S.; Prakash, V.; Bhatt, J.C. Long term fertilization effects on soil organic carbon pools in a sandy loam soil of the Indian sub-Himalayas. Plant Soil 2011, 341, 109–124. [Google Scholar] [CrossRef]
  60. Li, M.; Han, X.; Li, L.-J. Total Nitrogen Stock in Soil Profile Affected by Land Use and Soil Type in Three Counties of Mollisols. Front. Environ. Sci. 2022, 10, 1001. [Google Scholar] [CrossRef]
  61. Du, Y.; Cui, B.; Zhang, Q.; Wang, Z.; Sun, J.; Niu, W. Effects of manure fertilizer on crop yield and soil properties in China: A meta-analysis. Catena 2020, 193, 104617. [Google Scholar] [CrossRef]
  62. Zhong, Y.; Yan, W.; Shangguan, Z. Soil carbon and nitrogen fractions in the soil profile and their response to long-term nitrogen fertilization in a wheat field. Catena 2015, 135, 38–46. [Google Scholar] [CrossRef]
  63. Ashraf, M.N.; Jusheng, G.; Lei, W.; Mustafa, A.; Waqas, A.; Aziz, T.; Khan, W.U.D.; Hussain, B.; Farooq, M.; Wenju, Z.; et al. Soil microbial biomass and extracellular enzyme—mediated mineralization potentials of carbon and nitrogen under long-term fertilization (>30 years) in a rice—rice cropping system. J. Soils Sedi. 2021, 21, 3789–3800. [Google Scholar] [CrossRef]
  64. Li, Z.; Liu, M.; Wu, X.; Han, F.; Zhang, T. Effects of long-term chemical fertilization and organic amendments on dynamics of soil organic C and total N in paddy soil derived from barren land in subtropical China. Soil Tillage Res. 2010, 106, 268–274. [Google Scholar] [CrossRef]
  65. Zhao, Y.; Wang, P.; Li, J.; Chen, Y.; Ying, X.; Liu, S. The effects of two organic manures on soil properties and crop yields on a temperate calcareous soil under a wheat—maize cropping system. Eur. J. Agron. 2009, 31, 36–42. [Google Scholar] [CrossRef]
  66. Wei, W.; Yan, Y.; Cao, J.; Christie, P.; Zhang, F.; Fan, M. Effects of combined application of organic amendments and fertilizers on crop yield and soil organic matter: An integrated analysis of long-term experiments. Agric. Ecosyst. Environ. 2016, 225, 86–92. [Google Scholar] [CrossRef]
  67. Leifeld, J. How sustainable is organic farming? Agric. Ecosyst. Environ. 2012, 150, 121–122. [Google Scholar] [CrossRef]
  68. Rosenzweig, S.T.; Carson, M.A.; Baer, S.G.; Blair, J.M. Changes in soil properties, microbial biomass, and fluxes of C and N in soil following post-agricultural grassland restoration. Appl. Soil Ecol. 2016, 100, 186–194. [Google Scholar] [CrossRef]
  69. Blanco-Canqui, H.; Francis, C.A.; Galusha, T.D. Does organic farming accumulate carbon in deeper soil profiles in the long term? Geoderma 2017, 288, 213–221. [Google Scholar] [CrossRef]
  70. Hu, T.; Sørensen, P.; Olesen, J.E. Soil carbon varies between different organic and conventional management schemes in arable agriculture. Eur. J. Agron. 2018, 94, 79–88. [Google Scholar] [CrossRef]
  71. Guan, X.-K.; Turner, N.C.; Song, L.; Gu, Y.-J.; Wang, T.-C.; Li, F.-M. Soil carbon sequestration by three perennial legume pastures is greater in deeper soil layers than in the surface soil. Biogeosciences 2016, 13, 527–534. [Google Scholar] [CrossRef]
  72. Lorenz, K.; Lal, R. The depth distribution of soil organic carbon in relation to land use and management and the potential of carbon sequestration in subsoil horizons. Adv. Agron. 2005, 88, 35–66. [Google Scholar] [CrossRef]
Agronomy 13 01463 g001 550

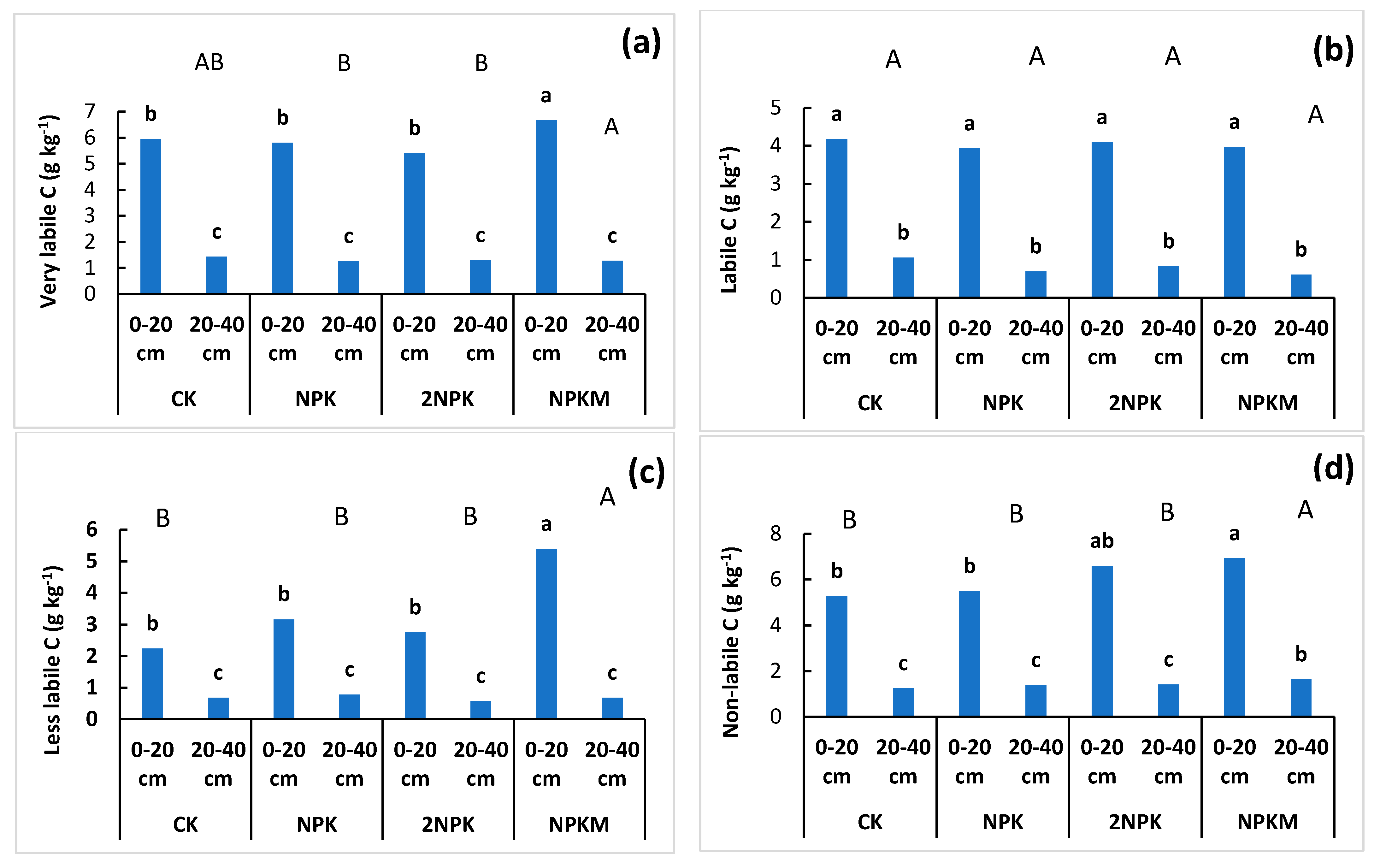

Figure 1. The distribution of SOC fractions under long-term sole and the integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths. Dissimilar lowercase and uppercase letters represent statistical differences between soil depth intervals and treatments, respectively. Abbreviations are: CK, control; NPK, application of nitrogen, phosphorus and potassium; 2NPK, double the rate of NPK; NPKM, combined application of manure and NPK. Pools are: (a) VLC, very labile carbon; (b) LC, labile carbon; (c) LLC; less labile carbon; and (d) NLC, non-labile carbon, (n = 3).
Figure 1. The distribution of SOC fractions under long-term sole and the integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths. Dissimilar lowercase and uppercase letters represent statistical differences between soil depth intervals and treatments, respectively. Abbreviations are: CK, control; NPK, application of nitrogen, phosphorus and potassium; 2NPK, double the rate of NPK; NPKM, combined application of manure and NPK. Pools are: (a) VLC, very labile carbon; (b) LC, labile carbon; (c) LLC; less labile carbon; and (d) NLC, non-labile carbon, (n = 3).
Agronomy 13 01463 g001
Agronomy 13 01463 g002 550

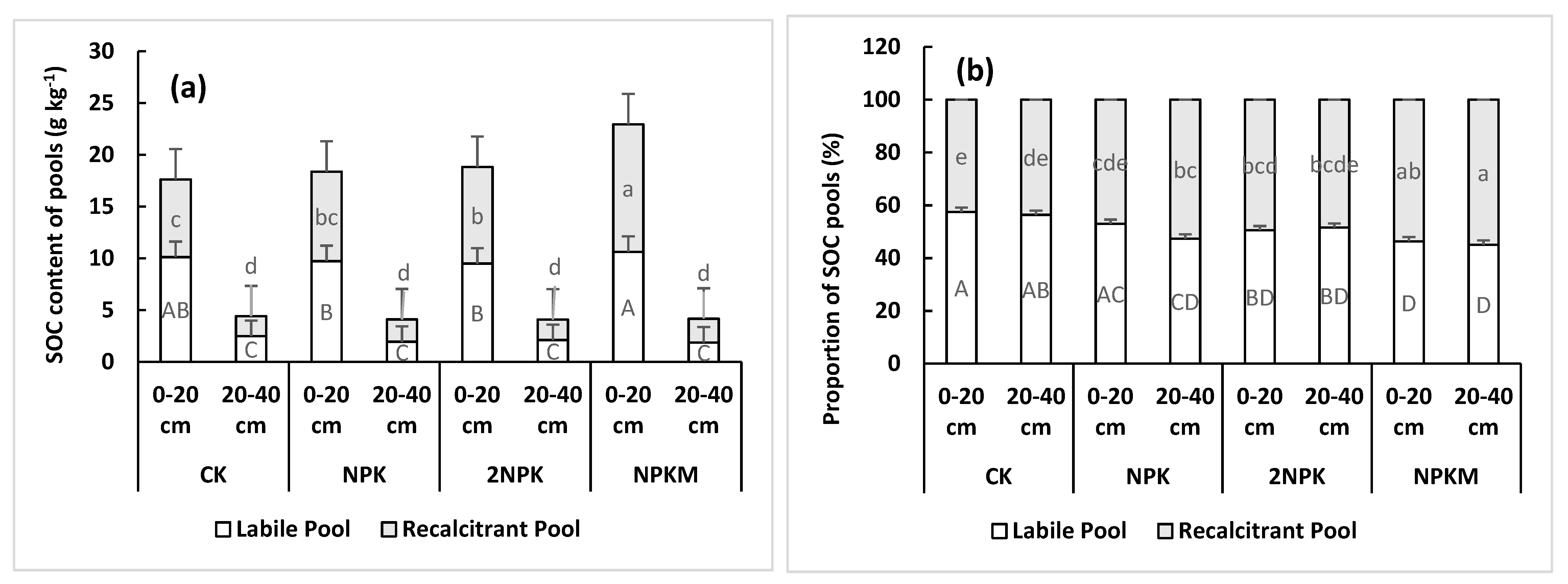

Figure 2. The contents of SOC pools (a) and proportions of pools (b) under long-term sole and the integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths. Dissimilar lowercase letters represent statistical difference between treatments and soil depths. Abbreviations are: CK, control; NPK, application of nitrogen, phosphorus and potassium; 2NPK, double the rate of NPK; and NPKM, combined application of manure and NPK. (n = 3). In each panel, different letters denote significant difference between depth intervals for SOC pools at p-value < 0.05.
Figure 2. The contents of SOC pools (a) and proportions of pools (b) under long-term sole and the integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths. Dissimilar lowercase letters represent statistical difference between treatments and soil depths. Abbreviations are: CK, control; NPK, application of nitrogen, phosphorus and potassium; 2NPK, double the rate of NPK; and NPKM, combined application of manure and NPK. (n = 3). In each panel, different letters denote significant difference between depth intervals for SOC pools at p-value < 0.05.
Agronomy 13 01463 g002
Agronomy 13 01463 g003 550

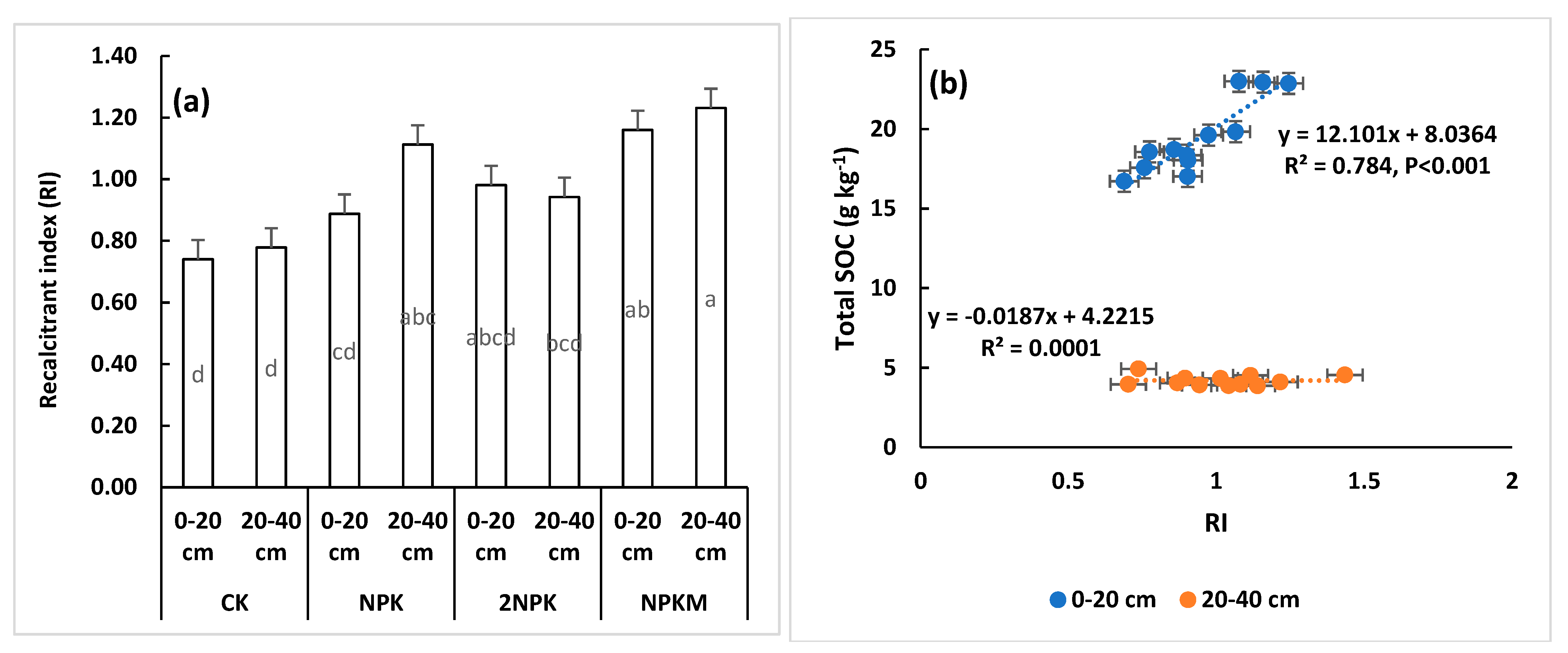

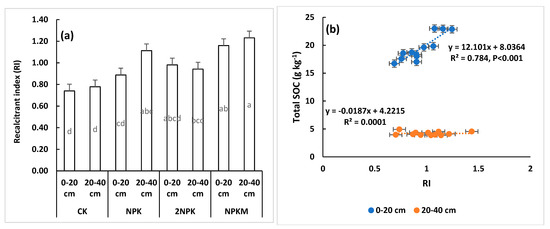

Figure 3. The recalcitrance index as a measure of SOC stability (recalcitrance pool/labile pool) under long-term sole and the integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths (a) and relationship between RI and total SOC (b). Dissimilar lowercase letters (panel a) represent statistical differences between treatments and soil depths. Abbreviations are: CK, control; NPK, application of nitrogen, phosphorus and potassium; 2NPK, double the rate of NPK; and NPKM, combined application of manure and NPK.
Figure 3. The recalcitrance index as a measure of SOC stability (recalcitrance pool/labile pool) under long-term sole and the integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths (a) and relationship between RI and total SOC (b). Dissimilar lowercase letters (panel a) represent statistical differences between treatments and soil depths. Abbreviations are: CK, control; NPK, application of nitrogen, phosphorus and potassium; 2NPK, double the rate of NPK; and NPKM, combined application of manure and NPK.
Agronomy 13 01463 g003
Agronomy 13 01463 g004 550

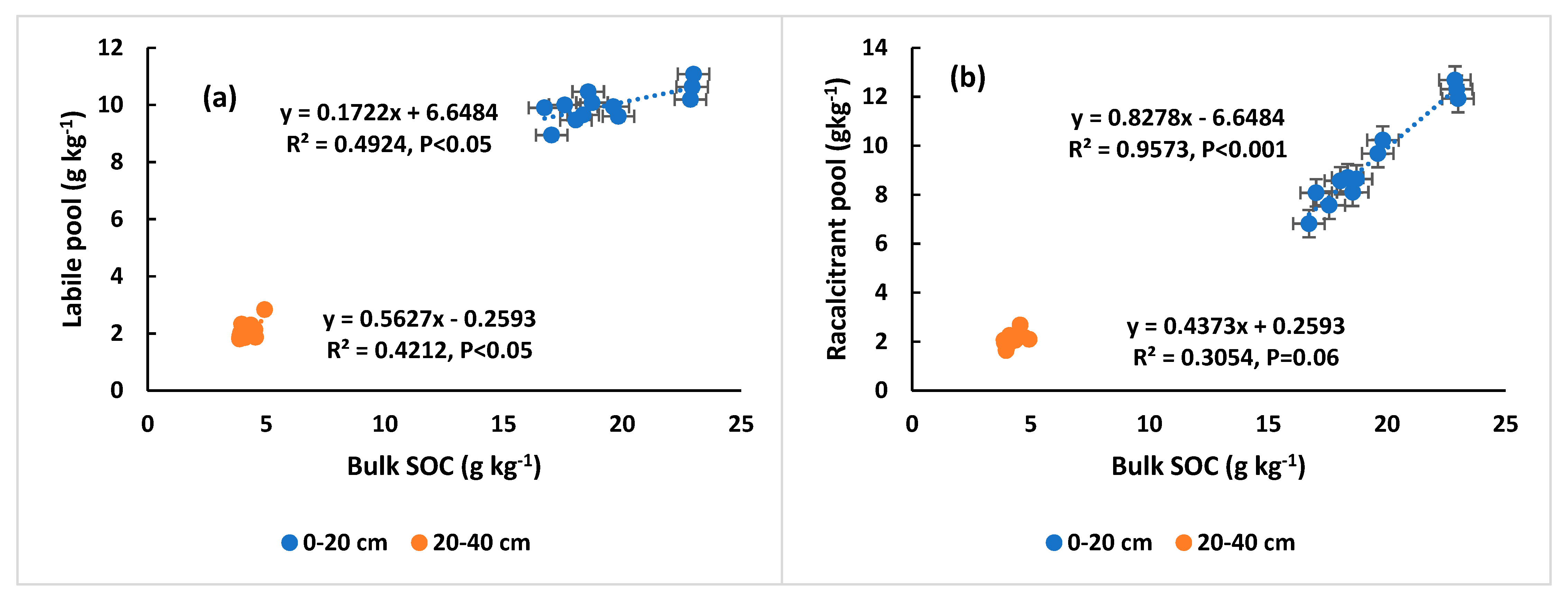

Figure 4. Relationships among SOC in bulk soil and (a) labile C pool, and (b) recalcitrant C pool (g kg−1) under long-term sole and integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths.
Figure 4. Relationships among SOC in bulk soil and (a) labile C pool, and (b) recalcitrant C pool (g kg−1) under long-term sole and integrated application of inorganic and organic fertilizers spanning surface and sub-surface soil depths.
Agronomy 13 01463 g004
Agronomy 13 01463 g005 550

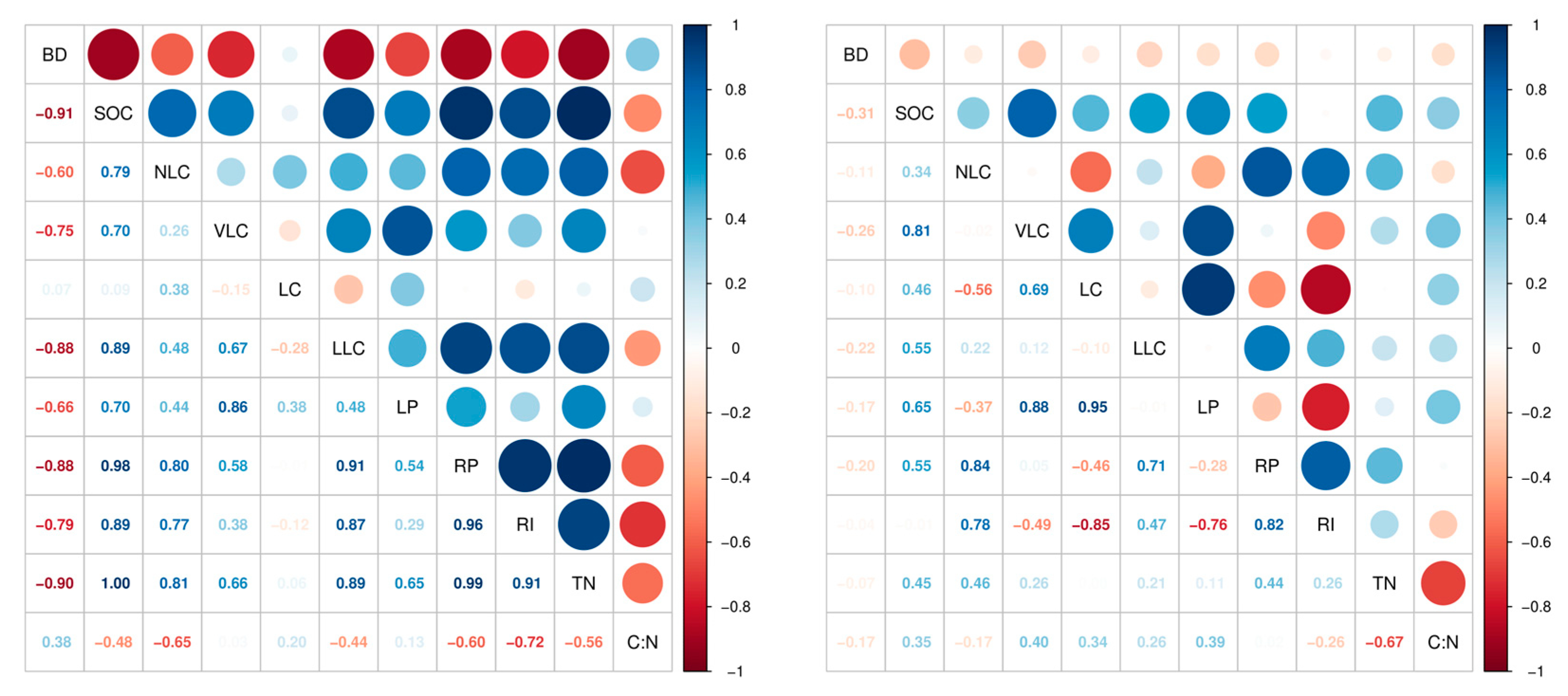

Figure 5. Pearson correlation (heat map) among basic soil characteristics, soil organic carbon sequestration and its stability indicators spanning surface (0–20 cm, left panel) and sub-surface (20–40 cm, right panel). The numbers in both panels represent the correlation coefficients, while colors denote the positive and negative correlations among observed soil characteristics. Abbreviations are: BD, bulk density; SOC, total soil organic carbon content; VLC, very labile carbon; LC, labile carbon; LLC; less labile carbon; NLC, non-labile carbon; LP, labile pool; RP, recalcitrant pool; RI, recalcitrance index; TN, total nitrogen content; and C:N, carbon to nitrogen ratio in the Chinese red paddy soil.
Figure 5. Pearson correlation (heat map) among basic soil characteristics, soil organic carbon sequestration and its stability indicators spanning surface (0–20 cm, left panel) and sub-surface (20–40 cm, right panel). The numbers in both panels represent the correlation coefficients, while colors denote the positive and negative correlations among observed soil characteristics. Abbreviations are: BD, bulk density; SOC, total soil organic carbon content; VLC, very labile carbon; LC, labile carbon; LLC; less labile carbon; NLC, non-labile carbon; LP, labile pool; RP, recalcitrant pool; RI, recalcitrance index; TN, total nitrogen content; and C:N, carbon to nitrogen ratio in the Chinese red paddy soil.
Agronomy 13 01463 g005
Table
Table 1. The amount of inorganic N, P, K fertilizer, and manure applied under various fertilization treatments.
Table 1. The amount of inorganic N, P, K fertilizer, and manure applied under various fertilization treatments.
TreatmentsEarly Rice Inorganic FertilizersEarly
Rice Manure
(Milk Vetch)
(Mg ha−1)		Late Rice Inorganic FertilizersLate
Rice Manure
(Pig)
(Mg ha−1)
(kg ha−1)(kg ha−1)
NPKNPK
CK00000000
NPK90206209020620
2NPK180401240180401240
NPKM90206222.590206222.5
Table
Table 2. Chemically isolated SOC fractions using different concentrations of H2SO4.
Table 2. Chemically isolated SOC fractions using different concentrations of H2SO4.
Very Labile C (VLC)Difference between TOC and SOC Content Following 12 N H2SO4 Treatment
Labile C (LC)Organic carbon content as a difference between 18 N and 12 N H2SO4-treated soils
Less labile C (LLC)Organic carbon content as a difference between SOC in 24 N and 18 N H2SO4-treated soils
Non-labile C (NLC)Difference between 24 N H2SO4-treated soil and total SOC as determined by the CHN analyzer
Table
Table 3. Distribution of soil basic characteristics spanning surface (0–20 cm) and sub-surface (20–40 cm) soil depths under long-term fertilization in the Chinese red paddy soil.
Table 3. Distribution of soil basic characteristics spanning surface (0–20 cm) and sub-surface (20–40 cm) soil depths under long-term fertilization in the Chinese red paddy soil.
Depth (cm)TreatmentsBulk Density (Mg m−3)SOC g kg−1SOC Stock Mg ha−1TN (g kg−1)C: N Ratio
0–20CK1.2 ± 0.01 b17.62 ± 0.92 b42.29 ± 0.95 b2.26 ± 0.1 b7.81 ± 0.05 a
NPK1.21 ± 0.01 b18.37 ± 0.34 b44.57 ± 0.94 ab2.39 ± 0.04 b7.7 ± 0.01 a
2NPK1.21 ± 0.02 b18.82 ± 1.56 b45.38 ± 0.96 ab2.49 ± 0.19 b7.56 ± 0.05 a
NPK + M1.06 ± 0.03 c22.94 ± 0.06 a48.78 ± 0.97 a3.02 ± 0.01 a7.59 ± 0.03 a
20–40CK1.55 ± 0.02 a4.41 ± 0.48 c13.69 ± 0.93 c0.75 ± 0.03 c5.9 ± 0.37 b
NPK1.54 ± 0.03 a4.12 ± 0.35 c12.69 ± 0.94 c0.68 ± 0.02 c6.05 ± 0.27 b
2NPK1.57 ± 0.01 a4.1 ± 0.21 c12.91 ± 0.95 c0.7 ± 0.01 c5.88 ± 0.18 b
NPK + M1.56 ± 0.02 a4.18 ± 0.34 c13.06 ± 0.94 c0.79 ± 0.13 c5.37 ± 0.79 b
Comparison of means of basic soil characteristics among the whole soil dataset (i.e., different fertilization treatments and soil depth intervals). Different lowercase letters are significant at p < 0.05 following Tukey test.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mustafa, A.; Xu, H.; Sun, N.; Liu, K.; Huang, Q.; Nezhad, M.T.K.; Xu, M. Long-Term Fertilization Alters the Storage and Stability of Soil Organic Carbon in Chinese Paddy Soil. Agronomy 2023, 13, 1463. https://doi.org/10.3390/agronomy13061463

AMA Style

Mustafa A, Xu H, Sun N, Liu K, Huang Q, Nezhad MTK, Xu M. Long-Term Fertilization Alters the Storage and Stability of Soil Organic Carbon in Chinese Paddy Soil. Agronomy. 2023; 13(6):1463. https://doi.org/10.3390/agronomy13061463

Chicago/Turabian Style

Mustafa, Adnan, Hu Xu, Nan Sun, Kailou Liu, Qinghai Huang, Mohammad Tahsin Karimi Nezhad, and Minggang Xu. 2023. "Long-Term Fertilization Alters the Storage and Stability of Soil Organic Carbon in Chinese Paddy Soil" Agronomy 13, no. 6: 1463. https://doi.org/10.3390/agronomy13061463

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
