Genome-Wide Identification of Insertion and Deletion Markers in Chinese Commercial Rice Cultivars, Based on Next-Generation Sequencing Data

Abstract

Rice, being a staple food crop for over one-third of the world’s population, has become a potential target for many dishonest traders and stakeholders for mixing with low-grade, low-cost grains/products and poorly nutritious adulterants to make a profit with the least effort. Single-nucleotide and insertion–deletion (InDel) polymorphisms have been widely used as DNA markers, not only in plant breeding but also to identify various traits in rice. Recently, next-generation sequencing (NGS) has produced sequences that allow for genome-wide detection of these molecular markers. These polymorphisms can potentially be used to develop high-accuracy polymerase chain reaction (PCR)-based markers. PCR-based techniques are rapid and successful methods to deal with the problem of adulteration at a commercial level. Here, we report the genome-wide analysis of InDel markers of 17 commercially available Chinese cultivars. In order to achieve accurate results, all samples were sequenced at approximately 30× genome coverage using Illumina HiSeq 2500™ system. An average of 10.6 GB clean reads per sample was produced and ~96.3% of the reads could be mapped to the rice genome reference IRGSP 1.0. After a series of filtering, we selected five InDel markers for PCR validation. The results revealed that these InDel markers can be used for authentication of Korean elite cultivars from the adulterants.

1. Introduction

Rice, being used in daily cuisine for over one-third of the world’s population, has become a potential target for many dishonest stakeholders and traders who mix low-grade/cost/nutrition adulterants to make a profit with the least effort. Though thousands of varieties with different commercial names are available, particular varieties have become popular and suit the tastes of consumers in a particular region [1,2]. Attempts to develop superior varieties/products always ended up with some poor-quality ones. This led to the existence of different quality standards with obvious price differences in the market [3,4]. This situation attracted dishonest traders to attempt adulteration of the genuine products to make surplus profit [5].

Adulteration in rice is possible from crop harvest until it reaches consumers, and leads to nutrition and health risks [6]. The common forms of rice prone to adulteration are brown rice, polished rice, rice flour, rice cakes, and rice bran oil. Authentication of rice cultivars is an important issue to address to protect the interests of farmers, dealers, millers, and food processors as well as to provide healthy food to consumers [7]. To this end, each country establishes quality standards for agricultural products by providing a label with complete details including country of origin and chemical composition. Many methods based on criteria such as morphological parameters (height, grain shape, size), physicochemical properties (starch composition, lipids, seed storage proteins, and alloenzymes), DNA (single-nucleotide polymorphism, insertions and deletions), proteins, and metabolites have been developed to detect the genuineness of the agricultural and animal food products [1,8,9,10,11,12].

In South Korea, rice consumption per person peaked in 1970 at 136.4 kg per year. Since the mid-1980s, rice consumption per person has declined almost every year, reaching 62.9 kg per year in 2015 [13]. In addition, the total rice cultivation area accounts for about 50 percent of total cultivated land. Since 2006, rice cultivation area has dropped slightly faster than total area, and was 47.5 percent of the total in 2015 (Korean Statistical Information System (KOSIS) database). Furthermore, South Korea is an important market for U.S and Chinese rice, which subsequently used adulterants in Korean varieties to meet demand. Next-generation sequencing (NGS) technology has been widely used in rice genomics and molecular breeding studies [14]. This has enabled researchers to perform an accurate genetic polymorphism analysis in order to identify unique molecular markers for particular rice varieties. However, the traceability of imported rice varieties needs in-depth analysis.

Hence, this study aimed at screening and selecting compatible polymorphic InDel markers through whole genome re-sequencing from 17 commercial rice cultivars from China. Our final goal is to identify accurate, sensitive and effective SNP, InDel markers to authenticate domestic Korean rice from those Chinese cultivars. Our results therefore lay the groundwork for long-term efforts to assess the purity of other Korean rice varieties.

2. Results

2.1. Genome Re-Sequencing and Analysis

We have sequenced 17 commercial rice cultivars from China using Illumina high-throughput sequencing technology. To facilitate downstream analysis, genomic DNA was isolated from the rice grain of each cultivar. High-throughput sequencing was performed using the Illumina HiSeq 2500™ system, and the resultant sequence reads were mapped to the IRGSP-1.0 using BWA [15], as described in methods Section 4.3. The sequence depths (30×) estimated from sequencing data for all reads of the 17 cultivars ranged from 19.28 (‘Su Jung Mi’) to 49.55 (‘Jang Rip Gaeng Mi’). The mapped sequence depths were lower than those of the total sequence, and ranged from 25.09 (‘Su Jung Mi’) to 31.75 (‘Jang Rip Gaeng Mi’). The highest and lowest coverages of a reference genome by input reads were observed in ‘Jung Rang’ (97.4%) and ‘Hang Dea Mi’ (96.1%), respectively (

Table 1. Sequence information for the 17 Chinese rice cultivars obtained by whole-genome re-sequencing analysis.

No.	Chinese Rice Brand	Sequencing Data from All Reads		Mapped Sequence Data within the Genome
		Sequence Reads	Clean Reads	Mapped Reads	Coverage (%)	Unique Reads	Unique Rate (%)	Average Depth	Coverage 30× (%)
1	Su Jung Mi	105,072,772	97,876,196	93,872,807	97.19	79,787,991	82.6	25.09	19.28
2	Do Hwa Hyang	119,758,074	114,440,050	107,607,456	96.65	90,245,722	81.06	28.81	34.46
3	Kum Gaeng Do	107,139,768	102,746,548	96,570,831	96.61	81,492,231	81.53	25.86	22.14
4	Saeng Tae Mi	112,162,556	107,100,578	101,215,436	97.03	86,086,576	82.52	27.1	29.43
5	Won Rip Gaeng Mi	116,136,382	111,158,652	104,855,221	96.89	88,455,622	81.74	28.09	30.66
6	Jang Rip Gaeng Mi	131,387,698	125,670,080	118,530,326	97.02	100,048,014	81.89	31.74	49.55
7	Cheang Hang Do	126,197,574	121,035,598	113,822,239	96.72	96,046,869	81.62	30.48	42.86
8	Geum Yong Eo-Kum Dea Mi	120,031,414	114,699,600	108,137,537	96.75	91,889,823	82.22	28.94	38.27
9	Hae Jeon-Kum Dea Mi	122,675,242	117,511,332	110,851,176	96.9	94,164,685	82.31	29.68	41.92
10	Mi-Kum Ju-Kum Dea Mi	114,614,342	109,943,262	103,868,290	96.97	88,517,369	82.64	27.81	33.88
11	Hang Dea Mi	111,689,172	107,197,300	101,449,431	97.16	86,253,129	82.61	27.17	30.82
12	TeaJin Ju Mi	107,910,318	102,761,240	96,597,250	96.69	81,906,982	81.99	25.85	23.68
13	Kum Do Jean DongBuk Dea Mi	118,302,364	112,489,548	105,661,252	96.18	90,882,775	82.73	28.29	36.03
14	Wu Ju-DongBuk De Mi	128,450,312	122,723,200	115,388,796	96.89	97,534,245	81.89	30.89	45.24
15	Jung Rang	122,307,360	117,089,646	111,105,640	97.43	95,651,329	83.87	29.78	42.25
16	MMA	108,964,330	104,319,578	97,686,547	96.49	82,451,900	81.44	26.16	22.46
17	Sunrice-Sushi-rice	120,588,040	115,051,754	108,964,490	97.33	92,837,652	82.92	29.2	37.83

).

The total number of InDels detected in the 17 Chinese rice cultivars was less than the number of SNPs (

Table 2. Number of SNPs and InDels compared to the reference genome (IRGSP v. 1.0) detected in the 17 Chinese rice cultivars.

No.	Chinese Rice Brand	SNPs	InDels
1	Su Jung Mi	785,394	106,624
2	Do Hwa Hyang	990,095	118,942
3	Kum Gaeng Do	902,411	106,352
4	Saeng Tae Mi	932,382	107,665
5	Won Rip Gaeng Mi	998,599	132,142
6	Jang Rip Gaeng Mi	878,930	105,025
7	Cheang Hang Do	1,039,436	132,780
8	Geum Yong Eo-Kum Dea Mi	1,006,468	120,292
9	Hae Jeon-Kum Dea Mi	999,562	112,545
10	Mi-Kum Ju-Kum Dea Mi	1,019,042	112,787
11	Hang Dea Mi	862,603	101,055
12	TeaJin Ju Mi	1,019,123	117,282
13	Kum Do Jean DongBuk Dea Mi	1,184,780	156,768
14	Wu Ju-DongBuk De Mi	991,872	118,880
15	Jung Rang	440,306	63,885
16	MMA	990,558	117,703
17	Sunrice-Sushi-rice	567,065	64,613

). The number of InDels ranged from 64,613 for ‘Sunrice’ to 156,768 for ‘Kum Do Jean DongBuk Dea Mi’, with intermediate values for ‘Su Jung Mi’, ‘Saeng Tae Mi’, and ‘Jang Rip Gaeng Mi’. ‘Sunrice’ had the fewest InDels compared to the other cultivars.

2.2. Distribution of SNP and InDel Markers

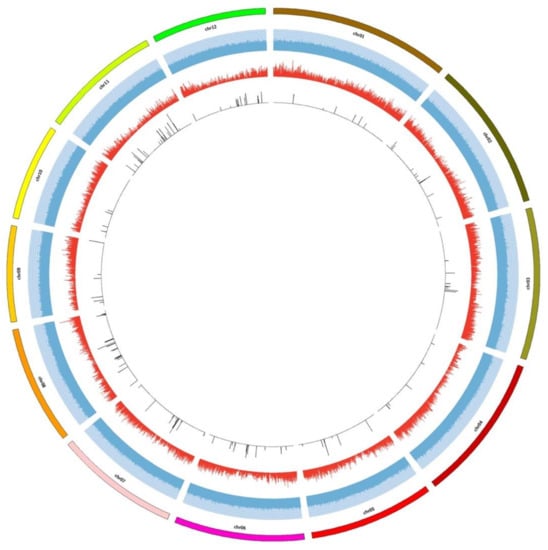

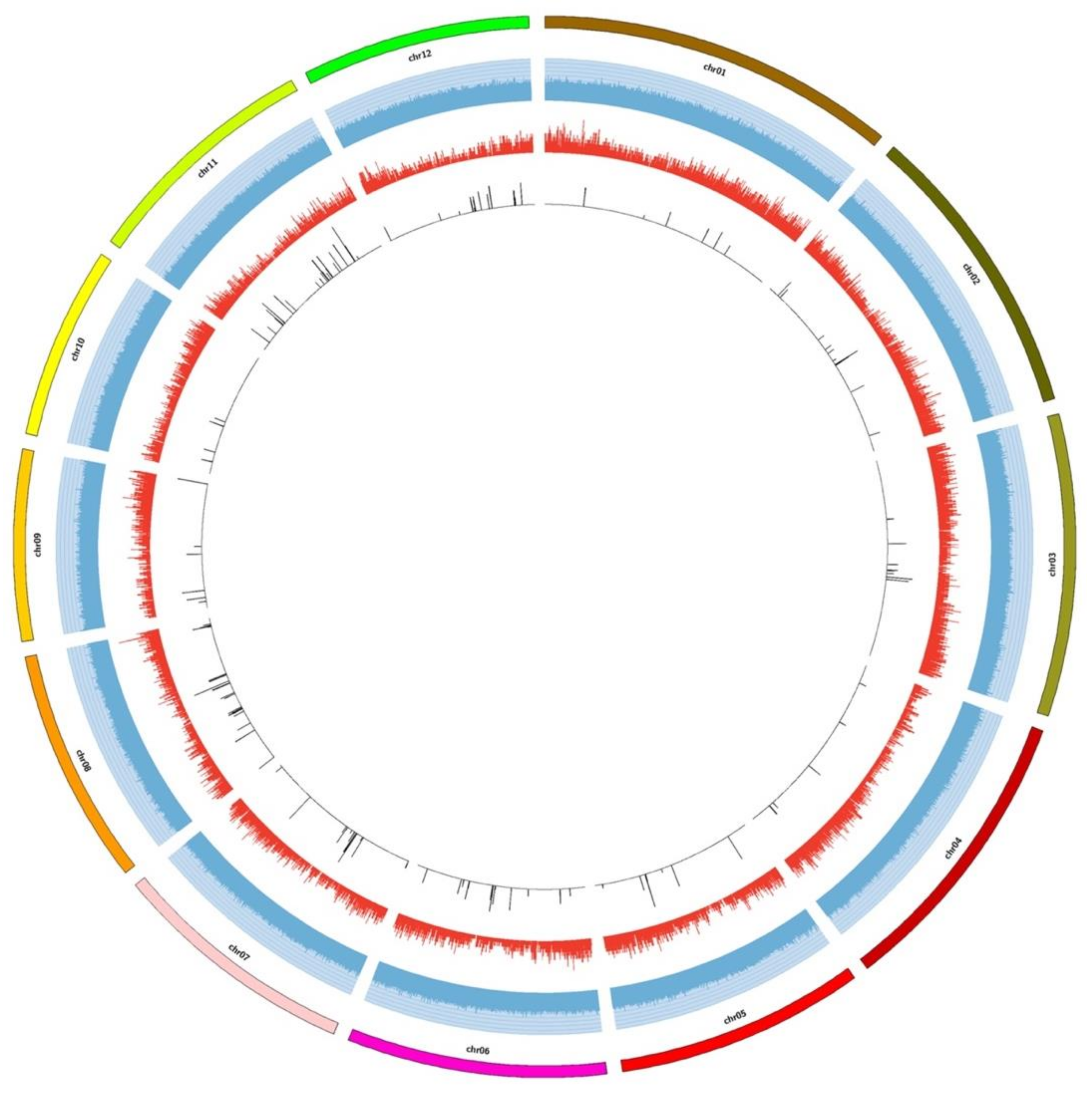

As a result of designing primers, more than two-thirds of the SNP and InDel regions were eliminated. Few SNP and InDel markers were uniquely detected in all the samples, so keeping these markers might influence the total number of SNP and InDel markers for PCR validation. In total, we selected 92 SNP and 278 InDel markers from the 17 rice cultivars. Here we selected only InDel markers for PCR validation in order to get accurate results. In terms of marker efficiency, the available markers to detect InDels were common to all rice cultivars but not ‘Hwayoung’, a Korean cultivar (data not shown). The number of InDel markers decreased as the number of cultivars sharing the same primer sequences decreased. Both selected SNP and InDel markers showed even distribution within the rice genome (Figure 1).

2.3. Experimental Validation of Five InDel Markers

In order to detect InDel polymorphisms by electrophoresis, we performed primer screening using PCR. As an example of validation, clear single bands were detected around the expected PCR product sizes for five markers including, KM-IND-7, KM-IND-21, KM-IND-80, KM-IND-253, and KM-IND-271 (

Table 3. Summary of validated InDel primers.

No.	Primer ID	Forward Primer	Reverse Primer
1	KM-IND-7	TCCCTTGTAGGCTCCTATCT	TCTCTCACGAGTGGAAAAAGCA
2	KM-IND-21	CCCTTCTTCCTCTTCTTTCTTCCTA	ATTAAGGACGGAAATGTGGCAG
3	KM-IND-80	CAGATGTGATGCGCAAGGC	TCATGGATTCCTGGTGCAAGTT
4	KM-IND-253	GCTAATCTGCAACGGGTACATG	TGGAGCCCGAAAAGTGTTCATA
5	KM-IND-271	CTCTGCTGCTGCTGCTGGAA	CGTCAAATCTCGACGAGCTCTT

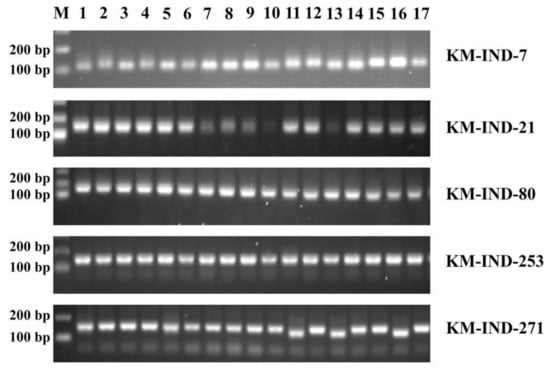

). The unique size between the amplified fragments could be discriminated among the 17 cultivars (Figure 2; Supplementary Table S1). Our validation results shown that the markers (for 17 cultivars) with a success rate of 90% or more for PCR. In the case of KM-IND-21, polymorphism could be detected for ~80% of the rice cultivars.

3. Discussion

High accuracy is important when detecting nucleotide polymorphisms, including SNPs or InDels, using the NGS re-sequencing strategy. In the International Rice Genome Sequencing Project (2005), the entire ‘Nipponbare’ genome was sequenced through the Sanger sequencing method and thereby precise reference sequences were established. For re-sequencing with short reads, the sequencing depth affects the accuracy of polymorphism detection. Here, the sequencing depth of the mapped sequences was an average of 28.9-fold (Table 1), which is twice the average depth (~14-fold) achieved in the most current 3000 Genomes Project [16]. The results of our study suggest that this sequencing depth is sufficient to accurately detect nucleotide polymorphisms. However, it appears that there is no relationship between the genome coverage and the sequencing depth of all the rice samples (Table 1). We found that the number of polymorphic sites (SNPs and InDels) in the genomes of all the samples showed the opposite trend to the genome coverage (Table 1).

Furthermore, re-sequencing with short reads cannot physically detect InDels that are longer than the read length (100 bp) and hence we only found insertions and deletions of less than 20 bp (data not shown). InDels with a larger size (100 bp) and copy number variations (>1 kb) were undoubtedly located all over the rice genome [17]. Various sizes of InDels with different PCR amplicons were separated in both agarose and denaturing polyacrylamide gels [18,19,20]. Here, we found that InDels could be easily detected by separation on 1.8% agarose gels, and we designed the markers accordingly. Indeed, we observed a high PCR success rate for the five markers (Figure 2; Supplementary Table S1), and these markers could be used to discriminate polymorphisms by electrophoresis.

New technologies and innovative approaches are changing the way we consider and apply genetic authentication of crop cultivars. DNA markers such as InDels play a crucial role in breeding and cultivar identification. The five InDel markers we identified might deserve further study for distinguishing Korean elite cultivars from adulterants.

4. Materials and Methods

4.1. Plant Materials

We performed whole-genome re-sequencing (WGRS) of 17 commercial rice grains of Japonica populations obtained from the National Institute of Crop Science (NICS), Rural Development Administration, South Korea.

4.2. DNA Isolation and Genome Sequencing

Genomic DNA was prepared from rice grains using a ChargeSwitch^® gDNA plant kit (Invitrogen, Carlsbad, CA, United States) according to the manufacturer’s protocol. Whole-genome re-sequencing of the 27 samples was performed on an Illumina HiSeq2500™ by TheragenETEX Bio Institute (Suwon, South Korea). The procedure was performed according to the standard Illumina protocol, including sample preparation and sequencing as follows: high molecular weight genomic DNA was excised from the gel and sheared using a Covaris S2 ultra sonicator system in order to get appropriate sizes and agarose gel electrophoresis was used to select fragments. Libraries with short inserts of 350–450 bp for paired-end reads were prepared using a Truseq DNA sample prep kit following the manufacturer’s protocol for Illumina. Products were quantified using the Bioanalyzer 2100 (Agilent, Santa Clara, CA, USA) and sequencing was performed by establishing a library with Illumina HiSeq2500™. To ensure high quality, low-quality reads (<20) reads with adaptor sequence and duplicated reads were filtered out, and the remaining high-quality data were used in the mapping.

4.3. Mapping of Reads to the Reference

The raw reads were subjected to quality trimming (phred quality score, <Q₂₀) using FastQC [21] and adapter trimming was carried out by using the parameters (-O 5 and -m 32) in version 1.0 of the cutadapt software [22]. Furthermore, the clean reads were mapped to the temperate japonica Nipponbare reference genome, Os-Nipponbare-Reference-IRGSP-1.0 [23], using the Burrows–Wheeler Aligner (BWA) software [15] under the default parameters. The alignment results were then merged and indexed as BAM files [24]. Average sequencing depth and coverage were calculated using the alignment results. The mapped reads were then used to detect SNP and InDel polymorphisms.

4.4. Detection of SNPs and InDels

We used GATK tools software [25] to detect SNPs and InDels with its default parameters. In our analysis, InDels were defined as insertions or deletions the length of which was between 1 and 10 bp. The InDels falls on more than 10 cultivars are selected for further analysis.

4.5. Primer Design for Common InDel Markers

To design InDel markers for the detection of InDel polymorphisms by electrophoresis, we extracted only InDel regions with a large size (≥2 bp) and a high sequencing depth (DP, ≥5 fold) from each InDel list for the 17 cultivars. Primer pairs for the selected InDel regions were automatically designed by using a Perl script to control the Primer3 program [26]. In addition, we screened primer pairs for duplication of sequences to maintain specificity. When the sequence of a primer pair matched that of another primer pair, the corresponding pairs were eliminated because they were considered redundant. PCR product size ranged from 100 to 150 bp.

4.6. PCR Validation

To validate the marker sets, we tested the primer pairs by means of gel electrophoresis. Around 10 markers were chosen so as to cover as much of the entire genome as possible, but were randomly chosen within each portion of the genome. The InDel primer sets were validated by using those 17 Chinese cultivars used for detection of the InDel regions. Furthermore, these primer sets were PCR-amplified in approximately 10 $\mathsf{\mu }$L of reaction mixture consisting of EmeraldAmp^® GT PCR Master Mix (Takara, Japan) along with 5.0 pmol of each primer, and about 120 ng of the genomic DNA template. The conditions were: an initial denaturation step for 3 min at 95 °C, then 35 cycles of 20 s at 95 °C, 30 s at 55 °C, and 30 s at 72 °C, followed by a final extension for 1 min at 72 °C. PCR products were analyzed by means of gel electrophoresis on 1.5~1.7% agarose gels in Tris/borate/EDTA buffer. After staining with ethidium bromide, the band patterns on the agarose gels were photographed under Gel Doc™ 2000 Gel Documentation System (Bio-Rad, Seoul, Korea).
