Temporal and Spatial Differentiation of Cultivated Land and Its Response to Climatic Factors in Complex Geomorphic Areas—A Case Study of Sichuan Province of China

Abstract

Analyzing the distribution characteristics and influencing factors of cultivated land in complex geomorphic areas is significant in evaluating the agricultural farming environment and formulating cultivated land protection measures. This study extracted cultivated land information based on multi-source remote sensing data, and analyzed the geomorphic differentiation of cultivated land distribution and climate response from 2000 to 2020 using the Gini coefficient, spatial autocorrelation analysis and geographic detector. The results show that cultivated land is mainly distributed in low-altitude hills and low-altitude small undulating mountains, and secondarily in low-altitude alluvial and proluvial plains and platforms. Moreover, from 2000 to 2020, the cultivated land in the high-altitude and high-altitude undulating mountains and medium and high-altitude undulating mountains in the Northwest Plateau of Sichuan showed an upward trend, while the cultivated land in the Sichuan Basin mainly increased from the north and south to the middle of the basin. In addition, the highest temperature has the strongest ability to explain the spatial heterogeneity of cultivated land. From the calculation results of the influence coefficient of a single climatic factor and the combined effect of multiple climatic factors, the main factors that affect the distribution of cultivated land are different in different geomorphological regions. Finally, it is proposed to formulate a long-term strategy for agricultural production to adapt to climate change in complex geomorphic areas in order to reduce the negative impact of environmental change on agricultural production.

1. Introduction

Cultivated land is one of the most important types of land use and is key to ensuring food security, ecological security, and regional development. The formation and existence of cultivated land are affected by climate, terrain, soil and other conditions. Geomorphic characteristics largely determine the conditions of temperature, rainfall and moisture in the local environment, affecting the development, quality and distribution of cultivated land. Therefore, it is of great theoretical and practical significance to explore the law of cultivated land differentiation at the scale of a geomorphological area, and to further excavate the response of cultivated land geomorphological differentiation to climate factors such as temperature, rainfall, humidity, and wind speed.

At present, researchers have conducted many studies on regional and global cultivated land changes at different spatial and temporal resolutions [1,2]. At the regional and national level, the spatial resolution of the land use map has been improved to analyze cultivated land change. For example, a land use map with 1 km spatial resolution was used to evaluate the spatial pattern of agricultural land in Brazil [3], China [4], and Europe [5]. A 30-m resolution land use map was developed to analyze the Usangu basin [6], central and eastern Iowa [7], northern Ghana [8], the Kabul River Basin [9] and Nigeria [10]. The existing studies are all large-scale regional studies, ignoring the impact of local topographic characteristics. As an important factor affecting the distribution and change of cultivated land, topographic characteristics have attracted extensive attention because of their important impact on the quantity, quality and ecosystem health of cultivated land. For agricultural cultivated land resources, comparing their topographic differentiation characteristics and dynamic evolution laws is a prerequisite for assessing the impact of regional development on the agricultural farming environment and formulating cultivated land protection measures.

Although various data sets for cultivated land distribution have been established worldwide, the comparative analysis of the most commonly used data sets has revealed large inconsistencies and uncertainties [11]. This is because the uncertainty of agricultural land cover classification is often greater than that of other categories. Complex landform areas are relatively unstable areas in agricultural production, so it is necessary to select products suitable for monitoring farmland. In this study, more accurate and appropriate cultivated land distribution data were obtained by integrating TM5, ETM+, and oli multispectral images from the United States Land Resources Satellite (Landsat), the multispectral images from the China environmental disaster reduction satellite (HJ-1), and 16-m resolution GaoFen-1 (GF-1) multispectral images.

In addition, existing studies confirmed that cultivated land patterns are sensitive to climatic changes and other natural factors [12,13,14]. Determining the driving force behind cultivated land change has become a hot spot in the field of land use and land cover change, agriculture and food security. Quantitative assessment of the contribution of climatic changes and human activities to temporal and spatial changes in farmlands is an important scientific topic in the field of climatic change and Land Surface System Science [15,16]. However, the geomorphic differentiation law of the impact of climatic factors on cultivated land is rarely revealed. Most of the existing studies focus on large-scale changes in cultivated land, and few studies compare the temporal and spatial transfer process of cultivated land and its climate response characteristics.

Correctly analyzing the distribution characteristics of cultivated land in different geomorphological regions and discussing the impact of climate factors on cultivated land for different geomorphic regions are two important difficulties that must be solved when choosing a research method.The methods to identify the spatial differentiation of cultivated land include nearest neighbor distance index, kernel density estimation, spatial interpolation and Getis-Ord G* statistical index, used to determine the concentration intensity of cultivated land elements, identify high-value agglomeration areas and visualize agglomeration differentiation [17]. However, the difference is that the first three methods are based on specific statistical rules and select part or all of the high-value agglomeration areas as “hot spots”, which is limited by the inability to accurately identify the hot spots of cultivated land change from the level of statistical significance. The Getis-Ord G* statistical index can intuitively identify the hot spots of cultivated land change according to hot spot statistical significance parameters, with strong accuracy. In addition, although the existing research work focuses on the impact of climate and environmental factors on the distribution of cultivated land, there is still a lack of comprehensive comparison between factors and variable combinations, most adopt correlation or regression statistical methods, and the quantitative attribution of the impact and interaction of multiple climatic factors is relatively weak. The Geographic detectors method can reveal the driving force behind geographical phenomena by detecting their spatial stratification heterogeneity. The core assumption is that, if an independent variable has an important impact on a dependent variable, the spatial distribution of the independent variable and the dependent variable have strong consistency [18]. This method has been extensively used in the social [19,20] and environmental [21,22,23] sciences. In this study, taking the spatial distribution of geomorphic types as the macro background, the multi factor quantitative attribution affecting the distribution of cultivated land is carried out with the help of the geographic detector method, in order to identify the dominant climatic factors and interactions in different geomorphic types of area, and put forward climate and environmental adaptation policies for crop production in different geomorphic areas.

Therefore, the specific objectives of this study are to: (1) analyze the distribution law of cultivated land in complex geomorphic areas; (2) compare the geomorphic differentiation characteristics of temporal and spatial transfer of cultivated land in 2000–2010 and 2010–2020; (3) reveal the response law of climatic factors for cultivated land distribution in different geomorphic areas.

2. Data and Methods

2.1. The Study Area

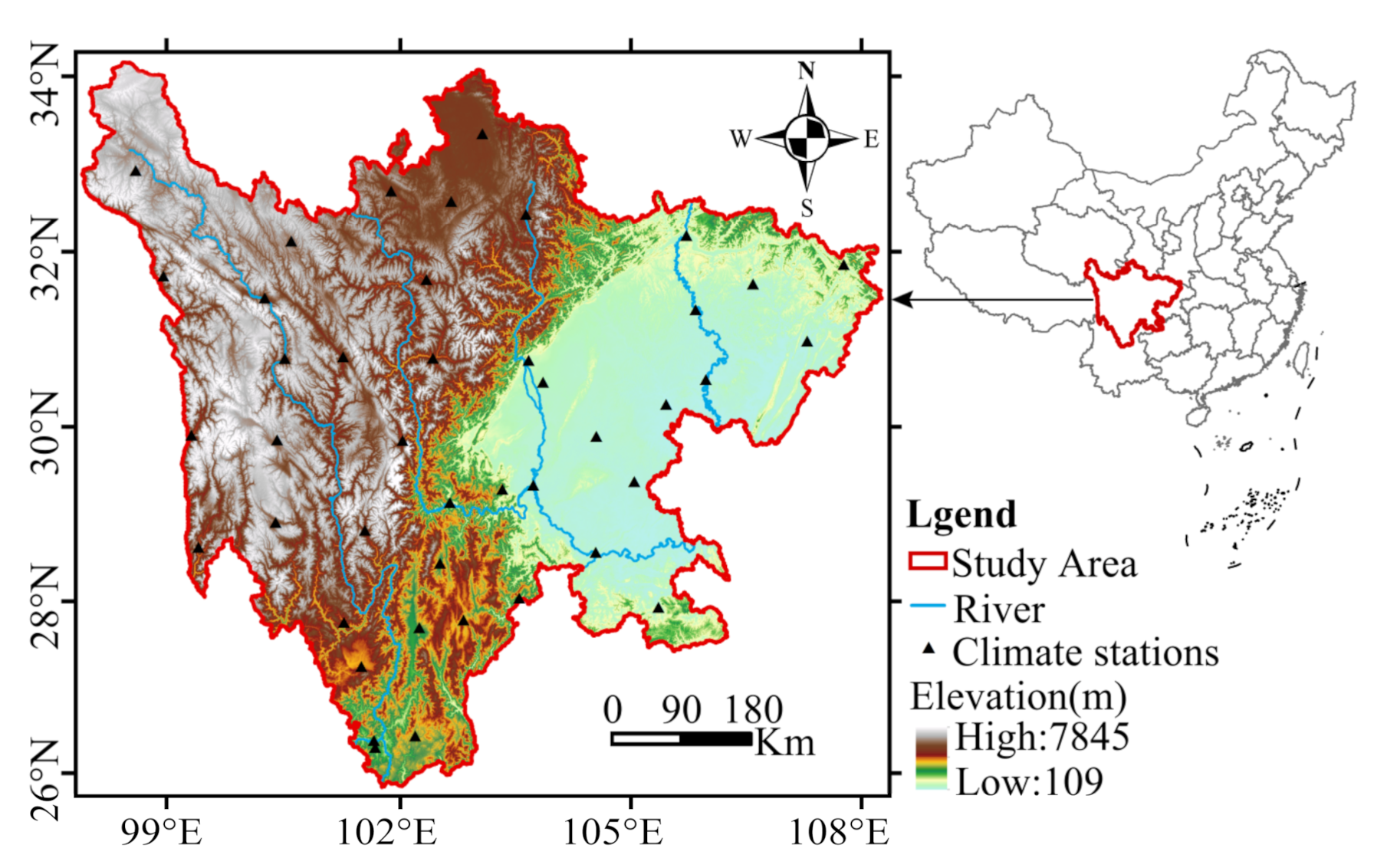

Sichuan is located in the transition zone between the first and the second ladder in China (Figure 1). The terrain is complex and diverse, dominated by mountains and plateau, followed by hills and limited plains. The Western Sichuan area is dominated by primitive mountainous landforms and high mountain canyon, while the southwestern area is s sub-high mountain and middle mountain canyon area. The eastern basin is dominated by plain and hilly landform, and the mountainous area at the edge of the basin is dominated by medium and low mountains, with scattered plains and hills.

The climate of different geomorphic areas in Sichuan is obviously different. The climate of the western plateau and mountainous area changes significantly and vertically, with a predominantly cold-temperate climate, cold winters and cool summers, sufficient sunshine, an average annual temperature of 4 to 12 °C, and annual precipitation of 500 to 900 mm. The eastern basin has a subtropical monsoon climate with warm winters and hot summers, less sunshine, an annual average temperature of 16 to 18 °C, and annual precipitation of 1000 to 1300 mm. Due to the complex regional landform, fragile ecological environment and frequent occurrence of various meteorological disasters, coupled with the rapid expansion of construction land caused by rapid urbanization, the cultivated land is gradually decreasing, and the ecological security of cultivated land is under heavy pressure.

2.2. Data

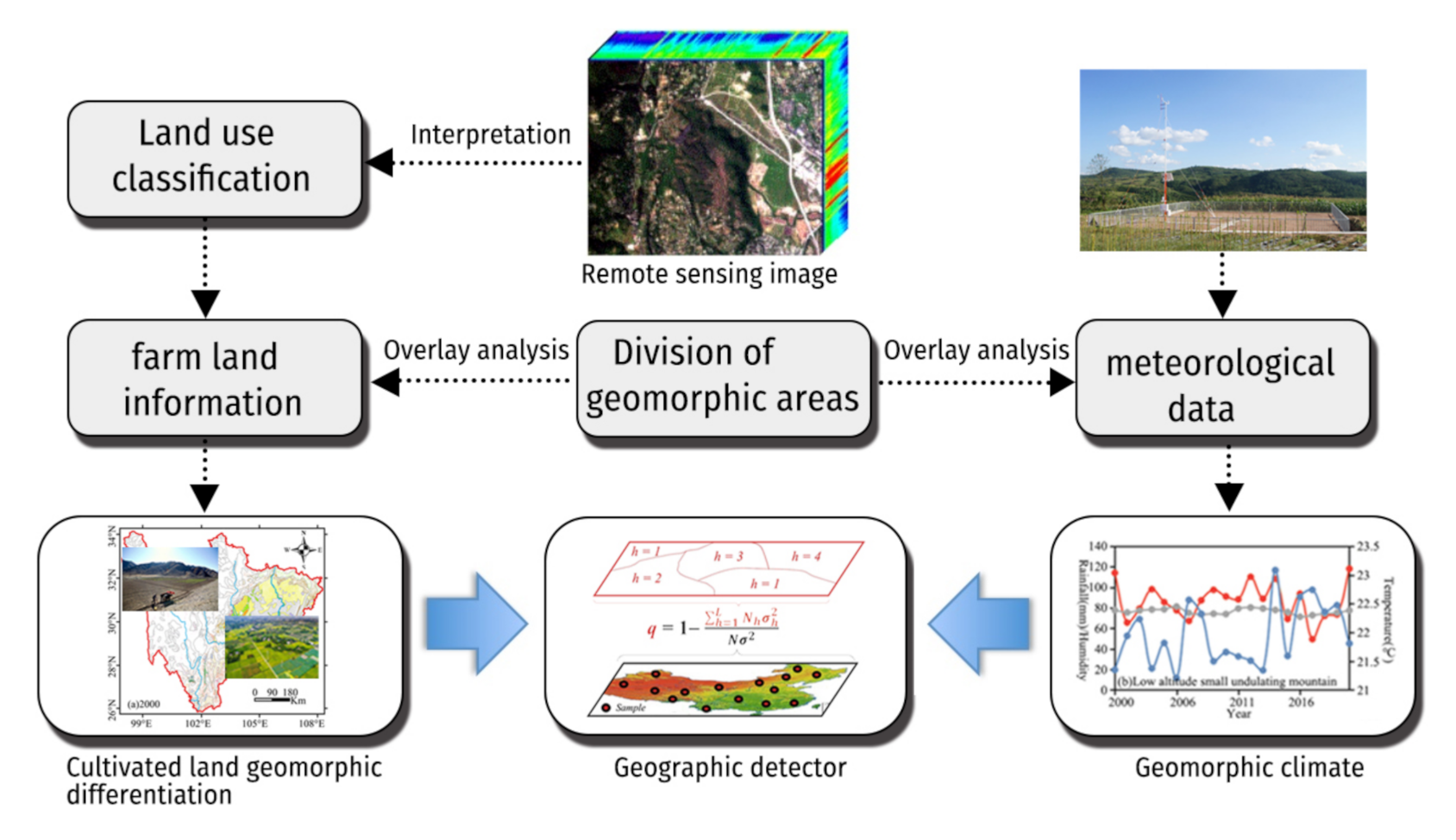

The research data include remote sensing image data for extracting cultivated land information, DEM data for dividing geomorphic areas, and meteorological station data (Figure 2). The cultivated land data in 2000 and 2010 are mainly interpreted by 30 m multispectral images, including TM5, ETM +, and OLI multispectral images from Landsat and China’s environmental disaster reduction satellite (HJ-1). The cultivated land data in 2020 were derived from 16 m resolution Gaofen-1 (GF-1) multispectral images. The principle of image selection is to select the multispectral images of the vegetation growth season within ± 2 years of data production base year or update year, while ensuring that the images are cloudless (less cloud). The 30 m spatial resolution Digital Elevation Model (DEM) data comes from the geospatial data cloud mirror website of the computer network information center of the Chinese Academy of Sciences (http://www.gscloud.cn/ accessed on 30 December 2021). The meteorological data comes from the monthly, seasonal, and annual series of temperature, precipitation, wind speed, and relative humidity data for 2000 to 2020 from 43 basic meteorological stations in Sichuan Province.

2.3. Analysis Methods

2.3.1. Lorenz Curve and Gini Coefficient

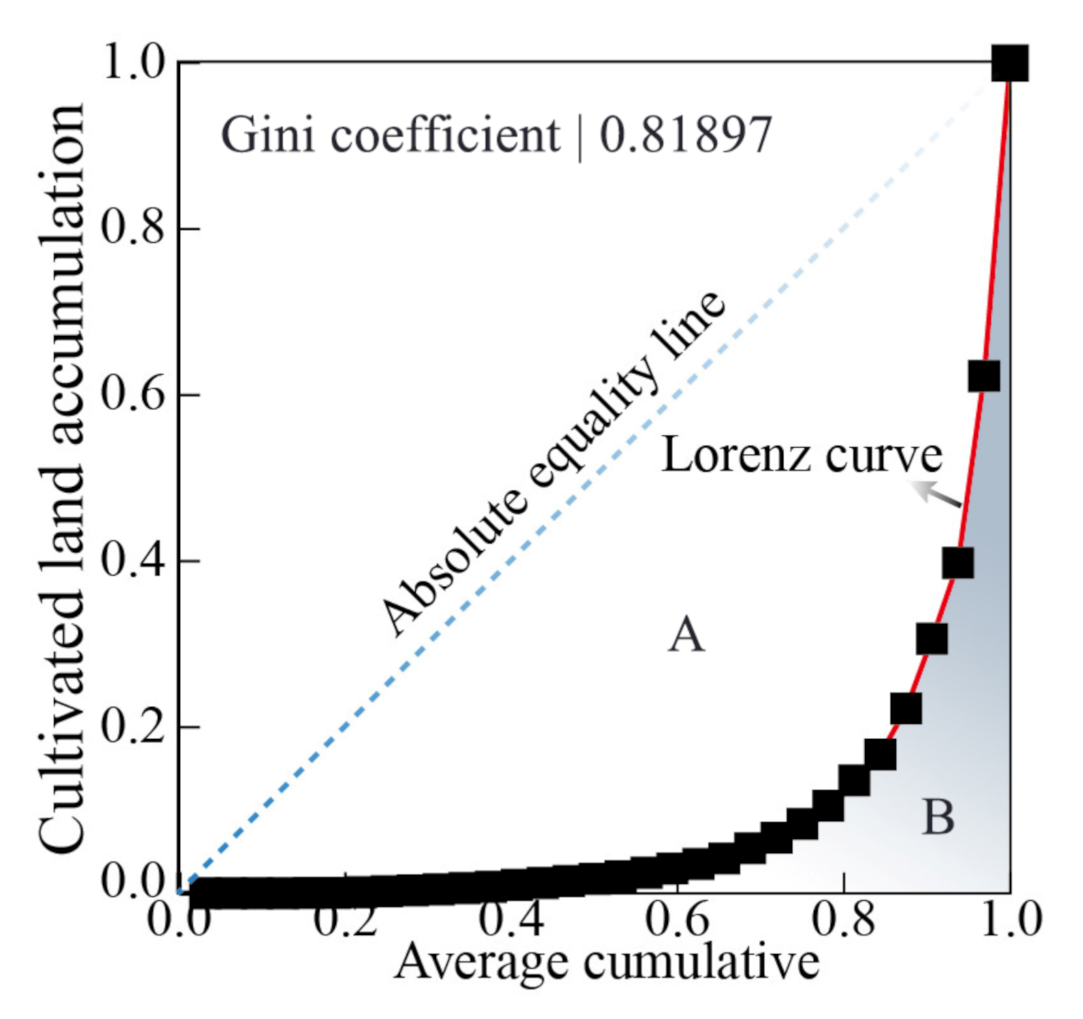

The spatial Lorenz curve and Gini coefficient are used to describe the spatial distribution of cultivated land. The Lorenz curve was proposed by M. Lorenz, an American economic statistician, to reflect the uniformity of regional income distribution. In this paper, the spatial Lorenz curve is drawn according to the cumulative percentage of cultivated land area proportion in each geomorphic area as the horizontal axis and the average cumulative percentage as the vertical axis. The closer the curve is to the absolute mean line, the more evenly distributed is cultivated land in the various areas.

The Gini coefficient is used to quantitatively reveal the average degree of distribution of various categories constituting the agricultural production space. Referring to the calculation method of the Gini coefficient in relevant studies, the calculation formula in this study is:

$$G={\displaystyle \sum }_{i=1}^{n-1}\left(M_i{Q}_{i+1}-M_{i+1}{Q}_i\right)$$

(1)

where $G$ is the Gini coefficient of cultivated land geomorphic differentiation; $M_i$ is the cumulative percentage of cultivated land in a geomorphic area; and $Q_i$ is the cumulative percentage of the area of a geomorphic area in the total area of the study area. Since 37 geomorphic areas are defined in the study area, the value range of the integer $i$ is 0 <$i$ < 37. The smaller the Gini coefficient, the more evenly distributed the cultivated land in various geomorphic areas; conversely, the more unevenly distributed is the cultivated land [24].

2.3.2. Getis-Ord Gi*

The hot spot analysis method can reveal the spatial agglomeration characteristics of local areas and identify the spatial clustering of the high value (hot spot) and low value (cold spot) with statistical significance. The calculation formula shown in Getis-Ord Gi* is as follows:

$$G_i\left(d\right) =\frac{{{\displaystyle \sum }}_{j=1}^n{w}_{ij}\left(d\right)x_j}{{{\displaystyle \sum }}_{j=1}^n{x}_j}$$

(2)

where $w_{ij}\left(d\right)$ is the weight matrix within the distance range $d$, $i\ne j$. $G_i\left(d\right)$ indicates the correlation degree between the statistics of geomorphic areas $i$ and adjacent geomorphic areas $i$ under the condition of distance weight. The formula for $Z\left(G_i\right)$ standardized treatment is:

$$Z\left(G_i\right) =\frac{\left[G_i\left(d\right)\right]-E\left(G_i\right)}{\sqrt{VAR\left(G_i\right)}}$$

(3)

where $E\left(G_i\right)$ and $VAR\left(G_i\right)$ represent the $G_i$ mathematical expectation and theoretical variance, respectively. If $Z\left(G_i\right)$ is positive and significant, more cultivated land is distributed in the geomorphic area around the surface geomorphic area $i$, then the geomorphic area $i$ belongs to the hot spot area. If $Z\left(G_i\right)$ is negative and significant, the increase of cultivated land around the geomorphic area $i$ is low, belonging to the cold spot area [25].

2.3.3. Geographic Detector

Geographic detectors are used to analyze the spatial correlation between the distribution of cultivated land and the driving factors. Geographic detectors mainly comprise risk detection, factor detection, ecological detection, and interactive detection. The formula of the model is as follows:

$$q=1-\frac{1}{N{\sigma }^2}{\displaystyle \sum }_{i=1}^L{N}_i{\sigma }_i{}^2$$

(4)

In the formula, $q$ is the spatial heterogeneity of a certain index; $q\in \left[0,1\right]$; $N$ is the total sample number of the study area; ${\sigma }_i{}^2$ is the variance of the index; $i$ = 1, 2, …, $L$, $i$ represents the partition, and $L$ represents the number of the partition. The size of $q$ reflects the degree of spatial differentiation; the larger the $q$ value, the stronger the heterogeneity of spatial stratification, and conversely, the stronger the randomness of spatial distribution. When $q$ = 0, this indicates no spatial heterogeneity in the research object; when $q$ = 1, this indicates perfect spatial heterogeneity [26].

3. Results

3.1. Distribution of Cultivated Land in Different Geomorphic Areas

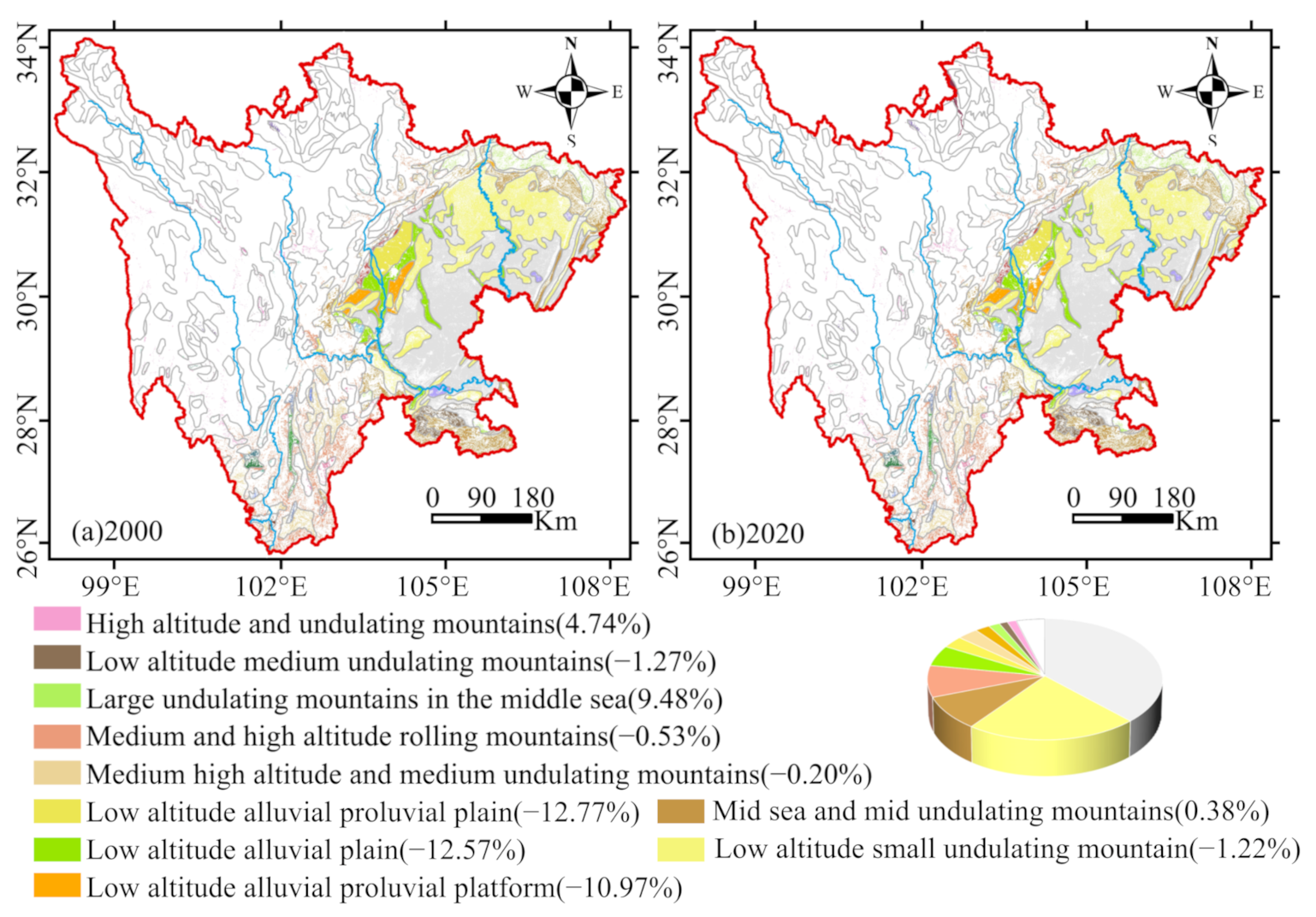

In this study, based on the traditional basic geomorphic types of mountains and plains, the landforms are divided into seven categories according to geomorphic morphological characteristics and fluctuation height differences, and then divided into 37 geomorphic areas according to five-level altitude. The Lorenz curve is used to analyze the spatial distribution balance of cultivated land in different geomorphic areas. According to the calculation results for location entropy, the Lorenz curve of cultivated land distribution in different geomorphic areas is drawn. As shown in Figure 3, the Lorenz curve is far from the absolute average, and the Gini coefficient is 0.81897, indicating that the spatial distribution of cultivated land is not balanced and has an obvious trend of agglomeration distribution. Further analysis shows that among the 37 geomorphic areas in the study area, 32 have cultivated land distribution. Among them, low altitude hills and low altitude small undulating mountains are the main geomorphic areas of cultivated land, and the average proportion of cultivated land over the years is 37.53% and 22.36%, respectively. They are followed by the middle altitude middle undulating mountain (9.03%), the middle high altitude large undulating mountain (8.34%), the low altitude alluvial plain (5.95%), the low altitude alluvial proluvial plain (3.34%), the middle high altitude medium undulating mountain (3.02%), the low altitude alluvial proluvial platform (2.32%), the middle altitude large undulating mountain (1.58%), the low altitude medium undulating mountain (1.21%) and the high altitude large undulating mountain (1.25%), and other geomorphic areas. However, the average cultivated land area in the other 21 geomorphic areas is less than 1% over the years. Generally, cultivated land is mainly concentrated and distributed in middle and low altitude, medium and small undulating hills and mountains, and secondarily concentrated and distributed in low altitude alluvial, proluvial plains and platforms.

3.2. Spatial Correlation of Cultivated Land Distribution in Different Geomorphic Areas

The global autocorrelation analysis by Geoda showed that the Moran’s I index of cultivated land area in 2020 is 0.466, and the Z value is 10.94, with p = 0.001 by significance test, showing a positive spatial correlation. The results of local spatial autocorrelation analysis showed that the geomorphic differentiation and clustering characteristics of cultivated land are not significant in agroclimatic areas such as the forest and pastoral areas in the mountains and valleys of Western Sichuan, the pastoral areas in the sub cold zone of Northwest Sichuan Plateau and the pastoral areas in the sub cold zone of Western Sichuan Plateau. In the hilly warm temperate forest, pastoral and agricultural areas in eastern Sichuan (Figure 4), high–high aggregation classes are the largest, and low–high aggregation classes are few. The high–high aggregation classes are mainly distributed in areas with similar natural conditions, such as Suining, Nanchong, Guang’an, and Neijiang. The main distribution areas of low–high aggregation classes are located in Yibin, Luzhou, and other areas. This is because the topographic conditions in these areas change greatly, including low altitude and low undulating hills and mountains where cultivated land is mainly distributed, and medium and high altitude and large undulating mountains where there is less cultivated land, resulting in local spatial heterogeneity of cultivated land geomorphic differentiation.

3.3. Temporal and Spatial Changes of Cultivated Land in Different Geomorphic Areas

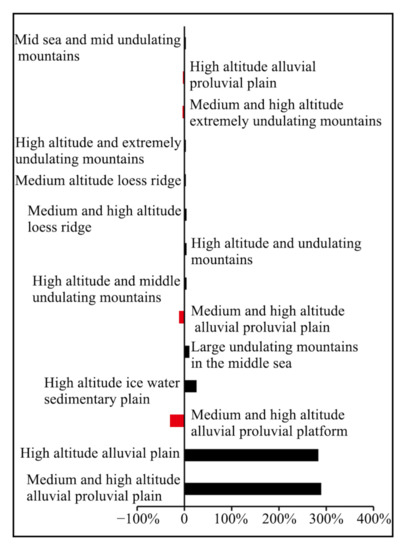

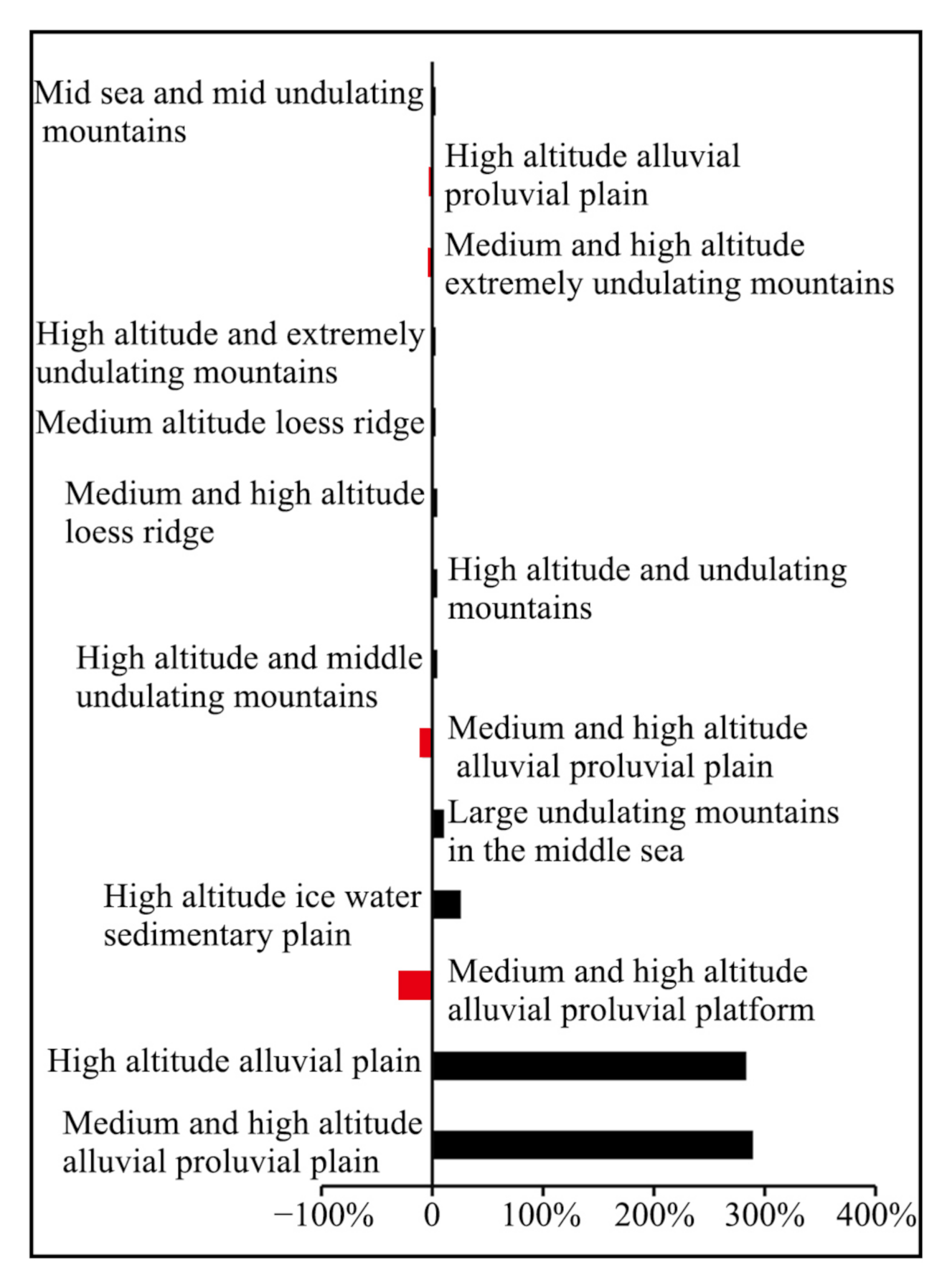

From 2000 to 2010, the cultivated land in the medium and high-altitude alluvial plain and high-altitude alluvial plain changed dramatically (Figure 5), and the cultivated land area increased by 288.74% and 282.29%, respectively. In other geomorphic areas, the cultivated land area of the high-altitude alluvial proluvial platform decreased by 30.22%, the cultivated land area of the high-altitude ice water sedimentary plain increased by 25.36%, the cultivated land area of large undulating mountains increased by 10.44%, and the cultivated land area of the medium and high-altitude alluvial proluvial plain decreased by 9.78%. In the geomorphic areas with high cultivated land area distribution, such as low-altitude hills, low-altitude small undulating mountains, middle altitude medium undulating mountains, and other geomorphic areas, the change of cultivated land area is relatively small, increasing by 0.34%, 0.52%, and 2.43%, respectively. In addition, in the geomorphic areas with high cultivated land area, such as the low-altitude alluvial plain and low-altitude alluvial proluvial plain, the cultivated land area decreased by 1.15% and 1.14%, respectively. In general, from 2000 to 2010, the distribution scale of cultivated land in the geomorphic areas of the study area mainly increased, and a small-scale increase occurred, with the pattern that small and medium-sized rolling hills and mountains at middle and low altitudes were the main distribution geomorphic areas of cultivated land. However, in the geomorphic areas such as the low-altitude alluvial plain and low-altitude alluvial proluvial plain where the distribution of cultivated land is mainly concentrated, there is a small-scale decline in cultivated land.

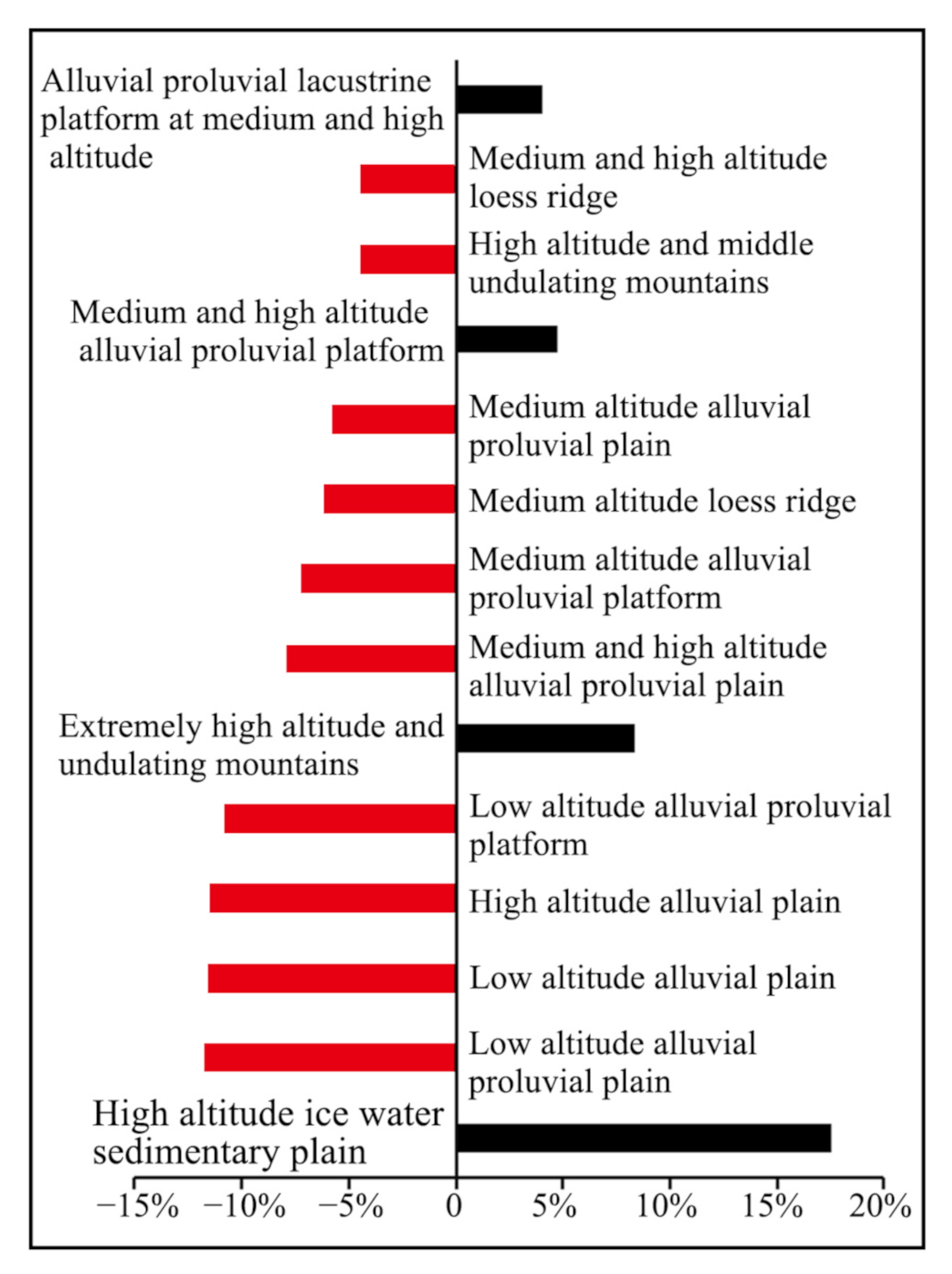

From 2010–2020, compared with 2000–2010, the cultivated land changed greatly, and the total amount of cultivated land decreased. During this period, except for the increase in cultivated land area in geomorphic areas such as the high-altitude ice water sedimentary plain, high-altitude extremely undulating mountain, medium and high-altitude alluvial proluvial platform, medium and high-altitude alluvial proluvial lacustrine platform, medium and high-altitude denudation plain, high-altitude greatly undulating mountain and medium and high-altitude extremely undulating mountain (Figure 6), the cultivated land area of the other 25 geomorphic areas decreased. There was a small-scale decline in the geomorphic areas such as low-altitude hills, low-altitude small undulating mountains and middle altitude medium undulating mountains with more cultivated land distribution, and the cultivated land area decreased by 1.89%, 1.74%, and 2%, respectively. Moreover, the proportion of cultivated land decreased significantly in geomorphic areas such as low-altitude alluvial plain, low-altitude alluvial proluvial plain, and low-altitude alluvial proluvial platform. Among these, the cultivated land of the low-altitude alluvial plain decreased by 12.57%, the cultivated land of the low-altitude alluvial proluvial plain decreased by 11.76%, and the cultivated land of the low-altitude alluvial proluvial platform decreased by 10.79%. This shows that the total amount of cultivated land in the study area decreased from 2010 to 2020. The spatial distribution of cultivated land scale showed that it decreased continuously in low-altitude alluvial proluvial plains, platforms and other low-ecological risk geomorphic areas, while the cultivated land scale increased in high-altitude undulating mountains, medium and high-altitude undulating mountains and other high-ecological risk geomorphic areas (Figure 7).

3.4. Cold Hot Spot Model of Temporal and Spatial Differentiation of Cultivated Land Landform

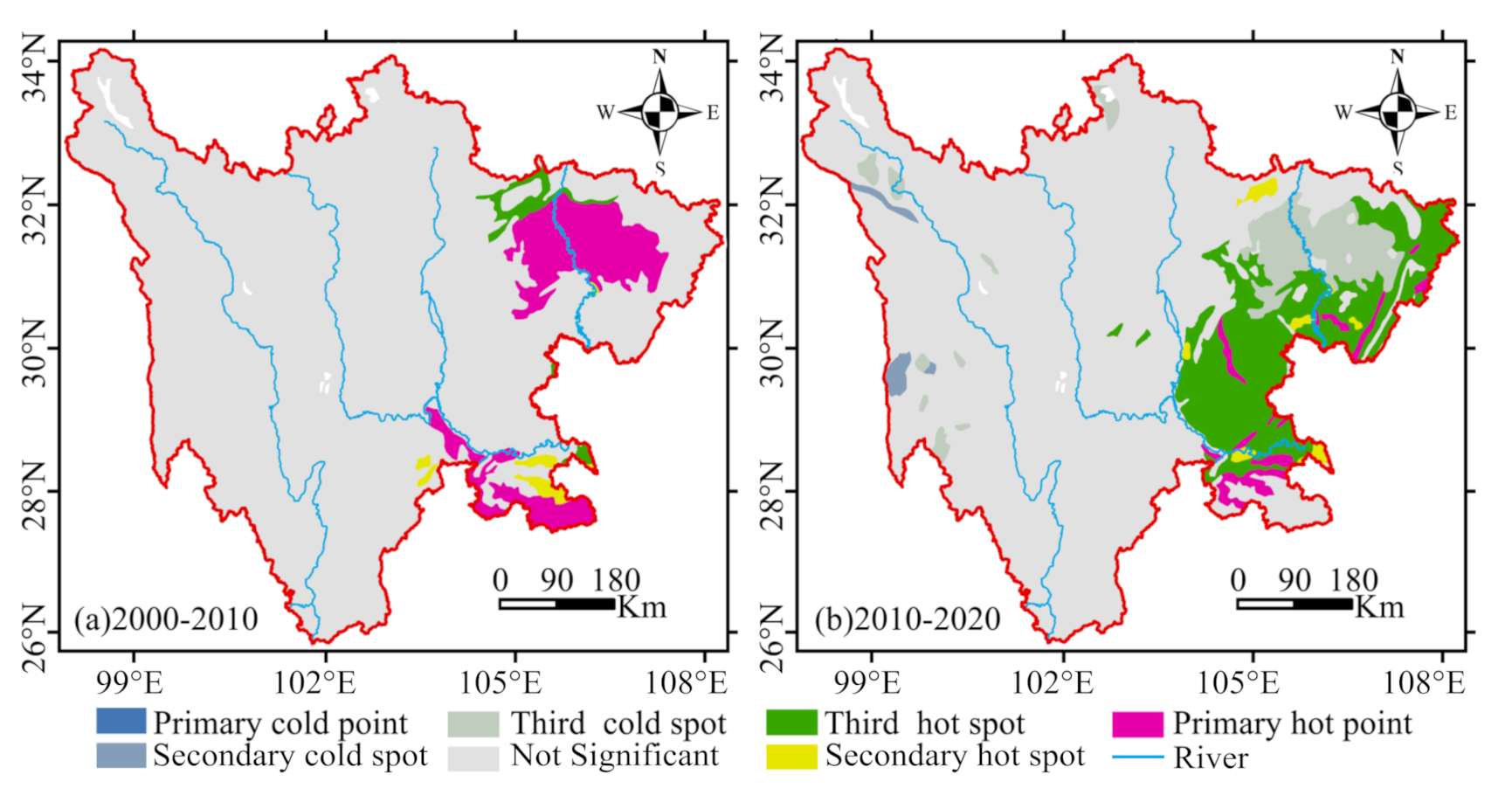

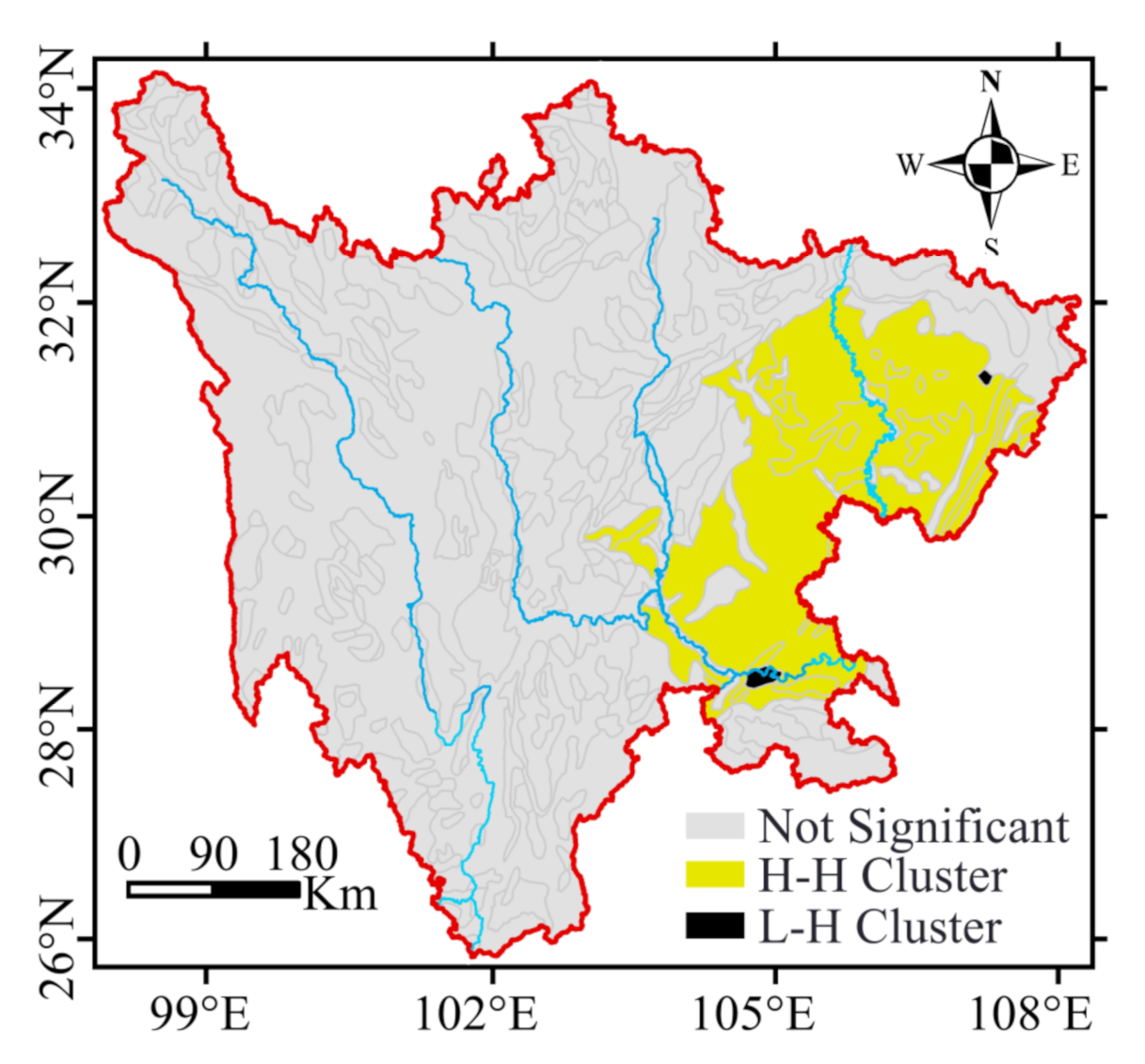

In order to further identify the temporal and spatial patterns of cultivated land geomorphic differentiation, the Getis-Ord Gi* index was first calculated based on the change rate of cultivated land area in each physiognomy area during 2000–2010 and 2010–2020, and GI_ Bin interval was used to determine the spatial agglomeration characteristics of cold and hot spots. As shown in Figure 8, cultivated land changes in different geomorphic areas from 2000–2010 mainly show four modes: primary hot spot, secondary hot spot, tertiary hot spot and insignificant, and the primary hot spot area is the main one. Meanwhile, the hot spots are distributed in two clusters in the north and south of Sichuan Basin. Among them, the first-class hot spots are distributed in the hilly and mountainous areas with medium and low altitude and medium and small fluctuation in the Jialing River Basin in the north of the basin, as well as the hilly and mountainous areas with medium and low altitude and medium and small fluctuation in the Minjiang River Basin and the mainstream of the Yangtze River in the south of the basin. From 2010 to 2020, the change of cultivated land in different geomorphic areas has a variety of cold and hot spot modes, mainly in three-level hot spots, which are concentrated in low-altitude hills, mountains, and alluvial plains in the middle of the basin. In contrast to 2000–2010, the primary hot spots in the north and south of the basin in 2000–2010 will gradually become cold spots from 2010–2020. Combined with the quantitative change characteristics of cultivated land in the geomorphic area, it is clear that the characteristics of cultivated land change and hot spots in the study area have a significant evolution trend, from new cultivated land in the north and south of the basin to reduced cultivated land in the middle of the basin, in the last two decades.

3.5. Climate Response of Cultivated Land Geomorphic Differentiation

3.5.1. Meteorological Change Characteristics of Each Geomorphic Area

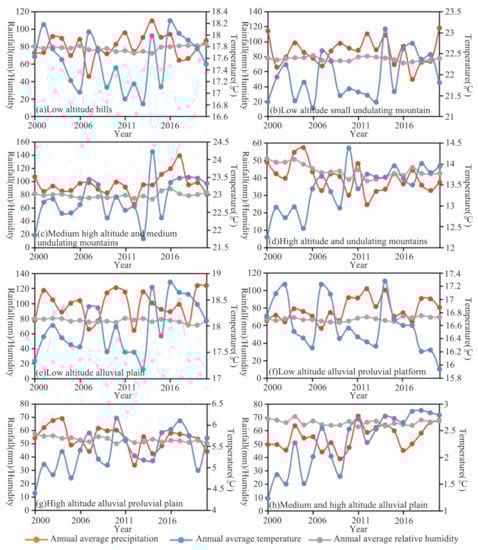

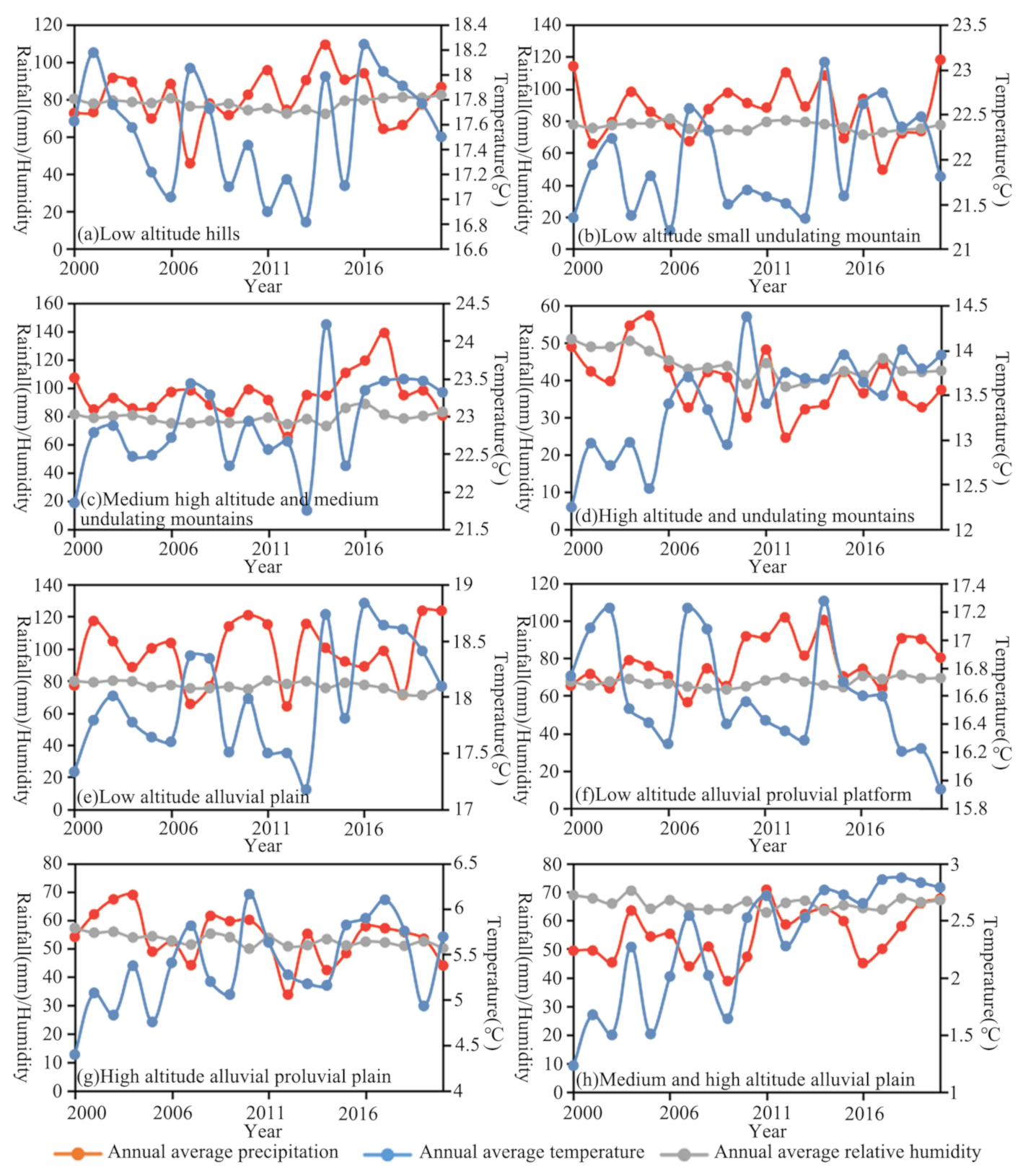

In order to describe the response law of cultivated land distribution to meteorological factors in different geomorphic areas, 43 meteorological stations were merged into the geomorphic area, and the meteorological factors of each geomorphic area were calculated. As shown in Figure 9, according to the distribution and changes of cultivated land in the past 20 years, eight typical geomorphic areas were selected. The time-series data from 2000–2020 are taken as the abscissa to obtain the multi-year meteorological changes of different geomorphic areas with the multi-year average temperature, average rainfall and average humidity of different geomorphic areas as the ordinate. Taking 2020 as an example, the highest average temperature in the middle altitude and middle undulating mountains is 23.32 °C, while that in the middle and high altitude alluvial plain is only 2.79 °C. The low altitude alluvial plain with the highest average rainfall has an average annual rainfall of 123.59 mm, while the high altitude undulating mountain has an average annual rainfall of 37.35 mm. There is also a difference of 40.61 units between the geomorphic area with the highest relative humidity and the geomorphic area with the lowest relative humidity. Obviously, there are significant differences in temperature, precipitation and humidity in different geomorphic areas. Specifically, in terms of the change rates of meteorological factors over the years, the lowest rate of temperature change is in the low altitude hilly area (−111.1%), the highest rate of temperature change is in the high altitude alluvial proluvial plain (−10.7%), and the highest rate of average temperature change is in the medium and high altitude alluvial plain (−55.8%). In addition, the highest rate of rainfall change is in the medium altitude and medium undulating mountain (133.1%), the highest change rate of minimum rainfall is in the medium and high altitude alluvial plain (2900%), the highest change rate of average rainfall is in the low altitude alluvial plain (−37.7%), the highest change rate of average wind speed is in the low altitude hills (−62.1%), and the highest change rate of average humidity is in the high altitude undulating mountains (20.0%). It can be seen that the meteorological factors in various areas show obvious fluctuations in temporal and spatial series.

The response law of cultivated land geomorphic differentiation to meteorological factors was further analyzed, and meteorological index data such as maximum temperature, minimum temperature, average temperature, maximum rainfall, minimum rainfall, average rainfall, average humidity and average wind speed obtained for many years. The influence of meteorological factors on cultivated land geomorphic differentiation was analyzed from two aspects of interactive detection. The factor detector calculates the PD value ranking of meteorological factors in each geomorphic area; by comparing the PD value of a single meteorological factor with the PD value of two factors, the interaction detector can determine whether the meteorological factors have an independent or interaction effect on cultivated land geomorphic differentiation, and whether the interaction is synergistic or inhibitory.

3.5.2. Single Factor Attribution of Cultivated Land Geomorphic Differentiation

In the whole study area, the highest temperature explained the most spatial heterogeneity of cultivated land at 65.5% (significance level of 99%). This was followed by the lowest temperature, average temperature and average relative humidity at 57.0% (significance level 95%), 52.8% (significance level 95%) and 50.5% (significance level 95%), respectively. The average rainfall, average wind speed, minimum rainfall and maximum rainfall have weak explanatory ability for the spatial heterogeneity of cultivated land, at 40.6% (significance level 95%), 40.5% (significance level 95%), 38.8% (significance level 95%) and 17.8%, respectively.

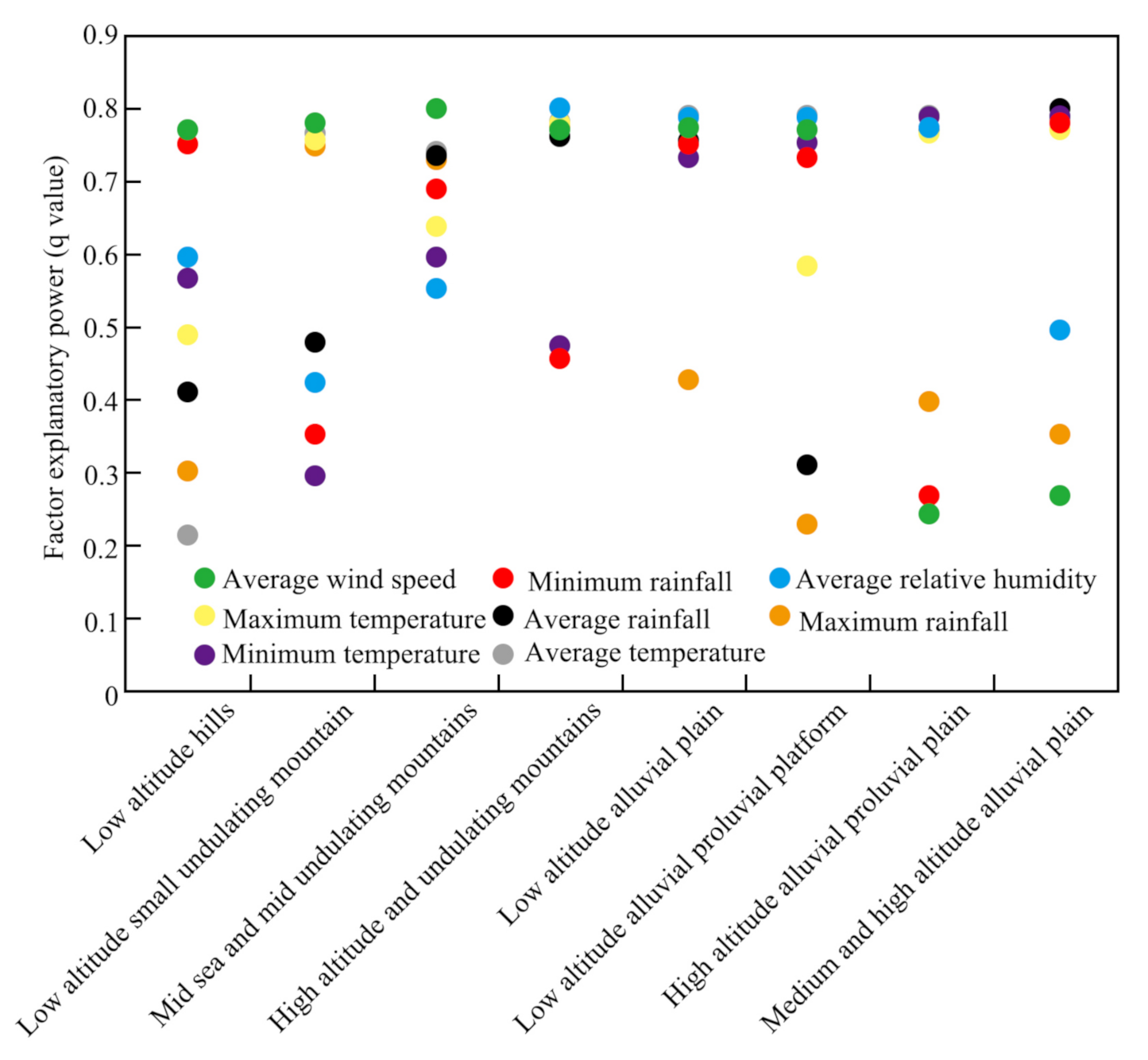

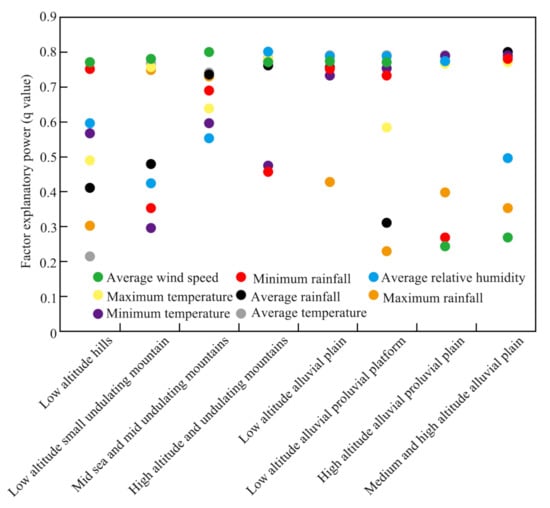

In different geomorphic divisions, there are significant differences in the category and degree of influence of meteorological factors affecting the spatial distribution of cultivated land (Figure 10). For example, the minimum temperature has a weak explanatory power of 29.1% on the distribution of cultivated land in low altitude small undulating mountains, while it is as high as 78.8% in high altitude alluvial proluvial plains. The explanatory power of the maximum rainfall on the distribution of cultivated land in the alluvial proluvial platform at low altitude is 22.8%, while this is 75.9% and 72.5% for the small undulating mountain at low altitude and the medium undulating mountain at medium altitude, respectively. In terms of various geomorphic areas, low altitude hilly areas are most affected by minimum rainfall, low altitude small undulating mountains are most affected by maximum rainfall, middle altitude medium undulating mountains are most affected by average wind speed, high altitude large undulating mountains are most affected by average relative humidity, and low altitude alluvial plains are most affected by average temperature Low altitude alluvial proluvial platform is most affected by average relative humidity, high altitude alluvial proluvial plain is most affected by average temperature, and medium and high altitude alluvial plain is most affected by average temperature. In general, the distribution of cultivated land in medium and high altitude geomorphic areas is greatly affected by temperature, while the distribution of cultivated land in low altitude geomorphic areas is more affected by rainfall.

3.5.3. Interaction of Influencing Factors of Cultivated Land Geomorphic Differentiation

Through the comprehensive effect of changes in temperature and precipitation, climate changes ecological system elements such as light, temperature, water, soil, gas and biomass, and then has an impact on the planting system, pest control, agricultural production potential and agricultural management, thus affecting the distribution of cultivated land for planting agricultural economic crops.The multi-factor interaction of cultivated land geomorphic differentiation was carried out using the interactive detection module of the geographic detector. The calculation results show a wide range in the two factors increasing the effect among climatic factors in each physiognomic area, and most of the factors experience nonlinear enhancement after this interaction. The main interaction factors of cultivated land distribution in different geomorphic areas are different. As shown in

Table 1. Interaction detection of influencing factors on cultivated land spatial distribution in different geomorphic areas.

Typical Geomorphic Area	Interaction of Main Meteorological Factors
Low altitude hills	Maximum rainfall ∩ minimum rainfall	Maximum temperature ∩ minimum rainfall	Maximum temperature ∩ average wind speed
Low altitude small undulating mountain	Maximum temperature ∩ minimum temperature	Maximum temperature ∩ average relative humidity	Maximum temperature ∩ average rainfall
Mid sea and mid undulating mountains	Minimum temperature ∩ average rainfall	Average rainfall ∩ average relative humidity	Average wind speed ∩ average relative humidity
High altitude and undulating mountains	Average temperature ∩ average relative humidity	Minimum temperature ∩ average wind speed	Average rainfall ∩ average relative humidity
Low altitude alluvial plain	Maximum temperature ∩ minimum rainfall	Maximum temperature ∩ average rainfall	Maximum temperature ∩ average wind speed
Low altitude alluvial proluvial platform	Minimum temperature ∩ maximum rainfall	Maximum temperature ∩ minimum temperature	Maximum rainfall ∩ minimum rainfall
High altitude alluvial proluvial plain	Minimum temperature ∩ maximum temperature	Minimum temperature ∩ average rainfall	Maximum temperature ∩ average temperature
Medium and high altitude alluvial plain	Minimum temperature ∩ average temperature	Maximum temperature ∩ average temperature	Average temperature ∩ maximum rainfall

, the distribution of cultivated land in low altitude areas is most affected by extreme precipitation factors such as maximum rainfall and minimum rainfall, while the low altitude small undulating mountains are most affected by extreme temperatures such as maximum temperature and minimum temperature. The undulating mountains in the middle sea are more affected by the combination of climatic factors such as average temperature, average rainfall and average humidity. High altitude and large fluctuation mountainous areas have a higher impact on the factor combination of average temperature and average relative humidity. The low altitude alluvial plain and low altitude alluvial proluvial platform are more affected by the combination of extreme temperature and extreme rainfall. The high altitude alluvial proluvial plain is most affected by extreme temperature factors. The medium and high altitude alluvial plain is more affected by the combination of minimum temperature and average temperature.

4. Discussion

4.1. Characteristics of Cultivated Land Geomorphic Differentiation and Temporal and Spatial Transfer

According to the analysis results of cultivated land distribution in the study area, cultivated land is mainly distributed in low-altitude hills, low-altitude small undulating mountains, and low-altitude alluvial, and proluvial plains in the Sichuan Basin. This is consistent with the research results of Li and Wang [27] on the distribution of cultivated land in Sichuan Province. This is because the Sichuan Basin is low and flat, and belongs to a subtropical monsoon climate area with superior hydrothermal conditions. The soils are mainly paddy soil, alluvial soil and purple soil, which are fertile. A high economic level and advanced agricultural production technology nourish this vast and fertile cultivated land, which is the main crop-producing area of the province. However, there is less distribution of cultivated land in the forest-pastoral agricultural areas in the mountains and valleys of Western Sichuan, the pastoral areas in the sub-cold zone of Northwest Sichuan Plateau, and the pastoral areas in the sub cold zone of Western Sichuan Plateau, which is related to the complex landform on the eastern edge of the Qinghai Tibet Plateau. The altitude is more than 4000 m, the terrain is high and steep, the hydrothermal conditions are poor, and the highlands and mountains are covered with red soil, yellow-red soil and alpine cold desert soil, most of which are not conducive to crop growth. Therefore, the distribution of cultivated land is limited. At the same time, the study also found that there are some areas with large spatial heterogeneity of cultivated land distribution. These areas are located in the mountains of Southwest Sichuan, where the geomorphic conditions change greatly. Moreover, there are low altitude areas suitable for crop growth and medium and high altitude undulating geomorphic areas unfavorable to crop growth.

In addition, according to the analysis results of temporal and spatial changes of cultivated land from 2000–2020, the change in cultivated land in geomorphic areas generally shows that the scale of cultivated land decreases in alluvial proluvial plain and platform medium geomorphic areas at low altitude, while the scale of cultivated land increases in high-altitude undulating mountains, medium and high-altitude extremely undulating mountains and other geomorphic areas. This study also analyzed the spatial location of these geomorphic areas with large changes in cultivated land, and found that the cultivated land in Northwest Sichuan Plateau and central Sichuan Basin experienced great changes. This result is also consistent with the research of Wang and Yang [28]. The increase of cultivated land in Northwest Sichuan Plateau shows that the agricultural development of this area has been improved after a series of policies adopted by the government. The decrease of cultivated land in the middle of Sichuan Basin is closely related to the rapid urbanization process in this area. In the process of urbanization, the demand for land points to cultivated land, forcing the conversion of cultivated land into non-agricultural use. Urbanization has become an important reason for the reduction in cultivated land area.

4.2. Complex Effects of Climatic Factors on Temporal and Spatial Differentiation of Cultivated Land Landform

This study also discusses the impact of climatic factors on cultivated land distribution. Different from previous studies, it focuses on the geomorphic differences in the impact of climatic factors on cultivated land distribution. The results also show that the climatic factors affecting the distribution of cultivated land are different in different geomorphic areas, and the combination of different climatic factors also has obvious geomorphic differentiation characteristics. This research result is closely related to the complex geomorphic characteristics of the study area. Most of the cultivated land in the northwest of Sichuan Province is dry land, while paddy fields are mainly distributed in the southeast, which is consistent with the precipitation distribution characteristics of Sichuan Province, indicating that the regional climate conditions have a great impact on the change in cultivated land. In addition, in terms of local geomorphic areas, Northwest Sichuan is mainly characterized by plateau and mountainous climate with low temperature, high frost and snow, and scarce rain, and these harsh natural conditions limit the growth of most crops. The latitude of the mountainous areas in Southwest Sichuan and the mountainous areas around the basin (southern region) is low, and mainly shows subtropical humid and semi-humid climates. The influence of hydrothermal conditions on cultivated land is stable. Therefore, the distribution of cultivated land in different geomorphic areas will be affected by different climatic factors.

4.3. Adaptive Strategies of Agricultural Production in Different Geomorphic Areas

To adapt to future climatic changes and reduce their impact on grain production, the following are suggested: (1) Select and cultivate crop varieties with characteristics of disease and insect resistance, high temperature resistance and water saving, and improve field management measures to improve the utilization efficiency of water and fertilizer. (2) Because the maximum temperature and minimum temperature are of great significance in the development and growth of plant life cycle [29], the crop planting system, crop layout and variety layout should be adjusted according to the climatic change trend in different geomorphic areas. In the mountainous areas of Southwest Sichuan with low and flat terrain and good irrigation conditions and the mountainous areas around the basin, the wheat (oil, potato–rice paddy dry rotation double cropping system is mainly used, while the wheat (oil), jade–Sweet Potato (bean) dry triple cropping system is mainly used in the northwest of Sichuan without a water source guarantee. (3) Improve the monitoring and early warning mechanism for meteorological disasters, establish prediction, monitoring and monitoring networks, and strengthen the construction of agricultural infrastructure. For example, establish a water-saving production system in Alpine geomorphic areas with poor hydrothermal conditions, and strengthen the construction of water storage and flood discharge projects in low altitude plain areas to enhance the ability to resist drought, flood control and extreme climate events.

5. Conclusions

Based on the Gini coefficient, spatial autocorrelation analysis and geographic detector, this study analyzed the distribution and evolution of cultivated land and its response to climatic factors in Sichuan Province at the scale of geomorphic area. The results show that: (1) low altitude hills and low altitude small undulating mountains are the main geomorphic areas of cultivated land; (2) in the low altitude plain landform area, the scale of cultivated land continues to decline, while in the high altitude undulating mountainous landform area, the scale of cultivated land has increased; (3) from 2000–2020, the new cultivated land in the north and south of the basin gradually changed to the level of the reduced cultivated land in the middle of the basin; (4) in the whole study area, the highest temperature has the strongest ability to explain the spatial heterogeneity of cultivated land. The two-factor interaction effects of climatic factors on cultivated land distribution in different geomorphic areas are different.

The impact of climatic changes on global environmental change and sustainable development has attracted increasing attention. Countries all over the world are seeking cooperation and active response to avoid the adverse impact of climatic changes on agricultural production and food security. Taking Sichuan Province of China as an example, this study reveals the climatic response characteristics of cultivated land change in complex landform areas, and puts forward the formulation of long-term strategies in complex landform areas to adapt agricultural production to climatic changes and reduce the direct negative impact of environmental change on agricultural production as much as possible.
