Article

Applying High-Resolution UAV-LiDAR and Quantitative Structure Modelling for Estimating Tree Attributes in a Crop-Livestock-Forest System

by
Ana Paula Dalla Corte
1,*,
Bruna Nascimento de Vasconcellos
2,
Franciel Eduardo Rex
1,
Carlos Roberto Sanquetta
1,
Midhun Mohan
3,
Carlos Alberto Silva
4,5,
Carine Klauberg
6,
Danilo Roberti Alves de Almeida
7,
Angelica Maria Almeyda Zambrano
8,
Jonathan William Trautenmüller
1,
Rodrigo Vieira Leite
9,
Cibele Hummel do Amaral
9,
Hudson Franklin Pessoa Veras
1,
Karla da Silva Rocha
10,
Anibal de Moraes
11,
Mauro Alessandro Karasinski
1,
Matheus Niroh Inoue Sanquetta
1 and
Eben North Broadbent
12
1
BIOFIX Research Center, Federal University of Parana, Curitiba 80210-170, Brazil
2
EMBRAPA Florestas, Colombo 83411-000, Brazil
3
Department of Geography, University of California, Berkeley, CA 94709, USA
4
School of Forest Resources and Conservation, University of Florida, Gainesville, FL 32611, USA
5
Department of Geographical Sciences, University of Maryland, College Park, MD 20742, USA
6
Department of Forest Engineering, Federal University of João Del Rei, Sete Lagoas 35701-970, Brazil
7
Department of Forest Sciences, “Luiz de Queiroz” College of Agriculture, University of São Paulo, Piracicaba 13418-900, Brazil
8
Spatial Ecology and Conservation Laboratory, Center for Latin America Studies, University of Florida, Gainesville, FL 32611, USA
9
Department of Forest Engineering, Federal University of Viçosa, Viçosa 36570-900, Brazil
10
Geoprocessing Laboratory, Federal University of Acre, Rio Branco 69980-000, Brazil
11
Department of Plant Sciences, Federal University of Parana, Curitiba 80210-170, Brazil
12
Spatial Ecology and Conservation Laboratory, School of Forest Resources and Conservation, University of Florida, Gainesville, FL 32611, USA

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
Land 2022, 11(4), 507; https://doi.org/10.3390/land11040507
Submission received: 10 February 2022 / Revised: 7 March 2022 / Accepted: 18 March 2022 / Published: 31 March 2022
Browse Figures
Versions Notes

Abstract

:
Individual tree attributes, such as stem volume and biomass, are usually predicted by using traditional field-derived allometric models. However, these models are derived from data collected from small areas and lack a level of detail of tree components (e.g., stem, branches, and leaves). Remote sensing techniques such as the Quantitative Structure Modelling (QSM) applied on high-density LiDAR data emerge as a promising solution for obtaining extensive and detailed tree attribute estimates. We used a high-density LiDAR data on board of a Unmanned Aerial Vehicle (UAV) to evaluate the performance of the QSM approach in estimating field-derived individual tree attributes such as the diameter at breast height (dbh), tree height (ht), and volume (v), as well as the stem (SAGB), branch (BAGB), and total (TAGB) aboveground biomass of eucalyptus trees. QSM was used in two different approaches: (i) using dbh and h derived from QSM and then applied into the field-based equations for estimation of volume and (ii) deriving tree volume directly from QSM. In general, all fitted models using the QSM approach were satisfactory, but with a slight tendency of over-estimation of dbh (9.33%), ht (12.40%), v-QSM1 (26.35%), v-QSM2 (26.66%), TAGB (27.08%), SAGB (25.57%), and BAGB (20.08%). Non-significant differences were noticed when estimating the dbh, tree volume, stem, and aboveground biomass. Despite the overestimation, this study indicates that using the QSM approach to estimate individual tree attributes from UAV-LiDAR is a promising alternative to support the decision-making process regarding forest management activities, especially when considering tree architecture and biomass components.

1. Introduction

Annually, industries and society demand millions of cubic meters of wood [1]. Thus, the decision-making process regarding forest management activities is crucial to meet the demand of these industries [2,3]. Forest industries and farmers demand reliable and accurate information on the availability of different products, such as merchantable volume, to enhance their profitability [4]. However, the uncertainties about these estimates, due to the different methods used, are considerable.
Brazil has more than 10 million ha of forest plantations [5] and around 7 million hectares consist of clonal eucalyptus stands [6]. These plantations are usually focused on pulp and charcoal production. Thus, no distinction in the log’s size is imposed (i.e., sawtimber, pulpwood, and charcoal) [2]. However, recent initiatives have ventured into diversifying the clonal eucalyptus production outcomes from Brazilian plantations. Hence, individual-tree-level approaches are needed to provide detailed information regarding tree architecture and multiple product availabilities [7,8,9,10].
Under this scenario, both tree volume and aboveground biomass are essential information for planning silvicultural and harvest activities and assessing the environmental and ecological services from forest stands [11,12,13,14]. However, their determination may be challenging, depending on the extension and access to these areas and their varying homogeneity levels [15]. Traditionally, tree biomass and volume determination are based on allometric models [16,17,18]. Despite their efficiency in estimating tree attributes, these models fail to provide detailed information concerning different tree components (e.g., stem, branches, and leaves). In addition, most of these models are limited since they are usually fitted under very specific site conditions, making them inflexible and inaccurate when used for different tree species or genotypes, ages, and sizes [19,20,21]. Remote sensing technologies, such as light detection and ranging (LiDAR), have emerged to derive three-dimensional (3D) and detailed information from the forest canopy and its structure [22,23,24].
Several studies have addressed the applicability of LiDAR—ranging from individual tree detection (ITD) to assessing uniformity indices and predicting biomass [25,26,27,28,29,30]. Terrestrial laser scanning (TLS), with very high density LiDAR data, has become increasingly relevant for providing accurate 3D data about trees [31,32,33]. Thus, it is now possible to derive several metrics from trees, which are otherwise impractical through direct determination without destructive tree harvesting [34]. Usually, voxelization procedures [35,36] or cylinder assembly algorithms are employed for this purpose [37,38,39,40]. However, recent studies suggest using quantitative structure modeling (QSM) [41,42], as this method provides fast and accurate information on different tree components from the TLS point cloud [15,18,43,44,45,46,47,48].
Despite the benefits of TLS, operational limitations make it difficult to obtain data for large areas. TLS data collection in field surveys is a tiring endeavor, taking 3–6 days to scan 1 hectare in some cases [33]. One disadvantage of UAV LiDAR over TLS is the fact that tree trunks are much easier to delineate from ground-based data (TLS), especially in densely wooded areas. As a result, the use of UAV (Unmanned Aerial Vehicle) technologies has expanded in recent years. A few studies have been developed addressing the use of UAV-LiDAR to generate tree attribute estimates. Biomass studies in the field are expensive and time-intensive. Recent studies, such as [49,50], highlighted the potential of using UAV-LiDAR for assessing individual tree metrics, such as the diameter at breast height, total height, and volume. However, to the best of our knowledge, no studies have been conducted to estimate the aboveground biomass and volume for different tree components using QSM and high-density UAV-LiDAR data. Studies have tested QSM reconstructions of individual trees using UAV-derived point clouds and concluded that it is a promising approach for estimating aboveground biomass [14]. However, in that study, photogrammetry and not LiDAR was used to generate the point cloud. The QSM method uses only the xyz coordinates of the points to construct the geometric and topological properties of the trees stored in the models. Therefore, with LiDAR having greater penetration into the forest interior, generating denser (XYZ) coordinates than photogrammetry, it is expected that QSM combined with it will help better explain the biomass. Most related studies using QSM were based on TLS 3D point clouds. In this study, we aimed to evaluate the performance of high-density UAV-lidar and the QSM approach for estimating individual tree attributes, such as diameter at breast height (dbh), total height (ht), and volume (v), as well as the stem (SAGB), branch (BAGB), and total (TAGB) aboveground biomass in eucalyptus stands established in a crop–livestock–forest system. Our hypothesis is that the QSM method can estimate biomass, as well as in the field on high-density UAV-LiDAR data.

2. Materials and Methods

2.1. Study Area

This study used data from a 17 ha eucalyptus plantation (Eucalyptus benthamii Maiden et Cambage) established in a crop–livestock–forest system—iCLF (Figure 1)—at age 6 years. Crop–livestock–forest integration (ILPF) is a production strategy that integrates different production systems, agricultural, livestock, and forestry, within the same area. It can be used in intercropping, in succession, or in rotation, so that there is mutual benefit for all activities. The plantation is located in the municipality of Pinhais, Paraná State, southern Brazil (25°22 ′ 38 ′ ′ S, 49°09 ′ 05 ′ ′ W). According to the Brazilian System of Soil Classification, study area soils are classified as Haplic Cambisol [51]. This soil order corresponds to Inceptisol in soil taxonomy [52]. The study area is characterised by a humid subtropical climate with oceanic climate—Cfb (without a dry season and temperate summer)—with an annual rainfall of 1550 mm [53]. Additionally, the average elevation is ca. 920 m above sea level. The initial tree spacing was 2 × 14 m, totaling 357 trees per hectare. The large spacing is a characteristic of the iCLF.

2.2. Field Data

A total of 30 trees were randomly selected for field sampling. These trees were randomly selected in order to comprise the stand amplitude regarding dbh (diameter at 1.3 m above the ground) and total tree height (ht) structure. These trees were felled, bucked, and scaled. On each tree, measurements of the stem were taken at various heights along the tree trunk. For every section, volume was obtained from the Smalian’s formula (which involves the average cross-sectional area of the large and small ends times the log length) (Equation (1)):
v = g 1 + g 2 2 ∗ l
where: v = log volume (in m3); g 1 = cross-sectional area of the large end (in m2); g 1 = cross-sectional area of the small end (in m2); l = log length (in m).
Total aboveground biomass (TAGB) was determined by weighing tree components separately (stem—SAGB and branches—BAGB) using a 100 g precision dynamometer and summing up the total AGB per each tree. Samples of 1 kg were collected from each tree and biomass component for dry matter determination and were oven-dried at 70 °C until they reached a constant weight

2.3. UAV-LiDAR Data Collection

The UAV-LiDAR data were obtained in September 2019 with the GatorEye system. The GatorEye comprises DJI Matrice 600 Pro hexacopter capable of 16–22 min flight times for small areas (<20–30 acres·flight − 1 and 10 battery packs) and with a 5 km telemetry/control range. The GatorEye system has a Phoenix Scout + core with a tactical-grade Novatel STIM 300 IMU and differential GNSS system. After the post-processing of a smooth trajectory in Novatel Inertial Explorer, the LiDAR point’s absolute precision was within about 5 cm repeatable [54], with greater relative accuracy between points collected from the same flight line. The GatorEye system includes a sensor called Velodyne VLP-32c LiDAR puck sensor [55]. The flying height was 55 m above the ground at a speed of 8 ms − 1 and at an approximate horizontal distance between the adjacent flight lines of 15 m, producing a very high-density LiDAR point cloud (1400 points per meter squared). The UAV flight lines provide for redundant coverage in the area (overlap of 90%). Additionally, returns were limited to those having a range of less than 100 m and a field of view of 120 m.

Lidar Data Processing

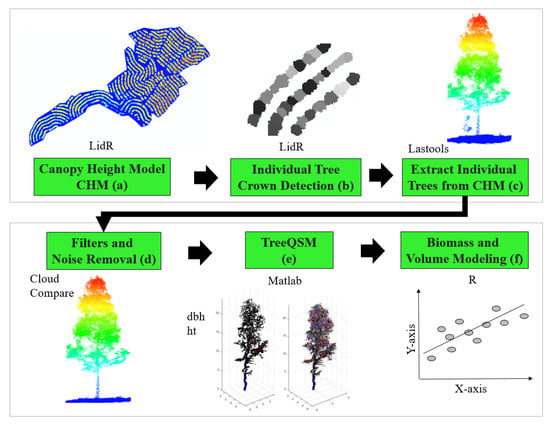

The first steps of LiDAR data processing used Lastools functions [56]. High-density 3D points were merged using lasmerge (LasTools) and clipped within the study area using the lasclip tool (LasTools). Subsequently, lasnoise (LasTools) was applied to identify and remove spurious returns. The next steps was in R environment [57], where the ground returns were classified using lasground new; then; the digital terrain model—DTM—was designed with las2dem (0.5 m resolution). DTM was used to designed the normalized lidar point clouds (lasheight) and the canopy height model—CHM (0.5 m resolution).
The next step used the CHM and the normalized LiDAR point clouds as inputs for individual tree detection. The dalponte2016’s ITD algorithm [58,59] was used to delineate and segment single tree crowns within the 3D point cloud (Figure 2). The Dalponte2016 algorithm finds the maximum locations within a CHM image, representing the treetop, and then uses a decision algorithm to outline trees’ crowns around the maximum locations. For this, an LMF was applied over the CHM with a window of 3 m × 3 m, trying to find the highest point. According to authors in [59], the LMF technique is used with images with the assumption that the reflectance of a treetop is typically higher at its apex.
Similarly, the LMF assumes that the higher laser elevation point for the same tree crown consists of its apex. When the LMF is used in a point cloud to deal with this, it assumes that the highest laser value between the laser strokes of the same tree crown is the apex. When several pixels present the same value in the CHM, the whole-mass center of these pixels is considered the tree apex. Thus, these maximum locations express the top positions of the identified trees. Then, the associated CHM value is extracted to define the top heights of the trees. In [58], the authors highlight this approach by describing the following steps: (i) a low-pass filter applied to rasterized CHM to smooth the surface and reduce the number of local maxima; (ii) define the local maxima using a moving window (3 × 3 m in this case); a CHM pixel is labeled as local maxima if its value is higher than all other values in the window, as long as it is higher than some minimum height above ground; (iii) each local maximum is labeled as an “initial region” around which a treetop can grow; the heights of the four neighboring pixels are taken from the CHM, and these pixels are added to the region if their vertical distance of the maximum location is less than some user-defined percentage of the local maximum height, and less than some user-defined maximums difference. This procedure is repeated for all cell neighbors now included in the region, and so on, until there are no more pixels added to the region; (iv) of each region that had been identified, the first return cloud points are extracted (having first removed low elevation points); and (v) a 2D convex hull is applied to these points, and the resulting polygons become the final individual tree crowns. All steps of the dalponte2016 algorithm were employed using the LidR package in R [57,58,59].
With trees identified, we performed a random sampling to select 30 trees for further analysis, and the lasclip tool was applied to cut the normalized LiDAR point clouds to the trees. Quantitative structure modeling (QSM) was used to assess tree architecture [15]. For this purpose, point clouds containing one tree at the time were delimited. QSM is a semi-automatic method that builds a tree model from laser scanner point clouds and consists of a hierarchical collection of cylinders of calculable volume. The QSM algorithm implemented in the TreeQSM function in MATLAB assumes that most points consist of stems and branches, and the QSM uses these points to build the cylinders. When removing phantom points (e.g., noise points from leaves) was necessary, we applied the filtering function (Equation (2)) in MATLAB R2020b.This filtering formula and the other procedures of the TreeQSM algorithm (version 2.4.0) are described in detail in the manual [15,46]:
f i l t e r i n g ( P 0 , r 1 , n 1 , d 2 , r 2 , n 2 , S c a l i n g , A l l P o i n t s )
where: P 0 = unfiltered point cloud; r 1 = radius of the balls used in the first filtering (defines the volume); n 1 = minimum number of points in the accepted balls of the first filtering; d 2 = minimum distance between the centers of the balls in the second filtering; r 2 = radius of the balls used in the second filtering; n 2 = minimum number of balls in the components passing the second filtering; Scaling (optional input) = if true, the first filtering threshold n 1 is scaled along with the height with average point density (default value false); AllPoints (optional input) = if true, performs the first filtering process for every point (default value false). Point cloud filtering aims to eliminate points based on the distance threshold between neighboring points, intensity value, or density of points along the surface of the stem.

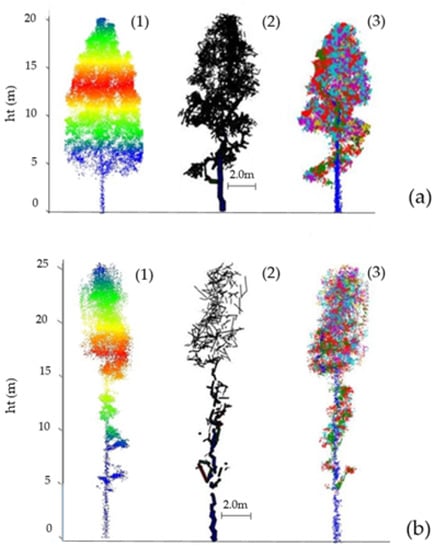

Then, the variables of the model were established: PatchDiam-parameter (pd)—the average size of the cover sets is controlled by the minimum patch diameter (0.2) and the maximum (0.8); the branching order of the QSM has been set to add a level to each branch node. QSM partitioned the point cloud into small connected surface patches and used them to reconstruct each tree segment. Then, cylinders were created and fitted into the segments, creating a 3-dimensional reconstitution of the tree structure [37,43,60,61]. From the 3-dimensional reconstitution of the tree were extracted the metrics of dbh, total tree height, volume, and branch structure. Two different approaches were evaluated when predicting tree volume (QSM1 and QSM2). The QSM1 approach was built using dbh and ht derived from TreeQSM and then applied into the field-based equations for estimation volume. On the other hand, QSM2 consisted of deriving tree volume directly from QSM cylinders.

2.4. Data Analysis

To estimate tree volume and biomass using field-based data, we fitted linear regression models [62] using Equation (3). In this step, the lm() function within the software R was used:
y = β 0 + β 1 ( d b h 2 h t )
where: y = estimated tree attribute (tree volume (in m3), aboveground biomass, or component biomass (in kg)); dbh = diameter 1.3 m above the ground (in cm); ht = total tree height (in m).
The dbh and ht derived from QSM were used to estimate tree volume and biomass in the compartments (TAGB, SABG, and BAGB). The performance of the fitted equations when predicting tree attributes using QSM-derived metrics were evaluated by assessing the relative root mean square error (rRMSE%), Bias (%), and the coefficient of determination (R2). Additionally, the paired Mann–Whitney (MW) test examined significant differences between QSM-derived and field-based estimates. MW examines the differences between medians and shape and spread distribution. The p-value is contrasted against the significance level to determine whether the median’s difference in median values. The null hypothesis ( H 0 ) is rejected when the p-value ≤ α ( α = 0.05), indicating significant differences between observed and estimated values. Otherwise, H 0 is accepted (when p-value > α ), suggesting non-significant differences.
Graphical analyses with a scatter plot with the line of equality (1:1 lines) were used to assess the behavior of the estimates, contrasting predicted and observed values from field-based data, as well as QSM1 and QSM2. The scatter plot with the equality line (1:1 lines) highlights how close H 0 : α = 0 (intercept) and β approaches 1 (slope).

3. Results

3.1. Field-Based Metrics and Allometric Equations

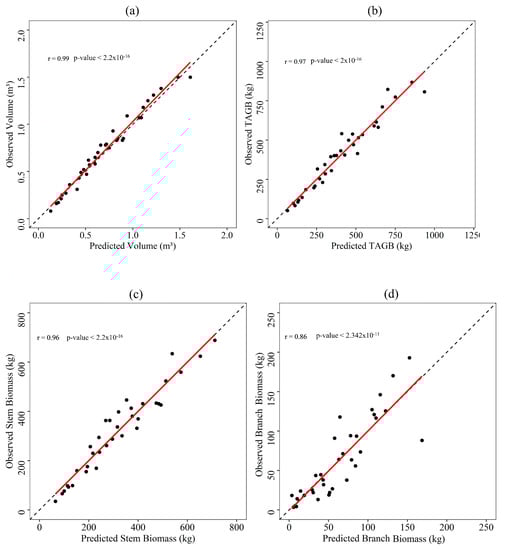

All models displayed significant fitted coefficients (p-values) when predicting tree volume, TAGB, SAGB, and BAGB. Figure 3 displays the fitted model’s behavior, indicating the traditional modeling approach’s satisfactory performance based on field data (Table 1). In general, all fitted equations presented satisfactory goodness-of-fit statistics, with R2 ranging from 0.96 to 0.98, and the rRMSE ranging from 8.76 to 40.72%. The correlation (r) between predicted and observed values ranged from 0.86 to 0.99 (Figure 3).

3.2. QSM-Derived Tree Metrics

3.2.1. Tree dbh and Total Height

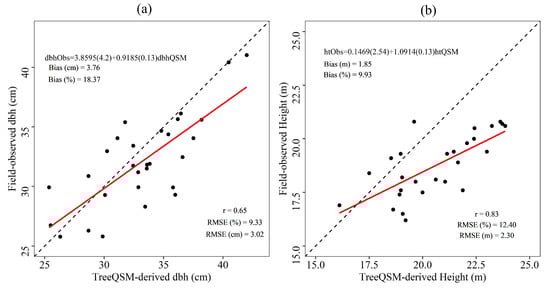

The diameter at 1.3 m above the ground (dbh) and tree height (ht) for the 30 individual trees were estimated through the QSM approach. In general, both the dbh (Bias = 1.22 cm; and rRMSE = 9.33%) and ht (Bias = 1.85 m; and rRMSE = 12.40%) estimates showed satisfactory performance (i.e., rRMSE ≤ 15%). The Pearson correlation between the field-based and QSM-derived values were r = 0.6 5 (dbh) and r = 0.85 (ht), respectively. Both scatter plots with the line of equality (1:1 lines) presented similar patterns, in which we noticed a slight bias of overestimation for larger values (Figure 4). The Mann–Whitney test indicated a non-significant difference between QSM-derived and field-based data regarding dbh values (p-value = 0.251). Meanwhile, ht estimates presented higher bias (9.33%) when compared to dbh. The QSM approach tends to overestimate tree height, regardless of tree size. Other methods of height estimation could have been tested, for example, rescue directly from the CHM. Since the paper wished to find out how the QSM algorithm would perform, no other methods were tested. We noticed that more than 80% of tree heights were overestimated (Figure 4b), resulting in significant differences by the Mann–Whitney test (p-value ≤ 0.05) (Table 2). Although the correlations of LiDAR height estimation and field data are higher in the literature, in this work, the estimation was performed by the QSM algorithm.

3.2.2. Stem Volume

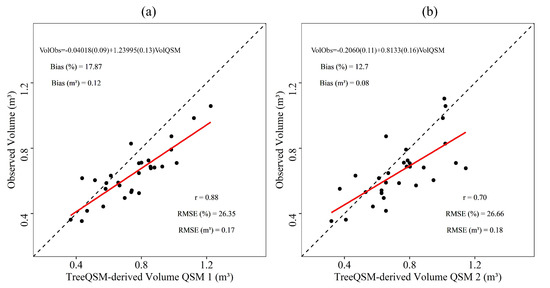

Tree volume estimates through QSM1 and QSM2 resulted in similar patterns, in which the rRMSE ranged from 26.35% (QSM1) to 26.66% (QSM2). In both cases, we noticed a slight tendency of overestimation, especially for larger trees (Figure 5). The QSM1 approach consisted of deriving both dbh and total tree height (ht) and applying them into the fitted equations from Section 3.1, while the QSM2 derived the tree volume directly from point cloud cylinders. In general, QSM1 presented smaller errors for larger trees when compared to QSM2. Despite higher relationship between QSM1-derived and field-based values (r = 0.88), most values were placed under the 1:1 line, resulting in larger bias (Bias = 0.12 m3, rRMSE% = 17.87%). The Mann–Whitney test, however, indicated non-significant differences between individual tree volume derived from TreeQSM, regardless of QSM approach (i.e., QSM1 p-value = 0.051, and QSM2 p-value = 0.092). Despite similar rRMSE% values, the lower bias and higher p-value suggested the superiority of QSM2.
To illustrate the overall performance of the QSM in predicting tree attributes, we displayed two point clouds representing the tree architecture (Figure 6). In the first case, we noticed a higher density of points, in which the volume estimate reached a small error (10.9%) through QSM2 (Figure 6a). In contrast, a cloud of points with lower density made it challenging to examine tree architecture (Figure 6b). As a result, the error in estimating tree volume was higher (25.1%) in this case.

3.2.3. Tree Biomass

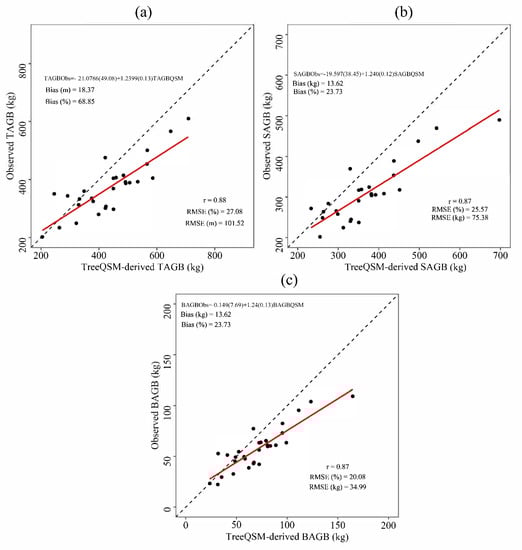

Figure 7 displays the overall pattern of the QSM approach when predicting tree biomass (TAGB, SAGB, and BAGB). In general, all biomass estimates presented a similar behavior, in which we noticed a tendency of overestimation for larger trees. This pattern displaced the scatter plot 1:1 line of equality and resulted in positive biases. Despite this, high correlation coefficients were observed (r ranging from 0.87 to 0.88). The rRMSE ranged from 20.08% (BAGB) to 27.08% (TAGB), and non-significant differences were highlighted by the Mann–Whitney test (TAGB p-value = 0.051, SAGB p-value = 0.051, and BAGB p-value = 0.048).
The QSM approach also presented an overestimation tendency when deriving both the dbh and ht (see Section 3.2.1).

4. Discussion

The increasing demand for timber implies the necessity of fast and reliable methods capable of providing individual-tree and stand-level attributes [63]. Data collection based on traditional methods (field-based) is costly and laborious [64], especially as it requires harvesting trees to fit allometric equations and measure trees in plots for inferences. Thus, remote sensing approaches, such as LiDAR, have emerged, as they increase data collection and allow assessment at different levels of detail [65,66]. The aerial LiDAR approach is commonly used for large-scale surveys, e.g., [67], from which it is possible to derive several pieces of information regarding forest canopy, such as the Canopy Height Profile—CHP [68]. However, the low point density causes many limitations in ALS applications for the level of individual trees [49,65,66,67,68].
In contrast, the TLS system is frequently used for assessing individual trees’ structure and architecture [69,70]. The TLS approach provides a higher density of points, which allows for a 3D characterization. However, TLS has operational limitations regarding data collection, as it requires scanning from different positions to ensure accurate characterization [71,72,73,74]. Hence, UAV-LiDAR technology has expanded in recent years, as it combines high density and fast data collection [75]. The use of UAV-LiDAR for assessing individual tree structure is still a novelty [14], especially using the QSM approach. The QSM allows the assessment of different tree components, such as the stem and branch structure.
For the first time, in this study, we examined the performance of QSM using UAV-LiDAR data in predicting individual attributes of eucalyptus trees in a crop–livestock–forest system. Eucalyptus plantations in crop–livestock–forest systems are established in different conditions than most eucalyptus plantations in Brazil [76]. In our case, stand density is quite lower, promoting a more complex branch structure for canopy closure. Thus, trees with larger light interception areas and, consequently, greater solar radiation use efficiency tend to have a more complex crown structure. This fact may justify the challenging assessment of some individual attributes (Figure 4, Figure 5 and Figure 7).
Tree height measurement is difficult in some cases [77]. In addition to the operator’s experience, environmental and stand conditions can lead to gross errors in field surveys. In addition, several studies have reported the challenging assessment of crown-level metrics even in field-based surveys, resulting in higher errors when predicting crown or branch biomass than those found for tree volume or stem biomass [78]. Despite this, the QSM approach performed well when deriving most of the individual tree attributes. Errors ranged from 9.33 to 12.40% for QSM-derived tree dbh and total tree height (Figure 4). A slight tendency of overestimation and significant differences in total tree height estimates were noticed. We believe that employing both QSM-derived dbh and total tree height as input in allometric equations may explain the same pattern in volume and biomass estimates (Figure 5 and Figure 7). In a similar study [14], the authors evaluated the performance of the QSM approach using UAV-LiDAR data. These authors noticed significant differences when deriving tree dbh in addition to errors larger than 49 percent when estimating the aboveground biomass.
There is a lack of studies addressing the biomass estimation for different tree components. The QSM approach still has limitations in defining and segmenting cylinders which might lead to the overestimation of tree attributes. In addition, gaps along the tree profile can hinder an accurate assessment of tree structure. We noticed that some trees displayed a lower density of points, resulting in higher errors (Figure 6). Trees located close to stand edges usually tend to present a lower density of points due to the flight path. In this sense, proper flight planning is crucial for ensuring a sufficient density of points for all trees within the stand. Despite the lower density of points in comparison with point clouds collected using TLS, the UAV technology allows the UAV-LiDAR sensor’s repeated scanning without exhaustive data collection. Other factors may influence the QSM’s accuracy, such as the stand age (influencing stem profile and canopy closure), land slope, and scanning angle [37,46,79,80].
These results suggest that accurate estimates of individual tree attributes (dbh and ht) are crucial for reaching reliable biomass estimates.
To our knowledge, this study is the first initiative that addresses the use of high-density UAV-LiDAR and (integrated) QSM method to assess the biomass of different tree components. Reliable assessments of branch structure are essential to assist the decision-making process regarding silvicultural treatments. Eucalyptus plantations established in crop–livestock–forest systems are usually conducted in longer rotations than those focused on pulp production. Hence, it is possible to increase forest profitability by scheduling pruning and thinning interventions. The use of remote sensing tools such as UAV-LiDAR technology can reduce monitoring costs and data collection time.

5. Conclusions

This study demonstrated the innovative potential of high-density UAV-LiDAR and the QSM approach in deriving individual attributes of eucalyptus trees established in an iCLF system. Despite the overestimation bias, the QSM-derived volume and aboveground biomass showed non-significant differences compared to field-based data, suggesting the potential of UAV-LiDAR for the non-destructive assessment of tree biomass. Because of this fact, the QSM approach can be used in biomass studies now with high-density UAV-LiDAR data. This fact enables greater scope and area for these studies. The combination of high-density UAV-LiDAR and the QSM approach can help forest monitoring and reduce the cost and time of large-scale biomass estimation and volume forecasting. Future studies should be conducted to address the limitations and influencing factors in QSM-derived metrics accuracy. Future studies are necessary to suggest alternatives to increase the accuracy of the QSM-derived metrics using UAV-LiDAR data. Furthermore, we suggest the assessment of other metrics, such as the crown length and crown ratio, which can be used as auxiliary variables in allometric equations and improve accuracy.

Author Contributions

Conceptualization, A.P.D.C., E.N.B.; methodology, A.P.D.C., F.E.R., B.N.d.V., D.R.A.d.A., C.R.S. and C.A.S.; software, M.M. and E.N.B.; formal analysis, A.P.D.C., F.E.R. and C.A.S.; investigation, A.P.D.C., D.R.A.d.A. and C.R.S.; resources, A.P.D.C., F.E.R., E.N.B. and A.d.M.; data curation, C.R.S., M.M., E.N.B. and A.M.A.Z.; writing—original draft preparation, A.P.D.C., F.E.R., B.N.d.V. and J.W.T., writing—review and editing, C.K., R.V.L., C.H.d.A., H.F.P.V., K.d.S.R., M.A.K., M.N.I.S. and E.N.B.; visualization, A.P.D.C., F.E.R. and B.N.d.V.; supervision, E.N.B. and A.d.M.; funding acquisition A.P.D.C., C.R.S., C.K. and E.N.B.; project administration, A.P.D.C. and E.N.B. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financed in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brazil (CAPES)—Finance Code 001 (A. Corte #88887.373249/2019-00), MCTIC/CNPq Nº 28/2018 (#408785/2018-7; #438875/2018-4), CNPq Nº 09/2018 (#302891/2018-8). D. Almeida was supported by the São Paulo Research Foundation (#2018/21338-3 and #2019/14697-0).

Institutional Review Board Statement

Not applicable for studies not involving humans or animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

All datasets are available from the corresponding author.

Acknowledgments

The authors are very grateful to the Coordenação de Aperfeiçoamento Pessoal de Nível Superior (CAPES-Brazil) for the scholarship provided to the first author, to the Spatial Ecology and Conservation Lab–SPEC (University of Florida) for funding and collecting GatorEye UAV-LiDAR data, which is supported by the USDA National Institute of Food and Agriculture McIntire-Stennis program, to the Núcleo de Inovação Tecnológica em Agropecuária (NITA) from the Federal University of Paraná (UFPR), and to the Institute of Climate Change from National University of Malaysia (UKM).

Conflicts of Interest

The authors declare no conflict of interest.
