Article

Potential for Agricultural Expansion in Degraded Pasture Lands in Brazil Based on Geospatial Databases

by
Édson Luis Bolfe
1,2,*,
Daniel de Castro Victoria
1,
Edson Eyji Sano
3,
Gustavo Bayma
4,
Silvia Maria Fonseca Silveira Massruhá
5 and
Aryeverton Fortes de Oliveira
1
1
Brazilian Agricultural Research Corporation (Embrapa Agricultura Digital), Campinas 13083-886, Brazil
2
Institute of Geosciences, State University of Campinas (Unicamp), Campinas 13083-855, Brazil
3
Brazilian Agricultural Research Corporation (Embrapa Cerrados), Planaltina 73301-970, Brazil
4
Brazilian Agricultural Research Corporation (Embrapa Meio Ambiente), Jaguariúna 13820-000, Brazil
5
Brazilian Agricultural Research Corporation (Embrapa Sede), Brasília 70770-901, Brazil
*
Author to whom correspondence should be addressed.
Land 2024, 13(2), 200; https://doi.org/10.3390/land13020200
Submission received: 21 December 2023 / Revised: 29 January 2024 / Accepted: 5 February 2024 / Published: 6 February 2024
(This article belongs to the Special Issue Geospatial Data for Landscape Change)

Abstract

:
Important public and private initiatives to map agricultural lands and natural resources have been carried out in Brazil to support land use planning. Some studies indicate that Brazil still has up to 109.7 million hectares of cultivated pastures with some level of degradation, representing around 60% of the total pasturelands, estimated at 177 million hectares. This study aimed to gather, process, and analyze publicly available databases to generate quantitative and spatial information about the potential of Brazilian degraded pastures for agricultural expansion. We considered data related to the natural agricultural potential, restrictions imposed by special areas (indigenous lands and Afro-Brazilian “quilombola” settlements), areas with high biodiversity conservation priorities, infrastructure such as distance between major highways and availability of warehouses, current agricultural areas, and the information made available by Agricultural Climate Risk Zoning. The results indicated the existence of approximately 28 million hectares of planted pastures with intermediate and severe levels of degradation that show high potential for agricultural crops. These areas could increase the planted areas with grains in Brazil by approximately 35% in relation to the total area used in the 2022/23 crop season.

1. Introduction

The Organization for Economic Co-operation and Development (OECD) and the Food and Agriculture Organization of the United Nations (FAO) predict a global increase in food demand by more than 13% until 2032 (about 1.3% increase per year), mainly as a consequence of world population growth, estimated to increase from 7.9 billion in 2022 to 8.6 billion in 2032 [1]. This prediction is accompanied by uncertainties in global food security because of geopolitical issues, adverse climate change, animal and plant diseases, and rising agricultural input costs in recent years.
Brazil is a major producer and exporter of agricultural commodities, and has contributed to more sustainable production by increasing productivity and implementing systems such as the no-till agriculture, integrated crop-livestock-forestry (ICLF), and agroforestry. In the last four decades, Brazilian crop production has increased by around 600%, while the planted area has increased by only approximately 100% [2]. Currently, the country has 33% of its territory occupied by agricultural activities and 58% by native vegetation cover [3,4]. The Ministry of Agriculture, Livestock, and Supply estimates that grain production in Brazil will reach 390 million tons in the 2032/33 harvest, an approximate increase of 24% over the 2022/23 harvest [5]. This prediction is based on an increase in both agricultural productivity and planted area, which should go from the current 77 million hectares to about 92 million hectares. In addition, beef, pork, and poultry production may grow by 22%, from the current 29 million tons to 36 million tons by 2032/33. However, there is a growing concern among consumers and public and private organizations regarding greater environmental sustainability, especially in pasture fields.
Most of the livestock activities deal with raising ruminants (cattle, ships, and goats) in which their main food source is either native or cultivated pastures. The terms “pasture” and “rangeland” are commonly used to indicate areas that have been modified by animal production, namely grazing [6]. The Food and Agriculture Organization of the United Nations (FAO)’s definition of pasture is “...the land used permanently (for a period of five years or more) for herbaceous forage crops, either cultivated or naturally growing” [7]. In this study, native grasslands commonly used for cattle raising were not included in the analysis. The main grass species found in Brazil are the African Brachiaria, Panicum, and Andropogon genus due to their easy adaptation to the country’s very diverse climate and soils. They are primarily used for cattle raising. In Brazil, most of the goat and sheep herds are found in the northeast of Brazil, mostly for local consumption.
Brazilian pastures cover approximately 177 million hectares, of which 41% have medium vegetative vigor and signs of degradation, while 21% have low vegetative vigor, understood as severe degradation [8]. Historically, the land occupied by cultivated pastures in Brazil is biome specific. In the northern (Amazonia, tropical rainforest) and central (Cerrado, tropical savanna) parts of the country, exotic species of pastures, mostly the African Brachiaria (and Andropogon species if the soils are rocky), are seeded right after the slash-and-burn type of native vegetation suppression [9]. The pastures are mainly for cattle beef production, and it is quite common to find several large farms in this region (>500 hectares). In the western (Pantanal, wetlands) and southern (Pampa, grasslands) parts of the country, native pastures are mostly used for cattle beef production [10]. In the coastal part of the country (Atlantic Forest), the farms are predominantly small, the pastures (mostly Panicum species) present high biomass productivity, and most of the national milk production is found in this region [11]. The cultivated pastures in the Northeast (semi-arid Caatinga) face serious problems in forage production due to the shortage in rainfall [12].
The past and current expansion of cattle ranching in Brazil is basically driven by the accessibility of lands to be incorporated into meat production, and the expected development of a transportation system and markets related to products, inputs, and labors in the region [13]. Other factors are the growth of national and international demand for cattle beef, and investments in the construction of roads. In the decades of 1950 and 1960, most of Brazilian cattle ranchers focused on a market little-demanding in terms of quality, and the expansion occurred in native pastures and cultivated pastures with low levels of farm management. In the following decades, we faced a substantial improvement in animal genetics and forage production. It is quite unusual seeing pastures replacing croplands in Brazil; however, the crop-livestock integration system has been largely adopted nowadays, mainly in the Cerrado and in the Cerrado—Amazon ecotone regions.
An estimated 20% of the world’s pastures are losing productivity due to degradation and/or inadequate management [14]. Degradation is the main cause of loss in pasture quality in countries where herds are grass-fed [15]. The factors responsible for pasture degradation in the world are diverse, though overgrazing is reported as the leading cause [16]. The reduction of forage production due to global climate change (shortage of rainfall and increase of temperature) is another important cause of pasture degradation [17]. The decrease and aging of people living in rural settlements consequently reduces the efficiency of farm management, and is another cause of pasture degradation. The Brazilian pasture degradation can be analyzed from an agronomic and biological point of view [18]. In the agronomic degradation concept, there is an increase in weed infestation, gradually decreasing the pasture-carrying capacity. In the biological degradation concept, the soil loses its ability to sustain plant production, leading to the gradual replacement of forage by plants with lower soil fertility demand, or simply to the appearance of areas devoid of vegetation (bare soil). Thus, in pastures formed in regions where the dry season is not so severe, typically in the Brazilian Amazon, agronomic degradation is predominant and is related to poor farm management, while in places where the climate is drier, for example, in the Cerrado biome, the biological degradation is predominant and is related to poor farm management and overgrazing. The definition and estimate of the total area of degraded pastures, or pastures with some indication of degradation in Brazil, vary according to the methodology used by different sources. For example, Strassburg et al. [19] reported that the productivity of Brazilian cultivated pasturelands is 32–34% of its potential. Dias-Filho [18] emphasized that degraded pastures constitute one of the major problems of national livestock production, being defined as those pastures that present a sharp decrease in productivity potential or ideal carrying capacity, and may or may not have lost the capacity to maintain biological productivity or biomass accumulation.
Pasture degradation is usually related to overgrazing, insufficient weed and pest control, and lack of soil fertilization [20]. The Brazilian degraded pastures can be seen as potential areas for agricultural expansion, since their restoration by ranchers is difficult because of the relatively high costs of chemical fertilizers compared with the average price of cattle beef, meaning that it may take several years to recover the investment made [21]. On the contrary, the correction of soil fertility and soil acidity by grain and biofuel producers to increase productivity has been worthwhile in terms of the cost–benefit relationship. Previous studies have demonstrated that crop—pasture rotation is a good alternative for better use of degraded pastures. For example, Sekaran et al. [22] pointed out that integrated crop—livestock systems play a key role in the functioning of the farms by increasing the animal sources of food. Other advantages reported in the literature are related to improved crop productivity, reduced pression for opening new areas for food and energy production, enhanced carbon sequestration, the reduction of the application of chemical fertilizers, and control of soil erosion, among others (e.g., [23,24]).
Considering Brazil’s high international prominence in the production of food, fibers, and agro-energy, it is essential to generate analyses and studies aimed at a better understanding of the agricultural dynamics, which involves expansion, retraction, transition, conversion, diversification, and agricultural intensification. Digital technologies involving geospatial data processing and analysis using geographic information systems (GIS) and time series analysis of multisource and multiplatform remote sensing data are essential to monitor these dynamics and to support territorial plannings [25]. These technologies are marked by significant advances in recent years at both global and national scales, for example, the cloud computing capabilities of the Google Earth Engine (GEE) [26], and the different initiatives of land use and land cover (LULC) mappings, such as the Dynamic Word [27], GlobeLand 30 [28], and MapBiomas [3]. However, due to the complexity of the Brazilian rural environment, there is a growing need for new studies that involve the integration of different geospatial databases from distinct sources and a different range of geographical scale, such as those conducted by Parreiras et al. [29,30,31].
The agricultural intensification in Brazil has become a strong desire of national governments, for example, to increase its gross domestic product [32]. Such intensification can be obtained by opening new areas of native vegetation, which is strongly not recommended because of environmental issues, or by adopting crop—livestock integration systems on pasturelands [33]. Another option is to expand crop production in cultivated pastures with different levels of degradation, since recovering degraded pastures is costly and timely. However, not all degraded pastures will be suitable for crop production, since extensive and rainfed crop production depends strongly on climate, soil, topography, and infrastructure such as the availability of roads and warehouses, among other aspects.
This study can be considered as a follow-up of the previous study conducted by Victoria et al. [34], who indicated suitable areas for crop production in degraded pastures of the Brazilian Cerrado. Our study expands the study area to the entire country, and adds more layers in the spatial data analysis. To our best knowledge, there are no studies in Brazil mapping different levels of suitability of degraded pastures for crop production at the national level. Within this context, this study aimed to produce spatial data on the potential for agricultural expansion over pasture fields with some degree of degradation in Brazil, based on analyses carried out in a GIS environment. Such expansion will assist in meeting the global food demand without increasing the suppression of native vegetation and by reducing soil erosion associated with degraded pastures.

2. Materials and Methods

The methodology used in this study was based on the analysis of different LULC maps, topography, climate, soils, and protected areas, similar to the previous studies conducted for the Brazilian Cerrado (tropical savanna) [34,35]. In the late 1990s, GIS analysis gained importance because of its capability of dealing with the spatio-temporal analysis of geographical phenomena or with the relationships between different phenomena to identify, for example, different thematic classes of agricultural zoning, based on aspects such as soil, vegetation, and geomorphology [36]. The methodology adopted in this study involved the acquisition, curation, processing, integration, and analysis of databases in a GIS environment (Figure 1; Table 1).
The first step of the analysis consisted of the integration of “Pasture Quality” and “Land Natural Agricultural Potential” base maps (Figure 2). The data related to “Pasture Quality” in Brazil were obtained from the “Atlas of Pasture” produced by the Laboratory of Image Processing and Geoprocessing of the Federal University of Goiás (UFG, Universidade Federal de Goiás) [8,47]. In this Atlas, pastures were classified based on Landsat 8 Operational Land Imager (OLI) and Thermal Infrared Sensor (TIRS) satellite images processed by the non-parametric Random Forest classifier. The input parameters for the RF classification were the 6 multispectral bands (green, red, near infrared, shortwave infrared 1, and shortwave infrared 2); the 5 arithmetic operations (mean, standard deviation, minimum, maximum, and amplitude) involving the multispectral bands; and 3 spectral indices (Normalized Difference Vegetation Index—NDVI; Normalized Difference Water Index—NDWI; and Cellulose Absorption Index—CAI) [48,49,50], which are sensitive to the chlorophyll, water, and lignin/cellulose contents of the vegetation, respectively.
The study conducted by the UFG used the Moderate Resolution Imaging Spectroradiometer (MOD13Q1) Enhanced Vegetation Index (EVI) time series processed by the Temporal Moving Window Median (TMWM) algorithm to extract stable (i.e., gap-filled series, on a pixel basis) and seasonally adjusted data. From the spatio-temporal analysis of normalized EVI data, it was possible to evaluate different levels of pasture degradation in Brazil, which were classified as Absent (EVI ≥ 0.6), Intermediate (0.4 ≤ EVI ≤ 0.6), and Severe (EVI ≤ 0.4). EVI was selected because it has less sensitivity to variations in soil background and atmospheric effects, in comparison with NDVI, another vegetation index available in the MOD13Q1 product [51].
We also used the map of the “Land Natural Agricultural Potential of Brazil” produced by the Brazilian Institute for Geography and Statistics (IBGE) at 1:250,000 scale [37]. This map identifies five levels of potentials or limitations of Brazilian territory for agricultural expansion, based on soil and topographic characteristics. More specifically, the levels are categorized into A1, A2, B, C, and D classes, depending upon if the lands present have very good, good, moderate, restricted, or strongly restricted potentials for agricultural expansion, respectively (Table 2).
In the second step of the agricultural expansion analysis, we excluded the following areas labeled “special”: (i) lands belonging to traditional communities, that is, indigenous lands [37] and Afro-Brazilian “quilombola” settlements [38]; (ii) rural settlements for agricultural reform [38]; (iii) permanently protected federal conservation units [39]; (iv) areas with high priority for biodiversity conservation, classified as of extremely high biological importance [40]; (v) undesignated public areas from the National Registry of Public Forests, belonging to federal or state governments and without any destination by the Brazilian Forest Service [41]; and (vi) military areas [42] (Figure 3).
The following datasets were also considered in this study: rural infrastructure associated with state and federal highways [43] and rural warehouses [44]; existing agricultural areas [3]; and data from the Agricultural Climate Risk Zoning for the 2022/23 crop calendar [45] (Figure 4). The Agricultural Climate Risk Zoning is coordinated by MAPA and Embrapa (Brazilian Agricultural Research Corporation, Brasília, Brazil), and considers the risks of adverse climate to identify the best planting dates for rainfed crops based on the local soil water holding capacities, crop coefficients, and precipitation regime. In this study, we considered the medium-textured soils with short-cycle crop varieties as the references. We selected only the municipalities with at least 20 days of the year with a probability greater than 80% to plant and harvest without significant risk of losing production.

3. Results

Table 3 shows the existence of a total of 447.24 million hectares of areas with traditional communities, rural settlements, conservation units, priority areas for biodiversity conservation, undesignated public areas, and military areas, representing about 52% of the national territory. Pastures with moderate or severe limitation on its vegetative vigor [8] covered 109.7 million hectares, which corresponds to 60% of Brazilian pastures.
Approximately 28 million hectares of planted pastures with signs of severe and intermediate degradation occur in areas with very good and good natural agricultural potential, excluding areas with high biodiversity conservation priority and special areas (Figure 5). Approximately 11 million hectares of pastures with “Severe” degradation are in areas with “Good” or “Very Good” agricultural potential while 18 million hectares of pastures with “Intermediate” degradation level are in areas with “Good” or “Very Good” agricultural potential. This represents a potential expansion of approximately 30% of the current grain production area in previously converted lands. At the state level, the largest quantities are found in the states of Mato Grosso (5.1 million ha), Goiás (4.7 million ha), Mato Grosso do Sul (4.3 million ha), Minas Gerais (4.0 million ha), and Pará (2.1 million ha) (Figure 6). In relation to the planted area in the 2022/2023 crop calendar [45], states such as Minas Gerais, Mato Grosso do Sul, Goiás, Bahia, and Mato Grosso presented a potential of agricultural expansion in areas of degraded pastures of approximately 92%, 69%, 66%, 52%, and 24%, respectively. An importance aspect is that degraded pastures are concentrated in specific regions in Brazil, facilitating the planning of public and private resources to promote lands recovery [20].
Considering the lack or deficiency of rural infrastructure for rural development, Table 4 shows the data regarding the distance of potential areas for agricultural expansion in relation to rural highways and warehouses.

4. Discussion

Our study was based on the following aspects: (i) cultivated pastures in Brazil are spread throughout the country, are slightly sensitive to the natural conditions of soil, climate, and topography, and are highly sensitive to degradation because of poor management and/or low chemical fertilization; (ii) some of the degraded pastures are located in areas suitable for rainfed crop production, with favorable soil, climate, and topographic conditions; (iii) currently, there are validated technologies, especially the crop–livestock integration system, that allow crop production in some degraded pastures; (iv) areas with degraded pastures that are suitable for crop production can be identified by integrating additional multisource data, mainly those related with soil, climate, topography, and infrastructure. Data integration of different publicly available layers of information in a GIS environment allowed us to map the severely and moderately degraded pastures that are suitable for crop production.
According to the 2017 Agricultural Census [52], rural producers declared the existence of a total of 12 million hectares of pastures to be in “poor condition” in Brazil. Different methodologies based on remote sensing data have indicated higher levels of degraded areas. For example, Andrade et al. [53] presented a study based on time series analysis of NDVI derived from SPOT Vegetation satellite images, indicating that 173 municipalities in the Cerrado biome (about 25% of the Brazilian territory) had more than 50% of their cultivated pastures with some degradation process, totaling about 32 million hectares. As already reported in the Introduction section, pasture degradation can be analyzed from the agronomic and biological points of view [18]. Regardless of the process, both result in a series of environmental impacts, such as increased soil erosion, soil compaction, and greenhouse gases emission. In addition, the intensive land use also affects the quality of the water resources [54].
Pasture degradation occurs in practically all regions of Brazil, causing economic and environmental losses. There is no typical vegetation formation in which degradation is more severe or less severe, since degradation is primarily a consequence of inadequate pasture management by farmers. In other words, pasture degradation in Brazil can be found in regions dominated by dense or open ombrophilous forests, mosaics of grasslands, shrublands, and forestlands in different proportions, and grass-dominated vegetation with or without the influence of periodic inundation [55]. Degraded pastures can be found in regions with an average annual precipitation ranging from approximately 300 mm to 2000 mm, and on quite diverse soil types, especially Ferralsols, Cambisols, Acrisols, Gleysols, Arenosols, and Plinthosols, among others, depending on the region.
Data on the land natural agricultural potential in Brazil [37] indicate that approximately 271 million hectares are classified as “good” and “very good” for agricultural development, representing around 32% of the national territory. The 61 million hectares of planted pasturelands that were mapped by the MapBiomas Project [3] indicate that 95% of these areas are within 40 km of warehouses and 99% within 40 km of major highways (Table 4), or 54% of the pastures are within 20 km of warehouses and 89% within 20 km of highways. These results indicate a high potential for possible agricultural expansion in pasturelands, when analyzed in terms of access to existing infrastructure.
According to the recommendations of ZARC, there are several annual crops that can be used to replace (or integrate with) cultivated pastures with signs of degradation. The number of potential annual crops varies from 17 to 40 depending on the state, and include peanuts, rice, oats, cotton, canola, sugarcane, barley, corn, millet, beans, chickpeas, sesame, sunflower, castor bean, soybeans, sorghum, wheat, and triticale, among others. The choice of crop is site-specific in terms of property profile, planting date, soil type, and crop variety. Perennial crops can also be an option for replacing low quality pastures, such as coffee, pineapple, plum, banana, cocoa, cashew, citrus, coconut, palm oil, guava, apple, papaya, cassava, passion fruit, watermelon, nectarine, pear, peach, forage palm, pepper, pupunha, sisal, and grape.
Guia Lopes da Laguna (Mato Grosso do Sul State), São Miguel Arcanjo (São Paulo State), and Ingaí (Minas Gerais State), with 17,403, 790, and 2853 hectares of pastures with some level of degradation, respectively, are good examples of municipality in the areas of potential agricultural expansion over degraded pastures (Figure 5a–c). In these municipalities, participating in the Center of Science for Development in Digital Agriculture [56], which aims to connect farmers to innovations that cut costs and assure agricultural sustainability, the ZARC indicates the annual crops such as beans, rice, sorghum, sunflower, cotton, corn, soybeans, oats, wheat, corn/pasture integrated system, and some perennial crops.
Some regional studies have been conducted to better understand the process of pasture degradation and agricultural dynamics, based on geospatial analyses, especially over the Cerrado biome. Victoria et al. [34,35] evaluated the climatic and topographic characteristics of areas occupied by annual crops, and identified planted pastures with similar conditions. They indicated that most pastures with potential for expansion of new annual agriculture areas are found in the Goiás State (11.6 million ha), followed by Mato Grosso do Sul (10.0 million ha), Minas Gerais (7.9 million ha), and Mato Grosso (6.8 million ha). Agrosatélite [57] analyzed the soybean expansion in the Cerrado biome between 2000 and 2021 using remote sensing technologies and geospatial database analysis, reporting an area expansion of approximately 300%, from 7.43 million hectares to 21.43 million hectares.
Regardless of the differences in the methodological approach, the above-mentioned studies pointed out the existence of considerable extension of lands suitable for agriculture that are currently occupied by pastures with some level of degradation. This finding shows the relevance of using all available information, the synergy of observations from different sensors, and the integration of spatial data with historical statistical data that are produced through census or questionnaire-based surveys [58]. Land degradation and climate change pose enormous risks to global food security.
In beef production, it is essential to analyze new approaches and metrics for animal productivity in pastures, since production and sustainability require rigorous science-based evidence to inform private decisions and public policies [59]. The forward-looking, resilient agriculture requires the incorporation of degraded lands, identification of key vulnerabilities, improved knowledge exchange to support strategies of producers, and policy options that provide multiple “wins” for land, climate, and biodiversity [60]. Data organization, integration, and analysis are becoming increasingly relevant to generate more detailed, qualified, and accurate information for more sustainable rural development plannings.

5. Conclusions

In this study, we concluded that there are around 28 million hectares of planted pastures in Brazil that are in the process of degradation with the natural potential for the establishment of agricultural crops. The use of these areas in the process of degradation would increase the area planted with annual crops in the country by around 35% in relation to the 2022/2023 crop calendar.
The data generated in this study allowed us to better portray the country’s agricultural dynamics and the agronomic and environmental characteristics of current pasture lands with different levels of degradation. This can provide better support for decision-making proposals regarding regional public policies and rural extension. The possible replacement of degraded pasture areas by agricultural crops must occur in line with Brazilian environmental legislation, techniques, and practices that favor the increase of their productivity, and consequently reduce the pressure to suppress natural vegetation.
Among the drawbacks of the study, we can highlight the limited or even unavailability of some crucial geospatial data related to pasture degradation in Brazil that, to some extent, made our analysis limited. Among them, we can point out the lack of historical data on the pasture degradation in Brazil, the lack of information about the pasture management by farmers, and consistent soil physical, chemical, and biological lab analyses over pasturelands for validation purposes.
In similar analyses in the future, field validation activities, regional databases, and social and economic information from areas with the greatest potential for agricultural expansion and pastures with different levels of biomass production should be considered. Although quite challenging, there is also room to improve the pasture degradation map by using different thresholds of spectral indices for different ecoregions of Brazil. The idea here is to consider the different carrying capacities of pastures, which are strongly dependent on soil and climate, and the relative importance of the type of degradation, either agronomic (productivity) or biological (sustainability) degradation, which is also region-dependent.

Author Contributions

Conceptualization, É.L.B., D.d.C.V., E.E.S. and S.M.F.S.M.; methodology, É.L.B., D.d.C.V. and E.E.S.; software, D.d.C.V. and G.B.; validation, É.L.B. and E.E.S.; formal analysis, É.L.B., E.E.S., D.d.C.V. and A.F.d.O., investigation, É.L.B., E.E.S., D.d.C.V., G.B., S.M.F.S.M. and A.F.d.O.; resources, É.L.B.; data curation, D.d.C.V. and G.B.; writing—original draft preparation, É.L.B., D.d.C.V. and E.E.S.; writing—review and editing, É.L.B., D.d.C.V. and E.E.S.; visualization, G.B. and É.L.B.; project administration, É.L.B.; funding acquisition, S.M.F.S.M. and É.L.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the São Paulo Research Foundation (FAPESP), grant # 2022/09319-9 “Center of Science for Development in Digital Agriculture” and by the Federal District Research Foundation (FAP-DF), grant # 00193.00002586/2022-12 “Agro Learning”.

Data Availability Statement

The data and maps are available online, which can be accessed: https://doi.org/10.48432/38F7MN.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Organisation for Economic Co-Operation and Development (OECD); Food and Agriculture Organization of the United Nations (FAO). Agricultural Outlook 2023–2032; OECD Publishing: Paris, France, 2023. [Google Scholar] [CrossRef]
  2. Bolfe, É.L.; Jorge, L.A.C.; Sanches, I.D.; Luchiari Júnior, A.; Costa, C.C.; Victoria, D.C.; Inamasu, R.Y.; Grego, C.R.; Ferreira, V.R.; Ramirez, A.R. Precision and digital agriculture: Adoption of technologies and perception of Brazilian farmers. Agriculture 2020, 10, 653. [Google Scholar] [CrossRef]
  3. MapBiomas. Mapeamento Anual do Uso e Cobertura da Terra no Brasil. Mapas de Uso e Cobertura da Terra. 2022. Available online: https://brasil.mapbiomas.org/produtos/ (accessed on 14 October 2023).
  4. Souza, C.M., Jr.; Shimbo, J.Z.; Rosa, M.R.; Parente, L.L.; Alencar, A.A.; Rudorff, B.F.T.; Hasenack, H.; Matsumoto, M.; Ferreira, L.G.; Souza-Filho, P.W.M.; et al. Reconstructing three decades of land use and land cover changes in Brazilian biomes with Landsat archive and Earth Engine. Remote Sens. 2020, 12, 2735. [Google Scholar] [CrossRef]
  5. Ministério da Agricultura, Pecuária e Abastecimento (Brasil). Projeções do Agronegócio 2022/2023 a 2032/2033. 2023. Available online: https://www.gov.br/agricultura/pt-br/assuntos/politica-agricola/todas-publicacoes-de-politica-agricola/projecoes-do-agronegocio (accessed on 10 November 2023).
  6. Phelps, L.N.; Kaplan, J.O. Land use for animal production in global change studies: Defining and characterizing a framework. Glob. Chang. Biol. 2017, 23, 4457–4471. [Google Scholar] [CrossRef] [PubMed]
  7. Food and Agriculture Organization—Food and Agriculture Statistics (FAOSTAT). Glossary List. 2014. Available online: http://faostat.fao.org/site/375/default.aspx (accessed on 28 January 2024).
  8. Universidade Federal de Goiás (UFG); Laboratório de Processamento de Imagens e Geoprocessamento (LAPIG). Atlas das Pastagens. 2022. Available online: https://atlasdaspastagens.ufg.br/map (accessed on 10 October 2023).
  9. Boddey, R.M.; Casagrande, D.R.; Homem, B.G.C.; Alves, B.J.R. Forage legumes in grass pastures in tropical Brazil and likely impacts on greenhouse gas emissions: A review. Grass Forage Sci. 2020, 75, 357–371. [Google Scholar] [CrossRef]
  10. Molossi, L.; Hoshide, A.K.; Abreu, D.C.; Oliveira, R.A. Agricultural support and public policies improving sustainability in Brazil’s beef industry. Sustainability 2023, 15, 4801. [Google Scholar] [CrossRef]
  11. Telles, T.S.; Bacchi, M.D.; Costa, G.V.; Schuntzemberger, A.M.S. Milk production systems in southern Brazil. An. Acad. Bras. Cienc. 2020, 92, e20180852. [Google Scholar] [CrossRef] [PubMed]
  12. Cândido, M.J.D.; Araújo, G.G.L.; Cavalcante, M.A.B. Pastagens no ecossistema semi-árido brasileiro: Atualização e perspectivas futuras. Rev. Soc. Bras. Zootec. 2005, 42, 85–94. [Google Scholar]
  13. Mueller, C.C.; Martha, G.B., Jr. A agropecuária e o desenvolvimento sócio-econômico recente do Cerrado. In Simpósio Nacional de Cerrado; Simpósio Internacional de Savanas Tropicais: Embrapa Cerrados, Brasília, 2008; Volume 9. [Google Scholar]
  14. Sloat, L.L.; Gerber, J.S.; Samberg, L.H.; Smith, W.K.; Herrero, M.; Ferreira, L.G.; Godde, C.M.; West, P.C. Increasing importance of precipitation variability on global livestock grazing lands. Nat. Clim. Chang. 2018, 8, 214–218. [Google Scholar] [CrossRef]
  15. Aguiar, D.A.; Mello, M.P.; Nogueira, S.F.; Gonçalves, F.G.; Adami, M.; Rudorff, B.F.T. MODIS time series to detect anthropogenic interventions and degradation processes in tropical pasture. Remote Sens. 2017, 9, 73. [Google Scholar] [CrossRef]
  16. Zhou, W.; Yang, H.; Huang, L.; Chen, C.; Lin, X.; Li, J. Grassland degradation, remote sensing monitoring, and driving factors quantitative assessment in China from 1982 to 2010. Ecol. Ind. 2017, 83, 303–313. [Google Scholar] [CrossRef]
  17. Lemmens, C.; Boeck, H.D.; Gielen, B.; Bossuyt, H.; Malchair, S.; Carnol, M.; Merckx, R.; Nijs, I.; Ceulemans, R. End-of season effects of elevated temperature on ecophysiological processes of grassland species at different species richness levels. Environ. Exp. Bot. 2006, 56, 245–254. [Google Scholar] [CrossRef]
  18. Dias-Filho, M.B. Diagnóstico das Pastagens no Brasil, 1st ed.; Embrapa Amazônia Oriental: Belém, Brasil, 2014; Volume 1, 36p, Available online: https://ainfo.cnptia.embrapa.br/digital/bitstream/item/102203/1/DOC-402.pdf (accessed on 10 October 2023).
  19. Strassburg, B.B.N.; Latawiec, A.E.; Barioni, L.G.; Nobre, C.A.; Silva, V.P.; Valentim, J.F.; Vianna, M.; Assad, E.D. When enough should be enough: Improving the use of current agricultural lands could meet production demands and spare natural habitats in Brazil. Glob. Environ. Chang. 2014, 28, 84–97. [Google Scholar] [CrossRef]
  20. Feltran-Barbieri, F.; Féres, J.G. Degraded pastures in Brazil: Improving livestock production and forest restoration. R. Soc. Open Sci. 2021, 8, 201854. [Google Scholar] [CrossRef] [PubMed]
  21. Bragança, A.; Newton, P.; Cohn, A.; Assunção, J.; Camboim, C.; Faveri, D.; Farinelli, B.; Perego, V.M.E.; Tavares, M.; Resende, J.; et al. Extension services can promote pasture restoration: Evidence from Brazil’s low carbon agriculture plan. Proc. Natl. Acad. Sci. USA 2022, 119, E2114913119. [Google Scholar] [CrossRef] [PubMed]
  22. Sekaran, U.; Lai, L.; Ussiri, D.A.N.; Kumar, S.; Clay, S. Role of integrated crop-livestock systems in improving agriculture production and addressing food security—A review. J. Agric. Food Res. 2021, 5, 100190. [Google Scholar] [CrossRef]
  23. Paul, B.K.; Epper, C.A.; Tschopp, D.J.; Long, C.T.M.; Tungani, V.; Burra, D.; Hak, L.; Phengsavanh, P.; Douxchamps, S. Crop-livestock integration provides opportunities to mitigate environmental trade-offs in transitioning smallholder agricultural systems of the Greater Mekong subregion. Agric. Syst. 2022, 195, 103285. [Google Scholar] [CrossRef]
  24. Han, Z.; Han, C.; Shi, Z.; Li, J.; Luo, E. Rebuilding the crop-livestock integration system in China based on the perspective of circular economy. J. Clean. Prod. 2023, 393, 136347. [Google Scholar] [CrossRef]
  25. Khanal, S.; Kushal, K.C.; Fulton, J.P.; Shearer, S.; Ozkan, E. Remote Sensing in agriculture—Accomplishments, limitations, and opportunities. Remote Sens. 2020, 12, 3783. [Google Scholar] [CrossRef]
  26. Gorelick, N.; Hancher, M.; Dixon, M.; Ilyushchenko, S.; Thau, D.; Moore, R. Google Earth Engine: Planetary-scale geospatial analysis for everyone. Remote Sens. Environ. 2017, 202, 18–27. [Google Scholar] [CrossRef]
  27. Brown, C.F.; Brumby, S.P.; Guzder-Williams, B.; Birch, T.; Hyde, S.B.; Mazzariello, J.; Czerwinski, W.; Pasquarella, V.J.; Haertel, R.; Ilyushchenko, S.; et al. Dynamic Word, near real-time global 10 m land use land cover mapping. Sci. Data 2022, 9, 251. [Google Scholar] [CrossRef]
  28. Chen, J.; Chen, J.; Liao, A.; Cao, X.; Chen, L.; Chen, X.; He, C.; Han, G.; Peng, S.; Lu, M.; et al. Global land cover mapping at 30m resolution: A POK-based operational approach. ISPRS J. Photogramm. Remote Sens. 2015, 103, 7–27. [Google Scholar] [CrossRef]
  29. Parreiras, T.C.; Bolfe, É.L.; Chaves, M.E.D.; Sanches, I.D.; Sano, E.E.; Victoria, D.d.C.; Bettiol, G.M.; Vicente, L.E. Hierarchical Classification of Soybean in the Brazilian Savanna Based on Harmonized Landsat Sentinel Data. Remote Sens. 2022, 14, 3736. [Google Scholar] [CrossRef]
  30. Sano, E.E.; Bolfe, É.L.; Parreiras, T.C.; Bettiol, G.M.; Vicente, L.E.; Sanches, I.D.; Victoria, D.C. Estimating double cropping plantations in the Brazilian Cerrado through PlanetScope monthly mosaics. Land 2023, 12, 581. [Google Scholar] [CrossRef]
  31. Bolfe, É.L.; Parreiras, T.C.; Silva, L.A.P.; Sano, E.E.; Bettiol, G.M.; Victoria, D.C.; Sanches, I.D.; Vicente, L.E. Mapping agricultural intensification in the Brazilian savanna: A machine learning approach using harmonized data from Landsat Sentinel-2. ISPRS Int. J. Geo-Inf. 2023, 12, 263. [Google Scholar] [CrossRef]
  32. Marin, F.R.; Zanon, A.J.; Monzon, J.P.; Andrade, J.F.; Silva, E.H.F.M.; Richter, G.L.; Antolin, L.A.S.; Ribeiro, B.S.M.R.; Ribas, G.G.; Battisti, R.; et al. Protecting the Amazon forest and reducing global warming via agricultural intensification. Nat. Sustain. 2022, 5, 1018–1026. [Google Scholar] [CrossRef]
  33. Silva, L.C.M.; Avanzi, J.C.; Peixoto, D.S.; Merlo, M.N.; Borghi, E.; Rsende, A.V.; Acuña-Guzman, S.F.; Silva, B.M. Ecological intensification of cropping systems enhances soil functions, mitigates soil erosion, and promotes crop resilience to dry spells in the Brazilian Cerrado. Int. Soil Water Cons. Res. 2021, 9, 591–604. [Google Scholar] [CrossRef]
  34. Victoria, D.C.; Bolfe, E.L.; Bayma-Silva, G. Pastagens Plantadas com Potencial para Expansão da Agricultura Anual no Cerrado. In Proceedings of the 17th Simpósio Brasileiro de Sensoriamento Remoto, Santos, Brasil, 28–31 May 2017; pp. 1716–1723. Available online: http://marte2.sid.inpe.br/col/sid.inpe.br/marte2/2017/10.27.12.24.31/doc/thisInformationItemHomePage.html (accessed on 1 October 2023).
  35. Victoria, D.C.; Bolfe, E.L.; Sano, E.E.; Assad, E.D.; Andrade, R.G.; Guimarães, D.P.; Landau, E.C. Potencialidades para Expansão e Diversificação Agrícola Sustentável do Cerrado, 1st ed.; Bolfe, E.L., Sano, E.E., Campos, S.C., Eds.; Embrapa: Brasília, Brasil, 2020; Volume 1, pp. 229–258. Available online: https://ainfo.cnptia.embrapa.br/digital/bitstream/item/215034/1/LV-DINAMICA-AGRICOLA-CERRADO-2020-capitulo08.pdf (accessed on 10 October 2023).
  36. Câmara, G.; Medeiros, J.S. Princípios básicos em geoprocessamento. In Sistemas de Informações Geográficas: Aplicações na Agricultura, 2nd ed.; Assad, E.D., Sano, E.E., Eds.; Embrapa: Brasília, Brazil, 1998; Volume 1, pp. 3–11. [Google Scholar]
  37. Instituto Brasileiro de Geografia e Estatística (IBGE). Potencialidade Agrícola Natural Das Terras no Brasil. 2022. Available online: https://biblioteca.ibge.gov.br/index.php/biblioteca-catalogo?view=detalhes&id=2101980 (accessed on 21 October 2023).
  38. Fundação Nacional do Índio (FUNAI). Terras Indígenas. 2021. Available online: https://www.gov.br/funai/pt-br/atuacao/terras-indigenas/geoprocessamento-e-mapas (accessed on 10 October 2023).
  39. Instituto Nacional de Reforma Agrária (INCRA). Áreas de Comunidades Quilombolas e Áreas de Assentamentos Rurais. 2021. Available online: https://acervofundiario.incra.gov.br/acervo/login.php (accessed on 10 October 2023).
  40. Ministério do Meio Ambiente (Brasil). Unidades de Conservação Federais. 2019. Available online: https://www.gov.br/icmbio/pt-br/assuntos/dados_geoespaciais/mapa-tematico-e-dados-geoestatisticos-das-unidades-de-conservacao-federais (accessed on 11 October 2023).
  41. Ministério do Meio Ambiente (Brasil). Áreas Prioritárias para Conservação da Biodiversidade. 2021. Available online: https://www.gov.br/mma/pt-br/assuntos/servicosambientais/ecossistemas-1/conservacao-1/areas-prioritarias (accessed on 11 October 2023).
  42. Ministério do Meio Ambiente/Serviço Florestal Brasileiro (Brasil). Áreas Públicas não Destinadas. 2020. Available online: https://www.gov.br/agricultura/pt-br/assuntos/servico-florestal-brasileiro/cadastro-nacional-de-florestas-publicas/cadastro-nacional-de-florestas-publicas-atualizacao-2020 (accessed on 11 October 2023).
  43. Instituto Brasileiro de Geografia e Estatística (IBGE). Áreas Militares. 2017. Available online: http://geoftp.ibge.gov.br/ (accessed on 11 November 2023).
  44. Departamento Nacional de Infraestrutura de Transportes (DNIT) (Brasil). Rodovias Federais e Estaduais. 2021. Available online: https://servicos.dnit.gov.br/vgeo/ (accessed on 14 October 2023).
  45. Companhia Nacional de Abastecimento (CONAB). Acompanhamento da Safra Brasileira de Grãos 2022/2023. 2023. Available online: https://www.conab.gov.br/info-agro/safras/graos (accessed on 5 October 2023).
  46. Ministério da Agricultura, Pecuária e Abastecimento (Brasil). Zoneamento Agrícola de Risco Climático 2022/2023. 2023. Available online: https://indicadores.agricultura.gov.br/zarc/index.htm (accessed on 10 November 2023).
  47. Santos, C.O.; Mesquita, V.V.; Parente, L.L.; Pinto, A.S.; Ferreira, L.G., Jr. Assessing the wall-to-wall spatial and qualitative dynamics of the Brazilian pasturelands 2010-2018, based on the analysis of the Landsat data archive. Remote Sens. 2022, 14, 1024. [Google Scholar] [CrossRef]
  48. Tucker, C.J. Red and photographic infrared linear combinations for monitoring vegetation. Remote Sens. Environ. 1979, 8, 127–150. [Google Scholar] [CrossRef]
  49. Gao, B. A normalized difference water index for remote sensing of vegetation liquid water from space. Remote Sens. Environ. 1996, 58, 257–266. [Google Scholar] [CrossRef]
  50. Daughtry, C.S.T. Agroclimatology: Discriminating Crop Residues from Soil by Shortwave Infrared Reflectance. Agron. J. 2001, 93, 125–131. [Google Scholar] [CrossRef]
  51. Huete, A.; Didan, K.; Miura, T.; Rodriguez, E.P.; Gao, X.; Ferreira, L.G. Overview of the radiometric and biophysical performance of the MODIS vegetation indices. Remote Sens. Environ. 2002, 83, 195–213. [Google Scholar] [CrossRef]
  52. Instituto Brasileiro de Geografia e Estatística (IBGE). Censo Agropecuário. 2017. Available online: https://censoagro2017.ibge.gov.br/templates/censo_agro/resultadosagro/estabelecimentos.html (accessed on 11 November 2023).
  53. Andrade, R.G.; Bolfe, É.L.; Victoria, D.C.; Nogueira, S.F. Avaliação das condições de pastagens no Cerrado brasileiro por meio de geotecnologias. Rev. Bras. Agropec. Sust. 2017, 7, 34. [Google Scholar] [CrossRef]
  54. Oliveira, E.R.D.; Silva, J.R.; Baumann, L.R.F.; Miziara, F.; Ferreira, L.G.; Merelles, L.R.O. Technology and degradation of pastures in livestock in the Brazilian Cerrado. Soc. Nat. 2020, 32, 626. [Google Scholar] [CrossRef]
  55. Instituto Brasileiro de Geografia e Estatística (IBGE). Manual Técnico da Vegetação Brasileira; IBGE: Rio de Janeiro, Brazil, 1992; 91p. [Google Scholar]
  56. Empresa Brasileira de Pesquisa Agropecuária (EMBRAPA). Centro de Ciência para o Desenvolvimento da Agricultura Digital. 2023. Available online: https://bv.fapesp.br/pt/auxilios/111242/centro-de-ciencia-para-o-desenvolvimento-em-agricultura-digital-ccd-adsemear/ (accessed on 27 January 2024).
  57. Agrosatélite Geotecnologia Aplicada Ltda. Análise Geoespacial da Expansão da Soja no Bioma CERRADO: 2000/01 a 2021/22, 1st ed.; Agrosatélite: Florianópolis, Brazil, 2022; 30p, Available online: https://agrosatelite.com.br/static/img/cases/pdf/pt-br/relatorio_ccm_exp.pdf (accessed on 5 November 2023).
  58. Weiss, M.; Jacob, F.; Duveiller, G. Remote sensing for agricultural applications: A meta-review. Remote Sens. Environ. 2020, 236, 111402. [Google Scholar] [CrossRef]
  59. Martha, G., Jr.; Barioni, L.G.; Santos, P.M.; Maule, R.F.; Moran, D. Getting pastoral systems productivity right. Sci. Total Environ. 2024, 916, 170268. [Google Scholar] [CrossRef]
  60. Webb, N.P.; Marshall, N.A.; Stringer, L.C.; Reed, M.S.; Chappell, A.; Herrick, J.E. Land degradation and climate change: Building climate resilience in agriculture. Front. Ecol. Environ. 2017, 15, 450. [Google Scholar] [CrossRef]

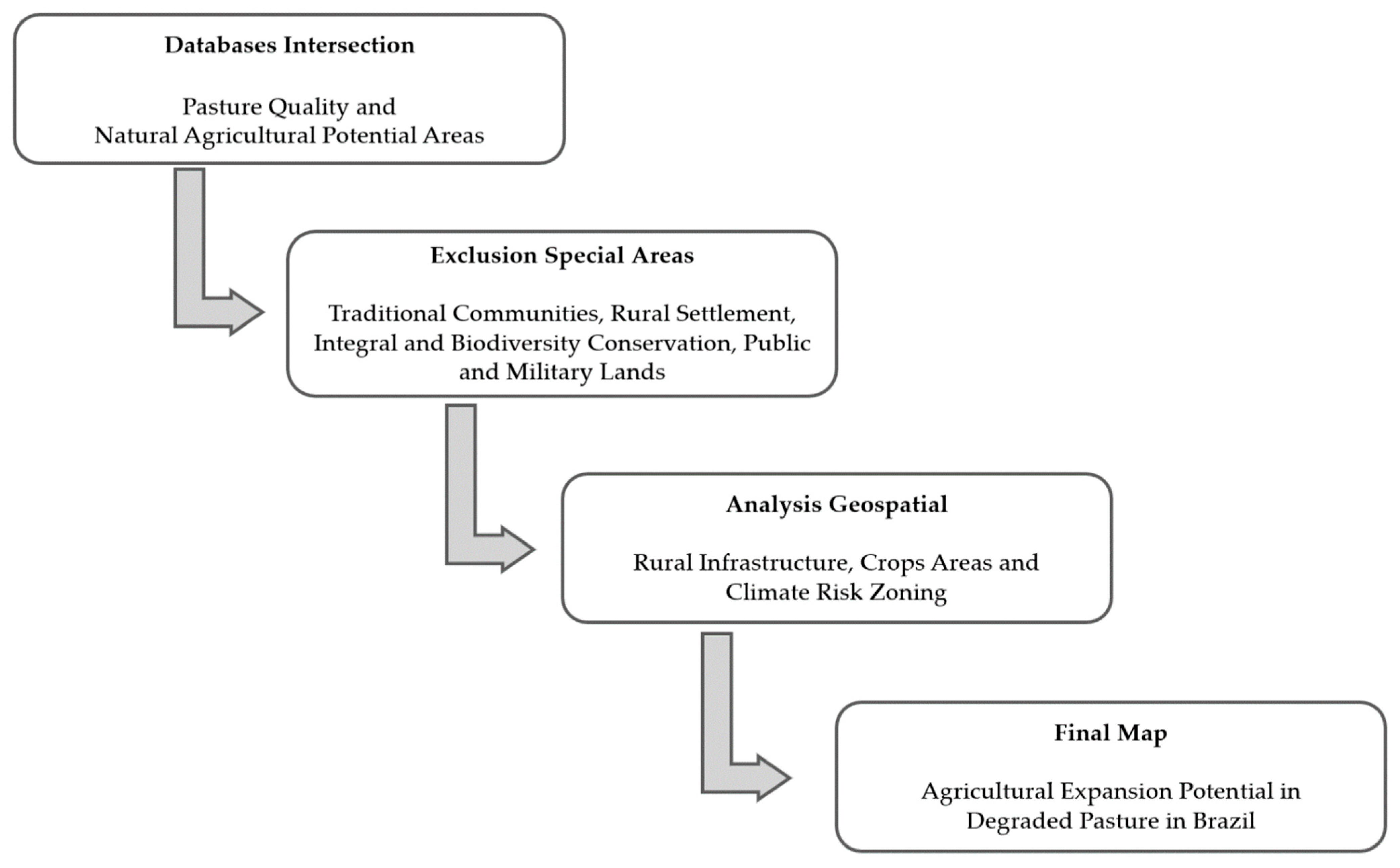

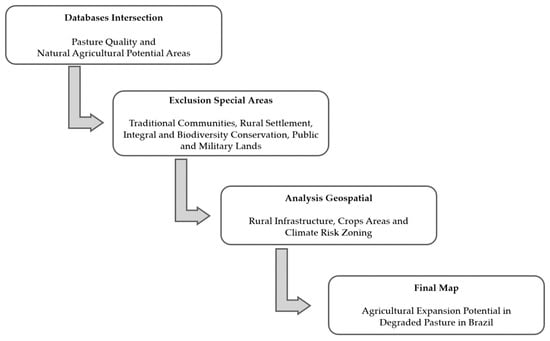

Figure 1. Workflow for the integration of multi-source datasets in a GIS environment used to analyze the potential for agricultural expansion in degraded pasturelands in Brazil.
Figure 1. Workflow for the integration of multi-source datasets in a GIS environment used to analyze the potential for agricultural expansion in degraded pasturelands in Brazil.
Land 13 00200 g001

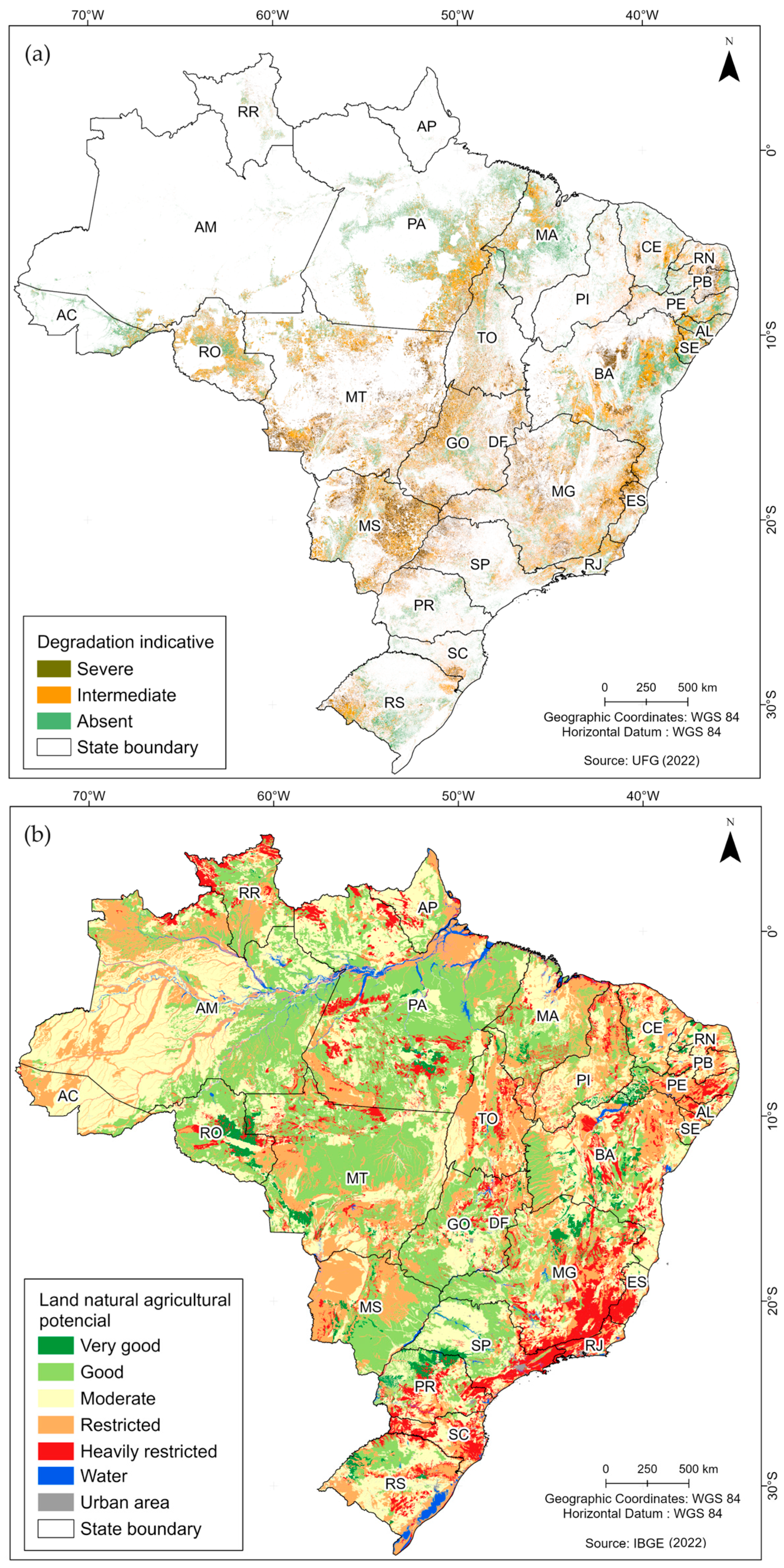

Figure 2. Maps of “Pasture Quality” (a) and “Land Natural Agricultural Potential” (b) in the states in Brazil. AC = Acre; AL = Alagoas; AM = Amazonas; AP = Amapá; BA = Bahia; CE = Ceará; DF = Distrito Federal; ES = Espírito Santo; GO = Goiás; MA = Maranhão; MG = Minas Gerais; MS = Mato Grosso do Sul; MT = Mato Grosso; PA = Pará; PB = Paraíba; PE = Pernambuco; PI = Piauí; PR = Paraná; RJ = Rio de Janeiro; RN = Rio Grande do Norte; RO = Rondônia; RR = Roraima; RS = Rio Grande do Sul; SC = Santa Catarina; SE = Sergipe; SP = São Paulo; and TO = Tocantins.
Figure 2. Maps of “Pasture Quality” (a) and “Land Natural Agricultural Potential” (b) in the states in Brazil. AC = Acre; AL = Alagoas; AM = Amazonas; AP = Amapá; BA = Bahia; CE = Ceará; DF = Distrito Federal; ES = Espírito Santo; GO = Goiás; MA = Maranhão; MG = Minas Gerais; MS = Mato Grosso do Sul; MT = Mato Grosso; PA = Pará; PB = Paraíba; PE = Pernambuco; PI = Piauí; PR = Paraná; RJ = Rio de Janeiro; RN = Rio Grande do Norte; RO = Rondônia; RR = Roraima; RS = Rio Grande do Sul; SC = Santa Catarina; SE = Sergipe; SP = São Paulo; and TO = Tocantins.
Land 13 00200 g002

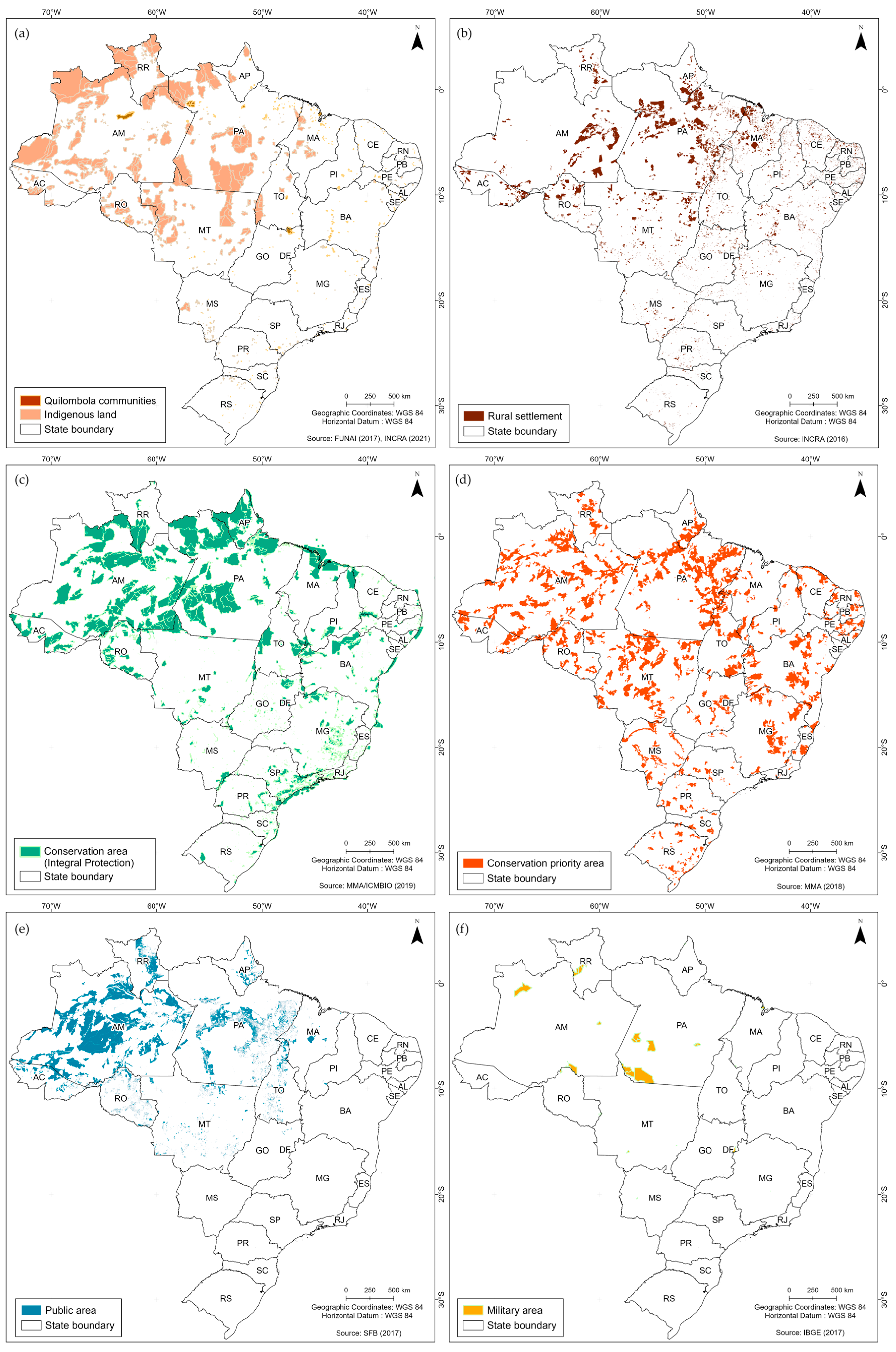

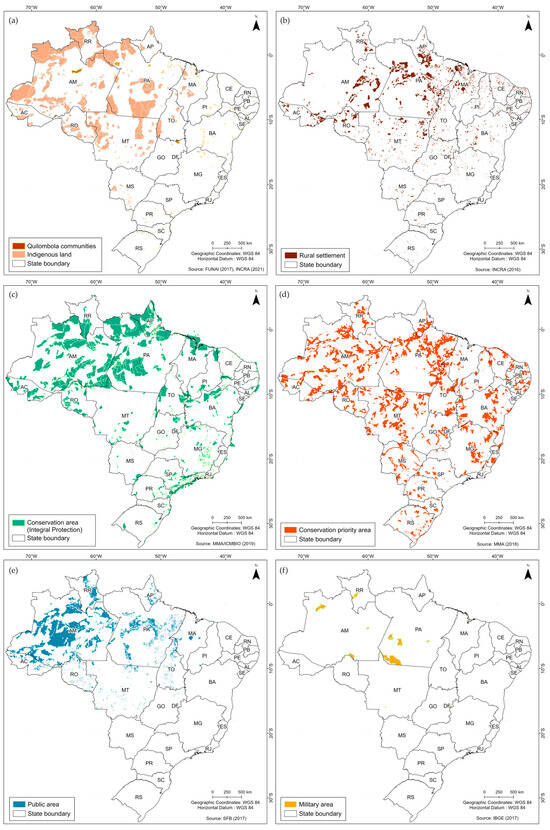

Figure 3. Maps of “Special Areas” in Brazil: Indigenous lands and Afro-Brazilian settlements (quilombolas) (a), rural settlements (b), conservation units (c), priority areas for conservation (d), undesignated public areas (e), and military areas (f).
Figure 3. Maps of “Special Areas” in Brazil: Indigenous lands and Afro-Brazilian settlements (quilombolas) (a), rural settlements (b), conservation units (c), priority areas for conservation (d), undesignated public areas (e), and military areas (f).
Land 13 00200 g003

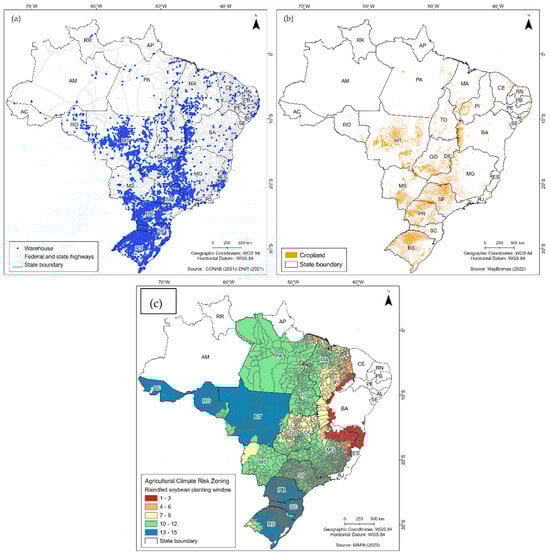

Figure 4. Maps of warehouse and highways (a), croplands (b), and Agricultural Climate Risk Zoning—example of soybeans (c) in Brazil.
Figure 4. Maps of warehouse and highways (a), croplands (b), and Agricultural Climate Risk Zoning—example of soybeans (c) in Brazil.
Land 13 00200 g004

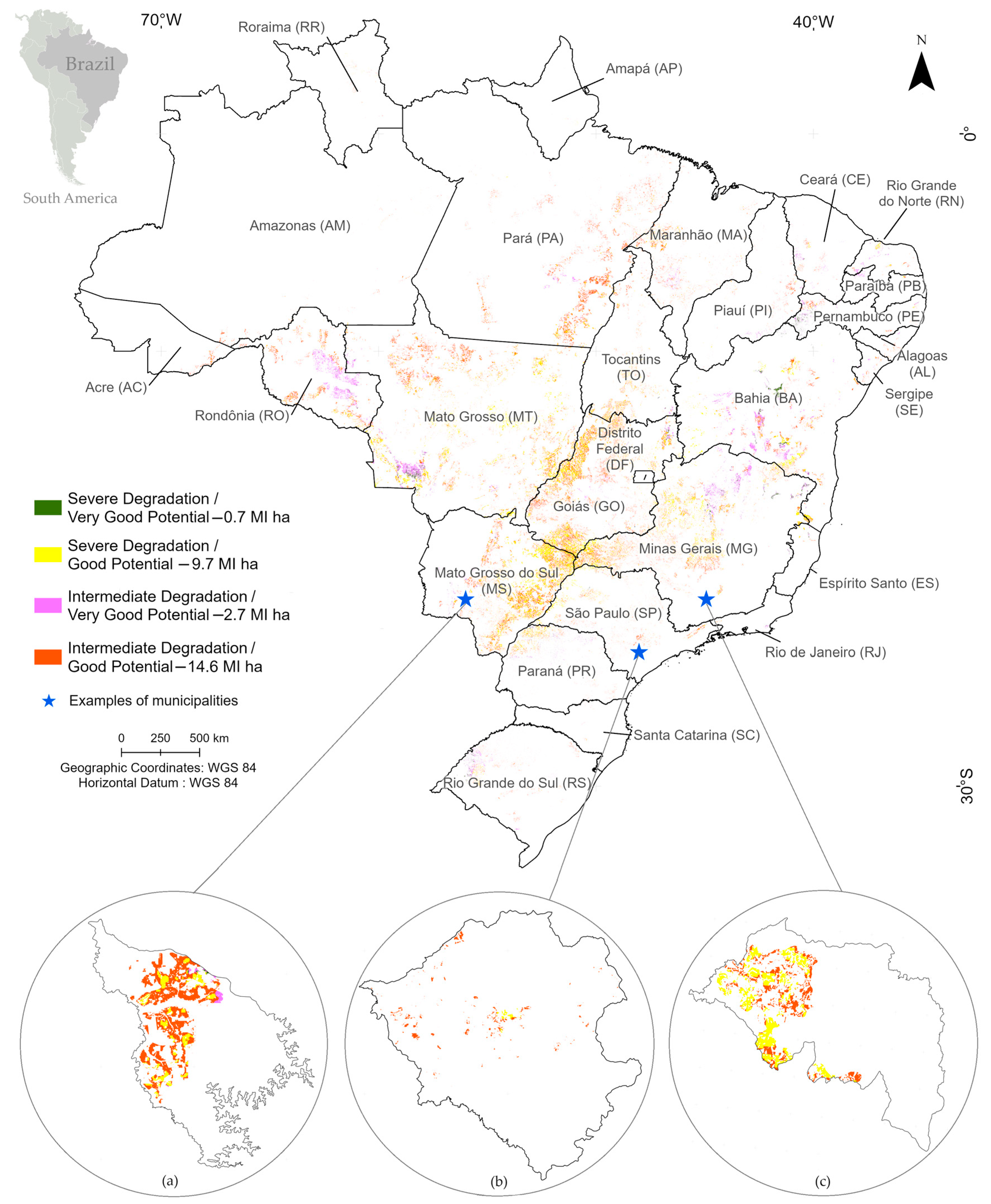

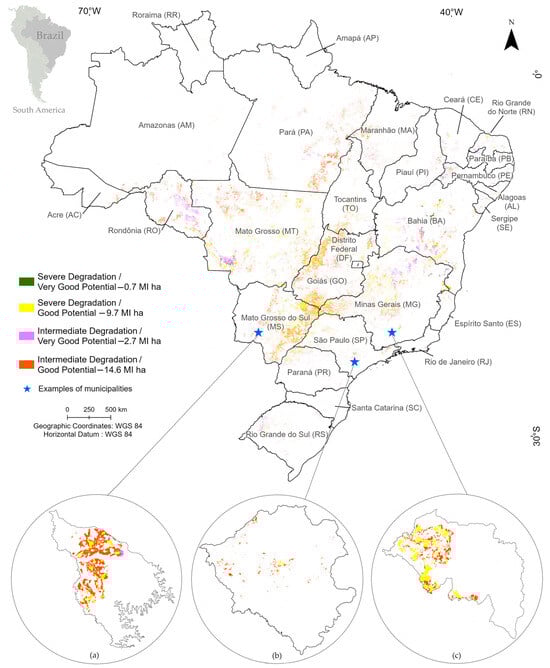

Figure 5. Spatial distribution of potential agricultural expansion areas by state, considering the presence of planted pastures, with indicators of severe and intermediate degradation in areas with very good and good natural agricultural potential in Brazil and municipalities. Examples: (a) Guia Lopes da Laguna—MS, (b) São Miguel Arcanjo—SP and (c) Ingaí—MG.
Figure 5. Spatial distribution of potential agricultural expansion areas by state, considering the presence of planted pastures, with indicators of severe and intermediate degradation in areas with very good and good natural agricultural potential in Brazil and municipalities. Examples: (a) Guia Lopes da Laguna—MS, (b) São Miguel Arcanjo—SP and (c) Ingaí—MG.
Land 13 00200 g005

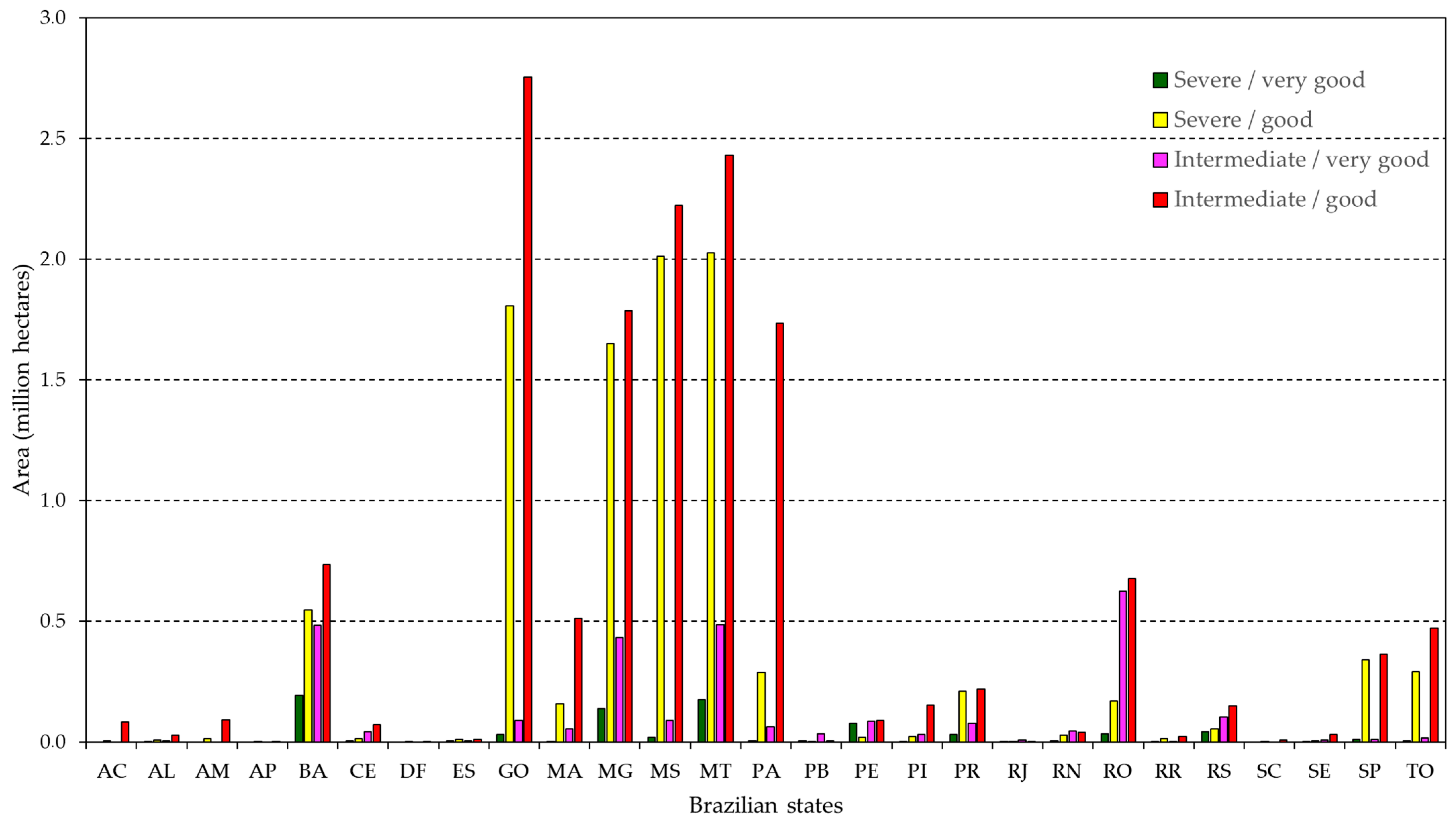

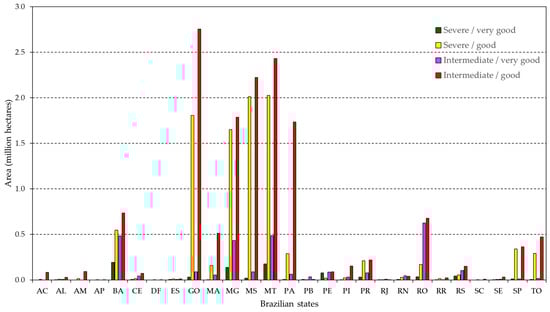

Figure 6. Estimates of agricultural expansion possibilities for each Brazilian state, considering the presence of planted pastures, with indicators of severe pasture degradation and very good agricultural potential, severe pasture degradation and good agricultural potential, intermediate pasture degradation and very good agricultural potential, and intermediate pasture degradation and good agricultural potential. AC = Acre; AL = Alagoas; AM = Amazonas; AP = Amapá; BA = Bahia; CE = Ceará; DF = Distrito Federal; ES = Espírito Santo; GO = Goiás; MA = Maranhão; MG = Minas Gerais; MS = Mato Grosso do Sul; MT = Mato Grosso; PA = Pará; PB = Paraíba; PE = Pernambuco; PI = Piauí; PR = Paraná; RJ = Rio de Janeiro; RN = Rio Grande do Norte; RO = Rondônia; RR = Roraima; RS = Rio Grande do Sul; SC = Santa Catarina; SE = Sergipe; SP = São Paulo; and TO = Tocantins.
Figure 6. Estimates of agricultural expansion possibilities for each Brazilian state, considering the presence of planted pastures, with indicators of severe pasture degradation and very good agricultural potential, severe pasture degradation and good agricultural potential, intermediate pasture degradation and very good agricultural potential, and intermediate pasture degradation and good agricultural potential. AC = Acre; AL = Alagoas; AM = Amazonas; AP = Amapá; BA = Bahia; CE = Ceará; DF = Distrito Federal; ES = Espírito Santo; GO = Goiás; MA = Maranhão; MG = Minas Gerais; MS = Mato Grosso do Sul; MT = Mato Grosso; PA = Pará; PB = Paraíba; PE = Pernambuco; PI = Piauí; PR = Paraná; RJ = Rio de Janeiro; RN = Rio Grande do Norte; RO = Rondônia; RR = Roraima; RS = Rio Grande do Sul; SC = Santa Catarina; SE = Sergipe; SP = São Paulo; and TO = Tocantins.
Land 13 00200 g006
Table 1. Information the databases used to analyze the potential for agricultural expansion in degraded pasture areas in Brazil.
Table 1. Information the databases used to analyze the potential for agricultural expansion in degraded pasture areas in Brazil.
LayerYearScaleSourceReference
Pasture quality20221:250,000Federal University of Goiás
(UFG, Universidade Federal de Goiás)
[8]
Land natural agricultural potential20221:250,000Brazilian Institute of Geography and Statistics
(IBGE, Instituto Brasileiro de Geografia e Estatística)
[37]
Indigenous lands20211:250,000National Indian Foundation
(FUNAI, Fundação Nacional do Índio)
[38]
Afro-Brazilian settlements20211:250,000National Institute of Colonization and Agrarian Reform
(INCRA, Instituto Nacional de Reforma Agrária)
[39]
Rural settlements20221:5000National Institute of Colonization and Agrarian Reform
(INCRA, Instituto Nacional de Reforma Agrária)
[39]
Integral conservation20191:250,000Ministry of Environment and Climate Change
(MMA, Ministério do Meio Ambiente e Mudança do Clima)
[40]
Biodiversity conservation20211:250,000Ministry of Environment and Climate Change
(MMA, Ministério do Meio Ambiente e Mudança do Clima)
[41]
Public lands20201:250,000Brazilian Forest Service
(SFB, Serviço Florestal Brasileiro)
[42]
Military lands20171:250,000Brazilian Institute of Geography and Statistics
(IBGE, Instituto Brasileiro de Geografia e Estatística)
[43]
State and federal highways20211:400,000National Department of Transportation Infrastructure
(DNIT, Departamento Nacional de Infraestrutura de Transportes)
[44]
Rural warehouses2021National Supply Company
(CONAB, Companhia Nacional de Abastecimento)
[45]
Croplands20221:100,000MapBiomas Project
(Brazilian Annual Land Use and Land Cover Mapping Project)
[3]
Climate risk agricultural zoning20231:50,000Ministry of Agriculture, Livestock, and Supply
(MAPA, Ministério da Agricultura, Pecuária e Abastecimento)
[46]
Table 2. Classes of potentials or limitations for agricultural expansion in Brazil based on soil and topographic characteristics.
Table 2. Classes of potentials or limitations for agricultural expansion in Brazil based on soil and topographic characteristics.
CategoryPotentialCharacteristics
A1Very goodDeep soils, good fertility, good permeability, and location on flat terrains.
A2GoodSoils located mostly on flat terrains, with some restrictions because of the presence of undesirable/harmful ions and relatively shallow soil depth.
BModerateSoils with moderate restrictions on fertility, presence of expansive clays and undesirable/harmful ions, mostly located on slightly hilly topography.
CRestrictedSoils with undesirable/harmful ions, presence of expansive clays and with important restrictions regarding shallow soil depth, mostly located in rugged terrains, though they also can occur in flat areas with restrictions due to fluctuations or significant shallow water table (hydromorphism).
DStrongly restrictedSoils located on terrains with very steep slopes, presence of undesirable soluble salts, and important restrictions regarding their depth; they are mainly devoted to protection, preservation, and conservation of native vegetation.
Table 3. Information processed from the multi-source databases used in the study at the state level of Brazil. Mha = million hectares.
Table 3. Information processed from the multi-source databases used in the study at the state level of Brazil. Mha = million hectares.
State *State
Area
(Mha)
Pasture
Quality Area
(Degradation)
Natural
Agricultural
Potential Area **
Special Areas
(Mha)
Rural
Infrastructure
Crop Area
(2022)
(Mha)
Number of Rainfed Crops with Low Climate RiskAgricultural Crop Expansion Potential
Area ***
(Mha)
Inter-mediate
(Mha)
Severe
(Mha)
Good
(Mha)
Very Good
(Mha)
Warehouses
(Number)
Highways
(km)
AC16.420.300.021.300.0112.851416110.01260.09
AL2.780.580.100.190.070.71738950.34280.04
AM155.930.600.1441.920.01142.392672730.01190.11
AP14.250.010.012.750.0113.21311970.02170.01
BA56.487.043.6110.372.6116.3455735,4792.89391.96
CE14.891.510.321.330.683.508414,9750.59260.13
DF0.580.040.060.310.010.549017720.11340.00
ES4.611.050.560.040.021.3126777510.27310.03
GO34.026.453.5513.570.485.5891426,3215.45354.68
MA32.962.600.5710.90.4713.4716715,0671.19300.73
MG58.6510.666.1013.942.1111.33138743,4474.84334.01
MS35.716.145.7213.850.966.8884418,8784.06354.34
MT90.328.927.0141.452.0539.21221826,45311.78345.12
PA124.596.621.3356.521.16104.6413819,0911.01282.09
PB5.650.680.750.100.201.163274000.07280.05
PE9.811.380.580.911.032.924512,7730.42280.27
PI25.181.120.334.410.295.5813643831.14270.21
PR19.931.100.483.692.433.36250217,9026.61320.54
RJ4.380.930.280.010.031.221923750.12310.01
RN5.280.850.550.440.311.342118020.44280.12
RO23.783.950.8110.142.6515.9820058450.37291.50
RR22.360.230.108.160.0920.552718250.11200.04
RS28.172.510.863.850.813.51465226,3538.92340.35
SC9.570.570.270.190.011.2799495791.24320.01
SE2.190.540.150.230.060.2434020.11270.04
SP24.822.051.677.560.735.17105318,4637.61400.73
TO27.743.711.704.100.1412.9817615,7701.32310.79
Total851.0472.137.6252.2419.38447.2416,642345.1061.04-28.02
* AC = Acre; AL = Alagoas; AM = Amazonas; AP = Amapá; BA = Bahia; CE = Ceará; DF = Distrito Federal; ES = Espírito Santo; GO = Goiás; MA = Maranhão; MG = Minas Gerais; MS = Mato Grosso do Sul; MT = Mato Grosso; PA = Pará; PB = Paraíba; PE = Pernambuco; PI = Piauí; PR = Paraná; RJ = Rio de Janeiro; RN = Rio Grande do Norte; RO = Rondônia; RR = Roraima; RS = Rio Grande do Sul; SC = Santa Catarina; SE = Sergipe; SP = São Paulo; and TO = Tocantins. ** Natural agricultural potential area means the total land suitable for crop production based on favorable conditions in terms of soil, topography, and precipitation. Special areas means areas fully protected by law (e.g., conservation units, indigenous areas, and military areas). *** Agricultural crop expansion potential area means degraded pasturelands with high potential for rainfed crop plantation.
Table 4. Spatial distribution of current agricultural and pasture areas (millions of hectares) in relation to the existing infrastructure of warehouses and state and federal highways in Brazil.
Table 4. Spatial distribution of current agricultural and pasture areas (millions of hectares) in relation to the existing infrastructure of warehouses and state and federal highways in Brazil.
Land UseInfrastructure Distance from Highways
20 km40 km60 km80 km100 km>100 kmTotal
AgricultureWarehousesArea51.147.221.720.560.230.1561.03
%83.8011.832.830.920.380.25100.00
HighwaysArea57.103.340.480.110.000.0061.03
%93.565.470.790.180.000.00100.00
PastureWarehousesArea54.0048.6131.9818.0610.3112.66177.64
%30.4027.3618.0010.175.807.13100.00
HighwaysArea158.6314.952.840.770.350.10177.64
%89.308.421.600.430.200.06100.00
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bolfe, É.L.; Victoria, D.d.C.; Sano, E.E.; Bayma, G.; Massruhá, S.M.F.S.; de Oliveira, A.F. Potential for Agricultural Expansion in Degraded Pasture Lands in Brazil Based on Geospatial Databases. Land 2024, 13, 200. https://doi.org/10.3390/land13020200

AMA Style

Bolfe ÉL, Victoria DdC, Sano EE, Bayma G, Massruhá SMFS, de Oliveira AF. Potential for Agricultural Expansion in Degraded Pasture Lands in Brazil Based on Geospatial Databases. Land. 2024; 13(2):200. https://doi.org/10.3390/land13020200

Chicago/Turabian Style

Bolfe, Édson Luis, Daniel de Castro Victoria, Edson Eyji Sano, Gustavo Bayma, Silvia Maria Fonseca Silveira Massruhá, and Aryeverton Fortes de Oliveira. 2024. "Potential for Agricultural Expansion in Degraded Pasture Lands in Brazil Based on Geospatial Databases" Land 13, no. 2: 200. https://doi.org/10.3390/land13020200

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
