A Secure Three-Factor Anonymous User Authentication Scheme for Internet of Things Environments

Abstract

Internet of Things (IoT) is composed of various kinds of devices such as cars, electrical appliances, machines and sensors. With IoT technologies, devices can exchange information through the network, people are allowed to get information collected by devices without interacting with them, and automatic operations for devices are realized. Because of the variety of IoT devices, some of them possess limited computational capability. On the other hand, data transmission in IoT networks is usually through a public channel. To ensure efficiency and security for IoT environments, Lee et al. proposed a three-factor authentication scheme with hash function and XOR operation. They claimed their scheme possessed superior properties and could resist common attacks. After analyzing their scheme, we find that their scheme is vulnerable to five flaws. In this paper, how these found flaws threaten Lee et al.’s scheme is shown in detail. Then, we propose an improvement to overcome the found flaws and preserve the advantages by employing ECC.

1. Introduction

With the rapid development of network technologies, plenty of new applications are proposed and realized. Internet of Things is a new concept that entities can communicate with each other, and entities include various kinds of devices such as cars, electrical appliances, machines and sensors. With IoT technologies, devices can exchange information through the network, people are allowed to get information collected by devices without interacting with them, and automatic operations for devices are realized. There are many IoT applications such as Machine-to-Machine (M2M) communication, Telemedicine Information System (TMIS), Internet of Vehicles (IoV), Smart Home, Industrial of IoT (IIoT), and Smart City. Because data transmission in IoT networks is usually through a public channel, how to protect the security of transmitted data and user privacy for IoT becomes an urgent issue. On the other hand, anonymity becomes an essential issue. Anonymous communication is designed from physical layer to application layer. Various applications and technologies are designed to meet the goal [1,2,3,4,5,6].

In 2014, Turkanović et al. proposed a new IoT notion-based authentication and key agreement scheme to protect the security of heterogeneous ad hoc wireless sensor networks [7]. Their scheme uses light-weight operations, hash function and XOR operations, and provides functions including mutual authentication, key agreement, password change and dynamic node addition. They also claimed that their scheme could resist various kinds of threats while reducing cost and ensuring performance at the same time. In 2016, Farash et al. [8] found that Turkanović et al.’s scheme suffers from some security flaws such as user traceability, no sensor node anonymity, stolen smart card attack, disclosure of the session key, man-in-the-middle attack. Farash et al. also proposed a new user authentication and key agreement scheme to overcome the flaw that Turkanović et al.’s scheme suffers from and preserve the advantages of it. However, Amin et al. [9] found that Farash et al.’s scheme is still vulnerable to some weaknesses such as compromised user anonymity, known session-specific temporary information attack, offline password guessing attack using stolen smart cards, and insecure secret keys of gateway nodes. Meanwhile, Amin et al. proposed an anonymous-preserving three-factor authenticated key exchange protocol for wireless sensor networks to overcome the security flaws that Farash et al.’s scheme suffers from. In 2017, Jiang et al. [10] found that Amin et al.’s scheme suffers from loss of smart card attacks (SCLA), offline password guessing attack, lack of user untraceability, and known session-specific temporary information attack. Therefore, they proposed a lightweight three-factor authentication and key agreement protocol for internet-integrated wireless sensor networks. Jiang et al.’s scheme uses the Rabin cryptosystem to withstand tracking and smart card loss attack, uses biometric technologies to realize local password authentication to defend against offline password guessing attack, and uses time stamp mechanism to resist known session-specific temporary information attack. They claimed that their scheme could overcome the weaknesses of Amin et al.’s scheme and ensure key agreement with the higher computational load.

In 2018, Zhang et al. proposed a privacy protection mechanism for E-Health systems by means of dynamic authentication and three-factor key agreement [11]. They claimed that biometric identification on the server could be performed while the server could not get the value of biometrics. In order to protect user anonymity, dynamic authentication instead of traditional password table is adopted. Zhang et al.’s scheme uses hash function and bio-hash function to reduce computational cost and transmission cost and meet the security requirements of electronic medical systems. However, in 2019, Aghily et al. [12] found that there exist serious security vulnerabilities in Zhang et al.’s scheme, including user traceability, desynchronization attack, internal attack and denial-of-service attack. Therefore, they proposed a lightweight three-factor authentication, access control and ownership transfer scheme for E-Health systems in IoT to overcome the weaknesses that Zhang et al.’s scheme suffers from and provide an access control mechanism such that a patient’s current doctor can transfer the corresponding authority to a new doctor.

Inspired by the previous mechanisms, Lee et al. proposed a three-factor anonymous user authentication scheme for Internet of Things environments [13]. Lee et al. claimed that their scheme could resist stolen mobile device attack, user impersonation attack, replay attack, stolen-verifier attack, privileged-insider attack, sensor node impersonation attack and session-specific temporary information attack, and it could ensure user anonymity, user untraceability, mutual authentication, session key agreement, local user verification, user-friendly password change, and forward secrecy. They also claimed that their scheme could revoke users’ devices to prevent the abuse or disclosure of confidential information when devices are lost or stolen. However, after analyzing their scheme thoroughly, we find that their scheme suffers from some flaws including failure sensor node authentication, failure mobile node authentication, replay attack, denial-of-service attack, and compromised user untraceability.

The rest of this paper is organized as follows. Section 2 reviews Lee et al.’s scheme, and the found flaws are given in Section 3. The proposed scheme is given in Section 4. Security analysis and further discussions are made in Section 5. At last, some conclusions are drawn in Section 6.

2. Review of Lee et al.’s Scheme

Lee et al.’s scheme uses XOR operation, hash function and symmetric cryptography to ensure efficiency. There exist three entities in their scheme, mobile node, IoT node and gateway. At first, mobile nodes and IoT nodes need to register with the gateway. Thereupon, registered users can access services provided by IoT nodes with the smart device via the gateway’s help. Lee et al.’s scheme consists of four phases: registration phase, login and authentication phase, password change phase, and revocation phase. Notations used in Lee et al.’s scheme are listed in

Table 1. Notations used in Lee et al.’s scheme.

Notation	Definition
MNi	Mobile node namely user
Nj	Sensor node
GW	Gateway
IDi/NIDj	Identity of MNi/Nj
PWi	MNi’s password
BIOi	MNi’s biometrics
T1, T2	Timestamps
Tfresh	Current timestamp
ΔT	Reasonable transmission delay
nx, rx	Random numbers
SK	Session key shared between MNi and Nj
Ek(.)/Dk(.)	Symmetric encryption / decryption
h(.)	Hash function
H(.)	Bio-hash function
||	Concatenation operator
⊕	XOR operation
KG	GW’s private secret
KGU	MNi’s private key
KGN	Secret key shared between Nj and GW

. The details are as follows.

2.1. Registration Phase

In Lee et al.’s scheme, registration phase is composed two phases: user registration phase and IoT node registration phase. In the following, these two parts are shown in detail.

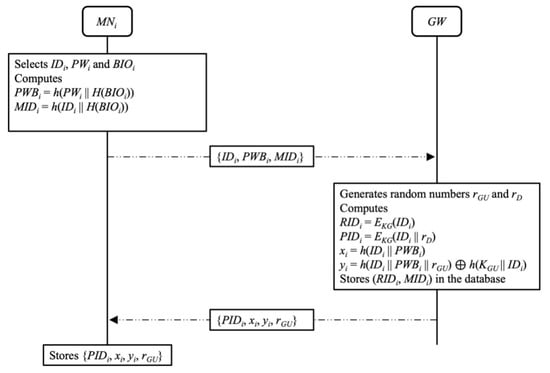

2.1.1. User Registration Phase

When a mobile node MN_i wants to access the IoT service, MN_i needs to register with the gateway GW. In this phase, data is transmitted through a secure channel. This phase is depicted in Figure 1, and the details are as follows:

Step 1.

First, MN_i chooses its identity ID_i, password PW_i, and biometrics BIO_i. Then MN_i computes PWB_i = h(PW_i || H(BIO_i)) and MID_i = h(ID_i || H(BIO_i)).

Step 2.

MN_i sends {ID_i, PWB_i, MID_i} to GW.

Step 3.

Upon receiving {ID_i, PWB_i, MID_i}, GW selects random numbers r_GU and r_D. Then GW computes RID_i = $E_{K_G}{(ID}_i)$, PID_i = $E_{K_G}{(ID}_i \left|\right| r_D)$, x_i = h(ID_i || PWB_i) and y_i = h(ID_i || PWB_i || r_GU) ⊕ h(K_GU || ID_i). GW stores (RID_i, MID_i) in its database.

Step 4.

GW sends {PID_i, x_i, y_i, r_GU} to MN_i.

Step 5.

Upon receiving {PID_i, x_i, y_i, r_GU}, MN_i stores {PID_i, x_i, y_i, r_GU} in the mobile device.

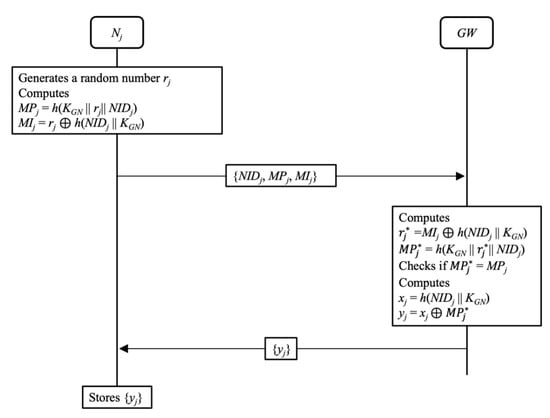

2.1.2. IoT Node Registration

Before being added to the IoT network, a sensor node N_j needs to register with GW. In this phase, data is transmitted through a public channel. This phase is depicted in Figure 2, and the details are as follows:

Step 1.

First, N_j chooses a random number r_j. Then N_j computes MP_j = h(K_GN || r_j || NID_j) and MI_j = r_j ⊕ h(NID_j || K_GN)

Step 2.

N_j sends {NID_j, MP_j, MI_j} to GW.

Step 3.

After receiving {NID_j, MP_j, MI_j}, GW uses the secret key K_GN to compute r_j^* = MI_j ⊕ h(NID_j || K_GN) and MP_j^* = h(K_GN || r_j^* || NID_j). Then GW checks whether MP_j^* = MP_j holds or not. If it holds, GW computes x_j = h(NID_j || K_GN) and y_j = x_j ⊕ MP_j^*.

Step 4.

GW sends {y_j} to N_j.

Step 5.

Upon receiving {y_j}, N_j stores {y_j} in its memory.

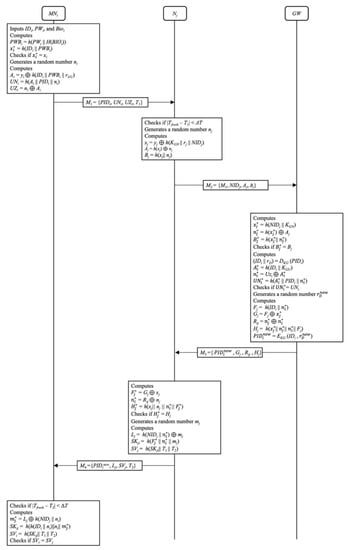

2.2. Login and Authentication Phase

After registration, registered MN_i can access IoT services provided by registered N_j. In this phase, MN_i and N_j authenticate each other, and a shared session key is negotiated for secure communication. In this phase, data is transmitted through a public channel. This phase is depicted in Figure 3, and the details are as follows:

Step 1.

MN_i enters its identity ID_i, password PW_i^old, and biometric BIO_i. MN_i computes PWB_i = h(PW_i || H(BIO_i)) and x_i^* = h(ID_i || PWB_i). Then MN_i checks whether x_i^* = x_i holds or not. If it holds, MN_i generates a random number n_i and computes A_i = y_i ⊕ h(ID_i || PWB_i || r_GU), UN_i = h(A_i || PID_i || n_i) and UZ_i = n_i ⊕ A_i; otherwise, MN_i terminates this phase immediately.

Step 2.

MN_i gets the current timestamp T₁ and sends M₁ = {PID_i, UN_i, UZ_i, T₁} to N_j.

Step 3.

Upon receiving M₁, N_j checks whether |T_fresh - T₁| ≤ ΔT holds or not. If it holds, N_j generates a random number n_j and computes x_j = y_j ⊕ h(K_GN || r_j || NID_j), A_j = h(x_j) ⊕ n_j, and B_j = h(x_j || n_j).

Step 4.

N_j sends M₂ = {M₁, NID_j, A_j, B_j} to GW.

Step 5.

Upon receiving M₂ from N_j, GW computes x_j^* = h(NID_j || K_GN), n_j^* = h(x_j^*) ⊕ A_j, and B_j^* = h(x_j^* || n_j^*). GW checks whether B_j^* = B_j holds or not. If it does not hold, GW terminates this phase immediately; otherwise, this phase proceeds. GW decrypts PID_i with its private secret K_G to obtain {ID_i, r_D} stored in the database for MN_i. Then GW computes A_i^* = h(ID_i || K_GU), n_i^* = UZ_i ⊕ A_i^* and UN_i^* = h(A_i^* || PID_i || n_i^*) and checks whether UN_i^* = UN_i holds or not. If it does not hold, GW terminates this phase immediately; otherwise, this phase proceeds. GW generates a random number r_D^new and computes F_j = h(ID_i || n_i^*), G_j = F_j ⊕ x_j^*, R_ij = n_j^* ⊕ n_i^*, H_j = h(x_j^* || n_j^* || n_i^* || F_j), and PID_i^new = $E_{K_G}$(ID_i, r_D^new).

Step 6.

GW sends M₃ = {PID_i^new, G_j, R_ij, H_j } to N_j.

Step 7.

Upon receiving M₃ from GW, N_j computes F_j^* = G_j ⊕ x_j, n_i^* = R_ij ⊕ n_j, and H_j^* = h(x_j || n_j || n_i^* || F_j^*) and checks if whether H_j^* = H_j holds or not. If it does not hold, N_j terminates this phase immediately; otherwise, N_j generates a random number m_j and computes L_j = h(NID_j || n_i^*) ⊕ m_j, SK_ji = h(F_j^* || n_i^* || m_j), and SV_j = h(SK_ji || T₁ || T₂).

Step 8.

N_j sends M₄ = {PID_i^new, L_j, SV_j, T₂} to MN_i.

Step 9.

Upon receiving M₄ from N_j, MN_i checks whether |T_fresh - T₂| ≤ ΔT holds or not. If it holds, N_j computes m_j^* = L_j ⊕ h(NID_j || n_i), SK_ji = h(h(ID_i || n_i) || n_i || m_j^*), and SV_i = h(SK_ji || T₁ || T₂). If SV_i is equal to SV_j, MN_i and N_j have successfully negotiated a session key that can be used to ensure the security of subsequent communication.

2.3. Password Change Phase

MN_i’s password can be changed on its smart device, and the details of this phase are shown as follows:

Step 1.

MN_i enters its identity ID_i, original password PW_i^old, new password PW_i^new, and biometric BIO_i. Then MN_i computes PWB_i^old = h(PW_i^old || H(BIO_i)) and x_i^* = h(ID_i || PWB_i^old).

Step 2.

MN_i checks whether x_i^* is equal to x_i or not. If they are equal, MN_i computes A_i = y_i ⊕ h(ID_i || PWB_i^old || r_GU), PWB_i^new = h(PW_i^new || H(BIO_i)), x_i^new = h(ID_i || PWB_i^new) and y_i^new = h(ID_i || PWB_i^new || r_GU) ⊕ A_i ⊕ y_i.

Step 3.

At last, MN_i updates x_i^old and y_i^old with x_i^new and y_i^new, respectively. Then MN_i’s password is updated with PW_i^new.

2.4. Revocation Phase

When MN_i wants to revoke or reissue a secret parameter, revocation phase will be performed. In this phase, data is transmitted through a secure channel, and the details are as follows.

Step 1.

MN_i inputs its original identity ID_i^old, new identity ID_i^new, new password PW_i^new, and biometric BIO_i into the mobile device. Then MN_i computes PWB_i^new = h(PW_i^new || H(BIO_i)), MID_i^old = h(ID_i^old || H(BIO_i)), and MID_i^new = h(ID_i^new || H(BIO_i)).

Step 2.

MN_i sends the revocation request {ID_i^old, ID_i^new, MID_i^old, MID_i^new, PWB_i^new} to GW.

Step 3.

Upon receiving the revocation request from MN_i, GW computes RID_i^old = $E_{K_G}$(ID_i^old) to verify MN_i’s identiy and searches (RID_i, MID_i) in the database to find the specific registered user. If (RID_i, MID_i) is equal to (RID_i^old, MID_i^old), the identity of MN_i has been verified successfully. Then GW generates new random numbers r_D^new and r_GU^new and computes PID_i^new = $E_{K_G}$(ID_i || r_D^new), RID_i^new = $E_{K_G}$(ID_i^new), x_i^new = h(ID_i || PWB_i^new) and y_i^new = h(ID_i || PWB_i^new || r_GU^new) ⊕ h(K_GU || ID_i^new). GW stores (RID_i^new, MID_i^new) in the database.

Step 4.

GW sends {PID_i^new, x_i^new, y_i^new, r_GU^new} to MN_i.

Step 5.

Upon receiving {PID_i^new, x_i^new, y_i^new, r_GU^new}, MN_i stores {PID_i^new, x_i^new, y_i^new, r_GU^new} in the mobile device.

3. Security Analysis

Lee et al. claimed that their scheme could resist stolen mobile device attack, user impersonation attack, replay attack, stolen-verifier attack, privileged-insider attack, sensor node impersonation attack and session-specific temporary information attack, and it could ensure user anonymity, user untraceability, mutual authentication, session key agreement, local user verification, user-friendly password change, and forward secrecy. They also claimed that their scheme could revoke users’ devices to prevent the abuse or disclosure of confidential information when devices are lost or stolen. However, after analyzing their scheme thoroughly, we find that their scheme suffers from five flaws. First, when an IoT node N_j registers with the gateway GW, N_j stores y_j sent from GW without checking the integrity of y_j. This approach may make N_j authenticated by GW unsuccessfully. Secondly, in login and authentication phase, A_i = y_i ⊕ h(ID_i || PWB_i || r_GU) computed by MN_i is different from A_i^* = h(ID_i || K_GU) computed by GW. This may result in mobile node authentication failure. Thirdly, in login and authentication phase, only N_j checks the freshness of T₁, and T₁ is not verified by GW at all. This makes an attacker mount replay attack. Fourth, similar to the third flaw, an attacker can impersonate a mobile node by sending a request to N_j to consume GW and N_j’s computational resources. That is, denial of service attack may damage their scheme. Fifthly, user untraceability cannot be ensured as claimed. The details of how these flaws threaten Lee et al.’s scheme and our findings are shown as follows.

3.1. Failure Sensor Node Authentication

In IoT node registration phase, N_j chooses a random number r_j. Then N_j computes MP_j = h(K_GN || r_j || NID_j) and MI_j = r_j ⊕ h(NID_j || K_GN) and sends {NID_j, MP_j, MI_j} to GW over a public channel. After receiving {NID_j, MP_j, MI_j}, GW uses the secret key K_GN shared between N_j and GW to compute r_j^* = MI_j ⊕ h(NID_j || K_GN), MP_j^* = h(K_GN || r_j^* || NID_j). Then GW checks whether MP_j^* = MP_j holds or not. If it holds, the legitimacy of N_j and the integrity of {NID_j, MP_j, MI_j} are both ensured, and GW computes x_j = h(NID_j || K_GN) and y_j = x_j ⊕ MP_j^* and sends {y_j} to N_j. After receiving {y_j}, N_j stores {y_j} in its memory. Because messages are transmitted over a public channel, anyone can eavesdrop or interrupt. If an attacker interrupts the transmission of y_j sent by GW and sends the forged y_j′ to N_j, N_j will store y_j′ immediately with no integrity check, where y_j′ ≠ y_j.

Thereupon, in login and authentication phase, N_j computes x_j′ = y_j′ ⊕ h(K_GN || r_j || NID_j) ≠ x_j, A_j = h(x_j′) ⊕ n_j, and B_j = h(x_j′|| n_j), where y_j = x_j ⊕ MP_j and MP_j = h(K_GN || r_j^* || NID_j). Then N_j sends M₂ = {M₁, NID_j, A_j, B_j} to GW. After receiving M₂, GW computes x_j^* = h(NID_j || K_GN), n_j^* = h(x_j^*) ⊕ A_j, and B_j^* = h(x_j^* || n_j^*). GW checks whether B_j^* = B_j holds or not. Unfortunately, it will never hold because x_j^* ≠ x_j′, and GW will regard that N_j is illegal and terminate login and authentication phase immediately.

3.2. Failure Mobile Node Authentication

In user registration phase, GW computes RID_i = $E_{K_G}{(ID}_i)$, PID_i = $E_{K_G}{(ID}_i \left|\right| r_D)$, x_i = h(ID_i || PWB_i) and y_i = h(ID_i || PWB_i || r_GU) ⊕ h(K_GU || ID_i). GW stores (RID_i, MID_i) in its database. GW sends {PID_i, x_i, y_i, r_GU} to MN_i through a secure channel. Upon receiving {PID_i, x_i, y_i, r_GU}, MN_i stores {PID_i, x_i, y_i, r_GU} in the mobile device.

In login and authentication phase, MN_i computes A_i = y_i ⊕ h(ID_i || PWB_i || r_GU) = h(ID_i || PWB_i || r_GU) ⊕ h(K_GU || ID_i) ⊕ h(ID_i || PWB_i || r_GU) = h(K_GU || ID_i), UN_i = h(A_i || PID_i || n_i) = h(h(K_GU || ID_i) || PID_i || n_i) and UZ_i = n_i ⊕ A_i= n_i ⊕ h(K_GU || ID_i). GW computes A_i^* = h(ID_i || K_GU), n_i^* = UZ_i ⊕ A_i^* = n_i ⊕ h(K_GU || ID_i) ⊕ h(ID_i || K_GU) ≠ n_i, and UN_i^* = h(A_i^* || PID_i || n_i^*) = h(h(ID_i || K_GU) || PID_i || n_i^*). Then GW checks whether UN_i^* = UN_i holds or not. Unfortunately, it will never hold because UN_i^* = h(A_i^* || PID_i || n_i^*) = h(h(ID_i || K_GU) || PID_i || n_i^*) ≠ UN_i, where UN_i = h(h(K_GU || ID_i) || PID_i || n_i). GW will regard that MN_i is illegal and terminate login and authentication phase immediately.

3.3. Vulnerability to Replay Attack

In login and authentication phase, MN_i computes A_i = y_i ⊕ h(ID_i || PWB_i || r_GU), UN_i = h(A_i || PID_i || n_i) and UZ_i = n_i ⊕ A_i and sends M₁ = {PID_i, UN_i, UZ_i, T₁} to N_j, where T₁ is the current timestamp. After receiving M₁, N_j checks the freshness of T₁, computes x_j = y_j ⊕ h(K_GN || r_j || NID_j), A_j = h(x_j) ⊕ n_j, and B_j = h(x_j || n_j), and sends M₂ = {M₁, NID_j, A_j, B_j} to GW. Upon receiving M₂, GW computes x_j^* = h(NID_j || K_GN), n_j^* = h(x_j^*) ⊕ A_j, and B_j^* = h(x_j^* || n_j^*) and checks whether B_j^* = B_j holds or not to verify n_j^* and authenticate N_j. Then GW decrypts PID_i with K_G to retrieve {ID_i, r_D}, computes A_i^* = h(ID_i || K_GU), n_i^* = UZ_i ⊕ A_i^* and UN_i^* = h(A_i^* || PID_i || n_i^*) and checks whether UN_i^* = UN_i holds or not to verify n_i^* and authenticate MN_i.

From the above, it is found that T₁ is included in none of all parameters computes by GW. And only N_j checks the freshness of T₁. Because messages are transmitted through a public channel, anyone can eavesdrop. That is, an attacker can get M₁ = {PID_i, UN_i, UZ_i, T₁} easily. Thereupon, the attacker can send M₁′ = {PID_i, UN_i, UZ_i, T₁′}, where T₁′ is the current timestamp when the attacker mount replay attack. In the following, login and authentication phase will proceed as usual, GW will regard this request is indeed sent by MN_i, and no entity can detect replay attack.

According to above analysis, it is shown that Lee et al.’s scheme cannot replay attack as claimed.

3.4. Vulnerability to Denial-of-Service Attack

Denial-of-service attack is an attack that an attacker tries to prevent legitimate users from accessing services. In order to launch this attack, an attacker usually consumes as much transmission or computational resources as possible. In login and authentication phase, MN_i computes A_i = y_i ⊕ h(ID_i || PWB_i || r_GU), UN_i = h(A_i || PID_i || n_i) and UZ_i = n_i ⊕ A_i and sends M₁ = {PID_i, UN_i, UZ_i, T₁} to N_j, where T₁ is the current timestamp. After receiving M₁, N_j checks the freshness of T₁, computes x_j = y_j ⊕ h(K_GN || r_j || NID_j), A_j = h(x_j) ⊕ n_j, and B_j = h(x_j || n_j), and sends M₂ = {M₁, NID_j, A_j, B_j} to GW. Upon receiving M₂, GW computes x_j^* = h(NID_j || K_GN), n_j^* = h(x_j^*) ⊕ A_j, and B_j^* = h(x_j^* || n_j^*) and checks whether B_j^* = B_j holds or not to verify n_j^* and authenticate N_j. Then GW decrypts PID_i with K_G to retrieve {ID_i, r_D}, computes A_i^* = h(ID_i || K_GU), n_i^* = UZ_i ⊕ A_i^* and UN_i^* = h(A_i^* || PID_i || n_i^*) and checks whether UN_i^* = UN_i holds or not to verify n_i^* and authenticate MN_i.

Suppose an attacker impersonates MN_i to send forged M₁ to N_j with fresh T₁. After receiving forged M₁, N_j checks the freshness of T₁. However, T₁ is fresh such that N_j will compute x_j, A_j, and B_j and send M₂ = {M₁, NID_j, A_j, B_j} to GW. Upon receiving M₂, GW computes x_j^*, n_j^*, and B_j^* and checks whether B_j^* = B_j holds or not to verify n_j^* and authenticate N_j. Because B_j is indeed computed by legal N_j, it must hold. Then GW decrypts PID_i with K_G to retrieve {ID_i, r_D}, computes A_i^*, n_i^* and UN_i^* and checks whether UN_i^* = UN_i holds or not to verify n_i^* and authenticate MN_i. Because M₁ is forged, it will not hold. However, this approach has already consumed N_j and GW’s computational resources.

That is, if plenty of forged login requests are sent, GW’s resources will be exhausted, and legitimate users will be unable to access services. As a result, Lee et al.’s scheme cannot resist denial-of-service attack.

3.5. Compromised User Untraceability

In login and authentication phase, messages are transmitted through a public channel. MN_i sends M₁ = {PID_i, UN_i, UZ_i, T₁} to N_j, and GW sends M₃ = {PID_i^new, G_j, R_ij, H_j} to N_j, where PID_i = $E_{K_G}{(ID}_i \left|\right| r_D)$ and PID_i^new = $E_{K_G}$(ID_i, r_D^new). Because whether MN_i replaces PID_i with PID_i^new is not explicitly indicated, there are two possible cases for this issue:

Case 1: PID_i is not replaced with PID_i^new.

Case 2: PID_i is replaced with PID_i^new.

In Case 1, PID_i’s transmitted in different sessions are the same. This makes tracing a MN_i with PID_i easy. In Case 2, PID_i’s transmitted in different sessions differ from each other. Unfortunately, PID_i and PID_i^new are transmitted through a public channel such that it is easy to obtain the correlation between PID_i and PID_i^new. As a result, Lee et al.s.’s scheme cannot ensure user untraceability as claimed.

3.6. Our Findings

Lee et al.’s authentication scheme is designed to ensure the security of IoT communications. In their scheme, parameters are generated, computed, or transmitted to achieve the goal with designated processes. However, improper designs result in the found flaws. In this paper, we analyze Lee et al.’s scheme by investigating the processes in detail in Section 3. According to the analyses, we obtain the following. First, the integrity of the transmitted data needs to be ensured. Secondly, because the same input parameters of hash function with different orders obtain different hash values, only rigorous designs can lead to successful verification and authentication. Thirdly, the freshness of a received message needs to be verified explicitly such that the timestamp should be one of the input parameters of hash function to resist replay attack. Fourthly, the gateway is responsible for helping a mobile node and a sensor node to authenticate each other. The gateway should authenticate the mobile node and the sensor node as early as possible to resist denial-of-service attack that may consume the gateway’s computational resources. Lastly, user anonymity can be ensured only when the identities PID_i’s transmitted in different sessions differ from each other and the correlation cannot be found.

4. The Proposed Authentication Scheme

After analyzing Lee et al.’s three-factor anonymous user authentication scheme for IoT environments, we find that their scheme cannot ensure security as claimed. To overcome the flaws and preserve the advantages, an improvement is proposed. The notations used in the proposed scheme are listed in

Table 2. Notations used in the proposed scheme.

Notation	Definition
Ui/GWN/Sj	The ith user, the gateway node, the jth sensor node
IDi/SIDj	Ui’s/Sj’s identity
PWi	Ui’s password
IDi/NIDj	Identity of MNi/Nj
bi	Ui’s biometric
SC	Ui’s smart card issued by GWN
KGWN	GWN’s master key
$K_{{GWN-S}_j}$	The secret key shared between GWN and Sj
SKi/SKj/SKGWN	The session key computed by Ui/Sj/GWN
h(.)	A secure one-way hash function
C ⊆ {0, 1}n	A set of codewords
F(.)	A fuzzy commitment scheme
f(.)	A decoding function
ri/rg/rj	A random number generated by Ui/GWN/Sj
||	A concatenation operator
⊕	An XOR operator

.

Different from Lee et al.’s scheme, ECC is employed in our scheme to ensure efficiency. To initialize the scheme, an addition group G over a finite field F_p on the elliptic curve E of prime order n and the generator P of G are selected by GWN. GWN selects its private key x ∈ Z_n^* randomly, computes its public key X = xP, and chooses its master key K_GWN. GWN publishes {E(F_p), G, P, X} while keeping x and K_GWN secretly. The proposed scheme is composed of four phases: sensor registration phase, user registration phase, login and authentication phase, and password change phase. The details are as follows.

4.1. Sensor Registration Phase

Before deployment, for each sensor S_j, GWN selects an identity SID_j, computes the secret key $K_{{GWN-S}_j}$ = h(SID_j ‖ K_GWN), and stores {SID_j, $K_{{GWN-S}_j}$} in its memory. After initialization, these initialized sensors are deployed in a particular area to form a wireless sensor network.

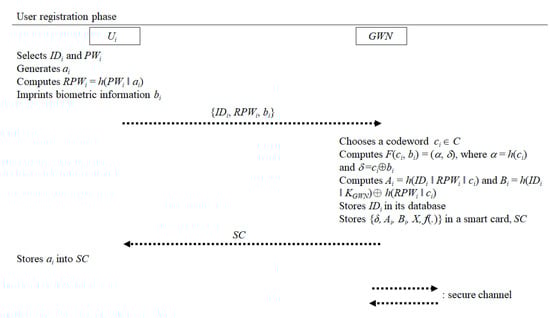

4.2. User Registration Phase

When a new user U_i wants to access the services provided by the wireless sensor network such as acquiring sensory data from sensor nodes, U_i has to register with GWN. In this phase, data is transmitted via secure channels. User registration phase is depicted in Figure 4, and the details are as follows:

Step 1.

U_i chooses his/her identity ID_i and password PW_i.

Step 2.

U_i generates a nonce a_i and computes RPW_i = h(PW_i ‖ a_i).

Step 3.

U_i imprints his/her biometric on a special device to get the biometric b_i.

Step 4.

U_i sends the registration request {ID_i, RPW_i, b_i} to GWN via a secure channel.

Step 5.

After receiving U_i’s registration request {ID_i, RPW_i, b_i}, GWN randomly chooses a codeword c_i ∈ C for U_i.

Step 6.

GWN computes F(c_i, b_i) = (α, δ), A_i = h(ID_i ‖ RPW_i ‖ c_i) and B_i = h(ID_i ‖ K_GWN) ⊕ h(RPW_i ‖ c_i), where α = h(c_i) and δ = c_i ⊕ b_i.

Step 7.

GWN stores {δ, A_i, B_i, X, f(.)} into a smart card SC and issues it to U_i via a secure channel.

Step 8.

GWN stores ID_i in its database and deletes other information.

Step 9.

After obtaining the smart card issued by GWN, U_i stores a_i into SC. Then, SC contains {δ, A_i, B_i, X, f(.), a_i}.

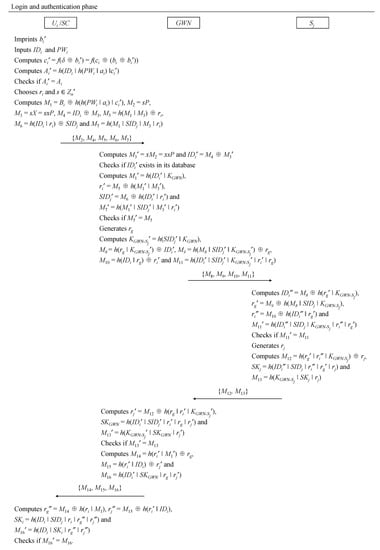

4.3. Login and Authentication Phase

When U_i wants to acquire S_j’s sensory data, this phase will be executed. Because only GWN shares secrets with U_i and S_j, only GWN can authenticate U_i and S_j. In this phase, U_i and S_j are authenticated by GWN, and a session key among GWN, U_i and S_j will be generated via GWN’s help. This phase is depicted in Figure 5, and the details are as follows:

Step 1.

U_i inserts his/her smart card SC into a card reader and imprints his/her biometric b_i′ on a special device, where SC contains {δ, A_i, B_i, X, f(.), a_i}.

Step 2.

U_i inputs ID_i and PW_i.

Step 3.

SC computes c_i′ = f(δ ⊕ b_i′) = f((c_i ⊕ b_i) ⊕ b_i′) and A_i′ = h(ID_i ‖ h(PW_i ‖ a_i) ‖c_i′).

Step 4.

SC checks whether A_i′ = A_i holds or not. If it does not hold, this session is terminated by SC; otherwise, U_i’s identity ID_i, password PW_i and biometric b_i′ are verified successfully by SC, and this phase proceeds.

Step 5.

SC randomly chooses numbers r_i and s ∈ Z_n^*.

Step 6.

SC computes M₁ = B_i ⊕ h(h(PW_i ‖ a_i) ‖ c_i′) = h(ID_i ‖ K_GWN), M₂ = sP, M₃ = sX = sxP, M₄ = ID_i ⊕ M₃, M₅ = h(M₁ ‖ M₃) ⊕ r_i, M₆ = h(ID_i ‖ r_i) ⊕ SID_j and M₇ = h(M₁ ‖ SID_j ‖ M₃ ‖ r_i).

Step 7.

U_i sends the login request {M₂, M₄, M₅, M₆, M₇} to GWN.

Step 8.

After receiving the login request {M₂, M₄, M₅, M₆, M₇} from U_i, GWN computes M₃′ = xM₂ = xsP and ID_i′ = M₄ ⊕ M₃′.

Step 9.

GWN checks whether ID_i′ exists in the database or not. If ID_i′ does not exist, this login request is rejected by GWN; otherwise, this phase proceeds.

Step 10.

GWN computes M₁′ = h(ID_i′ ‖ K_GWN), r_i′ = M₅ ⊕ h(M₁′ ‖ M₃′), SID_j′ = M₆ ⊕ h(ID_i′ ‖ r_i′) and M₇′ = h(M₁′ ‖ SID_j′ ‖ M₃′ ‖ r_i′).

Step 11.

GWN checks whether M₇′ = M₇ holds or not. If it does not hold, this session is terminated by GWN; otherwise, this phase proceeds.

Step 12.

GWN generates a random number r_g.

Step 13.

GWN computes $K_{{GWN-S}_j}$′ = h(SID_j′ ‖ K_GWN), M₈ = ID_i′ ⊕ h(r_g ‖ $K_{{GWN-S}_j}$′), M₉ = h(M₈ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′) ⊕ r_g, M₁₀ = h(ID_i′ ‖ r_g) ⊕ r_i′ and M₁₁ = h(ID_i′ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′ ‖ r_i′ ‖ r_g).

Step 14.

GWN sends {M₈, M₉, M₁₀, M₁₁} to S_j.

Step 15.

After receiving {M₈, M₉, M₁₀, M₁₁}, S_j computes ID_i″ = M₈ ⊕ h(ID_i″ ‖ $K_{{GWN-S}_j}$), r_g′ = M₉ ⊕ h(M₈ ‖ SID_j ‖ $K_{{GWN-S}_j}$), r_i″ = M₁₀ ⊕ h(ID_i′ ‖ r_g), and M₁₁′ = h(ID_i″ ‖ SID_j ‖ $K_{{GWN-S}_j}$ ‖ r_i″ ‖ r_g′).

Step 16.

S_j checks whether M₁₁′ = M₁₁ holds or not. If it does not hold, this session is terminated by S_j; otherwise, this phase proceeds.

Step 17.

S_j generates a random number r_j.

Step 18.

S_j computes M₁₂ = h(r_g′ ‖ r_i″ ‖ $K_{{GWN-S}_j}$) ⊕ r_j, SK_j = h(ID_i″ ‖ SID_j ‖ r_i″ ‖ r_g′ ‖ r_j) and M₁₃ = h($K_{{GWN-S}_j}$ ‖ SK_j ‖ r_j).

Step 19.

S_j sends the response {M₁₂, M₁₃} to GWN.

Step 20.

After getting the response {M₁₂, M₁₃}, GWN computes r_j′ = M₁₂ ⊕ h(r_g ‖r_i′ ‖ $K_{{GWN-S}_j}$′), SK_GWN = h(ID_i′ ‖ SID_j′ ‖ r_i′ ‖ r_g ‖ r_j′) and M₁₃′ = h($K_{{GWN-S}_j}$′ ‖ SK_GWN ‖ r_j′).

Step 21.

GWN checks whether M₁₃′ = M₁₃ holds or not. If it does not hold, this session is terminated; otherwise, this phase proceeds.

Step 22.

GWN computes M₁₄ = h(r_i′ ‖ M₁′) ⊕ r_g, M₁₅ = h(ID_i′ ‖ r_i′) ⊕ r_j′ and M₁₆ = h(ID_i′ ‖ SK_GWN ‖ r_g ‖ r_j′).

Step 23.

GWN sends {M₁₄, M₁₅, M₁₆} to U_i.

Step 24.

U_i computes r_g″ = M₁₄ ⊕ h(r_i′ ‖ M₁′), r_j″ = M₁₅ ⊕ h(ID_i′ ‖ r_i′), SK_i = h(ID_i ‖ SID_j ‖ r_i ‖ r_g″ ‖ r_j″) and M₁₆′ = h(ID_i ‖ SK_i ‖ r_g″ ‖ r_j″).

Step 25.

U_i checks whether M₁₆′ = M₁₆ holds or not. If it does not hold, this session is terminated; otherwise, the process is completed.

After the above process, U_i can acquire S_j’s sensory data via GWN while a session key is shared among U_i, S_j and GWN, where SK_i = SK_j = SK_GWN.

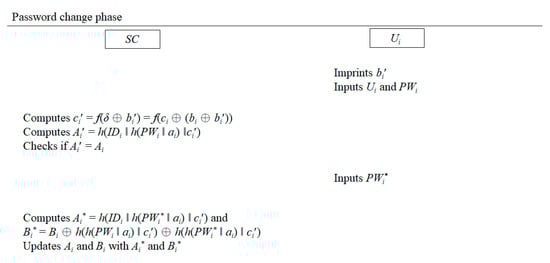

4.4. Password Change Phase

In the proposed scheme, a user can update his password without GWN involved. This phase is depicted is Figure 6, and the details are as follows:

Step 1.

U_i inserts his/her smart card SC into a card reader and imprints his/her biometric b_i′ on a special device.

Step 2.

U_i inputs ID_i and PW_i.

Step 3.

SC computes c_i′ = f(δ ⊕ b_i′) = f((c_i ⊕ b_i) ⊕ b_i′) and A_i′ = h(ID_i ‖ h(PW_i ‖ a_i) ‖ c_i′).

Step 4.

SC checks whether A_i′ = A_i or not. If it does not hold, this request is declined by SC; otherwise, U_i inputs a new password PW_i^*.

Step 5.

SC computes A_i^* = h(ID_i ‖ h(PW_i^* ‖ a_i) ‖ c_i′) and B_i^* = B_i ⊕ h(h(PW_i ‖ a_i) ‖ c_i′) ⊕ h(h(PW_i^* ‖ a_i) ‖ c_i′).

Step 6.

SC updates A_i and B_i with A_i^* and B_i^*.

5. Security Analysis and Further Discussions

In this section, security analysis is first made to show that the proposed scheme can not only overcome the drawbacks that Lee et al.’s scheme suffers from but also resist common attack. The further discussions are made to demonstrate the properties that the proposed scheme possesses. The details are as follows.

5.1. Resistance against Leakage of the Secret Key Shared between GWN and S_j

In login and authentication phase, GWN sends {M₈, M₉, M₁₀, M₁₁} to where $K_{{GWN-S}_j}$′ = h(SID_j′ ‖ K_GWN), M₈ = ID_i′ ⊕ h(r_g ‖ $K_{{GWN-S}_j}$′), M₉ = h(M₈ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′) ⊕ r_g, M₁₀ = h(ID_i′ ‖ r_g) ⊕ r_i′ and M₁₁ = h(ID_i′ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′ ‖ r_i′ ‖ r_g). After getting {M₈, M₉, M₁₀, M₁₁}, S_j computes ID_i″ = M₈ ⊕ h(ID_i″ ‖ $K_{{GWN-S}_j}$), r_g′ = M₉ ⊕ h(M₈ ‖ SID_j ‖ $K_{{GWN-S}_j}$), r_i″ = M₁₀ ⊕ h(ID_i′ ‖ r_g), and M₁₁′ = h(ID_i″ ‖ SID_j ‖ $K_{{GWN-S}_j}$ ‖ r_i″ ‖ r_g′). Then S_j checks if M₁₁′ = M₁₁ to determine whether the communication party is GWN and to ensure the correctness of the obtained r_i″, r_g′, and ID_i″. Thereupon, S_j generates a random number r_j, computes M₁₂ = h(r_g′ ‖ r_i″ ‖ $K_{{GWN-S}_j}$) ⊕ r_j, SK_j = h(ID_i″ ‖ SID_j ‖ r_i″ ‖ r_g′ ‖ r_j) and M₁₃ = h($K_{{GWN-S}_j}$ ‖ SK_j ‖ r_j), and sends the response {M₁₂, M₁₃} to GWN.

The secret key $K_{{GWN-S}_j}$ = h(SID_j ‖ K_GWN) shared between GWN and S_j is contained in M₈ = ID_i′ ⊕ h(r_g ‖ $K_{{GWN-S}_j}$′), M₉ = h(M₈ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′) ⊕ r_g, M₁₁ = h(ID_i′ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′ ‖ r_i′ ‖ r_g), M₁₂ = h(r_g′ ‖ r_i″ ‖ $K_{{GWN-S}_j}$) ⊕ r_j, and M₁₃ = h($K_{{GWN-S}_j}$ ‖ SK_j ‖ r_j). A legal user U_i knows ID_i, SID_j, r_i, r_g, r_j, and SK_i. From M₈, M₉, M₁₁, M₁₂, and M₁₃, U_i can retrieve h(r_g ‖ $K_{{GWN-S}_j}$′), h(M₈ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′), and h(r_g′ ‖ r_i″ ‖ $K_{{GWN-S}_j}$). However, $K_{{GWN-S}_j}$ is concealed by the secure one-way hash function. According to the properties of one-way hash function, it is infeasible to retrieve the input from a hash value. It denotes that $K_{{GWN-S}_j}$ cannot be retrieved from h(r_g ‖ $K_{{GWN-S}_j}$′), h(M₈ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′), and h(r_g′ ‖ r_i″ ‖ $K_{{GWN-S}_j}$). According to the above, it is ensured that no one even a legal user can retrieve the secret key $K_{{GWN-S}_j}$ = h(SID_j ‖ K_GWN) shared between GWN and S_j.

5.2. Resistance against Sensor Node Impersonation Attack

We have explained why the proposed scheme can protect the secret key $K_{{GWN-S}_j}$ = h(SID_j ‖ K_GWN) shared between GWN and S_j from being revealed. If an adversary wants to impersonate S_j, he needs to send M₁₂ = h(r_g′ ‖ r_i″ ‖ $K_{{GWN-S}_j}$) ⊕ r_j, and M₁₃ = h($K_{{GWN-S}_j}$ ‖ SK_j ‖ r_j) to GWN. In each session, random numbers r_i, r_g, and r_j will be generated. It denotes that r_i, r_g, r_j and SK_j differ from those in other sessions, where SK_j = h(ID_i″ ‖ SID_j ‖ r_i″ ‖ r_g′ ‖ r_j). Because $K_{{GWN-S}_j}$ is unknown, the adversary cannot retrieve correct ID_i′ and r_g′ from M₈ and M₉, where M₈ = ID_i′ ⊕ h(r_g ‖ $K_{{GWN-S}_j}$′) and M₉ = h(M₈ ‖ SID_j′ ‖ $K_{{GWN-S}_j}$′) ⊕ r_g. As a result, r_i′ cannot be retrieved as well. Because the adversary is not aware of ID_i′, r_g′, r_i″ and $K_{{GWN-S}_j}$, he cannot compute correct M₁₂ and M₁₃ to cheat GWN. If the adversary retransmits M₁₂ and M₁₃ in a previous session, GWN will detect that M₁₂ and M₁₃ are not correct. It is because r_i, r_g, r_j and SK_j in one session differ from those in other sessions. According to the above, it is ensured that no one can impersonate S_j.

5.3. Resistance against Gateway Node Impersonation Attack

After sensor registration phase, GWN and S_j, GWN share the secret key $K_{{GWN-S}_j}$ = h(SID_j ‖ K_GWN). After user registration phase, U_i gets a smart card SC containing {δ, A_i, B_i, X, f(.), a_i}, where F(c_i, b_i) = (α, δ), α = h(c_i), δ = c_i ⊕ b_i, A_i = h(ID_i ‖ RPW_i ‖ c_i) and B_i = h(ID_i ‖ K_GWN) ⊕ h(RPW_i ‖ c_i). In login and authentication phase, GWN sends {M₈, M₉, M₁₀, M₁₁} to S_j. After receiving {M₈, M₉, M₁₀, M₁₁}, S_j computes ID_i″ = M₈ ⊕ h(ID_i″ ‖ $K_{{GWN-S}_j}$), r_g′ = M₉ ⊕ h(M₈ ‖ SID_j ‖ $K_{{GWN-S}_j}$), r_i″ = M₁₀ ⊕ h(ID_i′ ‖ r_g), and M₁₁′ = h(ID_i″ ‖ SID_j ‖ $K_{{GWN-S}_j}$ ‖ r_i″ ‖ r_g′) and checks if M₁₁′ = M₁₁. If it holds, it denotes that the computed ID_i″, r_g′ and r_i″ and the shared secret key $K_{{GWN-S}_j}$are correct. If an adversary retransmits {M₈, M₉, M₁₀, M₁₁} of a previous session, M₁₁′ = M₁₁ must hold. However, because $K_{{GWN-S}_j}$ and M₁ = h(ID_i ‖ K_GWN) are unknown, the adversary cannot obtain r_g, r_i′ and r_j′. That is, the adversary cannot obtain SK_GWN = h(ID_i′ ‖ SID_j′ ‖ r_i′ ‖ r_g ‖ r_j′) such that no sensory data collected by S_j will be revealed.

On the other hand, in login and authentication phase, U_i sends the login request {M₂, M₄, M₅, M₆, M₇} to GWN. After receiving the login request {M₂, M₄, M₅, M₆, M₇} from U_i, GWN computes M₃′ = xM₂ = xsP and ID_i′ = M₄ ⊕ M₃′ and checks if ID_i′ exists in the database. Then, GWN computes M₁′ = h(ID_i′ ‖ K_GWN), r_i′ = M₅ ⊕ h(M₁′ ‖ M₃′), SID_j′ = M₆ ⊕ h(ID_i′ ‖ r_i′) and M₇′ = h(M₁′ ‖ SID_j′ ‖ M₃′ ‖ r_i′) and checks if M₇′ = M₇. Then the phase proceeds. After getting {M₁₄, M₁₅, M₁₆} from GWN, U_i computes r_g″ = M₁₄ ⊕ h(r_i′ ‖ M₁′), r_j″ = M₁₅ ⊕ h(ID_i′ ‖ r_i′), SK_i = h(ID_i ‖ SID_j ‖ r_i ‖ r_g″ ‖ r_j″) and M₁₆′ = h(ID_i ‖ SK_i ‖ r_g″ ‖ r_j″) and checks if M₁₆′ = M₁₆. If it holds, it denotes that GWN is legal and the session key SK_i is negotiated successfully. Because only GWN knows K_GWN, only GWN can compute M₁′ = h(ID_i′ ‖ K_GWN) to retrieve r_i′ and ID_i′. That is, only GWN can compute M₁₄, M₁₅, and M₁₆ to have itself authenticated by U_i.

According to the above, the proposed scheme can resist gateway node impersonation attack.

5.4. Resistance against User Impersonation Attack

After user registration phase, U_i gets a smart card SC containing {δ, A_i, B_i, X, f(.), a_i}, where F(c_i, b_i) = (α, δ), α = h(c_i), δ = c_i ⊕ b_i, A_i = h(ID_i ‖ RPW_i ‖ c_i) and B_i = h(ID_i ‖ K_GWN) ⊕ h(RPW_i ‖ c_i). In login and authentication phase, U_i sends the login request {M₂, M₄, M₅, M₆, M₇} to GWN. After receiving the login request {M₂, M₄, M₅, M₆, M₇} from U_i, GWN computes M₃′ = xM₂ = xsP and ID_i′ = M₄ ⊕ M₃′ and checks if ID_i′ exists in the database. Then, GWN computes M₁′ = h(ID_i′ ‖ K_GWN), r_i′ = M₅ ⊕ h(M₁′ ‖ M₃′), SID_j′ = M₆ ⊕ h(ID_i′ ‖ r_i′) and M₇′ = h(M₁′ ‖ SID_j′ ‖ M₃′ ‖ r_i′) and checks if M₇′ = M₇. If it holds, it denotes that the computed M₁′, r_i′ and SID_j′ are correct. If an adversary retransmits the login request {M₂, M₄, M₅, M₆, M₇} of a previous session to GWN, M₇′ = M₇ must hold. The phase will proceed. Then GWN sends {M₁₄, M₁₅, M₁₆} to U_i.

Although {M₂, M₄, M₅, M₆, M₇} and {M₁₄, M₁₅, M₁₆} are transmitted via public channels, the adversary cannot retrieve M₁ =h(ID_i ‖ K_GWN) because of the properties of one-way hash function, where M₁ = h(ID_i ‖ K_GWN), M₂ = sP, M₃ = sX = sxP, M₄ = ID_i ⊕ M₃, M₅ = h(M₁ ‖ M₃) ⊕ r_i, M₆ = h(ID_i ‖ r_i) ⊕ SID_j, M₇ = h(M₁ ‖ SID_j ‖ M₃ ‖ r_i), M₁₄ = h(r_i′ ‖ M₁′) ⊕ r_g, M₁₅ = h(ID_i′ ‖ r_i′) ⊕ r_j′ and M₁₆ = h(ID_i′ ‖ SK_GWN ‖ r_g ‖ r_j′). After getting {M₁₄, M₁₅, M₁₆} from GWN, the adversary cannot obtain r_g″, r_j″, and SK_i. As a result, the adversary cannot obtain the sensory data from S_j. From the above, the proposed scheme can defend against user impersonation attack.

5.5. Resistance against Replay Attack

Sensory data collected by S_j will be concealed by the session key. U_i, S_j and GWN obtain SK_i, SK_j and SK_GWN, respectively. SK_i = SK_j = SK_GWN = h(ID_i ‖ SID_j ‖ r_i ‖ r_g ‖ r_j). r_i, r_g, and r_j are random numbers generated by U_i, GWN and S_j, respectively. In each session, r_i, r_g, and r_j are fresh. If an adversary wants to mount replay attack, he cannot obtain the fresh session key to obtain S_j’s sensory data.

5.6. Resistance against Stolen Smart Card Attack

{δ, A_i, B_i, X, f(.), a_i} are stored in SC, where RPW_i = h(PW_i ‖ a_i), F(c_i, b_i) = (α, δ), A_i = h(ID_i ‖ RPW_i ‖ c_i), B_i = h(ID_i ‖ K_GWN) ⊕ h(RPW_i ‖ c_i), α = h(c_i) and δ = c_i ⊕ b_i. If an attacker gets U_i’s smart card SC and has the ability to reveal the stored parameters, the attacker gets δ, A_i, B_i, X, f(.) and a_i. However, only the one who has b_i can obtain c_i, and only the one who has c_i and knows PW_i can get h(ID_i ‖ K_GWN). Moreover, in login and authentication phase, only the one who knows h(ID_i ‖ K_GWN) and ID_i can be authenticated by GWN. As a result, even if an attacker steals a smart card and reveals the stored data, he still cannot get essential authentication information.

5.7. User Anonymity and Untraceability

In login and authentication phase, data is transmitted via public channels such that a malicious user can eavesdrop. It denotes that the malicious user can get M₄ = ID_i ⊕ M₃ and M₈ = ID_i′ ⊕ h(r_g ‖ $K_{{GWN-S}_j}$′). SC randomly chooses numbers r_i and s ∈ Z_n^* and computes M₃ = sX = sxP. Only GWN can obtain M₃ because only GWN knows its private key x. As a result, only GWN can retrieve ID_i from M₄. Moreover, only GWN and S_j know $K_{{GWN-S}_j}$ such that only S_j can retrieve ID_i′ from M₈.

On the other hand, all transmitted parameters are computed with fresh random numbers such that no constant parameter is transmitted. This makes tracing a specific user is impossible. According to the above, the proposed scheme can ensure user anonymity and untraceability.

5.8. Further Assessment

In our scheme, parameters are generated, computed, or transmitted to achieve the goal with designated processes. Only proper designs result in secure mechanisms. We analyze our scheme thoroughly by investigating the processes with various attack scenarios and assessing user anonymity and untraceability in Section 5. According to the analyses, we obtain the following. Firstly, our scheme can resist leakage of the secret key shared between GWN and S_j because the secret key $K_{{GWN-S}_j}$ = h(SID_j ‖ K_GWN) shared between GWN and S_j is concealed by hash function. No one can retrieve it from the transmitted parameters because of the properties of one-way hash function. Secondly, our scheme can resist various impersonation attacks. It is because one party can authenticate another by checking whether it knows the essential secret or not. And the integrity and the freshness of the transmitted data are verified at the same time. Thirdly, our scheme can resist replay attack. Different from Lee et al.’s scheme, random numbers instead of timestamps are used to verify the freshness. This approach also eliminates the burden of synchronization. Lastly, our scheme ensures user anonymity and untraceability. It is because the real identity is concealed with M₃, and M₃′s in different sessions differ from each other.

6. Conclusions

Lee et al. proposed a three-factor authentication scheme by using hash and bio-hash functions to ensure the security of IoT communications. With through analyses, we find that their scheme suffers from failure sensor node authentication, failure mobile node authentication, replay attack, denial-of-service attack, and compromised user untraceability. Only with proper improvements, Lee et al. scheme can ensure security, efficiency, and important properties as claimed. We propose an improvement with ECC to overcome the drawbacks that Lee et al.’s scheme suffers from and preserve the advantages. According to the corresponding analysis, it is ensured that the proposed scheme achieves the goal to be realized and utilized in the real world.
