Petrogenesis and Tectonic Setting of the Madeng Dacite, SW Sanjiang Indosinian Orogen: Evidence from Zircon U-Pb-Hf Isotopes, and Whole-Rock Geochemistry and Sr-Nd Isotopes

by
Gang Huang
1,
Liang-Liang Zhuang
1,*,
Ya-Qi Yang
2,
Li-Dan Tian
1,
Wei Wu
1 and
Jin-Hong Liu
3
1
Institute of Geology, Chinese Academy of Geological Sciences, Beijing 100037, China
2
School of Resources and Environment Engineering, Guizhou University, Guiyang 550025, China
3
Xianyang Northwest Nonferrous 712 Co., Ltd., Xianyang 712000, China
*
Author to whom correspondence should be addressed.
Minerals 2022, 12(3), 388; https://doi.org/10.3390/min12030388
Submission received: 7 February 2022 / Revised: 13 March 2022 / Accepted: 16 March 2022 / Published: 21 March 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
The Sanjiang Indosinian orogen, located in the eastern part of the Paleo-Tethys tectonic domain, is a critical region to study the Paleo-Tethyan Ocean evolution. Middle Permian–Late Triassic magmatic rocks are widespread in the Deqin–Weixi–Madeng area of southwestern (SW) Sanjiang Indosinian orogen, yet their petrogenesis and tectonic setting remain disputed. In this study, LA-ICP-MS zircon U-Pb age and Hf isotopes, and whole-rock elemental and Sr-Nd isotope geochemistry of Madeng dacite were studied. The Madeng dacite was dated at ca. 241.7 and 243.4 Ma. The samples had high Al2O3 (12.91 to 14.39 wt.%) but low MgO (0.62 to 1.76 wt.%) contents, and were alkali-rich (Na2O + K2O = 6.97 to 8.66 wt.%) with A/CNK > 1.1, strongly resembling peraluminous S-type granites. The rocks were enriched in Rb, K, Th, U and LREE, but depleted in Ba, Sr, Nb, Ta, P and Ti, and showed obvious negative Eu anomalies, suggesting fractionation of Ti-bearing minerals (e.g., rutile and ilmenite) and plagioclase. The dacite had an initial 87Sr/86Sr value of 0.705698 to 0.710277, and negative εNd(t) (−11.28 to −10.64) and εHf(t) (−13.99 to −8.60), indicating a continental meta-sedimentary source. Their average Nb/Ta (12.24) and Th/U (4.65) were also consistent with continental crust. According to the lithological assemblage and geochemical features, we propose that the Deqin–Weixi–Madeng area intermediate-felsic magmatism was generated in a subduction-related tectonic setting.

1. Introduction

The Sanjiang Indosinian orogen is located in the southeastern margin of the Tibetan Plateau (Figure 1A,B). The orogen comprises a series of NS-/NW-trending Paleozoic suture, island arc, and micro-continental slivers [1,2]. The major sutures include the Jinshajiang–Ailaoshan and Longmucuo–Shuanghu–Changning–Menglian. This orogen has undergone multi-stage tectono-magmat activity, and recorded the complete history of the opening and closure of the Paleo-Tethys Ocean [3,4,5,6,7]. Situated in the northern-central part of Sanjiang orogen, the Deqin–Weixi–Madeng area is the largest magmatic belt in the orogen, which is an ideal region for understanding and reconstructing the subduction and collision process following the closure of the Paleo-Tethys.
Recently, many geochronological studies on the Deqin–Weixi–Madeng magmatic rocks have indicated the presence of Early Permian–Late Triassic magmatism, which formed a series of basaltic to rhyolitic volcanics and coeval intermediate-felsic plutons. However, the petrogenesis and tectonic setting of these magmatic rocks remain controversial, which constrains understanding of the Paleo-Tethys evolution. Some workers suggested that these volcano-plutonic assemblages were generated by the west-dipping Jinshajiang Ocean subduction and subsequent collision and post-collision extension [8,9,10]. Other studies have suggested that these magmatic rocks were produced by the north-dipping subduction of the Paleo-Tethyan Longmucuo-Shuanghu branch [7,11,12,13,14,15].
In this paper, we focus on the Deqin–Weixi–Madeng continental margin arc belt that consists of dacite, rhyolite with minor basalt and contemporary granitoid batholiths. We report an integrated study of LA-ICP-MS zircon U-Pb geochronology, whole-rock geochemistry, and Sr-Nd-Hf isotopes on the Madeng dacite from the Lanping basin, in order to constrain the petrogenesis and origin of these rocks. Combined with published studies on the Deqin–Weixi–Madeng magmatic rocks, we reconstructed the tectonic setting and provided insights into the evolution of the Paleo-Tethys.

2. Geological Setting

The Sanjiang Indosinian orogen magmatic rocks can be divided into three segments with distinctive magmatism history along the strike [7], including a northern segment (north of Weixi), mainly encompassing the East Qiangtang and Zhongzan blocks; a middle segment (between Weixi and Changning), with magmatic rocks developed along the margin of Lanping basin, covered with sedimentary rocks; and a southern segment (south of Changning), with magmatic rocks developed along the margin of Simao basin. The geochronological data (see Supplementary Materials Table S1) [8,10,11,12,13,14,15,16,17,18] of the middle segment have revealed a single major magmatism (Figure 1C), showing a distinctive magmatic evolution in contrast with several episodes of magmatism in northern and southern segments [15]. The Deqin–Weixi–Madeng magmatic rocks are mainly exposed along the western and eastern margins of the Lanping basin in the middle segment. The magmatic rocks are distributed along a narrow N–S-trending belt (300 km long), intercalated with sandstone–siltstone and limestone. Magmatism in the middle segment likely started at 220–260 Ma (peaked at 248 Ma), and different magmatic phases are separated by periods of magmatic dormancy and sedimentation [7,14,15]. Some studies suggested that the Weixi–Madeng rocks were emplaced in one short magmatic phase (7 My) [15].
The Lanping basin is the largest Meso-Cenozoic basin in the Sanjiang Indosinian orogen and hosts abundant polymetallic deposits [19,20] (Figure 2). The main rock units exposed include Permian to Neogene sedimentary rocks and minor Permian–Middle Triassic igneous rocks on the basin margin. Thick (>1.5 km) volcanic sequence is exposed in the eastern Lanping basin (in the Weixi–Madeng–Misha), consisting mainly of rhyolite, dacite, and minor basalt [7] (Figure 2). The Madeng transection in this study (from Houdian in the west to Jiangweitang–Dapingzi in the east) can be divided into two parts separated by a thrust fault (Figure 3A). The western part contains the Permian Shanlan Formation bioclastic limestone, sandstone, and schist, Upper Triassic Sanhedong Formation fine-grained limestone, Eocene Jainchuan Formation andesitic–rhyolitic volcanic breccias, and the Miocene Sanyin Formation conglomerate sandstone with gypsum veins. The eastern part contains the Middle–Lower Triassic Pantiange Formation of dacite–rhyolite with minor basalt (from whence our samples came).

3. Sampling and Analytical Techniques

3.1. Sampling and Petrography

Representative, least-altered dacite samples were collected from the outcrops in Pantiange Formation at Madeng, with the sampling locations shown in Figure 3A,B.
The dacite is medium- to coarse-grained porphyritic with massive structure (Figure 4a,b). The phenocrysts include quartz, plagioclase, and feldspar, which are set in a cryptocrystalline groundmass of similar mineral content. Quartz (20%) is anhedral granular with undulose extinction. Plagioclase (25%) is subhedral–euhedral thick tabular (size: 0.5–3 mm) with polysynthetic twinning. K-feldspar (15%) is subhedral–anhedral granular with common Carlsbad twinning (Figure 4c,d).
Two representative dacite samples were chosen for zircon U-Pb-Hf isotope analyses. An additional seven samples were selected for major and trace element analysis and four for Sr-Nd isotope analysis. The coordinates and lithology of each sample are listed in Table 1.

3.2. Analytical Methods

3.2.1. LA-ICP-MS Zircon U-Pb Dating

Zircon grains were separated using conventional heavy liquid and magnetic separation techniques. Representative zircon grains were handpicked and then mounted in epoxy resin, polished, and carbon-coated. To examine the internal structure and choose the suitable analysis site, transmitted-/reflected-light micrographs and cathodoluminescence (CL) images were acquired at the Beijing Zhongke Mining Technology Co. Ltd., Beijing, China, with a MIRA3 scanning electron microscope. Euhedral–subhedral zircon grains with clear oscillatory zoning, and without fractures or inclusions, were selected for dating, using an Agilent 7770e inductively coupled plasma mass spectrometry (ICP-MS) and a MicroLas COMPexPro102 (193 nm) laser ablation system (Agilent Technologies Inc., Palo Alto, CA, USA), following the method of [24]. The data were processed with ICPMSDataCal, which was calibrated with the zircon standard 91,500 and glass NIST-610. The zircon standard GJ-1, and Plešovice yield concordia age of 339.1 ± 1.8 Ma and 604.0 ± 1.9 Ma, were consistent with their recommended values [25]. Common Pb correction was subsequently carried out with the method of [26]. The age calculation and concordia plotting were made with Isoplot 3.0 software [27]. The age uncertainty is quoted at 2σ.

3.2.2. Whole-Rock Geochemistry and Sr-Nd Isotopes

Fresh and clean samples were milled to ~200 mesh with an agate mill. Major and trace element analyses were carried out at the National Research Center for Geoanalysis, Chinese Academy Geological Science (Beijing, China). Major element oxides were analyzed on a PW4400 X-ray fluorescence spectrometer (XRF) with the analytical precision and accuracy being better than 5%. Trace element analysis was conducted at the same laboratory with solution ICP-MS (model PE300Q). About 50 mg of rock powder was weighted and then dissolved with HF-HNO3 (1 mL: 1 mL) and digested in a Teflon bomb at 190 °C for over 24 h. The analytical precisions are better than 5% for elements at concentration >10 ppm, and less than 10% for elements with concentration <10 ppm.
Whole-rock Sr and Nd isotope analyses were performed with a Neptune Plus multi-collector (MC)-ICP-MS at the Wuhan Sample Solution Analytical Technology Co., Ltd. (Hubei, China). About 50–200 mg of sample powder was dissolved in 1–3 mL HNO3 and 1–3 mL HF in a closed Teflon bomb at 190 °C for over 24 h. Subsequently, the samples were digested in 1 mL HCl. The mass fractionation corrections for 87Sr/86Sr and 143Nd/144Nd ratios were normalized to 86Sr/88Sr = 0.1194 and 146Nd/144Nd = 0.7219, respectively. For every seven samples, one international NBS987 and GSB standard was measured, which yielded 87Sr/86Sr = 0.710242 ± 0.000012 and 143Nd/144Nd = 0.512440 ± 0.000008, respectively, consistent (within error) with their recommended values [28,29]. The USGS BCR-2 basalt and RGM-2 rhyolite standards were chosen as the reference materials [30,31].

3.2.3. LA-ICP-MS Zircon Hf Isotope Analysis

This analysis was conducted on a Neptune Plus MC-ICP-MS, equipped with a GeoLas HD laser-ablation system at Wuhan Sample Solution Analytical Technology Co. Ltd., Wuhan, China, Helium was used as the carrier gas, with the addition of a small amount of nitrogen to improve the signal sensitivity [32]. The analysis was performed with 44 μm spot size, 10 J/cm2 energy density, and 10 Hz repetition rate. The analysis was made on the same U-Pb dated zircon grains. Instrumentational and data acquisition protocols were as described by [32]. During the analysis, the zircon standards of Plešovice, 91,500 and GJ-1 were analyzed, and obtained Hf isotope compositions (Plešovice = 0.282478 ± 0.000010, 91,500 = 0.282298 ± 0.000011 and GJ-1 = 0.282007 ± 0.000010) are consistent with the recommended value [33]. The initial 176Hf/177Hf and εHf(t) values were calculated with reference to the present-day chondritic reservoir 176Hf/177Hf = 0.282785 and 176Lu/177Hf = 0.0336 at the measured U-Pb ages [34]. Single-stage Hf model ages (TDM1) were calculated with reference to the depleted mantle at the present-day 176Hf/177Hf = 0.28325 and 176Lu/177Hf = 0.0384 [35]. Two-stage Hf model ages (TDM2) were calculated by assuming an average continental crust with 176Lu/177Hf = 0.015 [36].

4. Results

4.1. Zircon U-Pb Age

Zircon grains from samples MD20-1-2 and MD20-5-2 have very similar characteristics. Most zircon grains are gray to black in CL images (Figure 5a,c). They are euhedral to subhedral and 100–300 μm in length (aspect ratios = 1:1 to 3:1). Most grains show a clear core-rim texture and well-developed oscillatory zoning in CL images (Figure 5a,c), suggesting an igneous origin [37].
Zircons from MD20-1-2 contained low and varying Th (47–168 ppm) and U (299–553 ppm) contents, with Th/U = 0.17–0.35. Twenty-eight zircons returned 206Pb/238U ages from 238 to 266 Ma, among which 27 grains yielded a concordant weighted mean age of 243.4 ± 0.5 Ma (MSDW = 1.1, n = 27) (Figure 5a,b). Zircons from MD20-5-2 also have low and varying Th (74–363 ppm) and U (289–948 ppm) content, with Th/U = 0.2–0.56. These magmatic zircons have concordant 206Pb/238U ages of 238 to 248 Ma with a weighted mean of 241.7 ± 1.1 Ma (MSDW = 1.6, n = 28) (Figure 5c,d). The zircon U-Pb data of our two samples indicate a Middle Triassic age of the dacite. The complete set of zircon U-Pb data is given in Table S2 (Supplementary Materials).

4.2. Whole-Rock Major and Trace Elemental Geochemistry

The whole-rock major and trace element results are presented in Table S3 (Supplementary Materials). The loss on ignition (LOI) for all samples below 4 wt.% suggests insignificant post-magmatic alteration or weathering. All samples exhibit similar chemical compositions, with medium SiO2 (67.08–70.51 wt.%) and high Al2O3 (12.91–14.39 wt.%), total alkali (N2O + K2O = 6.97–8.66 wt.%) contents and an A/CNK value (molar Al2O3/(CaO + Na2O + K2O)) of 1.14–1.57. All samples fall into the dacite field in both the TAS and Nb/Y-SiO2 plots (Figure 6a,b) and are shoshonitic (Figure 6c). In the A/NK vs. A/CNK plot (Figure 6d), the samples are classified as strongly peraluminous. They also have high FeOT (2.16–5.4 wt.%) but low MgO (0.62–1.76 wt.%; Mg # = 29.39–39.29) content.
The Madeng dacite also displays similar trace element features. The dacite has high total rare earth element (ΣREE) concentrations of 164 to 274 ppm. All samples are more enriched in light REEs (LREEs) than heavy REEs (HREEs) in the chondrite-normalized REE patterns (Figure 7a) with LREE/HREE = 7.56–9.49 and (La/Yb)N = 8.56–10.65, and have distinctly negative Eu anomalies (Eu/Eu * = 0.42–0.54), indicating plagioclase fractionation. Similar to the average middle–upper continental crust [38], the Madeng dacite displayed clearly negative Ba, Sr, Nb, Ta, P and Ti anomalies, and was enriched in Th, U, Rb and K when normalized to the primitive mantle (Figure 7b).

4.3. Zircon Lu-Hf Isotopic Compositions

The zircon Hf isotope data are presented in Table S4 (Supplementary Materials). Zircon grains from MD20-1-2 are relatively consistent 176Hf/177Hf from 0.282229 to 0.282385, corresponding to negative εHf(t) from −13.99 to −8.6 (n = 28) at 243.4 Ma (Figure 8a). Their two-stage model ages (TDM2) vary from 1817 to 2157 Ma (Figure 8b). The zircon grains from sample MD20-5-2 have 176Hf/177Hf from 0.282328 to 0.282384, yielding negative εHf(t) from −10.89 to −8.72 with TDM2 from 1821 to 1959 Ma.

4.4. Whole-Rock Sr-Nd Isotope Compositions

The Sr-Nd isotope data are presented in Table S5 (Supplementary Materials). Initial Sr isotope ratios and εNd(t) values were calculated with the obtained zircon U-Pb age of 242 Ma. The two samples have a much higher initial 87Sr/86Sr (0.738721 to 0.753399) than the present-day primitive mantle value of 0.7045 [45]. Both samples have high Rb (107–255 ppm) but relatively low Sr (39.4–66.7 ppm) contents. The εNd(t) value is negative (−11.28 to −10.64), with a TDM2 model age of 1881 to 1933 Ma.

5. Discussion

5.1. Timing of Magmatism

We compiled 62 published geochronological data from Deqin–Weixi–Madeng area, which yielded an age from 220 to 260 Ma and represent the timing of regional magmatism (Table S1). Our new zircon ages of 243.4 and 241.7 Ma fall within this range, indicating that extensive volcanism occurred in Madeng during the Middle Triassic.
Previous geochronological studies revealed long-lived tectono-magmatic activity in the Late Paleozoic–Early Mesozoic, which formed a series of intermediate-felsic and intermediate-mafic volcanic units along the Jomda–Weixi–Yunxian continental arc (Figure 1A). Age statistics show that the magmatic rocks along the magmatic arc were accumulated from 208.2 to 343.5 Ma [8,9,12,13,14,15,43,46,47]. Combined with published data, the magmatism in Deqin–Weixi–Madeng occurred mainly from 220 to 260 Ma (peak at 248 Ma) (Figure 1C), contemporaneously with the Jomda–Weixi arc volcanism, which indicates that this magmatic arc extends from Jiangda in the north to Weixi–Madeng in the south.

5.2. Petrogenesis and Magma Source

5.2.1. Genetic Type

The Madeng dacite is strongly peraluminous (A/CNK = 1.14–2.45), intermediate SiO2 (67.08–70.51 wt.%) and high K2O (4.39–6.67 wt.%) with a relatively low differentiation index (DI) of 78.88–87.80 (Figure 5), resembling weakly fractionated S-type granites rather than I- and A-types [48,49]. Apatite has a high solubility in strongly peraluminous magma, resulting in an increase in P2O5 with increasing SiO2 [50]. Therefore, the relationship between P2O5 and SiO2 can be used to distinguish the magmatic affinity. The positive correlation between P2O5 and SiO2 suggests that the Madeng dacite belongs to S-type granites (Figure 9a). In the 10,000 * Ga/Al diagram, all samples plot in the S-/I-type granite field with low Ga/Al ratios [51] (Figure 9b–d). In the SiO2 vs. Zr, and ACF discrimination diagrams, all the Madeng dacite samples plot in the S-type granite field (Figure 9e,f), suggesting unfractionated S-type granite.

5.2.2. Magma Source

It has been shown that some incompatible element ratios, such as Nb/Ta and Th/U, can be a useful tracing index to constrain source regions [52]. Madeng dacite has Nb/Ta = 11.41–13.62 (average 12.24) and Th/U = 3.89 to 5.73 (average 4.65), close to the average crustal values (Nb/Ta = 11–12; Th/U = 3.8–6) but distinct from the average mantle values (Nb/Ta = 17.5; Th/U = 4) [38,53]. This indicates that the Madeng dacite was derived mainly from the partial melting of the crust. In addition, Madeng dacite has negative εHf(t) = −13.99 to −8.6 with a two-stage model age of 1821 to 1959 Ma, resembling rocks derived from an ancient crustal source (Figure 10a) [54]. This conclusion is also supported by the low whole-rock εNd(t) (−11.28 to −10.64) and initial 87Sr/86Sr (0.705698 to 0.710277) (Figure 10b).
Previous studies proposed that strongly peraluminous S-type granites are mainly derived from the partial melting of meta-sediment (e.g., meta-pelite or meta-greywacke) [49,55]. The Madeng dacite is characterized by low molar CaO/(MgO + FeOT) (0.05–0.27) and Al2O3/(MgO + FeOT) (1.10 to 3.10) ratios, and plots within the metapelite field (Figure 11a). In addition, experimental data have suggested that the CaO/Na2O ratio of strongly peraluminous S-type granites is mainly controlled by their source composition [56]. Melt derived from metapelite has a lower CaO/Na2O ratio (<0.5) than that derived from meta-greywacke (mainly >0.5) [55]. The Madeng dacite has a low CaO/Na2O ratio (0.13–0.39), similar to melt derived from a metapelite source. In the CaO/Na2O vs. Al2O3/TiO2 plot, all the samples plot in the metapelite field (Figure 11b). Furthermore, in the Rb/Sr vs. Rb/Ba discrimination plot (Figure 11c), the Madeng dacite has higher Rb/Sr (2.72–5.67) and Rb/Ba (0.19–0.83) ratios, again resembling metapelite-derived melts. Therefore, the partial melting of metapelite from the ancient crust was likely the dominant mechanism of the formation mechanism for the Madeng S-type dacite.

5.2.3. Magmatic Evolution

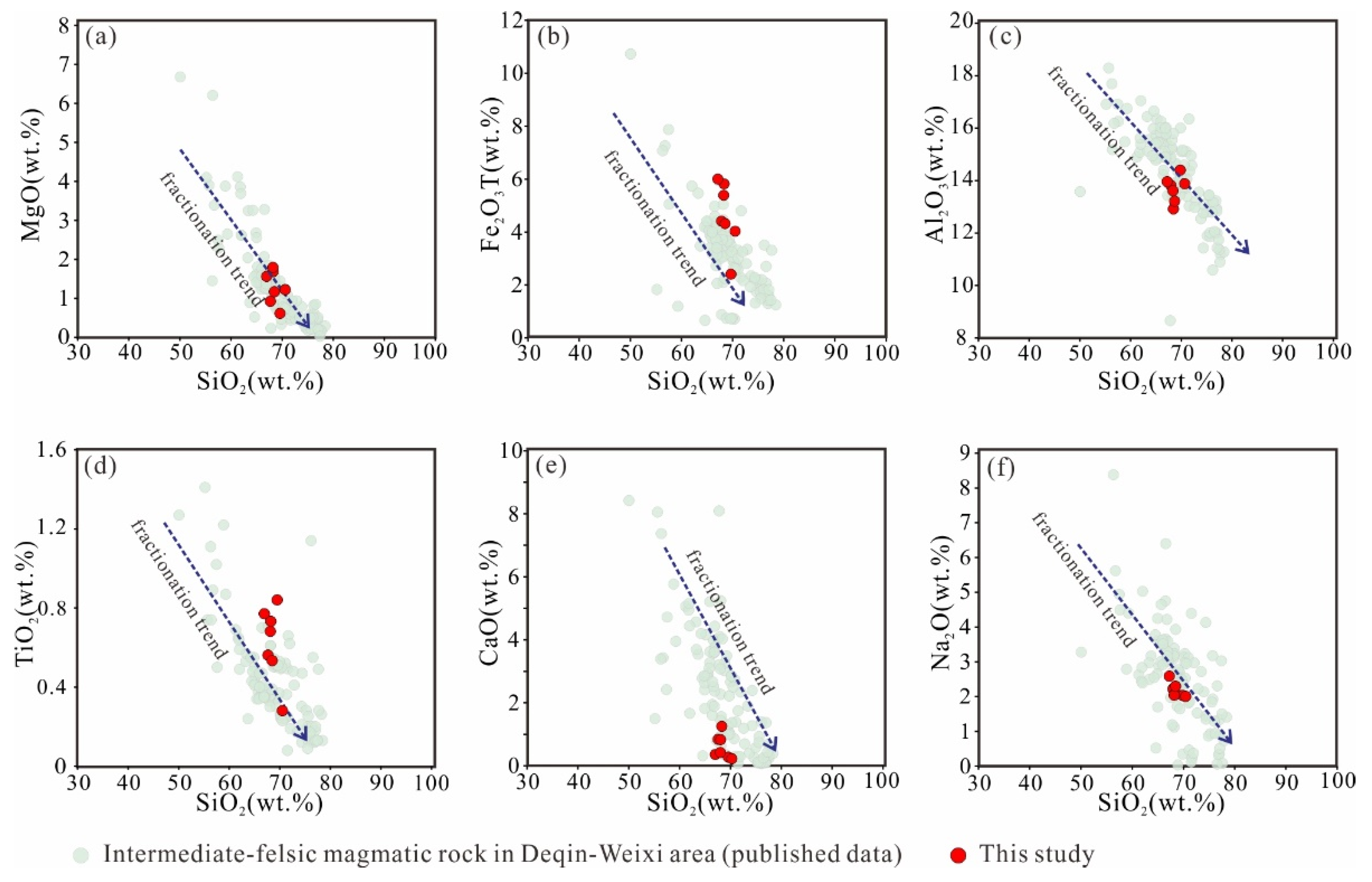

The linear correlations between MgO, Fe2O3T, Al2O3, TiO2, CaO, Na2O and SiO2 for the Deqin–Weixi–Madeng magmatic rocks indicate that fractionation occurred (Figure 12). The decreasing MgO, Fe2O3T and Al2O3 with SiO2 suggest the fractionation of mafic minerals (e.g., amphibole), whilst the decreasing TiO2 with SiO2 indicates the fractionation of Ti oxides (e.g., rutile and ilmenite), as also supported by the distinct negative anomalies of Ti, Nb and Ta (Figure 7b). Moreover, the negative correlation between CaO and Na2O with SiO2, and the distinct negative Eu, Sr and Ba anomalies suggest the significant fractionation of plagioclase. In conclusion, the partial melting of ancient crust material and fractional crystallization plays an important role in the formation of Madeng dacite.

5.3. Tectonic Implications

Our study demonstrated that the ca.243 Ma S-type felsic rocks in Madeng were formed by partial melting of meta-pelite rocks. Previous studies have shown that S-type granites could be formed in subduction and syn-/post-collision settings [55,59,60]. As mentioned above, the Deqin–Weixi–Madeng magmatic rocks were proposed to have formed under (1) a collision and post-collision extensional [8,9,10] or (2) a subduction tectonic setting [7,11,12,13,14,15]. Some authors suggested that the Deqin–Weixi–Madeng magmatic rocks were generated during the closure of the remnant Jinshajiang Ocean, as supported by the occurrence of an ophiolite belt in the Zhongzan Block and foreland-basin molasse with bimodal volcanic rocks in the Jomda–Deqin–Weixi area. Some other authors, however, questioned the potential relationship between the ophiolite belt and remnant ocean and disputed the occurrence of the Jinshajiang suture between the Zhongzan and Changdu–Lanping–Simao Blocks. Furthermore, they proposed that regional magmatic arcs were formed by north- or east-dipping subduction of the Paleo-Tethyan Longmucuo–Shuanghu Ocean beneath the Yangtze block, based on the extensive occurrence of blueschist and eclogite in Longmucuo–Shuanghu–Changning–Menglian suture [61,62].
Our data compilation and comparison suggest that the intermediate-felsic magmatic rocks from Deqin–Weixi–Madeng have similar geochemical and Sr-Nd-Hf isotopic characteristics, and were likely formed in a similar tectonic setting and from a similar magma source. Rock assemblages in Deqin–Weixi–Madeng (basalt to rhyolite volcanic and plutonic rocks) are also typical of those occurring in the subduction zone [63]. Furthermore, the large ion lithophile element (LILE, e.g., Rb and K) enrichments and high-field strength element (HFSE, e.g., Nb, Ta, P and Ti) depletions indicate a subduction setting [64]. The low Sr/Y ratio (<20) with low Y and Yb content and low YbN with low LaN/YbN are typical of normal arc rocks (Figure 13a,b), and the Deqin–Weixi–Madeng magmatic rocks plot largely in the volcanic arc granite field in the (Y + Nb) vs. Rb and Yb vs. Ta tectonic discrimination diagrams (Figure 13c,d). Consequently, we suggest that the Deqin–Weixi–Madeng intermediate-felsic magmatic rocks were formed in a subduction setting.
In brief, we suggest that the Paleo-Tethyan Longmucuo–Shuanghu Ocean may have continued to subduct during the Early Permian to Late Triassic. The long-lived dehydration of the Paleo-Tethys subducting slab and the partial melting of the mantle wedge may have generated (and accumulated) vast volumes of magma beneath the overriding plate. The crust of the overriding plate may have then been heated and partially melted to form intermediate-felsic magmas, which erupted in a short period of time (peak at 250 Ma).

6. Conclusions

  • LA-ICP-MS zircon U-Pb dating on the Madeng dacite yielded 241.7 and 243.4 Ma. Regional magmatic age correlation suggests that this Middle Triassic volcanism was likely formed in a subduction setting, indicating that the Paleo-Tethyan Longmucuo–Shuanghu Ocean subduction may have persisted in the Triassic.
  • The Madeng dacite is characterized by being high-Al, alkali-rich, and low-Mg. The rocks are peraluminous S-type, and display clear LILE enrichments and HFSE depletions with markedly negative Eu anomalies. This suggests the fractionation of Ti-bearing minerals (e.g., rutile and ilmenite) and plagioclase.
  • The initial 87Sr/86Sr ratios (0.705698–0.710277) with negative εNd(t) values (−11.28 to −10.64) and εHf(t) values (−13.99 to −8.6), together with the average Nb/Ta (12.24) and Th/U (4.65), indicate that Madeng dacite was formed from partial melting of the ancient crustal (meta-sedimentary rocks).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/min12030388/s1, Table S1: Summary of geochronological data of the Paleo-Tethyan magmatic rocks in the Deqin–Weixi–Madeng area; Table S2: Zircon U-Pb data of Madeng dacite; Table S3: The result of major oxides (wt.%) and trace elements (×10−6) of Madeng dacite; Table S4: Zircon Lu-Hf isotope data of Madeng dacite; Table S5: Whole-rock Sr-Nd isotope data of Madeng dacite.

Author Contributions

Conceptualization, G.H. and L.-L.Z.; methodology, L.-L.Z.; software, G.H.; validation, G.H. and L.-L.Z.; formal analysis, G.H.; investigation, G.H., L.-L.Z., L.-D.T. and W.W.; resources, L.-L.Z.; data curation, G.H.; writing—original draft preparation, G.H.; writing—review and editing, L.-L.Z., Y.-Q.Y., L.-D.T., W.W. and J.-H.L.; visualization, G.H.; supervision, L.-L.Z. and Y.-Q.Y.; project administration, L.-L.Z.; funding acquisition, L.-L.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number “41773043, 91855214, 41773042, 41772088 and 41922022”.

Data Availability Statement

Presented data are available upon request to the corresponding author.

Acknowledgments

The authors thank the staff of the National Research Center for Geoanalysis and Wuhan Sample Solution Analytical Technology Co., Ltd. for their help with laboratory analyses. We are grateful to the editors and anonymous reviewers for their constructive reviews that significantly improved the quality of this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hou, Z.Q.; Wang, L.Q.; Khin, Z.; Mo, X.X.; Wang, M.J.; Li, D.M.; Pan, G.T. Post collisional crustal extension setting and VHMS mineralization in the Jinshajiang orogenic belt, southwestern China. Ore Geol. Rev. 2003, 22, 177–179. [Google Scholar] [CrossRef]
  2. Mo, X.X.; Pan, G.T. From the Tethys to the formation of the Qinghai-Tibet Plateau: Constrained by tectono-magmatic events. Earth Sci. Fron. 2006, 13, 43–51, (In Chinese with English Abstract). [Google Scholar]
  3. Tapponnier, P.; Lacassin, R.; Leloup, P.H.; Schärer, U.; Zhong, D.L.; Wu, H.W.; Liu, X.H.; Ji, S.C.; Zhang, L.S.; Zhong, H.Y. The Ailao Shan/Red River metamorphic belt: Tertiary left-lateral shear between Indochina and South China. Nature 1990, 343, 431–437. [Google Scholar] [CrossRef]
  4. Mo, X.X.; Deng, J.F.; Dong, F.L.; Yu, X.H.; Wang, Y.; Zhou, S.; Yang, W.G. Volcanic petrotectonic assemblages in Sanjiang Orogenic belt, SW China and implication for tectonics. Geol. J. China Univ. 2001, 7, 121–138, (In Chinese with English Abstract). [Google Scholar]
  5. Hou, Z.Q.; Zaw, K.; Pan, G.T.; Xu, Q.; Hu, Y.Z.; Li, X.Z. Sanjiang Tethyan metallogenesis in S.W. China: Tectonic setting, metallogenic epochs and deposit types. Ore Geol. Rev. 2007, 31, 48–87. [Google Scholar] [CrossRef]
  6. Xu, Z.Q.; Yang, J.S.; Li, W.C.; Zeng, L.S.; Xu, C.P. Tectonic background of important metallogenic belts in Southern and Southeastern Tibetan plateau and ore prospecting. Acta Geol. Sin. 2012, 86, 1857–1868, (In Chinese with English Abstract). [Google Scholar]
  7. Yang, T.N.; Xue, C.D.; Xin, D.; Liang, M.J.; Liao, C. Paleo-Tethyan tectonic evolution of the Sanjiang Orogenic Belt, SW China: Temporal and spatial distribution pattern of arc-like igneous rocks. Acta Petrol. Sin. 2019, 35, 1324–1340, (In Chinese with English Abstract). [Google Scholar]
  8. Zhu, J.J.; Hu, R.Z.; Bi, X.W.; Zhong, H.; Chen, H. Zircon U-Pb ages, Hf-O isotopes, and whole-rock Sr-Nd-Pb isotopic geochemistry of granitoids in the Jinshajiang suture zone, SW China: Constrains on the petrogenesis and tectonics evolution of the Paleo-Tethys Ocean. Lithos 2011, 126, 248–264. [Google Scholar] [CrossRef]
  9. Wang, B.D.; Wang, L.Q.; Qiangba, Z.X.; Zeng, Q.G.; Zhang, W.P.; Wang, D.B.; Cheng, W.H. Early Triassic collision of northern Lancangjiang suture: Geochronological, geochemical and Hf isotope evidences from the granitic genesis in Leiwuqi area, East Tibet. Acta Petrol. Sin. 2011, 27, 2752–2762, (In Chinese with English Abstract). [Google Scholar]
  10. Wang, B.D.; Wang, L.Q.; Chen, J.L.; Yin, F.G.; Wang, D.B.; Zhang, W.P.; Chen, L.K.; Liu, H. Triassic three-stage collision in the Paleo-Tethys: Constrains from magmatism in the Jiangda-Deqen-Weixi continental margin arc, SW China. Gondwana Res. 2014, 26, 475–491. [Google Scholar] [CrossRef]
  11. Zi, J.W.; Cawood, P.A.; Fan, W.M.; Tohver, E.; Wang, Y.J.; McCuaig, T.C. Generation of Early Indosinian enriched mantle-derived granitoid pluton in the Sanjiang Orogen (SW China) in response to closure of the Paleo-Tethys. Lithos 2012, 140–141, 166–182. [Google Scholar] [CrossRef]
  12. Yang, T.N.; Ding, Y.; Zhang, H.R.; Fan, J.W.; Liang, M.J.; Wang, X.H. Two-phase subduction and subsequent collision define the Paleo-Tethyan tectonics of the southeastern Tibetan Plateau: Evidence from zircon U-Pb dating, geochemistry, and structural geology of the Sanjiang orogenic belt, southwest China. Geol. Soc. Am. Bull. 2014, 126, 1654–1682. [Google Scholar] [CrossRef]
  13. Liang, M.J.; Yang, T.N.; Shi, P.L.; Xue, C.D.; Xiang, K.; Liao, C. U-Pb geochronology, Hf isotopes if zircons from the volcanic rocks along the eastern margin of Lanping basin, Sanjiang orogenic belt. Acta Petrol. Sin. 2015, 31, 3247–3268, (In Chinese with English Abstract). [Google Scholar]
  14. Tang, J.; Xue, C.D.; Yang, T.N.; Liang, M.J.; Xiang, K.; Liao, C.; Jiang, L.L.; Xin, D. Late Permian to Early Triassic tectonostratigraphy of Madeng area, northwestern Yunnan, S.W. China: Volcanics zircon U-Pb dating. Acta Petrol. Sin. 2016, 32, 2535–2554, (In Chinese with English Abstract). [Google Scholar]
  15. Xin, D.; Yang, T.N.; Liang, M.J.; Xue, C.D.; Han, X.; Liao, C.; Tang, J. Syn-subduction crustal shortening produced a magmatic flare-up in middle Sanjiang orogenic belt, southeastern Tibet Plateau: Evidence from geochronology, geochemistry, and structural geology. Gondwana Res. 2018, 62, 93–111. [Google Scholar] [CrossRef]
  16. Yang, X.; Liu, J.J.; Han, S.Y.; Zhang, H.Y.; Luo, C.; Wang, H.; Chen, S.R. U-Pb dating of zircon from the Linong granodiorite, Re-Os dating of molybdenite from the ore body and their geological significances in Yangla copper deposit, Yunnan. Acta Geol. Sin. 2011, 27, 2567–2576, (In Chinese with English Abstract). [Google Scholar]
  17. Jian, P.; Liu, D.Y.; Sun, X.M. SHRIMP dating of Baimaxueshan and Ludian granitoid batholiths, northwestern Yunnan province, and its geological implication. Acta Geosci. Sin. 2003, 24, 337–342, (In Chinese with English Abstract). [Google Scholar]
  18. Xu, W.; Liu, F.L.; Ji, L.; Wang, F.; Xu, W.T.; Wang, D. Middle Permian-Late Triassic magmatism in the Deqen-Weixi area of the Sanjiang Orogenic Belt: Implication for Paleo-Tethyan evolution. Acta Geosci. Sin. 2021, 37, 462–480, (In Chinese with English Abstract). [Google Scholar]
  19. He, L.Q.; Song, Y.C.; Chen, K.X.; Hou, Z.Q.; Yu, F.M.; Yang, Z.S.; Wei, J.Q.; Li, Z.; Liu, Y.C. Thrust-controlled, sediment-hosted, Himalayan Zn-Pb-Cu-Ag deposits in the Lanping foreland fold belt, eastern margin of Tibetan Plateau. Ore Geol. Rev. 2009, 36, 106–132. [Google Scholar] [CrossRef]
  20. Deng, J.; Hou, Z.Q.; Mo, X.X.; Yang, L.Q.; Wang, Q.F.; Wang, C.M. Superimposed orogenesis and metallogenesis in Sanjiang Tethys. Miner. Depos. 2010, 29, 37–42, (In Chinese with English Abstract). [Google Scholar]
  21. David, L.L.; Song, Y.C. Sediment-Hosted Zinc-Lead and Copper Deposits in China. SEG Spec. Publ. 2020, 22, 1–85. [Google Scholar]
  22. Song, Y.C.; Hou, Z.Q.; Xue, C.D.; Huang, S.Q. New mapping of the world-class Jinding Zn-Pb deposits, Lanping basin, Southwest China: Genesis of ore host rocks and records of hydrocarbon-rock interaction. Econ. Geol. 2020, 115, 981–1002. [Google Scholar] [CrossRef]
  23. Wei, J.Q.; Wang, X.D.; Zhuang, X.; Liu, Y.H. Zircon SHRIMP U-Pb dating of diorite among Jicha serpentine and Eza gabbro from Lancangjiang belt, Yunnan Province and its geological significance. Acta Geosci. Sin. 2008, 24, 1297–1301, (In Chinese with English Abstract). [Google Scholar]
  24. Zong, K.Q.; Klemd, R.; Yuan, Y.; He, Z.Y.; Guo, J.L.; Shi, X.L.; Liu, Y.S.; Hu, Z.C.; Zhang, Z.M. The assembly of Rodinia: The correlation of early Neoproterozoic (ca. 900 Ma) high-grade metamorphism and continental arc formation in the southern Beishan Orogen, Southern Central Asian Orogenic Belt (CAOB). Precambrian Res. 2017, 290, 32–48. [Google Scholar] [CrossRef]
  25. Sláma, J.; Košler, J.; Condon, D.J.; Crowley, J.L.; Gerdes, A.; Hanchar, J.M.; Horstwood, M.S.A.; Morris, G.A.; Nasdala, N.; Schaltegger, U.; et al. PleŠovice zircon: New natural reference material for U-Pb and Hf isotopic microanalysis. Chem. Geol. 2008, 249, 1–35. [Google Scholar] [CrossRef]
  26. Anderson, T. Correction of common lead in U-Pb analyses that do not report 204Pb. Chem. Geol. 2002, 192, 59–79. [Google Scholar] [CrossRef]
  27. Ludwig, K.R. User’s Manual for Isoplot 3.00, a Geochronological Toolkit for Microsoft Excel; Berkeley Geochronology Center Special Publication: Berkeley, CA, USA, 2003; Volume 4, pp. 25–32. [Google Scholar]
  28. Thirlwall, M.F. Long-term reproducibility of multicollector Sr and Nd isotope ratio analysis. Chem. Geol. 1991, 94, 85–104. [Google Scholar] [CrossRef]
  29. Tanaka, T.; Togashi, S.; Kamioka, H.; Amakawa, H.; Kagami, H.; Hamaoto, T.; Yuhara, M.; Orihashi, Y.; Yoneda, S.; Shimizu, H.; et al. JNdi-1: A neodymium isotopic reference in consistency with LaJolla neodymium. Chem. Geol. 2000, 168, 279–281. [Google Scholar] [CrossRef]
  30. Li, C.F.; Li, X.H.; Li, Q.L.; Guo, J.H.; Yang, Y.H. Rapid and precise determination of Sr and Nd isotopic ratios in geological samples from the same filament loading by thermal ionization mass spectrometry employing a single-step separation scheme. Anal. Chim. Acta 2012, 727, 54–60. [Google Scholar] [CrossRef]
  31. Weis, D.; Kieffer, B.; Maerschalk, C.; Barling, J.; Jong, J.D.; Williams, G.A.; Hanano, D.; Pretorius, W.; Mattielli, N.; Scoates, J.S.; et al. High-precision isotopic characterization of USGS reference materials by TIMS and MC-ICP-MS. Geochem. Geophys. Geosyst. 2006, 7, 139–149. [Google Scholar] [CrossRef]
  32. Hu, Z.C.; Liu, Y.S.; Gao, S.; Liu, W.G.; Zhang, W.; Tong, X.R.; Lin, L.; Zong, K.Q.; Li, M.; Chen, H.H.; et al. Improved in situ Hf isotope ratio analysis of zircon using newly designed X skimmer cone and Jet sample cone in combination with the addition of nitrogen by laser ablation multiple collector ICP-MS. J. Anal. At. Spectrom. 2012, 27, 1391–1399. [Google Scholar] [CrossRef]
  33. Zhang, W.; Hu, Z. Estimation of isotopic reference values for Pure Materials and geological reference materials. At. Spectrosc. 2020, 41, 93–102. [Google Scholar] [CrossRef]
  34. Soderlund, U.; Patchett, P.J.; Vervoort, J.D.; Isachsen, C.E. 176Lu decay constant determined by Lu-Hf and U-Pb isotope systematics of Precambrian mafic intrusions. Earth Planet. Sci. Lett. 2004, 219, 311–324. [Google Scholar] [CrossRef]
  35. Griffin, W.L.; Pearson, N.J.; Belousova, E.; Jackson, S.E.; Van Achterbergh, E.O.; Reilly, S.Y.; Shee, S.R. The Hf isotope composition of cratonic mantle: LAM-MC-ICPMS analysis of zircon megacrysts in kimberlites. Geochim. Cosmochim. Acta 2000, 64, 133–147. [Google Scholar] [CrossRef]
  36. Griffin, W.L.; Wang, X.W.; Jackson, S.E.; Pearson, N.J.O.; Reilly, S.Y.; Xu, X.; Zhou, X. Zircon chemistry and magma mixing, SE China: In-situ analysis of Hf isotopes, Tonglu and Pingtan igneous complexes. Lithos 2002, 61, 237–269. [Google Scholar] [CrossRef]
  37. Hoskin, P.W.O.; Black, L.P. Metamorphic zircon formation by solid-state recrystallization of protolith igneous zircon. J. Metamorp. Geol. 2000, 18, 423–439. [Google Scholar] [CrossRef]
  38. Rudnick, R.L.; Gao, S. Composition of the continental crust. In Treatise on Geochemistry, 2nd ed.; Holland, H.D., Turekian, K.K., Eds.; Elsevier: Amsterdam, The Netherlands, 2014; Volume 4, pp. 1–51. [Google Scholar] [CrossRef]
  39. Willson, M.F.; Irvine, A.K.; Walsh, N.G. Vertebrate dispersal syndromes in some Australian and New Zealand plant communities, with geographic comparisons. Biotropica 1989, 21, 133–147. [Google Scholar] [CrossRef]
  40. Winchester, J.; Floyd, P. Geochemical discrimination of different magma series and their differentiation products using immobile elements. Chem. Geol. 1977, 20, 21–34. [Google Scholar] [CrossRef] [Green Version]
  41. Peccerillo, A.; Taylor, S.R. Geochemistry of Eocene calc-alkaline volcanic rocks from Kastamonu area, northern Turkey. Contrib. Mineral. Petrol. 1976, 58, 63–81. [Google Scholar] [CrossRef]
  42. Maniar, P.D.; Piccoli, P.M. Tectonic discrimination of granitoids. Geol. Soc. Am. Bull. 1989, 101, 635–643. [Google Scholar] [CrossRef]
  43. Jian, P.; Liu, D.Y.; Kröner, A.; Zhang, Q.; Wang, Y.Z.; Sun, X.M.; Zhang, W. Devonian to Permian plate tectonic cycle of the Paleo-Tethys Orogen in southwest China (II): Insights from zircon ages of ophiolites, arc/back-arc assemblages and within-plate igneous rocks and generation of the Emeishan CFB province. Lithos 2009, 113, 767–784. [Google Scholar] [CrossRef]
  44. Sun, S.S.; McDonough, W.F. Chemical and isotopic systematics of oceanic basalts: Implication for mantle composition and processes. In Magmatism in the Ocean Basins; Saunders, A.D., Norry, M.J., Eds.; Geological Society Special Publication: London, UK, 1989; Volume 42, pp. 313–345. [Google Scholar]
  45. DePaolo, D.J.; Wasserburg, G.J. Inferences about magma sources and mantle structure from variations of 143Nd/144Nd. Geophys. Res. Lett. 1976, 3, 743–746. [Google Scholar] [CrossRef]
  46. Roger, F.; Arnaud, N.; Gilder, S.; Tapponnier, P.; Jolivet, M.; Brunel, M.; Malavieille, J.; Xu, Z.Q.; Yang, J.S. Geochronological and geochemical constraints on Mesozoic suturing in east central Tibet. Tectonics 2003, 22, TC001466. [Google Scholar] [CrossRef]
  47. Yang, T.N.; Hou, Z.Q.; Wang, Y.; Zhang, H.R.; Wang, Z.L. Late Paleozoic to Early Mesozoic tectonic evolution of northeast Tibet: Evidence from the Triassic composite western Jinsha-Garzê-Litang suture. Tectonics 2012, 31, TC4004. [Google Scholar] [CrossRef]
  48. Chappell, B.W. Aluminums saturation in I and S type granites and the characterization of fractionated haplogranites. Lithos 1999, 46, 535–551. [Google Scholar] [CrossRef]
  49. Clemens, J.D. S-type granitic magmas-petrogenetic issues, models and evidence. Earth Sci. Rev. 2003, 61, 1–18. [Google Scholar] [CrossRef]
  50. Chappell, B.W.; White, A.J.R. I- and S-type granites in the Lachlan Fold Belt. Earth Environ. Sci. Trans. R. Soc. Edinb. 1992, 83, 1–26. [Google Scholar] [CrossRef]
  51. Whalen, J.B.; Currie, K.L.; Chappell, B.W. A-type granites: Geochemical characteristics, discrimination and petrogenesis. Contrib. Mineral. Petrol. 1987, 95, 407–419. [Google Scholar] [CrossRef]
  52. Xu, J.; Li, X.F.; Xu, Q.H.; Liu, Y.H. The genesis and significance of the Paleocene granitoids in the Riazhai Pb polymetallic deposit, southern Tibet. Acta Geol. Sin. 2019, 35, 3529–3548, (In Chinese with English Abstract). [Google Scholar]
  53. Atherton, M.P.; Petford, N. Generation of sodium-rich magmas from newly underplated basaltic crust. Nature 1993, 362, 144–146. [Google Scholar] [CrossRef]
  54. Bolhar, R.; Weaver, S.D.; Whitehouse, M.J.; Palin, J.M.; Woodhead, J.D.; Cole, J.W. Sources and evolution of arc magmas inferred from coupled O and Hf isotope systematics of plutonic zircons from the Cretaceous Separation Point Suite (New Zealand). Earth Planet. Sci. Lett. 2008, 268, 312–324. [Google Scholar] [CrossRef]
  55. Sylvester, P.J. Postcollisional strongly peraluminous granites. Lithos 1998, 45, 29–44. [Google Scholar] [CrossRef]
  56. Jung, S.; Pfander, E.M.; Kamo, S.; Su, S. Source composition and melting temperatures of orogenic granitoids: Constrains from CaO/Na2O, Al2O3/TiO2 and accessory mineral saturation thermometry. Eur. J. Mineral. 2012, 19, 859–870. [Google Scholar] [CrossRef]
  57. Althere, R.; Holl, A.; Hegner, E.; Langer, C.; Kreuzer, H. High-potassium, calc-alkaline I-type plutonism in the European Variscides: Northern Vosges (France) and northern Schwarzwald (Germany). Lithos 2000, 50, 51–73. [Google Scholar] [CrossRef]
  58. Janoušek, V.; Finger, F.; Roberts, M.; Frýda, J.; Pin, C.; Dolejš, D. Deciphering the petrogenesis of deeply buried granites: Whole-rock geochemical constrains on the origin of largely undepleted felsic granulites from the Moldanubian Zone of the Bohemian Massif. Geol. Soc. Am. Spec. Pap. 2004, 389, 141–159. [Google Scholar] [CrossRef] [Green Version]
  59. Barbarin, B. A review of the relationships between granitoid types, their origins and their geodynamic environment. Lithos 1999, 46, 605–626. [Google Scholar] [CrossRef]
  60. Cai, K.D.; Sun, M.; Yuan, C.; Zhao, G.C.; Xiao, W.J.; Long, X.P.; Wu, F.Y. Geochronology, petrogenesis and tectonic significance of peraluminous granites from the Chinese Altai, NW China. Lithos 2011, 127, 261–281. [Google Scholar] [CrossRef]
  61. Deng, X.G.; Ding, L.; Liu, X.H.; Yin, A.; Kapp, P.A.; Murphy, M.A.; Manning, C.E. Geochemical characteristics of the blueschists and its tectonic significance in the central Qiangtang area, Tibet. Acta Geol. Sin. 2002, 18, 517–525, (In Chinese with English Abstract). [Google Scholar]
  62. Deng, X.G.; Ding, L.; Liu, X.H.; Zhou, Y.; Yin, A.; Kapp, P.A.; Murphy, M.A.; Manning, C.E. The glaucophane schist and its 40Ar/39Ar geochronology in the Gangmarl area, central Qiangtang, Qinghai-Tibet Plateau. Chin. Sci. Bull. 2000, 45, 2322–2326, (In Chinese with English Abstract). [Google Scholar]
  63. Yu, M.; Wang, Y.X.; Wang, X.W.; Ren, W.X.; You, Z.H.; Gao, Z.J. The origin and geochemical and characteristics of island arc volcanic rocks. Gansu Geol. 2017, 26, 17–24, (In Chinese with English Abstract). [Google Scholar]
  64. Floyd, P.A.; Winchester, J.A. Magma type and tectonic setting discrimination using immobile elements. Earth Planet. Sci. Lett. 1975, 27, 211–218. [Google Scholar] [CrossRef]
  65. Defant, M.J.; Drummond, M.S. Derivation of some modern arc magmas by melting of young subducted lithosphere. Nature 1990, 347, 662–665. [Google Scholar] [CrossRef]
  66. Martin, H. The mechanisms of petrogenesis of the Archean continental crust-composition with modem processes. Lithos 1993, 30, 373–388. [Google Scholar] [CrossRef]
  67. Pearce, J.A.; Harris, N.B.W.; Tindle, A.G. Trace element discrimination diagrams for the tectonic interpretation of granitic rocks. J. Petrol. 1984, 25, 956–983. [Google Scholar] [CrossRef] [Green Version]
Minerals 12 00388 g001 550
Figure 1. Simplified map showing the (A) spatial distribution of Paleo-Tethyan magmatic rocks in the Sanjiang Indosinian orogen (modified after [7]) (age data source listed in Table S1 (Supplementary Materials)), (B) tectonic location of the Sanjiang Indosinian orogen (modified after [21]), and (C) magmatic zircon age histogram for Deqin–Weixi–Madeng area.
Figure 1. Simplified map showing the (A) spatial distribution of Paleo-Tethyan magmatic rocks in the Sanjiang Indosinian orogen (modified after [7]) (age data source listed in Table S1 (Supplementary Materials)), (B) tectonic location of the Sanjiang Indosinian orogen (modified after [21]), and (C) magmatic zircon age histogram for Deqin–Weixi–Madeng area.
Minerals 12 00388 g001
Minerals 12 00388 g002 550

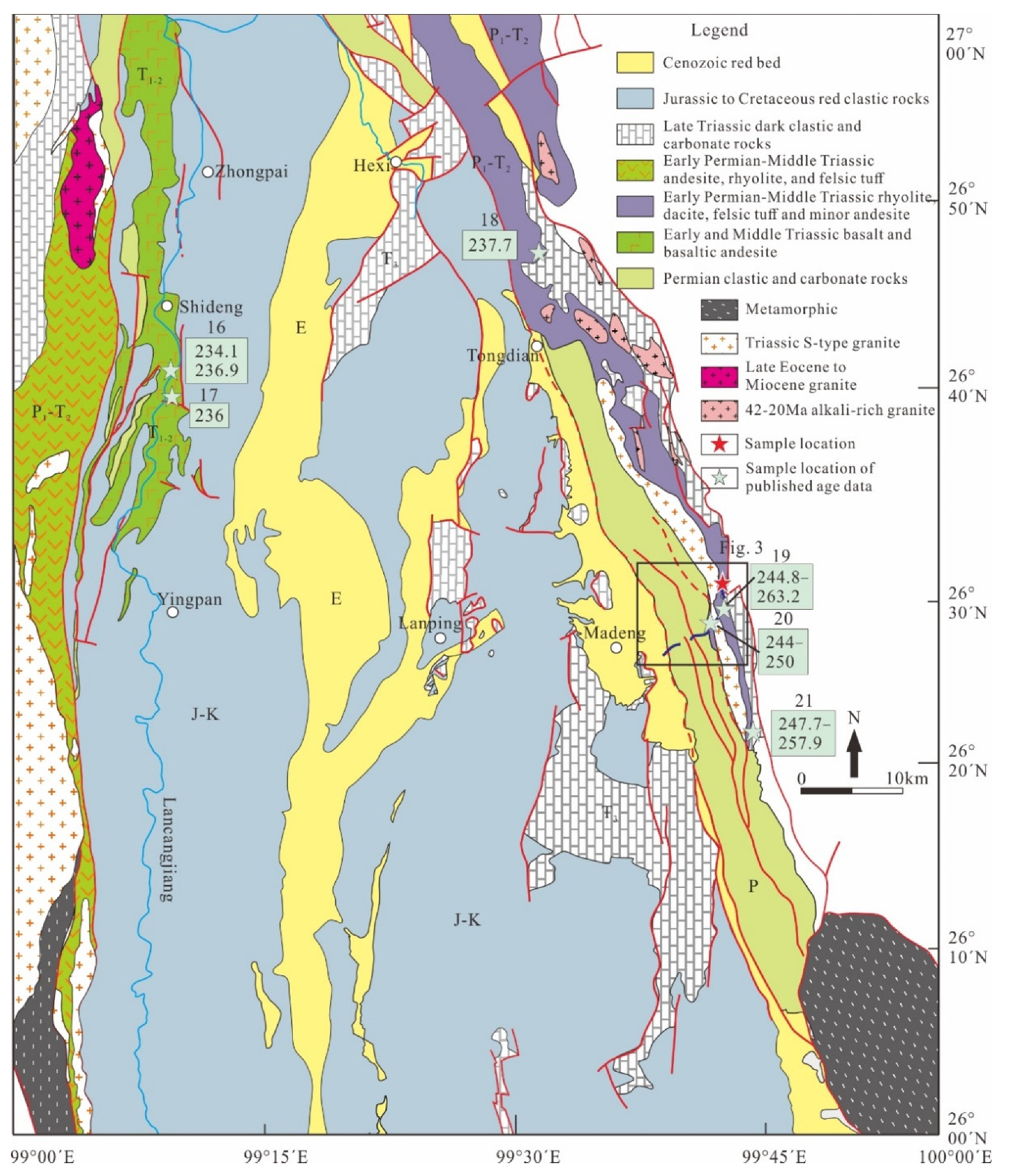

Figure 2. Simplified geological map of the Lanping Basin (modified after [22]), the published data source: [12,13,14,15,23].
Figure 2. Simplified geological map of the Lanping Basin (modified after [22]), the published data source: [12,13,14,15,23].
Minerals 12 00388 g002
Minerals 12 00388 g003 550

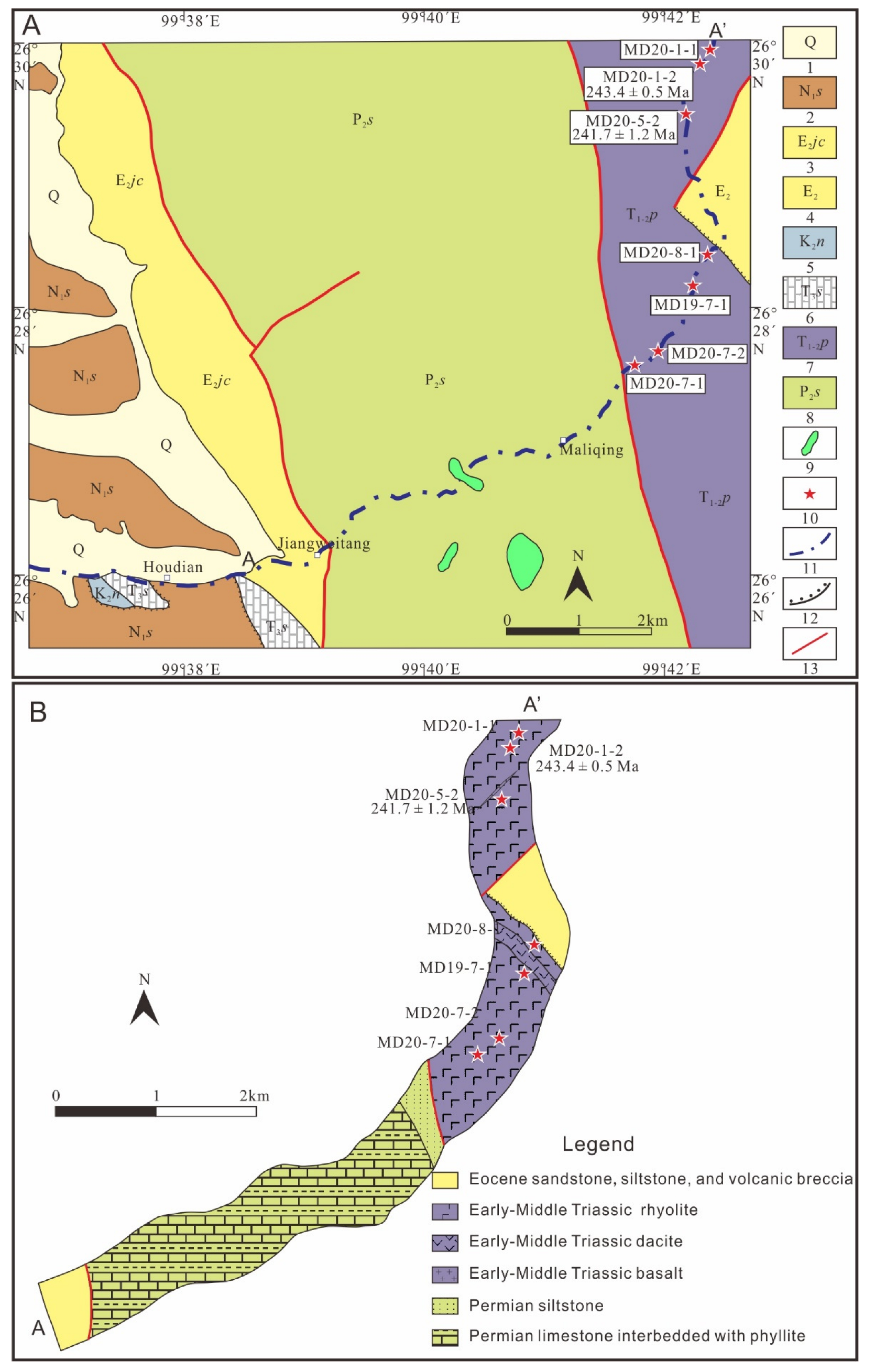

Figure 3. (A) Simplified geological map of Madeng area (modified from [14]). (B) Geological map of cross Section A-A’ (modified after [15]). Abbreviations: 1—Quaternary; 2—Sandstone and conglomerate of the Miocene Sanying Formation; 3—Sandstone and volcanic breccia of the Eocene Jianchuan Formation; 4—Eocene volcanic breccia clast-bearing siltstone and sandstone; 5—Siltstone and sandstone of the Cretaceous Nanxing Formation; 6—Limestone of the Late-Triassic Sanhedong Formation; 7—Dacite and rhyolite with thin basalt interlayer of the Early-Middle Triassic Pantiange Formation; 8—Limestone, phyllite and siltstone of the Permian Shanglan Formation; 9—Diabase; 10—Sample Location; 11—Road; 12—Unconformity; 13—Fault.
Figure 3. (A) Simplified geological map of Madeng area (modified from [14]). (B) Geological map of cross Section A-A’ (modified after [15]). Abbreviations: 1—Quaternary; 2—Sandstone and conglomerate of the Miocene Sanying Formation; 3—Sandstone and volcanic breccia of the Eocene Jianchuan Formation; 4—Eocene volcanic breccia clast-bearing siltstone and sandstone; 5—Siltstone and sandstone of the Cretaceous Nanxing Formation; 6—Limestone of the Late-Triassic Sanhedong Formation; 7—Dacite and rhyolite with thin basalt interlayer of the Early-Middle Triassic Pantiange Formation; 8—Limestone, phyllite and siltstone of the Permian Shanglan Formation; 9—Diabase; 10—Sample Location; 11—Road; 12—Unconformity; 13—Fault.
Minerals 12 00388 g003
Minerals 12 00388 g004 550
Figure 4. Photos/photomicrographs of the Madeng dacite: (a) porphyritic dacite outcrop; (b) dacite hand-specimen; (c–d) thin-section photomicrograph of dacite. Abbreviation: Qz—Quartz; Kfs—K-feldspar; Pl—Plagioclase.
Figure 4. Photos/photomicrographs of the Madeng dacite: (a) porphyritic dacite outcrop; (b) dacite hand-specimen; (c–d) thin-section photomicrograph of dacite. Abbreviation: Qz—Quartz; Kfs—K-feldspar; Pl—Plagioclase.
Minerals 12 00388 g004
Minerals 12 00388 g005 550

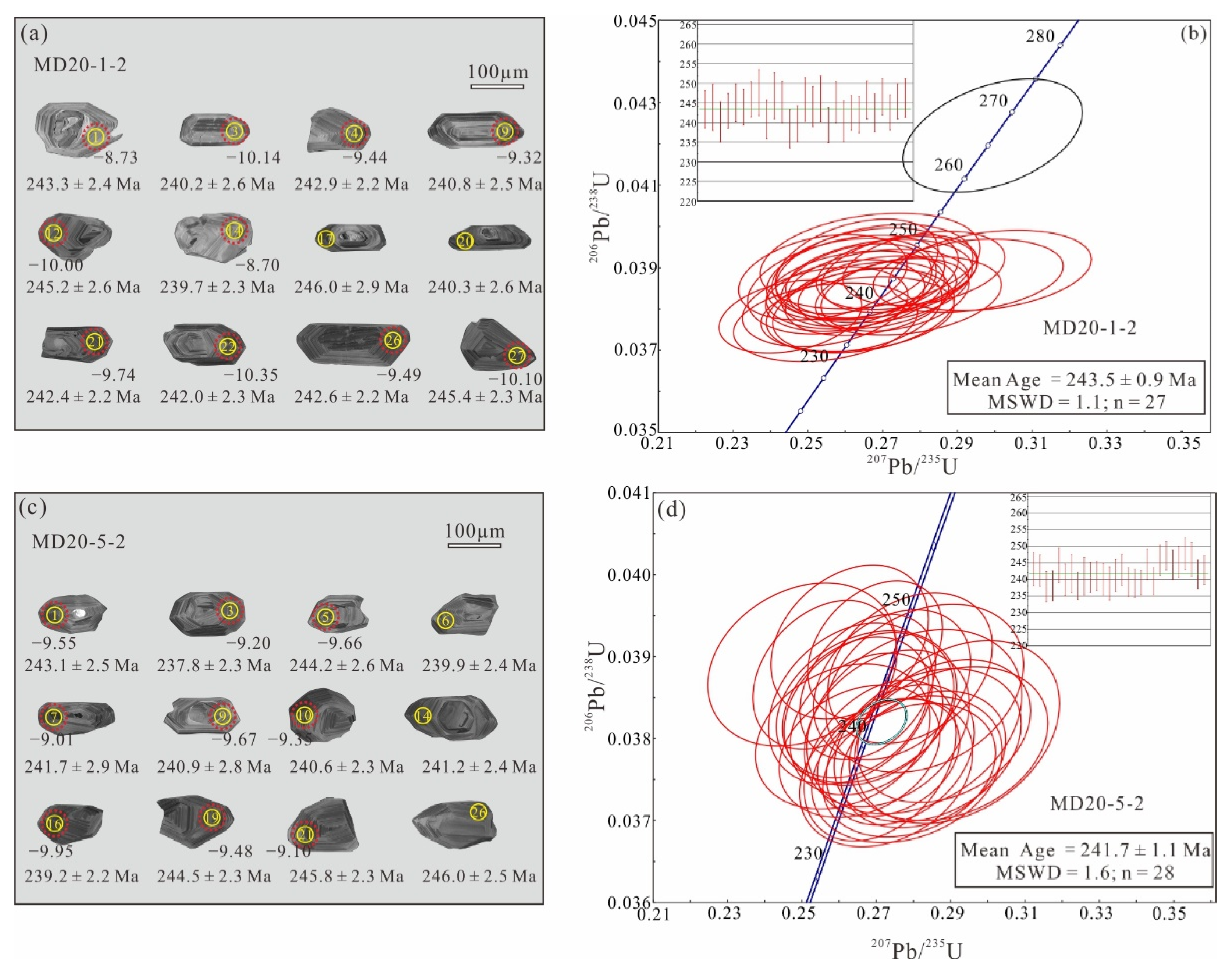

Figure 5. Cathodoluminescence images of representative zircon (a,c) and zircon U-Pb concordia plots (b,d) for the Madeng dacite.
Figure 5. Cathodoluminescence images of representative zircon (a,c) and zircon U-Pb concordia plots (b,d) for the Madeng dacite.
Minerals 12 00388 g005
Minerals 12 00388 g006 550

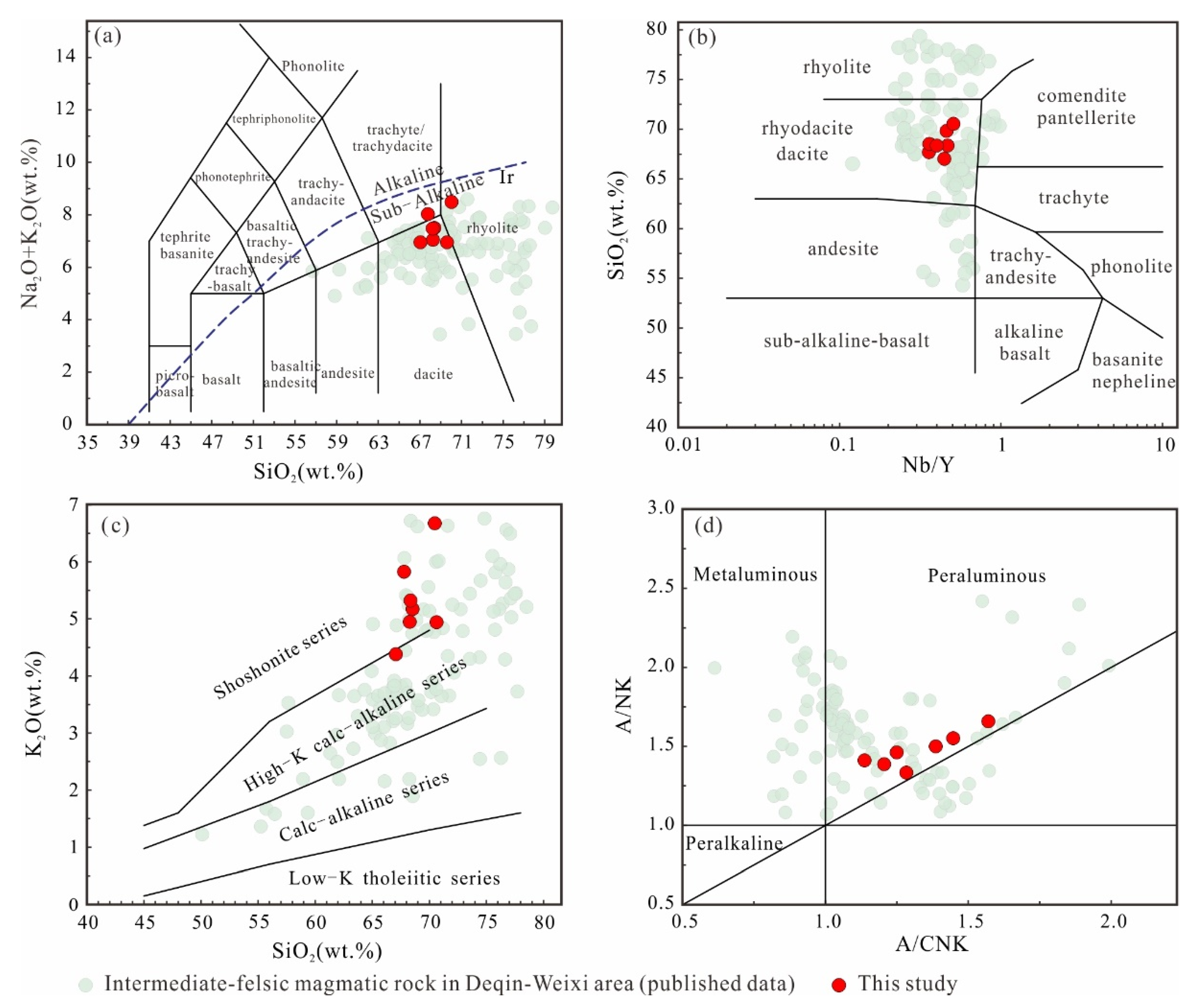

Figure 6. Geological discrimination plots for Deqin–Weixi intermediate-felsic magmatic rocks: (a) total alkali-silica (TAS) [39]; (b) Nb/Y-SiO2 [40]; (c) SiO2-K2O [41]; (d) A/CNK-A/NK [42]. Data source: [8,10,11,12,15,43].
Figure 6. Geological discrimination plots for Deqin–Weixi intermediate-felsic magmatic rocks: (a) total alkali-silica (TAS) [39]; (b) Nb/Y-SiO2 [40]; (c) SiO2-K2O [41]; (d) A/CNK-A/NK [42]. Data source: [8,10,11,12,15,43].
Minerals 12 00388 g006
Minerals 12 00388 g007 550

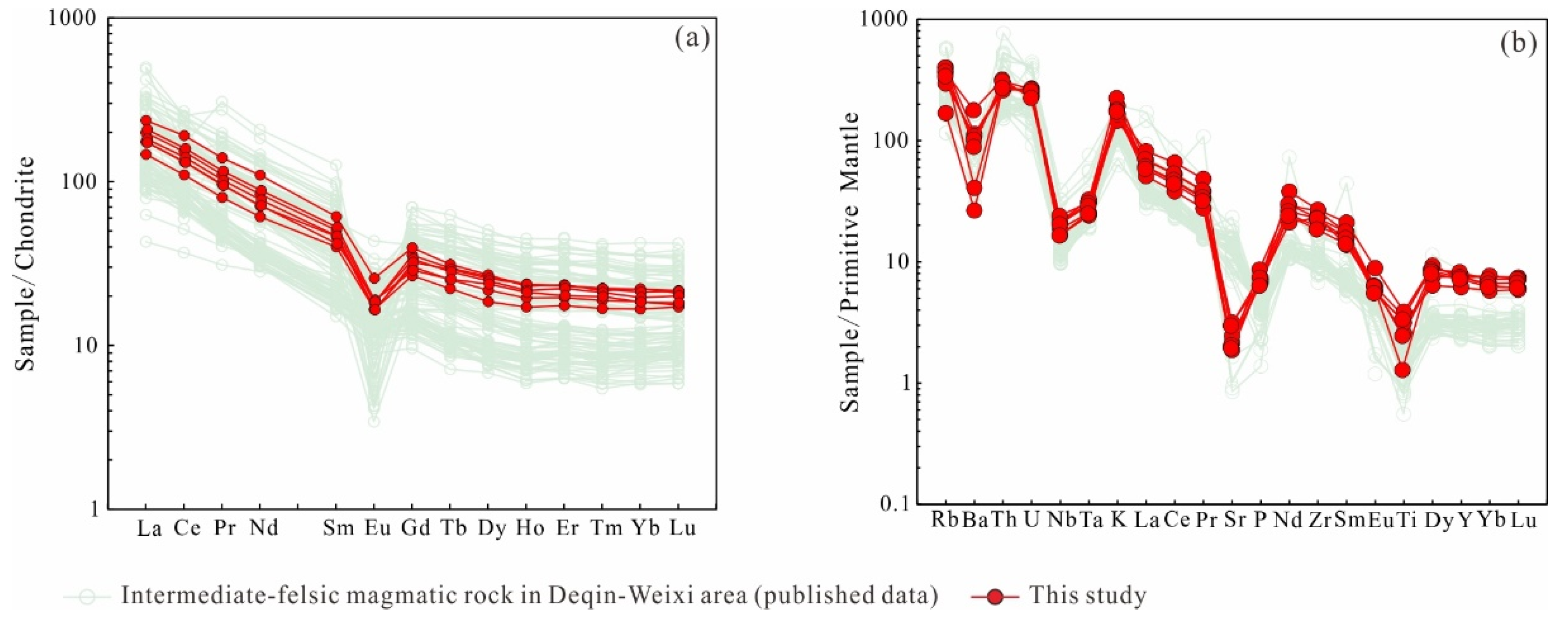

Figure 7. Chondrite-normalized REE patterns (a) and primitive mantle-normalized trace element patterns (b) for Deqin–Weixi intermediate-felsic magmatic rocks (normalizing values after [44]). Data source: [8,10,11,12,15,43].
Figure 7. Chondrite-normalized REE patterns (a) and primitive mantle-normalized trace element patterns (b) for Deqin–Weixi intermediate-felsic magmatic rocks (normalizing values after [44]). Data source: [8,10,11,12,15,43].
Minerals 12 00388 g007
Minerals 12 00388 g008 550

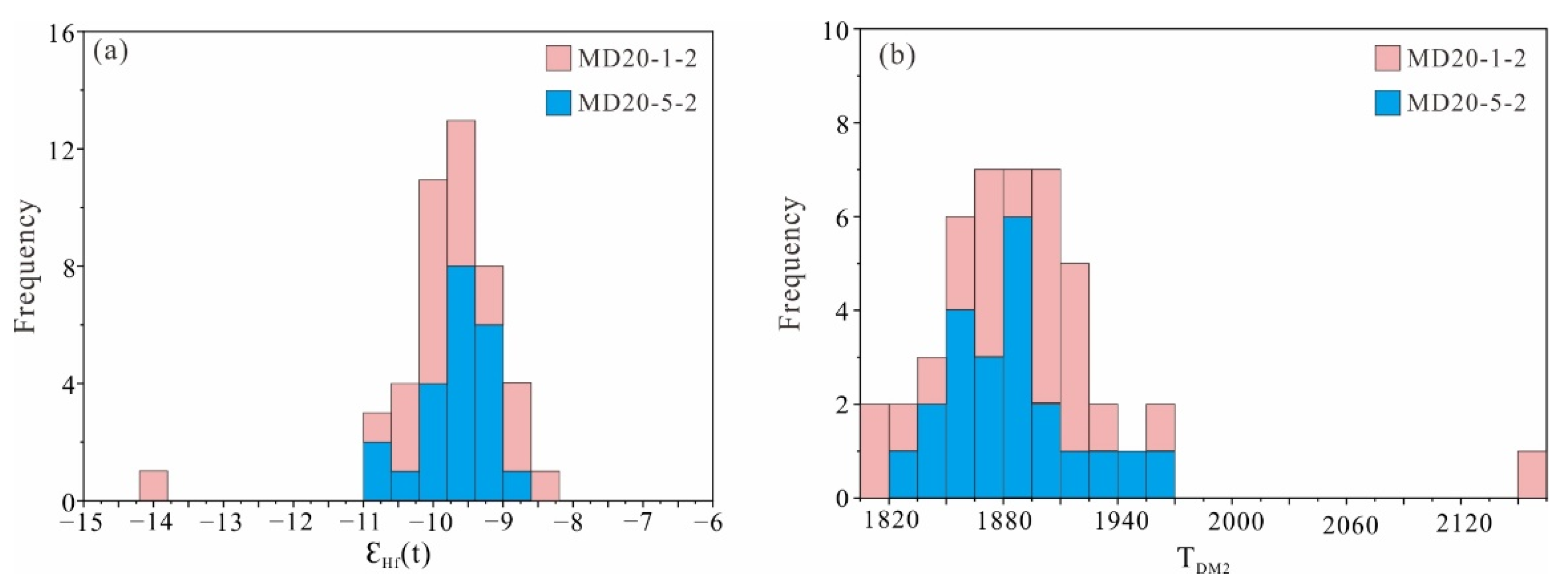

Figure 8. Histograms of εHf(t) (a) and two-stage Hf model age (TDM2) (b) of the Madeng dacite.
Figure 8. Histograms of εHf(t) (a) and two-stage Hf model age (TDM2) (b) of the Madeng dacite.
Minerals 12 00388 g008
Minerals 12 00388 g009 550

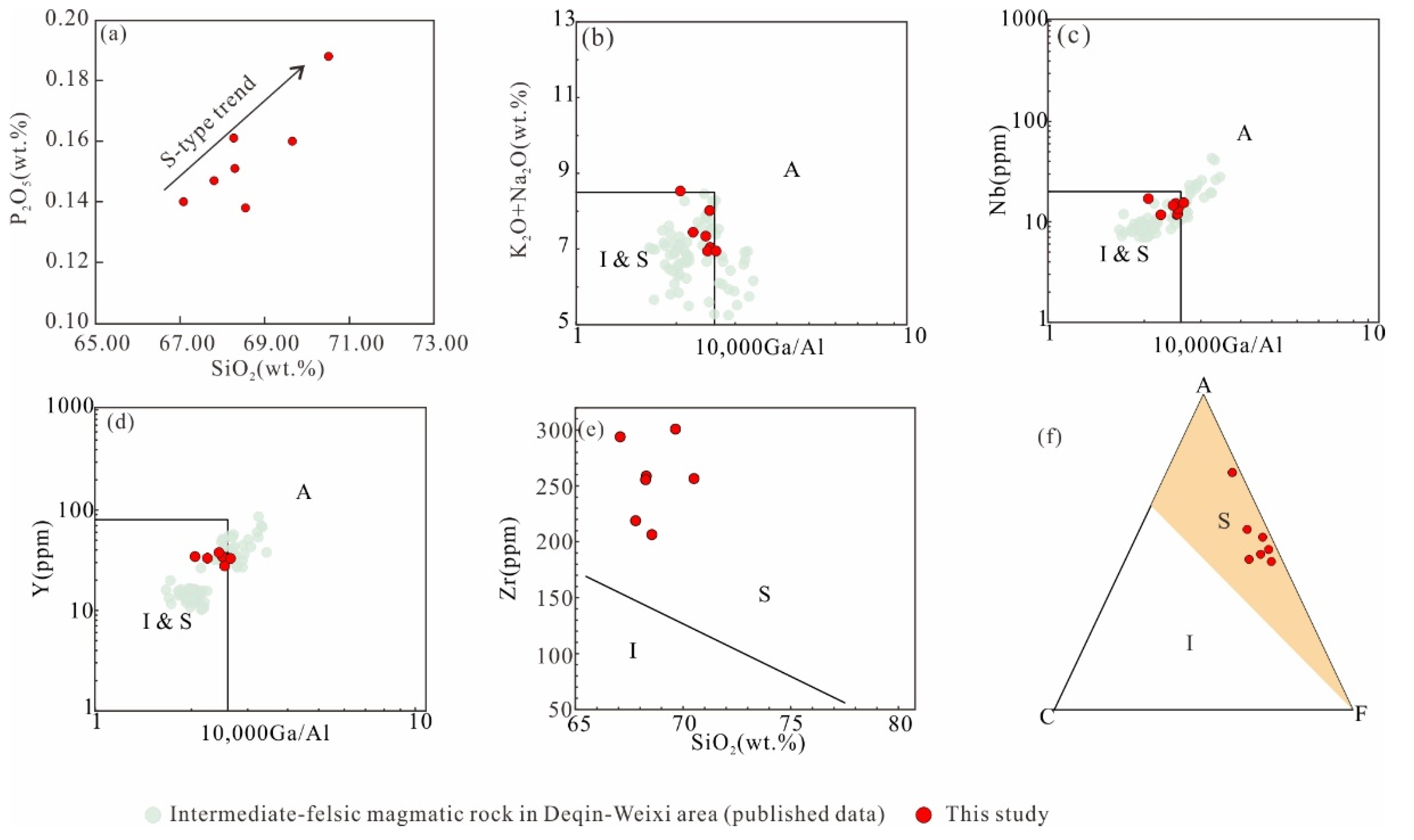

Figure 9. Petrogenetic discrimination plots for the Madeng dacite. (a) P2O5 vs. SiO2; (b–d) 10,000 Ga/Al vs. (K2O + Na2O), Nb and Y [51]; (e) SiO2 vs. Zr; (f) A(Al3O2-Na2O-K2O)-C(CaO)-F(FeOT + MgO) [50]. Data source: [8,10,11,12,15,43].
Figure 9. Petrogenetic discrimination plots for the Madeng dacite. (a) P2O5 vs. SiO2; (b–d) 10,000 Ga/Al vs. (K2O + Na2O), Nb and Y [51]; (e) SiO2 vs. Zr; (f) A(Al3O2-Na2O-K2O)-C(CaO)-F(FeOT + MgO) [50]. Data source: [8,10,11,12,15,43].
Minerals 12 00388 g009
Minerals 12 00388 g010 550

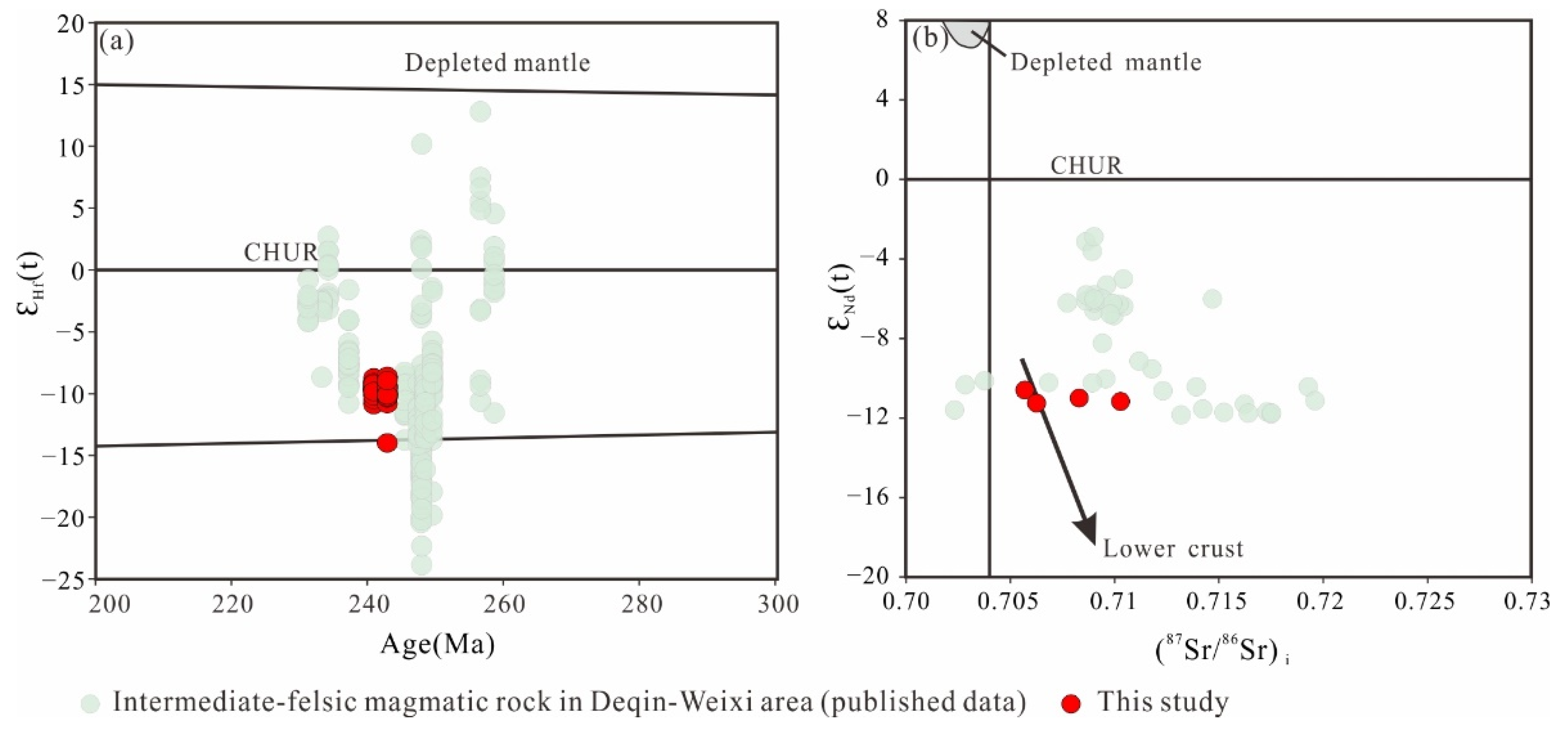

Figure 10. Zircon U-Pb age vs. εHf(t) (a) and (87Sr/86Sr)i vs. εNd(t) (b) for the Deqin–Weixi–Madeng intermediate-felsic magmatic rocks. Data source: Figure 10a [8,10,11,15]; Figure 10b [8,9,11,12,13].
Figure 10. Zircon U-Pb age vs. εHf(t) (a) and (87Sr/86Sr)i vs. εNd(t) (b) for the Deqin–Weixi–Madeng intermediate-felsic magmatic rocks. Data source: Figure 10a [8,10,11,15]; Figure 10b [8,9,11,12,13].
Minerals 12 00388 g010
Minerals 12 00388 g011 550

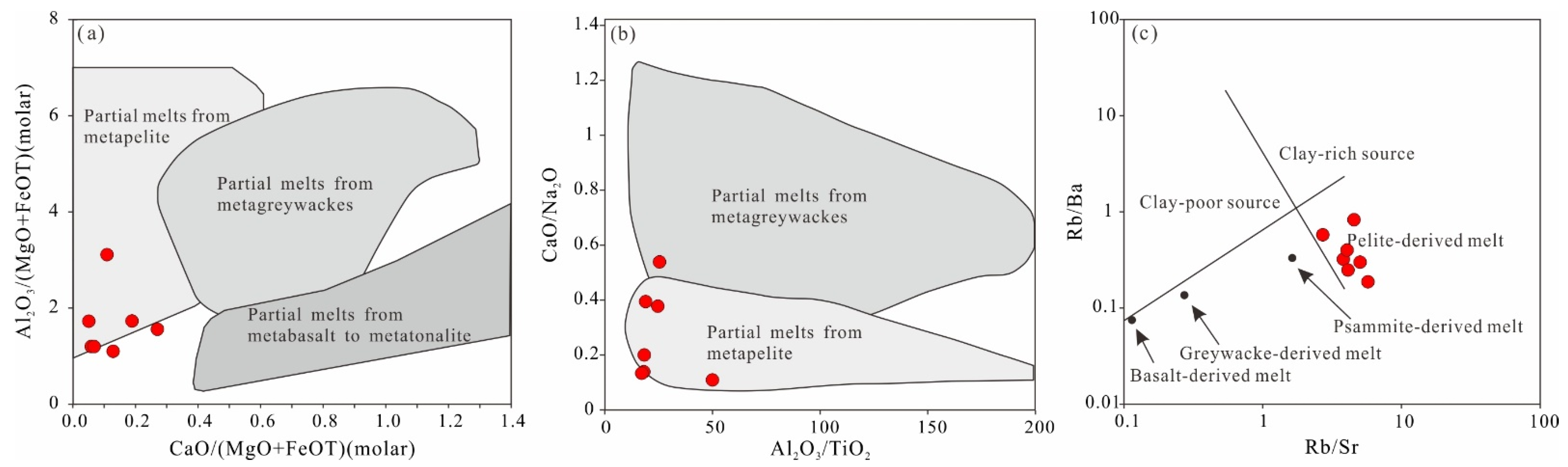

Figure 11. Magma source discrimination diagrams of Madeng dacite. (a) CaO/(MgO + FeOT) vs. Al2O3/(MgO + FeOT) [57]; (b) Al2O3/TiO2 vs. CaO/Na2O [55]; (c) Rb/Sr vs. Rb/Ba [58].
Figure 11. Magma source discrimination diagrams of Madeng dacite. (a) CaO/(MgO + FeOT) vs. Al2O3/(MgO + FeOT) [57]; (b) Al2O3/TiO2 vs. CaO/Na2O [55]; (c) Rb/Sr vs. Rb/Ba [58].
Minerals 12 00388 g011
Minerals 12 00388 g012 550
Figure 12. Harker diagrams for the Deqin–Weixi–Madeng intermediate-felsic magmatic rocks. (a) SiO2 vs. MgO; (b) SiO2 vs. Fe2O3T; (c) SiO2 vs. Al2O3; (d) SiO2 vs. TiO2; (e) SiO2 vs. CaO; (f) SiO2 vs. Na2O. Data source: [8,10,11,12,15,43].
Figure 12. Harker diagrams for the Deqin–Weixi–Madeng intermediate-felsic magmatic rocks. (a) SiO2 vs. MgO; (b) SiO2 vs. Fe2O3T; (c) SiO2 vs. Al2O3; (d) SiO2 vs. TiO2; (e) SiO2 vs. CaO; (f) SiO2 vs. Na2O. Data source: [8,10,11,12,15,43].
Minerals 12 00388 g012
Minerals 12 00388 g013 550

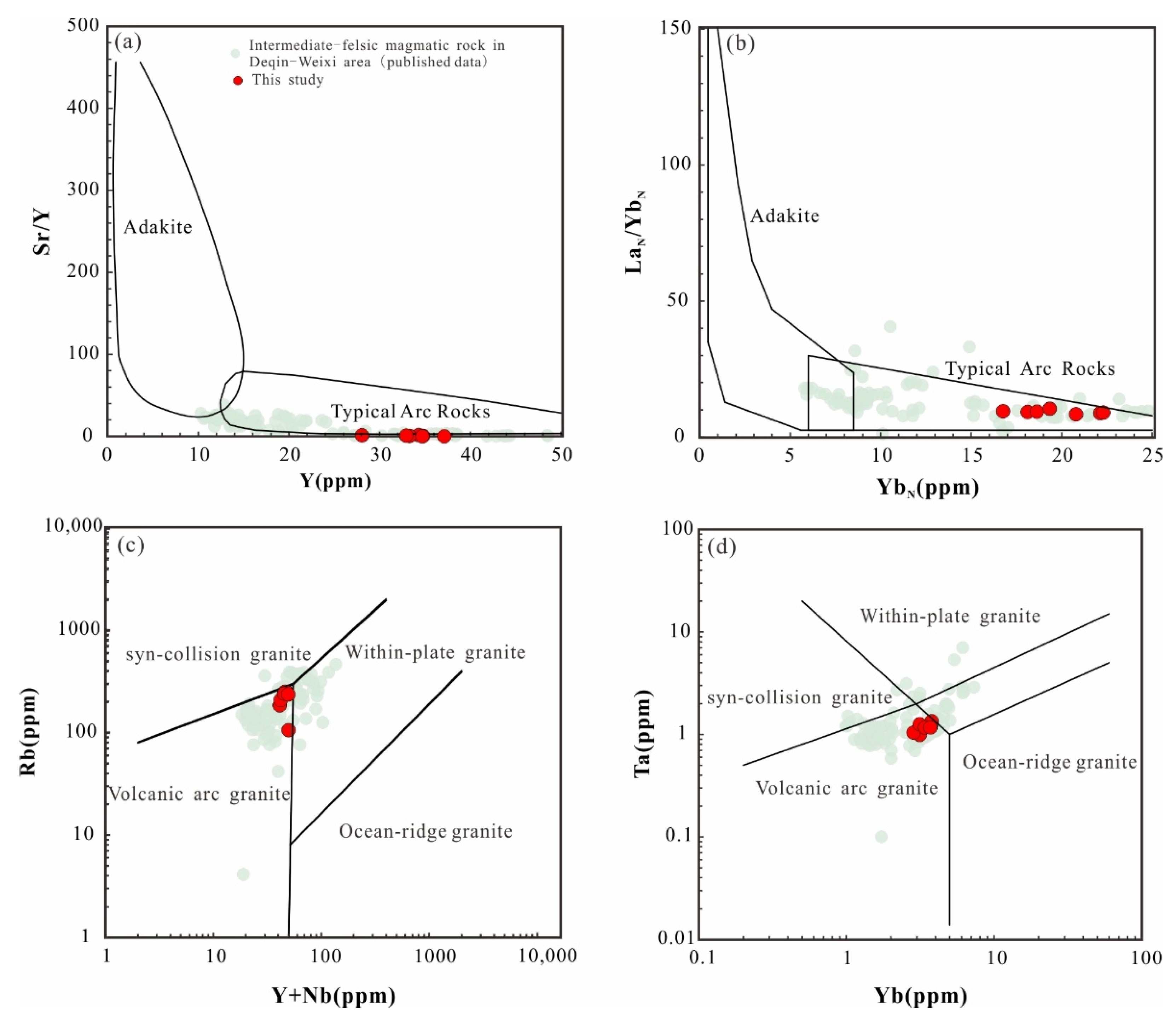

Figure 13. Tectonic discrimination plots for the Madeng dacite: (a) Y vs. Sr/Y [65]; (b) YbN vs. LaN/YbN [66] (N-Chondrite normalized [44]); (c) Y + Nb vs. Rb [67]; (d) Yb vs. Ta [67]. Data source: [8,10,11,12,15,43].
Figure 13. Tectonic discrimination plots for the Madeng dacite: (a) Y vs. Sr/Y [65]; (b) YbN vs. LaN/YbN [66] (N-Chondrite normalized [44]); (c) Y + Nb vs. Rb [67]; (d) Yb vs. Ta [67]. Data source: [8,10,11,12,15,43].
Minerals 12 00388 g013
Table
Table 1. Summary of samples from Madeng area.
Table 1. Summary of samples from Madeng area.
Sample No.CoordinatesLithology
MD20-1-126°30′4.4″ N, 99°42′26.5″ Edacite
MD20-1-226°30′2.5″ N, 99°42′25.5″ Edacite
MD20-5-226°29′25.0″ N, 99°42′12.4″ Edacite
MD20-8-126°28′22.5″ N, 99°42′21.7″ Edacite
MD19-7-126°28′20.1″ N, 99°42′19.8″ Edacite
MD20-7-126°27′32.1″ N, 99°41′40.8″ Edacite
MD20-7-226°27′34.4″ N, 99°41′42.4″ Edacite
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huang, G.; Zhuang, L.-L.; Yang, Y.-Q.; Tian, L.-D.; Wu, W.; Liu, J.-H. Petrogenesis and Tectonic Setting of the Madeng Dacite, SW Sanjiang Indosinian Orogen: Evidence from Zircon U-Pb-Hf Isotopes, and Whole-Rock Geochemistry and Sr-Nd Isotopes. Minerals 2022, 12, 388. https://doi.org/10.3390/min12030388

AMA Style

Huang G, Zhuang L-L, Yang Y-Q, Tian L-D, Wu W, Liu J-H. Petrogenesis and Tectonic Setting of the Madeng Dacite, SW Sanjiang Indosinian Orogen: Evidence from Zircon U-Pb-Hf Isotopes, and Whole-Rock Geochemistry and Sr-Nd Isotopes. Minerals. 2022; 12(3):388. https://doi.org/10.3390/min12030388

Chicago/Turabian Style

Huang, Gang, Liang-Liang Zhuang, Ya-Qi Yang, Li-Dan Tian, Wei Wu, and Jin-Hong Liu. 2022. "Petrogenesis and Tectonic Setting of the Madeng Dacite, SW Sanjiang Indosinian Orogen: Evidence from Zircon U-Pb-Hf Isotopes, and Whole-Rock Geochemistry and Sr-Nd Isotopes" Minerals 12, no. 3: 388. https://doi.org/10.3390/min12030388

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
