Simple and Rapid Synthesis of Organically Modified Natural Acid Clay for the Adsorption of Anionic and Cationic Dyes

by
Tomohiro Iwasaki
Department of Chemical Engineering, Osaka Metropolitan University, Osaka 599-8531, Japan
Minerals 2023, 13(1), 41; https://doi.org/10.3390/min13010041
Submission received: 19 November 2022 / Revised: 24 December 2022 / Accepted: 24 December 2022 / Published: 27 December 2022
(This article belongs to the Special Issue Raw and Organically Modified Clays and Their Various Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
A simple method for organically modifying a natural acid clay (Japanese acid clay) rapidly with alkylamine has been developed. Japanese acid clay mainly consists of acidic montmorillonite and was successfully modified with decylamine in water at room temperature for a short time period (10 min) using an ultrasonic bath without any pretreatments. The structure of the modified clay changed from exterior surface modification to intercalation with an increase in the decylamine content. The equilibrium adsorption capacity for the anionic dye methyl orange (MO) increased with increasing decylamine content. The adsorption kinetics and isotherm were well described by the pseudo-second-order and Langmuir models, respectively. Better MO adsorption was obtained under the conditions of high dosage, low pH value, and low temperature. The adsorbent was also found to have good adsorption for not only MO but also other anionic dyes (Congo red and eosin Y) and cationic dyes (methylene blue, crystal violet, and rhodamine B). In particular, the decylamine-intercalated clay adsorbent exhibited a high level of adsorption capacity for Congo red and crystal violet. The results demonstrate that the synthesis process can provide a simple and cost-effective organoclay as an adsorbent with high performance for the removal of anionic and cationic dyes.

1. Introduction

Removal of toxic organic pollutants from wastewater is critical to achieving the United Nations Sustainable Development Goals (UN SDGs) aimed at the realization of a sustainable society [1,2,3]. Among treatments of industrially discharged organic pollutants, the purification of wastewater containing synthetic dyes from dye production and dyeing processes is still a challenging issue [4]. To remove dyes efficiently from aqueous solutions, adsorption is widely and frequently employed due to easy operation and low energy consumption [5,6], and various adsorbents, such as activated carbon, zeolite, and metal-organic frameworks (MOFs), have been developed [7,8,9,10,11,12]. However, to enhance adsorption performance through pore development and surface activation, energy consumption and process costs can often increase [13]. Therefore, the development of a synthesis process for obtaining cost-effective adsorbents with high adsorption performance at low environmental impacts in production is needed.
Recently, organoclays, in which clays or layered (alumino-) silicates are modified with organic compounds, have attracted much attention for use as adsorbents for dye removal [14,15,16,17,18,19,20,21,22,23,24,25] because they can be relatively easily prepared under environmentally friendly conditions. In this study, an organoclay adsorbent using an inexpensive natural acid clay, Japanese acid clay [26,27,28] (which is a name for fuller’s earth yielded in Japan), has been newly developed. This acidic clay mainly consists of calcium-type montmorillonite and the montmorillonite layers have protons instead of sodium ions; namely, this clay is similar to acidic bentonite clay in which sodium ions are ion-exchanged with protons. The acidic clay is non-swelling in water, unlike normal bentonite clay. Decylamine was employed as the organic modifier of the acid clay [29], and the cost-effective organoclay adsorbent can be quite easily synthesized without heating (i.e., at room temperature) for a short time period. This results in the exterior surface modification and intercalation of the acid clay with decylamine [29]. The structural change of organoclay with this modification was investigated, and the dye adsorption properties were studied.

2. Materials and Methods

2.1. Synthesis and Characterization of Organoclays

Japanese acid clay and decylamine (DA) were purchased from Kishida Chemical (Sanda, Japan) and FUJIFILM Wako Pure Chemical (Osaka, Japan), respectively, and used without further purification. The cation exchange capacity (CEC) is approximately 10 cmol/kg. The chemical composition determined by energy dispersive X-ray spectroscopy (EDX; Epsilon 1, Malvern Panalytical, Malvern, UK) is as follows: 55.5 wt% SiO2, 11.2 wt% Al2O3, 2.7 wt% Fe2O3, and 0.9 wt% CaO, which is similar to normal bentonite.
Briefly, 0.1 g of Japanese acid clay powder was added to 20 g of deionized water in a glass tube with a screw cap. The aggregates of clay particles were disintegrated in an ultrasonic bath (40 kHz, 200 W) for 10 min. A predetermined amount of DA was added to the suspension and the DA-containing suspension was vigorously shaken at room temperature in the ultrasonic bath for 10 min. The clay particles modified with DA were filtered and dried at room temperature overnight. The organoclay samples were used for further characterization and dye adsorption study. In this work, five organoclay samples with different DA contents (4.5, 9.3, 16.2, 20.0, and 25.6 mass%, denoted as DA1, DA2, DA3, DA4, and DA5, respectively) were prepared. The DA contents were determined by thermogravimetry/differential thermogravimetric analysis (TG/DTA; DTG-60, Shimadzu, Kyoto, Japan) at a heating rate of 10 K/min under airflow (100 mL/min), assuming that the adsorbed water was eliminated below 120 °C based on the TG data of the original clay. The pristine (unmodified) clay was represented as DA0.
The structures of the samples were confirmed by a powder X-ray diffractometer (XRD-6100, Shimadzu, Kyoto, Japan; CuKα, wavelength = 0.154 nm, 30 mA, 30 kV, 1°/min). The morphologies of representative samples were observed with a field-emission scanning electron microscope (FE-SEM; JSM-6700F, JEOL, Tokyo, Japan) at 15 kV. The nitrogen adsorption–desorption isotherms were also measured at 77 K using nitrogen adsorption analysis (BELSORP MAX G, MicrotracBEL, Osaka, Japan) to determine the specific surface area and pore size distribution calculated using the Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) methods, respectively.

2.2. Dye Adsorption Study

The anionic and cationic dyes used in this work are listed in Table 1. To study the effects of the organoclay structure on the dye adsorption properties, anionic methyl orange (MO) dye, which is widely used as a model adsorbate to evaluate the adsorption properties of various adsorbents, was selected. The adsorption experiments were performed in batch mode. Typically, 10 mg of an organoclay sample as the adsorbent was added to 20 mL of the MO solution with a concentration of 20 mg/L. The adsorbents were used without selecting a specified grain fraction of the sample powders. The suspension was vigorously stirred at room temperature for a proper amount of time. After that, the adsorbent was centrifuged and the supernatant was collected to measure the concentration. The absorbance was measured with a spectrophotometer (U-2900, Hitachi High-Technologies, Tokyo, Japan) at the wavelength shown in Table 1. The MO concentration was determined using a calibration curve prepared in advance. The adsorbed amount of MO at a specified time was calculated by Equation (1).
q t   =   ( C 0 − C t ) V m
where qt (mg/g) is the adsorbed MO amount at a contact time t (h), C0 and Ct (mg/L) are the MO concentrations of the solutions before and after contact, respectively, V (L) is the volume of the solution, and m (g) is the mass of the adsorbent. To study the adsorption kinetics, the contact time was varied from 15 min to 4 h. The equilibrium adsorption capacity qe (mg/g) was calculated from the equilibrium concentration Ce (mg/L) obtained after contact for more than 24 h using Equation (1). In addition, the adsorbent dosage (= m/V), initial solution pH, and temperature were also varied between 0.24 g/L and 1.5 g/L, between 3.1 and 10.9, and between 301 K and 333 K, respectively. The pH was adjusted by using 0.1 mol/L HCl and 0.1 mol/L NaOH solutions. Furthermore, to investigate the adsorption properties of various dyes, experiments using several anionic (Congo red and eosin Y) and cationic (methylene blue, crystal violet, and rhodamine B) dyes were also conducted. In the adsorption experiments, the initial dye concentrations were varied as shown in Table 1, and the adsorption isotherms were analyzed. The reproducibility of each adsorption as well as the synthesis of organoclay samples was confirmed through repeated experiments. The Fourier transform infrared (FT-IR) spectra of the organoclay powder before and after the adsorption were recorded on a spectrophotometer (IRAffinity-1, Shimadzu, Kyoto, Japan) with the KBr pellet technique. The TG/DTA curves were also measured with the thermal analyzer mentioned above.

3. Results and Discussion

3.1. Change in the Structure of Organoclay with DA Content

The X-ray diffraction (XRD) pattern and basal spacing of the organoclay samples are shown in Figure 1 and Figure 2, respectively, together with those of the original clay. The original Japanese acid clay (DA0) had a diffraction peak at 2θ ≈ 6°, which almost coincided with acidic (protonated) montmorillonite [30] with a basal spacing of 1.5 nm. When the DA content was 4.5 mass% (i.e., DA1 sample), the crystal structure was almost the same as that of the original, which suggested that the DA molecules adhered onto the exterior surface of clay particles without intercalation into the montmorillonite interlayer spaces. As the DA content was increased, the basal spacing increased due to the intercalation of DA molecules. The DA2 sample (9.3 mass%) had a basal spacing of 1.8 nm, which was similar to the diameter (approximately 0.3 nm) of the DA molecule, which was estimated assuming that the shape of the DA molecule was cylindrical. This suggests that the DA2 sample has a lateral monolayer-type structure [31,32]. The DA3 sample (16.2 mass%) had a broad peak, indicating a disordered structure due to the transition region. In contrast, the diffraction peaks of the DA4 and DA5 samples (20.0 and 25.6 mass%, respectively) were sharp. In particular, the DA5 sample had a well-ordered intercalation structure with a basal spacing of 3.1 nm, suggesting a paraffin-type bilayer structure [31,32].
Typical FE-SEM images of DA0 (pristine), DA1 (exterior surface-modified), and DA5 (intercalated) samples are shown in Figure 3 as representatives. The morphologies of the DA1 sample were almost the same as those of the DA0 sample, which was similar to typical bentonite clays. The particles of the DA5 sample tended to aggregate more strongly. The nitrogen adsorption–desorption isotherms were measured to investigate the changes in the pore structure with surface modification and intercalation. As illustrated in Figure 4, the adsorption–desorption isotherms showed type IV adsorption behavior with a typical H3 hysteresis loop, which can be attributed to the slit-shaped pores of aggregates of plate-shaped particles. The pore size distribution curves are shown in Figure 5. The BET surface area, pore volume, and average pore diameter of the samples are summarized in Table 2. Although the original clay had a relatively large amount of mesopores and a relatively high specific surface area, modification with DA decreased the pore structure. In particular, the micropores and mesopores were drastically decreased by the modification, which may have resulted in a decrease in the specific surface area and pore volume. This result suggests that the DA molecules partially block the micropores and mesopores of the original clay.

3.2. Effect of Adsorbent Structure on MO Equilibrium Adsorption Capacity

The change in the MO equilibrium adsorption capacity with the DA content of the organoclay samples is illustrated in Figure 6. The equilibrium adsorption capacity drastically increased with increasing DA content below 9.3 mass%, which indicates that the DA molecules in the organoclays act as the adsorption sites for MO. The adsorption capacity reached 36 mg/g at a DA content above 20 mass% (i.e., the DA4 and DA5 samples). However, at higher than 9.3 mass% the increase in the adsorption capacity was slight, which suggested that the rate of effective adsorption sites decreased at high DA contents.
The relationship between the equilibrium adsorption capacity and the basal spacing of the samples is shown in Figure 7. Although the DA1 sample (4.5 mass% DA) had almost the same basal spacing as DA0 (original clay), the DA1 sample had a much larger adsorption capacity than DA0 due to surface modification with DA. The DA-intercalated samples with large values of basal spacing possessed relatively large amounts of DA molecules in the interlayer spaces, which resulted in high adsorption capacities. To investigate the effectiveness of DA in MO adsorption, the equilibrium adsorption capacity qe’ [mg/g-DA] per unit mass of DA was calculated for each organoclay sample. As shown in Figure 8, qe’ monotonically decreased with increasing DA content, which suggests that DA molecules on the exterior surface of clay particles acted as relatively more effective adsorption sites than in the interlayer spaces.

3.3. Dependence of Adsorbent Dosage, pH, and Temperature on MO Removal

The effects of adsorbent dosage, initial pH value, and temperature on the MO equilibrium adsorption capacity and removal efficiency of the DA5 sample, which had the maximal adsorption capacity among the samples, are displayed in Figure 9. With increasing adsorbent dosage, the removal efficiency gradually increased and reached 98% at 1.5 g/L due to an increase in the total surface area of the adsorbent (Figure 9a). However, the equilibrium adsorption capacity decreased as the adsorbent dosage was increased, which suggested a decrease in the rate of effective adsorption sites in the adsorbent.
Subsequently, as shown in Figure 9b, the equilibrium adsorption capacity and removal efficiency gently decreased with increasing pH, and a relatively low adsorption capacity was observed under basic conditions. MO adsorption with a removal efficiency higher than 90% was achieved under both acidic and neutral conditions.
At low temperatures, the equilibrium adsorption capacity and removal efficiency were relatively high and decreased with increasing temperature (Figure 9c), which suggests that MO adsorption is an exothermic process. Based on the adsorption data obtained at different temperatures, the MO adsorption onto the DA5 sample was thermodynamically analyzed. The Gibbs free energy ΔG° (J/mol) is expressed as
Δ G °   =   Δ H   −   T Δ S °
where ΔH° (J/mol) is the standard enthalpy, ΔS° (J/(mol·K)) is the standard entropy and T (K) is the absolute temperature. The thermodynamic parameters ΔH° and ΔS° for adsorption are expressed by the Van ’t Hoff equation.
ln K d   =   Δ S ° R   −   Δ H ° R T
where R (J/(mol·K)) is the gas constant and Kd (–) is the distribution coefficient defined by Equation (4) [33].
K d   =   q e m C e V
where qe (mg/g) is the equilibrium uptake of MO, m (g) is the mass of the adsorbent, Ce (mg/L) is the MO concentration at equilibrium, and V (L) is the volume of the solution. Using the experimental data shown in Figure 9c, ln Kd was plotted against 1/T. As shown in Figure 10, a linear relationship between ln Kd and 1/T was obtained. The values of ΔH° and ΔS° were determined from the slope and intercept, respectively, using Equation (3) and the value of ΔG° at each temperature was calculated using Equation (2). The thermodynamic parameters are summarized in Table 3. The values of ΔG°, ΔH°, and ΔS° were all negative within the temperature range, which suggests the feasibility and spontaneity of the adsorption process, the exothermic adsorption process, and the decrease in randomness at the adsorbent/dye interface during the adsorption process. In addition, large negative values of ΔG° at low temperatures suggest that the DA5 sample has a high affinity for MO removal at lower temperatures.

3.4. Analysis of Adsorption Kinetics and Isotherm

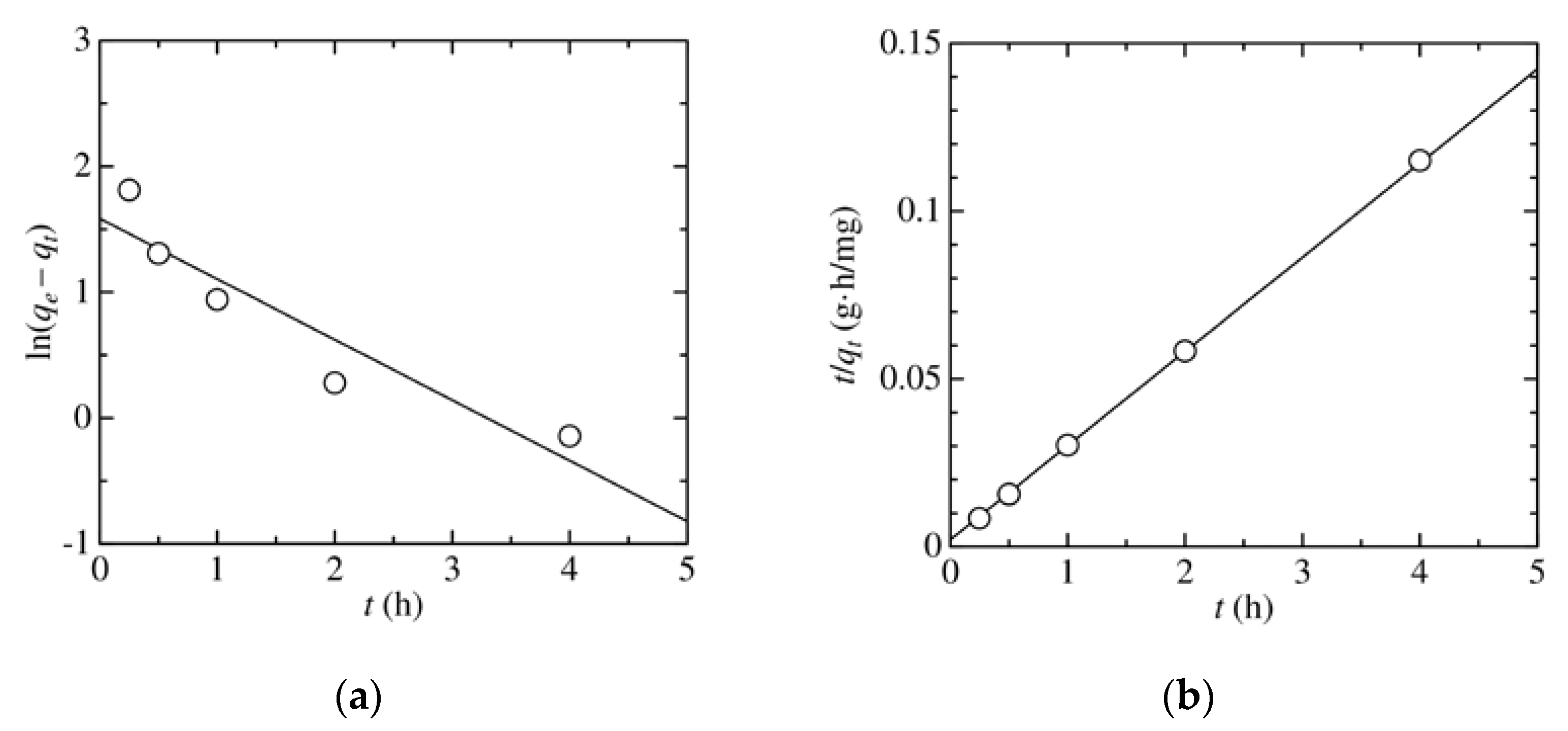

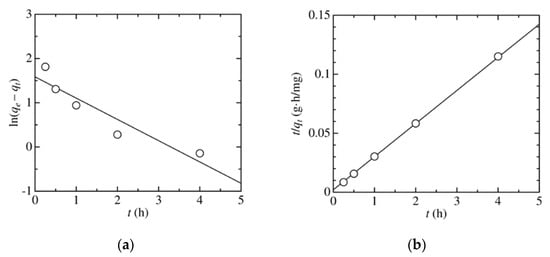

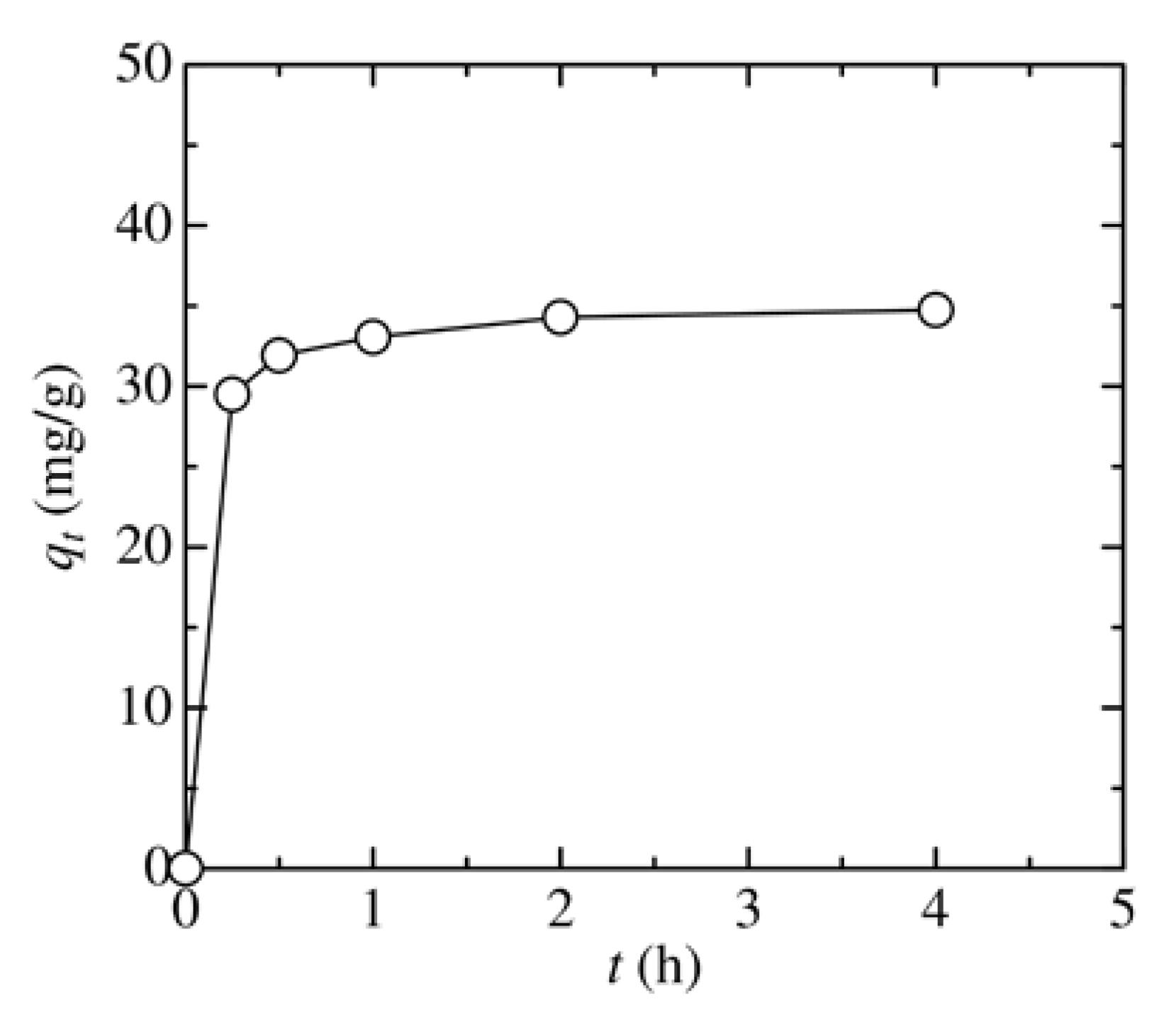

The change in the adsorbed amount of MO with the contact time is illustrated in Figure 11. The adsorbed amount of MO rapidly increased in the initial stage and approximately reached equilibrium after several hours. To investigate the mechanism of adsorption, two kinetic models (pseudo-first-order and pseudo-second-order equation models), which are expressed by Equations (5) and (6), respectively, were applied to the experimental data.
ln ( q e   −   q t )   =   ln q e   −   k 1 t
t q t   =   1 k 2 q e 2 + t q e
where k1 (h–1) and k2 (g/(mg·h)) are the rate constants of adsorption, qt (mg/g) is the adsorbed amount at contact time t (h), and qe (mg/g) is the equilibrium uptake. As shown in Figure 12 and Table 4, the experimental data clearly fit well with the pseudo-second-order model, which indicates that the pseudo-second-order model more accurately expressed the MO adsorption kinetics than the pseudo-first-order model. The results are similar to the results reported in the literature [18,23]. This suggests that the adsorption of MO by the DA-intercalated clay is a chemisorption process, which is the rate-determining step [34,35]. The rate constant k2 of the pseudo-second-order model is relatively large compared with literature values [36,37,38], which resulted in a high adsorption rate and a short equilibrium arrival time, suggesting that the DA5 sample exhibits good adsorption performance.

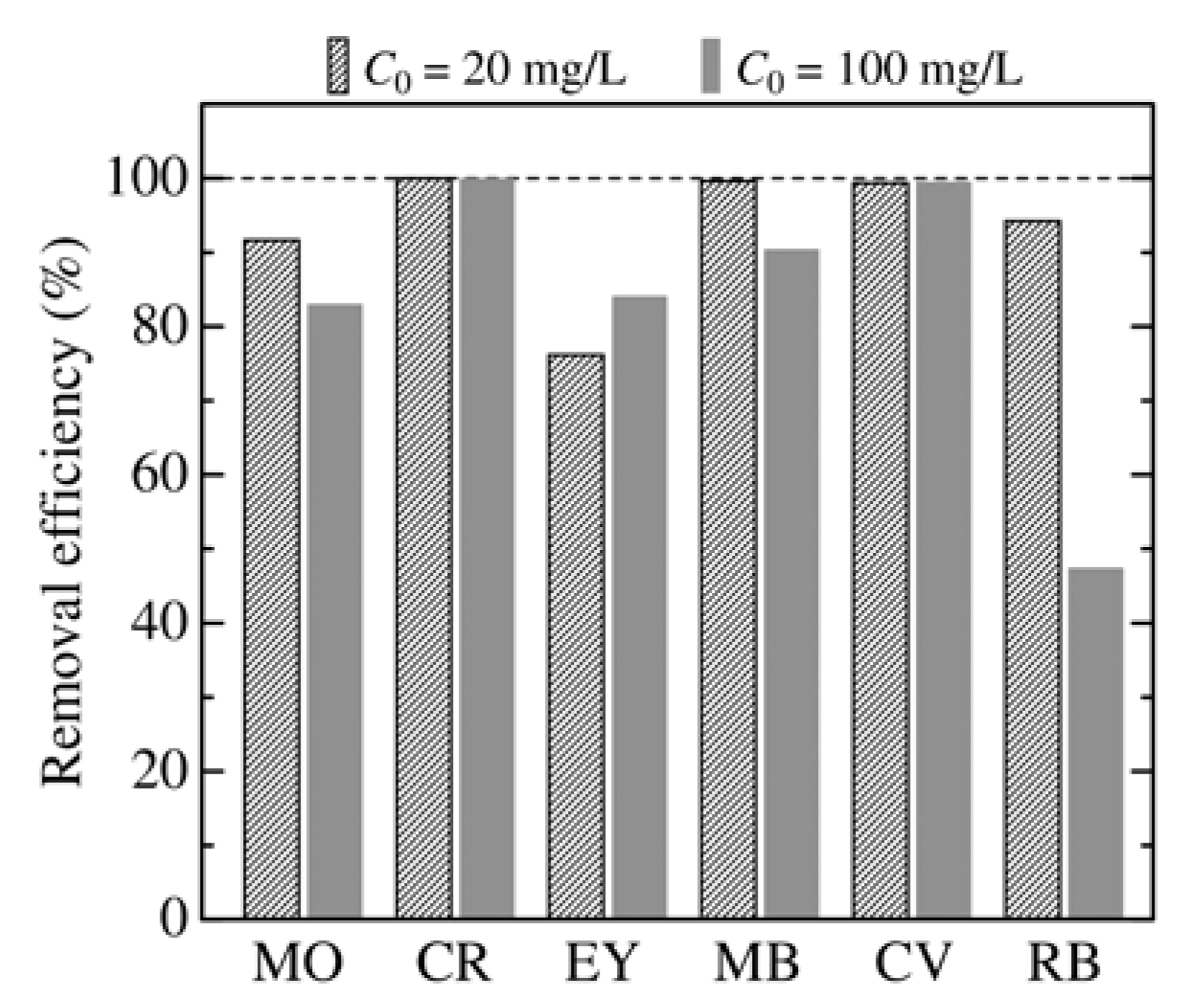

The adsorption of various dyes onto the DA5 sample was examined. The removal efficiency of the DA5 sample for the anionic and cationic dyes listed in Table 1 at initial concentrations C0 of 20 and 100 mg/L is shown in Figure 13. The DA5 sample exhibited good removability for the anionic and cationic dyes. In particular, the CR and CV dyes were almost completely removed successfully. The difference in the removal efficiency among the dyes may be attributed to variations in the hydrophobic interaction between dye and decylamine. The details are not clear at present and will be studied in future work. The FT-IR spectra of the DA5 samples after the adsorption at the initial concentration of 100 mg/L were shown in Figure 14. The DA0 and DA5 samples had typical absorption bands attributed to the hydroxyl group and alkyl chain, respectively [39,40]. The dye-loaded DA5 samples had characteristic absorption bands of each dye (indicated by the arrows in Figure 14) [41,42,43,44,45,46], which confirmed the dye adsorption. The TG/DTA curves were also illustrated in Figure 15. The DA0 sample had an endothermic peak below 100 °C which can be caused by the elimination of the adsorbed water. The DA5 sample before the adsorption had not only the endothermic peak but also an additional endothermic peak at approximately 150 °C and two exothermic peaks above 170 °C which may be attributed to the elimination and thermal decomposition of decylamine. In the dye-loaded samples, the small exothermic peak observed at 180 °C for the DA5 sample before the adsorption tended to shift toward higher temperatures while the large exothermic peak was observed around 340 °C for all the DA5 samples before and after the adsorption. Furthermore, the dye-loaded samples had an additional exothermic peak at high temperatures. As a result, the weight could decrease in a wide temperature range.

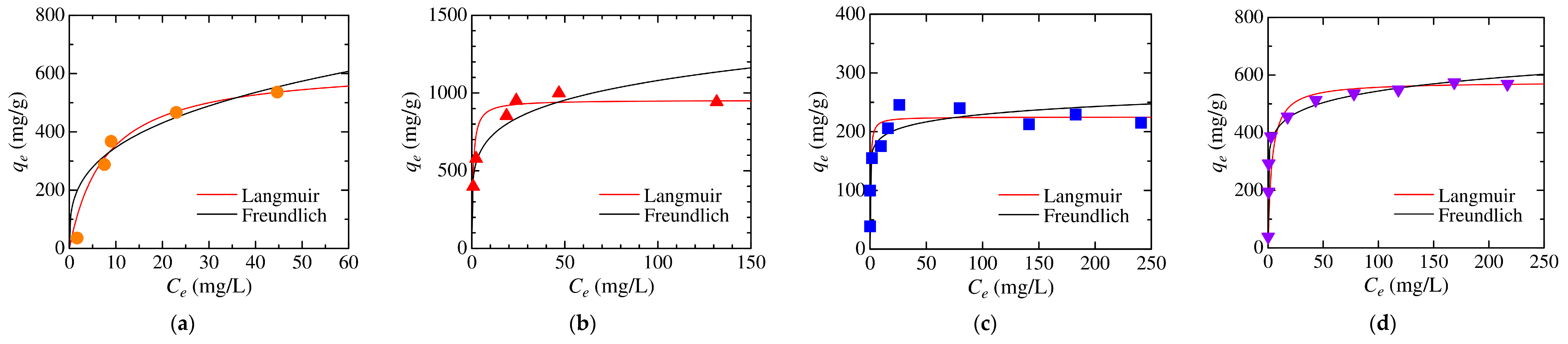

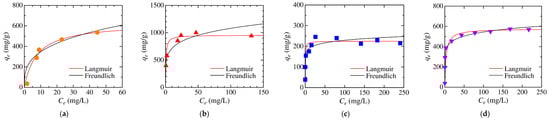

Subsequently, the adsorption isotherms for MO, CR, MB, and CV, for which relatively good adsorption was observed, were further investigated. According to the variation in the equilibrium uptake qe with the dye concentration Ce at equilibrium at various initial dye concentrations, the adsorption isotherm was analyzed by using the Langmuir model [47] and the Freundlich model [48], which are described by Equations (7) and (8), respectively.
C e q e = 1 q L K L + C e q m
ln q e = ln K F + 1 n ln C e
where qL (mg/g) is the maximum adsorption capacity of the adsorbent, KL (L/mg) is the Langmuir constant, and KF (L/mg) and n (–) are the Freundlich constants. As shown in Figure 16 and Table 5, the Langmuir equation fit the experimental adsorption data well, thereby representing monolayer adsorption on a homogeneous surface.
To investigate in detail the Langmuir isotherm, a dimensionless parameter (the separation factor RL), which was proposed by Hall et al. [49] and is defined by Equation (9), can be used [50,51].
R L = 1 1 + K L C 0

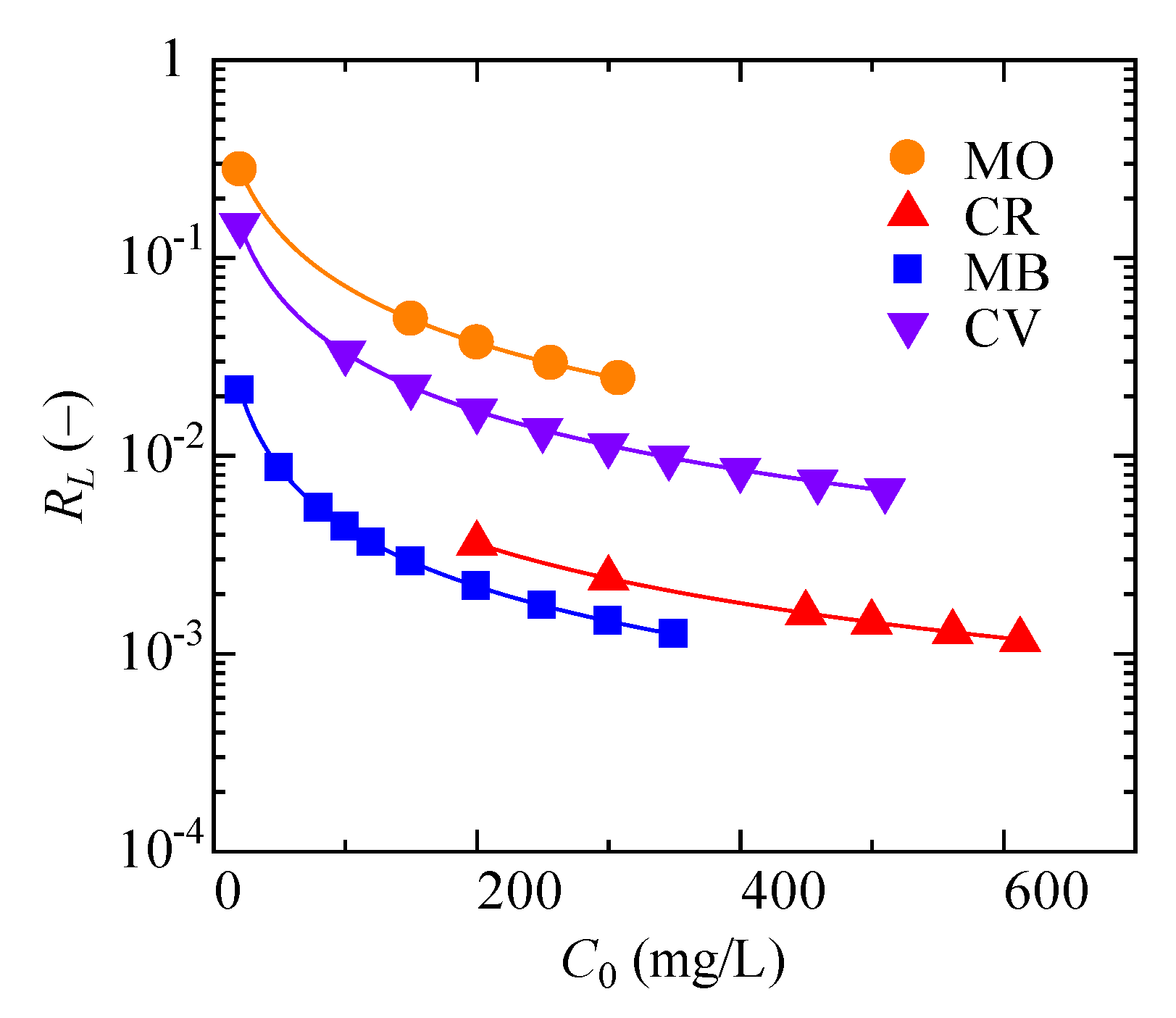

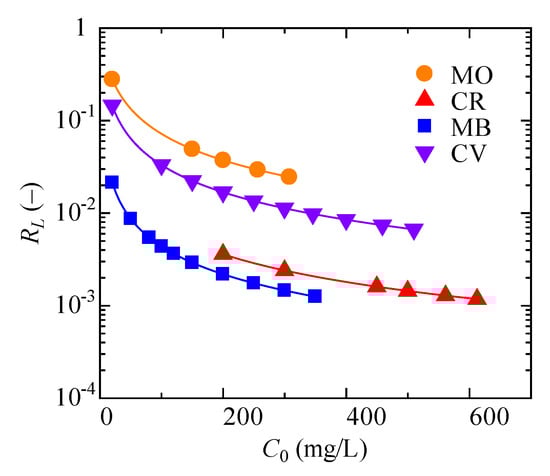

where C0 is the initial dye concentration. As shown in Figure 17, the RL values for the MO, CR, MB and CV adsorption onto the DA5 sample were between 0.001 and 0.3, which were in the range of 0 < RL < 1; hence, the DA5 sample shows satisfactory adsorption of the dyes under the specified conditions [52]. In particular, RL for the CR, MB, and CV adsorption was below 0.01 in many experiments, suggesting that the DA5 sample undergoes an irreversible dye adsorption process over a wide range of initial dye concentrations.
The Langmuir adsorption capacities of the DA5 sample for the MO, CR, MB, and CV dyes were compared with those of various conventional adsorbents. The comparison with some recently reported literature values is shown in Table 6. Although the adsorption conditions differed from each other and some adsorbents had a maximum adsorption capacity higher than 1000 mg/g for these dyes, the DA5 sample had a high level of adsorption capacity among recently developed adsorbents including functional mesoporous silica materials with highly efficient removal of dyes [53,54,55]. This suggests that the DA5 sample can be widely used for the adsorption of anionic and cationic dyes.

4. Conclusions

An organoclay, which consisted of Japanese acid clay and decylamine as the synthetic dye adsorbent, was successfully synthesized in a simple and cost-effective process with low environmental impact. The structure of the organoclay changed with the decylamine content. The anionic dye (MO) removal from the aqueous solution varied depending on the structure of the organoclay; the decylamine-intercalated acid clay showed a high adsorption capacity. The adsorption conditions (dosage of adsorbent, solution pH, and temperature) for obtaining relatively high removal efficiencies were determined. Thermodynamic analysis revealed the feasibility and spontaneity of the adsorption process. The adsorption kinetics and isotherm were expressed by the pseudo-second-order equation and Langmuir models, respectively. Relatively large values of the adsorption rate constant and maximum adsorption capacity of the models suggest that the organoclay adsorbent with the decylamine-intercalated structure has good adsorption performance. The adsorbent was also found to be effective for the adsorption of various anionic and cationic dyes; in particular, Congo red and crystal violet were more effectively removed. The results suggest that the organoclay adsorbent is promising for the adsorption removal of toxic organic pollutants from wastewater.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The author would like to thank T. Onizuka from Osaka Prefecture University for help with the SEM observation and M. Fukuda from Osaka Metropolitan University for help with the pore analysis.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Obaideen, K.; Shehata, N.; Sayed, E.T.; Abdelkareem, M.A.; Mahmoud, M.S.; Olabi, A.G. The role of wastewater treatment in achieving sustainable development goals (SDGs) and sustainability guideline. Energy Nexus 2022, 7, 100112. [Google Scholar] [CrossRef]
  2. Adeola, A.O.; Abiodun, B.A.; Adenuga, D.O.; Nomngongo, P.N. Adsorptive and photocatalytic remediation of hazardous organic chemical pollutants in aqueous medium: A review. J. Contam. Hydrol. 2022, 248, 104019. [Google Scholar] [CrossRef] [PubMed]
  3. Rai, P.K. Novel adsorbents in remediation of hazardous environmental pollutants: Progress, selectivity, and sustainability prospects. Clean. Mater. 2022, 3, 100054. [Google Scholar] [CrossRef]
  4. Saravanan, A.; Kumar, P.S.; Hemavathy, R.V.; Jeevanantham, S.; Jawahar, M.J.; Neshaanthini, J.P.; Saravanan, R. A review on synthesis methods and recent applications of nanomaterial in wastewater treatment: Challenges and future perspectives. Chemosphere 2022, 307, 135713. [Google Scholar] [CrossRef]
  5. Teo, S.H.; Ng, C.H.; Islam, A.; Abdulkareem-Alsultan, G.; Joseph, C.G.; Janaun, J.; Taufiq-Yap, Y.H.; Khandaker, S.; Islam, G.J.; Znad, H.; et al. Sustainable toxic dyes removal with advanced materials for clean water production: A comprehensive review. J. Clean. Prod. 2022, 332, 130039. [Google Scholar] [CrossRef]
  6. Lan, D.; Zhu, H.; Zhang, J.; Li, S.; Chen, Q.; Wang, C.; Wu, T.; Xu, M. Adsorptive removal of organic dyes via porous materials for wastewater treatment in recent decades: A review on species, mechanisms and perspectives. Chemosphere 2022, 293, 133464. [Google Scholar] [CrossRef]
  7. Sultana, M.; Rownok, M.H.; Sabrin, M.; Rahaman, M.H.; Nur Alam, S.M. A review on experimental chemically modified activated carbon to enhance dye and heavy metals adsorption. Cleaner Eng. Technol. 2022, 6, 100382. [Google Scholar] [CrossRef]
  8. Sutar, S.; Patil, P.; Jadhav, J. Recent advances in biochar technology for textile dyes wastewater remediation: A review. Environ. Res. 2022, 209, 112841. [Google Scholar] [CrossRef]
  9. Adel, M.; Ahmed, M.A.; Elabiad, M.A.; Mohamed, A.A. Removal of heavy metals and dyes from wastewater using graphene oxide-based nanomaterials: A critical review. Environ. Nanotechnol. Monit. Manag. 2022, 18, 100719. [Google Scholar] [CrossRef]
  10. De Magalhães, L.F.; Da Silva, G.R.; Peres, A.E.C. Zeolite application in wastewater treatment. Adsorp. Sci. Technol. 2022, 2022, 4544104. [Google Scholar] [CrossRef]
  11. Abdel Rahman, R.O.; El-Kamash, A.M.; Hung, Y.-T. Applications of nano-zeolite in wastewater treatment: An overview. Water 2022, 14, 137. [Google Scholar] [CrossRef]
  12. Sriram, G.; Bendre, A.; Mariappan, E.; Altalhi, T.; Kigga, M.; Ching, Y.C.; Jung, H.-Y.; Bhaduri, B.; Kurkuri, M. Recent trends in the application of metal-organic frameworks (MOFs) for the removal of toxic dyes and their removal mechanism—A review. Sustain. Mater. Technol. 2022, 31, e00378. [Google Scholar] [CrossRef]
  13. Jaria, G.; Calisto, V.; Esteves, V.I.; Otero, M. Overview of relevant economic and environmental aspects of waste-based activated carbons aimed at adsorptive water treatments. J. Clean. Prod. 2022, 344, 130984. [Google Scholar] [CrossRef]
  14. Zhang, T.; Wang, W.; Zhao, Y.; Bai, H.; Wen, T.; Kang, S.; Song, G.; Song, S.; Komarneni, S. Removal of heavy metals and dyes by clay-based adsorbents: From natural clays to 1D and 2D nano-composites. Chem. Eng. J. 2021, 420, 127574. [Google Scholar] [CrossRef]
  15. Kausor, M.A.; Gupta, S.S.; Bhattacharyya, K.G.; Chakrabortty, D. Montmorillonite and modified montmorillonite as adsorbents for removal of water soluble organic dyes: A review on current status of the art. Inorg. Chem. Commun. 2022, 143, 109686. [Google Scholar] [CrossRef]
  16. Liu, B.; Wang, X.; Yang, B.; Sun, R. Rapid modification of montmorillonite with novel cationic Gemini surfactants and its adsorption for methyl orange. Mater. Chem. Phys. 2011, 130, 1220–1226. [Google Scholar] [CrossRef]
  17. Kan, T.; Jiang, X.; Zhou, L.; Yang, M.; Duan, M.; Liu, P.; Jiang, X. Removal of methyl orange from aqueous solutions using a bentonite modified with a new gemini surfactant. Appl. Clay Sci. 2011, 54, 184–187. [Google Scholar] [CrossRef]
  18. Luo, Z.; Gao, M.; Ye, Y.; Yang, S. Modification of reduced-charge montmorillonites by a series of Gemini surfactants: Characterization and application in methyl orange removal. Appl. Surf. Sci. 2015, 324, 807–816. [Google Scholar] [CrossRef]
  19. Liang, Y.; Li, H. A comparison of trimeric surfactant intercalated montmorillonite with its gemini modified one: Characterization and application in methyl orange removal. J. Mol. Liq. 2017, 227, 139–146. [Google Scholar] [CrossRef]
  20. Belhouchat, N.; Zaghouane-Boudiaf, H.; Viseras, C. Removal of anionic and cationic dyes from aqueous solution with activated organo-bentonite/sodium alginate encapsulated beads. Appl. Clay Sci. 2017, 135, 9–15. [Google Scholar] [CrossRef]
  21. Ren, H.-P.; Tian, S.-P.; Zhu, M.; Zhao, Y.-Z.; Li, K.-X.; Ma, Q.; Ding, S.-Y.; Gao, J.; Miao, Z. Modification of montmorillonite by Gemini surfactants with different chain lengths and its adsorption behavior for methyl orange. Appl. Clay Sci. 2018, 151, 29–36. [Google Scholar] [CrossRef]
  22. Gamoudi, S.; Srasra, E. Removal of cationic and anionic dyes using purified and surfactant-modified Tunisian clays: Kinetic, isotherm, thermodynamic and adsorption–mechanism studies. Clay Miner. 2018, 53, 159–174. [Google Scholar] [CrossRef]
  23. Peng, S.; Mao, T.; Zheng, C.; Wu, X.; Wei, Y.; Zeng, Z.; Xiao, R.; Sun, Y. Polyhydroxyl gemini surfactant-modified montmorillonite for efficient removal of methyl orange. Colloids Surf. A Physicochem. Eng. Asp. 2019, 578, 123602. [Google Scholar] [CrossRef]
  24. Saavedra-Labastida, E.; Díaz-Nava, M.C.; Illescas, J.; Muro, C. Comparison of the removal of an anionic dye from aqueous solutions by adsorption with organically modified clays and their composites. Water Air Soil Pollut. 2019, 230, 88. [Google Scholar] [CrossRef]
  25. Iwasaki, T. Structure of a layered octosilicate intercalated with alkylamines with different molecular structures in water. J. Solid State Chem. 2020, 290, 121545. [Google Scholar] [CrossRef]
  26. Sasaki, S. Studies on Japanese acid earth. Soil Sci. Plant Nutr. 1955, 1, 7–8. [Google Scholar] [CrossRef] [Green Version]
  27. Sasaki, R.; Takahashi, N.; Sakao, K.; Goto, T. Adsorption of zearalenone to Japanese acid clay and influencing factors. Mycotoxin Res. 2014, 30, 33–41. [Google Scholar] [CrossRef]
  28. Hayakawa, T.; Oya, M.; Minase, M.; Fujita, K.; Teepakakorn, A.; Ogawa, M. Preparation of sodium-type bentonite with useful swelling property by a mechanochemical reaction from a weathered bentonite. Appl. Clay Sci. 2019, 175, 124–129. [Google Scholar] [CrossRef]
  29. Iwasaki, T. Effect of solvents on the direct intercalation of decylamine into H-octosilicate. Appl. Clay Sci. 2020, 199, 105882. [Google Scholar] [CrossRef]
  30. Kwon, O.-Y.; Park, K.-W. Intercalation behavior of dodecylamine into layered silicates in organic solvents. J. Ind. Eng. Chem. 2001, 7, 44–49. [Google Scholar]
  31. Lagaly, G. Interaction of alkylamines with different types of layered compounds. Solid State Ion. 1986, 22, 43–51. [Google Scholar] [CrossRef]
  32. Fu, S.; Sun, Z.; Huang, P.; Li, Y.; Hu, N. Some basic aspects of polymer nanocomposites: A critical review. Nano Mater. Sci. 2019, 1, 2–30. [Google Scholar] [CrossRef]
  33. Boukhemkhem, A.; Pizarro, A.H.; Molina, C.B. Enhancement of the adsorption properties of two natural bentonites by ion exchange: Equilibrium, kinetics and thermodynamic study. Clay Miner. 2020, 55, 132–141. [Google Scholar] [CrossRef]
  34. Agcaoili, A.R.; Herrera, M.U.; Futalan, C.M.; Balela, M.D.L. Fabrication of polyacrylonitrile-coated kapok hollow microtubes for adsorption of methyl orange and Cu(II) ions in aqueous solution. J. Taiwan Inst. Chem. Eng. 2017, 78, 359–369. [Google Scholar] [CrossRef]
  35. Gamoudi, S.; Srasra, E. Adsorption of organic dyes by HDPy+-modified clay: Effect of molecular structure on the adsorption. J. Mol. Struct. 2019, 1193, 522–531. [Google Scholar] [CrossRef]
  36. Hua, T.; Li, D.; Li, X.; Lin, J.; Niu, J.; Cheng, J.; Zhou, X.; Hu, Y. Synthesis of mesoporous-structured MIL-68(Al)/MCM-41-NH2 for methyl orange adsorption: Optimization and selectivity. Environ. Res. 2022, 215, 114433. [Google Scholar] [CrossRef]
  37. Zhu, B.; Xu, J.; Xu, Z.; Wu, M.; Jiang, H. Soft-template solvent thermal method synthesis of magnetic mesoporous carbon–silica composite for adsorption of methyl orange from aqueous solution. Environ. Sci. Pollut. Res. 2022, 29, 40734–40744. [Google Scholar] [CrossRef]
  38. Hajipour, N.; Ghorbanpour, M.; Safajou-jahankhanemlou, M. Synthesis and characterization of solid-state Fe-exchanged nano-bentonite and evaluation of methyl orange adsorption. Environ. Sci. Pollut. Res. 2022, 29, 49898–49907. [Google Scholar] [CrossRef]
  39. Horri, N.; Sanz-Pérez, E.S.; Arencibia, A.; Sanz, R.; Frini-Srasra, N.; Srasra, E. Effect of acid activation on the CO2 adsorption capacity of montmorillonite. Adsorption 2020, 26, 793–811. [Google Scholar] [CrossRef]
  40. Okamoto, H.; Kumai, Y.; Sugiyama, Y.; Mitsuoka, T.; Nakanishi, K.; Ohta, T.; Nozaki, H.; Yamaguchi, S.; Shirai, S.; Nakano, H. Silicon nanosheets and their self-assembled regular stacking structure. J. Am. Chem. Soc. 2010, 132, 2710–2718. [Google Scholar] [CrossRef]
  41. Shen, T.; Jiang, C.; Wang, C.; Sun, J.; Wang, X.; Li, X. A TiO2 modified abiotic–biotic process for the degradation of the azo dye methyl orange. RSC Adv. 2015, 5, 58704–58712. [Google Scholar] [CrossRef]
  42. Chen, Y.; Chen, S.; Deng, Z.; Xu, X.; Qin, J.; Guo, X.; Bai, Z.; Chen, X.; Lu, Z. Fabrication of polystyrene/CuO@calcined layered double hydroxide microspheres with high adsorption capacity for Congo red. Colloids Surf. A Physicochem. Eng. Asp. 2022, 652, 129827. [Google Scholar] [CrossRef]
  43. Azmi, S.N.H.; Al-Fazari, A.; Al-Badaei, M.; Al-Mahrazi, R. Utility of eosin Y as a complexing reagent for the determination of citalopram hydrobromide in commercial dosage forms by fluorescence spectrophotometry. Luminescence 2015, 30, 1352–1359. [Google Scholar] [CrossRef] [PubMed]
  44. Alshehri, A.A.; Malik, M.A. Biogenic fabrication of ZnO nanoparticles using Trigonella foenum-graecum (Fenugreek) for proficient photocatalytic degradation of methylene blue under UV irradiation. J. Mater. Sci. Mater. Electron. 2019, 30, 16156–16173. [Google Scholar] [CrossRef]
  45. Sulthana, R.; Taqui, S.N.; Syed, U.T.; Soudagar, M.E.M.; Mujtaba, M.A.; Mir, R.A.; Shahapurkar, K.; Khidmatgar, A.; Mohanavel, V.; Syed, A.A.; et al. Biosorption of crystal violet by nutraceutical industrial fennel seed spent equilibrium, kinetics, and thermodynamic studies. Biocatal. Agric. Biotechnol. 2022, 43, 102402. [Google Scholar] [CrossRef]
  46. Jiang, Z.; Dong, B.; Chen, B.; Wang, J.; Xu, L.; Zhang, S.; Song, H. Multifunctional Au@mSiO2/rhodamine B isothiocyanate nanocomposites: Cell imaging, photocontrolled drug release, and photothermal therapy for cancer cells. Small 2013, 9, 604–612. [Google Scholar] [CrossRef] [PubMed]
  47. Langmuir, I. The adsorption of gases on plane surfaces of glass, mica and platinum. J. Am. Chem. Soc. 1918, 40, 1361–1403. [Google Scholar] [CrossRef] [Green Version]
  48. Freundlich, H. Über die Adsorption in Lösungen. Z. Phys. Chem. 1907, 57, 385–470. [Google Scholar] [CrossRef]
  49. Hall, K.R.; Eagleton, L.C.; Acrivos, A.; Vermeulen, T. Pore- and solid-diffusion kinetics in fixed-bed adsorption under constant-pattern conditions. Ind. Eng. Chem. Fundam. 1966, 5, 212–223. [Google Scholar] [CrossRef]
  50. Vimonses, V.; Lei, S.; Jin, B.; Chow, C.W.K.; Saint, C. Kinetic study and equilibrium isotherm analysis of Congo red adsorption by clay materials. Chem. Eng. J. 2009, 148, 354–364. [Google Scholar] [CrossRef]
  51. Hameed, B.H. Spent tea leaves: A new non-conventional and low-cost adsorbent for removal of basic dye from aqueous solutions. J. Hazard. Mater. 2009, 161, 753–759. [Google Scholar] [CrossRef] [PubMed]
  52. El-Gamal, S.M.A.; Amin, M.S.; Ahmed, M.A. Removal of methyl orange and bromophenol blue dyes from aqueous solution using Sorel’s cement nanoparticles. J. Environ. Chem. Eng. 2015, 3, 1702–1712. [Google Scholar] [CrossRef]
  53. Chueachot, R.; Wongkhueng, S.; Khankam, K.; Lakrathok, A.; Kaewnon, T.; Naowanon, W.t; Amnuaypanich, S.; Nakhowong, R. Adsorption efficiency of methylene blue from aqueous solution with amine-functionalized mesoporous silica nanospheres by co-condensation biphasic synthesis: Adsorption condition and equilibrium studies. Mater. Today Proc. 2018, 5, 14079–14085. [Google Scholar] [CrossRef]
  54. Nicola, R.; Muntean, S.-G.; Nistor, M.-A.; Putz, A.-M.; Almásy, L.; Săcărescu, L. Highly efficient and fast removal of colored pollutants from single and binary systems, using magnetic mesoporous silica. Chemosphere 2022, 261, 127737. [Google Scholar] [CrossRef]
  55. Nicola, R.; Costişor, O.; Muntean, S.-G.; Nistor, M.-A.; Putz, A.-M.; Ianăşi, C.; Lazău, R.; Almásy, L.; Săcărescu, L. Mesoporous magnetic nanocomposites: A promising adsorbent for the removal of dyes from aqueous solutions. J. Porous Mater. 2020, 27, 413–428. [Google Scholar] [CrossRef]
  56. Liu, M.; Zheng, J.; Wang, L.; Hu, Z.; Lan, S.; Rao, W.; Liu, Y.; Xie, Y.; Yu, C. Ultrafast and selective adsorption of anionic dyes with amine-functionalized glucose-based adsorbents. J. Mol. Struct. 2022, 1263, 133150. [Google Scholar] [CrossRef]
  57. Du, J.; Zhang, M.; Dong, Z.; Yang, X.; Xiong, H.; Zeng, Z.; Chen, Z.; Zhao, L. Facile fabrication of quaternary ammonium salt modified cotton linter by radiation grafting and its effective removal of methyl orange: Batch and dynamic flow mode studies. Fibers Polym. 2022, 23, 925–934. [Google Scholar] [CrossRef]
  58. Li, K.; Li, X.; Li, B. Investigation the adsorption behavior of functional carbon-based composites for efficient removing anions/cations in single and multicomponent systems. Sep. Purif. Technol. 2022, 289, 120737. [Google Scholar] [CrossRef]
  59. Grishkewich, N.; Li, Y.; Liu, K.; Tam, K.C. Synthesis and characterization of modified cellulose nanofibril organosilica aerogels for the removal of anionic dye. J. Polym. Res. 2022, 29, 261. [Google Scholar] [CrossRef]
  60. Kamdod, A.S.; Kumar, M.V.P. Adsorption of methylene blue, methyl orange, and crystal violet on microporous coconut shell activated carbon and its composite with chitosan: Isotherms and kinetics. J. Polym. Environ. 2022, in press. [Google Scholar] [CrossRef]
  61. Wang, D.; Li, Z.; Lv, F.; Chen, J.; Wu, C.; Li, Y.; Li, Y.; Shen, J. Synthesis of nucleoshell γ-AlOOH as an ultra-high-capacity adsorbent for organic pollutants removal. Colloid Interface Sci. Commun. 2022, 50, 100658. [Google Scholar] [CrossRef]
  62. Wang, X.; Cheng, B.; Zhang, L.; Yu, J.; Li, Y. Synthesis of MgNiCo LDH hollow structure derived from ZIF-67 as superb adsorbent for Congo red. J. Colloid Interface Sci. 2022, 612, 598–607. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, X.; Yuan, N.; Xu, S.; Li, Y.; Wang, Q. Efficient adsorptive elimination of organic pollutants from aqueous solutions on ZIF-8/MWCNTs-COOH nanoadsorbents: Adsorption kinetics, isotherms, and thermodynamic study. J. Ind. Eng. Chem. 2022, 111, 155–167. [Google Scholar] [CrossRef]
  64. Liu, L.; Xia, Z.-Q.; Li, S.-B.; Zhang, Y.-J.; Wang, N. MOF-derived double-shelled Fe(OH)3@NiCo-LDH hollow cubes and their efficient adsorption for anionic organic pollutant. J. Porous Mater. 2022, 29, 931–945. [Google Scholar] [CrossRef]
  65. Jia, Z.; Han, C.; Wu, L.; Zhang, D.; Li, M. Biotemplated synthesis of hollow nickel silicate fiber for organic dye contaminants and its selective adsorption. Colloids Surf. A Physicochem. Eng. Asp. 2022, 648, 129219. [Google Scholar] [CrossRef]
  66. Wei, X.; Deng, S.; Chen, D.; Wang, L.; Yang, W. Limonene-derived hollow polymer particles: Preparation and application for the removal of dyes and heavy metal ions. J. Polym. Sci. 2022, 60, 2572–2581. [Google Scholar] [CrossRef]
  67. Du, P.; Xu, L.; Ke, Z.; Liu, J.; Wang, T.; Chen, S.; Mei, M.; Li, J.; Zhu, S. A highly efficient biomass-based adsorbent fabricated by graft copolymerization: Kinetics, isotherms, mechanism and coadsorption investigations for cationic dye and heavy metal. J. Colloid Interface Sci. 2022, 616, 12–22. [Google Scholar] [CrossRef]
  68. Yang, R.; Zhou, J.; Wu, L.; Zhang, Q.; Song, Y. Understanding effects of potassium activator on the porous structure and adsorption performance of bluecoke-based porous powder during microwave heating. J. Mol. Liq. 2022, 366, 120249. [Google Scholar] [CrossRef]
  69. Radjai, M.; Ferkous, H.; Jebali, Z.; Majdoub, H.; Bourzami, R.; Raffin, G.; Achour, M.; Gil, A.; Boutahala, M. Adsorptive removal of cationic and anionic dyes on a novel mesoporous adsorbent prepared from diatomite and anionic cellulose nanofibrils: Experimental and theoretical investigations. J. Mol. Liq. 2022, 361, 119670. [Google Scholar] [CrossRef]
  70. Martins, L.R.; Soares, L.C.; Gurgel, L.V.A.; Gil, L.F. Use of a new zwitterionic cellulose derivative for removal of crystal violet and orange II from aqueous solutions. J. Hazard. Mater. 2022, 424, 127401. [Google Scholar] [CrossRef]
  71. Kim, S.; Tang, K.; Kim, T.-H.; Hwang, Y. Selective removal of cationic organic pollutants using disulfide-linked polymer. Sep. Purif. Technol. 2022, 288, 120522. [Google Scholar] [CrossRef]
  72. Yan, J.; Li, K.; Yan, J.; Fang, Y.; Liu, B. A magnetically recyclable magnetic graphite oxide composite functionalized with polydopamine and β-cyclodextrin for cationic dyes wastewater remediation: Investigation on adsorption performance, reusability and adsorption mechanism. Appl. Surf. Sci. 2022, 602, 154338. [Google Scholar] [CrossRef]
  73. Song, G.; Shi, Y.; Wang, H.; Li, A.; Li, W.; Sun, Y.; Ding, G. Effective sorptive removal of five cationic dyes from aqueous solutions by using magnetic multi-walled carbon nanotubes. Water Sci. Technol. 2022, 85, 1999–2014. [Google Scholar] [CrossRef]
  74. Gomaa, H.; Abd El-Monaem, E.M.; Eltaweil, A.S.; Omer, A.M. Efficient removal of noxious methylene blue and crystal violet dyes at neutral conditions by reusable montmorillonite/NiFe2O4@amine-functionalized chitosan composite. Sci. Rep. 2022, 12, 15499. [Google Scholar] [CrossRef]
Minerals 13 00041 g001 550

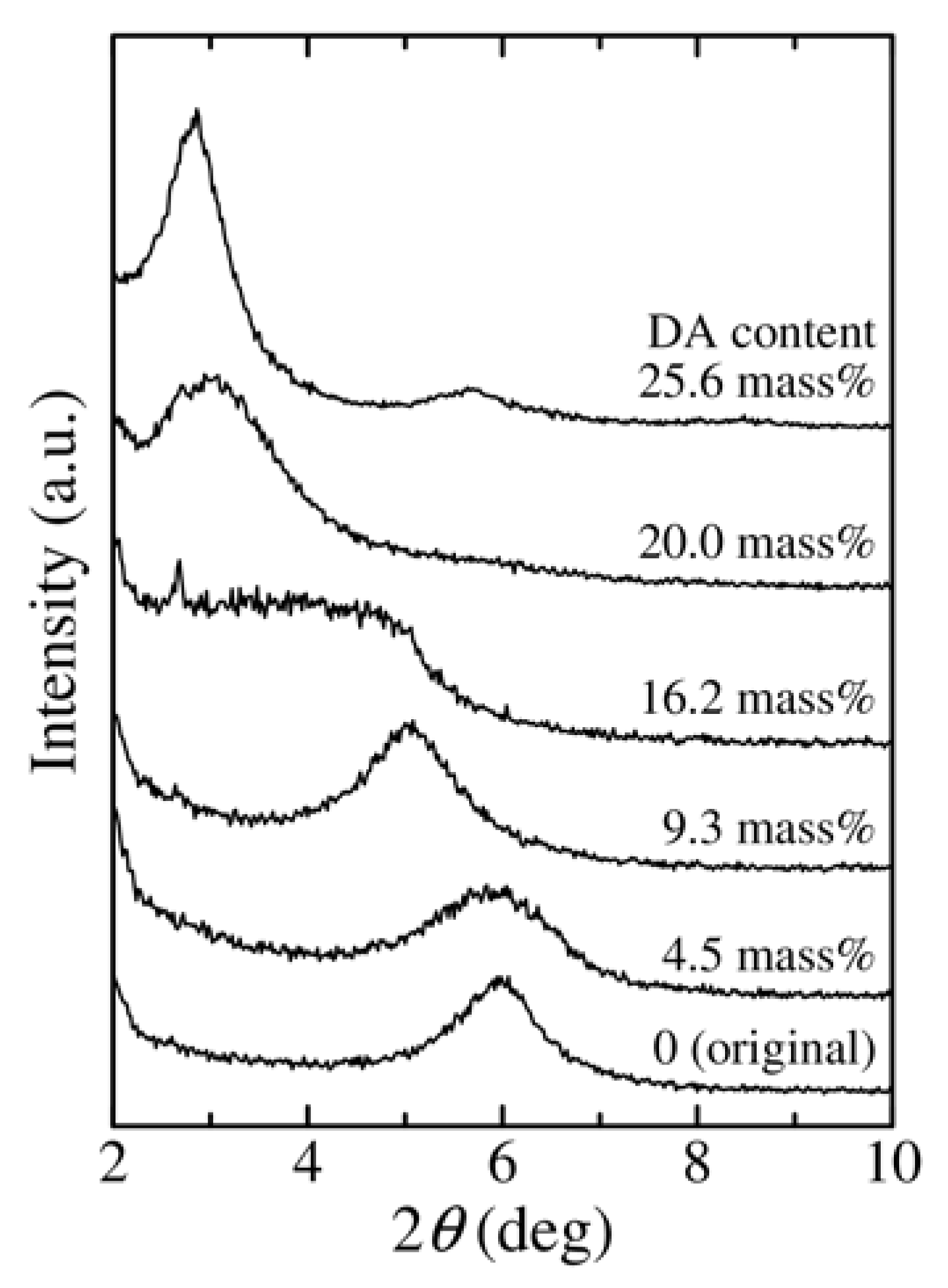

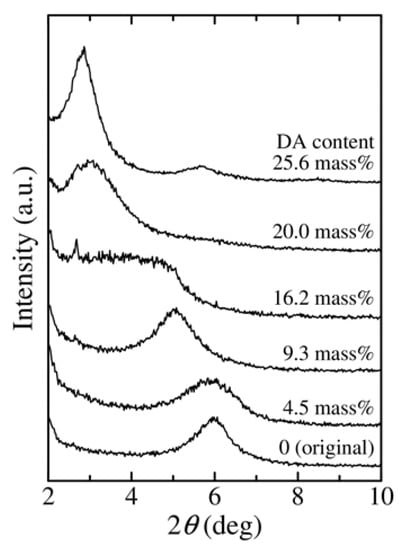

Figure 1. XRD patterns of samples with different DA contents.
Figure 1. XRD patterns of samples with different DA contents.
Minerals 13 00041 g001
Minerals 13 00041 g002 550

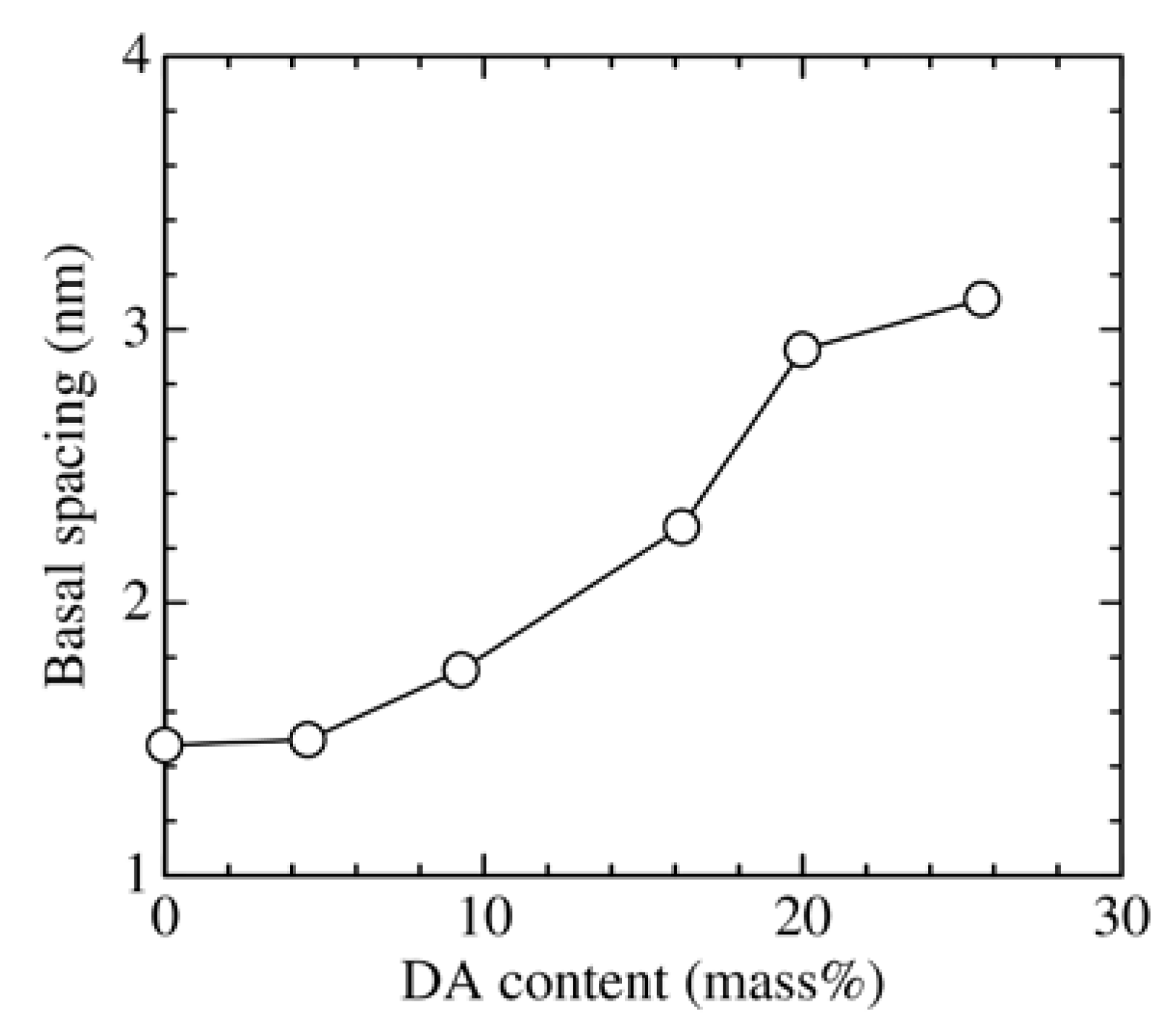

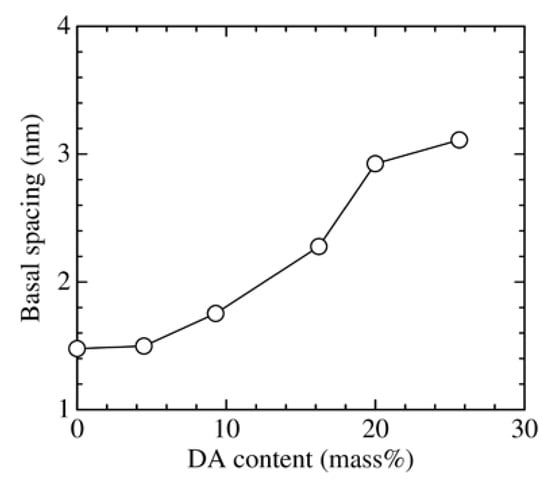

Figure 2. Change in basal spacing of samples with DA content.
Figure 2. Change in basal spacing of samples with DA content.
Minerals 13 00041 g002
Minerals 13 00041 g003 550
Figure 3. Typical SEM images of (a) DA0 (original acid clay), (b) DA1 (surface-modified), and (c) DA5 (intercalated) samples.
Figure 3. Typical SEM images of (a) DA0 (original acid clay), (b) DA1 (surface-modified), and (c) DA5 (intercalated) samples.
Minerals 13 00041 g003
Minerals 13 00041 g004 550

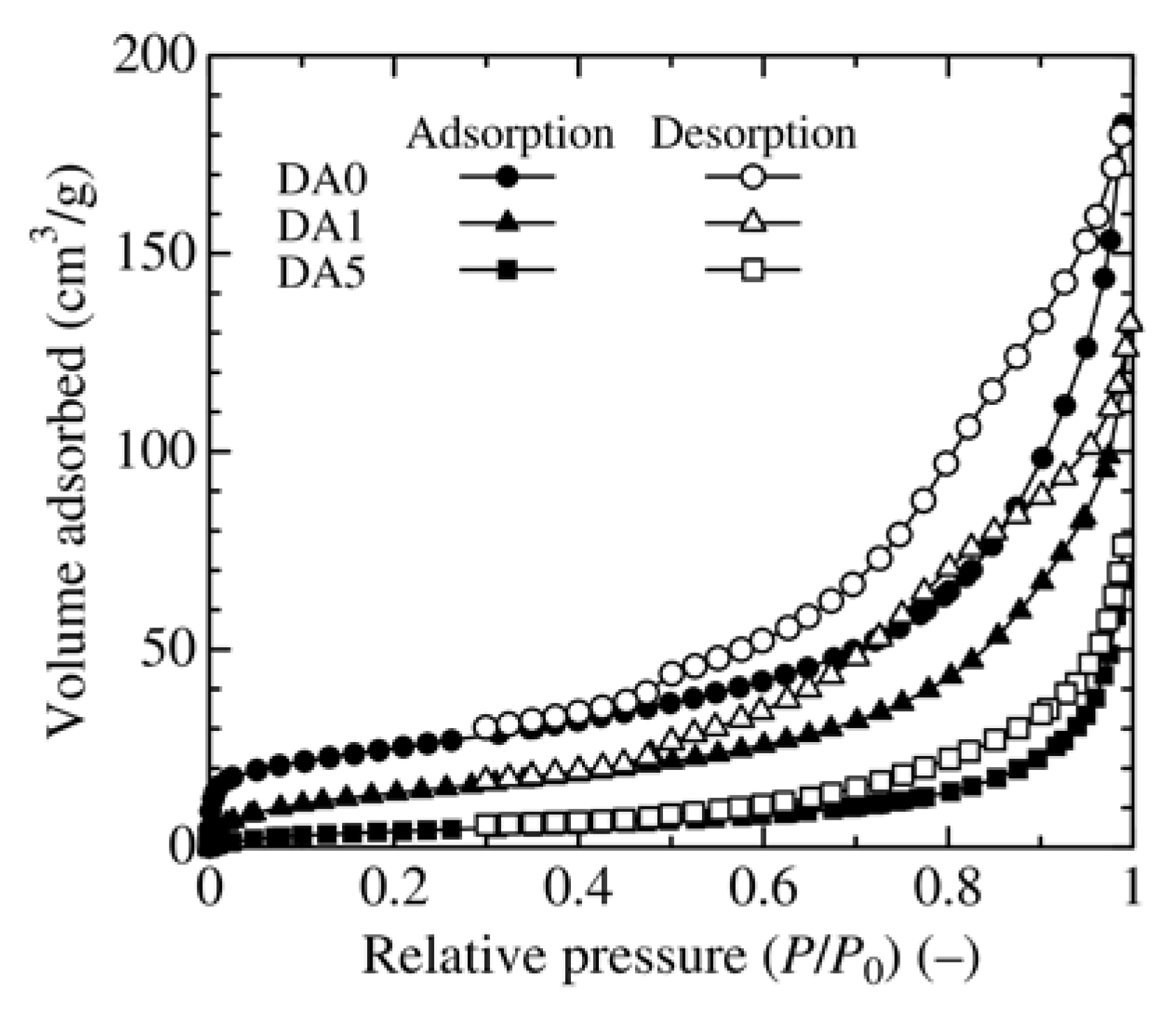

Figure 4. Nitrogen adsorption–desorption isotherms of the DA0, DA1, and DA5 samples.
Figure 4. Nitrogen adsorption–desorption isotherms of the DA0, DA1, and DA5 samples.
Minerals 13 00041 g004
Minerals 13 00041 g005 550

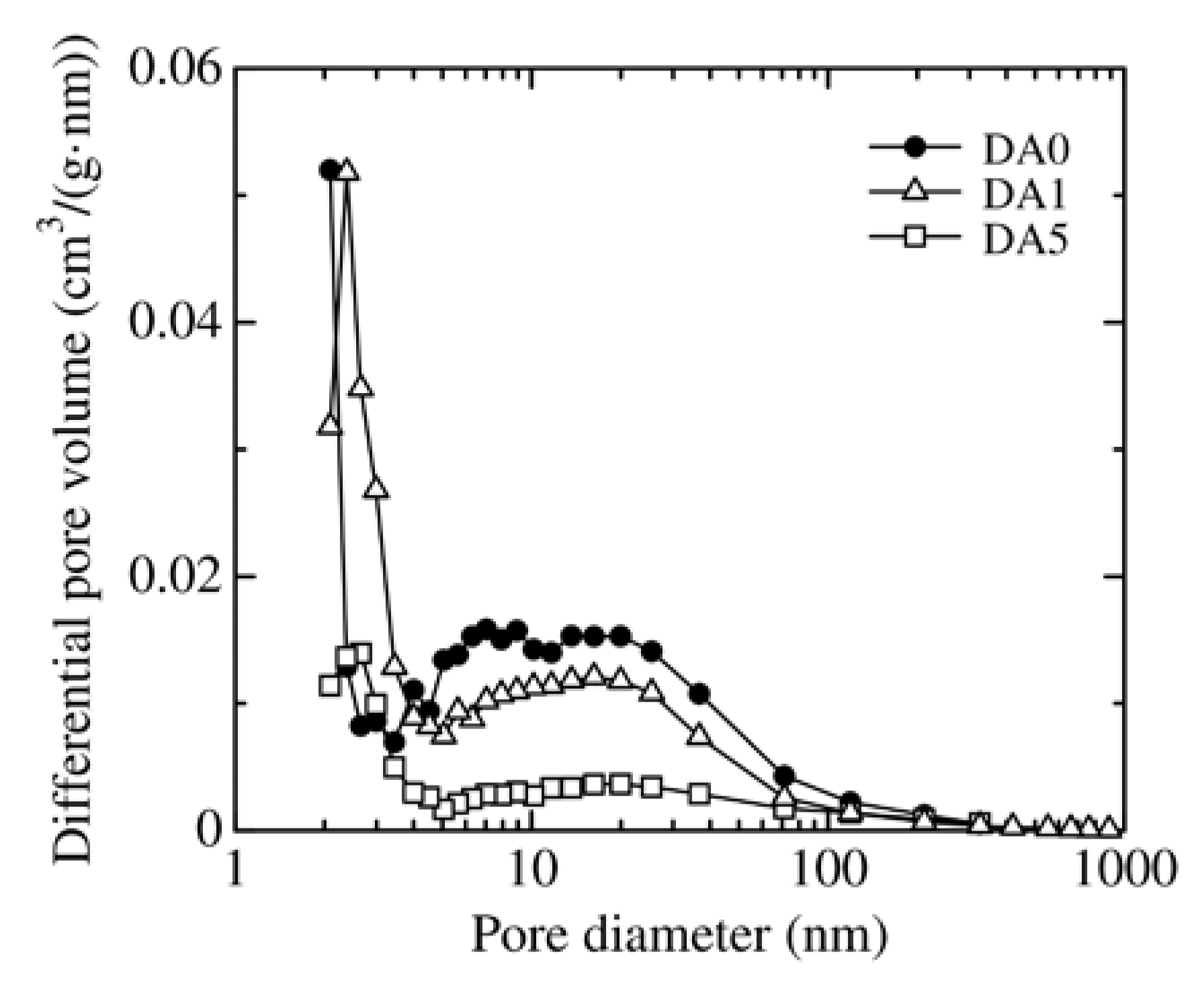

Figure 5. Pore diameter distributions of the DA0, DA1, and DA5 samples.
Figure 5. Pore diameter distributions of the DA0, DA1, and DA5 samples.
Minerals 13 00041 g005
Minerals 13 00041 g006 550

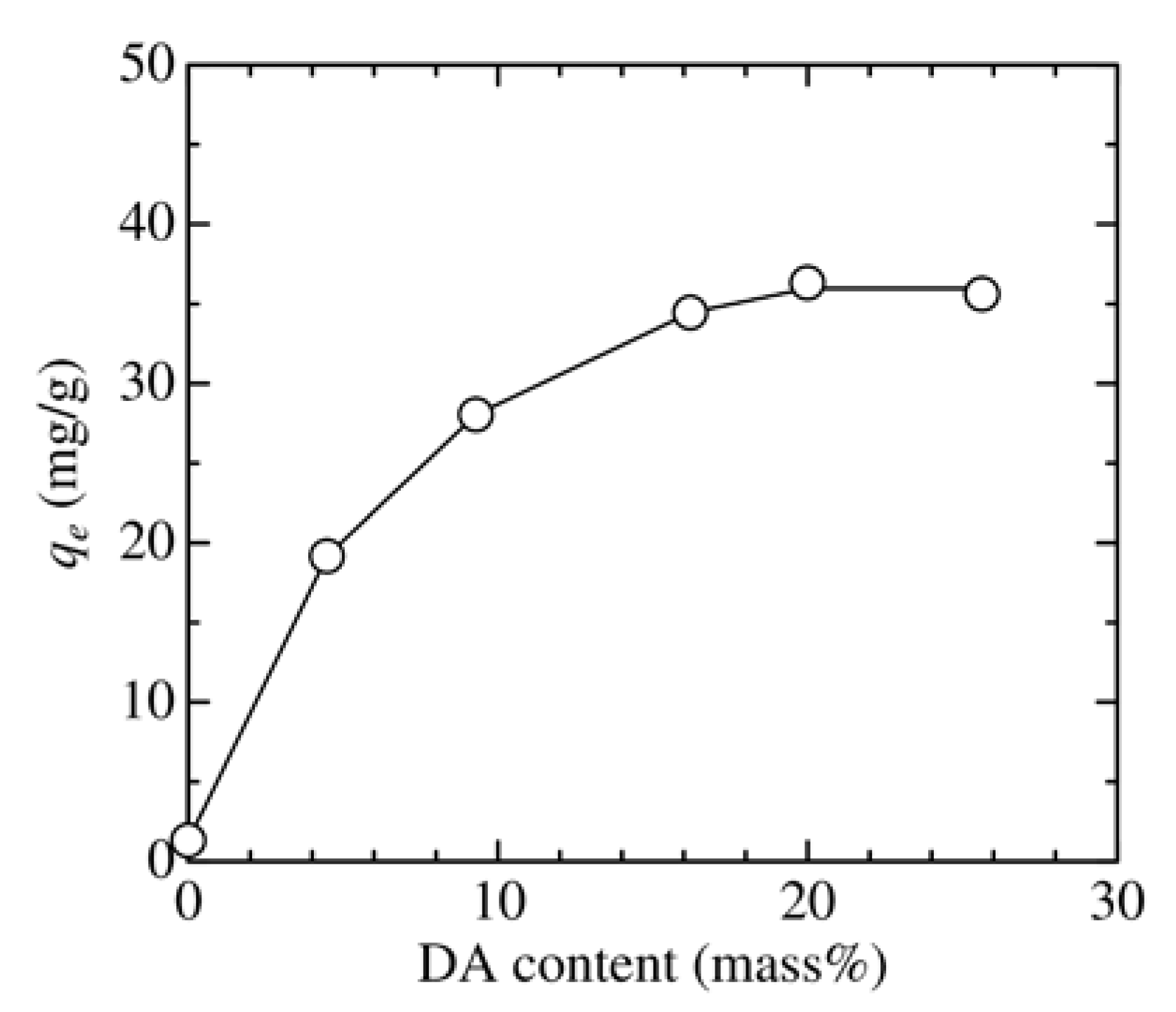

Figure 6. Change in MO equilibrium adsorption capacity of samples with DA content (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Figure 6. Change in MO equilibrium adsorption capacity of samples with DA content (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Minerals 13 00041 g006
Minerals 13 00041 g007 550

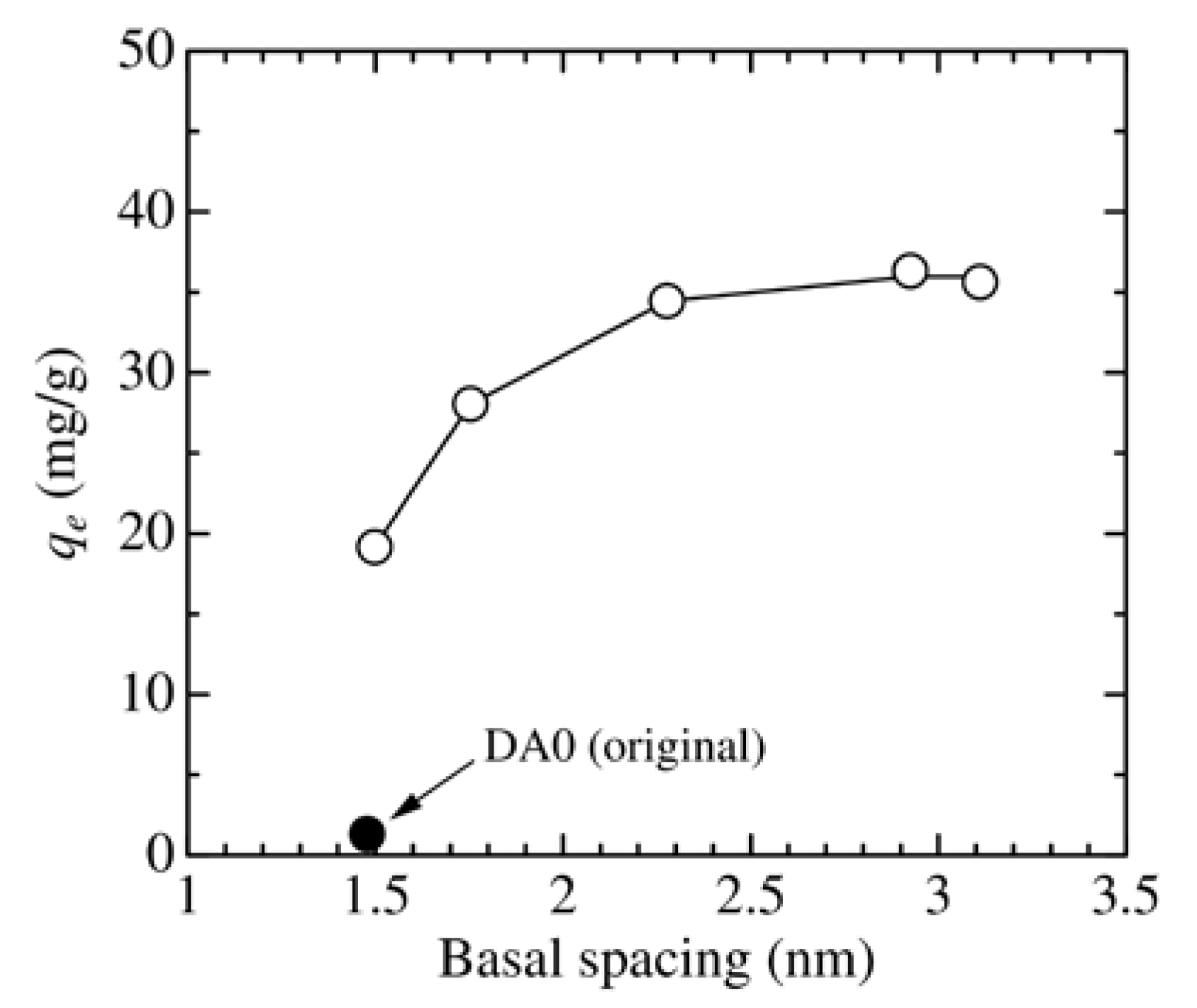

Figure 7. Relationship between equilibrium adsorption capacity and basal spacing (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Figure 7. Relationship between equilibrium adsorption capacity and basal spacing (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Minerals 13 00041 g007
Minerals 13 00041 g008 550

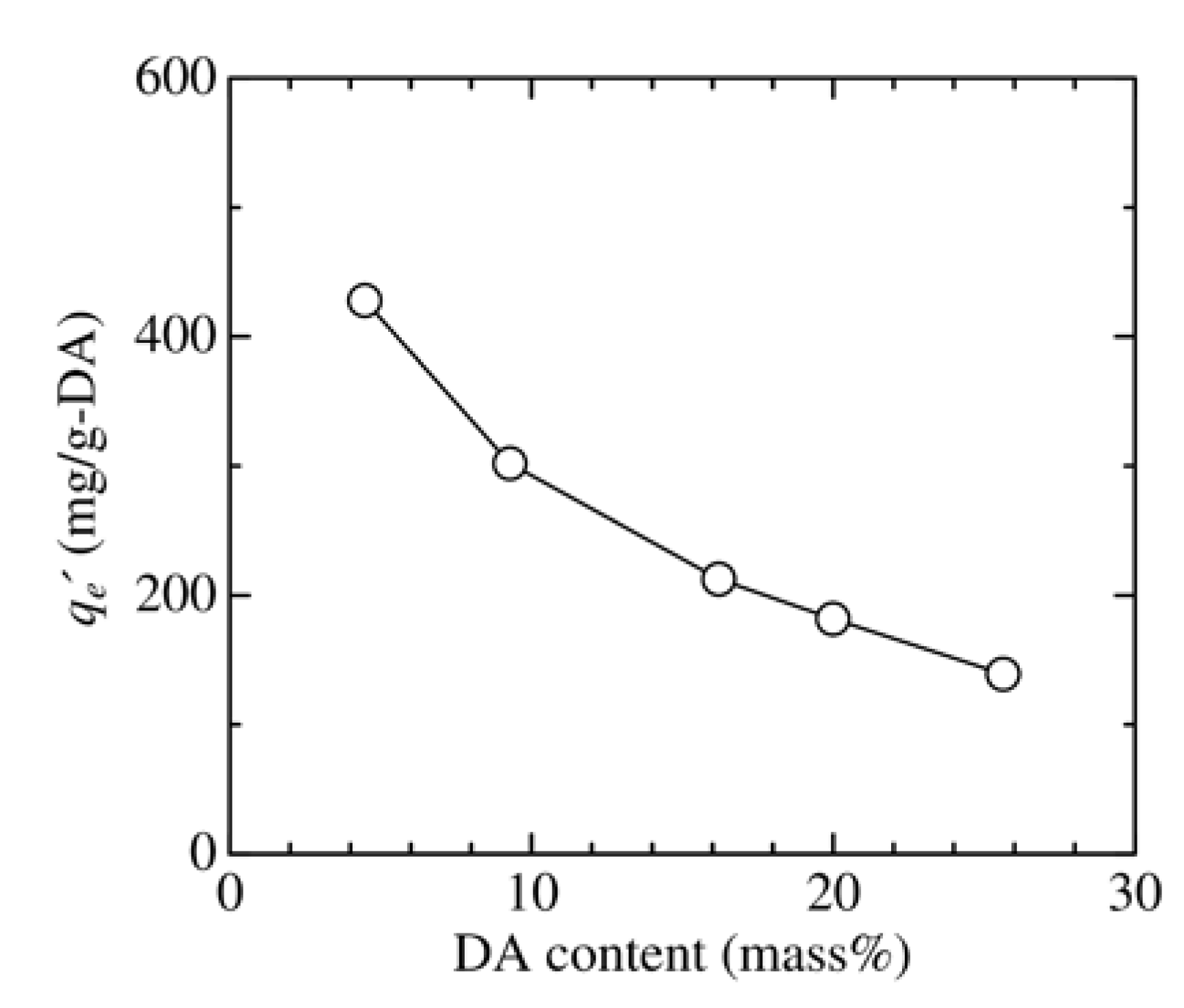

Figure 8. MO equilibrium adsorption capacity per unit mass of DA (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Figure 8. MO equilibrium adsorption capacity per unit mass of DA (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Minerals 13 00041 g008
Minerals 13 00041 g009 550

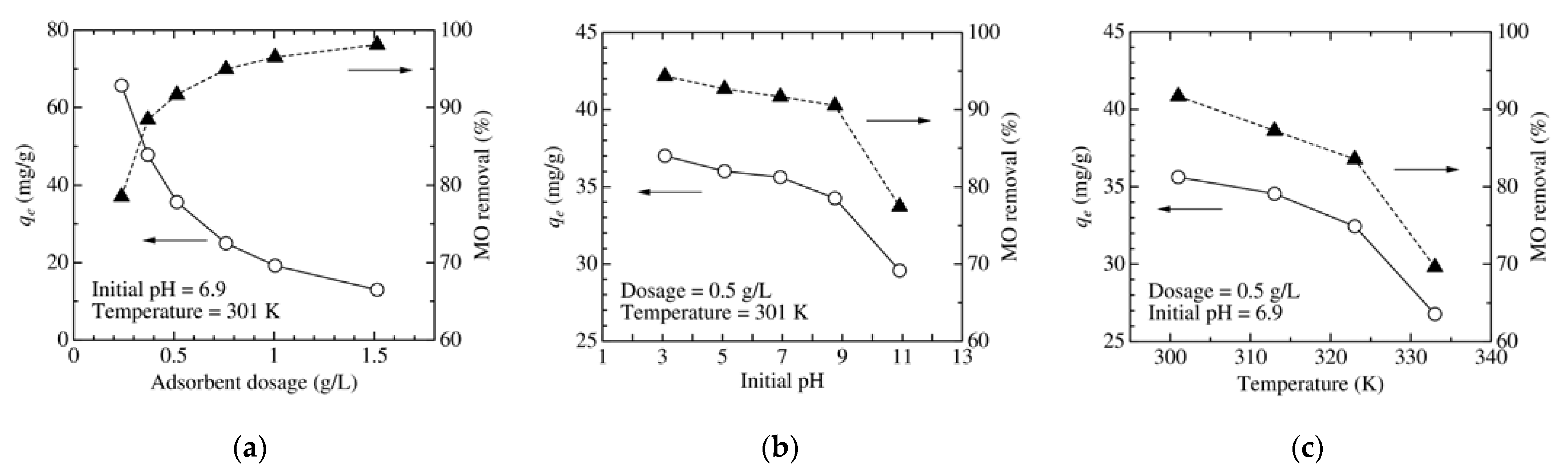

Figure 9. Change in MO equilibrium adsorption capacity of the DA5 sample with (a) adsorbent dosage, (b) initial pH, and (c) temperature (initial concentration = 20 mg/L).
Figure 9. Change in MO equilibrium adsorption capacity of the DA5 sample with (a) adsorbent dosage, (b) initial pH, and (c) temperature (initial concentration = 20 mg/L).
Minerals 13 00041 g009
Minerals 13 00041 g010 550

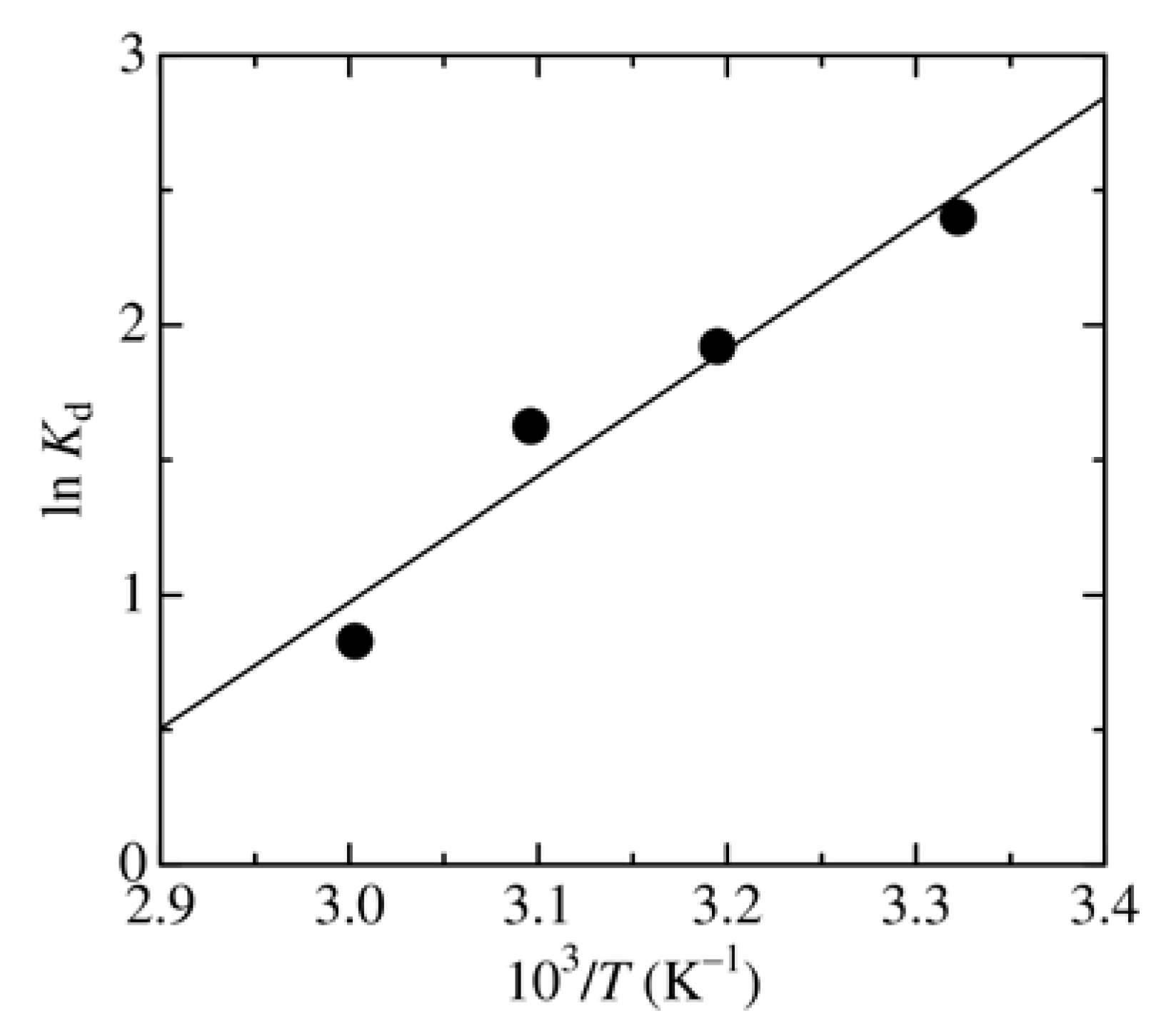

Figure 10. Plot of ln Kd against 1/T for estimation of thermodynamic parameters for adsorption of MO onto the DA5 sample (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9).
Figure 10. Plot of ln Kd against 1/T for estimation of thermodynamic parameters for adsorption of MO onto the DA5 sample (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9).
Minerals 13 00041 g010
Minerals 13 00041 g011 550
Figure 11. MO adsorption of the DA5 sample as a function of contact time (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Figure 11. MO adsorption of the DA5 sample as a function of contact time (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K).
Minerals 13 00041 g011
Minerals 13 00041 g012 550
Figure 12. MO adsorption kinetics of the DA5 sample (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K): (a) pseudo-first-order plots (qe = 36 mg/g) and (b) pseudo-second-order plots.
Figure 12. MO adsorption kinetics of the DA5 sample (dosage = 0.5 g/L, initial concentration = 20 mg/L, initial pH = 6.9, temperature = 301 K): (a) pseudo-first-order plots (qe = 36 mg/g) and (b) pseudo-second-order plots.
Minerals 13 00041 g012
Minerals 13 00041 g013 550
Figure 13. Removal efficiency of the DA5 sample for various anionic (MO, CR and EY) and cationic (MB, CV and RB) dyes at different initial concentrations (dosage = 0.5 g/L, temperature = 301 K).
Figure 13. Removal efficiency of the DA5 sample for various anionic (MO, CR and EY) and cationic (MB, CV and RB) dyes at different initial concentrations (dosage = 0.5 g/L, temperature = 301 K).
Minerals 13 00041 g013
Minerals 13 00041 g014 550

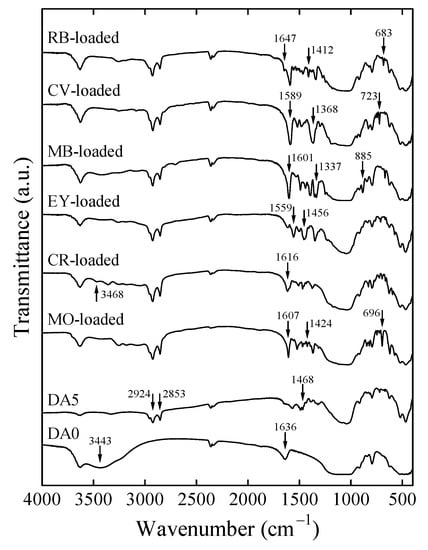

Figure 14. FT-IR spectra of DA0 (original acid clay) and DA5 samples after adsorption of MO, CR, EY, MB, CV and RB (dosage = 0.5 g/L, initial concentration = 100 mg/L, temperature = 301 K).
Figure 14. FT-IR spectra of DA0 (original acid clay) and DA5 samples after adsorption of MO, CR, EY, MB, CV and RB (dosage = 0.5 g/L, initial concentration = 100 mg/L, temperature = 301 K).
Minerals 13 00041 g014
Minerals 13 00041 g015 550

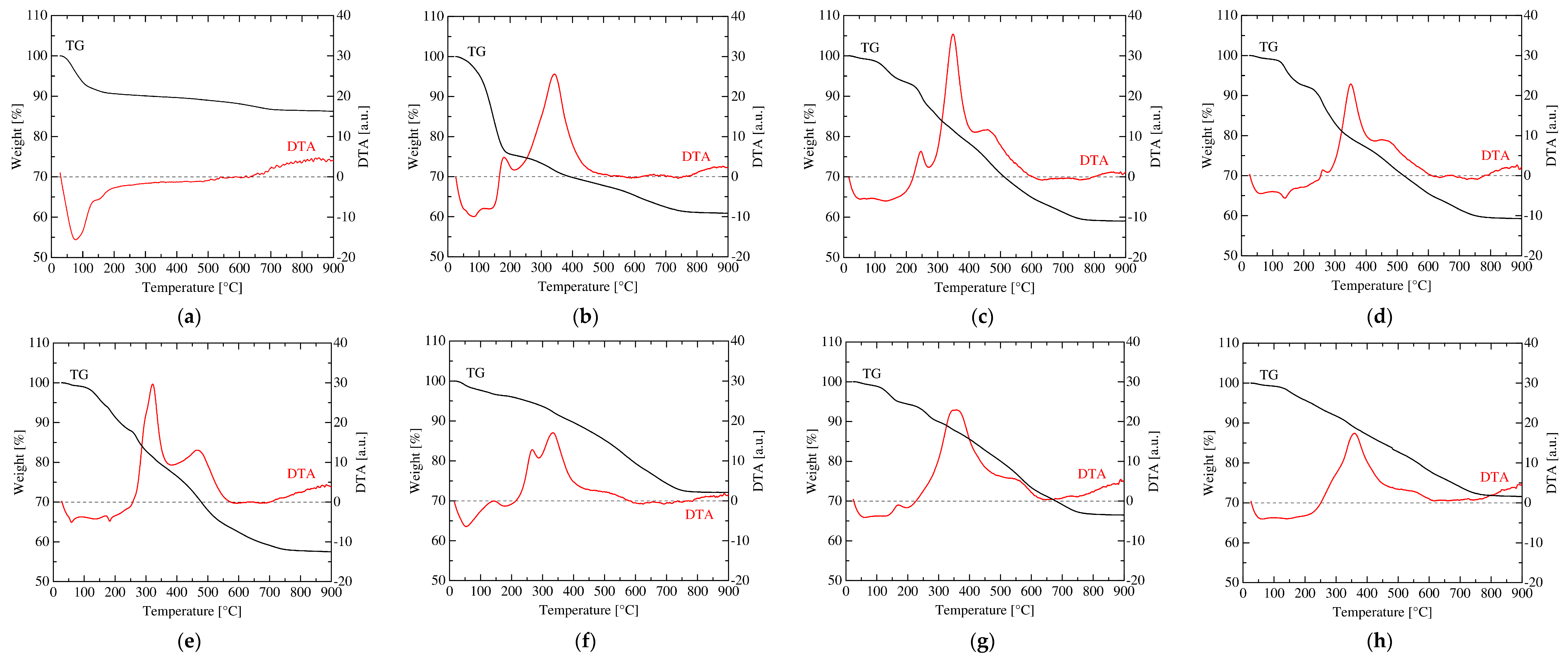

Figure 15. TG-DTA curves of (a) DA0 and DA5 samples (b) before adsorption and after adsorption of (c) MO, (d) CR, (e) EY, (f) MB, (g) CV and (h) RB (dosage = 0.5 g/L, initial concentration = 100 mg/L, temperature = 301 K).
Figure 15. TG-DTA curves of (a) DA0 and DA5 samples (b) before adsorption and after adsorption of (c) MO, (d) CR, (e) EY, (f) MB, (g) CV and (h) RB (dosage = 0.5 g/L, initial concentration = 100 mg/L, temperature = 301 K).
Minerals 13 00041 g015
Minerals 13 00041 g016 550
Figure 16. Adsorption isotherms of anionic and cationic dyes onto the DA5 sample using the Langmuir model and Freundlich model: (a) MO, (b) CR, (c) MB, and (d) CV (dosage = 0.5 g/L, temperature = 301 K).
Figure 16. Adsorption isotherms of anionic and cationic dyes onto the DA5 sample using the Langmuir model and Freundlich model: (a) MO, (b) CR, (c) MB, and (d) CV (dosage = 0.5 g/L, temperature = 301 K).
Minerals 13 00041 g016
Minerals 13 00041 g017 550
Figure 17. Change in the separation factor of the DA5 sample with initial concentration of anionic (MO and CR) and cationic (MB and CV) dyes (dosage = 0.5 g/L, temperature = 301 K).
Figure 17. Change in the separation factor of the DA5 sample with initial concentration of anionic (MO and CR) and cationic (MB and CV) dyes (dosage = 0.5 g/L, temperature = 301 K).
Minerals 13 00041 g017
Table
Table 1. Anionic and cationic dyes used in this work.
Table 1. Anionic and cationic dyes used in this work.
DyeSupplier *Initial Concentration
C0 (mg/L)		Natural pH of
20 mg/L Solution		Wavelength (nm)
Anionic:
 Methyl orange (MO)KC20–3006.9464
 Congo red (CR)NT20–6007.1498
 Eosin Y (EY)FW20–1005.1517
Cationic:
 Methylene blue (MB)KC20–3505.7665
 Crystal violet (CV)KC20–5005.6595
 Rhodamine B (RB)FW20–1004.8554
* KC = Kishida Chemical (Japan), NT = Nacalai Tesque (Japan), FW = FUJIFILM Wako Pure Chemical (Japan).
Table
Table 2. Specific surface area, pore volume, and pore diameter of the DA0, DA1, and DA5 samples.
Table 2. Specific surface area, pore volume, and pore diameter of the DA0, DA1, and DA5 samples.
SampleBET Surface Area
(m2/g)		Pore Volume
(cm3/g)		Average Pore Diameter
(nm)
DA087.90.27821.1
DA152.10.21818.3
DA516.40.11827.8
Table
Table 3. Thermodynamic parameters for MO adsorption on the DA5 sample.
Table 3. Thermodynamic parameters for MO adsorption on the DA5 sample.
Temperature (K)ΔG° (kJ/mol)ΔH° (kJ/mol)ΔS° (kJ/(mol·K))
301–6.00–38.9–0.109
313–5.00
323–4.36
333–2.29
Table
Table 4. Values of parameters for MO adsorption kinetic models.
Table 4. Values of parameters for MO adsorption kinetic models.
Kinetic ModelParameterValue
Pseudo-first-orderqe (mg/g)4.88
k1 (h–1)0.481
R20.876
Pseudo-second-orderqe (mg/g)35.2
k2 (g/(h·mg))0.524
R20.999
Table
Table 5. Adsorption isotherm constants of the DA5 sample for the adsorption of anionic (MO and CR) and cationic (MB and CV) dyes.
Table 5. Adsorption isotherm constants of the DA5 sample for the adsorption of anionic (MO and CR) and cationic (MB and CV) dyes.
DyeLangmuir ModelFreundlich Model
qL (mg/g)KL (L/mg)R2KF (mg/(g·(mg/L)1/n))nR2
MO6290.1290.9961693.190.910
CR9541.3860.9994735.580.889
MB2252.2820.99615712.160.652
CV5770.2920.9993279.020.974
Table
Table 6. Comparison of Langmuir adsorption capacities of the DA5 sample with literature values.
Table 6. Comparison of Langmuir adsorption capacities of the DA5 sample with literature values.
DyeMain Components of AdsorbentqL (mg/g)Ref.
MOJapanese acid clay/decylamine629This work
Carbon/ethylenediamine/trimethylamine1487[56]
Cotton/trimethyl ammonium645[57]
Carbon/Fe3O4/β-cyclodextrin/chitosan269[58]
Cellulose/silica187[59]
Activated carbon/chitosan105[60]
CRJapanese acid clay/decylamine954This work
γ-AlOOH3881[61]
MgNiCo LDH1195[62]
ZIF-8/MWCNT1186[63]
Fe(OH)3/NiCo LDH658[64]
Nickel silicate415[65]
MBJapanese acid clay/decylamine225This work
Limonene-derived polymer909[66]
Peanut shell538[67]
Bluecoke341[68]
Nickel silicate196[65]
Holocellulose142[69]
CVJapanese acid clay/decylamine577This work
Cellulose/succinic acid/choline chloride2608[70]
Trithiocyanuric acid polymer1181[71]
Carbon/dopamine/Fe3O4/citric acid/β-cyclodextrin585[72]
MWCNT/iron oxide165[73]
Montmorillonite/NiFe2O4/ethylenediamine/chitosan125[74]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Iwasaki, T. Simple and Rapid Synthesis of Organically Modified Natural Acid Clay for the Adsorption of Anionic and Cationic Dyes. Minerals 2023, 13, 41. https://doi.org/10.3390/min13010041

AMA Style

Iwasaki T. Simple and Rapid Synthesis of Organically Modified Natural Acid Clay for the Adsorption of Anionic and Cationic Dyes. Minerals. 2023; 13(1):41. https://doi.org/10.3390/min13010041

Chicago/Turabian Style

Iwasaki, Tomohiro. 2023. "Simple and Rapid Synthesis of Organically Modified Natural Acid Clay for the Adsorption of Anionic and Cationic Dyes" Minerals 13, no. 1: 41. https://doi.org/10.3390/min13010041

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
