Improvement of Sodium Leaching Ratio of Ferric Bauxite Sinter after Direct Reduction

Abstract

The sodium leaching ratio (η_N) of ferric bauxite direct reduction process is much lower than that of ordinary bauxite; thus, the former consumes more sodium than the latter. η_N can be promoted by increasing the dosage of sodium or restricted by increasing the heating temperature and time. However, the restriction effect of heating temperature is 16.67 times larger than that of heating time, and the restriction effect decreases 47.03 times faster when heating temperature increases than that process of heating time. These imply that η_N improves with the increasing sodium carbonate dosage and the decreasing heating temperature.

1. Introduction

Ferric bauxite is a typical refractory bauxite which has a wide distribution in Asia [1,2,3] and Africa [1], however, it is improperly developed. The potential methods of treating ferric bauxite include the extraction of alumina before iron [4,5], extraction of iron before alumina [6,7], beneficiation before leaching [8], and biological technique [9,10]. Direct reduction before leaching is another method [11,12,13] that has recently seen a boom. By adopting this technology, hematite and goethite in ferric bauxite are reduced to granular iron in a carbothermic reduction process, and then iron powder is separated from the sinter produced after the reduction. Iron powder may then be employed for producing steel and casting after agglomeration, or used as a metallic powder material directly. Simultaneous with hematite and goethite reduction, the additive of sodium carbonate reacted with diaspore and boehmite then generates water-soluble sodium aluminate, which is then separated from the solution obtained after leaching and utilized for alumina production. In the alumina leaching process, sodium is also leached out and recycled partially. However, before reduction, iron-containing minerals react with sodium carbonate to generate evaporable sodium ferrite, and silicon-containing minerals react with sodium carbonate to generate nepheline [12,14]. These reactions reduce sodium leaching ratio and increase alkali consumption. The Box–Benhken design [15] is typically adopted to conduct quantitative research by determining the regression model. In this research, Box–Benhken design is utilized to investigate the effects of heating temperature, heating time, and sodium carbonate dosage on sodium leaching ratio and to understand the change patterns of these effects. The results of this study may be used to reduce the alkali consumption of the direct reduction of ferric bauxite. The findings may also improve current alumina production.

2. Experimental

2.1. Experimental Methods

The experimental instruments employed in this investigation include a rod mill (Hengcheng, XMB-70, Ganzhou, China), an electric box furnace (INCH, SX₂-10-13, Changsha, China), an electronic balance (Mettler, AR1140, Changzhou, China), a vacuum filter (Hengcheng, XTLZ, Ganzhou, China), a magnetic separator (Yihao, CXG-99, Tangshan, China), and an electrothermal constant-temperature dry box (Shuangxu, PH050, Shanghai, China).

The Chemical compositions of the ore and product were analyzed by an atomic absorption spectrophotometer (Rayleigh, UV-9600, Beijing, China). The mineral composition of ore was examined by an X-ray diffractometer, XRD (Rigaku, TTRIII, Tokyo, Japan). The morphology and chemical composition of micro zone in samples were determined using a scanning electron microscope equipped with an energy dispersive spectrometer, SEM-EDS (ZEISS, EVO 18, Jena, Germany).

The chemical and mineral compositions of ferric bauxite were examined by atomic absorption spectrophotometer and XRD, respectively. The microstructure and chemical composition were tested by SEM-EDS.

In the experiments, ore, sodium carbonate, and coal were crushed to 100% passing 2 mm, and then mixed. The mixing ratio of ore and coal was 1:0.25, whereas the amount of sodium carbonate was varied. In each unit experiment, 41 g of the mixed materials was transferred to a lidded 100 mL graphite clay crucible. The crucible was then placed in a muffle furnace with an uncontrolled gaseous atmosphere at 1100 to 1150 °C. A distance of more than 3 cm was left between the crucible lid and the powder mixture in the crucible to prevent them from making contact with each other. After cooling, the material was ground to 100% passing 74 μm at the grinding density of 50%, and then leached under the conditions of water–solid ratio of 15:1, leaching temperature of 75 °C, and leaching time of 0.5 h. Sodium leaching ratio (η_N) was then calculated from Equation (1):

$${\eta }_N=\frac{46\cdot c_N\cdot V_{ol}}{106\cdot M\cdot {\omega }_{N }}$$

(1)

• η_N, sodium leaching ratio, %;
• c_N, sodium concentration of lixivium, g/L;
• V_ol, volume of lixivium, L;
• M, mass of raw material mixture adopted in each unit experiment, g;
• ω_N, mass fraction of sodium carbonate in raw material mixture, %.

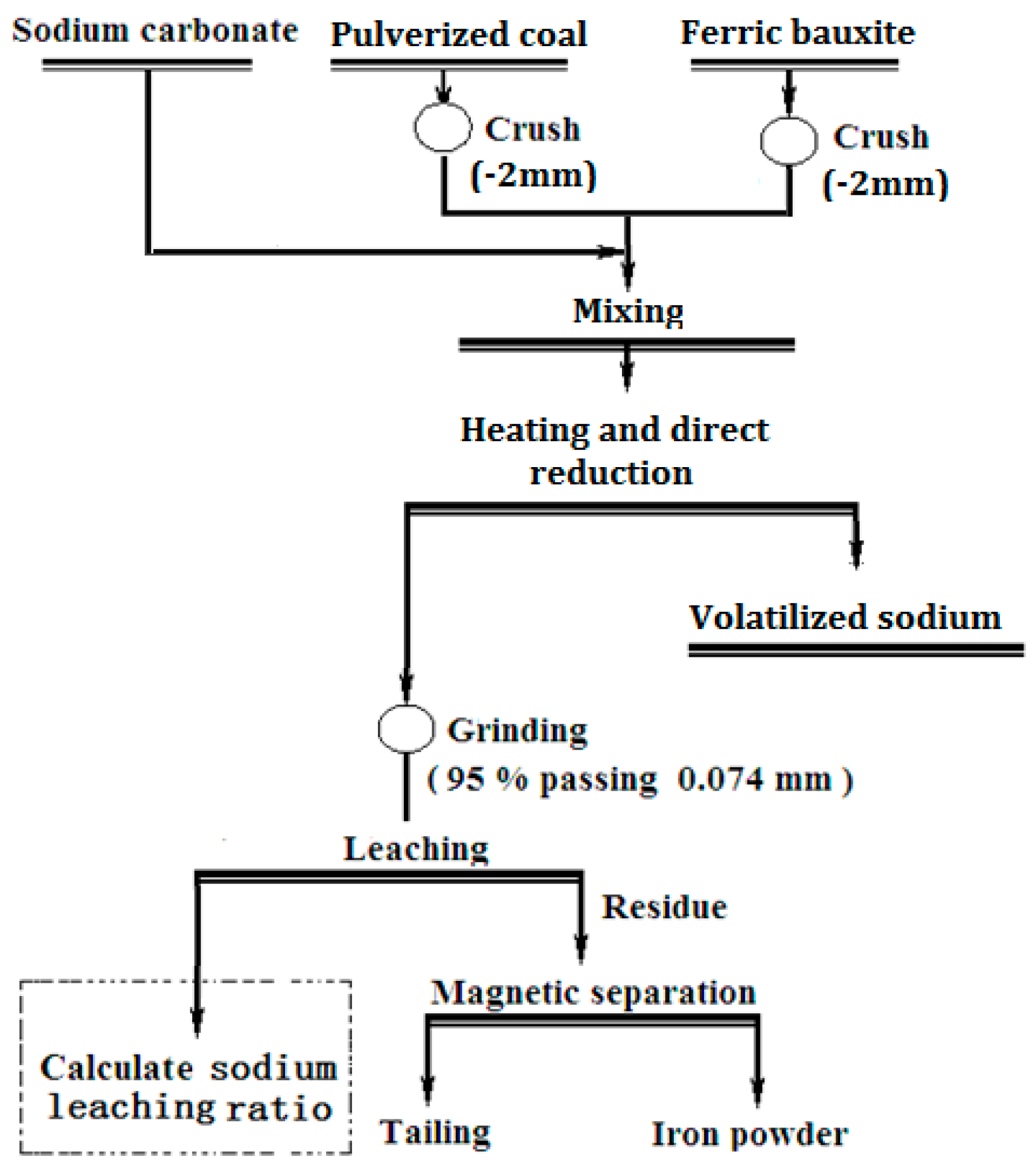

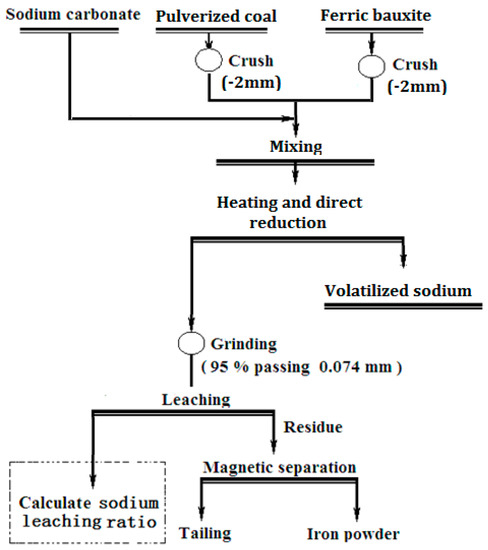

The leaching residues were transferred to magnetic separators, and the iron powder was isolated from tailing with a magnetic separation of 0.14 T. The entire flow chart adopted in the experiments is shown in Figure 1, but only the sodium leaching part was investigated in this study.

2.2. Ore Characteristics

The ferric bauxite used was sampled from the Guangxi province of China. The chemical composition, SEM-EDS photos, and XRD image of the ferric bauxite adopted are presented in

Table 1. The chemical composition of the ferric bauxite adopted.

Compositions	Fe2O3	Al2O3	SiO2	TiO2	MgO	CaO	Na2O	K2O	P2O5	LOI
Content/%	41.13	33.02	12.22	1.49	0.68	0.63	0.32	0.06	0.04	8.97

and Figure 2 and Figure 3, respectively.

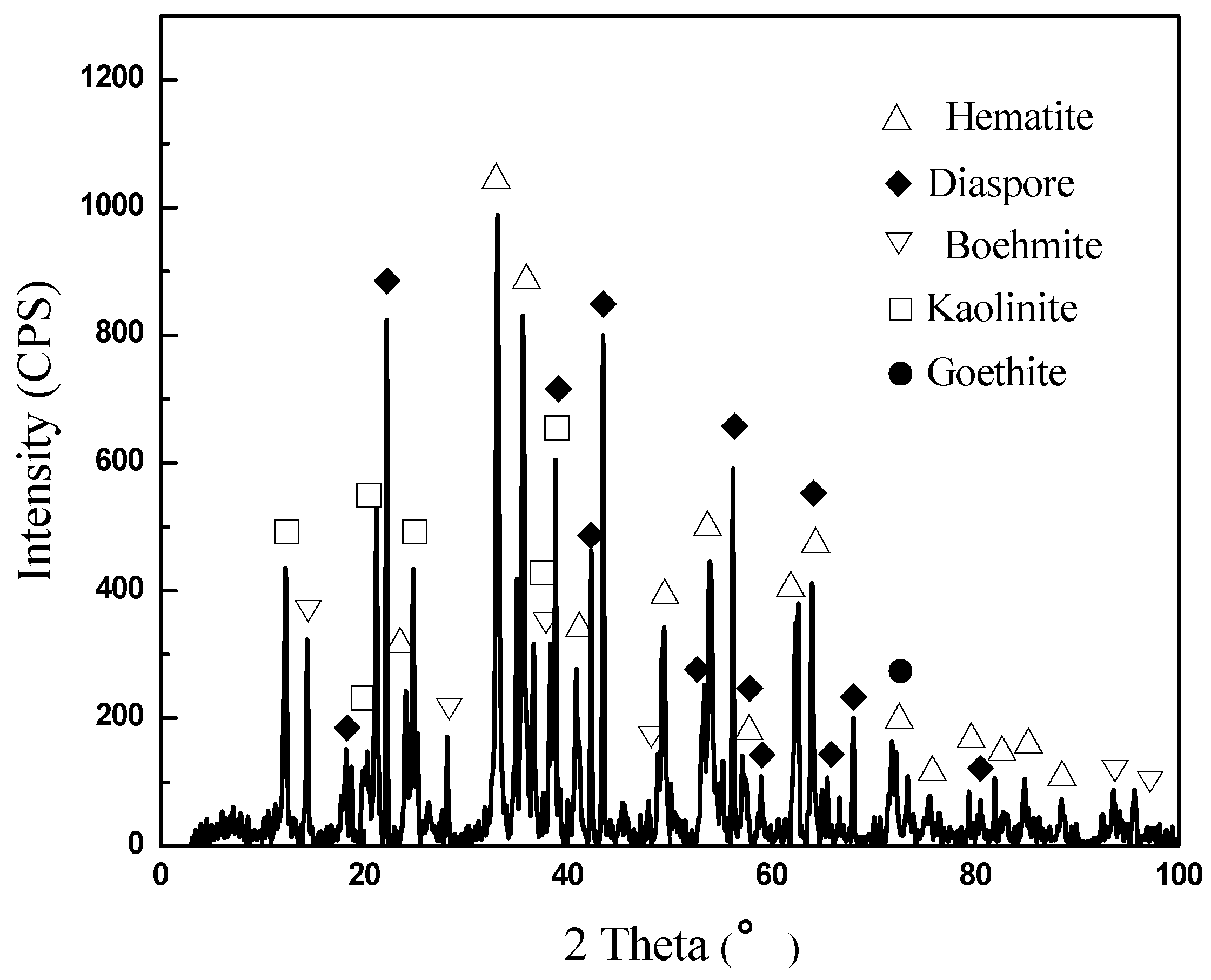

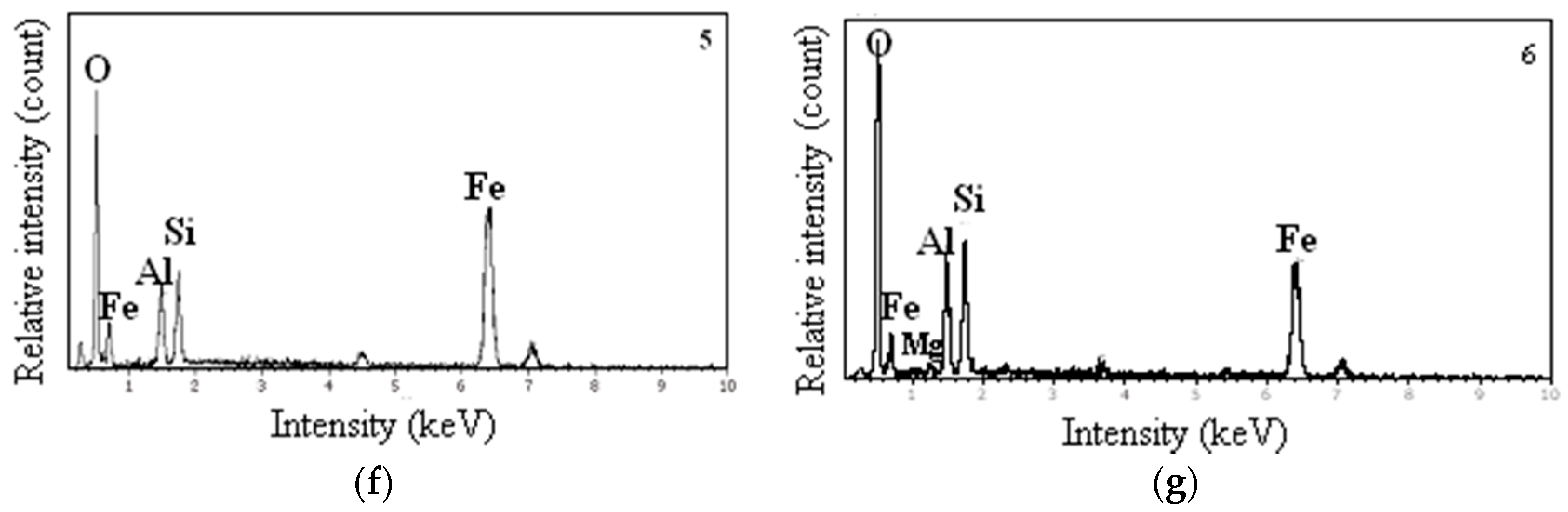

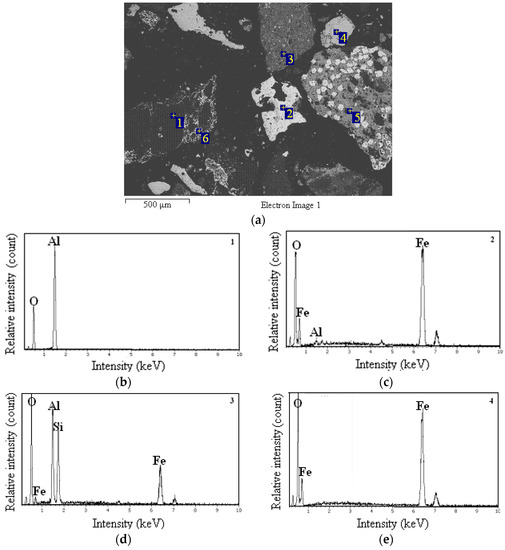

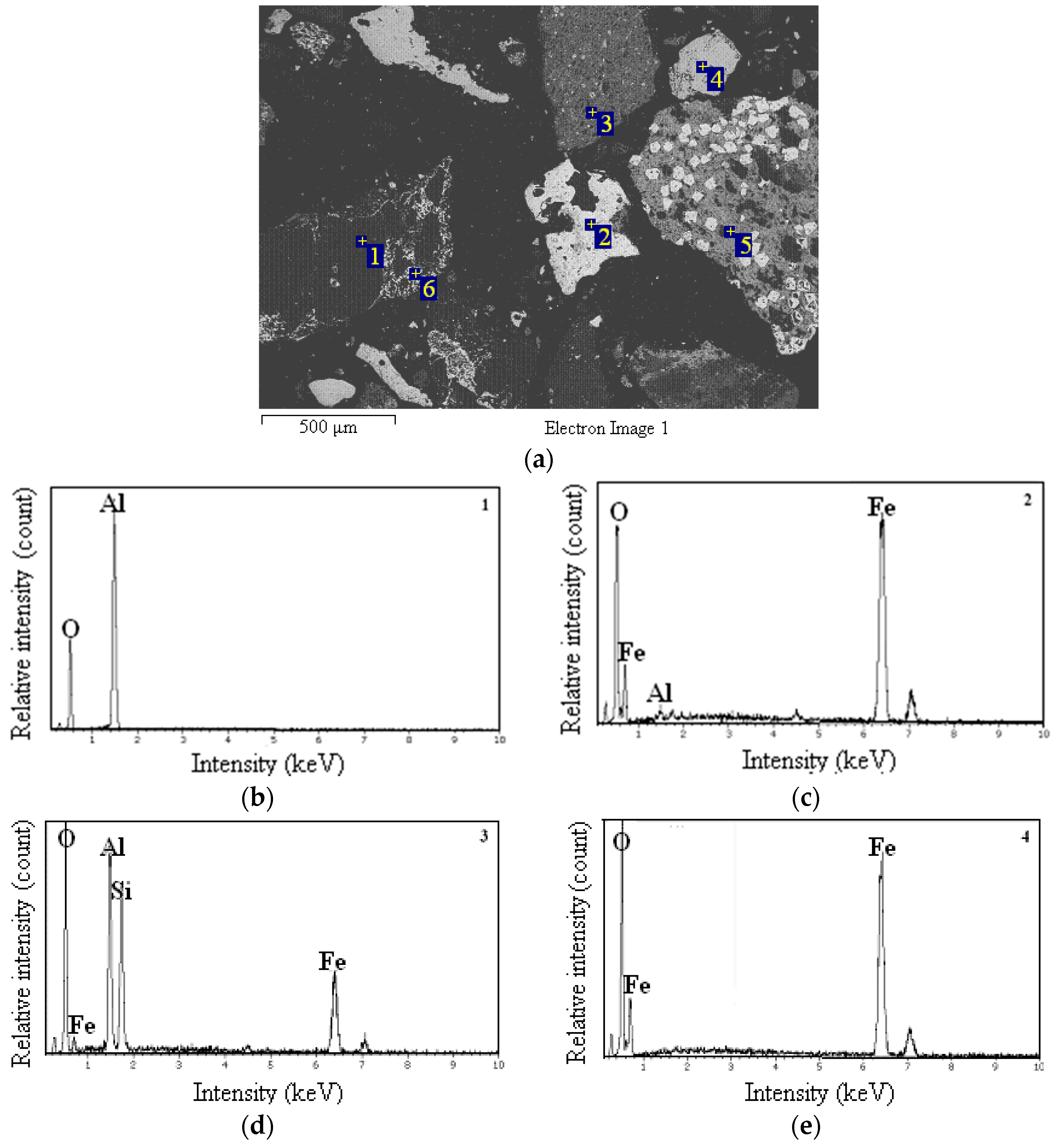

Table 1 indicates that the iron and silicon dioxide of ferric bauxite are 28.79% and 12.22%, respectively. Figure 2 shows five main crystalline mineral phases in raw ferric bauxite: hematite, boehmite, diaspore, kaolinite, and goethite. Figure 3 reveals that the minerals in ferric bauxite are finely disseminated and symbiotic with one another, particularly the fine disseminated silicon-containing minerals distributed in hematite and diaspore grains (see points 5 and 6 in Figure 3a). Ferric bauxite is characterized by the high contents of iron and silicon dioxide, as well as finely disseminated and symbiotic silicon-containing mineral.

Proximate analysis and inorganic composition data of coal are shown in

Table 2. Proximate analysis of the coal used.

Compositions	Total Moisture (Mt)	Volatiles (Vad)	Ash (Aad)	Fixed Carbon (FCad)
Content/%	9.16	39.42	5.07	46.35

and

Table 3. Inorganic composition of coal ash.

Component	SiO2	Al2O3	Fe2O3	MgO	CaO	Na2O	K2O	TiO2	P2O5
Content/%	38.0	21.37	36.19	1.9	7.15	0.43	1.38	0.84	0.41

, respectively.

3. Results and Discussion

3.1. Leaching Rules

Coal dosage, heating temperature, heating time, and sodium carbonate dosage are the four significant factors that influence ferric bauxite direct reduction and leaching process [14]. Among them, coal dosage is usually determined by the hematite content of ore, and can hardly be changed to promote η_N. Thus, only the effects of heating temperature, heating time, and sodium carbonate dosage on η_N were measured in this research, and every experiment was conducted under a constant coal dosage. The parameter scales were established under previously reported optimum conditions [16], because η_N must be promoted on the premise of synthetically recovering iron and aluminum. In the Box–Benhken design, the fluctuation range of each parameter scale is 10%. The Box–Benhken design and experiment results are shown in

Table 4. Box–Benhken design and experiment results.

No.	Experimental Factors			ηN (%)
	Heating Temperature (°C)	Heating Time (min)	Sodium Carbonate Dosage (%)
1	1035	49.5	85	66.05
2	1035	40.5	85	67.04
3	1035	45	93.5	66.49
4	1035	45	76.5	67.56
5	1150	49.5	76.5	63.75
6	1150	49.5	93.5	60.68
7	1150	40.5	76.5	64.04
8	1150	40.5	93.5	59.70
9	1150	45	85	59.23
10	1150	45	85	59.31
11	1150	45	85	59.55
12	1150	45	85	59.12
13	1150	45	85	59.47
14	1265	45	76.5	50.81
15	1265	45	93.5	51.52
16	1265	40.5	85	46.63
17	1265	49.5	85	45.30

.

Research shows the appropriate model simulated by Box–Behnken is quadratic. The variance analysis of the regression models is shown in

Table 5. Variance analysis of regression models.

Source	Sum of Squares	Df	Mean Squares	F	P-Value Prob > F	Result
Model	740.12	9	82.24	30.95	<0.0001	Significant
A	663.85	1	663.85	249.85	<0.0001	Significant
B	0.03	1	0.03	0.13	0.7736	-
C	7.54	1	7.54	2.84	0.1359	-
AB	0.028	1	0.028	0.01	0.9213	-
AC	0.79	1	0.79	0.3	0.6033	-
BC	0.41	1	0.41	0.15	0.7077	-
A2	38.27	1	38.27	14.4	0.0068	-
B2	0.017	1	0.017	6.4378 × 10−3	0.9383	-
C2	32.41	1	32.41	12.2	0.01	-
Residual	18.6	7	2.66	-	-	-
Lack of Fit	18.48	3	6.16	203.26	<0.0001	-
Pure Error	0.12	4	0.03	-	-	-
Cor Total	758.72	16	-	-	-	-

, where D_f is the degrees of freedom (a non-dimensional number), F is the homogeneity test of variance, P is the probability of obtaining a result that is at least as extreme as the actually observed result, given that the null hypothesis is true.

Using a quadratic model, it was calculated that R² = 740.12/758.72 = 0.9755. This indicates that 97.55% of the η_N changes coming from the factors have been considered. The lack of fit value and the significance level of the model selected show that the model and experimental data fit well, using quadratic to describe the quantitative relation between η_N and its influence factors is appreciated.

The confidence analysis of the quadratic model is shown in

Table 6. Confidence analysis of the quadratic model. VIF: variance inflation factor.

Factor	Coefficient Estimate	Df	Standard Error	95% Cl Low	95% Cl High	VIF
Intercept	59.33	1	0.73	57.61	61.06	-
A-Temperature	−9.11	1	0.58	−10.47	−7.75	1.00
B-Time	−0.2	1	0.58	−1.57	1.16	1.00
C-sodium carbonate	−0.97	1	0.58	−2.33	0.39	1.00
AB	−0.083	1	0.82	−2.01	1.84	1.00
AC	0.44	1	0.82	−1.48	2.37	1.00
BC	0.32	1	0.82	−1.61	2.25	1.00
A2	−0.31	1	0.79	−4.89	−1.14	1.01
B2	−0.064	1	0.79	−1.94	1.81	1.01
C2	0.27	1	0.79	0.9	4.65	1.01

, where D_f is the degrees of freedom (a non-dimensional number), and VIF is the variance inflation factor (a non-dimensional number).

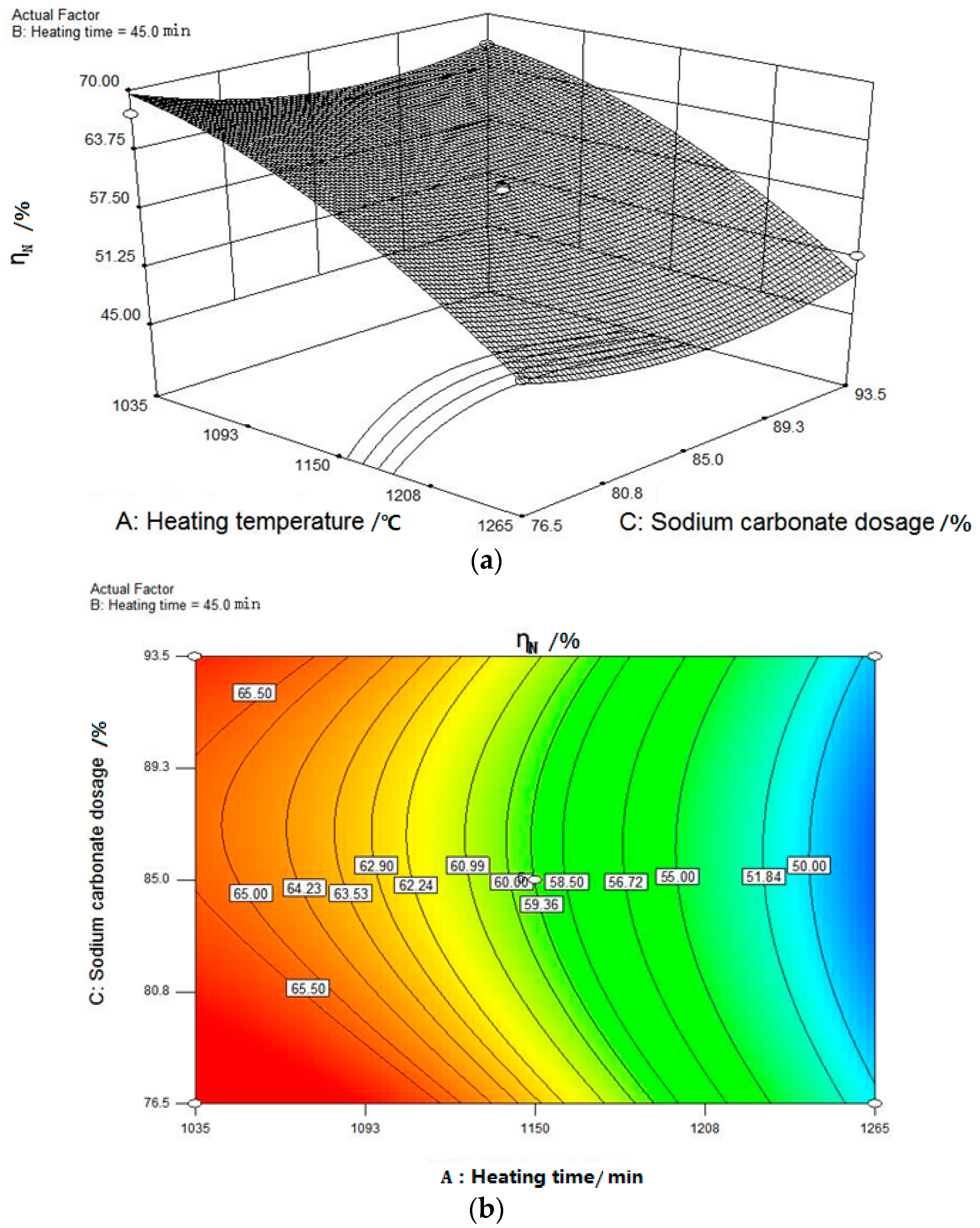

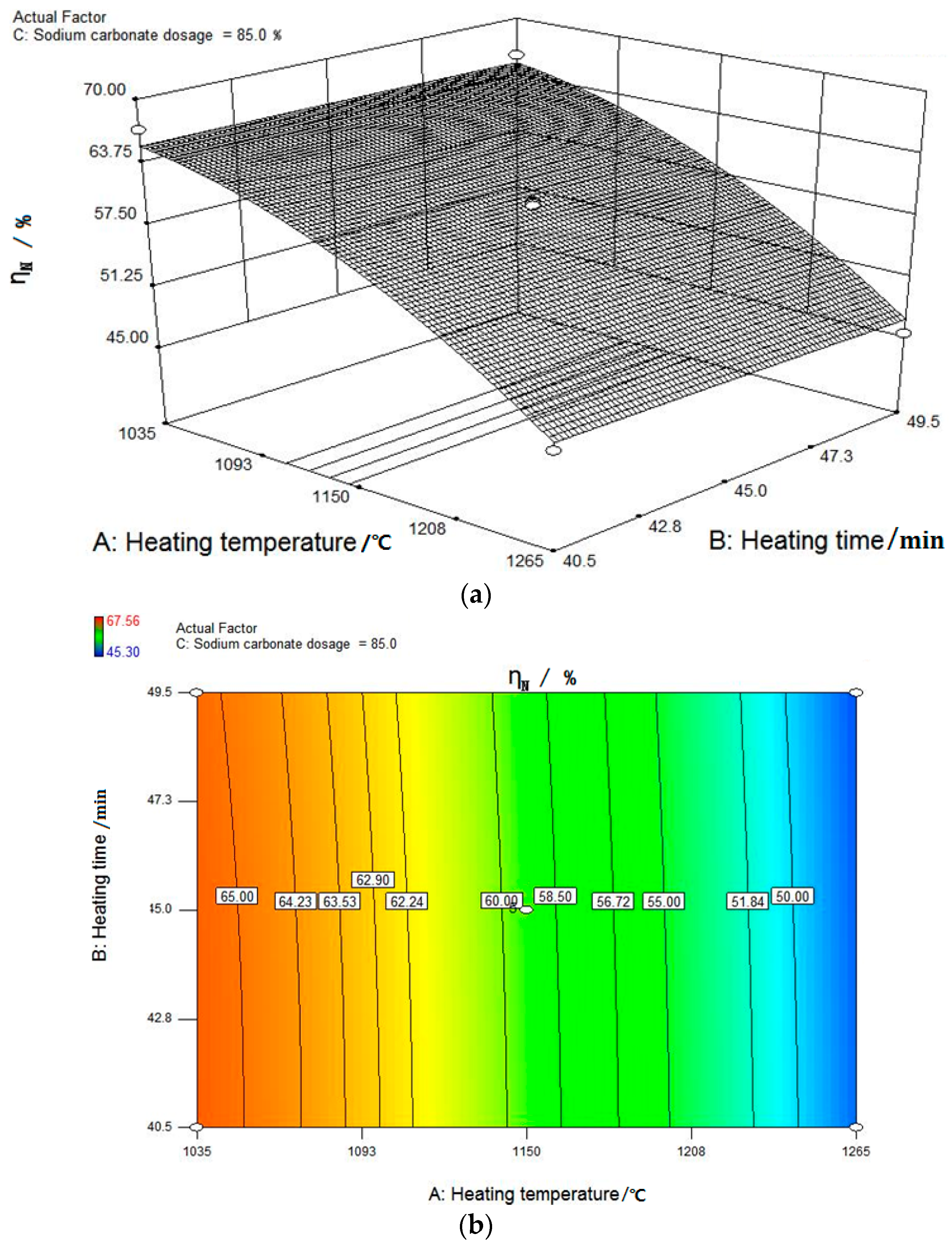

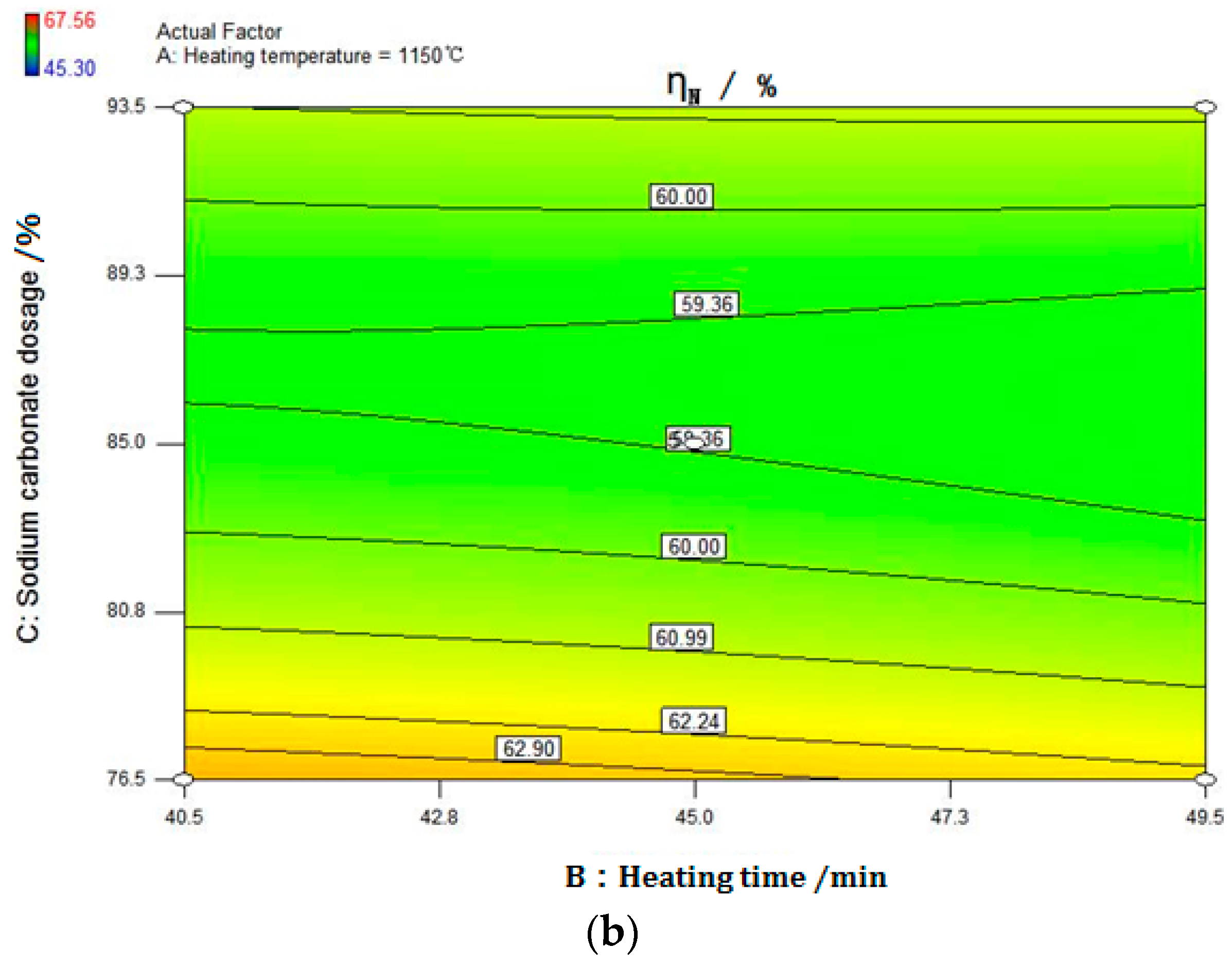

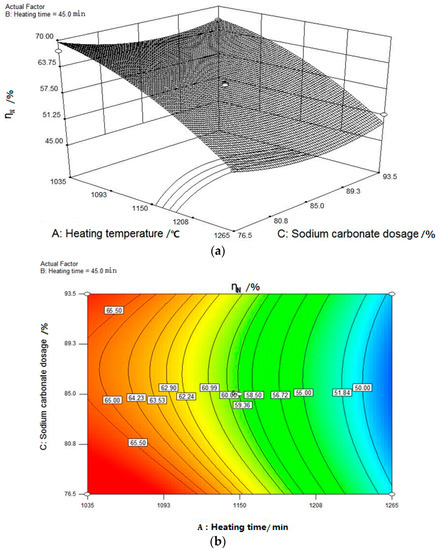

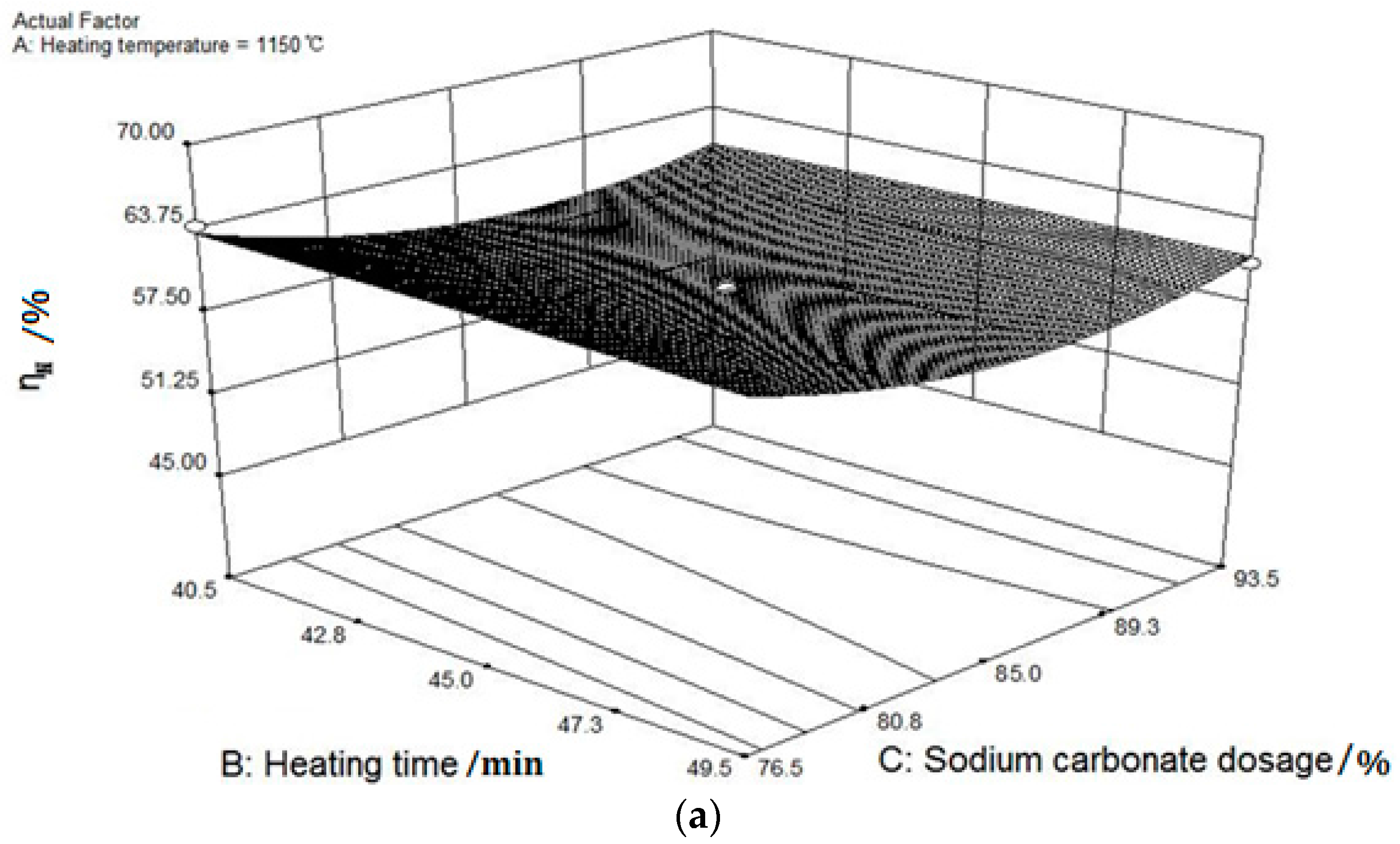

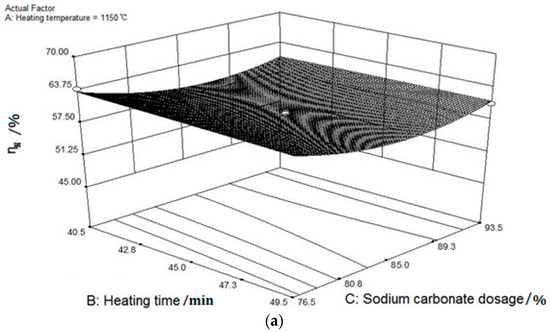

The variance analysis of the regression models in Table 5 shows that the quadratic model fits the data well. The response surfaces of the heating temperature–heating time plot and their corresponding contours are shown in Figure 4. The response surfaces of the heating time–sodium carbonate dosage plot and their corresponding contours are shown in Figure 5. The response surfaces of the heating temperature–sodium carbonate dosage plot and their corresponding contours are shown in Figure 6.

Figure 4, Figure 5 and Figure 6 show that the value gradients correlated with heating temperature is much sharper than that with sodium carbonate dosage and heating time. Exerting the minimal impact on η_N, the effect of heating time is negligible. Namely, the significance of the influencing factors of η_N can be arranged in descending order, as follows: heating temperature > sodium carbonate dosage > heating time.

3.2. Quantitative Analysis of Leaching Model

The quadratic model suggested by Box–Behnken design is shown in Equation (2).

$${\eta }_N=-3.01A^2-0.064B^2+2.77C^2-0.083AB+0.44AC+0.32BC-9.11A-0.2B-0.97C+59.33$$

(2)

Generally, the changing rate and speed of a quantity can be described by calculating its partial derivative and second partial derivative. Specifically, the effects of heating temperature (A), heating time (B), and sodium carbonate dosage (C) on η_N changings mean promotion or restraint; thus, these promotion or restraint effects can be investigated by calculating the partial derivative and second partial derivative of η_N. Necessary processes and the results of the calculation are shown in Equations (3)–(8).

$$\frac{\partial {\eta }_N}{\partial A}|\begin{array}{l}A=1150\\ B=2700\\ C=40.75\end{array}=-6.02A-0.083B+0.44C-9.11=-7138.2$$

(3)

$$\frac{{\partial }^2{\eta }_N}{\partial A^2}=6.02$$

(4)

$$\frac{\partial {\eta }_N}{\partial B}|\begin{array}{l}A=1150\\ B=2700\\ C=40.75\end{array}=-0.128B-0.083A+0.32C-0.2=-428.21$$

(5)

$$\frac{{\partial }^2{\eta }_N}{\partial B^2}=-0.128$$

(6)

$$\frac{\partial {\eta }_N}{\partial C}|\begin{array}{l}A=1150\\ B=2700=5054C+0.44A-0.97=1590.71\\ C=40.75\end{array}$$

(7)

$$\frac{{\partial }^2{\eta }_N}{\partial C^2}=5.54$$

(8)

Analysis shows that $\frac{\partial {\eta }_N}{\partial A}$ < $\frac{\partial {\eta }_N}{\partial B}$ < 0 when A = 1150 °C, B = 45 min, and C = 40.75%, indicating that η_N is restricted with increasing heating temperature and heating time. In addition, the restriction effect of the former is 16.67 times larger than that of the latter. $\frac{\partial {\eta }_N}{\partial C}$ > 0 means that η_N increases with increasing sodium carbonate dosage. $\frac{{\partial }^2{\eta }_N}{\partial A^2}=-6.02$ < $\frac{{\partial }^2{\eta }_N}{\partial B^2}=-0.128$ < 0 indicates that the restriction effects of heating temperature and time on η_N decrease, and the decrease of the former is 47.03 times larger than that of the latter. $\frac{{\partial }^2{\eta }_N}{\partial C^2}=5.54>0$ indicates that the promoting effect from the increase in sodium carbonate dosage will become reinforced. Therefore, sodium leaching improves with increasing sodium carbonate dosage and decreasing heating temperature. However, taking economic effects into consideration, the increasing of sodium carbonate dosage means more materials costs, while the decreasing of heating temperature reduces fuel consumption. Thus, in addition to the technical factor, it is also necessary to perform a financial evaluation to verify the economic value of these optimality conditions.

4. Conclusions

Ferric bauxite is characterized by high contents of iron and silicon dioxide, as well as finely disseminated and symbiotic silicon-containing mineral. η_N can be promoted by increasing sodium carbonate dosage. The promotion effect can be restricted by increasing the heating temperature and time. The restriction effect of heating temperature is 16.67 times larger than that of heating time. However, the decreasing effects of heating temperature and time on η_N both reduce when heating temperature or heating time increase, but the effect of heating temperature weakens 47.03 times faster than that of heating time. Therefore, in conclusion, sodium leaching improves with increasing sodium carbonate dosage and decreasing heating temperature.
