Polymorphs, Proteins, and Nucleation Theory: A Critical Analysis

Abstract

Over the last eight years new theories regarding nucleation, crystal growth, and polymorphism have emerged. Many of these theories were developed in response to observations in nature, where classical nucleation theory failed to account for amorphous mineral precursors, phases, and particle assembly processes that are responsible for the formation of invertebrate mineralized skeletal elements, such as the mollusk shell nacre layer (aragonite polymorph) and the sea urchin spicule (calcite polymorph). Here, we summarize these existing nucleation theories and place them within the context of what we know about biomineralization proteins, which are likely participants in the management of mineral precursor formation, stabilization, and assembly into polymorphs. With few exceptions, much of the protein literature confirms that polymorph-specific proteins, such as those from mollusk shell nacre aragonite, can promote polymorph formation. However, past studies fail to provide important mechanistic insights into this process, owing to variations in techniques, methodologies, and the lack of standardization in mineral assay experimentation. We propose that the way forward past this roadblock is for the protein community to adopt standardized nucleation assays and approaches that are compatible with current and emerging nucleation precursor studies. This will allow cross-comparisons, kinetic observations, and hopefully provide the information that will explain how proteins manage polymorph formation and stabilization.

1. Introduction

In nature, invertebrate organisms primarily utilize calcium carbonates as the building materials for extracellular skeletal elements such as the mollusk shell [1,2,3,4] sea urchin spicules [5,6,7,8,9,10,11] and corals [12,13,14]. Biological calcium carbonates can exist in an amorphous state (amorphous calcium carbonate, ACC) [9,10,11,15,16,17,18,19] and as three different crystalline polymorphs: calcite, aragonite, and vaterite, where calcite is the more stable form and aragonite and vaterite are metastable relative to calcite [15,16]. Polymorphism, or the ability of a solid to exist in more than one lattice structure [15,16,20], is a feature of both naturally-occurring and artificial compounds [15,16,17,18,19,20,21,22,23,24]. Thus, the study of polymorphism in invertebrate skeletal elements can provide important insights into polymorph formation and stabilization over a wide range of conditions.

The attraction of biological calcium carbonate polymorphism to the scientific community is that this process occurs largely under ambient conditions [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19] and thus represents a “game changer” for materials science and chemistry communities who have utilized non-ambient and sometimes extreme conditions to generate a given polymorph. What is often overlooked in the discussion of biological calcium carbonate polymorphism is the role and identity of extrinsic agents in the formation and stabilization processes. For example, the literature shows that extrinsic agents such as alcohols [21], gels [22,23], and Mg(II) ions [24] can foster metastable aragonite formation instead of calcite in vitro. Thus, we might assume that in biological organisms, polymorph stabilizing or promoting agents may exist as well. Some examples would include Mg(II), which is present in a 5:1 ratio relative to Ca(II) in seawater [24], or, small molecule metabolic end products, such as phosphate, which have been shown to stable ACC [25].

We must, however, also acknowledge that invertebrate skeletal elements are composite structures consisting of the mineral phase(s) and macromolecular components [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. Here, the mineral phase nucleates and matures within this matrix. Therefore the potential role of matrix macromolecules such as proteins looms large in polymorphism. If proteins do play a role in calcium carbonate polymorph selection and stabilization, then this process must fall under genomic and proteomic guidance [5,6,7,8,13,14,26,27,28]. Hence, polymorphism could be controlled by the temporal, spatial, and quantitative aspects of protein components within the extracellular space. If true, then the scientific community could avail itself of this tremendous molecular variation to guide a given polymorph to form, possibly with higher efficiency and purity at the endpoint that present capabilities do not allow.

The intent of this review is to “jumpstart” the discussion of protein-mediated polymorphism as it pertains to invertebrate calcium carbonate skeletal elements alone in the absence of additives such as Mg(II). In other words, do proteins possess the inherent capabilities to direct specific polymorph formation without the assistance of other agents? Admittedly, scientific progress and understanding in this area have been slow, primarily due to two factors: first, our understanding of the nucleation process is still undergoing evolution and testing, and within the last few years alternatives to classical nucleation theory have emerged [15,16,29,30,31,32,33], which will be discussed in the next section. Thus, the challenge is to figure out where in these schemes aragonite, calcite, and vaterite-specific proteins might avail themselves to manipulate and regulate the nucleation and polymorph selection process. Second, and perhaps most importantly, genomic and proteomic studies of biomineralization proteins have uncovered a vast repertory of proteins [6,7,8,13,14,26,27,28] that could potentially manage many aspects of proposed nucleation processes, including polymorphism. However, although many protein studies have confirmed that polymorphs do form when proteins are present [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53], these studies have not provided information that is needed for detailing the mechanisms of polymorph formation, or, have utilized a variety of testing methods that prevent cross-comparisons of datasets necessary for mechanism building [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53]. Here, we believe that the challenge for the protein community will be to adopt consistent mineralization assay standards and approaches that are compatible with current and emergent nucleation precursor studies [15,16,29,30,31,32,33]. These studies will allow time-dependent, careful monitoring of protein effects on the early events in nucleation and polymorph selection processes that can yield information on mechanisms. Only then will we be able to determine what nucleation schemes are at work in nature, how proteins foster polymorph formation and stabilization, and how to apply this information to materials science.

2. The Current State of Knowledge Regarding Nucleation and Polymorph Formation

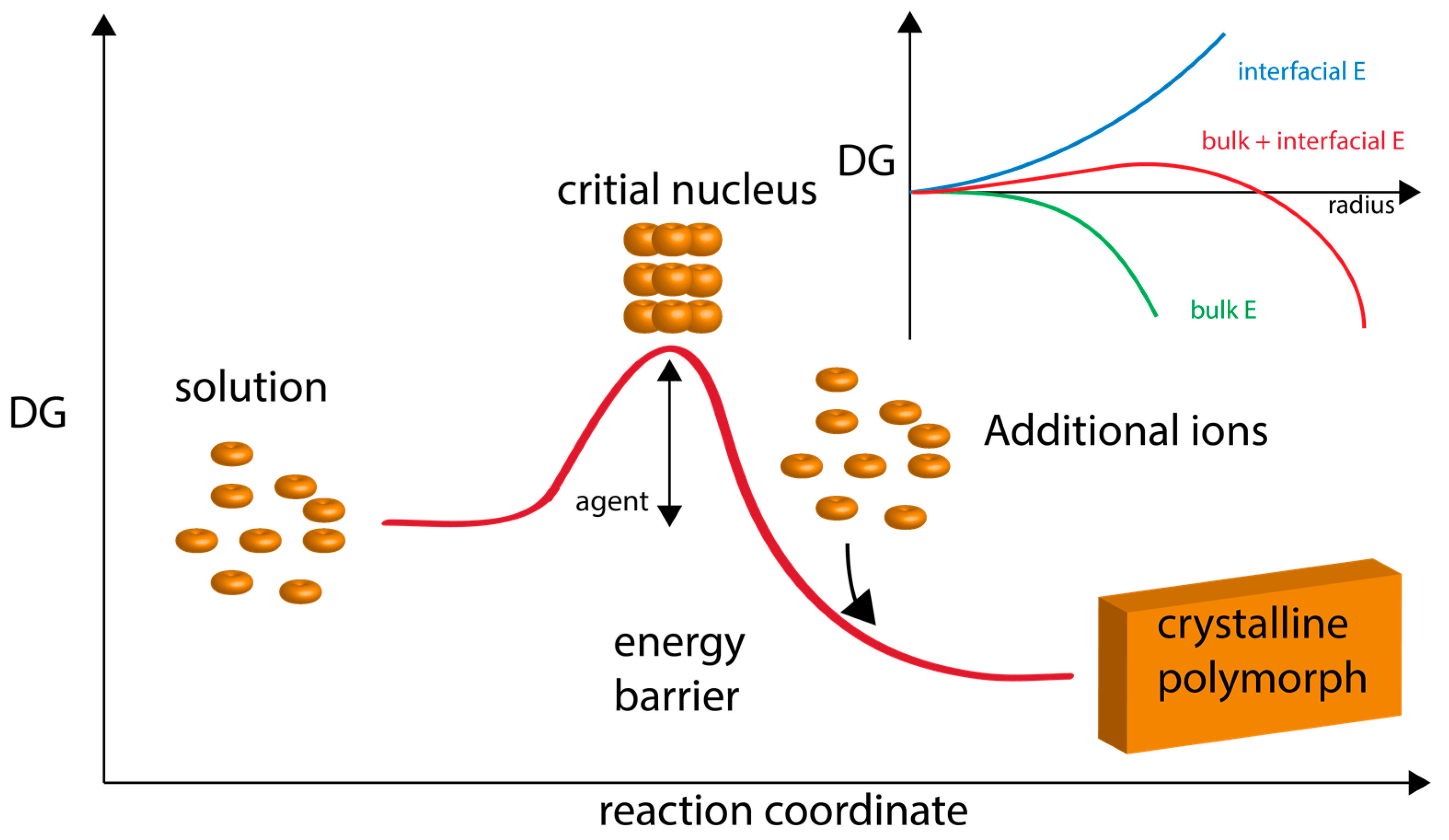

In terms of classical nucleation theory, polymorph formation is a process dictated by thermodynamic and kinetics factors, where monomer-by monomer addition to an isolated ordered cluster results in a crystal with a given lattice structure (Figure 1) [15,16,29,54]. In the classical scheme polymorph selection is thus determined by the correct combination of polymorph-specific thermodynamic (e.g., temperature, pressure, volume) and kinetic (i.e., timeline or rate) factors which lower the nucleation energy barrier to crystal formation [54]. Hypothetically, this process could be managed by agents or additives in many ways to lower the energy barrier for nucleation and generate the appropriately structured cluster that would subsequently grow into a specific polymorph via monomer-by-monomer addition [15,16,29,54]. In laboratory practice, however, there is sometimes a lack of efficiency in generating a desired polymorph by simply manipulating these factors, and this leads to the formation of undesired polymorphs as impurities [20].

As usual, in nature, things are not always so straightforward. One of the most dramatic observations is that prior to the crystallization event, organisms first form an amorphous precursor, ACC, which then transforms into a given crystalline calcium carbonate polymorph [9,10,11,15,16,17,18,19].

Here, the nucleation of ACC takes place at concentrations lower than those necessitated by classical theory and the monomer addition process [15,16,29,54]. This is compounded by another important observation that is clearly inconsistent with classical nucleation theory [54]: the formation of mineralized tissues, such as mollusk shell nacre [1,2,3,4] or sea urchin spicules [5,6,7,8,9,10,11] occurs via the assembly of individual mineral nanoparticles into mesoscale structures, rather than by monomer-by-monomer addition. Thus, we must either look outside or amend classical nucleation theory to describe applicable mechanisms that explain biological ACC formation and subsequent crystal growth. In doing so, we stand a good chance of developing new laboratory processes for practical polymorph selection that are more efficient.

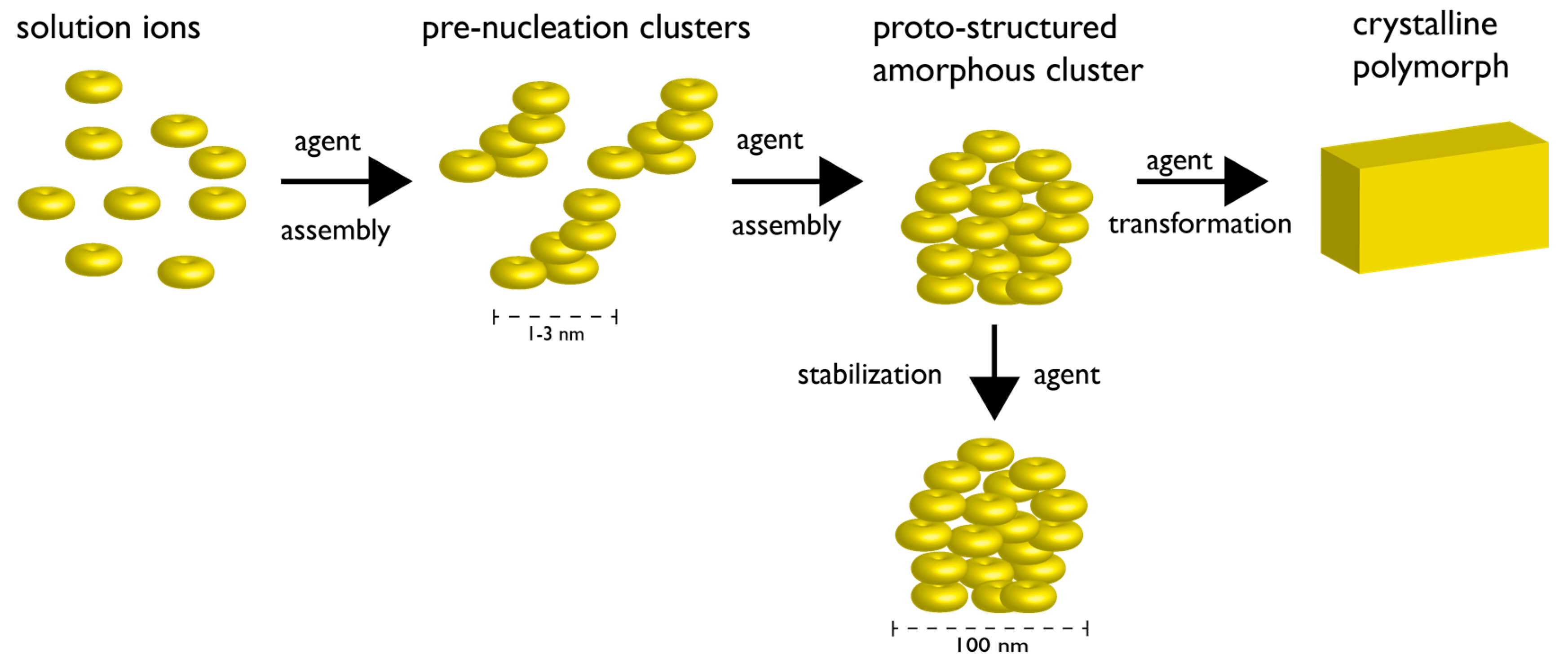

Owing to the complexity of the extracellular matrix (ECM) it has been difficult to establish in situ ACC and polymorph formation mechanisms in organisms. As a result, in vitro experiments [16,17,25,29,30,31,32,33] and theoretical modeling [16,55,56] have provided an alternative means of understanding ACC and calcium carbonate crystal formation, and it now appears that nucleation may be explained and understood by alternative nucleation theories. The first of these is the non-classical or pre-nucleation cluster theory, where ACC formation results from the assembly of 1–3 nm ionic Ca²⁺-CO₃²⁻ clusters, known as pre-nucleation clusters, during the early stages of the nucleation process (Figure 2) [29,30,31,32,33]. What is intriguing about this theory is that the prenucleation cluster formation and assembly processes have been shown to be very sensitive to pH and additives [29,30,31,32]. Moreover, it has been proposed that ACC can adopt different proto-structures, i.e., short-range structures that correlate to a given crystalline polymorphs [33]. Thus, mineral cluster proto-structure may influence polymorph selection during the ACC-to-crystal transformation process either via a dissolution-re-precipitation Ostwald mechanism [54] or solid-state transformation-like pathways [15,16,31]. If true, then the selection of a given polymorph could be determined at early stages of mineral cluster formation by the stabilization of a given proto-structure of ACC [33].

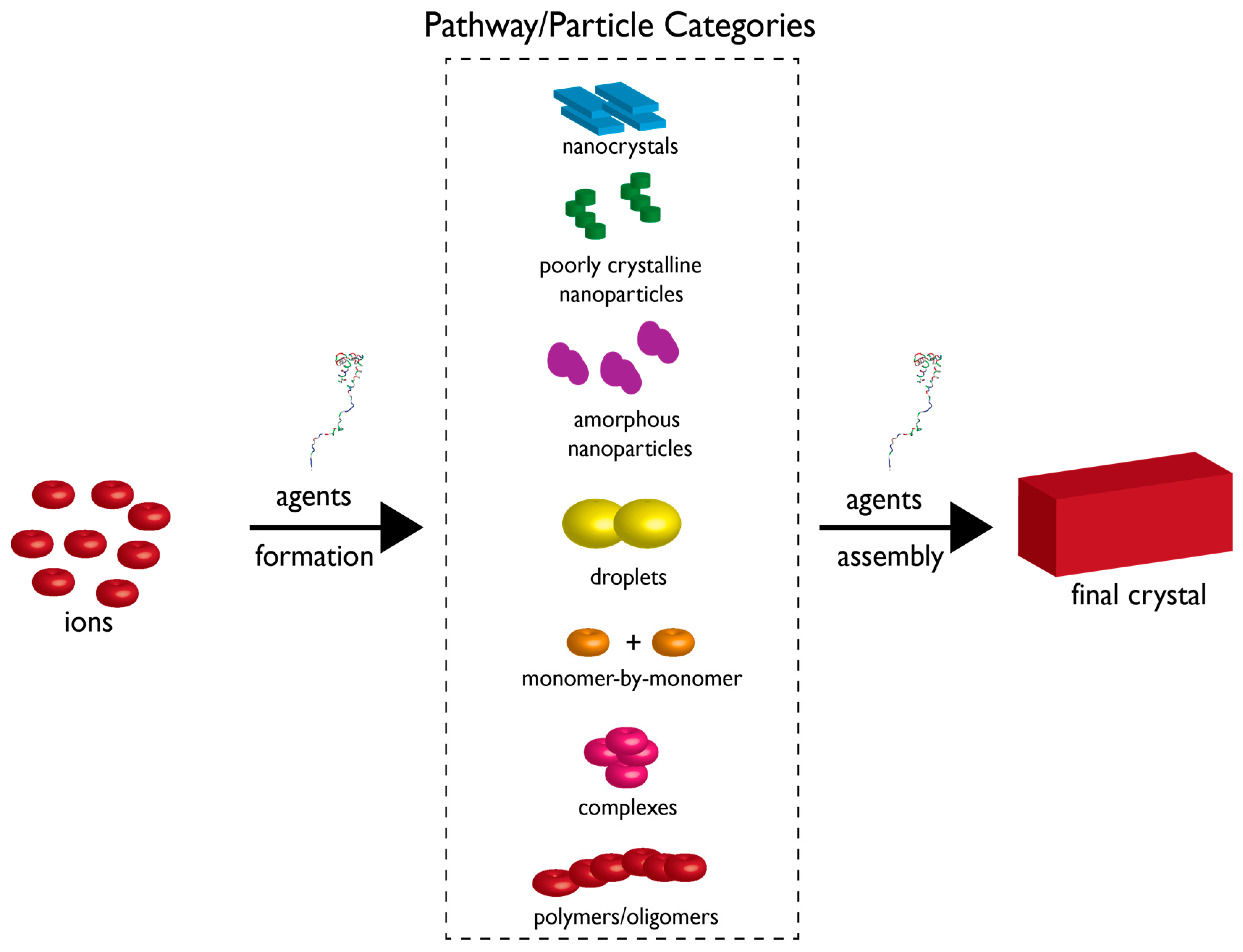

The second, alternative view on nucleation processes is termed crystallization by particle attachment (CPA) [15]. Here, a crystalline or amorphous mineral forms via the addition of higher-order species such as multi-ion complexes, liquid phases, droplets, gels, oligomers, and fully formed nanoparticles (Figure 3) [15]. In addition to a classical monomer addition pathway [54], in CPA there exist multiple particle-based pathways that eventually lead to the final crystal, and, multiple growth mechanisms can occur simultaneously within a single crystallizing system. The process of particle attachment or assembly can be influenced by several factors, including interfacial or surface free energies. It is argued that the surface free energy is an important determinant in polymorph formation pathways for two reasons: (1) This term affects the magnitude of the free energy barrier for nucleating a given polymorph; and (2) The surface free energy impacts particle size, and thus to form a given polymorph one needs to first nucleate particles with a relatively uniform size distribution within the size range in which that polymorph is stable, then assemble these particles to form the final polymorph [15]. Furthermore, surface free energy can be tuned by extrinsic factors such as: (1) the presence of surfaces, which can reduce interfacial free energy; (2) volume confinement, which can stabilize phases; and (3) the presence of agents, such as small molecules or polymers, which can affect the kinetics of particle formation, particle assembly, and phase stabilities [15]. Thus, if we consider the particle attachment process to be representative of polymorph nucleation, then control over polymorph expression would minimally require the manipulation of both particle formation and the subsequent assembly process.

3. How Biomineralization Proteomes Might Fit into Recently Proposed Nucleation Schemes

On the assumption that nature does not employ a purely classical nucleation scheme [54] to form calcium carbonate polymorphs, our next task is to take the alternative views on the nucleation process [15,29,30,31,32,33] and determine what role, if any, proteins might play in the polymorph formation process. From the foregoing, it is clear that non-classical [29,30,31,32,33] and CPA [15] pathways to polymorph formation involve multiple steps and processes. Thus, the most efficient path to form calcite, aragonite, or vaterite would depend upon the action of agent(s) that can manipulate key steps along a specific pathway (Figure 2 and Figure 3). This is where biomineralization proteins may be involved. Organisms can regionally and temporally express numerous proteins that cooperatively and synergistically handle tasks within chemical scenarios. As recent studies have shown, invertebrates such as the pearl oyster and sea urchin spicule genomes encode several hundred mineral-associated protein genes apiece [5,6,7,8,26,27,28]. Granted, we would not expect every member of these proteomes to be directly responsible for nucleation and crystal growth, but two possibilities emerge: (1) It is plausible that specialized proteins may be assigned to cover multiple nucleation and crystal growth pathways within a single skeletal element; (2) the formation of a given polymorph is not entrusted to a single protein but spread over multiple proteins, thus ensuring organism survival if one or more proteins experienced a debilitating sequence mutation.

Regarding the non-classical pre-nucleation cluster scheme, it has been proposed that there are several of steps that could be potentially regulated by additives such as proteins, such that a given polymorph crystal is formed: (1) the kinetics of pre-nucleation cluster formation; (2) the assembly and stabilization of PNCs into proto-structured ACC; (3) the stabilization and transformation of ACC to a specific polymorph [29,30,31,32,33]. Regarding the CPA scheme, we are confronted with a myriad of possibilities: there may exist multiple assembly pathways to crystal polymorph formation, multiple particle species available for assembly, and multiple growth mechanisms running concurrently [15]. Here, it has been suggested that proteins could lower activation energy barriers to particle assembly, act as stabilizers of liquid-like mineral phases, provide volume confinement for nucleation, simultaneously organize and regulate multiple mechanisms of mineral growth, and so on [15]. In short, each nucleation theory invokes ample control points that could be manipulated by proteins to direct specific polymorph formation.

4. Protein-Polymorph Formation and Stabilization—What Do We Currently Know?

Although hypothetical roles and scenarios can be postulated for protein-mediated polymorph formation and stabilization within calcium carbonate nucleation schemes, the more relevant issue is this: what have in vitro and in situ studies revealed about protein participation in the formation of either metastable aragonite or vaterite?

For aragonite, what we must draw from are studies conducted with mollusk shell nacre-associated protein sequences [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51]. For in vitro-based studies, several different carbonate-based assays have been used to achieve supersaturation conditions necessary for calcium carbonate crystal growth, with no control over pH, and the duration of these nucleation experiments were variable (i.e., from several hours up to 7 days) [36,38,39,41,42,43,44,46,47,48,49,50,51]. Further, some studies utilized Mg(II) ions in the assay mixture to mimic seawater conditions and promote and stabilize aragonite [36,44]. For in situ studies, measurements of aragonite formation were conducted within shells over defined periods of time when certain proteins are expressed or introduced into the shell environment [34,35,37,40,45]. In both sets of studies aragonite formation was confirmed in the presence of multiple nacre proteins [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51]. In addition, some nacre proteins exhibited the ability to inhibit calcite growth [41,46,47,48] or induce metastable vaterite formation as well [48,50,51].

In comparison to the aragonite studies, there have been fewer published studies that examine the role of proteins in metastable vaterite formation [48,52,53], most likely because of fewer organisms utilizing this polymorph over calcite or aragonite [52,53,57]. These studies were in vitro in nature and utilized corresponding calcium carbonate mineralization assays as described for aragonite studies [48,52,53]. Again, as per the aragonite studies, these studies confirmed the formation of metastable vaterite crystals in the presence of the proteins under investigation [48,52,53].

But what do these protein-polymorph studies tell us about the mechanism(s) by which proteins control polymorph formation on their own? Unfortunately, very little. The major reason for this is the lack of standardization: even though conditions for studying non-classical nucleation schemes were published nearly 8 years ago [30] there are few examples in the protein literature that utilize these methods of generating ion supersaturation and subsequent nucleation. Further, many studies relied on different ion concentration levels, control conditions, time periods, temperatures, pH values, and most importantly, protein quantities, in their assay experiments [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53]. Typically, in most cases protein quantities have been reported as mass/volume values [34,35,36,37,38,39,40,41,42,43,44,45,52,53] rather than mole values [46,47,48,49,50,51], and this lack of standardization prevents cross-comparisons between protein studies. Thus, with all the published experimental variations, it is almost impossible to quantitatively compare the published nucleation results obtained with protein “A” from one study with protein “B” of another study. As a result, we cannot effectively piece together the information required to identify a polymorph formation mechanism.

The other important issue regarding past protein—polymorph studies is the intent: These studies focused exclusively on a “yes or no” outcome—i.e., did aragonite or vaterite form [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53]?—rather than monitor the stepwise or temporal process of polymorph formation that is a prerequisite for mechanism development. These studies confirm that certain calcium carbonate polymorphs do form when proteins are present [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53], but tell us nothing about how this process occurs, particularly within non-classical nucleation [29,30,31,32,33] or CPA [15] schemes. This leaves us at an impasse regarding the verification of protein-mediated polymorph formation.

5. Moving towards More Informative Studies

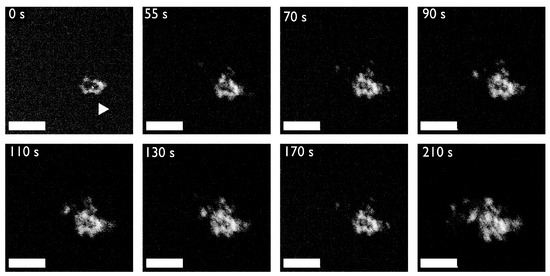

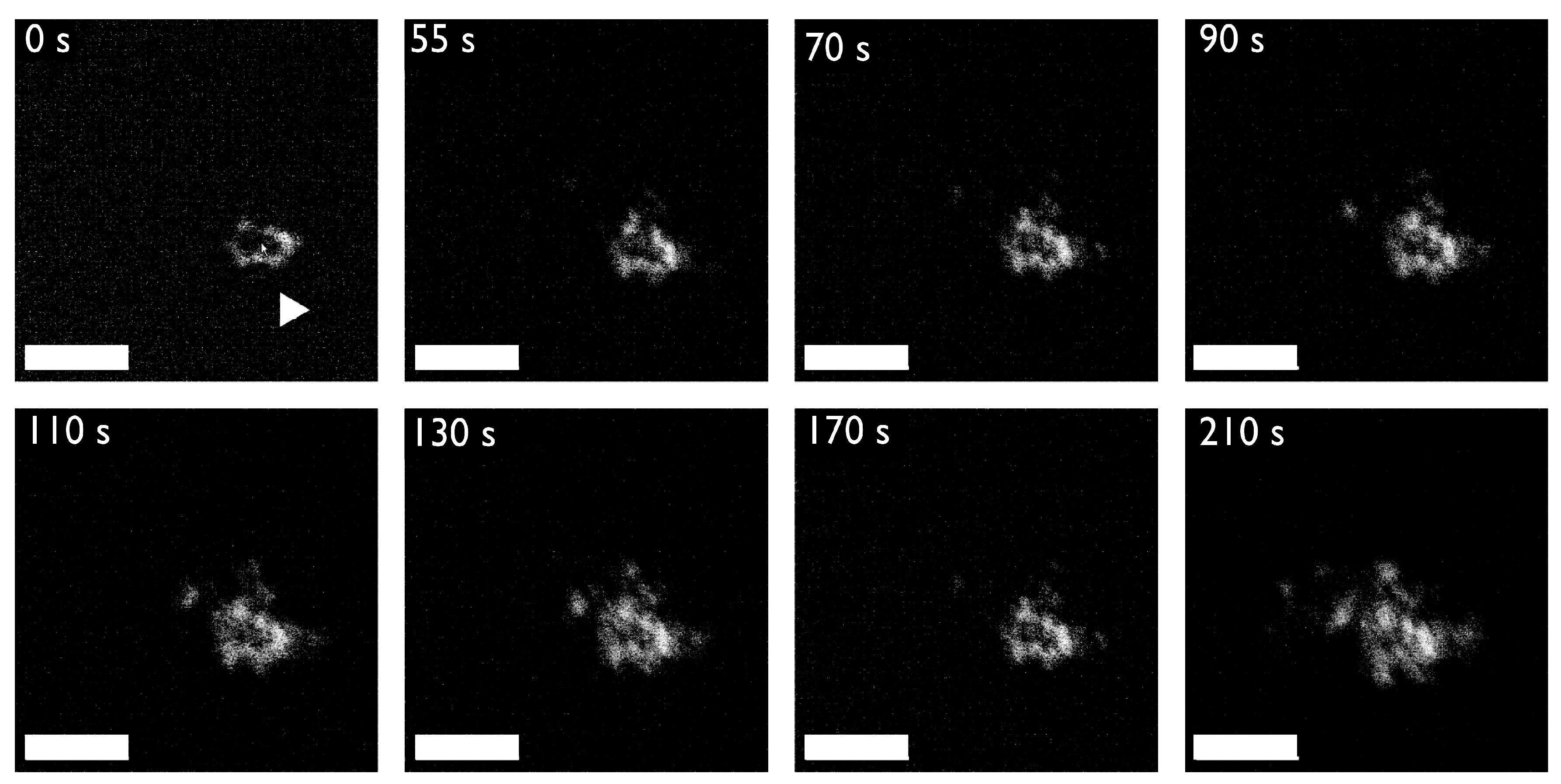

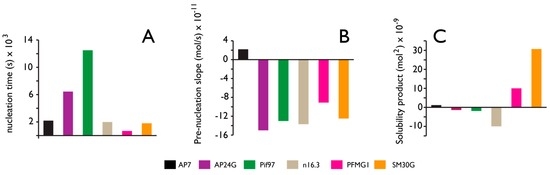

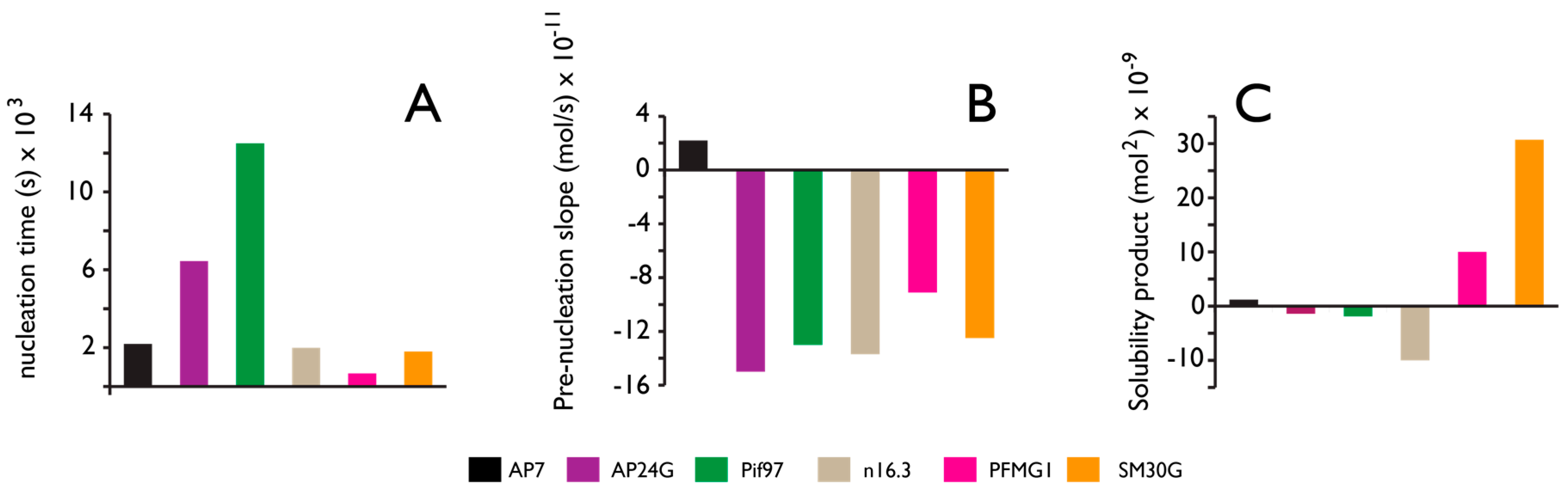

If we are to understand how proteins might control the polymorph selection and stabilization processes, then we need to move towards away from random, non-complementary studies [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53] and towards standardized assay systems and methodologies [16,29,30,31,32,33] that place biomineralization proteins within the context of non-classical nucleation and CPA schemes. As an example, recent in vitro studies involving five recombinant mollusk shell nacre-associated proteins [58,59,60,61,62,63,64,65,66] and ACC-stabilizing sea urchin spicule matrix proteins [67,68] have utilized mineralization assay conditions identical to those employed in non-classical nucleation studies [29,30,31,32,33]. What links these different biomineralization proteins together are two common molecular themes [69,70]: intrinsic disorder, or absence of folding protein structure, and amyloid-like aggregation-prone domains, which promote protein-protein association leading to the formation of protein phases or hydrogels [58,59,60,61,62,63,64,65,66,67,68]. These reported studies utilized mole protein quantities, Ca(II) potentiometric methods, and parallel mineralization assay systems to study the early and later events in calcite-based calcium carbonate nucleation and monitor the formation and stabilization of PNCs and ACC in a time-dependent fashion. What was discovered was very informative: these proteins are distinguishable in terms of what mineral species or steps in the non-classical scheme they affect (Figure 4) [58,59,60,61,62,63,64,65,66,67]. Further, using mineralization assays which overlap with the time periods of the potentiometric titrations and utilize similar solution and supersaturation conditions [58,59,60,61,62,63,64,65,66,67] these studies demonstrated that these proteins form hydrogels that can capture, assemble, and organize mineral nanoparticles (Figure 5) [62,65] consistent with CPA theory [15]. The major conclusions one can draw from these studies are the following: (1) nacre [58,59,60,61,62,63,64,65,66] and sea urchin spicule matrix proteins [67,68] perform seminal tasks that would be critical for eventual polymorph selection and stabilization; (2) the functionalities of these six nacre proteins [58,59,60,61,62,63,64,65] are consistent with either non-classical [29,30,31,32,33] or CPA [16] theories [15]. Note that since these protein assay studies were calcite-based, there were no opportunities to study metastable aragonite or vaterite formation and stabilization. However, adjustment of in vitro assay and potentiometric conditions should allow these types of studies to move forward, and thus polymorph-specific studies under controlled conditions with defined protein content will be accomplished.

Although in vitro studies provide basic insights into polymorph formation, there remains the task of verifying that these processes occur in situ within mineralized tissues where polymorphs are formed. Although it is quite feasible to dissect time- and location-dependent nucleation events in parallel with protein expression, transport, and appearance [35,40,42,43,71,72,73] it is not yet feasible to correctly monitor, interpret, and integrate PNC, ACC, phase formation, particle assembly and organization simultaneously within the context of protein-specific events in situ. These limitations are primarily technological in scope, meaning that the methods and techniques to obtain this critical information are currently unavailable or do not possess sufficient sensitivity or spatio-temporal resolution to achieve the desired result. Once again, these issues should be resolved in time.

6. The Next Steps

We are at a crossroads in biomineralization and nucleation theory. Earlier models [54] which described classical nucleation of polymorphs have undergone a sophisticated evolution towards a multicomponent, multiprocess—based set of theories [15,16,29,30,31,32,33]. Although such theories might seem more complex at the outset, they are quite simple from the biological perspective: they allow for multiple pathways and approaches to achieve a desired mineral phase result specific for a given skeleton and organism. Again, this is where biology shines, for each organism could evolve its own version of nucleation pathway manipulation using specialized proteins [26,27,28] yet still obey the same thermodynamic laws and limitations [15,16,29,30,31,32,33]. As we are starting to see, a common theme that emerges from proteome studies is that these proteins share common traits, such as intrinsic disorder or unfolded structure [69] and aggregation propensity [69] that leads to protein phase or hydrogel formation that provides volume confinement and a pathway to particle assembly and organization [58,59,60,61,62,63,64,65,66,67]. Yet, the sequences of these proteins are unalike [58,59,60,61,62,63,64,65,66,67] and so genetic variation is permissible and even welcomed in biological organisms so long as specific nucleation goals are being met.

Thus, protein-mediated nucleation and polymorph selection and stabilization could be tweaked for an aragonite, vaterite, or calcite-based organism using a common blueprint—protein disorder and aggregation propensity [69]—that is modified to influence nucleation along a specific pathway, and, to manipulate certain steps within a given pathway. It is hoped that future research, involving standardized conditions and approaches, will firmly establish protein-based mechanisms of polymorph selection and stabilization in nature, and thus facilitate the transfer of this information to materials science and chemistry.
