Optimization Mechanism of Additive of Composite Sodium Salts on Vanadium Oxidation of Siliceous Shale

Abstract

The promotion of strengthening of vanadium oxidation by compound additive of sodium salts is described from the changes of the vanadium valence state and mineral phase. The results are as follows: during the roasting process, dehydroxy mica converts to the melt, which the composite system mainly contains Na, K, Al, Si, and O. Under the action of NaCl-Na₂CO₃, ion exchange between sodium and potassium promotes the crystallization of albite from the melt. Na₂CO₃ enhances the reactivity of quartz. The albite reacts with activated quartz, which promotes the migration of sodium ions and the generation of vanadate. Under the action of NaCl-Na₂SO₄, The crystallization of spinel in the melt is promoted and that of the albite is inhibited. Under the action of Na₂SO₄-Na₂CO₃, the permeability of ore is deteriorated. The ion exchange process and the vanadium oxidation is inhibited from the melt. The composite additive with three sodium salts shows a stronger promoting effect on vanadium oxidation. The contribution of NaCl and Na₂CO₃ to V(V) in roasted slag was the highest among three sodium salts. With a certain ratio of NaCl and Na₂CO₃, the low content of Na₂SO₄ did not significantly affect the V(V) content in roasted slag.

1. Introduction

Roasting is one of the important steps of the recycling of various metals in siliceous shale [1]. Additives contribute to the extraction of vanadium during the roasting process has been the consensus [2]. During the process of recovering vanadium from shale, sodium salt occupies a very important position in roasting additives. Since a single sodium salt only obtains a low vanadium extraction rate, researchers tend to mix two or three kinds of sodium salts as a composite additive, so as to enhance the leaching rate of vanadium [3,4]. Muscovite, the major mineral phase that vanadium exists in, will release vanadium after removing the hydroxyl in the lattice [5,6]. The extraction of vanadium at high temperature will be influenced by the change of the mineral phase and the valence state of vanadium under the action of composite additives. Therefore, the mechanism of the composite sodium salts on the phase of the siliceous shale has become an urgent problem that needs to be resolved currently. As an important additive, some research results of the action mechanism of NaCl during roasting process have been obtained. Due to the oxidizability of chlorine, NaCl can strongly promote the oxidation of vanadium [7]. Na₂SO₄ and Na₂CO₃ have less effect on the promotion of vanadium oxidation than NaCl. However, they are cheaper and plenty, and cause less pollution than NaCl. Thus, they are used to mix into NaCl to reduce the generation of harmful gases [8,9]. At present, there is insufficient understanding of the functional mechanism of composite sodium salts when they are mixed with ores and roasted [10], and there are only some empirical formulas for the ratio of the three sodium salts to improve the leaching rate of vanadium [11].

In this paper, the action process of the composite sodium salt of NaCl, Na₂CO₃, and Na₂SO₄ in roasting is elucidated by the analyses of the mineral phase change and vanadium oxidation. The vanadium extraction mechanisms and the optimization of vanadium oxidation by the composite additive is studied for the guidance and reference of its industrial application.

2. Materials and Methods

2.1. Material

The siliceous shale used in the test was obtained from Hubei Province, China. The raw ore has been crushed and ground to powder with the particle size smaller than 0.6 mm, preliminarily.

Table 1. Chemical multi-elemental analysis of siliceous shale (wt %).

Chemical Multi-Elemental Analysis	Na2O	MgO	Al2O3	SiO2	K2O	CaO	V2O5	P	S
	0.13	1.36	9.63	79.16	1.24	0.69	1.72	1.37	0.28
	As	Ti	Cr	Fe	Zn	Pb
	1.32	0.26	0.25	2.18	0.06	0.01

and

Table 2. Valence composition of vanadium in siliceous shale (wt %).

Vanadium Valence State	V(III)	V(IV)	V(V)
Content	86.83	--	13.17

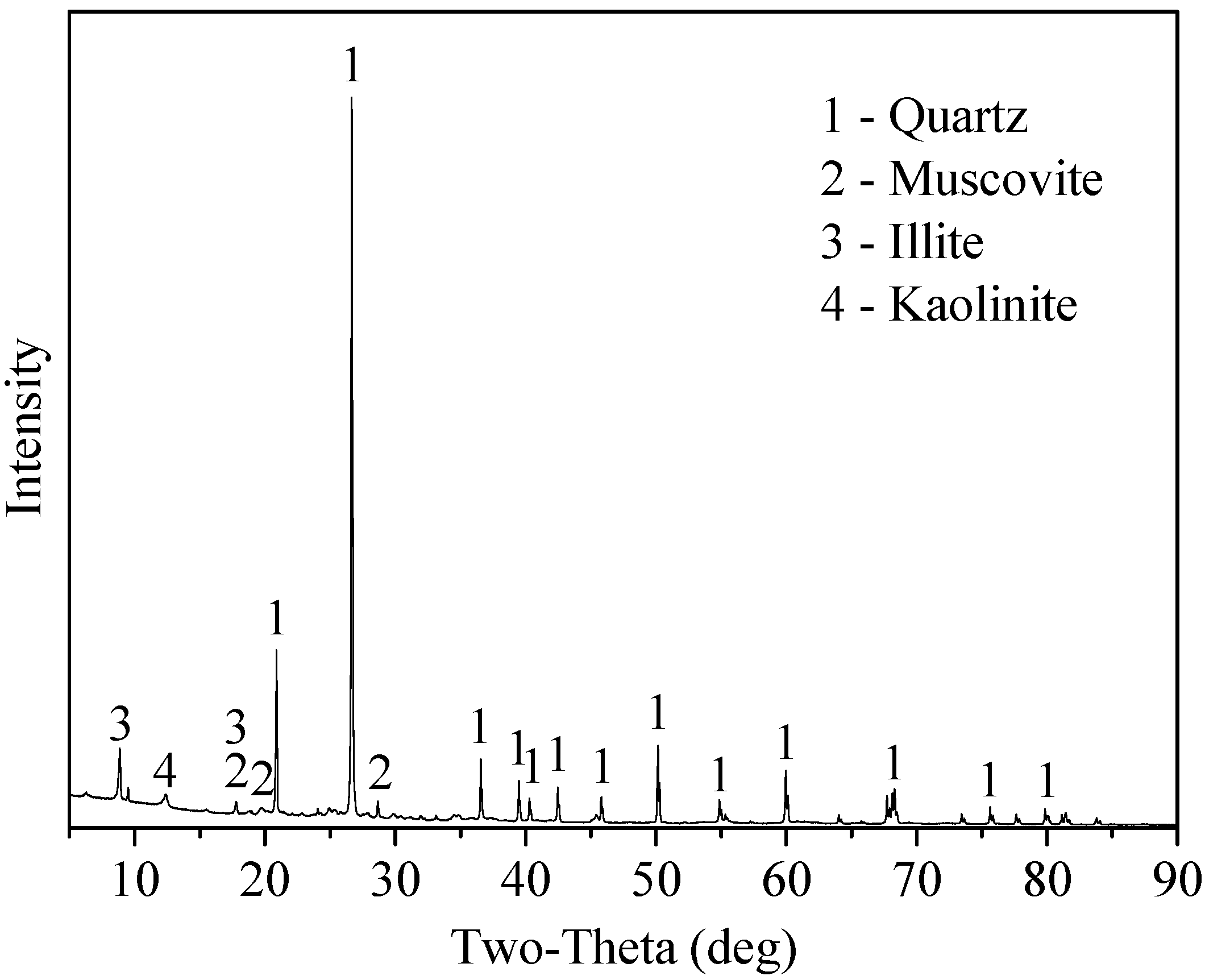

, respectively, show chemical multi-elemental analysis and vanadium valence composition analysis of raw ore. Chemical compositions of samples were determined by X-ray Fluorescence (XRF, AxiosMAX, PANalytical B.V., Almelo, The Netherlands). The valence state of vanadium of the sample were determined by potentiometric titration. The XRD pattern (Figure 1), which were determined by X-ray diffraction analysis (XRD, SmartLab(9), Rigaku, Tokyo, Japan), showed that the main minerals, including quartz, muscovite, illite, and kaolinite.

2.2. Experimental Procedure

The ore sample was further ground to powder with the particle size smaller than 0.074 mm. Three groups of the same quality ores were taken as experimental samples. Different proportions of two combinations of the three sodium salts (NaCl, Na₂CO₃, and Na₂SO₄) were mixed in the samples, respectively, according to the 10% of the total amount of additives. These samples were roasted at 1073 K for 4 h. The roasted slags were leached in water at 353 K for 2 h, and the ratio of liquid to solid was 10:1. Then, three single salts are mixed with the same ore samples, respectively, according to the proportion of it in composite additive and roasted at the same conditions. Moreover, keeping the total amount of additives constant and different sodium salt ratio, the same quality samples which are mixed with three salts of composite additives are roasted.

The content and valence state of vanadium of roasted slag and leaching residue were determined by the titrimetric method [12]. Microscopic observation and analysis of element distribution in leaching residues were conducted by scanning electron microscopy (SEM, JSM-7001F, Japan Electron Optics Laboratory, Tokyo, Japan) equipped with energy-disperse X-ray spectrometry (EDS, INCA X-Max, Oxford Instruments, Oxford, UK).

3. Results and Discussion

3.1. Influence of Composite Additive of Two Salts on the Change of Vanadium Valence

In order to clarify the mechanism of V(V) content changes, the valence of vanadium of leaching residues and solutions were analyzed. The leaching residues of composite additive of two salts contained only V(IV). Moreover, the sum of the two-part content of vanadium was close to the total vanadium content in the raw ore. It indicated that after roasting, the structure of mica in the ore was destroyed and the V(III) was completely oxidized to V(IV). V(IV) eventually converted to soluble vanadate. During the phase change of ore in roasting, the rest of the V(IV) remained in the ore and cannot be leached. Different composite additives affected the above process and changed the vanadium extraction.

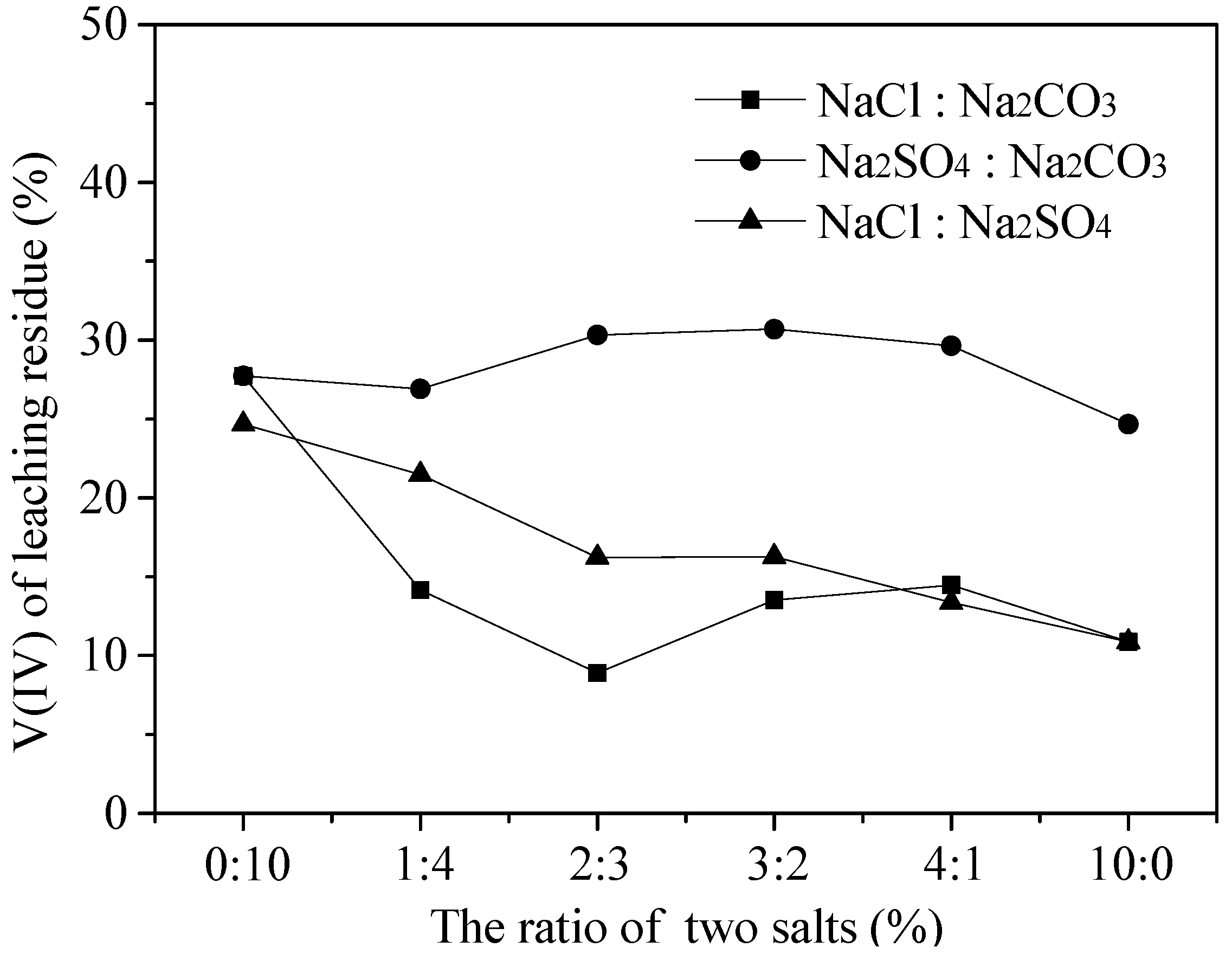

As shown in Figure 2, the composite additive of NaCl and Na₂CO₃ has the strongest effect on transformation of V(IV), while the composite additive of Na₂SO₄ and Na₂CO₃ has the weakest effect. For the curve of NaCl-Na₂CO₃, the content of V(IV) decreased and gradually transformed with the increase of the proportion of NaCl. When the ratio was greater than 2:3, the transformation of V(IV) gradually stopped. To the curve of NaCl-Na₂SO₄, the content of V(IV) also decreased with the increase of the proportion of NaCl. While, for the curve of Na₂SO₄-Na₂CO₃, the contribution of composite additive to the transformation of V(IV) was less, and the decrease of V (IV) content in leaching residue was smaller.

3.2. Synergistic Effect between Two Sodium Salts on the Vanadium Oxidation and Mineral Phase Change

3.2.1. Influence of Composite Additive on the V(V) Content of Roasted Slag

Assuming that each salt in the composite additive does not act synergistically with the other salt, three of single salts are mixed with samples, respectively, according to the proportion of it in the composite additive and roasted. V(V) contents of the two corresponding roasted slags are added together. The oxidation effect of composite additives on vanadium without considering the synergistic effect between salts can be obtained. It is defined as the weighted value of V(V), which can be calculated by Equation (1):

$$\mathrm{\Sigma }=\frac{\mathrm{Ax}+\mathrm{By}}{10}\times 100\%$$

(1)

where Σ is the weighted value of V(V); A and B are the proportion of the two salts in the sample, respectively; x and y are the content of V(V) in samples which, respectively, mixed with the single salt of the proportion of A and B and roasted.

The content of actual V(V) and weighted value of V(V) in roasted slags are shown in Figure 3.

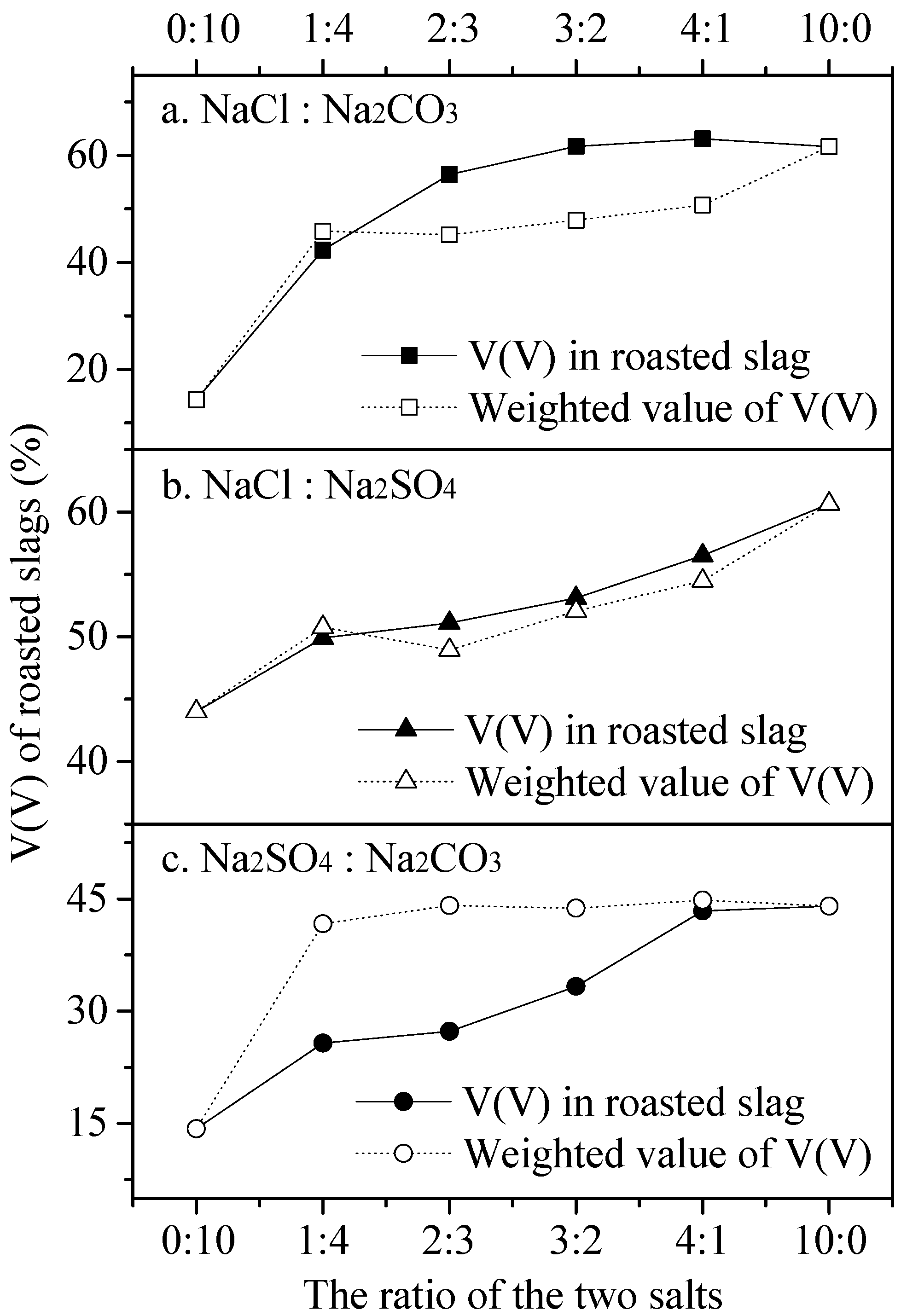

Figure 3 shows the influence of different ratios of two salts on V(V) of roasted slag. In Figure 3, the solid line represents the measured value. The dash line represents the weighted value that was calculated from Equation (1). As shown in Figure 3, the changes of the contents of V(V) differ from each other. This phenomenon would be discussed in the following parts.

In Figure 3a, with the increase of the proportion of NaCl in the composite additive, V(V) also increased. After the ratio of the two salts is greater than 3:2, the V(V) content is not increased obviously. This indicates that the mixture of a small amount of Na₂CO₃ into NaCl does not affect the V(V) content in the roasted slag. Meanwhile, in the range of two salt ratios from 1:4 to 10:0, the weighted value of V(V) is lower than the V(V) that actually contained in roasted slag. This shows that the composite additive promotes the oxidation process of vanadium and increases the V(V) content in the fore mentioned ratio range.

In Figure 3b, V(V) of roasted slag increases uniformly with the increase of the proportion of NaCl in the composite additive. Unlike the rapid decrease of V(V) in Figure 3a, V(V) decreases less when Na₂SO₄ increases in Figure 3b. At each ratio, the V(V) of roasted slag and the weighted value of V(V) are always close. This indicates that the two salts reacts independently with ore; there have no obvious synergies between each other.

In Figure 3c, V(V) increases with the increase of the proportion of Na₂SO₄. It is clear that the ratio of the two salts is greater than 4:1, while the V(V) content does not increase obviously. The composite additives of these two salts have less promotion than the other two on the oxidation of vanadium. In addition, in the range of two salt ratios from 0:10 to 4:1, the V(V) actually contained in roasted slag was lower than the weighted value of V(V). This figure indicates that the composite additive hindered the oxidation process of vanadium and reduces the V(V) content in the above ratio range.

3.2.2. Influence of Composite Additive on the Mineral Phase Change in Roasting

According to the current research achievements, vanadium of siliceous shale is mainly exist in alumina octahedral of mica group minerals in the form of isomorphism [13]. After roasting, muscovite in raw ore is damaged and converts to other phases on the effect of additives. Heteromorphism is found in the phase of feldspar of roasted slag. When alumina octahedral in the crystal lattice of muscovite is damaged, the ions of alumina, magnesium, vanadium, and other metals were released. With a high temperature roasting, eutectic composite was generated in ore and change the crystal structure [14]. The behavior hindered the oxidation of vanadium and led to the low leaching rate of vanadium.

For the further study of the effect of composite additives on the vanadium oxidation, the leaching residue of different composite additives were analyzed on mineral phase. The results are shown from Figure 4, Figure 5 and Figure 6.

Figure 4 shows the leaching residue after adding the composite additive of NaCl-Na₂CO₃. It can be seen that melt (1#) and a large amount of white columnar particles (2#) appear in the leaching residue. Analysis of energy spectrum shows that Na, Al, Si, O, and a small amount of K exist in the melt and columnar particles. It can be inferred that the columnar particles should be albite phase. The melt should be the composite system with Na-K-Al-Si-O which converted from the dehydroxy mica. The albite will be formed from the melt during roasting process. Melting occurs in the part where the quartz coexists with the melt (Figure 4b).

This indicates that V(III) is rapidly oxidized to V(IV) with the destruction of mica lattice after the removal of hydroxyl. While V(IV) exist in the newly-formed melt of K-Al-Si-O. V(IV) continues to oxidize and reacts with the additive to form the vanadate. The eutectic temperature between NaCl and Na₂CO₃ is 908 K. During the roasting process (1073 K), the contact area between NaCl-Na₂CO₃ molten salt and mineral particles increases. The migration rate of ions in molten salt also increases. This accelerates the formation of vanadate and the ion exchange between Na and K. As the potassium ions are substituted by sodium ions, the content of sodium in the melt increases, and the albite gradually crystallizes from melt. The existence of Na₂CO₃ enhances the reactivity of quartz. The albite crystallized from the melt reacts with quartz and melts again, which accelerate the process of the substitution of sodium ions and the generation of vanadate. The synergistic effect between NaCl and Na₂CO₃ leads to the actual content of V(V) above the weighted value.

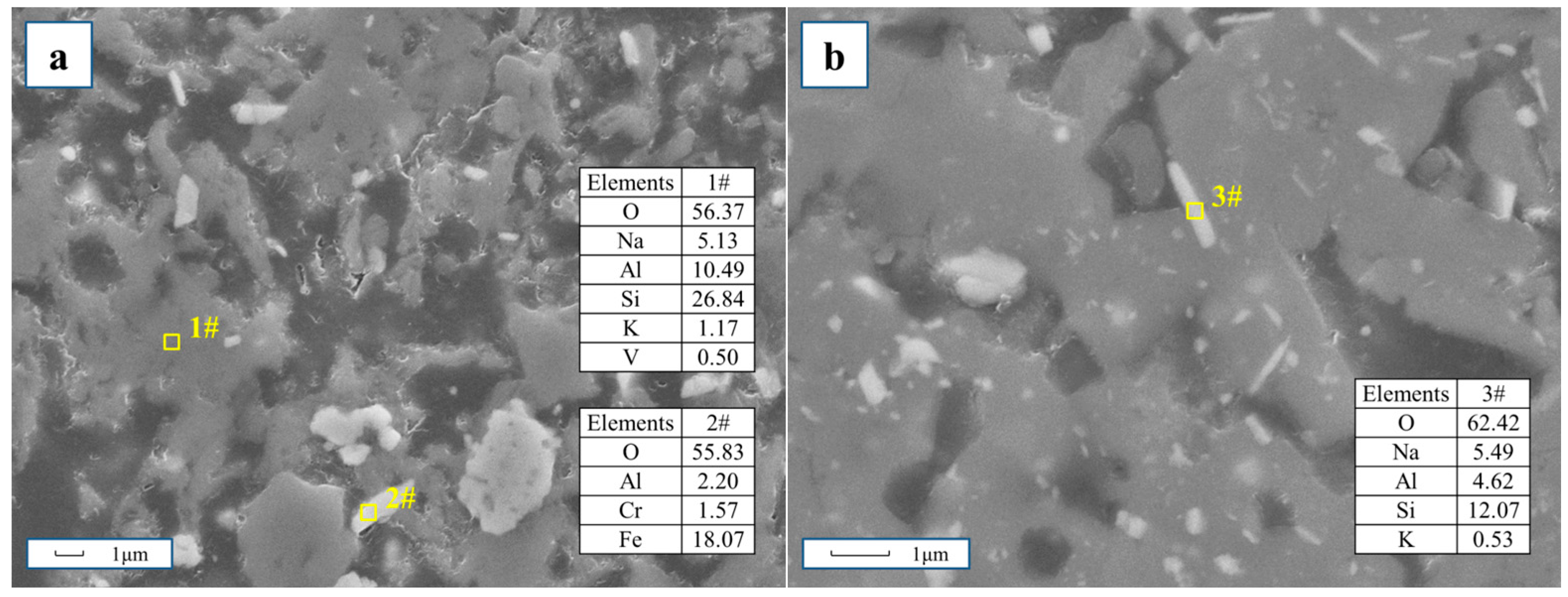

Figure 5 is a leaching residue after adding the composite additive of NaCl-Na₂SO₄. Melt (1#) and two different sizes of white columnar particles (2# and 3#) appear in the leaching residue. Analysis of the energy spectrum shows that the melt is a composite system with Na, K, Al, Si, O, and a small amounts of V. The large columnar particles (2#), about 2 μm in length and width of 1 μm, contains mainly Fe, Al, Cr, and O. The small columnar particles (3#), about 1 μm in length and width of only 0.1–0.2 μm, contains mainly Na, Al, Si, O, and a small amount of K. According to the magnesium-aluminum-chromium phase diagram, the small columnar particles are albite and the large columnar particles should be a kind of spinel which contains Fe and Cr.

This indicates that Na₂SO₄ promotes the production of spinel in the composite system without enhancing thereactivity of quartz. The melting of NaCl-Na₂SO₄ during roasting process (the eutectic temperature between NaCl and Na₂SO₄ is 891 K) further accelerates this process. As aluminum ions participate in the generation of spinel, the crystallization process of albite is weakened. Ion exchange between molten salt and melt are also hindered. The decrease of the crystallization process of the albite indicates that the ion exchange between the sodium salt and the melt is hindered. Parts of V(IV) still exist in the melt, this indicates that the oxidation reaction of V(IV) and the generation reaction of vanadate are incomplete. NaCl and Na₂SO₄ have no significant synergistic effect, so that the actual content of V(V) is similar to the weighted value of V(V).

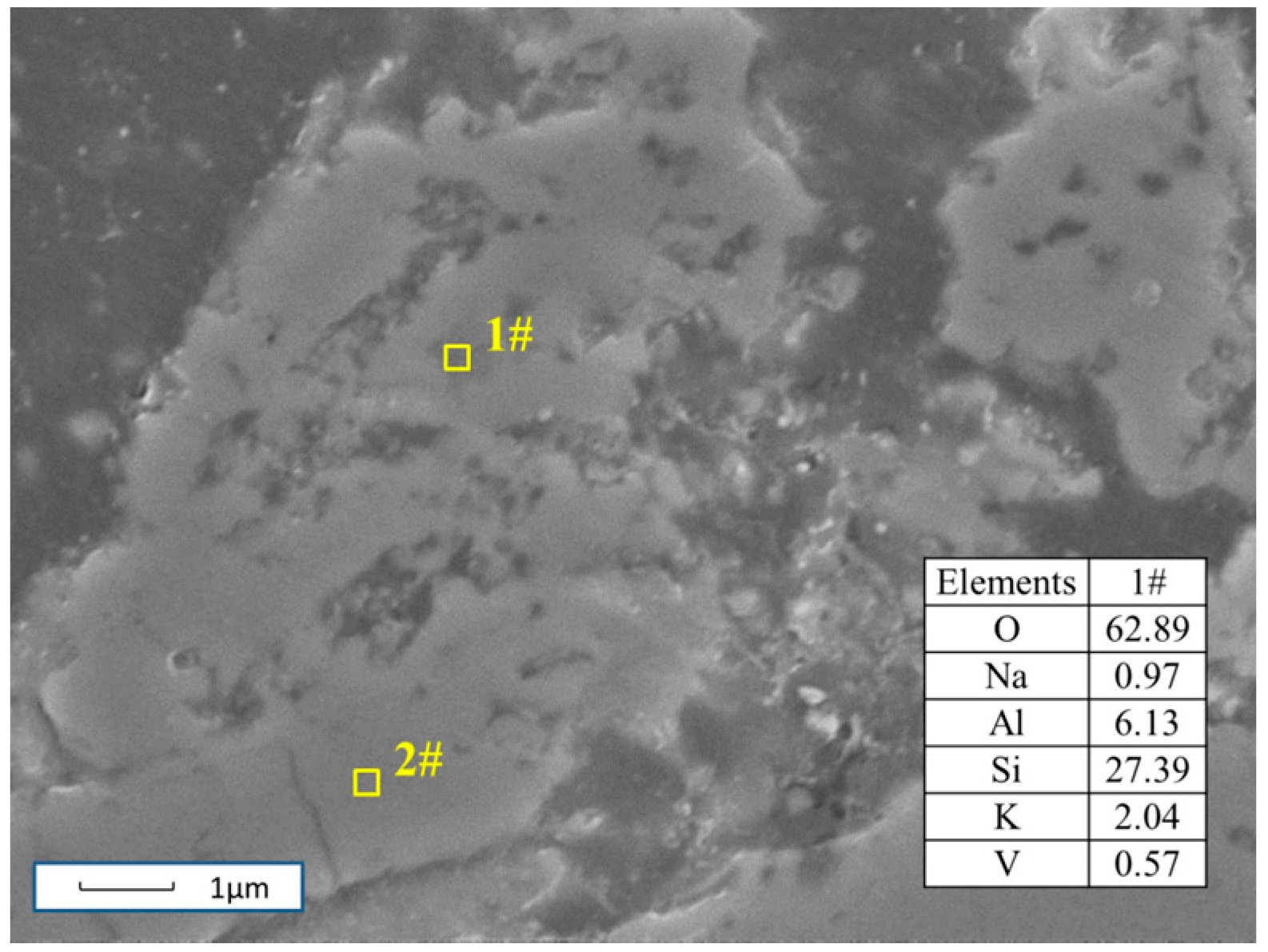

Figure 6 shows the leaching residue after adding the composite additive of Na₂SO₄-Na₂CO₃. Melt (1#) and the large particles with smooth surface (2#) appear in the leaching residue. The melt connects the large particles to each other, and the white columnar particles disappear. Analysis of the energy spectrum shows that there are K, Al, Si, O, Na, and V containing in the melt. The content of K and V in the melt are higher than that in the ore, but the content of Na is less. The large particles, which mainly contain Si and O, should be quartz.

The eutectic temperature (1101 K) between Na₂CO₃ and Na₂SO₄ is higher than the roasting temperature (1073 K). During roasting process, the two salts are still solid, which makes the contact area between the melt surface and them smaller. The ion exchange process between the melt and the sodium salt is not obvious, and there are still a large number of K and V exist in the melt. Melting of ore also makes the permeability of the ore worse, V(IV) is difficult to oxidation. A reverse synergistic effect occurs between Na₂CO₃ and Na₂SO₄, and the actual content of V(V) is lower than the weighted value.

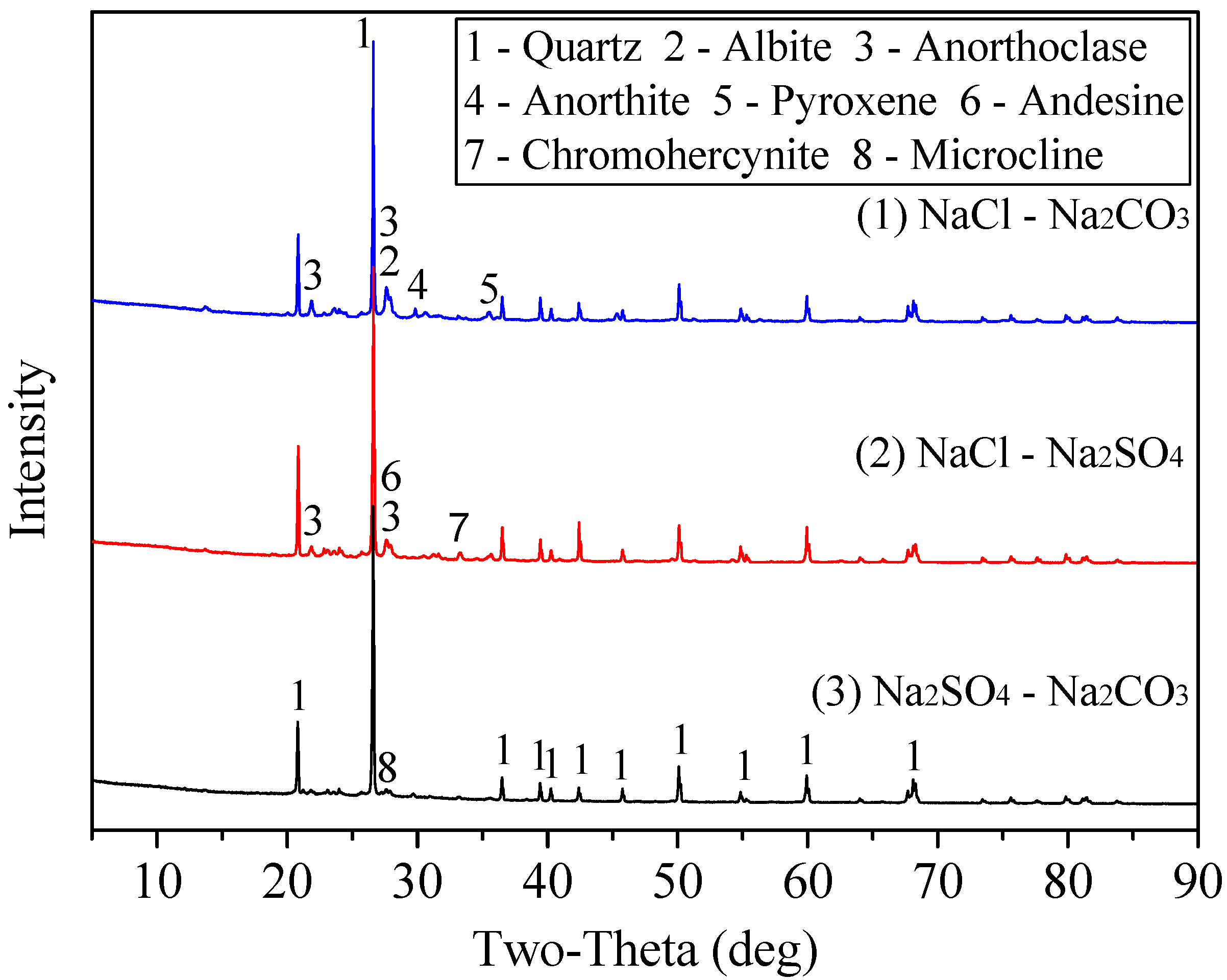

Figure 7 shows the XRD patterns of the three leaching residues mentioned above. The analysis of the spectrum (1) shows that albite, anorthoclase, anorthite, and pyroxene (containing Mg and Fe) are generated in roasted slag. This indicates that composite salts of NaCl-Na₂CO₃ promote the ion exchange between sodium salts and the melt and promote the generation of aluminosilicate minerals containg Ca, Mg, or Fe. The analysis of the spectrum (2) shows that albite disappears in roasted slag, and chromohercynite containing Fe and Cr generated. The peaks of anorthoclase and andesine are weaker than those in spectrum (1). This indicates that composite salts of NaCl-Na₂SO₄ promote the generation of the mineral with spinel structure, and have a negative effect on the ion exchange between sodium salts and the melt. The analysis of the spectrum (3) shows that only the mineral phase of the microcline of low intensity of peak generated in roasted slag. This confirms that the sample has melted under the influence of the composite salts of Na₂SO₄-Na₂CO₃. The intensity of the quartz diffraction peak is weakened, which also indicates that the melting of the ore affects the crystal structure of quartz.

3.3. Influence of a Composite Additive of Three Sodium Salts on the Oxidation Process of Vanadium

The simplex lattice mixture experiment of composite additives in roasted slag was designed. Keeping the total amount of additives unchanged, the effects of different ratio additives on the content of V(V) in roasting slag were further studied as well.

Table 3. The factors and levels of mixture experiments.

Factor	Name	Low Level Values (%)	High Level Values (%)
A	NaCl	0	10
B	Na2SO4	0	10
C	Na2CO3	0	10

shows the factors and the levels of mixture experiments.

Through the fitting of the experimental results, the order of influence of each factor on V(V) content can be obtained. Models of linear, quadratic, cubic, and special cubic can be used to fit the results of V(V) in roasted slag.

For each fitting model, the probability value (“Prob > F”) should be examined to see if it falls below 0.05 [15]. The extremely low p-value indicates a highly significant advantage when adding this level to what has already been built [16]. The results indicates that the fitting model of quadratic is relatively suggested. The p values were all smaller than 0.05, which indicates that these models reached statistical significance.

According to

Table 4. Variance analysis results of various models.

Source	Std. Dev.	R-Squared	Adjusted R-Squared	Predicted R-Squared	PRESS
Linear	14.48	0.4340	0.2722	−2.2206	8348.68
Quadratic	5.35	0.9558	0.9005	−0.9683	5102.40	Suggested
Special Cubic	6.17	0.9559	0.8677	−2.1540	8175.88
Cubic	6.92	0.9815	0.8338	−221.7276	5.774 × 105

, the quadratic model is the best, because of its lower std. dev. (standard deviation) and better R-squared values—raw, adjusted, and predicted compared with lower—order models. Therefore, the special cubic model is suitable to fit the experimental results.

Table 5. The confidence degree analysis of the special cubic model.

Factor	Coefficient Estimate	df (Degree of Freedom)	Standard Error	95% CI Low	95% CI High	VIF (Variance Inflation Factor)
A-NaCl	59.71	1	5.31	44.97	74.44	1.88
B-Na2SO4	43.84	1	5.31	29.10	58.57	1.88
C-Na2CO3	14.98	1	5.31	0.24	29.71	1.88
AB	40.29	1	43.59	−80.74	161.32	5.38
AC	121.70	1	43.59	0.67	242.74	5.38
BC	82.39	1	43.59	−38.64	203.43	5.38

showed the confidence degree analysis of special cubic model. The results indicated that the fitting results of special cubic model are significant. As can be seen from coefficient estimates in Table 5, the impact sequence of single factors to V(V) of roasted slag is shown as: NaCl > Na₂SO₄ > Na₂CO₃. The impact sequence of multiple factors to V(V) of roasted slag is presented as: (NaCl × Na₂CO₃) > (Na₂SO₄ × Na₂CO₃) > (NaCl × Na₂SO₄). This indicates that these composite of the three salts can further promote the increase of V(V). In addition, the effect of composite salt of NaCl and Na₂CO₃ is stronger than that of the other two kinds of composite salts.

The multiple regression equation of special cubic model between V(V) and every factor could be expressed as Equation (2):

V(V) content = 5.97 × A + 4.38 × B + 1.50 × C + 0.40 × A × B + 1.22 × A × C + 0.82 × B × C

(2)

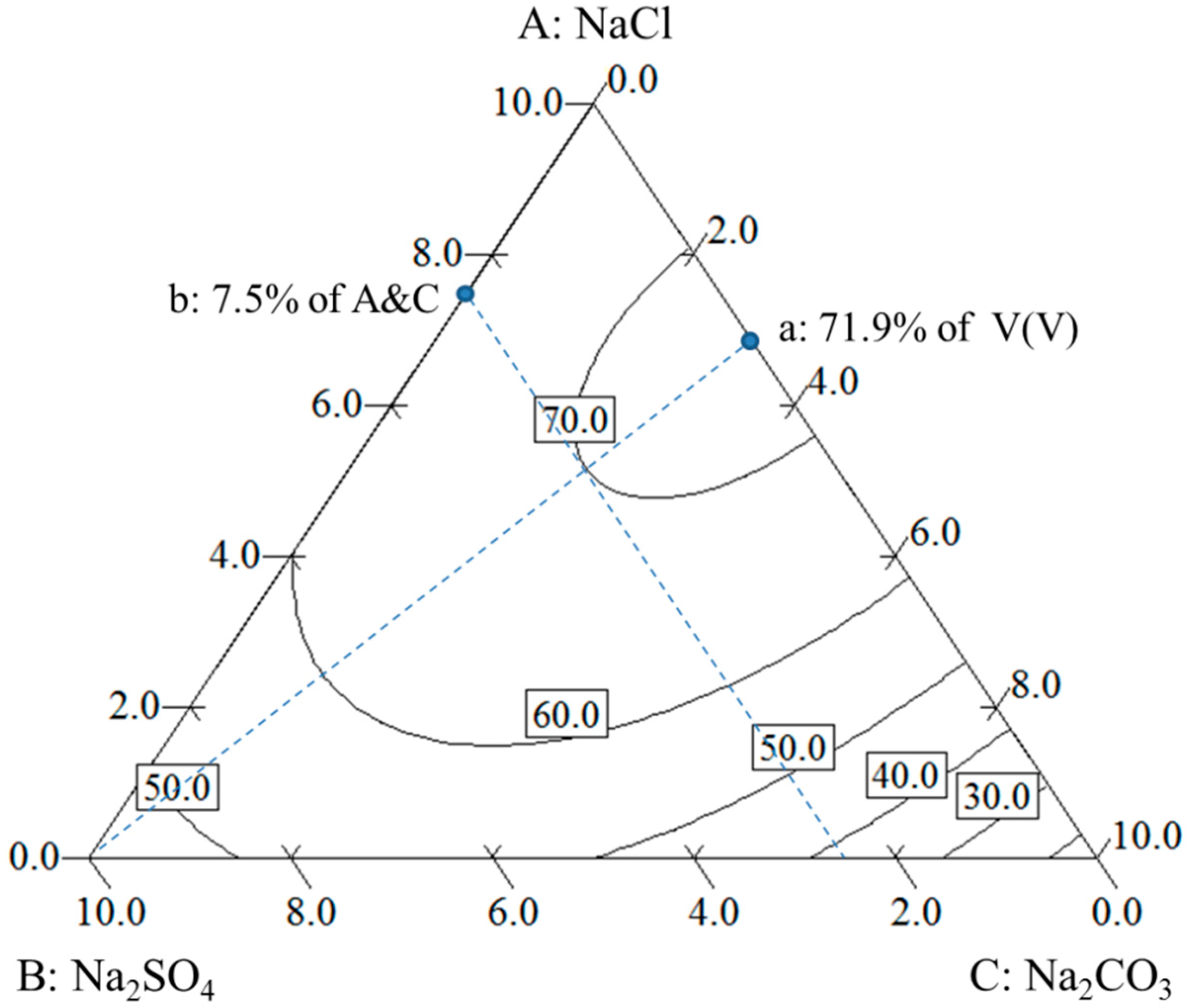

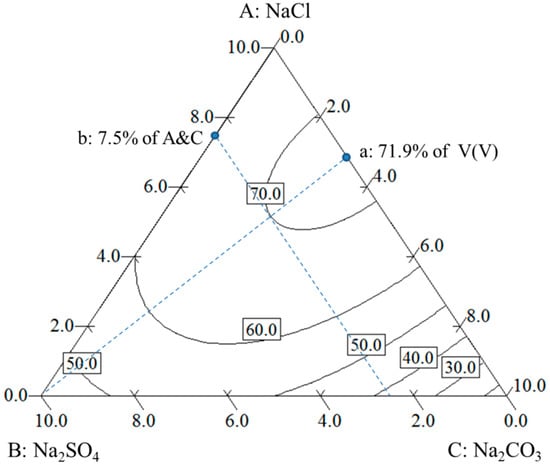

According to the regression equation, the contour and response surface of the relationship between V(V) and composite additives were obtained, as shown in Figure 8 and Figure 9.

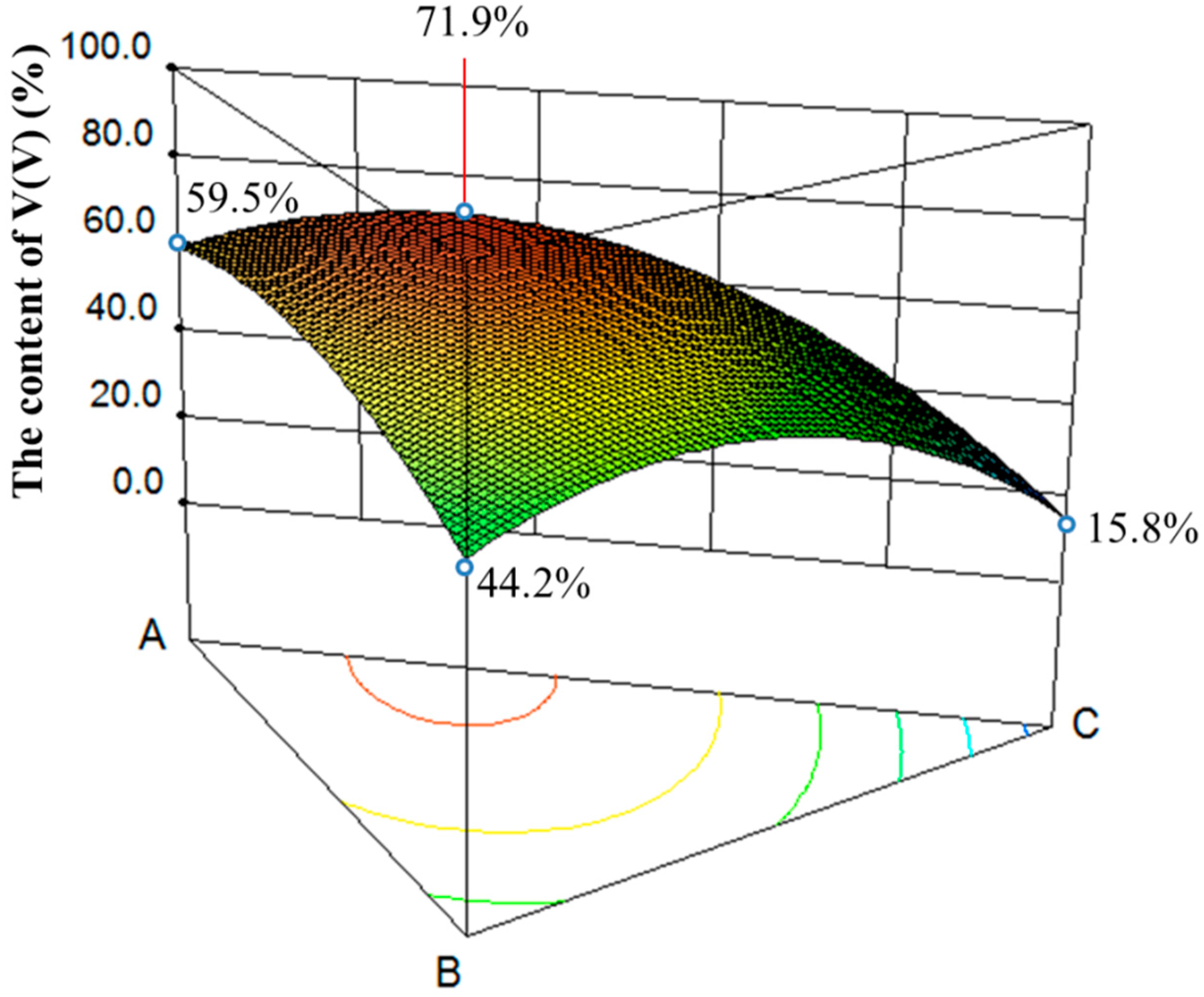

In Figure 9, the composite additive with three sodium salts shows a significant increase in V(V) of the roasted slag when it is compared to the composite additive with two sodium salts. The maximum content of V(V) in roasted slag is 71.9%, and the corresponding ratio of NaCl:Na₂SO₄:Na₂CO₃ = 6.73:0.01:3.26 (Figure 8a). In Figure 8, point a is located in a region where the contour line of 70% of the V(V) content and the AC boundary intersect. Along the direction from the point a to points A, B, and C, V(V) content gradually reduced. Along the aB line, the reduction speed of the V(V) content is slowest; along the aC line, the reduction speed of the V(V) content is fastest. It is shown that the contribution of NaCl and Na₂CO₃ to V(V) in the roasted slag is the highest among the three sodium salts. Under the condition that the ratio of NaCl and Na₂CO₃ was fixed, the low content of Na₂SO₄ (less than 25% in the composite additive, b in Figure 8) did not significantly affect the V(V) content in the roasted slag. On the contrary, the high content of Na₂SO₄ (more than 25% in the composite additive) would make the V(V) content in roasted slag decreases.

Based on the experimental results and the multiple regression equation of fitting model, the optimization for the level of every factor could be concluded on the basis of the maximum amount of V(V). When the mass fraction of NaCl about composite additive was 6.73%, the mass fraction of Na₂SO₄ 0.01%, and that of Na₂CO₃ 3.26%, the maximum amount of V(V) of 71.90% could be obtained.

3.4. Reaction Process Between Composite Additive and Siliceous Shale during the Roasting Process

According to the above, the synergistic effect of sodium salts is mainly due to the effect of sodium salts on the change of mineral phase. With the change of mineral phase, the vanadium existence state changes, and the content of V(V) increases. Figure 10 is the model of reaction process between composite additive and siliceous shale.

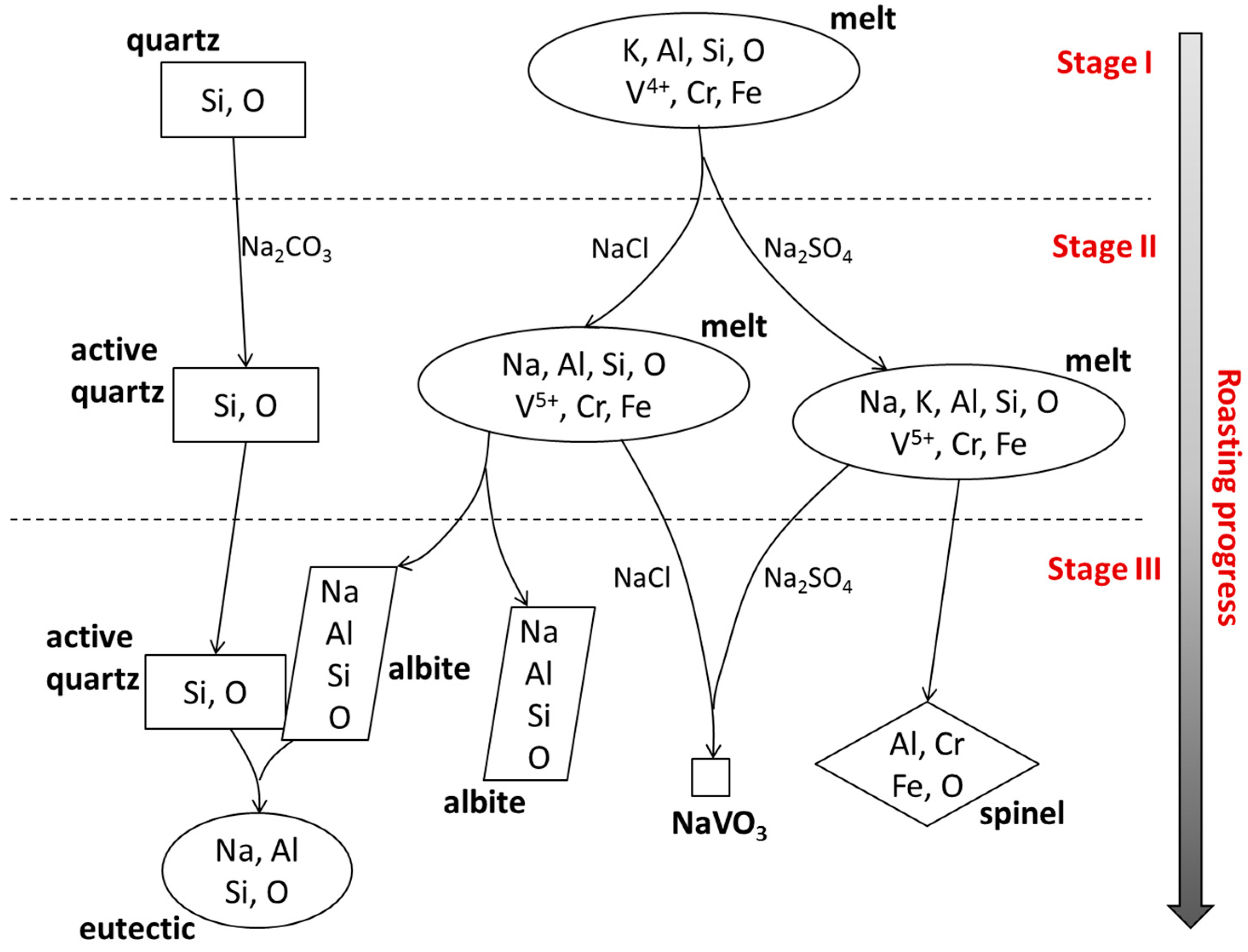

Figure 10 shows that the mineral phase gradually changes under the effect of the composite additive as the roasting time increases. In the initial stage of roasting, the mica with a damaged layer structure forms an amorphous melt which mainly contains elements such as K, Al, Si, and O. At this time V(III) is oxidized to be V(IV). Subsequently, the three sodium salts begin to react with the ore. The generation of melt increases the contact area between the two phases and accelerates the progress of the reaction process. NaCl is the most likely to exchange ions with the melt among the three salts. V(IV) in the melt is oxidized to V(V) and reacts with NaCl to form the sodium vanadate. At the same time, the exchange of Na ions with K ions increases the content of Na in the melt and promotes the crystallization of the columnar albite from the melt. The binding capacity of Na₂SO₄ with vanadium is weaker than that of NaCl. Thus, some vanadium in the melt cannot be further oxidized and participate in the formation of vanadate. The ion exchange capacity of Na₂SO₄ with melt is also weaker than that of NaCl. Parts of the melt which contact with Na₂SO₄ have less content of Na. Thus, Cr, Fe, and other elements in these parts are combined with Al-O bonds and crystallizes in the form of spinel. The ion exchange of Na₂CO₃ with melt is the most difficult. However, the addition of Na₂CO₃ could increase the alkalinity of the ore. At higher alkalinity, the reactivity of quartz in the ore enhances, and the albite reacts with the active quartz and the eutectic. When Na₂CO₃ content is low, the eutectic consumes the albite crystallized from the melt. In this way, the binding reaction of Na and V in the melt and the crystallization process of albite accelerate and the content of V(V) increases.

4. Conclusions

1. The composite additive of NaCl-Na₂CO₃ promotes the oxidation process of vanadium and increases the content of V(V) in roasted slag. There is no obvious further promotion between NaCl and Na₂SO₄ on the oxidation of vanadium. The composite additive of NaCl-Na₂CO₃ hinder the oxidation process of vanadium and reduces the content of V(V) in roasted slag.

2. Dehydroxy mica will convert to the melt, which mainly contains Na, K, Al, Si, and O during the roasting process. Under the action of NaCl-Na₂CO₃, the process of sodium ions replace potassium ions in the melt, promoting the crystallization of albite. The existence of Na₂CO₃ enhances the reactivity of quartz. The albite reacts with the activated quartz and melts. These reactions accelerate the generation of vanadate.

3. Under the action of NaCl-Na₂SO₄, The crystallization process of spinel in the melt is promoted and the crystallization process of the albite is inhibited. There is no significant synergistic effect of NaCl and Na₂SO₄ on vanadium oxidation. Under the action of Na₂SO₄-Na₂CO₃, the ion exchange process and the vanadium oxidation are inhibited in the melt. A reverse synergistic effect occurs between Na₂CO₃ and Na₂SO₄.

4. The composite additive of three sodium salts contribute more to the increase of V(V) than the additive of two sodium salts. Among the three sodium salts, NaCl and Na₂CO₃ have the most effective on the promotion of the oxidation of vanadium. Under the condition that the ratio of NaCl and Na₂CO₃ is fixed, and the low content of Na₂SO₄ does not significantly affect the V(V) content in the roasted slag.
