Review

Microbial Diversity and Community Assembly across Environmental Gradients in Acid Mine Drainage

by
Wenkai Teng
,
Jialiang Kuang
,
Zhenhao Luo
and
Wensheng Shu
*
College of Ecology and Evolution, Sun Yat-sen University, Guangzhou 510275, China
*
Author to whom correspondence should be addressed.
Minerals 2017, 7(6), 106; https://doi.org/10.3390/min7060106
Submission received: 3 April 2017 / Revised: 15 June 2017 / Accepted: 17 June 2017 / Published: 20 June 2017
(This article belongs to the Special Issue Biogeochemistry of Acid Mine Drainage)
Browse Figures
Versions Notes

Abstract

:
Microorganisms play an important role in weathering sulfide minerals worldwide and thrive in metal-rich and extremely acidic environments in acid mine drainage (AMD). Advanced molecular methods provide in-depth information on the microbial diversity and community dynamics in the AMD-generating environment. Although the diversity is relatively low and in general inversely correlated with the acidity, a considerable number of microbial species have been detected and described in AMD ecosystems. The acidophilic microbial communities dominated by iron/sulfur-oxidizing microbes vary widely in their composition and structure across diverse environmental gradients. Environmental conditions affect the microbial community assembly via direct and indirect interactions with microbes, resulting in an environmentally dependent biogeographic pattern. This article summarizes the latest studies to provide a better understanding of the microbial biodiversity and community assembly in AMD environments.

1. Introduction

Acid mine drainage (AMD) is a widespread environmental problem caused by the oxidative dissolution of metal sulfide minerals [1]. Tailings from mining for metals such as Fe, Cu, Pb, and Zn often contain a high amount of sulfide minerals (mainly pyrite) and during weathering release high amounts of metals, sulfate, and protons in mine drainages [2,3]. Increasing evidence demonstrates that a considerable number of microorganisms can survive in AMD and perform essential ecological functions [4,5]. In the last few decades, iron- and/or sulfur-oxidizing microbes have been extensively studied based on isolation and cultivation methods and are demonstrated as the main contributors in AMD generation [6,7,8,9,10]. The few species utilizing sulfide minerals greatly increase the primary production in the ecosystem, providing a basis for the growth of heterotrophic microbes [11]. Yet the fact that many species cannot be cultured implies difficulty in comprehensive understanding about the microflora in AMD ecosystems [12,13].
During the acidification of pyrite-rich tailings, remarkable environmental gradients are locally produced in terms of pH, dissolved oxygen (DO), electrical conductivity (EC), and concentrations of metals and sulfate [14,15,16]. In AMD ecosystems, the microbial communities respond to these environmental variations because microbes vary widely in their ability to cope with extreme environmental conditions [17,18]. Understanding how the microbial community composition and structure change along such gradients is a vital challenge for researchers to describe and predict the biogeochemical cycles in AMD systems [19]. The generally high complexity of microbial communities limited the application of ecological theories derived from higher organisms such as plants and animals to microbes [13,20]. However, the simplicity of microbial assemblages and geochemical features in extreme acidic conditions (pH < 4.0) makes the AMD system an intelligible model for the quantitative analyses of community diversity, dynamics, and distribution pattern of acidophiles [21,22,23].
Newly developed, high-throughput molecular technologies provide an opportunity for the cultivation-independent analysis of the microbial community composition and structure in extreme environments [14,24,25]. Integrating the microbial and geochemical data offers a better understanding of the underlying dynamics of microbial community assembly [12,26]. In the past few years, the variations in community structure and function in response to environmental conditions have been investigated in AMD settings [25,27,28]. In addition, the taxonomic and functional distributions of microbial communities have been explored associating with both the environmental heterogeneity and spatial gradients [24,29], providing an insightful view about the biogeographic pattern of microbial communities in AMD ecosystems. Such in-depth understanding of the microbial community assembly also benefits the applications in bioleaching and bioremediation of abandoned mine tailings [30,31].
Both taxonomy-based and trait-based research has greatly extended our knowledge on the factors affecting microbial community in AMD systems. Here, we summarize our current understanding about the microbial diversity and illustrate how microbial community assembly is affected, that is, how microbial communities vary along diverse environmental gradients in AMD-generating environments.

2. Microbial Diversity and Community Dynamics in AMD Ecosystems

2.1. AMD Generation and Associated Microorganisms

AMD can be rapidly generated when metal sulfide-containing materials are brought out to the Earth’s surface and exposed to moisture and air [32]. Microorganisms can directly or indirectly utilize inorganic minerals as electron donors and irreversibly alter the physical conditions of the environments [33,34]. Pyrite (FeS2) is the most abundant sulfide mineral on Earth and is an important player in the generation of mine drainage, as indicated by the following equations [6,35]:
FeS2 + 6Fe3+ + 3H2O → 7Fe2+ + S2O32− + 6H+
6Fe2+ + 1.5O2 + 6H+ → 6Fe3+ + 3H2O
S2O32− + 2O2 + H2O → 2H+ + 2SO42−
Upon exposure to water and oxygen, the rate of abiotic oxidation of pyrite is low (Equation (1)), but can be greatly accelerated in the presence of certain microbes such as chemoautotrophic bacteria and archaea that mediate the oxidation of reduced iron in the pyrite (Equation (2)) [6]. Owing to the increased concentration of Fe3+, the pyrite is sustainably dissolved, driving the primary production of mine drainage [21,34]. Thiosulfate, produced by pyrite oxidation at the original stage (with high ambient pH), can then also be oxidized by some bacteria and archaea (Equation (3)) [6]. The overall result of these reactions is an accumulation of protons, sulfate, and dissolved metals, resulting in an extreme environment for life.
During the microbial-mediated oxidation of sulfide minerals, both bacteria and archaea are involved [36,37]. The most extensively studied taxa of bacteria in previous studies are chemoautotrophic Acidithiobacillus spp. and Leptospirillum spp., which are generally recognized as the ringleader of the AMD problem [38,39]. Sulfur-oxidizing Thiobacillus spp. and archaeal iron-oxidizing Ferroplasma spp. have also been reported frequently as dominant members in some mining environments [40,41]. Based on the growth of autotrophs, mixotrophs, and heterotrophs, Sulfobacillus spp. and Acidiphilium spp. also thrive in AMD environments and influence the oxidation of pyrite, greatly increasing the diversity of microbial communities [34,42]. To date, the dominant lineages detected in AMD environments are Proteobacteria, Nitrospira, Actinobacteria, Firmicutes, Acidobacteria, Aquificae in bacteria and Euryarchaeota, Crenarchaeota in archaea, as summarized by Chen et al. [22]. More than 100 known genera have been detected in extreme AMD-generating conditions in South China, revealing a considerable microbial diversity in these environments (Figure 1). Except for several dominant species directly related to iron/sulfur-oxidizing, a large number of rare taxa constitute a “rare biosphere” in the community and may perform a crucial function in AMD ecosystems [28,43]. Although a large number of the observed operational taxonomic units (OTUs) cannot be classified into a specific genus, advanced high-throughput sequencing approaches offer more comprehensive information about the microbial community than traditional cultivation methods [44,45].

2.2. Microbial Community Function and Dynamics During AMD Generation

In AMD ecosystems, the microbial oxidation of iron and sulfur are vital geochemical processes producing Fe3+ and SO42−, which can be further utilized by microbes at higher trophic levels. Meanwhile, under specific environmental conditions, sulfate-reducing bacteria (SRB) and iron-reducing bacteria (IRB) can reduce Fe3+ and SO42−, completing the iron and sulfur cycles in such ecosystems [46]. The nitrogen cycle is also critical for the microbial community because the resource of nitrogen is usually limited in AMD environments [1]. However, based on a transcriptional analysis, Hua et al. found that the nifH gene encoding enzymes involved in nitrogen fixation was highly expressed in rare taxa, suggesting that rare species likely perform essential ecological functions in AMD biogeochemistry [28].
In generating AMD, the dissolving of sulfide minerals by associated microbes decreases the solution pH and releases a high amount of metals. To date, several attempts have been made to investigate the microbial community dynamics related to the acidification process of the mine tailings [14,25,47]. Remarkable shifts in microbial community composition and structure have been found at different oxidation stages, most likely due to the distinct environmental gradients produced during AMD generation [48,49,50]. For example, according to the result of a simulated experiment of oxidative dissolution of pyrite, the most dominant genera were Tumebacillus, Alicyclobacillus, and Ferroplasma at the early, mid, and final stage, respectively [47]. A detailed microbial community investigation in a natural AMD-generating environment indicated that the key species involved in different acidification stages varied greatly, and the relative abundances of most dominant lineages were significantly correlated with acidity [25]. In many studies, archaea (mostly Ferroplasma spp.) were found to be predominant at the late oxidation stage, which was usually characterized by low pH (<3.0) and a high concentration of metals [47,49,50], revealing their favorable adaptation of harsh environmental conditions and indispensability in such ecosystems [51]. Metagenomic as well as transcriptomic analyses deciphered significant variations in microbial community function [27,52,53]. For example, previous metagenomics study of tailings acidification showed that the sulfur oxidation was mainly performed by Thiobacillus at the early stage and by Acidithiobacillus at the late stage [50].
The overall alpha-diversity of the microbial community was widely observed to significantly relate to the acidification process. Liu et al. investigated the microbial communities in filed mine tailings at different acidification stages (pH range 2.0–7.0) and described a strong correlation between the pH and the diversity of microbes including the number of phylotypes and phylogenetic diversity (PD) [25]. This gradual decrease of microbial diversity during the acidification of mine tailings was also found in other studies of natural AMD environments [29,48,54], possibly owing to the stronger selective pressure on microorganisms. Chen et al. conducted simulated acidification experiments on pyrite in a laboratory to study the temporal succession of microbial communities at different oxidation stages [47]. The microbial diversity characterized by both the community richness indices (observed OTUs, PD) and the community diversity indices (Shannon, Simpson) had no significant decrease until the conditions were below pH 3.0 (Figure 2a–d). Particularly, the results of the Simpson index were subject to the intermediate species-richness hypothesis, which has been widely studied by ecologists about the community succession, revealing a flourish of microbes at the mid stage (Figure 2d) [55,56]. In summary, microbial-mediated AMD generation results in a low alpha-diversity of microbial community at the late stage.
Although the oxidative dissolution of sulfide minerals gradually decreases the solution pH, some microbial-mediated reactions such as the chemoautotrophic sulfate reduction and nitrate reduction can consume protons and elevate the pH value, as indicated by the following equations:
SO42− + 8e− + 10H+ → H2S + 4H2O
2NO3− + 10e− + 12H+ → N2 + 6H2O
Therefore, in a specific AMD ecosystem, the microbial community, pH value, and other environmental parameters fluctuate seasonally, influenced by outside environmental changes such as temperature [10,16]. In brief, the microbial activities in AMD markedly affect the environmental conditions, and in turn, environmental gradients over time and space shape the microbial diversity and community assembly.

3. Microbial Community Assembly across Environmental Gradients in AMD Ecosystems

In AMD-generating environments, the microbial community composition and structure are influenced by both the spatial distances and the environmental variations, including environmental gradients caused by the microbial-mediated reactions as well as changes imposed from the outside (e.g., temperature) [3,6,15]. These specific ecosystems are widespread on the Earth, but with long distances from each other. Therefore, geographic barriers have been thought to be important factors limiting the species and genes exchange between different regions [57,58]. Based on high-throughput molecular approaches, much research has been conducted to investigate the microbial community variations across diverse environmental gradients, as summarized by Huang et al. [5]. However, the microbes are more susceptible to environmental variations than to spatial distances, which results in an environmentally dependent distribution pattern of microbial communities [5,24,50].
The distribution of microbial communities in AMD is mostly correlated to pH or the so-called oxidation stage in sulfide minerals, as shown in previous studies [48,54,59,60,61]. In our investigation of AMD (pH < 4.0) in South China, diverse environmental factors were applied to explain the variation of microbial community assembly [24,29]. The environmental factors were clustered into three groups based on statistical correlations (Figure 3a). The ENV1 consisted of pH and DO, which in general were inversely correlated with other environmental variations, reflecting the pH decline and oxygen consumption in generating AMD. The ENV2 consisted of ferric iron, ferrous iron, sulfate, and EC, likely reflecting the amount of sulfide minerals dissolved. The ENV1 together with ENV2 contributed most to the explanation of variation in community structure (Figure 3b). The pH, DO, Fe3+, Fe2+, and SO42− in these two groups were directly related to the metabolism of iron- and sulfur-oxidizing microbes. However, the influences of heavy metals (Zn, Pb, Cu) in ENV3 were limited, which was much different from those environments with relatively moderate pH, likely indicating a strong heavy metal tolerance in the microbes [15,62].
In order to show the in-depth relationship between environmental variations and microbial community assembly, we applied network analysis based on the Spearman’s correlation (Figure 4a) [63]. All the environmental variations have interactions with species directly, especially those dominant lineages in the community. The species with high correlation to environmental variations, including Acidithiobacillus and Leptospirillum, made up 70% of the whole community (Figure 4b). Besides, some rare species were tightly connected, implying the occurrence of inter-species cooperation likely serving as an ecological strategy for microbes coping with the strong selective pressure in AMD environments (Figure 4a) [21,64]. Therefore, despite a limited number of lineages directly correlated to environmental variations, the microbial assembly can be strongly environmentally dependent via direct and indirect species-environment interactions.
Theoretical studies based on less complex ecological systems are revolutionizing our understanding of the microbial community assembly across environmental gradients [5,65]. A good way to validate our knowledge is to predict the microbial community assemblages by modeling approaches [66]. There is a growing interest in predicting the taxonomy and function-based microbial distribution patterns across environmental gradients [67,68,69]. Environment variations, especially the pH, should be strong predictors of the microbial diversity and the relative abundance of dominant lineages in community [24,25]. In our previous study, artificial neural networks (ANN) were applied to predict the taxonomic and functional structure of AMD ecosystems in response to environment variations [29]. Results indicating both taxonomic structure and functional potentials can be predicted.

4. Concluding Remarks

Advanced high-throughput molecular approaches such as 16S rRNA gene sequencing, metagenomic and metatranscriptomic profiling, and functional genes microarray provide a route to phylogenetic and functional insight of the microbial community without the requirement for laboratory cultivation [28,29]. The recent efforts significantly increased our knowledge of the microbial diversity and community function in AMD ecosystems [29,47]. In this short review, we demonstrated the variation of microbial diversity, ecological function, and community structure in AMD formation, leading to a discussion of relationships between the environmental gradients and the microbial community assembly. The microbial-related ecological process is vitally important to AMD biogeochemistry. However, the reduction process of iron and sulfate, which can be utilized in the bioremediation of AMD, remain largely unexplored [70]. Moreover, eukaryotes such as fungi, protists, and algae can greatly impact the growth of bacteria and archaea and regulate AMD generation rates [27,71]. Yet, they are generally not discussed in large-scale microbial community investigations due to the lack of a common gene marker. Further efforts should include both prokaryotes and eukaryotes to arrive at a more integrated view of the AMD ecosystem.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (U1201233, U1501232, 31370154), the Guangdong Province Key Laboratory of Computational Science and the Guangdong Province Computational Science Innovative Research Team.

Author Contributions

Wenkai Teng and Jialiang Kuang prepared the manuscript; Zhenhao Luo was involved in data analysis; Wensheng Shu and Wenkai Teng revised the manuscript refer to the reviewers’ comments; all authors listed approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baker, B.J.; Banfield, J.F. Microbial communities in acid mine drainage. FEMS Microbiol. Ecol. 2003, 44, 139–152. [Google Scholar] [CrossRef]
  2. Schippers, A.; Breuker, A.; Blazejak, A.; Bosecker, K.; Kock, D.; Wright, T.L. The biogeochemistry and microbiology of sulfidic mine waste and bioleaching dumps and heaps, and novel Fe(II)-oxidizing bacteria. Hydrometallurgy 2010, 104, 342–350. [Google Scholar] [CrossRef]
  3. Akcil, A.; Koldas, S. Acid mine drainage (AMD): Causes, treatment and case studies. J. Clean. Prod. 2006, 14, 1139–1145. [Google Scholar] [CrossRef]
  4. Johnson, D.B.; Hallberg, K.B. Acid mine drainage remediation options: A review. Sci. Total Environ. 2005, 338, 3–14. [Google Scholar] [CrossRef] [PubMed]
  5. Huang, L.N.; Kuang, J.L.; Shu, W.S. Microbial ecology and evolution in the acid mine drainage model system. Trends Microbiol. 2016, 24, 581–593. [Google Scholar] [CrossRef] [PubMed]
  6. Johnson, D.B.; Hallberg, K.B. The microbiology of acidic mine waters. Res. Microbiol. 2003, 154, 466–473. [Google Scholar] [CrossRef]
  7. Johnson, D.B.; Rolfe, S.; Hallberg, K.B.; Iversen, E. Isolation and phylogenetic characterization of acidophilic microorganisms indigenous to acidic drainage waters at an abandoned norwegian copper mine. Environ. Microbiol. 2001, 3, 630–637. [Google Scholar] [CrossRef] [PubMed]
  8. Hallberg, K.B.; Johnson, D.B. Biodiversity of acidophilic prokaryotes. Adv. Appl. Microbiol. 2001, 49, 37–84. [Google Scholar] [PubMed]
  9. Edwards, K.J.; Schrenk, M.O.; Hamers, R.; Banfield, J.F. Microbial oxidation of pyrite; experiments using microorganisms from an extreme acidic environment. Am. Mineral. 1998, 83, 1444–1453. [Google Scholar] [CrossRef]
  10. Edwards, K.J.; Gihring, T.M.; Banfield, J.F. Seasonal variations in microbial populations and environmental conditions in an extreme acid mine drainage environment. Appl. Environ. Microbiol. 1999, 65, 3627–3632. [Google Scholar] [PubMed]
  11. Hallberg, K.B. New perspectives in acid mine drainage microbiology. Hydrometallurgy 2010, 104, 448–453. [Google Scholar] [CrossRef]
  12. Hug, L.A.; Baker, B.J.; Anantharaman, K.; Brown, C.T.; Probst, A.J.; Castelle, C.J.; Butterfield, C.N.; Hernsdorf, A.W.; Amano, Y.; Ise, K. A new view of the tree of life. Nat. Microbiol. 2016, 1, 16048. [Google Scholar] [CrossRef] [PubMed]
  13. Prosser, J.I.; Bohannan, B.J.M.; Curtis, T.P.; Ellis, R.J.; Firestone, M.K.; Freckleton, R.P.; Green, J.L.; Green, L.E.; Killham, K.; Lennon, J.J. The role of ecological theory in microbial ecology. Nat. Rev. Microbiol. 2007, 5, 384–392. [Google Scholar] [CrossRef] [PubMed]
  14. Volant, A.; Bruneel, O.; Desoeuvre, A.; Héry, M.; Casiot, C.; Bru, N.; Delpoux, S.; Fahy, A.; Javerliat, F.; Bouchez, O. Diversity and spatiotemporal dynamics of bacterial communities: Physicochemical and other drivers along an acid mine drainage. FEMS Microbiol. Ecol. 2014, 90, 247–263. [Google Scholar] [CrossRef] [PubMed]
  15. Jackson, T.A.; Vlaar, S.; Nguyen, N.; Leppard, G.G.; Finan, T.M. Effects of bioavailable heavy metal species, arsenic, and acid drainage from mine tailings on a microbial community sampled along a pollution gradient in a freshwater ecosystem. Geomicrobiol. J. 2015, 32, 724–750. [Google Scholar] [CrossRef]
  16. Tan, G.L.; Shu, W.S.; Zhou, W.H.; Li, X.L.; Lan, C.Y.; Huang, L.N. Seasonal and spatial variations in microbial community structure and diversity in the acid stream draining across an ongoing surface mining site. FEMS Microbiol. Ecol. 2009, 70, 121–129. [Google Scholar] [CrossRef] [PubMed]
  17. Tsai, Y.-P.; You, S.-J.; Pai, T.-Y.; Chen, K.-W. Effect of cadmium on composition and diversity of bacterial communities in activated sludges. Int. Biodeterior. Biodegrad. 2005, 55, 285–291. [Google Scholar] [CrossRef]
  18. Li, J.T.; Duan, H.N.; Li, S.P.; Kuang, J.L.; Zeng, Y.; Shu, W.S. Cadmium pollution triggers a positive biodiversity-productivity relationship: Evidence from a laboratory microcosm experiment. J. Appl. Ecol. 2010, 47, 890–898. [Google Scholar] [CrossRef]
  19. Miller, S.R.; Strong, A.L.; Jones, K.L.; Ungerer, M.C. Bar-coded pyrosequencing reveals shared bacterial community properties along the temperature gradients of two alkaline hot springs in yellowstone national park. Appl. Environ. Microbiol. 2009, 75, 4565–4572. [Google Scholar] [CrossRef] [PubMed]
  20. Zengler, K.; Palsson, B.O. A road map for the development of community systems (cosy) biology. Nat. Rev. Microbiol. 2012, 10, 366–372. [Google Scholar] [CrossRef] [PubMed]
  21. Denef, V.J.; Mueller, R.S.; Banfield, J.F. Amd biofilms: Using model communities to study microbial evolution and ecological complexity in nature. ISME J. 2010, 4, 599–610. [Google Scholar] [CrossRef] [PubMed]
  22. Chen, L.X.; Huang, L.N.; Méndezgarcía, C.; Kuang, J.L.; Hua, Z.S.; Liu, J.; Shu, W.S. Microbial communities, processes and functions in acid mine drainage ecosystems. Curr. Opin. Biotechnol. 2016, 38, 150–158. [Google Scholar] [CrossRef] [PubMed]
  23. Dagmar Kock, A.S. Quantitative microbial community analysis of three different sulfidic mine tailing dumps generating acid mine drainage. Appl. Environ. Microbiol. 2008, 74, 5211–5219. [Google Scholar] [CrossRef] [PubMed]
  24. Kuang, J.L.; Huang, L.N.; Chen, L.X.; Hua, Z.S.; Li, S.J.; Hu, M.; Li, J.T.; Shu, W.S. Contemporary environmental variation determines microbial diversity patterns in acid mine drainage. ISME J. 2013, 7, 1038–1050. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, J.; Hua, Z.S.; Chen, L.X.; Kuang, J.L.; Li, S.J.; Shu, W.S.; Huang, L.N. Correlating microbial diversity patterns with geochemistry in an extreme and heterogeneous environment of mine tailings. Appl. Environ. Microbiol. 2014, 80, 3677–3686. [Google Scholar] [CrossRef] [PubMed]
  26. Tan, G.L.; Shu, W.S.; Hallberg, K.B.; Li, F.; Lan, C.Y.; Huang, L.N. Cultivation-dependent and cultivation-independent characterization of the microbial community in acid mine drainage associated with acidic Pb/Zn mine tailings at Lechang, Guangdong, China. FEMS Microbiol. Ecol. 2007, 59, 118–126. [Google Scholar] [CrossRef] [PubMed]
  27. Goltsman, D.S.A.; Comolli, L.R.; Thomas, B.C.; Banfield, J.F. Community transcriptomics reveals unexpected high microbial diversity in acidophilic biofilm communities. ISME J. 2015, 9, 1014–1023. [Google Scholar] [CrossRef] [PubMed]
  28. Hua, Z.S.; Han, Y.J.; Chen, L.X.; Liu, J.; Hu, M.; Li, S.J.; Kuang, J.L.; Chain, P.S.; Huang, L.N.; Shu, W.S. Ecological roles of dominant and rare prokaryotes in acid mine drainage revealed by metagenomics and metatranscriptomics. ISME J. 2015, 9, 1280–1294. [Google Scholar] [CrossRef] [PubMed]
  29. Kuang, J.; Huang, L.; He, Z.; Chen, L.; Hua, Z.; Jia, P.; Li, S.; Liu, J.; Li, J.; Zhou, J. Predicting taxonomic and functional structure of microbial communities in acid mine drainage. ISME J. 2016, 10, 1527–1539. [Google Scholar] [CrossRef] [PubMed]
  30. Pollmann, K.; Kutschke, S.; Matys, S.; Kostudis, S.; Hopfe, S.; Raff, J. Novel biotechnological approaches for the recovery of metals from primary and secondary resources. Minerals 2016, 6, 54. [Google Scholar] [CrossRef]
  31. Johnson, D. Recent developments in microbiological approaches for securing mine wastes and for recovering metals from mine waters. Minerals 2014, 4, 279–292. [Google Scholar] [CrossRef]
  32. Molson, J.; Fala, O.; Aubertin, M.; Bussière, B. Numerical simulations of pyrite oxidation and acid mine drainage in unsaturated waste rock piles. J. Contam. Hydrol. 2005, 78, 343–371. [Google Scholar] [CrossRef] [PubMed]
  33. Schippers, A.; Sand, W. Bacterial leaching of metal sulfides proceeds by two indirect mechanisms via thiosulfate or via polysulfides and sulfur. Appl. Environ. Microbiol. 1999, 65, 319–321. [Google Scholar] [PubMed]
  34. Marchand, E.A.; Silverstein, J. Influence of heterotrophic microbial growth on biological oxidation of pyrite. Environ. Sci. Technol. 2002, 36, 5483–5490. [Google Scholar] [CrossRef] [PubMed]
  35. Evangelou, V.P.; Zhang, Y.L. A review: Pyrite oxidation mechanisms and acid mine drainage prevention. Crit. Rev. Environ. Sci. Technol. 1995, 25, 141–199. [Google Scholar] [CrossRef]
  36. Méndez-García, C.; Peláez, A.I.; Mesa, V.; Sánchez, J.; Golyshina, O.V.; Ferrer, M. Microbial diversity and metabolic networks in acid mine drainage habitats. Front. Microbiol. 2015, 6, 475. [Google Scholar] [PubMed]
  37. Zirnstein, I.; Arnold, T.; Krawczykbärsch, E.; Jenk, U.; Bernhard, G.; Röske, I. Eukaryotic life in biofilms formed in a uranium mine. Microbiologyopen 2012, 1, 83–94. [Google Scholar] [CrossRef] [PubMed]
  38. Falagan, C.; Johnson, D.B. Acidithiobacillus ferriphilus sp. nov.: A facultatively anaerobic iron- and sulfur-metabolising extreme acidophile. Int. J. Syst. Evol. Microbiol. 2015, 66, 206–211. [Google Scholar] [CrossRef] [PubMed]
  39. Tyson, G.W.; Lo, I.; Baker, B.J.; Allen, E.E.; Hugenholtz, P.; Banfield, J.F. Genome-directed isolation of the key nitrogen fixer leptospirillum ferrodiazotrophum sp. nov. from an acidophilic microbial community. Appl. Environ. Microbiol. 2005, 71, 6319–6324. [Google Scholar] [CrossRef] [PubMed]
  40. Edwards, K.J.; Bond, P.L.; Gihring, T.M.; Banfield, J.F. An archaeal iron-oxidizing extreme acidophile important in acid mine drainage. Science 2000, 287, 1796–1799. [Google Scholar] [CrossRef] [PubMed]
  41. Golyshina, O.V. Environmental, biogeographic, and biochemical patterns of archaea of the family ferroplasmaceae. Appl. Environ. Microbiol. 2011, 77, 5071–5078. [Google Scholar] [CrossRef] [PubMed]
  42. Mark, D.; Craig, B.A.; Andrew, H.; Bowman, J.P.; Bond, P.L. Characterization of ferroplasma isolates and Ferroplasma acidarmanus sp. nov., extreme acidophiles from acid mine drainage and industrial bioleaching environments. Appl. Environ. Microbiol. 2004, 70, 2079–2088. [Google Scholar]
  43. Welch, D.B.M.; Huse, S.M. Microbial diversity in the deep sea and the underexplored “rare biosphere”. Proc. Natl. Acad. Sci. USA 2006, 103, 12115–12120. [Google Scholar]
  44. Hallberg, K.B.; Coupland, K.; Kimura, S.; Johnson, D.B. Macroscopic streamer growths in acidic, metal-rich mine waters in north wales consist of novel and remarkably simple bacterial communities. Appl. Environ. Microbiol. 2006, 72, 2022–2030. [Google Scholar] [CrossRef] [PubMed]
  45. Tan, G.L.; Shu, W.S.; Hallberg, K.B.; Li, F.; Lan, C.Y.; Zhou, W.H.; Huang, L.N. Culturable and molecular phylogenetic diversity of microorganisms in an open-dumped, extremely acidic Pb/Zn mine tailings. Extremophiles 2008, 12, 657–664. [Google Scholar] [CrossRef] [PubMed]
  46. Küsel, K. Microbial cycling of iron and sulfur in acidic coal mining lake sediments. Water Air Soil Pollut. 2003, 3, 67–90. [Google Scholar] [CrossRef]
  47. Chen, Y.T.; Li, J.T.; Chen, L.X.; Hua, Z.S.; Huang, L.N.; Liu, J.; Xu, B.B.; Liao, B.; Shu, W.S. Biogeochemical processes governing natural pyrite oxidation and release of acid metalliferous drainage. Environ. Sci. Technol. 2014, 48, 5537–5545. [Google Scholar] [CrossRef] [PubMed]
  48. Mendez, M.O.; Neilson, J.W.; Maier, R.M. Characterization of a bacterial community in an abandoned semiarid lead-zinc mine tailing site. Appl. Environ. Microbiol. 2008, 74, 3899–3907. [Google Scholar] [CrossRef] [PubMed]
  49. Huang, L.N.; Zhou, W.H.; Hallberg, K.B.; Wan, C.Y.; Li, J.; Shu, W.S. Spatial and temporal analysis of the microbial community in the tailings of a Pb-Zn mine generating acidic drainage. Appl. Environ. Microbiol. 2011, 77, 5540–5544. [Google Scholar] [CrossRef] [PubMed]
  50. Chen, L.X.; Li, J.T.; Chen, Y.T.; Huang, L.N.; Hua, Z.S.; Hu, M.; Shu, W.S. Shifts in microbial community composition and function in the acidification of a lead/zinc mine tailings. Environ. Microbiol. 2013, 15, 2431–2444. [Google Scholar] [CrossRef] [PubMed]
  51. Rothschild, L.J.; Mancinelli, R.L. Life in extreme environments. Nature 2001, 409, 1092–1101. [Google Scholar] [CrossRef] [PubMed]
  52. Liljeqvist, M.; Ossandon, F.J.; Carolina, G.; Rajan, S.; Stell, A.; Valdes, J.; Holmes, D.S.; Dopson, M. Metagenomic analysis reveals adaptations to a cold-adapted lifestyle in a low-temperature acid mine drainage stream. FEMS Microbiol. Ecol. 2015, 91, 131–135. [Google Scholar] [CrossRef] [PubMed]
  53. Chen, L.X.; Hu, M.; Huang, L.N.; Hua, Z.S.; Kuang, J.L.; Li, S.J.; Shu, W.S. Comparative metagenomic and metatranscriptomic analyses of microbial communities in acid mine drainage. ISME J. 2015, 9, 1579–1592. [Google Scholar] [CrossRef] [PubMed]
  54. Korehi, H.; Blöthe, M.; Schippers, A. Microbial diversity at the moderate acidic stage in three different sulfidic mine tailings dumps generating acid mine drainage. Res. Microbiol. 2014, 165, 713–718. [Google Scholar] [CrossRef] [PubMed]
  55. Collins, S.L. Experimental analysis of intermediate disturbance and initial floristic composition: Decoupling cause and effect. Ecology 1995, 76, 486–492. [Google Scholar] [CrossRef]
  56. Howard, L.F.; Lee, T.D. Temporal patterns of vascular plant diversity in southeastern new hampshire forests. For. Ecol. Manag. 2003, 185, 5–20. [Google Scholar] [CrossRef]
  57. Jones, D.S.; Schaperdoth, I.; Macalady, J.L. Biogeography of sulfur-oxidizing acidithiobacillus populations in extremely acidic cave biofilms. ISME J. 2016, 10, 2879–2891. [Google Scholar] [CrossRef] [PubMed]
  58. Finlay, B.J. Global dispersal of free-living microbial eukaryote species. Science 2002, 296, 1061–1063. [Google Scholar] [CrossRef] [PubMed]
  59. Garcíamoyano, A.; Gonzáleztoril, E.; Aguilera, Á.; Amils, R. Comparative microbial ecology study of the sediments and the water column of the Rio Tinto, an extreme acidic environment. FEMS Microbiol. Ecol. 2012, 81, 303–314. [Google Scholar] [CrossRef] [PubMed]
  60. Gonzáleztoril, E.; Aguilera, Á.; Souzaegipsy, V.; Pamo, E.L.; España, J.S.; Amils, R. Geomicrobiology of La Zarza-Perrunal acid mine effluent (Iberian Pyritic Belt, Spain). Appl. Environ. Microbiol. 2011, 77, 2685–2694. [Google Scholar] [CrossRef] [PubMed]
  61. Yang, Y.; Yang, L.I.; Sun, Q.Y. Archaeal and bacterial communities in acid mine drainage from metal-rich abandoned tailing ponds, Tongling, China. Trans. Nonferr. Met. Soc. China 2014, 24, 3332–3342. [Google Scholar] [CrossRef]
  62. Li, S.P.; Li, J.T.; Kuang, J.L.; Duan, H.N.; Zeng, Y.; Shu, W.S. Effects of species richness on cadmium removal efficiencies of algal microcosms. J. Appl. Ecol. 2012, 49, 261–267. [Google Scholar] [CrossRef]
  63. Barberán, A.; Bates, S.T.; Casamayor, E.O.; Fierer, N. Using network analysis to explore co-occurrence patterns in soil microbial communities. ISME J. 2012, 6, 343–351. [Google Scholar] [CrossRef] [PubMed]
  64. Comolli, L.R.; Banfield, J.F. Inter-species interconnections in acid mine drainage microbial communities. Front. Microbiol. 2014, 5, 367. [Google Scholar] [CrossRef] [PubMed]
  65. González-Toril, E.; Aguilera, A.; Rodriguez, N.; Fernández-Remolar, D.; Gómez, F.; Diaz, E.; García-Moyano, A.; Sanz, J.L.; Amils, R. Microbial ecology of Río Tinto, a natural extreme acidic environment of biohydrometallurgical interest. Hydrometallurgy 2010, 104, 329–333. [Google Scholar] [CrossRef]
  66. Larsen, P.E.; Field, D.; Gilbert, J.A. Predicting bacterial community assemblages using an artificial neural network approach. Nat. Methods 2012, 1260, 33–43. [Google Scholar] [CrossRef] [PubMed]
  67. Green, J.L.; Bohannan, B.J.; Whitaker, R.J. Microbial biogeography: From taxonomy to traits. Science 2008, 320, 1039–1043. [Google Scholar] [CrossRef] [PubMed]
  68. Mcgill, B.J.; Enquist, B.J.; Weiher, E.; Westoby, M. Response to kearney and porter: Both functional and community ecologists need to do more for each other. Trends Ecol. Evol. 2006, 21, 482–483. [Google Scholar] [CrossRef]
  69. Raes, J.; Letunic, I.; Yamada, T.; Jensen, L.J.; Bork, P. Toward molecular trait-based ecology through integration of biogeochemical, geographical and metagenomic data. Mol. Syst. Biol. 2011, 7, 473. [Google Scholar] [CrossRef] [PubMed]
  70. Nancucheo, I.; Johnson, D.B. Selective removal of transition metals from acidic mine waters by novel consortia of acidophilic sulfidogenic bacteria. Microb. Biotechnol. 2011, 5, 34–44. [Google Scholar] [CrossRef] [PubMed]
  71. Baker, B.J.; Lutz, M.A.; Dawson, S.C.; Bond, P.L.; Banfield, J.F. Metabolically active eukaryotic communities in extremely acidic mine drainage. Appl. Environ. Microbiol. 2004, 70, 6264–6271. [Google Scholar] [CrossRef] [PubMed]
Minerals 07 00106 g001 550

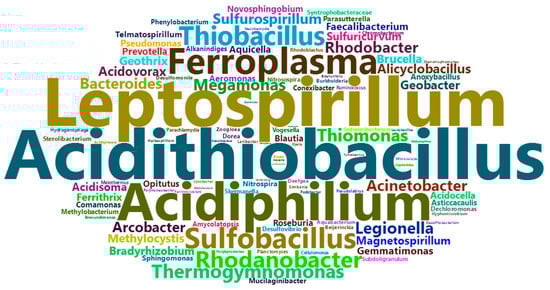

Figure 1. The genera detected in AMD samples from 14 mining areas across South China (data from [24]). The font size is proportional to the average relative abundance of the specific genus in microbial communities of AMD ecosystems.
Figure 1. The genera detected in AMD samples from 14 mining areas across South China (data from [24]). The font size is proportional to the average relative abundance of the specific genus in microbial communities of AMD ecosystems.
Minerals 07 00106 g001
Minerals 07 00106 g002 550

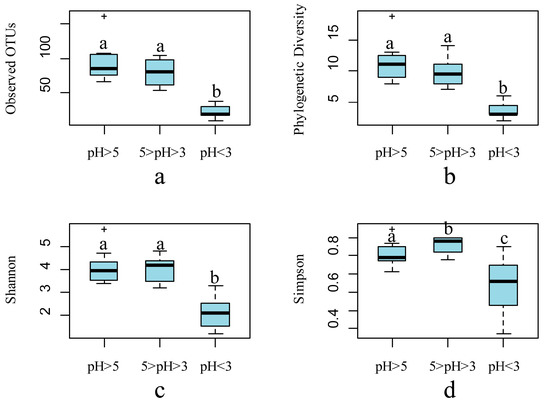

Figure 2. Microbial diversity characterized by (a) observed operational taxonomic units (OTUs), (b) phylogenetic diversity, (c) Shannon index, and (d) Simpson index at three acidification stages in simulated lab experiments on the oxidative dissolution of pyrite (data from [47]). In the figure, the horizontal bands within boxes represent the median and the bottom and top of boxes represent the first and third quartiles, respectively. The little plus symbols represent off-group points which are more than the interquartile range from the boxes. Different lowercase letters on the whiskers represent significant differences (p-value < 0.05).
Figure 2. Microbial diversity characterized by (a) observed operational taxonomic units (OTUs), (b) phylogenetic diversity, (c) Shannon index, and (d) Simpson index at three acidification stages in simulated lab experiments on the oxidative dissolution of pyrite (data from [47]). In the figure, the horizontal bands within boxes represent the median and the bottom and top of boxes represent the first and third quartiles, respectively. The little plus symbols represent off-group points which are more than the interquartile range from the boxes. Different lowercase letters on the whiskers represent significant differences (p-value < 0.05).
Minerals 07 00106 g002
Minerals 07 00106 g003 550

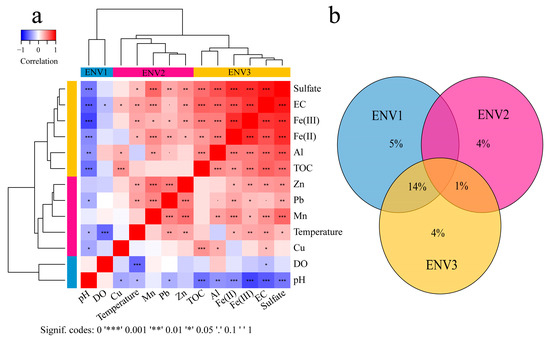

Figure 3. Hierarchical cluster analysis (a) of correlations between different environmental variations and distance-based variance partitioning analysis (b) of AMD microbial communities related to the three environmental properties derived from the clustering analysis (data from [24,29]).
Figure 3. Hierarchical cluster analysis (a) of correlations between different environmental variations and distance-based variance partitioning analysis (b) of AMD microbial communities related to the three environmental properties derived from the clustering analysis (data from [24,29]).
Minerals 07 00106 g003
Minerals 07 00106 g004 550

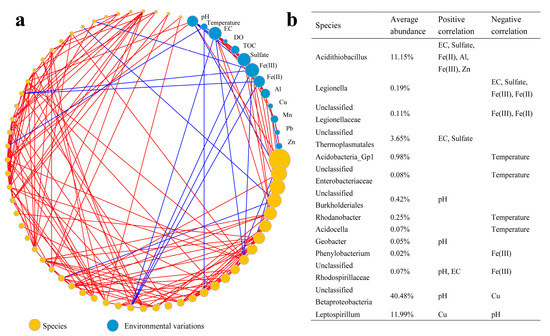

Figure 4. Correlation network (a) visualizing pairwise correlations between environmental variations and species at the order level, and selected species (b) with the highest correlated response to environmental variations. Data obtained from 59 AMD samples in 14 mining areas across South China were utilized to build the network (data from [24]). Each edge stands for a considerable (Spearman’s ρ > 0.45 or ρ < −0.45) and significant (p-value < 0.05) correlation. The different colors indicate positive (red) and negative (blue) correlations. The size of each node is proportional to the average relative abundance (species) or the sum of correlation coefficients (environment variations).
Figure 4. Correlation network (a) visualizing pairwise correlations between environmental variations and species at the order level, and selected species (b) with the highest correlated response to environmental variations. Data obtained from 59 AMD samples in 14 mining areas across South China were utilized to build the network (data from [24]). Each edge stands for a considerable (Spearman’s ρ > 0.45 or ρ < −0.45) and significant (p-value < 0.05) correlation. The different colors indicate positive (red) and negative (blue) correlations. The size of each node is proportional to the average relative abundance (species) or the sum of correlation coefficients (environment variations).
Minerals 07 00106 g004
