Coal-Based Reduction and Magnetic Separation Behavior of Low-Grade Vanadium-Titanium Magnetite Pellets

Abstract

Coal-based reduction and magnetic separation behavior of low-grade vanadium-titanium magnetite pellets were studied in this paper. It is found that the metallization degree increased obviously with an increase in the temperature from 1100 °C to 1400 °C. The phase composition transformation was specifically analyzed with X-ray diffraction (XRD). The microscopic examination was carried out with scanning electron microscopy (SEM), and the element composition and distribution were detected with energy dispersive spectroscopy (EDS). It is observed that the amounts of metallic iron particles obviously increased and the accumulation and growing tendency were gradually facilitated with the increase in the temperature from 1100 °C to 1400 °C. It is also found that the titanium oxides were gradually reduced and separated from ferrum-titanium oxides during reduction. In addition, with increasing the temperature from 1200 °C to 1350 °C, silicate phases, especially calcium silicate phases that were transformed from calcium ferrite at 1100 °C, were observed and gradually aggregated. However, at 1400 °C some silicate phases infiltrated into metallic iron, as it appears that the carbides, especially TiC, could probably contribute to the sintering phenomenon becoming serious. The transformation behavior of valuable elements was as follows: Fe₂VO₄ → VO → V → VC; FeTiO₃ (→ FeTi₂O₅) → TiO₂ → TiC; FeCr₂O₄ → Cr → CrC; FeTiO₃ (→ FeTi₂O₅) → Fe_0.5Mg_0.5Ti₂O₅; (Fe₃O₄/FeTiO₃→) FeO → Mg_0.77Fe_0.23O. Through the magnetic separation of coal-based reduced products, it is demonstrated that the separation of Cr, V, Ti, and non-magnetic phases can be preliminarily realized.

1. Introduction

As it is known, there are more than 10 billion tons of vanadium-titanium magnetite ores in China and these ores are mainly distributed in the Panxi district in Sichuan Province, Chengde district in Hebei Province, and Maanshan district in Anhui Province [1,2]. However, in recent years, one special kind of vanadium-titanium magnetite ore in a certain area in Liaoning Province has been found, and these special mineral resources are low-grade vanadium-titanium magnetite (LGVTM) [3]. With the considerable decrease of high-grade ores, it is necessary to utilize these low-grade ores, and studies of these special LGVTM have been scarcely reported. Thus, it is of great necessity to carry out studies on these unique mineral resources.

Vanadium-titanium magnetite, as one kind of multi-mineral iron ore, is rich in valuable elements, including Fe, V, Ti, Cr, etc., and is developing significant value [1,2,3,4,5,6,7]. Compared with the vanadium-titanium magnetite in Panxi district and Chengde district, present investigated vanadium-titanium magnetite has the characteristics of lower iron, higher titanium, and higher vanadium [1,2,8,9,10]. It is promising to utilize these special mineral resources by a non-blast furnace (BF) process. Coal-based direct reduction, followed by magnetic separation, as one special non-BF technique, has the advantages of a relatively much shorter process, its easy operation process, lower energy consumption, and lower production price for the process since the coal replaces coke [9,11]. It is, therefore, rewarding to investigate the coal-based direct reduction–magnetic separation of low-grade vanadium-titanium magnetite to improve the utilization efficiency of Fe, and especially of V, Ti, and Cr.

For the coal-based direct reduction process, considerable studies have been done for hematite ores [11,12,13,14,15,16], in which the following process of magnetic separation has also been reported by Yu et al.’s study [11]. Due to the depletion of high-grade hematite ores, the utilization of magnetite ores has been attempted [9,15,17,18,19,20,21,22,23]. For ordinary vanadium-titanium magnetite, previous work can be found in [8,9,20,21,22,23]. Jung [20] has investigated the effects of CaO/CaCO₃ on the carbothermic reduction of titanomagnetite ores. Jung [21,22] has also investigated the effects of the content and particle size of char in the composite on the carbothermic reduction of titanomagnetite at 1100 °C and the evaluation of isothermal reduction progress of raw titanomagnetite and char composite by thermogravimetry at 1200 °C. Hu et al. [23] researched the effect of Fe-Si on the carbothermic reduction of Panzhihua titanomagnetite concentrates under an argon atmosphere by isothermal experiments at 1350 °C and non-isothermal experiments in the temperature range from room temperature to 1450 °C, respectively. Sun [8] has researched the solid state reduction of titanomagnetite concentrate in Panxi district with graphite. Chen [9] has analyzed the metalizing reduction and magnetic separation of vanadium titanomagnetite (TFe: 53.91 wt %; V₂O₅: 0.52 wt %; TiO₂: 13.03 wt %) in Panxi district based on hot briquetting. However, the coal-based direct reduction on LGVTM has been elusive, let alone for the following process of magnetic separation. Consequently, it is important to carry out the present study.

Due to the researching margin of LGVTM and the promising direct reduction–magnetic separation technique, in this study, the coal-based reduction and magnetic separation behavior of low-grade vanadium-titanium magnetite pellets (LGVTMP) were studied. Qualified LGVTMP with suitable C/O (fixed carbon/oxygen) were firstly prepared, and the effect of the reduction temperature on the metallization degree, iron recovery rate, transformation behavior, and pattern of V, Ti, and Cr was studied. The phase composition transformation, microstructure analysis and micro-area composition were also investigated with different characterization means, including inductively coupled plasma–atomic emission spectroscopy (ICP-AES), X-ray fluorescence (XRF), X-ray diffraction (XRD), scanning electron microscope–energy dispersive spectroscopy (SEM-EDS), whose parameters are described in the experimental section.

2. Experimental

2.1. Experimental Materials

In the present study, LGVTMP were prepared by LGVTM, coal and mixed with 2% bentonite (binders). The ratio between LGVTM and the coal was calculated according to Equation (1):

$$\mathrm{C}/\mathrm{O}=\frac{\left(m_{coal}\times w_C\right)/M_C}{\left[m_{ore}\times \left(w_{O,F{e}_2{O}_3 }+w_{O,FeO}\right)\right]/M_O}$$

(1)

where $m_{coal}$ is the mass of reducing coal (g), $m_{ore}$ is the mass of LGVTM (g), $w_C$ is the fixed carbon percent of reducing coal (wt %), $w_{O,F{e}_2{O}_3 }$ is the oxygen percent of Fe₂O₃ (wt %), $w_{O,FeO}$ is the oxygen percent of FeO (wt %), $M_C$ is the molar mass of C (g/mol), $M_O$ is the molar mass of O (g/mol), and the C/O of experimental coal-based pellets was 1.2. The LGVTM, whose size proportion of less than 0.074 mm was about 67%, was from northwestern district in Liaoning Province, and the chemical composition and phase composition are shown in

Table 1. Chemical composition of LGVTM (wt %).

TFe	FeO	V	TiO2	Cr2O3	CaO	SiO2	MgO	Al2O3	P	S
43.75	18.4	0.91	21.54	0.13	3.52	7.00	0.70	1.83	0.002	0.022

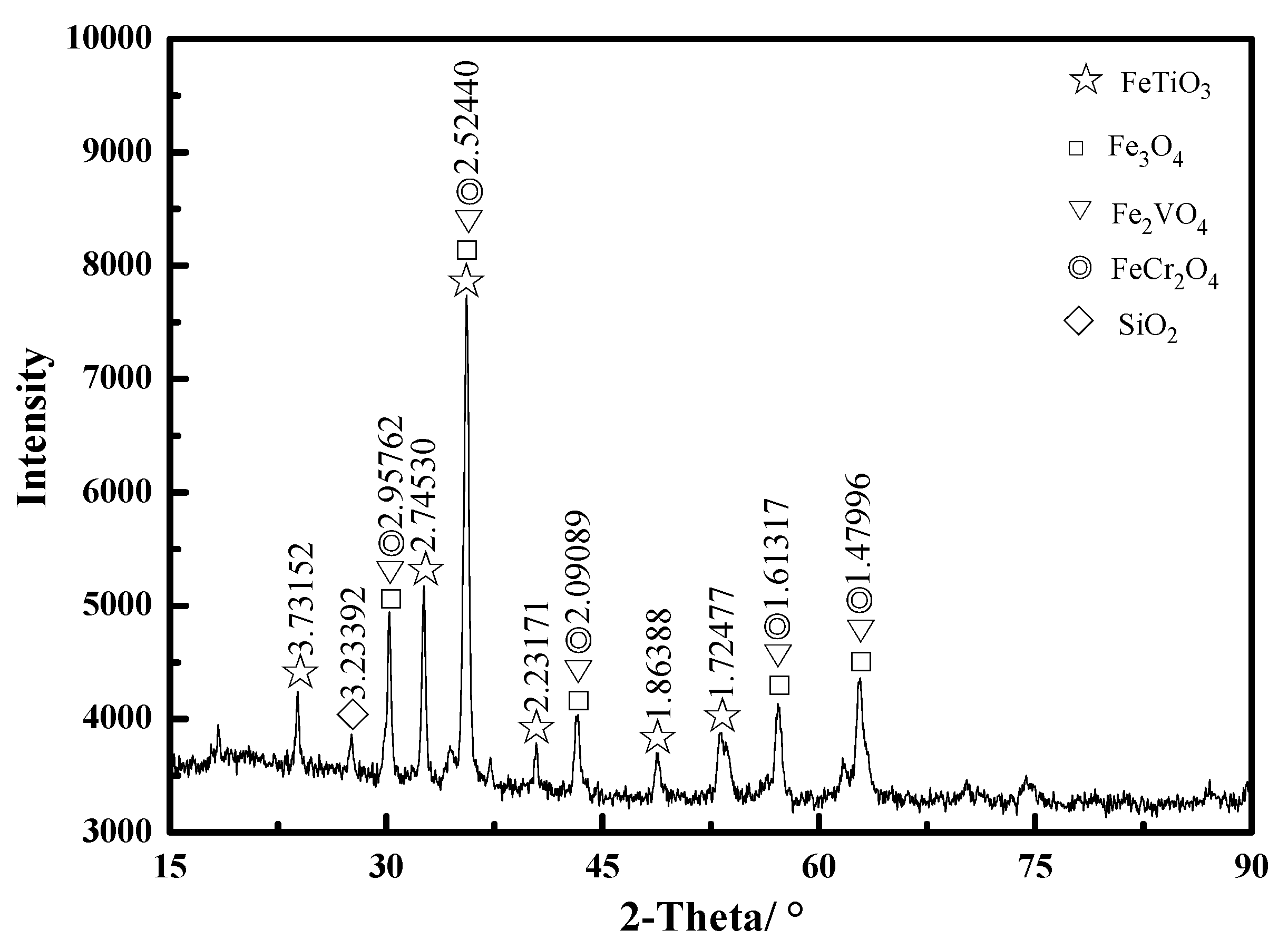

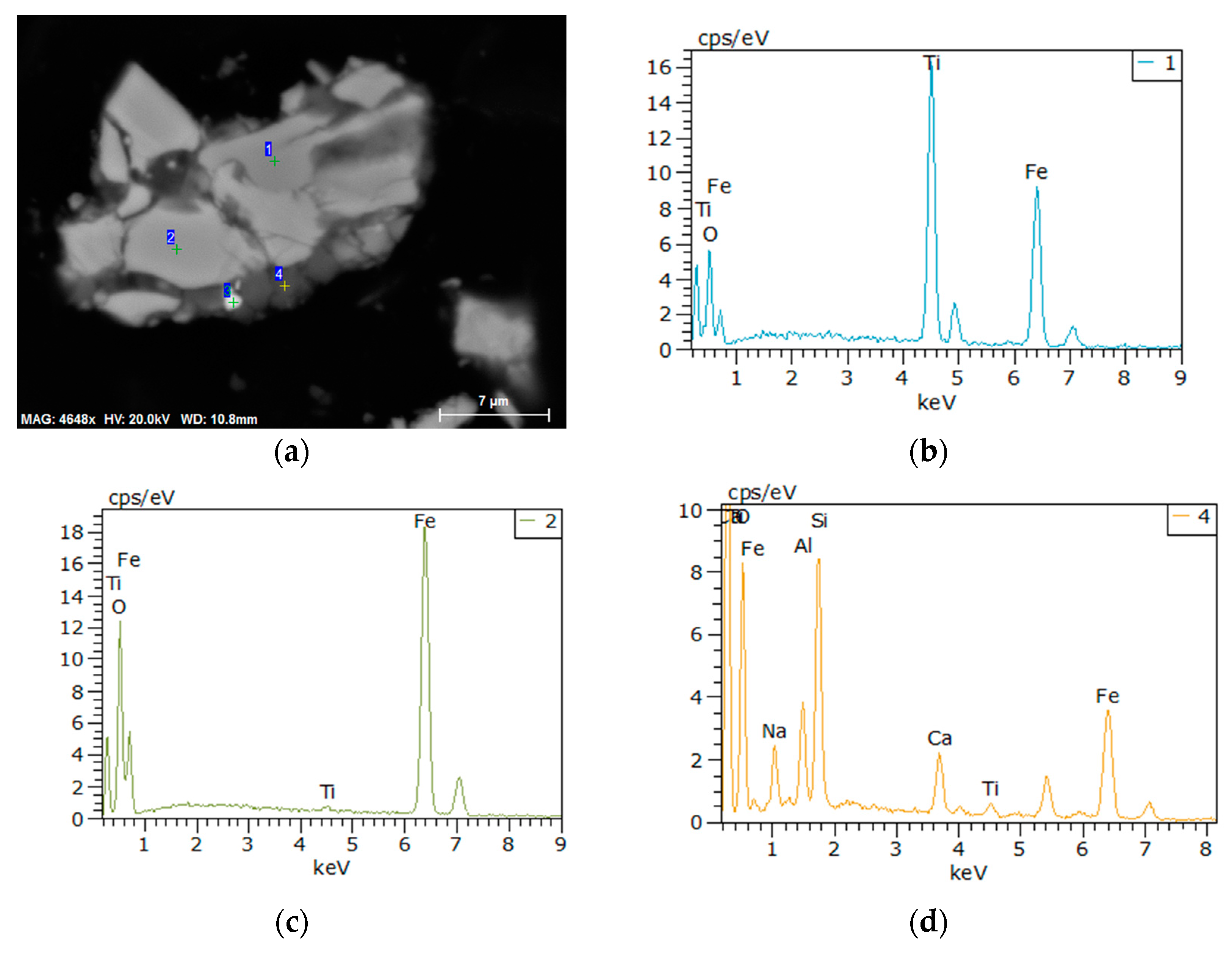

and Figure 1, respectively. The main Ti-bearing, V-bearing, and Cr-bearing phases are mainly FeTiO₃, Fe₂VO₄, and FeCr₂O₄. Examining the XRD pattern, the interplanar crystal spacing (d-spacing) also exhibited above, or in close proximity to, the phase symbol, and the unit of d-spacing is Å (hereinafter suitable for XRD figures). Figure 2 presents a SEM image of LGVTM and the corresponding EDS analyses of different areas, from which it is found that areas 1, 2, and 4 were ilmenite, magnetite, and gangue phases. The coal size was less than 0.074 mm, and the chemical composition is shown in

Table 2. Proximate analysis of coal (wt %).

Fixed Carbon	Ash	Volatile Matter	Sulfur (S)
64.23	7.06	22.85	0.41

.

2.2. Experimental Methods

Present coal-based reduction–magnetic separation experiments mainly consist of the material calculation, material mixing, pelletizing, reduction roasting, reduced product cooling, sample preparation, magnetic separation, analysis, and characterization. Firstly, weighed LGVTM, coal, and bentonite were mixed in the mixing tank using a ball grinding mill for more than 5 h, in which the materials were ground further. Secondly, LGVTMP, with appropriate amount of water, were prepared using a disc balling machine. After drying in the oven for more than 5 h, 30 g of LGVTMP were put in each graphite crucible and small coals of 0.8–3 mm size were filled around the pellets. Then the pellets were roasted in the high-temperature resistance furnace (KJ-A1700-12LZ, Kejia Furnace Co. Ltd., Tianjin, China) with a suitable temperature regime, and Ar gas was employed to prevent the oxidation of the coal-based pellets. The reduction temperature was in the range of 1100–1400 °C and the reduction time was one hour. After reduction, the reduced products were cooled to room temperature by burying coal powders around the graphite crucible to prevent air from oxidizing the products. Then the reduced pellet products were ground for 3 min by the sampling machine (2MZ-100; Nanchang Hengshun Chemical Equipment Manufacturing Co. Ltd., Nanchang, China), and the ground reduced products were all less than 0.074 mm and magnetically separated (XCGS-φ50; Instrument Factory of Tianjin Hualian Mining, Tianjin, China) with different magnetic field intensities. After magnetic separation, different magnetic products and non-magnetic products were obtained.

The chemical analyses of reduced LGVTMP, magnetic and non-magnetic products were conducted by X-ray fluorescence (XRF, ZSXPrimus II; Rigaku, Tokyo, Japan) and inductively coupled plasma–atomic emission spectroscopy (ICP-AES, Optima 8300DV; PerkinElmer, Waltham, MA, USA). The phase compositions of reduced pellets, and magnetic and non-magnetic products were analyzed by X-ray diffraction (XRD, X’ Pert Pro; PANalytical, Almelo, The Netherlands) with Cu Kα radiation (λ = 1.5406 Å), and the microstructure, element compositions, and distributions of the reduced pellet products prepared with polished section were examined by scanning electron microscope–energy dispersive spectroscopy (SEM-EDS, Ultra Plus; Carl Zeiss GmbH, Jena, Germany), for which the type of imaging used back-scattered electrons.

3. Results and Discussion

3.1. Metallization Degree

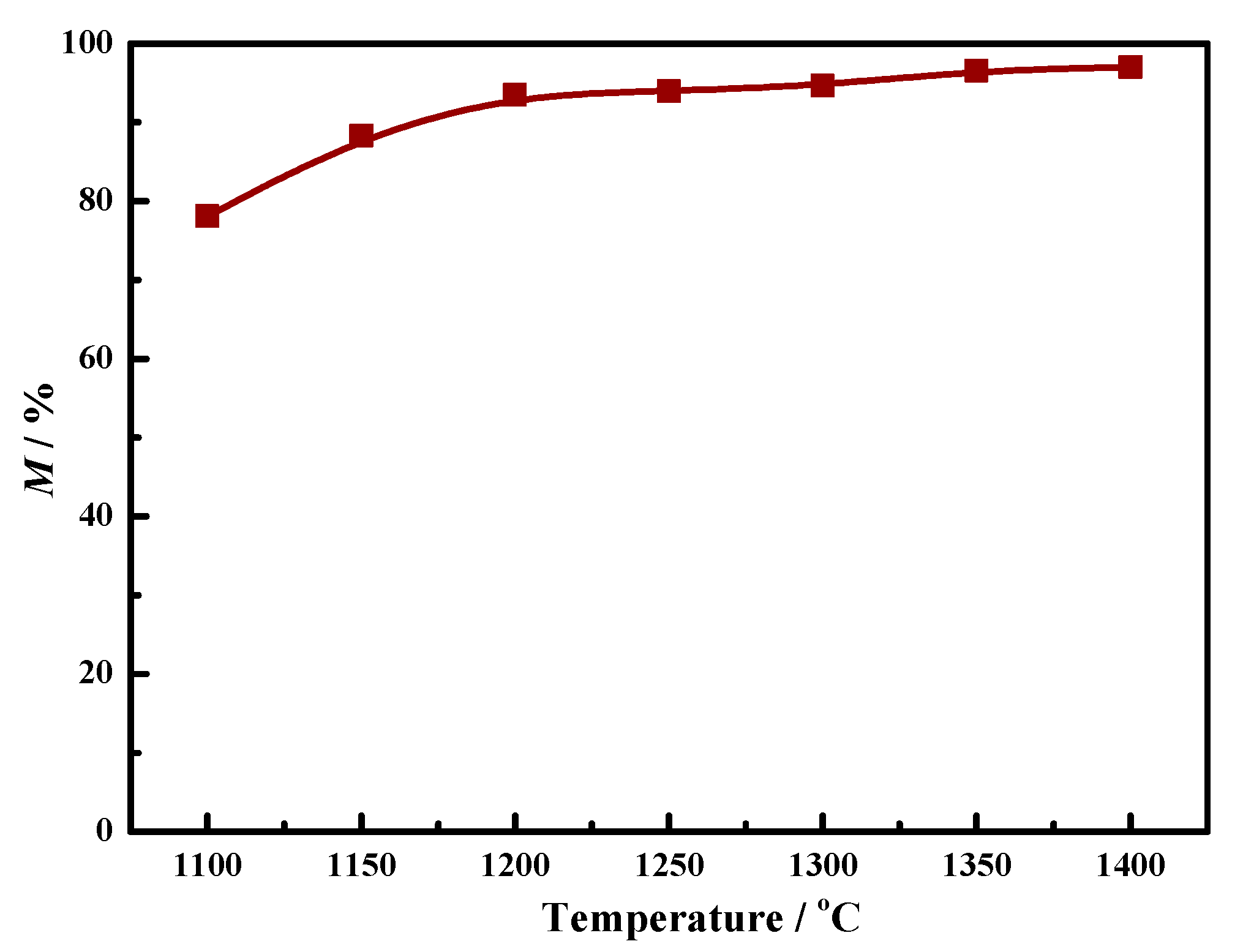

Figure 3 shows the typical results of the metallization degree of the coal-based LGVTMP at 1100–1400 °C. The metallization degree is calculated according to Equation (2):

$$M=\left[w\left(MFe\right)/w\left(TFe\right)\right]\times 100\%$$

(2)

where $M$ is the metallization degree (%), $w\left(MFe\right)$ is the mass percent of the metallic iron in reduced pellet products (%), $w\left(TFe\right)$ is the mass percent of the total ferrum in reduced pellet products (%). It is found that the metallization degree increased obviously from 78.10% at 1100 °C to 96.59% at 1350 °C, and reached above 99% at 1400 °C. Not only the thermodynamic conditions, but also kinetic conditions of the reduction for different phases can be notably improved with increasing the coal-based reduction temperature. Since the reaction from Fe²⁺ to Fe is strongly endothermic, the higher the reduction temperature, the more beneficial the quickening of the direct reduction reaction. Additionally, the pyrolysis of coal is intensified with the increase of the temperature, for which the aromatic hydrocarbon and some functional groups can get released and considerable amounts of the tar composition can appear on the surface of coal granules. As the tar composition contains great quantities of chemical compounds of the tar precursor, a large number of pores can appear after that the volatiles are deposited, which is beneficial to the strengthening of the carbon activity. Meanwhile, the internal diffusion of the reducing gas is enhanced, and the reduction condition is improved. In addition, with increasing the temperature, the oscillation of ions in the lattice of the solid reactant in the equilibrium position is intensified and the displacement phenomenon of those ions occurs because of overcoming the effect of the surrounding ions, which contributes to intensifying the diffusion of ions in the crystal lattice and the crystal chemical reaction at the reaction interface, and the more complete the direct reduction reaction.

3.2. Phase Composition Transformation

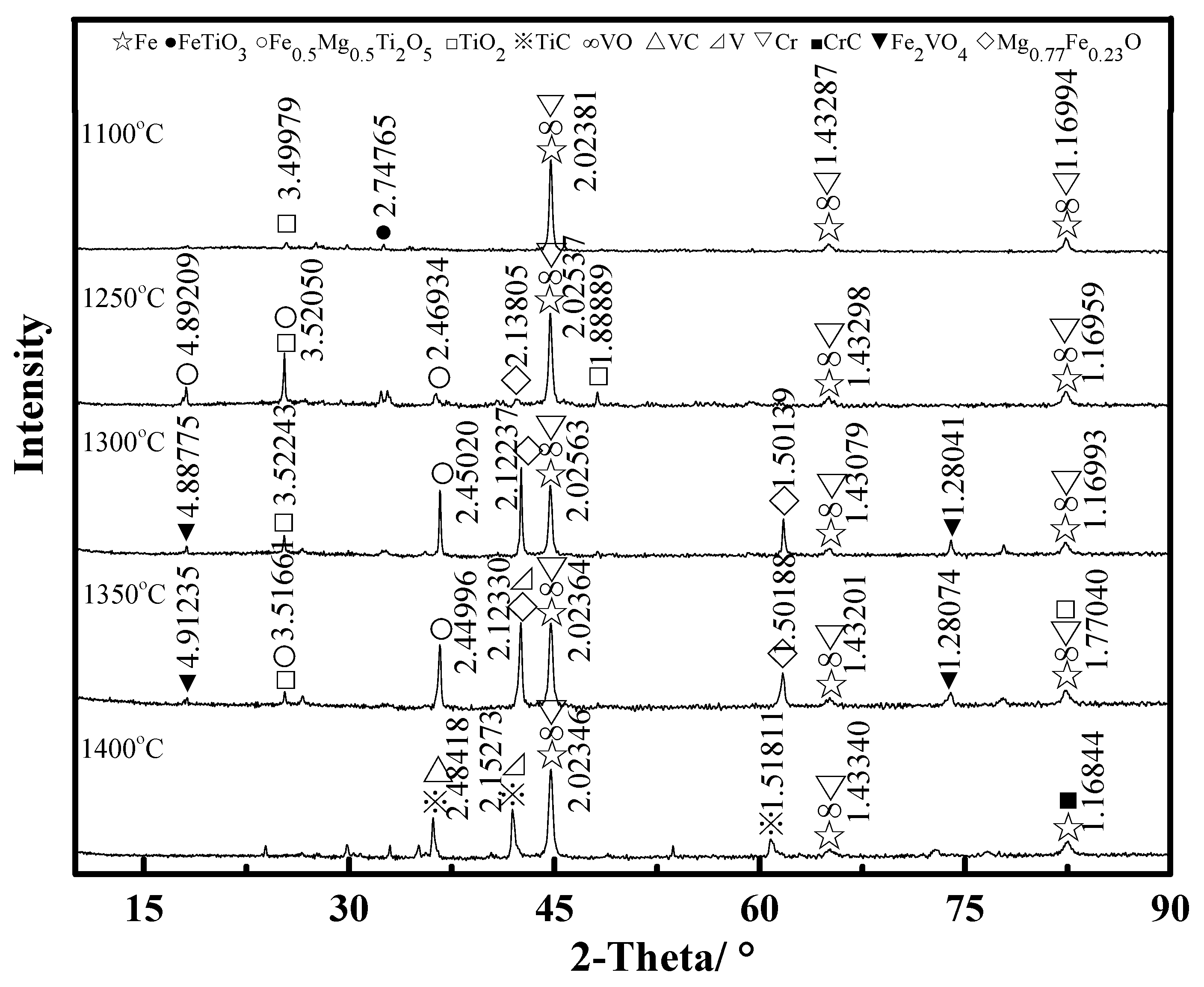

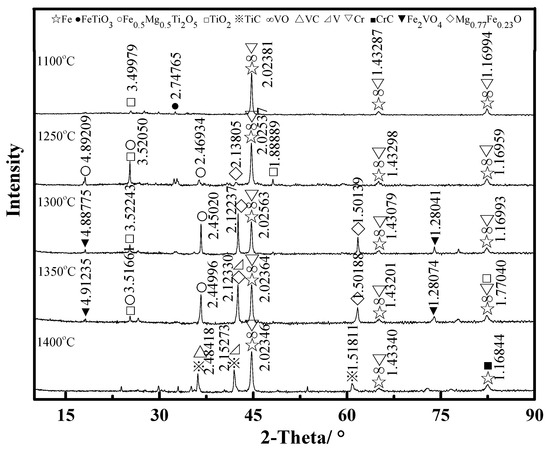

In order to study the specific phase compositions at different temperatures and the phase composition transformation of LGVTMP with increasing the reduction temperature, XRD analyses were conducted, with results shown in Figure 4. It is found that the metallic iron, which was predominantly reduced from magnetite and ilmenite with reaction Equations (3) and (4), can be obviously detected in the reduced products.

Fe₃O₄ + 4C = 3Fe + 4CO

(3)

FeTiO₃ + C = Fe + CO + TiO₂

(4)

The incompletely reduced ilmenite can still be found at 1100 °C. When the temperature increased to 1250 °C or above, it was found that the Fe-bearing anosovite (Fe_0.5Mg_0.5Ti₂O₅) appeared and increased with the increase of the temperature. From the thermodynamic analysis, ferrous pseudobrookite (FeTi₂O₅) can be generated with the reaction Equation (5) at this temperature range:

2FeTiO₃ + C = FeTi₂O₅ + Fe + CO

(5)

It is known that the crystal structure of FeTi₂O₅ is not that stable, and the stable temperature is only above 1130 °C. Meanwhile, as the radius difference of magnesium ions (Mg²⁺) and ferrous iron (Fe²⁺) are less than 15%, which is in accordance with the forming conditions of isomorphism, the stability of FeTi₂O₅ can be strengthened with the entering of Mg²⁺ into the crystal lattice of FeTi₂O₅ and the replacement of Fe²⁺ [24], contributing to the formation of stable absolute homogenous phases, such as Fe_0.5Mg_0.5Ti₂O₅, which was found in the reduced phases of coal-based LGVTMP at 1250–1350 °C. Furthermore, the wustite, which was mainly reduced from magnetite and ilmenite, was transformed into magnesium ferrite (Mg_0.77Fe_0.23O) with the replacement of Fe²⁺ with Mg²⁺ in the reduction process. However, the appearance of Fe-bearing anosovite, like Fe_0.5Mg_0.5Ti₂O₅, could affect the subsequent separation of Fe-bearing and Ti-bearing phases. From the phase transformation, it was found that the transformation pattern of Mg-bearing phases is FeTiO₃ (→ FeTi₂O₅) → Fe_0.5Mg_0.5Ti₂O₅; (Fe₃O₄/FeTiO₃ →) FeO → Mg_0.77Fe_0.23O.

When the temperature reached 1300–1350 °C, the diffraction peaks of Fe_0.5Mg_0.5Ti₂O₅ was further strengthened in the reduced products, since M₃O₅-type solid solution (M represents Fe, Mg, and Ti) that was formed by the mutually-soluble ferrous pseudobrookite and anosovite was greatly difficult to be reduced thoroughly [24]. Besides, the trans-V-Fe spinel phase (Fe₂VO₄) was found owing to the reaction Equation (6) of FeO and V₂O₅ in the reduction process above 1270 °C:

6FeO + V₂O₅ = 2Fe₂VO₄ + Fe₂O₃

(6)

On the other hand, vanadium metal just appeared above 1350 °C because the reduction reaction from vanadium oxides to vanadium metal, e.g., Equation (7), is of great difficulty according to thermodynamic analysis:

VO + C = V + CO, △G^θ = 310300 − 165.81 T/K (J·mol⁻¹)

(7)

However, compared with the generated conditions of vanadium metal, chromium metal was much more easily generated with the reaction Equation (8):

FeO·Cr₂O₃ + 4C = 2Cr + Fe + 4CO, △G^θ = 937286 − 657.98 T/K (J·mol⁻¹)

(8)

When the temperature increased to 1400 °C, carbides of vanadium, titanium, and chromium were found simultaneously, which was also detected in the following microscopic examination, and should be avoided as much as possible. From the phase transformation, it was found that the transformation pattern of V-bearing, Ti-bearing and Cr-bearing phases is Fe₂VO₄ → VO → V → VC; FeTiO₃ (→ FeTi₂O₅) → TiO₂ → TiC; FeCr₂O₄ → Cr → CrC.

3.3. Microscopic Examination

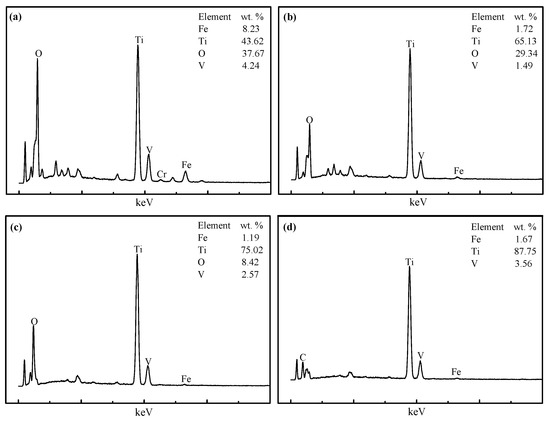

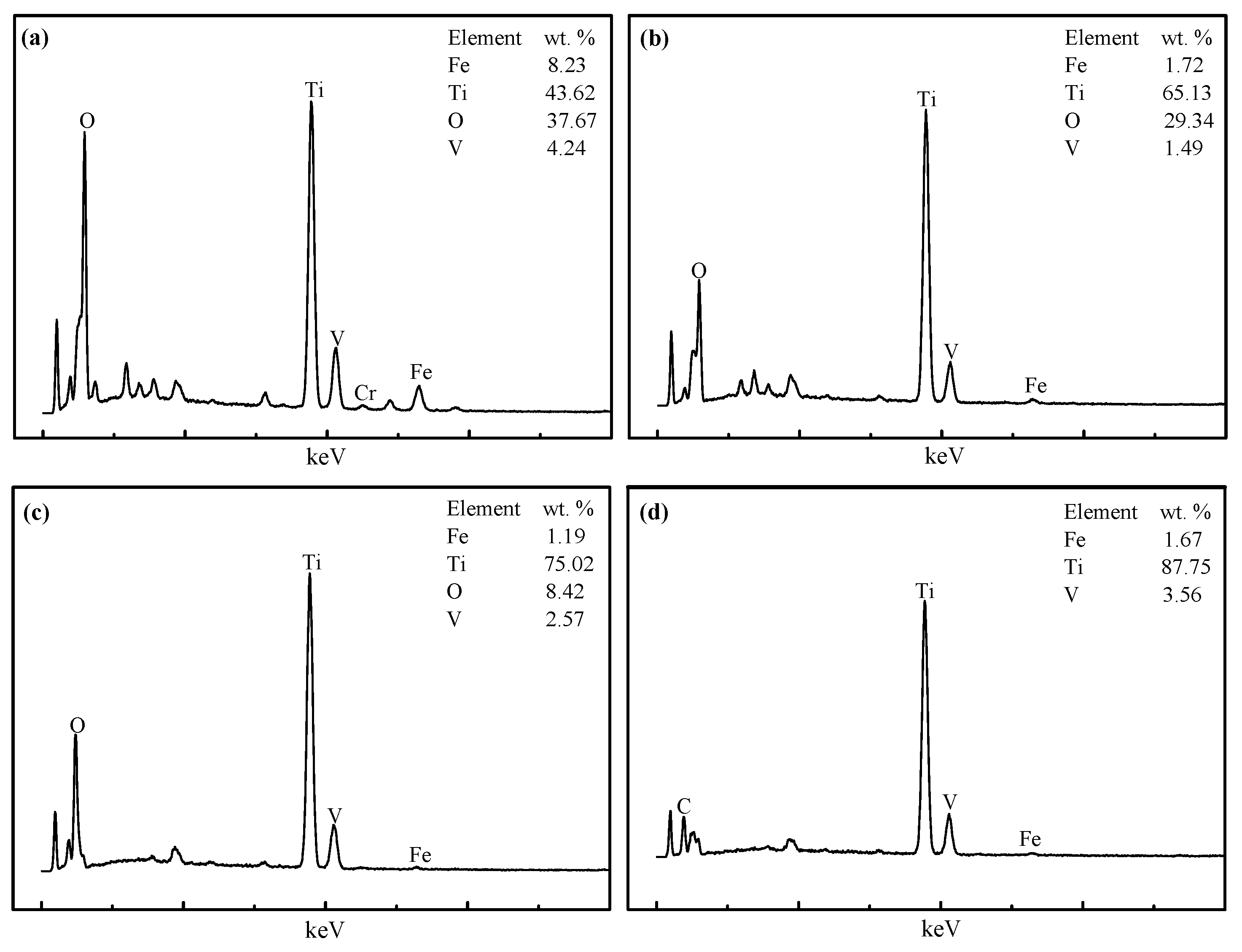

In above coal-based reduction behavior, basic reduction results and the phase composition transformation have been given, and it is essential to further examine the microstructure of reduced pellets. Figure 5 presents the microstructures of reduced LGVTMP at different temperatures at 5000×. It is observed that the amounts of metallic iron particles obviously increased and the accumulation and growing tendency were gradually facilitated evidently with increasing the temperature from 1100 °C to 1400 °C. The metallic iron was generated evenly along some preferential directions at 1100 °C, which was found in the microstructure, and the accumulation and growing percentage were not so large. Additionally, there were still some original titanium-ferrum oxides that were not reduced absolutely, characterized by EDS of area A (see Figure 6a). Figure 5c could be interpreted as clear heavy (iron) compounds in a silicated grassy matrix (dark). The EDS analyses of corresponding areas B and E are shown in Figure 6b,c with increasing the temperature below 1350 °C, and it was revealed that more and more titanium oxides without Fe reduced from ilmenite were found. The coal-based reduction can promote the separation of Ti from Fe, and this is beneficial for improving the element beneficiation rate and utilization efficiency. However, the carbides, especially titanium carbide and the vanadium carbide, with EDS analysis in Figure 6d for the corresponding area F, were generated with continually increasing the temperature to 1400 °C, but this is not necessary as large amounts of reducing coal would be consumed. Thus, the appropriate temperature should be better guaranteed below 1350 °C during coal-based reduction.

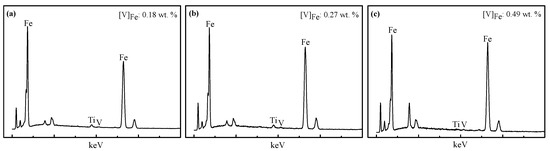

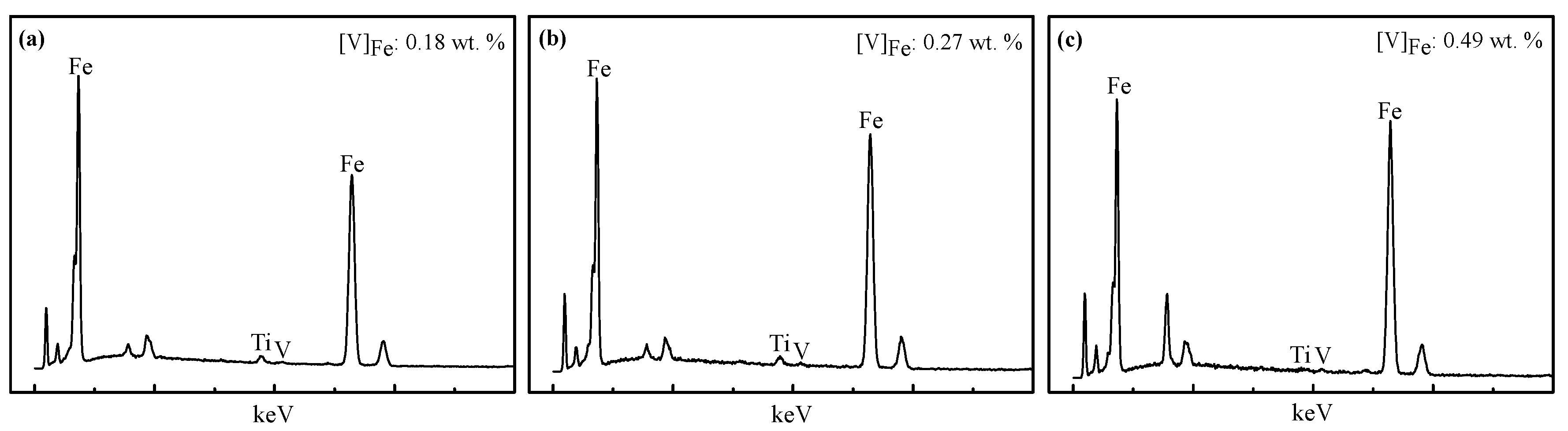

It was also found that the vanadium content in the titanium oxides decreased as a whole with increasing the temperature, which could be related to the vanadium content distributed in the metallic iron, and this is in accordance with a previous study where the V content in metallic iron particles increased correspondingly with the appearance of vanadium metal in the range of 1300–1400 °C [4]. The titanium-bearing phases were mostly titanium carbide at 1400 °C, and the V content in titanium-bearing phases was at a very high level because of the local enrichment of vanadium carbides. Therefore, EDS analyses of metallic iron phases were further studied, with results shown in Figure 7, and the V content distributed in the metallic iron ([V]_Fe) increased at 1300–1400 °C, which is perfectly coincident with the results of the vanadium content decrease in the titanium oxides. Furthermore, the element transformation characteristics were further researched in the latter magnetic separation studies.

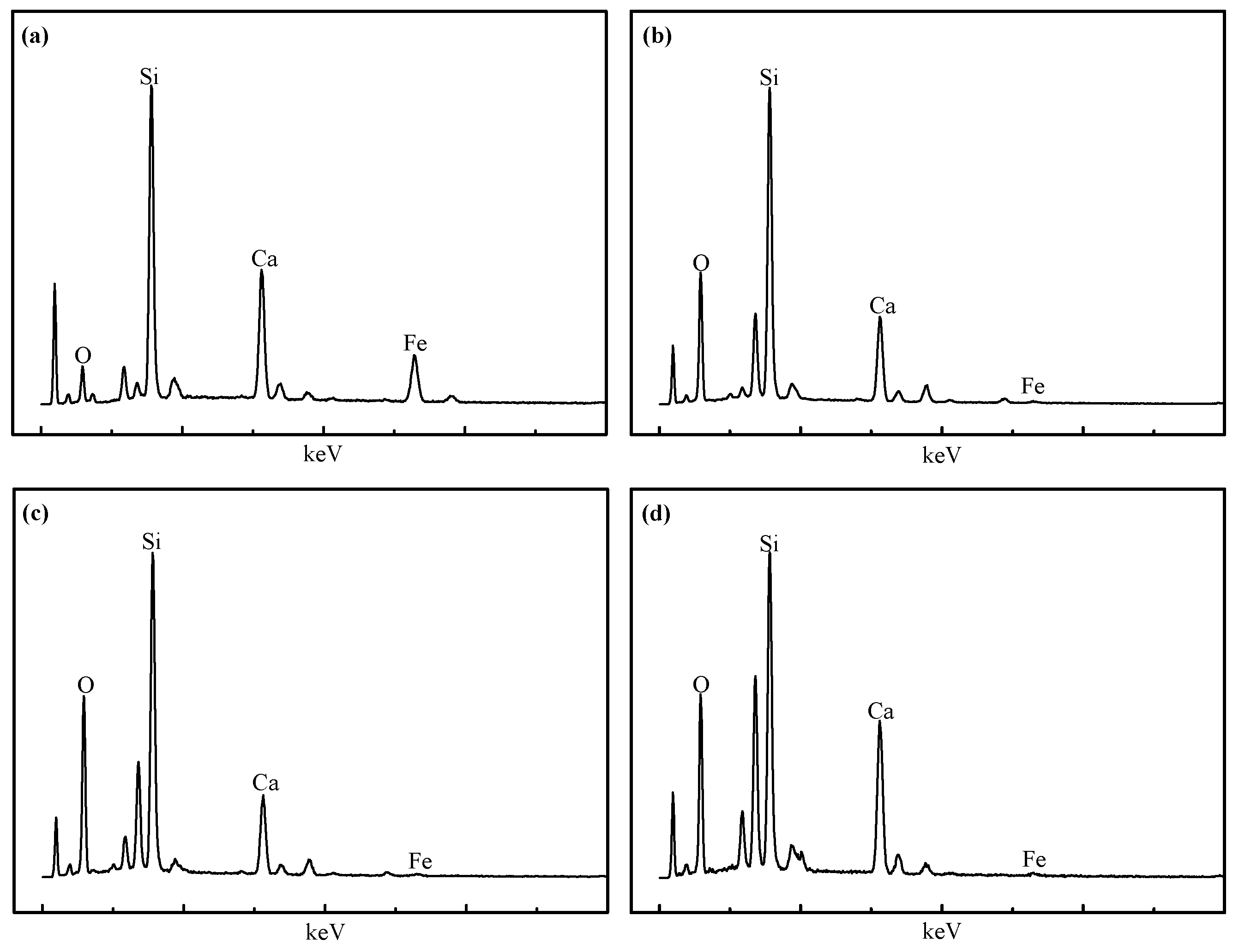

By analyzing the black areas H, K, and L, with corresponding results shown in Figure 8b–d, it is found that silicate phases, especially calcium silicate phases, transformed from calcium ferrite that was found at 1100 °C (see area G) with EDS analysis in Figure 8a, were observed and gradually aggregated with the increase in the temperature from 1200 °C to 1350 °C. However, some silicate phases were infiltrated into metallic iron since it appears that chromium carbides, and especially titanium carbides that were also found in the above XRD analysis, could probably contribute to the sintering phenomenon becoming serious at 1400 °C because it is well-known that those carbides with high melting points can increase the viscosity of the metallic iron and the slag, which would result in the hanging and diffusing of the slag in the metallic iron [4,25]. It has also been found that the slag and metallic iron were very difficult to separate from experimental studies of melting separation, thus, magnetic separation was employed to separate the magnetic and non-magnetic products.

3.4. Magnetic Separation Behavior

It has been revealed that the nucleation, accumulation, and growth of metallic iron phases were greatly promoted and a large number of large metallic iron beads were formed, especially at relatively higher elevated temperatures from the above SEM examination, which should be beneficial for separating the metallic iron phases and other phases, according to previous studies, by magnetic separation [9]. However, for LGVTM ore, since the resource characteristics and mineral compositions are specific, the magnetic separation also has a significant relationship with other phases, including phases that tended to attach to the metallic iron phase and phases that showed an opposite tendency. Thus, it is important to study the element transformation behavior and the recovery rate of different valuable elements, including Fe, V, Ti, and Cr.

It is well-known that, in a certain range, the increase of the magnetic intensity is beneficial for the entry of high-grade iron-bearing particles to the magnetic products, which can contribute to the grade and weight of magnetic products. Thus, the iron recovery rate increased. However, the continuous increase of the magnetic intensity is beneficial for the entry of low-grade iron-bearing particles to the magnetic products, for which the magnetic products increased, but the grade of magnetic products decreased, which was reversely beneficial for the iron recovery rate. In order to investigate the effect of the temperature on the element transformation and the recovery rate, proved appropriate magnetic intensity of 160 kA·m⁻¹, was adopted. Typical results of the iron recovery rate, which was calculated according to Equation (9):

$${\eta }_{Fe}=\frac{TF{e}_M\times m_M}{TF{e}_R\times m_R}\times 100\%$$

(9)

where ${\eta }_{Fe}$ is the iron recovery rate (%), $TF{e}_M$ is the grade of magnetic products (%), $TF{e}_R$ is the grade of reduction products (%), $m_M$ is the mass of magnetic products (g), and $m_R$ is the mass of reduced products used for the magnetic separation (g), which were shown in Figure 9 on the basis of analyzing TFe values of the reduced products and the magnetic products. Typical chemical compositions of reduced products at 1350 °C, and the corresponding magnetic and non-magnetic products, are presented in

Table 3. Chemical compositions of reduced LGVTMP at 1350 °C and the corresponding magnetic and non-magnetic products after magnetic separation (wt %).

Item	TFe	MFe	V	TiO2	Cr2O3
Reduced Products	53.38	51.56	1.06	24.62	0.18
Magnetic Products	70.01	62.59	1.04	19.67	0.19
Non-Magnetic Products	-	-	1.04	34.32	0.12

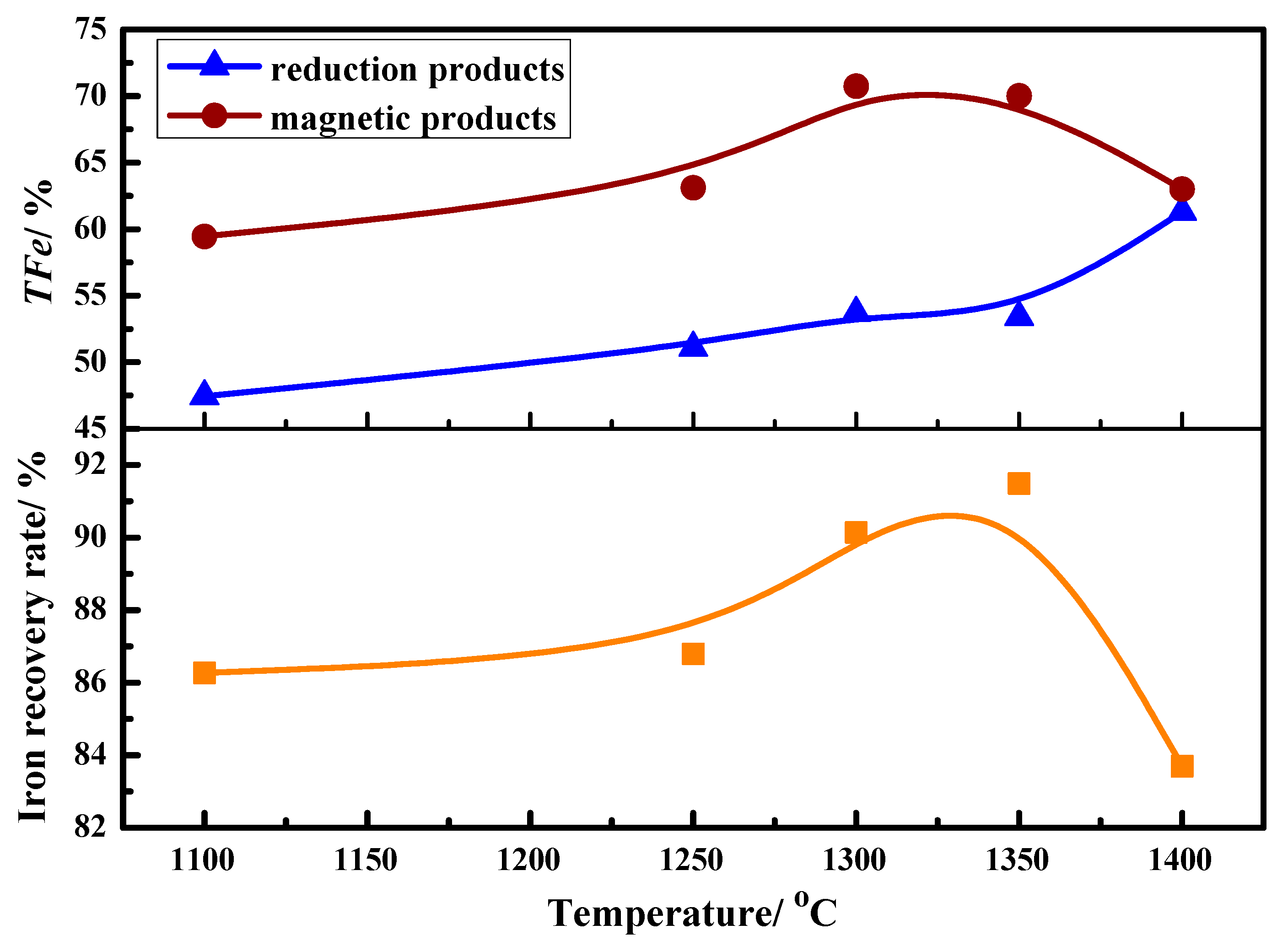

. It is found that the grade of the reduced product increased as a whole from 1100 °C to 1400 °C, while that of the magnetic products increased to high values at 1300–1350 °C and then decreased at 1400 °C. By calculating the different values of the reduced products and magnetic-separation products, it was observed that the iron recovery rate increased from 86.27% at 1100 °C to 91.49% at 1350 °C, but then quickly decreased to 83.70% at 1400 °C.

The metallic iron grains were relatively smaller and significantly mingled with the gangue phases at lower temperature, which makes it impossible for the metallic iron grains and gangue phases to realize effective dissociation. The iron oxides were partially reduced into the metallic iron, and the mingled gangue phases affected the magnetic performance of metallic iron particles, contributing to the lower iron recovery rate at lower temperature. Since both the size of metallic iron grains and TFe values of reduced products increased and the mingled phenomenon of the metallic iron grains and gangue phases were lowered by increasing the reduction temperature, the iron recovery rate reached a relatively higher value of 91.49% at 1350 °C. It is observed that the size of certain metallic iron grains reached above 100 μm at 1350 °C, and the gangue phases mingled in the metallic iron were quite few, so when the grinding fineness was lower than 0.074 mm, with the gained relatively purer gangue particles and high-grade iron-bearing particles, a relatively higher iron recovery rate was obtained after magnetic separation. Consequently, it could be concluded that the iron recovery rate increased through the magnetic separation due to the decrease of the mingled extent of the metallic iron and gangue phases, which was caused by the increase of the reduction temperature, which is beneficial for increasing the size of the metallic iron grains and decreasing the mingled extent. However, due to the overreduction, considerable amounts of carbides especially TiC, CrC, and VC appeared with increasing the temperature from 1350 °C to 1400 °C, which have been revealed in the XRD pattern in Figure 4. Part of these carbides was distributed in the metallic iron phases, so the magnetic performance of magnetic phases was lowered, leading to the evident decrease of the iron recovery rate.

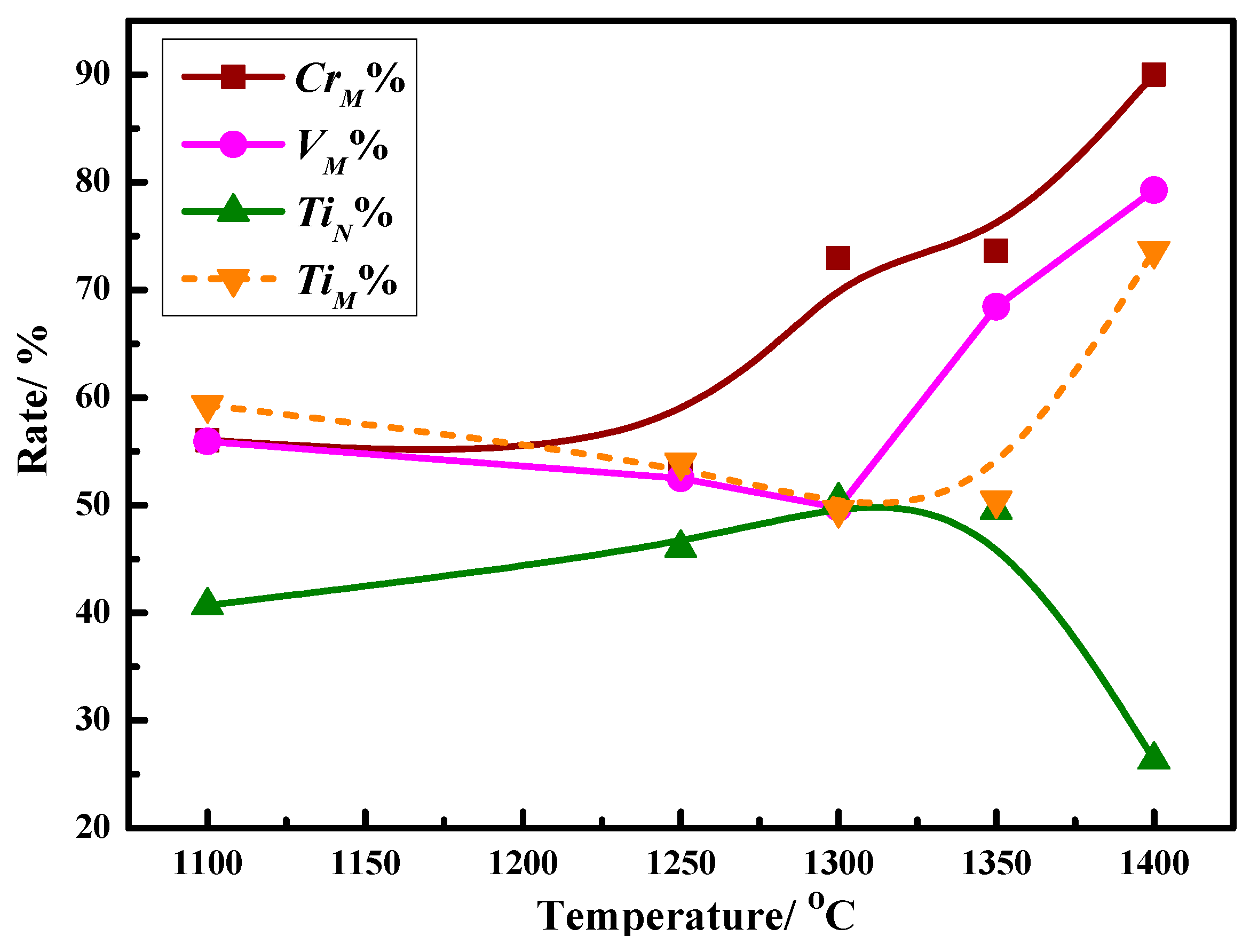

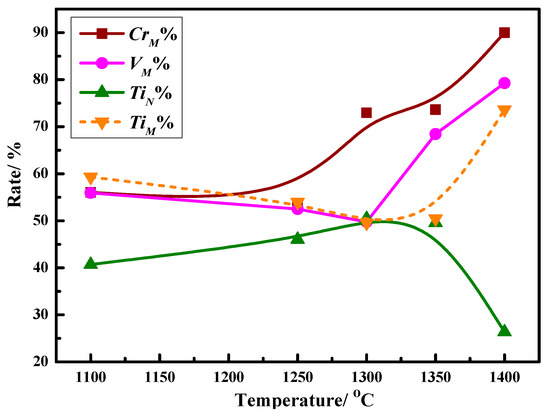

It is well-known that the reduction temperature also has a significant relationship with the transformation behavior of valuable V, Ti, and Cr, in addition to Fe, and the effects of temperature on the regular transformation pattern of V, Ti, and Cr was further studied, with typical results exhibited in Figure 10, in which Cr_M% represents the recovery rate of Cr in magnetic products, and V_M% represents that of V in magnetic products. Ti_N% represents the recovery rate of Ti in non-magnetic products, and Ti_M% represents that of Ti in magnetic products. Cr_M%, V_M%, Ti_N% and Ti_M% were calculated according to Equations (10)–(13):

$$C{r}_M\%=\frac{C{r}_M\times m_M}{C{r}_R\times m_R}\times 100\%$$

(10)

$$V_M\%=\frac{V_M\times m_M}{V_R\times m_R}\times 100\%$$

(11)

$$T{i}_N\%=\frac{T{i}_N\times m_N}{T{i}_R\times m_R}\times 100\%$$

(12)

$$T{i}_M\%=1-T{i}_N\%$$

(13)

where $C{r}_M$ is the mass percent of Cr in magnetic products (%), $C{r}_R$ is the mass percent Cr in reduced products (%), $V_M$ is the mass percent of V in magnetic products (%), $V_R$ is the mass percent of V in reduced products (%), $T{i}_N$ is the mass percent of Ti in non-magnetic products (%), $T{i}_M$ is the mass percent of Ti in non-magnetic products (%), $m_N$ is the mass of non-magnetic products (g), and $T{i}_R$ is the mass percent Ti in reduced products (%). It was found that the percent of V that transformed into the magnetic products decreased from 55.93% at 1100 °C to 49.76% at 1300 °C and then increased to 79.26% at 1400 °C in the magnetic separation process. Below 1300 °C, owing to the weak magnetic intensity of vanadium oxides or V-Fe oxides, these oxides did not specifically transform into magnetic products or non-magnetic products, and probably tended slightly to transform into non-magnetic products with an increase in the temperature. However, since it has been reported that vanadium metal was easily distributed in the metallic iron phases with the increasing appearance of vanadium metal above 1300 °C [1,4], the rate of vanadium that transformed into the magnetic products increased. The percent of Cr that transformed into the magnetic products increased from 56.03% at 1100 °C to above 90% at 1400 °C. From the phase composition of reduced products, chromium metal was detected at lower temperatures and the generated amounts increased with the increase in the temperature. Addditionally, similar to vanadium metal, chromium metal was also easily distributed in metallic iron phases, and this is coincident with the typical result of Cr transformation behavior [1,4,25]. The percent of Ti that transformed into the non-magnetic products ($T{i}_N\%$) increased from 40.70% at 1100 °C to 50.44% at 1300 °C and 49.56% at 1350 °C as the reduction of titanium oxides from titanium-ferrum oxides increased and separated from the generated metallic iron. However, $T{i}_N\%$ decreased to 26.37% at 1400 °C, as large quantities of titanium carbides appeared and were distributed in the mingled slag-iron phases that were difficult to separate, as it has been reported that TiC has a specific adverse function in the separation of the metallic iron and the slag during smelting [4]. Through the magnetic separation of coal-based reduced products, it was demonstrated that, on one hand, the transforming percent of Ti into the non-magnetic products (49.56%) was relatively higher at 1350 °C, especially the transformation percent of Cr and V into the magnetic products was relatively higher (V: 68.44%; Cr: 73.63%); thus the separation of Cr, V, and Ti can be preliminarily realized after magnetic separation for the reduced products. On the other hand, the transforming percent of Ti, Cr, and V into the magnetic products (Ti: 73.63%, V: 79.26%; Cr: 90.00%) was relatively higher at 1400 °C, thus the separation of Cr, V, Ti, and non-magnetic phases can be preliminarily realized.

4. Conclusions

Coal-based reduction and magnetic separation behavior of LGVTMP were investigated in the present work. From the studies carried out, following conclusions can be drawn:

• Different kinds of metallized pellets were obtained after the coal-based reduction of LGVTMP with appropriate C/O. It is found that the metallization degree increased obviously with increasing the temperature from 1100 °C to 1400 °C.
• From the characterization and analysis of XRF, ICP-AES, XRD, SEM, and EDS, it is observed that the amounts of metallic iron particles obviously increased and the accumulation and growing tendency were gradually facilitated with the increase in the temperature from 1100 °C to 1400 °C. It is also found that the titanium oxides were gradually reduced and separated from titanium-ferrum oxides during reduction. In addition, silicate phases, especially calcium silicate phases, transformed from calcium ferrite at 1100 °C, were observed, and gradually aggregated with the increase in the temperature from 1200 °C to 1350 °C, but some silicate phases infiltrated into metallic iron at 1400 °C, as it appears that carbides, especially TiC, could probably contribute to the sintering phenomenon becoming serious.
• From the comprehensive study, it was obtained that the transformation behavior for valuable elements was as follows: Fe₂VO₄ → VO → V → VC; FeTiO₃ (→ FeTi₂O₅) → TiO₂ → TiC; FeCr₂O₄ → Cr → CrC; FeTiO₃ (→ FeTi₂O₅) → Fe_0.5Mg_0.5Ti₂O₅; (Fe₃O₄/FeTiO₃ →) FeO →Mg_0.77Fe_0.23O.
• Through the magnetic separation of reduced products, it is demonstrated that the separation of Cr, V, Ti, and non-magnetic phases can be preliminarily realized.
