Paddlewheelite, a New Uranyl Carbonate from the Jáchymov District, Bohemia, Czech Republic

by
Travis A. Olds
1,*,
Jakub Plášil
2,
Anthony R. Kampf
3,
Fabrice Dal Bo
1 and
Peter C. Burns
1,4
1
Department of Civil and Environmental Engineering and Earth Sciences, University of Notre Dame, Notre Dame, IN 46556, USA
2
Institute of Physics, Academy of Sciences of the Czech Republic, v.v.i., Na Slovance 1999/2, 18221 Prague 8, Czech Republic
3
Mineral Sciences Department, Natural History Museum of Los Angeles County, 900 Exposition Boulevard, Los Angeles, CA 90007, USA
4
Department of Chemistry and Biochemistry, University of Notre Dame, Notre Dame, IN 46556, USA
*
Author to whom correspondence should be addressed.
Minerals 2018, 8(11), 511; https://doi.org/10.3390/min8110511
Submission received: 10 October 2018 / Revised: 1 November 2018 / Accepted: 5 November 2018 / Published: 7 November 2018
(This article belongs to the Special Issue Actinide Mineralogy and Crystallography)
Browse Figures
Versions Notes

Abstract

:
Paddlewheelite, MgCa5Cu2[(UO2)(CO3)3]4·33H2O, is a new uranyl carbonate mineral found underground in the Svornost mine, Jáchymov District, Bohemia, Czech Republic, where it occurs as a secondary oxidation product of uraninite. The conditions leading to its crystallization are complex, likely requiring concomitant dissolution of uraninite, calcite, dolomite, chalcopyrite, and andersonite. Paddlewheelite is named after its distinctive structure, which consists of paddle-wheel clusters of uranyl tricarbonate units bound by square pyramidal copper “axles” and a cubic calcium cation “gearbox.” Paddle wheels share edges with calcium polyhedra to form open sheets that are held together solely by hydrogen bonding interactions. The new mineral is monoclinic, Pc, a = 22.052(4), b = 17.118(3), c = 19.354(3) Å, β = 90.474(2)°, V = 7306(2) Å3 and Z = 4. Paddlewheelite is the second-most structurally complex uranyl carbonate mineral known after ewingite and its structure may provide insights into the insufficiently described mineral voglite, as well as Cu–U–CO3 equilibrium in general.

Graphical Abstract

1. Introduction

Recent uranyl carbonate mineral discoveries have uncovered remarkably complex topological arrangements that formed under restrictive conditions of Ca–U–CO3 equilibria [1,2,3]. In part, these new minerals lend their complexity to hydrated calcium polyhedra found in their structures, which can share numerous geometrical elements with uranyl tricarbonate units (UTC), (UO2)(CO3)34−, to form multidimensional structures. For example, UTC units in andersonite and liebigite form finite cluster topologies of “zero” dimensionality, as defined by the structural hierarchy for uranyl minerals [4,5], where one or more uranyl polyhedra link to oxyanions and share no other connections to high valence cations. Recently described minerals, such as ewingite and the description of paddlewheelite given here, reveal that the finite UTC clusters can assemble as large hollow cages and complex 3D paddle arrangements. While other Ca–UTC minerals such as fontanite and roubaltite contain structural units built from infinite sheets (2D), no uranyl carbonate minerals known today contain isolated polyhedra (0D), chains (1D), or framework (3D) topologies.
It is well understood that Ca–UTC complexes are some of the most stable aqueous uranyl species in groundwater [6,7], and that uranyl carbonate minerals are consequently pervasive alteration products found in oxidizing areas of abandoned uranium mines and their tailings [8], and may be found on the surface of used nuclear fuel exposed to groundwater. Uranyl carbonate minerals can record and be used to diagnose groundwater conditions at the moment of crystallization, allowing for more accurate safety assessments of U contaminated water transport and longer-term radionuclide release models for Ca-U-C systems. Here we describe the crystal-chemical and spectroscopic properties of the new Ca–Mg–Cu uranyl carbonate mineral paddlewheelite, whose structure contains several first known instances for uranyl minerals, including isolated square pyramidal copper polyhedra and calcium cations in cubic coordination. These two unique cation polyhedra bind to UTC units, forming an extraordinary paddlewheel motif arranged into an open-sheet topology that may provide several clues to understanding the structure and formation of the poorly described mineral voglite, Ca2Cu(UO2)(CO3)4·6H2O [9].
The name paddlewheelite was chosen to reflect the unique structure of the mineral that resembles the paddlewheel of a steamboat. Four uranyl tricarbonate paddles are bound by two square pyramidal CuO5 “axles” and a CaO8 “gearbox” in cubic coordination. The new mineral and its name were approved by the Commission on New Minerals, Nomenclature and Classification of the International Mineralogical Association (IMA2017-098). The holotype specimen is deposited in the Natural History Museum of Los Angeles County, under catalogue number 66696.

2. Occurrence

Crystals of paddlewheelite were collected underground from a bifurcation of the Prokop vein on the 5th level of the Svornost mine, Jáchymov District, Bohemia, Czech Republic. The Svornost mine (Einigkeit in German, Concord in English) is named for one of the six major ore clusters in the Jáchymov ore district. “Five-element” (Ni-Co-As-Ag-Bi, +/− U) mineralization was deposited there during episodic fracturing and space filling by metal-rich hydrothermal solutions. Further details regarding the geology and hydrothermal history of the Jáchymov district are given elsewhere [10,11,12,13]. Today, the Svornost mine workings are abandoned for mining but are maintained by a small group of workers employed by the radon spa company, Léčebné lázně Jáchymov (Therapeutic spa Jáchymov). Post-mining alteration has produced many chemically and structurally complex secondary uranyl minerals there, including paddlewheelite, which is one of the rarest U-minerals found there to date.
The excavated section of the Prokop vein where paddlewheelite occurs is rich in carbonates, sulfides, and uraninite. The Prokop vein generally strikes N-S and is considered a “midnight” vein according to the local terminology given by miners. The so-called midnight veins are among the richest U-bearing veins in the district, ranging in size from centimeters up to several meters in thickness with complex morphology. In general, pectinate-structured quartz, consisting of tightly packed prismatic crystals with smoky terminations form the Prokop vein wall, followed by a subsequent inner layer of sulfides and uraninite, with final filling by dolomite and calcite. Paddlewheelite was found occurring with calcite, dolomite, and chalcopyrite in an area of vein near the tunnel floor that was rich in andersonite. In addition, a single relatively large crystal (~400 µm) with complex growth features was located within a fracture between chalcopyrite and dolomite crystals and was used for the entire new mineral description given here (Figure 1). Other closely associated minerals include matte grayish-black coffinitized uraninite, quartz, hematite, goethite (var. “sammetblende”), and calcite. Paddlewheelite was formed under chemically complex conditions with simultaneous or concomitant dissolution of its associated minerals, uraninite, dolomite, calcite, chalcopyrite, and andersonite.

3. Appearance and Physical Properties

Paddlewheelite occurs as cleavages coating and wedged between the interstices of calcite, dolomite, and chalcopyrite, and also as tabular crystals flattened on {100} (Figure 1 and Figure 2). Crystals are blue green in color with shading close to Pantone 334c, are transparent with sub-adamantine luster and very pale blue green streak. Paddlewheelite exhibits no fluorescence under long- or short-wave UV illumination, and twinning was not apparent. Based on scratch tests, the hardness is about 2, with brittle tenacity and at least one perfect cleavage on {100}. Due to limited availability of crystals the density was not measured directly but it is calculated to be 2.497 g/cm3 based on the ideal formula, and 2.435 g/cm3 based on the empirical formula. Crystals of paddlewheelite are immediately soluble with effervescence in dilute HCl at room temperature.
Paddlewheelite is optically biaxial (+), with nx = 1.520(2), ny = 1.527(2), nz = 1.540(2), (measured in white light). The 2V is 72(1)°, measured by conoscopic observation on a spindle stage; the calculated 2V is 73.1°. Dispersion is slight, r < v. The mineral is pleochroic with X and Y blue green, and Z pale yellow; X ≈ Y >> Z. The optical orientation is Z // b, X = a, Y = c. The Gladstone–Dale compatibility, 1 – (Kp/Kc), is 0.037 (excellent) for the ideal formula, and −0.056 (good) using the empirical formula—where k(UO3) = 0.134 provided by Larsen [14] yields a better fit than k(UO3) = 0.118 given by Mandarino [15]. Parameters for the remaining components were taken from Mandarino [15].

4. Infrared Spectroscopy

Attenuated total reflectance (ATR) Fourier transform infrared (FTIR) spectra were obtained using a SENSIR Technologies IlluminatIR (SensIR Technologies, Danbury, CT, USA) with a liquid N2 cooled MCT detector mounted to an Olympus BX51 microscope (Olympus, Tokyo, Japan). An ATR objective (ZnSe/diamond composite) was pressed into fragments of paddlewheelite crystals and the spectrum was measured from 4000 to 650 cm−1 (Figure 3). The band assignments given here are based on those outlined by Čejka [16]. A broad, multicomponent band spanning from ~3500 to ~2800 cm−1 is related to ν O–H stretching vibrations of water molecules (Figure 4a). The series of fitted bands in this region lie at 3515, 3377, 3200, 3026, and 2850 cm−1. Approximate O–H⋅⋅⋅O hydrogen bond-lengths calculated from the observed frequencies lie within the range ~2.9 to 2.6 Å using the correlation function given by Libowitzky [17]. A weak band found at 1632 cm–1 is assigned to the ν2 (δ)-bending vibration of molecular water.
Significant splitting of the ν3 CO32– antisymmetric stretching vibration occurs at 1591 (w), 1544 (w), 1498 (s), 1459 (w), 1410 (s), 1379 (w), 1351 (s), and 1289 (w) cm−1 (Figure 4b). Their splitting confirms the presence of multiple independent CO32− groups in the structure of paddlewheelite. The symmetric stretching ν1 CO32– vibration, though IR-forbidden, occurs as a weak band at 1115 cm−1 due to symmetry lowering. A very strong band attributed to the antisymmetric stretching vibration ν3 UO22+ occurs at 931.5 cm−1. Bartlett and Cooney [18] developed an empirical relationship to derive the approximate uranyl (U–Oyl) bond lengths from the band position assigned to the ν3 UO22+ symmetric stretching vibration, giving 1.76 Å (931.5 cm−1); in very good agreement with average U–Oyl bond length from the structure, 1.76 Å. The ν2 (δ) CO32– bending mode, if present, is weak and obscured by the intense ν3 UO22+ stretch, and the weak band at 771 cm–1 may be attributed to coincidence of either ν1 UO22+ or the ν4 (δ) CO32– in-plane bending vibration.

5. Chemical Data

Chemical analyses (6) were made using a Cameca SX50 electron microprobe (Cameca, Gennevilliers, France) operated at 15 kV, 30 nA, with a 5 μm beam diameter, and the data are given below in Table 1. Matrix effects were accounted for using the “PAP” correction routine by Pouchou and Pichoir [19]. Paddlewheelite contains major Mg, Ca, Cu, and U, with minor Si and Fe. No other elements were detected, and the presence of H2O and CO32− was confirmed by infrared spectroscopy. Due to the limited amount of material available the H2O content could not be measured, but is instead calculated based on the structure, with 77 O apfu. In the absence of a direct determination of CO2, the empirical formula is calculated for 4 U with 12 CO3 pfu as obtained from the structure determination. Crystals of paddlewheelite were heavily dehydrated and fractured in the vacuum chamber, leading to abnormally high U totals and low count rates that required measurements at relatively high current. We encountered additional difficulties during the analysis of Cu, which exhibited strong depletion over the analysis time because of the high beam current used. Such loss is also observed in metatorbernite [20], and when using small beam sizes, where typical zero-time functions to fit loss are insufficient for accurate composition calculations [21].
The empirical formula, calculated on the basis of 77 O and 4 U apfu is Mg0.98Ca5.16Cu0.77Si0.16U4O77C12H66, or Mg0.98Ca5.16Cu0.77Si0.16(UO2)4(CO3)12(H2O)33. The ideal formula is MgCa5Cu2[(UO2)(CO3)3]4·33H2O, which requires UO3 41.65, CaO 10.21, CuO 5.80, MgO 1.47, CO2 19.23, H2O 21.64, for a total 100 wt. %.
Due to the poor analytical result for Cu, we have collected additional chemical data for paddlewheelite using Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS). A small crystal fragment of paddlewheelite was embedded in epoxy and polished. The ion signals for 235U, 63Cu, 43Ca, 57Fe, and 26Mg were measured using an Element 2 sector field high resolution inductively coupled plasma mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) in low mass resolution mode coupled with a UP-213 (New Wave Research, Martinsried, Germany) Nd:YAG deep UV (213 nm) laser ablation system. Prior to lasering of the crystal, the Element 2 was tuned using a standard solution containing 1 ng/g each of Li, In, and U to obtain maximum ion sensitivity. Background ion signals were acquired for 60 seconds with the laser on and shuttered, followed by 60 s of data acquisition. Three spot analyses were performed using an 8 μm spot size, repetition rate of 5 Hz, 100% power out, which corresponded to a fluence of ~8.4 J*cm−2. The ion signals (cps- counts per second) obtained for U, Cu, Ca, and Mg are reported as a ratio relative to that recorded for U, as absolute abundances could not be determined due to a lack of an appropriate matrix matched external standard (no other Mg-Ca-Cu-U carbonates are known). As a result, we are unable to apply corrections to the variable ablation and ionization efficiency of each element causing lower than expected totals. For the three spot analyses based on 4U apfu, the average empirical cation formula is Mg0.40Ca3.20Cu1.26U4.00. However, the data provide a more accurate indication of the chemical proportions for U:Cu.

6. Crystallography

6.1. Powder X-ray Diffraction

Powder diffraction data were recorded using a Rigaku R-Axis Rapid II curved imaging plate microdiffractometer (Rigaku, Tokyo, Japan) with monochromated MoKα radiation. A Gandolfi-like motion on the φ and ω axes was used to randomize diffraction from the sample. The observed d-values and intensities were derived by profile fitting using JADE 2010 software (Materials Data, Inc., Livermore, CA, USA). These data are given in Table 2. Unit cell parameters refined from the powder data using JADE 2010 (Materials Data, Inc., Livermore, CA, USA) with whole pattern fitting are a = 22.061(4) Å, b = 17.128(3) Å, c = 19.368(3) Å, β = 90.476(2)°, V = 7318(2) Å3.

6.2. Single Crystal X-ray Diffraction

A tabular fragment of paddlewheelite was chosen for the single-crystal X-ray diffraction study. Data were collected using MoKα X-rays from a microfocus source and an Apex II CCD-based detector mounted to a Bruker Apex II Quazar three-circle diffractometer (Bruker, Billerica, MA, USA). The Apex 3 software package (Bruker, Billerica, MA, USA) was used for processing collected diffraction data, including corrections for background, polarization, and Lorentz effects. A multi-scan semi-empirical absorption correction was done using SADABS [22] (Bruker, Billerica, MA, USA), and an initial model in the space group P21/c was suggested via SHELXT [23]. Refinements in P21/c provided a partially reasonable model, but with high R1 (14%) and wR factors (~28%). It also exhibits strong site splitting and yields many non-positive definite atoms with strongly prolate U atoms. Closer inspection of the data revealed that reflections suffered from overlap related to pseudo-merohedral twinning. An additional starting model check was made using the Superflip algorithm [24] provided within Jana 2006 (Department of Structure Analysis, Institute of Physics, Praha, Czech Republic) [25], and symmetry element statistics indicated absence of the 21 screw axis. The structure solution in the non-centrosymmetric space group Pc provided by SHELXT located most of the model constituents and additional C and O atoms of water were located using difference Fourier maps. We proceeded with refinement in Pc on the basis of F2 with SHELXL [26], using a twin law related to inversion of the two domains about the monoclinic axis (−100/0–10/001), which lowered the R1 factor by ~7%. The final model included anisotropic displacement parameters for atoms except O and C, and also includes minimal restraints for several misbehaving C atoms (C2, C17, C18) and the Cu3 atom. O atoms of water molecules are strongly disordered and their occupancy was set manually based on site scattering refinement trials for these atoms. Details regarding the data collection and final refinement results are given in Table 3. The atomic coordinates, equivalent displacement parameters, and cation bond-valence sums (BVS) are given in Table S1, anisotropic displacement parameters in Table S2, and selected interatomic distances in Table S3. Hydrogen atoms could not be located and thus detailed discussion regarding hydrogen bonding interactions is not made.

6.3. Description of the structure

The asymmetric unit of paddlewheelite is very large, containing 219 atoms; including 8 U, 4 Cu, 10 Ca, 2 Mg, 171 O, and 24 C atoms. Each U atom is bound by two multiply bonded apical ‘yl’ oxygen atoms (Oyl), forming the approximately linear uranyl cation (UO2)2+. The uranyl cation is coordinated six-fold equatorially by oxygen atoms of three bidentate CO32− groups, forming a hexagonal bipyramidal uranyl tricarbonate unit (UTC). The 10 unique Ca2+ cations occur as several shapes of polyhedra from seven- to eight-coordinated. Atoms Ca1 and Ca2 are eight-coordinate slightly distorted cubes, and each share two O2− atoms from edges of four UTC units forming quadruplet “paddlewheel” units (Figure 5). One result of this odd cubic geometry is the occurrence of a bond valence anomaly at the Ca1 and Ca2 sites, whereby their bond valence sums are higher than expected at 2.42 v.u. each. The oxygen atoms are three-coordinated (effective ionic radius = 1.36 Å) to Ca, C, and U, and for eight-coordinate Ca (effective ion radius = 1.12 Å) we expect an average Ca–O bond length of 2.48 Å [27]. The average Ca–O bond lengths from the refinement are smaller, at 2.40 Å for both Ca1 and Ca2, hence the higher calculated valence sum. This is likely caused by bond inflexibility (U–O and C–O) associated with tight U- and C-polyhedral packing surrounding the cubic calcium site, although several U atoms also display similarly high valence sums.
Two paddles (two UTC units) from each wheel form the planarity of the sheet, and 7-coordinated Ca3, Ca4, Ca5, and Ca6 atoms connect paddlewheels together into an open-topology type sheet. These same Ca atoms bond to three H2O groups, and share one edge with a CO32− triangle of one UTC unit, and one edge with a second UTC unit. Atoms Ca7, Ca8, Ca9, and Ca10 are seven- or eight-coordinated and each share one edge of a paddle that extends between sheets, and also bonds to five or six H2O groups. Magnesium cations are octahedrally coordinated and sit within pores between paddlewheels in the sheet above, such that one Mg cation coordinates to one paddlewheel unit.
Two unique sheets of paddlewheels are centered at x = ½ and x = 0 (Figure 5). The two sheets are nearly identical except that paddlewheels in each exhibit slight rotational differences; paddles at x = 0 defined by U2, U4, U6, and U7 atoms are rotated ~5 degrees along the “axle” axis of two Cu cations with respect to paddlewheels at x = ½. This close similarity likely results in the strong pseudosymmetry observed during refinement, and in particular it explains the strong splitting disorder observed in the P21/c setting, which contains several unfavorably twisted carbonate units that significantly skewed the planarity of the UTC units, whereby two carbonate oxygen atoms bound to uranium were forced slightly up and down (D3h → C3 distortion). Computational studies performed using perturbation theory calculations show that by distorting UTC units in this manner produces a less stable structure [28], and may explain the symmetry lowering observed in paddlewheelite. As evidenced by the bond valence sum anomalies for Ca1 and Ca2, paddlewheels experience geometrical constraints due to the bond inflexibility of carbonate units, cubic Ca and the Cu “axle” cations, which lead to twisting of Cu and UTC polyhedra that breaks 21 screw axis symmetry.
Curiously, there is no direct contact between paddlewheels of different sheets, which are held together through hydrogen bonding interactions only. Interstitial space between sheets is filled by many disordered H2O groups that form hydrogen bonds with Oyl atoms and the H2O groups bound to Ca and Mg cations. In total there are 22 H2O groups bound to cations. Each Ca site has a variable number of coordinating H2O groups, from 3 to ~6 (Ca8), while each Mg binds to 5 H2O groups. Thus, an idealized formula that more accurately depicts the distribution of H2O groups in the structure of paddlewheelite is Mg(H2O)5Ca5(H2O)17Cu2[(UO2)(CO3)3]4·11H2O.

7. Discussion

Cu2+ oxysalt minerals exhibit a large range of structural configurations due to the diversity of Cu2+ coordination geometries; six-coordinated octahedral, five-coordinated square-pyramidal and triangular-bipyramidal, and four-coordinated square-planar geometries [29]. Octahedral coordination is the most common and is characterized by a strong distortion originating from electronic instability of the d9 configuration of Cu2+ in an octahedral ligand-field. This electronic instability is explained by the Jahn–Teller theorem [30], which also gave its name to the distortion affecting the Cuϕ6 octahedra (Jahn–Teller distortion). Octahedral Cu2+ occurs as either compressed (2 + 4) or elongated (4 + 2) Cuϕ6 polyhedra; however, the latter configuration is favored by second-order Jahn–Teller mixing of 3d and 4s orbitals [31], and this is by far the most common configuration observed in minerals, including Cu-containing uranyl minerals (Table 4). Prior to the description of paddlewheelite, only two uranyl minerals were known to contain square pyramidal coordinated Cu2+, vandenbrandeite and pseudojohannite, as well as a Cu2+-bearing variety of rabejacite from Jáchymov [32]. In vandenbrandeite, dimers of edge sharing Cuϕ5 square pyramids, with apical O anions oriented in opposite directions, connect to UO7 polyhedra by corner and edge-sharing forming a sheet (Figure 6). A similar arrangement of Cuϕ5 square pyramids is found in Cu2+-rabejacite, where dimers of distorted square pyramidal Cu2+ and Ca2+-polyhedra are mutually interconnected through vertex-sharing, forming a sheet-like interlayer structure. In pseudojohannite, chains of highly elongated (4 + 2) Cuϕ6 octahedra connect dimers of edge sharing Cuϕ5 square pyramids. The chains in pseudojohannite are isolated and only connect to uranyl sulfate sheets via hydrogen-bonds, whereas each of the four Cu2+ cations in paddlewheelite adopt an isolated square pyramidal geometry by sharing five O2− from five CO32− triangles. In paddlewheelite, four uranyl tricarbonate clusters bind to the bases of two Cu square pyramids by sharing corners with carbonate triangles, forming the “axle” to each paddlewheel, and centered by the cubic calcium “gearbox.” The apical O atom of each Cu square pyramid is the same corner O atom of CO32− from an adjacent UTC paddle in the sheet.
As determined by the Krivovichev method [45], the structural complexity of paddlewheelite is very high at 3386.93 bits/unit cell, making it the second most complex uranyl carbonate mineral known after ewingite (Table 5). Paddlewheelite is a member of the uranyl carbonates with U:C = 1:3, Nickel–Strunz class 05.ED. Its structure bears some resemblance to other uranyl carbonate minerals with paddle-like motifs, such as braunerite [2], línekite [3], albrechtschraufite [46], and andersonite [47] (Figure 7). The UTC paddles in braunerite revolve around 4 Ca polyhedra, while línekite, albrechtschraufite, and andersonite paddles are each centered about 2 Ca polyhedra. While it is not the first uranyl carbonate mineral known to contain paddles, the arrangement of UTC units and the presence of unique geometries for Ca and Cu cations in paddlewheelite make it an interesting and complex structure that is distinct from anything yet found. Paddlewheelite contains the first example of isolated square pyramidal Cu2+ in a uranyl mineral, and as far as we know the first instance of Ca2+ in cubic coordination in a uranyl mineral. Its description encourages further exploration of the Cu-U-CO3 system.
Chemically, paddlewheelite is related to voglite [10,54], Ca2Cu(UO2)(CO3)4·6H2O, a very rare mineral that remains poorly characterized and has an unknown crystal structure. Piret and Deliens [9] report a monoclinic (P21/m or P21) cell with large unit cell volume ~6605 Å3, however, based on the results of Ondruš et al. [10], voglite does not contain essential Mg as in paddlewheelite. It is possible that voglite may share some structural similarities to paddlewheelite, including square pyramidal copper polyhedra and a paddle-like arrangement of UTC units surrounding calcium cations, but more work is required.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/8/11/511/s1, Table S1. Atomic coordinates, displacement parameters (Å2), and bond valence sums for paddlewheelite; Table S2. Anisotropic atomic displacement parameters (Å2) for paddlewheelite; Table S3; Selected bond distances (in Å) for paddlewheelite.

Author Contributions

T.A.O. and J.P. collected the new mineral and conceptualized the work. T.A.O. obtained the crystallographic, spectroscopic, anl authors provided structural insights and helped to write, revise, and edit the manuscript. P.C.B., A.R.K., and J.P. ad chemical data, and wrote the original draft. A.R.K. provided optical and powder diffraction measurements. Alcquired the funding used for this study.

Funding

Support for this work is provided by the Chemical Sciences, Geosciences and Biosciences Division, Office of Basic Energy Sciences, Office of Science, U.S. Department of Energy, Grant No. DE-FG02-07ER15880. A portion of this study was funded by the John Jago Trelawney Endowment to the Mineral Sciences Department of the Natural History Museum of Los Angeles County. Jakub Plášil is thankful for the support from project No. LO1603 under the Ministry of Education, Youth and Sports National sustainability program I of the Czech Republic.

Acknowledgments

We thank three anonymous reviewers for valuable comments, as well as those from members of the Commission on New Minerals, Nomenclature and Classification that improved the quality of this manuscript. We also thank the ND Energy Materials Characterization Facility for use of the single crystal X-ray diffraction instrument. The Element2 HR-ICP-MS instrument used for chemical analyses is housed within the Midwest Isotope and Trace Element Research Analytical Center (MITERAC) at the University of Notre Dame.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Olds, T.A.; Plášil, J.; Kampf, A.R.; Simonetti, A.; Sadergaski, L.R.; Chen, Y.-S.; Burns, P.C. Ewingite: Earth’s most complex mineral. Geology 2017, 45, 1007–1010. [Google Scholar] [CrossRef]
  2. Plášil, J.; Mereiter, K.; Kampf, A.R.; Hloušek, J.; Škoda, R.; Čejka, J.; Němec, I.; Ederová, J. New minerals and nomenclature modifications approved in 2016. Mineral. Mag. 2016, 80, 691–697. [Google Scholar]
  3. Plášil, J.; Čejka, J.; Sejkora, J.; Hloušek, J.; Škoda, R.; Novák, M.; Dušek, M.; Cisařová, I.; Němec, I.; Ederová, J. Línekite, K2Ca3[(UO2)(CO3)3]2·8H2O, a new uranyl carbonate mineral from Jachymov, Czech Republic. J. Geosci. 2017, 62, 201–213. [Google Scholar] [CrossRef]
  4. Burns, P.C. U6+ minerals and inorganic compounds: Insights into an expanded structural hierarchy of crystal structures. Can. Min. 2005, 43, 1839–1894. [Google Scholar] [CrossRef]
  5. Lussier, A.J.; Burns, P.C.; King-Lopez, R. A revised and expanded structure hierarchy of natural and synthetic hexavalent uranium compounds. Can. Min. 2016, 54, 177–283. [Google Scholar] [CrossRef]
  6. Langmuir, D. Uranium solution-mineral equilibria at low temperatures with applications to sedimentary ore deposits. Geochim. Cosmochim. Acta 1978, 42, 547–569. [Google Scholar] [CrossRef]
  7. Clark, D.L.; Hobart, D.E.; Neu, M.P. Actinide Carbonate Complexes and Their Importance in Actinide Environmental Chemistry. Chem. Rev. 1995, 95, 25–48. [Google Scholar] [CrossRef]
  8. Plášil, J. Oxidation-hydration weathering of uraninite: The current state-of-knowledge. J. Geosci 2014, 59, 99–114. [Google Scholar] [CrossRef]
  9. Piret, P.; Deliens, M. New crystal data for Ca, Cu, UO2 hydrated carbonate: Voglite. J. Appl. Crystallogr. 1979, 12, 616. [Google Scholar] [CrossRef]
  10. Ondruš, P.; Veselovský, F.; Hloušek, J.; Skála, R.; Šrein, V.; Vavřin, I.; Frýda, J.; Čejka, J.; Gabašová, A. Secondary minerals of the Jáchymov (Joachimsthal) ore district. J. Czech Geol. Soc. 1997, 42, 3–76. [Google Scholar]
  11. Ondruš, P.; Veselovský, F.; Gabašová, A.; Hloušek, J.; Šrein, V.; Vavřin, I.; Skála, R.; Sejkora, J.; Drábek, M. Primary minerals of the Jáchymov ore district. J. Czech Geol. Soc. 2003, 48, 19–147. [Google Scholar]
  12. Tvrdý, J.; Plášil, J. Reiche Erzlagerstätte und Radonbad im böhmischen Westerzgebirge. Aufschluss 2010, 61, 277–292. [Google Scholar]
  13. Hloušek, J.; Plášil, J.; Sejkora, J.; Škácha, P. News and new minerals from Jáchymov, Czech Republic (2003–2014). Bull. Mineral.-Petrol. Odd. Nár. Muz. 2014, 22, 155–181. [Google Scholar]
  14. Larsen, E.S. The Microscopic Determination of the Nonopaque Minerals, Bulletin 679 ed.; U.S. Geological Survey: Reston, VA, USA, 1921.
  15. Mandarino, J.A. The Gladstone—Dale relationship: Part IV. The compatiblity concept and its application. Can. Mineral. 1981, 19, 441–450. [Google Scholar]
  16. Čejka, J. Infrared spectroscopy and thermal analysis of the uranyl minerals. In Uranium: Mineralogy, Geochemistry and the Environment; Burns, P.C., Ewing, R.C., Eds.; Mineralogical Society of America: Washington, DC, USA, 1999; Volume 38, pp. 521–622. [Google Scholar]
  17. Libowitzky, E. Correlation of O–H stretching frequencies and O–H···O hydrogen bond lengths in minerals. Mon. Chem. 1999, 130, 1047–1059. [Google Scholar] [CrossRef]
  18. Bartlett, J.R.; Cooney, R.P. On the determination of uranium-oxygen bond lengths in dioxouranium(VI) compounds by Raman spectroscopy. J. Mol. Struct. 1989, 193, 295–300. [Google Scholar] [CrossRef]
  19. Pouchou, J.L.; Pichoir, F. “PAP” (φρZ) procedure for improved quantitative microanalysis. In Microbeam Analysis; Armstrong, J.T., Ed.; San Francisco Press: San Francisco, CA, USA, 1985; pp. 104–106. [Google Scholar]
  20. Stubbs, J.E.; Veblen, L.A.; Elbert, D.C.; Zachara, J.M.; Davis, J.A.; Veblen, D.R. Newly recognized hosts for uranium in the Hanford Site vadose zone. Geochim. Cosmochim. Acta 2009, 73, 1563–1576. [Google Scholar] [CrossRef]
  21. Plášil, J.; Sejkora, J.; Čejka, J.; Škoda, R.; Goliáš, V. Supergene mineralization of the Medvědín uranium deposit, Krkonoše Mountains, Czech Republic. J. Geosci. 2009, 54, 15–56. [Google Scholar] [CrossRef]
  22. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed]
  23. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  24. Palatinus, L.; Chapuis, G. SUPERFLIP—A computer program for the solution of crystal structures by charge flipping in arbitrary dimensions. J. Appl. Crystallogr. 2007, 40, 786–790. [Google Scholar] [CrossRef]
  25. Petříček, V.; Dušek, M.; Palatinus, L. Crystallographic Computing System JANA2006: General features. Z. Kristall. 2014, 229, 345–352. [Google Scholar] [CrossRef]
  26. Sheldrick, G. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  27. Shannon, R.D.; Prewitt, C.T. Effective ionic radii in oxides and fluorides. Acta Crystallogr. Sect. B 1969, 25, 925–946. [Google Scholar] [CrossRef] [Green Version]
  28. Gagliardi, L.; Grenthe, I.; Roos, B.O. A Theoretical Study of the Structure of Tricarbonatodioxouranate. Inorg. Chem. 2001, 40, 2976–2978. [Google Scholar] [CrossRef] [PubMed]
  29. Burns, P.C.; Hawthorne, F.C. Static and dynamic Jahn-Teller effects in Cu2+ oxysalt minerals. Can. Min. 1996, 34, 1089–1105. [Google Scholar]
  30. Jahn, H.A.; Teller, E. Stability of polyatomic molecules in degenerate electronic states I—Orbital degeneracy. Proc. R. Soc. Lond. A Math. Phys. Sci. 1937, 161, 220. [Google Scholar] [CrossRef]
  31. Deeth, R.J. The ligand field molecular mechanics model and the stereoelectronic effects of d and s electrons. Coord. Chem. Rev. 2001, 212, 11–34. [Google Scholar] [CrossRef]
  32. Plášil, J.; Dušek, M.; Čejka, J.; Sejkora, J. The crystal structure of rabejacite, the Ca2+-dominant member of the zippeite group. Mineral. Mag. 2014, 78, 1249–1264. [Google Scholar] [CrossRef]
  33. Locock, A.J.; Burns, P.C. Crystal structures and synthesis of the copper-dominant members of the autunite and meta-autunite groups: Torbernite, zeunerite, metatorbernite and metazeunerite. Can. Min. 2003, 41, 489–502. [Google Scholar] [CrossRef]
  34. Kolitsch, U.; Giester, G. Revision of the crystal structure of ulrichite, CaCu2+(UO2)(PO4)2·4H2O. Mineral. Mag. 2001, 65, 717–724. [Google Scholar] [CrossRef]
  35. Piret, P.; Declercq, J.P.; Wautersstoop, D. Crystal-structure of sengierite. Bull. Minéral. 1980, 103, 176–178. [Google Scholar]
  36. Ginderow, D.; Cesbron, F. Structure of demesmaekerite, Pb2Cu5(SeO3)6(UO2)2(OH)6·H2O. Acta Crystallogr. Sect. C 1983, 39, 824–827. [Google Scholar] [CrossRef]
  37. Ginderow, D.; Cesbron, F. The structure of derriksite, Cu4(UO2)(SeO3)2(OH)6. Acta Crystallogr. Sect. C 1983, 39, 1605–1607. [Google Scholar] [CrossRef]
  38. Cooper, M.A.; Hawthorne, F.C. Structure topology and hydrogen bonding in marthozite, Cu2+[(UO2)3(SeO3)2O2](H2O)8, a comparison with guilleminite, Ba[(UO2)3(SeO3)2O2](H2O)3. Can. Mineral. 2001, 39, 797–807. [Google Scholar] [CrossRef]
  39. Mereiter, K. The crystal-structure of liebigite, Ca2UO2(CO3)3·11H2O. Tscher. Mineral. Petr. Mitt. 1982, 30, 277–288. [Google Scholar] [CrossRef]
  40. Pushcharovsky, D.Y.; Rastsvetaeva, R.K.; Sarp, H. Crystal structure of deloryite, Cu4(UO2)[Mo2O8](OH)6. J. Alloys Compd. 1996, 239, 23–26. [Google Scholar] [CrossRef]
  41. Ginderow, D.; Cesbron, F. The structure of roubaultite, Cu2(UO2)3(CO3)2O2(OH)2·4H2O. Acta Crystallogr. Sect. C 1985, 41, 654–657. [Google Scholar] [CrossRef]
  42. Rosenzweig, A.; Ryan, R.R. Refinement of the crystal structure of cuprosklodowskite, Cu(UO2)2(SiO3OH)2]·6H2O. Am. Mineral. 1975, 60, 448–453. [Google Scholar]
  43. Rosenzweig, A.; Ryan, R.R. Vandenbrandeite Cu(UO2)(OH)4. Cryst. Struct. Commun. 1977, 6, 53–56. [Google Scholar]
  44. Plášil, J. Crystal structure refinement of pseudojohannite, Cu3(OH)2[(UO2)4O4(SO4)2](H2O)12, from the type locality—Jachymov, Czech Republic. J. Geosci. 2015, 60, 123–127. [Google Scholar] [CrossRef]
  45. Krivovichev, S. Topological complexity of crystal structures: Quantitative approach. Acta Crystallogr. Sect. A 2012, 68, 393–398. [Google Scholar] [CrossRef] [PubMed]
  46. Mereiter, K. Description and crystal structure of albrechtschraufite, MgCa4F2[UO2(CO3)3]·17-18H2O. Mineral. Petrol. 2013, 107, 179–188. [Google Scholar] [CrossRef]
  47. Coda, A.; Della Giusta, A.; Tazzoli, V. The Structure of Synthetic Andersonite, Na2Ca[UO2(CO3)3]·xH2O (x ~ 5.6). Acta Crystallogr. Sect. B 1981, 37, 1496–1500. [Google Scholar] [CrossRef]
  48. Mayer, H.; Mereiter, K. Synthetic bayleyite, Mg2UO2(CO3)3·18H2O—Thermochemistry, crystallography and crystal-structure. Tschermaks Mineral. Petrogr. Mitt. 1986, 35, 133–146. [Google Scholar] [CrossRef]
  49. Plášil, J.; Fejfarová, K.; Dušek, M.; Škoda, R.; Rohliček, J. Revision of the symmetry and the crystal structure of čejkaite, Na4(UO2)(CO3)3. Am. Mineral. 2013, 98, 549–553. [Google Scholar] [CrossRef]
  50. Olds, T.A.; Sadergaski, L.R.; Plášil, J.; Kampf, A.R.; Burns, P.C.; Steele, I.M.; Marty, J.; Carlson, S.M.; Mills, O.P. Leószilárdite, the first Na,Mg-containing uranyl carbonate from the Markey Mine, San Juan County, Utah, USA. Mineral. Mag. 2017, 81, 1039–1050. [Google Scholar] [CrossRef]
  51. Finch, R.J.; Cooper, M.A.; Hawthorne, F.C.; Ewing, R.C. Refinement of the crystal structure of rutherfordine. Can. Mineral. 1999, 37, 929–938. [Google Scholar]
  52. Mereiter, K. Crystal-structure and crystallographic properties of a schrockingerite from Joachimsthal. Tschermaks Mineral. Petrogr. Mitt. 1986, 35, 1–18. [Google Scholar] [CrossRef]
  53. Mereiter, K. Synthetic swartzite, CaMgUO2(CO3)3·12H2O, and its strontrium analog, SrMgUO2(CO3)3·12H2O—Crystallography and crystal-structures. Neues Jahrb. Mineral. 1986, 1986, 481–492. [Google Scholar]
  54. Vogl, J.F. Drei neue Mineral-Vorkommen von Joachimsthal. In Jahrbuch der Kaiserlich Königlichen Geologischen Reichsanstalt; K.K. Hof- und Staats-Druckerei: Vienna, Austria, 1853; Volume 4, pp. 220–223. [Google Scholar]
Minerals 08 00511 g001 550

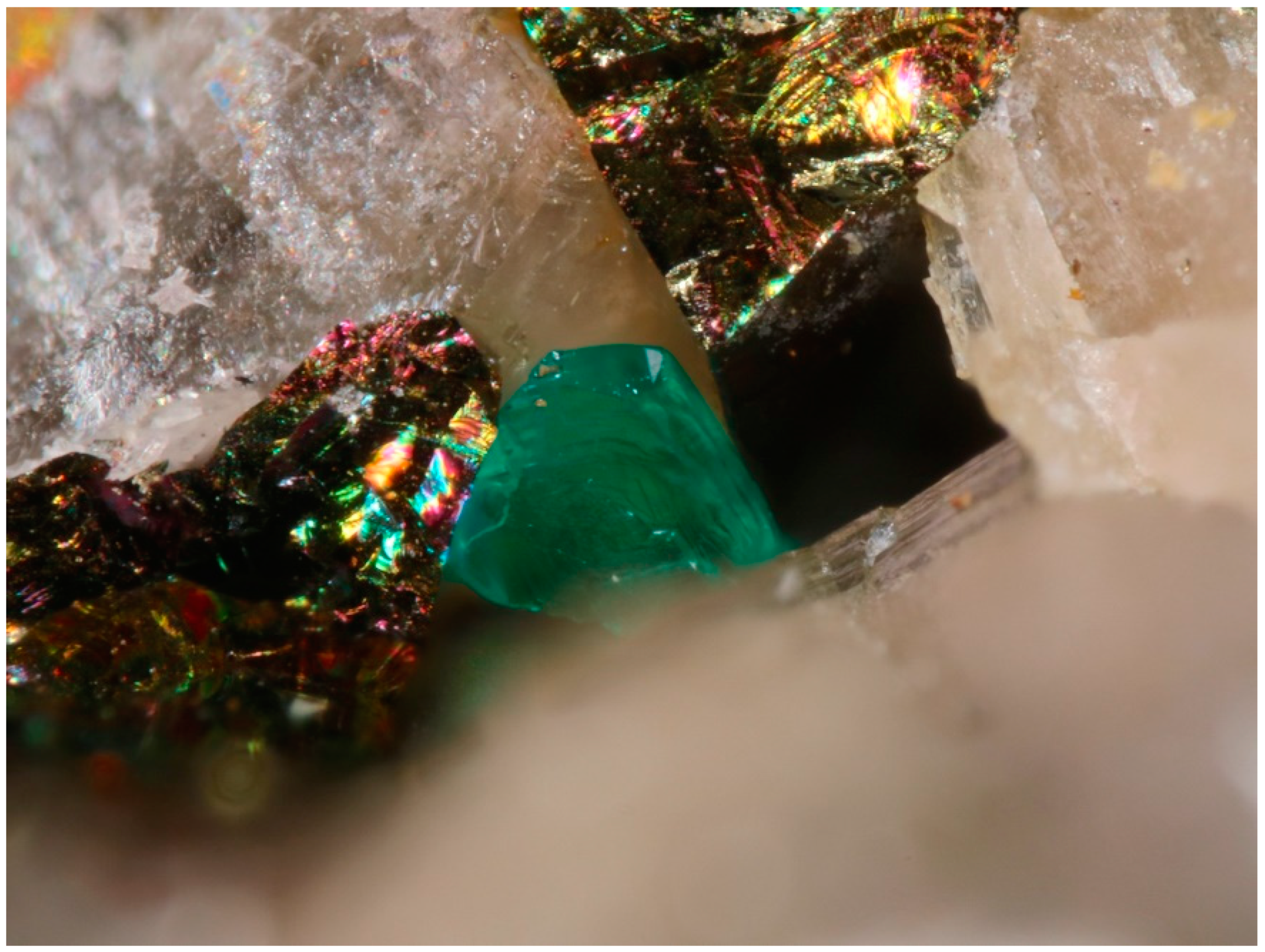

Figure 1. Green tabular crystal of paddlewheelite in a cavity of dolomite and chalcopyrite. Horizontal field of view is 1.8 mm.
Figure 1. Green tabular crystal of paddlewheelite in a cavity of dolomite and chalcopyrite. Horizontal field of view is 1.8 mm.
Minerals 08 00511 g001
Minerals 08 00511 g002 550

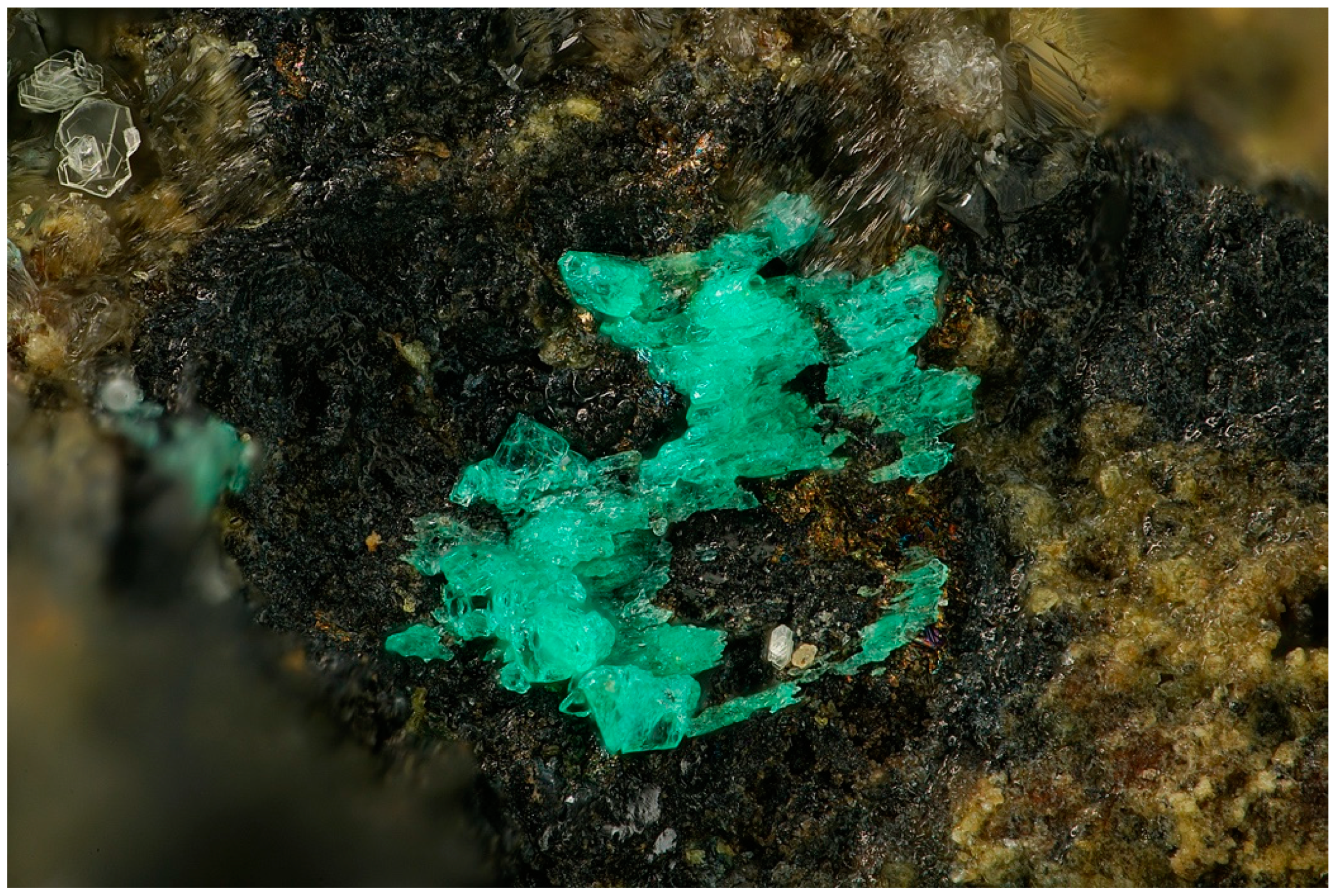

Figure 2. Thin green platelettes of paddlewheelite coating chalcopyrite and andersonite. Horizontal field of view is 2 mm. Photo by Stephan Wolfsried.
Figure 2. Thin green platelettes of paddlewheelite coating chalcopyrite and andersonite. Horizontal field of view is 2 mm. Photo by Stephan Wolfsried.
Minerals 08 00511 g002
Minerals 08 00511 g003 550

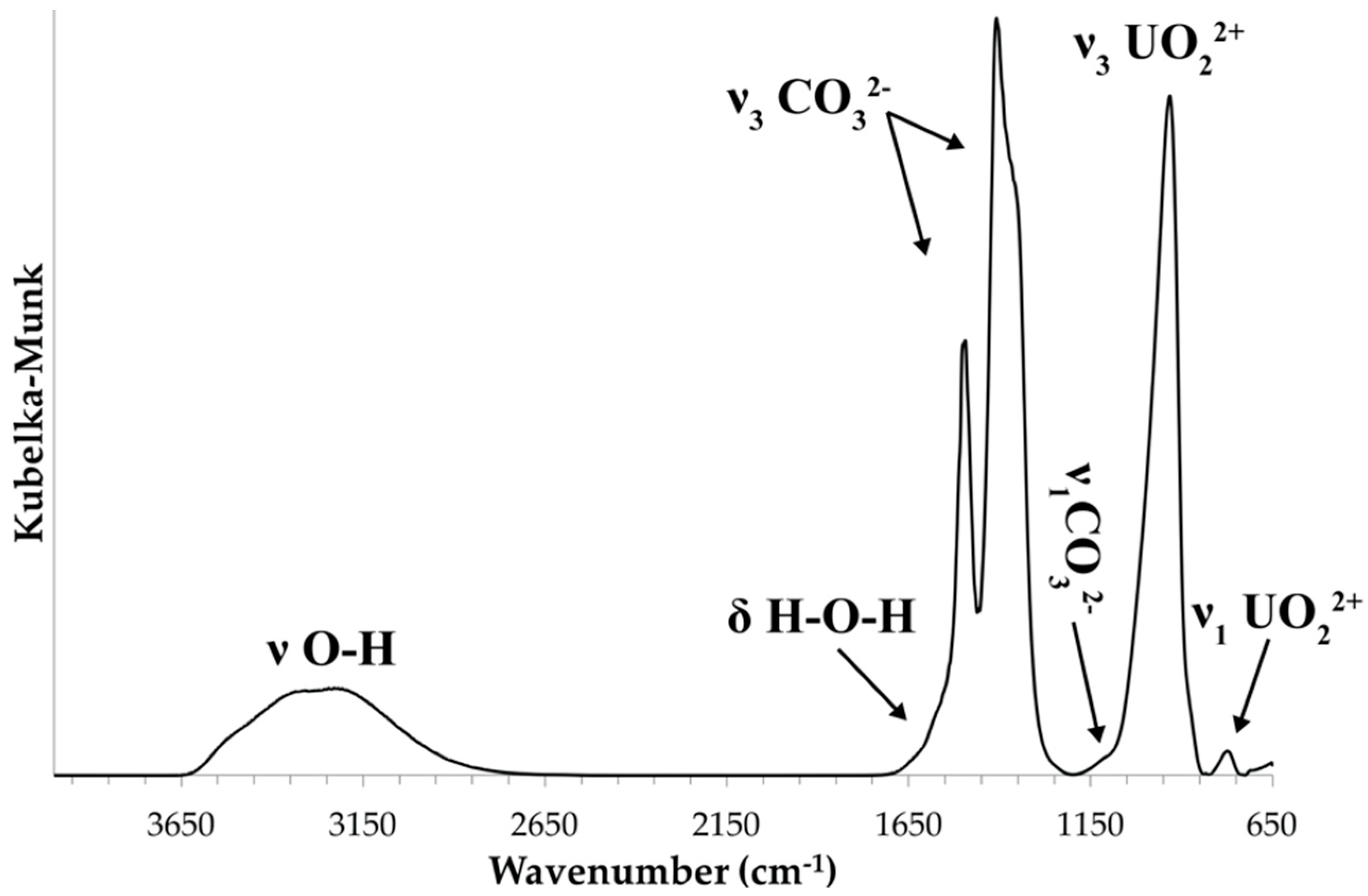

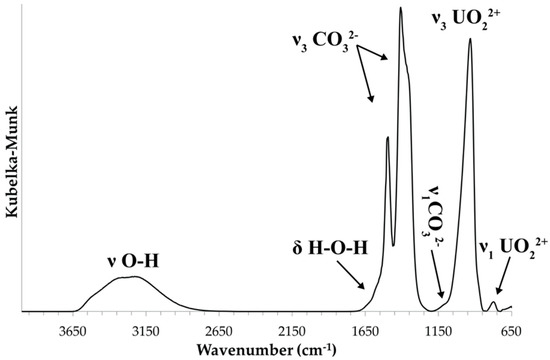

Figure 3. Infrared (ATR) spectrum of paddlewheelite from 4000 to 650 cm−1.
Figure 3. Infrared (ATR) spectrum of paddlewheelite from 4000 to 650 cm−1.
Minerals 08 00511 g003
Minerals 08 00511 g004 550

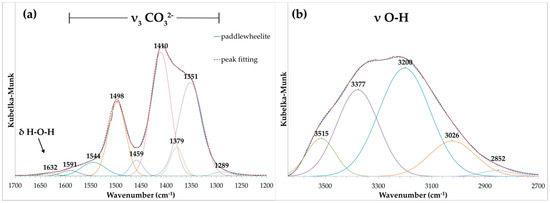

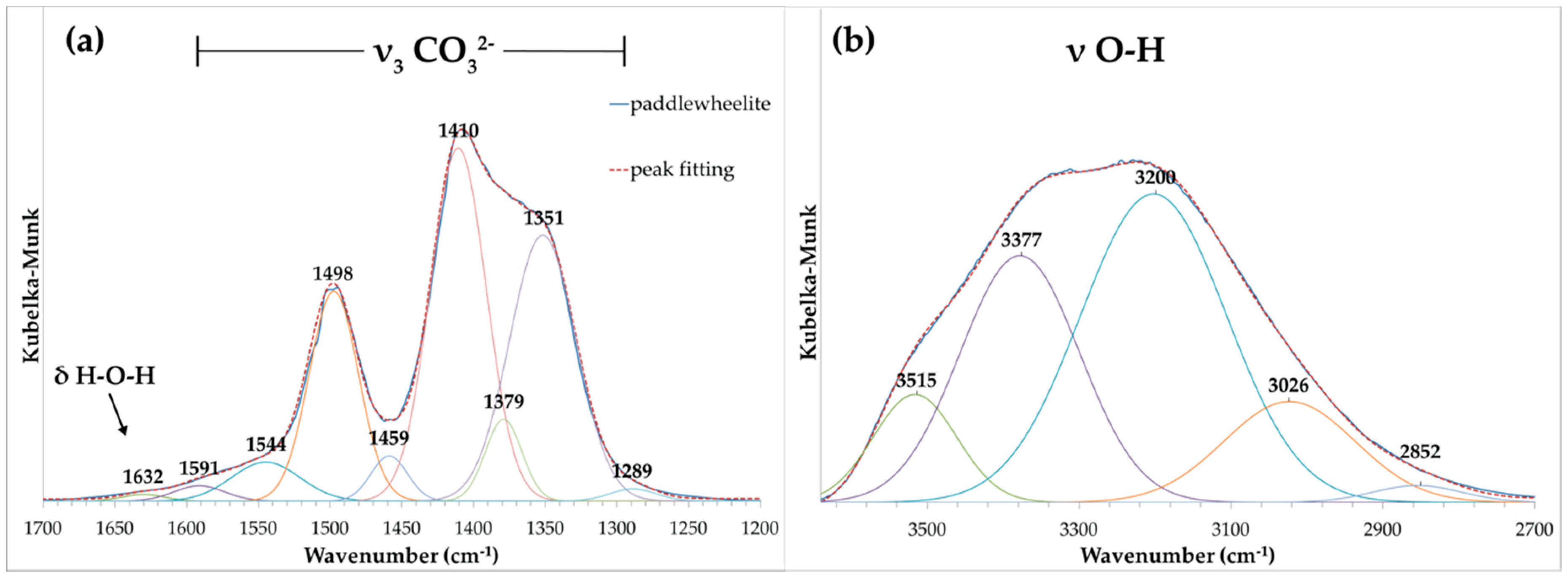

Figure 4. Fitted infrared spectrum of paddlewheelite in the (a) CO32− and (b) O–H stretching regions.
Figure 4. Fitted infrared spectrum of paddlewheelite in the (a) CO32− and (b) O–H stretching regions.
Minerals 08 00511 g004
Minerals 08 00511 g005 550

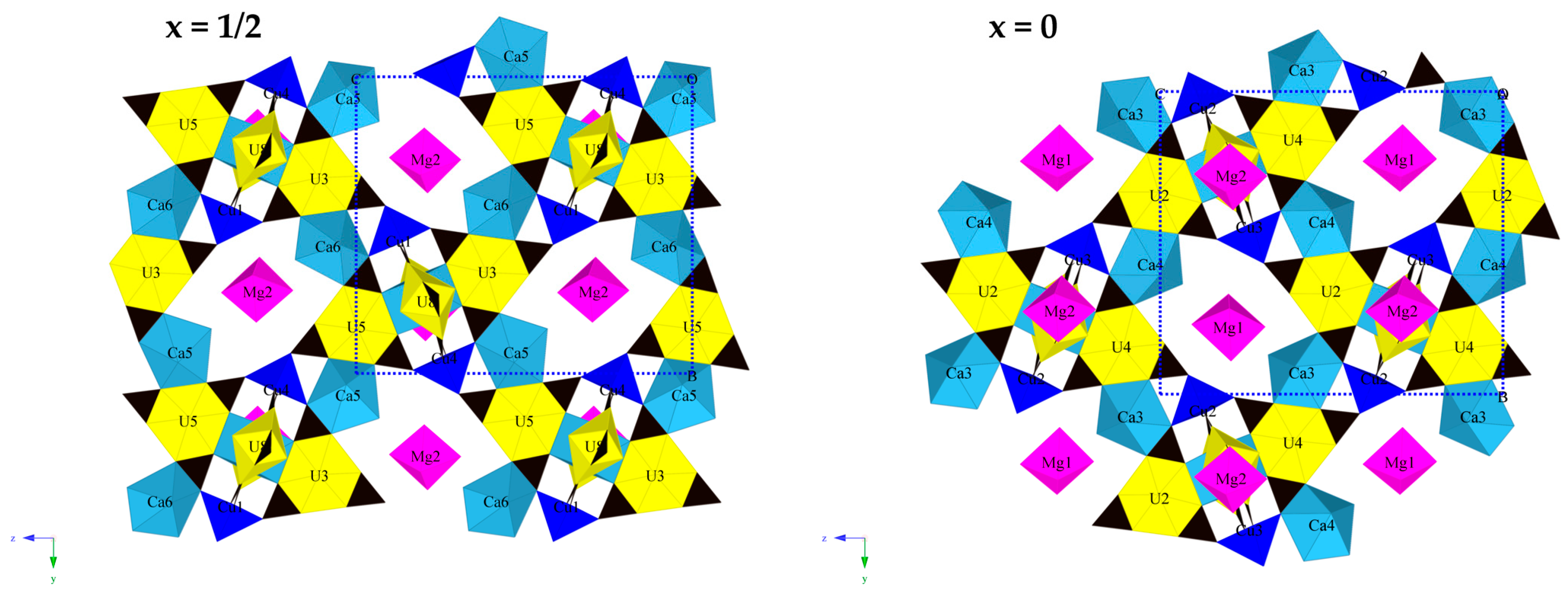

Figure 5. The structure of paddlewheelite, as viewed along [100]. Two unique sheets of paddlewheels occur at x = ½ (left) and x = 0 (right). Uranium (yellow), copper (blue), calcium (light blue), magnesium (magenta), carbon (black). Unit cell is indicated by dashed blue lines.
Figure 5. The structure of paddlewheelite, as viewed along [100]. Two unique sheets of paddlewheels occur at x = ½ (left) and x = 0 (right). Uranium (yellow), copper (blue), calcium (light blue), magnesium (magenta), carbon (black). Unit cell is indicated by dashed blue lines.
Minerals 08 00511 g005
Minerals 08 00511 g006 550

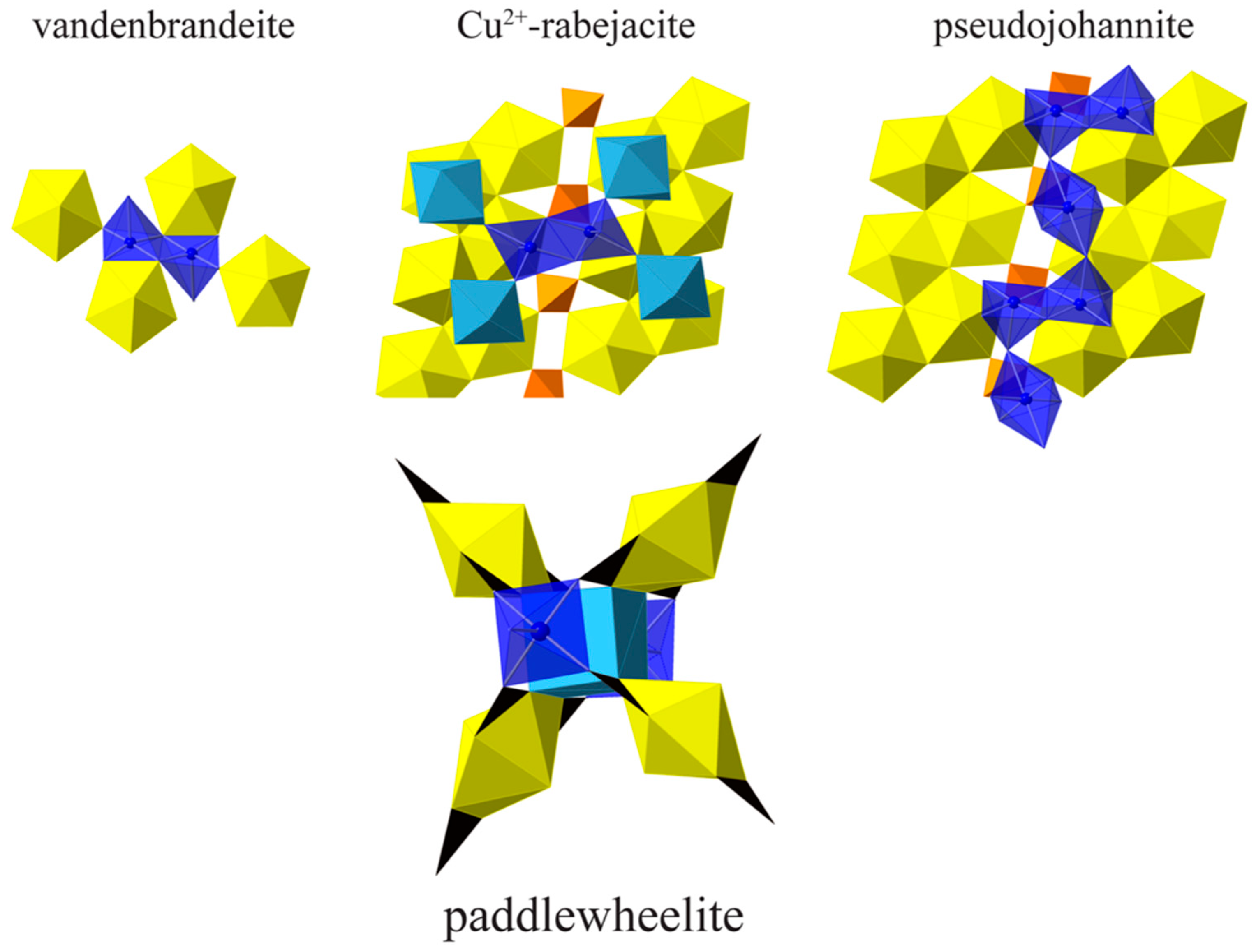

Figure 6. A comparison of Cu2+ geometries in Cu-containing uranyl minerals with square pyramidal geometries. Uranium (yellow), calcium (light blue), copper (blue transparent), sulfur (orange), carbon (black).
Figure 6. A comparison of Cu2+ geometries in Cu-containing uranyl minerals with square pyramidal geometries. Uranium (yellow), calcium (light blue), copper (blue transparent), sulfur (orange), carbon (black).
Minerals 08 00511 g006
Minerals 08 00511 g007 550

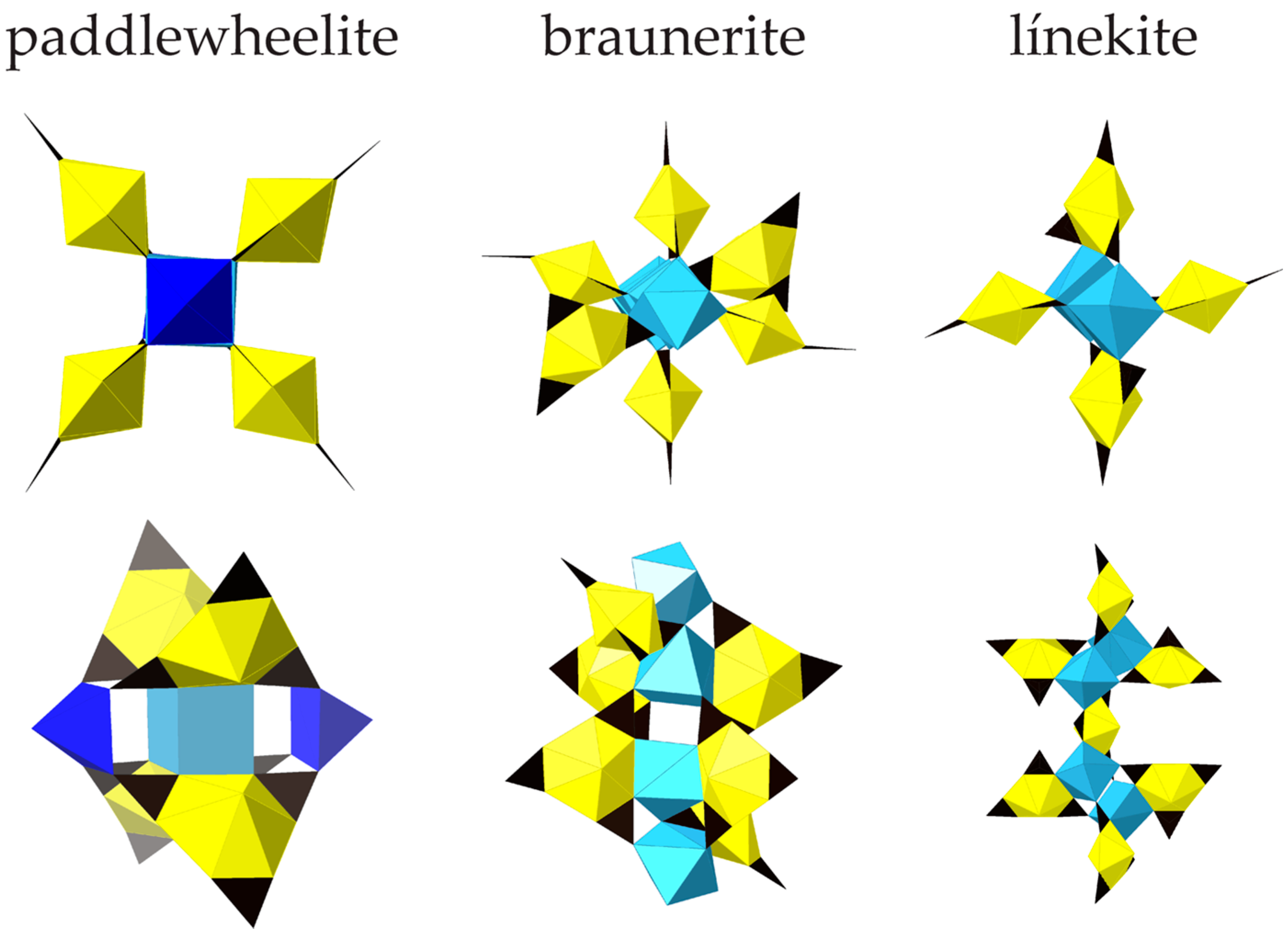

Figure 7. A comparison of the paddles in paddlewheelite, braunerite, and línekite.
Figure 7. A comparison of the paddles in paddlewheelite, braunerite, and línekite.
Minerals 08 00511 g007
Table
Table 1. Analytical data (wt. %) for paddlewheelite, average of 6 analyses.
Table 1. Analytical data (wt. %) for paddlewheelite, average of 6 analyses.
ConstituentMeanRangeStd. Dev.NormalizedProbe Standard
CaO12.4711.71–13.3750.5710.74anorthite
CuO2.651.64–3.260.562.28Cu metal
FeO0.010–0.040.010.01Olivine
MgO1.71.16–1.930.281.47Olivine
SiO20.420–0.930.360.36Olivine
UO349.3848.22–50.691.1342.97UO2 (syn.)
CO2 *22.8--19.84
H2O *25.66--22.33
Total115.09 100.00
* Based on structure.
Table
Table 2. Powder X-ray data for paddlewheelite (d values in Å). All calculated intensities have been multiplied by 0.36 so that the sum of the intensities of the three calculated lines contributing to the strongest observed line is 100
Table 2. Powder X-ray data for paddlewheelite (d values in Å). All calculated intensities have been multiplied by 0.36 so that the sum of the intensities of the three calculated lines contributing to the strongest observed line is 100
IobsdobsdcalcIcalch k lIobsdobsdcalcIcalch k lIobsdobsdcalcIcalch k lIobsdobsdcalcIcalch k l
10011.1211.110934−1 1 1 3.30631−3 3 4112.4312.42543−3 5 581.94131.95901−5 7 4
11.058130 1 1 1 3.28971 3 3 42.42231−6 4 41.95711 6 4 7
11.025636 2 0 043.2493.27571 5 3 22.41723 3 5 51.95171−10 4 1
229.699.676718 0 0 2103.2143.22562 0 0 6 2.40921 6 4 41.94551 4 2 9
188.638.559012 0 2 03.20552 0 4 4 2.39661 2 6 41.93821−5 5 7
97.907.82775 0 2 13.19642−4 4 252.3722.37641−5 3 61.935310 0 10
467.337.302919−2 0 23.18632 4 4 22.36711−2 0 81.92841 5 5 7
7.243222 2 0 2 3.17302−1 3 52.36091 5 3 6 1.92141 0 4 9
76.806.76103 2 2 0 3.16691 1 3 52.35892 2 0 871.90161.91451 5 1 9
306.426.41106 0 2 2113.0753.08261−2 4 42.35681 1 7 21.90731−4 8 3
6.39289−2 2 13.07771−5 3 352.3282.34141−6 2 61.89532−2 4 9
6.37266 2 2 13.07361 2 4 42.32801 0 2 81.89051 2 4 9
6.36191 3 1 13.06082 5 3 32.32371 6 2 61.887720 2 10
5.81102 1 1 33.05531 7 1 12.32231 0 4 71.88581 1 9 1
375.545.55556−2 2 2123.0163.01837 0 2 62.31732 8 4 081.85741.87581 8 4 6
5.52917 2 2 22.99764−1 5 342.2862.30461−3 7 11.85281−9 3 6
5.512816 4 0 02.99453 1 5 32.30322 3 7 11.84661−11 1 4
85.215.24741 4 1 0 2.94391−3 3 52.29881 8 2 41.84511 0 6 8
5.15174 0 2 3 2.93841−6 0 42.27641−9 1 3101.83401.84151−6 8 1
334.8234.83837 0 0 432.9012.91931−3 1 62.27511−1 7 31.84011 6 8 1
4.80724−4 0 22.91501 6 0 42.27381 1 7 31.8376212 0 0
4.79312 1 3 22.90211 3 1 62.26921 2 4 71.83601−5 3 9
4.77311 4 0 2 2.87952−5 1 52.26421 9 1 31.83291−6 4 8
384.6424.682914−3 1 3 2.87071 0 4 5 2.25781−3 7 21.83071−9 1 7
4.65551 2 2 3 2.85672 5 1 5 2.25511 3 7 21.82572−8 0 8
4.647412 3 1 382.8002.80171−7 1 352.2082.22201−4 0 8 1.82161 6 4 8
4.56285−1 1 42.79291 3 5 32.21771−1 3 8 1.81861−4 4 9
4.54824 1 1 42.78801−1 3 62.2051310 0 0 1.81771−6 8 2
194.4374.51433−4 2 12.78303−1−3−62.19742−6 6 2 1.81491 6 8 2
4.50012 4 2 12.77912−6 2 42.19251 6 6 241.78891.81082 8 0 8
4.41711 2 0 472.7432.76202 2 6 02.18581−7 5 31.78311 0 8 6
4.39485−3 3 12.75941 6 2 4 2.17741 7 5 31.781514 2 10
4.38495 3 3 12.75641 8 0 0 2.17111 1 7 461.77251.77652−11 1 5
344.2154.21198 0 2 42.73655 0 6 2 2.16011 5 3 71.7740110 2 6
4.19132−4 2 22.73351 2 6 192.1342.14211−1 5 71.77161−3 9 3
4.17759−5 1 182.6862.70601 1 1 72.13951 1 5 71.77041−3 5 9
4.16871 4 2 22.68362−6 4 22.13481 4 4 71.76671 9 5 5
4.16347 5 1 12.68021−5 5 12.13131 6 2 71.76403 1 9 4
4.10681−1 4 12.67651 5 5 12.12682 0 8 141.74091.74641 4 6 8
4.09381−3 3 22.67472 6 4 22.12481 5 7 11.739222 4 10
114.0274.07792 3 3 2 2.65682−8 0 2112.1062.11591−6 4 651.71641.72411−11 5 1
3.98957 2 4 0 2.64521 8 0 22.10602 0 4 81.72211−3 9 4
253.9393.94753−3 1 4 2.63891 4 2 62.10371−7 3 61.71901−10 6 2
3.92522 2 2 472.6222.62941−3 3 62.10012−2 6 61.71831−6 0 10
3.91922 3 1 42.62372 8 2 02.09582 2 6 61.711810 10 0
3.913811 0 4 22.61681 3 3 62.08863−2 8 171.69301.70461−11 3 5
3.90972−2 4 1 2.60811 3 5 42.08561 0 2 91.70241−1 9 5
3.90513 2 4 1 2.60271−8 2 1 2.05351−3 1 91.69491−5 7 7
3.77641−4 2 3 2.60021−5 3 5 2.05221−2 2 91.69021 8 8 0
333.7173.72626−1 1 5112.5622.58331 5 3 542.03262.04621 2 2 91.68831 5 7 7
3.71622 1 1 52.56552−3 1 72.03241−5 7 31.68442 8 6 6
3.70362−3 3 32.56361−2 2 72.02761 5 7 31.68321−4 4 10
3.68602 3 3 32.55451 2 2 7121.99602.00532−1 3 931.66831.67391−11 5 3
3.675212 6 0 02.55191 3 1 71.99621−4 6 61.6679111 5 3
3.64342−1 3 42.54891−1 5 51.99411−7 5 51.66551−12 4 2
3.63591 1 3 42.54562 1 5 51.99251−3 7 541.64631.65321−6 6 8
33.5553.52683 0 2 5 2.53733−8 2 21.98791 3 7 51.64481 6 6 8
53.3993.43802−5 3 1 2.53381 4 6 01.98491−4 8 11.63631−13 1 3
3.43021 5 3 1102.5122.52732 8 2 21.98342 7 5 51.634814 10 0
3.39771−2 4 32.51201−2 4 61.98233−11 1 1
3.38051 4 4 02.50461 2 4 61.9789311 1 1
3.37702 6 2 02.49863−5 5 3
73.3393.33114−6 2 12.48963 5 5 3
3.32721 4 4 1 2.47441−1 3 7
3.32252 6 2 1
Table
Table 3. Data collection and structure refinement details for paddlewheelite.
Table 3. Data collection and structure refinement details for paddlewheelite.
DiffractometerBruker Quazar II with Apex II detector
X-ray radiation/powerMoKα (λ = 0.71075 Å)/50 kV, 60 mA
Temperature120(2) K
Structural FormulaC12MgCa5Cu2U4O77.12
Space groupPc
Unit cell dimensionsa = 22.052(4) Å
b = 17.118(3) Å
c = 19.354(3) Å
β 90.474(2)°
V7306(2) Å3
Z4
Density (for above formula)2.438 g∙cm−3
Absorption coefficient9.900 mm−1
F(000)4908
Crystal size5 × 40 × 50 μm
θ ρανγε1.052 to 25.218°
Index ranges–26 ≤ h ≤ 26, –20 ≤ k ≤ 20, –23 ≤ l ≤ 23
Reflections collected/unique73,516/26,012; Rint = 0.0963
Reflections with Iobs > 2σ(I)17,626
Completeness to θ°full100%
Parameters (restraints)997 (9)
GoF(obs/all)1.017/1.017
Robs, wRobs0.0706, 0.1573
Rall, wRall0.1136, 0.1833
Twin component (%)1 0 0/ 0 −1 0/ 0 0 −1 (14.07(21))
Largest diff. peak/hole+4.08/–2.88 e Å–3
*Rint = Σ|Fo2 − Fo2(mean)|/Σ[Fo2]. GoF = S = {Σ[w(Fo2 − Fc2)2]/(n − p)}1/2. R = Σ||Fo| − |Fc||/Σ|Fo|. wR = {Σ[w(Fo2 − Fc2)2]/Σ[w(Fo2)2]}1/2; w = 1/[σ2(Fo2) + (aP)2 + bP] where a is 0.0805, b is 0 and P is [2Fc2 + Max(Fo2,0)]/3.
Table
Table 4. List of Cu2+-bearing uranyl minerals containing Jahn-Teller distorted Cu2+ϕn polyhedra {O = (4 + 2) octahedron; SP = square pyramid}.
Table 4. List of Cu2+-bearing uranyl minerals containing Jahn-Teller distorted Cu2+ϕn polyhedra {O = (4 + 2) octahedron; SP = square pyramid}.
MineralDistortion TypeAvg. Cu-Oeq (Å)Avg. Cu-Oap (Å)Cuϕn ConnectivityRef.
Torbernite
Cu[(UO2)(PO4)]2·12H2O		O1.9132.556isolated[33]
zeunerite
Cu[(UO2)(AsO4)]2·12H2O		O1.9292.482isolated[33]
ulrichite
Ca[Cu(UO2)(PO4)2]·4H2O		O1.9432.65isolated[34]
sengierite
Cu2[(UO2)2(V2O8)](OH)2·6H2O		O1.9562.507dimer[35]
demesmaekerite
Pb2Cu5[(UO2)(SeO3)3]2(OH)6·2H2O		O
O (2 + 4)		1.993
2.212		2.378
1.927		sheet[36]
derriksite
Cu4[(UO2)(SeO3)2]2(OH)6		O1.9702.385sheet[37]
marthozite
Cu[(UO2)3(SeO3)2O2]·8H2O		O1.9872.381isolated[38]
johannite
Cu[(UO2)2(SO4)2(OH)2]·8H2O		O1.9692.397isolated[39]
deloryite
Cu4[(UO2)(Mo2O8)](OH)6		O2.0032.288sheet[40]
roubaultite
[Cu2(UO2)3(CO3)2O2(OH)2]·8H2O		O1.9692.507chain[41]
cuprosklodowskite
Cu[(UO2)(SiO3(OH))]2·6H2O		O1.9372.443isolated[42]
vandenbrandeite
[(UO2)Cu(OH)4]		SP1.9452.601dimer[43]
Cu2+-rabejacite
(Ca1.56Cu0.40)∑1.90[(UO2)4O4(SO4)2]·8H2O		SP2.0052.320dimer[32]
pseudojohannite
Cu3(OH)2[(UO2)4O4(SO4)2]·12H2O		O
SP		1.970
1.954		2.538
2.426		chain[44]
paddlewheelite
MgCa5Cu2[(UO2)(CO3)3]4·33H2O		SP1.9602.205isolated-
Table
Table 5. A comparison of structural complexity (bits/u.c.) between uranyl carbonate minerals.
Table 5. A comparison of structural complexity (bits/u.c.) between uranyl carbonate minerals.
MineralFormulaUnit Cell Volume (Å3)IG,Total (bits/u.c.)Ref.
albrechtschraufiteMgCa4F2[(UO2)(CO3)3]2·17-18H2O1174.61020.28[46]
andersoniteNa2Ca[(UO2)(CO3)3]·6H2O6544.4567.38[47]
bayleyiteMg2[(UO2)(CO3)3]·18H2O2624.41510.28[48]
brauneriteK2Ca(UO2)(CO3)3·6-7H2O59582305.36[2]
čejkaiteNa4[(UO2)(CO3)3]963.6161.42[49]
ewingiteMg8Ca8(UO2)24(CO3)30O4(OH)12·138H2O5924512,684.86[1]
leószilárditeNa6Mg[(UO2)(CO3)3]2·6H2O1189.4179.33[50]
liebigiteCa2(UO2)(CO3)3·11H2O4021.5567.53[39]
línekiteK2Ca3[(UO2)(CO3)3]2·8H2O56222140.57[3]
paddlewheeliteMgCa5Cu2[(UO2)(CO3)3]4·33H2O73063386.93
roubaultiteCu2(UO2)3(CO3)2O2(OH)2·4H2O421.02156.75[41]
rutherfordine(UO2)(CO3)192.915.65[51]
schröckingeriteNaCa3(UO2)(CO3)3(SO4)F·10H2O1151.29578.59[52]
swartziteCaMg[(UO2)(CO3)3]·12H2O1029.94527.16[53]

Share and Cite

MDPI and ACS Style

Olds, T.A.; Plášil, J.; Kampf, A.R.; Dal Bo, F.; Burns, P.C. Paddlewheelite, a New Uranyl Carbonate from the Jáchymov District, Bohemia, Czech Republic. Minerals 2018, 8, 511. https://doi.org/10.3390/min8110511

AMA Style

Olds TA, Plášil J, Kampf AR, Dal Bo F, Burns PC. Paddlewheelite, a New Uranyl Carbonate from the Jáchymov District, Bohemia, Czech Republic. Minerals. 2018; 8(11):511. https://doi.org/10.3390/min8110511

Chicago/Turabian Style

Olds, Travis A., Jakub Plášil, Anthony R. Kampf, Fabrice Dal Bo, and Peter C. Burns. 2018. "Paddlewheelite, a New Uranyl Carbonate from the Jáchymov District, Bohemia, Czech Republic" Minerals 8, no. 11: 511. https://doi.org/10.3390/min8110511

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
