Petrology of Chromitites in the Higashi-Akaishi Ultrahigh-Pressure (UHP) Peridotite Complex, Japan: Toward Understanding of General Features of the UHP Chromitites

by
Makoto Miura
1,2,*,
Shoji Arai
1,
Tomoyuki Mizukami
1,
Vladimir R. Shmelev
3 and
Satoko Ishimaru
4
1
Department of Earth Sciences, Kanazawa University, Kakuma, Kanazawa 920-1192, Japan
2
Gemological Institute of America (GIA) Tokyo Godo Kaisha, Tokyo 110-0016, Japan
3
Zavaritsky Institute of Geology and Geochemistry, Ural Branch, Russian Academy of Sciences, Yekaterinburg 620075, Russia
4
Department of Earth and Environmental Sciences, Faculty of Advanced Science and Technology, Kumamoto University, Kumamoto 860-8555, Japan
*
Author to whom correspondence should be addressed.
Minerals 2018, 8(11), 525; https://doi.org/10.3390/min8110525
Submission received: 9 October 2018 / Revised: 1 November 2018 / Accepted: 6 November 2018 / Published: 11 November 2018
(This article belongs to the Special Issue Petrology, Geochemistry and Mineralogy of the Mantle as Tools to Read Messages from the Earth’s Interior)
Browse Figures
Versions Notes

Abstract

:
Ultrahigh-pressure (UHP) chromitites containing UHP minerals such as coesite and diamond have been reported from some ophiolites in Tibet and the Polar Urals. Their nature, i.e., origin, P-T path and abundance, however, are still controversial and left unclear. Here we describe chromitites in the Higashi-akaishi (HA) ultramafic complex in the Cretaceous Sanbagawa metamorphic belt, Japan, which experienced UHP condition (up to 3.8 GPa) at the peak metamorphism via subduction, in order to understand the nature of UHP chromitites. The HA peridotites typically contain garnets and are associated with eclogites, and their associated chromitites are expected to have experienced the UHP metamorphism. The Higashi-akaishi (HA) chromitites show banded to massive structures and are concordant to foliation of the surrounding peridotite. Chromian spinels in the chromitite and surrounding peridotites were sometimes fractured by deformation, and contain various inclusions, i.e., blade- and needle-like diopside lamellae, and minute inclusions of pyroxenes, olivine, and pargasite. The peculiar UHP minerals, such as coesite and diamond, have not been found under the microscope and the Raman spectrometer. Spinels in the HA chromitites show high Cr#s (0.7 to 0.85), and low Ti contents (<0.1 wt %), suggesting a genetic linkage to an arc magma. The HA chromitites share the basic petrographic and chemical features (i.e., diopside lamellae and arc-related spinel chemistry) with the UHP chromitites from Tibet and the Polar Urals. This suggests that some of the characteristics of the UHP chromitite can be obtained by compression, possibly via deep subduction, of low-P chromitite.

1. Introduction

Podiform chromitites, which are mainly composed of chromian spinels, have been interpreted as an igneous cumulate precipitated from a spinel-oversaturated melt formed by melt/peridotite reaction at low-pressure (low-P) conditions [1,2]. Podiform chromitites from ophiolites, such as the Oman ophiolite, commonly show various lines of evidence for low-P origin, such as the frequent presence of pargasite inclusions in chromian spinel [3,4]. However, peculiar minerals indicating ultrahigh-pressure (UHP) and highly reduced conditions, such as diamond, moissanite, and alloys, have been found from chromitites and surrounding peridotites in several ophiolites such as Luobusa ophiolite of Tibet [5,6,7,8,9] and Ray-Iz ophiolite of the Polar Urals [7]. Origin of such UHP mineral-bearing chromitites (UHP chromitites) is still very controversial because their petrographic and petrologic features are unclear, although several models were proposed [5,7,10,11,12]. One of serious problems in constraining the origin of UHP chromitites is a lack of information on their P-T trajectory.
Chromitites from the Higashi-akaishi complex will give us a clue to clear this problem. The Higashi-akaishi (HA) peridotite body in the Sanbagawa metamorphic belt, Southwest Japan (Figure 1), has been interpreted to have originally formed at low-P conditions such as the uppermost mantle in a mantle wedge, and subsequently experienced UHP metamorphic condition up to 3.8 GPa, due to downgoing mantle flow induced by subduction [13,14,15,16,17,18]. The P-T trajectory has been established based on petrological and petrofabric studies of peridotites and related rocks, although UHP minerals have not been found [15]. Clear evidence for their high-P conditions is the existence of pyrope-rich garnet in peridotites [13]. We expect that the HA chromitites also have experienced the UHP metamorphism together with the associated peridotites. The advantage of the HA chromitite is that its P-T history has been independently determined [13,14,15,16,17,18]. The HA chromitites will, therefore, provide us with unrivaled information on the behavior of low-P chromitite upon compression via UHP metamorphism. We present here petrographic and petrological features of chromitites from the HA peridotite complex (Figure 1) in order to understand the nature of chromitites in the UHP metamorphic belt, or the UHP chromitites from ophiolites.

2. Geological Background

The Sanbagawa belt, a Cretaceous regional metamorphic belt, extends over 800 km along southwest Japan arc (Figure 1a), and is mainly composed of pelitic and basic schists with small numbers of metagabbro and ultramafic bodies [14,19,20]. The Higashi-akaishi (HA) ultramafic complex is one of the largest ultramafic complexes in the Sanbagawa metamorphic belt (Figure 1). Ultramafic rocks from the HA complex are dominated by dunites, which contain layers of clinopyroxenite and websterite with small amounts of chromitite (Figure 1). A unit of eclogite exists along the contact (the Gongen-goe area) between the HA peridotite and surrounding garnet amphibolite (Figure 1). Ultramafic rocks have experienced eclogite facies metamorphism because of the presence of pyrope-rich garnet [14,19]. Chromitites occur as sparse concordant to subconcordant lenses and layers within dunites (Figure 2). The HA chromitites vary from banded to massive types with an increase in the degree of deformation and chromite modal amount [21] (Figure 2b,c). Thick chromitite lenses have been almost mined out, but a few small/thin lenses still remain in dunite-dominant portion of the complex [22]. The HA peridotites and included chromitite lenses are strongly deformed and folded near the garnet amphibolite body of the Gongen-goe area (Figure 2b). Chromitite samples from the central part of the HA complex are far less deformed than the banded chromitites in the Gongen-goe area (Figure 2c).

3. Materials and Methods

Chromitite samples were collected from outcrops and boulders at two sites in the Higashi-akaishi ultramafic complex (Figure 1). Polished thin sections of chromitites were examined with microscope for petrographic observation (Figure 3), and tested with Raman spectroscopy and a microprobe at Kanazawa University, Japan.
Laser-Raman spectroscopy (LabRAM HR800, HORIBA Jobin Yvon) with a 532 nm Nd:YAG laser (J100GS-16, Showa Optronics Co., Ltd.) of Department of Earth Sciences at Kanazawa University was used to identify minute silicate lamellae and inclusions within chromite. The Nd:YAG laser has an irradiation power at 1.6 mW with a spectral resolution of about ±2.5 to ±3.5 cm−1. For tiny inclusions and exsolutions in host chromites, and the gained Raman spectra were processed to remove the signal of host chromite using LabSpec software (Version 5) as shown in Figure 4.
Minerals were analyzed by a wave-length dispersive electron microprobe (JXA8800R, JEOL) at Kanazawa University. Analytical conditions were 20 kV accelerating voltage, 20 nA probe current, and 3 or 0 μm probe diameter for quantitative spot analysis (Figure 5, Table 1). A 20 kV accelerating voltage and a 100 nA probe current with a beam diameter of <1 μm were used for elemental distribution maps (Figure 6). Natural and synthetic minerals were used as standards, and the ZAF matrix correction algorithm was used during data reduction. Ferrous and ferric iron contents of chromian spinel were calculated assuming spinel stoichiometry, while all iron was assumed to be Fe2+ in silicates. Mg# is Mg/(Mg + Fe2+) atomic ratio, and Cr# is Cr/(Cr + Al) atomic ratio.
Three chromitite samples were analyzed for all Platinum-group elements (PGEs; Os, Ir, Ru, Rh, Pt and Pd) (Figure 2c; Table 2). The whole-rock PGE contents in chromitite samples were determined by using ICP-MS after Ni-sulfide fire assay collection at the Genalysis Perth Laboratory Services, Australia. The detection limits are 1 ppb for all PGEs.

4. Results

4.1. Petrography of the Higashi-Akaishi Chromitites

Chromitites comprise euhedral to subhedral chromian spinel, olivine, serpentine, chlorite with minor amounts of amphibole (Figure 3). Some chromitite samples show a severe hydrothermal alteration, and typically contain kämmereite, chlorite, serpentine and a small amount of phlogopite, uvarovite and ehimeite, which is a Cr-dominant member of Ca amphibole [25]. Chromian spinels in the chromitites are reddish to dark brown in thin section, indicating their Cr-rich character (Figure 3). Spinels in the banded chromitites are highly deformed and fractured (Figure 3a). Some of spinels in the chromitites and associated dunite have thin cracks filled by olivine, suggesting brittle and ductile behaviors of spinel and olivine, respectively, at the high-T deformation stage (Figure 3b). Grain boundaries of olivines in dunite surrounding the banded chromitites show a triple junction, suggesting its textural equilibrium via recrystallization. The core of coarse spinel grains from the massive and banded chromitites typically contains numerous needle- and rod-shaped silicate lamellae, showing parallelism (Figure 3d–f). The silicate lamellae are especially prominent in the banded chromitites. The amount and frequency of lamellae decreases towards the marginal part of the grain (Figure 3d). This is basically similar to the distribution of clinopyroxene exsolution lamellae in orthopyroxene grains commonly observed in peridotites, which experienced cooling and decompression (Figure 7). Surrounding fine spinel grains do not contain silicate lamellae (Figure 3c). Minute (several tens microns) orbicular inclusions composed of clinopyroxene, amphibole, olivine, chlorite, and K-phlogopite are found from some of spinel grains in the HA chromitites (Figure 3g). They usually show sparse non-linear distributions in thin section indicating a primary origin. Solid-phase secondary inclusions are mostly composed of chlorite and antigorite. Platinum-group element minerals (PGM) have not been found from the HA chromitites.
Dunites comprise mosaic olivine, euhedral to subhedral spinel, antigorite and a small amount of clinopyroxene. Some of chromian spinels show strong deformation textures such as fracturing. The peridotites adjacent to the banded chromitite bodies typically contain clinopyroxene, garnet, and subhedral to anhedral spinel (Figure 3i).

4.2. Raman Spectroscopic Features of Inclusions

Raman spectroscopy revealed that the exsolution lamellae within chromites from massive and banded HA chromitites are mainly diopside (Figure 4). A typical exsolution lamella (Figure 4) shows Raman spectroscopic features of diopside [25]. The minute orbicular silicate inclusions (Figure 3g) in spinels from chromitites are composed of clinopyroxene, amphibole, olivine, chlorite, and phlogopite as described above. Microprobe analyses suggest that the amphibole and mica phases in the orbicular inclusions are pargasite and K-phlogopite, respectively, as described below (Table 1).

4.3. Mineral Chemistry

Core of chromian spinels from the HA chromitites shows high Cr#s, 0.65 to 0.82, and low TiO2 contents, 0.1 to 0.5 (Figure 5). Chromian spinels are slightly higher in Cr# in the massive HA chromitites than in the banded HA chromitites (Figure 5a). The Cr# of spinel ranges from 0.72 to 0.82 for the massive chromitite pods, and 0.65 to 0.78 in the banded chromitite pods (Figure 5b). Spinels show zonation in terms of Fe3+, Al and Ti [26] in the banded chromitites (Figure 5 and Figure 6), where the rim of spinel grains contrastingly shows a relatively high Fe3+ content, suggesting chemical modification of spinel in low-T alteration [27] (Figure 5a,c). Core of the coarse spinel grains containing diopside lamellae (Figure 3d) shows a low Fe (total) content and a slightly high Al content as compared with the rim (Figure 6). Surrounding fine spinel grains free of diopside lamellae (Figure 3c) show higher Fe (total) and lower Al contents.
Olivines show slightly higher Fo (=100 Mg#) values, 94 to 96, in the massive HA chromitites than in the banded ones (Fo92–95) (Figure 8), described by Hattori et al. [17]. The NiO content of olivines varies from 0.30 to 0.42 wt % in the HA chromitites, being clearly lower than in ordinary podiform chromitites from ophiolites and almost equivalent to the value in residual mantle peridotites (Figure 8).

4.4. Platinum-Group Element Chemistry

Massive chromitite samples (HA-1, 2, and 3 in Table 2) are high in total PGE, 174, 114 and 354 ppb, respectively (Figure 9a; Table 2). Two chromitite samples (HA-1 and 2) are distinctly enriched in Ir subgroup PGE (IPGE: Os, Ir, Ru) in preference to Pd subgroup PGE (PPGE: Rh, Pt, Pd) and show low ratios of Pd/Ir (around 0.1 to 0.3) (Figure 9b; Table 2). They show negative slopes from Ru to Pt in their chondrite-normalized PGE patterns (Figure 9b) as in typical ophiolitic chromitites [30]. Their enrichment in Ir and Ru is similar to that of the Oman arc-related discordant chromitites [30]. One chromitite sample (HA-3) showing the features of some high-degree modification at low T, e.g., Fe3+ enrichment and formation of chlorite is clearly enriched in PPGE (Figure 9b).

5. Discussion

5.1. P-T History of the Higashi-Akaishi Chromitite

The HA complex shows a counterclockwise P-T trajectory, which was caused by subduction and exhumation, are divided into four deformation stages, D1, D2, D3, and D4 [31] in terms of microstructure of minerals. Petrological and geochemical studies suggest that the HA peridotite complex originated as plutonics in an uppermost part of the mantle wedge [14,17,31,32]. After the igneous formation, the proto-HA peridotite complex subsided via the subduction channel by an active mantle flow (D1 and D2 stage) [14,15]. The coexistence of forsterite-rich olivine and pyrope in ultramafics indicates that the HA body underwent high-P conditions (>1.8 GPa) [19,33]. Enami et al. [14] examined the olivine-pyroxenes-garnet assemblage in garnet clinopyroxenite, websterite, and wehrlite from the Gongen-goe area (Figure 1), and obtained a series of P-T conditions of the prograde metamorphism conducted by the subduction. They used Al solubility in orthopyroxene in equilibrium with garnet in the HA garnet peridotite, and delineated a P-T trajectory with a high P/T gradient (>3.1 GPa/100 °C) from 1.5–2.4 GPa at 700–800 °C to 2.9–3.8 GPa at 700–810 °C (Figure 10). Such P-T conditions are consistent with features of crystallographic preferred orientations (CPO) of olivines [16]. Mizukami et al. [16] reported B-type CPO in olivines [34] from HA peridotites. This strongly suggests that the olivines were deformed at hydrous and high-stress conditions such as in the supra-subduction zone mantle during the prograde metamorphism (D2 stage). The coexistence of olivine and antigorite in strongly foliated peridotites in the marginal part of the HA complex provides us with a possible uplift path (D3) from the peak of prograde metamorphism, i.e., 3.8 GPa/700 °C to around 1.0 GPa/500 °C [31] (Figure 10). After the D3 stage, the HA complex followed an exhumation path (D4) similar to the clockwise P-T trajectory of the surrounding Besshi unit, which mainly consists of pelitic and basic schists, and that path (D4) is related to the regional exhumation of the Sanbagawa belt (Figure 1). Then, retrograde amphiboles in garnet peridotite were probably formed at around 1.0 GPa and 600–700 °C [14,31] (Figure 9). In short, the HA complex was originally formed at an uppermost part of a mantle wedge and subsequently experienced UHP conditions, up to 3.8 GPa, before exhumation to the surface: it is of recycling origin along the boundary of the mantle wedge (Figure 10).
The HA chromitites are coherent to the surrounding peridotites (Figure 2) and they altogether share the same P-T trajectory (Figure 10). The chemical characteristics of the HA chromitites are consistent with this recycling model. Spinels from the HA peridotites show high Cr#s (>0.6), suggesting that the arc-related magma formed by high degree of partial melting was involved in formation of the HA ultramafic complex [17,32]. The spinel and PGE chemistries of the HA chromitites are also consistent with this interpretation (Figure 5 and Figure 9). The core of chromian spinels in the HA chromitites shows high Cr#s (0.65 to 0.85) and low TiO2 contents (<0.5 wt %) (Figure 5), suggesting the arc-magma parentage [31]. The HA chromitite spinels show the depletion in TiO2 content at a given Fe3+/(Cr + Al + Fe3+) atomic ratio of spinels (Figure 5c), which is characteristic of plutonics of a sub-arc origin [23] (Figure 5d). The enrichment of IPGE, such as Ir and Ru, and the negative slope from Ru to Pd in the PGE patterns (Figure 9b) suggest that the magma responsible for the formation of the HA chromitites had a highly depleted character [30]. The HA chromitites are also similar in the spinel chemistry and PGE chemistry to arc-related discordant chromitites from northern Oman ophiolite (Figure 5 and Figure 9). The Fo and NiO contents of olivine in chromitites have been enhanced through subsolidus re-equilibration with chromian spinel [35,36]. Original igneous olivines in the HA chromitites were lower in Fo and Ni contents than the current values. The HA chromitite olivines (Figure 8) indicate an evolved nature of the involved magma, a relationship which possibly means a strong action of olivine fractionation during the HA chromitite formation.
The presence of possible primary inclusions of pargasite in spinels (Figure 3g) indicates that the HA chromitites were formed within the stability field of pargasite, i.e., at a relatively low-P condition (<3 GPa) (Figure 10). The inclusion pargasite is significantly different in the mode of occurrence and chemistry from the ehimeite, a Cr-dominant Ca amphibole, formed by reaction between chromitite and the metamorphic fluid at a retrograde stage of the Sanbagawa metamorphism during the exhumation stage [22]. The pargasitic amphibole in spinel may have been unstable at the peak metamorphic condition that the HA complex has experienced (>3 GPa, 700–800 °C to <3.8 GPa, 500–700 °C) (Figure 10), based on experimental data so far obtained [37,38,39,40,41]. Recent experimental study of alkali amphiboles under hydrous conditions, however, indicates that some alkali amphiboles are potentially stable under such a P-T condition [42] (Figure 10). In summary, the HA chromitites have probably experienced a UHP condition, within the stability field of coesite but slightly lower than the diamond stability field, although no UHP minerals have ever been found.
Presence of the diopside lamellae in spinel from the HA chromitites (Figure 3 and Figure 4) suggests some long duration of subsolidus cooling and/or decompression of the chromitite [4,9]. The exsolved silicate lamellae in the HA chromitites (Figure 3 and Figure 5) are possibly originated from silicate components in the primary magmatic chromian spinel; natural chromitite spinels equilibrated at low temperatures are very poor in Si and Ca [1]. The diopside lamellae are dominant in the central part of coarse spinel grains, which is relatively low in Fe3+ and high in Al contents, and decrease sharply in abundance to their marginal part in banded chromitites (thin chromitite bands) (Figure 3d and Figure 7). Such distribution of silicate lamellae is possibly due to high mobility of the components, which have been diffused away outside the spinel grains to join the silicate matrix during cooling. This is supported by the similarity with the distribution pattern of diopsidic clinopyroxene exsolution lamellae in cooled mantle orthopyroxene porphyroclasts in peridotites (Figure 7), where the high-T diopsidic component was exsolved as lamellae in the central part and diffused out from the marginal part of the orthopyroxene grain (Figure 7).
The HA chromitites are different in geological and petrographic characteristics from typical podiform chromitites from ophiolites, such as those from the Oman ophiolite [4,30]. Mantle harzburgites, which usually host podiform chromitites with a dunite envelope [1], are completely missing in the HA peridotite complex. The thick dunite-wherlite-clinopyroxenite suite hosting chromitites in the HA complex is equivalent to a cumulus mantle [17,32] or a kind of Moho transition zone (MTZ) in the sub-arc mantle [46,47,48,49]. We interpret that the dunite-dominant HA complex itself is equivalent to the dunite envelope of podiform chromitites, as discussed by Arai and Abe [48] on sub-arc podiform chromitites beneath the Southwest Japan arc.

5.2. Comparison with the UHP Chromitites from Tibet and the Polar Urals

The HA chromitites are similar in petrographic feature to UHP chromitites, except for the absence of the peculiar UHP minerals, from Tibet and the Polar Urals. The Lubusa ophiolite, one of the ophiolites that contain UHP chromitites, on the east-end of the Indus-Yarlung-Zangbo suture zone, Tibet (Figure 11a,b) has been interpreted to have originated at a mid-ocean ridge between the Indian and the Asian continents [50]. This ophiolite was obducted as a slice of the Neo-Tethyan oceanic lithosphere due to collision of the two continents in the Early Paleogene (around 65 Ma) [51], and experienced later modification at a subduction zone environment before its obduction [50]. The Ray-Iz ophiolite, another example of the UHP chromitite occurrence [7], is located in the Polar Ural region (Figure 11c–e), and was emplaced by collision of the Magnitogosrk arc and the East Europian continent block in the mid-Paleozoic around 400 Ma [52]. Ultramafic and mafic rocks in this region reflect a series of westward-directed thrust stacks in which the oceanic and arc sequences lie on the continental margin of the European plate [53].
As previously mentioned, the spinels from the HA chromitites have numerous diopside lamellae (Figure 3). This feature is shared with the UHP chromitites from Tibet and the Polar Urals [9,24] (Figure 12). Yamamoto et al. [9] and Miura [24] reported silicate lamellae from spinels in the UHP chromitites from Tibet and the Polar Urals, respectively. Such silicate lamellae have been also observed from spinels in UHP metamorphic spinel-garnet peridotites from the Bohemian Massif, Czech Republic [44]. Additionally, pods of the UHP chromitites from both the Tibetan and the Polar Ural ophiolites are mostly concordant to the foliation of surrounding mantle peridotite. The structural characteristics of the mantle peridotites suggest that they have experienced deformation possibly via mantle convection flow [55]. Arai et al. [56] observed pull-apart cracks in chromite grains filled by olivine (PACO texture) in the Tibetan UHP chromitites, and suggested the PACO texture possibly indicates brittle deformation of spinels and ductile behavior of olivine at a UHP condition [28]. The PACO texture was also described from the Polar Urals UHP chromitites [24]. As described above, the HA chromitite share the PACO texture (Figure 3b) with the UHP Tibetan and Polar Ural chromitites. This suggests that they share the similar geotectonic history too. In addition, the spinels from both the Tibetan and Polar Ural UHP chromitites show high Cr#s (around 0.8 to 0.85) and low TiO2 contents (<0.2 wt %), indicating their arc-related magmatic origin [24,57] (Figure 6). This is consistent with their PGE chemistries, which result favors the highly depleted magma parentage for the UHP chromitites (Figure 9). Again, the UHP chromitites share the similar spinel chemistry and PGE characteristics with the HA chromitites; arc-related depleted magmas formed protoliths of these chromitites. After the igneous formation, the HA chromitites as well as the other UHP chromitites were possibly experienced deep recycling at subduction zones. The deep subduction can produce the UHP chromitites from the sub-arc low-P chromitites (Figure 13). We suggest that the HA chromitite is potentially a UHP chromitite although now UHP minerals such as coesite and diamond have not been found (Figure 10).

6. Implications for Origin of UHP Chromitites

The HA chromitites were formed in a thick MTZ composed of a dunite-wehrlite-clinopyroxenite suite by sub-arc magma, which had a highly depleted feature (Figure 13a) as in a sub-arc lithosphere model based on xenoliths by Arai et al. [58]. After the igneous and subsequent in situ cooling stage, they were transported via subduction channel by active mantle flow within a mantle wedge (a path from (a) to (b) in Figure 12a). Then, the long duration of subsolidus cooling by subducted slab probably induced the exsolution of diopside lamellae in chromian spinel (Figure 13b). The chromitites were deformed under UHP conditions (up to 3.8 GPa) during the prograde metamorphism of the HA complex, and then the PACO texture was produced in spinel grains (Figure 3b). After the modification at UHP conditions, they were exhumed together with the surrounding Sanbagawa metamorphic rocks (Figure 10 and Figure 13).
Several models for the formation of UHP chromitites were proposed. Ruskov et al. [10] and Yang et al. [7] interpreted these UHP chromitites as deep-mantle igneous products to explain the presence of some UHP minerals, such as euhedral diamonds and possible coesite pseudomorphs after stishovite. They cannot explain, however, geological and petrological features of the UHP chromitites, which are shared with low-P chromitites. Arai [11,12] instead proposed a deep recycling model, where the UHP chromitites can be formed from low-P chromitites by UHP metamorphism (deep recycling) via mantle convection flow. This model explains many features of UHP chromitites.
UHP chromitites from both the Tibetan and Polar Ural ophiolites are divided into two types in terms of mineral species as inclusions in spinel [24]. One (e.g., LA326 and LT69 in Figure 10b) is characterized by the coexistence of diopside (and rarely coesite described by Yamamoto et al. [9]) lamellae and primary Na amphibole inclusion in spinel [24] (Figure 11a,c). The other contains diamonds (e.g., Cr-11 body in Figure 10b and No. 384 body in Figure 10e) [7,8], and is free of the primary Na amphibole inclusion (Figure 9b,d) [24]. Coexistence of coesite and Na amphibole inclusions in spinel in the former indicates a conditions of relatively low temperature (around 700 to 800 °C) and high pressure (around 3 GPa) (Figure 9), which is possibly available from the mantle wedge. UHP metamorphism in a subduction zone environment is clearly more favorable than the deep-mantle igneous origin beneath mid-ocean ridge [8,10,59] for this type of UHP chromitite (Figure 9). This is concordant with a model of Arai [11,12] where deep recycling to the base of the upper mantle (<12–16 GPa [60,61,62,63]) produces UHP chromitites from low-P igneous ones. Current high-P experimental studies in the systems of MgCr2O4-FeCr2O4 and MgCr2O4-Mg2SiO4 suggested that UHP chromitites were possibly formed at shallower parts of mantle than the mantle transition zone [60,61,62,63]. Some petrographic and isotopic characteristics of UHP chromitites and surrounding peridotites from Tibet support the UHP metamorphism model in a subduction zone above [64,65]. The latter diamond-bearing UHP chromitites are possibly of deeper mantle origin than the former amphibole-bearing UHP chromitites because of the absence of primary amphibole inclusion in spinel (Figure 9). The HA chromitites are similar to the amphibole-bearing type of UHP chromitites in petrographic and chemical characteristics. The UHP chromitites, at least in part, can be formed by UHP metamorphism from low-P chromitites.

Author Contributions

M.M., S.A., T.M., V.R.S., and S.I. collected samples; M.M. prepared samples and performed the Raman spectroscopic and EPMA analyses; M.M., and S.A. wrote manuscript; M.M. designed the figures and tables.

Funding

This study was partly supported by JSPS KAKENHI (grant number 25.8426) and Fukada Grant-in-Aid.

Acknowledgments

We are grateful to E. Pushkarev, D. Kuznetsov, and D. Dyuryagina for their assistance during our fieldwork in the Polar Urals, and to S. Ishigami for his assistance in fieldworks in the Higashi-akaishi peridotite body. S. Yamamoto kindly provided us UHP chromitite samples from Tibet. We appreciate S. Umino, T. Morishita, A. Tamura, and Y. Soda for their discussions. Comments from three anonymous reviewers improved our manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arai, S.; Yurimoto, H. Podiform chromitites of the Tari-Misaka ultramafic complex, southwestern Japan, as mantle-melt interaction products. Econ. Geol. 1994, 89, 1279–1288. [Google Scholar] [CrossRef]
  2. Zhou, M.; Robinson, P.Y.; Bai, W.J. Formation of podiform chromitites by melt/rock interaction in the upper mantle. Miner. Deposita 1994, 29, 98–101. [Google Scholar] [CrossRef]
  3. Borisova, A.Y.; Ceuleneer, G.; Kamenetsky, V.S.; Arai, S.; Béjina, F.; Abily, B.; Bindeman, I.N.; Polve, M.; Parseval, P.D.; Aigouy, T.; et al. A new view on the petrogenesis of the Oman ophiolite chromitites from microanalyses of chromite-hosted inclusions. J. Petrol. 2012, 53, 2411–2440. [Google Scholar] [CrossRef]
  4. Miura, M.; Arai, S.; Ahmed, A.H.; Mizukami, T.; Okuno, M.; Yamamoto, S. Podiform chromitite classification revisited: A comparison of discordant and concordant chromitite pods from Wadi Hilti, northern Oman ophiolite. J. Asian Earth Sci. 2012, 59, 52–61. [Google Scholar] [CrossRef]
  5. Robison, P.T.; Bai, W.-J.; Malpas, J.; Yang, J.-S.; Zhou, M.F.; Fang, Q.-S.; Hu, X.-F.; Cameron, S.; Staudigei, H. Ultra-high pressure minerals in the Luobusa Ophiolite, Tibet, and their tectonic implications. In Aspects of the Tectonic Evolution of China; Malpas, J., Fletcher, C.J.N., Ali, J.R., Aitchison, J.C., Eds.; Geological Society of London: London, UK, 2004; pp. 247–271. [Google Scholar]
  6. Yang, J.; Dobzhinetskaya, L.; Bai, W.-J.; Fang, Q.-S.; Robinson, P.T.; Zhang, J.; GreenII, H.W. Diamond- and coesite-bearing chromitites from the Luobusa ophiolite, Tibet. Geology 2007, 35, 875–878. [Google Scholar] [CrossRef]
  7. Yang, J.; Meng, F.; Xu, X.; Robinson, P.T.; Dilek, Y.; Makeyev, A.B.; Wirth, R.; Wiedenbeck, M.; Griffin, W.L.; Cliff, J. Diamonds, native elements and metal alloys from chromitites of the Ray-Iz ophiolite of the Polar Urals. Gondwana Res. 2015, 27, 459–485. [Google Scholar] [CrossRef]
  8. Xu, X.; Yang, J.; Songyong, C.; Qingsong, F.; Wenji, B. Unusual Mantle Mineral Group from Chromitite Orebody Cr-11 in Luobusa Ophiolite of Yarlung-Zangbo Suture Zone, Tibet. J. Earth Sci. 2009, 20, 284–302. [Google Scholar] [CrossRef]
  9. Yamamoto, S.; Komiya, T.; Hirose, K.; Maruyama, S. Coesite and clinopyroxene exsolution lamellae in chromitites: In-situ ultrahigh-pressure evidence from podiform chromitites in the Luobusa ophiolite, southern Tibet. Lithos 2009, 109, 314–322. [Google Scholar] [CrossRef]
  10. Ruskov, T.; Spirov, I.; Georgieve, M.; Yamamoto, S.; Green, H.W.; McCammon, C.A.; Dobrzhinetskaya, L.F. Mössbauer spectroscopy studies of the valence state of iron in chromite from the Luobusa massif of Tibet: Implications for a highly reduced deep mantle. J. Metamorph. Geol. 2010, 28, 551–560. [Google Scholar] [CrossRef]
  11. Arai, S. Possible recycled origin for ultrahigh-pressure chromitites in ophiolites. J. Miner. Petrol. Sci. 2010, 105, 280–285. [Google Scholar] [CrossRef] [Green Version]
  12. Arai, S. Conversion of low-pressure chromitites to ultrahigh-pressure chromitites by deep recycling: A good inference. Earth Planet Sci. Lett. 2013, 379, 81–87. [Google Scholar] [CrossRef]
  13. Banno, S.; Yoshino, G. Eclogite-bearing peridotite mass at Higashi-akaishi-yama in the Bessi Area, central Shikoku, Japan. In Upper Mantle Symposium New Dehli; Smith, C.H., Sorgenfrei, T., Eds.; Det Berlingske Bogtrykkeri: Copenhagen, Germany, 1964; pp. 150–160. [Google Scholar]
  14. Enami, M.; Mizukami, T.; Yokoyama, K. Metamorphic evolution of garnet-bearing ultramafic rocks from the Gongen area, Sanbagawa belt, Japan. J. Metamorph. Geol. 2004, 22, 1–15. [Google Scholar] [CrossRef]
  15. Enami, M.; Mizukami, T. P-T-D Evolution of the Higashi-akaishi Ultramafic Mass in the Sanbagawa Metamorphic Belt, Central Shikoku, Japan: Subduction of Wedge Mantle Peridotite. J. Geogr. 2004, 113, 617–632. [Google Scholar] [CrossRef] [Green Version]
  16. Mizukami, T.; Wallis, S.; Yamamoto, J. Natural examples of olivine lattice preferred orientation patterns with a flow-normal a-axis maximum. Nature 2004, 427, 432–436. [Google Scholar] [CrossRef] [PubMed]
  17. Hattori, K.; Wallis, S.; Enami, M.; Mizukami, T. Subduction of mantle wedge peridotites: Evidence from the Higashi-akaishi ultramafic body in the Sanbagawa metamorphic belt. Isl. ARC 2010, 19, 192–207. [Google Scholar] [CrossRef]
  18. Wallis, S.R.; Okudaira, T. Paired metamorphic belts of SW Japan: The geology of the Sanbagawa and Ryoke metamorphic belts and the Median Tectonic Line. In The Geology of Japan; Moreno, T., Wallis, S., Kojima, T., Gibbons, W., Eds.; The Geological Society of London: London, UK, 2016; pp. 101–124. [Google Scholar]
  19. Kunugiza, K.; Takasu, A.; Banno, S. The origin and metamorphic history of the ultramafic and metagabbro bodies in the Sanbagawa metamorphic belt. Geol. Soc. Am. Mem. 1986, 164, 375–386. [Google Scholar]
  20. Utsunomiya, A.; Jahn, B.-M.; Okamoto, K.; Ota, T.; Shinjoe, H. Intra-oceanic island arc origin for Iratsu eclogites of the Sanbagawa belt, central Shikoku, southwest Japan. Chem. Geol. 2011, 280, 97–114. [Google Scholar] [CrossRef]
  21. Yamada, M. On the dunite and chromite deposites of the Akaishi mine, Ehime Prefecture. Bull. Geol. Surv. Jpn. 1953, 4, 751–756. [Google Scholar]
  22. Nishio-Hamane, D.; Ohnishi, M.; Minakawa, T.; Yamaura, J.; Saito, S.; Kadota, R. Ehimeite, NaCa2Mg4CrSi6Al2O22(OH)2: The first Cr-dominant amphibole from the Akaishi Mine, Higashi-Akaishi Mountain, Ehime Prefecture, Japan. J. Miner. Petrol. Sci. 2012, 107, 1–7. [Google Scholar] [CrossRef]
  23. Arai, S.; Okamura, H.; Kadoshima, K.; Tanaka, C.; Suzuki, K.; Ishimaru, S. Chemical characteristics of chromian spinel in plutonic rocks: Implications for deep magma processes and discrimination of tectonic setting. Isl. ARC 2011, 20, 125–137. [Google Scholar] [CrossRef]
  24. Miura, M. Integrated Petrogenesis of Podiform Chromitites. Ph.D. Thesis, Kanazawa University, Kanazawa, Japan, 2015. [Google Scholar]
  25. Huang, E.; Chen, C.H.; Huang, T.; Lin, E.H.; Xu, J.-A. Raman spectroscopic characteristics of Mg-Fe-Ca pyroxenes. Am. Mineral. 2000, 85, 473–479. [Google Scholar] [CrossRef]
  26. Kunugiza, K. Two contrasting types of zoned chromite of the Mt. Higashi-akaishi peridotite body of the Sanbagawa metamorphic belt, Central Shikoku. J. Jpn. Assoc. Mineral. 1981, 76, 331–342. [Google Scholar] [CrossRef]
  27. Arai, S.; Shimizu, Y.; Ismail, S.A.; Ahmed, A.H. Low-T formation of high-Cr spinel with apparently primary chemical characteristics within podiform chromitite from Rayat, northeastern Iraq. Miner. Mag. 2006, 70, 499–508. [Google Scholar] [CrossRef]
  28. Arai, S.; Miura, M. Formation and modification of chromities in the mantle. Lithos 2016, 264, 277–295. [Google Scholar] [CrossRef]
  29. Takahashi, E.; Uto, K.; Schilling, J.-G. Primary Magma Compositions and Mg/Fe Ratios of Their Mantle Residues along Mid Atlantic Ridge 29° N to 73° N; Technical Reports ISEI; Okayama University: Okayama, Japan, 1987; pp. 1–4. [Google Scholar]
  30. Ahmed, A.H.; Arai, S. Unexpectedly high-PGE chromitite from the deeper mantle section of the northern Oman ophiolite and its tectonic implications. Contrib. Miner. Petrol. 2002, 143, 263–278. [Google Scholar] [CrossRef]
  31. Mizukami, T.; Wallis, S.R. Structural and Petrological constraints on the tectonic evolution of the garnet-lherzolite facies Higashi-akaishi peridotite body, Sanbagawa belt, SW Japan. Tectonics 2005. [Google Scholar] [CrossRef]
  32. Hattori, T. Petrology of Higashi-Akaishi Ultramafic Complex in the Sanbagawa Metamorphic Belt, Japan: Cumulates from Magma Related to Highly Depleted Mantle. Master’s Thesis, Kanazawa University, Kanazawa, Japan, 2012. [Google Scholar]
  33. Kushiro, I.; Yoder, H.S. Formation of eclogite from garnet peridotite: Liquidus relations in the portion of the system MgSiO3-CaSiO3-Al2O3 at high pressure. In Carnegie Institute Year Book; The John D. Lucas Printing Company: Baltimore, Maryland, USA, 1974; Volume 73, pp. 266–269. [Google Scholar]
  34. Jung, H.; Karato, S. Water-induced fabric transitions in olivine. Science 2001, 293, 1460–1463. [Google Scholar] [CrossRef] [PubMed]
  35. Arai, S. Dunite-harzburgite-chromitite complexes as refractory residue in the Sangun-Yamaguchi zone, western Japan. J. Petrol. 1980, 21, 141–165. [Google Scholar] [CrossRef]
  36. Tzamos, E.; Filippidis, A.; Rassios, A.; Grieco, G.; Michailidis, K.; Koroneos, A.; Stamoulis, K.; Pedrotti, M.; Gamaletsos, P.N. Major and minor element geochemistry of chromite from the Xerolivado-Skoumtsa mine, Southern Vourinos: Implications for chrome ore exploration. J. Geochem. Explor. 2016, 165, 81–93. [Google Scholar] [CrossRef]
  37. Foley, S. High-pressure stability of the fluor- and hydroxyl-endmembers of pargasite and K-richterite. Geochim. Cosmochim. Acta 1991, 55, 2689–2694. [Google Scholar] [CrossRef]
  38. Niida, K.; Green, D.H. Stability and chemical composition of pargasitic amphibole in MORB pyrolite under upper mantle conditions. Contrib. Miner. Petrol. 1999, 135, 18–40. [Google Scholar] [CrossRef]
  39. Fumagalli, P.; Poli, S. Experimentally determined phase relations in hydrous peridotites to 6.5 GPa and their consequences on the dynamics of subduction zones. J. Petrol. 2005, 46, 555–578. [Google Scholar] [CrossRef]
  40. Fumagalli, P.; Zanchetta, S.; Poli, S. Alkali in phlogopite and amphibole and their effects on phase relations in metasomatized peridotites: A high-pressure study. Contrib. Miner. Petrol. 2009, 158, 723–737. [Google Scholar] [CrossRef]
  41. Frost, D.J. The stability of Hydrous Mantle Phases. Rev. Miner. Geochem. 2006, 62, 243–271. [Google Scholar] [CrossRef]
  42. Pirard, C.; Hermann, J. Experimentally determined stability of alkali amphibole in metasomatised dunite at sub-arc pressures. Contrib. Miner. Petrol. 2015. [Google Scholar] [CrossRef]
  43. Green, D.H.; Ringwood, A.E. The stability fields of aluminous pyroxene peridotite and garnet peridotite and their relevance in upper mantle structute. Earth Planet Sci. Lett. 1967, 3, 151–160. [Google Scholar] [CrossRef]
  44. Naemura, K.; Ikuta, D.; Kagi, H.; Odake, S.; Ueda, T.; Ohi, S.; Kobayashi, T.; Svojtka, M.; Hirajima, T. Diamond and other possible ultra-deep evidence discovered in the orogentic spinel-garnet peridotite from the Moldanubian Zone of the Bohemian Massif, Czech Republic. In Ultrahigh-Pressure Metamorphism, 25 Years after the Discovery of Coesite and Diamond; Dobrzhinetskayam, L., Faryad, S.W., Wallis, S., Cuthbert, S., Eds.; Elsevier: Amsterdam, The Netherlands, 2011; pp. 77–105. [Google Scholar]
  45. Mirwald, P.W.; Massonne, H.-J. The Low-High Quartz and Quartz-Coesite Transition to 40 kbar Between 600 °C and 1600 °C and Some Reconnaissance Data on the Effect of NaAlO2 Component on the Low Quartz-Coesite Transition. J. Geophys. Res. 1980, 85, 6983–6990. [Google Scholar] [CrossRef]
  46. Arai, S.; Abe, N. Podiform chromitite in the arc mantle: Chromitite xenoliths from the Takashima alkali basalt, Southwest Japan arc. Miner. Deposita 1994, 29, 434–438. [Google Scholar] [CrossRef]
  47. Parlak, O.; Delaloye, M.; Bíngöl, E. Mineral chemistry of ultramafic and mafic cumulates as an indicator of the arc-related origin of the Mersín ophiolite (southern Turkey). Geol. Rundsch. 1996, 85, 647–661. [Google Scholar] [CrossRef]
  48. Arai, S.; Abe, N.; Hirai, H.; Shimizu, Y. Geological, petrographical and petrological characteristics of ultramafic-mafic xenoliths in Kurose and Takashima, northern Kyushu, southwestern Japan. Sci. Rep. Kanazawa Univ. 2001, 46, 9–37. [Google Scholar]
  49. Miura, M.; Arai, S. Platinum-group element and mineral characteristics of sub-arc chromitite xenoliths from the Takashima alkali basalt, southwest Japan arc. Can. Miner. 2014, 52, 899–916. [Google Scholar] [CrossRef]
  50. Zhou, M.-F.; Robinson, P.T. Malpas, J.; Li, Z. Podiform chromitites in the Luobusa ophiolite (Southern Tibet): Implications for melt-rock interaction and chromite segregation in the upper mantle. J. Petrol. 1996, 37, 3–21. [Google Scholar] [CrossRef]
  51. Aitchison, J.C.; Badengzhu, D.A.M. Remnants of a Cretaceous intra-oceanic subduction system within the Yarlung-Zangbo suture (southern Tibet). Earth Planet Sci. Lett. 2000, 183, 231–244. [Google Scholar] [CrossRef]
  52. Shmelev, V.R.; Meng, F.C. Thenature and age of basic rocks of the Rai-Iz ophiolite massif (Polar Urals). Dokl. Earth Sci. 2013, 451, 758–761. [Google Scholar] [CrossRef]
  53. Savelieva, G.N.; Nesbitt, R.W. A synthesis of the stratigraphic and tectonic setting of the Uralian ophiolites. J. Geol. Soc. 1996, 153, 525–537. [Google Scholar] [CrossRef]
  54. Shmelev, V.R. Mantle ultrabasites of ophiolite complexes in the Polar Urals: Petrogenesis and geodynamic environments. Petrology 2011, 19, 618–640. [Google Scholar] [CrossRef]
  55. Cassard, D.; Nicolas, A.; Rabinovitch, M.; Moutte, J.; Leblanc, M.; Prinzhofer, A. Structural classification of chromite pods in southern New Caledonia. Econ. Geol. 1981, 76, 805–831. [Google Scholar] [CrossRef]
  56. Arai, S.; Miura, M.; Yamamoto, S.; Shmelev, V. Textural and petrological characteristics of ultrahigh-pressure chromitites, indicating a mantle recycling origin? In Proceedings of the EGU General Assembly, Vienna, Austria, 7–12 April 2013.
  57. Xu, X.; Yang, J.; Ba, D.; Guo, G.; Robinson, P.T.; Li, J. Petrogenesis of the Kangjinla peridotite in the Luobusa ophiolite, Southern Tibet. J. Asian Earth Sci. 2011, 42, 553–568. [Google Scholar] [CrossRef]
  58. Arai, S.; Hirai, H.; Uto, K. Mantle peridotite xenoliths from the Southwest Japan arc: A model for the sub-arc upper mantle structure and composition of the Western Pacific rim. J. Miner. Petrol. Sci. 2000, 95, 9–23. [Google Scholar] [CrossRef]
  59. Xiong, F.; Yang, J.; Robinson, P.T.; Xu, X.; Liu, Z.; Li, Y.; Li, J.; Chen, S. Origin of podiform chromitite, a new model based on the Luobusa ophiolite, Tibet. Gondwana Res. 2015, 27, 525–542. [Google Scholar] [CrossRef]
  60. Ishii, T.; Kojitani, H.; Tsukamoto, S.; Fujino, K.; Mori, D.; Inaguma, Y.; Tsujino, N.; Yoshino, T.; Yamazaki, D.; Higo, Y.; et al. High-pressure phase transitions in FeCr2O4 and structure analysis of new post-spinel FeCr2O4 and Fe2Cr2O5 phases with meteoritical and petrological implications. Am. Miner. 2014, 99, 1788–1797. [Google Scholar] [CrossRef]
  61. Ishii, T.; Kojitani, H.; Fujino, K.; Yusa, H.; Mori, D.; Inaguma, Y.; Matsushita, Y.; Yamaura, K.; Akaogi, M. High-pressure high-temperature transitions in MgCr2O4 and crystal structures of new Mg2Cr2O5 and post-spinel MgCr2O4 phases with implications for ultrahigh-pressure chromitites in ophiolites. Am. Miner. 2015, 100, 59–65. [Google Scholar] [CrossRef]
  62. Ishii, T.; Tsujino, N.; Arii, H.; Fujino, K.; Miyajima, N.; Kojitani, H.; Kunimoto, T.; Akaogi, M. A shallow origin of so-called ultrahigh-pressure chromitites, based on single-crystal X-ray structure analysis of the high-pressure Mg2Cr2O5 phase, with modified ludwigite-type structure. Am. Miner. 2017, 102, 2113–2118. [Google Scholar] [CrossRef]
  63. Akaogi, M.; Kawahara, A.; Hiroshi, K.; Yoshida, K.; Anegawa, Y.; Ishii, T. High-pressure phase transitions in MgCr2O4·Mg2SiO4 composition: Reactions between olivine and chromite with implications for ultrahigh-pressure chromitites. Am. Miner. 2018, 103, 161–170. [Google Scholar] [CrossRef]
  64. Huang, M.-X.; Yang, J.-J.; Powell, R.; Mo, X. High-pressure metamorphism of serpentinized chromitite at Luobusa (Southern Tibet). Am. J. Sci. 2014, 314, 400–433. [Google Scholar] [CrossRef]
  65. McGowan, N.M.; Griffin, W.L.; González-Jiménez, J.M.; Belousova, E.; Afonso, J.G.; Shi, R.; McCammon, C.A.; Pearson, N.J.; O’Reilly, S.Y. Tibetan chromitites: Excavating the slab graveyard. Geology 2015, 43, 179–182. [Google Scholar] [CrossRef]
Minerals 08 00525 g001 550

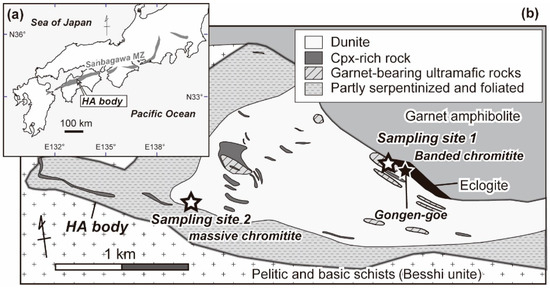

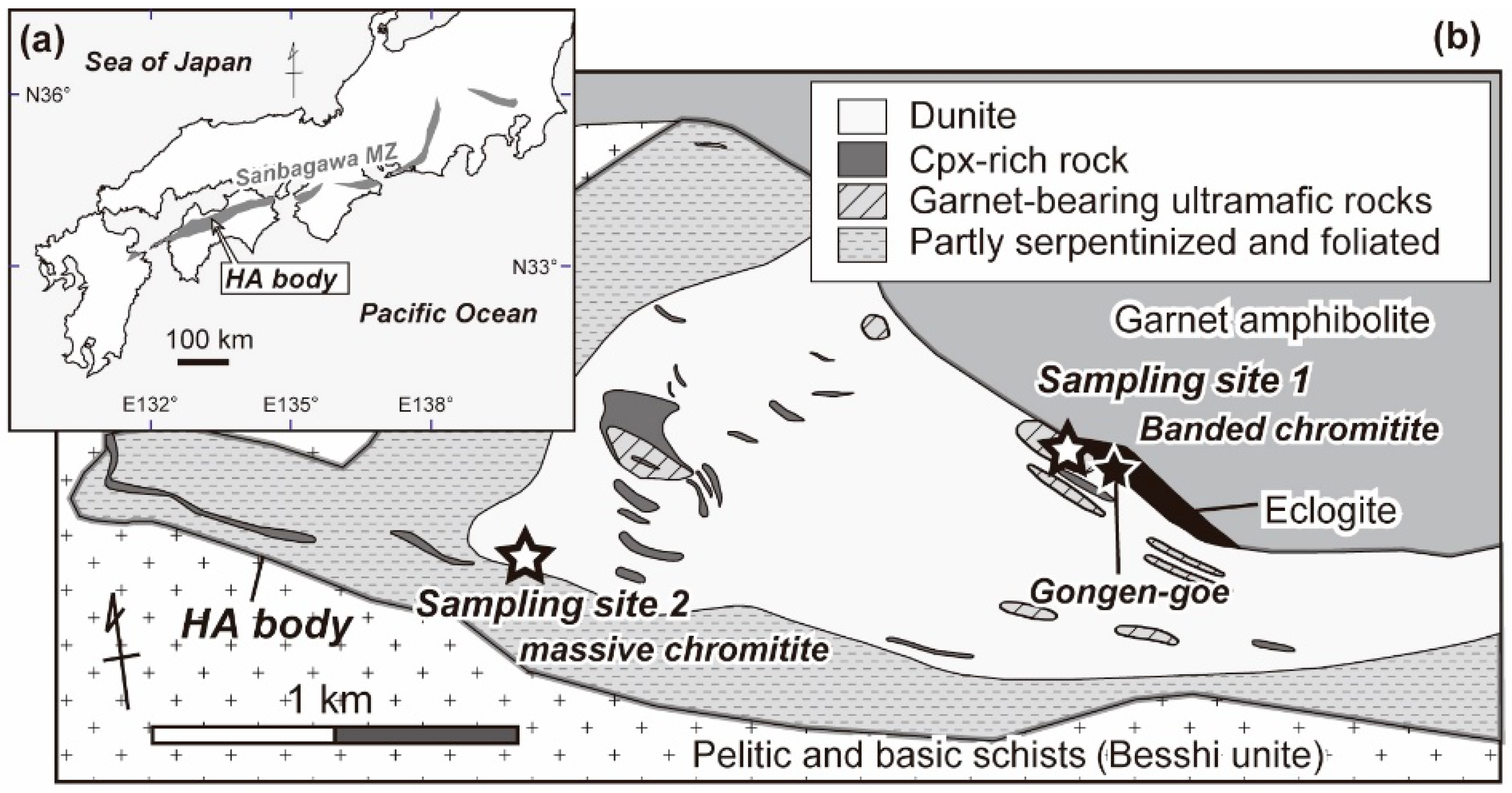

Figure 1. Locality and geological sketch maps of the Higashi-akaishi ultramafic complex located on the Sanbagawa high-P metamorphic zone. (a) Location of the Higashi-akaishi ultramafic complex. (b) General geological sketch of the Higashi-akaishi ultramafic complex and surrounding metamorphic rocks. Modified from Hattori et al. [17]. Open star, sampling localities.
Figure 1. Locality and geological sketch maps of the Higashi-akaishi ultramafic complex located on the Sanbagawa high-P metamorphic zone. (a) Location of the Higashi-akaishi ultramafic complex. (b) General geological sketch of the Higashi-akaishi ultramafic complex and surrounding metamorphic rocks. Modified from Hattori et al. [17]. Open star, sampling localities.
Minerals 08 00525 g001
Minerals 08 00525 g002 550

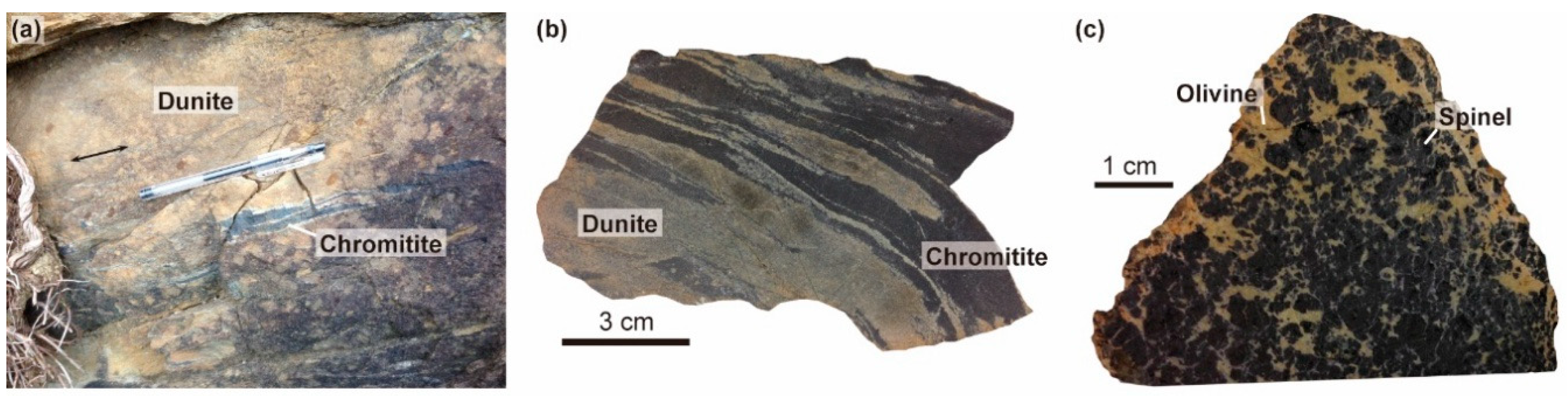

Figure 2. Chromitites from the Higashi-akaishi ultramafic complex. (a) Banded chromitite pods in dunite closed to the contact with eclogite-facies rocks (Figure 1). Chromitite is concordant to the foliation of the surrounding dunite (black arrow). (b) A folded banded chromitite in a boulder from scree near the Gongen-goe. Note the strongly deformed nature. (c) A massive chromitite sample (boulder) from sampling site 2. Yellowish part (silicate matrix) is composed of olivine.
Figure 2. Chromitites from the Higashi-akaishi ultramafic complex. (a) Banded chromitite pods in dunite closed to the contact with eclogite-facies rocks (Figure 1). Chromitite is concordant to the foliation of the surrounding dunite (black arrow). (b) A folded banded chromitite in a boulder from scree near the Gongen-goe. Note the strongly deformed nature. (c) A massive chromitite sample (boulder) from sampling site 2. Yellowish part (silicate matrix) is composed of olivine.
Minerals 08 00525 g002
Minerals 08 00525 g003 550

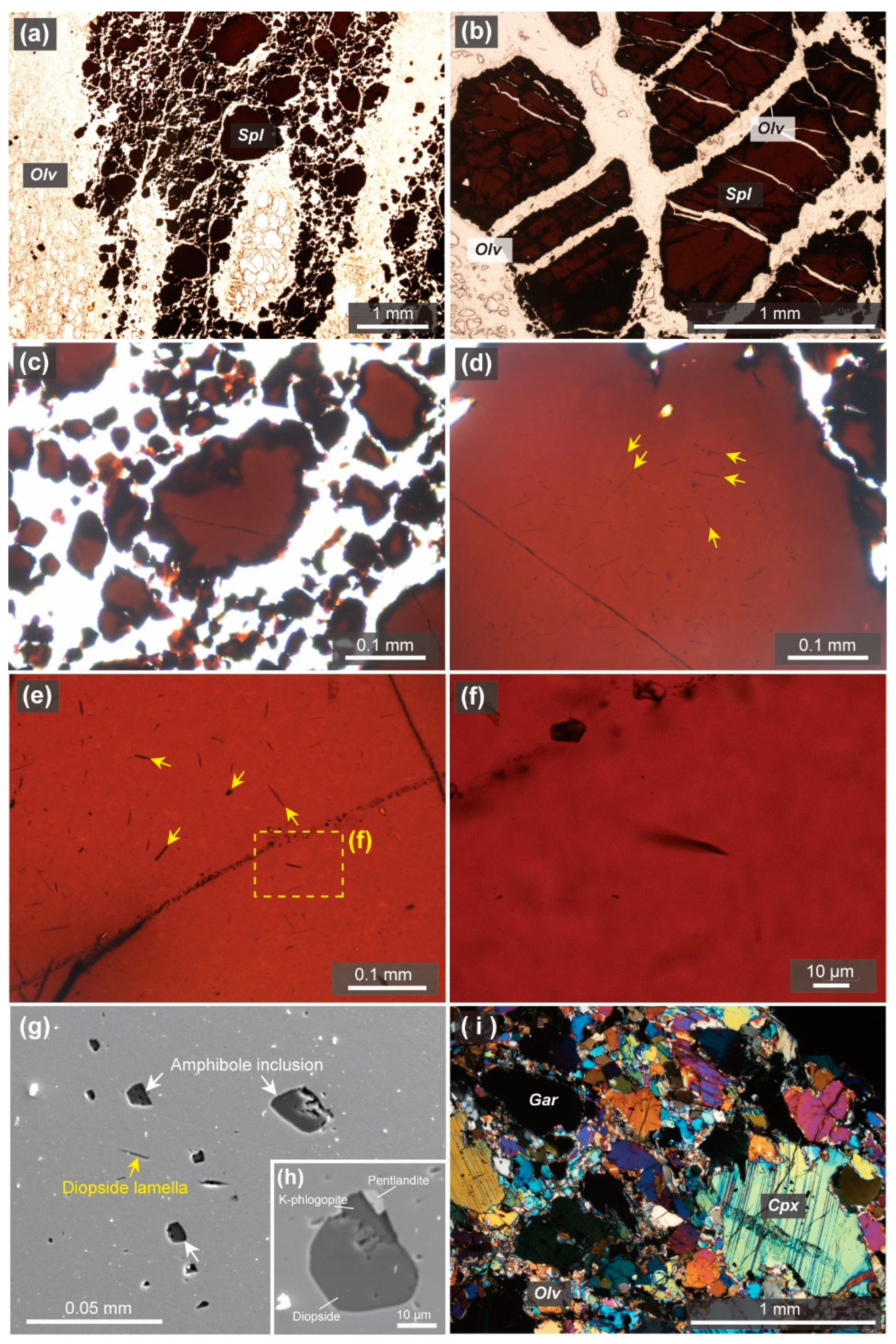

Figure 3. Photomicrographs of chromitites and surrounding garnet-bearing wehrlite from the Higashi-akaishi ultramafic complex. Plane-polarized light (a–f), backscattered electron (g–h) and crossed-polarized light (i) images. (a) Banded chromitite (HC123) from the Gongen-goe (sampling site in Figure 1b). Note that spinels are strongly deformed. (b) Massive chromitite (HA-1) from western part of the Higashi-akaishi ultramafic complex (sampling site 2 in Figure 1b). Note the olivine-filled fractures in spinel. (c) Close-up image of a fine-grained part in banded chromitite (HC-123). (d) Close-up image of a coarse spinel grain in banded chromitite (HC-123). Note that the only core part contains numerous needle- and blade-like silicate lamellae. (e) Spinel of the massive chromitite (HA-1) containing silicate lamellae (yellow arrow). Several silicate lamellae show parallelism. (f) Close-up image of a blade-like silicate lamella. (g) Back-scattered electron image of primary silicate mineral inclusions (pyroxenes and amphibole) (white arrows) and silicate exsolution. (h) Back-scattered electron image of a primary inclusion composed of diopside + K-phlogopite + pentlandite in spinel. (i) Surrounding garnet-bearing wehrlite from the Gongen-goe mountain path.
Figure 3. Photomicrographs of chromitites and surrounding garnet-bearing wehrlite from the Higashi-akaishi ultramafic complex. Plane-polarized light (a–f), backscattered electron (g–h) and crossed-polarized light (i) images. (a) Banded chromitite (HC123) from the Gongen-goe (sampling site in Figure 1b). Note that spinels are strongly deformed. (b) Massive chromitite (HA-1) from western part of the Higashi-akaishi ultramafic complex (sampling site 2 in Figure 1b). Note the olivine-filled fractures in spinel. (c) Close-up image of a fine-grained part in banded chromitite (HC-123). (d) Close-up image of a coarse spinel grain in banded chromitite (HC-123). Note that the only core part contains numerous needle- and blade-like silicate lamellae. (e) Spinel of the massive chromitite (HA-1) containing silicate lamellae (yellow arrow). Several silicate lamellae show parallelism. (f) Close-up image of a blade-like silicate lamella. (g) Back-scattered electron image of primary silicate mineral inclusions (pyroxenes and amphibole) (white arrows) and silicate exsolution. (h) Back-scattered electron image of a primary inclusion composed of diopside + K-phlogopite + pentlandite in spinel. (i) Surrounding garnet-bearing wehrlite from the Gongen-goe mountain path.
Minerals 08 00525 g003
Minerals 08 00525 g004 550

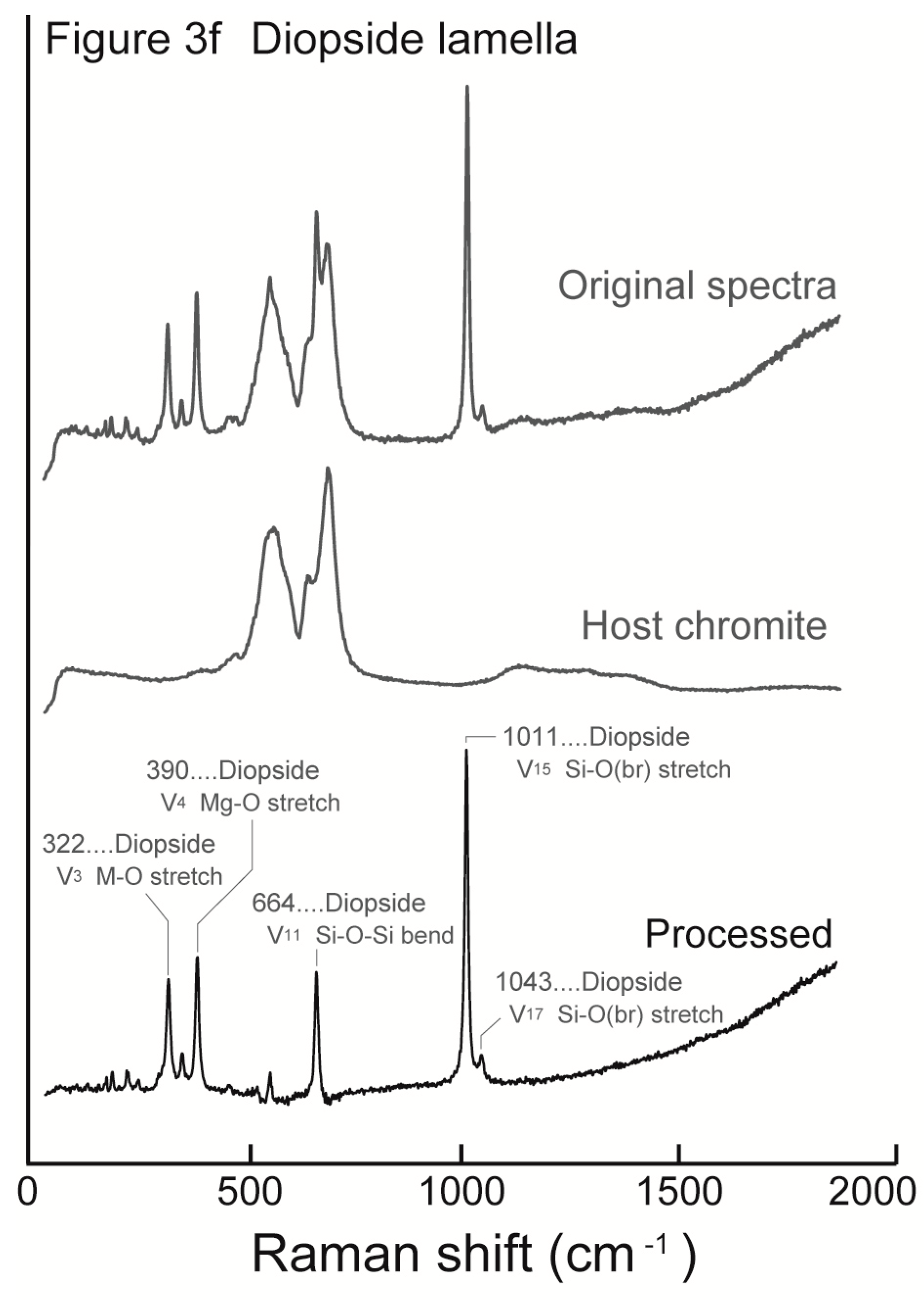

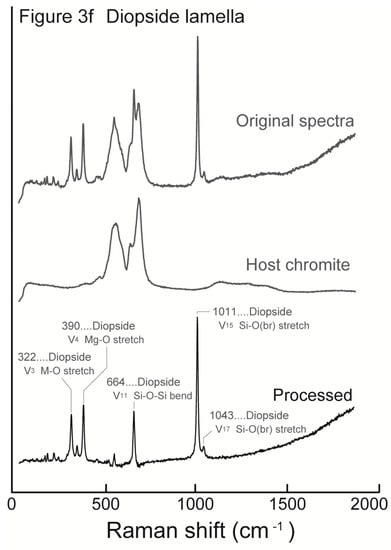

Figure 4. A typical Raman spectrum of diopside exsolution lamella in chromite from massive chromitite. Effect from host chromite was removed from the original spectrum by using LabRam Version 5 software (HORIBA) at Kanazawa University.
Figure 4. A typical Raman spectrum of diopside exsolution lamella in chromite from massive chromitite. Effect from host chromite was removed from the original spectrum by using LabRam Version 5 software (HORIBA) at Kanazawa University.
Minerals 08 00525 g004
Minerals 08 00525 g005 550

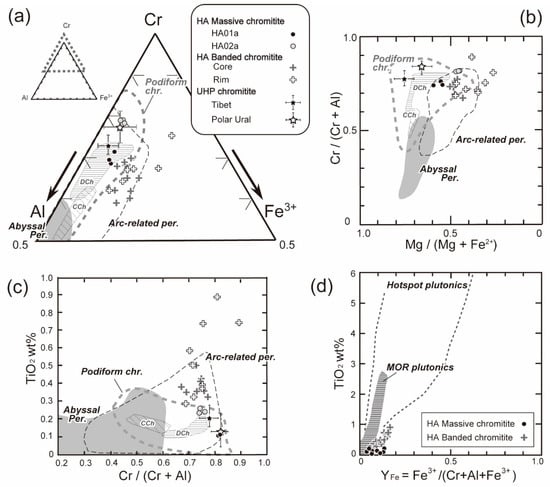

Figure 5. Chemical characteristics of chromian spinel from the Higashi akaishi chromitites and ultrahigh-pressure chromitites from Tibet and the Polar Urals. (a) Trivalent cation (Cr, Al, and Fe3+) diagrams. (b) Relationships between Mg# (Mg/(Mg + Fe2+) atomic ratio) and Cr# (Cr/(Cr + Al) atomic ratio). (c) Relationships between Cr# and Ti content in spinel. Note that rim of spinel in banded chromitite is rich in Ti. (d) Relationships between TiO2 content and Fe3+/(Cr + Al + Fe3+) atomic ratio for the HA chromitites. Fields for MOR plutonics and hot-spot plutonics are quoted from Arai et al. [23]. Compositional fields of concordant (CCh) and discordant (DCh) chromitites from Northern Oman ophiolite are plotted in (a–c) for comparison [24]. Note that spinels from the HA chromitites show a sub-arc trend.
Figure 5. Chemical characteristics of chromian spinel from the Higashi akaishi chromitites and ultrahigh-pressure chromitites from Tibet and the Polar Urals. (a) Trivalent cation (Cr, Al, and Fe3+) diagrams. (b) Relationships between Mg# (Mg/(Mg + Fe2+) atomic ratio) and Cr# (Cr/(Cr + Al) atomic ratio). (c) Relationships between Cr# and Ti content in spinel. Note that rim of spinel in banded chromitite is rich in Ti. (d) Relationships between TiO2 content and Fe3+/(Cr + Al + Fe3+) atomic ratio for the HA chromitites. Fields for MOR plutonics and hot-spot plutonics are quoted from Arai et al. [23]. Compositional fields of concordant (CCh) and discordant (DCh) chromitites from Northern Oman ophiolite are plotted in (a–c) for comparison [24]. Note that spinels from the HA chromitites show a sub-arc trend.
Minerals 08 00525 g005
Minerals 08 00525 g006 550

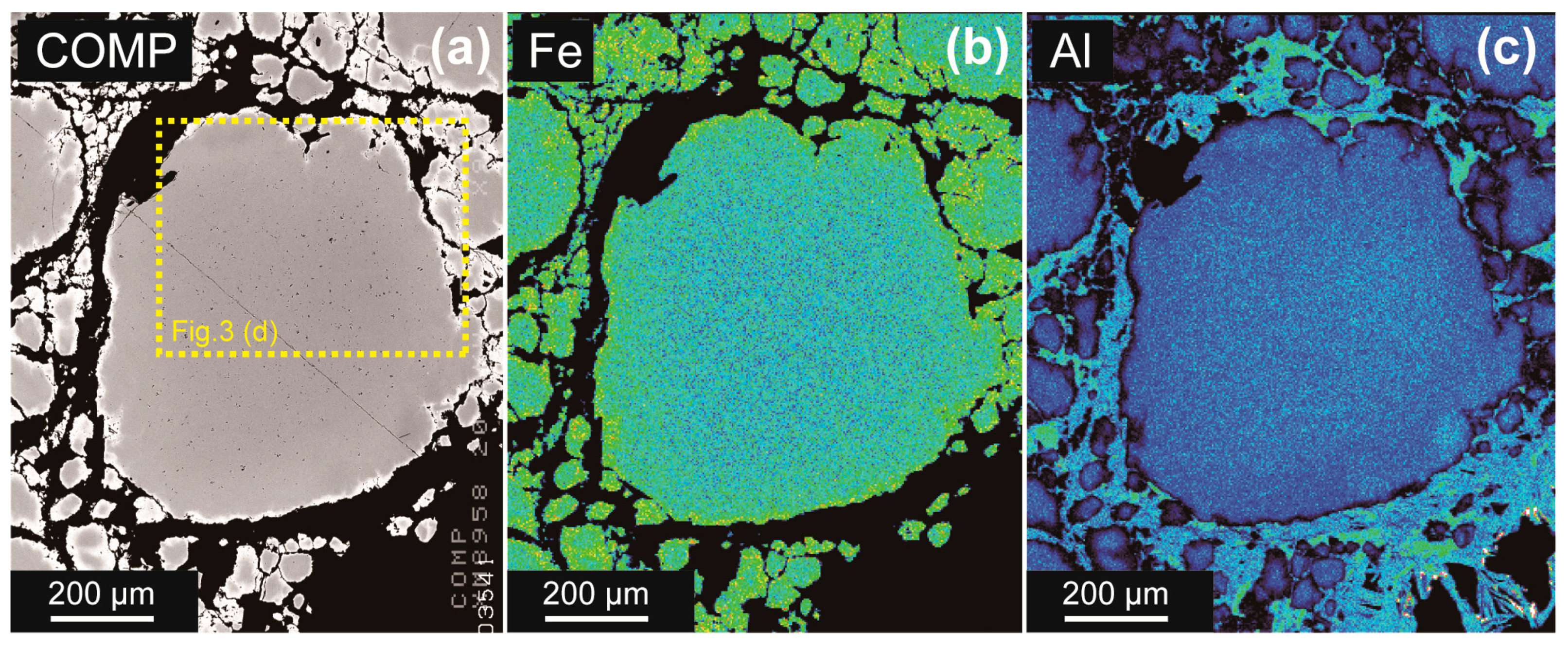

Figure 6. Backscattered electron image and elemental distribution map of a diopside lamellae-bearing spinel grain (center) in a banded chromitite sample (HC123 from sampling site 1 in Figure 1). Rim of the spinel grain shows high total Fe and slightly low Al contents relative to the core of spinel. (a) BSE image. (b) Fe distribution map. (c) Al distribution map. Al-rich mineral surrounding the spinel grain is chlorite.
Figure 6. Backscattered electron image and elemental distribution map of a diopside lamellae-bearing spinel grain (center) in a banded chromitite sample (HC123 from sampling site 1 in Figure 1). Rim of the spinel grain shows high total Fe and slightly low Al contents relative to the core of spinel. (a) BSE image. (b) Fe distribution map. (c) Al distribution map. Al-rich mineral surrounding the spinel grain is chlorite.
Minerals 08 00525 g006
Minerals 08 00525 g007 550

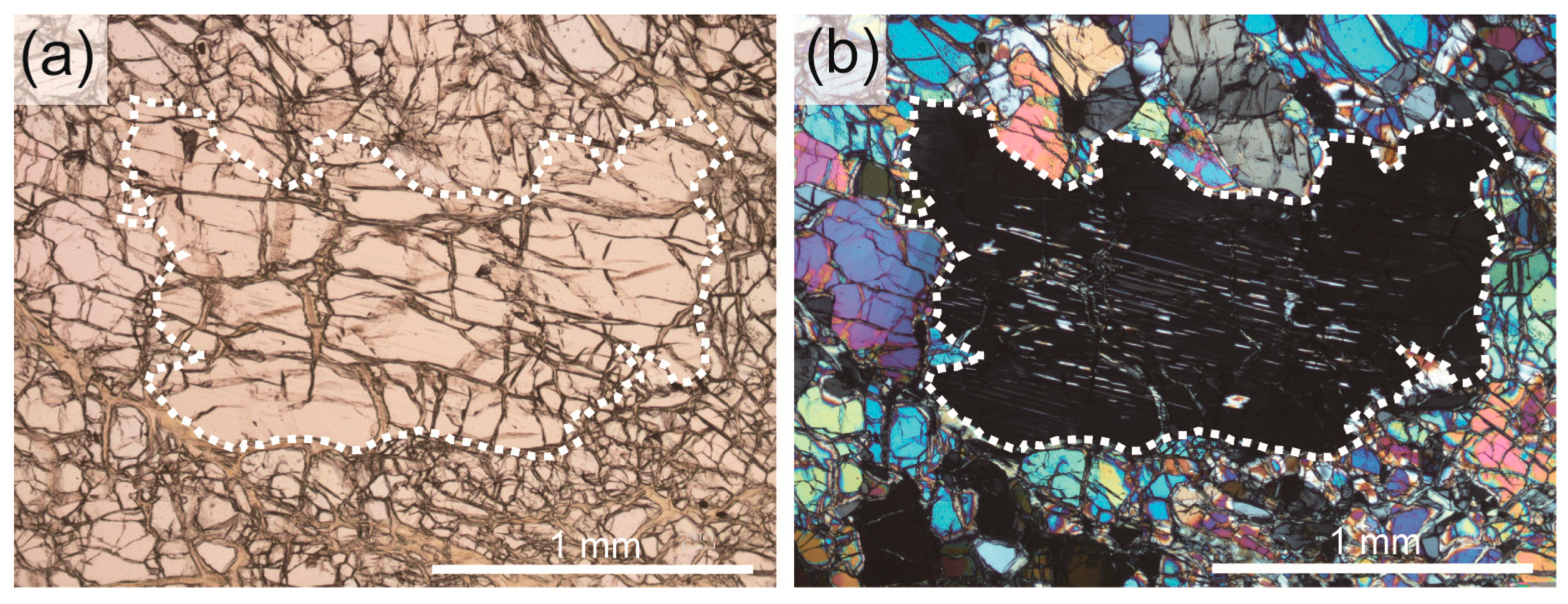

Figure 7. Photomicrographs showing a typical exsolution texture in orthopyroxene porphyroclast in mantle harzburgite (Wadi Rajmi area, northern Oman ophiolite) due to subsolidus cooling. (a) Plane-polarized image; (b) Crossed-polarized image. Note that clinopyroxene lamellae decrease in abundance towards the marginal part in the orthopyroxene grain (white dotted line). Compare with Figure 3d.
Figure 7. Photomicrographs showing a typical exsolution texture in orthopyroxene porphyroclast in mantle harzburgite (Wadi Rajmi area, northern Oman ophiolite) due to subsolidus cooling. (a) Plane-polarized image; (b) Crossed-polarized image. Note that clinopyroxene lamellae decrease in abundance towards the marginal part in the orthopyroxene grain (white dotted line). Compare with Figure 3d.
Minerals 08 00525 g007
Minerals 08 00525 g008 550

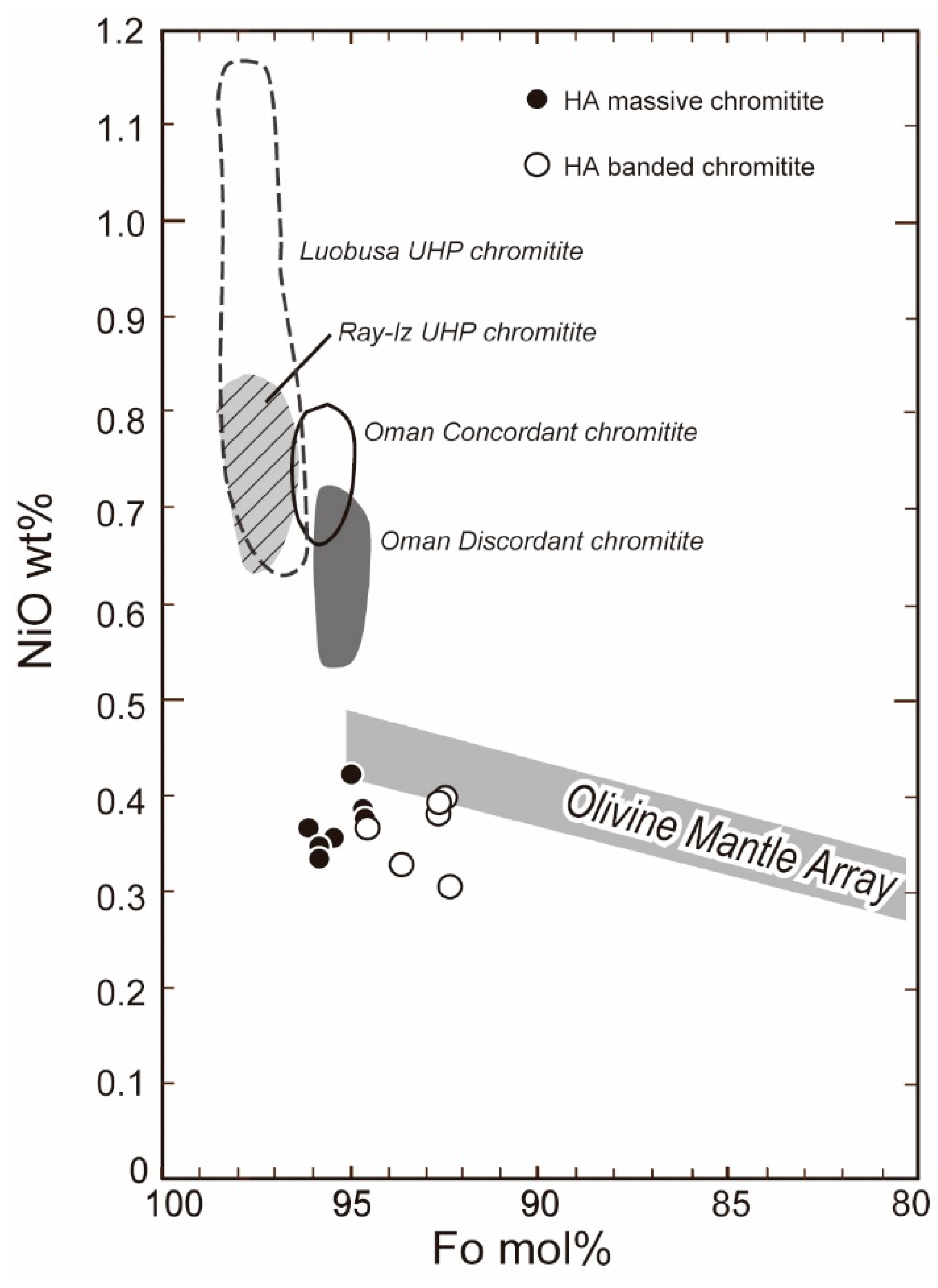

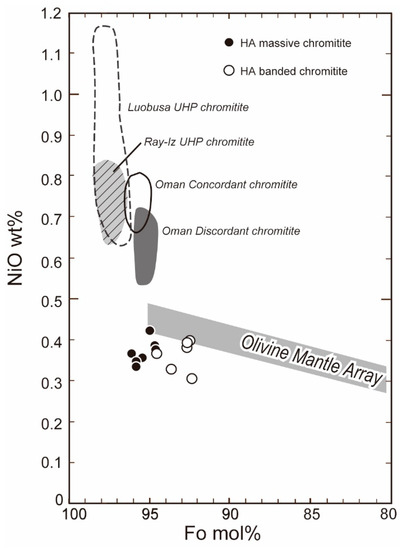

Figure 8. Relationships between Fo mol % and NiO content of olivines from the Higashi akaishi chromitites. Chemical ranges for chromitites from Oman, Tibet, and the Polar Urals, are from Arai and Miura [28]. Compositional range of Olivine Mantle Array is from Takahashi et al. [29]. Note that olivines in the HA chromitites show lower Ni contents than in podiform chromitites from Oman ophiolite. On the other hand, olivines in UHP chromitites from Tibet and the Polar Urals show extraordinary higher Ni and Mg contents than in the HA chromitites.
Figure 8. Relationships between Fo mol % and NiO content of olivines from the Higashi akaishi chromitites. Chemical ranges for chromitites from Oman, Tibet, and the Polar Urals, are from Arai and Miura [28]. Compositional range of Olivine Mantle Array is from Takahashi et al. [29]. Note that olivines in the HA chromitites show lower Ni contents than in podiform chromitites from Oman ophiolite. On the other hand, olivines in UHP chromitites from Tibet and the Polar Urals show extraordinary higher Ni and Mg contents than in the HA chromitites.
Minerals 08 00525 g008
Minerals 08 00525 g009 550

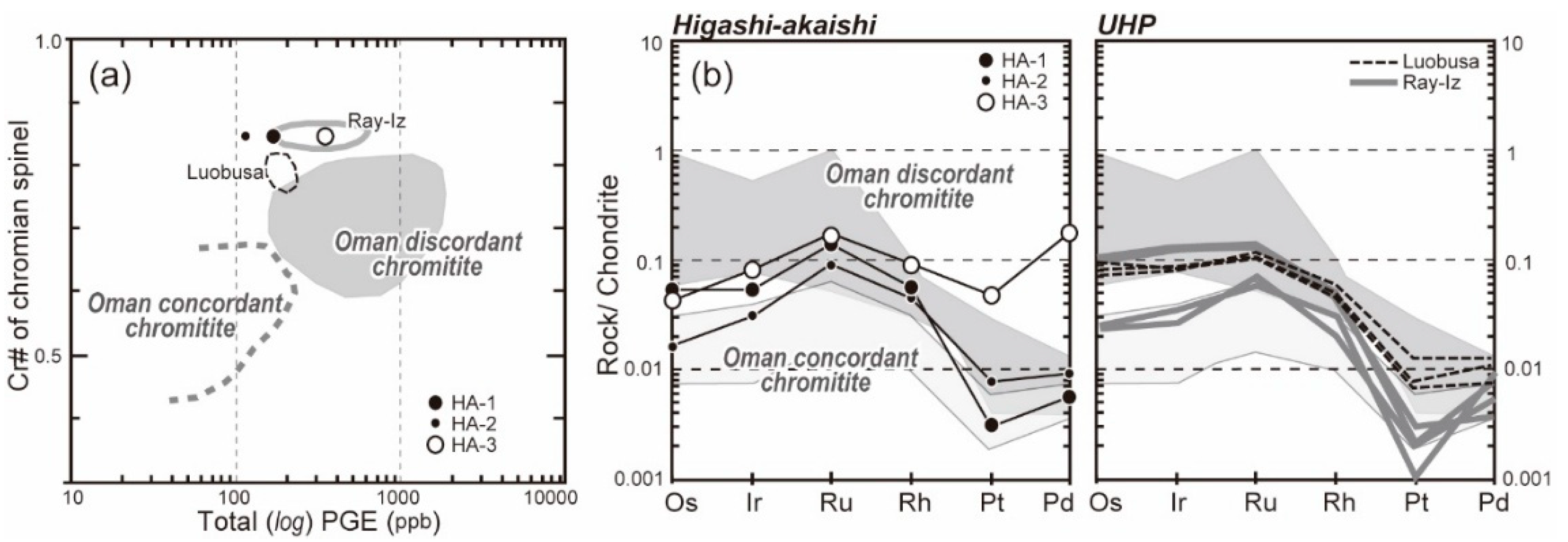

Figure 9. Bulk-rock PGE characteristics of massive chromiitte samples from the Higashi akaishi chromitite samples. Fields of chromitites from Oman were quoted from Ahmed and Arai [30] and Miura and Arai (unpublished data). Compositional fields of UHP chromitites from Tibet and the Polar Urals are shown for comparison [24]. (a) Relationships between the total bulk PGE content in chromitites and Cr# of their spinels. (b) PGE patterns of the Higashi-akaishi massive chromitites. One sample enriched in Pt and Pd is strongly hydrated at low-T conditions.
Figure 9. Bulk-rock PGE characteristics of massive chromiitte samples from the Higashi akaishi chromitite samples. Fields of chromitites from Oman were quoted from Ahmed and Arai [30] and Miura and Arai (unpublished data). Compositional fields of UHP chromitites from Tibet and the Polar Urals are shown for comparison [24]. (a) Relationships between the total bulk PGE content in chromitites and Cr# of their spinels. (b) PGE patterns of the Higashi-akaishi massive chromitites. One sample enriched in Pt and Pd is strongly hydrated at low-T conditions.
Minerals 08 00525 g009
Minerals 08 00525 g010 550

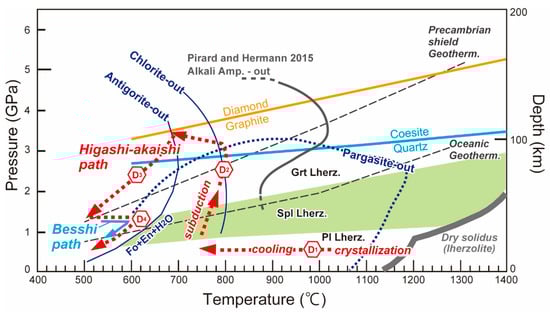

Figure 10. P-T diagram for the stability fields of minerals and facies transitions of peridotite. The P-T trajectory of the Higashi-akaishi peridotite body is from Mizukami and Wallis [27] and Hattori [28]. Geotherms, diamond-graphite and coesite-quartz transition lines are from Green and Ringwood [43], Naemura et al. [44] and Mirward and Massone [45], respectively. The pargasite stability limit was compiled from Foley [37], Fumagalli and Poli [39], Fumagalli et al. [40], Niida and Green [38], and Frost [41], and the alkali amphibole stability limit is from Pirard and Hermann [42].
Figure 10. P-T diagram for the stability fields of minerals and facies transitions of peridotite. The P-T trajectory of the Higashi-akaishi peridotite body is from Mizukami and Wallis [27] and Hattori [28]. Geotherms, diamond-graphite and coesite-quartz transition lines are from Green and Ringwood [43], Naemura et al. [44] and Mirward and Massone [45], respectively. The pargasite stability limit was compiled from Foley [37], Fumagalli and Poli [39], Fumagalli et al. [40], Niida and Green [38], and Frost [41], and the alkali amphibole stability limit is from Pirard and Hermann [42].
Minerals 08 00525 g010
Minerals 08 00525 g011 550

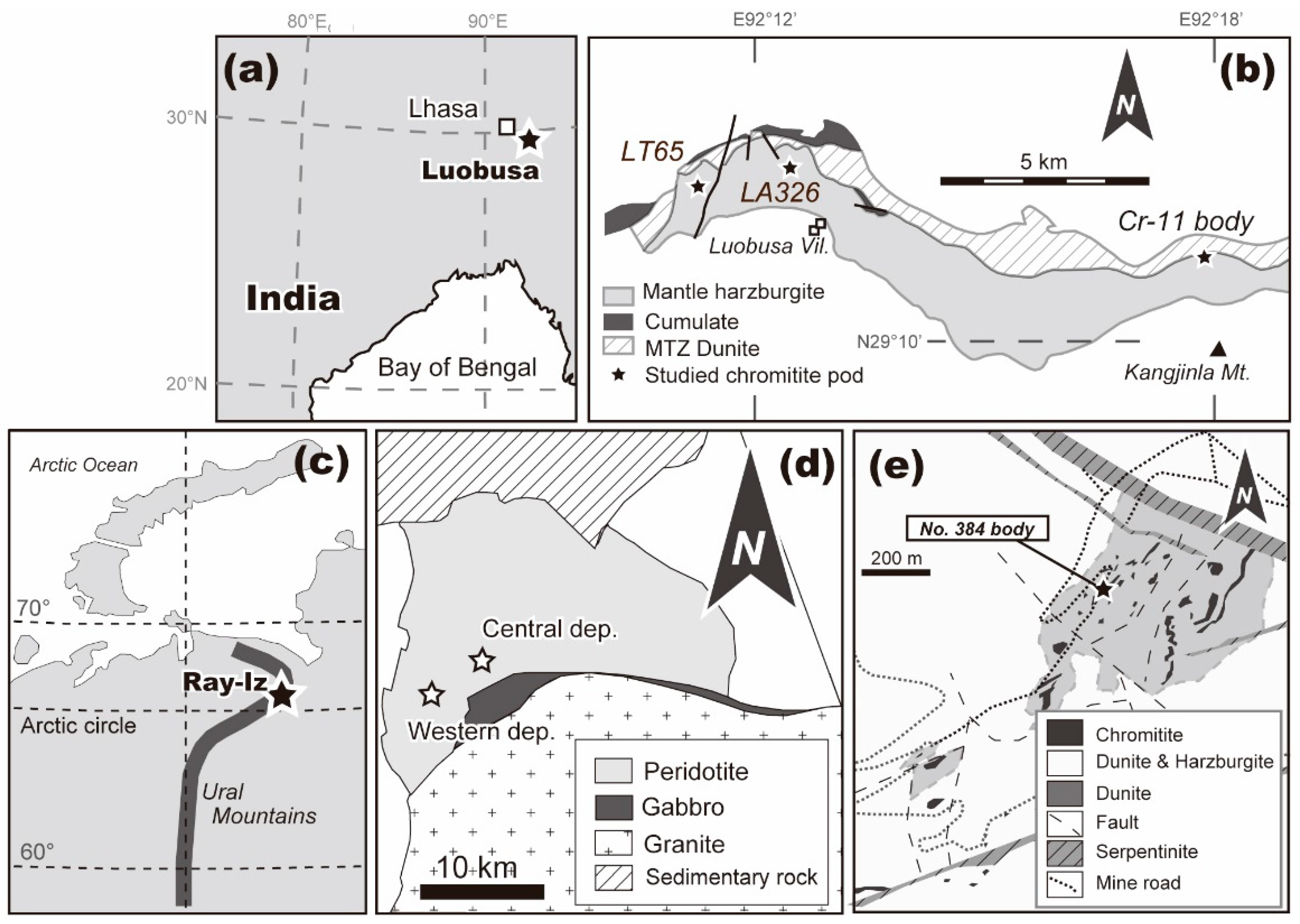

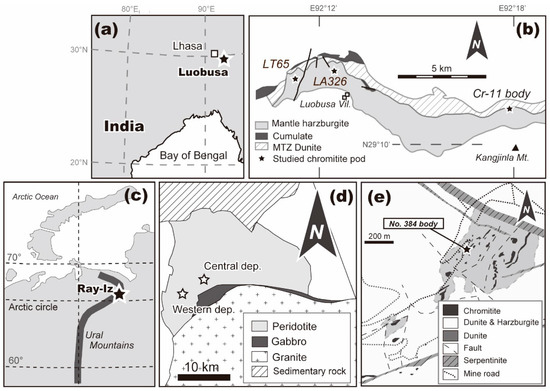

Figure 11. Locality and geological sketch maps of the Luobusa ophiolite, Tibet, and Ray-Iz ophiolite, the Polar Urals. (a) Location of the Luobusa ophiolite. (b) General geological sketch of the Luobusa ophiolite, Tibet. Modified from Zhou et al. [50] and Yamamoto et al. [9]. (c) Location of the Ray-Iz ophiolite. (d) General geological sketch of the Ray-Iz ophiolite, the Polar Urals. Modified from Shmelev [54] and Yang et al. [7]. (e) Geological sketch of the no. 384 chromitite body (diamond-bearing) in the central area of the Ray-Iz massif. Star indicates sampling locality.
Figure 11. Locality and geological sketch maps of the Luobusa ophiolite, Tibet, and Ray-Iz ophiolite, the Polar Urals. (a) Location of the Luobusa ophiolite. (b) General geological sketch of the Luobusa ophiolite, Tibet. Modified from Zhou et al. [50] and Yamamoto et al. [9]. (c) Location of the Ray-Iz ophiolite. (d) General geological sketch of the Ray-Iz ophiolite, the Polar Urals. Modified from Shmelev [54] and Yang et al. [7]. (e) Geological sketch of the no. 384 chromitite body (diamond-bearing) in the central area of the Ray-Iz massif. Star indicates sampling locality.
Minerals 08 00525 g011
Minerals 08 00525 g012 550

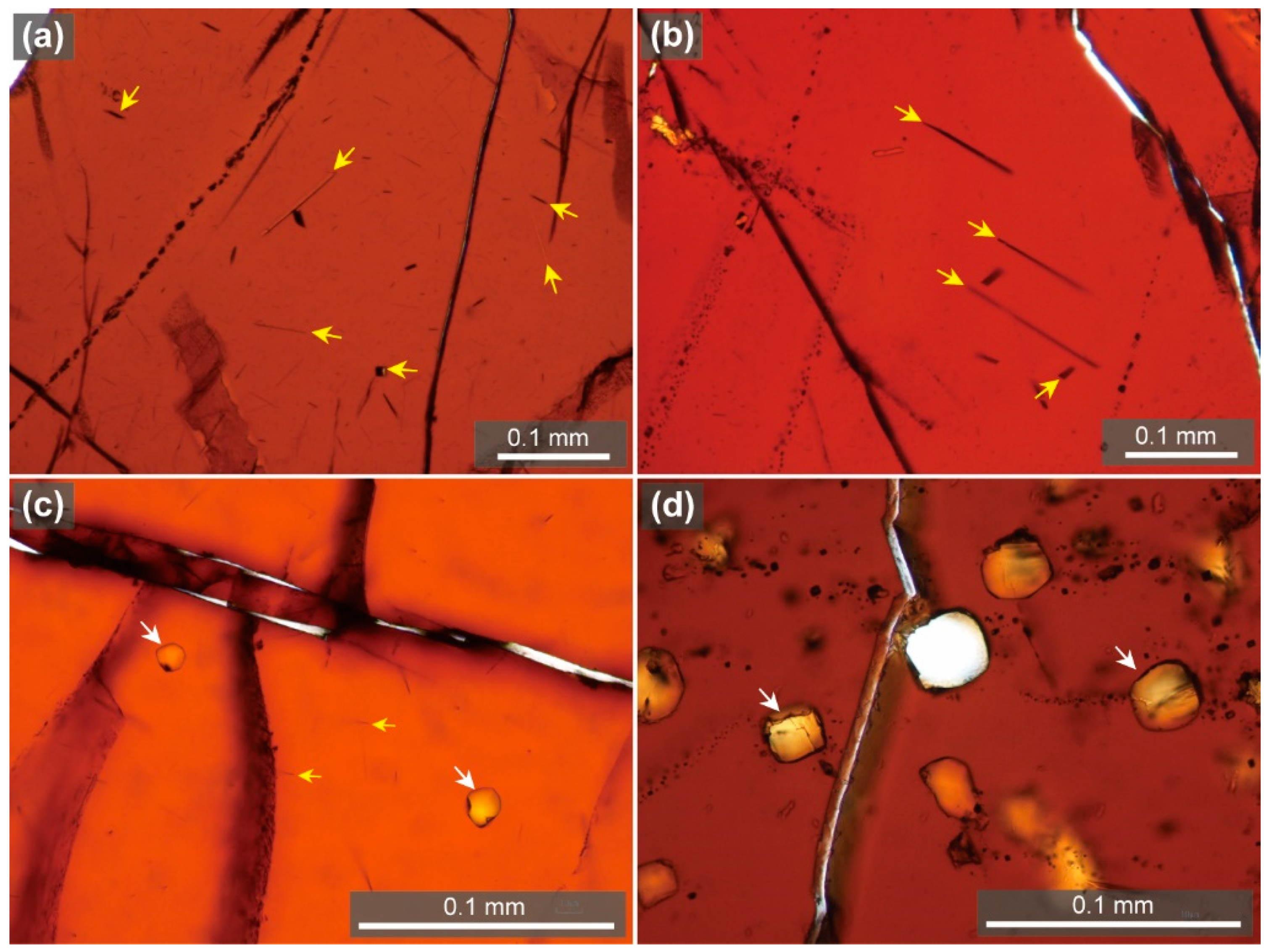

Figure 12. Photomicrographs of micro inclusions in chromian spinel from UHP chromitites from the Luobusa (a,c) and Ray-Iz (b,d) ophiolites. (a) Spinel of the chromitite (Cr-11 body) in the eastern part of the Luobusa ophiolite. Yellow arrows indicate silicate lamellae. (b) Spinel of the chromitite (no. 384 body) in the central area of the Ray-Iz ophiolite. Yellow arrows indicate silicate lamellae. (c) Spinel of the coesite and amphibole bearing chromitite (LA326) in the central part of the Luobusa ophiolite. White arrows indicate amphibole inclusions. (d) Orbicular diopside inclusions (white arrows) in spinel in a diamond-bearing UHP chromitite (no. 384). Note that amphiboles are totally absent in primary inclusions.
Figure 12. Photomicrographs of micro inclusions in chromian spinel from UHP chromitites from the Luobusa (a,c) and Ray-Iz (b,d) ophiolites. (a) Spinel of the chromitite (Cr-11 body) in the eastern part of the Luobusa ophiolite. Yellow arrows indicate silicate lamellae. (b) Spinel of the chromitite (no. 384 body) in the central area of the Ray-Iz ophiolite. Yellow arrows indicate silicate lamellae. (c) Spinel of the coesite and amphibole bearing chromitite (LA326) in the central part of the Luobusa ophiolite. White arrows indicate amphibole inclusions. (d) Orbicular diopside inclusions (white arrows) in spinel in a diamond-bearing UHP chromitite (no. 384). Note that amphiboles are totally absent in primary inclusions.
Minerals 08 00525 g012
Minerals 08 00525 g013 550
Figure 13. Catoons for genesis of the Higashi-akaishi chromitite and inclusion in chromian spinel. (a) A petrologic model for the HA peridotite body containing chromitite. The igneous formation of the protolith of HA peridotite body at Stage (a). The proto-HA peridotite body was dragged down via the subduction channel by active mantle flow in a supra-subduction zone, and experienced UHP metamorphism (Stage (b)). After the prograde metamorphism, the body experienced retrograde metamorphism due to its uplift (Stage (c)). (b) An illustration showing the evolution of primary silicate inclusions and diopside exsolution lamellae in chromian spinel during subsolidus cooling.
Figure 13. Catoons for genesis of the Higashi-akaishi chromitite and inclusion in chromian spinel. (a) A petrologic model for the HA peridotite body containing chromitite. The igneous formation of the protolith of HA peridotite body at Stage (a). The proto-HA peridotite body was dragged down via the subduction channel by active mantle flow in a supra-subduction zone, and experienced UHP metamorphism (Stage (b)). After the prograde metamorphism, the body experienced retrograde metamorphism due to its uplift (Stage (c)). (b) An illustration showing the evolution of primary silicate inclusions and diopside exsolution lamellae in chromian spinel during subsolidus cooling.
Minerals 08 00525 g013
Table
Table 1. Selected microprobe analyses of spinel and associated silicate minerals from the HA chromitites.
Table 1. Selected microprobe analyses of spinel and associated silicate minerals from the HA chromitites.
TextureMassiveBanded
MineralChr.Olv.Chl.Dio. InChl. InChr.Olv.Dio. InPar. InPhl. In
Sample No.01a-101a-602-0602-1002-05123-15123-19123-23123-14123-22
SiO2-42.4134.8855.7034.11-42.9656.1145.8841.90
TiO20.12--0.02-0.24-0.060.220.08
Al2O39.08-9.330.4812.9912.10-0.5611.7514.38
Cr2O359.95-6.621.633.6457.04-0.942.931.38
FeO*22.285.422.171.241.9020.554.551.322.371.33
MnO0.410.080.030.050.020.380.060.050.03-
MgO9.2354.0233.4217.9934.4811.7554.1718.1019.9527.56
CaO---24.39--0.0124.2912.130.10
Na2O---0.33---0.353.250.45
K2O---0.01---0.010.928.89
NiO0.030.370.210.030.220.060.350.040.090.20
Total101.09102.386.68101.8787.38102.12102.10101.8399.5196.25
Mg#0.4550.9470.9650.9630.9700.5550.9550.9610.9380.974
Cr#0.816 0.760
YCr0.787 0.721
YAl0.178 0.228
YFe3+0.035 0.051
Abbreviations are as follows: Chr., chromite; Olv., olivine; Chl., chlorite; Dio. In, diopside inclusion in chromite; Chl. In, chlorite inclusion; Par. In, pargasite inclusion; Phl. In, phlogopite inclusion. FeO*, total iron as FeO; Mg#, Mg/(Mg+Fe2+) atomic ratio; Cr#, Cr/(Al + Cr) atomic ratio; YCr, Cr/(Al + Cr + Fe3+) atomic ratio; YAl, Al/(Al + Cr + Fe3+) atomic ratio; YFe3+, Fe3+/(Al + Cr + Fe3+) atomic ratio. Horizontal line (-) means below the detection limits.
Table
Table 2. Whole-rock analyses of bulk-rock platinum group element compositions (ppb) in the HA chromitites.
Table 2. Whole-rock analyses of bulk-rock platinum group element compositions (ppb) in the HA chromitites.
SampleOsIrRuRhPtPdTotal (ppb)Pd/IrRu/Pt
HA-1282910011331740.1033.33
HA-2917678851140.298.38
HA-3234511519481043542.312.40

Share and Cite

MDPI and ACS Style

Miura, M.; Arai, S.; Mizukami, T.; Shmelev, V.R.; Ishimaru, S. Petrology of Chromitites in the Higashi-Akaishi Ultrahigh-Pressure (UHP) Peridotite Complex, Japan: Toward Understanding of General Features of the UHP Chromitites. Minerals 2018, 8, 525. https://doi.org/10.3390/min8110525

AMA Style

Miura M, Arai S, Mizukami T, Shmelev VR, Ishimaru S. Petrology of Chromitites in the Higashi-Akaishi Ultrahigh-Pressure (UHP) Peridotite Complex, Japan: Toward Understanding of General Features of the UHP Chromitites. Minerals. 2018; 8(11):525. https://doi.org/10.3390/min8110525

Chicago/Turabian Style

Miura, Makoto, Shoji Arai, Tomoyuki Mizukami, Vladimir R. Shmelev, and Satoko Ishimaru. 2018. "Petrology of Chromitites in the Higashi-Akaishi Ultrahigh-Pressure (UHP) Peridotite Complex, Japan: Toward Understanding of General Features of the UHP Chromitites" Minerals 8, no. 11: 525. https://doi.org/10.3390/min8110525

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
